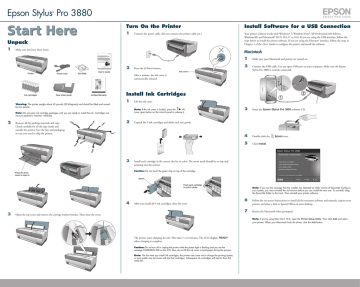

Epson Stylus Pro 3880
®
Start Here
Turn On the Printer
1
Install Software for a USB Connection
Connect the power cable. (Do not connect the printer cable yet.)
Unpack
1
Make sure you have these items:
Your printer software works with Windows® 7, Windows Vista®, XP Professional x64 Edition,
Windows XP, and Macintosh® OS X 10.4.11 to 10.6. If you are using the USB interface, follow the
steps below to install the printer software. If you are using the Ethernet® interface, follow the steps in
Chapter 1 of the User's Guide to configure the printer and install the software.
Macintosh
1
2
Printer
Ink cartridges
Power cord
Rear sheet guide
CD-ROM
Press the
2
Power button.
Ink cover
User's Guide
Make sure your Macintosh and printer are turned on.
Connect the USB cable. Use any open USB port on your computer. Make sure the Epson
Stylus Pro 3880 is securely connected.
After a minute, the ink cover is
automatically released.
Limited Warranty
arning: The printer weighs about 43 pounds (20 kilograms) and should be lifted and moved
W
by two people.
Install Ink Cartridges
1Lift the ink cover.
Note:
If the ink cover is locked, press the
Ink
cover open button on the control panel to release it.
ote: Do not open ink cartridge packages until you are ready to install the ink. Cartridges are
N
vacuum packed to maintain reliability.
2Remove all the packing materials and tape.
2
3
Insert the Epson Stylus Pro 3880 software CD.
4
Double-click the
5
Click Install.
Unpack the 9 ink cartridges and shake each one gently.
Check carefully for all the tape inside and
outside the printer. Save the box and packaging
in case you need to ship the printer.
Epson icon.
3Install each cartridge in the correct slot for its color. The arrow mark should be on top and
pointing into the printer.
Caution: Do not touch the green chip on top of the cartridge.
Press the front
cover to open it.
Arrow
Push each cartridge
in until it clicks.
4
After you install all 9 ink cartridges, close the cover.
3Open the top cover and remove the carriage retainer bracket. Then close the cover.
6
Note: If you see the message that the installer has detected an older version of EpsonNet Config on
your system, you must uninstall the old version before you can install the new one. To uninstall, drag
the EpsonNet folder to the trash. Then reinstall your printer software.
Follow the on-screen instructions to install all the necessary software and manuals, register your
printer, and place a link to Special Offers on your desktop.
7
Restart the Macintosh when prompted.
Note: If you're using Mac OS X 10.4, open the Printer Setup Utility. Then click Add and select
your printer. When your Macintosh finds the driver, click the Add button.
The printer starts charging the ink. This takes 7 or 8 minutes. The LCD displays READY
when charging is complete.
aution: Do not turn off or unplug the printer while the power light is flashing and you see the
C
message CHARGING INK on the LCD. Also, do not lift the ink cover or load paper during the process.
ote: The first time you install ink cartridges, the printer uses some ink to charge the printing system,
N
so print yields may be lower with the first cartridges. Subsequent ink cartridges will last for their full
rated life.
Epson Stylus Pro 3880
®
Start Here
Turn On the Printer
1
Install Software for a USB Connection
Connect the power cable. (Do not connect the printer cable yet.)
Unpack
1
Make sure you have these items:
Your printer software works with Windows® 7, Windows Vista®, XP Professional x64 Edition,
Windows XP, and Macintosh® OS X 10.4.11 to 10.6. If you are using the USB interface, follow the
steps below to install the printer software. If you are using the Ethernet® interface, follow the steps in
Chapter 1 of the User's Guide to configure the printer and install the software.
Macintosh
1
2
Printer
Ink cartridges
Power cord
Rear sheet guide
CD-ROM
Press the
2
Power button.
Ink cover
User's Guide
Make sure your Macintosh and printer are turned on.
Connect the USB cable. Use any open USB port on your computer. Make sure the Epson
Stylus Pro 3880 is securely connected.
After a minute, the ink cover is
automatically released.
Limited Warranty
arning: The printer weighs about 43 pounds (20 kilograms) and should be lifted and moved
W
by two people.
Install Ink Cartridges
1Lift the ink cover.
Note:
If the ink cover is locked, press the
Ink
cover open button on the control panel to release it.
ote: Do not open ink cartridge packages until you are ready to install the ink. Cartridges are
N
vacuum packed to maintain reliability.
2Remove all the packing materials and tape.
2
3
Insert the Epson Stylus Pro 3880 software CD.
4
Double-click the
5
Click Install.
Unpack the 9 ink cartridges and shake each one gently.
Check carefully for all the tape inside and
outside the printer. Save the box and packaging
in case you need to ship the printer.
Epson icon.
3Install each cartridge in the correct slot for its color. The arrow mark should be on top and
pointing into the printer.
Caution: Do not touch the green chip on top of the cartridge.
Press the front
cover to open it.
Arrow
Push each cartridge
in until it clicks.
4
After you install all 9 ink cartridges, close the cover.
3Open the top cover and remove the carriage retainer bracket. Then close the cover.
6
Note: If you see the message that the installer has detected an older version of EpsonNet Config on
your system, you must uninstall the old version before you can install the new one. To uninstall, drag
the EpsonNet folder to the trash. Then reinstall your printer software.
Follow the on-screen instructions to install all the necessary software and manuals, register your
printer, and place a link to Special Offers on your desktop.
7
Restart the Macintosh when prompted.
Note: If you're using Mac OS X 10.4, open the Printer Setup Utility. Then click Add and select
your printer. When your Macintosh finds the driver, click the Add button.
The printer starts charging the ink. This takes 7 or 8 minutes. The LCD displays READY
when charging is complete.
aution: Do not turn off or unplug the printer while the power light is flashing and you see the
C
message CHARGING INK on the LCD. Also, do not lift the ink cover or load paper during the process.
ote: The first time you install ink cartridges, the printer uses some ink to charge the printing system,
N
so print yields may be lower with the first cartridges. Subsequent ink cartridges will last for their full
rated life.
Epson Stylus Pro 3880
®
Start Here
Turn On the Printer
1
Install Software for a USB Connection
Connect the power cable. (Do not connect the printer cable yet.)
Unpack
1
Make sure you have these items:
Your printer software works with Windows® 7, Windows Vista®, XP Professional x64 Edition,
Windows XP, and Macintosh® OS X 10.4.11 to 10.6. If you are using the USB interface, follow the
steps below to install the printer software. If you are using the Ethernet® interface, follow the steps in
Chapter 1 of the User's Guide to configure the printer and install the software.
Macintosh
1
2
Printer
Ink cartridges
Power cord
Rear sheet guide
CD-ROM
Press the
2
Power button.
Ink cover
User's Guide
Make sure your Macintosh and printer are turned on.
Connect the USB cable. Use any open USB port on your computer. Make sure the Epson
Stylus Pro 3880 is securely connected.
After a minute, the ink cover is
automatically released.
Limited Warranty
arning: The printer weighs about 43 pounds (20 kilograms) and should be lifted and moved
W
by two people.
Install Ink Cartridges
1Lift the ink cover.
Note:
If the ink cover is locked, press the
Ink
cover open button on the control panel to release it.
ote: Do not open ink cartridge packages until you are ready to install the ink. Cartridges are
N
vacuum packed to maintain reliability.
2Remove all the packing materials and tape.
2
3
Insert the Epson Stylus Pro 3880 software CD.
4
Double-click the
5
Click Install.
Unpack the 9 ink cartridges and shake each one gently.
Check carefully for all the tape inside and
outside the printer. Save the box and packaging
in case you need to ship the printer.
Epson icon.
3Install each cartridge in the correct slot for its color. The arrow mark should be on top and
pointing into the printer.
Caution: Do not touch the green chip on top of the cartridge.
Press the front
cover to open it.
Arrow
Push each cartridge
in until it clicks.
4
After you install all 9 ink cartridges, close the cover.
3Open the top cover and remove the carriage retainer bracket. Then close the cover.
6
Note: If you see the message that the installer has detected an older version of EpsonNet Config on
your system, you must uninstall the old version before you can install the new one. To uninstall, drag
the EpsonNet folder to the trash. Then reinstall your printer software.
Follow the on-screen instructions to install all the necessary software and manuals, register your
printer, and place a link to Special Offers on your desktop.
7
Restart the Macintosh when prompted.
Note: If you're using Mac OS X 10.4, open the Printer Setup Utility. Then click Add and select
your printer. When your Macintosh finds the driver, click the Add button.
The printer starts charging the ink. This takes 7 or 8 minutes. The LCD displays READY
when charging is complete.
aution: Do not turn off or unplug the printer while the power light is flashing and you see the
C
message CHARGING INK on the LCD. Also, do not lift the ink cover or load paper during the process.
ote: The first time you install ink cartridges, the printer uses some ink to charge the printing system,
N
so print yields may be lower with the first cartridges. Subsequent ink cartridges will last for their full
rated life.
Windows
Load Paper
1Make sure the Epson Stylus Pro 3880 is NOT CONNECTED to your computer.
You can load paper in the auto sheet feeder, the rear manual feed slot, or the front manual feed slot.
In the front or rear slot, load just one sheet at a time. Follow the instructions below to load paper
in the auto sheet feeder or the rear manual slot. To load special media in the front slot, see the User’s
Guide.
2Slide the left edge guide to the left. Then load one sheet of
paper short edge first, glossy or brighter side face up, and slide
the left edge guide against the paper.
Note: Some paper types cannot be loaded in the auto sheet feeder. Check the User’s Guide to make sure
you are using the correct paper path for your media.
Auto Sheet Feeder
1Flip open the paper guide and pull out its extensions to accommodate
2
your paper size.
Note: If you see a Found New Hardware screen, click Cancel and disconnect the USB cable. You
can’t install your software that way.
3Gently guide the paper straight into the slot until it meets
resistance, maintaining a constant pressure; after about
3 seconds the printer will pull the paper into position.
Insert the Epson Stylus Pro 3880 software CD.
2Press the front cover to release it and open the output tray.
4Open the output tray and lift it into position. Make sure the
3
arrow marks on the tray and inside the printer are aligned.
Pull out the extensions as needed for your paper size.
With Windows 7 and Windows Vista®, if you see the AutoPlay window, click Run Setup.exe.
When you see the User Account Control screen, click Yes.
Click Install.
3Use both hands to pull out and extend the output tray, lifting
it slightly as you pull. Make sure the arrow marks on the tray and inside the
printer are aligned.
Any Questions?
Look here for answers:
User’s Guide
4
5
Follow the on-screen instructions to install all the necessary software and manuals, place a link
to Special Offers on your desktop, and register your printer.
Instructions for using your printer. See Chapter one to install the printer software if you are connecting
the printer on a network. You can also double-click the Epson Stylus Pro 3880 User Guide
desktop icon to view the User's Guide online.
Connect a USB cable. Use any open USB port on your computer.
On-screen Network Guide
4
Pull out the extensions as needed for your paper size.
Instructions for configuring the printer for a network.
On-screen help with your software
Select Help or ? when you’re using your software.
Epson Technical Support
6
Internet Support
Visit Epson’s support website at epson.com/support and select your product for solutions to
common problems. You can download drivers and documentation, get FAQs and troubleshooting
advice, or e-mail Epson with your questions.
When you’re done, click Exit and eject the CD.
5Squeeze the left edge guide and slide it to the left. Then load your
paper against the right edge guide short edge first, glossy or
brighter side face up.
Epson PreferredSM Protection Plan
Call (888) 377-6611. Make sure you have your Epson Preferred Unit ID number. If you have any
difficulty with this service, call (562) 276-1305. You can purchase a one- or two-year extended service
plan through your Epson authorized reseller or from Epson.
6Squeeze the left edge guide and slide it against the paper.
Need Ink and Paper?
Rear Manual Slot
1
For the best prints, use genuine Epson ink and paper. You can purchase them from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you
can also purchase genuine Epson ink and paper online at www.epsonstore.com (U.S. sales) or
www.epson.ca (Canadian sales).
Attach the rear sheet guide by inserting the tabs as shown.
Epson and Epson Stylus are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson
Corporation. Epson Preferred is a service mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective
owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 8/09
Printed in USA
CPD-27472
Windows
Load Paper
1Make sure the Epson Stylus Pro 3880 is NOT CONNECTED to your computer.
You can load paper in the auto sheet feeder, the rear manual feed slot, or the front manual feed slot.
In the front or rear slot, load just one sheet at a time. Follow the instructions below to load paper
in the auto sheet feeder or the rear manual slot. To load special media in the front slot, see the User’s
Guide.
2Slide the left edge guide to the left. Then load one sheet of
paper short edge first, glossy or brighter side face up, and slide
the left edge guide against the paper.
Note: Some paper types cannot be loaded in the auto sheet feeder. Check the User’s Guide to make sure
you are using the correct paper path for your media.
Auto Sheet Feeder
1Flip open the paper guide and pull out its extensions to accommodate
2
your paper size.
Note: If you see a Found New Hardware screen, click Cancel and disconnect the USB cable. You
can’t install your software that way.
3Gently guide the paper straight into the slot until it meets
resistance, maintaining a constant pressure; after about
3 seconds the printer will pull the paper into position.
Insert the Epson Stylus Pro 3880 software CD.
2Press the front cover to release it and open the output tray.
4Open the output tray and lift it into position. Make sure the
3
arrow marks on the tray and inside the printer are aligned.
Pull out the extensions as needed for your paper size.
With Windows 7 and Windows Vista®, if you see the AutoPlay window, click Run Setup.exe.
When you see the User Account Control screen, click Yes.
Click Install.
3Use both hands to pull out and extend the output tray, lifting
it slightly as you pull. Make sure the arrow marks on the tray and inside the
printer are aligned.
Any Questions?
Look here for answers:
User’s Guide
4
5
Follow the on-screen instructions to install all the necessary software and manuals, place a link
to Special Offers on your desktop, and register your printer.
Instructions for using your printer. See Chapter one to install the printer software if you are connecting
the printer on a network. You can also double-click the Epson Stylus Pro 3880 User Guide
desktop icon to view the User's Guide online.
Connect a USB cable. Use any open USB port on your computer.
On-screen Network Guide
4
Pull out the extensions as needed for your paper size.
Instructions for configuring the printer for a network.
On-screen help with your software
Select Help or ? when you’re using your software.
Epson Technical Support
6
Internet Support
Visit Epson’s support website at epson.com/support and select your product for solutions to
common problems. You can download drivers and documentation, get FAQs and troubleshooting
advice, or e-mail Epson with your questions.
When you’re done, click Exit and eject the CD.
5Squeeze the left edge guide and slide it to the left. Then load your
paper against the right edge guide short edge first, glossy or
brighter side face up.
Epson PreferredSM Protection Plan
Call (888) 377-6611. Make sure you have your Epson Preferred Unit ID number. If you have any
difficulty with this service, call (562) 276-1305. You can purchase a one- or two-year extended service
plan through your Epson authorized reseller or from Epson.
6Squeeze the left edge guide and slide it against the paper.
Need Ink and Paper?
Rear Manual Slot
1
For the best prints, use genuine Epson ink and paper. You can purchase them from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you
can also purchase genuine Epson ink and paper online at www.epsonstore.com (U.S. sales) or
www.epson.ca (Canadian sales).
Attach the rear sheet guide by inserting the tabs as shown.
Epson and Epson Stylus are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson
Corporation. Epson Preferred is a service mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective
owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 8/09
Printed in USA
CPD-27472
Windows
Load Paper
1Make sure the Epson Stylus Pro 3880 is NOT CONNECTED to your computer.
You can load paper in the auto sheet feeder, the rear manual feed slot, or the front manual feed slot.
In the front or rear slot, load just one sheet at a time. Follow the instructions below to load paper
in the auto sheet feeder or the rear manual slot. To load special media in the front slot, see the User’s
Guide.
2Slide the left edge guide to the left. Then load one sheet of
paper short edge first, glossy or brighter side face up, and slide
the left edge guide against the paper.
Note: Some paper types cannot be loaded in the auto sheet feeder. Check the User’s Guide to make sure
you are using the correct paper path for your media.
Auto Sheet Feeder
1Flip open the paper guide and pull out its extensions to accommodate
2
your paper size.
Note: If you see a Found New Hardware screen, click Cancel and disconnect the USB cable. You
can’t install your software that way.
3Gently guide the paper straight into the slot until it meets
resistance, maintaining a constant pressure; after about
3 seconds the printer will pull the paper into position.
Insert the Epson Stylus Pro 3880 software CD.
2Press the front cover to release it and open the output tray.
4Open the output tray and lift it into position. Make sure the
3
arrow marks on the tray and inside the printer are aligned.
Pull out the extensions as needed for your paper size.
With Windows 7 and Windows Vista®, if you see the AutoPlay window, click Run Setup.exe.
When you see the User Account Control screen, click Yes.
Click Install.
3Use both hands to pull out and extend the output tray, lifting
it slightly as you pull. Make sure the arrow marks on the tray and inside the
printer are aligned.
Any Questions?
Look here for answers:
User’s Guide
4
5
Follow the on-screen instructions to install all the necessary software and manuals, place a link
to Special Offers on your desktop, and register your printer.
Instructions for using your printer. See Chapter one to install the printer software if you are connecting
the printer on a network. You can also double-click the Epson Stylus Pro 3880 User Guide
desktop icon to view the User's Guide online.
Connect a USB cable. Use any open USB port on your computer.
On-screen Network Guide
4
Pull out the extensions as needed for your paper size.
Instructions for configuring the printer for a network.
On-screen help with your software
Select Help or ? when you’re using your software.
Epson Technical Support
6
Internet Support
Visit Epson’s support website at epson.com/support and select your product for solutions to
common problems. You can download drivers and documentation, get FAQs and troubleshooting
advice, or e-mail Epson with your questions.
When you’re done, click Exit and eject the CD.
5Squeeze the left edge guide and slide it to the left. Then load your
paper against the right edge guide short edge first, glossy or
brighter side face up.
Epson PreferredSM Protection Plan
Call (888) 377-6611. Make sure you have your Epson Preferred Unit ID number. If you have any
difficulty with this service, call (562) 276-1305. You can purchase a one- or two-year extended service
plan through your Epson authorized reseller or from Epson.
6Squeeze the left edge guide and slide it against the paper.
Need Ink and Paper?
Rear Manual Slot
1
For the best prints, use genuine Epson ink and paper. You can purchase them from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you
can also purchase genuine Epson ink and paper online at www.epsonstore.com (U.S. sales) or
www.epson.ca (Canadian sales).
Attach the rear sheet guide by inserting the tabs as shown.
Epson and Epson Stylus are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson
Corporation. Epson Preferred is a service mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective
owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 8/09
Printed in USA
CPD-27472
Download PDF

advertising
