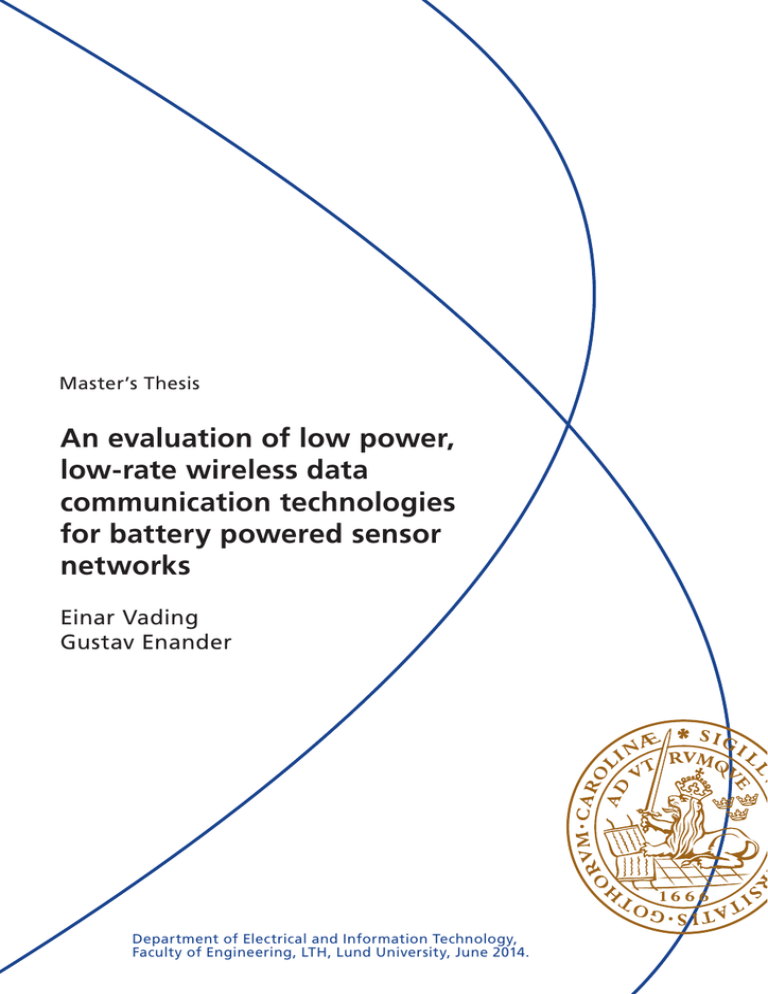

Master’s Thesis
An evaluation of low power,
low-rate wireless data
communication technologies
for battery powered sensor
networks
Einar Vading
Gustav Enander
Department of Electrical and Information Technology,
Faculty of Engineering, LTH, Lund University, June 2014.
An evaluation of low power, low-rate wireless
data communication technologies for battery
powered sensor networks
Einar Vading and Gustav Enander
Department of Electrical and Information Technology
Lund University
Advisors: Marcus Johansson (Axis), Jon Hansson (Axis) and
Stefan Höst (EIT)
June 23, 2014
Printed in Sweden
E-huset, Lund, 2014
Abstract
One major cost driver in sensor system installations is the cost of labor.
With
wireless sensors the installation cost can be lowered since no cables needs to be
routed. For the total cost of ownership to be low, however, the battery life of the
sensor must be long. A wireless sensor system is more susceptible to interference
than a wired counterpart and since the transmission is done over the air, it is easier
to intercept and possibly forge communication.
For this thesis work, a wireless
sensor prototype was developed with the aim of being both secure and low power.
We found that it was possible to achieve a battery life of at least 5 years with a
range of about
30 m
and message authentication.
i
Executive summary
I. I NTRODUCTION
Wireless sensors are becoming increasingly popular, mainly
because of simplified installation since there is no need for
laying cables. Typical wireless sensors measure temperature,
humidity, atmospheric pressure or can be used as alarm
sensors. Wireless sensor systems imply low installation costs,
especially in large systems where many sensors need to be
connected.
There are however demands on wireless sensor systems
that do not exist for wired systems. Long battery lifetime is
probably the most important demand – if there should be any
long term benefit from the simplified installation, battery life
must be long enough.
There are also security issues that do not exist for wired
systems, for example the risk of someone interfering or
jamming the wireless communication, be it deliberately or by
mistake.
The goal of this work was to develop a sensor prototype
for measuring temperature with focus on long battery lifetime,
good range and secure communication.
II. E XISTING TECHNOLOGIES
There are several technologies that are suitable for wireless
sensors. ZigBee, Bluetooth and Z-wave are examples of some,
that can be used for this type of application. These technologies include both hardware specifications for the electronics
and software for handling the wireless communication.
A common property of many wireless systems is that they
utilize license free frequency bands. There are three license
free frequency bands available in Europe, these are: 433 MHz,
868 MHz and 2.4 GHz (for example used by wireless internet,
Wi-Fi). Another feature of the existing technologies is that
as little data as possible is transferred, to minimize power
consumption.
It was decided not to use any of the existing techniques for
this prototype, and instead develop a new solution using our
own software together with a pre-fabricated radio chip. This
gave the possibility to further minimize power consumption
by tailoring the hardware and software to fit the exact needs
of the application.
III. P ROTOTYPE DESIGN
The prototype sensor works at 868 MHz, which is one of
the license free frequency bands that is available in Europe.
Similar frequency bands exist in most part of the world, for
example 915 MHz that is available in the US and can be used
without hardware modifications.
The choice of frequency is important as it directly affects the
maximum possible communication range – higher frequency
results in shorter range. The data rate is also frequency
dependent, a higher frequency results in a higher possible
data rate. Measurements and tests concluded that 868 MHz
was the best choice for this application, mainly because of the
good range. There are also regulations that limit the maximum
output power and transmission time on this frequency band
which minimizes the risk of interference from other systems.
To minimize power consumption the sensor spends most of
its time in a low-power sleep mode, consuming only about
1.3 µA. This corresponds to the energy produced by a drop
of water falling from 1 cm height! The sensor then wakes up
periodically (for example every 60 s) to announce itself. It also
wakes up for events, for example at a defined relative change
in temperature. The time in active mode is much more power
consuming than when waiting and it should therefore be kept
to a minimum.
The prototype’s main hardware consists of a microprocessor
(MCU) and a radio chip. Both the MCU and radio chip
were chosen to minimize power consumption, while still being
secure and reliable. The sensor is powered by a small button
cell battery (CR2032).
IV. V ERIFICATION
The manufactured sensor’s performance was evaluated by
measuring power consumption and maximum possible range.
Range was measured in two typical office environments, one
with a majority of gypsum walls and the other with a majority
of thick concrete walls.
V. R ESULTS AND CONCLUSIONS
Results conclude that the manufactured prototype sensor is
working well and should be able to reach a battery lifetime of
about 5 years.
The choice of MCU and radio chip is very important for
maximizing battery lifetime. Making the software as efficient
as possible in order to minimize the power consuming active
time is also crucial.
Maximum indoor range is highly dependent of the environment. Tests show that concrete walls result in much
higher attenuation of the radio signal and thus a much shorter
achievable range. A maximum range of 20 m to 30 m is
however possible in most indoor locations.
The developed security solution makes it impossible to send
fake messages. Thanks to the sensor’s function of announcing
itself every 60 s, any attempt to jam the data communication
will be discovered.
This work concludes that wireless sensors are a good
alternative to wired sensors. Microcontrollers and radio chips
are being further developed, which can provide even better
battery lifetime. Other technologies such as energy harvesting,
for example by using solar cells, could also be used for further
extending battery lifetime.
Acknowledgements
We would like to thank our supervisors Marcus Johansson and Jon Hansson at
Axis Communications who both provided us with great support and a great deal
of inspiration. We would also like to thank our examiner Stefan Höst at LTH who
has given us new perspectives for this thesis as well as help with administrative
details. A big thanks also goes out to all the employees at Axis that have helped
us and answered all our questions.
iii
iv
Table of Contents
1 Introduction
1
1.1
Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1.2
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2 Theory
3
2.1
Multiple access methods . . . . . . . . . . . . . . . . . . . . . . . .
3
2.2
Modulation techniques . . . . . . . . . . . . . . . . . . . . . . . . .
4
2.3
IEEE 802.15.4
5
2.4
Bluetooth Low Energy
2.5
ZigBee
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
2.6
Z-Wave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
2.7
DASH7
2.8
Proprietary
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Evaluation
9
10
11
3.1
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
3.2
Frequency bands
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
3.3
Evaluation results . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
4 Prototype design
17
4.1
Hardware design
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
4.2
Software design . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
5 Verication
29
6 Results
31
6.1
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
6.2
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
7 Discussion
37
7.1
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
7.2
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
7.3
Open issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
7.4
Summary
39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
v
References
41
A Schematic
45
B PCB layout
49
vi
List of Figures
2.1
Network topologies in IEEE 802.15.4 with star topology on the left and
peer to peer topology on the right. Dashed circles represent reduced
function devices and stroked circles represent full function devices.
2.2
.
6
ZigBee mesh network with ZigBee Endpoints, dashed circles, ZigBee
Routers, smaller unbroken circles, and ZigBee Coordinator, larger thick
circle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
Probability of collision during a communication event as a function of
the number of sensors, 0100 sensors.
3.2
. . . . . . . . . . . . . . . .
15
Probability of collision during a communication event as a function of
the number of sensors, 010000 sensors.
4.1
8
. . . . . . . . . . . . . . .
15
Overview of the complete system with A1001 access controller on the
far left. The A1001 is communicating with a microcontroller which in
turn handles the communication with all the sensors via radio.
. . .
17
4.2
Silicon Labs EFM32 Zero Gecko, bottom (left) and top (right).
. . .
18
4.3
Anaren radio modules.
. . . . . . . . . . . . . . . . . . . . . . . . .
21
4.4
CR2032 lithium battery.
. . . . . . . . . . . . . . . . . . . . . . . .
22
4.5
Sensor hardware, radio module and MCU. . . . . . . . . . . . . . . .
23
4.6
Packet description
. . . . . . . . . . . . . . . . . . . . . . . . . . .
28
6.1
Current consumption when transmitting a packet at 0 dBm. . . . . .
32
6.2
Current consumption when transmitting a packet at +10 dBm.
32
6.3
Current consumption when transmitting a packet and receiving an ack
. . .
at 0 dBm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4
Current consumption when transmitting a packet and receiving an ack
at +10 dBm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5
33
33
Floor plan of the worst case test environment, a basement in the
LTH E-building. Dashed lines represent gypsum walls, solid lines are
concrete. A is the hub, 1-16 are sensor positions. All measurements
are in meters. Doors are wood and glass.
6.6
. . . . . . . . . . . . . . .
35
Floor plan of the best case test environment, inside an oce building.
All walls are made of gypsum. A is the hub, 1-16 are sensor positions.
All measurements are in meters. Doors are glass only.
vii
. . . . . . . .
36
A.1
Schematic sheet detailing decoupling and power and the radio module
. . . . . . . . . . . . . . . . . . . . . . . . . .
46
A.2
Schematic sheet detailing EFM32ZG110F32 I/O. . . . . . . . . . . .
47
A.3
Schematic sheet detailing switch and programming interface.
. . . .
48
communication bus.
B.1
PCB top side, dimensions in mm.
. . . . . . . . . . . . . . . . . . .
49
B.2
PCB bottom side, dimensions in mm. . . . . . . . . . . . . . . . . .
50
viii
List of Tables
3.1
LTE frequency blocks in the 800 MHz band . . . . . . . . . . . . . .
12
4.1
Comparison of 868 MHz transceiver chips . . . . . . . . . . . . . . .
20
6.1
Energy consumption by speed for transmissions with ack as well as
transmissions with no ack at
0 dBm
and +10 dBm. All energy values
3 V. . . . . . . . .
10 dBm transmit power
are calculated using a nominal voltage of
6.2
Line of sight range for
0 dBm
and
. . . . .
10 kbps.
10 dBm trans-
integral antenna and B, quarter wavelength whip antenna at
6.3
Received Signal Strength by location for
0 dBm
and
34
with A,
34
mit power with A, integral antenna and B, quarter wavelength whip
antenna at
6.4
10 kbps.
. . . . . . . . . . . . . . . . . . . . . . . . . .
Received Signal Strength by location for
0 dBm
and
10 dBm
35
trans-
mit power with A, integral antenna and B, quarter wavelength whip
antenna at
10 kbps.
. . . . . . . . . . . . . . . . . . . . . . . . . .
ix
36
x
Chapter
1
Introduction
1.1 Background
There are many dierent technologies for transmitting data using radio, such as
Bluetooth, ZigBee, Z-Wave, Wi-Fi etc.
This thesis project will specify the requirements for a suitable data link for battery powered sensor nodes communicating to a central node. Dierent technologies
will be evaluated with respect to the requirements and an appropriate technology
chosen.
A prototype using the chosen technology will then be designed, man-
ufactured and evaluated.
Focus will be on the parameters energy consumption
(battery lifetime), range, cost and data integrity.
One possible use of wireless sensors could be supervision of shipping containers. By collecting temperature and/or humidity data, perishable goods could be
supervised and an alarm could be raised in the event that the environment changes.
In those cases it could be of interest to verify that the data is correct to make the
system less susceptible to sabotage.
The end goal of this thesis is to interface the sensors to an existing Axis product
and since the New Business division of Axis works extensively with the A1001
access controller it was chosen as a platform for experimentation. Transferring the
results to any other Axis product that runs on the same platform should be simple
and straight forward.
1.2 Specications
In this section the requirements for the sensor's communication link will be specied. The specications are not absolute but more of guidelines as to what kind
of performance that is desired. The security specications are especially loose and
depend a lot on the intended use case of the sensor.
1.2.1 Battery lifetime
To ensure low maintenance costs it is desirable to maximize battery life.
An
arbitrary goal of ve years is thought to be reasonable while down to three years
can be acceptable. Five years implies an average current draw of
single
250 mAh
coin cell battery.
1
5.7 µA
using a
2
Introduction
1.2.2 Range
Since each inexpensive sensor will communicate with a more expensive base station
it is desirable that each base station is within range of a "reasonable" number of
sensors while still limiting sensor output power and with that, power consumption.
Here, a "reasonable" number is taken to mean enough sensors as to make the
overall installation cost low while still limiting the number of sensors so that the
frequency band is not over utilized. Since the application is not known, this range
is arbitrarily taken to be
20 m
to
30 m
in an indoor environment.
1.2.3 Security
The chosen technology should be insensitive to frequency band congestion and
deliberate attacks, such as man-in-the-middle. It is desirable that a sensor node
is able to announce itself to the main unit at regular intervals so that interference
can be detected. The sensor node should also be able to sign any data originating
from it to make it harder for a hypothetical attacker to replay captured frames
and thereby being able to manipulate the main unit.
1.2.4 Data
The amount of data that is to be transmitted will be low. For a typical sensor only
state changes and heartbeats are absolutely necessary. Low battery indication and
transmitted signal level are features that can be used to improve usability of the
device.
1.2.5 Usability
If the sensors need to be paired with the base station, the pairing should be easy
and intuitive for the operator. It should not be necessary to repeat the pairing
after a power outage, whether it occurs at the sensor or at the base station.
If possible an open standard is desirable, making the system easier to extend
for end users.
1.2.6 Production eort
The chosen technology should be legal to use worldwide with no or minor modications to the hardware. The sensor should also be inexpensive to manufacture,
meaning that part count and complexity should be kept low.
Chapter
2
Theory
There are a large number of standards for wireless communication in existence
today. This chapter will briey describe some of the standards that may be suitable
for wireless sensor networks. A common property of these standards is that they
are designed for low power operation. To achieve this goal all standards use cyclic
sleep schemes and send as small amounts of data as possible, thus minimizing the
most current consuming awake time.
A brief explanation of channel access methods and modulation techniques
used by these wireless standards is also presented. A more thorough presentation
of these methods and techniques can be found in e.g.
Digital Communications
by
J. Proakis [1].
2.1 Multiple access methods
When several devices need to share the same medium, i.e.
the same frequency
band, there needs to be some way for them to handle possible collisions. These
techniques go by the collective name media access control and come in various complexities. In this section two of the more common media access control
methods will be presented.
2.1.1 ALOHA
When using ALOHA the device sends whenever it likes without rst sensing the
shared medium. If no ack is received within a time-out period the device waits a
random amount of time and tries again. ALOHA is hence used for lightly loaded
networks where the risk of collision is low [2].
The probability
p
of a successful transmission when using ALOHA can be
calculated using
p = e−2G
where
G
is the number of transmission attempts per frame-time (i.e.
needed to send one frame).
3
(2.1)
the time
4
Theory
2.1.2 Carrier Sense Multiple Access
Carrier Sense Multiple Access (CSMA) is a method where the shared medium is
sensed by the transmitter before attempting to use it, listen before talk, thereby
reducing the risk of collision. If the shared medium, in this case the radio channel,
is occupied the device waits a random time before it tries to access the medium
again. The method is suitable for networks where the shared medium is heavily
loaded and the risk of collisions is high.
CSMA can be improved by adding Collision Detection (CSMA/CD) or Collision Avoidance (CSMA/CA) which further increases the chance of a successful
transmission.
2.2 Modulation techniques
This is a brief description of some modulation techniques, i.e. methods to encode
an analog radio carrier to transmit a digital signal. A more thorough presentation
of these techniques can be found in
Digital Communications
by J. Proakis [1].
2.2.1 Frequency Shift Keying (FSK)
Frequency Shift Keying (FSK) is a technique for encoding data by modulating
the frequency of the carrier while the amplitude and phase of the carrier are kept
constant.
Binary Frequency Shift Keying (BFSK)
BFSK uses two dierent frequencies, one to represent 0 and one to represent 1. A
frequency
frequency
fd is added to or subtracted from the carrier frequency fc . The resulting
fc + fd will represent one of 0/1 and fc − fd will represent the other.
Gaussian Frequency Shift Keying (GFSK)
GFSK uses the same principle as BFSK with the extension that it utilizes a Gaussian lter to smooth the transitions between the two dierent carrier frequencies.
First the frequency is modulated using discrete frequency steps, then the resulting
modulated frequency is low-pass ltered using a Gaussian lter.
That way, the
transitions between the two frequencies becomes smoother, resulting in a signal
that has a narrower spectral band since the high frequency content of the discrete
frequency steps is ltered out. The smooth frequency changes also consume less
power and allow the use of cheaper electronics since the unwanted out of band
emissions are lowered [3].
2.2.2 Phase Shift Keying (PSK)
The phase of the carrier can be modulated to represent two or more dierent
data elements. The amplitude and frequency of the carrier are kept constant. The
simplest PSK method is binary PSK (BPSK) where one data element is represented
by
0◦
phase shift and the other is represented by
180◦
phase shift.
Theory
5
Quadrature Phase Shift Keying (QPSK)
QPSK uses two separate BPSK modulators; one in phase and the other
of phase (quadrature).
out
Two bits from the original signal are sent to the BPSK
modulators and the results are added.
possible phases:
90◦
45◦ , −45◦ , 135◦
and
This results in a signal that has four
−135◦ .
Hence every phase shift represents a
combination of two bits, and the baud rate can be lowered while maintaining the
same bitrate.
2.2.3 Spread Spectrum
Spread spectrum is a method to let many users share a single channel. It can also
give some protection against jamming signals, eavesdropping, and interference
from other stations.
Spread spectrum expands the bandwidth of the original signal to enable more
users to share the same spectrum at the same time. The expansion is achieved
using pseudo-random spreading codes that are identical at the transmitting and
receiving ends of each user, but where the codes of the dierent users are orthogonal to each other. Given the orthogonal spreading codes, two signals can share
the same spectrum and then be decoded at their respective receiving ends without
interfering with each other. The orthogonality and randomness of the code will
make signals that are spread with dierent codes look like noise with equal intensity over the entire spectrum, while signals spread with the same code will look
like a single well dened frequency component. There are several techniques for
spreading the bandwidth, two of the more common being Direct Sequence Spread
Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS) [2].
Direct Sequence Spread Spectrum (DSSS)
DSSS spreads the original signal by replacing each data bit with a sequence of
n
bits. The sequence is determined by modulating the original signal with a pseudorandom generated spreading code. The required bandwidth of the signal will be
n
times the original signal bandwidth [2].
Frequency Hopping Spread Spectrum (FHSS)
FHSS has a dierent approach;
n
dierent carrier frequencies are used and mod-
ulated by the signal. The carriers are modulated one at a time in an order determined by a pseudo-random sequence. This way, the bandwidth of the original
signal is spread to the total bandwidth of the
n
carrier frequencies [2].
2.3 IEEE 802.15.4
IEEE 802.15.4 is a standard that denes the physical and MAC (media access
control) layers in the OSI-model for low-rate wireless personal area networks (LRWPANs).
IEEE 802.15.4 is designed to be used for simple, reliable, low-cost
communication networks with low power consumption (i.e. battery powered devices).
6
Theory
The physical layers support a variety of frequency bands, for example:
•
868868.6 MHz (Europe, 1 channel,
•
902928 MHz (US, 10 channels,
•
24002483.5 MHz (Worldwide, 16 channels,
The
868 MHz
and
902 MHz
20 kbps)
30 kbps)
250 kbps)
bands use BFSK and DSSS. The
2.4 GHz
band
uses QPSK and DSSS.
Networks using 802.15.4 can operate using two dierent topologies; star topology or peer-to-peer topology (Figure 2.1). Using star topology all nodes communicate through a central node, called a PAN (Personal Area Network) coordinator.
In the peer-to-peer topology all nodes can communicate directly to another node
as long as it is within range.
The peer-to-peer topology can be used to create
advanced network structures, such as large cluster-tree networks.
Nodes can either be Full Function Devices (FFD) or Reduced Function Devices
(RFD). FFDs are typically mains powered and have the capability to route trac
between nodes.
RFDs are simple, battery powered end point devices that does not need to
transfer large amounts of data, e.g.
a simple switch or sensor.
RFDs cannot
route trac between nodes. IEEE 802.15.4 can be congured to use CSMA/CA
or ALOHA for multiple access [4].
Figure 2.1:
Network topologies in IEEE 802.15.4 with star topology
on the left and peer to peer topology on the right.
Dashed
circles represent reduced function devices and stroked circles
represent full function devices.
Theory
7
2.4 Bluetooth Low Energy
Bluetooth Low Energy (BLE) is a technology designed for low-power, short-range
wireless communication. BLE uses the
and
2 MHz
2.4 GHz
frequency band with 40 channels
channel spacing. Three of the channels are advertising channels that
are used for device discovery, connection establishment and broadcast transmission. The remaining 37 channels are used by connected devices for node-to-node
communication [5].
To avoid interference BLE uses adaptive Frequency Hopping Spread Spectrum
(FHSS), in which a new channel is used for every new data event. Channels where
there is a lot of interference can dynamically be excluded from the hopping scheme.
The modulation technique used is Gaussian Frequency Shift Keying (GFSK).
A BLE node can either be a master or a slave.
A network containing one
master and a number of slaves is called a piconet, a type of star topology. A node
can only belong to one piconet [6].
The range of BLE is usually some tens of meters.
throughput is
236.7 kbps
Maximum theoretical
[5].
2.4.1 Security
BLE relies on CCM (Counter with Cipher Block Chaining Message Authentication
Code) for both encryption and signing on the Link Layer [7]. CCM is proven to be
secure given that the underlying block cipher is secure [8]. For BLE the underlying
cipher is AES-128 which is considered safe enough to be used by U.S. American
federal agencies to protect sensitive data [9], something that testies to its security.
To exchange keys used for encryption and authentication Bluetooth devices
needs to be paired to each other. BLE supports three dierent ways of pairing
devices:
JW (Just Works), PE (Passkey Entry) and OoB (Out of Band).
Of
these three so called association models only OoB provides protection against
both eavesdropping and Man In The Middle (MITM )attacks and only if the OoB
method provides protection in itself. If no attacker is present during pairing using
either JW or PE, the following communication can be safely encrypted and thereby
secured against eavesdropping [7].
2.5 ZigBee
ZigBee is a wireless communications standard that is built upon the original (2003)
release of the IEEE 802.15.4 specication. It aims to be a reliable, cost-eective,
low-power and secure standard [10].
The IEEE 802.15.4 standard (as of 2003, which ZigBee uses) has two physical
layers: one for the
868/915 MHz frequency band and one for the 2.4 GHz frequency
band. ZigBee builds upon this and provides the higher network and application
layers.
One of the key features of ZigBee is the support for mesh networks. A typical
ZigBee mesh network can be seen in Figure 2.2. ZigBee does not use the terms
FFDs and RFDs to describe nodes.
Instead the nodes can be either a ZigBee
8
Theory
Endpoint (ZED), a ZigBee Router (ZR) or a ZigBee Coordinator (ZC). A network
can contain only one coordinator but can contain several routers and endpoints.
Coordinators are responsible for forming the network and setting up routing
tables. A router's main function is simply to route trac between nodes. Coordinators and routers needs to be awake most of the time and are because of this
often mains powered.
Endpoints cannot route trac and only communicate with their parents, i.e.
a router or coordinator. They are generally low-power, due to the fact that they
sleep most of the time, and often battery powered. The maximum range is about
100 m
line-of-sight [6].
Figure 2.2:
ZigBee mesh network with ZigBee Endpoints, dashed
circles, ZigBee Routers, smaller unbroken circles, and ZigBee
Coordinator, larger thick circle.
2.5.1 Security
ZigBee uses a similar scheme for encryption to Bluetooth called CCM*. CCM*
is an extension to CCM that besides supporting authentication with possible encryption, like CCM, it also supports encryption only.
ZigBee encryption and
authentication takes place on the Network Layer instead of, as for Bluetooth, on
the Link Layer. Both ZigBee and Bluetooth architectures diverge from the wellknown OSI-model however and it is therefore not possible to precisely detail what
the equivalent OSI layer is. Similar to Bluetooth the underlying block cipher is
AES-128 which, for the chosen cipher at least, gives the same level of safety.
ZigBee has capabilities to distribute keys used for encryption and signing of
data transmissions.
Depending on the chosen method for key distribution the
connection can be more or less secure.
Again, like Bluetooth, ZigBee has the
Theory
9
option to distribute keys OoB making its transfers as secure as the chosen OoB
method permits [10].
2.6 Z-Wave
Z-Wave is a wireless communications protocol specication operating at
(Europe) and
908 MHz
868 MHz
(US). To avoid interference CSMA/CA is used. The used
modulation technique is Binary Frequency Shift Keying (BFSK). Allowed data
rates are
9.6 kbps
and
40 kbps.
Devices can be of two types; controllers and slaves.
A Z-Wave network is
typically a mesh network with up to 4 hops, containing one controller and several
slaves. The controller keeps a routing table for the nodes in the network. Slaves
may act as routers but generally do not if they are battery powered. The protocol
has support for automatic re-routing if a node should disappear from the network
[11], [12].
2.6.1 Security
Unlike Bluetooth and ZigBee, Z-Wave is a proprietary technology. This makes it
harder to analyze the security any further but one report outlines a method to
exploit a vulnerability in the implementation of the Z-Wave protocol in a commercially available door lock [11]. Implementation vulnerabilities can aect any
technology though and should be a concern with all the other evaluated technologies as well.
2.7 DASH7
The DASH7 Alliance protocol (D7A) is an evolving standard for wireless communication in the
433 MHz
band. It is based on the IS0/EIC 18000-7 standard and
uses CSMA/CA for channel access and BFSK for modulation.
Four device types are dened in the D7A standard; blinker, endpoint, gateway
and subcontroller. A blinker is the simplest type of device that can only transmit
data and does not use a receiver. Endpoint devices can both receive and transmit
data.
They are typically battery operated low power devices that periodically
wake up to send and receive data.
has a receiver that always is on.
Gateways are the only type of device that
They have support for all D7A features and
are generally used to connect networks.
features, but is not always awake.
A subcontroller also supports all D7A
It wakes up periodically to send and receive
data [13].
Thanks to the low frequency used, D7A devices can reach a range of up to
1 km. The data rate
433 MHz band [14].
is limited to
28 kbps
because of the low bandwidth in the
10
Theory
2.7.1 Security
The DASH7 Protocol Specication does not mention anything more about security
other than that security features will be implemented in future revisions of the
specication [13].
2.8 Proprietary
There exist several proprietary RF technologies from vendors like Texas Instruments, Nordic Semiconductor, Microchip and others. To do a full survey of all the
dierent RF technologies from the various vendors is not feasible within the scope
of this thesis project, therefore "proprietary" is taken to mean any technology that
is developed in-house at Axis Communications.
Chapter
3
Evaluation
To gain a better understanding of which technologies that should be incorporated
in the prototype, an eort was made to characterize the dierent frequency bands
that are available. Both with respect to legal issues and with respect to properties
such as range and penetration capability.
In this chapter these issues will be
investigated.
3.1 Range
The two most important parameters that aect range are frequency and transmitted power. Friis transmission formula (eq. 3.1) expresses the relation between
received power (PR ), transmitted power (PT ), gain of the antennas (GT and
GR ),
wavelength (λ) and range (r ) [15]. Eq. 3.1 assumes that the antennas are matched
and have aligned polarizations.
PR =
PT GT GR λ2
(4πr)2
(3.1)
Eq. 3.1 shows that longer wavelengths, i.e. lower frequencies, results in increased
received power and thus longer range. In fact, a twice as high frequency will result
in approximately half the range. The equation also shows that a
6 dB
increase in
transmitted power (PT ) will result in double the range.
3.2 Frequency bands
There are a number of license free frequency bands available that may be utilized
for wireless sensor networks.
The following are the ones believed to be most
suitable and some of their most important properties.
3.2.1 433 MHz
Many license free radio transmitters in Europe operate in the
433 MHz
band with
use cases being remote light switches and remote keyless entry systems [16]. This
leads to congestion in the narrow frequency band with possible interference as
a result.
It is not unusual for RF equipment in this band to periodically stop
working, or stop working in certain places as a result of this interference [17].
11
12
Evaluation
Also,
433 MHz
is not available under the same conditions worldwide. While
approximately the same frequency band can be used over most of the world there
are many dierent requirements on duty cycle and output power [18].
Even though the open air range is longer for
2.4 GHz,
and
433 MHz
than for both
868 MHz
according to Friis formula (Equation 3.1), it is harder to construct
λ
4 at 433 MHz is longer, resulting in a larger antenna. In
addition the possible data rate is lower than for 868 MHz.
a good antenna since
3.2.2 868 MHz
ETSI standards, which are followed by most European countries, regulate the use
of the 868.0870.0 MHz frequency band. The frequency band is further divided
into blocks with dierent requirements. Common for all frequency blocks are requirements on duty cycle, listen-before-talk, maximum radiated power and channel
spacing [19].
Similar requirements are in place for the
915 MHz
band used in the US. A
license free frequency band in the region 868-930 MHz exists in most countries
[20].
LTE interference
LTE uses three blocks in the
(Table 3.1).
The
800 MHz
800 MHz
band, each with a bandwidth of
10 MHz
band is mainly used for the data uplink and mostly
in rural areas. Due to strong Out-Of-Band (OOB) emissions from the LTE User
Equipment (LTE UE), LTE handsets may cause interference in the
Table 3.1:
800 MHz band.
LTE frequency blocks in the 800 MHz band
Block
Frequency range
A
B
C
832842 MHz
842852 MHz
852862 MHz
According to [21] the interference caused by nearby LTE User Equipment (UE)
might aect the performance of Short-Range Devices (SRD) that operates in the
868 MHz
band.
Furthermore, [21] states that there is a risk of interference when LTE UE is
used within a range of up to several meters of a SRD. The interference may result
in a reduction of range of the SRD, or even a total loss of function. It is also stated
that the risk of interference is highest for SRDs operating close to the
863 MHz
border.
ERA Technology has presented a study on the eect of LTE UE interference on
a social alarm system operating at
869.215 MHz.
The report shows that the alarm
system is aected by interference from the LTE UE under worst-case conditions,
i.e.
with the LTE UE placed
2m
from the social alarm unit and the LTE UE
operating at maximum allowed output power (23 dBm).
Evaluation
13
Under more realistic conditions, i.e. the LTE UE operating
5 dB
and
10 dB
below the maximum allowed output power, the social alarm was well functioning
and not aected by LTE UE interference [22].
868 MHz
range test
Range and penetration in the
868 MHz
frequency band were tested using two
Anaren AIR Module CC110L BoosterPacks. The test was conducted in an indoors
0 dBm to +10 dBm, using
38 kbps bitrate.
Using +10 dBm output power the range was approximated to 30 m, ranging
over ±1 oors. 0 dBm output power resulted in a range of approximately 20 m.
The range was slightly (approximately 10 m) better using 4.8 kbps as a result of
oce environment using output power ranging from
4.8 kbps
or
increased receiver sensitivity at lower data rates. Penetration was deemed to be
better than for the equivalent test at
2.4 GHz.
3.2.3 2.4 GHz
The
2.4 GHz
band is a globally available ISM band that is heavily utilized for
Wi-Fi, Bluetooth, ZigBee and 3-G cellular data, among others. On top of this,
microwave ovens often radiate around
2.4 GHz, further restricting the usable band-
width.
The available bandwidth is approximately
100 MHz
which does provide some
room for coexistence and several of the technologies mentioned uses some sort of
multiple access or spread spectrum scheme to reduce interference and/or increase
λ
4 antenna for 2.4 GHz is only about
a small and eective antenna implementation.
robustness. Furthermore, a
2.4 GHz
range test
A simple
2.4 GHz
3 cm
allowing for
range test was conducted using two nRF24L01P radio modules
controlled by Arduino microcontrollers. The modules were equipped with printed
PCB antennas and congured for an output of
0 dBm (1 mW).
The test was conducted in an indoors oce environment, without free line-ofsight between the radio modules and an outside environment with free line-of-sight
between the radio modules. The maximum range was estimated to
100 m outdoors.
the 2.4 GHz radio
10 m
indoors
and
It was noted that the penetration of walls was a lot worse
for
than for the
868 MHz
radio.
3.3 Evaluation results
Evaluation and tests concluded that
band.
868 MHz
was the best choice of frequency
It provides good indoor range with acceptable data bitrate and antenna
size.
The
868 MHz frequency band restrictions on duty cycle and transmitted power
minimize the risk of interference from other transmitters.
Similar license free
frequency bands exists in most countries and many radio chips can operate in
14
Evaluation
these bands with only software or minor hardware modications. LTE interference
may be a future problem and should be further investigated. It should however be
noticed that similar interference problems also exist in other license free frequency
bands.
Range could be extended by utilizing mesh networking that some standards
support. This is, however, power consuming and requires some nodes (e.g. routers)
to be mains powered.
Mesh networks may also result in signicant delay when
transmitting a data packet through many nodes, which is highly undesirable in an
alarm application.
It was decided that ALOHA should be used and that CSMA was not needed.
This was motivated by the fact that the each sensor transmits at a low duty cycle,
which implies that the network will be lightly loaded and the risk of collision is
low.
The probability of a successful transmission when using ALOHA can be calculated using Equation 2.1. A reasonable approximation is 50 sensors that transmits
120 bits and receives 120 bits every
60 s
at
38.4 kbps.
Under these conditions the
number of transmissions per second is
50
transmissions
60
s
= 0.83
transmissions/s
The time needed to transmit one frame of 120 bits and receive one frame of 120
bits is
240 bits
=
38400 bps
Transmission attempts per second,
G,
6.25 ms
becomes
G = 0.83 · 0.00625 = 0.0052
Using equation 2.1 the probability for a successful transmission can be calculated:
p = e−(2·0.0052) = 98.9%
For a plot of how the collision probability varies with the number of sensors, see
Figure 3.1. A plot using a large amount of sensors can been seen in Figure 3.2,
where the exponential behaviour of the collision probability is clearly visible.
The above listed facts led to the decision not to use an existing standard and
instead develop a simple proprietary protocol. The protocol should only contain
the absolute necessary functions and could hence be very lightweight with focus
on low power.
Security should be implemented, either in software or hardware,
using AES-128 based CBC-MAC.
Evaluation
15
Figure 3.1:
Probability of collision during a communication event
as a function of the number of sensors, 0100 sensors.
Figure 3.2:
Probability of collision during a communication event
as a function of the number of sensors, 010000 sensors.
16
Evaluation
Chapter
4
Prototype design
The prototype design process was initially focused on getting an overview of how
the system would be put together.
The A1001 access controller uses RS-485 to
connect to peripheral devices. Depending on the choice of radio chip, the accompanying microcontroller must have a compatible communication interface. A simple
overview of the system can be seen in Figure 4.1.
The system consist of a radio hub that communicates with the A1001 using
RS-485. The radio hub is powered from the A1001 and has hence no hard power
requirements.
It consists of a software development kit together with a radio
module.
For the battery powered sensors a prototype using a designed PCB was constructed.
Figure 4.1:
Overview of the complete system with A1001 access
controller on the far left. The A1001 is communicating with a
microcontroller which in turn handles the communication with
all the sensors via radio.
17
18
Prototype design
Figure 4.2:
Silicon Labs EFM32 Zero Gecko, bottom (left) and top
(right).
4.1 Hardware design
The sensor's hardware consists of only a few components, all mounted on a PCB.
Apart from microcontroller (MCU), radio chip, sensor and battery there are only
some small passives such as decoupling capacitors. No enclosure for the prototype
was designed or manufactured.
4.1.1 Microcontroller
The most important requirement for the MCU is the current consumption in sleep
mode. Since the processor will spend most of its time in sleep mode, with a real
time counter (RTC) measuring the duration between two heartbeats, the sleep
current must be kept to a minimum.
Other important requirements are:
•
Support for hardware AES encryption (unless the chosen radio chip can do
hardware AES)
•
Communication interface to the radio chip, depending on which chip is used
•
Reasonable cost
The chosen MCU (Silicon Labs EFM32 Zero Gecko) is a 32-bit ARM Cortex
M0+, designed specically for ultra-low power applications.
The EFM32 Zero
Gecko comes in dierent versions where the main dierences are the amount of
ash, RAM and GPIO pins. The chosen version, EFM32ZG110F32 (Figure 4.2),
has
32 kB ash, 4 kB RAM, USART interface with SPI and I2C support along with
support for hardware accelerated AES-128 which can be used to implement CBCMAC. It's data sheet states a current consumption of
1 kHz
RTC enabled [23].
500 nA
in sleep mode with
The EFM32ZG also have indirect support for RS-485
since it supports USART. The signal levels of RS-485 and its dierential nature
does however mandate some sort of line driver. Here, a TI SN65HVD50 full duplex
driver/receiver was chosen for no other reason than that it fullls the specications.
Prototype design
19
4.1.2 Comparison of 868 MHz transceiver chips
A number of suitable radio chips operating in the
868 MHz
frequency band were
compared and their most important performance parameters summarized into table 4.1.
Sleep current
(nA)
200
600
200
200
1200
760
1000
Chip
TI CC110L [24]
ST Spirit1 [25]
Freescale MKW01Z128 [26]
Atmel AT86RF212B [27]
Freescale MC12311 [28]
Silicon Labs Si106x [29]
TI CC430 [30]
30
21 (41)
30
26.5
33
22.1
33
17.7
9.7 (17.6)
17
9.2
16
17.8
16
RX current
(mA)
-104
-106 (-109)
-104
-100 (at 20 kbps)
-105
-110
-102
RX sensitivity at
∼40 kbps (dBm)
Comparison of 868 MHz transceiver chips
TX current at
+10 dBm (mA)
Table 4.1:
no
yes
yes
yes
yes
no
yes
AES
HCS08
CIP-51
MSP430
MCU
20
Prototype design
Prototype design
21
Figure 4.3:
Anaren radio modules.
4.1.3 Radio chip
To simplify the prototype design it was decided to not include design of an antenna.
Design and matching of a PCB antenna is a dicult procedure and may require
many iterations before a proper matching is achieved.
This consideration led to the choice of using a prefabricated radio module with
built in PCB antenna. A suitable choice was the Anaren A110LR09 radio module
(Figure 4.3) which is built upon the TI CC110L radio chip [31].
The TI CC110L has good electrical characteristics (Table 4.1) and supports a
frequency range of 779928 MHz which makes it usable in most countries. It has
hardware packet handling support that adds preamble bytes, sync word and CRC
checksum to the packet. Preamble/sync word detection and CRC check is taken
care of by hardware in receive mode. Communication with the radio chip is takes
place over a 4-wire SPI interface.
The module comes in two versions; with built in PCB antenna and with U.FL
connector for use with an external antenna.
The two versions share the same
footprint and may therefore be used on the same prototype PCB without any
modications. This way, dierent antennas can be tested and their performance
evaluated.
4.1.4 Power supply
The prototype is powered by a single CR2032 lithium battery (see Figure 4.4).
The CR2032 has a rated voltage of
3 V,
capacity of
250 mAh
and self-discharge of
less than 3.5% per year [32]. No voltage regulator is needed as both the MCU and
the radio module will run on supply voltages from
3.6 V
down to
1.85 V.
Its small
dimensions, high capacity and long lifetime makes it an ideal choice for this type
of application, but unfortunately only on paper.
The reason that using a single, or even multiple, CR2032 batteries might not be
the best alternative for supplying this kind of wireless sensor is that its capacity
lowers signicantly with increasing load.
According to [33] and [34] the usable
capacity in CR2032 batteries might be much lower than
more than
0.5 mA
250 mAh
when sourcing
even if only intermittently. According to their measurements
the capacity might drop to as little as
150 mAh if pulsing 0.5 mA from the battery.
22
Prototype design
Figure 4.4:
CR2032 lithium battery.
This is partly due to the internal resistance of the battery, causing a large enough
voltage drop to disable the processor and/or the peripherals. An AAA or AAAA
battery with a boost converter or two such batteries in series might be a better idea.
Two CR2032 batteries in parallel could also be used, providing about
300 mAh even
in worst case. For the purpose of making measurements, a single CR2032 will be
ne though.
4.1.5 Passive components
Decoupling capacitors had to be added to avoid noise on the power supply rail.
A reference design which provided recommended capacitor values was used [35].
The radio module has built in decoupling capacitors, but it was decided to add
two additional decoupling capacitors for the radio module's power supply just to
be on the safe side.
A simple debounce circuit consisting of a resistor and a capacitor (a low-pass
lter) was connected to the RESETn pin. This circuit prevents unstable behavior
when resetting the MCU.
The prototype has an inexpensive and simple sensor that can sense various
physical quantities.
When sensing a particular quantity, the sensor output is
either grounded or oating depending on value. The sensor pin that can be either
oating or ground is connected to one of the micro controller pins.
But since
the MCU pin needs to have a well-dened value, a pull-up resistor needs to be
used. The problem with using a resistor to pull the pin to a known state is that
even with a value as high as
40 kΩ
there will be a signicant current draw when
the sensor pin is grounded, since by then there will be a path from
pull-up, to ground. This results in a power draw of
75 µA
3V
via the
when the sensor pin is
grounded, or about 100 times more than the stand-by current of the MCU and
radio combined. The solution to this problem is to disable the pull-up in software
and then continuously poll the pin until the switch is opened again.
To be able to program and debug the MCU a standard 6 pin
2.54 mm
pin
header was added to the prototype.
4.1.6 PCB layout
For schematic capture and PCB layout the DipTrace EDA package was used (see
appendix). Special care was taken to lay out a proper ground plane since the size
and shape of the ground plane can aect antenna performance.
When working with high speed digital signals, it can be shown that the ground
return path will be located directly underneath the signal trace, given of course
Prototype design
23
that there is an unbroken conductive path in place. If there is no short in the return
path underneath the signal trace the return current will need to take another route
back to ground.
The near and far H-elds at a distance
D
created by a closed current loop are
given by
A
4πD3
πA
=I· 2
λ D
Hnear = I ·
Hf ar
where
I
is the loop current,
λ
is the current wavelength and
A
is the loop area.
It is clear that a larger loop surface will increase the magnetic eld strength and
thereby the ElectroMagnetic Interference (EMI).
A longer return to ground will also lead to higher inductance which could lead
to oating circuit elements which in turn can pose a problem when well dened
signal levels are needed. An unbroken ground plane is the solution to both of these
problems since the loop areas and the inductances are kept to a minimum [36].
λ
4 antenna a good ground plane is very important. This is
λ
λ
antenna can be approximated as a
because the
4
2 antenna given the reection
of the antenna in the ground plane. Ideally, the ground plane should be perfectly
When using a
conducting and of innite size.
A copper ground plane that extends enough
beyond the antenna has to serve as an approximation of this ideal [15].
Another important aspect of PCB design when dealing with digital circuit
is that decoupling capacitors need to be placed close to the supply pins of the
corresponding chip. Since digital circuitry needs relatively high currents in short
bursts, a high impedance trace between the decoupling capacitor and the chip
pin can lead to large voltage drops that in turn can aect the performance of the
circuit.
When designing the PCB all of the mentioned aspects were taken into consideration while still trying to keep the nal PCB small. Since there are only two
active chips and some passive components, no more than two layers were needed,
even considering the recommendations above.
Figure 4.5:
Sensor hardware, radio module and MCU.
24
Prototype design
4.2 Software design
The software for the system is split in three parts. The rst part is a server that
will run on the A1001. As the A1001 runs Linux the server is a Linux user space
application written in C. While being an embedded system the A1001 still has
plenty of resources for the purpose of this application, therefore no particular care
has to be taken to minimize resource usage of the application.
The second part is a client that manages radio connections with all the sensors
and communicates incoming information to the server. This piece of software runs
on a bare metal ARM Cortex M0+ microcontroller and is also written in C. Due
to the resource constraints on the microcontroller, care has been taken to minimize
the amount of RAM and Flash used. Since this microcontroller is connected to
the A1001 via cables, power is also supplied from the A1001.
Since the power
consumption of the microcontroller and radio is very small in comparison with the
A1001, there are no particular power constraints on the hub.
The third part is the software running on the sensor itself. Here there are very
high demands on both code size and power consumption, with power consumption
being the more important constraint. To minimize energy usage it is vital that the
microcontroller spends as much time as possible in a low energy mode and that
all energy saving peripherals that can help lower energy consumption are used.
4.2.1 Writing software for low power applications
When developing for ultra-low power applications things that might not matter
normally can have a large impact on energy performance. Take for instance the
code in Listing 4.1, one might think that the generated assembly for the two
functions will be the same. Looking at the code in Listing 4.2 and in Listing 4.3
reveals however that there is quite a bit of overhead in dealing with 8 bit integers
on this 32 bit architecture. Even though the code in question would not be used in
production, since it doesn't do anything, it illustrates that the programmer needs
to be aware of how the coding aects energy performance. Counting the required
clock cycles for the two functions in Listing 4.2 it is found that the int8_t function
requires 13 instructions to complete while the int function requires 7 instructions,
e.g. almost half as many, to complete. In a system that spends most of its time
in a low power sleep mode and that only wakes up regularly to call some small
functions, the choice between int8_t and int can make a big dierence.
4.2.2 Protocol design
A packet oriented protocol has been chosen where each communication event is
initiated by the sensor.
nothing to report.
In this way the sensor can be asleep whenever there is
On the receiving side there are no hard power requirements
and hence the radio can be always on, listening for packets. Since the sensor will
be very simple and the data from the sensor is not assumed to be secret as long
as its origin can be veried, no encryption is needed. With a bit of intelligence
in the sensor, what needs to be sent is basically state changes and low battery
indication, this means that each message can be short and as such consumes only
small amounts of energy.
Prototype design
25
Listing 4.1:
Simple C program to demo the dierence between
int8_t and int on a 32 bit architecture.
int8_t
myfunc1 ( i n t 8 _ t
{
return
i )
i ;
}
int
myfunc2 ( int
{
return
i )
i ;
}
int
{
main ( void )
while ( 1 )
{
int8_t
int
int8_t
int
}
b a r 1 = myfunc1 ( f o o 1 ) ;
b a r 2 = myfunc2 ( f o o 2 ) ;
}
return
foo1 = 5;
foo2 = 5;
0;
26
Prototype design
Listing 4.2:
Resulting assembly when compiling the C code in List-
ing 4.1 using GCC with optimization O0.
0 0 0 0 0 1 d8 <myfunc1 >:
1 d8 :
b082
sub
sp ,
#8
1 da :
1 c02
adds
r2 ,
r0 ,
1 dc :
466 b
mov
r3 ,
sp
1 de :
3307
adds
r3 ,
#7
1 e0 :
701 a
strb
r2 ,
[ r3 ,
1 e2 :
466b
mov
r3 ,
sp
1 e4 :
3307
adds
r3 ,
#7
1 e6 :
781b
ldrb
r3 ,
[ r3 ,
1 e8 :
b25b
sxtb
r3 ,
r3
1 ea :
1 c18
adds
r0 ,
r3 ,
1 ec :
b002
add
sp ,
#8
1 ee :
4770
bx
lr
#0
#0]
#0]
#0
0 0 0 0 0 1 f 0 <myfunc2 >:
1 f0 :
b082
sub
sp ,
1 f2 :
9001
str
r0 ,
#8
[ sp ,
#4]
1 f4 :
9 b01
ldr
r3 ,
[ sp ,
#4]
1 f6 :
1 c18
adds
r0 ,
r3 ,
1 f8 :
b002
add
sp ,
#8
1 fa :
4770
bx
lr
#0
Prototype design
27
Listing 4.3:
Resulting main function when compiling the C code in
Listing 4.2 using GCC with optimization O0.
0 0 0 0 0 1 f c <main >:
int
main ( v o i d )
{
1 fc :
b510
push
{ r4 ,
1 fe :
b084
sub
sp ,
while (1)
lr}
#16
{
int8_t
foo1 = 5;
200:
466b
mov
r3 ,
sp
202:
330 f
adds
r3 ,
#15
204:
2205
movs
r2 ,
#5
206:
701 a
strb
r2 ,
int
[ r3 ,
#0]
foo2 = 5;
208:
2305
movs
r3 ,
20 a :
9302
str
r3 ,
int8_t
#5
[ sp ,
#8]
b a r 1 = myfunc1 ( f o o 1 ) ;
20 c :
466 c
mov
r4 ,
sp
20 e :
3407
adds
r4 ,
#7
210:
466b
mov
r3 ,
sp
212:
330 f
adds
r3 ,
#15
214:
781b
ldrb
r3 ,
[ r3 ,
216:
b25b
sxtb
r3 ,
r3
adds
r0 ,
r3 ,
bl
1 d8 <myfunc1>
218:
1 c18
21 a :
f7ff
21 e :
1 c03
adds
r3 ,
r0 ,
220:
7023
strb
r3 ,
[ r4 ,
int
ffdd
#0]
#0
#0
#0]
b a r 2 = myfunc2 ( f o o 2 ) ;
222:
9 b02
ldr
r3 ,
[ sp ,
224:
1 c18
adds
r0 ,
r3 ,
bl
1 f 0 <myfunc2>
ffe3
#8]
#0
226:
f7ff
22 a :
1 c03
adds
r3 ,
r0 ,
22 c :
9300
str
r3 ,
[ sp ,
e7e7
b.n
2 0 0 <main+0x4>
#0
#0]
}
22 e :
28
Prototype design
For media access control ALOHA was chosen, partly because of the simplicity
of the scheme but mostly because it works well when the medium is only lightly
utilized. The random time hold o in case of collisions is seeded from the CBCMAC, which, of cause, is not totally random but should be random enough.
For message verication a CBC-MAC based approach is chosen. That is the
authentication method of Bluetooth Low energy as described in section 2.4.1.
Although, where Bluetooth Low Energy uses CCM (Counter with CBC-MAC) for
encryption and verication CBC-MAC will only provide authentication. To make
it harder to perform replay attacks the message will be concatenated with a counter
value that increments for each message. The message and the counter value will be
encrypted using AES-128 and a pre-shared key after which an appropriate number
of bits from the resulting cipher text will be appended to the message. The counter
can be sent together with the message in plaintext since it will be extremely hard
to guess the MAC even when the entire message is known.
32 bits from the CBC-MAC will be used but to make all bits count the 128 bit
cipher text will be split in two 64 bit words which will be XORed with each other.
The result will then be split in two 32 bit words and they will again be XORed.
At the receiving end the MAC can be stripped from the message and the message
can be encrypted using the same pre-shared key that the sensor node used. If the
appended cipher text matches the calculated MAC the message is likely originating from the expected sensor.
A packet will consist of:
•
16 bit id
•
16 bit counter
•
8 bit command/state
•
32 bit MAC
resulting in a 72 bit message (Figure 4.6).
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Counter
Id
32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
Cmd/State
MAC
64 65 66 67 68 69 70 71
MAC
Figure 4.6:
Packet description
Chapter
5
Verication
To verify the sensor's performance some key parameters were tested. Power consumption was measured using three data rates;
using
0 dBm
10 kbps, 38.4 kbps
and
78.4 kbps
and +10 dBm output power. Indoor range, or rather Received Sig-
10 kbps with an output power
10 kbps is used is that speed does
nal Strength Indication (RSSI), was measured at
of
0 dBm
and +10 dBm. The reason that only
not aect the signal strength but only the receiver sensitivity.
RSSI is an esti-
mated received power calculated by the receiving radio chip. It is not as precise
as a measurement with a spectrum analyzer and a characterized antenna would
be, but even then interference on dierent location due to bouncing signals could
aect the measurements. Since the objective was to get a feel for the indoor range
the RSSI was deemed to be good enough.
An outdoor line of sight range measurement was also made. For this measurement the sensors where separated until packages started dropping. The distance
was then decreased until packages arrived reliably after which the actual distance
was measured on Google Maps.
Measurement of the sensor's total power consumption was divided into current
measurements of three dierent states; sleep mode, polling and RX/TX. Because
of the great dierence in current consumption between the three states dierent
methods had to be used for each state.
The sleep mode current was measured using a Fluke 287 multimeter in series
with the power supply. Power consumption during polling of the sensor state was
estimated by measuring the time consumed for each poll and using the data sheet
value for the active mode current consumption.
To measure the power consumption during RX and TX a
10 Ω
resistor was
connected in series with the power supply. The voltage drop over the resistor was
measured using an oscilloscope, resulting in a measured voltage proportional to
the current consumption. The waveform was captured in a .csv le and processed
using SciPy.
Range was tested in two dierent indoor environments that get to represent
the two extremes. Location 1 consists of rooms separated with both concrete and
gypsum walls, with doors made of wood and glass (Figure 6.5). Location 2 consists
of rooms separated with gypsum walls and glass doors (Figure 6.6). A sensor was
placed at dierent locations,
a xed location,
1m
1.5 m
above ground, with the base station placed at
above ground. The RSSI (in dBm) was measured at the base
station for sensor locations 1-16 (Tables 6.3 - 6.4).
29
30
Verication
An alternative way to measure range could have been by measuring radiated
power using a reference antenna, in a larger number of positions. The performed
measurements are however believed to give a better idea of the sensors performance
in practice.
Chapter
6
Results
6.1 Power consumption
The sleep mode current was measured to
700 nA
using a multimeter. The current
consumption during polling of the sensor was estimated as follows:
to the data sheet, the EFM32ZG110F32 takes
3 (sleep mode) and draws about
1.6 mA
2 µs
wakeup time and an asumed worst case estimate of
the approximate time for one poll is
34 µs.
14 MHz [23].
30 µs. Adding a
at a clock frequency of
Using an oscilloscope, the time for one poll was measured to
2 µs
According
to wake from energy mode
2 µs
to go back to sleep,
With a polling interval of
100 ms
this
results in an average current draw of
34 µs
· 1.6 mA ≈ 544 nA
100 ms
which is about 140 times lower than the current draw when using the pull-up
resistor as is.
The total stand-by current becomes
544 nA + 700 nA ≈ 1.24 µA.
Current consumption during RX/TX is shown in Figures 6.1 - 6.4. To lessen
the impact of noise in the plots the values are ltered using a Savitzky Golay lter
[37]. The Savitzky-Golay lter is a digital lter that smoothes the data by tting
low degree polynomials to subsequent sub-sets of the data. Here, a window size of
31 and a polynomial degree of 3 was used.
Using numpy.trapz a numeric integral was calculated for each of the ltered
waveforms, giving the total Ampere-seconds of each communication event. Using
a nominal voltage of
3 V,
and thus ignoring the voltage drop over the resistor, an
upper bound of the energy consumption for each communication event could be
calculated, the results are presented in Table 6.1. Table 6.1 also shows expected
battery life times under the assumption that the available battery capacity is
250 mAh
and that there is one communication event every
60 s.
6.2 Range
Floor plans of the test locations with the dierent sensor positions are shown in
31
32
Results
Figure 6.1:
Current consumption when transmitting a packet at 0
dBm.
Figure 6.2:
Current consumption when transmitting a packet at
+10 dBm.
Results
33
Figure 6.3:
Current consumption when transmitting a packet and
receiving an ack at 0 dBm.
Figure 6.4:
Current consumption when transmitting a packet and
receiving an ack at +10 dBm.
34
Results
Table 6.1:
Energy consumption by speed for transmissions with ack
as well as transmissions with no ack at
0 dBm
and +10 dBm.
All energy values are calculated using a nominal voltage of
Speed
10 kbps
38.4 kbps
76.8 kbps
10 kbps
38.4 kbps
76.8 kbps
10 kbps
38.4 kbps
76.8 kbps
10 kbps
38.4 kbps
76.8 kbps
Ack
Output power
Energy
3 V.
Battery life†
at 250 mAh
ack
0 dBm 1.55 · 10−3 W s
ack
0 dBm 436 · 10−6 W s
ack
0 dBm 241 · 10−6 W s
no ack
0 dBm 760 · 10−6 W s
no ack
0 dBm 209 · 10−6 W s
no ack
0 dBm 111 · 10−6 W s
ack
+10 dBm 2.12 · 10−3 W s
ack
+10 dBm 578 · 10−6 W s
ack
+10 dBm 317 · 10−6 W s
no ack
+10 dBm 1.26 · 10−3 W s
no ack
+10 dBm 350 · 10−6 W s
no ack
+10 dBm 190 · 10−6 W s
†Assuming a standby current, including polling,
of 1.24 µA and a period of 60 s.
2.90
7.79
11.1
5.22
11.9
15.4
2.19
6.41
9.52
3.46
8.96
12.4
years
years
years
years
years
years
years
years
years
years
years
years
Figures 6.5 - 6.6. The respective measured RSSI values are shown in Tables 6.3 6.4. The line of sight range is shown in Table 6.2.
Table 6.2:
Line of sight range for
0 dBm
and
10 dBm
transmit
power with A, integral antenna and B, quarter wavelength whip
antenna at
10 kbps.
Ant.
dBm
Range
A
A
B
B
0
+10
0
+10
60 m
160 m
100 m
200 m
A
A
B
B
Ant.
Received Signal Strength by location for
-71
-60
-64
-58
2
4
-81 -77
-69 -62
-78 -65
-61 -62
†Weak
3
6
-76 -89
-78 -75
-79 -81
-73 -75
connection
5
-85
-74
-72
-67
or no
7
-90
†
-77 -94
-83
†
-76 -85
connection
8
11
-85
†
-72 -84
-78
†
-70
†
at all.
10
†
†
†
†
12
-88
-73
-80
-68
13
†
†
†
†
14
†
†
†
†
15
Floor plan of the worst case test environment, a basement in the LTH E-building. Dashed
-71
-60
-62
-53
1
measurements are in meters. Doors are wood and glass.
lines represent gypsum walls, solid lines are concrete. A is the hub, 1-16 are sensor positions. All
Figure 6.5:
0
+10
0
+10
dBm
9
0 dBm and 10 dBm transmit power with A, integral
10 kbps.
antenna and B, quarter wavelength whip antenna at
Table 6.3:
†
†
†
†
16
Results
35
A
A
B
B
Ant.
Received Signal Strength by location for
-49
-47
-49
-44
2
-63
-61
-58
-56
3
-64
-62
-54
-58
4
-71
-63
-54
-57
5
-57
-57
-53
-48
6
-65
-70
-75
-59
7
-66
-60
-62
-55
8
-63
-63
-59
-57
-58
-56
-54
-51
10
-62
-58
-58
-55
11
-54
-57
-54
-46
12
-73
-60
-58
-60
13
-52
-54
-58
-50
14
-74
-69
-74
-70
15
glass only.
of gypsum. A is the hub, 1-16 are sensor positions. All measurements are in meters. Doors are
Floor plan of the best case test environment, inside an oce building. All walls are made
-63
-63
-56
-54
1
Figure 6.6:
0
+10
0
+10
dBm
9
0 dBm and 10 dBm transmit power with A, integral
10 kbps.
antenna and B, quarter wavelength whip antenna at
Table 6.4:
-77
-63
-59
-51
16
36
Results
Chapter
7
Discussion
7.1 Power consumption
Using the selected MCU and radio chip there is no way to further decrease the
power consumption in sleep mode, as it has reached the rated minimum according
to the data sheets [23], [24]. There are however other choices of MCUs and radio
chips (Table 4.1) that may result in lower power consumption in sleep mode.
One thing that came as somewhat of a surprise is the fact that polling of
the sensor actually consumes less power than a fully interrupt driven solution.
Interrupts are often touted as the best way to let the processor idle while waiting
for work, and while that is true in a sense, as soon as there are other factors, like
pull-ups, those needs to be taken into account. And after doing the math, it is
obvious that polling is the way to go. The power consumed by polling the sensor
could be reduced further, for example by polling at a lower rate.
The polling
rate is of course a parameter that is highly dependent on the sensor application.
Further code optimizations could also reduce the power consumption caused by
polling the sensor.
Power consumption in RX/TX mode is mostly a function of data rate and
output power. Both these parameters aect the maximum achievable range and it
is of course a trade-o between range and battery lifetime. Also in this case much
can be won by choosing a radio chip (Table 4.1) that consumes less power in RX
and TX mode.
A way to optimize battery lifetime could be to develop a system where the
sensor's output power is automatically adjusted to achieve a reliable connection
without wasting energy on unnecessary output power. This could be a part of the
pairing process.
7.2 Range
Tests in both test environments show that the setup using +10 dBm and a whip
antenna gave best results.
Connection was generally stable without any packet
loss down to -95 dBm, below that level the packet loss increased rapidly.
As expected, range is highly dependent on output power. The test also showed
that an omnidirectional antenna, in our case a quarter-wave whip antenna, was
a better choice than the modules integrated PCB antenna, probably since the
37
38
Discussion
PCB antenna is more unidirectional and alignment of the antenna becomes more
important. The maximum achievable range was generally much lower in the test
environment with concrete walls, as a result of greater attenuation of the radio
signal.
The line of sight range was about as good the
2.4 GHz range in the initial tests.
This can be a bit surprising given that Friis formula (Equation 3.1) states that
line of sight range should go up when the frequency is lowered. This is probably
an eect of the fact that the antennas used are not optimally matched and that a
proper matched antenna with good selectivity would provide a longer line of sight
range.
2.4 GHz
2.4 GHz.
The indoor range is still better than for the initial tests of the
radio. This conrms that the penetration of
868 MHz
is better than for
7.3 Open issues
There are several issues that that require a deep understanding of how the system
will be used before decisions can be made about how to properly solve them. In
this section some of these issues will be discussed and possible solutions to the
underlying problems will be presented.
Since the typical use cases of the nal
system are not fully determined no solutions in this section will be proposed as
better or worse but rather they will serve as testimony that the problems can in
fact be solved.
7.3.1 Usability
Usability of the system is one important factor when it comes to user perceived
quality of the system. During work with this thesis we have identied one particular area where we believe usability to be of utmost importance. When the sensors
are installed it should be easy to congure them with id and key so that they
can communicate with the base station. Since the key can't be sent in plain text
without risking that some potential attacker is eavesdropping there needs to be
some way of transmitting the key securely. While this could be done using some
kind of public key cryptography the limited resources of the embedded hardware
raises the question if there is another way. There are several technologies that can
be used for key transport; NFC and IrDA are two examples. A more novel method
is used by the electric imp from Electric Imp, Inc. wherein network setup data
is transmitted using an ordinary cell phone screen that aects an optical sensor
which in turn is connected to the system in question.
While the electric imp solution is elegant in the sense that almost everyone
has a cellphone that can be used to congure the device, it might not be a valid
solution since it's patent-pending.
On the hub side the usability is more of a non-issue.
While it is important
there as well, the re-congurability of that part of the system makes it easy to
adapt the user experience at any stage of the development process, even after the
system has been deployed.
Discussion
39
7.3.2 Security
The system has been implemented using AES-128 based CBC-MAC for authentication. To lower energy consumption only 32 of the 128 bits are used as verication
of the message. This can be a security concern if the system is to be used in a
high security application where the
> 4 · 109
combinations might not be enough.
In such cases more of the bits from the 128 bit CBC-MAC can be used at the
expense of battery time.
The decision was made that heartbeats should be ack:ed. This eliminates the
possible problem of sensors not "calling in" for a while due to collisions. If the
probability for a successful transmission (gure 3.1) is suciently high, heartbeats
can be changed to not require an ack, which would reduce power consumption.
One feature that could be implemented when using ack:ed heartbeats is that
clock drift in the sensors could be minimized by including a clock correction value
with the ack. This would prevent sensors communicating with the hub from drifting into the same rhythm of sending heartbeats, something that could potentially
cause more heartbeats to be lost.
By assuring that more heartbeats are received by the hub the implications
of a lost heartbeat can be made more severe. If many heartbeats are lost when
not using acks it would probably be a bad idea to raise an alarm for each lost
heartbeat. It could turn into a boy who cried wolf sort of situation where alarms
are not taken seriously.
Since AES-128 is already used for message authentication it would be very
easy to encrypt the entire message if sensor data is in fact secret.
7.4 Summary
In summary the goal of this thesis project was met. Wireless sensors where developed and their performance was as good or better than the initial requirements.
The battery life was calculated to at least ve years using acknowledged messages,
and at a bit-rate that permit above
20 m
indoor range. Security features where
added to make message spoong extremely hard. Furthermore a network of ve
sensors was interfaced to the Axis A1001 access controller and the work done in
this thesis has been incorporated in a proof of concept system that is in use as a
demo, internally on Axis. While some parts, such as usability and security need
more work, on the whole the result can be considered a success.
40
Discussion
References
[1] J. G. Proakis,
Digital communications.
McGraw-Hill series in electrical
and computer engineering: Communications and signal processing, Boston:
McGraw-Hill, 2001.
[2] B. A. Forouzan,
Data Communications and Networking. New York:
McGraw-
Hill Higher Education, 2007.
[3] M. S. Gast,
802.11 Wireless Networks: The denitive guide.
Sebastopol,
Calif.: O'Reilly, 2002.
[4] IEEE Standard for Local and metropolitan area networksPart 15.4: Low-
Rate Wireless Personal Area Networks (LR-WPANs), IEEE Std 802.15.42011 (Revision of IEEE Std 802.15.4-2006), pp. 1314, 2011.
[5] C. Gomez, J. Oller and J. Paradells, Overview and evaluation of bluetooth
low energy: An emerging low-power wireless technology.,
land), vol. 12, no. 9, pp. 1173411753, 2012.
[6] N. Hunn,
Essentials of Short-Range Wireless.
Sensors (Switzer-
The Cambridge Wireless Es-
sentials Series, Cambridge: Cambridge University Press, 2010.
[7] Bluetooth SIG, Specication of the Bluetooth System, Version 4.1, Bluetooth Special Intrest Group, 2013.
[8] J. Jonsson, On the Security of CTR + CBC-MAC NIST Modes of Operation
- Additional CCM Documentation, 2002.
[9] E. Barker and A. Roginsky, Transitions: Recommendation for Transitioning
the Use of Cryptographic Algorithms and Key Lengths, tech. rep., National
Institute of Standards and Technology, 2011.
[10] ZigBee Standards Organization, ZigBee Specication, Version r17, ZigBee
Standards Organization, 2007.
[11] B. Fouladi and S. Ghanoun, Security Evaluation of the Z-Wave Wireless
Protocol.
[12] C. Gomez and J. Paradells, Wireless Home Automation Networks: A Survey of Architectures and Technologies.,
vol. 48, no. 6, pp. 92 101, 2010.
41
IEEE Communications Magazine,
42
References
[13] DASH7 Alliance, DASH7 Alliance Protocol Specication, DRAFT 0.2 Release, 2013.
[14] Bujdei, C. and Moraru, S. - A., Wireless communications standards for intelligent buildings,
Annals of DAAAM and Proceedings, pp. 489 490, 2010.
[15] J. D. Kraus and R. J. Marhefka,
Antennas For All Applications.
Boston:
McGraw-Gill, 3 ed., 2003.
[16] Nexa Trading AB, Nexa Electronics. Available at
index.html.
[17] C.
http://www.nexa.se/
Accessed: 2014-01-31.
Streiert,
Radioträngsel
kan
blockera
fjärrkontrollen.
Available
at
http://blogg.pts.se/blog/2012/10/29/radiotrangsel-kan-blockerafjarrkontrollen/. Accessed: 2010-09-30.
[18] RF Monolitics, Inc., Survey of Radio Regulations for RFM Transceiver ICs,
Application note - AN0900-04/10/09.
[19] ETSI, EN 300 220-1, Electromagnetic compatibility and Radio spectrum
Matters (ERM); Short Range Devies (SRD); Radio equipment to be used in
the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500
mW; Part 1: Technical characteristics and test methods, V. 2.4.1 (2012-05),
2012.
[20] GS1, Regulatory status for using RFID in the EPC Gen 2 band (860 to 960
MHz) of the UHF spectrum, 2013.
[21] Electronic Communications Committee, Adjacent band co-existence of SRDs
in the band 863-870 MHz in light of the LTE usage below 862 MHz, ECC
Report 207, 2013.
[22] Ofcom, LTE User Equipment Coexistence with 862 - 870MHz, Research
Document v1.1, 2012.
[23] Silicon Labs, EFM32ZG110 Datasheet, Rev 0.61, 2013.
[24] Texas Instruments, CC110L Value Line Transceiver, SWRS109A, 2014.
[25] STMicroelectronics,
SPIRIT1
Low
data
rate,
low
power
sub-1GHZ
transceiver, Rev 5, 2013.
[26] Freescale
Semiconductor,
MKW01Z128
Highly-integrated,
cost-eective
single-package solution for sub-1 GHz applications, Rev 5, 2014.
[27] Atmel, AT86RF212B Low Power, 700/800/900 MHz Transceiver for ZigBee,
IEEE 802.15.4, 6LoWPAN, and ISM Applications, Rev 42002C, 2013.
[28] Freescale, MC12311 Highly-integrated, cost-eective single-package solution
for the sub-1 GHz, Wireless MBUS Standard, Rev 1.0, 2011.
[29] Silicon Labs, Si106x/108x Ultra-Low Power MCU with Integrated HighPerformance Sub-1 GHz Transceiver, Rev 1.0, 2014.
[30] Texas Instruments, CC430 MSP430 SoC With RF Core, tech. rep., 2013.
[31] Anaren, A110LR09x User's Manual, 2011.
References
43
[32] Jhih Hong Technology Co., LTD, Specication of product CR2032, 2008.
[33] J. Ganssle, How much energy can you really get from a coin cell?. Available
at
http://www.embedded.com/electronics-blogs/break-points/
4429960/How-much-energy-can-you-really-get-from-a-coin-cell- .
Accessed: 2014-04-30.
[34] K. Furuset and P. Homan, High pulse drain impact on CR2032 coin cell
battery capacity, tech. rep., Nordic Semiconductor and Energizer, 2011.
[35] Silicon Labs, Hardware Design Considerations, AN0002 - Application Note,
Rev 1.36, 2013.
[36] Atmel application note, EMC Improvement Guidelines, Revision 4279B8051-08/03, 2003.
[37] Various, Savitzky Golay Filtering. Available at
Cookbook/SavitzkyGolay.
Accessed: 2014-05-06.
http://wiki.scipy.org/
44
References
Appendix
A
Schematic
45
Schematic sheet detailing decoupling and power and
the radio module communication bus.
Figure A.1:
46
Schematic
Figure A.2:
Schematic sheet detailing EFM32ZG110F32 I/O.
Schematic
47
terface.
Figure A.3:
Schematic sheet detailing switch and programming in-
48
Schematic
Appendix
B
PCB layout
Figure B.1:
PCB top side, dimensions in mm.
49
50
PCB layout
Figure B.2:
PCB bottom side, dimensions in mm.
http://www.eit.lth.se
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
