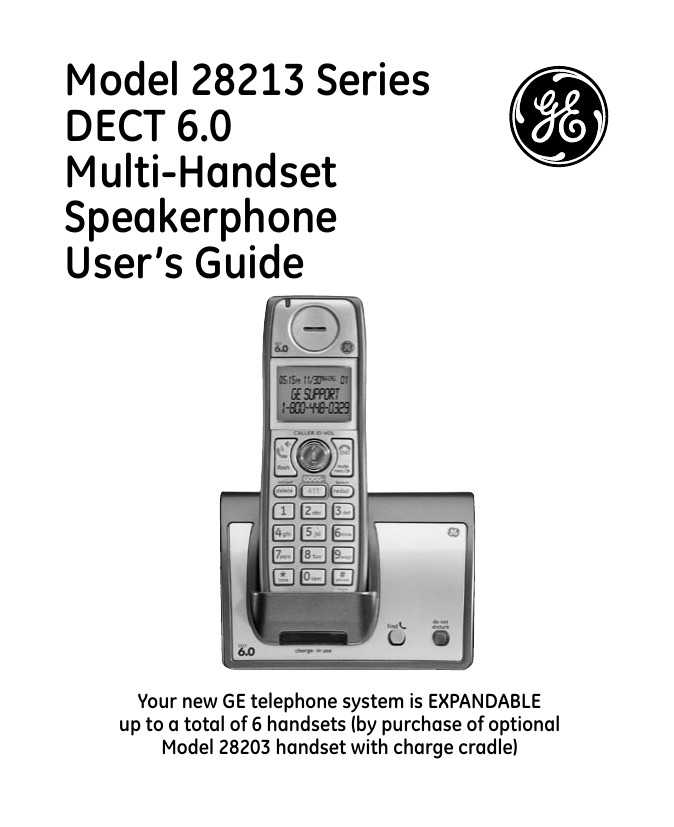

Model 28213 Series
DECT 6.0
Multi-Handset
Speakerphone
User’s Guide
Your new GE telephone system is EXPANDABLE
up to a total of 6 handsets (by purchase of optional
Model 28203 handset with charge cradle)
Equipment Approval Information
Your telephone equipment is approved for connection to the Public Switched Telephone
Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the
Technical Requirements for Telephone Terminal Equipment published by ACTA.
1 Notification to the Local Telephone Company
On the bottom of this equipment is a label indicating, among other information, the US
number and Ringer Equivalence Number (REN) for the equipment. You must, upon request,
provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your telephone
line and still have all of these devices ring when your telephone number is called. In most (but
not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5.
To be certain of the number of devices you may connect to your line as determined by the
REN, you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this product.
It is designed to be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
Notes
• This equipment may not be used on coin service provided by the telephone
company.
• Party lines are subject to state tariffs, and therefore, you may not be able to use your
own telephone equipment if you are on a party line. Check with your local telephone
company.
• Notice must be given to the telephone company upon permanent disconnection of
your telephone from your line.
• If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this product does not disable your alarm equipment. If you
have questions about what will disable alarm equipment, consult your telephone
company or a qualified installer.
US Number is located on the cabinet bottom.
REN Number is located on the cabinet bottom.
2 Rights of the Telephone Company
Should your equipment cause trouble on your line which may harm the telephone network,
the telephone company shall, where practicable, notify you that temporary discontinuance
of service may be required. Where prior notice is not practicable and the circumstances
warrant such action, the telephone company may temporarily discontinue service
immediately. In case of such temporary discontinuance, the telephone company must: (1)
promptly notify you of such temporary discontinuance; (2) afford you the opportunity to
correct the situation; and (3) inform you of your right to bring a complaint to the Commission
pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.
The telephone company may make changes in its communications facilities, equipment,
operations or procedures where such action is required in the operation of its business and
not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the
use or performance of your telephone equipment, the telephone company must give you
adequate notice, in writing, to allow you to maintain uninterrupted service.
Interference Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference; and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
Privacy of Communications may not be ensured when using this product.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or television
that is “receiving” the interference).
• Reorient or relocate and increase the separation between the telecommunications
equipment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from
that to which the receiving antenna is connected.
If these measures do not eliminate the interference, please consult your dealer or an
experienced radio/television technician for additional suggestions. Also, the Federal
Communications Commission has prepared a helpful booklet, “How To Identify and Resolve
Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing
Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when
ordering copies.
Notice: The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Hearing Aid Compatibility (HAC)
This telephone system meets FCC standards for Hearing Aid Compatibility.
Licensing
Licensed under US Patent 6,427,009.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body. This transmitter must not be co-located
or operated in conjunction with any other antenna or transmitter.
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines when used with the belt clip supplied with this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.
Information for DECT Product
This telephone is compliant with the DECT 6.0 standard which operates in
the 1.92GHz to 1.93GHz frequency range. Installation of this equipment is
subject to notification and coordination with UTAM. Any relocation of this
equipment must be coordinated through and approved by UTAM. UTAM may
be contacted at 1-800-429-8826.
Table of Contents
Equipment Approval Information....2
Interference Information. ..............3
Hearing Aid Compatibility (HAC)....4
Licensing........................................4
FCC RF Radiation Exposure
Statement...............................4
Information for DECT Product.....4
Introduction..................................7
Before You Begin ..........................7
Parts Checklist.............................. 7
Telephone Jack Requirements...... 8
Installation ...................................8
Digital Security System................. 8
Important Installation
Guidelines. ................................ 9
Base Layout ................................ 10
Front View....................................10
Handset Layout........................... 11
Display Icons.................................11
Installing the Phone. .................. 12
Installing the Handset Battery12
Base Station..................................13
Programming the Telephone........ 14
Standby Screen.............................14
Programming Functions.............14
Room Monitor..............................14
Alarm Clock.................................15
Initial Setup...................................16
Handset Name..............................16
Date and Time. ..............................16
Area Code. ....................................17
Tone/Pulse....................................17
Language. ......................................17
Auto Talk......................................18
Registration. .................................18
De-Registration............................19
Global De-registration. .............20
Sound Setup. ................................20
Ringer Tone...................................20
Ringer Volume..............................21
Key Tone........................................21
Reset Setting................................21
Voicemail........................................22
All Settings..................................22
Telephone Operation................... 22
Visual Indicators..........................22
Base. ......................................22
Handset.................................23
VMWI / Visual Ringer Indicator on
Handset...................................23
Speakerphone Operation....23
Making a Call......................23
Answering Calls.................24
Call Timer......................................24
Auto Standby................................24
Ringer Volume..............................24
Flash/Call Waiting.....................25
Last Number Redial.....................25
Exit..................................................25
Page................................................26
Paging from the Base/Group
Page..........................................26
Mute...............................................26
Receiver Volume Control. .........26
Table of Contents
Do Not Disturb (D-N-D)...........26
GOOG411.................................. 27
Intercom Operation......................28
Making an Auto Intercom
Call..........................................28
Advanced Intercom Features.....29
Receiving an Incoming Call
During an Intercom
Call.................................29
Using Intercom with External
Telephone Calls............29
Two-Way Calling...............29
Three-Way Calling.............29
Transferring External Calls to
Other Handsets.................. 30
Caller ID (CID)........................... 30
Call Waiting Caller ID..............31
Receiving CID Records...............31
Storing CID Records..................31
Reviewing CID Records..............31
Dialing a CID Number. ...............32
Storing CID Records in Internal
Memory....................................32
Deleting a CID Record...............33
Deleting All CID Records.........33
Phonebook.................................. 34
Review Records............................34
Add Records.................................34
Inserting a Pause in the Dialing
Sequence. ................................35
Edit Records.................................35
Delete Records.............................35
Dialing a Number from Internal
Memory....................................36
Changing the Battery.................. 37
Battery Safety Precautions.......37
Display Messages......................... 38
Troubleshooting Guide. .............. 39
Causes of Poor Reception........... 41
General Product Care................ 42
Warranty Assistance. ................. 42
Limited Warranty. ...................... 43
Accessory Information................ 45
Index........................................... 46
CAUTION:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO
PREVENT FIRE OR
ELECTRICAL SHOCK
HAZARD, DO NOT
EXPOSE THIS
PRODUCT TO RAIN
OR MOISTURE.
THE LIGHTNING
FLASH AND ARROW
HEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
“DANGEROUS
VOLTAGE” INSIDE
THE PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
Introduction
CAUTION: When using telephone equipment, there are basic
safety instructions that should always be followed. Refer to the
IMPORTANT SAFETY INSTRUCTIONS provided with this product
and save them for future reference.
IMPORTANT: Because cordless phones operate on electricity, you
should have at least one phone in your home that isn’t cordless, in
case the power in your home goes out.
Before You Begin
Parts Checklist (for 28213 model)
Make sure your package includes the items shown here.
Base
Battery
compartment
cover
AC power
adaptor
Handset
Handset
Telephone line cord
battery pack
Belt Clip
Note: If a speaker box is included in your package, it replaces one
set of a handset, belt clip, battery pack and cover.
For Model 28213xx2 there will be ONE additional handset, charge cradle, belt clip,
battery pack and cover than shown above.
For Model 28213xx3 there will be TWO additional handsets, charge cradles, belt clips,
battery packs and covers than shown above.
For Model 28213xx4 there will be THREE additional handsets, charge cradles, belt clips,
battery packs and covers than shown above.
For Model 28213xx5 there will be FOUR additional handsets, charge cradles, belt clips,
battery packs and covers than shown above.
For Model 28213xx6 there will be FIVE additional handsets, charge cradles, belt clips,
battery packs and covers than shown above.
Telephone Jack Requirements
Wall plate
To use this phone, you need an RJ11C type modular
telephone jack, which might look like the one pictured
here, installed in your home. If you don’t have a modular
Modular
jack, call your local phone company to find out how to
telephone line
get one installed.
jack
Installation
Digital Security System
Your cordless phone uses a digital security system to protect against false ringing,
unauthorized access, and charges to your phone line.
INSTALLATION NOTE: Some cordless telephones operate at
frequencies that may cause or receive interference with nearby
TVs, microwave ovens, and VCRs. To minimize or prevent such
interference, the base of the cordless telephone should not be
placed near or on top of a TV, microwave ovens, or VCR. If such
interference continues, move the cordless telephone farther away
from these appliances.
Certain other communications devices may also use the 1.9GHz
DECT frequency for communication, and, if not properly set, these
devices may interfere with each other and/or your new telephone.
If you are concerned with interference, please refer to the owner’s
manual for these devices on how to properly set channels to
avoid interference. Typical devices that may use the 1.9GHz
DECT frequency for communication include wireless audio/video
senders, wireless computer networks, multi-handset cordless
telephone systems, and some long-range cordless telephone
systems.
Important Installation Guidelines
• Avoid sources of noise and heat, such as motors, fluorescent lighting,
microwave ovens, heating appliances and direct sunlight.
• Avoid areas of excessive dust, moisture and low temperature.
• Avoid other cordless telephones or personal computers.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
• Never touch non-insulated telephone wires or terminals, unless the telephone
line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
Base Layout
Front View
charge- in use
(indicator)
10
find
(button)
do not disturb
(button)
Handset Layout
Voice Mail Waiting
Indicator (VMWI)/
Visual Ringer
CALLER ID-VOL 5 or 6
(caller id/volume up or
down button)
display
END
(button)
TALK/SPEAKER
(button)
Headphone jack
mute/menu OK
(button)
flash
(button)
GOOG 411
(google free one touch
directory assistance)
delete/int/conf
(delete/intercom/
conference)
format/redial
(button)
#pause/ringer
(button)
*tone/
(button)
microphone
Display Icons
Signal strength
Speakerphone
Message
Voicemail
SMS
Ringer OFF/DND ON
Alarm ON
New Call
Battery
AM AM
PM PM
11
Installing the Phone
Installing the Handset Battery
NOTE: You must connect the handset battery before use.
CAUTION: To reduce the risk of fire or personal injury, use
only the Thomson Inc. approved Nickel-metal Hydride battery
(Ni-MH) battery model 5-2840, that is compatible with this unit.
1. Locate battery and battery door which are packaged together inside a plastic bag
and are separate from the handset.
2. Locate the battery compartment on the back of the handset.
3. Plug the battery pack cord into the jack inside the compartment.
NOTE: To ensure proper battery installation, the connector is keyed
and can be inserted only one way.
4. Insert the battery pack.
5. Close the battery compartment by pushing the door up until it snaps into place.
12
Base Station
1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and
place your cordless telephone on a level surface, such as a desktop or tabletop, or
you may mount it on the wall.
2. Plug one end of the telephone line cord into the TEL LINE jack on the back of the
base and the other end into a modular jack.
3. Plug the AC power converter into the electrical outlet and the DC connector into
the jack on the back of the base.
4. Place the handset in the base cradle. The charge/in use indicator turns on,
verifying the battery is charging.
5. Allow the phone to charge for 16 hours prior to first use. If you don’t properly
charge the phone, battery performance is compromised.
CAUTION: To reduce risk of personal injury, fire, or damage
use only the 5-2812 power adaptor listed in the user’s guide.
This power adaptor is intended to be correctly orientated in a
vertical or floor mount position.
13
Programming the Telephone
Standby Screen
The handset displays the handset number and user name.
Programming Functions
The system uses a menu structure to give you access to all of the built-in features. You
may program the following items in main menu: Phone book, Room Monitor, Alarm
Clock, Initial Setup, Sound Setup, Reset Settings.
Room Monitor (applicable only with additional handsets)
1.
2.
3.
4.
14
Make sure your phone is OFF (not in TALK mode).
Press the mute/menu OK button to go to the main menu.
Press caller ID-volume (6 or 5) button to scroll to ROOM MONITOR.
Press the mute/menu OK button to enter ROOM MONITOR menu. The screen
displays ROOM MONITOR EXTENSION?.
5. Use the touch tone pad to enter the handset name/number to be monitored.
NOTE: When this phone system is expanded (up to 6 handsets by
purchase of optional Model 28203 handset with recharge cradle),
handsets are named HANDSET 1, HANDSET 2, HANDSET 3 and so
on respectively.
6. The receiving handset will turn on the microphone and the originating handset will
turn on the speakerphone to monitor sound from the receiving handset.
NOTE: For room monitoring mode to work, the originating handset
must NOT be on the cradle.
NOTE: While in room monitoring mode, the handsets will emit an
alert tone approximately every 5 seconds if there is an incoming
call. You may press the TALK/SPEAKER button to quit room monitor
and answer the call.
NOTE: While in room monitoring mode, the originating handset can
be switched to monitor by handset earpiece by pressing the
TALK/SPEAKER button once. Switch back to speakerphone by
pressing the TALK/SPEAKER button once.
NOTE: Press the END button on the handset to exit room monitor mode.
Alarm Clock
Make sure your phone is OFF (not in TALK mode)
Press the mute/menu OK button to go to the main menu.
Use the caller ID-volume (5 or 6) button to scroll to ALARM CLOCK.
Press mute/menu OK button to enter the menu. The screen displays ON > OFF.
Use the caller ID-volume (5 or 6) button to select ON or OFF. Press
mute/menu OK button to confirm.
6. If ON is selected, then the screen displays SET ALARM TIME. Use the number keys
to enter the alarm time (for example, 02:10PM) key in 0210. Use the
caller ID-volume (5 or 6) button to select AM or PM.
7. Press mute/menu OK button to display >ONCE OR DAILY and select ONCE or
DAILY.
8. Press the mute/menu ok button to save selection. You will hear a confirmation
tone and return to main menu.
1.
2.
3.
4.
5.
15
Initial Setup
1.
2.
3.
4.
Make sure your phone is OFF (not in TALK mode).
Press the mute/menu OK button to go to the main menu.
Press caller ID-volume (6 or 5) button to scroll to INITIAL SETUP.
Press the mute/menu OK button to confirm and you may program the following
items: Handset Name, Date and Time, Area Code, Tone/Pulse, Language, Auto
Talk, Registration, Deregistration.
NOTE: During programming, you may press the END button at any
time to exit the sub-menu and return to the menu.
Handset Name
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the HANDSET NAME
sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays HANDSET
NAME.
3. Use the touch-tone pad to enter a name (up to 15 characters). More than one
letter is stored in each of the number keys. For example, to enter Bill Smith, press
the key twice for the letter B. Press the key times for the letter I. Press the 5 key
times for the letter L. Press the 5 key times for the second letter L, and press the
1 key to insert a space between the first and last name. Press the 7 key times for
the letter S; press the 6 key once for the letter M; press the key times for the letter I;
press the 8 key for the letter T; press the key twice for the letter H.
NOTE: If you make a mistake, use the delete/int/conf button to
backspace and delete one character at a time.
4. Press the mute/menu OK button to save your name. You will hear a confirmation
tone and the handset name shows in the display.
Date and Time
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the DATE and TIME
sub-menu.
2. Press mute/menu OK button to enter the menu. Use the number keys to enter the
current date, (for example, 31 December, 2007) key in 071231.
3. Press mute/menu OK button to confirm your selection and advance SET TIME
sub-menu.
16
4. Use the number keys to enter the current hour and minute, then use the
caller ID-volume (5 or 6) to select AM or PM.
5. Press the mute/menu OK button to save your selection. You will hear a
confirmation tone and the current time shows in the display.
Area Code
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the AREA CODE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays SET AREA
CODE - - - .
3. Use the touch-tone pad to enter your 3-digit area code.
4. Press the mute/menu OK button to confirm. You will hear a confirmation tone and
the new area code shows in the display.
NOTE: To restore the default setting to - - -, press and release
delete/int/conf when SET AREA CODE shows in the display.
Tone/Pulse
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the TONE/PULSE
sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays 4TONE
PULSE. The default setting is TONE.
3. Use the caller ID-volume (5 or 6) to select TONE or PULSE.
4. Press the mute/menu OK button to confirm. You will hear a confirmation tone and
your selection shows in the display.
Language
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the LANGUAGE
sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays 4ENGLISH
ESPANOL.
3. Use the caller ID-volume (5 or 6) button to scroll to the desired language.
ENGLISH is the default setting.
4. Press the mute/menu OK button to save your selection. You will hear a
confirmation tone and the selected language shows in the display.
17
Auto Talk
When this function is ON, during an external call, you may lift the handset to answer a
call immediately without pressing any buttons. To end a call, put the handset back on
the base cradle directly.
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the AUTO TALK sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays > NO YES.
3. Use the caller ID-volume (5 or 6) button to scroll to your selection. NO is the
default setting.
4. Press the mute/menu OK button to confirm.
Registration
Your packaged handset(s) are pre-registered and ready to use. It is not recommended
that a handset be registered again unless absolutely necessary.
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the REGISTRATION
sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays YES4NO.
The default setting is NO.
3. Use the caller ID-volume (5 or 6) button to scroll to YES or NO.
4. If you select YES, press the mute/menu OK button. The screen displays HOLD
BASE FIND FOR 5 SECONDS, THEN PRESS MENU OK KEY. (Your handset should be
held near the base during registration process.)
5. Press and hold the find button on the base unit, the charge/in use indicator
flashes. Press the handset mute/menu OK button. The screen displays
REGISTERING. The handset screen displays REGISTERED. You may now rename
your handset. (Refer to Step & of Handset Name Section)
NOTE: If you are re-registering the handset through the handset
menu; to rename your handset you must go to the Handset Name
Section and start from the beginning step.
18
De-Registration
De-registration cancels registration. During the de-registration process, keep the
handset near the base.
From the Initial Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the DEREGISTRATION
sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays YES4NO.
The default setting is NO.
3. Use the caller ID-volume (5 or 6) button to scroll to YES or NO.
WARNING: It is not recommended that a handset be
de-registered unless absolutely necessary because once a
handset is de-registered, that handset’s telephone features
cannot be used until the handset is re-registered.
4. Select NO, if you do not want to de-register.
5. If you select YES, press the mute/menu OK button and MOVE NEAR BASE displays
for seconds, then the screen displays YES NO.
6. Use the caller ID-volume (5 or 6) button to scroll to YES or NO.
7. If you select YES, press the mute/menu OK button to confirm. The screen displays
DE-REGISTER.... You will hear a confirmation tone. Then the screen displays
DEREGISTERED to confirm the handset is deregistered.
NOTE: When you complete the de-registration process, the screen
displays HANDSET NEEDS REGISTRATION. To use the handset, you
MUST re-register the handset using the Registration process.
19
Global De-registration
If one or more handsets become lost, you should de-register all handsets to ensure
proper system operation.
WARNING: It is not recommended that a handset be
de-registered unless absolutely necessary because once a
handset is de-registered, that handset’s telephone features
cannot be used until the handset is re-registered.
1. Disconnect power from the base by pulling the plug out of the back of the unit.
2. Press and hold the find button and while holding the find button reconnect the
power.
3. Continue to hold the find button until the charge/in use light flashes rapidly.
4. Release the find button.
5. Press and release the find button on the base once. All handsets are
de-registered and the screen displays HANDSET NEEDS REGISTRATION.
Sound Setup
1.
2.
3.
4.
Make sure your phone is OFF (not in TALK mode).
Press the mute/menu OK button to go to the main menu.
Press caller ID-volume (5 or 6) button to scroll to SOUND SETUP.
Press mute/menu OK button to confirm and you may program the following
items: Ringer Tone, Ringer Volume, Key Tone.
Ringer Tone
You may choose from five different ringer tones and five different melodies.
From the Sound Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the RINGER TONE
sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays 4 1 OF 10.
01 is default setting.
3. Use the caller ID-volume (5 or 6) button to scroll to the desired setting
(1 through 10). You will hear a sample of the ringer tone/melody you select.
4. Press the mute/menu OK button to save your selection. You will hear a
confirmation tone and the selected ringer tone shows in the display.
20
NOTE: You must have the Ringer Volume set to ON for ring tone to
signal an incoming call.
Ringer Volume
From the Sound Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the RINGER VOLUME
sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays 4 RING
VOLUME 5.
3. Use the caller ID-volume (5 or6) button to scroll to your selection. LEVEL 5 is the
default setting.
4. Press the mute/menu OK button to save your selection. You will hear a
confirmation tone and the new volume setting shows in the display.
NOTE: If you turn the ringer OFF, the ringer off icon shows in the
display.
Key Tone
From the Sound Setup Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the KEY TONE sub-menu.
2. Press mute/menu OK button to enter the menu. The screen displays > ON OFF.
3. Use caller ID-volume (5 or 6) button to scroll to your selection. ON is the default
setting.
4. Press the mute/menu OK button to confirm and the key tone setting shows in the
display.
Reset Setting
1.
2.
3.
4.
Make sure your phone is OFF (not in TALK mode).
Press the mute/menu OK button to go to the main menu.
Press caller ID-volume (5 or 6) button to scroll to RESET SETTINGS.
Press mute/menu OK button to confirm and you may program the following
items: Voicemail, All Settings.
21
Voicemail
From the Reset Settings Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the VOICEMAIL sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays 4YES
NO. The default setting is NO.
3. Use the caller ID-volume (5 or 6) button to move the cursor to YES or NO.
NOTE: If YES is selected, new voicemail icon is cleared from the LCD and
the VMWI LED is turned OFF (on ALL handsets, and the charge/in use LED
on the base).
4. Press the mute/menu OK button to save your selection. You will hear a
confirmation tone.
All Settings
As you become familiar with this system, you may prefer to use the system’s original
settings. Follow the steps below to return to the factory default settings.
From the Reset Settings Menu:
1. Press the caller ID-volume (5 or 6) button to scroll to the ALL SETTINGS
sub-menu.
2. Press the mute/menu OK button to enter the menu. The screen displays YES4NO.
The default setting is NO.
3. Use the caller ID-volume (5 or 6) button to move the cursor to YES or NO.
NOTE: If you choose YES all the settings in the programmable menu
are returned to factory default setting.
4. Press the mute/menu OK button to save your selection. You will hear a
confirmation tone.
Telephone Operation
Visual Indicators
Base
The charge/in use indicator on the base will flash to alert you to an incoming call,
during paging, or if you have a message waiting from your service provider. The
indicator will remain lit when a handset is in the base charging or when the line is in
use.
22
Handset
The TALK/SPEAKER indicator buttons flash when you receive a call and remain lit
during a call.
The keypad and CID will also light when a call is received.
VMWI / Visual Ringer Indicator on Handset
IMPORTANT: In order to use this unit’s Voice Mail Waiting Indicator
(VMWI) feature, you must subscribe to this service from your phone
company.
The VMWI indicator on the top of the handset flashes when you receive a new
message from your service provider. Also, it serves as a Visual Ringer function. It will
flash when there is an incoming call.
Speakerphone Operation
NOTE: If you are using the speakerphone, remain close to handset
so the party you are speaking to can hear you.
If you are using the earpiece and want to switch to the speakerphone, press the
TALK/SPEAKER button, press END button to end conversation.
If you are using the speakerphone and want to switch to the earpiece, press the
TALK/SPEAKER button again, press END button again to end conversation.
Making a Call
1. Press the TALK/SPEAKER button. Dial the desired number.
- OR Dial the number first, then press the TALK/SPEAKER button.
- OR Press the caller ID-volume (5 or 6) button to select the desired record, then
press the TALK/SPEAKER button.
2. When finished, press the END button to hang up.
NOTE: You may enter up to 28 pre-dial digits.
NOTE: If you want to delete the pre-dial number you entered, press
the delete/int/conf button until all of the digits are erased.
23
Answering Calls
1. When the phone rings, pick up the handset and press the TALK/SPEAKER button.
2. When finished, press END button to hang up.
- OR If the auto talk mode is selected, pick up the handset from the charge cradle to
answer the call immediately.
NOTE: Adjust the handset volume by pressing the caller ID-volume
(5 or 6) button during a call.
Call Timer
After you press the TALK/SPEAKER button on the handset, the built-in call timer shows
on the display and counts the length of time of the call in minutes and seconds.
Auto Standby
If you place the handset in the cradle while the handset is off the hook (during a call),
the call is automatically disconnected.
Ringer Volume (Shortcut)
There are two ways to set the ringer volume. One is the traditional way as described in
the Programming Functions; Sound Setup; Ringer Volume menus. The other one is this
short cut to ringer menu.
1. Make sure the phone is OFF (not in TALK mode).
2. Press the #pause/ringer button to display SET RINGER LEVEL 5.
3. Use the caller ID-volume (5 or 6) button to scroll to your selection. LEVEL 5 is
the default setting.
4. Press #pause/ringer button again to save and display the new selection for a few
seconds.
24
Flash/Call Waiting
If you subscribe to the combined Call Waiting Caller ID service from your local telephone
company, you will receive Caller ID information (if available) on Call Waiting calls. During
a phone call, you will hear a beep to indicate another call is waiting on the line and Caller
ID information for the waiting call shows on the handset display.
•
•
To connect to the waiting call, press the flash button on the handset, and your
original call is put on hold.
To switch between the two calls, press the flash button.
Last Number Redial
You may redial a number up to 20 digits long. To quickly redial the last number you
dialed:
1. Press the TALK/SPEAKER button.
2. Press the redial/format button.
-OR-
3. Press the redial/format button first, then use the caller ID-volume (5 or 6)
button to select the desired redial number.
- Press the caller ID-volume (5) to review the oldest call and scroll toward the
most recent calls (higher numbers).
- Press the caller ID-volume (6) to review the newest call and scroll to older calls
(lower numbers).
NOTE: You may choose from the last three numbers that were
dialed.
4. Press the TALK/SPEAKER button. The number dials automatically.
If you get a busy signal and want to keep dialing the number, press the redial/format
button to quickly redial the number.
Exit
Press the END button to exit a menu function and return to the standby screen.
25
Page
The page feature helps you locate a misplaced handset. To send and receive pages, all
handsets must be registered. If your handset is not registered, follow the instructions in
the Registration section of this manual.
Paging from the Base/Group Page
Use the base-only to page all registered handsets at the same time.
1. Press the find button on the base. All handsets beep for two minutes, and each
handset screen displays FIND HANDSET.
2. To cancel the page, press the find button on the base, or press the TALK/SPEAKER
button or the END button on each handset.
Mute
To have a private, off-line conversation, use the MUTE feature. The party on the
telephone line cannot hear you, but you can hear them.
1. Press the mute/menu OK button. The handset display shows MUTE ON.
2. Press the mute/menu OK button to cancel and return to your phone conversation.
Receiver Volume Control
When the handset is ON (in TALK mode) you may adjust the receiver volume by
pressing the caller ID-volume (5 or 6) button. There are five volume levels to choose
from. When the maximum or minimum volume level is reached, the phone beeps twice.
VOL 1 is minimum and VOL 5 is maximum.
Do Not Disturb (D-N-D)
This feature allows you to turn off all the handset ringer(s) at once, by pressing one
button at the base unit, even though the ringer volume of handset(s) has been preset.
1. In the standby mode, press the do not disturb button on the base.
2. The DND indicator will light and shows in each handset display.
3. To cancel, press the do not disturb button again.
NOTE: You can press the do not disturb button and activate the
function immediately, even when there is incoming call ringing in,
or during call screening after the call is taken by the answerer.
26
GOOG411
GOOG-411 is Google’s new 411 service. With GOOG-411, you can find local business
information completely free, directly from your phone. With purchasing the GE phone,
you can access 1-800-GOOG-411 service at anytime by simply pressing the GOOG-411
button.
1. In standby mode or dialing mode, press the GOOG-411 button, the preset
GOOG-411 service number is dialed out immediately. The screen displays
“GOOG-411: Free 411 by Google”.
2. Speak into the phone and say where you are and what you’re looking for.
GOOG-411 will connect you with the business you choose.
3. When finished, press END/cancel button to hang up.
At any point in the call:
• To go back
• To start over
When asked for a city and state:
say “go back”
say “start over” or press *
• To enter city and state
say the full names
(for example, “Palo Alto California”)
• To enter a zip code
say it or enter with keypad
When asked for business name or category:
• To enter a business name or category • To spell a business name
When given results:
say the full names
(for example, “Joe’s Pizzaria” or “Pizza”)
press 1 and spell with keypad
(for example, TOYS would be 8697)
• To navigate between results
• To get more details
• To get help
say or press the listing number
say “details”
say “help”
27
Intercom Operation
(applicable only with additional handsets)
The intercom feature allows you to have a conversation with another registered
handset without tying up the telephone line, allowing you to still receive incoming calls.
Making an Auto Intercom Call
1. Make sure the handset is OFF (not in TALK mode).
2. Press the delete/int/conf button on the handset.
3. Use the touch-tone pad to select the handset you want to page.
NOTE:
a) If the user has not entered the paged handset number within a
few seconds, the handset shall display a paged handset number
list (i.e. Handset 2, Handset 3, Handset 4, Handset 5 and Handset
6) if Handset 1 is paging the handset.
b) Even if the handset has not been registered with all 6 handsets,
the paging list will display all handset numbers.
c) If the user has selected a paged handset number that has not
been registered, the handset will emit an error tone and ask the
user to retry again.
4. A long beep is heard and then the two handsets are immediately connected.
Receiving handset shall immediately come into the auto intercom mode that both
“microphone” and “speaker” of this receiving handset shall be enabled such that
the user of receiving handset can freely talk and listen to the conversation.
5. When finished, press the END button or delete/int/conf button on either handset
to deactivate the intercom.
NOTE: The system is expandable up to 6 handsets (by purchase
of optional Model 28203 handset with recharge cradle). When
4 handsets are registered, the system can handle 2 separate
intercom operations at once, for example, 1st handset intercoms
with 2nd handset while 3rd handset intercoms with 4th handset.
28
Advanced Intercom Features
Receiving an Incoming Call During an Intercom Call
If you receive a telephone call during an intercom call, an incoming call alert tone will
be heard (through the earpiece or speaker). If the user wants to answer an incoming
call, they must press END to terminate the intercom and receive an incoming ring.
Using Intercom with External Telephone Calls
During a telephone call, you may use the intercom/paging function to page another
handset and have an off line, private (two-way) intercom conversation. You may also
have a three-way conversation between the external caller and the handsets, or you
may transfer the external telephone call to another handset.
NOTE: Before you intercom/page another handset, you must
decide whether you want to create a two-way or a three-way
conversation.
Two-Way Calling
1. During an external call, press the delete/int/conf button, and use the touch-tone
pad to enter the handset number to put an external line on hold. The user may
then auto intercom with the paged handset.
NOTE: Both intercom users may speak privately. The external caller
will not hear the intercom conversation.
2. When finished, press the END button to end the intercom call, return to the talk
mode, and resume your original telephone conversation.
Three-Way Calling
1. During an external call, press the delete/int/conf button. The screen displays LINE
ON HOLD EXTENSION?.
2. Use the touch-tone pad to select Handset # to enter into auto intercom call with
paged handset.
3. When the receiving handset connects, press the delete/int/conf button on the
originating handset to conference with the receiving handset and the external
caller. The screen displays CONFERENCE on the originating and receiving
handsets.
29
NOTE: A handset can enter conference mode directly by pressing
TALK/SPEAKER on the second handset during a call.
Transferring External Calls to Other
Handsets
During an external call, you may transfer the external call to another handset.
1. Press the delete/int/conf button on the originating handset to put an external call
on hold, and enter the paged handset number.
2. A long beep is heard and then the two handsets are immediately connected.
Receiving handset shall immediately come into the auto intercom mode that both
“microphone” and “speaker” of this receiving handset shall be enabled such that
the user of receiving handset can freely talk and listen to the conversation.
3. When the receiving handset connects, press the END button on the originating
handset to transfer the call.
Caller ID (CID)
IMPORTANT: In order to use this unit’s Caller ID features, you must
subscribe to either the standard Name/Number Caller ID Service
or Call Waiting Caller ID Service. To know who is calling while you
are on the phone, you must subscribe to Call Waiting Caller ID
Service.
This unit receives and displays information transmitted by your local phone company.
This information can include the phone number, date, and time; or the name, phone
number, date, and time.
30
Call Waiting Caller ID
Provided you subscribe to Call Waiting Caller ID service from your phone company; if
you receive an incoming call and you are using the GE multi handset system, a beep
indicates the presence of a Call Waiting call on the line. The Call Waiting Caller ID
information will be displayed and stored in the history of all handsets in the system.
•
When you hear the call waiting beep in the handset receiver, press the flash
button to put the current call on hold and answer the incoming call. Press the flash
button to return to the original call.
Receiving CID Records
When you receive a call, the Caller ID information is transmitted between the first and
second ring. The Caller ID information appears on the display while the phone rings,
giving you a chance to monitor the information and decide whether or not to answer
the call.
Storing CID Records (In CID Memory)
If you are not at home or cannot answer, your telephone’s Caller ID memory stores the
data for the 40 most recent calls you received so you can see who called while you
were unavailable. When the 41st call is received, the oldest Caller ID record (1st call) is
automatically deleted.
You may review the stored information at any time. Calls received since your last
review show as
in the display.
Reviewing CID Records
As calls are received and stored, the display is updated to let you know how many calls
have been received. To scroll CID records:
1. Make sure the phone is OFF (not in TALK mode).
2. Press the caller ID-volume (6) button to review the newest CID record.
3. Press the caller ID-volume (5) button to review the oldest CID record first.
31
Dialing a CID Number
1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (5 or 6) button to display the desired record.
3. Press the TALK/SPEAKER button. The number dials automatically.
NOTE: Depending on (a) how the incoming caller’s phone number
is formatted when it is received, and (b) whether or not you
previously pre-programmed your local area code into the set up
menu, you may need to adjust the format of the incoming caller’s
stored phone number before making the call, press the redial/
format button to adjust the number, and try again.
Available formats include:
Number of digits Explanation Example
Eleven digits
long distance code “1 ”
1-317-888-8888
+3-digit area code
+7-digit telephone number.
Ten digits3-digit area code +317-888-8888
7-digit telephone number.
Seven digits
7-digit telephone number.
888-8888
Storing CID Records in Internal Memory
You may also store CID information in the phone’s internal memory.
NOTE: It is important that you format CID records correctly BEFORE
storing in internal memory as you cannot reformat CID records
stored in memory.
1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (6 or 5) button to scroll to the desired CID record.
3. Press the mute/menu OK button to display ENTER NAME and then follow “ADD
RECORDS in Phoneboook section” procedures from Step 3 to Step 7 to store the
number.
NOTE: Press the END button once to keep the previous setting
(making no changes) and return to the menu.
NOTE: If the selected CID record contains any information that is
non-numeric, the unit will not allow this record to transfer to the
internal user memory. The handset will display UNABLE TO STORE.
32
Deleting a CID Record
1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (5 or 6) button to display the CID record you want to
delete.
3. Press the delete/int/conf button. The display shows DELETE CALL ID?
NOTE: Press the END button to return to the previous screen
without deleting any CID records.
4. Press the delete/int/conf button to erase the record showing in the display. The
display shows DELETED.
Deleting All CID Records
1. Make sure the phone is OFF (not in TALK mode).
2. Use the caller ID-volume (5 or 6) button to display any Caller ID record.
3. Press and hold the delete/int/conf button until the screen displays DELETE ALL?.
NOTE: Press the END button to return to the previous screen
without deleting any CID records.
4. Press delete/int/conf button to erase all of the current CID records. The display
shows DELETED followed by NO CALLS.
33
Phonebook
Each handset can store up to fifty records in phone book for quick dialing; each record
can contain a maximum of 20-digit numbers and 14-character names (including
spaces).
Review Records
Make sure the phone is OFF (not in TALK mode).
Press the mute/menu OK button to go to main menu.
Use the caller ID-volume (5 or 6) button to scroll to PHONE BOOK.
Press the mute/menu OK button to access the phonebook sub-menu.
Use the caller ID-volume (5 or 6) button to scroll to VIEW RECORDS.
Press the mute/menu OK button to confirm, all records are shown in alphabetical
order.
7. Press the caller ID-volume (5 or 6) button or key in alphabet to view the records
and scroll to a record to be dialed out.
8. Press the TALK/SPEAKER button to confirm.
1.
2.
3.
4.
5.
6.
Add Records
From Phonebook Sub-Menu:
1. Use the caller ID-volume (5 or 6) button to scroll to ADD RECORDS.
2. Press the mute/menu OK button to confirm. The screen displays ENTER NAME.
3. Use the touch-tone pad to enter a name (up to 14 characters). More than one letter
is stored in each of the number keys. For example, to enter Bill Smith, press the key
twice for the letter B. Press the key times for the letter I. Press the 5 key times for the
letter L. Press the 5 key times for the second letter L, and press the 1 key to insert a
space between the first and last name. Press the 7 key times for the letter S; press
the 6 key once for the letter M; press the key times for the letter I; press the 8 key for
the letter T; press the key twice for the letter H.
NOTE: If you make a mistake press the delete/int/conf button to
backspace and erase the wrong character(s) or number(s).
4. Press the mute/menu OK button again to save your selection. The display shows
ENTER NUMBER.
34
5. Use the touch-tone pad to enter the telephone number (up to 20 digits, including
pauses), and press the mute/menu button to confirm and advance SET MELODY
sub-menu.
6. Use the caller ID-volume (5 or 6) button to select from melody 01 to melody 10
(a testing tone is generated while making melody selection).
7. Press mute/menu OK button to confirm, the records are stored alphabetically in
the phone book.
Inserting a Pause in the Dialing Sequence (of a
Stored Number)
Press the #pause/ringer button on the handset’s touch-tone pad to insert a delay in
dialing sequence when a pause is needed to wait for a dial tone (for example, after you
dial 9 for an outside line, or to wait for a computer access tone.) Each pause counts as
one digit in the dialing sequence.
Edit Records
From Phonebook Sub-Menu:
1. Use the caller ID-volume (5 or 6) button to scroll to EDIT RECORDS.
2. Press the mute/menu OK button to confirm, display will show the records.
3. Use the caller ID-volume (5 or 6) button or key in alphabet to move to desired
record, press mute/menu OK button to confirm. The screen displays ENTER
NAME.
4. Repeat Steps 3 through 7 in “Add Records” section.
Delete Records
From Phonebook Sub-Menu:
1. Use the caller ID-volume (5 or 6) button to scroll to DELETE RECORDS.
2. Press the mute/menu OK button to confirm, display will show the records.
3. Use the caller ID-volume (5 or 6) button or key in alphabet to move to desired
record, press the delete/int/conf button. The screen displays DELETE?.
4. Press the delete/int/conf button again to confirm.
NOTE: If you don’t want to change or delete a record, simply press
the END button, or wait for one minute to exit automatically.
35
Dialing a Number from Internal Memory
Make sure the phone is OFF (not in TALK mode).
Press the mute/menu OK button to access the phonebook sub-menu.
Use the caller ID-volume (5 or 6) button to scroll to VIEW RECORDS.
Press the mute/menu OK button to confirm
Use the caller ID-volume (5 or 6) button or key in alphabet to move to the
desired number.
6. Press the TALK/SPEAKER buttons, the number dials automatically.
1.
2.
3.
4. 5. 36
Changing the Battery
CAUTION: To reduce the risk of fire or personal injury, use only
the Thomson Inc. approved Model 5-2840 Nickel-metal Hydride
battery (Ni-MH), which is compatible with this unit.
1. Make sure the telephone is OFF (not in TALK mode) before you replace battery.
2. Remove the battery compartment door.
3. Disconnect the cord attached to the battery pack and remove the battery pack
from the handset.
4. Insert the new battery pack and connect the cord to the jack inside the battery
compartment.
5. Put the battery compartment door back on.
6. Place handset in the base to charge. Allow the handset battery to properly
charge (for 16 hours) prior to first use or when you install a new battery
pack. If you do not properly charge the phone, battery performance will be
compromised.
Battery Safety Precautions
•
Do not burn, disassemble, mutilate, or puncture. Like other batteries of this type,
toxic materials could be released which can cause injury.
• To reduce the risk of fire or personal injury, use only the Nickel-metal Hydride
battery listed in the User’s Guide.
• Keep batteries out of the reach of children.
• Remove batteries if storing over 30 days.
NOTE: The RBRC seal on the battery used in your Thomson Inc. product
indicates that we are participating in a program to collect and recycle the
rechargeable battery (or batteries).
For more information go to the RBRC web site at www.rbrc.org
or call 1-800-8-BATTERY or contact a local recycling center.
37
Display Messages
The following messages show the status of the phone, provides Caller ID information,
or helps you set up and use your phone.
BLOCKED NUMBER
Indicates the person is calling from a number which is
blocked from transmission.
CALL SCREENING
Indicates you may use the handset to screen calls before
answering the call.
CHARGING...
Indicates the handset needs to charge for a period of time
before it can resume normal function.
DELETE ALL?
Prompt asking if you want to erase all CID records.
DELETE CALL ID?
Prompt asking if you want to erase the CID record
showing on the display.
DELETE?
Prompt asking if you want to erase one of the 50 records
stored in the phone’s memory.
END OF LIST
Indicates that there is no additional information in CID
memory.
ENTER NAME
Prompt telling you to enter the name for one of the 50
memory locations.
ENTER TEL NUMBR
Prompt telling you to enter the telephone number for one
of the 50 memory locations.
HANDSET NAME Prompt telling you to enter the user name for the
registered handset.
HANDSET NEEDS REGISTRATION Indicates you must register a non-registered handset
prior to use.
INCOMPLETE DATA
Caller information is interrupted during transmission
or the phone line is excessively noisy. Indicates no CID
information was received, you are not subscribed to CID
service, or CID service is not working.
LINE IN USE Displays on handset while the line is in use.
LONG DISTANCE Indicates CID record is from a long distance call.
38
LOW BATTERY Indicates the battery needs to be charged.
MSG WAITING OFF
Indicates voice mail has been retrieved from service provider.
NEW CALL XX
XX represents the number of new CID records not reviewed.
NEW VOICE MAIL
Indicates voice mail has not been retrieved from service
provider.
NO CALLS
Indicates there are no CID records in memory.
OUT OF RANGE May indicate handset is too far away from the base or
that the power has been interrupted. Move closer and
check connections.
PAGING or PAGING FROM
REPT
Someone pressed the page button on the base or delete/
int/conf button on the handset
Indicates a repeat call message. Indicates a new call
from the same number was received more than once.
ROOM MONITORING.... The audio link between handsets is established.
SEARCHING Indicates handset is searching for the base.
SPKR Indicates the handset is in speakerphone mode.
UNKNOWN NAME/
CALLER/NUMBER The incoming call is from an area not serviced by CID
or the CID information was not sent.
Troubleshooting Guide
Caller ID Solutions
No Display
• The battery must be fully charged. Try replacing the battery.
• Make sure that the unit is connected to a non-switched electrical outlet.
Disconnect the unit from the wall and plug it in again.
• You must be subscribed to Caller ID service from your local telephone company
in order to receive Caller ID records.
Caller ID Error Message • This message indicates either the presence of noise on the line, or that an invalid
message has been sent from the telephone company.
39
Cordless Phone Solutions
No dial tone
• Check installation:
Make sure the base power cord is connected to a working electrical outlet.
Make sure the telephone line cord is connected to the base unit and the wall
phone jack.
• Connect another phone to the same modular jack; if the second phone doesn’t
work, the problem might be with your wiring or local service.
• The handset may be out of range of the base. Move closer to the base.
• Make sure the battery is properly charged (for 16 hours).
• Ensure the battery pack is installed correctly.
• The handset should beep when you press the talk button, and the charge
indicator on the base should be lit when the handset rests in the cradle. If not,
the battery may need to be charged.
• Place the handset in the base for at least 20 seconds to reset unit.
Handset does not ring
• Make sure the handset ringer programmed to ON.
• Move closer to the base. The handset may be out of range.
• You may have too many extension phones on your line. Try unplugging some
phones.
• Check for a dial tone.
You experience static, noise, or fading in and out • Move closer to base. The handset might be out of range.
• Relocate the base. Make sure base is not plugged into an electrical outlet with
another household appliance.
• Charge the battery.
Unit beeps
• Place handset in base for 20 seconds; if it still beeps, charge battery for 16
hours.
• Clean the charging contacts on handset and base with a soft cloth.
• See solutions for “No dial tone.”
• Replace the battery.
40
Memory Dialing doesn’t work
• Make sure you programmed the memory location keys correctly.
• Did you follow proper dialing sequence?
Unit locks up and there is no communication between the handset and base
• Unplug the power adaptor from the electrical outlet and the back of the base.
Remove the handset battery. Wait for 30 seconds and plug the power adaptor
back into the base and electrical outlet. Reconnect the battery and charge for
16 hours.
Battery Solutions
If you experience any of the following problems, even after recharging the battery, you
may need to replace the battery pack:
• Short talk time
• Poor sound quality.
• Limited Range
• Charge indicator fails to turn on.
Causes of Poor Reception
•
•
•
•
•
•
•
•
•
•
Aluminum siding.
Foil backing on insulation.
Heating ducts and other metal construction that can shield radio signals.
You’re too close to appliances such as microwaves, stoves, computers, etc.
Atmospheric conditions, such as strong storms.
Base is installed in the basement or lower floor of the house.
Base is plugged into AC outlet with other electronic devices.
Baby monitor is using the same frequency.
Handset battery is low.
You’re out of range of the base.
41
General Product Care
To keep your telephone working and looking good, follow these guidelines:
• Avoid putting the phone near heating appliances and devices that generate
electrical noise (0210, motors or fluorescent lamps ).
• DO NOT expose to direct sunlight or moisture.
• Avoid dropping the unit and other rough treatment.
• Clean with a soft cloth.
• Never use a strong cleaning agent or abrasive powder because this will damage
the finish.
• Retain the original packaging in case you need to ship the phone at a later date.
• Periodically clean the charge contacts on the handset and base with a soft cloth.
Warranty Assistance
If trouble is experienced with this equipment, for warranty information, please
contact customer service at 1-800-448-0329. If the equipment is causing harm to
the telephone network, the telephone company may require that you disconnect the
equipment until the problem is resolved.
Any unauthorized repairs, changes or modifications not expressly approved by
Thomson Inc. could void the user’s authority to operate this product. For instructions
on how to obtain a replacement unit, refer to the warranty included in this guide or call
customer service at 1-800-448-0329.
Or refer inquiries to:
Thomson Inc.
Manager, Consumer Relations
P O Box 1976
Indianapolis, IN 46206
Attach your sales receipt to this booklet for future reference or jot down the date this
product was purchased or received as a gift. This information will be valuable if service
should be required during the warranty period.
Purchase Date
Name of Store
42
Limited Warranty
What your warranty covers:
• Defects in materials or workmanship.
For how long after your purchase:
• One year, from date of purchase.
(The warranty period for rental units begins with the first rental or 45 days from date
of shipment to the rental firm, whichever comes first.)
What we will do:
• Provide you with a new unit. The exchange unit is under warranty for the remainder
of the original product’s warranty period.
How you get service:
• Properly pack your unit. Include any cables, etc., which were originally provided with
the product. We recommend using the original carton and packing materials.
• ”Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the product is within the warranty period, must be presented to obtain warranty
service.” For rental firms, proof of first rental is also required. Also print your name
and address and a description of the defect. Send via standard UPS or its equivalent
to:
Thomson Inc.
11721 B Alameda Ave.
Socorro, Texas 79927
• Insure your shipment for loss or damage. Thomson Inc. accepts no liability in case of
damage or loss.
• A new unit will be shipped to you freight prepaid.
What your warranty does not cover:
• Customer instruction. (Your Owner’s Manual provides information regarding
operating instructions and user controls. Any additional information, should be
obtained from your dealer.)
• Installation and setup service adjustments.
• Batteries.
• Damage from misuse or neglect.
• Products which have been modified or incorporated into other products.
• Products purchased or serviced outside the USA.
• Acts of nature, such as but not limited to lightning damage.
Product Registration:
43
• Please complete and mail the Product Registration Card packed with your unit. It will
make it easier to contact you should it ever be necessary. The return of the card is not
required for warranty coverage.
Limitation of Warranty:
• The warranty stated above is the only warranty applicable to this
product. All other warranties, express or implied (including all
implied warranties of merchantability or fitness for a particular
purpose) are hereby disclaimed. No verbal or written information
given by Thomson Inc., its agents, or employees shall create a
guaranty or in any way increase the scope of this warranty.
• Repair or replacement as provided under this warranty is the
exclusive remedy of the consumer. Thomson Inc. shall not be liable
for incidental or consequential damages resulting from the use of
this product or arising out of any breach of any express or implied
warranty on this product. This disclaimer of warranties and limited
warranty are governed by the laws of the state of Indiana. Except
to the extent prohibited by applicable law, any implied warranty of
merchantability or fitness for a particular purpose on this product
is limited to the applicable warranty period set forth above.
How state law relates to this warranty:
• Some states do not allow the exclusion nor limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts so the above
limitations or exclusions may not apply to you.
• This warranty gives you specific legal rights, and you also may have other rights that
vary from state to state.
If you purchased your product outside the USA:
• This warranty does not apply. Contact your dealer for warranty information.
44
Accessory Information
DESCRIPTION
AC Power adaptor
Handset Replacement Battery
Belt Clip
Accessory Handset with Charge Cradle MODEL NO.
5-2812
5-2840
5-2829
5-2830
To place order, have your Visa, MasterCard, or Discover Card ready and call
toll-free 1-800-338-0376.
A shipping and handling fee will be charged upon ordering.
We are required by law to collect appropriate sales tax for each individual
state, country, and locality to which the merchandise is being sent.
Items are subject to availability.
45
Index
A
Accessory Information45
Add Records34
Advanced Intercom Features29
Alarm Clock
15
All Settings22
Answering Calls24
Area Code
17
Auto Standby24
Auto Talk
18
B
Base22
Base Layout 10
Base Station
13
Battery Safety Precautions37
Before You Begin 7
C
Call Timer24
Call Waiting Caller ID31
Caller ID (CID)30
Causes of Poor Reception41
Changing the Battery37
D
Date and Time
16
Delete Records35
Deleting a CID Record33
Deleting All CID Records33
De-Registration
19
Dialing a CID Number32
Dialing a Number from Internal
Memory36
Digital Security System
8
Display Icons
11
Display Messages38
Do Not Disturb (D-N-D)26
46
E
Edit Records35
Equipment Approval Information2
Exit25
F
FCC RF Radiation Exposure
Statement4
Flash/Call Waiting25
Front View
10
G
General Product Care42
Global De-registration20
GOOG41127
H
Handset23
Handset Layout
11
Handset Name
16
Hearing Aid Compatibility (HAC)4
I
Important Installation Guidelines
9
Information for DECT Product4
Initial Setup
16
Inserting a Pause in the Dialing
Sequence35
Installation 8
Installing the Handset Battery
12
Installing the Phone
12
Intercom Operation28
Interference Information3
Introduction
7
Index
K
Key Tone21
L
Language
17
Last Number Redial25
Licensing4
Limited Warranty43
M
Making a Call23
Making an Auto Intercom Call28
Mute26
P
Page26
Paging from the Base/Group Page26
Parts Checklist
7
Phonebook34
Programming Functions
14
Programming the Telephone
14
R
Receiver Volume Control26
Receiving an Incoming Call During an
Intercom Call29
Receiving CID Records31
Registration
18
Reset Setting21
Review Records34
Reviewing CID Records31
Ringer Tone20
Ringer Volume21, 24
Room Monitor
14
S
Sound Setup20
Speakerphone Operation23
Standby Screen
14
Storing CID Records31
Storing CID Records in Internal
Memory32
T
Telephone Jack Requirements
8
Telephone Operation22
Three-Way Calling29
Tone/Pulse
17
Transferring External Calls to Other
Handsets30
Troubleshooting Guide39
Two-Way Calling29
U
Using Intercom with External Telephone
Calls29
V
Visual Indicators22
VMWI / Visual Ringer Indicator on
Handset23
Voicemail22
W
Warranty Assistance42
47
Visit the GE website at: www.GE.com/phones
Model 28213
00025224 (Rev. 1 DOM E)
08-23
Printed in China
Thomson Inc.
101 West 103rd Street
Indianapolis, IN 46290-1102
© 2008 Thomson Inc.
Trademark(s) ® Registered
Marca(s) Registrada(s)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
