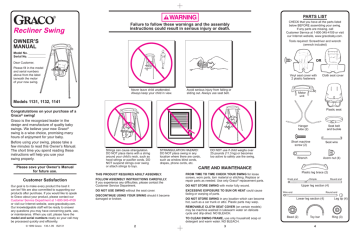

Graco 1131, 1132, 1141 Swing Sets User Manual

PARTS LIST
Recliner Swing
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
OWNER’S
MANUAL
CHECK that you have all the parts listed
below BEFORE assembling your swing.
If any parts are missing, call
Customer Service at 1-800-345-4109 or visit
our Internet website, www.gracobaby.com.
Tools required: Screwdriver and wrench
(wrench included)
Model No.
Serial No.
OR
Dear Customer,
Please fill in the model
and serial numbers
above from the label
beneath the motor
of your new swing.
Vinyl seat cover with
2 plastic fasteners
Never leave child unattended.
Always keep your child in view.
Avoid serious injury from falling or
sliding out. Always use seat belt.
Cloth seat cover
Motor
unit
Models 1131, 1132, 1141
Congratulations on your purchase of a
Graco® swing!
Graco is the recognized leader in the
design and manufacture of quality baby
swings. We believe your new Graco®
swing is a wise choice, promising many
hours of enjoyment for your baby.
Before using your swing, please take a
few minutes to read this Owner’s Manual.
The short time you spend reading these
instructions will help you use your
swing properly.
Please save your Owner’s Manual
for future use.
Plastic seat
Hanger
tube (2)
Short machine
screw (2)
Strings can cause strangulation.
DO NOT place items with a string
around your child’s neck, such as
hood strings or pacifier cords. DO
NOT suspend strings over swing
or attach strings to toys.
STRANGULATION HAZARD:
DO NOT place swing in any
location where there are cords,
such as window blind cords,
drapes, phone cords, etc.
THIS PRODUCT REQUIRES ADULT ASSEMBLY.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts, use,
or maintenance. When you call, please have the
model and serial numbers ready so your call may
be processed quickly and efficiently.
© 1999 Graco 135-1-99 IS2131
Seat belt
and buckle
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If you experience any difficulties, please contact the
Customer Service Department.
DO NOT USE SWING without the seat cover.
DISCONTINUE USING YOUR SWING should it become
damaged or broken.
DO NOT use if child weighs over
25 pounds (11.3 kg) or becomes
too active to safely use the swing.
Seat wire
Acorn nut (4)
Wrench
CARE AND MAINTENANCE
FROM TIME TO TIME CHECK YOUR SWING for loose
screws, worn parts, torn material or stitching. Replace or
repair parts as needed. Use only Graco® replacement parts.
Plastic leg brace (2)
Knob end
DO NOT STORE SWING in any location which can become
hot, such as a car trunk or attic. Plastic parts may warp.
Round end
Upper leg section (4)
DO NOT STORE SWING with motor fully wound.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause
fading or warping of parts.
Dimple
Round end
Wire end
Lower leg section (4)
Leg tip (4)
REMOVABLE CLOTH SEAT COVER (on certain models)
may be machine washed in lukewarm water on delicate
cycle and drip-dried. NO BLEACH.
TO CLEAN SWING FRAME, use only household soap or
detergent and warm water. NO BLEACH.
2
3
Bead (2)
Toy bar
4
Ring (3)
PARTS LIST
Recliner Swing
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
OWNER’S
MANUAL
CHECK that you have all the parts listed
below BEFORE assembling your swing.
If any parts are missing, call
Customer Service at 1-800-345-4109 or visit
our Internet website, www.gracobaby.com.
Tools required: Screwdriver and wrench
(wrench included)
Model No.
Serial No.
OR
Dear Customer,
Please fill in the model
and serial numbers
above from the label
beneath the motor
of your new swing.
Vinyl seat cover with
2 plastic fasteners
Never leave child unattended.
Always keep your child in view.
Avoid serious injury from falling or
sliding out. Always use seat belt.
Cloth seat cover
Motor
unit
Models 1131, 1132, 1141
Congratulations on your purchase of a
Graco® swing!
Graco is the recognized leader in the
design and manufacture of quality baby
swings. We believe your new Graco®
swing is a wise choice, promising many
hours of enjoyment for your baby.
Before using your swing, please take a
few minutes to read this Owner’s Manual.
The short time you spend reading these
instructions will help you use your
swing properly.
Please save your Owner’s Manual
for future use.
Plastic seat
Hanger
tube (2)
Short machine
screw (2)
Strings can cause strangulation.
DO NOT place items with a string
around your child’s neck, such as
hood strings or pacifier cords. DO
NOT suspend strings over swing
or attach strings to toys.
STRANGULATION HAZARD:
DO NOT place swing in any
location where there are cords,
such as window blind cords,
drapes, phone cords, etc.
THIS PRODUCT REQUIRES ADULT ASSEMBLY.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts, use,
or maintenance. When you call, please have the
model and serial numbers ready so your call may
be processed quickly and efficiently.
© 1999 Graco 135-1-99 IS2131
Seat belt
and buckle
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If you experience any difficulties, please contact the
Customer Service Department.
DO NOT USE SWING without the seat cover.
DISCONTINUE USING YOUR SWING should it become
damaged or broken.
DO NOT use if child weighs over
25 pounds (11.3 kg) or becomes
too active to safely use the swing.
Seat wire
Acorn nut (4)
Wrench
CARE AND MAINTENANCE
FROM TIME TO TIME CHECK YOUR SWING for loose
screws, worn parts, torn material or stitching. Replace or
repair parts as needed. Use only Graco® replacement parts.
Plastic leg brace (2)
Knob end
DO NOT STORE SWING in any location which can become
hot, such as a car trunk or attic. Plastic parts may warp.
Round end
Upper leg section (4)
DO NOT STORE SWING with motor fully wound.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause
fading or warping of parts.
Dimple
Round end
Wire end
Lower leg section (4)
Leg tip (4)
REMOVABLE CLOTH SEAT COVER (on certain models)
may be machine washed in lukewarm water on delicate
cycle and drip-dried. NO BLEACH.
TO CLEAN SWING FRAME, use only household soap or
detergent and warm water. NO BLEACH.
2
3
Bead (2)
Toy bar
4
Ring (3)
Attaching the Legs
Attaching the Seat
Step 1.
Step 1.
Lower leg sections have a wire in one end. Push a
plastic end cap onto opposite end, without the wire, as
shown. Repeat for the other three lower leg sections.
Slide hanger tubes into both
armrests of seat.
Wire
No wire
Lower leg
End cap
Step 2.
With a slight twisting motion, push wire end of a lower
leg into completely open end of upper leg (other end
is knob-shaped). Repeat for other three lower legs.
Knob
Wire
Dimple
Upper leg
Lower leg
Step 3.
Push knob shaped end of a
leg assembly onto plastic peg
inside end of motor housing as
shown. Push down until leg
snaps in place. Repeat for
other three legs.
Knob
SNAP
Peg
Do not use
the swing without the leg
braces.
To close legs for storage, first
unsnap leg braces. Then pull
the tabs under the motor
outward as shown, and move
the legs inward.
To remove legs completely,
first move legs inward, then
pull out with a twisting motion.
135-1-99 IS2131
5
Line up holes in both armrests
with holes in the hanger tubes.
Put a screw through the holes,
with head of screw on inside
of the seat. Fasten screws with
an acorn nut, and tighten
securely with enclosed wrench.
The seat back
must overlap armrests, as
shown enlarged at right.
With seat facing front of swing,
push ends of both hanger tubes
into the brackets as shown.
When the metal buttons pop out
into the bracket holes, the tubes
are locked.
CHECK that the hanger tubes
are secure in brackets by
pulling firmly on them.
Step 4.
It may be necessary to spread
the legs as shown.
If your model has side-facing
metal buttons instead of forward-facing buttons at top of
hanger tubes, the side-facing
buttons must face toward the
seat as shown.
Step 2.
PUSH
CHECK that all legs are
securely attached to the
motor housing by pulling
firmly on them.
Open the swing legs
completely. If necessary, turn
legs to line up the dimples on
the legs with the plastic leg
braces. Snap leg braces onto
outside of legs. The plastic
pegs inside the ends of the
braces will fit into the dimples
on the legs.
Side-facing
metal buttons
face toward
seat
Dimple
To remove hanger tubes from
brackets, push metal buttons in
and pull hanger tubes out.
Attaching the Seat Belt
Step 1.
Thread the free end of the seat
belt through the belt retainer as
shown.
If holes in vinyl are not fully
open, push fasteners through
vinyl with enough force to open
the holes.
Acorn nut
on outside
of seat
Step 2.
Open buckle by squeezing
sides of buckle to release.
Step 4.
Fold cover around bottom of
seat.
Step 3.
Thread belt through the buckle
as shown. CHECK to make
sure that the belt is threaded
correctly by pulling on the seat
belt. The belt should not slip
through the buckle.
Pull
tabs
Move legs
Cloth Seat Cover
(on certain models):
(No plastic fasteners are
included with cloth seat cover
models.)
Step 1.
Attaching the Seat Cover—2 Options
Slide the pocket of the cloth
cover over the top of the seat
as shown.
Your swing will have EITHER a vinyl or cloth seat cover.
Follow the appropriate instructions below.
Vinyl Seat Cover
(on certain models):
Step 2.
Push both ends of the seat belt
through the slots in the cloth
cover, and pull the belt through.
Step 1.
Slide the seat wire through the
seat back loops.
Push
From the inside of the seat,
press the two plastic fasteners
through the holes in the vinyl
cover into the holes in the
plastic seat.
Slide pocket at top of vinyl
seat cover over the seat back.
Step 3.
Push
Step 3.
Step 3.
Step 4.
Step 2.
Insert the end of the seat wire
through the hanger tubes as
shown. Then screw plastic nuts
on both ends of the seat wire
and tighten securely with the
enclosed wrench.
Push both ends of the seat
belt through the slots in the vinyl
cover, and pull the belt through.
Do not use
swing if the seat wire is not
securely attached. If seat can
recline backwards between
the hanger tubes, check the
wire assembly.
6
If slots in vinyl are not fully
open, push ends of buckle
through vinyl with enough force
to open the slots.
Push the plastic clip under
one side of the seat as shown.
Repeat on other side.
Step 4.
Pull the fabric out at the leg
openings.
7
8
Attaching the Legs
Attaching the Seat
Step 1.
Step 1.
Lower leg sections have a wire in one end. Push a
plastic end cap onto opposite end, without the wire, as
shown. Repeat for the other three lower leg sections.
Slide hanger tubes into both
armrests of seat.
Wire
No wire
Lower leg
End cap
Step 2.
With a slight twisting motion, push wire end of a lower
leg into completely open end of upper leg (other end
is knob-shaped). Repeat for other three lower legs.
Knob
Wire
Dimple
Upper leg
Lower leg
Step 3.
Push knob shaped end of a
leg assembly onto plastic peg
inside end of motor housing as
shown. Push down until leg
snaps in place. Repeat for
other three legs.
Knob
SNAP
Peg
Do not use
the swing without the leg
braces.
To close legs for storage, first
unsnap leg braces. Then pull
the tabs under the motor
outward as shown, and move
the legs inward.
To remove legs completely,
first move legs inward, then
pull out with a twisting motion.
135-1-99 IS2131
5
Line up holes in both armrests
with holes in the hanger tubes.
Put a screw through the holes,
with head of screw on inside
of the seat. Fasten screws with
an acorn nut, and tighten
securely with enclosed wrench.
The seat back
must overlap armrests, as
shown enlarged at right.
With seat facing front of swing,
push ends of both hanger tubes
into the brackets as shown.
When the metal buttons pop out
into the bracket holes, the tubes
are locked.
CHECK that the hanger tubes
are secure in brackets by
pulling firmly on them.
Step 4.
It may be necessary to spread
the legs as shown.
If your model has side-facing
metal buttons instead of forward-facing buttons at top of
hanger tubes, the side-facing
buttons must face toward the
seat as shown.
Step 2.
PUSH
CHECK that all legs are
securely attached to the
motor housing by pulling
firmly on them.
Open the swing legs
completely. If necessary, turn
legs to line up the dimples on
the legs with the plastic leg
braces. Snap leg braces onto
outside of legs. The plastic
pegs inside the ends of the
braces will fit into the dimples
on the legs.
Side-facing
metal buttons
face toward
seat
Dimple
To remove hanger tubes from
brackets, push metal buttons in
and pull hanger tubes out.
Attaching the Seat Belt
Step 1.
Thread the free end of the seat
belt through the belt retainer as
shown.
If holes in vinyl are not fully
open, push fasteners through
vinyl with enough force to open
the holes.
Acorn nut
on outside
of seat
Step 2.
Open buckle by squeezing
sides of buckle to release.
Step 4.
Fold cover around bottom of
seat.
Step 3.
Thread belt through the buckle
as shown. CHECK to make
sure that the belt is threaded
correctly by pulling on the seat
belt. The belt should not slip
through the buckle.
Pull
tabs
Move legs
Cloth Seat Cover
(on certain models):
(No plastic fasteners are
included with cloth seat cover
models.)
Step 1.
Attaching the Seat Cover—2 Options
Slide the pocket of the cloth
cover over the top of the seat
as shown.
Your swing will have EITHER a vinyl or cloth seat cover.
Follow the appropriate instructions below.
Vinyl Seat Cover
(on certain models):
Step 2.
Push both ends of the seat belt
through the slots in the cloth
cover, and pull the belt through.
Step 1.
Slide the seat wire through the
seat back loops.
Push
From the inside of the seat,
press the two plastic fasteners
through the holes in the vinyl
cover into the holes in the
plastic seat.
Slide pocket at top of vinyl
seat cover over the seat back.
Step 3.
Push
Step 3.
Step 3.
Step 4.
Step 2.
Insert the end of the seat wire
through the hanger tubes as
shown. Then screw plastic nuts
on both ends of the seat wire
and tighten securely with the
enclosed wrench.
Push both ends of the seat
belt through the slots in the vinyl
cover, and pull the belt through.
Do not use
swing if the seat wire is not
securely attached. If seat can
recline backwards between
the hanger tubes, check the
wire assembly.
6
If slots in vinyl are not fully
open, push ends of buckle
through vinyl with enough force
to open the slots.
Push the plastic clip under
one side of the seat as shown.
Repeat on other side.
Step 4.
Pull the fabric out at the leg
openings.
7
8
Installing the Toy Bar
Starting Swing
Replacement Parts
Step 1.
Be sure all parts are securely
fastened together before
using the swing.
Instructions for ordering swing parts:
Place the two beads and three
rings on the bar. The suggested
order is ring-bead-ring-beadring. (Once the toy bar is on
the tray, the order cannot be
changed.)
Step 1.
Open the seat belt. Place baby
in the seat. (If your child is very
small, you may want to use
rolled-up blankets as a prop.)
Step 2.
Snap the bar (one end at a
time) into the two “U”-shaped
holes located on the top front
of the tray. CHECK that bar is
securely attached by pulling
up on the bar.
Step 2.
Fasten the seat belt. Adjust
belt as needed to get a snug fit
around your child.
Do not depend on the tray alone to hold
your baby. Always secure your baby with the seat belt
when your child is in the swing.
Step 3.
Finished assembly will look like
illustration.
Reclining the Seat Back
The seat has two positions,
upright and reclined.
To recline the seat, first lift
the seat wire, then pull the
back of the seat downward.
For the upright position, just
pull forward on the top of the
seat.
Parts List:
Price:**
Motor unit .....................................
Plastic seat ...................................
Side-button hanger tube (right)* ...
Side-button hanger tube (left)* .....
Front-button hanger tube* ............
Vinyl seat cover ............................
Cloth seat cover ...........................
Seat belt with buckle ....................
Hardware ......................................
Plastic leg brace ...........................
Adjustment wire ............................
Upper leg section .........................
Lower leg section .........................
Leg tips (set of four) .....................
Toy bar kit .....................................
$25.00
$21.00
$13.00
$13.00
$13.00
$13.00
$14.00
$ 5.00
$ 5.00
$ 5.00 (each)
$ 7.00
$ 7.00 (each)
$ 7.00 (each)
$ 5.00
$ 7.00
* On certain models.
** Prices subject to change without notice.
Step 3.
Wind crank clockwise. Swing is fully wound when you hear
a clicking sound while winding.
Make sure toys are properly assembled before and during use. Do not tie other toys
or objects onto the swing toys. If child is able to
remove the toy bar from the tray, discontinue use.
Complete form below. Your swing model number MUST be
included on the form to ensure proper replacement parts.
Your model number can be found on a sticker beneath the
swing motor. Payment must accompany your order.
Step 4.
PUSH SWING SEAT TO START. BE SURE YOU PUSH IT
UP HIGH ENOUGH FOR THE MOTOR TO GET A GOOD
START.
Special features on certain models:
Some models have a “time-remaining” indicator on the right
side of the swing faceplate. After you finish winding, it will
show you the remaining swing time. It also indicates when
you need to rewind the motor.
Some models have a switch on the left side of the swing
faceplate to adjust the height of the swinging motion.
Observe the swinging motion for a minute before changing
the setting. It takes time for your swing to adjust to a new
setting.
• For a lower ride, push the control switch toward “low.”
• For a higher ride, push the control switch toward “high.”
NOTE: Seat may be stopped any time motor
is running without damaging motor. To restart,
push swing.
IF YOU NEED HELP
If you have any questions, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Return the form below with payment to:
GRACO CHILDREN’S PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
Model Number
(Must be filled in)
Motor unit
Plastic seat
Side button hanger
tube (right)
Side button hanger
tube (left)
Front button hanger tube
Vinyl seat cover
Cloth seat cover
Seat belt with buckle
Hardware
Plastic leg brace
Adjustment wire
Upper leg section
Lower leg section
Leg tips
Toy bar kit
Total:
Shipping
& handling:
6% sales tax
(PA only):
Total amount
due:
135-1-99 IS2132
9
10
$5.00
SHIP TO:
Name
Address
City, State, Zip
(
)
Telephone
Check enclosed
(payable to Graco Children’s
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
11
Installing the Toy Bar
Starting Swing
Replacement Parts
Step 1.
Be sure all parts are securely
fastened together before
using the swing.
Instructions for ordering swing parts:
Place the two beads and three
rings on the bar. The suggested
order is ring-bead-ring-beadring. (Once the toy bar is on
the tray, the order cannot be
changed.)
Step 1.
Open the seat belt. Place baby
in the seat. (If your child is very
small, you may want to use
rolled-up blankets as a prop.)
Step 2.
Snap the bar (one end at a
time) into the two “U”-shaped
holes located on the top front
of the tray. CHECK that bar is
securely attached by pulling
up on the bar.
Step 2.
Fasten the seat belt. Adjust
belt as needed to get a snug fit
around your child.
Do not depend on the tray alone to hold
your baby. Always secure your baby with the seat belt
when your child is in the swing.
Step 3.
Finished assembly will look like
illustration.
Reclining the Seat Back
The seat has two positions,
upright and reclined.
To recline the seat, first lift
the seat wire, then pull the
back of the seat downward.
For the upright position, just
pull forward on the top of the
seat.
Parts List:
Price:**
Motor unit .....................................
Plastic seat ...................................
Side-button hanger tube (right)* ...
Side-button hanger tube (left)* .....
Front-button hanger tube* ............
Vinyl seat cover ............................
Cloth seat cover ...........................
Seat belt with buckle ....................
Hardware ......................................
Plastic leg brace ...........................
Adjustment wire ............................
Upper leg section .........................
Lower leg section .........................
Leg tips (set of four) .....................
Toy bar kit .....................................
$25.00
$21.00
$13.00
$13.00
$13.00
$13.00
$14.00
$ 5.00
$ 5.00
$ 5.00 (each)
$ 7.00
$ 7.00 (each)
$ 7.00 (each)
$ 5.00
$ 7.00
* On certain models.
** Prices subject to change without notice.
Step 3.
Wind crank clockwise. Swing is fully wound when you hear
a clicking sound while winding.
Make sure toys are properly assembled before and during use. Do not tie other toys
or objects onto the swing toys. If child is able to
remove the toy bar from the tray, discontinue use.
Complete form below. Your swing model number MUST be
included on the form to ensure proper replacement parts.
Your model number can be found on a sticker beneath the
swing motor. Payment must accompany your order.
Step 4.
PUSH SWING SEAT TO START. BE SURE YOU PUSH IT
UP HIGH ENOUGH FOR THE MOTOR TO GET A GOOD
START.
Special features on certain models:
Some models have a “time-remaining” indicator on the right
side of the swing faceplate. After you finish winding, it will
show you the remaining swing time. It also indicates when
you need to rewind the motor.
Some models have a switch on the left side of the swing
faceplate to adjust the height of the swinging motion.
Observe the swinging motion for a minute before changing
the setting. It takes time for your swing to adjust to a new
setting.
• For a lower ride, push the control switch toward “low.”
• For a higher ride, push the control switch toward “high.”
NOTE: Seat may be stopped any time motor
is running without damaging motor. To restart,
push swing.
IF YOU NEED HELP
If you have any questions, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Return the form below with payment to:
GRACO CHILDREN’S PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
Model Number
(Must be filled in)
Motor unit
Plastic seat
Side button hanger
tube (right)
Side button hanger
tube (left)
Front button hanger tube
Vinyl seat cover
Cloth seat cover
Seat belt with buckle
Hardware
Plastic leg brace
Adjustment wire
Upper leg section
Lower leg section
Leg tips
Toy bar kit
Total:
Shipping
& handling:
6% sales tax
(PA only):
Total amount
due:
135-1-99 IS2132
9
10
$5.00
SHIP TO:
Name
Address
City, State, Zip
(
)
Telephone
Check enclosed
(payable to Graco Children’s
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
11

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
