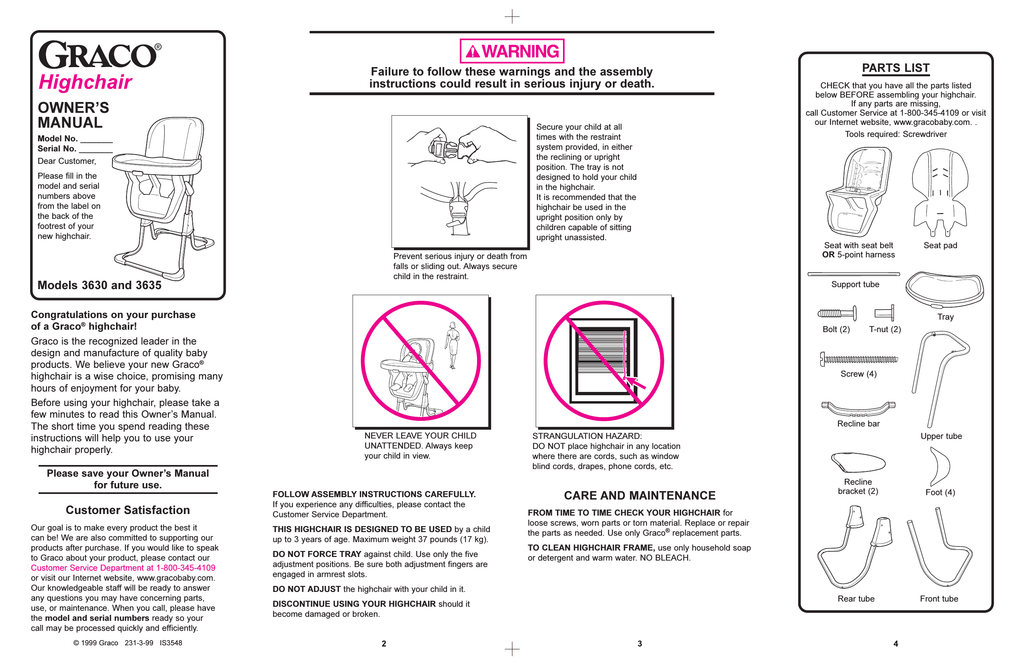

Graco 3630 High Chair User Manual

Highchair
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
OWNER’S
MANUAL
Secure your child at all
times with the restraint
system provided, in either
the reclining or upright
position. The tray is not
designed to hold your child
in the highchair.
It is recommended that the
highchair be used in the
upright position only by
children capable of sitting
upright unassisted.
Model No. _______
Serial No. ________
Dear Customer,
Please fill in the
model and serial
numbers above
from the label on
the back of the
footrest of your
new highchair.
Congratulations on your purchase
of a Graco® highchair!
Graco is the recognized leader in the
design and manufacture of quality baby
products. We believe your new Graco®
highchair is a wise choice, promising many
hours of enjoyment for your baby.
Before using your highchair, please take a
few minutes to read this Owner’s Manual.
The short time you spend reading these
instructions will help you to use your
highchair properly.
Please save your Owner’s Manual
for future use.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts,
use, or maintenance. When you call, please have
the model and serial numbers ready so your
call may be processed quickly and efficiently.
© 1999 Graco 231-3-99 IS3548
CHECK that you have all the parts listed
below BEFORE assembling your highchair.
If any parts are missing,
call Customer Service at 1-800-345-4109 or visit
our Internet website, www.gracobaby.com. .
Tools required: Screwdriver
Seat with seat belt
OR 5-point harness
Prevent serious injury or death from
falls or sliding out. Always secure
child in the restraint.
Models 3630 and 3635
PARTS LIST
Seat pad
Support tube
Tray
Bolt (2)
T-nut (2)
Screw (4)
Recline bar
NEVER LEAVE YOUR CHILD
UNATTENDED. Always keep
your child in view.
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If you experience any difficulties, please contact the
Customer Service Department.
THIS HIGHCHAIR IS DESIGNED TO BE USED by a child
up to 3 years of age. Maximum weight 37 pounds (17 kg).
DO NOT FORCE TRAY against child. Use only the five
adjustment positions. Be sure both adjustment fingers are
engaged in armrest slots.
STRANGULATION HAZARD:
DO NOT place highchair in any location
where there are cords, such as window
blind cords, drapes, phone cords, etc.
CARE AND MAINTENANCE
Recline
bracket (2)
Foot (4)
Rear tube
Front tube
FROM TIME TO TIME CHECK YOUR HIGHCHAIR for
loose screws, worn parts or torn material. Replace or repair
the parts as needed. Use only Graco® replacement parts.
TO CLEAN HIGHCHAIR FRAME, use only household soap
or detergent and warm water. NO BLEACH.
DO NOT ADJUST the highchair with your child in it.
DISCONTINUE USING YOUR HIGHCHAIR should it
become damaged or broken.
2
Upper tube
3
4
Highchair
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
OWNER’S
MANUAL
Secure your child at all
times with the restraint
system provided, in either
the reclining or upright
position. The tray is not
designed to hold your child
in the highchair.
It is recommended that the
highchair be used in the
upright position only by
children capable of sitting
upright unassisted.
Model No. _______
Serial No. ________
Dear Customer,
Please fill in the
model and serial
numbers above
from the label on
the back of the
footrest of your
new highchair.
Congratulations on your purchase
of a Graco® highchair!
Graco is the recognized leader in the
design and manufacture of quality baby
products. We believe your new Graco®
highchair is a wise choice, promising many
hours of enjoyment for your baby.
Before using your highchair, please take a
few minutes to read this Owner’s Manual.
The short time you spend reading these
instructions will help you to use your
highchair properly.
Please save your Owner’s Manual
for future use.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts,
use, or maintenance. When you call, please have
the model and serial numbers ready so your
call may be processed quickly and efficiently.
© 1999 Graco 231-3-99 IS3548
CHECK that you have all the parts listed
below BEFORE assembling your highchair.
If any parts are missing,
call Customer Service at 1-800-345-4109 or visit
our Internet website, www.gracobaby.com. .
Tools required: Screwdriver
Seat with seat belt
OR 5-point harness
Prevent serious injury or death from
falls or sliding out. Always secure
child in the restraint.
Models 3630 and 3635
PARTS LIST
Seat pad
Support tube
Tray
Bolt (2)
T-nut (2)
Screw (4)
Recline bar
NEVER LEAVE YOUR CHILD
UNATTENDED. Always keep
your child in view.
FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY.
If you experience any difficulties, please contact the
Customer Service Department.
THIS HIGHCHAIR IS DESIGNED TO BE USED by a child
up to 3 years of age. Maximum weight 37 pounds (17 kg).
DO NOT FORCE TRAY against child. Use only the five
adjustment positions. Be sure both adjustment fingers are
engaged in armrest slots.
STRANGULATION HAZARD:
DO NOT place highchair in any location
where there are cords, such as window
blind cords, drapes, phone cords, etc.
CARE AND MAINTENANCE
Recline
bracket (2)
Foot (4)
Rear tube
Front tube
FROM TIME TO TIME CHECK YOUR HIGHCHAIR for
loose screws, worn parts or torn material. Replace or repair
the parts as needed. Use only Graco® replacement parts.
TO CLEAN HIGHCHAIR FRAME, use only household soap
or detergent and warm water. NO BLEACH.
DO NOT ADJUST the highchair with your child in it.
DISCONTINUE USING YOUR HIGHCHAIR should it
become damaged or broken.
2
Upper tube
3
4
To Assemble Highchair
Step 5.
Step 1.
Hold rear tube as shown.
Slide plastic brackets onto
upper tube.
Hold front tube with ends up.
Place a foot (smooth side up)
at one curved corner of tube.
Insert a screw through tube
and into foot, then tighten.
Repeat with other corner,
then with both feet of rear
tube.
5-POINT HARNESS MODELS (For waist belt models, see next section.)
Both “U”
curves up
Plastic bracket
Step 6.
Collars
Step 2.
Slide front tube onto upper
tube as far as it will go, until
the holes in the tubes line up.
Lay seat face down on the
floor as shown. Insert
support tube through both
collars on bottom of seat.
To Attach Seat Pad
To Secure Your Child
Step 1.
Prevent serious injury or death from
falls or sliding out. Always secure your child in the
restraint. Do not depend on the tray alone to hold
your child.
Straps must be removed
from seat before pad can be
attached. Behind the seat
back, locate four plastic
retainers on shoulder and
waist straps. Push them
through the slots to the
front and set straps aside.
Step 1.
Step 2.
Place your child’s arms
through the loops created
by the shoulder/waist
straps and insert the
harness buckles into the
center buckle housing.
Place seat pad over highchair.
Step 3.
Support tube
Step 3.
Insert recline bar into one recline bracket (brackets
have “L” and “R” on inside), with curved side of bar
toward the bracket. Then attach bar and both recline
brackets onto each end of the support tube as shown.
Insert at end
“L” bracket
Curved side of
recline bar
“R” bracket
Step 4.
Insert both ends of upper
tube through holes in recline
brackets and pull all the way
through as shown.
“U” curve up
Push each retainer back
through proper hole in rear of
seat. Two levels of shoulder
holes are provided; choose the
level that is at or slightly above
your child’s shoulders.
Avoid twisting straps.
“U” curve
down
Step 7.
Pull rear tube up until holes
in plastic brackets line up with
holes in the tubes.
CHECK that holes in upper
tube, front tube AND plastic
brackets all line up with each
other.
Adjust the shoulder and crotch
strap lengths as needed to get
a snug fit around your child:
! To tighten shoulder straps,
hold free end of strap and
slide adjuster away from the
free end.
Step 4.
Pull crotch strap and buckle
through center opening in seat
pad.
Step 5.
Step 8.
Insert a T-nut into one plastic bracket hole. It must pass
through both tubes, as shown in closeup below.
Still holding ends of tube,
locate pegs. Push pegs
through the channel until
they pass the snap. Slide
pegs into first notch of
height-adjustment track.
Step 2.
Insert a screw into other side of
plastic bracket and screw it into
the T-nut.
! To loosen shoulder straps,
hold adjuster and pull strap
back through the adjuster.
Attach seat pad by sliding
pocket over the back of the
seat as shown. Then hook
sides of pad over the two tabs
on each side of the highchair.
Tabs
Step 6.
Push the two tabs on the
bottom of the seat pad into the
two slots in the bottom of the
seat as shown.
Pegs
From the rear of the footrest,
pull the two tabs over the plastic
anchors near them.
CHECK that tubes are
securely connected by
trying to pull them apart.
First notch of
height-adjustment track
231-3-99 IS3548
5
Repeat for other plastic bracket.
If it later becomes necessary to launder or replace the
harness, follow the directions above to remove harness
straps from highchair.
Step 3.
Finish by giving a quick tug on
the free end until shoulder straps
are tight.
Check behind and in front of
seat to see that belt is tightly
threaded through retainers and straps are tight.
The position of the shoulder straps can be adjusted for
the size of your child. Locate the two plastic retainers
behind the seat back, push them through to the front
and move them to the higher or lower position as
desired.
Set highchair upright.
6
7
8
To Assemble Highchair
Step 5.
Step 1.
Hold rear tube as shown.
Slide plastic brackets onto
upper tube.
Hold front tube with ends up.
Place a foot (smooth side up)
at one curved corner of tube.
Insert a screw through tube
and into foot, then tighten.
Repeat with other corner,
then with both feet of rear
tube.
5-POINT HARNESS MODELS (For waist belt models, see next section.)
Both “U”
curves up
Plastic bracket
Step 6.
Collars
Step 2.
Slide front tube onto upper
tube as far as it will go, until
the holes in the tubes line up.
Lay seat face down on the
floor as shown. Insert
support tube through both
collars on bottom of seat.
To Attach Seat Pad
To Secure Your Child
Step 1.
Prevent serious injury or death from
falls or sliding out. Always secure your child in the
restraint. Do not depend on the tray alone to hold
your child.
Straps must be removed
from seat before pad can be
attached. Behind the seat
back, locate four plastic
retainers on shoulder and
waist straps. Push them
through the slots to the
front and set straps aside.
Step 1.
Step 2.
Place your child’s arms
through the loops created
by the shoulder/waist
straps and insert the
harness buckles into the
center buckle housing.
Place seat pad over highchair.
Step 3.
Support tube
Step 3.
Insert recline bar into one recline bracket (brackets
have “L” and “R” on inside), with curved side of bar
toward the bracket. Then attach bar and both recline
brackets onto each end of the support tube as shown.
Insert at end
“L” bracket
Curved side of
recline bar
“R” bracket
Step 4.
Insert both ends of upper
tube through holes in recline
brackets and pull all the way
through as shown.
“U” curve up
Push each retainer back
through proper hole in rear of
seat. Two levels of shoulder
holes are provided; choose the
level that is at or slightly above
your child’s shoulders.
Avoid twisting straps.
“U” curve
down
Step 7.
Pull rear tube up until holes
in plastic brackets line up with
holes in the tubes.
CHECK that holes in upper
tube, front tube AND plastic
brackets all line up with each
other.
Adjust the shoulder and crotch
strap lengths as needed to get
a snug fit around your child:
! To tighten shoulder straps,
hold free end of strap and
slide adjuster away from the
free end.
Step 4.
Pull crotch strap and buckle
through center opening in seat
pad.
Step 5.
Step 8.
Insert a T-nut into one plastic bracket hole. It must pass
through both tubes, as shown in closeup below.
Still holding ends of tube,
locate pegs. Push pegs
through the channel until
they pass the snap. Slide
pegs into first notch of
height-adjustment track.
Step 2.
Insert a screw into other side of
plastic bracket and screw it into
the T-nut.
! To loosen shoulder straps,
hold adjuster and pull strap
back through the adjuster.
Attach seat pad by sliding
pocket over the back of the
seat as shown. Then hook
sides of pad over the two tabs
on each side of the highchair.
Tabs
Step 6.
Push the two tabs on the
bottom of the seat pad into the
two slots in the bottom of the
seat as shown.
Pegs
From the rear of the footrest,
pull the two tabs over the plastic
anchors near them.
CHECK that tubes are
securely connected by
trying to pull them apart.
First notch of
height-adjustment track
231-3-99 IS3548
5
Repeat for other plastic bracket.
If it later becomes necessary to launder or replace the
harness, follow the directions above to remove harness
straps from highchair.
Step 3.
Finish by giving a quick tug on
the free end until shoulder straps
are tight.
Check behind and in front of
seat to see that belt is tightly
threaded through retainers and straps are tight.
The position of the shoulder straps can be adjusted for
the size of your child. Locate the two plastic retainers
behind the seat back, push them through to the front
and move them to the higher or lower position as
desired.
Set highchair upright.
6
7
8
WAIST BELT MODELS
(For 5-point harness models, see preceding section.)
To Attach Seat Pad
Step 2.
Pull the seat belt through the
hole in the middle of the seat
pad.
Step 3.
Push the two tabs on the
bottom of the seat pad into the
two slots in the bottom of the
seat as shown.
From the rear of the footrest,
pull the two tabs over the
plastic anchors near them.
To Secure Your Child
Snap buckle together as
shown. Adjust belt as needed
to get a snug fit around your
child.
To release, squeeze buckle
at sides.
If it becomes necessary to remove the seat belt for
cleaning or replacement, follow these instructions:
Step 1.
Remove seat pad. Unthread end
of seat belt through the buckle as
shown.
231-3-99 IS3549
9
Pull other end of the seat belt
through the belt retainer as shown.
To Use Tray
Place tray on armrests of seat.
Pull out side handles under the
tray. Put tray in one of the five
adjustment positions, and
release side handles.
CHECK that tray is securely
attached by pulling forward
on the tray.
Use either the side handles
or the front button to adjust or
remove the tray.
DO NOT force
the tray against your child.
Keep your child’s hands and
fingers away from the tray
when adjusting the tray.
To Adjust Recline
DO NOT adjust
the highchair with your child
in it.
Instructions for ordering highchair parts:
DO NOT
adjust the highchair with
your child in it.
To rethread buckle, reverse the above steps. CHECK that
the belt is threaded correctly by pulling on the seat belt.
The belt should not slip through the buckle.
Tabs
Replacement Parts
To Adjust Height
Step 3.
Step 1.
Attach seat pad by sliding
pocket over the back of the
seat as shown. Then hook
sides of pad over the two
tabs on each side of the
highchair.
Step 2.
Push on
front button
Adjust seat to upright position.
Hold chair frame down
and lift top of plastic seat
firmly to free pegs from
height-adjustment notch.
Slide seat up or down in
the track, then snap it into
desired height setting.
When adjusting height,
be careful to keep fingers
away from the heightadjustment track.
There are five possible
height settings. The highchair
can be used as a toddler chair
by adjusting to the lower
height settings.
Pull UP
Complete form below. Your highchair model number
MUST be included on the form to ensure proper
replacement parts. Your model number can be found
on a sticker on the back of the footrest. Payment
must accompany your order.
Parts List:*
Price:**
* On certain models only.
** Prices subject to change without notice.
Seat.................................... $22.00
Seat pad............................. $13.00
Seat belt*............................ $ 5.00
Harness*............................. $ 5.00
Tray..................................... $19.00
Support tube....................... $ 7.00
Rear tube............................ $10.50
Front tube........................... $10.00
Upper tube.......................... $ 9.50
Recline bracket (2)............. $ 7.00
Recline bar.......................... $ 5.00
Foot (each)......................... $ 5.00
Hardware.............................$ 5.00
IF YOU NEED HELP
If you have any questions or if you need any part
not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com
CHECK that both sides of
chair are snapped into the
desired height-adjustment
notch.
Return the form below with payment to:
GRACO CHILDREN’S PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
To Fold Highchair
Lay highchair on the floor as
shown. Press in and hold the
metal buttons at base of both
plastic brackets, then push
rear leg tube down to fold
highchair.
Pull up on the recline bar at
back of seat to release the
seat. Then pull or push seat
to the desired recline position.
After adjusting recline, push
down on recline bar to lock
seat.
Seat can be adjusted to three
different recline positions.
CHECK that both sides of the
chair are snapped into the
desired recline notches.
Model Number
(Must be filled in)
Seat
Seat pad
Seat belt
Harness
Tray
Support tube
Rear tube
Front tube
Upper tube
Recline bracket
Recline bar
Foot
Hardware
Do not use tray when seat is
in a recline position.
6% sales tax
(PA only):
Total amount
due:
10
11
Name
Address
City, State, Zip
(
)
Telephone
Check enclosed
(payable to Graco Children’s
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Total:
Shipping
& handling:
SHIP TO:
$5.00
Account #:
Expiration date:
Signature:
12
WAIST BELT MODELS
(For 5-point harness models, see preceding section.)
To Attach Seat Pad
Step 2.
Pull the seat belt through the
hole in the middle of the seat
pad.
Step 3.
Push the two tabs on the
bottom of the seat pad into the
two slots in the bottom of the
seat as shown.
From the rear of the footrest,
pull the two tabs over the
plastic anchors near them.
To Secure Your Child
Snap buckle together as
shown. Adjust belt as needed
to get a snug fit around your
child.
To release, squeeze buckle
at sides.
If it becomes necessary to remove the seat belt for
cleaning or replacement, follow these instructions:
Step 1.
Remove seat pad. Unthread end
of seat belt through the buckle as
shown.
231-3-99 IS3549
9
Pull other end of the seat belt
through the belt retainer as shown.
To Use Tray
Place tray on armrests of seat.
Pull out side handles under the
tray. Put tray in one of the five
adjustment positions, and
release side handles.
CHECK that tray is securely
attached by pulling forward
on the tray.
Use either the side handles
or the front button to adjust or
remove the tray.
DO NOT force
the tray against your child.
Keep your child’s hands and
fingers away from the tray
when adjusting the tray.
To Adjust Recline
DO NOT adjust
the highchair with your child
in it.
Instructions for ordering highchair parts:
DO NOT
adjust the highchair with
your child in it.
To rethread buckle, reverse the above steps. CHECK that
the belt is threaded correctly by pulling on the seat belt.
The belt should not slip through the buckle.
Tabs
Replacement Parts
To Adjust Height
Step 3.
Step 1.
Attach seat pad by sliding
pocket over the back of the
seat as shown. Then hook
sides of pad over the two
tabs on each side of the
highchair.
Step 2.
Push on
front button
Adjust seat to upright position.
Hold chair frame down
and lift top of plastic seat
firmly to free pegs from
height-adjustment notch.
Slide seat up or down in
the track, then snap it into
desired height setting.
When adjusting height,
be careful to keep fingers
away from the heightadjustment track.
There are five possible
height settings. The highchair
can be used as a toddler chair
by adjusting to the lower
height settings.
Pull UP
Complete form below. Your highchair model number
MUST be included on the form to ensure proper
replacement parts. Your model number can be found
on a sticker on the back of the footrest. Payment
must accompany your order.
Parts List:*
Price:**
* On certain models only.
** Prices subject to change without notice.
Seat.................................... $22.00
Seat pad............................. $13.00
Seat belt*............................ $ 5.00
Harness*............................. $ 5.00
Tray..................................... $19.00
Support tube....................... $ 7.00
Rear tube............................ $10.50
Front tube........................... $10.00
Upper tube.......................... $ 9.50
Recline bracket (2)............. $ 7.00
Recline bar.......................... $ 5.00
Foot (each)......................... $ 5.00
Hardware.............................$ 5.00
IF YOU NEED HELP
If you have any questions or if you need any part
not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com
CHECK that both sides of
chair are snapped into the
desired height-adjustment
notch.
Return the form below with payment to:
GRACO CHILDREN’S PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
To Fold Highchair
Lay highchair on the floor as
shown. Press in and hold the
metal buttons at base of both
plastic brackets, then push
rear leg tube down to fold
highchair.
Pull up on the recline bar at
back of seat to release the
seat. Then pull or push seat
to the desired recline position.
After adjusting recline, push
down on recline bar to lock
seat.
Seat can be adjusted to three
different recline positions.
CHECK that both sides of the
chair are snapped into the
desired recline notches.
Model Number
(Must be filled in)
Seat
Seat pad
Seat belt
Harness
Tray
Support tube
Rear tube
Front tube
Upper tube
Recline bracket
Recline bar
Foot
Hardware
Do not use tray when seat is
in a recline position.
6% sales tax
(PA only):
Total amount
due:
10
11
Name
Address
City, State, Zip
(
)
Telephone
Check enclosed
(payable to Graco Children’s
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Total:
Shipping
& handling:
SHIP TO:
$5.00
Account #:
Expiration date:
Signature:
12

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
