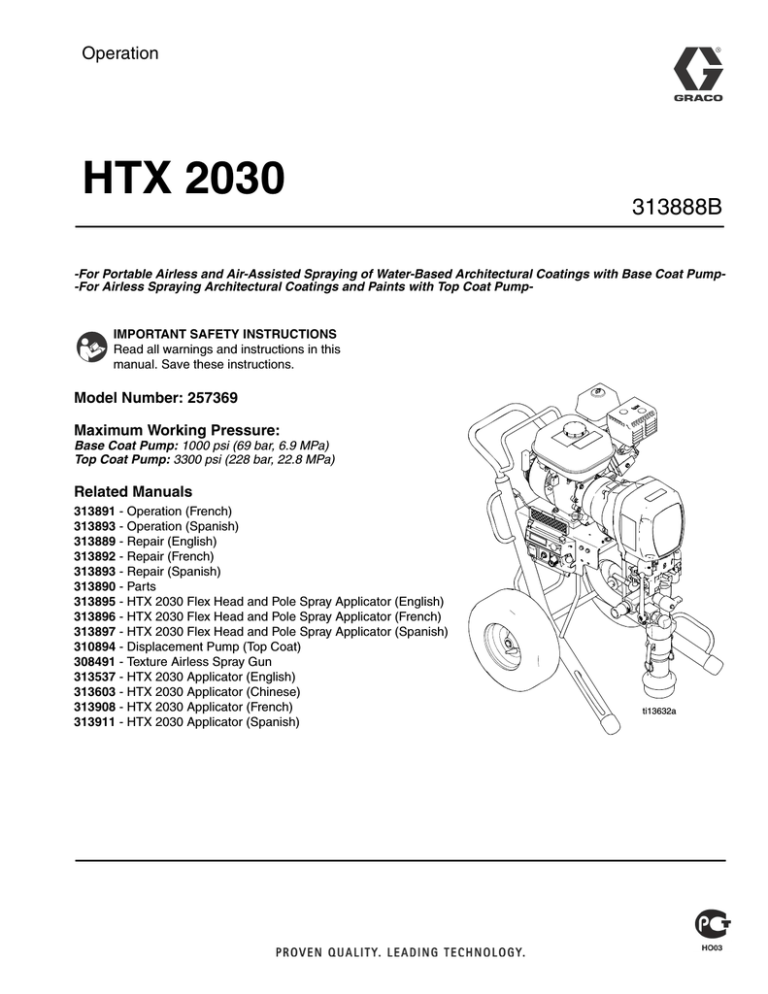

Operation

HTX 2030

313888B

-For Portable Airless and Air-Assisted Spraying of Water-Based Architectural Coatings with Base Coat Pump-

-For Airless Spraying Architectural Coatings and Paints with Top Coat Pump-

IMPORTANT SAFETY INSTRUCTIONS

Read all warnings and instructions in this manual. Save these instructions.

Model Number: 257369

Maximum Working Pressure:

Base Coat Pump: 1000 psi (69 bar, 6.9 MPa)

Top Coat Pump: 3300 psi (228 bar, 22.8 MPa)

Related Manuals

313891 - Operation (French)

313893 - Operation (Spanish)

313889 - Repair (English)

313892 - Repair (French)

313893 - Repair (Spanish)

313890 - Parts

313895 - HTX 2030 Flex Head and Pole Spray Applicator (English)

313896 - HTX 2030 Flex Head and Pole Spray Applicator (French)

313897 - HTX 2030 Flex Head and Pole Spray Applicator (Spanish)

310894 - Displacement Pump (Top Coat)

308491 - Texture Airless Spray Gun

313537 - HTX 2030 Applicator (English)

313603 - HTX 2030 Applicator (Chinese)

313908 - HTX 2030 Applicator (French)

313911 - HTX 2030 Applicator (Spanish) ti13632a

Contents

Contents

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 5

HTX 2030 with Base Coat Pump (257369) . . . . . 5

Top Coat Pump (Kit 24B140) . . . . . . . . . . . . . . . 6

Component Identification - Sprayer . . . . . . . . . . . 7

Component Identification - Base Coat Applicator 8

Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . 9

Applicator (Base Coat Pump) . . . . . . . . . . . . . . . 9

Spray Gun (Top Coat Pump) . . . . . . . . . . . . . . . . 9

Start Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Digital Tracking System (DTS) . . . . . . . . . . . . . . . 18

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Secondary Menu - Stored Data Mode . . . . . . . . 19

Digital Display Messages . . . . . . . . . . . . . . . . . . . 20

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 24

2 313888B

Warning

Warning

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.

313888B

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Do not fill fuel tank while engine is running or hot; shut off engine and let it cool. Fuel is flammable and can ignite or explode if spilled on hot surface.

• When flammable liquid is sprayed or used for flushing or cleaning, keep sprayer at least 20 feet (6 m) away from explosive vapors.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are present.

• Ground equipment and conductive objects in work area. See Grounding instructions.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until you identify and correct the problem.

SKIN INJECTION HAZARD (SPRAY GUN)

High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip nozzle.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Do not spray without tip guard and trigger guard installed.

• Engage trigger lock when not spraying.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning, checking, or servicing equipment.

SKIN INJECTION HAZARD (APPLICATOR)

High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip nozzle.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning, checking, or servicing equipment.

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.

3

Warning

WARNING

PRESSURIZED ALUMINUM PARTS HAZARD

Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents in pressurized aluminum equipment. Such use can cause serious chemical reaction and equipment rupture, and result in death, serious injury, and property damage.

SUCTION HAZARD

Never place hands near the pump fluid inlet when pump is operating or pressurized. Powerful suction could cause serious injury.

CARBON MONOXIDE HAZARD

Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon monoxide can cause death. Do not operate in an enclosed area.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.

• Read MSDS’s to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

BURN HAZARD

Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes, burns, and hearing loss. This equipment includes but is not limited to:

• Protective eyewear

• Clothing and respirator as recommended by the fluid and solvent manufacturer

• Gloves

• Hearing protection

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system component. See Technical Data in all equipment manuals.

• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment and follow the Pressure Relief Procedure in this manual when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

4 313888B

Product Overview

Product Overview

HTX 2030 with Base Coat Pump

(257369)

1.

Flow 3 (fully clockwise) - allows the pump to run continuously with minimal pulsation: ti13756a

2.

Flow 2 (near middle of the rotation) reduces flow slightly by briefly interrupting pump: ti13632a

The HTX 2030 Sprayer comes equipped with a Base

Coat Pump 24B321. Only water-based materials are to be used with this configuration, such as:

• Smooth to heavily aggregated textures with silica sand, perlite, vermiculite and polystyrene

• Smooth, medium, coarse and extra coarse textures

• Most materials with aggregates up to 2.5 mm (.100 in.) in longest dimension

When Base Coat Pump is Installed

Pump will only run when on/off switch is in ON position

AND:

• Pump control is rotated clockwise away from OFF position, and either of the following switches are also switched ON:

Prime Switch on pressure control box AND/OR

Applicator Switch near end of material hose

The pressure control will limit the sprayer to 1,000 psi

(69 bar), stopping the pump whenever pressure limit is reached.

Flow rate is dependent on engine speed and the setting of the pump control knob.

ti13757a

3.

Flow 1 (near counterclockwise end of pump control) reduces flow more by interrupting pump longer: ti13758a

4.

OFF (fully counterclockwise) - stops pump completely: ti13755a

NOTE: Adjusting engine speed is an effective way to control flow rate of sprayer. Different spray tip nozzle sizes can also be tried.

313888B 5

6

Product Overview

Top Coat Pump (Kit 24B140)

ti13653a

The pump on the HTX 2030 Sprayer can also be switched out with a Top Coat Kit 24B140 (purchased

separately). This pump is used for less viscous materials such as:

• Oil-based coatings

• Enamels

• Latex

• Block fillers

• Elastomerics

• Epoxies

• Drywall mud

• Other high-build materials

For instructions on installing the Top Coat Pump, see manual 313889.

When Top Coat Pump is Installed

• Pump will only run when on/off switch is in ON position and pump control is rotated clockwise away from OFF position

• Pump control setting adjusts sprayer pressure a.

Rotating knob fully clockwise allows sprayer to reach maximum working pressure of 3300 psi

(228 bar, 22.8 MPa) b.

Settings below maximum will lower system pressure

• Pump will run whenever system pressure is below the setting of the pump control

• Sprayer will not respond to Prime switch or Applicator switch when Top Coat pump is installed ti13653a

313888B

Component Identification - Sprayer

Component Identification - Sprayer

Top Coat Kit

8

1

2

3

4

5

12

8

7

11

10

9 ti14415a

6

1 ON/OFF Switch

2 Prime Switch (used with Base Coat Pump)

3 Pump Control Knob

4 Heavy Texture Material Hose (used with Base Coat Pump)

5 Applicator Switch (used with Base Coat Pump--on Hose 5)

6 Applicator (Base Coat)

7 Pump (Base Coat)

8 Over Pressure Relief Valve

9 Pump (Top Coat)

10 Spray Gun (Top Coat)

11 Paint/Texture Material Hose (used with Top Coat Pump)

12 Prime/Drain Valve

313888B 7

8

Component Identification - Base Coat Applicator

Component Identification - Base Coat Applicator

8

1

7

9

10

2

11

3

6

4

5 ti14357a

1 Applicator

2 Air Hose Adapter and Air Adjustment Valve

3 Airless Filter or Air Passage Plug

4 Filter Support

5 Airless Spray Assembly

6 Airless Spray Tip Nozzle

7 Air nozzle, 4 mm, 6mm, 8mm, 10mm

8 Air Nozzle Cleaner

9 Cleaning Brush

10 Cleaning Ball

11 Retaining Nut

313888B

Pressure Relief Procedure

Pressure Relief Procedure

Applicator (Base Coat Pump) Spray Gun (Top Coat Pump)

1.

Turn engine OFF.

1.

Lock gun trigger safety and turn engine OFF.

ti13131a ti6208b ti13050a

2.

Turn on/off switch OFF and turn pressure control knob fully counterclockwise.

3.

Turn prime/drain valve down to DRAIN position.

Fluid from drain valve can splash in eyes or skin and cause serious injury. Keep hands clear of pressure relief valve and always wear safety glasses.

2.

Turn on/off switch to OFF and turn pressure control knob fully counterclockwise.

ti13050a ti10796b

3.

Unlock trigger safety. Hold metal part of gun firmly to side of grounded metal pail and trigger gun to relieve pressure.

ti14632a

NOTE: If you suspect spray tip nozzle or hose is completely clogged or that pressure has not been fully relieved after following the previous steps, cover the connection at end of hose with a heavy rag and very

slowly loosen connection.

ti13130a ti13128a

4.

Lock gun trigger safety. Open pressure prime/drain valve. Leave valve open until ready to spray again.

ti13131a ti14632a

NOTE: If you suspect that the spray tip nozzle or hose is completely clogged, or that pressure has not been fully relieved after following the previous steps, VERY

SLOWLY loosen the tip guard retaining nut or hose end coupling to relieve pressure gradually, then loosen completely. Then clear tip or hose.

313888B 9

Start Engine

Start Engine

1.

Move fuel valve to OPEN.

ti5248a

2.

Move choke to CLOSED.

3.

Set throttle to FAST.

ti5249a ti5250a

4.

Set engine switch to ON.

ti3315a

5.

Pull starter rope.

ti5263a

6.

After engine starts, move choke to OPEN.

ti5264a

7.

Set throttle to desired setting.

ti5251a

10 313888B

Setup

Setup

NOTICE

DO NOT USE MATERIALS THAT CURE RAPIDLY!

Materials with a fast curing time could plug the pump, hose, gun, or applicator.

1.

Fill mixing pail with pre-mixed texture material. Mix per material manufacturer instructions.

Prime Pump

1.

Start gasoline engine and adjust speed to half throttle. Turn prime/drain valve to DRAIN.

ti14632a

2.

Place material hose outlet over supply pail.

ti4118a

Add approximately 10% water to texture mix or per material manufacturer instructions. Mix thoroughly.

2.

Connect material hose to pump outlet.

ti13640a ti14416a ti13638a

Material and Sprayer Preparation

NOTE: To minimize material pack-out in hose when priming, completely empty hose of all water. In hot conditions, it may be necessary to wet the hose with water to lower internal hose temperature, slowing material setup. In this case, water removal is still recommended.

If using hose lubricant/wetting solutions, refer to manufacturer instructions for proper priming techniques.

Cementicious and other curing materials can harden within the drain valve while spraying. At least once per hour stop spraying and open the drain valve to flush out the older material.

3.

Pour mixed material into supply pail under sprayer.

4.

Place pump suction tube into mixed material.

NOTE: For best results with aggregate, remove strainer.

3.

Turn on/off switch ON.

ti10795b

Base Coat Pump:

Also turn Prime switch ON, or activate applicator switch on material hose.

4.

Rotate pump control knob 1/4 turn. Run pump until a steady stream of material flows from drain valve.

ti11930a

313888B

ti13652a

11

Setup

5.

Turn on/off switch OFF and turn drain valve knob to

SPRAY.

3.

Turn drain valve to SPRAY, and turn on/off switch to

ON. Turn pump control knob clockwise and/or adjust engine speed until desired material delivery rate is achieved.

ti10796b

6.

Turn on/off switch ON, and run pump until a steady stream of material flows from material hose. Turn on/off switch to OFF and turn drain valve knob to

DRAIN.

ti8794a

4.

Spray test pattern. Aim applicator at floor. Turn applicator switch ON and move applicator to spray surface.

ti13649a

7.

Connect applicator to material hose.

ti13651a

Spray Without Air - Clear Clog

1.

Relieve Pressure, page 9.

2.

Rotate SwitchTip to Clear position. Aim applicator at floor and turn pump ON. When clog clears, turn pump OFF.

ti13636a

Spray With Airless Tip

1.

Install filter and tip extension.

ti13648a

2.

Insert metal seat and OneSeal. Insert Switch Tip.

Screw assembly onto applicator.

ti11714a

3.

Rotate SwitchTip to Spray position. Turn pump ON.

Spray test pattern.

ti11715a

12

ti13650a

313888B

Setup

Air Assisted Spray (Base Coat Applicator)

1.

Prepare material, page 11. Place material hose in

supply pail.

5.

Turn on/off switch ON.

ti10795b

6.

Hold applicator over material pail and turn pump ON using applicator switch on hose.

ti4650a

2.

Turn on/off switch OFF.

ti13641a

7.

Turn pump control clockwise until desired material delivery rate is achieved.

ti10796b

3.

Remove cap before installing air line.

ti8794a

8.

Spray test pattern. Aim applicator at floor. Turn air valve ON. Move applicator to spray surface.

ti13647a

4.

Turn air valve OFF. Connect applicator to material hose and air hose. Air supply minimum requirements vary with material thickness and desired thickness.

ti14358a ti13636a

NOTICE

DO NOT USE MATERIALS THAT CURE RAPIDLY!

Materials with a fast curing time could plug the pump hose, gun, or applicator.

ti13646a

9.

Adjust air valve and/or select alternative nozzle size

(4 - 10mm) for desired finish.

4 mm

6 mm

8 mm

10 mm

ti11798a

313888B 13

Setup

Spray Gun (Top Coat Pump)

1.

Lock gun trigger safety. Insert seat and OneSeal

.

Insert SwitchTip.

3.

Trigger gun and spray test pattern. Slowly adjust pressure to eliminate heavy edges. Use smaller tip size if pressure adjustment can not eliminate heavy edges.

ti13131a

SwitchTip

Seat ti5800a

One seal

2.

Screw assembly onto gun. Hand tighten.

heavy edges

ti5823a

4.

Hold gun perpendicular, 10-12 in. (25-30 cm) from surface. Spray back and forth. Use strokes overlapped by 50%. Start gun movement before triggering gun and release trigger before stopping gun movement.

ti5801a ti5824a

14 313888B

Cleanup

1.

Turn on/off switch OFF.

Cleanup

5.

Base Coat Pump: Disconnect material hose from pump outlet.

ti13639a

6.

Insert wet cleaning ball into hose (Base Coat Only).

Connect material hose to pump outlet. ti10796b

2.

Perform Pressure Relief procedure, page 9.

3.

Place pump in pail of clean water.

ti13643a

7.

Hold material hose over waste pail.

ti13638a ti13644a

4.

Shut OFF air if spraying with air. Remove applicator from material and air hoses.

ti13640a

8.

Turn on/off switch ON and prime switch ON, or applicator switch on material hose.

ti14284a ti10795b

313888B 15

Cleanup

9.

Run pump until cleaning ball exits material hose.

Save cleaning ball (Base Coat Only).

14. Add additional water and repeat steps 12 - 13 if necessary.

ti13839a ti4551c

10. Turn on/off switch OFF and turn prime/drain valve to

DRAIN. Clean outside of pump and suction tube with brush and water.

15. Open prime/drain valve and turn prime switch ON to flush valve.

ti10796b

11. Connect applicator to material hose. Close prime/drain valve.

ti14632a ti14632a

16. Turn on/off switch OFF when valve is thoroughly flushed.

ti13636a

12. Turn on/off switch ON.

Base Coat Pump: Turn prime switch ON, or applicator switch on material hose.

ti10796b

17. Open over pressure relief valve and turn prime switch ON to flush valve.

18. Remove and thoroughly clean applicator, spray tip nozzle and guard with brush.

ti10795b

13. Run pump until clean water flows from applicator.

16

ti13641a ti13633a

Turn on/off switch OFF when valve is thoroughly flushed.

313888B

Cleanup

19. Clean hardened material from applicator nozzles with air nozzle cleaner.

NOTICE

Do not use air nozzle cleaner to clean applicator check valve or airless spray tip nozzle. Damage will occur.

Remove air check valve from applicator to clean hardened material from interior of applicator.

ti11810a ti11811a ti13642a

313888B 17

Digital Tracking System (DTS)

Digital Tracking System (DTS)

Main Menu

Close cover when spraying to protect display.

4.

Short press DTS button to move to Engine RPM.

ti13761a ti5802a

1.

Perform Startup steps 1 - 2.

• Open drain valve

• Turn pump control counterclockwise to lowest setting

• Set applicator switch to OFF

2.

Start Engine, page 10. Display will momentarily

show which pump is installed (Base or Top) and then Flow 1, 2, or 3 (if Base Coat pump is installed).

Pressure display appears, then dashes appear when pressure is less than 60 psi (4 bar, 0.4 MPa).

ti5804a

5.

Short press DTS button to return to Pressure.

To Change Pressure Units:

Press and hold (8 seconds) DTS button to change pressure unit (psi, bar, MPa).

Continue to press DTS button to cycle from psi to bar to

MPa. Release DTS button to select units.

psi

ti13762a

NOTE: Information other than pressure cannot be accessed if applicator switch is ON. And, if system pressure is greater than 200 psi (14 bar, 1.4 MPa), the display will revert back to pressure after 3 seconds.

3.

Short press DTS button to display installed pump.

bar psi

MPa

ti6225a ti13760a

18 313888B

Digital Tracking System (DTS)

Secondary Menu - Stored Data

Mode

• Open drain valve

• Turn pump control counterclockwise to lowest setting

• Set applicator switch to OFF

1.

Start Engine, page 10. Pressure display appears.

ti5812a

2.

Press and hold DTS button and turn applicator switch ON.

Short press DTS button and Top Coat hours display.

Short press DTS button and Engine hours display.

ti13787a

7.

Short press DTS button and LAST ERROR scrolls through display followed by stored error message and error code. This information cycles repeatedly until cleared.

See page 20 for error code explanations.

ti13764a

3.

SERIAL NUM scrolls through display and a 3 to

5-digit serial number displays.

ti6220a

8.

Press and hold DTS button until CLEAR ERROR

NO ERROR CODE scrolls through the display and error code E=00 displays. ti6213a

4.

Short press DTS button and date code displays.

ti6218a

9.

Short press DTS button again and SOFTWARE

REV scrolls through display followed by revision level (for example 10102).

ti6215a

5.

Short press DTS button and part number displays.

ti13788a

10. Short press to return to step 3. Turn on/off switch

OFF at any time to exit stored data mode.

ti13786a

6.

Short press DTS button and Base Coat hours displays.

313888B

ti5822a

19

Digital Display Messages

Digital Display Messages

DISPLAY*

No Display ti6314a

BASE or

TOP

OFF

FLOW 1

FLOW 2 or

FLOW 3

SPRAYER OPERATION

Sprayer may be pressurized

Sprayer may be pressurized

Displays installed pump when engine is started

Displays flow control setting in Base Coat mode when pump control setting is changed

INDICATION

Loss of power or display not connected

Pressure less than

60 psi (4 bar, 0.4 MPa)

Normal operation

Normal operation

(with Base Coat pump)

ACTION

Check power source. Relieve pressure before repair or disassembly. Verify display is connected.

Increase pressure as needed

Spray

Spray

Sprayer is pressurized.

Power is applied. (Pressure varies with tip size and pressure control setting.)

Normal operation Spray ti6315a

psi bar

MPa

ti6316a ti6317a ti6318a

Top Coat Only: Sprayer stops. Engine is running.

Sprayer stops. Engine is running.

Sprayer stops. Engine is running.

Base Coat Only: Sprayer stops. Engine is running.

Pressure greater than

4500 psi (310 bar, 31

MPa)

Pressure transducer faulty, bad connection or broken wire

High clutch current

Pressure greater than

1000 psi (69 bar, 6.9

MPa)

* Error codes also appear on control board as a blinking red

LED. LED is an alternate to digital messages.

1

2

Remove two screws (71) and swing down cover (130).

Start engine. Blink count is the same as error code(E=0X).

1 Check fluid path for clogs.

2 Use Graco paint hose, 3/8 in. x 50 ft minimum.

Smaller hose or metal braid hose may result in pressure spikes.

3 Replace transducer if fluid path is not clogged and proper hose is used.

1 Check transducer connection.

2 Disconnect and reconnect transducer plug to ensure good connection with control board socket.

3 Open prime valve. Replace sprayer transducer with known good transducer and run sprayer.

Replace transducer if sprayer runs or control board if sprayer does not run.

1 Check wiring connections.

2 Measure: 1.7 + 0.2

Ω

across clutch field at 70°F.

3 Replace clutch field assembly.

1 Open prime valve and gun.

2 Verify no flow obstructions. Use Graco texture hoses 3/4 in. x 50 ft minimum.

3 Replace transducer if fluid path is not clogged and proper hose is used.

After a fault, follow these steps to restart sprayer:

1 Correct fault condition.

2 Turn sprayer OFF.

3 Turn sprayer ON.

(E02 and E06 errors will self-correct when system is reduced)

20 313888B

Maintenance

Maintenance

NOTICE

For detailed engine maintenance and specifications, refer to separate Honda Engines Owner’s Manual

(supplied).

DAILY

• Check engine oil level and fill as necessary

• Check hose for wear and damage

• Check that all hose fittings are secure

• Check gun safety for proper operation

• Check and fill the gas tank

• Check level of TSL in displacement pump packing nut. Fill nut, if necessary. Keep TSL in nut to help prevent fluid buildup on piston rod and premature wear of packings and pump corrosion.

AFTER FIRST 20 HOURS OF OPERATION

• Drain engine oil and refill with clean oil. Reference

Honda Engines Owner’s Manual for correct oil viscosity.

WEEKLY

• Remove engine air filter cover and clean element.

Replace element if necessary. If operating in an unusually dusty environment, check filter daily and replace (if necessary).

Replacement elements can be purchased from your local Honda dealer.

AFTER EACH 100 HOURS OF OPERATION

• Change engine oil. Reference Honda Engines

Owner’s Manual for correct oil viscosity.

SPARK PLUG

Use only BPR6ES (NGK) or W20EPR-U (NIPPON-

DENSO) plug. Gap plug to 0.028 to 0.031 in. (0.7 to 0.8 mm). Use spark plug wrench when installing and removing plug.

ENGINE OIL FUNNEL

• Use the supplied engine oil funnel when draining oil.

ti6200a

313888B 21

Technical Data

Technical Data

Honda GX 200 Engine:

ANSI Power Rating @ 3600 rpm

Maximum Working Pressure:

Base Coat Pump

Top Coat Pump

Noise Level:

Sound Power

Sound Pressure

Maximum Delivery Rating:

Base Coat Pump

Top Coat Pump

Maximum Tip Size:

Base Coat Pump

Top Coat Pump

Inlet Paint Strainer:

Base Coat Pump

Top Coat Pump

Pump Inlet Size:

Base Coat Pump

Top Coat Pump

Fluid Outlet Size:

Base Coat Pump

Top Coat Pump

Wetted Parts:

6.5 Horsepower (4.8 kW)

1000 psi (69 bar, 6.9 MPa)

3300 psi (228 bar, 22.8 MPa)

105 dBa per ISO 3744

96 dBa measured at 3.1 ft (1 m)

3.0 gpm (11.36 liter/min)

2.20 gpm (8.33 liter/min)

1 applicator with .071 in. tip or 10 mm Nozzle

1 gun with 0.048 in. tip

2 guns with 0.035 in. tip

3 guns with 0.027 in. tip

4 guns with 0.023 in. tip

2 in. npsm, #5 mesh sst

1 in. npsm, #8 mesh sst

2 in. QD Camlock male coupler

1 in. - 11.5 npsm

1 in. QD Camlock male coupler

3/8 npsm zinc-plated carbon steel, PTFE, nylon, polyurethane, UHMW, polyethylene, fluoroelastomer, acetal, leather, aluminum, tungsten carbide, nickel- and zinc-plated carbon steel, stainless steel, chrome plating

Dimensions

Part

HTX 2030 Sprayer

3/4 in. Hose

Applicator/Swivel

Weight lb (kg)

155 (70.5)

29 (13.2)

3 (1.3)

22

Height in. (cm)

34.25 (87.0)

Width in. (cm)

24.5 (62.2)

Length in. (cm)

33.0 (83.8)

313888B

Technical Data

313888B 23

Graco Standard Warranty

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by

Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.

TO PLACE AN ORDER, contact your Graco distributor, or call 1-800-690-2894 to identify the nearest distributor.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

This manual contains: English.

mm 313888

Graco Headquarters: Minneapolis

International Offices: Belgium, Korea, China, Japan

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

http://www.graco.com

24 313888B

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
