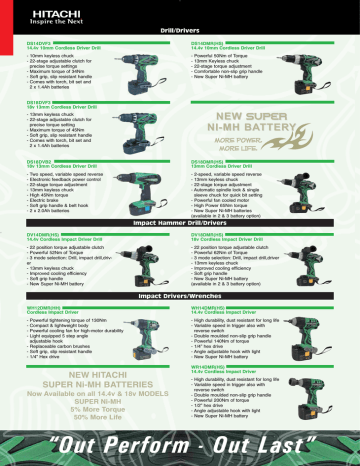

Drill/Drivers
DS14DVF3
14.4v 10mm Cordless Driver Drill
DS14DMR(HS)
14.4v 10mm Cordless Driver Drill
- 10mm keyless chuck
- 22-stage adjustable clutch for
precise torque settings
- Maximum torque of 34Nm
- Soft grip, slip resistant handle
- Comes with torch, bit set and
2 x 1.4Ah batteries
-
Powerful 50Nm of Torque
13mm Keyless chuck
22-stage torque adjustment
Comfortable non-slip grip handle
New Super Ni-MH battery
DS18DVF3
18v 13mm Cordless Driver Drill
NEW SUPER
NI-MH BATTERY
- 13mm keyless chuck
- 22-stage adjustable clutch for
precise torque setting
- Maximum torque of 45Nm
- Soft grip, slip resistant handle
- Comes with torch, bit set and
2 x 1.4Ah batteries
MORE POWER.
MORE LIFE.
DS18DVB2
18v 13mm Cordless Driver Drill
DS18DMR(HS)
13mm Cordless Driver Drill
- Two speed, variable speed reverse
- Electronic feedback power control
- 22-stage torque adjustment
- 13mm keyless chuck
- High 45Nm torque
- Electric brake
- Soft grip handle & belt hook
- 2 x 2.0Ah batteries
- 2-speed, variable speed reverse
- 13mm keyless chuck
- 22-stage torque adjustment
- Automatic spindle lock & single
sleeve chuck for quick bit setting
- Powerful fan cooled motor
- High Power 65Nm torque
- New Super Ni-MH batteries
(available in 2 & 3 battery option)
Impact Hammer Drill/Drivers
DV14DMR(HS)
14.4v Cordless Impact Driver Drill
DV18DMR(HS)
18v Cordless Impact Driver Drill
- 22 position torque adjustable clutch
- Powerful 52Nm of Torque
- 3 mode selection: Drill, impact drill,driver
- 13mm keyless chuck
- Improved cooling efficiency
- Soft grip handle
- New Super Ni-MH battery
- 22 position torque adjustable clutch
- Powerful 62Nm of Torque
- 3 mode selection: Drill, impact drill,driver
- 13mm keyless chuck
- Improved cooling efficiency
- Soft grip handle
- New Super Ni-MH battery
(available in 2 & 3 battery option)
Impact Drivers/Wrenches
WH12DMR(HH)
Cordless Impact Driver
WH14DMR(HS)
14.4v Cordless Impact Driver
-
- High durability, dust resistant for long life
- Variable speed in trigger also with
reverse switch
- Double moulded non-slip grip handle
- Powerful 140Nm of torque
- 1/4” hex drive
- Angle adjustable hook with light
- New Super Ni-MH battery
Powerful tightening torque of 130Nm
Compact & lightweight body
Powerful cooling fan for high-motor durability
Light equipped 5 step angle
adjustable hook
- Replaceable carbon brushes
- Soft grip, slip resistant handle
- 1/4” Hex drive
NEW HITACHI
SUPER Ni-MH BATTERIES
Now Available on all 14.4v & 18v MODELS
SUPER Ni-MH
5% More Torque
50% More Life
WR14DMR(HS)
14.4v Cordless Impact Driver
- High durability, dust resistant for long life
- Variable speed in trigger also with
reverse switch
- Double moulded non-slip grip handle
- Powerful 200Nm of torque
- 1/2” hex drive
- Angle adjustable hook with light
- New Super Ni-MH battery
“Out Perform - Out Last”
Impact Drivers / Wrenches
WH18DMR(HS)
18v Cordless Impact Driver
- Powerful tightening torque of 157Nm
- Compact & lightweight body
- Variable speed trigger with reverse switch
- Powerful cooling fan for high-motor durability
- Light equipped 5 step angle adjustable hook
- Soft grip, slip resistant handle
- New Super Ni-MH battery
(available in 2 & 3 battery option)
WR18DMR(HS)
18v Cordless Impact Wrench
- Powerful tightening torque of 231Nm
- Compact & lightweight body
- Variable speed trigger with reverse switch
- Powerful cooling fan for high-motor durability
- Light equipped 5 step angle adjustable hook
- Soft grip, slip resistant handle
- New Super Ni-MH battery
(available in 2 & 3 battery option)
Sabre Saws / Screwdrivers
WF4DYB
12v Cordless Auto Feed Impact Driver
- Removable auto-feed attachment
- Powerful impact 90Nm of torque
- Variable speed reverse
CR18DMR(HC)
18v Cordless Reciprocating Saw
- Slip-resistant soft grip handle
- Two-finger sized trigger switch
- Flat type battery making it easier to
get into tight spaces
- High output of 380W
- Longest cutting stroke in category
- Tough Die-Cast aluminium casing
Combo Kits
KC18DMR(HB)
18v Cordless Combo Kit
- DV18DMR -18v Cordless Impact
Hammer Driver Drill
- CR18DMR 18v Cordless
Reciprocating Saw
- C18DMR 18v Cordless Circular Saw
- UB18DL 18v Lantern & Charger
- 2 Super Ni-MH Batteries
(Also available in 3 battery option)
HITACHI
SUPER Ni-MH
5% More Torque
50% More Life
“Out Perform - Out Last”
Drills
D13
13mm High Torque Drill
- Adjustable handles for comfortable
grip
- Built for high torque applications
- Powerful 720 watt motor
- Triple reduction gearing
- Keyed chuck
- Reversible
D13VF
13mm Variable Speed Drill
- Industrial grade 710 watt motor
- Heavy duty alloy gear casting
- Variable speed reverse
- Electric brake
- Keyed chuck
DMT16
16mm High Torque Drill
- Mechanical two speed gear selector
- Industrial grade 16mm keyed chuck
- “D” handle for comfortable grip
- Powerful 900 watt motor
DC120VA
120mm Diamond Core Drill
- Electronic soft start & constant
speed control
- Massively powerful 1,400 watt motor
- Synchronised dual variable speed
- High 120mm capacity in concrete
- Safety release clutch
- Robust 16mm chuck
Impact Drills
DV18V
18mm Impact Drill
- Compact & lightweight
- Soft grip handle for increased comfort
- Powerful 690 watt motor
- Durable aluminium gear cover and inner
cover
- 2-speed, variable
- Push button type forward-reverse change
over switch
DV20VB2
20mm Impact Drill
- Synchronised gear sift mechanism
- Easy to use mode switching
- Easy to handle large trigger
- Variable speed and reverse
- Powerful 790 watt motor
“Out Perform - Out Last”
Impact Wrench
WR16SA
12.7mm Impact Wrench
WR22SA
Impact Wrench
- Powerful 480 watt motor with
maximum torque of 360Nm
- Compact & lightweight
- Slip resistant and comfortable soft
grip handle
- Higher durability thanks to metallic
bearing bushing
- Powerful 850 watt motor with
maximum torque of 610Nm
- Compact & lightweight
- Slip resistant and comfortable soft
grip handle
- Durable double-insulated motor thanks
to the highly strong (rigid) aluminium
die-cast body
Rotary Hammer Drills
DH24PB3
24mm Rotary Hammer
DH24PC3
24mm Rotary Hammer
- Powerful 800 watt motor with top class
drilling speed
- Forward/Reverse changeover switch
- Idle hammering prevention mechanism
- Slip resistant, double layer moulded
gear cover and handle
- 2 mode action: hammer drilling & drilling only
- Powerful 800 watt motor with top class
drilling speed
- Forward/Reverse changeover switch
- Idle hammering prevention mechanism
- Slip resistant, double layer moulded
gear cover and handle
- 3 mode action: hammer drilling & drilling only & Hammer only
DH40MR
40mm Rotary Hammer Drill
DH45MR
45mm Rotary Hammer
- Two mode action; Hammer drilling,
hammer only
- Lightweight & powerful
- Soft touch grip for comfort & control
- Powerful 10 joules per strike rate
- Powerful industrial 950 watt motor
- Easy adjustable front & side handle
- SDS-max drive
- Variable speed control with impact
rate of 1200-2500bpm
- Needle-pin type slip clutch
- Internal double-insulation construction
- High drilling speed & high demolition performance
- Change lever for switching between,“Rotary + Hammering”,
“Neutral” & “Hammering only”
- Soft-touch grip handle and side handle for easier handling
Demolition Hammers
H60MRV
Demolition Hammer
H65SB2
Demolition Hammer
-
- Strongest demolition power and durability
in this class
- Low noise and vibration level
- Triple dust sealed, double insulated design
- Comfortable shock absorbing handles
- Robust construction for longer life
- High impact energy: 42 joules
- Strong alloy motor housing
Powerful 1,350 watt motor
Slip resistant soft grip handle
Constant/Variable speed control
Fast full load stricking rate of 1,650bpm
Vibration-absorbing handle for excellent vibration reduction
High chipping and demolishing performance with low vibration
and low noise level
- Internal double-insulation construction with sturdy aluminium frame
Grinders
G10SD2
100mm Angle Grinder
G12SE2
115mm Angle Grinder
- Powerful 760 watt motor
- High power to weight ratio
- Advanced seal technology
- Ergonomic 15O side handle
- Compact, lightweight & modern
- Low profile gearbox allows access
to restricted areas
- Spindle lock for easy to replace
grinding wheel
- Wear resistant of armature coil
- Excellent overload durability
- Powerful 1,200 watt motor
- Compact and lightweight
G13SE2
125mm Angle Grinder
G18SE3
180mm Angle Grinder
- Spindle lock for easy to replace
grinding wheel
- Wear resistance of armature coil
- Excellent overload durability
- Powerful 1,200 watt motor
- Compact and lightweight
- Dust proof ball bearing portion &
durable retainer
- New construction to protect grease
leakage
- Tool-less angle adjustment of wheel guard
- Spindle lock 3-position side handle
- Prolonged service life and wear resistant
- Powerful 2,400 watt motor
“Out Perform - Out Last”
Grinders
G23SE2(H6)
230mm Angle Grinder
G23UB2
230 Angle Grinder
- Dust-proof ball bearing
- Tool-less wheel guard can be
adjusted to any angle
- Long life carbon brushes
- More durable ball bearing retainer
- Wear resistance of armature coil
- Powerful 2,400 watt motor
- Carry case
- Powerful 2,400 watt motor
- Three position side handle
- Easy to use large safety lock switch
- Tool-less angle adjustment of wheel
guard
- Soft start for minimised kick back reaction
- Dust proof ball bearing portion & durable retainer
- New construction to protect from grease leakage
Sander / Polisher & Grinder
SAT180
180mm Sander / Polisher
GP2
25mm Die Grinder
- Powerful 950 watt motor
- No-load speed range: 1900-3400rpm
- Robust construction for longer life
- Two-speed dust sealed switch
- Dust resistant design
- Compact design for easy access to
hard to reach locations
- High speed for a smooth and
accurate finish
- High power from a 520 watt
industrial motor
- Convenient tool rest
Sanders
SV12SG
Orbital Palm Sander
SB10T
100 x 610mm Belt Sander
- Soft grip for ease of operation &
reduce operator fatigue
- Sanding rate best in class
- Easily accessible switch suits left or
right hand operation
- Easy and quick paper changing with
convenient lever clamp
- Also compatible with velcro backed sand paper
- 2-speed for rapid stock removal & fine
finish sanding
- Large belt size for rapid sanding and
stock removal
- Powerful industrial grade 1,100 watt
motor
- Extended base suitable for flush
sanding
SB75
Belt Sander
SV13YA(H1)
125mm Orbital Sander
- 2-speed for rapid stock removal & fine
finish sanding
- Efficient dust collection with a large dust
bag
- Powerful industrial grade 1,000 watt
motor
- Extended base suitable for flush sanding
-
Powerful 230 watt motor
Variable speed 7,000-12,000rpm
Ergonomic design
Large soft grip handle
Pad control system
Complete ball bearing construction
for smooth operation
Circular Saws
C5YC
Dustless Metal Cutting Circular Saw
C7YA(FCB)
185mm Dustless Saw
- Lightweight and compact
- Multi-purpose cutter
- Fast and powerful
- Clear view of cutting line
- Robust and accurate
(Comes with 125mm FCB Blade or
Diamond Blade)
- Convenient dustless operation for user
safety when used with appropriate
accessories
- Lightweight & well-balanced for user
comfort
- Specifically built for cutting fibre-cement
- 4-tooth, diamond tipped fibre-cement blade
- Heavy duty industrial grade 1,400 watt motor
C7SB2
185mm Circular Saw
C9
235mm Circular Saw
- Easy access adjustment lever with
55O bevel capacity
- Magnesium gear cover, blade cover
and lower guard
- Soft and comfortable with slip resist
ant moulded grip
- Heavy duty die cast aluminium base
- Powerful 1,710 watt motor
- No saw slump, ideal for saw bench
accessories
- Powerful industrial 2,000 watt motor
- Max depth of cut:86mm (3-3/8”)
- Clear view of cutting line
- Compact and easy to use
- Rigid nickel alloy base
“Out Perform - Out Last”
Sabre Saws
CR13VA
130mm Reciprocating Saw
- Simple, tool-less, one handed blade
changes
- Comfortable, ergonomic soft moulded
grip
- Top of class 1,050 watt industrial motor
- Higher cutting speed with swing action
- Push button adjustable shoe
- Variable speed control
CR13VC
130mm Reciprocating Saw
- Speed selection dial for versatile
operation
- Comfortable dual moulded front cover
- Comfortable rubber moulded handle
- Tool-less blade change mechanism
- Large variable speed trigger
- Powerful 1,010 watt motor
Mitre Saws
C10FCE
255mm Compound Mitre Saw
- Intense power for toughest cutting jobs
- Horizontal handle with soft, vibration reducing
elastomaster grip adds comfort & control
- Thumb actuated positive stops, easy to use
for quick mitre adjustments
- Carbon brush access, allows user to replace
brush as needed to greatly prolong tool life
C12LCH
305mm Compound Mitre Saw
- Laser guide system for easy adjustment
- Digital display panel that indicates mitre and
bevel angles
- Bevel angle fine adjustment mechanism
- Soft vibration reducing grip
- Powerful 1950 Watt motor
Slide Compound Saws
C12FSA(B)
305mm Slide Compound MItre Saw
- Built-in soft start & electric constant
speed control
- Dual slide rails for smooth & accurate cutting
- Quiet, low vibration belt drive
- Powerful 1,650 watt motor
- Bevel left and right
- Mitre angles R:0-57O L:0-57O
C10FSB
262mm Slide Compound Mitre Saw
- Built-in soft start & electronic constant speed control
- Positive angle stoppers for desired angle cut
- Poly V-belt and motor driving system for longer
life
- Splinter guard, also serving for cut alignment
- Easy to read angle scale and bevel scale
- Powerful 1,450 watt motor
Cut Off Machines
CC14SF
14” Cut Off Machine
- Powerful 2400 watt motor
- Soft grip handle
- Spindle lock system
- One touch vise system for quick
feeding and easy tightening
- High speed feeding of the vise
CC16SA
405mm Cut Off Machine
- Adjustable angle vice cutting up to 45O
- Wind up vise with thread protection
- Large capacity: 120mm pipe
- Double reinforced base
- 2,400 watt motor
Planners
P20SB(TCT)
82mm Finishing Planer
- Comes with TCT blades
- Highest power to weight ration in its
class
- Maximum pass of 1mm
- 620 watt motor
- 2.5kg weight
P20SA2
82mm Rebate Planer
- Large capacity rebate of 25mm depth
- Lightweight design for user control
- TCT replaceable blades
- Comfortable “D” handle
- 3mm maximum pass
- Rigid alloy base
Screwdrivers
W6V4
Screwdriver
- High power 620 watt motor
- Ergonomic design for better
operation
- Robust aluminium cover & inner
cover
- Class-top low noise 76db
W6VA4
Screwdriver
- High power 620 watt motor
- Ergonomic design for better
operation
- Robust aluminium cover & inner
cover
- Class-top low noise 76db
“Out Perform - Out Last”
Screwdriver
Vacuum cleaner
W8VB2
Screwdriver
RP30Y
Vacuum
- High power 620 watt motor
- Ergonomic design for better
operation
- Robust aluminium cover & inner
cover
- Class-top low noise 76db
- Automatic switch outlet for ease of use
- Suitable for wet & dry operation
- Durable stainless steel casing
- Heavy duty 1,200 watt motor
- Integrated accessory stands
Nibbler
Shear
CN16SA
Nibbler
CE16SA
Shear
- Fast efficient cutting sped of 1,500
strokes per minute
- Downward punching allows clear view
of line
- Powerful 480 watt motor
- Adjustable cutting positions for cutting
left or right
- Large cutting capacity: 1.6mm steel, 1.2mm stainless
- Large guard for protection from
sharp metal waste
- Fast efficient cutting speed of
3,700 strokes per minute
- Compact body and lightweight
- Powerful 400 watt motor
- Large cutting capacity: 1.6mm steel, 1.2mm stainless
Others
RB40VA
Blower
VB16Y
16mm Rebar Cutter / Bender
-
- Micro-processor controls secures and
stabilises the bending angle of the steel rod
- Built-in slip clutch for protection of the
mechanism
- Preset dial for bending angles:
45O, 90O, 135O & 180O
- Soft touch handle for comfort and control
- Bending capacity: 10-16mm / Cutting capacity: 10-16mm
Compact and lightweight
Soft grip handle for easier handling
Variable speed control trigger switch
Stable floorstanding operation is possible
Dust can be collected when using dust bag
Number one in it’s class with maximum
air volume:3.83/min
EC12
Air Compressor (Twin Tank)
EC10SB(SL)
Air Compressor (oil-less)
-
-
Small,l compact & portable
Low maintenance
15.1 Litre tank capacity
Rubber suction pads for stability in
transport
- Supplied with Nitto Coupling
Oil-free compressor
Small, compact & portable
Low maintenance
15.1 Litre tank capacity
Powerful motor with a 2HP single phase
240v motor
- Grab handle is easy to carry for mobility
- Supplied with Nitto Couping
Pneumatics
NR90AD
90mm D Head Strip Nailer
NT65MA2
DA Series Brad Nailer
- Revolutionary Lightweight & compact
design
- Well balanced clip head nailer
- Rear load magazine with by pass
follower
- Tool-less depth adjustment
- Dual function trigger (bump/single shot)
- Moulded rubber grip for comfortable handling
- Revolutionary on board air duster
- 360 degree adjustable exhaust
- Lightweight and high power
- Tool-less depth adjustment
- Dual function trigger
- Quick clear feature
NV65AF3
Coil Nailer
-
Light, compact and powerful
Wire or plastic collated nails
Sequential or contact fire
Dial depth adjustment
Clear view magazine with adjustable
nail support
- Non-slip grip handle
“Ensure Optimum Performance”
“Use HITACHI Designed
Collated Fastener”
FULL RANGE OF NAILS ALSO AVAILABLE
“Out Perform - Out Last”
3612 12.7mm Plunge Router
6408 10mm Electric Drill
• A tough, powerful and robust router
• Handles anything from MDF to red
gum and iron bark
• Shaft lock for easy bit changes
• 3-way preset plunge depth stop
• Low noise (84db)
3706 Cutout Tool
• Lightweight and powerful this drill is a
must for carpenter/joiners, shop fitters
and cabinet makers
• Variable speed with forward/
reverse for easy drilling and driving
applications
• Heavy duty 10mm keyless chuck
• Compact design for working in
confined areas
6501 6.5mm High Speed Electric Drill
• Designed to help you cut quick,
accurate and smooth curves or holes
• Fits in the palm of your hand giving
you comfortable accurate control
• Tool-less depth adjustment sets the
desired cutting depth quickly and
easily
• Clean cuts with optional extraction
head
3901 Plate Joiner
• Fast rpm (4,500) makes this ideal for
drilling pop rivets and pilot holes in
metal channel
• Adjustable depth guide allows you to
drill to a predetermined depth
• All ball and needle bearing
construction for longer tool life
• Compact pistol grip design
6821 Drywall Screwdriver
• 6 depth settings for #0, #10, #20
biscuits
• A professional joiner with precision
grooving, flat dowel joints and wall/
ceiling capabilities
• The base is set up to work with 19mm
material without adjustment
• Optional 110mm 24t blade will give
you 25mm depth of cut
4131 185mm Cold Metal Cutting Saw
• ”Sure-Lock” adjustment for consistent
screw depth setting
• Low noise level for quieter operation
• Nose piece is easy to remove for
reversing screws out
• Highest power-to-weight ratio on the
market
• Large recessed lock-on button for
continuous operation also helps
prevent accidental lock-on
6825 Drywall Screwdriver
• Fast, effortless cutting through metal
with burr-free cuts that are cool to
touch
• Virtually spark free cuts
• Cuts up to 6mm thick mild steel
• Quick release blade guard lever for
plunge cutting
• Stainless steel base plate for stability
and durability
• Excellent for roof and fence sheeting
446L Dust Extraction System
• The fastest drywall driver on the
market at 6,000rpm
• ”Sure-Lock” adjustment for consistent
screw depth setting
• Lightweight design (1.4kg) reduces
operator fatigue during extended use
• Large recessed lock-on button for
continuous operation also helps
prevent accidental lock-on
6826 Screwdriver
• 27 litre tank
• New “Push & Go” filter cleaning
system
• Dual purpose machine easily converts
from dust extraction to a powerful wet
or dry industrial vacuum cleaner
• Automatic on/off system operates
simultaneously as connected tool is
switched on
447L Dust Extraction System
• State of the art in general fixing
applications with silent clutch for
speed and torque
• ”Sure-Lock” adjustment for consistent
screw depth setting
• Variable speed
• Large recessed lock-on button for
continuous operation also helps
prevent accidental lock-on
6827 Screwdriver
• 46 litre tank
• New “Extreme Clean” automatic filter
cleaning system
• Dual purpose machine easily converts
from dust extraction to a powerful wet
or dry vacuum cleaner
• Automatic on/off system operates
simultaneously as connected tool is
switched on
Page 28
United Tools National Catalogue 2006
• 6 stage externally adjustable torque
sensitive clutch mechanism
• ”Sure-Lock” depth adjustment for
consistent screw depth setting
• Lightweight cast aluminium gear
housing for durability
• Retractable belt clip
• Conveniently located forward/reverse
switch
6952 Impact Screwdriver
3612C 12mm Electronic Plunge Router
• This impact screwdriver delivers
120 Nm of torque
• Rev speed of 3,200rpm means
increased work efficiency
• Lightweight cast aluminium gear
housing for durability
2414NB-2 355mm Portable Cut Off
• Dial up variable speed
• Soft start feature for smoother start
ups and electronic brake
• Electronic speed control maintains
constant speed even under load
• Optional dust extraction assembly
3620 8mm Plunge Router
• Lock off button to prevent accidental
starting
• Guide plate adjusts 45° right and
left at 3 locations for various sizes of
materials
• Quick release vise for secure stock
retention and fast repeated cut offs
• Adjustable depth stop
• Includes 5 abrasive discs and cap
2704 Table Saw
• Great router for all round performance,
plunging and template work
• Comfortable grips with the switch built
in for precise and accurate control
• 1,000 Watt motor gives this machine
plenty of power
• 3 way preset plunge depths
• Easy guide adjustment setup
3707F 6.35mm Trimmer
• Machined saw table with high rigidity
delivers accurate cutting work
• Powerful motor enables ripping 4 x 8”
wood with telescopic sub-table
• Rip fence with very smooth sliding
movement with anti-lifting T shaped
rail
• Side and rear extension tables
available as option
AF633 Pneumatic Brad Nailer
• Ergonomic slim body design for superior handling and reduced operator
fatigue
• Rubber roller for easy and precise
depth adjustment and cam action
locking
• Built-in Maklite for easy trimming
when lighting is inadequate!
4101RH 110mm Wet Cutter
• Durable and lightweight die cast
housing
• Easy tail loading of nails and easy dial
depth adjustment
• Comfortable rubber grip
• Large magazine capacity - 120 pcs
• Available in collation 34°
AN611 Coil Nailer
• Perfect saw for cutting tiles, bricks
and concrete
• Powerful and durable motor for
longer life
• Equipped with earth leakage breaker
• Special cover design prevents water
from entering into motor housing
• Cutting capacity up to 34mm with
standard 110mm blade
4107RH 180mm Wet Cutter
• 3 way firing switch; safety lock,
bounce fire and standard single fire
• Tool-less fine depth adjustment for
recessing heads or raised
• 360° rotational exhaust port to deflect
air away from operator
• Spiked nose cone firmly grips material
while skew or toe nailing
• Accepts plastic and wire collated nails
AN942 Pneumatic Framing Nailer
• Wet cutting capability and a powerful
1,400W motor allows quick and clean
cutting of stone, concrete and asphalt
• Waterproof construction
• Equipped with earth leakage breaker
4112 305mm Portable Angle Cutter
• 3 way firing switch; safety lock,
bounce fire and standard single fire
• Tool-less fine depth adjustment for
recessing heads or raised
• 360° rotational exhaust port to deflect
air away from operator
• Spiked nose cone firmly grips material
while skew or toe nailing
• Accepts plastic and wire collated nails
United Tools National Catalogue 2006
• SJS mechanism delivers outstanding
performance and durability
• Detachable and adjustable solid metal
base plate ideal for cutting 100mm
in depth
• Large dead man switch for safer
operation and less fatigue
• Dust exhaust shute
• Tool-less adjustable wheel guard
Page 29
The future is now.
Battery-powered tool technology has come a long way in the last few
years – and Makita Mobile is definitely the future. Now, mobile tools
can develop tons of power, run for longer and recharge in less time.
There’s also more choice. With the Makita Mobile range of technology
and voltage platforms, you can pick the perfect balance of tool power,
size and weight to suit your work.
Option 1. The Skins
Option 2. The Kit
Option 3. The Combo
If you’re well set up with a particular
Makita Mobile voltage platform,
you may own enough batteries and
chargers already. And that’s when you
have the option to just grab a Skin. It’s
just your new tool. So you can save
because you’re not paying for more
batteries and another charger.
You’re on familiar ground here… Each kit
gives you a new tool, packaged up with
batteries and a charger in a self-contained
set.
When you want more power, Combos are the ideal
shortcut. You can grab all the essential tools for
your new mobile voltage, boxed (or bagged) up with
batteries and a charger. You save because you’re
not buying all the tools individually, and you’re not
paying for more batteries and chargers than you
really need.
6260DWLE 9.6V 10mm Mobile Driver Drill
8414DWAE 12V 13mm Hammer Driver Drill
• Perfect for fitting door furniture,
kitchen cupboard work, joinery and
general fitout jobs
• 2 speed gear box let’s you choose
between speed and power
• 16 torque settings for precise screw
depth setting, prevents driving of
screws deeper than surface
• Includes 2 x batteries, case and torch
6270DWLE 12V 10mm Mobile Driver Drill
• The newly redesigned clutch lock
out lever lets you to switch between
hammer drill, drill and drive modes
without losing your clutch setting
• State-of-the-art two piece ND-31
Makita motor
• Clutch lock system
• Single sleeve keyless chuck
8434DWAE 14.4V 13mm Hammer Driver Drill
• Perfect for fitting door furniture,
kitchen cupboard work, joinery and
general fitout jobs
• 2 speed gear box let’s you choose
between speed and power
• 16 torque settings for precise screw
depth setting, prevents driving of
screws deeper than surface
• Includes 2 x batteries, case and torch
6280DWLE 14.4V 10mm Mobile Driver Drill
• The newly redesigned clutch lock out
lever lets you to switch between hammer drill, drill and drive modes without
losing your clutch setting
• State-of-the-art two piece ND-31
Makita motor
• Clutch lock system
• Single sleeve keyless chuck
8444DWAE 18V 13mm Hammer Driver Drill
• Perfect for fitting door furniture,
kitchen cupboard work, joinery and
general fitout jobs
• 2 speed gear box let’s you choose
between speed and power
• 16 torque settings for precise screw
depth setting, prevents driving of
screws deeper than surface
• Includes 2 x batteries, case and torch
Page 30
United Tools National Catalogue 2006
• The newly redesigned clutch lock out
lever lets you to switch between hammer drill, drill and drive modes without
losing your clutch setting
• State-of-the-art two piece ND-31
Makita motor
• Clutch lock system
• Single sleeve keyless chuck
6980FDWAE 12V Mobile Impact Driver
6349DWAE 18V 13mm Mobile Driver Drill
• Externally accessible replaceable
carbon brushes
• Soft fitting rubber clad palm grip
• Fully recessed screws in the hammer
casing
• The brilliant LED Maklite will make
fitting screws under stairs or inside a
cabinet a breeze
BDF460WAE 24V 13mm Mobile Driver Drill
• 13mm single sleeve keyless chuck
• Wrap around rubber handles for all
day comfort and control
• 16 torque settings
• Variable speed and forward/reverse
switch
6835DWAE 12V Mobile Screwdriver
• Replaceable brushes extends motor
life by up to 5 times
• Variable speed plus reverse
• 2 speed gear box
• Heavy duty keyless chuck
• Electric brake for accurate driving
• 16 torque settings for precise screw
depth
BHP460WAE 24V 13mm Hammer Driver Drill
• Auto feed screwdriving
• Easy 3 stage screw adjustment range
from 25mm to 41mm screws
• Newly designed narrow housing
allows driving 15mm from internal
right angle walls (corners)
• Fast loading and unloading screw
system with screw strips holding 50
screws
6934FDWAE 14.4V Mobile Impact Wrench
• 3 mode dial for hammer, driver and
drill action
• Replaceable brushes extends motor
life by up to 5 times
• Variable speed plus reverse
• 2 speed gear box
• Electric brake for accurate driving
• 16 torque settings for precise screw
depth
BHR200SJE 24V 20mm Rotary Hammer
• Lightweight and compact body for
superior handling
• Powerful 120Nm of torque to take on
the toughest jobs
• The clever Maklite located at the head
of the tool will provide bright white
light right into where you are working,
lighting up even the darkest corners
6935FDWAE 14.4V Mobile Impact Driver
• Great tool for hard drilling applications
where you don’t want to drag a lead
around
• Intelligent charging system for efficient
charging and increased battery life
• 3 mode rotation only, rotation with
hammer and hammer only
• Centre line balance
• Variable speed with reverse
• Electric brake
6319DWAE 12V 13mm Mobile Driver Drill
• Externally accessible replaceable
carbon brushes
• Fully recessed screws in the hammer
casing
• The brilliant LED Maklite will make
fitting screws under stairs or inside a
cabinet a breeze
• Forward/reverse with variable speed
• Rubber clad handle
• 2 piece motor
DK1840AL3 18V 4 Piece Mobile System
• 13mm single sleeve keyless chuck
• Wrap around rubber handles for all
day comfort and control
• 16 torque settings
• Variable speed and forward/reverse
switch
6339DWAE 14.4V 13mm Mobile Driver Drill
System includes:
• 8444D MXT Hammer Driver Drill
• JR180D Recipro Saw
• 5620D Circular Saw
• ML180 Swivel Head Torch
• 3 x 2.0Ah Ni-Cd Batteries
• Charger
DK1842AL3 18V 4 Piece Mobile System
• 13mm single sleeve keyless chuck
• Wrap around rubber handles for all
day comfort and control
• 16 torque settings
• Variable speed and forward/reverse
switch
United Tools National Catalogue 2006
System includes:
• 8444D MXT Hammer Driver Drill
• JR180D Recipro Saw
• 5620D Circular Saw
• ML180 Swivel Head Torch
• 3 x 2.0Ah Ni-Cd Batteries
• Charger
Page 31
DK1860AL3 18V 6 Piece Mobile System
5902B 235mm Circular Saw
System includes:
• 8444D MXT Hammer Driver Drill
• JR180D Recipro Saw
• 5620D Circular Saw
• 4334D Jigsaw
• UB181D Blower
• ML181 Swivel Head Radio Torch
• 3 x 2.0Ah Ni-Cd Batteries
• Charger
DK1861AL3 18V 6 Piece Mobile System
• 2,100W motor
• Hardworking saw with the power to
rip through most timbers
• Tight gear tolerances minimise arbor
float and noise
• Easy to use height adjustment lock
lever
• Front and rear bevel locks
• Improved handle design
5007NB-2 185mm Circular Saw
System includes:
• 8444D MXT Hammer Driver Drill
• JR180D Recipro Saw
• 5620D Circular Saw
• 4334D Jigsaw
• UB181D Blower
• ML181 Swivel Head Radio Torch
• 3 x 2.0Ah Ni-Cd Batteries
• Charger
9059K-2 230mm Angle Grinder
• Heavy duty 1,500W motor
• Thickened gauge, fully calibrated
aluminium base for excellent stability
and accuracy
• Durable and robust design with all
needle and ball bearing construction
for long tool life
• Excellent saws for ripping and
crosscut, in the workshop or onsite
• Includes blades, tool bag and cap
5057KB 185mm Dustless Circular Saw
• Power packed tool with torque limiter
• Deadman switch for user safety
• Rotatable solid alloy gear housing
• Dust proof bearings and resin coating
on critical parts improves durability
• Automatic cut out brushes
• Includes 3 x grinding discs, case and
cap
9069SP Medium Industrial Angle Grinder
• Dust collection container captures
waste for a clean work environment or
can be connected to a dust extraction
system
• Standard blade cuts 4-6mm exterior
fibre cement sheet cladding
• Bevel cuts 0°-45° enabling a wide
variety of cuts
• Fully enclosed upper guard
5740NBSP 185mm Circular Saw
• Large dead man switch for user safety
• Compact low profile gear housing
great for working in tight areas
• Gear housing can be rotated to
suit different cutting and grinding
operations
• Dust proof bearings and resin coating
on critical parts improve durability
• Adjustable wheel guard
9207SPB 180mm 2 Speed Sander Polisher
• Thin kerf blade cuts through all grades
of timber even hardwoods
• Improved handle design gives great
balance
• Bevel lock to 45º
• Calibrated aluminium base for
increased accuracy
• Includes extra Makedge blade
N5900B-2 2000W 235mm Circular Saw
• Perfect addition for automotive repairs
and general sanding work
• 2 speed to allow for use as a sander or
a polisher
• All ball bearing construction for long
life and smooth operation
• Reversible side handle to suit
operators preference
• Cast alloy gear housing for durability
9227CB 180mm Sander Polisher
• Fine gears and bearings tolerances for
quieter, more accurate running
• Repositioned fan vent, to blow the
cutting line clean
• Cutting window, to give you a clear
view of your line and the blade
• Great balance and standard base
dimensions to fit your old workbench
• Includes cap and extra blade
N3701 6.35mm Trimmer
• Electronic speed control maintains
constant speed under load, critical for
a professional finish
• Perfect for clear coat finishes
• Variable speed with preset stepped
speed dial, ideal for ultra slow
polishing
• Hook and loop base for wool bonnet
Page 32
United Tools National Catalogue 2006
• Ideal for trimming laminates, edging,
freehand and template design work
• Clear base plate allows you to perform
precise cutting for a perfect finish
• Robust and durable aluminium
housing
SJS is a massive advance
in power, safety and
durability.
9557NB 115mm Angle Grinder
• Powerful 840W motor
• Durable motor with patented zigzag
varnish and resin coat on critical parts
increases tool reliability
• 90° left and right head rotation
• Side switch conveniently located
• Side handle can be used in left or right
handed position
• Shaft lock for easy wheel changes
The design gives
maximum transfer of
power and torque, while
minimising the wear and
tear that happens with
older technology.
Plus it disengages under extreme loads, protecting the
user and the machine.
9558NB 125mm Angle Grinder
• Powerful 840W motor
• Durable motor with patented zigzag
varnish and resin coat on critical parts
increases tool reliability
• 90° left and right head rotation
• Side switch conveniently located
• Side handle can be used in left or right
handed position
• Shaft lock for easy wheel changes
...and it’s only inside Makita high powered angle grinders.
SJS is an advanced drive system, based on a
coil spring which wraps around the internal
drive spindle.
On start-up, the coil tightens around the spindle
to produce smooth, direct and highly efficient
drive from the motor to the grinder disc.
9564C 115mm Angle Grinder
• SJS mechanism delivers outstanding
performance and durability
• Electronic limiter prevents accidental
motor overload and burnout
• Dust proof bearings, zigzag and resin
coated on critical parts
• Slim body design for comfortable grip
and control
• Shaft lock for easy wheel changes
• Solid aluminium gear housing
If the grinder ‘grabs’ or overloads the motor,
the SJS is instantly disengaged by the reversed
force and the drive spindle rotates freely.
9553NBK 710W 100mm Angle Grinder
9565C 125mm Angle Grinder
• 710W motor
• Ideal for domestic or light industrial
use
• Durable motor with patented zigzag
varnish and resin coating on critical
parts increases tool reliability
• Includes 6 grinding discs and case
9555NBK 710W 125mm Angle Grinder
• SJS mechanism delivers outstanding
performance and durability
• Electronic limiter prevents accidental
motor overload and burnout
• Dust proof bearings, zigzag and resin
coated on critical parts
• Slim body design for comfortable grip
and control
• Shaft lock for easy wheel changes
• Solid aluminium gear housing
9565CN 125mm Angle Grinder
• 710W motor
• Ideal for domestic or light industrial
use
• Durable motor with patented zigzag
varnish and resin coating on critical
parts increases tool reliability
• Includes 5 x grinding discs and case
9556NB 100mm Angle Grinder
• Deadman switch
• Super Joint System (SJS) delivers
outstanding performance and
durability
• Electronic limiter prevents accidental
motor overload and burnout
• Dust Proof Bearings, zigzag varnish
and resin coated on critical parts to
improve durability
9565CV 125mm Angle Grinder
• Powerful 840W motor
• Durable motor with patented zigzag
varnish and resin coat on critical parts
increases tool reliability
• 90° left and right head rotation
• Side switch conveniently located
• Side handle can be used in left or right
handed position
• Shaft lock for easy wheel changes
United Tools National Catalogue 2006
• Dial up variable speed for precise
speed control
• Super Joint System (SJS) delivers
outstanding performance and
durability
• Electronic limiter prevents accidental
motor overload and burnout
• Dust Proof Bearings, zigzag varnish
and resin coated on critical parts to
improve durability
Page 33
9032 6mm, 9mm, 13mm Belt Sander
BO4553 1/4 Sheet Palm Sander
• The perfect sander for filing out
housings or delicate work
• Head adjustment 110° for easy
handling
• Variable speed control
• Can be connected to dust extraction
system
• Low profile belt head, 14mm
• Optional 6mm and 12mm arms and
belts available
9403 100mm Belt Sander
• Ideal for close edge work
• Dust bag for clean and efficient
sanding and can connect to dust
extraction system
• All ball bearing construction for
smooth operation
• Palm grip design for comfort and
control
BO4561 Triangular Base Palm Sander
• Excellent for floor sanding, cleaning
and smoothing off table and bench
tops
• Extremely powerful and robust
• A fast belt speed of 500m/min so it
will rip through any timber quickly and
efficiently
• Takes standard size belts 100 x 610mm
for convenience
1902SP 82mm Planer
• Precision sanding action for confined
areas
• Perfect for sanding louver doors,
windows or any hard to reach areas
• Highly efficient through the pad dust
collection with dust bag or can be
connected to dust extraction system
• Fast and smooth operating action
BO4900V 1/2 Sheet Finishing Sander
• A sturdy, robust planer for all trade
applications
• Powerful 580W motor
• Standard mini reversible TCT blades
that provide a razor sharp long
cutting life
• V-groove chamfering guide 9mm fixed
rebate capability
• Includes a set of blades
BO3700SP 1/3 Sheet Finishing Sander
• Integrated through the pad dust
control with paper waste bags or
connect to dust extraction system
• Dial up electronic variable speed
control
• Hook and loop base pad that suits all
common papers
• Reduced vibration for the operator
with Makita’s unique counter
balancing system
BO5021 125mm Random Orbital Sander
• Powerful and lightweight for coarse
sanding of stock, through to fine
finishing and preparation for paint or
lacquer
• Highly efficient through the pad dust
collection with removable dust bag or
connect to dust extraction system
• Improved base system reduces
vibration
• Includes 9 abrasive sheets and punch
plate
9910SP 76mm Belt Sander
• Sure grip hook and loop base provides
quick paper changes
• Dial up variable speed
• Very low vibration
• Through the pad dust extraction
• Connects directly to dust extraction
system or dust bag
• Detachable front handle for working in
confined areas
BO6030 150mm Random Orbital Sander
• Ideal for stripping back paintwork on
weatherboards, furniture, etc
• Auto tracking system constantly keeps
the belt centred
• Compact body design makes it ideal
for flush finishing
• Efficient built in dust extraction system
with bag provided or connects directly
to dust extraction system
9924DB 76mm Belt Sander
• Variable speed control
• Efficient through the pad dust
extraction for a cleaner working
environment
• 3mm orbit diameter provides a swirl
free finish
• Ergonomic rubber clad rear handle
• Connects directly to dust extraction
system or dust bag
BO6040 150mm Random Orbital Sander
• This sander has the versatility to use
both 76mm and 100x610mm belts
• Excellent for floor sanding, cleaning
and smoothing off table and bench
tops and can be connected to dust
extraction system
• Fine adjustment tracking
• Large lever for quick belt changes
• Graphite pad for reduced belt wear
and reduced heat in the sanding area
Page 34
United Tools National Catalogue 2006
• Dual mode selector for ‘random orbit’
action (finishing) and ‘random orbit
with rotation’ action (coarse and
polishing)
• Variable speed control
• Very low vibration
• Recommend this sander to be
connected to dust extraction system
DA3010F 10mm Angle Drill
DP4001K 13mm Drill
• Ideal for close quarter or right angle
drilling or driving
• Paddle switch for easy one handed
operation
• Variable speed (0-1,400) for controlled
drilling
• Handy Maklite feature lights up those
dimly lit work areas
• Forward/reverse action
DA3011F 10mm Angle Drill
• Aluminium gear housing for durability
and longer tool life
• Large variable speed trigger with
forward/reverse action
• Lock-on lever allows the drill to be
locked at max. rpm with the flick of
a lever
• Side handle swivels 360° for
convenient operation
DP4003K 13mm Drill
• Ideal for close quarter or right angle
drilling or driving
• Paddle switch for easy one handed
operation
• Variable speed (0-1,400) for controlled
drilling
• Handy Maklite feature lights up those
dimly lit work areas
• Forward/reverse action
4323 Jigsaw
• Aluminium gear housing for durability
and longer tool life
• Large variable speed trigger with
forward/reverse action
• Lock-on lever allows the drill to be
locked at max. rpm with the flick of
a lever
• Side handle swivels 360° for
convenient operation
GB600 150mm Bench Grinder
• Powerful 400W motor
• Smooth and quiet cutting with
anti-vibration
• Comfortable D-handle design
• Adjustable speed dial for greater
accuracy for a wider range of
applications
• Bevel cuts to 45° left or right
• Can be connected to dust extraction
system
4340CT Jigsaw
• Ideal for the home workshop
• Complete with protective shields and
tool rests
• 150mm 180W bench grinder
• 2.0 Amp 1/3Hp
GB601 150mm Bench Grinder
• Powerful 720W motor
• Variable speed control with constant
speed electronics
• 3 mode oscillating feature allows
faster cutting
• Accepts bayonet shank blades
• Adjustable aluminium base for bevel
cutting
• Ergonomic design D-handle
4341CT Jigsaw
• Ideal for the home workshop
• Complete with protective shields and
tool rests
• 150mm 240W bench grinder
• 2.5 Amp 1/2Hp
GB800 205mm Bench Grinder
• Powerful 720W motor
• Variable speed control with constant
speed electronics
• Extremely low vibration
• 3 mode oscillating feature allows
faster cutting
• Built in dust blower
• Tilting base that cuts up to 45°
• Barrel handle design
HG1100 Heat Gun
• Check out this 540W machine which is
perfect for light industrial applications
• Complete with protective shields and
tool rests
• 4 Amp and 3/4Hp
HG1100KIT Heat Gun Kit
• 2,000W of flameless heat
• Variable temperature control
100° -600°C
• 2 speed blower fan
• Perfect for stripping paint, varnish and
many other applications
• Ceramic core protects the heating
element, ensures a longer working life
United Tools National Catalogue 2006
• 2,000W of flameless heat
• Variable temperature control
100° -600°C
• 2 speed blower fan
• Perfect for stripping paint, varnish and
many other applications
• Ceramic core protects the heating
element, ensures a longer working life
Page 35
HL500 Heat Gun
HR2020 20mm Rotary Hammer
• Great for general purpose work
• 1,500W of flameless heat
• 2 temperature ranges
• 2 air speed settings
• Ceramic core protects the heating
element – ensures a longer working
life
• Unique body design allows the gun to
stand upright for no hands operation
HM1304 Demolition Breaker
• 2 mode operation rotary hammer in
masonry, standard drilling in other
materials (optional chuck adaptor and
chuck)
• Positive slide lock chuck accepts all
SDS type bits
• Variable speed with reverse
• Torque limiter to protect the tool and
operator if the bit should jam
HR2450 24mm Rotary Hammer
• Powerful 1,500W motor
• Accepts 30mm hexagonal bits
• Convenient lock-on button for
continuous operation
• Secure locking bit system
• Internal ‘O’ ring fits around the end of
the bit to ensure damaging masonry
dust is kept out of the cylinder
HP1620KSP 13mm Hammer Drill
• 2.7 joules
• Versatile 3 mode operation for rotary
hammer, hammer only in masonry,
standard drilling in other materials
(optional chuck adaptor)
• Chuck accepts all SDS type bits
• Variable speed with reverse
HR2450FT 24mm Rotary Hammer
• Extremely light, compact and a
powerful 650W motor
• The reversing system ensures full
power in both forward and reverse
• Large trigger switch for easy operation
• Ergonomic in-line design for maximum
power, control and comfort
• Side handle swivels 360°
• Includes 9 piece bit set and case
HP1621KSP 13mm Hammer Drill
• 2.7 joules
• Versatile 3 mode operation for rotary
hammer, hammer only in masonry,
standard drilling in other materials
(optional chuck adaptor)
• Chuck accepts all SDS type bits
• HR2450FT comes standard with SDS
chuck and keyless drill chuck
• Maklite built into the handle casts
light directly onto the work area
HR3000C 30mm Rotary Hammer
• Extremely light, compact and a
powerful 650W
• The reversing system ensures full
power in both forward and reverse
• Large trigger switch for easy operation
• Ergonomic in-line design for maximum
power, control and comfort
• Keyless chuck
• Includes 9 piece bit set and case
HP2051 20mm 2 Speed Hammer Drill
• 5.3 joules per impact
• 3 mode dial selects hammer, drill or
hammer drill
• Variable speed control dial
• Auto cut out brushes and service
indicator light minimises down time
and maximises motor life
HR4000C 40mm Rotary Hammer
• These power packed hammer drills
will take on the most demanding jobs
with ease
• Built in torque limiter reduces risk of
damage to the drill and operator if the
bit jams
• 2 speed gearbox with forward/reverse
• Keyless chuck
HP2071F 20mm 2 Speed Hammer Drill
• Electronic variable speed control dial
• Soft start electronic switch
• Automatic cut out brushes with service
indicator light and torque limiter
• 2 mode operation – rotation with
hammer and hammer only
• D-handle for chiselling and straight
handle for drilling
HR5001C 50mm Rotary Hammer
• Super powerful 1,010W motor
• 2 speed mechanical gearbox
• Variable speed trigger and electronic
speed adjusting dial
• A torque limiter to protect you and the
tool from damage
• Built-in Maklite casts a light onto
the drilling area when lighting is
inadequate
Page 36
United Tools National Catalogue 2006
• Power packed to handle drill bits
up to 50mm diameter with 2 mode
operation – rotation with hammer and
hammer only
• Electronic soft start with a large 3
finger trigger to reduce fatigue during
prolonged work
• Automatic cut out brushes with service
indicator light and torque limiter
HK0500 Power Scraper
HM1400 Electric Breaker
• Powerful 550W motor with 2,000–
3,500bpm for maximum performance
• 12 position bit adjustment
• Variable speed control dial
• Large and comfortable trigger switch
• One touch sliding chuck for easy bit
installation and removal
HK1810 Power Scraper
• Hard hitting reliability in a comfortable
T-grip design
• Air cushioned system prevents
excessive vibration and allows greater
operator comfort
• Automatic cut out brushes
• 30mm hexagonal bit shank
• Auto idle will only hammer when the
bit is in contact with the material
HM1810 Electric Breaker
• For light scraping, chiselling and
chipping; ideal for remodelling or
renovation work
• Air cushion hammering for long tool
life
• Quick change bit retainer
• Automatic cut out brushes
• All ball bearing construction for longer
tool life
• Variable speed
HM0860C Demolition Hammer
• Lowest vibration in its class
• AVT counter weight mechanism helps
to reduce vibration
• Auto cut-off brushes
• Warning light indicates trouble with
cord
• 28.6mm Hex shank
JN1601 1.6mm Nibbler
• Full wave electronic variable speed
and power control
• 12 joules per impact power
• Spade or chisel can be locked into
12 different positions
• Automatic cut out brushes
• Warning indicator light lets you know
when the tool requires servicing
HM1100C Demolition Hammer
• Clean and precise work in keystone
plate, deck plate and other corrugated
sheet materials
• Die rotates 360°
• Ergonomic, slim body design for easy
gripping
• Lock on sliding switch for continuous
use
• Built-in thickness gauge for
convenience
JN3200 3.2mm Nibbler
• Powerful 1050 watt motor
• 16 angle settings for chisel bits
• Rubber cladded rear and side handle
for reduced vibration
• Automatic brush cut-out system
• Soft start feature
• Service indicator lamp
• Hammer idling mode
• Slide on and off switch
HM1202C Demolition Hammer
• Built-in thickness gauge for
convenience
• Easy punch and die replacement for
less down time
• Powerful 820W motor allows cuts
through 3.2mm mild steel
• Cutting line and blade action easily
visible
JR3050T Recipro Saw
• Large capacity SDS Max demolition
hammer for speed, durability and
comfort
• Electronic speed adjusting dial
• Powerful 1,450W motor to handle the
most demanding jobs
• 12 angle settings for bit position
• Automatic cut out brushes with service
indicator light
HM1304 Demolition Breaker
• A huge new 1,010W motor
• Strokes-per-minute have been
increased by almost 20%
• Minimal vibration
• A bigger variable speed trigger with
lock-on button
• Push in tool-less blade change system
with quick release
JR3070CT Recipro Saw
• Powerful 1,500W motor
• Accepts 30mm hexagonal bits
• Lock-on button for continuous
operation
• Secure locking bit system
• Internal ‘O’ ring fits around the end of
the bit to ensure damaging masonry
dust is kept out of the cylinder
United Tools National Catalogue 2006
• Featuring AVT counter weight
mechanism which helps reduce
vibration
• Preset dial for speed control for
optimal stroke speed for application
Page 37
JS1300 1.3mm Straight Shears
LS0714 190mm Slide Compound Saw
• 360° swivel shear head for increased
manoeuvrability
• Large variable speed trigger for
controlled cutting speed
• Brushes are easily accessible for fast
replacement
• Lock on button for continuous
operation
JS1600 1.6mm Shears
• Four steel slide arms on linear bearings
move in two stages, to give this
190mm saw a massive 300mm width
of cut
• 1,010W motor
• Bevel cuts up to 45° left or 5° right
perfect when you are undercutting
boards for a super snug fit
LS1013 260mm Slide Compound Saw
• Blade design results in no material loss
• Body grip design with a paddle switch
for easy one handed operation
• A lock off switch prevents accident
starting
• Built-in thickness gauge for
convenience
JS1660 1.6mm Straight Shears
• 1,430W motor
• Compound and mitre cuts to 45° left
and right
• Dust extraction to bag or can be
connected to dust extraction system
• Self closing safety blade cover
• Constant speed control, ideal for
cutting into even the hardest timbers
LS1040 260mm Compound Mitre Saw
• Ideal for straight cutting
• Mar-free model has a stepped
blade, shims for blade adjustment to
minimise burrs
JS1670 1.0mm Straight Shears
• Heavy duty 1,650W motor
• Precision machined aluminium base,
with fully calibrated angles
• Bevel cuts 45° left only
• Electric brake
• Removable safety lock button
• Dust extraction to bag or dust
extraction system
LS1214 305mm Slide Compound Mitre Saw
• Cuts close curves, right or left, in
30mm radius mild or stainless steel
• Visible cutting line
• Continuous metal curl in one direction
for easier operation
JS3200 3.2mm Shears
• The deepest cutting capacity of any
305mm slide saw on the market,
cutting a huge 115mm deep
• Powerful motor 1,650W
• Precision bevel cutting 45° both left
and right, with positive stop at 33.9°
ideal for crown moulding
• Mitre cutting is a breeze with the base
rotating 52° right and 47° to the left
with positive stops at all common
angles
UT120 Power Mixer
• For heavy duty cutting up to 3.2mm
mild steel and 2.5mm stainless steel
• Blades have 4 cutting edges each
• Built-in thickness gauge
• Ball and needle bearing construction
for long tool life
• Highly visible sight line for precise
following of patterns
LC1230 305mm Metal Cutting Saw
• Dial up variable speed control makes
easy batch mixing and consistency in
materials
• Electronic speed control for soft start
up, constant speed, pre-selectable
speed
• Thermal and current overload
protection for long durability
• Full metal gearbox
• Lock on switch
NHP1310 13mm 2 Speed Hammer Drill
• Powerful 1,750W motor
• Lock off button prevents accidental
starting
• Tool-less guide plate adjusts 0°-45° for
quick and easy mitre cutting
• Large cast aluminium base for stability
• Externally accessible brushes for easy
maintenance
Page 38
United Tools National Catalogue 2006
• Powerful 600W motor
• Quick action change dial for hammer
and rotation or rotation only
• Ergonomic handle design for comfort
and control
• 2 speed gear selection with variable
speed in both ranges gives you greater
control and accuracy
SG1250 125mm Wall Chaser
TW0350 12.7mm square drive Impact Wrench
• Ergonomically designed handle for
comfort and control
• Conveniently located front cover
prevents dust from spreading in every
cutting depth
• SJS feature provides smooth and
comfortable cutting by reducing the
start up shock and protection from
accidental wheel jam
• Easy blade change
6906 19mm Impact Wrench
• Incredible high fastening torque of
350Nm
• Aluminium hammer case with high
durability
• Cylinder formed housing with high
rigidity and durability
• Efficient impact system with less
vibration and longer tool life
• Forward and Reverse rocker switch
TW1000 25.4mm square drive Impact Wrench
• Powerful 588 Nm of torque
• Rocker type reversing switch for easy
one handed or reverse operation
• Side handle adjusts 360° for
convenient operation
• Externally accessible carbon brushes
for easy maintenance
• This powerhouse packs 1000Nm of
torque, with it’s lightweight plastic/
glass reinforced housing and handle
• Rubber bumper protection front/rear
and on the base of the handle
• It’s rubberised soft grip makes for a
comfortable tool to work with
TW0200 12.7mm square drive Impact Wrench
• High torque of 200Nm
• Efficient impact system with less
vibration and longer tool life
• Variable speed switch with slide
through forward/reverse switch
• Convenient tool hook attaches to both
sides of tool
7104L Chain Mortiser
• Notches or cuts through-holes in
thick wood stock quickly, cleanly and
accurately
• Portable at only 17kg
• Large adjustable vice for attaching
firmly onto logs
• Ideal for post and rail fencing and door
lock mortising
DPC7311 Petrol Power Cut
• Unique 5 stage air filter system
• Perfectly balanced
• Optimum vibration dampening
• Decompression button for easy
starting
• Quick adjust belt and blade cover
system
• Large volume muffler
• Computer controlled ignition
SC130DRA Mobile Rod Cutter
• Powerful 12V motor ensures a clean
cut into steel rod
• Up to 150 rods (10mm) on a sigle
charge
• Powerful hydraulic cutting with low
vibration
• Variable speed trigger
Power tool vibration is getting
a real hammering from OH&S
organisations around the
world… with good reason.
Prolonged exposure to
tool vibration can cause
permanent nerve,
muscle and joint
damage.
So we’re
proud to be
taking the bad
vibes out of Makita
tools, using the same
heavy-duty engineering
techniques that protect
buildings from
earthquakes.
METABO TOOLS FOR THE PROFESSIONAL
SAFETY CLUTCH
The Metabo S Automatic Safety Clutch has proven its worth in
millions of Metabo grinders. If the tool jams, the automatic safety
clutch instantly slips the gears and reduces torque, preventing
kickback and injury. In addition to protecting you, it also protects
the gearbox and motor, preventing burnout and prolonging the
life of the tool.
Selected Metabo grinders also feature Soft Start, Restart Protection,
Safety Switch and Deadman Switch for your protection.
MARATHON MOTOR
Metabo's Marathon motor lasts up to 5 times longer than other
powertool motors. Every aspect of its design is geared towards
longer life and exceptional performance. It is a high efficiency,
heat tolerant motor with doubly protected windings, high
performance cooling fan, and patented winding protection grid.
MFE 30
1400 Watt
Wall Chaser
MFX 65
2500 Watt
Wall Chaser
ASA 1202 & MFE 30
Wall Chaser
& Dust Extractor
3.5Nm, 125mm diamond cutting blades
• Chase up to 30mm wide and 30mm deep
• Safety Clutch and Deadman Switch
• No tools required with rotating hand grip
• Made in Germany
18Nm of torque for the toughest jobs.
• 7 settings to cut slots or chases 3-41mm wide
• Adjustable depth of cut 20 - 65mm
• Stable, clean cutting with its 4 wide rollers
• Made in Germany
Combine Metabo’s MFE 30 Wall Chaser
with the ASA 1202 Dust Extractor
• The extractor has a 1200 watt motor with high
suction (248mbar) and 25lt capacity
• Smart power outlet on vacuum
W 6-100 Combi
650 Watt
100mm Angle Grinder
W 10-125Q
1010 Watt
125mm Angle Grinder
W 14-125 Ergo
1400 Watt
125mm Angle Grinder
Ideal for builders and tilers
• Lightweight with a narrow body, perfect for
small cutting and grinding jobs
• Plus tile cutting attachment
• Rear-mounted switch protected from dust
Ideal for engineers, welders and manufacturers
• Perfect balance of weight and power
• Safety clutch protects you from kickback injury
• 'Quick' tool-less disc change saves hassle
• German Made • Anti-Vibration side handle
Ideal for heavy engineering and pipe fitting
• 50% more torque than other 5" grinders
• Lightweight with a rotatable, 3-position rear
handle for total control of all that power
• German Made • Anti-Vibration side handle
WE 14-150 Plus
1400 Watt
150mm Angle Grinder
W 25-230
2500 Watt
230mm Angle Grinder
WX 23-230Q
2300 Watt
230mm Angle Grinder
Packed with safety features: soft start, restart
protection, overload cut-out, deadman switch
and Metabo’s unique safety clutch
• ‘Quick’ tool-less disc change
• VTC electronics maintain constant disc speed
Ideal for heavy engineering, rigging, foundries
• Metabo's most powerful grinder
• Rotatable hand grip & 3 position side handle
• Spindle lock and adjustable blade guard
• German Made • Anti-Vibration side handle
Ideal for heavy engineering, rigging, foundries
• Soft start for smooth start up
• Rotatable hand grip & 3 position side handle
• Spindle lock and adjustable blade guard
• German Made • Anti-Vibration side handle
CS 14-15
2100 Watt, 355mm
Cut-off Saw
GE 700
710 Watt
Electronic Die Grinder
GE 900 Plus
900 Watt
Electronic Die Grinder
Ideal for rapid and precise cutting of steel,
Non Ferrous metals, iron and cast iron
• Mitre adjustment up to 45 deg
• Cutting capacity: Rolled bars 65mm ø; Pipes
120mm ø; Structural Steel 120 x 130mm
• Versatile, multi-purpose die grinder
• Variable speed for grinding and cutting hard
and soft materials (including plastic)
• Spindle lock for easy changing of tools
• Made in Germany
• Very high torque grinder for the toughest jobs
• Variable speed for grinding and cutting hard
and soft materials (including plastic)
• Spindle lock for easy changing of tools
• Made in Germany
METABO'S 3YR
PROFESSIONAL
WARRANTY
Metabo’s XXL Warranty Program
is a 2yr extension of the 1yr
warranty for customers who
register personal information
online (www.metabo.com/xxl)
within four weeks of purchase.
METABO TOOLS FOR THE PROFESSIONAL
4 MODE MULTIHAMMERS
Hammer, chisel, high-speed drill,
low-speed drill
KHE 32
900 Watt, SDS Plus
3 mode Rotary Hammer
CODE! Ready
Ideal for all tradespeople who work with concrete on site
• Hammer, chisel and drill at low speed (with optional keyless chuck)
• Cruise through concrete up to 32mm, wood to 40mm, steel to 18mm
UHE 22
705 Watt, SDS Plus
KHE 28
1010 Watt, SDS Plus
3 mode Rotary Hammer
CODE! Ready
Ideal for all tradespeople who work with concrete on site
• Hammer, chisel and drill at low speed (with optional keyless chuck)
• Cruise through concrete up to 28mm, wood to 40mm, steel to 13mm
KHE 55 | KHE 75
1050 | 1150 Watt
SDS Max Rotary Hammer
• 40/45mm max drill Ø
• 8 Chisel positions
• VTC Electronics
CODE! Ready
• 1300-2600 / 1325-2650 impacts per min.
• 1-9 / 1-10J Single blow energy
• Machine weight 5.9 / 6.4kg
UHE 28 pictured
CODE! Ready
UHE 28
1010 Watt, SDS Plus
Metabo’s SDS Plus Multihammers are that unique all-round tool
you’ve always wanted. Cruise through concrete quickly and cleanly
and then, with the turn of a knob and a 3 second chuck change, you
can also drill at high or low speed. For chipping or tile removal, it also
has chisel mode.
UHE 28
UHE 22
Max. Drilling Capacities:
2 speed Chisel
Concrete
Wood
Steel gearbox mode
28mm
40mm
16mm
9
9
22mm
30mm
13mm
9
9
BHE 26
750 Watt, SDS Plus
2 mode Rotary Hammer
CODE!
Ready
9
-
CODE! Ready
Ideal for all tradespeople who work with concrete
• Hammer and drill at low speed (with optional keyless chuck)
• Cruise through concrete up to 26mm, wood to 40mm, steel to 13mm
NEW!
MHE 95
1500 Watt, SDS Max Demolition Hammer
• SDS Max Chisel
• 12 Chisel positions
• VTC Electronics
• Impacts per minute
• Single-blow energy
• Machine weight
CODE! Ready
1020-2040
5-25J
9.8kg
BHE 20 Compact
450 Watt, SDS Plus
2 mode Rotary Hammer
Compact design, built tough in Germany and it weighs only 2.6 kg
• Rubber coated handle for comfort • Drills concrete 16mm, wood 20mm
• 2 position Anti-Vibration side handle (not pictured) • Safety Clutch
IS YOUR TOOL PROTECTED?
Metabo's CODE! immobiliser makes your
powertool useless to potential thieves.
MHE 65
1150 Watt
SDS Max Chipping Hammer
• SDS Max Chisel
• 8 Chisel positions
• VTC Electronics
METABO'S 3YR
PROFESSIONAL
WARRANTY
• Impacts per minute
• Single-blow energy
• Machine weight
CODE! Ready
1325-2650
1-10J
5.7kg
Metabo’s XXL Warranty Program
is a 2yr extension of the 1yr
warranty for customers who
register personal information
online (www.metabo.com/xxl)
within four weeks of purchase.
Metabo’s CODE! works with the same ease as
a car immobiliser - you simply program your
remote with a 3-digit code of your choice. Then,
at the push of a button, your Metabo power tool
is immobilised and can’t be operated until reactivated with your remote. CODE! is a powerful
deterrent to thieves.
METABO TOOLS FOR THE PROFESSIONAL
SE 2800
400 Watt
Screwdriver
SE 4000
400 Watt
Drywall Screwdriver
DWSE 6.3
550 Watt
Screwdriver
New ergonomic and lightweight design for user
comfort even after all day use
• 12 Nm torque • Speed 0 - 2,800 rpm
• Scaffolding hook for convenience
• Patented bit-change system
• Weighs less than 1.2kg!
New ergonomic and lightweight design for user
comfort even after all day use
• 6 Nm torque • Speed 0 - 4,000 rpm
• Scaffolding hook for convenience
• Patented bit-change system
• Weighs less than 1.2kg!
Ideal for roofers
• Adjustable, removable depth stop
• 10 torque settings from 3-18Nm
• Self drilling screws up to 6.3mm diam (14 gauge),
self drilling wood screws up to 7mm diameter
• Made in Germany
USE 8
550 Watt
Screwdriver
BE 622
620 Watt
Drill
BE 710
710 Watt
Drill
Ideal for high-torque fastening in hardwood or steel
• Precise, uniform finishing with 10-stage torque clutch
• Adjustable, removable depth stop
• Optimal speed for self tapping screws up to 14
gauge and self drilling wood screws 8mm x 100 mm
• Made in Germany
Ideal for builders, carpenters, plumbers and sparkies
• Triple reduction gearing delivers huge 35Nm torque
• Variable speed and reversing for various applications
• Built to last with die cast aluminium gear housing
• Drilling capacities: steel 16mm, softwood 40mm
• Made in Germany
Ideal for engineering and metalworking
• 2 speed gearbox with variable speed, reversing
• Built to last with alloy gear housing, Marathon motor
• Drilling capacities: steel 13mm/8mm, softwood
40mm/25mm
• Made in Germany
BDE 1100
1100 Watt
Drill
SBE 560
560 Watt
Impact Drill
SBE 705
705 Watt
Impact Drill
Ideal for heavy engineering applications
Ideal for tradespeople who need a versatile drill
• 55Nm torque and 16mm chuck for the really big jobs • Outstanding power-to-weight gives 5Nm torque
• 2 speed gearbox with variable speed, reversing
• 13mm quick action keyless chuck
• Drilling capacities: steel 16mm/10mm, softwood
• Variable speed and reverse for precise control
40mm/25mm
• Drilling capacities: 10mm steel, 20mm wood,
• Made in Germany
12mm concrete
Ideal for carpenters, maintenance workers and tradies
• 2 speed gearbox with variable speed, reversing
• Built to last with alloy gear housing, Marathon motor
• Drilling capacities: concrete 20mm, steel 13/8mm,
softwood 40/25mm
• Made in Germany
SAFETY FIRST
SBE 750
750 Watt
Impact Drill
SBE 850 Impulse
850 Watt
Impact Drill
Ideal for plumbers, sparkies, and builders
• 2 speed gearbox with variable speed, reversing
• Built to last with alloy gear housing, Marathon motor
• Drilling capacities: concrete 20mm, steel 13/8mm,
softwood 40/25mm
• Made in Germany
SBE 850 Contact
850 Watt
Impact Drill
Ideal for shopfitters, cabinetmakers and carpenters
• Impulse function for easy starts on smooth surfaces
and fast removal of screws with damaged heads.
• Drilling capacities: concrete 20mm, steel 13/8mm,
softwood 40/25mm
• Made in Germany
Metabo’s unique Contact feature protects
the user from shock if they drill into live
wiring or earthed material. As soon as
the bit strikes the conducting or earthed
material, the tool switches off immediately.
RWE 1100
1100 Watt
Agitator
SBE 1010 Plus
1010 Watt
Heavy Duty Impact Drill
• 28 Nm of torque for heavy drilling work and VTC
electronics for constant drill speed even under
very heavy loads
• 2 speed gearbox with variable speed, reversing
• Overload and restart protection, Safety clutch
• Made in Germany
CODE! Ready
METABO'S 3YR
PROFESSIONAL
WARRANTY
Ideal for sparkies, plumbers, renovators and builders
• Drilling capacities:
concrete 20mm, steel 13/8mm,
softwood 40/25mm
• Made in Germany
Metabo’s XXL Warranty Program
is a 2yr extension of the 1yr
warranty for customers who
register personal information
online (www.metabo.com/xxl)
within four weeks of purchase.
• Ideal for plasterers, painters & bricklayers
• High torque agitation and mixing device for
heavy-duty, continuous use by
• Fast change of agitator paddle using the keyless
adapter (accessory)
• Made in Germany
METABO TOOLS FOR THE PROFESSIONAL
Li-Power is Metabo’s unique
combination of Lithium Ion batteries
and Air-Cooled chargers that
delivers outstanding performance
and service life
LITHIUM ION
BATTERIES
AIR-COOLED
CHARGERS
Lighter. Weighs up to 40% less than other battery
types. Stronger. Will perform up to 40% more
work per charge than Ni-Cd batteries. Longer.
The ‘Smart Pack’ battery is designed for selfpreservation, giving you a longer useful life.
Li-Power chargers use the latest Air-Cooled charging
technology to prolong the battery’s useful life. The
chargers have a built-in fan which cools the battery
fast, reducing the charging time dramatically and
protecting the battery cells from damage.
BSZ 14.4 Impulse Li
14.4 Volt Lithium Ion
Cordless Drill
BSZ 18 Impulse Li
18 Volt Lithium Ion
Cordless Drill
• With 2 x Li-Power batteries that are lighter, give more
work per charge & designed to last longer than NiCd
• AC 30 Plus Air-Cooled charger
• German-made, with Impulse function for removing
damaged screws easily
• 20 torque settings. Drills steel 12mm, wood 30mm
• With 2 x Li-Power batteries that are lighter, give more
work per charge & designed to last longer than NiCd
• AC 30 Plus Air-Cooled charger
• German-made, with Impulse function for removing
damaged screws easily
• 20 torque settings. Drills steel 12mm, wood 35mm
BHA 18
18 Volt
Cordless Rotary Hammer
ASE 18
18 Volt
Sabre Saw
18 Volt Li Kit
18 Volt Lithium Ion Kit
• Compact L-shape design gives greater access
in tight areas
• Light-weight and ergonomic
• Comfortable, rubbed coated grip
• 2 position Anti-Vibration side handle (not pictured)
• 2 x 2.2Ah Li-Ion batteries & AC 30 Plus charger
•
•
•
•
•
•
• Kit includes
BSZ 18 Impulse Li Drill/Driver, KSAP 18 Li Circular
Saw, ASE 18 Li Sabre Saw & MLA 18 Li Torch
• With 2 x Li-Power batteries that are lighter, give
more work per charge & designed to last longer than
NiCd • AC 30 Plus Air-Cooled charger
SBP 18 Plus
18 Volt
Cordless Impact Drill
BSP 18 Plus
18 Volt
Cordless Drill
Light and well balanced, with a comfortable handle
Maximum power for any application
Quick tool-less blade saves time and hassle
Blade can be inverted 180 for greater access
Tool only, not supplied with batteries or charger
Suits Li-Power system & current BSZ NiCd batteries
BSP 15.6 Plus
15.6 Volt
Cordless Drill
• German-made with incredible max torque of 65Nm
• German-made with outstanding max torque of
and 20 torque settings for precise screw driving
65Nm, 5 torque settings and impact function.
• Unique ‘Impulse’ mode for easy removal of
• Unique ‘Impulse’ mode for easy removal of
damaged screws and easy starts on smooth surfaces
damaged screws and easy starts on smooth surfaces
• Drilling capacity: Concrete up to 16mm, Steel up to • Drilling capacity: Steel up to 13mm, Softwood up
to 50mm
13mm, Softwood up to 50mm
• German-made with outstanding max torque of 60Nm
and 20 torque settings for precise screw driving
• Unique ‘Impulse’ mode for easy removal of
damaged screws and easy starts on smooth surfaces
• Drilling capacity: Steel up to 13mm, Softwood up
to 45mm
PowerMaxx
4.8 Volt
Compact Screwdriver
H 1600
1600 Watt
Heat Gun
HE 2000
2000 Watt
Heat Gun
Perfect for every tool box
• Small and light, it can get into the tightest spots
• Built in Germany with a whopping 9Nm max.
torque, this is a trade-tough tool
• 2-speed gearbox & 20 torque settings
• Optional keyless chuck and angle drill attachment
Ideal for stripping paint, heat shrinking cables, bending conduit, thawing frozen water pipes, etc.
• 3 air-flow rates & 3 heat levels: 50 / 350 / 555 ° C
• Easy-to-clean air filter, for a long useful life
• Powerful motor with optimal cooling
• Made in Germany
Ideal for mobile and stationary heating tasks
• 3 air flow rates & progressive heat variation from
50°C to 600°C
• Easy-to-clean air filter, for a long useful life
• Powerful motor with optimal cooling
• Made in Germany
METABO'S 3YR
PROFESSIONAL
WARRANTY
Metabo’s XXL Warranty Program
is a 2yr extension of the 1yr
warranty for customers who
register personal information
online (www.metabo.com/xxl)
within four weeks of purchase.
METABO TOOLS FOR THE PROFESSIONAL
STE 70
570 Watt
Jig Saw
STEB 135
720 Watt
Jig Saw
STE 135
720 Watt
Jig Saw
Ideal for builders, carpenters and renovators
• VC electronics for constant speed even under load
• 4 stage orbital blade movement for faster, easier &
smoother cutting
• Timber 70mm; NF metals 20mm; Sheet metal 6mm
• Made in Germany
Ideal for carpenters, woodworkers and shopfitters
• 'Quick' tool-less blade change saves you time
• 5 stage orbital blade action for fast, smooth cuts
• VC electronics for constant speed even under load
• Timber 135mm; NFMetal 30mm; SheetSteel 10mm
• Made in Germany
Ideal for carpenters, woodworkers and shopfitters
• 'Quick' tool-less blade change saves you time
• 5 stage orbital blade action for fast, smooth cuts
• VC electronics for constant speed even under load
• Timber 135mm; NF Metals 30mm; Sheet Steel 10mm
• Made in Germany
Ho 0882
800 Watt
Planer
Ho E 0983
900 Watt
Electronic Planer
Ideal for builders, carpenters and renovators
• Cutting width 82mm, 0-3mm cutting depth
• Solid, 2-sided TCT blades, in quick cassette system
for easy blade change
• Chip and shaving ejector can be set left or right
• Made in Germany
Ideal for carpenters, woodworkers and shopfitters
• Cutting width 82mm, 0-3mm cutting depth
• Electronic speed control for uniform planing results
• Planing guide tiltable to 45° for bevels
• Solid 2-sided TCT blades, in quick cassette system
• Made in Germany
KS 66
1400 Watt
190mm Circular Saw
PSE 1200
1200 Watt
Sabre Saw
Ideal for carpenters, woodworkers and builders
• Use with optional guide system for precise results
• Max cutting depth 66mm, bevels up to 45°
• Automatic safety clutch to prevent kick back injuries
• Built to last with aluminium gear housing
• Made in Germany
The most powerful sabre saw in Australia
• 28mm cutting stroke cuts more stock in less time
• Variable speed control maintains speed under load
• Rotatable rear handle for those difficult positions
• Blade can be inverted 180° to get into tight spots
• Tool-less blade changes in seconds
UNIQUE PRODUCT
LF 724 S
710 Watt
Paint Remover
Removes paint 3 times faster than a belt sander,
it can also be used as a fine planer on untreated
wood. Strip rebates in windows and doors with
the side cutting blades. Less toxic than chemical
paint removal, it’s also easy to clean up
afterwards - just connect a Metabo dust extractor
Ideal for builders, carpenters and renovators
• Effortless, paint removal
• Simple depth adjustment from 0-0.3mm
• Safety clutch prevents kickback injuries
• 4 sided, reversible blades for long useful life
• Made in Germany
DUAL ORBIT SIZES
DSE 300 Intec
300 Watt
Triangular Sander
Sr 358
350 Watt
1/2 Sheet
Orbital Sander
Ideal for carpenters, woodworkers and builders
• Unique integrated sanding dust collector
• Variable speed for sanding a variety of materials
including heat-sensitive materials and surfaces
• Soft foam base-plate adapts perfectly to work piece
• Made in Germany
Ideal for woodworkers and French polishers
• High-grade base-plate for a smooth, even finish
• Low-vibration is ensured by fine-balancing system
• Quick-grip, rubber coated paper clamping device
• Die-cast aluminium bearing housing for long life
• Made in Germany
SXE 450 Duo
400 Watt
Electronic Orbital Sander
Sr 10-23 Intec
200 Watt
1/3 Sheet
Orbital Sander
•
•
•
•
Fine-balancing system ensures the smoothest finish
Quick clamping system for easy paper changes
No protruding parts give full access into corners
Built-in dust collector, so you don’t need an
extractor for a clean work space
METABO'S 3YR
PROFESSIONAL
WARRANTY
World’s only dual orbit sander, with 6mm orbit for
fast stock removal and 3mm orbit for fine finishing
SPA 1101
Dust Collector
Ideal for anyone who finishes wood or metal surfaces
• Perfectly balanced and equipped with variable
speed, it’s the right sander for any application
• 150mm Velcro-backed pad for fast disc changes
• Sturdy die-cast alloy bearing housing for long life
• Made in Germany
• The SPA 1101 is designed for use with all wood
working machines in the workshop
• Vacuum 740 Pa
• Rated Volume Flow 548m³/h
• Filter Surface Area 2m²
• 60L Collection Bin Size
• Made in Germany
Metabo’s XXL Warranty Program
is a 2yr extension of the 1yr
warranty for customers who
register personal information
online (www.metabo.com/xxl)
within four weeks of purchase.
METABO TOOLS FOR THE PROFESSIONAL
KGS 331
1600 Watt 10"
Sliding Compound Mitre Saw
BAS 260 Swift
350 Watt
Band Saw
• Equipped with a powerful 1600 watt induction motor and 80 tooth TCT blade, the KGS 331 gives you
precise, maintenance-free performance when cutting timber and aluminium.
• Max cutting depth 54mm and max cutting width 300mm (with packing)
• Mitres up to 45° left and 45° right as well as beveling up to 45° left
• Built for hard work with a powerful motor and tough, die cast aluminum base
• Cast iron saw table: 340 x 335, tiltable to 45º
• Throat Capacity: 245mm, cutting height: 100mm
• Mitre fence and rip fence included • Weight 32 kg
• Adjust the top and bottom roller guides without tools
• Safety switch on doors stop machine when opened
KGS 305
2000 Watt 12"
Sliding Compound Mitre Saw
BAS 317
900 Watt
Band Saw
•
•
•
•
•
•
•
•
•
•
With the biggest cutting capacity around, it's German-engineered and designed with professionals in mind
305mm blade (std): max 320mm cutting width, 115mm cutting depth
Can also be used with a 315mm blade to give a max 330mm cutting width, 120mm cutting depth
Set mitre & bevel angles from the front of the machine. Mitres up to 50° L, 60° R & bevels up to 47° L & R
Switch between trenching and cross-cutting in seconds
Machine Size: 590 x 610 x 1265
Cast iron saw table: 400 x 548, tiltable to 45º
Throat Capacity: 305mm, Throat height: 160mm
Workstand, mitre fence and rip fence included
Weight 60 kg
HC 300
1850 Watt
Planer/Thicknesser
BAS 505 G
1500 Watt
Band Saw
•
•
•
•
•
• Cast iron table size: 536 x 640mm, tiltable to 45º
• 280mm saw blade stroke length
• Super-speed brass rollers and 3 pulley guide for
accuracy and durability
• Made in Germany
• Weight 146kg
Tough, teflon-clad die cast aluminium planing bed & cast iron thicknessing bed for accurate results
The long, stable mitre fence can be adjusted from 0° - 45°, giving you plenty of support for accurate cuts
High grade steel rollers ensures a smooth, even feed rate of 5m/min
The patented specially sprung rollers minimise sniping of your workpiece
In the event of a power failure, the HC 300 won’t restart until you want it to
TS 250
2000 Watt
Table Saw
TKHS 315 M
2500 Watt
Site Saw
•
•
•
•
•
•
•
•
•
It's got the power you need for big cuts and the precision you'd expect from a more expensive saw.
Quickly adjust the FULL bevel angle range without any tools, from -1.5° to 46.5°
The extendable table gives you a huge 620mm RHS ripping capacity
At only 32kg, it's also light and compact for easy transport if you work on site.
METABO'S 3YR
PROFESSIONAL
WARRANTY
Metabo’s XXL Warranty Program
is a 2yr extension of the 1yr
warranty for customers who
register personal information
online (www.metabo.com/xxl)
within four weeks of purchase.
Perfect for cutting beams, boards and large panels.
Motor speed 2,750 rpm
Depth of Cut 85mm at 90°; 60mm at 45°
Weight 71kg
Made in Germany
Handheld Band Saw
HBS120E
• Powerful 800W motor
• Well balanced - motor positioned centrally
• Precision blade guides
• Tool-free blade changes
• Externally accessible brushes
• 120 x 120mm throat
Cordless Drills
S18TXC
Cordless Impact Drills
P18TXC
• Also available in 14.4V, 12V & 12V angle versions
• Also available in 14.4 & 12V versions
Drills - Pistol Grip
HDE13RQX
Drills - Rear Handle
• Lightweight ergonomic design
• Softgrip on handle & housing
• Automatic spindle lock
• Comfortable, 2 finger switch
• Veriable speed, reversible
• Powerful 900W motor
• Static stalling torque: 88Nm
• Gear neck diameter: 57mm
• Weight: 4.2Kg
• Also available with 10 & 6mm chuck capacity
• Also available with 13mm geared chuck & No.3 Morse Taper
Diamond Drilling Motors
Rotary Hammers - Pistol Grip
PFH25QE
• 2 x 18V, 2Ah reversible batteries
• 5 planetary gears
• FIXTEC - spindle lock + keyless chuck
• 20 stage torque adjustment
• Ergonomic Softgrip on rear handle
• QUICKSTOP motor-brake
• 2 x 18V, 2.4Ah reversible batteries
• 5 planetary gears
• FIXTEC - spindle lock + keyless chuck
• 20-stage torque adjustment
• Ergonomic Softgrip on rear handle
• QUICKSTOP motor-brake
B2E16RLD
• Triple reduction gearing
• Internal slip clutch
• Soft start switch
• Motor overload protection
• Built-in water swivel
• Versatile through the high torque & blow energies
• Fast tool changing with the FIXTEC system
• Roto-stop facility for light chiselling
• Angle of chisels can be set through the
variolocking system for best handling
• Available in 300/600, 450/900 & 600/1200rpm models
• Large and small base stands are also available to suit
• Also available in 26mm (750W) & 30mm (1010W) capacity
Impact Drills
PD2E20R
Rotary Hammers - L Shape
PLH32XE
• Also available in 750W, 850W and 1010W
• Also available in Chipping Hammer and in 40mm (1005W)
Rotary & Demolition Hammers - Upright
Kango 950
Screwdrivers
TKSE2500Q
• Heavy duty 705W percussion drill
• Synchromesh gears
• Keyless chuck
• Reverse operation
• Variable speed
• 32mm Rotary Hammer with chiselling function
• 900 Watt Industrial Motor
• 3.8 Joules Impact Force
• Anti Vibration Technology
• 0 - 800 rpm
• SDS + Fitting
• 1700 Watt Motor creating a 27J Impact Force
• 3 Handles, All with Anti Vibration Technology
• 125 - 250 rpm
• In-Line Motor for Greater Operator Comfort
• Safety Clutch Protects Operator and Tool
• Full Wave Electronics Can Be Used With Generators
• Also available as demolition hammers in 1800W (27J), 1400W (24.5J),
and 2200W (59.9J)
• Variable Speed Reversing TEK-gun
• 725 Watts
• Metal Gearbox
• Easy snap-on depth-setting nose cone
• 0-2500 rpm
• QUIK-LOK Cable
• Also available in 4000rpm, 1200rpm and with a Sharpfire magazine (opt.)
Impact Wrench
IPWE400RQ
• 400Nm of Torque
• 725 Watts
• Variable Speed, 0-1700 rpm
• Lightweight 2.7 Kg
• Reversible, with switch above the handle.
All Milwaukee Electric Tools come with a
2 YEAR WARRANTY
• Also available in 3/4" drive (520Nm) and 18V, 1/2" drive (325Nm), 14.4V
Hex (85Nm) and 14.4V 1/2" drive (158Nm)
Page 46
(Batteries and Chargers - 12 month warranty)
United Tools National Catalogue 2006
Jigsaws
FSPE110QX
• 710 Watt motor
• 110 mm cutting depth in timber.
• Four-stage pendulum action
• FIXTEC - Rapid blade change system
• Die cast aluminium base plate
• Extra large roller guide for greater accuracy
• Also available in a 14.4V cordless version
Sawzalls
SSPE1000QX
• 300mm cutting depth in timber
• Oscillating action for fast cutting in timber
• 0-2800 strokes per minute at 32mm
• 32mm Stroke
• Low Vibration through counter-balance mechanism
• Also available in non-oscillating 1000W, 18V pivoting handle, and
18V D-handle versions
Biscuit Joiner & Router
PJ710
Circular Saws
SCS65Q
• 1900 Watt motor
• 65mm cutting depth
• Tilting handle with Softgrip
for maximum comfort
• 5800rpm
• Great visibility and convenient
adjustment levers
• Also available - 18V wood & metal saws & 1800W compound mitre saw
Sanders
ROS150
• 710 Watt motor
• 19mm cutting depth
• 100 diameter cutter
• 6 preset depth stops and
3 preset angle positions
• Spindle lock
• Easy to read markings and scales
• Also available - 11/4hp plunge router
• 450 Watt industrial motor
• 150mm disc diameter
• Oscillates 7mm every 5500rpm
• Integrated dust extraction
• All-metal gear drive
Disc Sanders & Polishers
AS12QE
Wall Chasers & Dust Extractors
WCS45
• Also available in 125mm, plus a delta sander & finishing sander
• 178mm disc sander
• 1200 Watt motor
• 1800-4800 rpm
• Thermal overload protection
• Large comfortable trigger
• Only 2.1 Kg
• Also available as a polisher and 14.4 sander
• 1900 Watt motor
• 2 x 150mm blades
• 45mm width and depth
• Variable auto cutting width
• Tilting handle with softgrip for
maximum cutting comfort
• Integrated dust extraction adaptor
• Also available in 125mm & 230mm plusa 3600l/min dust extractor
Angle Grinders - Barrel Grip
AG8-100
Angle Grinders - Rear Handle
AG23-230
• 100mm angle grinder
• 750 watt motor
• Patented spindle lock
• Convenient safety switch
• Quick action disc guard
• 4m Quik-lok cable
• Also available in 115mm, 125mm (1200W
& 1500W) & variable speed 125mm
• 230mm angle grinder
• 2300 watt motor
• Safety lock off deadman switch
• Quick release disc guard
• Patented safety spindle lock
• Only 4.8kg
• Also available in 180mm & 125mm (1200W & 1500W)
Grinders - Die & Straight
DGL30QE
• 600 Watt motor
• Precision spindle with double bearing
• Metal gearbox
• 10,000 - 30,000rpm
• 1/4" collet
• Also available without extension shaft
plus two-handed version and 125mm
straight grinder
Shears & Nibblers
S2.5Q
• Sheet metal shear
• 500 Watt motor
• 2.5mm cutting capacity
• 7m/min cutting speed
• Four-sided reversible blades
• Safety hand guard
• Also available as a nibbler & slotting shear
Magnetic Drill Stands
MDE42
• 1200 Watt motor
• 42mm max. broach diameter
• 16mm max. solid bit diameter
• 10,000N holding power at drill point
• 300-640rpm (no load)
• 11.5 Kg
• Also available with 38mm capacity and with
No3 Morse Taper (3 motor speed options)
United Tools National Catalogue 2006
Page 47
INTRODUCING
REVOLUTIONARY
28 VOLT LITHIUM-ION
TECHNOLOGY
0730-37
CIRCULAR SAW
2 x 3Ah 28 Volt Lithium-Ion
batteries
Saw blade diameter: 165mm
No load speed: 4200 rpm
50° bevel cuts
All-metal guards with
aluminium base plate
28V POWER AT 18V WEIGHT
With V28 Lithium-Ion more power no
longer means more weight. Weighing
slightly less than a conventional 18V
battery, V28 delivers up to twice the
run-time and up to 50% more power,
perfect for high current drain jobs.
0724-37
PERCUSSION DRILL
2 x 3Ah reversible 28 Volt Lithium-Ion batteries
85Nm torque
Full load speed (1st/2nd gear): 0-600/0-1800rpm
0-9000 / 0-27,000bpm
13mm All-metal keyless chuck
BATTERY FUEL GAUGE
Milwaukee takes the guess work out
of cordless tools. With its on-board
fuel gauge feature, the V28 Lithium-Ion
battery tells you how much more power
you have to work with.
0779-37
IMPACT WRENCH
2 x 3Ah reversible 28 Volt
Lithium-Ion batteries
0-1450 rpm
0-2450 ipm
440Nm of torque
½” square drive shank
HASSLE FREE CHARGING
Milwaukee’s V28 technology redefines
down time. Equipped with a Performance
Optimising Circuit, the V28 Lithium-Ion
battery runs from efficiently, charges
immediately and is ready to go back to
work faster as they are not effected by
extremes of temperature.
0737-37
BAND SAW
Milwaukee’s V28 Lithium-Ion
technology delivers up to twice
the run time of 18V tools. Unlike
NiCd or NiMH batteries, the V28
Lithium-Ion cells maintain
consistent, fade-free power
throughout the discharge cycle.
The last use is as powerful as the
first.
EXTENDED RUN-TIME
CONSTANT POWER
1 x 3Ah 28 Volt Lithium-Ion battery
0-225 / 0-350 rpm
Cutting diameter: 120mm x 120mm
Central motor for best balance
LED light aids visibility
9 Kg in weight
0756-37
ROTARY HAMMER
2 x 3Ah 28 Volt Lithium-Ion batteries
3.2 Joules impact force
26mm concrete capacity
SDS+ fitting
Available mid-2006
0719-37
®
SAWZALL RECIP SAW
2 x 3Ah 28 Volt Lithium-Ion batteries
Stroke rate: 0-2000/0-3000 spm
29mm stroke
FIXTEC blade change system
Gear protection clutch
AWESOME POWE R
&'k8dgYaZhh
9^\^iVa>beVXi9g^kZg
Model No: EY7202GQW
• Digital Clutch with auto shut off
• 3 Speed (High/Medium/Low)
• High Capacity 3.5Ah Ni-MH Battery
• Variable Speed Control/Reversible
• Compact Body (Length 167mm)
• Light Weight (1.85Kg)
• High Power (Max. 120 N~m)
• 55 Min Charging System
• Electric Brake
• Ergonomic Design
• Includes Extra Battery Pack
8dgYaZhh9g^aa
VcY9g^kZgh
15.6V Cordless Drill & Driver
Model No: EY6432GQKW
• High Capacity 3.5Ah Ni-MH Battery
• Compact Body (Length 208mm)
• Light Weight (2.2Kg)
• High Power (31.9 N~m)
• Variable Speed Control/Reversible
• 18-Stage Clutch Plus Drill Position
• 13mm Heavy-Duty Keyless Chuck
• 2 Speed Gearbox
• 55 Min Charging System
• Electric Brake
• Ergonomic Design
• Includes Extra Battery Pack
12V Cordless Drill & Driver
Model No: EY6432GQKW
• High Capacity 3.5Ah Ni-MH Battery
• Compact Body (Length 208mm)
• Light Weight (1.9Kg)
• High Power (22.6 N~m)
• Variable Speed Control/Reversible
• 18-Stage Clutch Plus Drill Position
• 13mm Heavy-Duty Keyless Chuck
• 2 Speed Gearbox
• 55 Min Charging System
• Electric Brake
• Ergonomic Design
• Includes Extra Battery Pack
HeZX^Va^hiIddah
2.4V Cordless Drill & Driver
Model No: EY503B
• Converts from Straight to Pistol Form
• 1 Hour Charging System
• 2 Speed Gearbox
• 6.5mm Hex Drive
• Multi-Stage Clutch Plus Drill
• Reversible
• Gear Lock Mechanism for Manual
Tightening
Page 50
3.6V Cordless Drill & Driver
Model No: EY6225CQ
• ‘Auto Shut-Off Clutch’ extends battery life by
immediately stopping rotation once selected
torque setting is reached
• Powerful: 1.5 N~m (at low speed)
• 22-Stage Clutch
• 6.5mm Hex Quick Connect Chuck
• 15 Minute Charging System
• Easily Converts from Straight to Pistol Form
United Tools National Catalogue 2006
')k8dgYaZhh
GdiVgn=VbbZg
Model No: EY6813NQKW SDS-plus
• High Capacity 3.0Ah Ni-MH Battery
• Dual Function-Rotary Hammer & Drill
• Variable Speed Control / Reversible
• Two Speed Hammering / Drilling Selection
• Slow Start Switch for Accurate Drilling with a Clean Finish
• Ergonomic Soft Rubber Grip for Stress Reduction
• 360º Auxilary Side Handle with Built-in Depth Guage
• Dust Collection Cup (EY9X004E) as Standard Equipment
• 45min. Charging System
• 3/4’ SDS-plus Bit System
• Includes Extra Battery Pack
&-k8dgYaZhh
=VbbZg9g^aa$9g^kZg
Model No: EY6813NQKW SDS-plus
• High Capacity 3.5Ah Ni-MH Battery
• Compact Body (Length 255mm)
• Light Weight (2.7kg)
• High Performance
(Max.torque35Nm - Max.capacity ø50mm with low speed)
• High Speed Brick/Masonry Drilling (Max.1,550rpm/28,000bpm)
• Ergonomic Balanced Tool Body
• 65min. Charging System
• Variable Speed Control / Reversible
• 13mm Heavy-Duty Keyless Chuck
• Sure-Grip Support Handle
• Includes Extra Battery Pack
8dgYaZhhHZVa^c\<jc
7.2V Cordless Sealing Gun
Model No: EY3654CQ
• Accepts both Cartridge and
Sausage Material up to 600ml
• Electric Operation to Reduce
User Fatigue
• Drip Prevention Mechanism
for a Clean Finish
•
•
•
•
Electric Speed Control
20min. Charging System
Compact Battery Pack
Two Types of Plunger
&[email protected]^i
OTHER PANASONIC CORDLESS COMBO KITS AVAILABLE. ASK IN-STORE.
Model No: EYC155GQW
• 18V Wood Cutter (EY3551GQ)
+ Standard Wood Cutter Blade
• 18V Reciprocating Saw (Ey3544GQK) +
Standard Reciprocating Saw Blade
•
•
•
•
18V Hammer Drill & Driver (EY6950)
18V Flashlight (EY3796B)
Charger for Ni-MH Battery Pack
2 x High Capacity 3.5Ah Ni-MH Battery
Packs + Carry Case
To view the full range of Panasonic Cordless Powertools visit: www.panasonic.com.au
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
