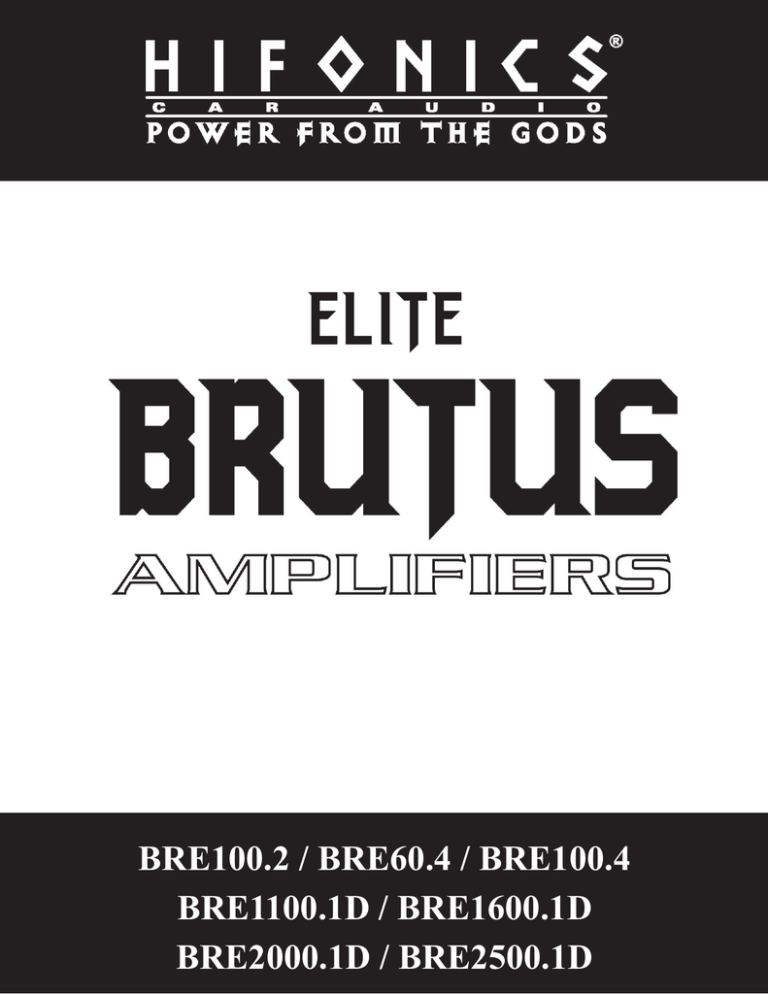

ELITE
BRE100.2 / BRE60.4 / BRE100.4
BRE1100.1D / BRE1600.1D
BRE2000.1D / BRE2500.1D
HIFONICS BRUTUS
HIGH PERFORMANCE AMPLIFIERS
The BRUTUS ELITE Series products have been designed to a very high level of performance, with features
unavailable in any other product. All of the amplifiers have variable crossovers built in, with added touches such as
subsonic filter, bass equalization and an HFR-3 remote control module for the monoblocks that allows overall Level
control from reach of the drivers seat.
To insure years of listening pleasure, all amplifiers have a built in diagnostic mode that will detect shorted speaker
leads, low impedance, dangerous high temperatures, DC shorts and will shut down the amp to help prevent
damage.
INDEX
PAGE
General Installation Procedure............................................................................................................................................1
AMPLIFIER FEATURE DESCRIPTIONS...............................................................................................................................2
BRE100.2 / BRE60.4 / BRE100.4 / BRE1100.1D / BRE1600.1D / BRE2000.1D / BRE2500.1D
BRE100.2 Applications.........................................................................................................................................................3
BRE60.4 / BRE100.4 Applications....................................................................................................................................4-5
BRE1100.1D / BRE1600.1D Applications............................................................................................................................6
BRE2000.1D Applications....................................................................................................................................................7
BRE2500.1D Applications....................................................................................................................................................8
Setting up systems after installation for best performance.............................................................................................9
Trouble Shooting and Diagnostics....................................................................................................................................10
Features and Specifications...............................................................................................................................................11
Product Warranty................................................................................................................................................................12
Check out our videos of new products,
events and technical tutorials at
www.youtube.com/maxxsonicsusainc
The contents of this manual may not be reproduced or copied with out the written consent of MAXXSONICS USA, Inc.
GENERAL INSTALLATION PROCEDURE
System Design
The success of any car stereo system relies on several factors, such as the system design, execution of the installation, and system setup. Please
remember that any system is only as good as its weakest link.
Please remember that higher power systems are not necessarily useful purely for high sound pressure levels, but also to establish a headroom capability, to
reproduce musical peaks cleanly without distortion. Lower power amplifiers will clip earlier than their more powerful cousins, and cause loudspeaker failure when
overdriven, due to the harmonics generated by a clipped signal, thus overheating voice coils.
Amplifiers should be mounted with the fins running horizontally for best convection cooling, to minimize overheating. Purchase the best quality RCA cables you can
afford, for reliability and less engine noise interference in the audio system.
Installation
BRUTUS
WOOD
It is highly recommended that the amplifier be mounted to a board of MDF or other solid
structure using the 4 mounting screws provided. Avoid mounting the
amplifier to metal as this can introduce noise and other unwanted issues. When mounting
the amplifier, ensure that it is mounted HORIZONTALLY, as shown in the diagram above, for
optimal heat dissipation. Mounting amplifiers to speaker enclosures is not recommended as
this can cause damage to the amplifier components. When choosing a location for
mounting the amplifier, ensure that you check for clearance from wires, gas tank, electrical
devices and brake lines etc.
ELITE
General:
Run the wiring so that RCA cables are at least 18“ away from power and speaker cables. Keep RCA cables away from electrical devices in the vehicle that can cause
electrical noise, such as electric fuel pumps, emission control modules and other on-board electronic modules.
Power and ground connections(see the features matrix on page 11 for proper gauge cables per amplifier):
Use a sufficient gauge power cable and ground cable using the chart below as reference to what size wire you require. Brutus series amplifiers require at least 4
gauge power wire. In a multi amplifier system, add the total value of the manufacture recommended fusing to get your total system amperage. Some applications
may require multiple runs of power wire to meet the system requirements. In multi amplifier systems it is advisable to mount a large enough fuse right at the battery,
and run one or multiple +12 volt power cables to a fused distribution block near the amplifiers. It is then a simple matter to connect the +12 volt terminal of each
amplifier to the distribution block. During this process, please ensure that the main power fuse is removed to avoid shorting the electrical system. The main fuse must
be within 12” of the vehicles battery.
Ground each amplifier with as short a ground lead as possible directly to the vehicle chassis using at least 4 gauge wire or equivalent to the size of the amplifiers’
power wire. Use a ground distribution block, if you wish, but it is extremely important to keep the main ground lead from this distribution block to the chassis as short
as possible , not more than 12“. The ground connection integrity to the chassis is very important, and the best way to achieve a good, solid electrical and mechanical
contact is to use a large round crimp lug, crimped and soldered to the ground cable. The next step is to scrape the paint off the vehicle chassis , slightly larger than
the ground lug, at the connection point. Drill a clearance hole in the chassis, the same size as the lug hole, and use a bolt, spring washer and nut to securely fasten
the ground lug. Use petroleum jelly to coat the bolt/lug connection, to prevent oxidization with time.
TIP: Use the same approach when installing head units, equalizers or any audio equipment for that matter - run short individual grounds from each piece directly to
the vehicle chassis, to minimize ground loops and system noise. All power, ground and speaker connections should be crimped and soldered for reliability. Make sure
that none of the cable insulation can chafe against exposed metal in the vehicle, causing short circuits to the chassis.
WIRE LENGTH
SYSTEM
AMPERAGE
10-13 ft.
13-16 ft.
16-19 ft.
19-22 ft.
22-28 ft.
8
6
4
4
4
4
50-65
6
4
4
4
4
2
68-85
4
4
2
2
2
0
85-105
4
2
2
2
2
0
105-125
4
2
0
0
0
0
125-150
2
0
0
0
0
0
35-50
WIRE GAUGE
7-10 ft.
NOTE: This Matrix is a general rule
of thumb. Please refer to the
manufacturers specific
requirements. Brutus specifications
can be found on page 11.
Safe connection sequence:
After all cables are run, connect speaker wires to the speakers and amplifiers, then run and plug in RCA cables. Next, connect all power, ground, and remote turn on
leads. Now connect all +12 volt cables to the amplifier/s and distribution blocks and fuse holders. Finally, connect the main +12 volt cable to the battery, with the main
fuse removed, and we are almost ready to power up the system.
Power up the system:
1
The following procedure may seem like overkill, but there is nothing more frustrating when turning on a system for the first time, and it does not work properly
immediately.
First, make sure the head unit is off, and turn all level controls to minimum (counterclockwise), including the head unit volume control. Set all equalizers to 0 dB (no
boost), and all crossover frequency controls at approximate frequencies, as recommended by the loudspeaker manufacturer. Set all input selector and crossover
switches as required for the application. Remove all amplifier fuses, and insert the main fuse at the battery. If the fuse does not blow, you can insert the fuse in one of
the amplifiers, and we are ready to turn on the system. Turn the head unit on, insert a CD, or select a radio station, and increase the head unit volume control. If the
system sounds fine, turn off the head unit, and install fuses in the remaining amplifiers, one by one, till the complete system is powered up and functioning properly.
AMPLIFIER FEATURE DESCRIPTIONS
BRUTUS ELITE BRE AMPLIFIERS:
Each model is capable of 4 & 2-Ohms stereo per channel, or 4-Ohms mono bridged operation except
the mono amps which are capable of 4, 2 and 1-Ohm loads.
Tri-Mode operation with any stereo pair of amplifier channels is possible, as with all bridgeable
amplifiers.
The input sensitivities for rated output powers are variable from 0.2V to 6V for the multi channel
amplifiers and 0.2V to 9V for the mono models.
All crossovers are fully variable in their respective ranges.
Crossover filters are 12dB/Octave.
LINE INPUT: The line input accepts unbalanced (RCA) inputs from 0.2V to 6V.
REMOTE: Optional dash mount remote LEVEL control.
HI PASS: Variable low frequency cut off from 10Hz to 15kHz.
The X-OVER slide switch selects the internal crossover functions:
-The input signal is routed directly to the LINE OUT RCA jacks, regardless of the X-OVER setting
simplifying daisy chaining of amplifiers.
-HI: Selects the built in HI PASS filter.
-FULL: Bypasses all crossovers for full frequency range operation.
-LP/BP: Selects the built in LOW PASS
LOW PASS: Variable high frequency cut off from 30Hz to 150Hz.
BASS EQ: 45Hz bass boost variable from 0dB to 10dB.
LEVEL: Variable LEVEL (GAIN) control from 6.0V to 0.2V.
LINE OUTPUT: The line output passes through signal from the line inputs which allows you to daisy
chain multiple amplifiers from one signal.
The 4 channel amps have the same features as the 2 channel models accept that there are 2 sets of
controls.
1 set for channels 1 & 2 and 1 set for channels 3 & 4.
In addition, the 4 channel models have a Mode switch which allows you to select 2 or 4 channel
operation. Switch to 2 channel if you only have 1 set of RCA’s in CH 1/2 and the unit will automatically
supply signal to channels 3/4. Select 4 channel if you are providing RCA’s to channels 1/2 and 3/4.
The X-OVER slide switch selects the internal crossover functions:
-The input signal is routed directly to the LINE OUT RCA jacks, regardless of the X-OVER setting
simplifying daisy chaining of amplifiers.
-HI: Selects the built in HI PASS filter.
-FULL: Bypasses all crossovers for full frequency range operation.
-LP/BP: Selects the built in LOW PASS filter.
HI PASS: Variable low frequency cut off from 10Hz to 15kHz.
LOW PASS: Variable high frequency cut off from 30Hz to 150Hz.
BASS EQ: 45Hz bass boost variable from 0dB to 10dB.
LEVEL: Variable LEVEL (GAIN) control from 6.0V to 0.2V.
LINE INPUT: The line input accepts unbalanced (RCA) inputs from 0.2V to 6V.
LINE OUTPUT: The line output passes through signal from the line inputs which allows you to daisy
chain multiple amplifiers from one signal.
SUBSONIC: Crossover filter from 15Hz to 35Hz.
LOW PASS: Crossover filter from 30Hz to 250Hz.
LEVEL: Adjusts the input sensitivity from 0.2 volts to 9 volts.
BASS EQ: Adjustable bass boost from 0db to 10dB.
PHASE: The Phase Shift is fully adjustable from 0 to 180 degrees and this allows you to control time
alignment.
REMOTE: This is the input jack for the remote Level control.
BALANCED INPUT: Accepts line level balanced input from 0.4v to 18v.
LINE INPUT: The line input accepts unbalanced (RCA) inputs from 0.2V to 9V.
LINE OUTPUT: The line output passes through signal from the line inputs which allows you to daisy
chain multiple amplifiers from one signal.
-The LINE INPUT signal is routed directly to the LINE OUT RCA jacks, and not affected by the
settings on the amplifier simplifying daisy chaining of amplifiers.
A POWER LED indicates the powered up and turned on condition.
All Hifonics amplifiers feature a comprehensive diagnostic system, with speaker lead short circuit,
and amplifier DC faults indicated by the red “PROTECT” LED.
CAUTION: DO NOT OPERATE ANY AMPLIFIER BELOW THE INTENDED IMPEDANCE. YOU
WILL CAUSE DAMAGE TO THE AMPLIFIER THAT WILL NOT BE COVERED UNDER THE
WARRANTY PRINTED IN THE BACK OF THE MANUAL. 2 & 4 Channel amps are capable of 4
and 2-Ohms wired stereo and 4-Ohms wired mono bridged. The mono amps are capable of 4, 2
and 1-Ohm.
BRE100.2 2-CHANNEL AMPLIFIERS
LINE INPUT
REMOTE
HI PASS
X-OVER
LOW PASS
BASS EQ
LEVEL
POWER
LINE OUTPUT
L
L
10Hz
HI
15kHz
FULL LP/BP
30Hz
150Hz 0dB 10dB 6.0V
0.2V PROTECT
R
R
Note that the LOW PASS signal is MONO.
-In the LP/BP position, the HI PASS filter acts as a subsonic
filter.
-When the LP/BP mode is selected, a 0 to +10dB, at 45Hz,
BASS -EQ is also switched in.
BRE60.4 / BRE100.4 4-CHANNEL AMPLIFIERS
CH1/2
CH3/4
REMOTE
HI PASS CH1/2 X-OVER LOW PASS BASS EQ
LEVEL
POWER LINE OUTPUT
L
L
HI
FULL LP/BP
10Hz 15kHz
R
2CH
LINE INPUT
0.2V PROTECT
R
4CH
MODE
30Hz 150Hz 0dB 10dB 6.0V
HI
FULL LP/BP
10Hz 15kHz
30Hz 150Hz 0dB 10dB 6.0V 0.2V
HI PASS CH3/4 X-OVER LOW PASS BASS EQ
LEVEL
Note that the LOW PASS signal is MONO.
-In the LP/BP position, the HI PASS filter acts as a subsonic
filter.
-When the LP/BP mode is selected, a 0 to +10dB, at 45Hz,
BASS EQ is also switched in.
BRE1100.1D / BRE1600.1D / BRE2000.1D MONO BLOCK AMPLIFIERS
INPUT
BALANCED
INPUT
OUTPUT
LEVEL
PHASE
REMOTE
SUB
SONIC
BASS EQ
LOW PASS
POWER
L
L
9V
R
0.2V
0
180
0dB
10dB
15Hz
PROTECT
35Hz 35Hz 250Hz
R
The mono amps are capable of 4, 2 & 1-Ohm loads.
Operating the amp below 1-Ohm can cause damage to the
amp not covered in the warranty.
BRE2500.1D MONO BLOCK AMPLIFIERS
SUBSONIC: Crossover filter from 15Hz to 35Hz.
LOW PASS: Crossover filter from 30Hz to 250Hz.
LEVEL: Adjusts the input sensitivity from 0.2 volts to 9 volts.
BASS EQ: Adjustable bass boost from 0db to 10dB.
PHASE: The Phase Shift is fully adjustable from 0 to 180 degrees and this allows you to control time
alignment.
REMOTE: This is the input jack for the remote Level control.
BALANCED INPUT: Accepts line level balanced input from 0.4v to 18v.
LINE INPUT: The line input accepts unbalanced (RCA) inputs from 0.2V to 9V.
LINE OUTPUT: The line output passes through signal from the line inputs which allows you to daisy
chain multiple amplifiers from one signal.
-The LINE INPUT signal is routed directly to the LINE OUT RCA jacks, and not affected by the
settings on the amplifier simplifying daisy chaining of amplifiers.
The BRE2500.1D is a linkable amplifier and features a MASTER / SLAVE selection switch and IN /
OUT RCA connection.
INPUT
L
OUTPUT
BALANCED
INPUT
LEVEL
9V
R
PHASE
REMOTE BASS EQ
SUB
SONIC
LOW PASS
POWER
PROTECT
IN
L
R
0.2V
0
180
0dB
10dB
15Hz
35Hz 35Hz 250Hz
OUTPUT
MASTER
INPUT
SLAVE
OUT
The mono amps are capable of 4, 2 & 1-Ohm loads.
Operating the amp below 1-Ohm can cause damage to the
amp not covered in the warranty.
2
BRE100.2 2-CHANNEL AMPLIFIER APPLICATIONS
FULL RANGE STEREO
This is the most basic application for the ELITE Series 2 channel amplifiers.
4. Line Level:
Refer to the section “Setting up systems after installation for best performance”
1. Interconnect cable checklist:
Connect the LINE INPUTS to the Radio/CD with good quality RCA cables.
2. Crossover Switch:
The X-OVER switch must be in the FULL position.
3. Crossover frequency control checklist:
N/A for full range operation.
HI PASS
X-OVER
BASS EQ
POWER
POWER INPUT
LEVEL
REM BATT+12V
LOW PASS
FUSE
ELITE
GND
L
30Hz 150Hz 0dB 10dB 6V 0.2V PROTECT
REMOTE10Hz 15KHzHP FULL LP/BP
BRUTUS
SPEAKER OUTPUT
BRIDGED
- RIGHT +
- LEFT +
FULL RANGE
SPEAKERS
LINE INPUT
R
FULL RANGE
STEREO LINE INPUT
NOTE: Minimum final loudspeaker impedances:
4 & 2 Ohms stereo mode or 4-Ohms mono mode
This amplifier will not do 1 Ohm stereo or 2/1 Ohm mono operation.
TO BATTERY +12v
VIA FUSE
REMOTE TURN-ON
CHASSIS GROUND
L
LINE OUT
R
MONO
This application illustrates the basic mono bridging method for all Hifonics
amplifiers.
Switch setting checklist:
- The AMPLIFIER X-OVER switch should be in the LP/BP position.
Interconnect cable checklist:
A MONO signal source is required, such as would be available from the mono
sub bass output of an active crossover, whether stand alone, or built into a head
unit or equalizer. Important: Do not be tempted to connect the hot, or positive
outputs, from any source together to obtain a mono signal, as this could very
well damage the output stage of that source.
It is necessary to feed the SAME signal to both left and right inputs via a Yadapter RCA cable. Connect the mono speaker positive terminal to the LEFT +,
and its negative terminal to RIGHT -.
Crossover frequency control setting checklist:
LPF: 11 o’clock
Minimum final loudspeaker impedance:
- 4 ohm mono.
HI PASS
BRUTUS
X-OVER
BASS EQ
POWER
POWER INPUT
LEVEL
REM BATT+12V
LOW PASS
FUSE
ELITE
GND
L
30Hz 150Hz 0dB 10dB 6V 0.2V PROTECT
REMOTE10Hz 15KHzHP FULL LP/BP
L
LINE OUT
R
3
LINE INPUT
R
FULL RANGE
MONO LINE INPUT
VIA Y-ADAPTER
FROM MONO SOURCE
SPEAKER OUTPUT
BRIDGED
- RIGHT +
- LEFT +
MONO SPEAKER
or SUBWOOFER
TO BATTERY +12v
VIA FUSE
REMOTE TURN-ON
CHASSIS GROUND
BRE60.4 / BRE100.4 4-CHANNEL AMPLIFIER APPLICATIONS
4 CHANNEL FULL RANGE SYSTEM
Here we show how to use the 4 channel amplifiers as straightforward discrete 4
channel full range units.
- HI PASS: N/A
- LOW PASS: N/A
Interconnect cable checklist:
- Connect the four inputs of the amplifier to a Radio/CD with quality RCA cables.
Channels 3/4:
- HI PASS: N/A
- LOW PASS: N/A
Switch setting checklist:
- 1/2CH X-OVER: FULL
- 3/4CH X-OVER: FULL
Level control checklist:
- Refer to the section “Setting up systems after installation for best performance”
Crossover frequency control checklist:
Channels 1/2:
Minimum final loudspeaker impedances:
- 2 ohm per channel.
REMOTE
HI PASS
HI PASS
30Hz-150Hz 0dB-10dB 6V 0.2V PROTECT
10Hz-15KHz HI FULL LP/BP
3/4 CH
LOW PASS BASS EQ
LEVEL
X-OVER
1/2 CH
X-OVER
FUSE
LOW PASS BASS EQ
R
L
POWER INPUT
LEVEL POWER LINE OUT
30Hz-150Hz 0dB-10dB 6V 0.2V
10Hz-15KHz HI FULL LP/BP
REM BATT+12V
R
CH2-CH4
MODE
GND
LINE INPUT
CH1/2 CH3/4
L
ELITE
CH 1/2 SPEAKER OUTPUT CH 3/4
BRIDGED
BRIDGED
- RIGHT +
- LEFT +
- RIGHT +
- LEFT +
R
L
BRUTUS
2 or 3 CHANNEL SYSTEM
Here we show how to use the 4 channel amplifiers as a 3 channel unit by taking
advantage of the mono bridging capability of all Hifonics amplifiers.
Switch setting checklist:
- 1/2CH X-OVER: FULL
- 3/4CH X-OVER: LP/BP
The following example shows how to create a 3 channel system by mono
bridging channel pair 3 / 4. In order to create a 2 channel system, simply follow
the example to also mono bridge channel pair 1 / 2.
Crossover frequency control checklist:
Channels 1/2:
- HI PASS: N/A
- LOW PASS: N/A
Interconnect cable checklist:
- Connect the inputs of channel pair 1/2 to a suitable stereo source, e.g. a head
unit with good quality RCA cables.
- A MONO signal source is required to bridge channel pair 3/4, such as would be
available from the mono sub bass output of an active crossover, whether
standalone, or built into a head unit or equalizer. If you only have 1 set of RCA
outputs from your headunit, you can simply connect those to the inputs for ch
1/2 and switch the MODE to 2ch. The amplifier will auto sum the signal and
provide mono output for bridged channels 3/4 once the X-OVER is switched to
LP/BP.
Important: Do not be tempted to connect the hot, or positive outputs, from any
source together to obtain a mono signal, as this could very well damage the
output stage of that source.
- It is necessary to feed the SAME signal to both left and right inputs via a Yadapter RCA cable.
- Connect the mono speaker positive terminal to the LEFT +, and its negative
terminal to RIGHT - as shown.
Channels 3/4:
- HI PASS: N/A
- LPF: 11 o’clock
TIP: If you are using the mono sub bass output of an active crossover, there is
nothing wrong with switching in the low pass filter in these amplifiers for a
steeper low pass rolloff.
Level control checklist:
- Refer to the section “Setting up systems after installation for best performance”
Minimum final loudspeaker impedances:
- 2 ohm per channel in stereo mode.
- 4 ohm mono bridged.
STEREO LINE INPUT
1/2 CH
X-OVER
LOW PASS BASS EQ
FUSE
HI PASS
R
L
LEVEL POWER LINE OUT
REM BATT+12V
REMOTE
30Hz-150Hz 0dB-10dB 6V 0.2V PROTECT
10Hz-15KHz HI FULL LP/BP
3/4 CH
HI PASS
LOW PASS BASS EQ
LEVEL
X-OVER
30Hz-150Hz 0dB-10dB 6V 0.2V
10Hz-15KHz HI FULL LP/BP
POWER INPUT
R
CH2-CH4
MODE
ELITE
GND
LINE INPUT
CH1/2 CH3/4
L
BRUTUS
CH 1/2 SPEAKER OUTPUT CH 3/4
BRIDGED
BRIDGED
- RIGHT +
- LEFT +
- RIGHT +
- LEFT +
R
L
MONO LINE INPUT
(Unless using procedure
listed above for 3ch)
4
BRE60.4 / BRE100.4 4-CHANNEL AMPLIFIER APPLICATIONS
Front/Rear high pass, using a 2 channel amplifier for mono sub bass
The combination of a 2 and a 4 channel amplifier, utilizing their built in
crossovers, makes it a snap to put together a full system with front and rear
highs, with mono sub bass.
Channels 1/2:
- HI PASS: 100 Hz
LOW PASS: N/A
Interconnect cable checklist:
- Using good quality RCA cables, feed the front and rear outputs of a head unit to
the inputs of the 4 channel amplifier as shown.
- Also connect the LINE OUT of the 4 channel amplifier to the LINE INPUT of the
2 channel amplifier as shown.
Channels 3/4:
- HI PASS: 100 Hz
- LOW PASS: N/A
2 channel bass amplifier:
- HI PASS (Subsonic filter): 10 Hz to 40 Hz
- LOW PASS: 80 Hz
Mono bass woofer wiring:
Connect the mono speaker positive terminal to the LEFT +, and its negative
terminal to RIGHT -.
Please note that these frequency points are suggestions only. Refer to the
loudspeaker manufacturer specifications and the section “Setting up systems
after installation for best performance”
Switch setting checklist:
4 channel highs amplifier:
- 1/2CH X-OVER: HI
- 3/4CH X-OVER: HI
Level control checklist:
- Refer to the section “Setting up systems after installation for best performance”
2 channel bass amplifier:
- X-OVER switch: LP/BP
Minimum final loudspeaker impedances:
- 2 ohm per channel in stereo mode.
- 4 ohm mono bridged.
Crossover frequency control checklist:
- 4 channel highs amplifier:
HI PASS
1/2 CH
X-OVER
LOW PASS BASS EQ
FUSE
CH 1/2 SPEAKER OUTPUT CH 3/4
BRIDGED
BRIDGED
- RIGHT +
- LEFT +
- RIGHT +
- LEFT +
REMOTE
30Hz-150Hz 0dB-10dB 6V 0.2V PROTECT
10Hz-15KHz HI FULL LP/BP
3/4 CH
HI PASS
LOW PASS BASS EQ
LEVEL
X-OVER
L
R
POWER INPUT
LEVEL POWER LINE OUT
REM BATT+12V
LINE INPUT
CH1/2 CH3/4
L
R
30Hz-150Hz 0dB-10dB 6V 0.2V
10Hz-15KHz HI FULL LP/BP
ELITE
GND
L
R
CH2-CH4
MODE
BRUTUS
STEREO
INTERCONNECT
RCA CABLE
SPEAKER OUTPUT
BRIDGED
- RIGHT +
- LEFT +
HI PASS
X-OVER
LOW PASS
FUSE
ELITE
BASS EQ
POWER
POWER INPUT
LEVEL
REM BATT+12V
30Hz 150Hz 0dB 10dB 6V 0.2V PROTECT
REMOTE10Hz 15KHzHP FULL LP/BP
BRUTUS
GND
L
LINE INPUT
R
L
LINE OUT
R
5
MONO SPEAKER
or SUBWOOFER
TO BATTERY +12v
VIA FUSE
REMOTE TURN-ON
CHASSIS GROUND
BRE1100.1D / BRE1600.1D MONO AMPLIFIER APPLICATIONS
Basic application
Interconnect cable checklist:
- Connect the line inputs to a Radio/CD RCA outputs or line output of the
full range primary amplifier with good quality RCA cables. A “Y” adapter
may be needed as shown in the diagram.
Minimum final loudspeaker impedance:
- 1 ohm.
- Use at least 16 gauge speaker wiring. These amplifiers have dual
speaker terminals, simplifying the hookup of multiple speakers. The 2
positives are the same and the 2 negatives are the same.
Crossover frequency control checklist:
- LOW PASS: 35Hz to 250Hz
- SUBSONIC:15 Hz to 35 Hz
- BASS EQ: 0 to 10dB
- PHASE: 0 to 180 degrees
FULL RANGE
STEREO LINE INPUT
Y-ADAPTOR
NOT USED
can use the Radio/CD designated mono line output
*orNote:a fullYourange
stereo line output. For full range stereo line output,
you will need an optional “Y-Adaptor” as shown
Level control checklist:
- Refer to the section “Setting up systems after installation for best
performance”
L
R
L
INPUT
R
MONO
SUBWOOFER
1-OHM MINIMUM
BALANCED
INPUT
BRUTUS
180
PHASE
0
-
ELITE
REMOTE
FUSE
0.2V
LEVEL
9V
BOOST
10dB
BATT+12V
REM
POWER INPUT
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
GND
MI
N MAXX
BASS EQ
0dB
HFR 3
SPEAKER OUTPUT
+
+
OUTPUT
*
DESIGNATED
MONO LINE INPUT
TO BATTERY +12v
VIA FUSE
REMOTE TURN-ON
CHASSIS GROUND
POWER
PROTECT
Dual Subwoofer Application
PARALLEL MONO
SUBWOOFERS
2-OHMS SVC EACH MINIMUM,
or 4-OHMS DVC EACH MINIMUM
L
R
INPUT
BALANCED
INPUT
-
MONO
SUBWOOFERS
180
PHASE
0
ELITE
REMOTE
FUSE
0.2V
BATT+12V
REM
POWER INPUT
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
GND
10dB
BASS EQ
0dB
MI
N MAXX
BRUTUS
LEVEL
9V
BOOST
HFR 3
SPEAKER OUTPUT
+
+
L
OUTPUT
R
*
DESIGNATED
MONO LINE INPUT
TO BATTERY +12v
VIA FUSE
REMOTE TURN-ON
CHASSIS GROUND
POWER
PROTECT
6
BRE2000.1D MONO AMPLIFIER APPLICATIONS
Basic application
Interconnect cable checklist:
- Connect the line inputs to a Radio/CD RCA outputs or line output of the
full range primary amplifier with good quality RCA cables. A “Y” adapter
may be needed as shown in the diagram.
Minimum final loudspeaker impedance:
- 1 ohm.
- Use at least 16 gauge speaker wiring. These amplifiers have dual
speaker terminals, simplifying the hookup of multiple speakers. The 2
positives are the same and the 2 negatives are the same.
Crossover frequency control checklist:
- LOW PASS: 35Hz to 250Hz
- SUBSONIC:15 Hz to 35 Hz
- BASS EQ: 0 to 10dB
- PHASE: 0 to 180 degrees
FULL RANGE
STEREO LINE INPUT
Y-ADAPTOR
NOT USED
can use the Radio/CD designated mono line output
*orNote:a fullYourange
stereo line output. For full range stereo line output,
you will need an optional “Y-Adaptor” as shown
Level control checklist:
- Refer to the section “Setting up systems after installation for best
performance”
L
R
L
INPUT
R
MONO
SUBWOOFER
1-OHM MINIMUM
+
-
BRUTUS
180
PHASE
0
REM
0.2V
LEVEL
-
SPEAKER OUTPUT
BALANCED
INPUT
9V
REMOTE TURN-ON
ELITE
REMOTE
BOOST
GND
POWER INPUT
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
BATT+12V
10dB
MI
N MAXX
BASS EQ
0dB
HFR 3
+
OUTPUT
*
DESIGNATED
MONO LINE INPUT
CHASSIS GROUND
TO BATTERY +12v
VIA FUSE
POWER
PROTECT
Dual Subwoofer Application
PARALLEL MONO
SUBWOOFERS
2-OHMS SVC EACH MINIMUM,
or 4-OHMS DVC EACH MINIMUM
L
R
INPUT
180
PHASE
0
+
+
-
ELITE
REMOTE TURN-ON
REMOTE
GND
POWER INPUT
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
BATT+12V
10dB
BASS EQ
0dB
POWER
PROTECT
7
MONO
SUBWOOFERS
REM
0.2V
LEVEL
9V
MI
N MAXX
BRUTUS
-
BALANCED
INPUT
BOOST
HFR 3
SPEAKER OUTPUT
L
OUTPUT
R
*
DESIGNATED
MONO LINE INPUT
CHASSIS GROUND
TO BATTERY +12v
VIA FUSE
BRE2500.1D MONO AMPLIFIER APPLICATIONS
Basic application
SINGLE AMP INSTALLATION PROCEDURE:
1. Connect the amp LINE INPUTS to the Radio/CD player full range or mono line out
puts with good quality RCA interconnect cables.
2. Plug in the HFR-3 remote module into the amp REMOTE INPUT jack.
3. Route a 0 gauge power cables directly to the vehicle battery with an in-line fuse.
4. Connect a 0 gauge ground cables directly to chassis ground with in 36” of the amp.
- Be sure to remove any paint or primer from the ground point.
- Use a nut, bolt and lock washer to secure the ground cable to the chassis ground.
5. Connect the subwoofer(s) in accordance to the diagrams below.
6. Make sure the MASTER/SLAVE switch is in the MASTER position.
Note: The amplifier will not work if the MASTER/SLAVE switch is in the Slave position
FULL RANGE
STEREO LINE INPUT
NOT USED
Note: You can use the Radio/CD designated mono line output
or a full range stereo line output. For full range stereo line
output, you will need an optional “Y-Adaptor” as shown.
MONO
SUBWOOFER
L
R
INPUT
-
+
+
PARALLEL MONO
SUBWOOFERS
2 OHMS EACH MINIMUM
REM
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
GND
10dB
POWER
+12V
GND
POWER INPUT
0dB
REMOTE BASS EQ
REMOTE TURN-ON
ELITE
POWER
PROTECT
INPUT
SLAVE
OUTPUT
MASTER
BATT+12V
180
PHASE
0
-
BALANCED
INPUT
LEVEL
0.2V
MI
N MAXX
BRUTUS
SPEAKER OUTPUT
L
9V
BOOST
SPEAKER
REM
-
-
+
+
CHASSIS GROUND
TO BATTERY + 12 Volts
VIA FUSE
IN
OUT
DUAL AMP INSTALLATION PROCEDURE:
1. Connect the amp LINE INPUTS to the Radio/CD player full range or mono line out
puts with good quality RCA interconnect cables.
2. Plug in the HFR-3 bass remote module into the amp REMOTE INPUT jack on the
Master amp. This will allow the Master amp to control both Master and Slave amps
with just one Bass Remote.
3. Connect an RCA jumper cable from the Master amp MASTER OUTPUT to the
Slave amp SLAVE INPUT. Note: This will “link” the amps so that the Master amp
crossover switches will control both the Master and Slave amps. The Slave amp
crossover switches will be bypassed.
4. Route two 0 gauge power cables directly to the vehicle battery with an in-line fuse.
5. Connect two 0 gauge ground cables directly to the chassis with in 36” of the amp.
- Be sure to remove any paint or primer from the ground point.
- Use a nut, bolt and lock washer to secure the ground cable to the chassis ground.
6. Make sure the Master amp MASTER/SLAVE switch is in the MASTER position.
Make sure the Slave amp MASTER/SLAVE switch is in the SLAVE position.
7. Connect the subwoofer(s) in accordance to the diagrams below.
8. Connect a 12 gauge jumper from Master amp speaker - to Slave amp speaker - as
shown below.
Linking two amps for single or dual subwoofer application
Amplifiers are stable to 2-Ohms linked
L
R
INPUT
+
+
REM
180
PHASE
0
ELITE
10dB
GND
POWER INPUT
OUT
POWER
PROTECT
INPUT
SLAVE
OUTPUT
MASTER
INPUT
SLAVE
BATT+12V
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
IN
OUTPUT
MASTER
IN
OUT
L
R
INPUT
+
+
REM
180
PHASE
0
SPEAKER OUTPUT
(SLAVE)
10dB
REMOTE BASS EQ
0dB
ELITE
LOW PASS
35Hz 35Hz 250Hz
SUB
SONIC
15Hz
IN
OUTPUT
MASTER
OUT
POWER
PROTECT
INPUT
SLAVE
OUTPUT
MASTER
INPUT
SLAVE
GND
0.2V
BALANCED
INPUT
LEVEL
9V
BRUTUS
POWER INPUT
L
OUTPUT
R
MASTER OUTPUT TO SLAVE INPUT
RCA JUMPER CABLE
12 GAUGE JUMPER WIRE
REMOTE BASS EQ
0dB
MI
N MAXX
-
BALANCED
INPUT
LEVEL
0.2V
HFR 3
Master remote controls
both amplifiers when
LINKED
BRUTUS (MASTER)
SPEAKER OUTPUT
L
9V
BOOST
OUTPUT
R
DESIGNATED
MONO OUTPUT
FROM HEAD UNIT
BATT+12V
HFR 3
OUTPUT
R
DESIGNATED
MONO OUTPUT
FROM HEAD UNIT
Y-ADAPTOR
IN
OUT
8
SETTING UP SYSTEMS AFTER INSTALLATION FOR BEST PERFORMANCE
BRE100.2 / BRE60.4 / BRE100.4
General:
At this point you are ready to get more specific on the settings for your amplifier.
High Pass:
-When in Hi Pass operation, this setting acts as a low frequency cut off for your system reproduction. The point that you set it at cuts off any frequencies from reproduction beyond this
point. The 12 o’clock position is a great starting point. EXAMPLE: If you adjust the High Pass to 100Hz, the amplifier will not play frequencies below 100Hz but will play frequencies from
100Hz to the highest frequency the amplifier is capable of reproducing.
-When in Low Pass/Bandpass operation, this setting acts as a low frequency cut off for your system reproduction aka Subsonic Filter. The point that you set it at cuts off any frequencies
from reproduction beyond this point. The 12 o’clock position is a great starting point. EXAMPLE: If you adjust the High Pass to 60Hz, the amplifier will not play frequencies below 60Hz
but will play frequencies from 60Hz to the chosen Low Pass frequency.
-When in Flat/Full operation, the Low Pass crossover is bypassed.
Bass EQ:
This setting is a fixed bass boost at 45Hz that is variable from 0-12dB. This feature provides impact to your bass, but if not adjusted correctly, it can be over used and cause damage to
your speakers and amplifiers. It is best to slowly turn this setting clockwise until the desired punch is felt. It is not recommended to exceed the 12 o’clock position unless listening at a low
volume or a low recording quality as this can result in high distortion and possibly clipping.
Low Pass:
The Low Pass control acts as a ceiling and doesn’t allow frequencies to the right of the desired setting to be reproduced. Turning the potentiometer all the way to the right is a great
starting point. EXAMPLE: If you adjust the Low Pass to 120Hz, the amplifier will not play frequencies above 120Hz but will play frequencies from 120Hz to the chosen Hi Pass or
Subsonic frequency.
-When in Hi Pass operation, this setting is bypassed.
Level Control Setup:
Ensure that the Level is turned completely to the left prior to turning the system on. Next you should insert a CD or cassette that you are familiar with to use as a reference, and turn the
head unit volume control to about 80% of its full setting. The system sound level will of course be very low, and the following procedures will help you to match the amplifier input
sensitivities properly to the head unit output signal level.
It is important to match the amplifier LEVEL input sensitivity to the Radio/CD output sensitivity. This can be located in the Radio/CD manual.
If the Radio/CD output sensitivity is 2 volts, then adjust the amplifier LEVEL input to 2 volts.
If you are not sure what the Radio output sensitivity is, follow these general guide lines:
Turn the level control up slowly, till you hear distortion, then back off a few degrees on the control. If at any point your amplifier goes into protection, you will need to turn the Level to the
left a bit and then try again. If you reach a point where the output does not increase, stop turning the Level control to the right as the amplifier/speaker combo has reached its maxx
output in this application.
2 or 3 way active systems (all):
Always start with the bass, or low frequency amplifier as a reference, by turning its control up to the point where distortion is audible, and back it off some.
Now adjust the level control for the highs or tweeter channels in a 2 way active system, to balance the highs to lows.
In a 3 way active system, match the midrange level to the bass, and then the highs to the midrange and bass. It may be necessary to perform a few iterations of the midrange and highs level
control settings to achieve a satisfactory sound balance.
BRE1100.1D / BRE1600.1D / BRE2000.1D / BRE2600.1D
General:
At this point you are ready to get more specific on the settings for your amplifier.
Subsonic:
This setting acts as a low frequency cut off for your system bass reproduction. The point that you set it at cuts off any frequencies from reproduction beyond this point. The 12 o’clock
position is a great starting point. EXAMPLE: If you adjust the Subsonic to 25Hz, the amplifier will not play frequencies below 25Hz but will play frequencies from 25Hz to the chosen Low
Pass frequency.
Bass EQ:
This setting is a fixed bass boost at 45Hz that is variable from 0-10dB. This feature provides impact to your bass, but if not adjusted correctly, it can be over used and cause damage to
your subwoofers and amplifiers. It is best to slowly turn this setting clockwise until the desired punch is felt. It is not recommended to exceed the 12 o’clock position unless listening at a
low volume or a low recording quality as this can result in high distortion and possibly clipping.
Low Pass:
The Low Pass control acts as a ceiling and doesn’t allow frequencies to the right of the desired setting to be reproduced. The 12 o’clock position is a great starting point. EXAMPLE: If you
adjust the Low Pass to 80Hz, the amplifier will not play frequencies above 80Hz but will play frequencies from 80Hz to the chosen Subsonic frequency.
Level Control Setup:
Ensure that the Level is turned completely to the left prior to turning the system on. Next you should insert a CD or cassette that you are familiar with to use as a reference, and turn the
head unit volume control to about 80% of its full setting. The system sound level will of course be very low, and the following procedures will help you to match the amplifier input
sensitivities properly to the head unit output signal level.
It is important to match the amplifier LEVEL input sensitivity to the Radio/CD output sensitivity. This can be located in the Radio/CD manual.
If the Radio/CD output sensitivity is 2 volts, then adjust the amplifier LEVEL input to 2 volts.
If you are not sure what the Radio output sensitivity is, follow these general guide lines:
Turn the level control up slowly, till you hear distortion, then back off a few degrees on the control. If at any point your amplifier goes into protection, you will need to turn the Level to the
left a bit and then try again. If you reach a point where the output does not increase, stop turning the Level control to the right as the amplifier/subwoofer combo has reached its maxx
output in this application.
Sit back and enjoy the music!
9
TROUBLESHOOTING A SYSTEM
The key to finding the problem in a misbehaving sound system is to isolate parts of that system in a logical fashion to track down the fault.
Description of the Diagnostic system built into all HIFONICS amplifiers
The diagnostic system will shut down the amplifier, until reset by turning the head unit off, and back on. This state of affairs will be indicated by the front panel
PROTECT LED lighting up under the following conditions:
1 - A sort circuit on the loudspeaker leads.
2 - An internal amplifier fault that causes a DC offset on the loudspeaker output.
Should the amplifier go into diagnostic mode, simply disconnect all RCA and speaker leads, while keeping +12 volt, power ground and remote leads connected.
1. Now turn the amplifier back on, and if the diagnostic LED lights, the amplifier has an internal fault.
2. If not, plug the RCA cables back, and reset the amplifier. If it goes into diagnostic now, the fault lies in the input, either with bad cables or source unit.
3. If the amplifier seems ok with RCA cables plugged in, connect the speakers, one at a time, and if one of speaker or its wiring is faulty, it will activate the diagnostic
system.
4. If the amplifier is still in Protection mode after the above steps, remove all RCA’s and wires from the amplifier. Take a 12” length of speaker wire, trim the plastic
off of each end exposing the wire. Now connect one end of the wire to the12V+ on the amplifier and connect the other to the Ground on the amplifier. You will have
a brief spark indicating that the Capacitors have been discharged and the drivercard has been reset. Remove the jumper wire and reconnect your Power, Ground
and Remote wires. Attempt to power the amplifier up like normal. In some cases this can Reset the amplifier if permanent damage has not previously been done.
Amplifier heatsink overheating
The amplifiers will shut down when the heatsink temperature reaches 80 degrees centigrade, and turn back on once the unit has cooled down below that point.
Causes of overheating:
1 - Inadequate cooling - relocate or remount to provide better natural airflow over the fins.
2 - Driving high power levels into low impedances - back off on the volume control, and/or make sure you are not loading the amplifier with less than the
recommended loudspeaker impedance.
3 - Excessive voltage drop can also cause overheating.
Low output power
1 - Check that level controls have been set up properly.
2 - Make sure that the battery voltage, as measured at the amplifier’s +12 volt and ground terminals, is 11 volts or more.
3 - Check all +12 volt and ground connections.
Fuses blowing
1 - The use of loudspeaker impedances below the recommended minimums will draw more current - check.
2 - A short on the main +12 volt cable from the battery to the vehicle chassis will cause the main fuse to blow.
3 - If an amplifier fuse blows continually, with only +12 volt, ground and remote leads connected, the amplifier may be faulty.
System does not turn on
1 - Check all fuses.
2 - Check all connections.
3 - Measure the +12 volt and remote turn on voltages at the amplifier terminals. If these are non existent or low, take voltage measurements at fuse holders,
distribution blocks, the head unit’s +12 volt and remote leads to localize the problem.
4 - If the HIFONICS lettering is illuminated but you do not have Power or Protection illuminated, simply remove your remote wire and use a jumper wire from 12V+
on the amplifier to the Remote connection on the amplifier. If the amplifier powers on like normal then you do not have adequate voltage/amperage from your Remote
source to turn your amplifier on. You will need to seek out a certified installer to install a relay for your amplifier. If the jumper does not power your amplifier on, you
may have internal damage and should contact Hifonics Customer Service to locate an Authorized Repair Center.
Noise problems
System noise can be divided into two categories, hiss, and electrical interference.
Hiss, or white noise:
1 - High levels of white noise usually occurs when amplifier level controls are turned up too high - readjust according to the procedures in section ”Setting up systems after
installation for best performance”
2 - Another major problem that can cause excessive hiss, is a noisy head unit - unplug the amplifier input RCA cables, and if the hiss level reduces, the source unit is at fault.
Electrical interference:
The inside of an automobile is a very hostile electrical environment. The multitude of electrical systems, such as the ignition system, alternator, fuel pumps, air conditioners,
to mention just a few, create radiated electrical fields, as well as noise on the +12 volt supply and ground. Remember to isolate the problem - first unplug amplifier input RCA
cables, if the noise is still present, check the speaker leads, if not, plug the RCA’s back, and investigate the source driving the amplifier, one component at a time.
A ticking or whine that changes with engine RPM:
1 - This problem could be caused by radiation pickup of RCA cables too near to a fuel pump or a distributor, for instance, - relocate cables.
2 - Check that the head unit ground is connected straight to the vehicle chassis, and does not use factory wiring for ground.
3 - Try to supply the head unit with a clean +12 volt supply directly from the battery +, instead of using a supply from the in dash wiring/fusebox.
A constant whine:
This type of noise can be more difficult to pinpoint, but is usually caused by some kind of instability, causing oscillations in the system.
1 - Check all connections, especially for good grounds.
2 - Make sure that no speaker leads are shorting to exposed metal on the vehicle chassis.
3 -RCA cables are notorious for their problematic nature, so check that these are good, in particular the shield connections.
10
11
BRUTUS
ELITE SERIES
Maxxsonics Limited Warranty
As the manufacturer of Maxxsonics, MB Quart, Autotek, Crunch and Hifonics car audio
products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the
amplifier to be free from defects in material and workmanship for one (1) Year from date
of purchase.
All other parts and accessories of the system are warrantied to be free from defects in
material and workmanship for one (1) year from date of purchase. Maxxsonics will repair
or replace at it’s option and free of charge during the warranty period, any system
component that proves defective in materials and workmanship under normal installation,
use and service provided that the product is returned to the authorized Maxxsonics dealer
from where it was purchased. A photo copy of the original receipt must accompany the
product being returned.
Valid purchase receipts will contain the name and address of the authorized reseller.
Any damage to the product as a result of misuse, abuse, accident, incorrect wiring,
improper installation, alteration of date code or bar code labels, revolution, natural
disaster, or any sneaky stuff because someone messed up, repair or alteration out side
of our factory or authorized service centers and any thing else you have done that you
should not have done is not covered.
This warranty is limited to defective parts and specifically excludes any incidental or
consequential damages connected therewith. This warranty is not to be construed as an
insurance policy.
Warranty on installation labor, removal, re-installation and freight charges are not the
responsibility of Maxxsonics USA Inc.
Warranty products damaged as a result of insufficient or improper packing materials are
not covered by this limited warranty and such damaged product will be returned “as is”
at the expense of the owner.
FOR EXTENDED WARRANTY INFORMATION, PLEASE VISIT
WWW.MAXXWARRANTY.COM
12
Accessories
5V
SLAVE
ON
3V
MASTER
35Hz
MODE
250Hz
LOW PASS
FILTER
24 dB/OCT
9V
0.2V
INPUT
LEVEL
7V
1V
RED - CLIP
GREEN - 9V
9V
OUTPUT
LEVEL
15Hz
MAXX-LINK
MLX-100
0
180
0dB
PHASE
+10 dB
BOOST
30Hz
BANDWIDTH
BYPASS
-20dB
NORMAL
0dB
LEVEL
RED - CLIP
GREEN - 9V
35Hz
SUBSONIC
FILTER
24 dB/OCT
100Hz
FREQUENCY
PARAMETRIC BASS EQ
-6dB
13
OFF
TEST TONE
65Hz
OEM Integration
Accessories
MX-1 Premium High To Low Level Converter
* Converts High Level OEM speaker wires to Ultra Clean RCA
Low Level Outputs
* High Level Inputs: Accepts all types of High level Inputs
including floating ground and high voltages up to 30 volts.
* Audio Signal Sense / Hardwire Turn-On: Audio sense detects
music signals from the OEM wires and activates the MX-1. As
an option, the module also offers a remote turn-on wire.
* Parametric Bass EQ: Features Bass Boost, adjustable Band
Width (wide & narrow), Low Pass and Subsonic Filter.
* Clipping Indicators: Visually indicates audio signals Pre-Clip,
Soft Clip and Hard Clip
* Balanced Line Output: Ultra clean DIN variable high voltage
output for driving mono amps.
* Remote Output: Driver circuit to turn on amplifier when
module activates.
* Bass Remote: Features for subwoofer Level control with builtin clipping indicators.
* Input & Output Level Control: Allows for gain matching both
radio and amplifier audio signals.
MX-3 Bass Controller
* Parametric Bass EQ: Provides a wide array of subwoofer output signal
shaping controls to enhance bass response and sound quality including
Bass Boost, adjustable Bandwidth (wide and narrow), Low Pass and
Subsonic Filter.
* Accepts a wide range of incoming music signal levels while
accommodating all types of head units and signal processors and
controlling the output level to the amp to maximize a signal strength up to
9 volts.
* Clipping Indicators: Visual clipping indicators provide indication of
damaging clipped signals to help protect the subwoofer(s) and amplifier.
Includes pre-clip, soft-clip and full-clip indications.
* Music Shaping: Shapes the music signal to achieve deep bass notes as
low as 15Hz.
* Bass Remote: Included bas Remote features built-in clipping indicators
allows direct bass control from in-dask or under-dash.
MX-2 Deluxe High To Low Level Converter
MX-4 Add A Sub High To Low Level Converter
* Converts High Level OEM speaker wires to Ultra Clean RCA
Low Level Outputs
* High Level Inputs: Accepts all types of High level Inputs
including floating ground and high voltages up to 30 volts.
* Audio Signal Sense / Hardwire Turn-On: Audio sense detects
music signals from the OEM wires and activates the MX-2. As
an option, the module also offers a remote turn-on wire.
* Remote Output: Driver circuit to turn on amplifier when module
activates.
* Converts High Level OEM speaker wires to Ultra Clean RCA Low Level
Outputs
* High Level Inputs: Accepts all types of High level Inputs including
floating ground and high voltages up to 30 volts.
* Audio Signal Sense / Hardwire Turn-On: Audio sense detects music
signals from the OEM wires and activates the MX-4. As an option, the
module also offers a remote turn-on wire.
* Remote Output: Driver circuit to turn on amplifier when module activates.
14
PART#: A1210
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
