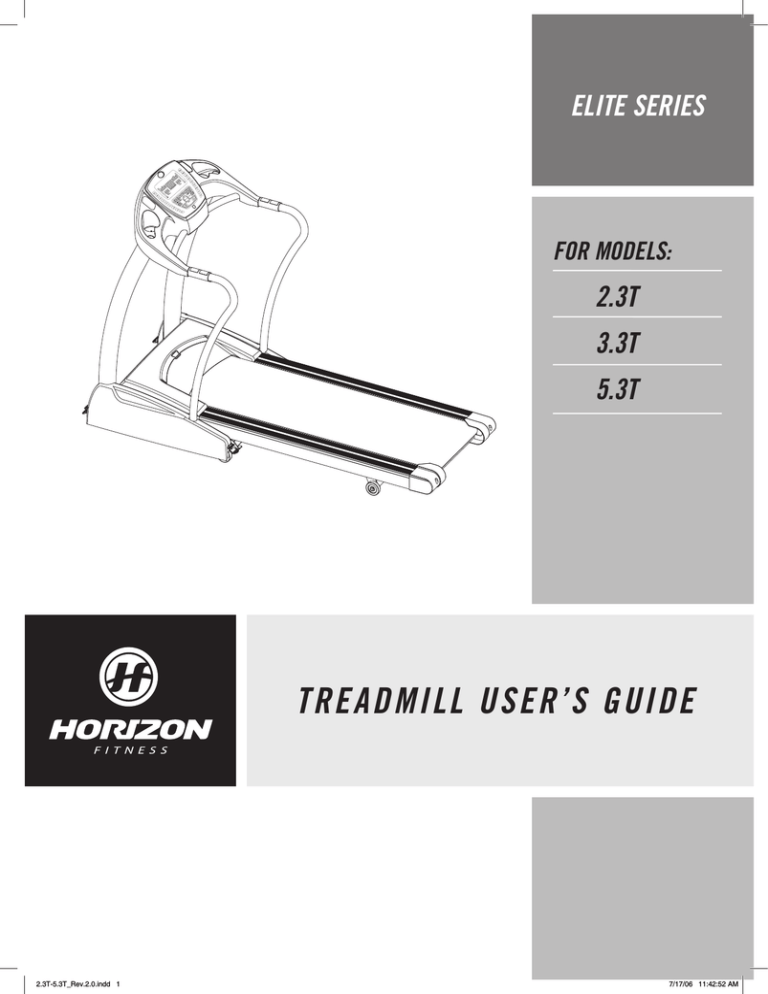

ELITE SERIES
FOR MODELS:
2.3T
3.3T
5.3T
TREADMILL USER’S GUIDE
2.3T-5.3T_Rev.2.0.indd 1
7/17/06 11:42:52 AM
INTRODUCTION
INTRODUCTION
IMPORTANT
PRECAUTIONS
CONGRATULATIONS and THANK YOU for your purchase of this Elite Series treadmill!
ASSEMBLY
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Elite Series treadmill can
help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
BEFORE
YOU BEGIN
The Elite Series delivers.
Assembly
6
Before You Begin
11
Treadmill Operation
14
Conditioning Guidelines
25
Troubleshooting & Maintenance
31
Limited Warranty
34
Back Panel
2.3T-5.3T_Rev.2.0.indd 2-3
LIMITED
WARRANTY
CONTACT INFORMATION
CONDITIONING
GUIDELINES
4
TROUBLESHOOTING
& MAINTENANCE
Important Precautions
TREADMILL
OPERATION
TABLE OF CONTENTS
7/17/06 11:42:52 AM
BEFORE
YOU BEGIN
INTRODUCTION
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
TREADMILL
OPERATION
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
This product is for use on a nominal 110-volt circuit
and has a grounding plug that looks like the illustration
to the right. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
other safety tips for your treadmill
3-Pole Grounded Outlet
WARNING
GROUNDED
TREADMILL
POWER CORD
CONDITIONING
GUIDELINES
ASSEMBLY
WARNING
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmills should not be used by persons weighing more than 300 pounds (2.3T), 350 pounds (3.3T)
and 400 pounds (5.3T). Failure to comply will void the warranty.
• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
WARNING To reduce the risk of burns, fire, electrical shock or injury to persons:
TREADMILL
OPERATION
SAVE THESE INSTRUCTIONS
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
LIMITED
WARRANTY
2.3T-5.3T_Rev.2.0.indd 4-5
LIMITED
WARRANTY
INTRODUCTION
I M P O R TA N T PRECAUTIONS
7/17/06 11:42:55 AM
WARNING
ASSEMBLY
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
INTRODUCTION
CONSOLE
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
2.3T - 5.3T ASSEMBLY
WATERBOTTLE HOLDER
CONSOLE SKIRT
TOUCHPAD PANEL WITH LED WINDOWS
CONSOLE MAST
READING RACK
CIRCUIT BREAKER
GRIP PULSE HAND RAILS
ON/OFF SWITCH
SAFETY KEY PLACEMENT
POWER CORD
ASSEMBLY
INTRODUCTION
A S S E M B LY
HAND RAILS
MOTOR COVER
WHEEL LOCKS
SIDE RAIL
TROUBLESHOOTING
& MAINTENANCE
enter your serial number and
model name in the boxes below:
SERIAL NUMBER:
MODEL NAME:
LIMITED
WARRANTY
* Refer to the serial number and model name when calling for service.
* Also enter this serial number on your Warranty Card.
2.3T-5.3T_Rev.2.0.indd 6-7
PARTS
REAR ROLLER ADJUSTMENT BOLTS
TREADMILL
OPERATION
RUNNING BELT / RUNNING DECK
c
c
c
c
c
c
c
c
BEFORE
YOU BEGIN
ROLLER END CAP
TOOLS (INCLUDED)
1 Power Cord
1 Safety Key
1 Console Skirt
1 Console Assembly
Left and Right Side Covers
Left and Right Console Masts
Left and Right Hand Rails (3.3T & 5.3T only)
5 Hardware Bags (2.3T has 4 Hardware Bags)
c
c
c
c
5mm Allen Wrench
6mm T-Wrench (2.3T)
8mm T-Wrench (3.3T & 5.3T)
Flat Wrench
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
TRANSPORT WHEEL
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
NOTE: It is recommended that you apply grease to the threads of each bolt as you assemble your treadmill, to
prevent loosening and noise. Also, during each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
LIMITED
WARRANTY
BEFORE
YOU BEGIN
UNPACKING
SIDE COVER
7/17/06 11:42:57 AM
A S S E M B LY S T E P 1
INTRODUCTION
BOLT (C)
50 mm
Qty: 2
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
HARDWARE BAG 3 CONTENTS :
BOLT (C)
HARDWARE BAG 1 CONTENTS :
CONSOLE MAST
ASSEMBLY
CONSOLE WIRES
BOLTS (A)
CONSOLE
CONSOLE WIRES
A Open HARDWARE BAG 1.
B Connect CONSOLE WIRES.
CONSOLE MAST
C Attach CONSOLE MASTS to BASE
FRAME using 6 BOLTS (A).
A Open HARDWARE BAG 3.
B Connect CONSOLE WIRES.
C Attach CONSOLE to CONSOLE
MASTS using 2 BOLTS (C).
ASSEMBLY
BOLT (A)
15 mm
Qty: 6
D Secure and tighten bolts.
NOTE: Do not pinch the wires.
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
D Secure and tighten all bolts.
NOTE: Do not pinch the wires.
BASE FRAME
A S S E M B LY S T E P 2
ASSEMBLY STEP 4
HARDWARE BAG 2 CONTENTS :
A Open HARDWARE BAG 2.
HAND RAIL
GRIP PULSE
HAND RAILS
TROUBLESHOOTING
& MAINTENANCE
CONSOLE SKIRT
CONSOLE SHELL SEAM
E Fully tighten all screws.
A Open HARDWARE BAG 4.
B Attach left and right HAND
RAILS to GRIP PULSE HAND
RAILS and BASE FRAME using
4 BOLTS (A).
D Align the console skirt and
console shell seam. Partially
insert SCREW (B) and repeat for
other side.
SCREWS (B)
LIMITED
WARRANTY
2.3T-5.3T_Rev.2.0.indd 8-9
C Attach the console skirt by
partially inserting 2 SCREWS (B)
in the two inner attachment holes.
3.3T & 5.3T models only:
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
STEP D: UPSIDE DOWN VIEW OF CONSOLE
BOLTS (A)
B Place the console upside down on
a padded surface.
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
BOLT (A)
15 mm
Qty: 4
CONSOLE SKIRT
SCREWS (B)
TREADMILL
OPERATION
HARDWARE BAG 4 CONTENTS :
SCREW (B)
12 mm
Qty: 4
CONSOLE
BASE FRAME
NOTE: 2.3T models do not
have hand rails and therefore
will NOT include HARDWARE
BAG 4 in the parts box.
LIMITED
WARRANTY
INTRODUCTION
ASSEMBLY STEP 3
2.3T – 5.3T ASSEMBLY
7/17/06 11:43:05 AM
INTRODUCTION
BEFORE YOU BEGIN
HARDWARE BAG 5 CONTENTS :
ASSEMBLY
B Lift Running Deck to upright
position.
C Attach SIDE COVERS to BASE
FRAME using 6 SCREWS (D).
Here are just a few of the health benefits of exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
BEFORE
YOU BEGIN
LOCATION OF THE TREADMILL
SCREWS (D)
BASE FRAME
IMPORTANT
PRECAUTIONS
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
ASSEMBLY
A Open HARDWARE BAG 5.
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
BEFORE
YOU BEGIN
IMPORTANT
PRECAUTIONS
SCREW (D)
12 mm
Qty: 6
1 foot
3 feet
3 feet
TREADMILL
OPERATION
TREADMILL
OPERATION
SIDE COVERS
WARNING
CONDITIONING
GUIDELINES
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
6 feet
CONDITIONING
GUIDELINES
DO NOT STAND ON THE BELT
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
WARNING
LIMITED
WARRANTY
YOU’RE FINISHED!
10
2.3T-5.3T_Rev.2.0.indd 10-11
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
11
LIMITED
WARRANTY
INTRODUCTION
A S S E M B LY S T E P 5
7/17/06 11:43:10 AM
BEFORE
YOU BEGIN
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground.
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
FOLDING
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, turn the treadmill off
and tension both the rear roller bolts using the
supplied Allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
TREADMILL
OPERATION
TREADMILL
OPERATION
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
If the running belt is too far to the right side:
CONDITIONING
GUIDELINES
MOVING
Your treadmill has a pair of transport wheels built
into the frame. To move, make sure the treadmill is
folded and securely latched. Then firmly grasp the
handlebars, tilt the treadmill back and roll.
Belt is too far to the right side
WHEEL LOCKS
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 turn at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
CONDITIONING
GUIDELINES
ASSEMBLY
WARNING
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 33 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
­TENSIONING THE RUNNING BELT
If the running belt is too far to the left side:
WARNING
LIMITED
WARRANTY
12
2.3T-5.3T_Rev.2.0.indd 12-13
Our Treadmills are heavy, use care and additional help if necessary when
moving. Do not attempt to move or transport treadmill unless it is in the
upright, folded position with the lock latch secured. Failure to follow these
instructions could result in injury.
Belt is too far to the left side
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 turn at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
13
LIMITED
WARRANTY
INTRODUCTION
PROPER USAGE
7/17/06 11:43:15 AM
IMPORTANT
PRECAUTIONS
A
10 %
TIME
B
A
(2.3T model)
H
TIME
8%
8 MPH
DISTANCE
SPEED
CALORIES
6%
6 MPH
ASSEMBLY
4%
L
D I S TA N C E
10 MPH
DISTANCE
TIME
INCLINE
HEART RATE
IMPORTANT
PRECAUTIONS
MONITOR DISPLAYS
F
INTRODUCTION
(2.3T model)
4 MPH
2%
MANUAL
INTERVALS
WEIGHT LOSS
2 MPH
CUSTOM
+1 %
+1 MPH
PRESS TO
CONFIRM
INCLINE
BACK
START
INCLINE
C H A N G E D I S P L AY
D I S TA N C E
SPEED
CALORIES
PRESS TO
CONFIRM
SPEED
ENTER
QUICK START
TIME
INCLINE
HEART RATE
ASSEMBLY
INTRODUCTION
T R E A D M I L L OPERATION
STOP
SPEED
HOLD TO RESET
D
E
C
I
K
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
TREADMILL
OPERATION
A) led Display WINDOWS: Displays: Time, Incline, Heart Rate, Distance, Speed, Calories
B) large LED WINDOW: Displays program profiles.
BEFORE
YOU BEGIN
G
incline • Shown as Percent. Indicates the incline of your walking or running surface.
heart rate • Shown as Beats Per Minute. Used to monitor your heart rate (displayed when contact is
made with both pulse grips or wireless chest strap is used)
TREADMILL
OPERATION
J
distance • Shown as Miles. Indicates distance traveled during your workout.
c) Stop: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
speed • Shown as MPH. Indicates how fast your walking or running surface is moving.
d) Start: Press to begin exercising, start your program, or resume exercising after a pause
Calories • Total Calories burned during your workout.
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN
time • Shown as Minutes:Seconds. View the time remaining or the time elapsed in your workout.
e) programming button: Used to select Program, Level, Time, and other options. Press to change display
feedback during workout.
TROUBLESHOOTING
& MAINTENANCE
g) incline confirmation key: Press to confirm quick adjust incline selection , necessary only when increasing incline.
h) QUICK ADJUST speed Keys: Used to reach desired speed more quickly. Select speed and press confirm.
i) speed confirmation key: Press to confirm quick adjust speed selection , necessary only when increasing
speed.
j) Incline ARROW Keys: Used to adjust incline in small increments (0.5% increments).
HEART RATE
PULSE GRIPS
TROUBLESHOOTING
& MAINTENANCE
f) QUICK ADJUST Incline Keys: Used to reach desired incline more quickly. Select incline and press confirm.
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your
heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When
gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure.
Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse
handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained. (See page 32)
LIMITED
WARRANTY
l) quick program keys: Used to select programs more quickly.
14
2.3T-5.3T_Rev.2.0.indd 14-15
15
LIMITED
WARRANTY
k) Speed ARROW Keys: Used to adjust speed in small increments (0.1 mph increments).
7/17/06 11:43:17 AM
INTRODUCTION
G E T T I N G S TA R T E D / S E L E C T I N G A P R O G R A M
( 3 . 3 T, 5 . 3 T m o d e l s )
(2.3T m o d e l )
H
C
12 %
12
11
10
9
8
7
6
5
4
3
2
1
A
A
B
A
A
D
J
12
11
10
9
8
7
6
5
4
3
2
1
12 MPH
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
1) Check to make sure nothing is on or will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
8%
5) Insert the safety key into the safety keyhole in the console.
ASSEMBLY
6%
6) You have two options to start your workout:
A) quick start up
Simply press the start key to begin working out. OR...
D I S TA N C E
INCLINE
H E A RT R AT E
SPEED
CALORIES
10 MPH
8 MPH
6 MPH
4%
ASSEMBLY
10 %
4) Attach the safety key clip to part of your clothing.
TIME
4 MPH
P1: MANUAL
2%
N
P7: PACER
+1 %
P2: INTERVALS
P4: WEIGHT LOSS
P8: THR ZONE
PRESS TO
CONFIRM
INCLINE
BEFORE
YOU BEGIN
B) SELECT A PROgram
P3: MTN CLIMB
P9: CUSTOM 1
BACK
START
P5: PEAK INTERVALS
C H A N G E D I S P L AY
2 MPH
P10: CUSTOM 2
+1 MPH
PRESS TO
CONFIRM
SPEED
ENTER
QUICK START
P6: GOLF COURSE
S T O P
HOLD TO RESET
BEFORE
YOU BEGIN
3) Stand on the side rails of the treadmill.
Select a Program using the QUICK PROGRAM KEYS keys.
Once a program has been chosen, press enter.
Select a Time using the arrow keys or use the default time.
Once a time has been chosen, press Start.
finishing YOUR WORKOUT
CONDITIONING
GUIDELINES
When your workout is complete, you will hear a series of beeps. Your workout information will be displayed for
30 seconds and then reset.
CLEAR CURRENT SELECTION
F
G
E
K
M
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) led Display WINDOWS: Displays Time, Incline, Heart Rate, Distance, Speed, Calories
B) large LED WINDOW: Displays program profiles.
C) INCLINE led INDICATORS: Displays current Incline percentage (5.3T only).
d) speed led indicators: displays current speed (5.3T only).
e) Stop: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
f) Start: Simply press to begin exercising, starts your program, or resume exercising after pause.
TROUBLESHOOTING
& MAINTENANCE
To clear the current program selection or screen, hold the Stop button for 4-5 seconds.
g) programming button: Used to select Program, Level and Time, and other options. Press to change display
feedback during workout.
SCAN VIEWING SCREENS (2.3T ONLY)
h) QUICK ADJUST Incline Keys: Used to reach desired incline more quickly.
To have the display screen rotate continuously (Speed and Time, Pulse and Distance, Incline and Calories), hold
the ENTER button for 4-5 seconds. Hold down ENTER again to turn off scan feature.
TREADMILL
OPERATION
TREADMILL
OPERATION
SELECT A TIME
I
CONDITIONING
GUIDELINES
Select a program level using the arrow keys.
Once a program level has been chosen, press enter.
L
TROUBLESHOOTING
& MAINTENANCE
SELECT A LEVEL
I) incline confirmation key: Press to confirm quick adjust incline selection, necessary only when INCREASING
incline.
J) QUICK ADJUST speed Keys: Used to reach desired speed more quickly.
k) speed confirmation key: Press to confirm quick adjust speed selection, necessary only when INCREASING
speed.
LIMITED
WARRANTY
l) Incline ARROW Keys: Used to adjust incline in small increments (0.5% increments).
m) Speed ARROW Keys: Used to adjust speed in small increments (0.1 mph increments).
16
2.3T-5.3T_Rev.2.0.indd 16-17
17
LIMITED
WARRANTY
INTRODUCTION
TREADMILL OPERATION
7/17/06 11:43:18 AM
INTRODUCTION
INTRODUCTION
M O N I T O R D I S P L AY S
(3.3T, 5.3T models)
TIME
D I S TA N C E
GETTING STARTED / SELECTING A PROGRAM
( 3 . 3 T, 5 . 3 T m o d e l s )
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
1) Check to make sure nothing is on or will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing.
incline • Shown as Percent. Indicates the incline of your walking or running surface.
heart rate • Shown as Beats Per Minute. Used to monitor your heart rate (displayed when contact is
speed • Shown as MPH. Indicates how fast your walking or running surface is moving.
SELECT A LEVEL
CONDITIONING
GUIDELINES
BACKSIDE OF CHEST TRANSMITTER
(5.3T Model only, sold separately for 3.3T)
Note: Certain programs may request additional info such as distance, etc. These can be adjusted
using the arrow keys as above.
CONDITIONING
GUIDELINES
TREADMILL
OPERATION
Select a Time using the arrow keys or use the default time.
Once a time has been chosen, press Start.
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a
loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars.
Make sure to clean the pulse sensors to ensure proper contact can be maintained. (See page 32).
TROUBLESHOOTING
& MAINTENANCE
Prior to wearing the wireless chest transmitter on your
chest, moisten the two rubber electrodes with water. Center
the chest strap just below the breast or pectoral muscles,
directly over your sternum, with the logo facing out. NOTE:
The chest strap must be tight and properly placed to receive
an accurate and consistent readout. If the chest strap is too
loose, or positioned improperly, you may receive an erratic
or inconsistent heart rate readout. WARNING! The heart
rate function is not a medical device. Various factors may
affect the accuracy of your heart rate reading. The heart rate
reading is intended only as an exercise aid.
Select a program level using the arrow keys.
Once a program level has been chosen, press enter.
SELECT A TIME
PULSE GRIPS
WIRELESS CHEST TRANSMITTER
ASSEMBLY
B) SELECT A PROgram
distance • Shown as Miles. Indicates distance traveled during your workout.
H E A R T R AT E
LIMITED
WARRANTY
2.3T-5.3T_Rev.2.0.indd 18-19
Simply press the start key to begin working out. OR...
Select a Program using the programming button arrow keys.
Once a program has been chosen, press enter.
Calories • Total Calories burned during your workout.
18
A) quick start up
finishing YOUR WORKOUT
When your workout is complete, you will hear a series of beeps. Your workout information will be displayed for
30 seconds and then reset.
CLEAR CURRENT SELECTION
TROUBLESHOOTING
& MAINTENANCE
BEFORE
YOU BEGIN
made with both pulse grips or wireless chest strap is used)
6) You have two options to start your workout:
BEFORE
YOU BEGIN
time • Shown as Minutes:Seconds. View the time remaining or the time elapsed in your workout.
5) Insert the safety key into the safety keyhole in the console.
TREADMILL
OPERATION
SPEED
CALORIES
To clear the current program selection or screen, hold the Stop button for 4-5 seconds.
APPLY MOISTURE HERE
19
LIMITED
WARRANTY
ASSEMBLY
INCLINE
HEART RATE
7/17/06 11:43:20 AM
ROLLING
P R O G R A M I N F O R M AT I O N
MANUAL
WEIGHT LOSS
PROGRAM:
WEIGHT LOSS
Level 2
WEIGHT LOSS
MANUAL
ROLLING
GOLF
PINTERVALS
R OCOURSE
G R A M : I N T E R VA L S
WEIGHT
LOSS
ASSEMBLY
Walk or run
RACE
a ROLLING
series
of alternating
GOLF
COURSE
WEIGHT LOSS
CUSTOM 1
RACE
Level 3
(2.3T, 3.3T, 5.3T models)
Level 4
speed levels. Time-based goal with 10 difficulty levels to choose from.
Level 5
INTERVALS Program Segments
Level 6
(peak segments last 30 seconds, valley segments last 90 seconds)
Level 4
CUSTOM
1.3 1
Level 5
BEFORE
YOU BEGIN
Level 1
Level 2
Level 6
Level 7
TREADMILL
OPERATION
Level 8
Level 9
Level 10
1
2
3
4
2.0
4.0
2.0
4.0
2.0
4.5
2.0
4.5
2.5
5.0
2.5
5.0
1.9
2.5
5.5
2.5
5.5
THR1.5
ZONE 12
THR
ZONE
1.5
CUSTOM 2
1.8
VALLEY
THR
ZONE 2
1.8
2.3
3.0
6.0
3.0
6.0
2.3
3.0
6.5
3.0
6.5
2.6
3.5
7.0
3.5
7.0
2.6
3.5
7.5
3.5
7.5
THR2.0
ZONE 1
TOUR
VALLEY
2.0
3.0
4.0
8.0
4.0
8.0
3.0
4.0
8.5
4.0
8.5
Level 7
COOL DOWN
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
Level 3
GOLF COURSE
WARM-UP
CUSTOM
CUSTOM 12
1.0
1.5
RACE
1.0
1.5
CUSTOM
THR1.3ZONE2 1
1.9
MPH
1.5
1.0
1.5
1.0
1.9
1.3
1.9
1.3
Level 9
2.3
1.5
Level 10
2.3
1.5
2.6
1.8
2.6
1.8
3.0
2.0
3.0
2.0
PEAK
THR
ZONE 2
INTERVALS
TOUR
6
7
8
COOL-DOWN
0.5
1.0
1.5
0.5
0.0
2.0
2.5
3.0
3.5
4.0
3.5
3.0
2.5
1.5
1.0
Elevation
GOLF COURSE0.0
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
0.5
0.0
Speed
CUSTOM 2 1.3
Elevation
0.5
RACE
Speed
1.5
1.9
2.5
3.0
3.5
4.0
4.5
4.0
3.5
3.0
1.9
1.3
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
2.3
3.0
3.5
4.0
4.5
5.0
4.5
4.0
3.5
2.3
1.5
Elevation
THR ZONE 1 0.5
CUSTOM 1 1.8
Speed
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
2.6
3.5
4.0
4.5
5.0
5.5
5.0
4.5
4.0
2.6
1.8
Elevation
1.0
THR ZONE 2
Speed
2.0
CUSTOM 2
Elevation
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
1.5
1.0
3.0
4.0
4.5
5.0
5.5
6.0
5.5
5.0
4.5
3.0
2.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
1.5
1.0
2.3
3.4
4.5
5.0
5.5
6.0
6.5
6.0
5.5
5.0
3.4
2.3
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
2.0
1.5
2.5
3.8
5.0
5.5
6.0
6.5
7.0
6.5
6.0
5.5
3.8
2.5
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
2.0
1.5
2.8
4.1
5.5
6.0
6.5
7.0
7.5
7.0
6.5
6.0
4.1
2.8
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
Speed
MOUNTAIN 3.0
VALLEY
CLIMB
Elevation
2.0
4.5
6.0
6.5
7.0
7.5
8.0
7.5
7.0
6.5
4.5
3.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
4.9
6.5
7.0
7.5
8.0
8.5
8.0
7.5
7.0
4.9
3.3
1:30
:30
VALLEY
Speed
Elevation
THR ZONE 1
Speed
TOUR
Elevation
THR
ZONE 2
PEAK
Speed
INTERVALS
Elevation
Speed
TOUR
3.3
PEAK
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
WARM -UP MOUNTAIN
CLIMB
0.0
0.0
1
2
3
4
1.0
1.5
2.0
2.5
0.0
0.0
1.5
2.0
2.5
0.0
1.0
2.0
2.5
0.0
1.5
2.5
0.0
1.5
0.0
5
MOUNTAIN
Level 2
6
7
8
9
10
COOL-DOWN
3.0
3.0
2.5
2.0
1.5
1.0
0.0
0.0
3.0
3.5
3.5
3.0
2.5
2.0
1.5
0.0
0.0
3.0
3.5
4.0
4.0
3.5
3.0
2.5
2.0
1.0
0.0
3.0
3.5
4.0
4.5
4.5
4.0
3.5
3.0
2.5
1.5
0.0
3.0
3.5
4.0
4.5
5.0
5.0
4.5
4.0
3.5
3.0
1.5
0.0
1.5
3.5
4.0
4.5
5.0
5.5
5.5
5.0
4.5
4.0
3.5
1.5
0.0
0.0
1.5
4.0
4.5
5.0
5.5
6.0
6.0
5.5
5.0
4.5
4.0
1.5
0.0
0.0
2.0
4.5
5.0
5.5
6.0
6.5
6.5
6.0
5.5
5.0
4.5
2.0
0.0
Incline
0.0
2.0
5.0
5.5
6.0
6.5
7.0
7.0
6.5
6.0
5.5
5.0
2.0
0.0
0.0
2.0
5.5
6.0
6.5
7.0
7.5
7.5
7.0
6.5
6.0
5.5
2.0
0.0
(5.3T model)
An intervalCLIMB
program that challenges you with changing speeds and inclines.
Level 3
Level 4
Level 5
Level 6
Level 7
Level 8
LIMITED
WARRANTY
Level 9
Level 10
2.3T-5.3T_Rev.2.0.indd 20-21
5
0.5
INTERVALS
PROGRAM:
PEAK INTERVALS
Level 1
PEAK
INTERVALS
20
4
0.5
Warm Up
(5.3T model)
Simulates climbing
MOUNTAINa mountain by automatically varying incline.
TOUR
CLIMB
10 difficulty levels
to choose from.
1
2
3
4
5
6
7
8
9
10
3
1.0
1:30
MOUNTAIN
PEAK
CLIMB
PVALLEY
R O G R A M : M O U N TA I N C L I M B
INTERVALS
Level
Level 8
2
1.5
IMPORTANT
PRECAUTIONS
ROLLING
Allows ‘On TheINTERVALS
Fly’ manual speed and incline changes. Time-based goal.
1
1.5
ASSEMBLY
Level 1
WARM-UP
WEIGHT LOSS
Elevation
0.0
0.5
CUSTOM 1
Speed
1.0
1.5
BEFORE
YOU BEGIN
(2.3T, 3.3T, 5.3T models)
TREADMILL
OPERATION
IMPORTANT
PRECAUTIONS
INTERVALS
PMANUAL
ROGRAM: MANUAL
:30
1:30
:30
1:30
:30
Cool Down
1
2
3
4
5
6
7
8
Elevation
1.0
1.5
1.0
2.0
1.0
2.0
1.0
2.5
1.0
2.5
1.5
1.0
Speed
1.0
1.5
2.0
4.0
2.0
4.0
2.0
4.5
2.0
4.5
1.5
1.0
Elevation
1.0
1.5
1.0
2.5
1.0
2.5
1.5
3.0
1.5
3.0
1.5
1.0
Speed
1.0
1.5
2.0
4.5
2.0
4.5
2.5
5.0
2.5
5.0
1.5
1.0
Elevation
1.0
1.5
1.5
3.0
1.5
3.0
1.5
3.5
1.5
3.0
1.5
1.0
Speed
1.3
1.9
2.5
5.0
2.5
5.0
2.5
5.5
2.5
5.5
1.9
1.3
Elevation
1.0
1.5
1.5
3.5
1.5
3.0
2.0
4.0
2.0
4.0
1.5
1.0
Speed
1.3
1.9
2.5
5.5
2.5
5.5
3.0
6.0
3.0
6.0
1.9
1.3
Elevation
1.5
2.0
2.0
4.0
2.0
4.0
2.0
4.5
2.0
4.5
2.0
1.5
Speed
1.5
2.3
3.0
6.0
3.0
6.0
3.0
6.5
3.0
6.5
2.3
1.5
Elevation
1.5
2.0
2.0
4.5
2.0
4.5
2.0
5.0
2.0
5.0
2.0
1.5
Speed
1.5
2.3
3.0
6.5
3.0
6.5
3.5
7.0
3.5
7.0
2.3
1.5
Elevation
1.5
2.5
2.0
5.0
2.0
5.0
2.0
5.5
2.0
5.5
2.5
1.5
Speed
1.8
2.6
3.5
7.0
3.5
7.0
3.5
7.5
3.5
7.5
2.6
1.8
Elevation
1.5
2.5
2.0
5.5
2.0
5.5
2.0
6.0
2.0
6.0
2.5
1.5
Speed
1.8
2.6
3.5
7.5
3.5
7.5
4.0
8.0
4.0
8.0
2.6
1.8
Elevation
2.0
3.0
2.5
6.0
2.5
6.0
2.5
6.5
2.5
6.5
3.0
2.0
Speed
2.0
3.0
4.0
8.0
4.0
8.0
4.0
8.5
4.0
8.5
3.0
2.0
Elevation
2.0
3.0
2.5
6.5
2.5
6.5
2.5
7.0
2.5
7.0
3.0
2.0
Speed
2.0
3.0
4.0
8.5
4.0
8.5
4.5
9.0
4.5
9.0
3.0
2.0
CONDITIONING
GUIDELINES
MANUAL
INTERVALS
GOLFvarious
COURSE combinations of hills and valleys (incline & SPEED levels). Time-based goal with 10
Challenges with
difficulty levels to choose from.
ROLLING
PROGRAM SEGMENTS 30 SECS EACH
RACE
TROUBLESHOOTING
& MAINTENANCE
Warm-up and cool-down last 5:00 minutes each and are included in program times (except PACER program).
( 2 . 3 T, 3 . 3 T, 5 . 3 T m o d e l s )
21
LIMITED
WARRANTY
INTRODUCTION
INTRODUCTION
INTERVALS
7/17/06 11:43:23 AM
CUSTOM 1
INTERVALS
INTRODUCTION
INTRODUCTION
CUSTOM 2
ROLLING
THR ZONE 1
PROGRAM:
THR ZONE
WEIGHT LOSS
ZONE 2 incline to maintain your Target Heart Rate. Perfect for simulating the intensity of your
AutomaticallyTHRadjusts
favorite sport or everyday activity. Time-based goal.
1
CUSTOM 2
Elevation 0.0
TOUR
GOLF COURSE Program Segments
HOLE
NUMBER:
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance 309 359
THR ZONE
Elevation
0.0 1 1.0
283
256
113
387
91
351
333
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance
427
330
295
129
466
91
369
431
Blue tee
9 holes
Elevation
0.0 2 1.0
THR ZONE
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance
345
460
337
308
142
484
97
389
441
Black tee
9 holes
Elevation 0.0
VALLEY
Distance 376
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
502
374
327
187
500
106
416
462
Red tee
18 holes
Elevation 0.0
TOUR
Distance 309
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
359
283
256
113
387
91
351
333
301
301
165
288
434
312
310
150
455
White tee
18 holes
PEAK 0.0
Elevation
INTERVALS
Distance 331
MANUAL
Elevation
0.0
MOUNTAIN
CLIMB
Distance 345
INTERVALS
Elevation 0.0
Red tee
9 holes
ASSEMBLY
White tee
9 holes
BEFORE
YOU BEGIN
Blue tee
18 holes
Black tee
18 holes
331
Distance 376
ROLLING
TOTAL
DISTANCE
2482
2875
3003
3250
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
427
330
295
129
466
97
369
431
407
339
179
368
548
349
376
166
509
1.0
2.0
3.0
2.5
1.0
2.0
2.0
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
460
337
308
142
484
97
389
441
413
349
187
376
560
373
383
383
532
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
502
374
327
187
500
106
416
462
430
373
201
393
572
396
401
178
543
TREADMILL
OPERATION
WEIGHT LOSS
1. Once the THR ZONE program has been chosen, press enter.
5198
6116
2. Choose
PEAK a target heart rate using the arrow keys on the programming button and press enter.
Note:INTERVALS
Use the chart provided in this guide, to determine your target heart rate.
MOUNTAIN
CLIMB
3. Choose
the desired time using the speed arrow keys and press enter.
ASSEMBLY
CUSTOM 1
VALLEY
4. Press Start to begin your program.
In this program, the large LED dot matrix window displays your heart rate during exercise. The middle row
represents your target heart rate (THR) and the other rows equal +/-2 heart beats. If you are working out
beneath your THR, the LEDs below the middle row will illuminate. If you are over, the LEDs above the middle
row will illuminate. Your current heart rate is represented by the flashing column and the window will refresh
every 5 seconds.
BEFORE
YOU BEGIN
IMPORTANT
PRECAUTIONS
Simulates various
RACE inclines and yardages for holes on a golf course, with 4 tee-off boxes and 9 or 18 holes to choose
from. Distance-based goal.
IMPORTANT
PRECAUTIONS
(5.3T model)
NOTE: If no heart rate is detected, the large LED window will display the incline profile.
6348
6737
Distance = Yards
After the 5 minute warm-up period, the incline level will increase gradually to get the user to the entered
target heart rate zone. Once the user is at the target heart rate zone (plus or minus 5 beats per minute)
the incline level will remain until you would rise above or drop below you target heart rate zone at which
time the incline would adjust accordingly. The last 5 minutes of the program will begin the cool down period. At
this time, the program will gradually decrease the resistance level to give the user a smooth cool down.
TREADMILL
OPERATION
PGOLFRCOURSE
OGRAM: GOLF COURSE
( 3 . 3 T, 5 . 3 T ) - Requires wireless transmitter, 3.3T: sold separately)
GOLF COURSE
(3.3T, 5.3T models)
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
PRACE
ROGRAM: PACER
CUSTOM 1
Trains you to run at a steady “race pace” Enter in the distance plus the time limit, and the program calculates
a steady pace.
CUSTOM 2
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
THR ZONE 1
THR ZONE 2
VALLEY
LIMITED
WARRANTY
PEAK
INTERVALS
MOUNTAIN
CLIMB
22
2.3T-5.3T_Rev.2.0.indd 22-23
23
LIMITED
WARRANTY
TOUR
7/17/06 11:43:25 AM
INTRODUCTION
INTRODUCTION
WEIGHT LOSS
GOLF COURSE
CONDITIONING GUIDELINES
RACE
( 5 . 3 T M o d e l , 2 . 3 T, a n d 3 . 3 T have Custom 1 only)
THR ZONE 2
2. Choose the desired time using the programming arrow keys and press
ASSEMBLY
enter.
VALLEY
3. Choose
TOUR the desired speed for each segment, using the arrow keys and press
enter. Note: You will need to press enter after each segment.
PEAK
INTERVALS
4. Choose
the desired incline for each segment, using the arrow keys and
MOUNTAIN
CLIMB
press
enter. Note: You will need to press enter after each segment.
BEFORE
YOU BEGIN
5. Press Start to begin your program. At this time, your program has been
successfully saved into memory, and can be used for future workouts.
• To reset your program information and delete it from memory, press and
hold the enter key for 5 seconds (after you have selected the user 1 or 2
program).
TREADMILL
OPERATION
• While using your saved program, you are able to adjust the speed or incline, but
any changes will not be saved.
IMPORTANT
PRECAUTIONS
1. Once the CUSTOM 1 or 2 program has been chosen, press enter
HOW OFTEN? (Frequency of Workouts)
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
ASSEMBLY
THR ZONE 1
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
BEFORE
YOU BEGIN
Lets you
a perfect workout for you with specific speed, incline and time combination.
The ultimate in personal programming. Time-based goal.
Always consult your physician before beginning an exercise program.
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you will
probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term goals,
always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be beneficial!
There are two ways to measure your exercise intensity. The first is by monitoring your heart rate (using the grip
pulse handlebars or a wireless chest transmitter - may be sold separately), and the second is by evaluating your
perceived exertion level (this is simpler than it sounds!).
TREADMILL
OPERATION
IMPORTANT
PRECAUTIONS
createCUSTOM
and 2reuse
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
CUSTOM 1
PROGRAM:
CUSTOM 1 & 2
PERCEIVED EXERTION LEVEL
LIMITED
WARRANTY
24
2.3T-5.3T_Rev.2.0.indd 24-25
25
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
7/17/06 11:43:25 AM
INTRODUCTION
TA R G E T H E A R T R AT E Z O N E C H A R T
STRETCHING
0%
%
1. STANDING CALVE MUSCLE STRETCH
15
12
0
0
TREADMILL
OPERATION
AGE
14
6
14
Stand near a wall with the toes of tour left foot about 18" from the wall, and
the right foot about 12" behind the other foot. Lean forward, pushing against
the wall with your palms. Keep your heels flat and hold this position for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Repeat on the other side.
3
T A 139 1
35
R
11
7
G E 131
11
4
T
11
1
10
8
12
8
12
4
12
Z
0
O
10
5
NE
10
2
9
9
20
25
30
35
40
45
50
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
60
%
55
97
60
11
6
93
65
CONDITIONING
GUIDELINES
example:
TROUBLESHOOTING
& MAINTENANCE
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
2. STANDING QUADRICEPS STRETCH
TREADMILL
OPERATION
75
Using a wall to provide balance, grasp your left ankle
with your left hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your right
ankle and hand.
CONDITIONING
GUIDELINES
10
BEATS PER MINUTE
ASSEMBLY
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
IMPORTANT
PRECAUTIONS
What is Target Heart Rate Zone?
ASSEMBLY
Before using your product, it is best to take a few minutes doing a few gentle stretching exercises.
Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into
each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to
bounce while doing these stretches.
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching. Sit
upright again. Repeat one time.
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
STRETCH FIRST
Always consult your physician before beginning an exercise program.
LIMITED
WARRANTY
26
2.3T-5.3T_Rev.2.0.indd 26-27
27
LIMITED
WARRANTY
INTRODUCTION
TIPS
7/17/06 11:43:29 AM
WEEK #
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a
slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
D AY
INTRODUCTION
WEEKLY GOAL
D AT E
D I S TA N C E
CALORIES
TIME
COMMENTS
SUNDAY
MONDAY
TUESDAY
COOL DOWN
ASSEMBLY
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart
rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your
muscles.
WEDNESDAY
THURSDAY
ASSEMBLY
IMPORTANT
PRECAUTIONS
WARM UP
TIPS
WEEKLY LOG SHEETS
IMPORTANT
PRECAUTIONS
THE IMPORTANCE OF WARM UP & COOL DOWN
FRIDAY
SATURDAY
WEEKLY TOTALS :
ACHIEVING YOUR FITNESS GOALS
BEFORE
YOU BEGIN
An important step in developing a long term fitness program is to determine your goals. Is your primary
goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule?
Knowing what your goals are will help you develop a more successful exercise program. Below are some
common exercise goals:
WEEK #
D AY
BEFORE
YOU BEGIN
INTRODUCTION
TIPS
WEEKLY GOAL
D AT E
D I S TA N C E
CALORIES
TIME
COMMENTS
SUNDAY
MONDAY
TROUBLESHOOTING
& MAINTENANCE
KEEPING AN EXERCISE DIARY
To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are located
on the following pages, or you can print them off of your computer by going to:
www.horizonfitness.com/guides/weeklylog.pdf
www.horizonfitness.com/guides/monthlylog.pdf
LIMITED
WARRANTY
As your fitness improves, you can look back and see how far you’ve come!
28
2.3T-5.3T_Rev.2.0.indd 28-29
THURSDAY
FRIDAY
SATURDAY
WEEK #
D AY
CONDITIONING
GUIDELINES
WEEKLY TOTALS :
WEEKLY GOAL
D AT E
D I S TA N C E
CALORIES
TIME
COMMENTS
SUNDAY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing.
The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide
them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation
benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can
be used to record your progress. You can track Distance, Calories or Time.
WEDNESDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :
29
LIMITED
WARRANTY
TREADMILL
OPERATION
• Weight Loss - lower intensity, longer duration workouts
• Improve Body Shape and Tone - interval workouts, alternate between hi and low intensities
• Increased Energy Level - more frequent daily workouts
• Improved Sports Performance - high intensity workouts
• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
TREADMILL
OPERATION
TUESDAY
7/17/06 11:43:30 AM
IMPORTANT
PRECAUTIONS
M O N TH
WEEK #
D ISTANCE
INTRODUCTION
TROUBLESHOOTING
MONTHLY GOAL
CALORIES
TIME
COMMON PRODUCT QUESTIONS
IMPORTANT
PRECAUTIONS
INTRODUCTION
M O N T H LY L O G SHEETS
ARE THE SOUNDS MY TREADMILL MAKES NORMAL?
All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new
treadmills. This noise will diminish over time, although may not totally go away. Over time, the belt will
stretch, causing the belt to ride smoother over the rollers.
WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?
M O N TH LY T O TA L S :
ASSEMBLY
ASSEMBLY
All fitness products seem quieter in a large store showroom because there is generally more background noise
than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay
floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is
placed close to a wall, there will be more reflected noise.
WHEN SHOULD I BE WORRIED ABOUT A NOISE?
As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is
considered normal noise.
D ISTANCE
MONTHLY GOAL
CALORIES
TROUBLESHOOTING - TREADMILL
TIME
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
M O N TH
WEEK #
Your treadmill is designed to be reliable and easy to use. However, if you experience a problem, please reference the
troubleshooting guide listed below.
PROBLEM: The banding straps were
TREADMILL
OPERATION
L IF T
TREADMILL
OPERATION
removed before assembly step 1 was
complete and the machine has sprung
open and cannot be assembled.
SOLUTION: The air shocks have been engaged prematurely. To correct this, tilt the machine on it’s nose by lifting
the deck (light end) upwards. Step on the foot latch and fold down the deck so that it is horizontal. You may now
proceed with assembly step 1.
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
M O N TH LY T O TA L S :
30
2.3T-5.3T_Rev.2.0.indd 30-31
D ISTANCE
MONTHLY GOAL
CALORIES
TIME
CONDITIONING
GUIDELINES
M O N TH
WEEK #
Does the red light on the ON/OFF switch light up?
If yes:
• Double check that all connections are secure, especially the console cable. Unplug and reconnect the console
cable to verify.
• Make sure the console cable is not pinched or damaged in any way.
• Turn the power off, unplug the power cable and wait 60 seconds. Remove motor cover. Wait until all red LED
lights have gone off on the motor control board before proceeding. Next, verify that none of the wires connected
to the lower board are loose or disconnected.
If no:
• Verify that the outlet the machine is plugged into is functional. Double check that the breaker has not tripped,
it is on a dedicated 20-amp circuit, it is not on a GFCI equipped outlet, and it is not plugged into a power
strip/surge protector or extension cord.
• The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.
• The power switch is turned to the ON position.
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PROBLEM: The console does not light up and/or the belt does not move.
SOLUTION: Verify the following:
31
LIMITED
WARRANTY
M O N TH LY T O TA L S :
7/17/06 11:43:32 AM
WARNING
DO NOT stand on running belt while
BEFORE
YOU BEGIN
calibrating – stand on the guide
rails. Treadmill will fluctuate between
low and high speeds for several
minutes until calibration is complete.
TROUBLESHOOTING - HEART RATE
Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home
security systems or appliances containing large motors. These items may cause erratic heart rate readouts.
TREADMILL
OPERATION
You may experience an erratic readout under the following conditions:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving erratic
heart rate readouts, try to only hold the grips long enough to monitor your heart rate.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palm is especially thick.
CONDITIONING
GUIDELINES
If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.
PLEASE CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.
TROUBLESHOOTING
& MAINTENANCE
The following information may be asked of you when you call. Please have these items readily available:
• Model Name
• Serial Number
• Date of Purchase (receipt or credit card statement)
LIMITED
WARRANTY
In order for Customer Tech Support to service your treadmill they may need to ask detailed questions about the symptoms that are
occurring. Some troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding, squeaking,
chirping etc.)?
• Has the machine been lubricated and maintained per the maintenance schedule?
32
2.3T-5.3T_Rev.2.0.indd 32-33
Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary
to get you and your Horizon Fitness treadmill running again!
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
ASSEMBLY
• Power on the treadmill and have the safety key in position on the
console. Press and hold the elevation “+” and speed “-” buttons for
approximately 5 seconds to enter the Engineering Mode. The console will
beep and “ENG0” appears in the display.
• Press the Speed “+” or “-” button until “ENG2” appears in the display.
• Press, “ENTER” to select. Press, “START” to begin. The treadmill running
belt will begin to move automatically and the auto-calibration sequence
will properly set and store the speed values.
• Upon successful calibration, the treadmill will beep several times. The
console will automatically exit Engineering Mode and return to the startup screen.
EVERY WEEK
Clean underneath the treadmill, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Fold the treadmill into the upright position, making sure that the lock latch is secure.
• Move the treadmill to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.
• Return the treadmill to its previous position.
BEFORE
YOU BEGIN
PROBLEM: Operating speed appears inaccurate.
SOLUTION: Auto-calibrate the treadmill:
AFTER EACH USE (DAILY)
Clean and inspect, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as they
can cause damage to the treadmill.
• Inspect the power cord. If the power cord is damaged, contact Horizon Fitness.
• Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut.
• Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other
components on the treadmill by being misaligned.
EVERY MONTH - IMPORTANT!
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Inspect all assembly bolts of the machine for proper tightness.
• Turn off the treadmill and wait 60 seconds.
• Remove the motor cover. Wait until ALL LED lights turn off.
• Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to
do so may result in premature failure of key electrical components.
• Vacuum and wipe down the belt with a damp cloth. Vacuum any black/white particles that may accumulate around
the unit. These particles may accumulate from normal treadmill use.
EVERY 6 MONTHS OR 150 MILES
It is necessary to lubricate your treadmill running deck every six months
or 150 miles to maintain optimal performance of your treadmill. Once the
treadmill reaches 150 miles, the console will prompt you to lubricate the
treadmill. Only use lubricant provided by Horizon Fitness!
TREADMILL
OPERATION
• Make sure the treadmill is on a level surface.
• Verify that the belt is properly tightened and centered (Refer to the Adjustment section for detailed directions).
Cleanliness of your treadmill and its operation environment will keep maintenance problems and service calls to a
minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.
CONDITIONING
GUIDELINES
IMPORTANT
PRECAUTIONS
PROBLEM: The running belt does not stay centered during a workout.
SOLUTION: Verify the following:
MAINTENANCE
LUB R I C AT I O N
• Turn off the treadmill with the on/off switch, then unplug the
power cord at the wall outlet.
• Loosen both the rear roller bolts. (For best results, place two removable
marks on both sides of the frame and note roller position). Once
the belt is loosened, take the bottle of lubricant and apply it to the
entire top surface of the running deck. Tighten both rear roller bolts
(matching up the marks for proper position) to original position. After
you have applied lubricant, plug in the power cord, insert the safety
key, start the treadmill and walk on the belt for two minutes to spread
the lubricant.
• Lubricate the air shocks with Teflon based spray.
• Once lubrication is complete, reset the console by pressing and holding
‘STOP’ and Speed ‘+’ buttons for 5 seconds.
Please contact Horizon Fitness with questions about applying lubricant to your treadmill.
RUNNING BELT
TROUBLESHOOTING
& MAINTENANCE
• Make sure the treadmill is plugged into a dedicated 20-amp circuit.
• Verify that you do not have the machine on an extension cord or surge protector.
• Confirm that the machine is not plugged into a GFCI-equipped outlet or on a circuit that has a GFCI‑equipped outlet on it.
RUNNING DECK
33
LIMITED
WARRANTY
INTRODUCTION
PROBLEM: The treadmill circuit breaker trips during a workout.
SOLUTION: Verify the following:
7/17/06 11:43:33 AM
INTRODUCTION
L I M I T E D H O ME-USE WARRANTY
IMPORTANT
PRECAUTIONS
FRAME • LIFETIME
Horizon Fitness warrants the frame against defects in
workmanship and materials for the lifetime of the original
owner. (The frame is defined as the welded metal base of the
unit and does not include any parts that can be removed.)
ASSEMBLY
2.3T (Weight Capacity = 300 LBS)
DRIVE MOTOR/ELEVATION • 30 YEARS
Horizon Fitness warrants the drive/elevation motors against
defects in workmanship and materials for a period of thirty
years from the date of purchase, so long as the device
remains in the possession of the original owner.
3.3T (Weight Capacity = 350 LBS)
DRIVE MOTOR/ELEVATION • 30 YEARS
Horizon Fitness warrants the drive/elevation motors against
defects in workmanship and materials for a period of thirty
years from the date of purchase, so long as the device
remains in the possession of the original owner.
BEFORE
YOU BEGIN
5.3T (Weight Capacity = 400 LBS)
DRIVE MOTOR/ELEVATION • 30 YEARS
Horizon Fitness warrants the drive/elevation motors against
defects in workmanship and materials for a period of thirty
years from the date of purchase, so long as the device
remains in the possession of the original owner.
TREADMILL
OPERATION
ELECTRONICS & PARTS • 2 YEAR *
Horizon Fitness warrants the electronic components, finish
and all original parts for a period of two years from the
date of original purchase, so long as the device remains in
the possession of the original owner.
CONDITIONING
GUIDELINES
* For 3.3T and 5.3T a free extended parts and electronics
warranty is available. See registration card for details.
LABOR • 1 YEAR
Horizon Fitness shall cover the labor cost for the repair
of the device for a period of one year from the date of the
original purchase, so long as the device remains in the
possession of the original owner.
TROUBLESHOOTING
& MAINTENANCE
EXCLUSIONS AND LIMITATIONS
Who IS covered:
• The original owner and is not transferable.
What IS covered:
• Repair or replacement of a defective motor, electronic component, or
defective part and is the sole remedy of the warranty.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance, or
installation of parts or accessories not originally intended or
compatible with the equipment as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration of
paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning,
freezing, or other natural disasters of any kind, power reduction,
fluctuation or failure from whatever cause, unusual atmospheric
conditions, collision, introduction of foreign objects into the covered
unit, or modifications that are unauthorized or not recommended by
Horizon Fitness.
• Incidental or consequential damages. Horizon Fitness is not
responsible or liable for indirect, special or consequential damages,
economic loss, loss of property, or profits, loss of enjoyment or use,
or other consequential damages of whatsoever nature in connection
with the purchase, use, repair or maintenance of the equipment.
• Equipment used for commercial purposes or any use other than a
single family or Household, unless endorsed by Horizon Fitness for
coverage.
• Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement
units or labor or other costs associated with removal or replacement
of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Horizon
Fitness is not responsible or liable for any damage, loss or liability
arising from any personal injury incurred during the course of, or as
a result of any repair or attempted repair of your fitness equipment
by other than an authorized service technician. All repairs attempted
by you on your fitness equipment are undertaken AT YOUR OWN RISK
and Horizon Fitness shall have no liability for any injury to the person
or property arising from such repairs.
LIMITED
WARRANTY
SERVICE/RETURNS
• In-home service is available within 150 miles of the nearest
authorized repair center (Mileage beyond 150 miles from an
authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness’ obligation under this warranty is limited to
replacing or repairing, at Horizon Fitness’ option, the same or
comparable model at one of its authorized service centers.
• A Horizon Fitness authorized service center must receive all
equipment for which a warranty claim is made. This equipment must
be received with all freight and other transportation charges prepaid,
accompanied by sufficient proof of purchase.
• Replacement units, parts and electronic components reconditioned
to As-new Condition by Horizon Fitness or its vendors may sometimes
be supplied as warranty replacement and constitute fulfillment of
warranty terms.
• This warranty gives you specific legal rights, and your rights may
vary from state to state.
34
2.3T-5.3T_Rev.2.0.indd 34-35
7/17/06 11:43:33 AM
C U S T O MER TECH SUPPORT
For fast and friendly service, please contact one of our
trained customer technicians via phone, email or our website.
Customer Tech Support Hotline: 1 - 8 0 0 - 2 44 - 4 1 9 2
Email: [email protected]
Website: www.horizonfitness.com
Every employee at Horizon Fitness takes pride in providing you with a high quality product.
We want to know if you have a problem and we want to have an opportunity to correct it for you.
Note: Please read the troubleshooting section before contacting Customer Tech Support.
To receive additional product information, visit us at www.horizonfitness.com
1620 Landmark Drive,
Cottage Grove WI, 53527
Tel: 1.800.244.4192
Fax: 608.842.1660
ELITE Series. 2.3T-5.3T Rev. 2.0 | © 2006 Horizon Fitness Products | Designed & Engineered in the U.S.A. | Made in China
2.3T-5.3T_Rev.2.0.indd 36
7/17/06 11:43:33 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
