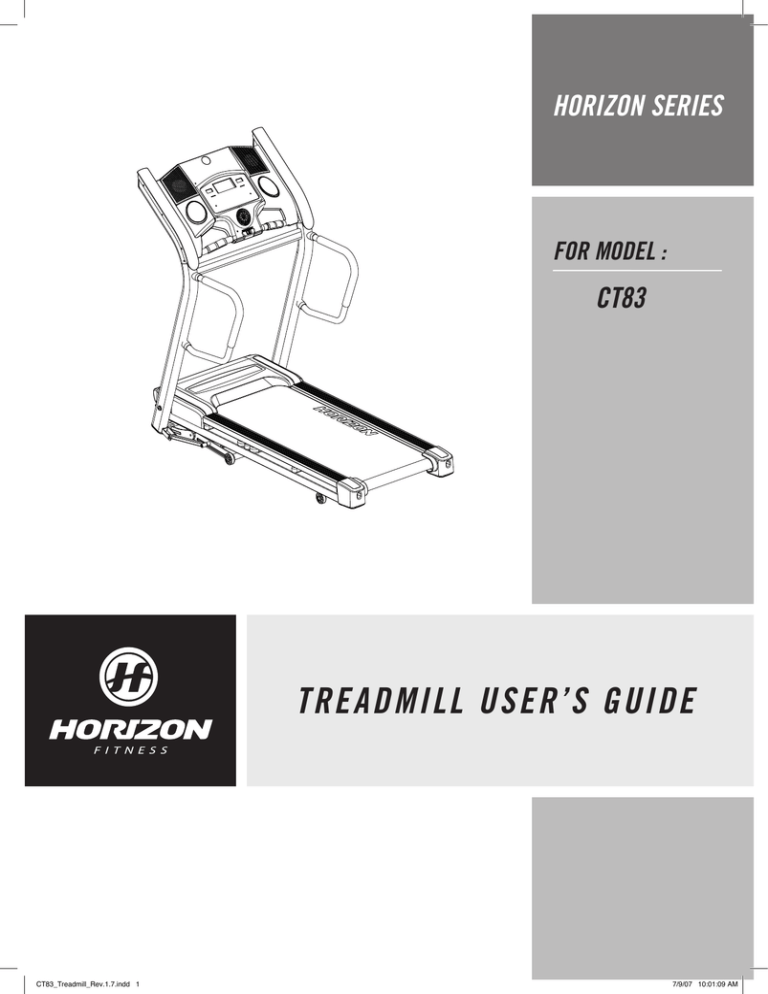

Horizon Fitness CT83 Treadmill User Manual

Horizon Fitness CT83 Treadmill User Manual
HORIZON SERIES
FOR MODEL :
CT83
TREADMILL USER’S GUIDE
CT83_Treadmill_Rev.1.7.indd 1
7/9/07 10:01:09 AM
INTRODUCTION
INTRODUCTION
IMPORTANT
PRECAUTIONS
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Series treadmill!
ASSEMBLY
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Series treadmill
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
BEFORE
YOU BEGIN
The Horizon Series delivers.
Assembly
6
Before You Begin
14
Treadmill Operation
17
Conditioning Guidelines
27
Troubleshooting & Maintenance
32
Limited Warranty
35
Back Panel
CT83_Treadmill_Rev.1.7.indd 2-3
LIMITED
WARRANTY
CONTACT INFORMATION
CONDITIONING
GUIDELINES
4
TROUBLESHOOTING
& MAINTENANCE
Important Precautions
TREADMILL
OPERATION
TABLE OF CONTENTS
7/9/07 10:01:10 AM
INTRODUCTION
INTRODUCTION
I M P O R TA N T PRECAUTIONS
TREADMILL
OPERATION
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
This product is for use on a nominal 110-volt circuit
and has a grounding plug that looks like the illustration
to the right. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD
ASSEMBLY
BEFORE
YOU BEGIN
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
TREADMILL
OPERATION
BEFORE
YOU BEGIN
GROUNDING INSTRUCTIONS
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
CONDITIONING
GUIDELINES
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmill should not be used by persons weighing more than 325 pounds. Failure to comply will void
the warranty.
• The treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
• Do not use the treadmill in any location that is not temperature controlled, such as but not limited to
garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
other safety tips for your treadmill
WARNING
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
TROUBLESHOOTING
& MAINTENANCE
ASSEMBLY
WARNING
WARNING To reduce the risk of burns, fire, electrical shock or injury to persons:
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
LIMITED
WARRANTY
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
CT83_Treadmill_Rev.1.7.indd 4-5
LIMITED
WARRANTY
IMPORTANT
PRECAUTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
IMPORTANT
PRECAUTIONS
SAVE THESE INSTRUCTIONS
7/9/07 10:01:11 AM
IMPORTANT
PRECAUTIONS
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
INTRODUCTION
CONSOLE
READING RACK
MP3-IN JACK
SPEAKERS
TOUCH PAD PANEL
CONSOLE MAST COVER
WATER BOTTLE HOLDER
IMPORTANT
PRECAUTIONS
INTRODUCTION
A S S E M B LY
GRIP PULSE HANDRAILS
FAN
HEADPHONE JACK
ON/OFF SWITCH
ASSEMBLY
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
CONSOLE MAST
CIRCUIT BREAKER
HANDLEBARS
ASSEMBLY
WARNING
SAFETY KEY PLACEMENT
MOTOR COVER
POWER CORD
FOOT LOCK LATCH
RUNNING BELT / RUNNING DECK
TROUBLESHOOTING
& MAINTENANCE
enter your serial number and
model name in the boxes below:
SERIAL NUMBER:
REAR ROLLER
ADJUSTMENT BOLTS
TREADMILL
OPERATION
TOOLS INCLUDED
Screwdriver
4mm L-wrench
17mm Flat Wrench
5 mm T-wrench
6 mm T-wrench
10 mm L-wrench
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
ROLLER END CAP
AIR CELL
PARTS INCLUDED
1 Safety Key
1 Console Assembly (located under treadmill deck)
2 Console Mast Covers
1 Power Cord
6 Hardware Bags
2 Handlebars
2 Console Masts
1 Bottle of Silicone Lubricant
1 Support Bar
1 Audio Adaptor Cable
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
TRANSPORT WHEEL
MODEL NAME:
LIMITED
WARRANTY
* Refer to the serial number and model name when calling for service.
* Also enter this serial number on your Warranty Card.
CT83_Treadmill_Rev.1.7.indd 6-7
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
LIMITED
WARRANTY
BEFORE
YOU BEGIN
UNPACKING
BEFORE
YOU BEGIN
SIDE RAIL
7/9/07 10:01:16 AM
INTRODUCTION
ASSEMBLY STEP 2
HARDWARE BAG 2 CONTENTS :
Note: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
HARDWARE BAG 1 CONTENTS :
WAVY WASHER (F)
29 mm
Qty: 1
LEAD WIRES
ASSEMBLY
ASSEMBLY
A S S E M B LY S T E P 1
BOLT (D)
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
RIGHT CONSOLE MAST
BEFORE
YOU BEGIN
BOLT (A)
15 mm
Qty: 1
FLAT WASHER (B)
20 mm
Qty: 1
BOLT (D)
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
MAIN FRAME
TEFLON WASHER (C)
18 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
WAVY WASHER (F)
FLAT WASHER (E)
RIGHT CONSOLE MAST
CONSOLE CABLES
BEFORE
YOU BEGIN
IMPORTANT
PRECAUTIONS
from packaging until specified to do so in the assembly instructions. Failure to do
so may result in injury! Remove plastic wrap from console masts.
IMPORTANT
PRECAUTIONS
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
WARNING
BOLT (D)
RIGHT LINKAGE ARM
MAIN FRAME
LEFT CONSOLE MAST
ELEVATION FRAME CONSOLE CABLES
FOOT LOCK LATCH
PRE-ATTACHED BOLT
LEFT LINKAGE ARM
CONDITIONING
GUIDELINES
BOLT (A)
B. Open HARDWARE BAG 2.
FLAT WASHER (B)
TEFLON WASHER (C)
ELEVATION FRAME
TROUBLESHOOTING
& MAINTENANCE
A Open HARDWARE BAG 1.
B Cut banding straps. Do not move or lift treadmill from packaging.
C Move left linkage arm into position. Insert bolt (A) and FLAT WASHER (B) into left
linkage arm followed by a TEFLON washer (C) and attach to elevation frame.
LIMITED
WARRANTY
D Lift left console mast into upright position. Be sure to hold the console mast firmly, as
it will not stay in the upright position on its own.
CT83_Treadmill_Rev.1.7.indd 8-9
E Insert bolt (D) and 1 FLAT washer (E) through left console mast followed by a
WAVY washer (F) and attach to MAIN FRAME.
C. Move right linkage arm into position and attach to
ELEVATION FRAME.
Note: While holding RIGHT CONSOLE MAST in the
upright position, tighten PRE-ATTACHED BOLT using
T-wrench to attach RIGHT LINKAGE ARM.
D. Attach RIGHT CONSOLE MAST to MAIN FRAME using 1
BOLT (D), 1 FLAT WASHER (E) and 1 WAVY WASHER (F).
E. Lift the running deck until lock latch on side of
treadmill is fully engaged.
TREADMILL
OPERATION
A. Pull LEAD WIRE through RIGHT CONSOLE MAST. After
pulling the lead wire through the mast, the top of the
console cables should be located at the top of the
mast. Detach and discard lead wire.
BOLT (D)
* Note: If you have attempted to
move the treadmill from the box
and the machine has sprung
open and cannot be assembled,
refer to the troubleshooting
section in order to restore the
treadmill to its proper position.
CONDITIONING
GUIDELINES
FLAT WASHER (E)
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
WAVY WASHER (F)
1
3
2
F. Remove console from box and place out of the way.
G. Lower the treadmill running deck from the folded
position by stepping on LOCK LATCH on lower right side.
LIMITED
WARRANTY
INTRODUCTION
P R E - A S S E M B LY
7/9/07 10:01:25 AM
HARDWARE BAG 4 CONTENTS :
IMPORTANT
PRECAUTIONS
HARDWARE BAG 3 CONTENTS :
SPRING WASHER (H)
15 mm
Qty: 4
FLAT WASHER (I)
19 mm
Qty: 2
ARC WASHER (J)
17 mm
Qty: 2
BOLT (K)
15 mm
Qty: 4
ASSEMBLY
ASSEMBLY
BOLT (G)
15 mm
Qty: 4
INTRODUCTION
ASSEMBLY STEP 4
IMPORTANT
PRECAUTIONS
INTRODUCTION
A S S E M B LY S T E P 3
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
CONSOLE CABLES
CONSOLE
DO NOT ATTACH
THIS SIDE UNTIL STEP 3-D
CONSOLE MAST
SUPPORT BAR
TREADMILL
OPERATION
TREADMILL
OPERATION
ARC WASHER (J)
CONSOLE MAST
FLAT WASHER (I)
BOLT (K)
SPRING WASHER (H)
A. Open Hardware Bag 4.
B With running deck in lowered position, place console on the console masts. Align the
brackets that are underneath the console with the top holes of the console masts.
B. Align SUPPORT BAR with holes in CONSOLE MASTS.
TROUBLESHOOTING
& MAINTENANCE
C To assemble the CONSOLE to the LEFT CONSOLE MAST, insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 FLAT WASHER (I) into the side hole and insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 ARC WASHER (J) into the back hole in the left CONSOLE mast
and lightly tighten.
C. Insert BOLTS (K) into all 4 holes of the SUPPORT BAR.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
A Open HARDWARE BAG 3.
CONDITIONING
GUIDELINES
BOLT (G)
D. Tighten all console bolts (Step 3) and support bar bolts (Step 4) completely.
D Gently lift right side of the console to connect the console cableS. Carefully tuck
wires in mast to avoid damage. NOTE: Do not pinch console cable or grip pulse wires.
LIMITED
WARRANTY
F Leave console bolts loose until after step 4 is completed.
10
CT83_Treadmill_Rev.1.7.indd 10-11
11
LIMITED
WARRANTY
E Repeat step C above to assemble the right console mast to the console.
7/9/07 10:01:32 AM
INTRODUCTION
ASSEMBLY STEP 6
HARDWARE BAG 6 CONTENTS :
BOLT (L)
120 mm
Qty: 4
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
HARDWARE BAG 5 CONTENTS :
SCREW (M)
10 mm
Qty: 10
ARC WASHER (J)
17 mm
Qty: 4
ASSEMBLY
ASSEMBLY
INTRODUCTION
A S S E M B LY S T E P 5
SCREW (M)
BEFORE
YOU BEGIN
BOLT (L)
ARC WASHER (J)
BEFORE
YOU BEGIN
CONSOLE MAST COVER
CONSOLE MAST
CONSOLE MAST
A Open HARDWARE BAG 6.
B Attach LEFT HANDLEBAR to CONSOLE MAST using 2 BOLTS (L) and 2 ARC WASHERS (J).
NOTE: Look into holes before inserting bolt to prevent cables from
being damaged.
B Attach LEFT CONSOLE MAST COVER to CONSOLE MAST using 5 SCREWS (M).
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
A Open HARDWARE BAG 5.
C Repeat on other side.
C Repeat on other side.
CIRCUIT BREAKER
TROUBLESHOOTING
& MAINTENANCE
Connect power plug to the treadmill
and connect the cord to a power
outlet. The on/off switch is located
next to the power cord. Flip this
switch to the 'ON' position, so that
the switch is lit. You will hear a beep
and the console will turn on.
TROUBLESHOOTING
& MAINTENANCE
POWER SWITCH
LIMITED
WARRANTY
YOU’RE FINISHED!
12
CT83_Treadmill_Rev.1.7.indd 12-13
13
LIMITED
WARRANTY
TREADMILL
OPERATION
TREADMILL
OPERATION
HANDLEBARS
7/9/07 10:01:40 AM
BEFORE
YOU BEGIN
INTRODUCTION
LOCATION OF THE TREADMILL
TREADMILL
OPERATION
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
WARNING
FOLDING
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground.
3 feet
WARNING
CONDITIONING
GUIDELINES
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
6 feet
TROUBLESHOOTING
& MAINTENANCE
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
LIMITED
WARRANTY
WARNING
14
CT83_Treadmill_Rev.1.7.indd 14-15
IMPORTANT
PRECAUTIONS
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
1 foot
3 feet
ASSEMBLY
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
BEFORE
YOU BEGIN
ASSEMBLY
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
TREADMILL
OPERATION
Here are just a few of the health benefits of exercise:
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 34 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
CONDITIONING
GUIDELINES
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
PROPER USAGE
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
MOVING
Your treadmill has a pair of transport wheels
built into the frame. To move, make sure the
treadmill is folded and securely latched. Then firmly
grasp the handlebars, tilt the treadmill back and
roll. NOTE: Do not attempt to disassemble and
transport treadmill.
WARNING
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
15
LIMITED
WARRANTY
INTRODUCTION
B E F O R E Y O U BEGIN
7/9/07 10:01:45 AM
INTRODUCTION
INTRODUCTION
TREADMILL OPERATION
T
R
L
Q
A
E
M
T
IMPORTANT
PRECAUTIONS
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
INCLINE
2
GOLF
9-HOLE
3
GOLF
18-HOLE
4
1
WEIGHT
LOSS
5
2
WEIGHT
LOSS
FOOTHILLS
6
7
ROLLING
HILLS
MOUNTAIN
CLIMB
8
9
PACER
10
5K
CUSTOM
10K
11
12
SPEED
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 turn at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
LIMITED
WARRANTY
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 turn at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
H
C
O
S
D
U
N
B
F
I
K
G
BEFORE
YOU BEGIN
J
HOLD TO RESET
P
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) Monitor Display: Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles.
B) Stop: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
C) START/PAUSE: Simply press to begin exercising; press again to pause your workout.
D) ARROW KEYS: Used to scroll through programming options such as Program, Level , Time, Speed & Weight.
E) ENTER: Press to confirm the selected Program, Time, Level, Speed and Weight.
F) Quick adjust Incline / SPEED Keys: Used to reach desired Incline / Speed more quickly. Press after SET SPEED
or SET INCLINE confirm keys.
G) Quick program keys: Used to quickly select desired program.
H) Incline ARROW Keys: Used to adjust incline in small increments (0.5% increments).
I) Speed ARROW Keys: Used to adjust speed in small increments (0.1 mph increments).
J) SET INCLINE Key: Press to confirm one-touch incline selection. Press before QUICK ADJUST
INCLINE / SPEED key.
K) SET SPEED KEY: Press to confirm one-touch speed selection. Press before QUICK ADJUST
SPEED / INCLINE key.
L) iNCLINE lCd DISPLAY: Illuminate to indicate current incline.
M) SPEED lCd DISPLAY: Illuminate to indicate current speed.
N) Fan: Personal workout fan.
O) Fan Button: Turns fan on or off.
P) Water Bottle holder: Holds personal workout equipment.
Q) Reading Rack / CD / MP3 HOLDER: Holds reading materials and CD / MP3 Devices.
TREADMILL
OPERATION
TREADMILL
OPERATION
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
P
STOP
ENTER
PA U S E
CENTERING THE RUNNING BELT
CUSTOM
SET
SPEED
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN
CT83_Treadmill_Rev.1.7.indd 16-17
1
3
INTERVALS
S TA RT
If the running belt is too far to the left side:
16
2
INTERVALS
1
INTERVALS
INCLINE
If the running belt is too far to the right side:
Belt is too far to the left side
ASSEMBLY
P R O G R A M S
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
Belt is too far to the right side
WARNING!
Attach safety key clip to clothing before starting. To avoid injury, stand
on the side rails before starting treadmill. Read and follow all
instructions before operating. Keep children away from this equipment.
Remove safety key when not in use and store out of reach of children.
For consumer use only.
MANUAL
SET
INCLINE
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, turn the treadmill off
and tension both the rear roller bolts using the
supplied allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.
SPEED
CAUTION!
Consult a physician before using this
equipment. Stop exercising if you feel
pain, faint, dizzy or short of breath.
TROUBLESHOOTING
& MAINTENANCE
ASSEMBLY
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
17
LIMITED
WARRANTY
IMPORTANT
PRECAUTIONS
­TENSIONING THE RUNNING BELT
7/9/07 10:01:47 AM
IMPORTANT
PRECAUTIONS
S) AUDIO OUT / HEADPHONE JACK: Plug your headphones into this jack to listen to your music through the headphones. NOTE: When headphones are plugged into the headphone jack the sound will no longer come
out through the speakers.
T) SPEAKERS: Transmits sound from your CD / MP3 device.
U) Safety Key Position: Enables treadmill when safety key is inserted.
INTRODUCTION
GETTING STARTED / SELECTING A PROGRAM
1) Check to make sure nothing is on or will hinder the movement of the treadmill.
IMPORTANT
PRECAUTIONS
INTRODUCTION
R) AUDIO IN: Plug your CD / MP3 player into the console using the included audio adaptor cable.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing.
pulse • Shown as Beats Per Minute. Used to
BEFORE
YOU BEGIN
monitor your heart rate (displayed when contact is
made with both pulse grips.
distance • Shown as Miles. Indicates distance
traveled during your workout.
Calories • Total Calories burned during your workout.
TREADMILL
OPERATION
program profiles • Represents the profile of the program being used (speed during speed based
programs and incline during incline based programs).
ASSEMBLY
remaining or the time elapsed in your workout.
6) You have two options to start your workout:
A) quick start up
Simply press the start key to begin working out. OR...
B) SELECT A PROgram
BEFORE
YOU BEGIN
time • Shown as Minutes:Seconds. View the time
5) Insert the safety key into the safety keyhole in the console.
Select a Program using the QUICK PROGRAM key.
Once a program has been chosen, press enter.
C) SELECT A TIME
Select a Time using the arrow keys or use the default time.
Once a time has been chosen, press ENTER.
TREADMILL
OPERATION
ASSEMBLY
MO N I T O R D I S P L AY
D) SELECT A LEVEL
Select a program level using the arrow keys.
Once a program level has been chosen, press enter.
E) SELECT A WEIGHT
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
18
CT83_Treadmill_Rev.1.7.indd 18-19
CONDITIONING
GUIDELINES
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your
heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When
gripping the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure.
Keep a loose, cupping hold. You may experience an erratic readout if consistently holding the grip pulse
handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
finishing YOUR WORKOUT
When your workout is complete, the monitor display will flash and beep. Your workout information will
stay displayed on the console for 30 seconds and then reset.
TROUBLESHOOTING
& MAINTENANCE
PULSE GRIPS
Select a WEIGHT using the ARROW keys.
Once a WEIGHT has been chosen, press START.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the Stop button for 3 seconds.
19
LIMITED
WARRANTY
CONDITIONING
GUIDELINES
HE A R T R AT E
7/9/07 10:01:48 AM
INTRODUCTION
INTERVALS 3
Program Segments (speed and incline changes)
PMANUAL
ROGRAM: MANUAL
WEIGHT
PINTERVALS
R OLOSSG R A M : I N T E R VA L S 1 - 3
Level 2
Walk or run a ROLLING
series
of alternating speed levels. Time-based goal with 10 difficulty levels to choose from.
GOLF
COURSE
Level 3
(peak segments last 30 seconds, valley segments last 90 seconds)
CUSTOM 2
THR ZONE 2
THR ZONE 1
VALLEY
TREADMILL
OPERATION
THR ZONE 2
TOUR
VALLEY
2
Level 1
1.0
1.5
2.0
4.0
Level 2
1.0
1.5
2.0
4.5
Level 3
1.3
1.9
2.5
5.0
Level 4
1.3
1.9
2.5
5.5
Level 5
1.5
2.3
3.0
6.0
Level 6
1.5
2.3
3.0
6.5
Level 7
1.8
2.6
3.5
7.0
Level 8
1.8
2.6
3.5
7.5
Level 9
2.0
3.0
4.0
8.0
Level 10
2.0
3.0
4.0
8.5
Level 6
COOL DOWN
1.5
1.0
1.5
1.0
1.9
1.3
1.9
1.3
2.3
1.5
2.3
1.5
2.6
1.8
2.6
1.8
3.0
2.0
3.0
2.0
(warm-up and cool-down last 4:00 minutes each and are included in program times)
Level 7
Level 8
MANUAL
Level 9
INTERVALS
WEIGHT LOSS
PROGRAM:
WEIGHT LOSS 1 & 2
Challenges with various combinations of hills and valleys (incline & SPEED levels). Time-based goal with 12
GOLF COURSE
difficulty levels to choose from.
RACE
(peak segments last 30 seconds and valley segments last 60 seconds)
2:00
WARM-UP
2:00
1
2
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
Level 1
1.0
1.5
2.0
4.0
Level 2
1.0
1.5
2.0
4.5
Level 3
1.3
1.9
2.5
5.0
Level 4
1.3
1.9
2.5
5.5
Level 5
1.5
2.3
3.0
6.0
Level 6
1.5
2.3
3.0
6.5
Level 7
1.8
2.6
3.5
7.0
Level 8
1.8
2.6
3.5
7.5
Level 9
2.0
3.0
4.0
8.0
Level 10
2.0
3.0
4.0
8.5
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
2:00
1.5
1.0
1.5
1.0
1.9
1.3
1.9
1.3
2.3
1.5
2.3
1.5
2.6
1.8
2.6
1.8
3.0
2.0
3.0
2.0
(warm-up and cool-down last 4:00 minutes each and are included in program times)
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
Level 8
Level 9
Level 10
LIMITED
WARRANTY
LEVEL 11
LEVEL 12
20
CT83_Treadmill_Rev.1.7.indd 20-21
WEIGHT LOSS 1 Program Segments (all segments last 30 seconds)
WARM-UP
2:00
COOL DOWN
(warm-up and cool-down last 4:00 minutes each and are included in program times)
ROLLING
INTERVALS 2 Program Segments (Speed changes)
TOUR
Level 10
TREADMILL
OPERATION
THR ZONE 1
1
2:00
Elevation
CUSTOM 1 0.0
Speed
1.0
Elevation
0.0
Speed
CUSTOM 2 1.3
Elevation
0.5
Speed
1.5
Elevation
0.5
THR ZONE 1
Speed
1.8
Elevation
1.0
Speed
2.0
THR ZONE 2
Elevation
1.0
Speed
2.3
Elevation
VALLEY 1.5
Speed
2.5
Elevation
1.5
Speed
2.8
TOUR
Elevation
2.0
Speed
3.0
Elevation
2.0
Speed
3.3
Elevation
2..5
Speed
4.0
Elevation
3.0
Speed
5.0
1
2
3
4
5
6
7
8
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
1.5
2.0
2.5
3.0
3.5
4.0
3.5
3.0
2.5
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
1.9
2.5
3.0
3.5
4.0
4.5
4.0
3.5
3.0
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
2.3
3.0
3.5
4.0
4.5
5.0
4.5
4.0
3.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
2.6
3.5
4.0
4.5
5.0
5.5
5.0
4.5
4.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
3.0
4.0
4.5
5.0
5.5
6.0
5.5
5.0
4.5
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
3.4
4.5
5.0
5.5
6.0
6.5
6.0
5.5
5.0
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
3.8
5.0
5.5
6.0
6.5
7.0
6.5
6.0
5.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
4.1
5.5
6.0
6.5
7.0
7.5
7.0
6.5
6.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
4.5
6.0
6.5
7.0
7.5
8.0
7.5
7.0
6.5
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
4.9
6.5
7.0
7.5
8.0
8.5
8.0
7.5
7.0
3.0
4.0
4.0
4.0
3.5
3.5
3.5
4.0
4.5
5.0
7.0
7.5
8.0
8.5
8.0
7.5
7.0
6.5
3.5
4.0
4.0
5.0
4.5
4.5
4.5
5.0
5.5
6.0
7.5
8.0
8.0
8.5
9.0
8.0
8.0
7.0
(warm-up and cool-down last 4:00 minutes each and are included in program times)
COOL-DOWN
0.5
2.3
0.5
2.6
1.0
3.0
1.0
3.4
1.5
3.8
1.5
4.1
2.0
4.5
2.0
4.9
2.5
5.3
2.5
5.6
3.0
5.0
3.5
5.0
0.0
1.5
0.0
1.8
0.5
2.0
0.5
2.3
1.0
2.5
1.0
2.8
1.5
3.0
1.5
3.3
2.0
3.5
2.0
3.8
2.5
4.0
3.0
5.0
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN
CUSTOM 1
WARM-UP
2:00
TROUBLESHOOTING
& MAINTENANCE
RACE
CUSTOM 2
2:00
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
2:00
GOLF COURSE
CUSTOM 1
Level 5
2:00
COOL DOWN
1.5
1.0
1.5
0.0
1.5
1.0
2.5
1.5
1.9
1.3
3.0
2.0
1.9
1.3
3.0
2.0
2.3
1.5
3.5
2.5
2.3
1.5
3.5
2.5
2.6
1.8
4.0
3.0
2.6
1.8
4.0
3.0
3.0
2.0
5.0
3.0
3.0
2.0
5.0
3.0
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
ASSEMBLY
Level 4
INTERVALS 1 Program Segments
WEIGHT
RACE LOSS
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
SPEED
INCLINE
2
4.0
1.5
4.5
6.5
5.0
7.5
5.5
8.5
6.0
9.0
6.5
10.0
7.0
10.5
7.5
11.5
8.0
12.0
8.5
12.0
ASSEMBLY
Level 1
2:00
1
2.0
0.5
2.0
3.0
2.5
4.0
2.5
4.0
3.0
4.5
3.0
4.5
3.5
5.5
3.5
5.5
4.0
6.0
4.0
6.0
BEFORE
YOU BEGIN
ROLLING
MANUAL
2:00
WARM-UP
1.0
1.5
1.0
1.5
1.0
1.5
1.5
2.5
1.3
1.9
2.0
3.0
1.3
1.9
2.0
3.0
1.5
2.3
2.5
3.5
1.5
2.3
2.5
3.5
1.8
2.6
2.5
4.0
1.8
2.6
3.0
4.0
2.0
3.0
3.0
4.5
2.0
3.0
3.0
4.5
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
IMPORTANT
PRECAUTIONS
2:00
IMPORTANT
PRECAUTIONS
(peak segments last 30 seconds and valley segments last 90 seconds)
Allows ‘On TheINTERVALS
Fly’ manual speed and incline changes. Time-based goal.
21
LIMITED
WARRANTY
INTRODUCTION
P R O G R A M I N F O R M AT I O N
7/9/07 10:01:50 AM
WEIGHT LOSS
WEIGHT LOSS 2 Program Segments - Non-repeating segments. Divides workout time by number of segments.
ASSEMBLY
Level 6
Level 7
Level 8
Level 9
BEFORE
YOU BEGIN
Level 10
Level 11
Level 12
7
8
Elevation
0.0
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
0.5
0.0
Speed
1.0
1.5
2.0
2.5
3.0
3.5
4.0
3.5
3.0
2.5
2.3
1.5
Elevation
0.0
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
0.5
0.0
Speed
1.3
1.9
2.5
3.0
3.5
4.0
4.5
4.0
3.5
3.0
2.6
1.8
Elevation
0.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
Speed
1.5
2.3
3.0
3.5
4.0
4.5
5.0
4.5
4.0
3.5
3.0
2.0
Elevation
0.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
Speed
1.8
2.6
3.5
4.0
4.5
5.0
5.5
5.0
4.5
4.0
3.4
2.3
Elevation
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
1.5
1.0
Speed
2.0
3.0
4.0
4.5
5.0
5.5
6.0
5.5
5.0
4.5
3.8
2.5
Elevation
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
1.5
1.0
Speed
2.3
3.4
4.5
5.0
5.5
6.0
6.5
6.0
5.5
5.0
4.1
2.8
Elevation
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
2.0
1.5
Speed
2.5
3.8
5.0
5.5
6.0
6.5
7.0
6.5
6.0
5.5
4.5
3.0
Elevation
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
2.0
1.5
Speed
2.8
4.1
5.5
6.0
6.5
7.0
7.5
7.0
6.5
6.0
4.9
3.3
Elevation
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
Speed
3.0
4.5
6.0
6.5
7.0
7.5
8.0
7.5
7.0
6.5
5.3
3.5
Elevation
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
Speed
3.3
4.9
6.5
7.0
7.5
8.0
8.5
8.5
7.5
7.0
5.6
3.8
Elevation
2.5
3.0
4.0
4.0
4.0
3.5
3.5
3.5
4.0
4.5
3.0
2.5
Speed
4.0
5.0
7.0
7.5
8.0
8.5
8.0
7.5
7.0
6.5
5.0
4.0
Elevation
3.0
3.5
4.0
4.0
5.0
4.5
4.5
4.5
5.0
5.5
3.5
3.0
Speed
5.0
6.0
7.5
8.0
8.0
8.5
9.0
8.0
8.0
7.0
5.0
5.0
."/6"-
TREADMILL
OPERATION
*/5&37"-4
P)*--4R O G R A M : F O O T H I L L S
Motivates with
different combinations of Elevation. Time-based goal with 10 difficulty levels to choose from.
8&*()5-044
CONDITIONING
GUIDELINES
FOOTHILLS Program Segments
(Segments last 30 seconds, segments 1-15 are repeated until selected time is reached)
45&14
TROUBLESHOOTING
& MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Level 1
1.0
3.0
1.0
3.0
2.0
3.0
2.0
3.5
2.0
3.0
2.0
3.0
1.0
3.0
1.0
0.5
0.0
0.5
0.0
Level 2
0.0
1.0
3.0
2.0
3.0
2.0
3.0
2.5
3.5
2.5
3.0
2.0
3.0
2.0
3.0
1.0
0.5
0.0
0.5
0.0
Level 3
0.5 0.0 0.5
45&14
0.5 1.0 0.5 1.0
1.5
3.5
1.5
3.5
2.5
3.5
2.5
4.0
2.5
3.5
2.5
3.5
1.5
3.5
1.5
1.0
0.5
1.0
0.5
Level 4
0.5
1.0
1.5
3.5
2.5
3.5
2.5
3.5
3.0
4.0
3.0
3.5
2.5
3.5
2.5
3.5
1.5
1.0
0.5
1.0
0.5
Level 5
2.0
4.0
2.0
4.0
3.0
4.0
3.0
4.5
3.0
4.0
3.0
4.0
2.0
4.0
2.0
1.5
1.0
1.5
1.0
Level 6
1.0 45&14
1.5 1.0 1.5
1.0 1.5 1.0 1.5
2.0
4.0
3.0
4.0
3.0
4.0
3.5
4.5
3.5
4.0
3.0
4.0
3.0
4.0
2.0
1.5
1.0
1.5
1.0
Level 7
1.5
2.0
1.5
2.0
2.5
4.5
2.5
4.5
3.5
4.5
3.5
5.0
3.5
4.5
3.5
4.5
2.5
4.5
2.5
2.0
1.5
2.0
1.5
Level 8
1.5
2.0
1.5
2.0
2.5
4.5
3.5
4.5
3.5
4.5
4.0
5.0
4.0
4.5
3.5
4.5
3.5
4.5
2.5
2.0
1.5
2.0
1.5
Level 9
2.0
2.5
2.0
2.5
3.0
5.0
3.0
5.0
4.0
5.0
4.0
5.5
4.0
5.0
4.0
5.0
3.0
5.0
3.0
2.5
2.0
2.5
2.0
Level 10
2.0
2.5
2.0
2.5
3.0
5.0
4.0
5.0
4.0
5.0
4.5
5.5
4.5
5.0
4.0
5.0
4.0
5.0
3.0
2.5
2.0
2.5
2.0
0.5
CUSTOM 1
GOLF COURSE 9 HOLE Program Segments
HOLE
NUMBER:
Red tee
9 holes
White tee
9 holes
1
CUSTOM 2
Elevation 0.0
2
3
4
5
6
7
8
9
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance 309 359
THR ZONE
Elevation
0.0 1 1.0
MANUAL
Distance 331 427
283
256
113
387
91
351
333
2.0
3.0
2.5
1.0
2.0
2.5
1.5
330
295
129
466
97
369
431
Blue tee
9 holes
Elevation
0.0 2 1.0
THR
ZONE
INTERVALS
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance
345
460
337
308
142
484
97
389
441
Black tee
9 holes
Elevation
0.0
ROLLING
VALLEY
Distance 376
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
502
374
327
187
500
106
416
462
WEIGHT LOSS
TOUR
10
11
12
13
14
15
16
17
18
TOTAL
DISTANCE
2482
2875
3003
3250
Distance = Yards
GOLF COURSE
PROGRAM:
GOLF COURSE - 18 HOLE
Simulates various
RACE inclines and yardages for holes on a golf course, with 4 tee-off boxes and 18 holes to choose from.
Distance-based goal.
CUSTOM 1
HOLE
NUMBER:
GOLF COURSE 18 HOLE Program Segments
1
CUSTOM 2
Elevation 0.0
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
Distance
359
283
256
113
387
91
351
333
301
301
165
288
434
312
310
150
455
White tee
18 holes
THR ZONE
Elevation
0.0 1 1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
Distance
427
330
295
129
466
97
369
431
407
339
179
368
548
349
376
166
509
Blue tee
18 holes
Elevation
0.0 2 1.0
THR ZONE
Distance 345 460
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
337
308
142
484
97
389
441
413
349
187
376
560
373
383
172
532
Black tee
18 holes
Elevation 0.0
VALLEY
Distance 376
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
502
374
327
187
500
106
416
462
430
373
201
393
572
396
401
178
543
TOUR
WARM UP 45&14
0.0 0.5 0.0 0.5
1.0
Simulates various
RACE inclines and yardages for holes on a golf course, with 4 tee-off boxes and 9 holes to choose from.
Distance-based goal.
Red tee
18 holes
(warm-up and cool-down last 4:00 minutes each and are included in program times)
LEVEL
GOLF COURSE
PROGRAM:
GOLF COURSE - 9 HOLE
COOL-DOWN
IMPORTANT
PRECAUTIONS
6
ASSEMBLY
Level 5
5
BEFORE
YOU BEGIN
Level 4
4
309
331
TOTAL
DISTANCE
5198
TREADMILL
OPERATION
IMPORTANT
PRECAUTIONS
Level 3
3
6116
6348
6737
CONDITIONING
GUIDELINES
Level 2
2
SEGMENTS ARE NOT REPEATED
Level 1
1
Distance = Yards
COOL DOWN
TROUBLESHOOTING
& MAINTENANCE
WARM-UP
LIMITED
WARRANTY
(warm-up and cool-down last 4:00 minutes each)
22
CT83_Treadmill_Rev.1.7.indd 22-23
23
LIMITED
WARRANTY
INTRODUCTION
INTRODUCTION
ROLLING
7/9/07 10:01:52 AM
8&*()5-044
45&14
INTERVALS
ROLLING
PROLLING
ROGRAM: ROLLING HILLS
WEIGHT LOSS
45&14
PROGRAM:
5 k & 10k
GOLF COURSE
RACE
(Segments
ROLLING HILLS Program Segments
last 30 seconds, segments 1-8 are repeated until selected time is reached)
2:00
RACE
2:00
WARM UP CUSTOM 1
2:00
1
2
3
4
5
6
7
8
Segments equal 0.16 km
2:00
COOL DOWN
Warm Up
Level 1
1.0
1.5
2.0
2.5
3.0
3.5
4.0
3.5
3.0
2.5
2.3
1.5
Level
Level 2
CUSTOM 2 Level 3
1.3
1.9
2.5
3.0
3.5
4.0
4.5
4.0
3.5
3.0
2.6
1.8
1
0.0
1.5
2.3
3.0
3.5
4.0
4.5
5.0
4.5
4.0
3.5
3.0
2.0
Level 4
1.8
2.6
3.5
4.0
4.5
5.0
5.5
5.0
4.5
4.0
3.4
2.3
2
Level 5
2.0
3.0
4.0
4.5
5.0
5.5
6.0
5.5
5.0
4.5
3.8
2.5
Level 6
2.3
3.4
4.5
5.0
5.5
6.0
6.5
6.0
5.5
5.0
4.1
2.8
THR ZONE 1 Level 7
THR ZONE 2
Level 8
2.5
3.8
5.0
5.5
6.0
6.5
7.0
6.5
6.0
5.5
4.5
2.8
4.1
5.5
6.0
6.5
7.0
7.5
7.0
6.5
6.0
THR ZONE 2 Level 9
CUSTOM 1
ASSEMBLY
CUSTOM 2
THR ZONE 1
BEFORE
YOU BEGIN
VALLEY
TOUR
Cool Down
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0.5
1.0
3.0
1.0
3.0
2.0
3.0
2.0
3.5
2.0
3.0
2.0
3.0
1.0
3.0
1.0
0.5
0.0
0.0
0.5
1.0
3.0
2.0
3.0
2.0
3.0
2.5
3.5
2.5
3.0
2.0
3.0
2.0
3.0
1.0
0.5
0.0
3
0.5
1.0
1.5
3.5
1.5
3.5
2.5
3.5
2.5
4.0
2.5
3.5
2.5
3.5
1.5
3.5
1.5
1.0
0.5
4
0.5
1.0
1.5
3.5
2.5
3.5
2.5
3.5
3.0
4.0
3.0
3.5
2.5
3.5
2.5
3.5
1.5
1.0
0.5
3.0
5
1.0
1.5
2.0
4.0
2.0
4.0
3.0
4.0
3.0
4.5
3.0
4.0
3.0
4.0
2.0
4.0
2.0
1.5
1.0
4.9
3.3
6
1.0
1.5
2.0
4.0
3.0
4.0
3.0
4.0
3.5
4.5
3.5
4.0
3.0
4.0
3.0
4.0
2.0
1.5
1.0
7
1.5
2.0
2.5
4.5
2.5
4.5
3.5
4.5
3.5
5.0
3.5
4.5
3.5
4.5
2.5
4.5
2.5
2.0
1.5
8
1.5
2.0
2.5
4.5
3.5
4.5
3.5
4.5
4.0
5.0
4.0
4.5
3.5
4.5
3.5
4.5
2.5
2.0
1.5
9
2.0
2.5
3.0
5.0
3.0
5.0
4.0
5.0
4.0
5.5
4.0
5.0
4.0
5.0
3.0
5.0
3.0
2.5
2.0
10
2.0
2.5
3.0
5.0
4.0
5.0
4.0
5.0
4.5
5.5
4.5
5.0
4.0
5.0
4.0
5.0
3.0
2.5
2.0
3.0
4.5
6.0
6.5
7.0
7.5
8.0
7.5
7.0
6.5
5.3
3.5
3.3
4.9
6.5
7.0
7.5
8.0
8.5
8.0
7.5
7.0
5.6
3.8
Level 11
3.0
4.5
7.0
7.5
8.0
8.5
9.0
8.5
8.0
7.5
5.3
3.5
Level 12
3.3
4.9
7.5
8.0
8.5
9.0
9.5
9.0
8.5
8.0
5.6
3.8
TOUR
PEAK
INTERVALS
Segments 1-15 repeated until selected distance is reached.
1
Level 10
IMPORTANT
PRECAUTIONS
Walk a series
of alternating INCLINE levels. Distance based goal with 10 difficulty levels to choose from.
45&14
Distance shown as Kilometers.
GOLF COURSE
ASSEMBLY
IMPORTANT
PRECAUTIONS
Motivates with
different
WEIGHT
LOSS combinations of SPEED. Time-based goal with 12 difficulty levels to choose from.
VALLEY
INTRODUCTION
45&14
MANUAL
INTERVALS
BEFORE
YOU BEGIN
INTRODUCTION
MANUAL
(warm-up and cool-down last 4:00 minutes each)
TREADMILL
OPERATION
TREADMILL
OPERATION
CLIMB
PMOUNTAIN
R O G R A M : M O U N TA I N C L I M B
Simulates climbing a mountain by automatically varying incline. 12 difficulty levels to choose from.
MOUNTAIN CLIMB Program Segments
(Segments last 30 seconds, segments 1-10 are repeated until selected time is reached)
1
2
3
4
5
6
7
8
9
10
COOL-DOWN
Incline
TROUBLESHOOTING
& MAINTENANCE
0.0
0.0
1.0
1.5
2.0
2.5
3.0
3.0
2.5
2.0
1.5
1.0
0.0
0.0
0.0
0.0
1.5
2.0
2.5
3.0
3.5
3.5
3.0
2.5
2.0
1.5
0.0
0.0
0.0 MANUAL
1.0
0.0
1.5
2.0
2.5
3.0
3.5
4.0
4.0
3.5
3.0
2.5
2.0
1.0
0.0
2.5
3.0
3.5
4.0
4.5
4.5
4.0
3.5
3.0
2.5
1.5
0.0
0.0
1.5
INTERVALS
0.0
1.5
3.0
3.5
4.0
4.5
5.0
5.0
4.5
4.0
3.5
3.0
1.5
0.0
0.0
3.5
4.0
4.5
5.0
5.5
5.5
5.0
4.5
4.0
3.5
1.5
0.0
1.5
0.0 ROLLING
2.0
4.0
4.5
5.0
5.5
6.0
6.0
5.5
5.0
4.5
4.0
1.5
0.0
4.5
5.0
5.5
6.0
6.5
6.5
6.0
5.5
5.0
4.5
2.0
0.0
0.0
2.0
0.0 WEIGHT2.0LOSS
5.0
5.5
6.0
6.5
7.0
7.0
6.5
6.0
5.5
5.0
2.0
0.0
5.5
6.0
6.5
7.0
7.5
7.5
7.0
6.5
6.0
5.5
2.0
0.0
1.0
2.0
1.0 GOLF COURSE
2.0
6.0
6.5
7.0
7.5
8.0
9.0
7.5
7.0
6.5
6.0
2.0
1.0
6.5
7.0
7.5
8.0
8.5
9.5
8.0
7.5
7.0
6.5
2.0
1.0
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
1
2
3
4
5
6
7
8
9
10
11
12
WARM -UP TROUBLESHOOTING
& MAINTENANCE
Level
LIMITED
WARRANTY
Trains you to run
at 1a steady “race pace” Enter in the distance plus the time limit, and the program calculates
CUSTOM
a steady pace.
24
CUSTOM 2
25
LIMITED
WARRANTY
PRACE
ROGRAM: PACER
THR ZONE 1
CT83_Treadmill_Rev.1.7.indd 24-25
7/9/07 10:01:54 AM
RACE
INTRODUCTION
CUSTOM 2
PROGRAM:
CUSTOM 1 & 2
CONDITIONING GUIDELINES
Always consult your physician before beginning an exercise program.
VALLEY
HOW OFTEN? (Frequency of Workouts)
ASSEMBLY
press enter. Note: You will need to press enter after each segment.
A) The STOP key will take you back to the previous segment.
4. Choose the desired incline for all 15 segments using the arrow keys and
press enter. Note: You will need to press enter after each segment.
BEFORE
YOU BEGIN
A) The STOP key will take you back to the previous segment.
5.Choose the Weight, using the ARROW KEYS and press ENTER.
6. Press Start to begin your program. At this time, your program has been
successfully saved into memory, and can be used for future workouts.
TREADMILL
OPERATION
A) To reset your program information and delete it from memory, press and
hold the enter key for 5 seconds (after you have selected the
CUSTOM 1 or 2 program).
B) While using your saved program, you are able to adjust the speed or
CONDITIONING
GUIDELINES
incline, but any changes will not be saved.
ASSEMBLY
3. Choose the desired speed for all 15 segments using the arrow keys and
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
BEFORE
YOU BEGIN
press
enter.
TOUR
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you
will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term
goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be
beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate using
the grip pulse handlebars and the second is by evaluating your perceived exertion level (this is simpler than it
sounds!).
TREADMILL
OPERATION
2. Choose the desired time using the program SETTING keys and
CONDITIONING
GUIDELINES
IMPORTANT
PRECAUTIONS
THR ZONE 2
1. Once the CUSTOM 1 or 2 program has been chosen, press enter.
IMPORTANT
PRECAUTIONS
Lets you create
a perfect workout for you with specific speed, incline and time combination.
THRand
ZONE reuse
1
The ultimate in personal programming. Time-based goal.
PERCEIVED EXERTION LEVEL
LIMITED
WARRANTY
26
CT83_Treadmill_Rev.1.7.indd 26-27
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
27
LIMITED
WARRANTY
INTRODUCTION
CUSTOM 1
7/9/07 10:01:54 AM
INTRODUCTION
TA R G E T H E A R T R AT E Z O N E C H A R T
STRETCHING
0%
%
1. STANDING CALF MUSCLE STRETCH
15
12
0
0
TREADMILL
OPERATION
AGE
14
6
14
Stand near a wall with the toes of your left foot about 18" from the wall, and
the right foot about 12" behind the other foot. Lean forward, pushing against
the wall with your palms. Keep your heels flat and hold this position for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Repeat on the other side.
3
T A 139 1
35
R
11
7
G E 131
11
4
T
11
1
10
8
12
8
12
4
12
Z
0
O
10
5
NE
10
2
9
9
20
25
30
35
40
45
50
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
60
%
55
97
60
11
6
93
65
CONDITIONING
GUIDELINES
Example:
TROUBLESHOOTING
& MAINTENANCE
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Heart Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
2. STANDING QUADRICEPS STRETCH
TREADMILL
OPERATION
75
Using a wall to provide balance, grasp your left ankle
with your left hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your right
ankle and hand.
CONDITIONING
GUIDELINES
10
BEATS PER MINUTE
ASSEMBLY
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
IMPORTANT
PRECAUTIONS
What is Target Heart Rate Zone?
ASSEMBLY
Before using your product, it is best to take a few minutes doing a few gentle stretching exercises.
Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into
each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to
bounce while doing these stretches.
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching. Sit
upright again. Repeat one time.
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
STRETCH FIRST
Always consult your physician before beginning an exercise program.
LIMITED
WARRANTY
28
CT83_Treadmill_Rev.1.7.indd 28-29
29
LIMITED
WARRANTY
INTRODUCTION
TIPS
7/9/07 10:01:56 AM
INTRODUCTION
WEEK #
IMPORTANT
PRECAUTIONS
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a
slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
D AY
WEEKLY GOAL
D AT E
D I S TA N C E
CALORIES
TIME
COMMENTS
IMPORTANT
PRECAUTIONS
THE IMPORTANCE OF WARM UP & COOL DOWN
SUNDAY
MONDAY
TUESDAY
COOL DOWN
WEDNESDAY
WEEKLY TOTALS :
BEFORE
YOU BEGIN
TREADMILL
OPERATION
• Weight Loss - lower intensity, longer duration workouts
• Improve Body Shape and Tone - interval workouts, alternate between high and low intensities
• Increased Energy Level - more frequent daily workouts
• Improved Sports Performance - high intensity workouts
• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
CONDITIONING
GUIDELINES
If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing.
The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide
them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation
benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can
be used to record your progress. You can track Distance, Calories or Time.
TROUBLESHOOTING
& MAINTENANCE
KEEPING AN EXERCISE DIARY
WEEKLY GOAL
D AT E
D I S TA N C E
CALORIES
TIME
COMMENTS
BEFORE
YOU BEGIN
WEEK #
D AY
An important step in developing a long term fitness program is to determine your goals. Is your primary
goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule?
Knowing what your goals are will help you develop a more successful exercise program. Below are some
common exercise goals:
ASSEMBLY
SATURDAY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
TREADMILL
OPERATION
ACHIEVING YOUR FITNESS GOALS
FRIDAY
FRIDAY
SATURDAY
WEEKLY TOTALS :
CONDITIONING
GUIDELINES
TIPS
THURSDAY
MONTHLY LOG SHEET
MONTH
WEEK #
DISTANCE
MONTHLY GOAL
CALORIES
TIME
TROUBLESHOOTING
& MAINTENANCE
ASSEMBLY
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart
rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your
muscles.
To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are located
on the following pages, or you can print them off of your computer by going to:
www.horizonfitness.com/guides/weeklylog.pdf
www.horizonfitness.com/guides/monthlylog.pdf
LIMITED
WARRANTY
As your fitness improves, you can look back and see how far you’ve come!
MONTHLY TOTALS :
30
CT83_Treadmill_Rev.1.7.indd 30-31
31
LIMITED
WARRANTY
INTRODUCTION
TIPS
WEEKLY LOG SHEETS
7/9/07 10:01:57 AM
• Make sure the treadmill is plugged into a dedicated 20-amp circuit.
• Verify that you do not have the machine on an extension cord or surge protector.
• Confirm that the machine is not plugged into a GFCI-equipped outlet or on a circuit that has a GFCI‑equipped outlet on it.
WHEN SHOULD I BE WORRIED ABOUT A NOISE?
As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is
considered normal noise.
BEFORE
YOU BEGIN
TROUBLESHOOTING - TREADMILL
Your treadmill is designed to be reliable and easy to use. However, if you experience a problem, please reference the
troubleshooting guide listed below.
TREADMILL
OPERATION
L IF T
PROBLEM: If you have attempted to
move the treadmill from the box and
the machine has sprung open and
cannot be assembled.
SOLUTION: The air shocks have been engaged prematurely. To correct this, tilt the machine on its nose by lifting
CONDITIONING
GUIDELINES
the deck (light end) upwards. Fold down the deck so that it is horizontal. You may now proceed with the assembly.
PROBLEM: The console does not light up and/or the belt does not move.
SOLUTION: Verify the following:
TROUBLESHOOTING
& MAINTENANCE
Does the red light on the ON/OFF switch light up?
If yes:
• Double check that all connections are secure, especially the console cable. Unplug and reconnect the console
cable to verify.
• Make sure the console cable is not pinched or damaged in any way.
• Turn the power off, unplug the power cable and wait 60 seconds. Remove motor cover. Wait until all red LED
lights have gone off on the motor control board before proceeding. Next, verify that none of the wires connected
to the lower board are loose or disconnected.
If no:
• Verify that the outlet the machine is plugged into is functional. Double check that the breaker has not tripped,
it is on a dedicated 20-amp circuit, it is not on a GFCI-equipped outlet, and it is not plugged into a power
strip/surge protector or extension cord.
• The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.
• The power switch is turned to the ON position.
LIMITED
WARRANTY
CT83_Treadmill_Rev.1.7.indd 32-33
• Power on the treadmill and have the safety key in position on the
console. Press and hold the elevation “+” and speed “-” buttons for
approximately 5 seconds to enter the Engineering Mode. The console
will beep and “ENG0” appears in the display.
• Press the Speed “+” or “-” button until “ENG2” appears in the display.
• Press, “ENTER” to select. Press, “START” to begin. The treadmill
running belt will begin to move automatically and the auto-calibration
sequence will properly set and store the speed values.
• Upon successful calibration, the treadmill will beep several times. The
console will automatically exit Engineering Mode and return to the
start-up screen.
IMPORTANT
PRECAUTIONS
WARNING
ASSEMBLY
ASSEMBLY
All fitness products seem quieter in a large store showroom because there is generally more background noise
than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay
floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is
placed close to a wall, there will be more reflected noise.
PROBLEM: Operating speed appears inaccurate.
SOLUTION: Auto-calibrate the treadmill:
DO NOT stand on running belt while
calibrating – stand on the guide
rails. Treadmill will fluctuate between
low and high speeds for several
minutes until calibration is complete.
BEFORE
YOU BEGIN
WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?
• Make sure the treadmill is on a level surface.
• Verify that the belt is properly tightened and centered (Refer to the Adjustment section for detailed directions).
TROUBLESHOOTING - HEART RATE
Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home
security systems or appliances containing large motors. These items may cause erratic heart rate readouts.
You may experience an erratic readout under the following conditions:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving
erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palm is especially thick.
TREADMILL
OPERATION
All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new
treadmills. This noise will diminish over time, although may not totally go away. Over time, the belt will
stretch, causing the belt to ride smoother over the rollers.
CONDITIONING
GUIDELINES
ARE THE SOUNDS MY TREADMILL MAKES NORMAL?
PROBLEM: The running belt does not stay centered during a workout.
SOLUTION: Verify the following:
If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.
PLEASE CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.
The following information may be asked of you when you call. Please have these items readily available:
• Model Name
• Serial Number
• Date of Purchase (receipt or credit card statement)
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
COMMON PRODUCT QUESTIONS
32
INTRODUCTION
T R O U B L E S HOOTING
In order for Customer Tech Support to service your treadmill they may need to ask detailed questions about the symptoms that are
occurring. Some troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding, squeaking,
chirping etc.)?
• Has the machine been lubricated and maintained per the maintenance schedule?
Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary
to get you and your Horizon Fitness treadmill running again!
33
LIMITED
WARRANTY
INTRODUCTION
PROBLEM: The treadmill circuit breaker trips during a workout.
SOLUTION: Verify the following:
7/9/07 10:01:58 AM
BEFORE
YOU BEGIN
TREADMILL
OPERATION
LUBRICATION
CONDITIONING
GUIDELINES
RUNNING BELT
TROUBLESHOOTING
& MAINTENANCE
• Turn off the treadmill with the on/off switch, then unplug the power
cord at the wall outlet.
RUNNING DECK
• Loosen both the rear roller bolts. (For best results, place two removable
marks on both sides of the frame and note roller position). Once the
belt is loosened, take the bottle of lubricant and apply it to the entire
top surface of the running deck. Tighten both rear roller bolts
(matching up the marks for proper position) to original position. After
you have applied lubricant, plug in the power cord, insert the safety
key, start the treadmill and walk on the belt for two minutes to spread
the lubricant.
• Lubricate the air shocks with Teflon based spray.
• Once lubrication is complete, reset the console by pressing and holding ‘STOP’ and Speed ‘+’ buttons for 5 seconds.
LIMITED
WARRANTY
34
CT83_Treadmill_Rev.1.7.indd 34-35
LABOR • 1 YEAR
Horizon Fitness shall cover the labor cost for the repair
of the device for a period of one year from the date of the
original purchase, so long as the device remains in the
possession of the original owner.
EXCLUSIONS AND LIMITATIONS
Who IS covered:
• The original owner and is not transferable.
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
ELECTRONICS & PARTS • 1 YEAR
Horizon Fitness warrants the electronic components, finish
and all original parts for a period of one year from the date
of original purchase, so long as the device remains in the
possession of the original owner.
EVERY MONTH - IMPORTANT!
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Inspect all assembly bolts of the machine for proper tightness.
• Turn off the treadmill and wait 60 seconds.
• Remove the motor cover. Wait until all displays turn off.
• Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to
do so may result in premature failure of key electrical components.
• Vacuum and wipe down the belt with a damp cloth. Vacuum any black/white particles that may accumulate around
the unit. These particles may accumulate from normal treadmill use.
Please contact Horizon Fitness with questions about applying lubricant to your treadmill.
MOTOR • LIFETIME
Horizon Fitness warrants the motor against defects in
workmanship and materials for a lifetime period from the
date of purchase, so long as the device remains in the
possession of the original owner.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance, or
installation of parts or accessories not originally intended or
compatible with the equipment as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration of
paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning,
freezing, or other natural disasters of any kind, power reduction,
fluctuation or failure from whatever cause, unusual atmospheric
conditions, collision, introduction of foreign objects into the covered
unit, or modifications that are unauthorized or not recommended by
Horizon Fitness.
• Incidental or consequential damages. Horizon Fitness is not
responsible or liable for indirect, special or consequential damages,
economic loss, loss of property, or profits, loss of enjoyment or use,
or other consequential damages of whatsoever nature in connection
with the purchase, use, repair or maintenance of the equipment.
• Equipment used for commercial purposes or any use other than a
single family or Household, unless endorsed by Horizon Fitness for
coverage.
• Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement
units or labor or other costs associated with removal or replacement
of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Horizon
Fitness is not responsible or liable for any damage, loss or liability
arising from any personal injury incurred during the course of, or as
a result of any repair or attempted repair of your fitness equipment
by other than an authorized service technician. All repairs attempted
by you on your fitness equipment are undertaken AT YOUR OWN RISK
and Horizon Fitness shall have no liability for any injury to the person
or property arising from such repairs.
TREADMILL
OPERATION
ASSEMBLY
EVERY WEEK
Clean underneath the treadmill, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Fold the treadmill into the upright position, making sure that the lock latch is secure.
• Move the treadmill to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.
• Return the treadmill to its previous position.
FRAME • LIFETIME
Horizon Fitness warrants the frame against defects in
workmanship and materials for the lifetime of the original
owner. (The frame is defined as the welded metal base of the
unit and does not include any parts that can be removed.)
What IS covered:
• Repair or replacement of a defective motor, electronic component, or
defective part and is the sole remedy of the warranty.
CONDITIONING
GUIDELINES
IMPORTANT
PRECAUTIONS
AFTER EACH USE (DAILY)
Clean and inspect, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as they
can cause damage to the treadmill.
• Inspect the power cord. If the power cord is damaged, contact Horizon Fitness.
• Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut.
• Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other
components on the treadmill by being misaligned.
Weight Capacity = 325 LBS
SERVICE/RETURNS
• In-home service is available within 150 miles of the nearest
authorized repair center (Mileage beyond 150 miles from an
authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness’ obligation under this warranty is limited to
replacing or repairing, at Horizon Fitness’ option, the same or
comparable model at one of its authorized service centers.
• A Horizon Fitness authorized service center must receive all
equipment for which a warranty claim is made. This equipment must
be received with all freight and other transportation charges prepaid,
accompanied by sufficient proof of purchase.
• Replacement units, parts and electronic components reconditioned
to As-new Condition by Horizon Fitness or its vendors may sometimes
be supplied as warranty replacement and constitute fulfillment of
warranty terms.
• This warranty gives you specific legal rights, and your rights may
vary from state to state.
TROUBLESHOOTING
& MAINTENANCE
Cleanliness of your treadmill and its operation environment will keep maintenance problems and service calls to a
minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.
EVERY 6 MONTHS OR 150 MILES
It is necessary to lubricate your treadmill running deck every six months
or 150 miles to maintain optimal performance. Once the treadmill reaches
150 miles, the console will display the message “LUBE” or “LUBE BELT”.
The treadmill will not operate while the message is showing. Hold Stop
for 5 seconds to suspend message for 5 miles. Your treadmill came with
a bottle of lubricant which can be used for two applications. If you need
lubricant, contact Horizon Fitness. Only use lubricant provided by Horizon
Fitness.
INTRODUCTION
LIMITED HOME-USE WARRANTY
35
LIMITED
WARRANTY
INTRODUCTION
M A I N T E N A NCE
7/9/07 10:01:58 AM
C U S T O MER TECH SUPPORT
For fast and friendly service, please contact one of our
trained customer technicians via phone, email or our website.
Customer Tech Support Hotline: 1 - 8 0 0 - 2 44 - 4 1 9 2
Email: [email protected]
Website: www.horizonfitness.com
Every employee at Horizon Fitness takes pride in providing you with a high quality product.
We want to know if you have a problem and we want to have an opportunity to correct it for you.
Note: Please read the troubleshooting section before contacting Customer Tech Support.
To receive additional product information, visit us at www.horizonfitness.com
1620 Landmark Drive,
Cottage Grove WI, 53527
Tel: 1.800.244.4192
Fax: 608.839.1260
Horizon Series CT83. Rev. 1.7 | © 2007 Horizon Fitness Products | Designed & Engineered in the U.S.A. | Made in China
CT83_Treadmill_Rev.1.7.indd 36
7/9/07 10:01:58 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
