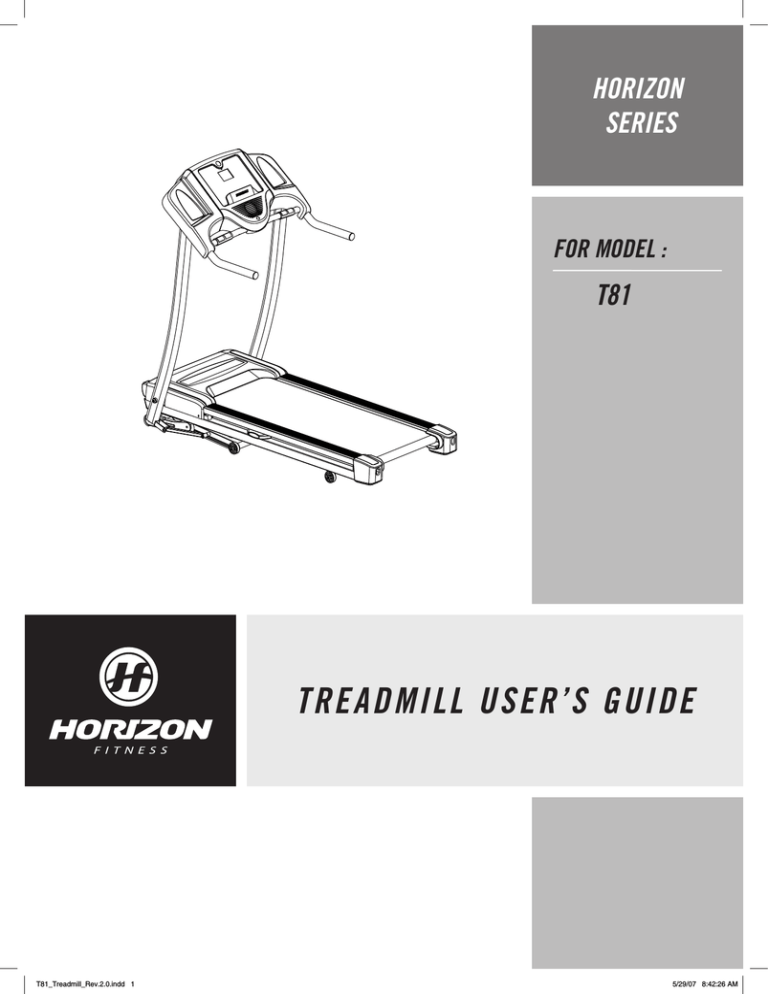

HORIZON
SERIES
FOR MODEL :
T81
TREADMILL USER’S GUIDE
T81_Treadmill_Rev.2.0.indd 1
5/29/07 8:42:26 AM
INTRODUCTION
INTRODUCTION
IMPORTANT
PRECAUTIONS
CONGRATULATIONS and THANK YOU for your purchase of this Horizon Series treadmill!
ASSEMBLY
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Series treadmill
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
BEFORE
YOU BEGIN
The Horizon Series delivers.
Assembly
6
Before You Begin
13
Treadmill Operation
16
Conditioning Guidelines
24
Troubleshooting & Maintenance
32
Limited Warranty
35
Back Panel
3
T81_Treadmill_Rev.2.0.indd 2-3
LIMITED
WARRANTY
CONTACT INFORMATION
CONDITIONING
GUIDELINES
4
TROUBLESHOOTING
& MAINTENANCE
Important Precautions
TREADMILL
OPERATION
TA BL E OF CONT E NT S
5/29/07 8:42:26 AM
INTRODUCTION
INTRODUCTION
I M P O R TA N T PRECAUTIONS
TREADMILL
OPERATION
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
This product is for use on a nominal 110-volt circuit
and has a grounding plug that looks like the illustration
to the right. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD
ASSEMBLY
BEFORE
YOU BEGIN
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
TREADMILL
OPERATION
BEFORE
YOU BEGIN
GROUNDING INSTRUCTIONS
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
CONDITIONING
GUIDELINES
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmill should not be used by persons weighing more than 275 pounds. Failure to comply will void
the warranty.
• The treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school
or institutional setting. Failure to comply will void the warranty.
• Do not use the treadmill in any location that is not temperature controlled, such as but not limited to
garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
other safety tips for your treadmill
WARNING
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
TROUBLESHOOTING
& MAINTENANCE
ASSEMBLY
WARNING
WARNING To reduce the risk of burns, fire, electrical shock or injury to persons:
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
LIMITED
WARRANTY
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
4
T81_Treadmill_Rev.2.0.indd 4-5
5
LIMITED
WARRANTY
IMPORTANT
PRECAUTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
IMPORTANT
PRECAUTIONS
SAVE THESE INSTRUCTIONS
5/29/07 8:42:29 AM
INTRODUCTION
INTRODUCTION
A S S E M B LY
CONSOLE
TOUCH PAD PANEL
READING RACK / MP3 STORAGE
WATER BOTTLE HOLDER
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
GRIP PULSE HANDRAILS
SUPPORT BAR
HANDLEBARS
ASSEMBLY
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
FAN
ON/OFF SWITCH
SAFETY KEY PLACEMENT
CONSOLE MAST
MOTOR COVER
CIRCUIT BREAKER
ASSEMBLY
WARNING
FOOT LOCK LATCH
POWER CORD
RUNNING BELT / RUNNING DECK
SIDE RAIL
TROUBLESHOOTING
& MAINTENANCE
enter your serial number and
model name in the boxes below:
SERIAL NUMBER:
MODEL NAME:
LIMITED
WARRANTY
* Refer to the serial number and model name when calling for service.
* Also enter this serial number on your Warranty Card.
6
T81_Treadmill_Rev.2.0.indd 6-7
REAR ROLLER
ADJUSTMENT BOLTS
TOOLS INCLUDED
TREADMILL
OPERATION
4mm L-wrench
17mm Flat Wrench
5 mm T-wrench
6 mm T-wrench
10 mm L-wrench
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
AIR CELL
PARTS INCLUDED
1 Safety Key
1 Console Assembly (located under treadmill deck)
1 Power Cord
5 Hardware Bags
2 Handlebars
2 Console Masts
1 Bottle of Silicone Lubricant
1 Support Bar
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
TRANSPORT WHEEL
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
7
LIMITED
WARRANTY
BEFORE
YOU BEGIN
UNPACKING
BEFORE
YOU BEGIN
ROLLER END CAP
5/29/07 8:42:32 AM
INTRODUCTION
INTRODUCTION
P R E - A S S E M B LY
IMPORTANT
PRECAUTIONS
from packaging until specified to do so in the assembly instructions. Failure to do
so may result in injury! Remove plastic wrap from console masts.
A S S E MBLY S T E P 2
HARDWARE BAG 2 CONTENTS :
Note: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
BOLT (D)
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
IMPORTANT
PRECAUTIONS
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
WARNING
WAVY WASHER (F)
29 mm
Qty: 1
HARDWARE BAG 1 CONTENTS :
RIGHT CONSOLE MAST
MAIN FRAME
BOLT (A)
15 mm
Qty: 1
FLAT WASHER (B)
20 mm
Qty: 1
BOLT (D)
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
TEFLON WASHER (C)
18 mm
Qty: 1
LEAD WIRE
ASSEMBLY
ASSEMBLY
A S S E M B LY S TE P 1
WAVY WASHER (F)
FLAT WASHER (E)
RIGHT CONSOLE MAST
BEFORE
YOU BEGIN
CONSOLE CABLES
BOLT (D)
RIGHT LINKAGE ARM
MAIN FRAME
FOOT LOCK LATCH
ELEVATION FRAME CONSOLE CABLES
PRE-ATTACHED BOLT
LEFT CONSOLE MAST
LEFT LINKAGE ARM
CONDITIONING
GUIDELINES
BOLT (A)
B Open HARDWARE BAG 2.
FLAT WASHER (B)
TEFLON WASHER (C)
ELEVATION FRAME
TROUBLESHOOTING
& MAINTENANCE
A Open HARDWARE BAG 1.
B Cut banding straps. Do not move or lift treadmill from packaging.
C Move left linkage arm into position. Insert bolt (A) and FLAT WASHER (B) into left
linkage arm followed by a teflon washer (C) and attach to elevation frame.
LIMITED
WARRANTY
D Lift left console mast into upright position. Be sure to hold the console mast firmly, as
it will not stay in the upright position on its own.
8
T81_Treadmill_Rev.2.0.indd 8-9
E Insert bolt (D) and 1 FLAT washer (E) through left console mast followed by a
WAVY washer (F) and attach to MAIN FRAME.
C Move right linkage arm into position and attach to
ELEVATION FRAME.
Note: While holding RIGHT CONSOLE MAST in the
upright position, tighten PRE-ATTACHED BOLT using
T-wrench to attach RIGHT LINKAGE ARM.
D Attach RIGHT CONSOLE MAST to MAIN FRAME using 1
BOLT (D), 1 FLAT WASHER (E) and 1 WAVY WASHER (F).
E Lift the running deck until lock latch on side of
treadmill is fully engaged.
TREADMILL
OPERATION
A Pull LEAD WIRE through RIGHT CONSOLE MAST. After
pulling the lead wire through the mast, the top of the
console cables should be located at the top of the
mast. Detach and discard lead wire.
BOLT (D)
* Note: If you have attempted to
move the treadmill from the box
and the machine has sprung
open and cannot be assembled,
refer to the troubleshooting
section in order to restore the
treadmill to its proper position.
CONDITIONING
GUIDELINES
FLAT WASHER (E)
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
WAVY WASHER (F)
1
3
2
F Remove console from box and place out of the way.
G Lower the treadmill running deck from the folded
position by stepping on LOCK LATCH on lower right side.
9
LIMITED
WARRANTY
BEFORE
YOU BEGIN
WAVY WASHER (F)
29 mm
Qty: 1
5/29/07 8:42:46 AM
INTRODUCTION
A S S E MBLY S T E P 4
HARDWARE BAG 4 CONTENTS :
IMPORTANT
PRECAUTIONS
HARDWARE BAG 3 CONTENTS :
SPRING WASHER (H)
15 mm
Qty: 4
BOLT (I)
15 mm
Qty: 4
FLAT WASHER (B)
20 mm
Qty: 4
ASSEMBLY
ASSEMBLY
BOLT (G)
20 mm
Qty: 4
IMPORTANT
PRECAUTIONS
INTRODUCTION
A S S E M B LY S TE P 3
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
CROSS BAR
CONSOLE CABLE
CONSOLE
BOLT (G)
CONSOLE MAST
SUPPORT BAR
TREADMILL
OPERATION
CONSOLE MAST
FLAT WASHER (B)
TREADMILL
OPERATION
DO NOT ATTACH
THIS SIDE UNTIL STEP 3-D
AST
BOLT (I)
SPRING WASHER (H)
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
A Open HARDWARE BAG 3.
B Align SUPPORT BAR with holes in CONSOLE MASTS.
B With running deck in lowered position, place console on the console masts. Align the
brackets that are underneath the console with the top holes of the console masts.
C Insert BOLTS (I) into all 4 holes of the SUPPORT BAR.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
C To assemble the CONSOLE to the left CONSOLE MAST, insert 1 BOLT (G),
1 SPRING WASHER (H) and 1 FLAT WASHER (B) into the 2 holes in the
left CONSOLE mast and lightly tighten.
D Tighten all console bolts (Step 3) and support bar bolts (Step 4) completely.
CONDITIONING
GUIDELINES
A Open Hardware Bag 4.
TROUBLESHOOTING
& MAINTENANCE
BOLT (G)
D Gently lift right side of the console to connect the console cable. Carefully tuck wire
in mast to avoid damage. NOTE: Do not pinch console cable or grip pulse wires.
LIMITED
WARRANTY
F Leave console bolts loose until after STEP 4 is completed.
10
T81_Treadmill_Rev.2.0.indd 10-11
11
LIMITED
WARRANTY
E Repeat step C above to assemble the right console mast to the console.
5/29/07 8:42:57 AM
INTRODUCTION
BE F ORE Y OU BE GIN
HARDWARE BAG 5 CONTENTS :
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
SET SCREW (J)
12 mm
Qty: 4
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
Here are just a few of the health benefits of exercise:
ASSEMBLY
ASSEMBLY
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
CONSOLE
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
HANDLEBARS
TREADMILL
OPERATION
A Open HARDWARE BAG 5.
1 foot
3 feet
3 feet
TREADMILL
OPERATION
BEFORE
YOU BEGIN
LOCATION OF THE TREADMILL
SET SCREWS (J)
BEFORE
YOU BEGIN
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
B Attach LEFT HANDLEBAR to CONSOLE using 2 SET SCREWS (J) .
POWER SWITCH
CIRCUIT BREAKER
TROUBLESHOOTING
& MAINTENANCE
Y O U ’R E FIN ISH ED !
LIMITED
WARRANTY
12
T81_Treadmill_Rev.2.0.indd 12-13
Connect power plug to the treadmill
and connect the cord to a power
outlet. The on/off switch is located
next to the power cord. Flip this
switch to the 'ON' position, so that
the switch is lit. You will hear a beep
and the console will turn on.
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
6 feet
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
DO NOT STAND ON THE BELT
CONDITIONING
GUIDELINES
WARNING
C Repeat on other side.
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
WARNING
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
13
LIMITED
WARRANTY
INTRODUCTION
A S S E M B LY S TE P 5
5/29/07 8:43:02 AM
INTRODUCTION
INTRODUCTION
TREADMILL
OPERATION
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground.
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
Your treadmill has a pair of transport wheels
built into the frame. To move, make sure the
treadmill is folded and securely latched. Then firmly
grasp the handlebars, tilt the treadmill back and
roll. NOTE: Do not attempt to disassemble and
transport treadmill.
LIMITED
WARRANTY
14
T81_Treadmill_Rev.2.0.indd 14-15
IMPORTANT
PRECAUTIONS
ASSEMBLY
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
If the running belt is too far to the right side:
MOVING
WARNING
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
FOLDING
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, turn the treadmill off
and tension both the rear roller bolts using the
supplied allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.
TREADMILL
OPERATION
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
Belt is too far to the right side
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 turn at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
TROUBLESHOOTING
& MAINTENANCE
ASSEMBLY
WARNING
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CONDITIONING
GUIDELINES
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 34 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
­TENSIONING THE RUNNING BELT
If the running belt is too far to the left side:
Belt is too far to the left side
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 turn at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
15
LIMITED
WARRANTY
IMPORTANT
PRECAUTIONS
PROPER USAGE
5/29/07 8:43:09 AM
F
A
G
N
speed • Shown as MPH. Indicates how fast your walking or running surface is moving.
K
J
M
L
E
B
I
TREADMILL
OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) Monitor Display: Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles.
B) Stop: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
C) START/PAUSE: Simply press to begin exercising; press again to pause your workout.
D) ENTER / PROGRAM SETTING KEYS: Press to adjust Time, Incline, Speed and Level.
time • Shown as Minutes: Seconds. View the time remaining or the time elapsed in your workout.
Pulse • Shown as Beats Per Minute. Used to monitor your heart rate (displayed when contact is made with
both pulse grips).
distance • Shown as Miles. Indicates distance traveled during your workout.
CONDITIONING
GUIDELINES
e) QUICK PROGRAM Keys: Used to quickly select desired program.
incline • Shown as Percent. Indicates the incline of your walking or running surface.
F) QUICK ADJUST Incline Keys: Used to reach desired incline more quickly.
Calories • Total Calories burned during your workout.
G) QUICK ADJUST Speed Keys: Used to reach desired speed more quickly.
H) Incline ARROW Keys: Used to adjust incline in small increments (0.5% increments).
I) Speed ARROW Keys: Used to adjust speed in small increments (0.1 mph increments).
TREADMILL
OPERATION
D
CONDITIONING
GUIDELINES
C
program profiles • Represents the profile of the program being used (speed during speed based
programs and incline during incline based programs).
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
H
J) Safety Key Position: Enables treadmill when safety key is inserted.
K) BLOWER Fan: Personal workout blower fan.
L) BLOWER Fan Button: Press the fan button once for low speed, twice for medium speed, three times
for high speed and four times to turn the fan off.
M) Reading Rack: Holds reading material (Remove sales sticker before use).
N) Water Bottle / CD / MP3 holders: Holds personal workout equipment.
LIMITED
WARRANTY
16
T81_Treadmill_Rev.2.0.indd 16-17
HE A RT RAT E
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose,
cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure
to clean the pulse sensors to ensure proper contact can be maintained. (See page 34).
17
LIMITED
WARRANTY
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
ASSEMBLY
ASSEMBLY
IMPORTANT
PRECAUTIONS
IMPORTANT
PRECAUTIONS
N
INTRODUCTION
INTRODUCTION
MONITOR DISPLAY
TR E A D M I LL OPERATION
5/29/07 8:43:11 AM
Attach the safety key clip to part of your clothing.
5)
Insert the safety key into the safety keyhole in the console.
6)
You have two options to start your workout:
a) Quick start up
Simply press the start key to begin working out. OR...
BEFORE
YOU BEGIN
B) SELECT A Program
Select a Program using the QUICK PROGRAM KEYS.
Once a program has been chosen, press enter.
C) SELECT A LEVEL
Select a program level using the arrow keys.
Once a program level has been chosen, press enter.
TREADMILL
OPERATION
D) SELECT A TIME
Select a Time using the arrow keys or use the default time.
Once a time has been chosen, press Start.
Finishing YOUR WORKOUT
CONDITIONING
GUIDELINES
When your workout is complete, the monitor display will flash and beep. Your workout information will
stay displayed on the console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the Stop button for 3 seconds.
TROUBLESHOOTING
& MAINTENANCE
SCAN VIEWING SCREENS
To have the display screen rotate continuously (Speed and Time, Pulse and Distance, Incline and Calories),
hold the ENTER button for 5 seconds. Press ENTER one additional time to turn off scan feature.
INTRODUCTION
IMPORTANT
PRECAUTIONS
4)
ROLLING
MANUAL
WEIGHT
LOSS
PINTERVALS
ROGRA
M: INT E RVA L S 1 - 2
ASSEMBLY
Stand on the side rails of the treadmill.
GOLF
COURSE
Walk or run aROLLING
series
of alternating speed levels. Time-based goal with 10 difficulty levels to choose from.
INTERVALS 1 Program Segments
WEIGHT
RACE LOSS
(Peak segments last 30 seconds, valley segments last 90 seconds)
GOLF COURSE
2:00
2:00
WARM-UP
2:00
1
2
Level 1
1.0
1.5
2.0
4.0
Level 2
1.0
1.5
2.0
4.5
Level 3
1.3
1.9
2.5
5.0
Level 4
1.3
1.9
2.5
5.5
Level 5
1.5
2.3
3.0
6.0
CUSTOM
THR ZONE 2
Level 6
1.5
2.3
3.0
6.5
Level 7
1.8
2.6
3.5
7.0
THR ZONE 1
VALLEY
Level 8
1.8
2.6
3.5
7.5
Level 9
2.0
3.0
4.0
8.0
Level 10
2.0
3.0
4.0
8.5
RACE
CUSTOM
THR ZONE 1
THR ZONE 2
TOUR
VALLEY
TOUR
2:00
COOL DOWN
1.5
1.0
1.5
1.0
1.9
1.3
1.9
1.3
2.3
1.5
2.3
1.5
2.6
1.8
2.6
1.8
3.0
2.0
3.0
2.0
BEFORE
YOU BEGIN
3)
Allows ‘On TheINTERVALS
Fly’ manual speed and incline changes. Time-based goal.
TREADMILL
OPERATION
Plug in the power cord and turn the treadmill ON.
(warm-up and cool-down last 4:00 minutes each and are included in program times)
INTERVALS 2 Program Segments (Speed changes)
(Peak segments last 30 seconds and valley segments last 60 seconds)
2:00
2:00
WARM-UP
2:00
1
2
Level 1
1.0
1.5
2.0
4.0
Level 2
1.0
1.5
2.0
4.5
Level 3
1.3
1.9
2.5
5.0
Level 4
1.3
1.9
2.5
5.5
Level 5
1.5
2.3
3.0
6.0
Level 6
1.5
2.3
3.0
6.5
Level 7
1.8
2.6
3.5
7.0
Level 8
1.8
2.6
3.5
7.5
Level 9
2.0
3.0
4.0
8.0
Level 10
2.0
3.0
4.0
8.5
CONDITIONING
GUIDELINES
2)
PMANUAL
ROGRA M: MANUAL
2:00
COOL DOWN
1.5
1.0
1.5
1.0
1.9
1.3
1.9
1.3
2.3
1.5
2.3
1.5
2.6
1.8
2.6
1.8
3.0
2.0
3.0
2.0
TROUBLESHOOTING
& MAINTENANCE
ASSEMBLY
Check to make sure nothing will hinder the movement of the treadmill.
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
IMPORTANT
PRECAUTIONS
1)
PROGRA M INF ORMAT ION
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
INTRODUCTION
G E TTI N G S TA R T ED / SE L E C T IN G A P R O G R AM
LIMITED
WARRANTY
18
T81_Treadmill_Rev.2.0.indd 18-19
19
LIMITED
WARRANTY
(warm-up and cool-down last 4:00 minutes each and are included in program times)
5/29/07 8:43:13 AM
INTRODUCTION
INTRODUCTION
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS 2 Program Segments - Non-repeating segments. Divides workout time by number of segments.
WARM-UP
1
2
3
4
5
6
7
8
COOL-DOWN
Elevation
0.0
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
0.5
0.0
Speed
1.0
1.5
2.0
2.5
3.0
3.5
4.0
3.5
3.0
2.5
2.3
1.5
Level 2
Elevation
CUSTOM 0.0
Speed
1.3
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
0.5
0.0
1.9
2.5
3.0
3.5
4.0
4.5
4.0
3.5
3.0
2.6
1.8
Level 3
Elevation
0.5
THR ZONE 1
Speed
1.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
2.3
3.0
3.5
4.0
4.5
5.0
4.5
4.0
3.5
3.0
2.0
Elevation
0.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
THR ZONE 1.8
2
Speed
2.6
3.5
4.0
4.5
5.0
5.5
5.0
4.5
4.0
3.4
2.3
1.5
1.0
3.8
2.5
1.5
1.0
4.1
2.8
2.0
1.5
4.5
3.0
2.0
1.5
4.9
3.3
2.5
2.0
Level 1
ASSEMBLY
Level 4
Level 5
BEFORE
YOU BEGIN
Level 6
Level 7
Level 8
TREADMILL
OPERATION
Level 9
Level 10
Elevation
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
Speed
VALLEY
Elevation
2.0
3.0
4.0
4.5
5.0
5.5
6.0
5.5
5.0
4.5
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
Speed
TOUR
Elevation
2.3
3.4
4.5
5.0
5.5
6.0
6.5
6.0
5.5
5.0
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
Speed
2.5
3.8
5.0
5.5
6.0
6.5
7.0
6.5
6.0
5.5
Elevation
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
Speed
2.8
4.1
5.5
6.0
6.5
7.0
7.5
7.0
6.5
6.0
Elevation
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
Speed
3.0
4.5
6.0
6.5
7.0
7.5
8.0
7.5
7.0
6.5
5.3
3.5
Elevation
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
Speed
3.3
4.9
6.5
7.0
7.5
8.0
8.5
8.0
7.5
7.0
5.6
3.8
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
Level 8
Level 9
Level 10
Level 11
Level 12
2
3
4
5
6
7
8
9
10
11
12
0.0
0.5
1.5
1.5
1.0
0.5
0.5
0.5
1.0
1.5
0.5
0.0
Speed
1.0
1.5
2.0
2.5
3.0
3.5
4.0
3.5
3.0
2.5
2.3
1.5
Elevation
0.0
0.5
1.5
1.5
0.5
0.5
1.0
0.5
1.0
1.5
0.5
0.0
Speed
1.3
1.9
2.5
3.0
3.5
4.0
4.5
4.0
3.5
3.0
2.6
1.8
Elevation
0.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
Speed
1.5
2.3
3.0
3.5
4.0
4.5
5.0
4.5
4.0
3.5
3.0
2.0
Elevation
0.5
1.0
2.0
2.0
1.5
1.0
1.0
1.0
1.5
2.0
1.0
0.5
Speed
1.8
2.6
3.5
4.0
4.5
5.0
5.5
5.0
4.5
4.0
3.4
2.3
Elevation
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
1.5
1.0
Speed
2.0
3.0
4.0
4.5
5.0
5.5
6.0
5.5
5.0
4.5
3.8
2.5
Elevation
1.0
1.5
2.5
2.5
2.0
1.5
1.5
1.5
2.0
2.5
1.5
1.0
Speed
2.3
3.4
4.5
5.0
5.5
6.0
6.5
6.0
5.5
5.0
4.1
2.8
Elevation
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
2.0
1.5
Speed
2.5
3.8
5.0
5.5
6.0
6.5
7.0
6.5
6.0
5.5
4.5
3.0
Elevation
1.5
2.0
3.0
3.0
2.5
2.0
2.0
2.0
2.5
3.0
2.0
1.5
Speed
2.8
4.1
5.5
6.0
6.5
7.0
7.5
7.0
6.5
6.0
4.9
3.3
Elevation
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
Speed
3.0
4.5
6.0
6.5
7.0
7.5
8.0
7.5
7.0
6.5
5.3
3.5
Elevation
2.0
2.5
3.5
3.5
3.0
2.5
2.5
2.5
3.0
3.5
2.5
2.0
Speed
3.3
4.9
6.5
7.0
7.5
8.0
8.5
8.0
7.5
7.0
5.6
3.8
Elevation
2.5
3.0
4.0
4.0
4.0
3.5
3.5
3.5
4.0
4.5
3.0
2.5
Speed
4.0
5.0
7.0
7.5
8.0
8.5
8.0
7.5
7.0
6.5
5.0
4.0
MANUAL
Elevation
3.0
3.5
4.0
4.0
5.0
4.5
4.5
4.5
5.0
5.5
3.5
3.0
Speed
5.0
6.0
7.5
8.0
8.0
8.5
9.0
8.5
8.0
7.0
5.0
5.0
IMPORTANT
PRECAUTIONS
WEIGHT LOSS 1 Program Segments (all segments last 30 seconds)
1
Elevation
ASSEMBLY
Level 1
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
IMPORTANT
PRECAUTIONS
RACE
COOL-DOWN
BEFORE
YOU BEGIN
WARM-UP
Challenges with
various combinations of hills and valleys (incline & SPEED levels). Time-based goal with 10
GOLF COURSE
or 12 difficulty levels to choose from.
TREADMILL
OPERATION
PWEIGHT
R OLOSSG R A M : WE IG H T L O SS 1 & 2
INTERVALS
(warm-up and cool-down last 4:00 minutes each and are included in program times)
Motivates with
different
WEIGHT
LOSS combinations of Elevation. Time-based goal with 10 difficulty levels to choose from.
FOOTHILLS Program Segments
(Segments last 30 seconds, segments 1-15 are repeated until selected time is reached)
GOLF COURSE
1.0
3.0
1.0
3.0
2.0
3.0
2.0
3.5
2.0
3.0
2.0
3.0
1.0
3.0
1.0
Level 2
0.0
0.5
0.0
0.5
1.0
3.0
2.0
3.0
2.0
3.0
2.5
3.5
2.5
3.0
2.0
3.0
2.0
3.0
1.0
Level 3
0.5
1.0
0.5
1.0
1.5
3.5
1.5
3.5
2.5
3.5
2.5
4.0
2.5
3.5
2.5
3.5
1.5
3.5
1.5
Level 4
0.5
1.0
0.5
1.0
1.5
3.5
2.5
3.5
2.5
3.5
3.0
4.0
3.0
3.5
2.5
3.5
2.5
3.5
1.5
Level 5
1.5
2.0
4.0
2.0
4.0
3.0
4.0
3.0
4.5
3.0
4.0
3.0
4.0
2.0
4.0
2.0
Level 6
1.0 CUSTOM
1.5 1.0
1.0 1.5 1.0
Level 7
1.5
LIMITED
WARRANTY
T81_Treadmill_Rev.2.0.indd 20-21
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1.5
2.0
4.0
3.0
4.0
3.0
4.0
3.5
4.5
3.5
4.0
3.0
4.0
3.0
4.0
2.0
2.5
4.5
2.5
4.5
3.5
4.5
3.5
5.0
3.5
4.5
3.5
4.5
2.5
4.5
2.5
Level 8
2.0 1.5 2.0
THR ZONE 1
1.5 2.0 1.5 2.0
2.5
4.5
3.5
4.5
3.5
4.5
4.0
5.0
4.0
4.5
3.5
4.5
3.5
4.5
2.5
Level 9
2.0
2.5
3.0
5.0
3.0
5.0
4.0
5.0
4.0
5.5
4.0
5.0
4.0
5.0
3.0
5.0
3.0
Level 10
2.0 THR
2.5 ZONE
2.0 2 2.5
3.0
5.0
4.0
5.0
4.0
5.0
4.5
5.5
4.5
5.0
4.0
5.0
4.0
5.0
3.0
2.5
2.0
VALLEY
20
1
TOUR
COOL DOWN
0.5
0.0
0.5
0.0
0.5
0.0
0.5
0.0
1.0
0.5
1.0
0.5
1.0
0.5
1.0
0.5
1.5
1.0
1.5
1.0
1.5
1.0
1.5
1.0
2.0
1.5
2.0
1.5
2.0
1.5
2.0
1.5
2.5
2.0
2.5
2.0
2.5
2.0
2.5
2.0
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
Level 1
WARM UP 
RACE
0.0 0.5 0.0 0.5
SEGMENTS ARE REPEATED UNTIL
SELECTED TIME IS REACHED
LEVEL
(warm-up and cool-down last 4:00 minutes each)
21
LIMITED
WARRANTY
CONDITIONING
GUIDELINES
CONDITIONING
GUIDELINES
PROLLING
ROGRA M: F OOT HIL L S
5/29/07 8:43:16 AM
GOLF COURSE
INTERVALS
INTRODUCTION
INTRODUCTION
RACE
ROLLING
WEIGHT LOSS
CUSTOM
PROGRAM:
CUSTOM
THR ZONE 2
3
4
5
6
7
8
9
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance 309 359
THR ZONE
Elevation
0.0 1 1.0
283
256
113
387
91
351
333
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance
427
330
295
129
466
97
369
431
Blue tee
9 holes
Elevation
0.0 2 1.0
THR ZONE
2.0
3.0
2.5
1.0
2.0
2.5
1.5
Distance
345
460
337
308
142
484
97
389
441
Black tee
9 holes
Elevation 0.0
VALLEY
Distance 376
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
502
374
327
187
500
106
416
462
Red tee
18 holes
Elevation 0.0
TOUR
Distance 309
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
359
283
256
113
387
91
351
333
301
301
165
288
434
312
310
150
455
White tee
18 holes
Elevation
0.0
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
Distance
331
427
330
295
129
466
97
369
431
407
339
179
368
548
349
376
166
509
Blue tee
18 holes
Elevation
0.0
1.0
2.0
3.0
2.5
1.0
2.0
2.0
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
Distance
345
460
337
308
142
484
97
389
441
413
349
187
376
560
373
172
383
532
Black tee
18 holes
Elevation
0.0
1.0
2.0
3.0
2.5
1.0
2.0
2.5
1.5
3.5
2.5
2.0
4.0
2.5
3.0
2.0
5.0
2.0
Distance
376
502
374
327
187
500
106
416
462
430
373
201
393
572
396
401
178
543
ASSEMBLY
White tee
9 holes
331
10
11
12
13
14
15
16
17
18
TOTAL
DISTANCE
2482
2875
3003
BEFORE
YOU BEGIN
TREADMILL
OPERATION
Distance = Yards
VALLEY
2. Choose the desired time using the program SETTING keys and
press
enter.
TOUR
3. Choose the desired speed for all 15 segments using the arrow keys and
press enter. Note: You will need to press enter after each segment.
3250
A) The STOP key will take you back to the previous segment.
5198
4. Choose the desired incline for all 15 segments using the arrow keys and
6116
6348
6737
ASSEMBLY
2
Red tee
9 holes
1
CUSTOM
Elevation 0.0
1. Once the CUSTOM program has been chosen, press enter.
BEFORE
YOU BEGIN
GOLF COURSE Program Segments
HOLE
NUMBER:
Lets you create
a perfect workout for you with specific speed, incline and time combination.
THRand
ZONE reuse
1
The ultimate in personal programming. Time-based goal.
press enter. Note: You will need to press enter after each segment.
A) The STOP key will take you back to the previous segment.
5. Press Start to begin your program. At this time, your program has been
successfully saved into memory, and can be used for future workouts.
TREADMILL
OPERATION
IMPORTANT
PRECAUTIONS
Simulates various
RACE inclines and yardages for holes on a golf course, with 4 tee-off boxes and 9 or 18 holes to choose
from. Distance-based goal.
IMPORTANT
PRECAUTIONS
PGOLFRCOURSE
OGRAM: GOLF COURSE
A) To reset your program information and delete it from memory, press and
hold the enter key for 5 seconds (after you have selected the
CUSTOM program).
B) While using your saved program, you are able to adjust the speed or
LIMITED
WARRANTY
22
T81_Treadmill_Rev.2.0.indd 22-23
CONDITIONING
GUIDELINES
23
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
incline, but any changes will not be saved.
5/29/07 8:43:18 AM
INTRODUCTION
TA RGE T HE A RT RAT E Z ONE CHA RT
BEFORE
YOU BEGIN
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
HOW HARD? (Intensity of Workouts)
TREADMILL
OPERATION
How hard you workout is also determined by your goals. If you use your treadmill to prepare for a 5K run, you
will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long term
goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be
beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate using
the grip pulse handlebars and the second is by evaluating your perceived exertion level (this is simpler than it
sounds!).
CONDITIONING
GUIDELINES
IMPORTANT
PRECAUTIONS
10
ASSEMBLY
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
0%
75
60
%
%
15
12
0
0
AGE
14
6
14
3
T A 139 13
R G 5 131
11
7
11
ET
4
11
1
10
8
12
8
12
4
12
Z
0
O
10
5
NE
10
2
9
9
20
25
30
35
40
45
50
BEFORE
YOU BEGIN
HOW LONG? (Duration of Workouts)
What is Target Heart Rate Zone?
55
97
60
11
6
TREADMILL
OPERATION
ASSEMBLY
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
93
65
CONDITIONING
GUIDELINES
HOW OFTEN? (Frequency of Workouts)
BEATS PER MINUTE
IMPORTANT
PRECAUTIONS
Always consult your physician before beginning an exercise program.
PERCEIVED EXERTION LEVEL
Example:
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Heart Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
Always consult your physician before beginning an exercise program.
LIMITED
WARRANTY
24
T81_Treadmill_Rev.2.0.indd 24-25
25
LIMITED
WARRANTY
INTRODUCTION
C O N D I TI O N ING GUIDELINES
5/29/07 8:43:37 AM
ASSEMBLY
1. STANDING CALF MUSCLE STRETCH
BEFORE
YOU BEGIN
Stand near a wall with the toes of your left foot about 18" from the wall, and
the right foot about 12" behind the other foot. Lean forward, pushing against
the wall with your palms. Keep your heels flat and hold this position for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Repeat on the other side.
INTRODUCTION
WARM UP
IMPORTANT
PRECAUTIONS
Before using your product, it is best to take a few minutes doing a few gentle stretching exercises.
Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into
each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to
bounce while doing these stretches.
THE IMPORTANCE OF WARM UP & COOL DOWN
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a
slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
COOL DOWN
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart
rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your
muscles.
T IPS
ASSEMBLY
IMPORTANT
PRECAUTIONS
STRETCH FIRST
T IPS
ACHIEVING YOUR FITNESS GOALS
BEFORE
YOU BEGIN
STRETCHING
An important step in developing a long term fitness program is to determine your goals. Is your primary
goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule?
Knowing what your goals are will help you develop a more successful exercise program. Below are some
common exercise goals:
CONDITIONING
GUIDELINES
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
TROUBLESHOOTING
& MAINTENANCE
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching. Sit
upright again. Repeat one time.
TREADMILL
OPERATION
• Weight Loss - lower intensity, longer duration workouts
• Improve Body Shape and Tone - interval workouts, alternate between high and low intensities
• Increased Energy Level - more frequent daily workouts
• Improved Sports Performance - high intensity workouts
• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing.
The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide
them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation
benefits. Short term goals are easier to achieve. Your console provides you with several readouts that can
be used to record your progress. You can track Distance, Calories or Time.
CONDITIONING
GUIDELINES
Using a wall to provide balance, grasp your left ankle
with your left hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your right
ankle and hand.
KEEPING AN EXERCISE DIARY
TROUBLESHOOTING
& MAINTENANCE
TREADMILL
OPERATION
2. STANDING QUADRICEPS STRETCH
To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are located
on the following pages, or you can print them off of your computer by going to:
www.horizonfitness.com/guides/weeklylog.pdf
www.horizonfitness.com/guides/monthlylog.pdf
LIMITED
WARRANTY
As your fitness improves, you can look back and see how far you’ve come!
26
T81_Treadmill_Rev.2.0.indd 26-27
27
LIMITED
WARRANTY
INTRODUCTION
T IP S
5/29/07 8:43:42 AM
TIME
COMME N T S
D AY
D AT E
SUNDAY
M O N D AY
MONDAY
TU E S D AY
TUESDAY
W E D N ES D AY
WEDNESDAY
TH U R S D AY
THURSDAY
F R I D AY
FRI DAY
S ATU RD AY
SATURDAY
W E E K LY T O TA L S :
W EEKLY TOTALS :
BEFORE
YOU BEGIN
WEEK #
D AY
WEEKLY GOAL
DATE
DISTANCE
CA LORIE S
TIME
W EEK #
COMME N T S
D AY
D AT E
TREADMILL
OPERATION
SUNDAY
M O N D AY
MONDAY
TU E S D AY
TUESDAY
W E D N ES D AY
WEDNESDAY
TH U R S D AY
THURSDAY
F R I D AY
FRI DAY
S ATU RD AY
SATURDAY
W E E K LY T O TA L S :
W EEKLY TOTALS :
CONDITIONING
GUIDELINES
D AY
WEEKLY GOAL
DATE
DISTANCE
CA LORIE S
TIME
D AY
D AT E
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
SUNDAY
M O N D AY
MONDAY
TU E S D AY
TUESDAY
W E D N ES D AY
WEDNESDAY
TH U R S D AY
THURSDAY
F R I D AY
FRI DAY
S ATU RD AY
SATURDAY
W E E K LY T O TA L S :
W EEKLY TOTALS :
T81_Treadmill_Rev.2.0.indd 28-29
INTRODUCTION
C O MME N T S
C A L O R IE S
T IM E
C O MME N T S
W EEKLY GOAL
S U N D AY
28
D IS TA N C E
W EEK #
COMME N T S
T IM E
W EEKLY GOAL
S U N D AY
WEEK #
C A L O R IE S
TREADMILL
OPERATION
ASSEMBLY
S U N D AY
D IS TA N C E
IMPORTANT
PRECAUTIONS
CA LORIE S
ASSEMBLY
DISTANCE
W EEKLY GOAL
BEFORE
YOU BEGIN
DATE
W EEK #
CONDITIONING
GUIDELINES
D AY
WEEKLY GOAL
D IS TA N C E
C A L O R IE S
T IM E
C O MME N T S
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
WEEK #
WE E K LY LOG S HE E TS
29
LIMITED
WARRANTY
INTRODUCTION
WE E K LY LO G S H EETS
5/29/07 8:43:44 AM
TIME
ASSEMBLY
MO N TH LY T O TA L S :
BEFORE
YOU BEGIN
INTRODUCTION
DISTANCE
MONTHLY GOAL
CALORIES
T IME
DISTANCE
MONTHLY GOAL
CALORIES
T IME
DISTANCE
MONTHLY GOAL
CALORIES
T IME
MONTHLY TOTALS :
D I STANCE
M ONTHLY GOAL
CALORIES
TIME
MONTH
W EEK #
TREADMILL
OPERATION
TREADMILL
OPERATION
MO N TH
WEEK #
MONTH
W EEK #
IMPORTANT
PRECAUTIONS
D I STANCE
M ONTHLY GOAL
CALORIES
ASSEMBLY
IMPORTANT
PRECAUTIONS
MO N TH
WEEK #
MONTHLY LOG S HE E TS
BEFORE
YOU BEGIN
INTRODUCTION
M O N TH LY LO G S HEETS
CONDITIONING
GUIDELINES
D I STANCE
M ONTHLY GOAL
CALORIES
TIME
MONTH
W EEK #
LIMITED
WARRANTY
MO N TH LY T O TA L S :
30
T81_Treadmill_Rev.2.0.indd 30-31
MONTHLY TOTALS :
31
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
TROUBLESHOOTING
& MAINTENANCE
MO N TH
WEEK #
MONTHLY TOTALS :
CONDITIONING
GUIDELINES
MO N TH LY T O TA L S :
5/29/07 8:43:45 AM
• Make sure the treadmill is plugged into a dedicated 20-amp circuit.
• Verify that you do not have the machine on an extension cord or surge protector.
• Confirm that the machine is not plugged into a GFCI-equipped outlet or on a circuit that has a GFCI‑equipped outlet on it.
WHEN SHOULD I BE WORRIED ABOUT A NOISE?
As long as the sounds your treadmill makes are no louder than a normal conversational tone of voice, it is
considered normal noise.
BEFORE
YOU BEGIN
TROUBLESHOOTING - TREADMILL
Your treadmill is designed to be reliable and easy to use. However, if you experience a problem, please reference the
troubleshooting guide listed below.
TREADMILL
OPERATION
L IF T
PROBLEM: If you have attempted to
move the treadmill from the box and
the machine has sprung open and
cannot be assembled.
SOLUTION: The air shocks have been engaged prematurely. To correct this, tilt the machine on its nose by lifting
CONDITIONING
GUIDELINES
the deck (light end) upwards. Fold down the deck so that it is horizontal. You may now proceed with the assembly.
PROBLEM: The console does not light up and/or the belt does not move.
SOLUTION: Verify the following:
TROUBLESHOOTING
& MAINTENANCE
Does the red light on the ON/OFF switch light up?
If yes:
• Double check that all connections are secure, especially the console cable. Unplug and reconnect the console
cable to verify.
• Make sure the console cable is not pinched or damaged in any way.
• Turn the power off, unplug the power cable and wait 60 seconds. Remove motor cover. Wait until all red LED
lights have gone off on the motor control board before proceeding. Next, verify that none of the wires connected
to the lower board are loose or disconnected.
If no:
• Verify that the outlet the machine is plugged into is functional. Double check that the breaker has not tripped,
it is on a dedicated 20-amp circuit, it is not on a GFCI-equipped outlet, and it is not plugged into a power
strip/surge protector or extension cord.
• The power cord is not pinched or damaged and is properly plugged into the outlet AND the machine.
• The power switch is turned to the ON position.
LIMITED
WARRANTY
T81_Treadmill_Rev.2.0.indd 32-33
• Power on the treadmill and have the safety key in position on the
console. Press and hold the elevation “+” and speed “-” buttons for
approximately 5 seconds to enter the Engineering Mode. The console
will beep and “ENG0” appears in the display.
• Press the Speed “+” or “-” button until “ENG2” appears in the display.
• Press, “ENTER” to select. Press, “START” to begin. The treadmill
running belt will begin to move automatically and the auto-calibration
sequence will properly set and store the speed values.
• Upon successful calibration, the treadmill will beep several times. The
console will automatically exit Engineering Mode and return to the
start-up screen.
IMPORTANT
PRECAUTIONS
WARNING
ASSEMBLY
ASSEMBLY
All fitness products seem quieter in a large store showroom because there is generally more background noise
than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood overlay
floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness product is
placed close to a wall, there will be more reflected noise.
PROBLEM: Operating speed appears inaccurate.
SOLUTION: Auto-calibrate the treadmill:
DO NOT stand on running belt while
calibrating – stand on the guide
rails. Treadmill will fluctuate between
low and high speeds for several
minutes until calibration is complete.
BEFORE
YOU BEGIN
WHY IS THE TREADMILL I PURCHASED LOUDER THAN THE ONE AT THE STORE?
• Make sure the treadmill is on a level surface.
• Verify that the belt is properly tightened and centered (Refer to the Adjustment section for detailed directions).
TROUBLESHOOTING - HEART RATE
Check your exercise environment for sources of interference such as fluorescent lights, computers, underground fencing, home
security systems or appliances containing large motors. These items may cause erratic heart rate readouts.
You may experience an erratic readout under the following conditions:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate handlebars while exercising. If you are receiving
erratic heart rate readouts, try to only hold the grips long enough to monitor your heart rate.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try to moisten your palms by rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palm is especially thick.
TREADMILL
OPERATION
All treadmills make a certain type of thumping noise due to the belt riding over the rollers, especially new
treadmills. This noise will diminish over time, although may not totally go away. Over time, the belt will
stretch, causing the belt to ride smoother over the rollers.
CONDITIONING
GUIDELINES
ARE THE SOUNDS MY TREADMILL MAKES NORMAL?
PROBLEM: The running belt does not stay centered during a workout.
SOLUTION: Verify the following:
If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.
PLEASE CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.
The following information may be asked of you when you call. Please have these items readily available:
• Model Name
• Serial Number
• Date of Purchase (receipt or credit card statement)
TROUBLESHOOTING
& MAINTENANCE
IMPORTANT
PRECAUTIONS
COMMON PRODUCT QUESTIONS
32
INTRODUCTION
TR O U B LE S H OOTING
In order for Customer Tech Support to service your treadmill they may need to ask detailed questions about the symptoms that are
occurring. Some troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front or the back? What kind of noise is it (thumping, grinding, squeaking,
chirping etc.)?
• Has the machine been lubricated and maintained per the maintenance schedule?
Answering these and other questions will give the technicians the ability to send proper replacement parts and the service necessary
to get you and your Horizon Fitness treadmill running again!
33
LIMITED
WARRANTY
INTRODUCTION
PROBLEM: The treadmill circuit breaker trips during a workout.
SOLUTION: Verify the following:
5/29/07 8:43:46 AM
BEFORE
YOU BEGIN
TREADMILL
OPERATION
LUBRIC ATION
CONDITIONING
GUIDELINES
RUNNING BELT
TROUBLESHOOTING
& MAINTENANCE
• Turn off the treadmill with the on/off switch, then unplug the power
cord at the wall outlet.
RUNNING DECK
• Loosen both the rear roller bolts. (For best results, place two removable
marks on both sides of the frame and note roller position). Once the
belt is loosened, take the bottle of lubricant and apply it to the entire
top surface of the running deck. Tighten both rear roller bolts
(matching up the marks for proper position) to original position. After
you have applied lubricant, plug in the power cord, insert the safety
key, start the treadmill and walk on the belt for two minutes to spread
the lubricant.
• Lubricate the air shocks with Teflon based spray.
• Once lubrication is complete, reset the console by pressing and holding ‘STOP’ and Speed ‘+’ buttons for 5 seconds.
LIMITED
WARRANTY
34
T81_Treadmill_Rev.2.0.indd 34-35
LABOR • 1 YEAR
Horizon Fitness shall cover the labor cost for the repair
of the device for a period of one year from the date of the
original purchase, so long as the device remains in the
possession of the original owner.
EXCLUSIONS AND LIMITATIONS
Who IS covered:
• The original owner and is not transferable.
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
ELECTRONICS & PARTS • 1 YEAR
Horizon Fitness warrants the electronic components, finish
and all original parts for a period of one year from the date
of original purchase, so long as the device remains in the
possession of the original owner.
EVERY MONTH - IMPORTANT!
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Inspect all assembly bolts of the machine for proper tightness.
• Turn off the treadmill and wait 60 seconds.
• Remove the motor cover. Wait until all display screens turn off.
• Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated. Failure to
do so may result in premature failure of key electrical components.
• Vacuum and wipe down the belt with a damp cloth. Vacuum any black/white particles that may accumulate around
the unit. These particles may accumulate from normal treadmill use.
Please contact Horizon Fitness with questions about applying lubricant to your treadmill.
MOTOR • 20 YEARS
Horizon Fitness warrants the motor against defects in
workmanship and materials for a period of twenty years
from the date of purchase, so long as the device remains
in the possession of the original owner.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance, or
installation of parts or accessories not originally intended or
compatible with the equipment as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration of
paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning,
freezing, or other natural disasters of any kind, power reduction,
fluctuation or failure from whatever cause, unusual atmospheric
conditions, collision, introduction of foreign objects into the covered
unit, or modifications that are unauthorized or not recommended by
Horizon Fitness.
• Incidental or consequential damages. Horizon Fitness is not
responsible or liable for indirect, special or consequential damages,
economic loss, loss of property, or profits, loss of enjoyment or use,
or other consequential damages of whatsoever nature in connection
with the purchase, use, repair or maintenance of the equipment.
• Equipment used for commercial purposes or any use other than a
single family or Household, unless endorsed by Horizon Fitness for
coverage.
• Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement
units or labor or other costs associated with removal or replacement
of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Horizon
Fitness is not responsible or liable for any damage, loss or liability
arising from any personal injury incurred during the course of, or as
a result of any repair or attempted repair of your fitness equipment
by other than an authorized service technician. All repairs attempted
by you on your fitness equipment are undertaken AT YOUR OWN RISK
and Horizon Fitness shall have no liability for any injury to the person
or property arising from such repairs.
TREADMILL
OPERATION
ASSEMBLY
EVERY WEEK
Clean underneath the treadmill, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Fold the treadmill into the upright position, making sure that the lock latch is secure.
• Move the treadmill to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.
• Return the treadmill to its previous position.
FRAME • LIFETIME
Horizon Fitness warrants the frame against defects in
workmanship and materials for the lifetime of the original
owner. (The frame is defined as the welded metal base of the
unit and does not include any parts that can be removed.)
What IS covered:
• Repair or replacement of a defective motor, electronic component, or
defective part and is the sole remedy of the warranty.
CONDITIONING
GUIDELINES
IMPORTANT
PRECAUTIONS
AFTER EACH USE (DAILY)
Clean and inspect, following these steps:
• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.
• Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as they
can cause damage to the treadmill.
• Inspect the power cord. If the power cord is damaged, contact Horizon Fitness.
• Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut.
• Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other
components on the treadmill by being misaligned.
Weight Capacity = 275 LBS
SERVICE/RETURNS
• In-home service is available within 150 miles of the nearest
authorized repair center (Mileage beyond 150 miles from an
authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness’ obligation under this warranty is limited to
replacing or repairing, at Horizon Fitness’ option, the same or
comparable model at one of its authorized service centers.
• A Horizon Fitness authorized service center must receive all
equipment for which a warranty claim is made. This equipment must
be received with all freight and other transportation charges prepaid,
accompanied by sufficient proof of purchase.
• Replacement units, parts and electronic components reconditioned
to As-new Condition by Horizon Fitness or its vendors may sometimes
be supplied as warranty replacement and constitute fulfillment of
warranty terms.
• This warranty gives you specific legal rights, and your rights may
vary from state to state.
TROUBLESHOOTING
& MAINTENANCE
Cleanliness of your treadmill and its operation environment will keep maintenance problems and service calls to a
minimum. For this reason, we recommend that the following preventive maintenance schedule be followed.
EVERY 6 MONTHS OR 150 MILES
It is necessary to lubricate your treadmill running deck every six months
or 150 miles to maintain optimal performance. Once the treadmill reaches
150 miles, the console will display the message “LUBE” or “LUBE BELT”.
The treadmill will not operate while the message is showing. Hold Stop
for 5 seconds to suspend message for 5 miles. Your treadmill came with
a bottle of lubricant which can be used for two applications. If you need
lubricant, contact Horizon Fitness. Only use lubricant provided by Horizon
Fitness.
INTRODUCTION
LIMITE D HOME - US E WA RRA NTY
35
LIMITED
WARRANTY
INTRODUCTION
M A I N TE N A N CE
5/29/07 8:43:47 AM
C U S TOM ER TECH SUPPORT
For fast and friendly service, please contact one of our
trained customer technicians via phone, email or our website.
Customer Tech Support Hotline: 1 - 8 0 0 - 2 4 4 - 4 1 9 2
Email: [email protected]
Website: www.horizonfitness.com
Every employee at Horizon Fitness takes pride in providing you with a high quality product.
We want to know if you have a problem and we want to have an opportunity to correct it for you.
Note: Please read the troubleshooting section before contacting Customer Tech Support.
To receive additional product information, visit us at www.horizonfitness.com
1620 Landmark Drive,
Cottage Grove WI, 53527
Tel: 1.800.244.4192
Fax: 608.839.1260
HZ Series T81. Rev. 2.0 | © 2007 Horizon Fitness Products | Designed & Engineered in the U.S.A. | Made in China
T81_Treadmill_Rev.2.0.indd 36
5/29/07 8:43:48 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
