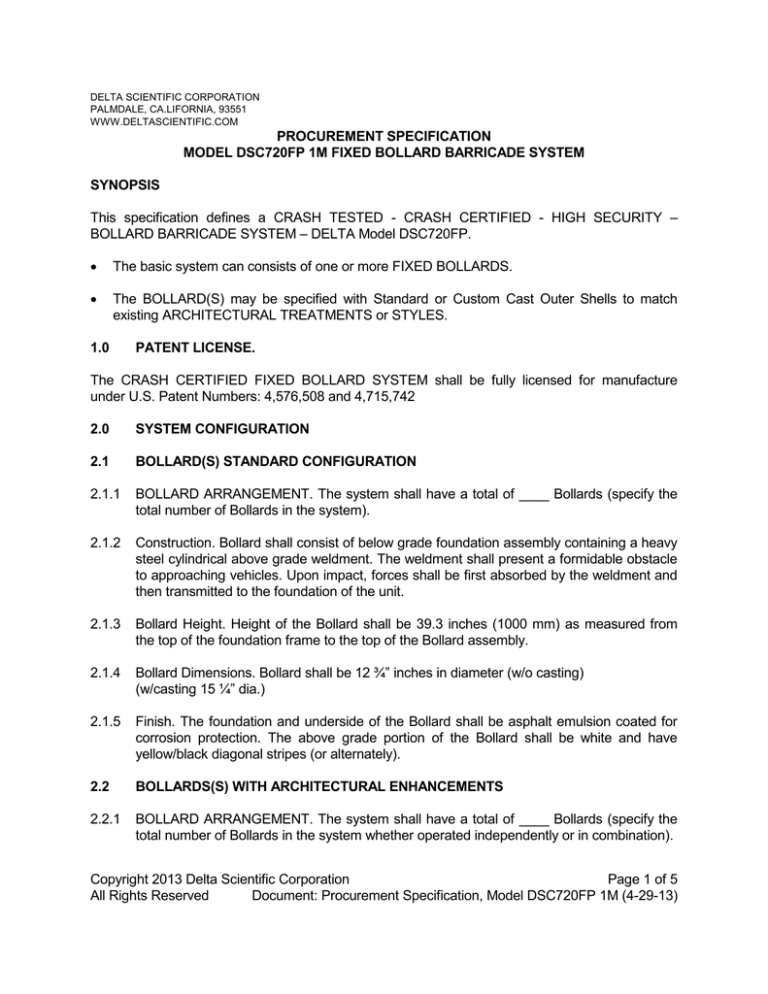

PROCUREMENT SPECIFICATION
MODEL DSC720FP 1M FIXED BOLLARD BARRICADE SYSTEM
SYNOPSIS
This specification defines a CRASH TESTED - CRASH CERTIFIED - HIGH SECURITY –
BOLLARD BARRICADE SYSTEM – DELTA Model DSC720FP.

The basic system can consists of one or more FIXED BOLLARDS.

The BOLLARD(S) may be specified with Standard or Custom Cast Outer Shells to match
existing ARCHITECTURAL TREATMENTS or STYLES.
1.0
PATENT LICENSE.
The CRASH CERTIFIED FIXED BOLLARD SYSTEM shall be fully licensed for manufacture
under U.S. Patent Numbers: 4,576,508 and 4,715,742
2.0
SYSTEM CONFIGURATION
2.1
BOLLARD(S) STANDARD CONFIGURATION
2.1.1
BOLLARD ARRANGEMENT. The system shall have a total of ____ Bollards (specify the
total number of Bollards in the system).
2.1.2
Construction. Bollard shall consist of below grade foundation assembly containing a heavy
steel cylindrical above grade weldment. The weldment shall present a formidable obstacle
to approaching vehicles. Upon impact, forces shall be first absorbed by the weldment and
then transmitted to the foundation of the unit.
2.1.3
Bollard Height. Height of the Bollard shall be 39.3 inches (1000 mm) as measured from
the top of the foundation frame to the top of the Bollard assembly.
2.1.4
Bollard Dimensions. Bollard shall be 12 ¾” inches in diameter (w/o casting)
(w/casting 15 ¼” dia.)
2.1.5
Finish. The foundation and underside of the Bollard shall be asphalt emulsion coated for
corrosion protection. The above grade portion of the Bollard shall be white and have
yellow/black diagonal stripes (or alternately).
2.2
BOLLARDS(S) WITH ARCHITECTURAL ENHANCEMENTS
2.2.1
BOLLARD ARRANGEMENT. The system shall have a total of ____ Bollards (specify the
total number of Bollards in the system whether operated independently or in combination).
Copyright 2013 Delta Scientific Corporation
Page 1 of 5
All Rights Reserved
Document: Procurement Specification, Model DSC720FP 1M (4-29-13)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CA.LIFORNIA, 93551
WWW.DELTASCIENTIFIC.COM
2.2.2
Construction. Bollard shall consist of below grade foundation assembly containing a heavy
steel cylindrical above grade weldment. The weldment shall present a formidable obstacle
to approaching vehicles. Upon impact, forces shall be first absorbed by the weldment and
then transmitted to the foundation of the unit.
2.2.3
Architectural Enhanced Outer Shells shall be cast from a free machining aluminum alloy
and be free of cracks, uneven surface texture, excessive parting line offset or particle
inclusions. Optionally they shall be supplied in fiberglass.
2.2.4
Bollard Diameter, with Architectural Enhancement in place shall not be greater than 15.25
inches (387 mm) in diameter. (Refer to DELTA drawing 08475 for design envelope for
enhancement).
2.2.5
Bollard Height: shall be 39.3 inches (1000 mm) as measured from the top of the
foundation frame to the top of the Bollard assembly.
2.2.6
Finish.
2.2.8.1
Steel Structure. The foundation of the Bollard shall be primed with an industrial
enamel primer.
2.2.8.2
Architectural Enhancement. Standard Aluminum Cast Outer Shells shall first be
primed with an industrial enamel primer then finished with industrial grade enamel.
Highlight colors shall be of equivalent quality.
2.2.8.3
Custom Architectural Enhancement Outer Shells shall be finished in accordance
with customer instructions.
3.0
PERFORMANCE
3.1
EXPERIENCE. Bollard and auxiliary equipment shall be of proven design. Manufacturer
shall have over 1700 Bollard type vehicle barriers in field operation for a minimum of 5
years with documented field experience for all major components and design features.
3.2
QUALIFICATION TESTS. Bollard design shall have successfully passed actual full scale
crash tests conducted by a qualified independent agency.
3.2.1
Performance Evaluation. The Bollard shall have been successfully tested to the ASTM F
2656-07 P1 M50.
Copyright 2013 Delta Scientific Corporation
Page 2 of 5
All Rights Reserved
Document: Procurement Specification, Model DSC720FP 1M (4-29-13)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CA.LIFORNIA, 93551
WWW.DELTASCIENTIFIC.COM
3.2.2
United Kingdom Crash Test The DSC720 has been tested to the United Kingdom BSI
Standard PAS:68 2007 Crash Test. 7.5 Tonne EU truck at 80 kph. Three tests were
conducted: three bollard array, Two bollard array. Stop and destroy vehicle with
penetration. Second attack readiness demonstrated. Passed Test.
3.3
STOPPING CAPACITY.
3.3.1
Normal Operation. Bollard(s) shall provide excellent security and positive control of normal
traffic in both directions by providing an almost insurmountable obstacle to non-armored or
non-tracked vehicles.
3.3.1.1
3.3.2
3.3.2.1
The Bollard system shall be designed to stop a vehicle attacking from either
direction.
High Energy Attack. Bollard(s) shall have been shown by certified dynamic non-linear
analysis to be capable of stopping and immobilizing non-armored or non-tracked vehicles
with weight and velocity characteristics as defined in paragraph 4.3.2.1. The Bollard
system shall be designed to destroy the front suspension system, steering linkage, engine
crankcase and portions of the drive train.
The Bollard shall be capable of stopping and destroying a vehicle(s) weighing:
15,000 pounds at 81 mph (3.280E6 LB-FT)
30,000 pounds at 68 mph (4.623E6 LB-FT)
4.0
QUALITY ASSURANCE PROVISIONS
4.1
Testing. Upon completion of fabrication, the Fixed Bollard system shall have the following
checks made:
4.1.1
Workmanship. The Bollard and subsystems shall have a neat and workmanlike
appearance.
4.1.3
Dimensions. Principal dimensions shall be checked against drawings and ordering
information.
4.1.4
Finish. Coatings shall be checked against ordering information and shall be workmanlike
in appearance.
5.0
PREPARATION FOR SHIPMENT
5.1
The Bollard system shall be crated or mounted on skids as necessary to prevent damage
from handling. The shipping container(s) shall be of sufficient structural integrity to enable
the assembly to be lifted and transported by overhead crane or forklift without failure.
Copyright 2013 Delta Scientific Corporation
Page 3 of 5
All Rights Reserved
Document: Procurement Specification, Model DSC720FP 1M (4-29-13)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CA.LIFORNIA, 93551
WWW.DELTASCIENTIFIC.COM
6.0
MANUFACTURER'S DATA
6.1
Drawings and installation data. The Bollard system drawings and installation data shall be
sent to purchaser within 2 weeks of order. ___ additional copies shall be supplied (1 copy
supplied at no cost).
Copyright 2013 Delta Scientific Corporation
Page 4 of 5
All Rights Reserved
Document: Procurement Specification, Model DSC720FP 1M (4-29-13)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CA.LIFORNIA, 93551
WWW.DELTASCIENTIFIC.COM
7.0
DISCLAIMER
Please note - careful consideration must be devoted to the selection, placement and
design of a Bollard installation. Just as in the case of any Barricade system, perimeter
security device or security gate that blocks a roadway or drive, care must be taken to
ensure that approaching vehicles as well as pedestrians are fully aware of the Bollards
and their operation. Proper illumination, clearly worded warning signs, auxiliary devices
such as semaphore gates, stop-go signal lights, audible warning devices, speed bumps,
flashing lights, beacons, etc. should be considered. Delta has information available on
many such auxiliary safety equipment not specifically listed herein. It is strongly
recommended that an architect and or a traffic and or safety engineer be consulted prior to
installation of a Bollard system. Delta will offer all possible assistance in designing the
operating equipment, controls and the overall system but we are not qualified nor do we
purport to offer either traffic or safety engineering information.
8.0
PROCUREMENT SOURCE
The Model DSC720FP Fixed Bollard Barricade System shall be purchased from:
DELTA SCIENTIFIC CORPORATION
40355 Delta Lane
Palmdale, California, 93551, USA
Phone (661)575-1100
FAX (661)575-1109
email [email protected]
www.deltascientific.com
