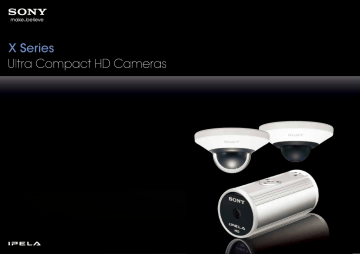

X Series

X Series
X Series
X Series
Category
Sony Network Cameras
Model Name
SNC-DH210
SNC-CH210
SNC-DH210T
SNC-CH110
SNC-DH110
SNC-DH110T
Image Device
1/2.8 type progressive scan “Exmor”
CMOS sensor
1/2.8 type progressive scan “Exmor”
CMOS sensor
1/2.8 type progressive scan “Exmor”
CMOS sensor
1/3.8 type progressive scan CMOS
sensor
1/3.8 type progressive scan CMOS
sensor
1/3.8 type progressive scan CMOS
sensor
Minimum Illumination
2.0 lx
(AGC 38 dB/50 IRE [IP])
2.0 lx
(AGC [38 dB] / 50IRE [IP])
2.0 lx
(AGC [38 dB] / 50IRE [IP])
Tentative
Tentative
Tentative
Number of Effective Pixels 3 Megapixel
3 Megapixel
3 Megapixel
1.3 Megapixel
1.3 Megapixel
1.3 Megapixel
(2096×1561)
(2096×1561)
(2096×1561)
(1296×985)
(1296×985)
(1296×985)
Lens Type
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
F-number
F2.8
F2.8
F2.8
F2.8 (Tentative)
F2.8 (Tentative)
F2.8 (Tentative)
Day/Night
Yes (Electrical D/N)
Yes (Electrical D/N)
Yes (Electrical D/N)
Yes (Electrical D/N)
Yes (Electrical D/N)
Yes (Electrical D/N)
Noise Reduction
Yes
Yes
Yes
Yes
Yes
Yes
2048×1536(JPEG only), 1920x1080,
1600x1200, 1680x1056, 1440x912,
1280x1024, 1280x960, 1376x768,
1280x960, 1280x720, 1024x768,
1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480,
1280x960, 1280x720, 1024x768,
1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480,
1280x960, 1280x720, 1024x768,
1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480,
1280x800, 1280x720, 1024x768,
1280x800, 1280x720, 1024x768,
1024x576, 768x576, 720x576, 704x576, 1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480,
800x480, 720x480, 640x480,
1280x800, 1280x720, 1024x768,
1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480,
640x368, 384x288, 352x288, 320x240,
320x192, 176x144
640x368, 384x288, 352x288, 320x240,
320x192, 176x144
640x368, 384x288, 352x288, 320x240,
320x192, 176x144
640x368, 384x288, 352x288, 320x240,
320x192, 176x144
640x368, 384x288, 352x288, 320x240,
320x192, 176x144
640x368, 384x288, 352x288, 320x240,
320x192, 176x144
Video Compression Format H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
H.264, MPEG-4, JPEG
Maximum Frame Rate
JPEG:12fps(2048×1536)/
15fps(1920×1080)/30fps(1280×720)
MPEG-4:15fps(1920×1080)/
30fps(1280×720)
H.264:15fps(1920×1080)/
30fps(1280×720)
JPEG:12fps(2048×1536)/
15fps(1920×1080)/30fps(1280×720)
MPEG-4:15fps(1920×1080)/
30fps(1280×720)
H.264:15fps(1920×1080)/
30fps(1280×720)
JPEG:12fps(2048×1536)/
15fps(1920×1080)/30fps(1280×720)
MPEG-4:15fps(1920×1080)/
30fps(1280×720)
H.264:15fps(1920×1080)/
30fps(1280×720)
JPEG:30fps(1280×960)
MPEG-4:30fps(1280×960)
H.264:30fps(1280×960)
(Tentative)
JPEG:30fps(1280×960)
MPEG-4:30fps(1280×960)
H.264:30fps(1280×960)
(Tentative)
JPEG:30fps (1280×960)
MPEG-4:30fps (1280×960)
H.264:30fps (1280×960)
(Tentative)
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP,
HTTP, HTTPS, FTP (client), SMTP, DHCP,
DNS,NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP,
HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, HTTP, HTTPS, FTP (client), SMTP, DHCP, HTTP, HTTPS, FTP (client), SMTP, DHCP, HTTP, HTTPS, FTP (client), SMTP, DHCP,
RTP/RTCP, RTSP, SNMP(MIB-2)
RTP/RTCP, RTSP, SNMP(MIB-2)
DNS,NTP, RTP/RTCP, RTSP, SNMP(MIB-2) DNS,NTP, RTP/RTCP, RTSP, SNMP(MIB-2) DNS,NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Sensor Input
x1
x1
x1
x1
x1
x1
Mass
100g (3.5 oz)
150g (5.3 oz)
150g (5.3 oz)
100g (3.5 oz)
150g (5.3 oz)
150g (5.3 oz)
Dimensions (ø x H )
ø 44 x 93 mm
(ø 1 3/4 x 3 3/4 inches)
ø 106 x 50.5 mm
(ø 4 1/4 x 2 1/8 inches)
ø 106 x 50.5 mm
(ø 4 1/4 x 2 1/8 inches)
ø 44 x 93 mm
(ø 1 3/4 x 3 3/4 inches)
ø 106 x 50.5 mm
(ø 4 1/4 x 2 1/8 inches)
ø 106 x 57.5 mm
(ø 4 1/4 x 2 3/8 inches)
Power Requirements
PoE
PoE
PoE
PoE
PoE
PoE
Working Temperature
0 °C to 50 °C (32°F to 122°F)
0 °C to 50 °C (32°F to 122°F)
0 °C to 50 °C (32°F to 122°F)
0 °C to 50 °C (32°F to 122°F)
0 °C to 50 °C (32°F to 122°F)
0 °C to 50 °C (32°F to 122°F)
2048×1536(JPEG only), 1920x1080,
1600x1200, 1680x1056, 1440x912,
1280x1024, 1280x960, 1376x768,
Codec Image Size (H x V)
Distributed by
2048×1536(JPEG only), 1920x1080,
1600x1200, 1680x1056, 1440x912,
1280x1024, 1280x960, 1376x768,
©2010 Sony Electronics Asia Pacific Pte. Ltd. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
“Sony”, “make.believe”, “Exmor”, “DynaView” and “DEPA” are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
pro.sony-asia.com/security
BP000342-082010-M-V1 Printed in Singapore
