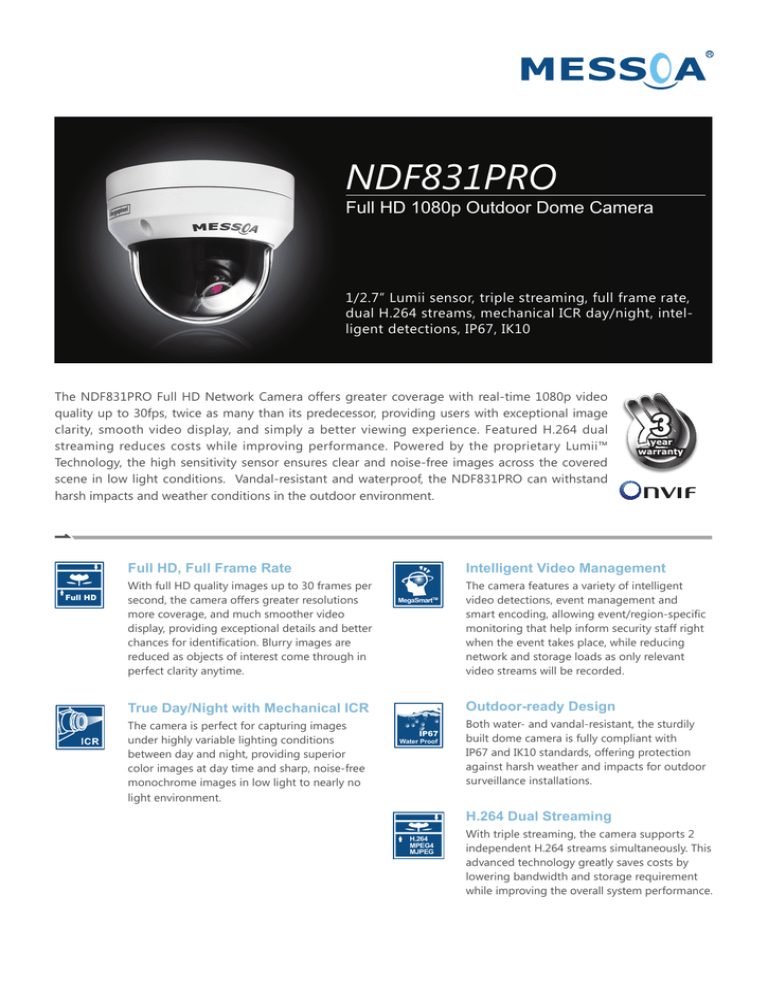

User manual | NDF831PRO Full HD 1080p Outdoor Dome Camera

NDF831PRO
Full HD 1080p Outdoor Dome Camera
1/2.7” Lumii sensor, triple streaming, full frame rate,
dual H.264 streams, mechanical ICR day/night, intelligent detections, IP67, IK10
The NDF831PRO Full HD Network Camera offers greater coverage with real-time 1080p video
quality up to 30fps, twice as many than its predecessor, providing users with exceptional image
clarity, smooth video display, and simply a better viewing experience. Featured H.264 dual
streaming reduces costs while improving performance. Powered by the proprietary Lumii™
Technology, the high sensitivity sensor ensures clear and noise-free images across the covered
scene in low light conditions. Vandal-resistant and waterproof, the NDF831PRO can withstand
harsh impacts and weather conditions in the outdoor environment.
Full HD, Full Frame Rate
With full HD quality images up to 30 frames per
second, the camera offers greater resolutions
more coverage, and much smoother video
display, providing exceptional details and better
chances for identification. Blurry images are
reduced as objects of interest come through in
perfect clarity anytime.
Full HD
Intelligent Video Management
The camera features a variety of intelligent
video detections, event management and
smart encoding, allowing event/region-specific
monitoring that help inform security staff right
when the event takes place, while reducing
network and storage loads as only relevant
video streams will be recorded.
MegaSmartTM
True Day/Night with Mechanical ICR
The camera is perfect for capturing images
under highly variable lighting conditions
between day and night, providing superior
color images at day time and sharp, noise-free
monochrome images in low light to nearly no
light environment.
IP67
Water Proof
Outdoor-ready Design
Both water- and vandal-resistant, the sturdily
built dome camera is fully compliant with
IP67 and IK10 standards, offering protection
against harsh weather and impacts for outdoor
surveillance installations.
H.264 Dual Streaming
H.264
MPEG4
MJPEG
With triple streaming, the camera supports 2
independent H.264 streams simultaneously. This
advanced technology greatly saves costs by
lowering bandwidth and storage requirement
while improving the overall system performance.
Specifications
Video
Sensor Type
1/2.7” image sensor optimized for low-light performance
Active Pixels
1920x1080 (HxV)
Compression
H.264, MPEG-4, MJPEG
Streaming
Triple simultaneous streams
Resolution
1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF
Max. Frame Rate
2MP 16:9 (1920x1080) at 30 fps (NTSC) and 25 fps (PAL)
Day/Night
Mechanical (ICR) D/N Control
Day/Night Mode
Auto/ Forced BW/ Forced Color/ External
Shutter Time
1/10000s to 1/3.75s Selectable (60Hz);
1/10000s to 1/3.125s Selectable (50Hz)
Min. llumination
Color (Shutter speed: 1/15 sec):
0.1 Lux @10IRE; 0.80 Lux @50IRE
B/W (Shutter speed: 1/15 sec):
0.08 Lux @10IRE; 0.30 Lux @50IRE
Video Output
NTSC: 720 X [email protected]; PAL: 720 X [email protected]
Bit Rate Control
CBR/VBR (Primary Stream)
Built-in Mechanical IR Cut Filter varifocal lens, f=3~9mm,
F1.2 (Mega pixel lens)
View Angle
H: 93°(Wide)~31.7°(Tele)/V:68.4°(Wide)~23.8°(Tele)
View Angle
Adjustment
Pan: 0°-355°(Max.); Tilt: 0°-90°(Max.);
Rotate: 0°-355°(Max.)
IRIS Control
DC IRIS
File upload via FTP, SMTP and SD Card; Notification via
email, HTTP and TCP External output activation; Video
and audio recording to SD Card
Storage Category
Alarm / Motion / Schedule / Uninterrupted recording;
video clips and snapshots storage
Local Storage*
Memory Card Slot
microSD/SDHC Card up to 32 GB
Memory Card
Overwrite
Yes
Network
Lens
Type, Focal
Length, F-number
Event Actions
Protocol
IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,
RTSP, RTCP, ICMP, UPnP
Ethernet
10Base-T/100Base-TX
PoE
IEEE 802.3af, Class 3
ONVIF
Yes
Browser
IE Browser 6.0 or above
Security
Two-level access with password protection
I/O & Controls
Audio
Power
2-pin terminal block
Alarm In/Out
Terminal block 2 in / 1 out
Network
1 x RJ-45
Audio In/Out
3.5mm phone jack 1-in / 1-out
Analog Video
1 x BNC, 1.0Vp-p, 75 ohm / 1 x RCA
Reset
System reboot/factory default
Power
Audio
Communication
Two-way mono audio, Full-duplex
Power
Requirement
DC 12V & AC 24V ± 10% / PoE (IEEE 802.3af)
Compression
G.711, PCM, 8kHz
Audio In/Out
External microphone and speaker
Power
Consumption
6W
Mechanical
Image Enhancement
Image Settings
AWB, AES, AGC
Exposure Mode: Auto/Manual;
White Balance: Auto/Manual;
Backlight Compensation: 5x5 zones selectable;
Sharpness, Saturation, Brightness,
Contrast: 255-level sensitivity
Dimensions (ØxH)
Φ141 mm x 121 mm (Φ5.55” x 4.76”)
Weight
1.13kg (2.5lb)
3-Axis
Pan: 0°-355°, Tilt: 0°-90°, Rotate: 0°-355°
Protection
IP67, IK10, vandal-proof
Battery-backed
Real-time Clock
Yes; External RTC
Digital WDR
Yes; 5-level sensitivity
Privacy Zone
Yes; customized threshold privacy zone
Image Orientation
Mirror, Flip
Frequency Control
50Hz, 60Hz
Operating
Temperature
Date & Time
Stamp
Yes
Operating
Humidity
10~ 90% RH
-20°C ~ 60°C (-4°F ~ 140°F)
Environmental
Intelligent Video & Even Management
Motion Detection
5x5 zones, 5-level sensitivity or customized threshold
Storage
Temperature
Face Detection
3-level sensitivity
Order Information
Audio Detection
5-level sensitivity or customized threshold
Blur Detection
customized threshold
Ethernet Detection
Network loss detection
Smart Encoding
Configurable ROI for better picture quality
Others
Snapshot, Smart Focus, e-PTZ, Optimized i-frame setting
Events
Motion detection, face detection, audio detection, blur
detection, Ethernet detection, external alarm
-10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Model No.
NTSC: NDF831PRO-HN5-MES;
PAL: NDF831PRO-HP5-MES
Accessories
Surface mount: standard package support
Pendent mount: thread 1”
Wall mount: bracket SAB755BP
*Function not available for models sold in Argentina
Dimensions
141mm (5.55”)
Power in (Red+ / Black-)
RJ-45 (Ethernet Connector)
121mm (4.76”)
BNC
Audio out (Green)
Audio in (Red)
Ø108mm (4.25”)
Alarm out (Orange)
Reserved (Green)
Reserved (Yellow)
GND (Gray)
Alarm in 1 (Red)
Alarm in 2 (Brown)
2013.01.11 MESSOA reserves the right to update this datasheet at any time without notice.
www.messoa.com
