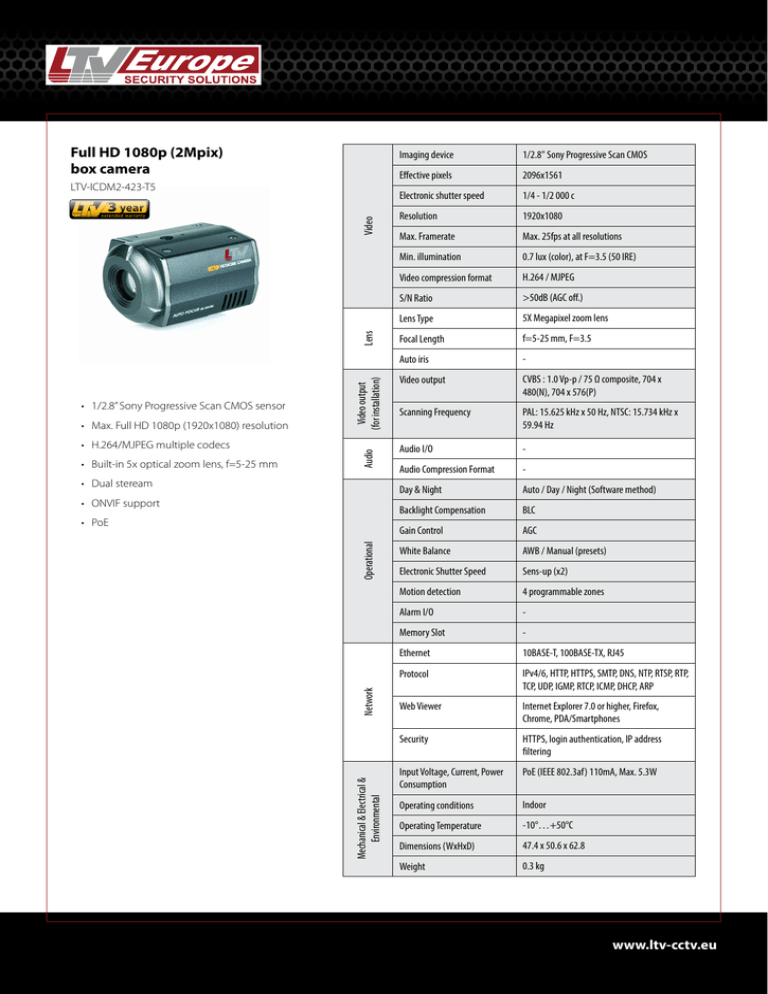

Full HD 1080p (2Mpix) box camera

Full HD 1080p (2Mpix) box camera
Full HD 1080p (2Mpix)
box camera
LTV-ICDM2-423-T5
3 Jahre
Video
3 year
extended warranty
• Max. Full HD 1080p (1920x1080) resolution
• H.264/MJPEG multiple codecs
• Built-in 5x optical zoom lens, f=5-25 mm
Audio
• 1/2.8” Sony Progressive Scan CMOS sensor
Video output
(for installation)
Lens
LT V G a r a n t i e
• Dual steream
• ONVIF support
Mechanical & Electrical &
Environmental
Network
Operational
• PoE
Imaging device
1/2.8" Sony Progressive Scan CMOS
Effective pixels
2096x1561
Electronic shutter speed
1/4 - 1/2 000 c
Resolution
1920x1080
Max. Framerate
Max. 25fps at all resolutions
Min. illumination
0.7 lux (color), at F=3.5 (50 IRE)
Video compression format
H.264 / MJPEG
S/N Ratio
>50dB (AGC off.)
Lens Type
5X Megapixel zoom lens
Focal Length
f=5-25 mm, F=3.5
Auto iris
-
Video output
CVBS : 1.0 Vp-p / 75 Ω composite, 704 x
480(N), 704 x 576(P)
Scanning Frequency
PAL: 15.625 kHz х 50 Hz, NTSC: 15.734 kHz х
59.94 Hz
Audio I/O
-
Audio Compression Format
-
Day & Night
Auto / Day / Night (Software method)
Backlight Compensation
BLC
Gain Control
AGC
White Balance
AWB / Manual (presets)
Electronic Shutter Speed
Sens-up (х2)
Motion detection
4 programmable zones
Alarm I/O
-
Memory Slot
-
Ethernet
10BASE-T, 100BASE-TX, RJ45
Protocol
IPv4/6, HTTP, HTTPS, SMTP, DNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
Web Viewer
Internet Explorer 7.0 or higher, Firefox,
Chrome, PDA/Smartphones
Security
HTTPS, login authentication, IP address
filtering
Input Voltage, Current, Power
Consumption
PoE (IEEE 802.3af) 110mA, Max. 5.3W
Operating conditions
Indoor
Operating Temperature
-10°…+50°C
Dimensions (WxHxD)
47.4 х 50.6 х 62.8
Weight
0.3 kg
www.ltv-cctv.eu
