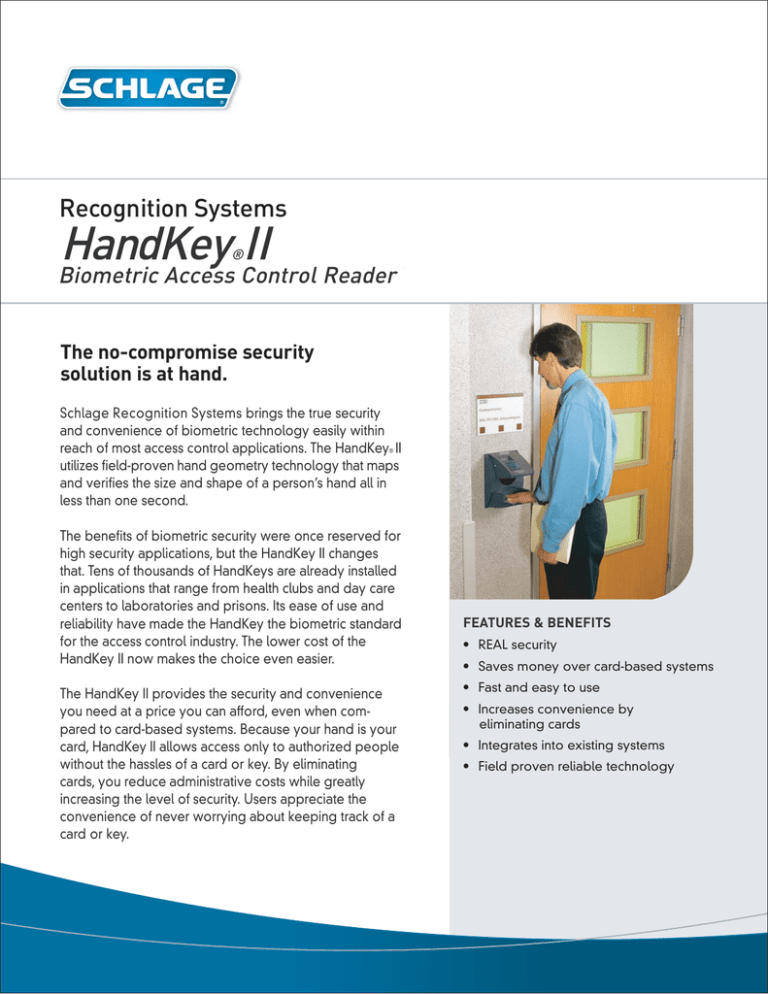

User manual | HandKey II Recognition Systems Biometric Access Control Reader

Recognition Systems
HandKey
II
Biometric Access Control Reader
®
The no-compromise security
solution is at hand.
Schlage Recognition Systems brings the true security
and convenience of biometric technology easily within
reach of most access control applications. The HandKey® II
utilizes field-proven hand geometry technology that maps
and verifies the size and shape of a person’s hand all in
less than one second.
The benefits of biometric security were once reserved for
high security applications, but the HandKey II changes
that. Tens of thousands of HandKeys are already installed
in applications that range from health clubs and day care
centers to laboratories and prisons. Its ease of use and
reliability have made the HandKey the biometric standard
for the access control industry. The lower cost of the
HandKey II now makes the choice even easier.
The HandKey II provides the security and convenience
you need at a price you can afford, even when compared to card-based systems. Because your hand is your
card, HandKey II allows access only to authorized people
without the hassles of a card or key. By eliminating
cards, you reduce administrative costs while greatly
increasing the level of security. Users appreciate the
convenience of never worrying about keeping track of a
card or key.
FEATURES & BENEFITS
• REAL security
• Saves money over card-based systems
• Fast and easy to use
• Increases convenience by
eliminating cards
• Integrates into existing systems
• Field proven reliable technology
Door control and monitoring
The HandKey II's design provides the ultimate in system reliability.
Each HandKey II is a complete door controller providing door lock
operation, request for exit, and alarm monitoring. All information,
including biometric data and decision-making capability resides
locally. This ensures your doors are secure and will continue to
operate properly even if all communications to the main access
control computer are lost.
Features of the HandKey II include:
•Door operation and monitoring
•Card reader input
•Request for exit
•Tamper switch
•Memory expansion from 512
(standard) to 32,512 users
•RS-232 printer output
•Stand alone or networked
operation
•Card reader emulation mode
•Integrated wall mount design
•Multiple auxiliary inputs and
outputs
•62 user definable time zones
•Outdoor version available
•Optional modem or Ethernet
module
Stand-alone or fully integrated
Systems can be as simple as one unit
on the computer room door to
hundreds of units networked
together. The HandKey II's card
reader emulation mode makes
adding it to existing access control
systems fast and easy. A variety of
communications options, including
dial-up modems and Ethernet, allow
you to design a system that's right for
your facilities.
HandKey II
Door Switch
Stand-alone operation lets you
provide security to a single
door at an affordable price
In a network
Schlage Recognition Systems' HandNet for Windows software links
a virtually unlimited number of HandKey units into an integrated
door access control system. All alarms and transactions report
back in real time to the central computer, making door and alarm
monitoring easy and efficient. Activity, user and system reports can
be easily generated. The central computer handles all hand
template management automatically, allowing supervised enrollment at any reader and system-wide deletions. An optional internal
modem lets you include remote site operations. Ethernet communication is also available.
PC running HandNet
for Windows
System Network
RS-485, Ethernet or Modem
Door Switch
Door
Lock
Door Switch
Door
Lock
Door Switch
Door
Lock
SPECIFICATIONS
Part Number: HK-2
Size: 8.85 in (22.3 cm) wide
11.65 in (29.6 cm) high
8.55 in (21.7 cm) deep
Weight: 6 lbs (2.7 kg)
Power: 12 to 24 VDC or 12 to 24 VAC 50-60 Hz,
7 watts
Environment: Operating: 32˚F to 113˚F (0˚C to 45˚C)
Relative Humidity: 20% to 80% NC
Non-operating (storage):
14˚F to 140˚F (-10˚C to 60˚C)
Relative Humidity: 5% to 85% NC
Verification Time: Less than one second
Memory Retention: Up to 5 years via the standard internal
lithium battery.
Transaction Storage: 5120 transactions
ID Number Length: 1 to 10 digits from keypad or card
User Capacity: 512 users expandable to 32,512 users
Template Size: 9 bytes
Communications: RS-485 (4 and 2 wire)
RS-232 Serial Printer Support
or network communications
Baud Rate: 300 to 28.8 Kbps
Card Reader Input: Proximity, Weigand, Magnetic Stripe,
Bar Code
(5 VDC provided by HandReader)
Card Reader Output: Weigand, Magnetic Stripe,
Bar Code
Duress Code: 1 leading digit (user definable)
Regulatory: FCC, CE, UL294
Door Controls: Request to Exit input (switch or keypad),
Door Switch input, Door Lock output.
(open collector, 5 VDC present, sinks to
ground, 100 mA max)
Alarm Monitoring: Tamper, Door Forced, Duress
There are a variety of monitoring options
Event Monitoring: including events such as: Invalid ID,
Time Zone Violation, ID Refused,
Try Again, Power Failure
Time Zones: 62 user definable time zones
Unlimited holidays
Auxiliary Outputs: 3 user definable
(open collector, 5 VDC present,
sinks to ground, 100 mA max)
Auxiliary Inputs: 2 user definable
(open collector, 5 VDC present,
sinks to ground, 100 mA max)
Options: BB-200 Operational Battery Backup
Magnetic Stripe Card Reader
CR-2
DC-102 Data Converter
EM-801 Memory Expansion - 9,728 users
EM-803 Memory Expansion - 32,512 users
EN-200 Ethernet Communications
Module
KP-201 Auxiliary Keypad
MD-500 High Speed Internal Modem
HID Proximity Reader
PROX
WAR-EXT 1 year extended warranty
Schlage
Recognition Systems
1520 Dell Avenue,
Campbell, CA 95008
Tel 408.341.4100
www.schlage.irrsi.com
HandKey® is a registered trademark of Schlage Recognition Systems
Specifications subject to change. Please check with your system vendor for details.
© 2006 Ingersoll Rand Company Limited
Pub No. RS-AC-1483
