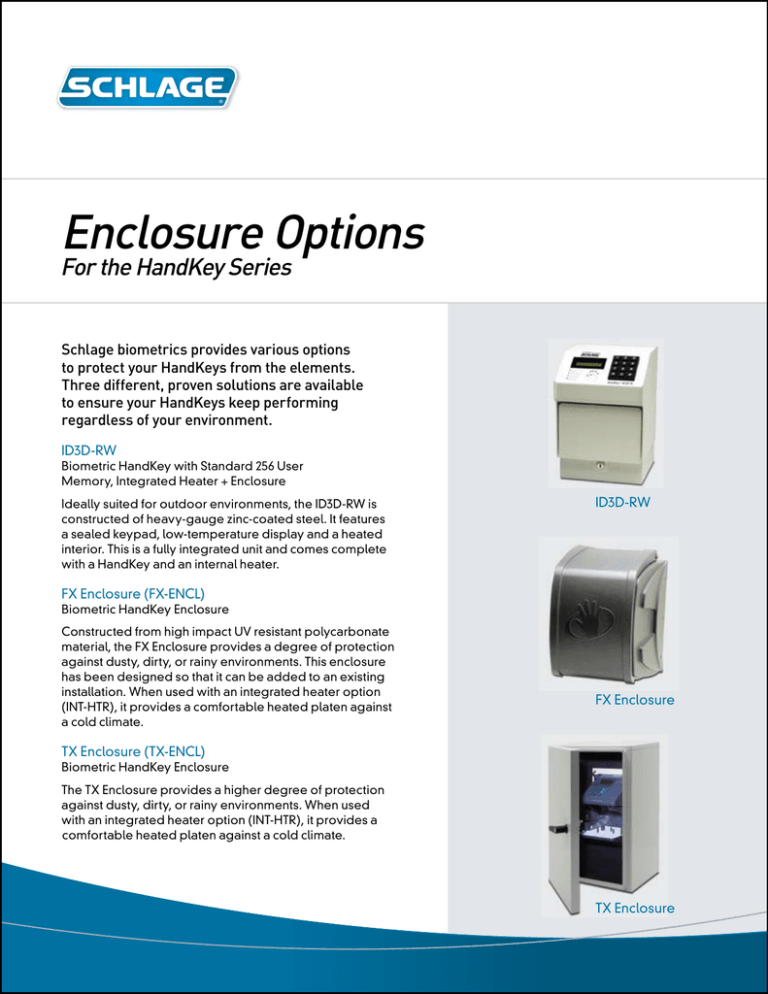

Enclosure Options
For the HandKey Series
Schlage biometrics provides various options
to protect your HandKeys from the elements.
Three different, proven solutions are available
to ensure your HandKeys keep performing
regardless of your environment.
ID3D-RW
Biometric HandKey with Standard 256 User
Memory, Integrated Heater + Enclosure
Ideally suited for outdoor environments, the ID3D-RW is
constructed of heavy-gauge zinc-coated steel. It features
a sealed keypad, low-temperature display and a heated
interior. This is a fully integrated unit and comes complete
with a HandKey and an internal heater.
ID3D-RW
FX Enclosure (FX-ENCL)
Biometric HandKey Enclosure
Constructed from high impact UV resistant polycarbonate
material, the FX Enclosure provides a degree of protection
against dusty, dirty, or rainy environments. This enclosure
has been designed so that it can be added to an existing
installation. When used with an integrated heater option
(INT-HTR), it provides a comfortable heated platen against
a cold climate.
FX Enclosure
TX Enclosure (TX-ENCL)
Biometric HandKey Enclosure
The TX Enclosure provides a higher degree of protection
against dusty, dirty, or rainy environments. When used
with an integrated heater option (INT-HTR), it provides a
comfortable heated platen against a cold climate.
TX Enclosure
SPECIFICATIONS
ID3D-RW
FX Enclosure
TX Enclosure
FX-ENCL
TX-ENCL
Temperature Range
ID3D-RW
-35F to 120F / -37C to 49C
-20F to 120F / -29C to 49C
-45F to 120F / -43C to 49C
Dimensions
HxWXD
11.75 in x 8.00 in x 8.75 in
29.9 cm x 20.3 cm x 22.2 cm
14.75 in x 12.00 in x 10.50 in 37.5 cm x 30.5 cm x 26.7 cm
23.00 in x 14.00 in x 11.25 in 58.4 cm x 35.6 cm x 28.6 cm
Part Number
Cross Weight
(including reader)
23.0 lbs / 10.4 kg
7.3 lbs / 3.3 kg
45.0 lbs / 20.4 kg
HandReader Models
ID3D-RW
HK-2-F3
HK-2-F3
Heater
Standard
Factory installed option only,
Model No. INT-HTR
Factory installed option only,
Model No. INT-HTR
HandKey ® & HandPunch ® are a registered trademarks of Schlage. Specifications
subject to change. Please check with your system vendor for details.
866.861.2480 • biometrics.schlage.com
© 2009 Ingersoll Rand Company
ES-5278
Rev 08/09
