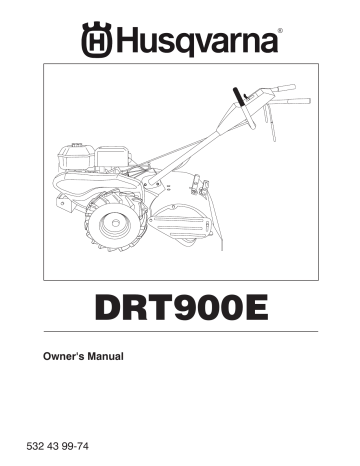

DRT900E

Owner's Manual

532 43 99-74

SAFETY RULES

Safe Operation Practices for Walk-Behind Powered Ro ta ry Tillers

TRAINING

• Read the Manual care ful ly. Be thor ough ly fa mil iar with the controls and the proper use of the equip ment.

Know how to stop the unit and disengage the controls quickly.

• Never allow children to operate the equipment. Never allow adults to op er ate the equipment without proper instruction.

• Keep the area of operation clear of all persons, par-

tic u lar ly small children, and pets.

• Never operate the tiller without proper guards, plates, or other safety protective devices in place.

• Keep children and pets away.

• Do not overload the machine capacity by attempting to till too deep at too fast a rate.

• Never operate the machine at high speeds on slippery surfaces. Look behind and use care when backing.

• Never allow bystanders near the unit.

• Use only attachments and accessories approved by the manufacturer of the tiller.

• Never operate the tiller without good visibility or light.

• Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.

PREPARATION

• Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.

• Disengage all clutches and shift into neutral before starting the engine (mo tor).

• Do not operate the equipment with out wearing ad e quate outer gar ments. Wear footwear that will im prove footing on slippery surfaces.

• Handle fuel with care; it is highly flammable.

• Use an approved fuel container.

• Never add fuel to a running engine or hot engine.

• Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.

• Replace gasoline cap securely and clean up spilled fuel before restarting.

• Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors.

• Never attempt to make any adjustments while the engine (motor) is running (except where specifically rec om mend ed by manufacturer).

MAINTENANCE AND STORAGE

• Keep machine, attachments, and accessories in safe work ing condition.

• Check shear pins, engine mounting bolts, and other bolts at frequent intervals for proper tightness to be sure the equip ment is in safe working condition.

• Never store the machine with fuel in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers, and the like. Allow the engine to cool before storing in any enclosure.

• Always refer to the operator’s guide instructions for im por tant details if the tiller is to be stored for an extended period.

- IMPORTANT -

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF

ATTRACTING ATTENTION TO IMPORTANT OR CRIT I CAL

IN FOR MA TION IN THIS MANUAL.

IMPORTANT:

USED TO ALERT YOU THAT THERE IS A

POS SI BIL I TY OF DAM AG ING THIS EQUIP MENT.

NOTE:

Gives essential information that will aid you to better understand, incorporate, or execute a particular set of instructions.

OPERATION

• Do not put hands or feet near or under rotating parts.

• Exercise extreme caution when op er at ing on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry pas sen gers.

• After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, thoroughly in spect the tiller for any damage, and repair the damage before restarting and op er at ing the tiller.

• Exercise caution to avoid slipping or falling.

• If the unit should start to vibrate ab nor mal ly, stop the engine (motor) and check immediately for the cause.

Vi bra tion is generally a warning of trouble.

• Stop the engine (motor) when leaving the operating position.

• Take all possible precautions when leav ing the ma chine unattended. Disengage the tines, shift into neutral, and stop the engine.

• Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving parts have stopped.

Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the cord on electric motors.

• Do not run the engine indoors; exhaust fumes are dangerous.

Look for this symbol to point out im-

por tant safety precautions. It means

CAUTION!!! BE COME ALERT!!! YOUR

SAFE TY IS INVOLVED.

CAUTION: Always disconnect spark plug wire and place wire where it can-

not contact spark plug in order to pre-

vent ac ci den tal starting when setting up, trans port ing, adjusting or making re pairs.

WARNING

The engine exhaust from this product con tains chem i cals known to the State of Cal i for nia to cause cancer, birth defects, or other reproductive harm.

2

PRODUCT SPECIFICATIONS

CUSTOMER RESPONSIBILITIES

Gasoline Capacity:

Unleaded Reg u lar

OIL (API-SG-SL):

(Capacity 20 oz/0,6L)

Plug:

CONGRATULATIONS

3 Quarts

(2,8L)

SAE 30 Above 32°F/0°C

SAE 5w30 Below 32°F/0°C

Champion

RC12YC

.030"/0.76mm) on your purchase of a new tiller. It has been designed, en gi neered and manu fac tured to give you the best pos sible de penda bil ity and per form ance.

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your tiller.

• Follow instructions under “Maintenance” and “Stor age” sections of this Owner’s Manual.

WARNING:

This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local laws (if any). If a spark arrester is used, it should be maintained in effective work ing order by the operator.

Should you experience any prob lems you can not easily remedy, please contact your nearest authorized service center. We have com pe tent, well-trained tech ni cians and the proper tools to service or repair this unit.

Please read and retain this manual. The in struc tions will enable you to assemble and main tain your tiller prop erly.

Always observe the “SAFETY RULES”.

In the state of California, a spark arrester is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply on federal lands. See your authorized service center/

DEPARTMENT for spark arrester.

TABLE OF CONTENTS

SAFETY RULES ..........................................................2

CUSTOMER RESPONSIBILITIES ...............................3

PRODUCT SPECIFICATIONS .....................................3

ASSEMBLY ...............................................................4-6

OPERATION ...........................................................7-11

MAINTENANCE SCHEDULE ....................................12

MAINTENANCE ...................................................12-14

SERVICE & ADJUSTMENTS ...............................15-18

STORAGE ..................................................................19

TROUBLESHOOTING ...............................................20

REPAIR PARTS ....................................................21-27

3

ASSEMBLY

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed.

(1) Utility knife

(1) Tire pressure gauge

(1) Pair of pliers

(1) 9/16" wrench

LEFT

FRONT

RIGHT

OPERATOR’S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it means when you are in the operating position (standing behind tiller handles).

OPERATOR’S

POSITION

Fig. 1

CONTENTS OF HARDWARE PACK

(2) H a n d l e Lock s

(1) C arria g e Bolt

3/8-16 UNC x 1 G rade 5

(1) C e nt er Locknut

3/8-16 UNC

(1) Fl a t W as h er 13/32 x 1 x 11 G a ug e

(1) H a n d l e Lock L e v er

(1) P i vot Bolt

3/8-16 UNC G rade 5

4

Ext ra Sh ear P i n s & Cl i p s

(1) H air p i n Cl i p

ASSEMBLY

UNPACKING CARTON (See Fig. 2)

CAUTION: Be careful of exposed sta ples when handling or disposing of cartoning material.

IMPORTANT:

WHEN UN PACK ING AND AS SEM BLING TILLER,

BE CAREFUL NOT TO STRETCH OR KINK CABLES.

• While holding handle assembly, cut cable ties se cur ing handle assembly to top frame and depth stake. Let handle assembly rest on tiller.

• Remove top frame of carton.

• Slowly ease handle assembly up and place on top of carton.

• Cut down right hand front and right hand rear cor ners of carton, lay side carton wall down.

• Remove packing material from handle assembly.

• Grasp handle assembly. Hold in “up” position. Be sure handle lock remains in gearcase notch. Slide handle assembly into position.

HANDLE ASSEMBLY

"UP" POSITION

LOOSEN HANDLE

LOCK LEVER TO MOVE

TIGHTEN HANDLE LOCK

LEVER TO HOLD

HANDLE

AS SEM BLY

car to n

_

3

SHIFT ROD

Fig. 2

INSTALL HANDLE (See Figs. 3, 4, and 5)

• Insert one handle lock (with teeth facing outward) in gearcase notch. (Apply grease on smooth side of handle lock to aid in keeping lock in place until handle assembly is lowered into position.)

VIEWED FROM R.H. SIDE OF TILLER

HANDLE ASSEMBLY

GEARCASE

NOTCH

HANDLE

LOCK

Fig. 4

• Rotate handle assembly down. Insert rear carriage bolt first, with bolt head on L.H. side of tiller and loosely assemble locknut (See Fig. 5).

• Insert pivot bolt in front part of plate and tighten.

• Cut down remaining corners of carton and lay panels flat.

• Lower the handle assembly. Tighten nut on carriage bolt so handle moves with some resistance. This will allow for easier adjustment.

• Place flat washer on threaded end of handle lock lever.

• Insert handle lock lever through handle base and gearcase. Screw in handle lock lever just enough to hold lever in place.

• Insert second handle lock (with teeth in ward) in the slot of the handle base (just inside of washer).

• With handle assembly in lowest position, securely tight en handle lock lever by rotating clockwise. Leav-

ing handle assembly in lowest position will make it easier to remove tiller from carton.

CARRIAGE

BOLT

GEARCASE

SLOT

HANDLE

LOCK

FLAT

WASHER

HANDLE LOCK

LEVER

Fig. 3

ha n dles_

3

4

HANDLE

BASE

Fig. 5

LOCKNUT

PIVOT BOLT

5

CONTROL BAR

BRACKET

ASSEMBLY

ATTACH CLUTCH CABLE (See Fig. 6)

• Hook end of clutch cable through hole in control bar bracket.

CONNECT SHIFT ROD (See Fig. 7)

• Insert end of shift rod into hole of shift lever indicator.

• Insert hairpin clip through hole of shift rod to secure.

SHIFT

ROD

HAIRPIN

CLIP

SHIFT

LEVER

INDICATOR

CONTROL

BAR

CLUTCH

CABLE

CONTROL BAR

BRACKET

END OF CLUTCH

CABLE

Fig. 6

Fig. 7

REMOVE TILLER FROM CRATE

• Make sure shift lever indicator is in “N” position (See

Fig. 7)

• Tilt tiller forward by lifting handle. Separate cardboard cover from leveling shield.

• Rotate tiller handle to the right and pull tiller out of carton.

CHECK TIRE PRESSURE

The tires on your unit were overinflated at the factory for shipping purposes. Correct and equal tire pressure is important for best tilling performance.

• Reduce tire pressure to 20 PSI (1.4 kg/cm

2

).

HANDLE HEIGHT

• Handle height may be adjusted to better suit operator.

(See “TO ADJUST HANDLE HEIGHT” in the Service and Adjustments section of this manual).

6

OPERATION

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.

TILLING TILLING FORWARD NEUTRAL REVERSE

CAUTION

OR WARNING

ENGINE

ON

ENGINE

OFF

THROTTLE

CONTROL

SHIFT LEVER

FAST SLOW CHOKE FUEL OIL

CHOKE CONTROL

FUEL SHUT

OFF VALVE

START

BUTTON

SHIFT LEVER

IN DI CA TOR

S

DRIVE

CONTROL

BAR

DRAG

STAKE

DEPTH STAKE

LEVELING

SHIELD

RECOIL

STARTER

HANDLE

OUTER SIDE

SHIELD

Fig. 8

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

CHOKE CONTROL

- Used when starting a cold engine.

DEPTH STAKE

- Controls depth at which tiller will dig.

DRAG STAKE

- Controls forward speed in forward rotating till position.

DRIVE CONTROL BAR

- Used to engage tines.

LEVELING SHIELD

- Levels tilled soil.

OUTER SIDE SHIELD

- Adjustable to protect small plants from being buried.

7

FUEL VALVE -

The fuel valve opens and closes the passage between the fuel tank and the carburetor.

THROTTLE CONTROL

- Controls engine speed.

ELECTRIC START BUTTON

– used for starting the engine.

SHIFT LEVER

- Used to shift transmission gears.

SHIFT LEVER INDICATOR

- Shows which gear the trans-

mis sion is in.

OPERATION

The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask for over spectacles or standard safety glasses.

00155

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and oil or attempting to start engine.

TRANSPORT

POSITION

STOPPING (See Fig. 9)

TINES AND DRIVE

• Release drive control bar to stop movement.

• Move shift lever to “N” (neutral) position.

ENGINE

• Move throttle control to “STOP” position.

• Never use choke to stop engine.

SHALLOWEST

TILLING

(CULTIVATING)

DEEPEST

TILLING

THROTTLE

CONTROL

SHIFT

LEVER

DEPTH

STAKE

dept h_s tak e_2

Fig. 10

DRIVE CONTROL

BAR “ENGAGED”

PO SI TION

DRAG STAKE (See Fig. 11)

The drag stake should be raised when tilling in the counter rotating ( ) till position. The drag stake should be lowered when tilling in the forward rotating ( )till position.

DRIVE CONTROL BAR

“DISENGAGED” PO SI TION

Fig. 9

TINE OPERATION - WITH WHEEL DRIVE

• Always release drive control bar before moving shift lever into another position.

• Tine movement is achieved by moving shift lever to either the counter rotating ( ) till position or the forward rotating ( ) till position and engaging drive control bar.

FORWARD - WHEELS ONLY/TINES STOPPED

• Release drive control bar and move shift lever in di ca tor to “F” (forward) position. Engage drive control bar and tiller will move forward.

REVERSE - WHEELS ONLY/TINES STOPPED

• DO NOT STAND DIRECTLY BEHIND TILLER.

• Release the drive control bar.

• Move throttle control to “SLOW” position.

• Move shift lever indicator to “R” (reverse) position.

• Hold drive control bar against the handle to start tiller movement.

HARD TO SHIFT GEARS

• Briefly engage drive control bar and release or rock tiller forward and backward until are able to shift gears.

DEPTH STAKE (See Fig. 10)

The depth stake can be raised or lowered to allow you more versatile tilling and cul ti vat ing, or to more easily transport your tiller.

8

LOWERED

(FOR WARD ROTATING

TILL)

RAISED

(COUNTER ROTATING

TILL)

Fig. 11

TILLING (See Fig. 12)

• Release depth stake pin. Pull the depth stake up for increased tilling depth. Place depth stake pin in hole of depth stake to lock in position.

• Place shift lever indicator in counter rotating ( ) till position .

• Hold the drive control bar against the handle to start tilling movement. Tines and wheels will both turn.

• Move throttle control to “FAST” position for deep tilling.

To cultivate, throttle control can be set at any desired speed, depending on how fast or slow you wish to cultivate.

IMPORTANT:

ALWAYS RELEASE DRIVE CONTROL

BAR BEFORE MOVING SHIFT LEVER INTO ANOTHER

POSITION.

NUT “B”

OUTER

SIDE SHIELD

NUT “A”

de pth

_stak e_11

Fig. 12

TURNING

• Release the drive control bar.

• Move throttle control to “SLOW” position.

• Place shift lever indicator in “F” (forward) position. Tines will not turn.

• Lift handle to raise tines out of ground.

• Swing the handle in the opposite direction you wish to turn, being careful to keep feet and legs away from tines.

• When you have completed your turn-around, release the drive control bar and lower handle. Place shift lever in (till) position and move throttle control to de sired speed. To begin tilling, hold drive control bar against the handle.

CULTIVATING

• Use the forward rotating tine drive when cultivating, tilling soft ground or tilling pre-tilled soil.

• Release depth and drag stake pins. Lower drag stake.

Pull the depth stake up for increased tilling depth. Place proper pin in hole of depth stake or drag stake to lock in position.

• Place shift lever indicator in forward rotating ( ) till position.

• Hold the drive control bar against the handle to start tilling movement. Tines and wheels will both turn.

• Move throttle control "FAST" position for deep tilling.

To cultivate, throttle control can be set at any desired speed, depending on how fast or slow you wish to cultivate.

Always lower the drag stake when using the for ward rotating tine drive.

OUTER SIDE SHIELDS (See Fig. 12)

The back edges of the outer side shields are slotted so that the shields can be raised for deep tilling and low ered for shal low tilling to protect small plants from being buried.

Loosen nut “A” in slot and nut “B”. Move shield to desired position (both sides). Retighten nuts.

OPERATION

DEPTH STAKE PIN

“RELEASED” POSITION

TO TRANSPORT

CAUTION: Before lifting or trans port ing, allow tiller engine and muffler to cool.

Disconnect spark plug wire. Drain gasoline from fuel tank.

“LOCKED”

POSITION

AROUND THE YARD

• Release the depth stake pin. Move the depth stake down to the top hole for transporting the tiller. Place depth stake pin in hole of depth stake to lock in position. This prevents tines from scuffing the ground.

• Place shift lever indicator in “F” (forward) position for transporting.

• Hold the drive control bar against the handle to start tiller movement. Tines will not turn.

• Move throttle control to desired speed.

AROUND TOWN

• Disconnect spark plug wire.

• Drain fuel tank.

• Transport in upright position to prevent oil leakage.

BEFORE START ING ENGINE

IMPORTANT

: BE VERY CAREFUL NOT TO ALLOW DIRT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE IN

APPROVED, CLEAN, COVERED CONTAINERS. USE CLEAN

FILL FUNNELS.

CHECK ENGINE OIL LEVEL (See Fig. 13)

The engine in your unit has been shipped, from the factory, already filled with SAE 30 summer weight oil.

• With engine level, clean area around oil filler plug and remove plug.

• Engine oil should be to point of overflowing when engine is level. For ap proxi mate capacity see “PROD UCT

SPEC I FI CA TIONS” on page 3 of this manual. All oil must meet A.P.I. Service Classification SG-SL.

• Reinstall engine oil cap and tighten.

• For cold weather operation you should change oil for easier starting (See oil viscosity chart in the Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in this manual.

OIL

LEVEL

Fig. 13

9

OPERATION

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill.

Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

CAUTION: Fill to within 1/2 inch of top of fuel tank to prevent spills and to allow for fuel expansion. If gasoline is ac-

ci den tal ly spilled, move machine away from area of spill. Avoid creating any source of ignition until gasoline vapors have disappeared.

Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

IMPORTANT:

WHEN OPERATING IN TEMPERATURES BELOW

32°F (0°C), USE FRESH, CLEAN WINTER GRADE GAS O LINE

TO HELP INSURE GOOD COLD WEATHER START ING.

CAUTION: Alcohol blended fuels (called gas o hol or using ethanol or methanol) can attract moisture which leads to sep a ra tion and for ma tion of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of

30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next sea son. See Storage In struc tions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 14)

CAUTION: Keep drive control bar in

“DISENGAGED” position when start-

ing en gine.

When starting engine for the first time or if engine has run out of fuel, it will take longer to start the engine.

ELECTRIC STARTER

• Make sure spark plug wire is prop er ly connected.

• Move shift lever indicator to “N” (neutral) position.

• Place throttle control in “FAST” position.

• Turn fuel shut-off valve 1/4 turn to open position.

• Move choke control to choke position.

• Connect a three-wire extension cord to the engine first.

• Plug the other end of the extension cord into a threehole grounded 110 Volt A.C. receptacle.

• Stand to side of tiller and push starter button until engine starts.

• If engine fires but does not start, move choke control to half choke position.

10

IMPORTANT:

Do not crank engine more than five continuous seconds between each time you try to start. Wait 1 minute between each attempt.

• When engine starts, release the starter button and slowly move choke control to "RUN" position as engine warms up.

• Disconnect the extension cord from the receptacle first, then from the engine.

NOTE

: A warm engine requires less choking to start.

• Move throttle control to desired running position.

• Allow engine to warm up for a few minutes before engaging tines.

RECOIL STARTER

• Make sure spark plug wire is prop er ly connected.

• Move shift lever indicator to “N” (neutral) position.

• Place throttle control in “FAST” position.

• Turn fuel shut-off valve 1/4 turn to open position.

• Move choke control to choke position.

• Grasp recoil starter handle with one hand and grasp tiller handle with other hand. Pull rope out slowly until engine reaches start of com pres sion cycle (rope will pull slightly harder at this point).

• Pull recoil starter handle quickly. Do not let starter handle snap back against starter.

• If engine fires but does not start, move choke control to half choke position. Pull recoil starter handle until engine starts.

NOTE

: A warm engine requires less choking to start.

• Move throttle control to desired running position.

• Allow engine to warm up for a few minutes before engaging tines.

NOTE

: If at a high altitude (3000 feet) or in cold tem per a-

tures below 32°F (0°C), the carburetor fuel mixture may need to be adjusted for best engine performance. See "TO

AD JUST CARBURETOR" in the Service and Adjustments section of this manual.

NOTE

: If engine does not start, see troubleshooting points.

Choke

Con trol

Spark Plug

Recoil Starter

Fig. 14

Fuel Shut-Off

Valve

Throttle

Control

Starter

Button

Power Cord

Plug

OPERATION

TILLING HINTS (See Fig. 15)

CAUTION: Until you are accustomed to handling your tiller, start actual field use with throttle in slow position (mid-way between “FAST” and “IDLE”).

• Tilling is digging into, turning over, and breaking up packed soil before planting. Loose, unpacked soil helps root growth. Best tilling depth is 4" to 6" (10-15 cm).

A tiller will also clear the soil of unwanted vege ta tion.

The de com po si tion of this vegetable mat ter enriches the soil. Depending on the climate (rain fall and wind), it may be advisable to till the soil at the end of the growing season to further condition the soil.

• You will find tilling much easier if you leave a row untilled between passes. Then go back between tilled rows. (See Fig. 15) There are two reasons for doing this. First, wide turns are much easier to negotiate than about-faces. Sec ond, the tiller won’t be pulling itself, and you, toward the row next to it.

• Soil conditions are important for proper tilling. Tines will not readily penetrate dry, hard soil which may con trib ute to excessive bounce and difficult handling of your tiller.

Hard soil should be mois tened before tilling; however, extremely wet soil will “ball-up” or clump during tilling.

Wait until the soil is less wet in order to achieve the best results. When tilling in the fall, re move vines and long grass to prevent them from wrapping around the tine shaft and slowing your tilling operation.

• Do not lean on handle. This takes weight off the wheels and reduces traction. To get through a really tough section of sod or hard ground, apply upward pressure on handle or lower the depth stake.

Fig. 16

• Do not lean on handle, this takes weight off the wheels, reduces traction, and may cause the tiller to skip over the ground.

Always lower the drag stake when using the for ward rotating tine drive.

ADJUST WHEELS FOR CULTIVATING

(See Figs. 17 and 18)

• Place blocks under right hand side of tiller and remove hairpin clip and clevis pin from right hand wheel.

• Move wheel outward approximately 1 inch until hole in inner wheel hub lines up with inner hole in axle.

• Replace clevis pin and hairpin clip on inside of wheel and remove blocks.

• Repeat preceding steps on left hand side.

NOTE

: In extremely rough conditions and while cultivating, the wheels should be moved outward on the axle for increased stability.

OUTER VIEW OF TIRE

CLEVIS

PIN

4

5

3

6

2

7

1

Fig. 15

CULTIVATING

Cultivating is destroying the weeds between rows to pre-

vent them from robbing nourishment and moisture from the plants. At the same time, breaking up the upper layer of soil crust will help retain moisture in the soil. Best digging depth is 1" to 3" (2.5-7.5 cm). Lower the outer side shields to protect small plants from being buried.

• Cultivate up and down the rows at a speed which will allow tines to uproot weeds and leave the ground in rough condition, promoting no further growth of weeds and grass (See Fig. 16).

11

tire_1

CLEVIS

PIN

Fig. 17

INNER VIEW OF TIRE

HAIRPIN

CLIP

HAIRPIN

CLIP

Fig. 18

tire_2

MAINTENANCE

MAINTENANCE

SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Ch e ck Eng i n e O i l L e v e l

Ch a ng e Eng i n e O i l

O i l P i vot Po i nt s

In s p e ct Sp ar k A rres t er / Muffl er

In s p e ct A ir Sc ree n

Cl ea n o r R e pl a c e A ir Cl ea n er C ar t rid g e

Cl ea n Eng i n e Cyl i n der F i n s

R e pl a c e Sp ar k Plug

1,2

2

SERVICE DATES

RH G ear C ase G rease F i tt i ng (1oz.)

1 - Ch a ng e mo re oft e n w h e n op era t i ng un der a h ea vy lo ad o r i n h i gh a mb ie nt t e mp era tu res .

2 - S er v i c e mo re oft e n w h e n op era t i ng i n dir ty o r d u s ty con di t i on s .

LUBRICATION CHART

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must main tain tiller as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tiller.

All adjustments in the Service and Adjustments section of this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or replace air filter, and check tines and belts for wear.

A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check tine operation.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See “LUBRICATION CHART”).

ENGINE

IDLER

BRACKET

THROTTLE CONTROL

RH GEAR CASE

GREASE FIT TING

WHEEL

HUB

SAE 30 OR 10W-30 MOTOR OIL

REFER TO MAINTENANCE “ENGINE” SECTION

EP #1 GREASE

DEPTH

STAKE PIN

LEVELING

SHIELD

HINGES

12

MAINTENANCE

Disconnect spark plug wire before performing any maintenance (except car bu re tor adjustment) to prevent accidental start ing of engine.

Prevent fires! Keep the engine free of grass, leaves, spilled oil, or fuel. Re move fuel from tank before tipping unit for maintenance. Clean muffler area of all grass, dirt, and debris.

Do not touch hot muffler or cylinder fins as contact may cause burns.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with API service classification SG-SL. Select the oil’s SAE vis cos i ty grade according to your expected temperature.

SA E VI S CO S ITY G RA DE S

SAE 30

AIR FILTER (See Fig. 21)

Service air cleaner cartridge every twen ty-five hours, more often if engine is used in very dusty conditions.

1. Loosen air cleaner screw.

2. Remove air cleaner cover.

3. Carefully remove air cleaner cartridge. Be care ful. Do not allow dirt or de bris to fall into carburetor.

4. Clean by tapping gently on a flat sur face.

NOTE: If very dirty or damaged, replace car tridge.

5. Clean and re place cover. Tighten screw securely.

10W-30 / 5W-30

CAUTION:

Petroleum sol vents, such as kerosene, are not to be used to clean car tridge. They may cause de te ri o ra tion of the cartridge. Do not oil car tridge. Do not use pres sur ized air to clean or dry car tridge.

F

-20 0 3 0 40

60 80

100

C

3 0 3 0 40

TE M PE RA TU R E RAN GE AN TICIP A TED BEFO R E N EXT OIL CH AN GE oil_visc_chart5_e(drt)

Fig. 19

NOTE:

Although multi-viscosity oils (5W-30, 10W-30, etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above

40°F (4°C). Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the tiller is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each five (5) hours of continuous use. Add SAE

30 motor oil or equivalent. Tighten oil filler plug securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 19 and 20)

• Be sure tiller is on level surface.

• Oil will drain more freely when warm.

• Use a funnel to prevent oil spill on tiller, and catch oil in a suitable con tain er.

• Remove drain plug.

• For easier removal of plug use 7/16 12 Pt. socket with extension.

• Tip tiller forward to drain oil.

• After oil has drained completely, replace oil drain plug and tighten securely.

• Remove oil filler plug. Be careful not to allow dirt to enter the engine.

• Refill engine with oil. See “CHECK ENGINE OIL LEVEL” in the Operation section of this manual.

COVER

AIR

CLEANER

SCREW

Fig. 21

AIR CLEAN ER

CAR TRIDGE

OIL

DRAIN

PLUG

OIL FILLER

PLUG

OIL LEVEL

Fig. 20

13

MAINTENANCE

COOLING SYSTEM (See Fig. 22)

Your engine is air cooled. For proper engine performance and long life keep your engine clean.

• Clean air screen frequently using a stiff-bristledbrush.

• Remove blower housing and clean as nec es sary.

• Keep cylinder fins free of dirt and chaff.

Cylinder Fins

Muffler

Blower

Housing

Air Screen

Fig. 22

MUFFLER

Do not operate tiller without muffler. Do not tamper with exhaust system. Damaged mufflers or spark arresters could create a fire hazard. Inspect pe ri odi cally and re place if nec-

es sary. If your engine is equipped with a spark arrester screen assembly, re move every 50 hours for cleaning and inspection. Re place if dam aged.

SPARK PLUG

Replace spark plugs at the beginning of each tilling sea-

son or after every 50 hours of use, whichever comes first.

Spark plug type and gap setting is shown in “PRODUCT

SPEC I FI CA TIONS” on page 3 of this manual.

TRANSMISSION

Once a season, lubricate the right hand side gear case grease fitting with 1 oz. of EP #1 Grease.

CLEANING

Do not clean your tiller when the engine and transmission are hot. We do not rec om mend using pressurized water

(gar den hose, etc.) to clean your unit un less the gasket area around the trans mis sion and the engine muf fler, air fil ter and car bu re tor are cov ered to keep wa ter out. Wa ter in en gine will short en the useful life of your tiller.

• Clean engine, wheels, finish, etc. of all foreign matter.

• Keep finished surfaces and wheels free of all gas o line, oil, etc.

• Protect painted surfaces with au to mo tive type wax.

14

SERVICE AND ADJUSTMENTS

CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT (See Fig. 23)

Select handle height best suited for your tilling conditions.

Handle height will be different when tiller digs into soil.

• First loosen handle lock lever.

• Handle can be positioned at different settings between

“HIGH” and “LOW” positions.

• Retighten handle lock lever securely after adjusting.

HANDLE

(HIGH POSITION)

HANDLE LOCK

LEVER

CLEVIS PIN

HANDLE

(LOW POSITION)

Fig. 23

HAIRPIN CLIP

tire_ 3

Fig. 24

TO REMOVE BELT GUARD (See Fig. 25)

NOTE

: For ease of removal, remove hairpin clip and clevis pin from left wheel. Pull wheel out from tiller about

1 inch.

• Remove two (2) screws from side of belt guard.

• Remove hex nut and washer from bottom of belt guard

(located behind wheel).

• Pull belt guard out and away from unit.

• Replace belt guard by reversing above procedure.

TIRE CARE

CAUTION: When mounting tires, un-

less beads are seated, over in fla tion can cause an explosion.

• Maintain 20 pounds of tire pressure. If tire pressures are not equal, tiller will pull to one side.

• Keep tires free of gasoline or oil which can damage rubber.

TO REMOVE WHEEL (See Fig. 24)

• Place blocks under trans mis sion to keep tiller from tipping.

• Remove hairpin clip and clevis pin from wheel.

• Remove wheel and tire.

• Repair tire and reassemble.

BELT GUARD

SCREW

AND

WASHER

SCREW

AND WASHER

HAIRPIN CLIP

AND CLEVIS PIN

Fig. 25

HEX NUT

AND

WASHER

(LOCATED

BEHIND

TIRE)

15

SERVICE AND ADJUSTMENTS

TO REPLACE GROUND DRIVE BELT

(See Figs. 25 and 26)

• Remove belt guard as described in “TO REMOVE BELT

GUARD”.

• Remove old belt by slipping off engine pulley first then remove from transmission pulley.

• Place new belt in groove of transmission pulley and into engine pulley. BELT MUST BE IN GROOVE ON

TOP OF IDLER PULLEY. NOTE POSITION OF BELT

TO GUIDES.

• Check belt adjustment as described below.

• Replace belt guard.

• Reposition wheel and replace clevis pin and hairpin clip.

GROUND DRIVE BELT ADJUSTMENT ( S e e

Fig. 26)

For proper belt tension, the extension spring should have about 5/8 inch (16 mm) stretch when drive control bar is in “EN GAGED” position. This tension can be attained as fol lows:

• Loosen cable clip screw securing the drive control cable.

• Slide cable forward for less tension and rearward for more tension until about 5/8 inch (16 mm) stretch is obtained while the drive control bar is engaged.

• Tighten cable clip screw securely.

ENGINE

PULLEY

CABLE CLIP

SCREW

DRIVE

CONTROL

CABLE

IDLER

PULLEY

TRANS MIS SION

PULLEY

Fig. 26

EXTENSION

SPRING

LESS

TEN SION

5/8"

MORE

TEN SION

16

SERVICE AND ADJUSTMENTS

TINE REPLACEMENT

(See Figs. 27, 28 and 29)

CAUTION: Tines are sharp. Wear gloves or other protection when han-

dling tines.

A badly worn tine causes your tiller to work harder and dig more shallow. Most important, worn tines cannot chop and shred organic matter as effectively nor bury it as deeply as good tines. A tine this worn needs to be replaced.

• To maintain the superb tilling performance of this ma-

chine the tines should be checked for sharpness, wear, and bending, particularly the tines which are next to the transmission. If the gap between the tines ex ceeds

3-1/2 inches they should be replaced or straight ened as necessary.

• For tines that are slightly worn, the bolt ed tine and hub assemblies can be switched between sides to continue till ing in the same tilling mode if tilling in a different mode is desired then the bolt ed tine and hub assemblies should be switched back to their original side so that the tine edge with the least wear will be used.

NEW TINE

WORN TINE

ti n e_19

SHARP EDGES

ti n es_21(rear ti n es)

Fig. 27

TINE

Fig. 28

TINE

3-1/2" MAX

HAIRPIN CLIP

SHARP EDGES

HAIRPIN

CLIP

SHARP EDGES

SHEAR PIN

Fig. 29

17

ti n e_20

SERVICE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 30)

The throttle control has been preset at the factory and ad just ment should not be necessary. If adjustment is necessary, proceed as follows:

• With engine not running, move remote throttle control lever to “FAST” position.

• If throttle lever on engine touches high speed stop, no further adjustment is necessary. If throttle lever does not touch high speed stop, continue with adjustment procedure.

• Loosen cable clamp screw.

• Move throttle lever up until it touches high speed stop, and hold in this position.

• Tighten cable clamp screw securely.

TO AD JUST CARBURETOR

The carburetor has been preset at the factory and ad just ment should not be necessary. However, engine per for mance can be affected by dif fer enc es in fuel, tem per a ture, al ti tude or load. If the carburetor does need ad just ment, contact your nearest authorized service center/de part ment

IMPORTANT:

NEVER TAMPER WITH THE ENGINE GOVERNOR,

WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.

OVER SPEED ING THE ENGINE ABOVE THE FACTORY HIGH

SPEED SETTING CAN BE DANGEROUS. IF YOU THINK THE

ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,

CONTACT YOUR NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS THE PROPER EQUIP MENT AND

EXPERIENCE TO MAKE ANY NEC ES SARY ADJUSTMENTS.

CLAMP SCREW

CASING

AND WIRE

e ng i n e_art_78

THROTTLE CONTROL

Fig. 30

18

STORAGE

Immediately prepare your tiller for storage at the end of the season or if the unit will not be used for 30 days or more.

CAUTION: Never store the tiller with gasoline in the tank inside a build ing where fumes may reach an open flame or spark. Allow the engine to cool before storing in any enclosure.

ENGINE OIL

Drain oil (with engine warm) and replace with clean oil. (See

“ENGINE” in the Maintenance section of this man ual).

CYLINDER(S)

• Remove spark plug.

• Pour 1 ounce (29 ml) of oil through spark plug hole into cylinder.

• Pull starter handle slowly several times to distribute oil.

• Replace with new spark plug.

TILLER

• Clean entire tiller (See “CLEANING” in the Maintenance section of this manual).

• Inspect and replace belts, if nec es sary (See belt re-

place ment in struc tions in the Service and Ad just ments section of this manual).

• Lubricate as shown in the Maintenance section of this manual.

• Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, break age and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

ENGINE

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your unit indoors and cover it to give protection from dust and dirt.

• Cover your unit with a suitable pro tec tive cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows con den sa tion to form and will cause your unit to rust.

IMPORTANT:

NEVER COVER TILLER WHILE ENGINE AND

EXHAUST AREAS ARE STILL WARM.

FUEL SYSTEM

IMPORTANT:

IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH

AS THE CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the fuel tank or permanent.

• Use fresh fuel next season.

NOTE:

Fuel stablizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stablizer container. Run engine at least 10 minutes after adding stablizer to allow the stabilizer to reach the carburetor.

Do not empty the gas tank and carburetor if using fuel stabilizer.

19

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start

1. Out of fuel.

2. Engine not “CHOKED” properly.

3. Engine flooded.

4. Dirty air cleaner.

5. Water in fuel.

6. Clogged fuel tank.

7. Loose spark plug wire.

8. Bad spark plug or improper gap.

9. Carburetor out of adjustment.

Hard to start

1. Throttle control not set properly.

2. Dirty air cleaner.

3. Bad spark plug or improper gap.

4. Stale or dirty fuel.

5. Loose spark plug wire.

6. Carburetor out of adjustment.

1. Fill fuel tank.

2. See “TO START ENGINE” in Operation section.

3. Wait several minutes before attempting to start.

4. Clean or replace air cleaner cartridge.

5. Empty fuel tank and carburetor, and refill tank

with fresh gasoline.

6. Remove fuel tank and clean.

7. Make sure spark plug wire is seated properly on plug.

8. Replace spark plug or adjust gap.

9. Make necessary adjustments.

1. Place throttle control in “FAST” position.

2. Clean or replace air cleaner cartridge.

3. Replace spark plug or adjust gap.

4. Empty fuel tank and refill tank with fresh, clean gasoline.

5. Make sure spark plug wire is seated properly on plug.

6. Make necessary adjustments.

Loss of power

1. Engine is overloaded.

2. Dirty air cleaner.

3. Low oil level/dirty oil.

4. Faulty spark plug.

5. Oil in fuel.

6. Stale or dirty fuel.

7. Water in fuel.

8. Clogged fuel tank.

9. Spark plug wire loose.

10. Dirty engine air screen.

11. Dirty/clogged muffler.

12. Carburetor out of adjustment.

13.

Engine overheats

1. Low oil level/dirty oil.

2. Dirty engine air screen.

3. Dirty engine.

4. Partially plugged muffler.

5. Improper carburetor adjustment.

1. Set depth stake for shallower tilling.

2. Clean or replace air cleaner cartridge.

3. Check oil level/change oil.

4. Clean and regap or change spark plug.

5. Empty and clean fuel tank and refill, and clean carburetor.

6. Empty fuel tank and refill fuel tank with fresh gasoline.

7. Empty fuel tank and carburetor, and refill tank

with fresh gasoline.

8. Remove fuel tank and clean.

9. Connect and tighten spark plug wire.

10. Clean engine air screen.

11. Clean/replace muffler.

12. Make necessary adjustments.

Excessive bounce/ difficult handling

Soil balls up or clumps

Engine runs but tiller won’t move

Tines will not rotate

1. Ground too dry and hard.

1. Ground too wet.

1. Drive control bar is not engaged.

2. V-belt not correctly adjusted.

3. V-belt is off pulley(s).

Engine runs but labors

1. Tilling too deep.

when tilling

2. Throttle control not properly adjusted.

3. Carburetor out of adjustment.

1. Shear pin(s) broken.

1. Check oil level/change oil.

2. Clean engine air screen.

3. Clean cylinder fins, air screen, and muffler area.

4. Remove and clean muffler.

5. Adjust carburetor to richer position.

1. Moisten ground or wait for more favorable soil conditions.

1. Wait for more favorable soil conditions.

1. Engage drive control.

2. Inspect/adjust V-belt.

3. Inspect V-belt.

1. Set depth stake for shallower tilling.

2. Check throttle control setting.

3. Make necessary adjustments.

1. Replace shear pin(s).

Tines skip over ground

1. Drag Stake not lowered in forward rotating 1. Lower Drag Stake mode.

2. Improper tilling mode. 2. Forward rotating tine drive should only be used

for soft ground or for soil that has already been tilled.

Hard to shift into gear

1. Gears not timed.

Tiller shuts off when drive control bar engaged

1. Briefly engage drive control bar and release or

rock tiller forward and back ward until are able to

1. Shift lever set in between counter rotating till 1. Shift to either counter rotating till position or forward position and forward rotating till position.

2. Tines jammed.

rotating till position.

2. Clear tines.

20

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

HANDLE ASSEMBLY

8

6

2

3 0

2

33

14

12

1 3

10

11

41

27

27

15

1

29

3 7

21

16

3 7

4

24

2 3

26

KEY PART

NO. NO. DESCRIPTION

1

2

4

6

532 18 94-82 Control, Throttle

532 42 76-43 Grip, Handle

532 15 92-28 Bar Assembly, Control

532 44 03-15 Panel, Control

8 871 19 10-08 Screw, Truss Hd. #10-24 unc x 1/2

10 532 12 47-97 Grip, Handle

11 532 12 47-88 Clip, Hairpin

12 532 08 13-28 Bolt, Shoulder

13 532 18 74-97 Handle, Shift

14 532 10 93-13 Grommet, Rubber

15 532 10 93-37 Rod, Shift

16 872 11 06-08 Bolt, Carriage 3/8-16 x 1 Gr. 5

17 532 10 92-29 Lock, Handle

18 873 68 06-00 Nut, Crownlock 3/8-16 unc

19 819 13 16-11 Washer 13/32 x 1 x 11 Ga.

20

19

18

17

11

3 1

Ha n dle_assy_99_19

KEY PART

NO. NO. DESCRIPTION

20 532 10 92-28 Lever, Lock, Handle

21 532 18 11-27 Handle

23 532 08 67-77 Screw, Hex Washer SLT #10-24 x .50

24 532 00 94-84 Clip

26 532 15 92-31 Cable, Clutch

27 873 90 04-00 Nut, Hex Flange 1/4-20 unc

29 873 73 10-00 Nut, Keps #10-24 unc

30 532 10 41-64 Tie, Cable

31 532 15 06-96 Bolt, Pivot

33 872 14 04-04 Bolt, Carriage 1/4-20 unc x 1/2

37 532 10 26-04 Grip, Bar, Control

41 532 10 27-44 Clamp, Bar, Control

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

21

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

MAINFRAME, LEFT SIDE

KEY PART

NO. NO. DESCRIPTION

7

8

9

3

4

5

6

873 22 06-00 Nut, Hex 3/8-16

532 43 24-20 Shield, Inner Belt Guard RT

532 16 43-29 Pin Spirol Flared

532 16 27-56 Lever, Shift

872 11 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5

532 16 15-30 Plate, Shift Indicator

532 08 67-77 Screw, Hex, Washer Head, Slotted

#10-24 x 1/2

10 532 00 94-84 Clip

12 873 51 04-00 Nut, Keps Hex 1/4-20 unc

13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8

14 532 11 06-52 Spacer, Split 0.327 x 0.42 x 2.09

15 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

16 532 14 51-02 Sheave, Transmission

19 812 00 00-28 Retainer, Ring

21 532 15 61-17 Spacer, Split

22 874 77 05-08 Bolt, Fin Hex 5/16-24 unf x 1/2

23 532 10 21-90 Tire

532 15 07-40 Rim

532 12 47-18 Tire Valve

24 532 12 68-75 Rivet, Drilled

25 532 12 47-88 Clip, Hairpin

26 532 44 04-38 Guard, Belt

22

MAINFRAME?LEFT?

KEY PART

NO. NO. DESCRIPTION

27 532 13 28-01 Belt, V

28 532 10 46-79 Pulley, Idler

29 812 00 00-32 Ring, Klip

30 532 15 92-29 Bracket, Idler

31 532 10 23-84 Bolt, Hex 5/16-16 x 12

32 532 10 21-41 Shaft, Idler Arm

33 874 76 06-16 Bolt, Hex 3/8-16 x 1

34 532 10 23-83 Counterweight, L. H.

36 532 10 23-31 Bracket, Reinforcement, L. H.

37 532 13 08-12 Sheave, Engine

38 874 76 05-44 Bolt, Fin Hex 5/16-18 unc x 2-3/4

39 532 14 00-62 Cap, Plunger Blk

40 532 17 04-88 Screw Hex Wsh Slt #10-24 x 1/2

44 873 80 05-00 Nut Lock Hex w/Ins 5/16-18 unc PL

65 873 97 05-00 Nut Lock Hex Flange

66 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.

67 874 76 05-24 Bolt, Fin, Hex 5/16-18 unc x 1-1/2

68 873 51 06-00 Nut Keps Hex 3/8-16 unc

69 532 16 41-73 Keeper Belt Engine

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

MAINFRAME, RIGHT SIDE

KEY PART

NO. NO. DESCRIPTION

2

5

873 97 05-00 Locknut, Hex, Flange 5/16-18

532 10 23-32 Bracket, Reinforcement R.H.

7 532 10 21-73 Counter Weight, R.H.

10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2

11 532 12 47-88 Clip, Hairpin

12 532 12 68-75 Rivet, Drilled

13 532 10 21-90 Tire

532 15 07-40 Rim

532 12 47-18 Tire Valve

MAINFRAME?RIGHT?

KEY PART

NO. NO. DESCRIPTION

15 - - - - - - - - Engine, Briggs & Stratton

Model No. 121003-1412-B1

44 873 51 06-00 Nut Keps Hex 3/8-16 unc

NOTE:

All component dimensions given in U.S. inches

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

23

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

TRANSMISSION

KEY PART

NO. NO.

TRANSMISSION?

DESCRIPTION

1

2

3

4

5

6

7

8

9

532 18 82-40 Trans mis sion Assembly (In cludes

Key Nos. 2-52)

532 18 82-20 Gearcase, L.H. w/Bearing

(In cludes Key No. 4)

532 43 10-22 Gasket, Gearcase

532 00 50-20 Bearing, Needle

532 00 13-70 Washer, Thrust 5/8 x 1.10 x 1/32

532 16 15-20 Pinion, Input

532 16 15-18 Shaft, In put

532 00 48-95 Bearing, Needle

532 15 44-67 Washer, Seal

10 532 00 73-92 Ball, Steel

11 532 10 03-71 Spring, Shift, Fork

12 532 10 61-60 O-Ring

13 532 14 21-45 Arm, Shift

14 532 00 83-53 Fork, Shift

15 812 00 00-39 Ring, Klip

16 532 16 15-16 Shaft, Shift

18 532 00 43-58 Washer

19 812 00 00-40 Ring, Klip

20 532 10 21-14 Gear, As sem bly, Reverse Idler

(Includes Key Nos. 21 and 22)

21 532 10 21-15 Gear, Re verse Idler

22 532 00 68-03 Bearing, Needle

23 532 16 15-27 Shaft, Re verse Idler

24 810 04 07-00 Washer, Lock 7/16

25 873 61 07-00 Nut, Hex 7/16-20

27 523 14 30-09 Bearing, Shaft, Ground Drive L.H.

28 532 10 63-90 Spacer 0.765 x 1.125 x 1.23

29 532 10 21-34 Chain #35-50 Pitch

30 532 15 07-37 Ground Shaft Assembly

31 532 14 30-08 Bearing, Shaft, Ground Drive R.H.

32 532 10 63-88 Spacer 0.70 x 1.00 x 1.150

KEY PART

NO. NO. DESCRIPTION

33 532 10 21-21 Sprocket and Gear Assembly

34 532 10 21-12 Shaft, Re duc tion (2nd)

35 532 10 21-01 Screw, Whiz, Lock 5/16-18 x 3-1/2

36 532 16 15-24 Sprocket Assembly w/Bearing

(Includes Key Nos. 37 and 38)

37 532 10 04-13 Bearing, Needle

38 532 16 15-25 Sprocket, Tine

39 532 16 15-26 Gear, Clus ter, Red 1st & 2nd

40 532 10 53-46 Gear, Re verse

41 532 16 15-23 Shaft, Re duc tion (1st)

42 532 00 42-20 Washer, Thrust

43 532 10 61-46 Spacer 1.01 x 1.75 x 0.760

44 532 15 52-36 Seal Asm. OIl

48 532 18 82-35 Gearcase, R.H. w/Bearing

(In cludes Key No. 8)

49 532 43 14-85 Shaft, Tine

50 532 10 61-47 Chain, Roller #50-50 Pitch

51 817 72 04-08 Screw 1/4-20 x 1/2

52 873 22 05-00 Nut, Hex 5/16-18

53 532 16 51-40 Bearing Kit, Tine Shaft

54 532 16 15-28 Gear, DRT Idler w/Bearing

(Includes Key No. 55)

55 532 00 34-00 Bearing, Needle

56 532 16 15-29 Gear, DRT Idler

57 532 16 58-89 Spacer, Split .52 x .64 x 1.04

58 532 17 95-20 Screw 1/4-20 x .875

60 532 18 32-26 Fitting Grease

61 532 43 10-15 Spacer 1.015 x 1.50 x .656

- - 532 00 60-66 Grease, Plastilube #1

24

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

TINE SHIELD

1

2

27

3

4

5

6

24

23

28

23

25

33

32

5

18

24

23

38

26

29

7

8

5

7

6

4

3

5

9

38

5

13

16

29

16

19

20

21

31

15

22

14

38

1

38

14

30 tine_shield_23_in_r1

KEY PART

NO. NO. DESCRIPTION

5

6

7

8

1

2

3

4

873 90 05-00 Nut, Lock Hex Flange 5/16-18 unc

532 44 04-52 Shield, Side, Outer L. H.

532 00 83-93 Pin, Stake, Depth

812 00 00-35 Ring, Klip

532 18 08-47 Bolt Rdhd Sqnk 5/16-18 x 3/4

532 00 83-94 Spring

532 00 83-92 Bracket, Latch

532 10 92-30 Spring, Depth Stake

9 532 44 04-44 Shield, Tine

13 872 11 05-10 Bolt, Carriage 5/16-18 x 1-1/4

14 532 12 43-43 Bracket, Shield Tine

15 532 44 04-50 Shield, Side, Outer R.H.

16 873 90 04-00 Nut, Hex Flange 1/4-20

18 872 04 04-10 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5

19 532 10 27-01 Grip

20 873 22 06-00 Nut, Hex 3/8-16

21 532 10 21-56 Stake, Depth

22 874 93 06-32 Bolt, Hex 3/8-16 x 2

KEY PART

NO. NO. DESCRIPTION

23 532 00 44-40 Hinge

24 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2

25 532 00 67-12 Cap, Vinyl

26 532 10 92-27 Pad, Idler

27 532 44 04-48 Shield, Leveling

28 532 12 05-88 Pin, Hinge

30 873 97 05-00 Nut Lock Flange

29 532 44 04-49 Shield, Side

31 532 16 34-98 Stake, Drag

32 873 22 04-00 Nut, Fin, Hex 1/4-20 unc

33 810 04 04-00 Washer Lock Hvy Helical 1/4

38 873 51 05-00 Nut Keps Hex 5/16-18 unc

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

25

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

TINE ASSEMBLY

KEY PART

NO. NO.

2

4

5

6

7

DESCRIPTION

532 13 26-73 Pin, Shear

532 00 31-46 Clip, Hairpin

532 18 88-45 Hub Assembly

873 61 06-00 Nut, Hex 3/8-24

810 04 06-00 Washer, Lock 3/8

26

KEY PART

NO. NO. DESCRIPTION

8 874 61 06-16 Bolt, Hex 3/8-24 x 1

16 532 16 34-99 Tine, Spade

17 532 16 35-00 Tine, Cleaning

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

REPAIR PARTS

TILLER - - MODEL NUMBER DRT900E (96093001401), PRODUCT NUMBER 960 93 00-14

DECALS

3

2

1

9

7

5

12

4

6

KEY PART

NO. NO. DESCRIPTION

5

6

7

8

1

2

3

4

532 42 91-96 Decal, Belt, Guard, Badge

532 43 99-98 Decal, Console

532 43 95-18 Decal, Console

532 43 95-15 Decal, Tine Shield

532 11 06-14 Decal, Hand Placement

532 16 62-02 Decal, Shift Indicator

532 43 95-38 Decal, Reverse

532 43 22-78 Decal, Engine B&S

9 532 17 67-82 Decal, Warning, Rotating Tines

10 532 40 91-43 Decal, Engine Intek REF

12 532 43 95-37 Decal, Forward

- - 532 43 99-74 Manual, Owner’s (English)

- - 532 43 99-75 Manual, Owner’s (French)

27

8

10

10.28.10 CL

Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
