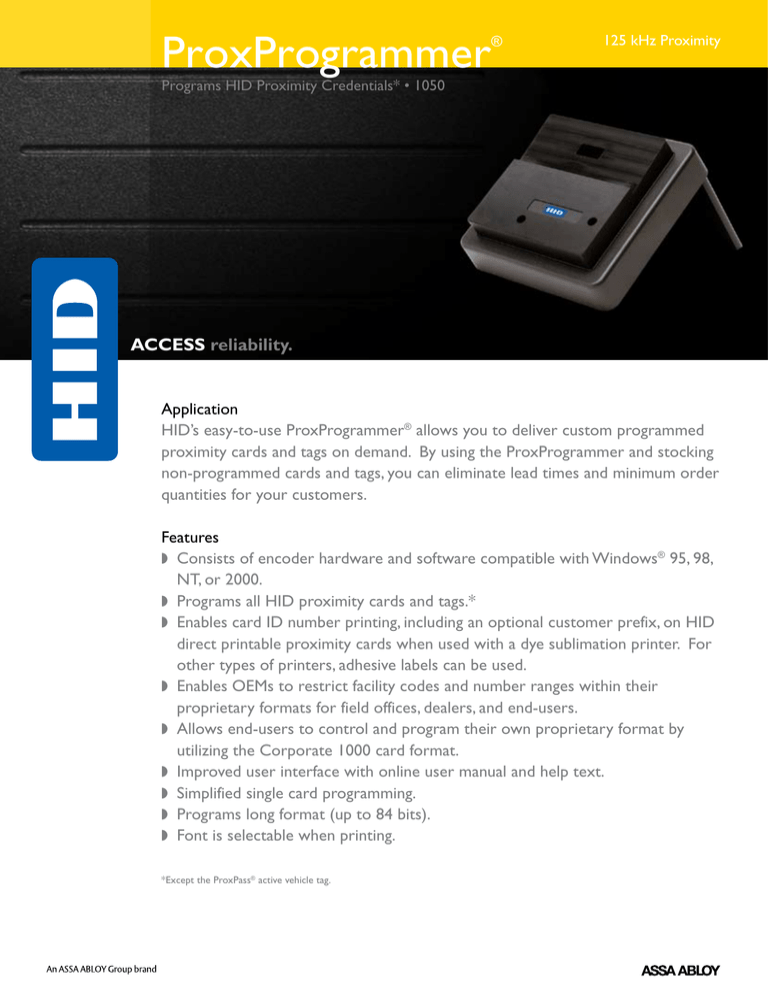

ProxProgrammer
®
125 kHz Proximity
Programs HID Proximity Credentials* • 1050
ACCESS reliability.
Application
HID’s easy-to-use ProxProgrammer® allows you to deliver custom programmed
proximity cards and tags on demand. By using the ProxProgrammer and stocking
non-programmed cards and tags, you can eliminate lead times and minimum order
quantities for your customers.
Features
w Consists of encoder hardware and software compatible with Windows® 95, 98,
NT, or 2000.
w Programs all HID proximity cards and tags.*
w Enables card ID number printing, including an optional customer prefix, on HID
direct printable proximity cards when used with a dye sublimation printer. For
other types of printers, adhesive labels can be used.
w Enables OEMs to restrict facility codes and number ranges within their
proprietary formats for field offices, dealers, and end-users.
w Allows end-users to control and program their own proprietary format by
utilizing the Corporate 1000 card format.
w Improved user interface with online user manual and help text.
w Simplified single card programming.
w Programs long format (up to 84 bits).
w Font is selectable when printing.
*Except the ProxPass® active vehicle tag.
Features
Specifications
Convenient to use
Integral card guide and keyfob slot for correct programming
position. Programmer holds cards or keyfobs at convenient 30
degree angle. Easy to install and configure.
PC Requirements
Card Programming
Create one or more complete orders, print, then program
cards. Select automatic or manual card number advance.
Audible beep and flashing PC screen message for each successfully programmed card. Options include: Retry, Skip, Replace
Fallout, Append to Order, Display Order Data, and Print Cross
Reference List.
Dimensions
Note: If the ProxProgrammer will be used to program a
Corporate 1000 Format, the customer assumes all responsibility for card number management. HID can no longer guarantee
non-duplication of card numbers.
®
Minimum 80486 processor, 32MB RAM, 4MB HD space
available, Windows® 95, 98, NT, or 2000.
5” x 5” x 4.3”
(12.7 x 12.7 x 10.9 cm)
Construction
Housing: Polycarbonate UL 94
Stand: Delrin
Power Supply
12 VDC plug-in type provided
(input: 100-240 VAC, 47-63 Hz).
Card Number
Printing
In conjunction with a card printer, software allows card preprinting, drag and drop number printing location, and portrait
or landscape option. Note: software does not print photos or
graphics.
Power Requirements
Card Reading
Allows quality control of programmed cards, and provides
facility code and ID information for cards using an authorized
format.
Average 12/24 VDC: 100/120 mA
Peak 12/24 VDC: 124/280 mA
Security
Programmer hardware and software must match. Encrypted
data transmission between PC and Programmer.
Serial Cable
The ProxProgrammer includes a 6 foot (2 meter) cable with
DB-9F connector for installation to a PC’s serial COM port.
Base Part Number
1050 - See HID’s “How to Order” Guide for detailed ordering
information.
Ordering
Specifications
Specify OEM data format when ordering. 26-bit and Clock-andData formats standard. Specify any facility code and number
range limits. End-user must be identified to HID.
Warranty
Hardware warranted against defects in materials and workmanship for life from date of shipment. Software warranted for 90
days from date of shipment. See complete warranty policy for
details.)
10-28.5 VDC reverse voltage protected. Linear supply
recommended.
Current Requirements
Operating Temperature
-22° to 150° F (-30° to 65° C)
Operating Humidity
5% to 95% relative humidity non-condensing
Weight
28 oz. (789 g)
Transmit Frequency
125 kHz
Certifications
Canada/UL 294 Listed
FCC Certification, United States
Canada Certification
CE Mark, Fifteen EU Countries under the R&TTE Directive
(EN60950 - ITE Electrical Safety, EN 300330 - SRD, and ETS
300683 - EMC)
IEC60950, ITE CB Scheme Electrical Safety
Australia C-Tick Mark
New Zealand EMC
