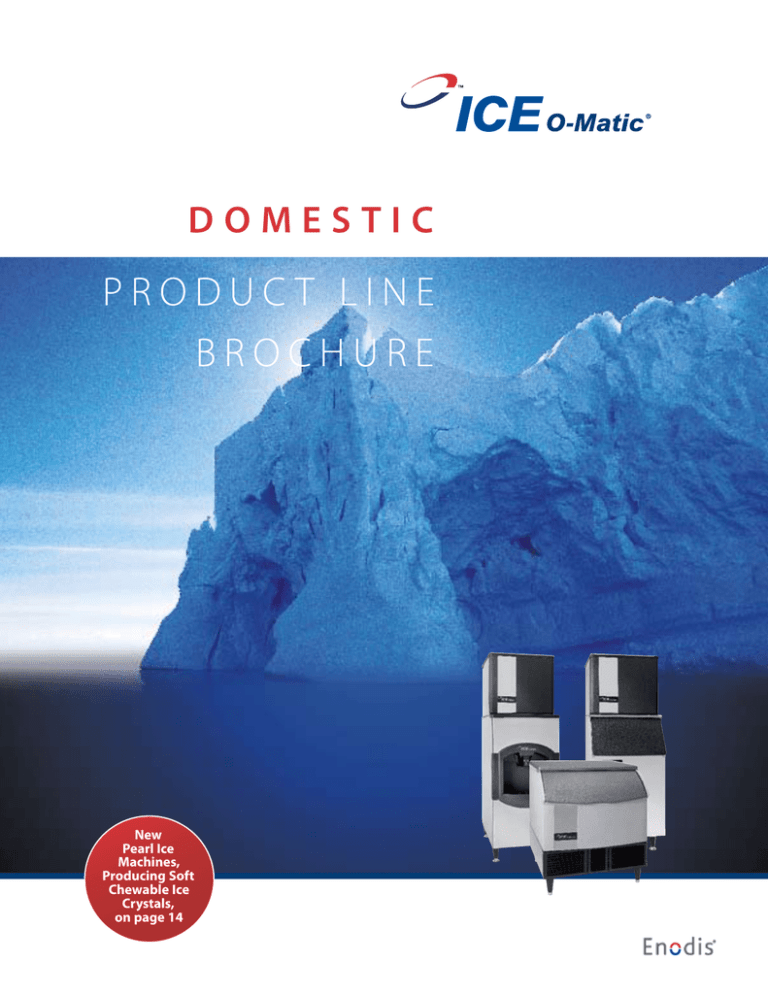

Domestic
New
Pearl Ice
Machines,
Producing Soft
Chewable Ice
Crystals,
on page 14
PAGE I C E - O - M a t ic … i t ’ s t h e ea s ie s t
c h oice y o u ca n ma k e .
e x ce l l e n ce
Our equipment features ideal
solutions for hard water, food
safety concerns and tight spaces
r e l iabi l i t y
Since our beginnings in 1952, we
have sold more than 1,000,000 ICE
Makers and Storage Bins
worldwide and have achieved
world class quality levels
e x pe r ie n ce
i n n o v at io n
ICE-O-Matic is backed by the
technological resources of our
parent company Enodis Corporation,
one of the world’s largest food
equipment manufacturers
We currently hold 14 patents
and have at our disposal a
state-of-the-art 27,000 square
foot technology center for
developing unique solutions to
customer problems
v e r s at i l i t y
s e r v ice
For whatever ICE making needs
you may have, ICE-O-Matic offers
a full line of equipment with ICE
making capacities from 60 pounds
to more than a ton of ICE per day
Our highly trained network of
Factory Authorized Service
Technicians are on duty to
respond immediately
to your needs
F o r q u a l i t y y o u ca n co u n t o n , c h oo s e I C E - O - M a t ic .
I ce . P u r e a n d s imp l E ™
PAGE w h y b u y ice - o - ma t ic ?
P UR E I C E ®
Exclusively By ICE-O-Matic
Built-in antimicrobial protection for the life of the ICE Maker inhibits bacteria and slime
fungus growth on ICE Maker surfaces. ICE-O-Matic’s optional water filtration system provides
protection against unpleasant tastes, odors and scale formation.
c u be r e v apo r at o r
ICE-O-Matic uses electroless nickel plating on all its cuber evaporator plates. This hard
coating resists the damaging effects of water and ice over an extended period of time.
Ha r v e s t A s s i s t
Consistent and fast ICE production 24 / 7 for the life of the ICE Maker, while reducing
operating costs. ICE is assisted off of the evaporator freezing surface rather than relying
solely ongravity to overpower scale build-up.
e n e r g y - efficie n t
Our Cube and Flake ICE Makers are energy efficient machines that offer maximum ICE
production with minimal kilowatts per hour and water usage. This results in a reduction
of operating costs over the life of the ICE Maker.
PAGE t op ai r d i s c h a r ge
Maximum ICE production in a minimum amount of space with an ultra-low profile. No side
clearance required. A FREE optional feature, it’s ideal for
tight-fitting spaces.
fi lt e r - f r ee ai r
No air filter to change.
Sea Sa lt C o r r o s io n p r o t ec t io n
All cube ice making remote condensers are treated with a salt air corrosion protectant
– FREE.
7 y ea r wa r r a n t y
Purchase an ICE-O-Matic water filter with your new ICE-O-Matic Cube ICE Maker, replace
the water filter cartridge every 6 months, and the evaporator warranty is extended to 7
years - parts and labor. (Available in the USA and Canada only)
PAGE w h y b u y ice - o - ma t ic ?
s tai n l e s s s t ee l
Rust-resistant ICE-O-Matic ICE Makers are constructed from stainless steel on the inside,
and a combination of stainless steel and industrial-grade fingerprint-proof molding on the
outside.
i n s u l at io n
All ICE-O-Matic Storage Bins and Dispensers are insulated with industrial polyetheleyne
foam for maximum ICE preservation.
3 - i n - 1 W at e r fi lt e r
Activated carbon, sediment removal and scale protection make ICE-O-Matic’s
3-In-1 water filters the ideal protection against unpleasant tastes, odors and scale
formation in your ICE Maker.
f l a k e r e v apo r at o r
Our Flakers are constructed with a durable brass evaporator and rugged stainless steel
transport system that produces slow-melting, uniform quality flaked ICE, steadily and
efficiently.
PAGE s e r v ice s u ppo r t
Beginning with installation and continuing for as long as you own your ICE Maker, ICE-OMatic’s team of nationwide Factory Authorized Service Technicians (F.A.S.T. Agents) are
there to support you.
c u s t ome r s e r v ice
ICE-O-Matic’s dedicated and knowledgeable customer support team is available to
respond with effective and supportive answers to your questions.
i s o ce r t ificat io n
ICE-O-Matic is certified under ISO 9001:2000 standards, assuring the customer quality,
consistency and continuous improvement in every ICE Maker we manufacture.
ma n u fac t u r i n g faci l i t y
ICE-O-Matic ICE Makers and Storage Bins are designed and manufactured in our 160,000
square foot facility.
PAGE C u be I ce M a k e r s
wi t h b u i l t - i n s t o r age
ICE-O-Matic Self-Contained Cube ICE Makers provide multiple size / capacity options with
applications ranging from the Small Office / Home Office to a Commercial Restaurant Kitchen.
Insulated Self-Contained storage bins provide maximum ICE preservation.
Height adjustable
legs and large bin door opening provide easy ICE access in tight-fitting situations or
under-counter environments.
Innovation, reliability and customer support has helped us win the trust of customers large and
small. Purchase ICE-O-Matic with confidence and take the worry out of your ICE Making needs.
shotglass style
height:
diameter:
NOTE: ICEU 060 Only
PAGE 11/8 Inches
11/4 Inches
full cube
height:
width:
depth:
half cube
7/8 Inches
7/8 Inches
7/8 Inches
height:
width:
depth:
7/8 Inches
7/8 Inches
3/8 Inches
ICEU 060
Ice Production:
storage:
dimensions (in.):
condenser:
ICEU 150
Up to 69 lbs. ICE per day
25 lbs. of ICE
18” W x 21” D x 34” H
Air
ICEU 220
Ice Production:
storage:
dimensions (in.):
condenser:
Ice Production:
storage:
dimensions (in.):
condenser:
Up to 175 lbs ICE per Day
100 lbs. of ICE
24” W x 24” D x 39” H
Air, Water
ICEU 300
Up to 260 lbs. ICE per Day
100 lbs. of ICE
24” W x 24” D x 39” H
Air, Water
Ice Production:
storage:
dimensions (in.):
condenser:
Up to 356 lbs. ICE per Day
130 lbs. of ICE
30” W x 29” D x 39” H
Air, Water
Application Bin Storage
Rated at 70° Air / 50° Water
PAGE C u be ice ma k e r s
M o d u l a r C u be r s
With ICE-O-Matic’s Modular Cube ICE Makers you don’t have
to spend time thinking about ICE - it will be there when you
need it. Our Modular Cube ICE Makers feature PURE ICE®,
the smart choice in promoting Food Safety by inhibiting
bacteria growth in ICE Makers.
Attractive and reliable, all units are constructed from
rugged, rust-resistant stainless steel on the inside and a
combination of stainless steel and durable fingerprint-proof
finish on the outside.
And with ideal ICE making solutions for Hard Water, Food
Safety Concerns and Tight Spaces, ICE-O-Matic is the smart
choice for Bars, Restaurants, Hotels, Convenience Stores,
Institutions and Healthcare applications.
You can purchase ICE-O-Matic with confidence.
full cube
height:
width:
depth:
PAGE 10
half cube
7/8 Inches
7/8 Inches
7/8 Inches
height:
width:
depth:
7/8 Inches
7/8 Inches
3/8 Inches
Shown with B42 bin
Shown with B25 bin
ICE 0250
Ice Production:
dimensions (in.):
condenser:
ICE 0320
Up to 352 lbs. ICE per Day
30” W x 24” D x 20” H
Air, Water
Ice Production:
dimensions (in.):
condenser:
Up to 355 lbs. ICE per Day
22” W x 24” D x 23” H
Air, Water
note: Available in Top Air Discharge
Shown with B55 bin
Shown with B55 bin
ICE 0400
Ice Production:
dimensions (in.):
condenser:
Up to 528 lbs. ICE per Day
30” W x 24” D x 20” H
Air, Water
note: Available in Top Air Discharge
ICE 0500
Ice Production:
dimensions (in.):
condenser:
Up to 625 lbs. ICE per Day
30” W x 24” D x 20” H
Air, Water, Remote
note: Available in Top Air Discharge
NOTE: Maximum ICE production with 115 Volts
Shown with B42 bin
ICE 0520
Ice Production:
dimensions (in.):
condenser:
Shown with B55 bin
ICE 0606
Up to 528 lbs. ICE per Day
22” W x 24” D x 23”H
Air, Water
Ice Production:
dimensions (in.):
condenser:
Up to 727 lbs. ICE per Day
30” W x 24” D x 20”H
Air, Water, Remote
note: Available in Top Air Discharge
Rated at 70° Air / 50° Water
PAGE 11
Shown with B55 bin
Shown with B55 bin
ICE 0806
Ice Production:
dimensions (in.):
condenser:
ICE 1006
Up to 1094 lbs. ICE per Day
30” W x 24” D x 26” H
Air, Water, Remote
Shown with B100 bin
Up to 1201 lbs. ICE per Day
30” W x 24” D x 26”H
Air, Water, Remote
Shown with 30” beverage dispenser
ICE 1506
ICE 1406
Ice Production:
dimensions (in.):
condenser:
Ice Production:
dimensions (in.):
condenser:
Up to 1466 lbs. ICE per Day
48” W x 24” D x 26”H
Air, Water, Remote
Ice Production:
dimensions (in.):
condenser:
Up to 1431 lbs. ICE per Day
30” W x 28 1/2” D x 22”H
Remote
note: Beverage Dispenser not sold
by ICE-O-Matic
Rated at 70° Air / 50° Water
PAGE 12
Shown with B100 bin
Shown with B100 bin
ICE 2106
ICE 1806
Ice Production:
dimensions (in.):
condenser:
Ice Production:
dimensions (in.):
condenser:
Up to 1891 lbs. ICE per Day
48” W x 24” D x 26” H
Water, Remote
Up to 2202 lbs. ICE per Day
48” W x 24” D x 26” H
Water, Remote
REMOTE CONDENSER
NOTE: For use with ICE Makers
utilizing a remote condenser
Rated at 70° Air / 50° Water
PAGE 13
P E A R L ice ma k ers
M o d u l a r N u gge t I ce
Makers
Making ice shouldn’t be complicated, so we’ll make it easy for you
to see why installing a new Pearl Ice machine is a no-brainer for
your business. Pearl Ice enhances beverage programs and lowers
your operating costs. With benefits like these and ICE-O-Matic’s
reputation for reliability, it couldn’t be any simpler.
Constructed from sturdy, corrosion resistant stainless steel, the Pearl
Ice Makers are available in 21 and 30 inch wide models. Highly
versatile, the Pearl Ice models can be mounted on a dispenser or
used in combination with a traditional ice storage bin.
Pearl Ice makers produce soft chewable ice crystals that are
widely preferred by customers, perfect for quick serve restaurants,
convenient stores, and medical applications.
Pearl ICE
PAGE 14
Shown with B55 bin
GEM 0956
GEM 0650
Ice Production:
dimensions (IN.):
condenser:
Shown with B55 bin
Up to 745 lbs. ICE per Day
21” W x 24” D x 27” H
Air, Water, Remote
Ice Production:
dimensions (IN.):
condenser:
Up to 1100 lbs. ICE per Day
21” W x 24” D x 27” H
Air, Water, Remote
Shown with B55 bin
GEM 1256
Ice Production:
dimensions (IN.):
condenser:
Up to 1345 lbs. ICE per Day
30” W x 24” D x 27” H
Air, Water, Remote
PAGE 15
F L A K E I ce M a k e r s
wi t h b u i l t - i n s t o r age
ICE-O-Matic Self-Contained Flake ICE Makers offer a variety
of
size / capacity options with built-in insulated storage bins
for maximum ICE preservation.
Constructed
requirements,
for
tight
space
ICE-O-Matic
restrictions
and
low-height
Flake ICE Makers produce slow-
melting, quality ICE, perfect for medical, restaurant and
supermarket applications.
EF 250
Ice Production: Up to 400 lbs. ICE per day
storage:
143 and 213 lbs. of ICE
dimensions (in.): 32” W x 28” D x 41” H or
38” W x 28” D x 41” H
condenser:
Air
Rated at 70° Air / 50° Water
PAGE 16
EF 800
EF 450
ICE production:
Up to 472 lbs. ICE per day
ICE production:
Up to 772 lbs. ICE per day
storage: 143, 213, and 315 lbs. of ICE
storage: 250 lbs. of ICE
dimensions (in):
condenser:
38” W x 28” D x 41” H
48” W x 28” D x 41” H
Air
dimensions (in):
32” W x 28” D x 41” H
38” W x 28” D x 41” H
48” W x 28” D x 41” H
condenser:
Air
Rated at 70° Air / 50° Water
PAGE 17
F L A K E I ce M a k e r s
Modular Flakers
ICE-O-Matic Modular Flake ICE Makers are designed to fit on
top of a variety of storage bins to provide the desired amount
of Flaked ICE for your application needs.
With many of our Modular Flakers measuring only 16 inches
wide, it is possible to place two Modular Flakers on a 48 inch
wide bin to increase production capacity.
ICE-O-Matic Flake ICE Makers produce slow-melting, quality
ICE, perfect for medical and restaurant applications.
In addition, the high moisture content of our flaked ICE
makes it perfect for displaying and maintaining the freshness
of meat, poultry and fish in supermarket applications.
Shown with B55 bin
EMF 450
Ice Production:
dimensions (in.):
condenser:
Shown with B55 bin
EMF 800
Up to 552 lbs. ICE per day
16” W x 23 1/2” D x 32” H
Air, Water
Ice Production:
dimensions (in.):
condenser:
Up to 852 lbs. ICE per day
16” W x 23 1/2” D x 32” H
Air, Water
Rated at 70° Air / 50° Water
PAGE 18
Shown with B100 bin
EMF 1106
Ice Production:
dimensions (in.):
condenser:
Shown with B100 bin
EMF 2306
Up to 1152 lbs. ICE per day
16” W x 23 1/2” D x 32” H
Air, Water, Remote
Ice Production:
dimensions (in.):
condenser:
Up to 2624 lbs. ICE per day
48” W x 23 1/2” D x 26” H
Air, Water, Remote
Rated at 70° Air / 50° Water
PAGE 19
I C E D I S P E NS E RS
Ho t e l d i s pe n s e r s
ICE-O-Matic Hotel Dispensers are built with the customer in mind,
and feature durable stainless-steel cabinets with built-in storage.
Our 30-inch Hotel dispenser is available with three options:
push-to-dispense, water-filler or coin / token.
Designed for rugged, high usage environments,
our 22 and
30-inch wide dispensers have fingerprint-proof dispensing areas
and oversized sinks to accommodate almost any size ICE bucket.
In addition, both models dispense a 1/4 lb. of ICE per second, allow
access for easy cleaning and provide maximum ICE storage in a
minimum amount of space.
Shown with ICE 0320 Cube ICE Maker
Shown with ICE 0500 Cube ICE Maker
CD 40022
Push-To-Dispense
CD 40030
Push-To-Dispense
storage: 120 lbs. of ICE
storage: 180 lbs. of ICE
dimensions (in.): 22” W x 33 1/2” D x 53 1/4” H
PAGE 20
dimensions (in.): 30” W x 33 1/2” D x 53 1/4” H
Shown with ICE 0500 Cube ICE Maker
Shown with ICE 0500 Cube ICE Maker
CD 40130
Water Filler Option
CD 40230
Coin / Token Option
storage: 180 lbs. of ICE
storage: 180 lbs. of ICE
dimensions (in.): 30” W x 33 1/2” D x 53 1/4” H
dimensions (in.): 30” W x 33 1/2” D x 53 1/4” H
note: Factory installed water filler kit
note: Factory installed coin / token mechanism
note 1: ICE Makers sold separately
note 2: Hotel dispensers only dispense full and half cubes
and do not make ICE
PAGE 21
I ce D I S P E NS E RS
I C E O NLY
o r WAT E R & I C E
ICE-O-Matic’s ICE Only and Water and ICE Dispensers are durable
and easy to operate.
Auto Rotate rotates the ICE for 4
seconds
every hour to provide more reliable ICE dispensing and less ICE
congealing.
Direct Dispense ensures that ICE hits the glass every
time and Quick Stop prevents overflow and waste.
The Electronic
Dispenser has a sleek, high-tech design with
durable fingerprint-proof front and top panels. Touch-free infra-red
actuation provides convenient one-hand operation.
Additionally,
containers.
a
bigger
sink
Quiet to operate, the
cafeterias, restaurants and offices.
Shown with ICE0320
IOD 150
storage: 150 lbs. of ICE
dimensions (in.):
22 1/4” W x 30 11/16” D x 35 5/8” H
PAGE 22
allows
more
clearance
for
larger
Dispensers are ideal for hospitals,
Shown with ICE0400
Shown with ICE0400
IOD 200
IOD 250
storage: 200 lbs. of ICE
storage: 250 lbs. of ICE
dimensions (in.):
30 1/4” W x 30 11/16” D x 35 5/8” H
dimensions (in.):
30 1/4” W x 30 11/16” D x 39 5/8” H
NOTE 1: ICE Makers and
Adapters sold separately
NOTE 2: IODs only
dispense full and half
cubes and do not
make ICE
PAGE 23
ST O R A G E B I NS
ICE-O-Matic’s ICE Storage Bins offer multiple sizes
and storage capacities to fit the most demanding
application
industrial
needs.
foam
Polyethylene
insulation
prevent
bin
the
liners
and
ICE
from
melting too quickly, which means more ICE for
your customers.
All bins feature height-adjustable legs. The large door
opening and low bin profile provide easy ICE access.
PAGE 24
B 25
B 40
storage: 255 lbs. of ICE
storage: 365 lbs. of ICE
dimensions (in.): 30” W x 31” D x 28” H
dimensions (in.): 30” W x 31” D x 37 1/2” H
B 42
B 55
B 100
storage: 374 lbs. of ICE
storage: 556 lbs. of ICE
storage: 927 lbs. of ICE
dimensions (in.): 22” W x 31” D x 50” H
dimensions (in.): 30” W x 31” D x 50” H
dimensions (in.): 48” W x 31” D x 50” H
Application Bin Storage
PAGE 25
B 120
B 150
storage: 1193 lbs. of ICE
storage: 1499 lbs. of ICE
dimensions (in.): 48” W x 34” D x 54” H
dimensions (in.): 60” W x 34” D x 54”H
B 170
CRT 125
storage: 1866 lbs. of ICE
storage: 94 lbs. of ICE
dimensions (in.): 60” W x 34” D x 66” H
dimensions (in.): 24” W x 24” D x 34” H
Application Bin Storage
PAGE 26
F I LTR A T I O N SYST E M S
3 - i n - 1 wa t e r fi l t e r s
ICE-O-Matic’s
water
filtration
system
provides
protection
unpleasant tastes, odors, sediment and scale formation.
against
Systems are
available to match the production capacity of any ICE-O-Matic ICE
Maker and easily mount to the wall. These systems take up a minimal
amount of space and are equipped with quick-connect fittings for fast,
easy replacement.
Purchase an ICE-O-Matic water filter with your new ICE-O-Matic
Cube ICE Maker, replace the water filter cartridge every 6 months,
and the evaporator warranty is extended to 7 years - parts and labor.
(USA and Canada only)
IFQ1 system
IFQ2 system
IOMQ
Single Cartridge with a Quick Disconnect
Dual Cartridge with a Quick Disconnect
Ice MAKING CAPACITY: Up to 1000 LB
Ice MAKING CAPACITY: Over 1000 LB
System Quick Disconnect
Replacement Cartridge
DIMENSIONS (IN.): 15” H x 6” W x 4” D
DIMENSIONS (IN.): 16” H x 10” W x 6” D
DIMENSIONS (IN.): 12.75” H x 4” W x 4” D
Single Replacement Filter For:
IFQ1 and IFQ2
SINGLE INLINE FILTER
IOMWFRC
Ice MAKING CAPACITY: Up to ICE 0500
System Quick Disconnect
Replacement Cartridge
DIMENSIONS (IN.): 2.5” W x 11” H
DIMENSIONS (IN.): 2.5 “ W x 11” H
FITTING OPTIONS:
1/4” Compression
3/8” Compression
Single Replacement Filter For:
IF1, IF2, IF3 and IF4 (Previous Manifold
Systems)
PAGE 27
Sizing your ICE-O-Matic ICE Maker
•Does the existing ICE Maker meet peak usage
during the hottest part of the year?
• What are the various locations or stations in the
establishment that will need ICE? Will they be serviced
from one or multiple ICE Makers?
• Planned for future growth? If not, consider building
in 20% additional capacity on new installations.
Food Service
Restaurant
Approximate ICE usage per day
1.5 lbs.
Cocktail3 lbs.
Salad Bar
40 lbs.
per person
per person / seat
per cubic foot
5 oz.
per 7-10 oz. drink
8 oz.
per 12-16 oz. drink
12 oz.
per 18-24 oz. drink
Quick Service
Lodging
Approximate ICE usage per day
Guest ICE
per room
Restaurant
5 lbs.
1.5 lbs.
Cocktail3 lbs.
Catering
1 lb.
per person
per person / seat
per person
Healthcare
Approximate ICE usage per day
Patient ICE
per bed
Cafeteria
10 lbs.
1 lb.
per person
convenience store
Approximate ICE usage per day
Beverage
6 oz.
per 12 oz. drink
10 oz.
per 20 oz. drink
16 oz.
per 32 oz. drink
Cold Plate
50% more ICE usage per day
Packaged ICE
Weight per bag x number of bags sold per day
PAGE 28
ICE-O-Matic Installation
Considerations
Voltage Requirements
cubers
115/60/1
•The ICE Maker, bin and water filter
ICEU 060
ICEU 220
ICE 0250
ICE 0400
• Air flow
208-230/60/1
Allow enough space for:
NOTE: If the ICE Maker is tight on space,
consider a top air discharge unit
ICE 0406
ICE 0806
ICE 1406*
ICE 2106* ICeu 150
ICEU 300
ICE 0320
ICE 0500
ICE 0606
ICE 1006*
ICE 1506
ICE 1806*
ICE 0520
* Available in Three - Phase
FLAKERS
utilities:
115/60/1
EF 250
EMf 450
EF 450
EMF 800
• What are the voltage characteristics of the
electrical outlet that will be used for this
ICE Maker?
208-230/60/1
• Is there a floor drain within 6 feet?
PEARL ICE MACHINES
• Water source with water shut-off?
115/60/1
• Are the utilities in close proximity to the
ICE Maker location?
EMF 1106
• Is there an outdoor condenser location above
the ICE Maker?
• Easy roof access and penetration?
EMF 2306
GEM650
208-230/60/1
GEM956
remote installation:
EF 800
GEM1256
Filter Selection Guide
filter model
IF Q-1(Single Filter System)
• Maximum pre-charged tubing
line run considerations?
use with these
ice makers
cube ice makers
iceu 060, 150, 220, ice 300 0250, 0300, ICE 320, 0406, 500, ICE 0520, 0606, 0806
NOTE: ICE-O-Matic offers a free sea salt
corrosion protectant on all remote
condensers
flake ice makers
emf 450, ef 250,
Emf 800, EF 800
ef 450
PEARL ice makers
ask about:
•The 7 year warranty on the evaporator
if an ICE-O-Matic water filter is purchased
with an ICE-O-Matic Cube ICE Maker
and the cartridge is replaced every 6 months
(US and Canada only)
• Warranty program
• Preventive maintenance programs
GEM0650, 0655, 0956
IFQ-2(Dual Filter System)
cube ice makers
ice 0806,1006, 1406
ICE 1506, 1806, 2106
flake ice makers
emf 1106, 2306
PEARL ice makers
GEM1256
PAGE 29
Capacity Charts
CUBERS
max. ice prod. lbs.
per 24 hours @
model
family
70ºF air
50ºF water 90ºF aircondensing
70ºF water unit
voltage
ICEU 060
69
54air
115
ICEU 150
175
139air/water
115
ICEU 220260220air/water
115
ICEU 300356296
AIR/WATER
115
ICE 0250352284air/water
115
ICE 0320355312air/water
115
ICE 0400
528
449air/water
115
ICE 0500
625
499
Air/water/remote
115
ICE 0520
528
441air/water
115
ICE 0606
727
590
Air/water/remote208-230
ICE 0806
1094840air/water/remote208-230
ICE 1006
1201
941air/water/remote
208-230*
ICE 1406
1466
1187air/water/remote
208-230*
ICE 1506
1431
1202
remote208-230
ICE 1806
1891
1468water/remote
208-230*
ICE 21062202
1855water/remote
208-230*
*Available in three-phase
FLAKERS and Pearl Ice
max. ice prod. lbs.
per 24 hours @
model
70ºF airapplicationcondensing
family
50ºF water bin storage*
unit
voltage
EMF 450
552N/Aair/water
EMF 800852N/A
Air/water
EMF 1106
1152N/A
Air/water/remote
EMF 23062624N/Aair/water/remote
EF 250
400
143air
213
EF 450
472
143air
213
315
EF 800
772213air
315
GEM0650, 0655
GEM0956
GEM1256
115
115
208-230
208-230
115
115
115
745N/Aair/water/remote208-230
1100N/Aair/water/remote208-230
1345N/Aair/water/remote208-230
BINSDISPENSERS
model
application
numberbin storage*
ARImodel
application
bin storage **
numberbin storage *
CRT 125
94
74
ICEU 0602825
ICEU 150
100
74
ICEU 220
100
74
ICEU 300
130
112
B 25255
190
B 40365270
B 42374275
B 55
556
400
B 100
927
670
B 120
1193896
B 150
1499
1135
B 170
1866
1417
CD 40022
CD 40030
CD 40130
CD 40230
IOD 150
150
IOD 200200
IOD 250250
EFD 270
12
note: EFD 270 produces 273 lbs. of ICE per day
*Application bin storage rated in pounds at volume x 90% of internal volume x 34 lbs. per cubic foot
**ARI bin storage rated in pounds per ARI Standard 820
PAGE 30
ARI
bin storage **
120
180
180
180
ICE-O-Matic’s Warranties
1:36 month parts and labor warranty on Cube ICE Makers and Pearl ICE Makers. 24 month parts and labor warranty on Flake ICE Makers, Dispensers and ICE Storage Bins.
60 month parts only warranty on Cuber Evaporators and Compressors. See ICE-O-Matic Warranty Statement for complete details.
2:See page 5 for Extended Water Filter Warranty Program
3: IOD Series Dispensers: 2 year parts warranty and 1 year labor only
4: CD Series Hotel Dispensers: 3 years parts and labor warranty
PURE ICE contains AgION™ silver-based protectant which inhibits bacteria and slime fungus growth build-up
on ice machine surfaces. Additionally, ICE-O-Matic's optional water filtration system provides protection against
unpleasant tastes, odors and scale formation. AgION antimicrobial is registered with the EPA and is a trademark
of AgION Technologies.
PAGE 31
11100 E. 45TH AVENUE • DENVER, CO 80239 • Tele: 303.371.3737
1.866.PURE.ICE w w w.iceomatic.com
I ce . P u r e a n d s imp l E ™
Installation and Warranty
ICE-O-Matic’s team of nationwide Factory Authorized Service Technicians (F.A.S.T. Agents) are there to support you for
installation and service.
ICE-O-Matic’s Warranties
•36 month parts and labor warranty on Cube ICE Makers and Pearl ICE Makers. 24 month parts and labor warranty on Flake ICE Makers, Dispensers and ICE Storage Bins. 60 month parts only warranty on Cuber Evaporators and Compressors.
See ICE-O-Matic Warranty Statement for complete details.
•
IOD Series Dispensers: 2 year parts warranty and 1 year labor only
•
CD Series Hotel Dispensers: 3 years parts and labor warranty
• Extended Warranty. Purchase an ICE-O-Matc water filter with your new ICE-O-Matic Cube ICE Maker, replace the water filter cartridge every 6 months, and the evaporator warranty is extended to 7 years - parts and labor. (Available in the USA and Canada only)
About ICE-O-Matic
Located in Denver, Colorado, ICE-O-Matic® manufactures a wide range of commercial ice making products including cube ice
makers, flaked ice makers, storage bins, dispensers and water filters. Since 1952, we have been developing new technologies
and programs, such as the introduction of AgION™ Antimicrobial Compound in our ICE Series cube icemakers and our extended
warranty water filter program, which have resulted in the creation of products that are more efficient for business and safer for
the environment.
About the global capabilities of our parent company, Enodis:
Solutions
ICE-O-Matic provides many of the operational solutions from Enodis, a global company dedicated to bringing value to
foodservice operators by equipping them with highly individualized real-world answers that enhance menus, service,
profits, and efficiency.
Financing
Enodis offers low-rate, fast-approval financing on equipment from Enodis brands and on other equipment when
purchased with Enodis brands. Preserve capital, simplify budgeting, and get the equipment you need today, from Enodis
Authorized Dealers with Enodis Financing.
Service
Enodis brands are backed nationwide by Enodis STAR Service. This network of certified service agents provides fast
response with factory-trained experts to assure your equipment will be fixed right the first time. Enodis STAR service
agents guarantee their work and use genuine OEM parts for best equipment performance and longer life.
To learn how ICE-O-Matic and other leading Enodis brands can equip you, or to apply for financing, visit www.enodis.
com or consult your ICE-O-Matic dealer, distributor or call 727-375-7010.
© ICE-O-Matic. We reserve the right to make changes in design, specifications
and content at anytime without obligation. Part No: 6201 Rev. Code: F-7/07-TW
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
