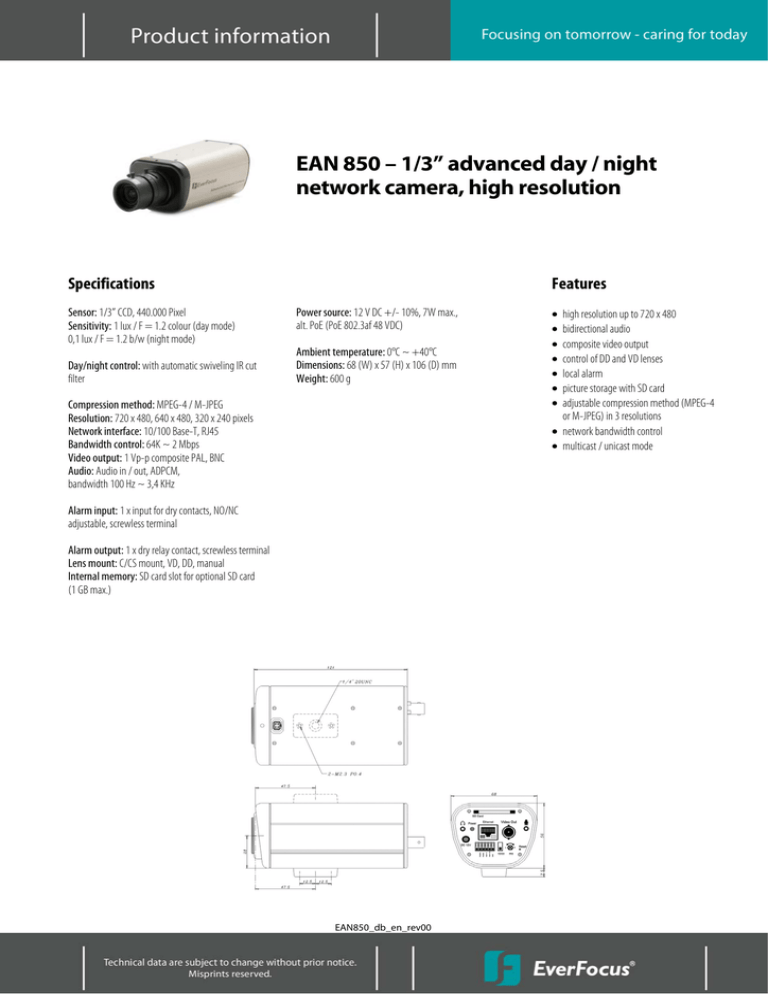

EAN 850 – 1/3” advanced day / night
network camera, high resolution
Specifications
Sensor: 1/3” CCD, 440.000 Pixel
Sensitivity: 1 lux / F = 1.2 colour (day mode)
0,1 lux / F = 1.2 b/w (night mode)
Day/night control: with automatic swiveling IR cut
filter
Features
Power source: 12 V DC +/- 10%, 7W max.,
alt. PoE (PoE 802.3af 48 VDC)
Ambient temperature: 0°C ~ +40°C
Dimensions: 68 (W) x 57 (H) x 106 (D) mm
Weight: 600 g
Compression method: MPEG-4 / M-JPEG
Resolution: 720 x 480, 640 x 480, 320 x 240 pixels
Network interface: 10/100 Base-T, RJ45
Bandwidth control: 64K ~ 2 Mbps
Video output: 1 Vp-p composite PAL, BNC
Audio: Audio in / out, ADPCM,
bandwidth 100 Hz ~ 3,4 KHz
Alarm input: 1 x input for dry contacts, NO/NC
adjustable, screwless terminal
Alarm output: 1 x dry relay contact, screwless terminal
Lens mount: C/CS mount, VD, DD, manual
Internal memory: SD card slot for optional SD card
(1 GB max.)
EAN850_db_en_rev00
•
•
•
•
•
•
•
high resolution up to 720 x 480
bidirectional audio
composite video output
control of DD and VD lenses
local alarm
picture storage with SD card
adjustable compression method (MPEG-4
or M-JPEG) in 3 resolutions
• network bandwidth control
• multicast / unicast mode
