TM10Z0814AF f = 8.0-80mm F1.4 AUTO... SPECIFICATION Auto-focus MOTORIZED ZOOM LENS

TM10Z0814AF   f = 8.0-80mm  F1.4  AUTO... SPECIFICATION Auto-focus MOTORIZED ZOOM LENS
Auto-focus
MOTORIZED ZOOM LENS

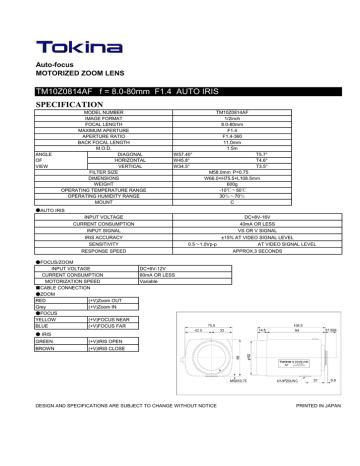

TM10Z0814AF f = 8.0-80mm F1.4 AUTO IRIS
SPECIFICATION
ANGLE
OF
VIEW
MODEL NUMBER
IMAGE FORMAT
FOCAL LENGTH
MAXIMUM APERTURE
APERTURE RATIO
BACK FOCAL LENGTH
M.O.D.
DIAGONAL
HORIZONTAL
VERTICAL
FILTER SIZE
DIMENSIONS
WEIGHT
OPERATING TEMPERATURE RANGE
OPERATING HUMIDITY RANGE
MOUNT
TM10Z0814AF
1/2inch
8.0-80mm
F1.4
F1.4-360
11.0mm
1.5m
W57.40°
W45.8°
W34.5°
T5.7°
T4.6°
T3.5°
M58.0mm P=0.75
W66.0×H75.5×L108.5mm
600g
-10℃~50℃
30%~70%
C
●AUTO IRIS
INPUT VOLTAGE
DC+8V-16V
CURRENT CONSUMPTION
40mA OR LESS
INPUT SIGNAL
VS OR V SIGNAL
IRIS ACCURACY
±15% AT VIDEO SIGNAL LEVEL
SENSITIVITY
0.5~1.0Vp-p
RESPONSE SPEED
●FOCUS/ZOOM
INPUT VOLTAGE
CURRENT CONSUMPTION
MOTORIZATION SPEED
■CABLE CONNECTION
●ZOOM
RED
(+V)Zoom OUT
Grey
(+V)Zoom IN
●FOCUS
YELLOW
(+V)FOCUS NEAR
BLUE
(+V)FOCUS FAR
AT VIDEO SIGNAL LEVEL
APPROX.3 SECONDS
DC+6V-12V
60mA OR LESS
Variable
● IRIS
GREEN
(+V)IRIS OPEN
BROWN
(+V)IRIS CLOSE
DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
PRINTED IN JAPAN
