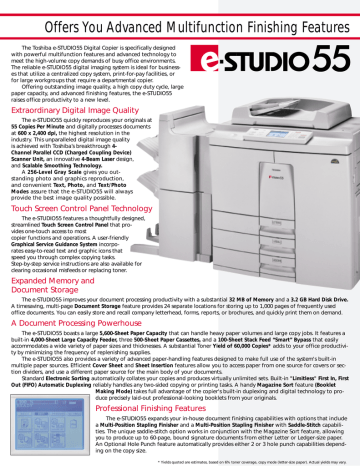

Offers You Advanced Multifunction Finishing Features
The Toshiba e-STUDIO55 Digital Copier is specifically designed
with powerful multifunction features and advanced technology to
meet the high-volume copy demands of busy office environments.
The reliable e-STUDIO55 digital imaging system is ideal for businesses that utilize a centralized copy system, print-for-pay facilities, or
for large workgroups that require a departmental copier.
Offering outstanding image quality, a high copy duty cycle, large
paper capacity, and advanced finishing features, the e-STUDIO55
raises office productivity to a new level.
Extraordinary Digital Image Quality
The e-STUDIO55 quickly reproduces your originals at
55 Copies Per Minute and digitally processes documents
at 600 x 2,400 dpi, the highest resolution in the
industry. This unparalleled digital image quality
is achieved with Toshiba’s breakthrough 4Channel Parallel CCD (Charged Coupling Device)
Scanner Unit, an innovative 4-Beam Laser design,
and Scalable Smoothing Technology.
A 256-Level Gray Scale gives you outstanding photo and graphics reproduction,
and convenient Text, Photo, and Text/Photo
Modes assure that the e-STUDIO55 will always
provide the best image quality possible.
Touch Screen Control Panel Technology
The e-STUDIO55 features a thoughtfully designed,
streamlined Touch Screen Control Panel that provides one-touch access to most
copier functions and operations. A user-friendly
Graphical Service Guidance System incorporates easy-to-read text and graphic icons that
speed you through complex copying tasks.
Step-by-step service instructions are also available for
clearing occasional misfeeds or replacing toner.
Expanded Memory and
Document Storage
The e-STUDIO55 improves your document processing productivity with a substantial 32 MB of Memory and a 3.2 GB Hard Disk Drive.
A timesaving, multi-page Document Storage feature provides 24 separate locations for storing up to 1,000 pages of frequently used
office documents. You can easily store and recall company letterhead, forms, reports, or brochures, and quickly print them on demand.
A Document Processing Powerhouse
The e-STUDIO55 boasts a large 5,600-Sheet Paper Capacity that can handle heavy paper volumes and large copy jobs. It features a
built-in 4,000-Sheet Large Capacity Feeder, three 500-Sheet Paper Cassettes, and a 100-Sheet Stack Feed “Smart” Bypass that easily
accommodates a wide variety of paper sizes and thicknesses. A substantial Toner Yield of 60,000 Copies* adds to your office productivity by minimizing the frequency of replenishing supplies.
The e-STUDIO55 also provides a variety of advanced paper-handling features designed to make full use of the system's built-in
multiple paper sources. Efficient Cover Sheet and Sheet Insertion features allow you to access paper from one source for covers or section dividers, and use a different paper source for the main body of your documents.
Standard Electronic Sorting automatically collates your copies and produces virtually unlimited sets. Built-in "Limitless" First In, First
Out (FIFO) Automatic Duplexing reliably handles any two-sided copying or printing tasks. A handy Magazine Sort feature (Booklet
Making Mode) takes full advantage of the copier's built-in duplexing and digital technology to produce precisely laid-out professional-looking booklets from your originals.
Professional Finishing Features
The e-STUDIO55 expands your in-house document finishing capabilities with options that include
a Multi-Position Stapling Finisher and a Multi-Position Stapling Finisher with Saddle-Stitch capabilities. The unique saddle-stitch option works in conjunction with the Magazine Sort feature, allowing
you to produce up to 60-page, bound signature documents from either Letter or Ledger-size paper.
An Optional Hole Punch feature automatically provides either 2 or 3 hole punch capabilities depending on the copy size.
* Yields quoted are estimates, based on 6% toner coverage, copy mode (letter-size paper). Actual yields may vary.
Network Printing Solutions
The e-STUDIO55 can be upgraded to a Fully
Networked Document Processing System by utilizing the value-added Optional Embedded
Controller or the more feature-rich SC-2
Controller. The Embedded Controller enables
PostScript™ and PCL printing allowing network
users to take full advantage of the e-STUDIO55’s
impressive performance, large paper supply and
advanced paper handling capabilities. It also has a very
powerful device status and management utility known as
TopAccess™ that provides up-to-the-moment device and job status to all users of
the system.
The SC-2 also provides PostScript™ and PCL printing, however its processing
power and options make it better suited for high-volume environments. Other
features further distinguish the SC-2 and e-STUDIO55 combination from competing network printing or copying solutions.
For example, the SC-2’s unique Tandem Printing and Copying feature lets
high-volume environments share a single SC-2 controller between two e-STUDIO systems. Users can scan a copy job on one system and utilize both copiers
to perform the copying task. This effectively doubles the speed while cutting
the individual system loads in half. This feature is also available for network
printing users allowing them to share jobs between both systems, significantly
reducing the production time.
The SC-2 Controller Client/Server Management Software gives network
administrators the ability to configure, operate, and monitor the system directly
from their desktops. DocMon™ software notifies users upon completion of their
print jobs or of any events that may impact completion such as the device being
out of toner or paper. Additionally, all users can look at
one or all of the SC-2 equipped systems on the network
via their Internet browser software for graphically-displayed up-to-the-moment device feedback.
An innovative Document Profiles
feature lets you efficiently save profiles
of pre-selected driver settings to simplify
redundant complex printing tasks.
By combining the SC-2 controller
with the Optional Scan-to-File feature,
the e-STUDIO55 can function as a large
volume TWAIN-Compliant Network
Scanner. This gives users the ability to
scan and convert documents directly to
PDF, TIFF, or multi-page TIFF files and
place them directly onto the network. Additionally, the
Scan-to-Email option allows you to scan directly to either one or
multiple email addresses in a single step.
Remarkable Reliability
With a rated volume up to 340,000 Copies Per Month, the reliable e-STUDIO55 handles the most demanding copy volume workloads. Service Maintenance
Modules enhance both copier productivity and reliability and keep the e-STUDIO55 performing at peak efficiency. These modules greatly reduce the time
required to perform routine periodic maintenance by allowing technicians to service the copier in about 30 minutes — approximately 1/6th the time of conventional copiers.
Trouble-free dependability is assured with an equally impressive Preventative
Maintenance Cycle of 340,000 Copies, which maximizes the time between regular
service intervals and effectively reduces copier downtime. Interchangeable
Toshiba accessories and supplies eliminate the need to purchase and store a variety of toner, developer, and other copier and printer products. The
e-STUDIO55’s multifunction design also allows you to purchase your service contract from a single provider instead of maintaining multiple contracts for separate
office machines.
The Power of Productivity
The multifunction Toshiba e-STUDIO55 Digital Copier provides all the power
and performance you need to maximize your office document processing productivity. Try one out today at your Authorized Toshiba Dealer.
Copier Features:
• Access Codes (120)
• Annotation
• Automatic Cassette Change
• Automatic Job Start
• Automatic Document Feeder/Reversing
& Semi-Automatic
• Automatic Magnification Selection (AMS)
• Automatic Paper Selection (APS)
• Automatic Sort Mode
• Cover Sheet Mode
• Document Storage (24 Locations)
• Dual Page Copying
• Duplexing (Automatic & Limitless)
• Edge Erase
• Electronic Sorting
• Energy Saver
• Graphical Service Guidance System
• Image Shift
• Interrupt
• Job Build
• Job Memory (4)
• Job Preset
• Large Capacity Cassette (4,000 Sheets)
• Magazine Sort
• Mirror Image
• Mixed Original Mode
• Negative/Positive
• Page Numbering
• Paper Size Indicators (From LCD)
• Paper Supply (5,600 Sheets)
• Paper Volume Indicator (From LCD)
• Reduction/Enlargement (25%-400%)
• Service Maintenance Modules
• Sheet Insertion Mode
• Stack Feed “Smart” Bypass (100 Sheets)
• Text, Photo, Text/Photo Mode
• Touch Screen Control Panel
• Trimming/Masking
• Weekly Timer
• X-Y Zoom
• Zoom Indicators
• 3.2 GB Hard Disk Drive
• 2-in-1, 4-in-1, 8-in-1 Copy Mode
• 32 MB Memory
• 55 Copies Per Minute
• 600 x 2,400 dpi Resolution
• 340,000 Copies PM Cycle
Options:
• Key Counter
• Hole Punch (2 or 3 Hole)
• 2-Tray, Multi-Position Stapling Finisher
• 2-Tray, Multi-Position Stapling Finisher
with Saddle-Stitch
• Network Printing and Scanning
Embedded Controller Features:
• TopAccessTM Client/Server Administration
Utility Software
• Cover Sheet & Sheet Insertion
• Watermark Feature
• Multi-position + Saddle-Stitch Stapling
Control
• Hole Punch Control
• N-Up Printing
• Departmental Print Accounting
• Private Print Feature
SC-2 Controller Features:
• TopAccessTM Client/Server Administration
Utility Software
• Cover Sheet, Sheet Insertion & Page
Interleaving
• Image Overlay & Watermark Feature
• Multi-Position + Saddle-Stitch Stapling
Control
• Hole Punch Control
• N-Up Printing
• Pop-Up Status Change Notification
• Private Print Feature
• Document Profiles (Job Programming for
Printing)
• Proof Print
• Scanning (Scan-to-File, Scan-to-Email)
• Tandem Printing & Copying Support
Specifications
Basic Composition
Copying Speed
55 Copies Per Minute
Monthly Duty Cycle
340,000 Copies
Periodic Maintenance Schedule
340,000 Copies
Type
Console/No Clamshell Design
Copying System
Indirect Electrostatic
Printing System
4-Beam Laser Printing
Developing System
Dry Developing
Fixing System
Heat Roller
Photosensor Type
OPC
Original Scanning System
4-Channel Parallel CCD
Resolution
600 x 2,400 dpi
Acceptance Originals
Sheets, Books &
Three-Dimensional Objects
Acceptable Copy Paper Size
Statement-R (5.5" x 8.5")-to-Ledger
(11"x 17"), 17-22 Lbs., Manual Feed
from Stack Feed “Smart” Bypass 17-41
Lbs. (100-Sheet Capacity/17-22 Lbs.)
Cassettes
Statement-to-Ledger
Large Capacity Feeder
Letter
Sheet Bypass
Statement-to-Ledger
Reversing Automatic Document Feeder
Automatic Mode: Stack up to 60
Letter-Size Originals (20 Lbs.) or 30
Legal or Ledger-Size Originals (20 Lbs.)
Semi-Automatic Mode (Flash Feed):
Individual Sheets at Statement-R-toLedger-Size (16-24 Lbs.) Reversing
Mode: Automatically Refeeds
Two-Sided Originals for One-Sided
Copying or Two-Sided Copying
Duplexing
“Limitless” First In, First Out (FIFO)
Warm-up Time
Approx. 420 Seconds
First Copy Out Time
Approx. 3.6 Seconds (Letter)
Multiple Copying
Up to 999 Copies (Digital Key Entry)
Original Size
ST, LT, LG, COMP, LD
Paper Size
ST, LT, LG, COMP, LD
Zoom
25% to 400% (in 1% Increments)
Cassette Capacity
500 Sheets x 3
Large Capacity Feeder
4,000 Sheets
Sheet Bypass
100-Sheet Stack Feed “Smart” Bypass
Toner Density Adjustment
Magnetic Auto-Toner System
Exposure Control
Automatic Plus Manual Selection from
11 Exposure Steps
Light Source
Halogen Lamp
Power Requirement
115 V, 60 Hz (20 Amp Dedicated)
Power Consumption
Maximum 2.0 kW
Dimensions
36.3" x 29.2" x 43.7" (W x D x H)
Weight
550 Lbs.
Black Toner Yield
60,000*
Black Developer Yield
340,000
Power Requirements
Supplied from Copier
Dimensions
28.2" x 23.7" x 39.9" (W x D x H)
Weight
122 Lbs.
Copier Features
Special Features
Access Codes (120)
Annotation
Automatic Cassette Change
Automatic Job Start
Automatic Magnification Selection (AMS)
Automatic Paper Selection (APS)
Automatic Sort Mode
Cover Sheet Mode
Document Storage (24 Locations)
Dual Page Copying
Duplexing (Automatic & Limitless)
Edge Erase
Electronic Sorting
Energy Saver
Graphical Service Guidance System
Image Shift
Interrupt
Job Build
Job Memory (4)
Job Preset
Large Capacity Cassette (4,000 Sheets)
Magazine Sort
Mirror Image
Mixed Original Mode
Negative/Positive
Network Connectivity
Page Numbering
Paper Size Indicators
Paper Supply (5,600 Sheets)
Paper Volume Indicator
Service Maintenance Modules
Sheet Insertion Mode
Stack Feed “Smart” Bypass (100 Sheets)
Text, Photo, Text/Photo Mode
Touch Screen Control Panel
Trimming/Masking
Weekly Timer
X-Y Zoom
Zoom Indicator
3.2 GB Hard Disk Drive
2-in-1, 4-in-1, 8-in-1 Copy Mode
32 MB Memory
600 x 2,400 dpi Resolution
340,000 Copies PM Cycle
MJ-6002N—Hole Punch Unit
Copier Options
MJ-1015—Finisher
Copy Paper Size
Statement-to-Ledger
Thickness
Non-Staple-16-41 Lbs. (90 Lb. Index)
Staple-17-22 Lbs.
Stapling Function
50 Sheets
Power Requirements
Supplied from Copier
Dimensions
28.2" x 23.7" x 39.9" (W x D x H)
Weight
79 Lbs.
MJ-1016—Finisher
Copy Paper Size
Statement-to-Ledger
Paper Thickness
Non-Staple-16-41 Lbs. (90 Lb. Index)
Staple-17-22 Lbs.
Stapling Function
50 Sheets
Stapling Function (Saddle-Stitch)
15 Sheets
Copy Paper Size (Saddle-Stitch)
Letter, Ledger
Copy Paper Size
Letter-to-Ledger
Thickness
16-41 Lbs. (90 Lb. Index)
Hole Punch Function
2 or 3 Hole Punch Capability
Power Requirements
Supplied from Copier
Optional Embedded Controller
Processor
PowerPC® 603e 200 MHz
Memory
16 MB (Expandable to 48 MB)
Print Resolution
600 x 2,400 dpi
Print Speed
Equivalent to Engine Speed
Duty Cycle
Equivalent to Engine Duty Cycle
Paper Supply
3 x 500-Sheet Cassette, 4,000-Sheet LCF
Acceptable Paper Sizes
Statement-R (5.5" x 8.5")-to-Ledger
(11" x 17"), 17-22 Lbs.; Manual Feed
from Stack Feed “Smart” Bypass 16-41 Lbs.
Acceptable Paper
Standard Bond, Overhead
Transparencies, Gummed Labels
Page Description Language Support
Standard: PCL5e™, PCLXL™,
PostScript™ Level 2
Multiple Prints
1-999
Page Orientation
Portrait or Landscape
Simplex/Duplex
Simplex & Duplex Printing Available
Duplex Modes
Short Edge Bind/Long Edge Bind
Finishing
Sort/Staple Sort & Saddle-Stitch
Paper Sources
All Available Sources + Stack Feed
“Smart” Bypass
Operating Systems Support
Windows® 95, 98, 2000, Windows® NT
4.0, Macintosh®, UNIX®
Network Operating Systems Support
NetWare® 3.x, 4.x, Windows® 95, 98,
2000, Windows® NT 4.0, UNIX®
Protocol Support
IPX/SPX, TCP/IP, EtherTalk®, LPR/LPD, SNMP
I/O Interfaces
10BaseT, 10Base2, or 100BaseT,
Token Ring
Optional Embedded Controller
Features
Automatic Language Switching
Automatic Tray Switching
Booklet Printing Mode
Browser-Based Administration & Status
Utility Software
Duplex Printing (Book & Tablet)
Enlargement/Reduction
Grouping (for Tabulating Print Jobs)
Margin Shift (for Binding Purposes)
Multiple Page Buffering
N-Up Printing
Optional Offset Stacking &
Multi-Position Stapling Collation
PCL5e™ Emulation
PostScript™ Level 2 Emulation
Reverse Order Printing
Send Once/RIP Once/Print Many
SNMP Compliant
Watermarks
Optional SC-2 Controller
Processor
Intel® Celeron™ (433 MHz)
Print Resolution
600 x 2,400 dpi Resolution
Page Description Language Support
PCL6™, PostScript™ 3
Operating Systems Support
Windows® 95, 98, 2000, Windows® NT 4.0,
Macintosh®, UNIX® (Sun®, HP, AIX)
Network Operating Systems Support
NetWare® 3.x, 4.x, 5.x, Windows® 95,
98, 2000, Windows® NT 4.0
Protocol Support
IPX/SPX, NetBEUI, TCP/IP
I/O Interfaces
10BaseT, 10Base2, 100BaseT,
Token Ring
Optional SC-2 Controller Features
Client/Server Administration
Utility Software
Cover Sheet, Sheet Insertion,
Page Interleaving
Document Profiles (Job Memory)
Image Overlay & Watermark Feature
Multi-Position + Saddle-Stitch Stapling
Control (Windows® only)
N-Up Printing
Pop-Up Job Completion & Status
Change Notification
Private Print Feature
Proof Print
SNMP Compliant
Optional Tandem Print and Copy
Optional Scan-to-File
Optional Scan-to-Email
* Yields quoted are estimates, based on 6% toner coverage, copy mode (letter-size paper). Actual yields may
vary.
Designs and specifications subject to change without
notice. For best results and reliable performance,
always use supplies manufactured or designated
by Toshiba.
Not all options and accessories may be available at
the time of product launch. Please contact a local
Authorized Toshiba Dealership for availability.
Corporate Office:
2 Musick
Irvine, California 92618-1631
East Coast:
959 Route 46 East, 5th Floor
Parsippany, New Jersey 07054
Tel: 973/316-2700 Fax: 973/263-2393
Midwest:
8770 W. Bryn Mawr Ave., Suite 700
Chicago, Illinois 60631
Tel: 773/380-6000 Fax: 773/380-8077
South:
4855 Peachtree Industrial Blvd., Suite 210
Norcross, Georgia 30092-3024
Tel: 770/209-8540 Fax: 770/209-8556
West Coast:
142 Technology, Suite 150
Irvine, California 92618
Tel: 949/462-6262 Fax: 949/462-2700
Website:
www.copiers.toshiba.com
or www.fax.toshiba.com
© 2001 Toshiba America Business Solutions, Inc., Electronic Imaging Division
e-STUDIO55 Brochure
Inv. Code ES551
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
