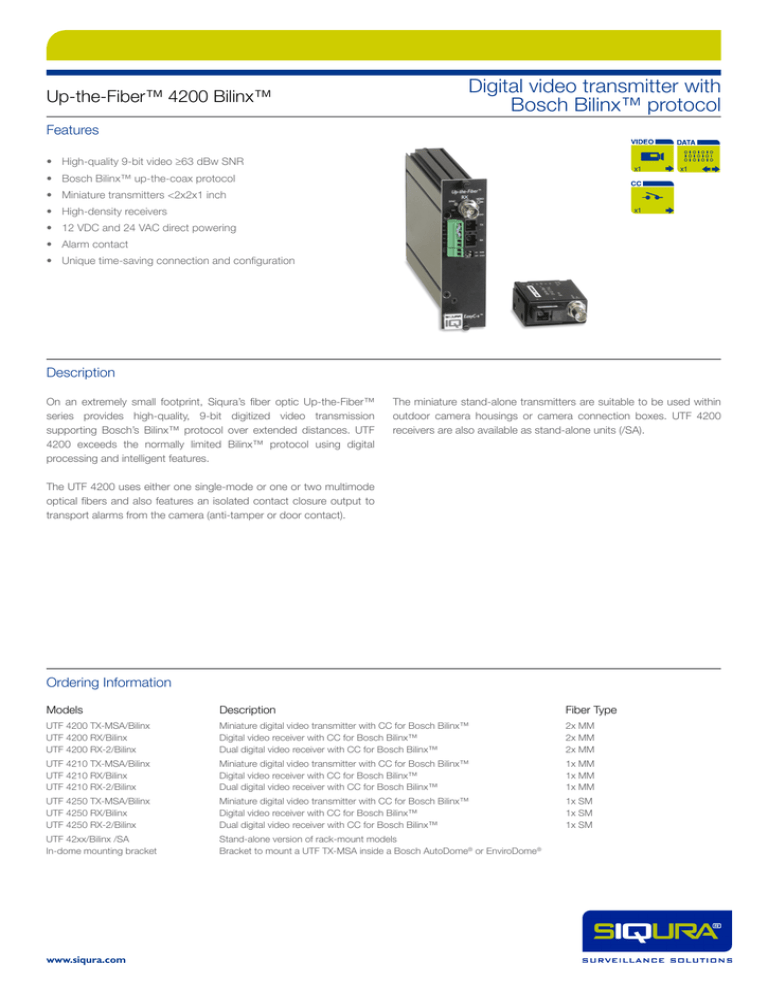

Up-the-Fiber™ 4200 Bilinx™
Digital video transmitter with
Bosch Bilinx™ protocol
Features
• High-quality 9-bit video ≥63 dBw SNR
x1
• Bosch Bilinx™ up-the-coax protocol
x1
• Miniature transmitters <2x2x1 inch
• High-density receivers
x1
• 12 VDC and 24 VAC direct powering
• Alarm contact
• Unique time-saving connection and configuration
Description
On an extremely small footprint, Siqura’s fiber optic Up-the-Fiber™
series provides high-quality, 9-bit digitized video transmission
supporting Bosch’s Bilinx™ protocol over extended distances. UTF
4200 exceeds the normally limited Bilinx™ protocol using digital
processing and intelligent features.
The miniature stand-alone transmitters are suitable to be used within
outdoor camera housings or camera connection boxes. UTF 4200
receivers are also available as stand-alone units (/SA).
The UTF 4200 uses either one single-mode or one or two multimode
optical fibers and also features an isolated contact closure output to
transport alarms from the camera (anti-tamper or door contact).
Ordering Information
Models
Description
Fiber Type
UTF 4200 TX-MSA/Bilinx
UTF 4200 RX/Bilinx
UTF 4200 RX-2/Bilinx
Miniature digital video transmitter with CC for Bosch Bilinx™
Digital video receiver with CC for Bosch Bilinx™
Dual digital video receiver with CC for Bosch Bilinx™
2x MM
2x MM
2x MM
UTF 4210 TX-MSA/Bilinx
UTF 4210 RX/Bilinx
UTF 4210 RX-2/Bilinx
Miniature digital video transmitter with CC for Bosch Bilinx™
Digital video receiver with CC for Bosch Bilinx™
Dual digital video receiver with CC for Bosch Bilinx™
1x MM
1x MM
1x MM
UTF 4250 TX-MSA/Bilinx
UTF 4250 RX/Bilinx
UTF 4250 RX-2/Bilinx
Miniature digital video transmitter with CC for Bosch Bilinx™
Digital video receiver with CC for Bosch Bilinx™
Dual digital video receiver with CC for Bosch Bilinx™
1x SM
1x SM
1x SM
UTF 42xx/Bilinx /SA
In-dome mounting bracket
Stand-alone version of rack-mount models
Bracket to mount a UTF TX-MSA inside a Bosch AutoDome® or EnviroDome®
www.siqura.com
Digital video transmitter with
Bosch Bilinx™ protocol
Up-the-Fiber™ 4200 Bilinx™
Technical specifications
D
UTF TX
Bosch Dome Camera
Application with an In-Dome
Mounting Bracket
CC
UTF RX-2
CC
CC
D
UTF TX
Video
Environmental
Number of channels
Video format
Input/output level
Bandwidth (-3 dB)
Sampling resolution
Group delay
Differential gain
Differential phase
SNR
Connector type
1
NTSC, PAL, SECAM
1 Vpp (±3 dB)
6 MHz
9-bit effective
<20 ns
<2%
<1°
>63 dB (weighted)
BNC 75Ω (gold-plated center pin)
Data
Number of channels
Data interfaces
Interface support
1 (full-duplex)
Up-the-coax
Bosch Bilinx™
Management
Operating temperature
Storage temperature
Relative humidity
MTBF
Safety and EMC
-40° C to +74° C (-40° F to +165.2° F)
-55° C to +85° C (-67° F to +185° F)
<95% as long as there is no condensation.
>250,000h
IEC/EN 60950-1, IEC/EN 60825,
IEC/EN 61000, EN 50130-4, EN 50081-1,
EN 55022, FCC part 15
Physical
Stand-alone
Dimensions (h x w x d)
Weight (approx.)
Rack-mount
Dimensions (h x w x d)
Weight (approx.)
45 x 45 x 25 mm (1.77 x 1.77 x 0.98 in.)
250g (8.81 oz.)
128 x 71 x 190 mm (5 x 2.8 x 7.48 in.)
450g (15.87 oz.)
Contact Closure
LED status indicators
TX models
RX models
Network Management
SNM™ variables
Power-on (green); local synchronization
error (red); remote synchronization error
(yellow)
NV: No video on input or output (red)
SYNC: Operational link (green), local
synchronization error (red); remote
synchronization error (yellow)
SNM™ compatible
PS voltages, module temperature, module
status, configuration, etc.
Optical
Fiber type
System link budget
Number of channels
Input (TX)
Threshold
Output (RX)
1
+3.3V pull-up, 2.2 kΩ
1.4V
Fail-safe, potential-free; 100 mA/50V
Power Requirements
Power consumption
Rack-mount units
Stand-alone option (/SA)
Miniature stand-alone transmitters
<3W
MC 10 and MC 11 power supply cabinets
12 VDC (PSA-UN12DC with Ferrules or
PSR-12 DC)
12 VDC (PSA-UN12DC with Ferrules or
PSR-12 DC) or 24 VAC
UTF 4200
UTF 4210
TX/RX
TX/RX
TX/RX
2x MM (62.5)
1x MM (62.5)
1x SM (09)
2
23 dB
1
Link length
6 km
Minimum Link Loss
0 dBm
2
UTF 4250
23 dB
23 dB
6 km
1
46 km
0 dBm
9 dBm
Output power
>-12 dBm
>-12 dBm / >-12 dBm
>-12 dBm / >-12 dBm
Input sensitivity
-35 dBm
-35 dBm / -35 dBm
-35 dBm / -35 dBm
Transm. wavelength
1300 nm
1310 nm / 1550 nm
1310/1550 nm
SC
SC
SC
Connector type
1
2
For 50/125 µm fiber, subtract 4 dB.
Distance limited due to fiber bandwidth.
The quality management system utilized in the development, production, sales and
support of this product is ISO 9001:2008 certified by LRQA.
©
Siqura Version: August 2011 V2.0 (Second Edition) – Subject to modification
