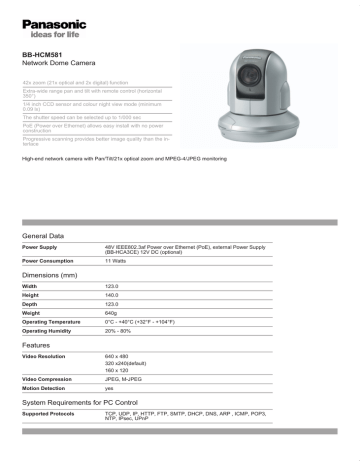

BB-HCM581
Network Dome Camera
42x zoom (21x optical and 2x digital) function
Extra-wide range pan and tilt with remote control (horizontal
350°)
1/4 inch CCD sensor and colour night view mode (minimum
0.09 lx)
The shutter speed can be selected up to 1/000 sec
PoE (Power over Ethernet) allows easy install with no power
construction
Progressive scanning provides better image quality than the interlace
High-end network camera with Pan/Tilt/21x optical zoom and MPEG-4/JPEG monitoring
General Data
Power Supply
48V IEEE802.3af Power over Ethernet (PoE), external Power Supply
(BB-HCA3CE) 12V DC (optional)
Power Consumption
11 Watts
Dimensions (mm)
Width
123.0
Height
140.0
Depth
123.0
Weight
640g
Operating Temperature
0°C - +40°C (+32°F - +104°F)
Operating Humidity
20% - 80%
Features
Video Resolution
640 x 480
320 x240(default)
160 x 120
Video Compression
JPEG, M-JPEG
Motion Detection
yes
System Requirements for PC Control
Supported Protocols
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP , ICMP, POP3,
NTP, IPsec, UPnP
Memory Capacity
approx. 125 images (320x240)
Memory Expansion
SD-Card Slot
Alarm Out
external control, E-Mail, FTP
Camera
Type
1/4" CCD Sensor
Effective Pixels
approx.380000 pixels
Frame Rate
max. 12 fps (640 x 480), max. 30 fps (320 x 240, 160 x 120)
Viewing angle
Horizontal: 2,6° (Tele) - 51° (Wide), Vertical: 1,9° (Tele) - 38° (Wide)
Lens
automatic / manual (40 steps)
Zoom Ratio
42x (21x optical, 2x digital)
Pan
+175...175°
Tilt
+0°... 90°
Revolving Speed
Pan
300°/s
Tilt
300°/s
Video Output
yes
Audio Input
Mic. 3.5mm
Network
Network
10BaseT/100BaseTx
