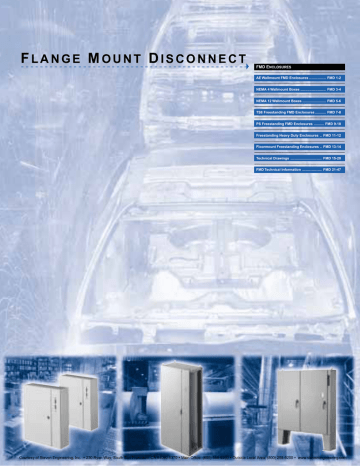

FLANGE MOUNT DISCONNECT
FMD ENCLOSURES
AE Wallmount FMD Enclosures ................. FMD 1-2
NEMA 4 Wallmount Boxes .......................... FMD 3-4
NEMA 12 Wallmount Boxes ........................ FMD 5-6
TS8 Freestanding FMD Enclosures ........... FMD 7-8
PS Freestanding FMD Enclosures .......... FMD 9-10
Freestanding Heavy Duty Enclosures .. FMD 11-12
Floormount Freestanding Enclosures .. FMD 13-14
Technical Drawings ................................ FMD 15-20
FMD Technical Information .................... FMD 21-47
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
FMD ENCLOSURES
AE Wallmount Carbon Steel Cabinets
Configuration
Superior in design, Rittal's AE flange mounted disconnect
enclosures have fewer moving parts, which reduces assembly
and installation time. The special lock system integrates the
door lock, operating lever, and door handle into one smooth
operating system. The unique, hinged flange door provides
easy access during installation and provides more usable
installation space.
Allen Bradley:
1494 V operators for disconnects/circuit breakers
Cutler Hammer/Westinghouse:
C361 operators for disconnect switches
C371 operators for circuit breakers
General Electric:
Type STDA operators for disconnects
ITE/Siemens:
Max-Flex operators for disconnect switches/circuit breakers
Square D:
Class 9422 operators for disconnects/circuit breakers
ABB:
Operators for disconnect switches/circuit breakers
Handle cutout and location has been designed for applications
up to 200A.
Enclosure
Part No.
1075600
1074600
1183600
1283600
1115600
Nominal outside
dimensions
H”xW”xD”
(approximate)
30x24x8
30x30x12
40x32x12
47x32x12
55x40x12
NEMA
rating
1, 12
1, 12
1, 12
1, 12
1, 12
Number
of
doors
1
1
1
1
1
inches
W
23.62
29.92
31.50
31.50
39.37
D
8.27
11.81
11.81
11.81
11.81
H
760
760
1000
1200
1400
Material:
Sheet steel
• Housing: 16 ga/1.5 mm
• Door: 14 ga/2 mm
• Mounting panel: 14 ga/2 mm hot-dipped
galvanized zinc
Finish/color:
• Housing and door: powder painted,
RAL 7032 pebble grey
• Mounting panel: Type M
D
210
300
300
300
300
inches
H
W
28.74
21.61
28.74
27.72
37.60
29.09
45.47
29.13
53.35
37.00
NEMA Type
1
4
4X
12
13
Certifications/Approvals
Listings
UL
CUL CSA TÜV
Technical Drawings
Page . . . . . . . . . . . . . . . . . . . . . . . . . . . FMD 15
FMD Technical Information
Pages . . . . . . . . . . . . . . . . . . . . . . . . FMD 21-27
Accessories
Dimensions
mm
W
600
760
800
800
1000
Protection Ratings
Technical Specifications
Mounting Panel
Exact outside dimensions
H
29.92
29.92
39.37
47.24
55.12
• NEMA 1, and 12/IP 55 protection
• UL/CSA approvals
• Hinged flange door allows easy component
installation and a larger mounting panel
• Universal cut-out accepts most operator
handles up to 200A
• All disconnecting hardware is included
• Rear mounting holes allow direct
wallmounting or the use of optional
mounting feet
• Reinforced mounting panel included
• Powder paint provides superior corrosion
protection
• Knife-edge design protects against
liquid entry
FMD ENCLOSURES
AE Wallmount FMD Enclosures
Wallmounting brackets
Part No.
Plastic print
pocket
mm
H
730
730
955
1155
1355
W
549
704
739
740
940
1075600
1074600
1183600
1283600
1115600
3/8" standoff
2508200
2508200
2508200
2508200
2508200
FMD 1
1 1/2" standoff
2503200
2503200
2503200
2503200
2503200
2514000
2514000
2514000
2514000
2514000
FMD 2
Courtesy of Steven Engineering, Inc. ! 230 Ryan Way, South San Francisco, CA 94080-6370 ! Main Office: (650) 588-9200 ! Outside Local Area: (800) 258-9200 ! www.stevenengineering.com
Configuration (Style 04):
Rittal Electromate NEMA rated wallmount disconnect
enclosures accept all standard available disconnects and
circuit breakers, including:
Allen Bradley:
1494 V operators for disconnects/circuit breakers
Cutler Hammer/Westinghouse:
C361 operators for disconnect switches
C371 operators for circuit breakers
General Electric:
Type STDA operators for disconnects
ITE/Siemens:
Max-Flex operators for disconnect switches/circuit breakers
Square D:
Class 9422 operators for disconnects/circuit breakers
ABB:
Operators for disconnect switches/circuit breakers
• Bullet
Continuously
Body (Style
welded
06).seams,
Continuously
finishedwelded
seams, finished smooth
smooth
• Continuous stainless steel hinge with
hinge with removable
removable
pin
pin
• Robotically applied urethane gasket
• gasket
Rolled edge prevents entry of dirt and
• liquids
Rolled edge prevents entry of dirt
liquids
• and
Cutout
in body for operating handle
•• Cutout
in body
for operating
handle
12 gauge
stainless
steel captive
clamps
12 gauge panel
stainless
steel installed
•• Mounting
provisions
• captive
Externalclamps
mounting brackets
•• Mounting
panel
provisions installed
Print pocket
included
•• External
mounting
UL/cUL approvals brackets
• Print pocket included
Technical Specifications
Material:
• Enclosure/door: 14 gauge carbon steel
Finish/color:
• Enclosure/door: polyester-urethane powder
coat over phosphatized surfaces - ANSI 61
grey outside and white inside
• Optional mounting panels: painted white
Protection Ratings
NEMA Type
1
4
4X
12
13
Certifications/Approvals
Listings
UL
CUL CSA TÜV
Technical Drawings
Page . . . . . . . . . . . . . . . . . . . . . . . . . . . FMD 16
FMD Technical Information
Pages . . . . . . . . . . . . . . . . . . . . . . . . FMD 35-40
b
vaila le I
n
A
St
ai
n l e ss S t e
el
