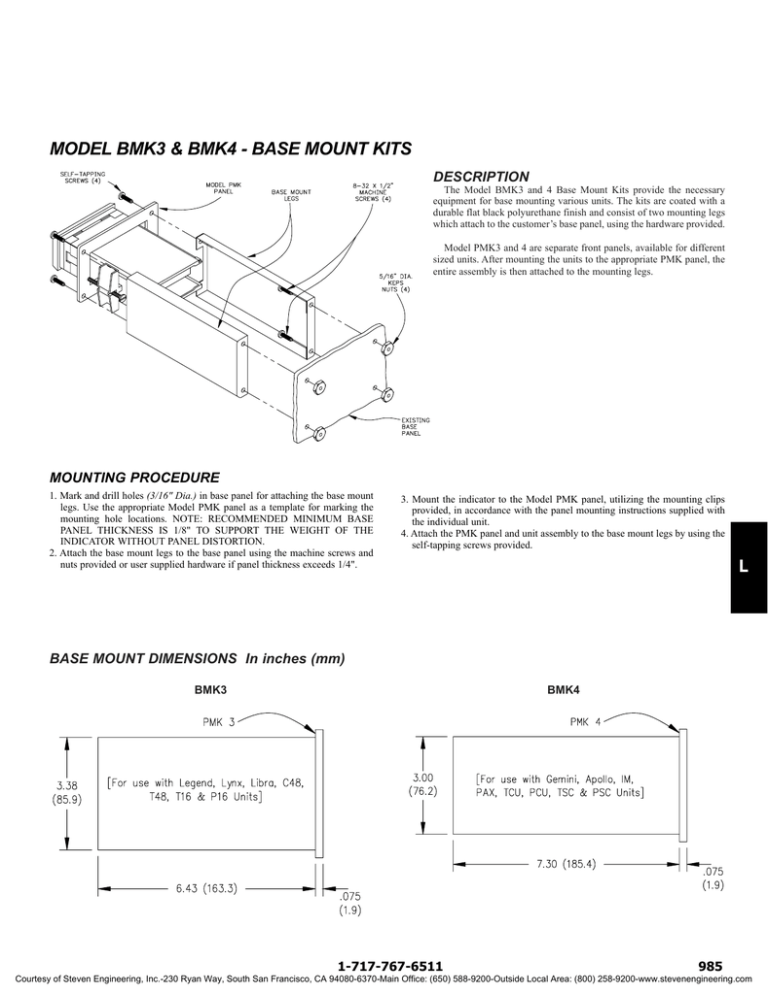

MODEL BMK3 & BMK4 - BASE MOUNT KITS
DESCRIPTION
The Model BMK3 and 4 Base Mount Kits provide the necessary
equipment for base mounting various units. The kits are coated with a
durable flat black polyurethane finish and consist of two mounting legs
which attach to the customer’s base panel, using the hardware provided.
Model PMK3 and 4 are separate front panels, available for different
sized units. After mounting the units to the appropriate PMK panel, the
entire assembly is then attached to the mounting legs.
MOUNTING PROCEDURE
1. Mark and drill holes (3/16" Dia.) in base panel for attaching the base mount
legs. Use the appropriate Model PMK panel as a template for marking the
mounting hole locations. NOTE: RECOMMENDED MINIMUM BASE
PANEL THICKNESS IS 1/8" TO SUPPORT THE WEIGHT OF THE
INDICATOR WITHOUT PANEL DISTORTION.
2. Attach the base mount legs to the base panel using the machine screws and
nuts provided or user supplied hardware if panel thickness exceeds 1/4".
3. Mount the indicator to the Model PMK panel, utilizing the mounting clips
provided, in accordance with the panel mounting instructions supplied with
the individual unit.
4. Attach the PMK panel and unit assembly to the base mount legs by using the
self-tapping screws provided.
L
BASE MOUNT DIMENSIONS In inches (mm)
BMK3
BMK4
1-717-767-6511
985
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PANEL DIMENSIONS In inches (mm)
PMK3B
PMK3A
PMK4A
PMK3C
PMK4B
L
ORDERING INFORMATION
MODEL NO.
986
DESCRIPTION
PART NUMBER
BMK 3
Base Mount Kit For Legend, Lynx And Libra
BMK30000
BMK 4
Base Mount Kit For Gemini, Apollo, IM, PAX, TCU, PCU, TSC And PSC
BMK40000
PMK 3A
Mounting Panel For Lynx
PMK3A000
PMK 3B
Mounting Panel For Libra And Legend
PMK3B000
PMK 3C
Mounting Panel For C48, T48, P16 And T16
PMK3C000
PMK 4A
Mounting Panel For Gemini
PMK4A000
PMK 4B
Mounting Panel For IM, Apollo, PAX, TCU, PCU, TSC And PSC
PMK4B000
