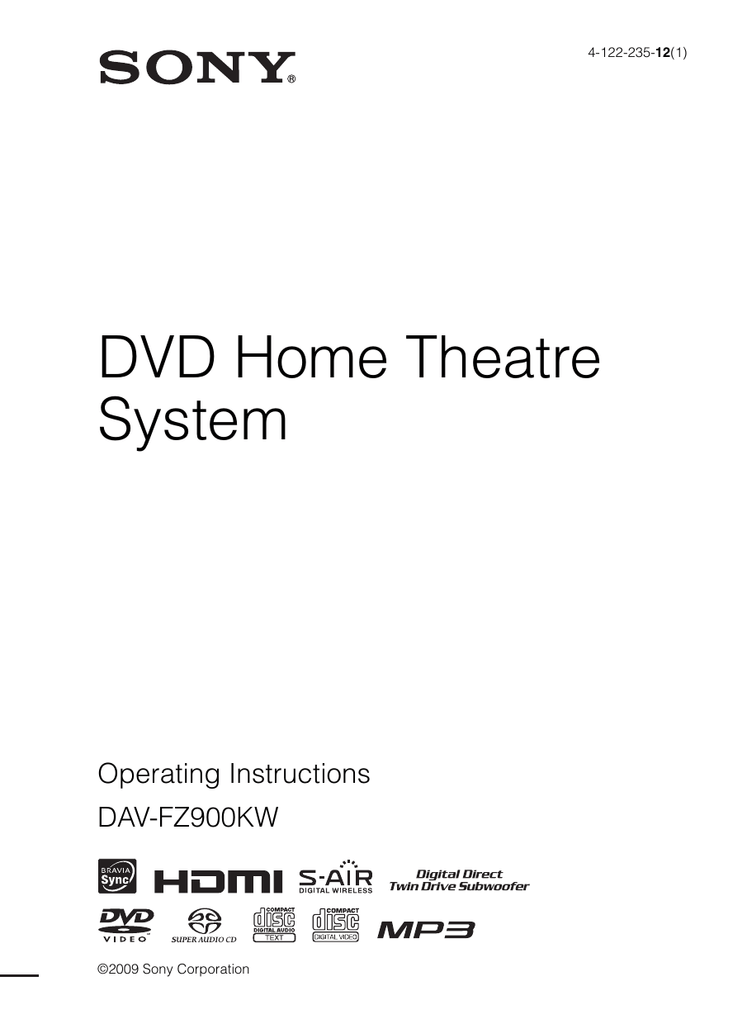

Sony DAV-FZ900KW User manual

4-122-235-12(1)

DVD Home Theatre

System

Operating Instructions

DAV-FZ900KW

WARNING

Caution – The use of optical instruments with this product will increase eye hazard.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the like.

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

Excessive sound pressure from earphones and headphones can cause hearing loss.

Indoor use only.

This appliance is classified as a CLASS 1

LASER product. This marking is located on the rear exterior.

Disposal of Old

Electrical & Electronic

Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local

Civic Office, your household waste disposal service or the shop where you purchased the product.

About the surround amplifier

• The nameplate is located on the side exterior.

For the customers in Singapore

For the customers in Australia

This equipment should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

Precautions

On power sources

• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

About These Operating

Instructions

• The instructions in these Operating

Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.

• The Control Menu items may vary depending on the area.

• “DVD” may be used as a general term for a

DVD VIDEO, DVD+RW/DVD+R, and DVD-

RW/DVD-R.

• Measurements are expressed in feet (ft) for

North American models.

• The default setting is underlined.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital

Surround System.

* Manufactured under license from Dolby

Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license under U.S. Patent #’s:

5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and

This system incorporates High-Definition

Multimedia Interface (HDMI

) technology.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

“DVD-RW,” “DVD-R,” “DVD+RW,”

“DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.

“BRAVIA” is a trademark of Sony Corporation.

“PLAYSTATION” is a trademark of Sony

Computer Entertainment Inc.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

DivX

is a video file compression technology, developed by DivX, Inc.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

“S-AIR” and its logo are trademarks of Sony

Corporation.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and

Thomson.

About MPEG-4 Visual

THIS PRODUCT IS LICENSED UNDER THE

MPEG-4 VISUAL PATENT PORTFOLIO

LICENSE FOR THE PERSONAL AND NON-

COMMERCIAL USE OF A CONSUMER FOR

DECODING VIDEO IN COMPLIANCE

WITH THE MPEG-4 VISUAL STANDARD

(“MPEG-4 VIDEO”) THAT WAS ENCODED

BY A CONSUMER ENGAGED IN A

PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED

FROM A VIDEO PROVIDER LICENSED BY

MPEG LA TO PROVIDE MPEG-4 VIDEO.

NO LICENSE IS GRANTED OR SHALL BE

IMPLIED FOR ANY OTHER USE.

ADDITIONAL INFORMATION INCLUDING

THAT RELATING TO PROMOTIONAL,

INTERNAL AND COMMERCIAL USES

AND LICENSING MAY BE OBTAINED

FROM MPEG LA, LLC. SEE HTTP://

WWW.MPEGLA.COM

About the S-AIR function

The system is compatible with the S-AIR function, which allows transmission of sound between S-AIR products wirelessly.

The following S-AIR products can be used with the system:

• Surround amplifier (supplied): You can enjoy surround speaker sound wirelessly.

• S-AIR receiver (optional): You can enjoy system sound in another room.

The S-AIR receiver can be purchased as an option (the S-AIR product lineup differs depending on the area).

Notes or instructions for the surround amplifier or S-AIR receiver in these Operating

Instructions refer only to when the surround amplifier or S-AIR receiver is used.

For details on the S-AIR function, see “Using an

S-AIR Product” (page 84).

About These Operating Instructions ....... 3

About the S-AIR function ....................... 4

Playable Discs ......................................... 6

Getting Started

Step 1: Installing the System....... 11

Step 2: Connecting the System... 19

Step 3: Setting up the Wireless

System ..................................... 30

Step 4: Performing the Quick

Setup........................................ 32

Step 5: Selecting the Source ....... 35

Step 6: Enjoying Surround

Sound....................................... 36

Disc

Playing a Disc ....................................... 39

Using Play Mode................................... 44

Searching/Selecting Disc Contents ....... 47

Playing MP3 Files/JPEG Image Files... 49

Enjoying Video Files ............................ 53

Adjusting the Delay Between the Picture and Sound ....................................... 55

Restricting Playback of the Disc........... 55

Changing the System Settings by Using the Setup Display............................ 57

Tuner

Presetting Radio Stations ...................... 65

Listening to the Radio ........................... 66

Control for HDMI/External

Audio Device

Using the Control for HDMI Function for

“BRAVIA” Sync ............................ 68

Playing Back Files of a USB Device .... 71

Transferring Songs onto a USB

Device ............................................. 79

Using a Sony Ericsson Mobile

Phone .............................................. 82

Using the DIGITAL MEDIA PORT

Adapter ........................................... 83

Using an S-AIR Product ....................... 84

Other Operations

Getting Optimal Surround Sound for a

Room .............................................. 89

Calibrating the Appropriate Settings

Automatically ................................. 90

Controlling the TV with the Supplied

Remote ........................................... 91

Enjoying Karaoke ................................. 92

Using the Sound Effect......................... 96

Selecting the Effect to Suit the Source ....................................... 97

Enjoying Multiplex Broadcast Sound... 97

Changing the Input Level of the Sound from Connected Components......... 98

Using the Sleep Timer .......................... 98

Changing the Brightness of the Front

Panel Display and Illuminations .... 99

Viewing Information About the Disc ... 99

Returning to the Default Settings ....... 102

Additional Information

Precautions.......................................... 103

Notes about the Discs ......................... 104

Troubleshooting.................................. 105

Self-diagnosis Function ...................... 116

Specifications...................................... 117

Glossary .............................................. 119

Playback priority of file types ............ 122

Language Code List............................ 123

Index to Parts and Control .................. 124

Guide to the Control Menu Display ... 129

Index ................................................... 133

Playable Discs

Type

DVD VIDEO

Disc logo Characteristics

• DVD VIDEO

• DVD-R/DVD-RW in DVD VIDEO format or video mode

• DVD+R/DVD+RW in DVD VIDEO format

Icon

VR (Video

Recording) mode

VIDEO CD

Super Audio CD

• DVD-R/DVD-RW in VR (Video

Recording) mode (except for DVD-R

DL)

• VIDEO CD (Ver. 1.1 and 2.0 discs)

• Super VCD

• CD-R/CD-RW/CD-ROM in video CD format or Super VCD format

• Super Audio CD

CD • Audio CD

• CD-R/CD-RW in audio CD format

DATA CD

DATA DVD

–

• CD-R/CD-RW/CD-ROM in DATA CD format, containing MP3 files

, JPEG image files

, DivX video files, and

MPEG4 video files, and conforming to

ISO 9660

Level 1/Level 2, or Joliet

(extended format)

• DVD-ROM/DVD-R/DVD-RW/

DVD+R/DVD+RW in DATA DVD format, containing MP3 image files

2) files

, JPEG

, DivX video files, and

MPEG4 video files, and conforming to

UDF (Universal Disk Format)

MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG for compresses audio data. MP3 files must be in MPEG1 Audio Layer 3 format.

JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association

(JEITA).)

A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for

Standardization).

Notes on discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard.

DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

Example of discs that the system cannot play

The system cannot play the following discs:

• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 6

• CD-ROM recorded in PHOTO CD format

• Data part of CD-Extra

• CD Graphics disc

• DVD Audio

• DATA CD/DATA DVD that does not contain MP3 files, JPEG image files, DivX video files, or

MPEG4 video files

• DVD-RAM

• Blu-ray Disc

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 8)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still left on it

Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW

In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.

The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device.

Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA

DVDs created in Packet Write format cannot be played.

About Multi Session CD

• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any subsequent MP3 files recorded in later sessions can also be played back.

• This system can play a Multi Session CD when a JPEG image file is contained in the first session.

Any subsequent JPEG image files recorded in later sessions can also be played back.

• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first session, only the first session will be played back.

Region code

Your system has a region code printed on the rear of the unit and will only play a DVD labeled with the same region code.

A DVD VIDEO labeled

ALL

will also play on this system.

If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even though playing the DVD VIDEO is prohibited by area restrictions.

Note about playback operations of a DVD or VIDEO CD

Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers.

Since this system will play a DVD or VIDEO CD according to the disc contents the software producers designed, some playback features may not be available. Be sure to read the operating instructions supplied with the DVD or VIDEO CD.

Getting Started

Unpacking

• Front speakers (2)

• Center speaker (1)

• Surround speakers (2)

• FM wire antenna (aerial) (1) • Speaker cord cover (1) or

• Speaker cord holder (1)

• Speaker cords (2, green/ purple)

• Wireless transceivers (2)

• Video cord (1)

• Remote commander

(remote) (1)

• R6 (size AA) batteries (2)

• Operating Instructions

• Quick Setup Guide

For Singapore, Indonesian,

Malaysian, Hong Kong, Thai,

Taiwan, and Latin American models

• HDMI cable (1)

• Calibration mic (1)

• Foot pads (1 set)

• Bases (4)

For Australian models

• DIGITAL MEDIA PORT adapter (TDM-iP20) (1)

• Subwoofer (1)

• Screws (with washer) (12)

• Operating Instructions for the DIGITAL MEDIA

PORT adapter (TDM-iP20)

• Surround amplifier (1)

Inserting batteries into the remote

Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment. To use the remote, point it at the remote sensor on the unit.

Note

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Step 1: Installing the System

Positioning the system

For the best possible surround sound, place all speakers at the same distance from the listening position

(A). The distance can be between 0.0 to 7.0 meters.

If you cannot place the center speaker and surround speakers at the same distance as (A), place them within 7.0 meters of the listening position.

The subwoofer can be placed anywhere in the room.

Center speaker

Front left speaker (L)

Subwoofer

Front right speaker (R)

A A

Surround left speaker (L) Surround right speaker (R)

Note

• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

• Do not lean or hang on a speaker, as it may fall down.

Attaching the foot pads to the subwoofer

Attach the foot pads (supplied) to the bottom of the subwoofer to stabilize the subwoofer and prevent it from slipping.

Remove the foot pads from the protective cover.

Assembling the speakers

Before connecting the speakers, attach the speaker stand to the speaker.

(For the front and surround speakers)

Use the parts as follows:

• Front and surround speakers (4)

• Bases (4)

• Screws (with washer) (12)

For details of how to connect the speaker cords to the SPEAKER jacks, see page 19.

Note

• Spread a cloth on the floor to avoid damaging the floor when you assemble the speakers.

Tip

• You can use the speaker without the speaker stand by installing it on the wall (page 15).

Thread the speaker cord through the top hole in the base.

Speaker cord

Speaker

Turn the speaker upside down.

Top of the base

Speaker cord

Speaker

Place the base on the bottom of the speaker, then secure the base with three screws

(with washer).

Screws (with washer)

Bottom of the base

Speaker

Fully-assembled illustration

Front left speaker (L):

White label

Front right speaker (R):

Red label

Surround left speaker (L):

Blue label

Surround right speaker (R):

Gray label

White Red Blue

Gray

Installing the speakers on a wall

Caution

• Contact a screw shop or installer for information regarding the wall material or screws to be used.

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

Before installing the front and surround speakers on a wall, you need to disassemble the speakers. You can install the upper part of a speaker on a wall.

To disassemble the speaker

Disconnect the speaker cords from the speaker.

Rear of the speaker

Remove the screw (pre-installed) at the rear of the speaker.

This screw is used when reassembling the speaker. Be sure not to lose the screw.

Screw

Rear of the speaker

Disassemble the speaker by lifting the upper part of the speaker.

Upper part

Lower part

Rear of the speaker

Pull out the speaker cord from the bottom of the lower part of the speaker.

The removed speaker cord is used when installing the speaker on a wall.

Lower part of the speaker

Speaker cord

Fully-disassembled illustration

Upper part of the speaker

Lower part of the speaker

Speaker cord

Screw

To install the speakers on a wall

Before installing the speakers on a wall, connect the speaker cord to the speaker.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #.

Color tube

Front left speaker (L): White

Front right speaker (R): Red

Center speaker: Green

Surround left speaker (L): Blue

Surround right speaker (R): Gray

Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.

See the illustrations below.

4 mm (

inch)

Hole on the back of the speaker

30 mm (1

inches)

(

5 mm

inch)

(

10 mm

inch)

Fasten the screws to the wall.

For the center speaker For the other speakers

219 mm

inches)

210 mm

inches)

(

8 to 10 mm

inch)

Hang the speakers on the screws.

(

8 to 10 mm

inch)

Hole on the back of the speaker

(

5 mm

inch)

(

10 mm

inch)

Rear of the speaker

Step 2: Connecting the System

For connecting the system, read the information on the following pages.

Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other connections are made.

Note

• When you connect another component with a volume control, turn down the volume of the other components to a level where sound is not distorted.

Connecting the speakers

The connector of the speaker cords and the color tube are color-coded depending on the type of speaker.

Connect the speaker cords to match the color of the SPEAKER jacks of the unit.

Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.

To connect speaker cords to the unit

When connecting to the unit, insert the connector until it clicks.

Rear panel of the unit

Purple

(Subwoofer)

ANTE

NNA

DIGITAL IN

OPTICAL

COAXIAL

SPE

AKE

CENTER

SUBW

OOFE

Green

(Center speaker)

Rear panel of the surround amplifier

SPEA

KER

FRONT L

FRONT R

HDM

DMP

ORT

DC5V

0.7A MAX

SAT/C

PB/C

PR/C

IDEO

OUT

COM

ENT V

EZW

-RT1

VIDE

OUT

AUDIO IN

White

(Front left speaker (L))

Red

(Front right speaker (R))

EZW

-RT

S-AIR

PAIRING

SURR

OUN

D SE

SURR

OUND

BACK

SPEA

KER

Blue

(Surround left speaker (L))

Gray

(Surround right speaker (R))

To connect speaker cords to the speaker

Connector

(–)

Color tube

(+)

Rear of the speaker

Connecting the TV (Video connection)

This connection sends a video signal to the TV.

Depending on the jacks on your TV, select the connection method.

DIGITAL IN

OPTICAL

COAXIAL

SPE

AKE

CENTER

SUBW

OOFE

HDMI cable*

C Component video cable

(not supplied) ANTE

NNA

SPEA

KER

FRONT L

FRONT R

HDM

DMP

ORT

DC5V

0.7A MAX

PR/C R

PB/C

IDEO

OUT

COM

ENT V

EZW

-RT1

VIDE

OUT

AUDIO IN

SAT/C

ABLE

Video cord (supplied)

To the HDMI IN jack of the TV.

To the component video input jacks of the TV.

To the video input jack of the TV.

* The HDMI cable is supplied with Singapore, Indonesian, Malaysian, Hong Kong, Thai, Taiwan, and Latin

American models only.

Method 1: Video cord (A) connection

This is the basic connection.

Method 2: HDMI* cable (B) and video cord (A) connection

If your TV has an HDMI jack, connect to the TV both with an HDMI cable and video cord. Picture quality will be improved compared to using only the video cord connection.

When connecting with the HDMI cable, you need to select the type of output signal (page 34).

To view images from the DIGITAL MEDIA PORT adapter, you need to connect to the TV with the video cord. Video signals from the DIGITAL MEDIA PORT adapter are not output via the HDMI OUT jack.

* HDMI (High-Definition Multimedia Interface)

Method 3: Component video cable (C) and video cord (A) connection

If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV both with a component video cable and video cord. Picture quality will be improved compared to using only the video cord connection.

When connecting with the component video cable, you need to set the type of output signal to

progressive format (page 34).

To view images from the DIGITAL MEDIA PORT adapter, you need to connect to the TV with the video cord. Video signals from the DIGITAL MEDIA PORT adapter are not output via the

COMPONENT VIDEO OUT jack.

To change the color system (PAL or NTSC) (Asian, Australian, and

Middle Eastern models only)

Depending on the TV to be connected, you may be required to select either PAL or NTSC for the color system.

The initial setting of the system for Australian and Middle Eastern models is PAL.

The initial setting of the system for Asian models is NTSC.

Turn off the system by pressing "/1.

Turn on the system by pressing "/1 on the unit while turning OPERATION DIAL on the

unit counterclockwise.

Each time you perform this operation, the color system toggles between PAL and NTSC.

“NTSC” lights up in the front panel display when the color system is set to NTSC.

Connecting the TV (Audio connection)

This connection sends an audio signal to the unit from the TV. To listen to TV sound via the system, perform this connection.

DIGITAL IN

OPTICAL

COAXIAL

SPE

AKE

CENTER

SUBW

OOFE

Digital optical cord (not supplied)

SPEA

KER

FRONT L

FRONT R

HDM

I OU

DMP

ORT

DC5V

0.7A MAX

PB/C

PR/C R

IDEO

OUT

COM

PON

ENT V

EZW

-RT1

VIDE

OUT

AUDIO IN

SAT/C

ABLE

D Audio cord (not supplied)

Digital coaxial cord (not supplied)

To the digital optical out jack of the TV.

To the digital coaxial out jack of the TV.

To the audio out jacks of the TV.

Method 1: Audio cord (D) connection

This is the basic connection and sends an analog audio signal.

Method 2: Digital optical cord (E) or digital coaxial cord (F) connection

When the TV has a digital optical or coaxial output jack, you can improve sound quality by connecting with a digital optical or coaxial cord in addition to an audio cord connection.

Note

• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.

Connecting the other components

You can enjoy connected components via the system’s speakers.

Portable audio source (not supplied): G

USB device (not supplied): H

DIGITAL MEDIA PORT adapter: I (TDM-iP20 is supplied with Australian models. You can also use other DIGITAL MEDIA PORT adapters.)

VCR, digital satellite receiver, or PlayStation, etc. (not supplied): J

H Connect a USB

device (page 71).

G Stereo mini-plug cord

(not supplied)

SPE

AKE

CENTER

SUBW

OOFE

To a portable audio source

SPEA

KER

FRONT L

FRONT R

HDM

I OU

DMP

ORT

DIGITAL IN

OPTICAL

COAXIAL

DIGITAL MEDIA PORT

adapter (page 83)

DC5V

0.7A MAX

Note

• Connect the DIGITAL MEDIA PORT adapter so that the V marks are aligned.

When disconnecting, pull out while pressing .

ANTE

NNA

COAXIAL 75

COM

PON

PB/C

ENT V

IDEO

PR/C

OUT

-RT1

VIDE

OUT

AUDIO IN

SAT/C

Audio cord (not supplied)

To the audio out jacks of the VCR, digital satellite receiver, or PlayStation, etc.

If your TV has multiple audio/video inputs

You can enjoy sound with the speakers of the system through the connected TV. Connect the components as follows.

VCR, digital satellite receiver,

PlayStation, etc.

VCR, digital satellite receiver,

PlayStation, etc.

System

:Signal flow

Select the component on the TV. For details, refer to the operating instructions of the TV.

If the TV does not have multiple audio/video inputs, a switcher will be necessary to receive sound from more than one component.

Connecting the antenna (aerial)

ANTENNA or

FM wire antenna (aerial)

(supplied)

Note

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

Tip

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM antenna (aerial) as shown below.

Outdoor FM antenna (aerial)

Unit

ANTENNA

COAXIAL 75

Inserting the wireless transceiver

You can transmit sound from the unit to an S-AIR product, such as a surround amplifier or S-AIR receiver.

To transmit sound from the unit, you need to insert the wireless transceivers into the unit, surround amplifier, and S-AIR receiver.

For details of S-AIR products, see “Using an S-AIR Product” (page 84).

Rear panel of the unit

Rear panel of the surround amplifier

ANTE

NNA

SPEA

KER

FRONT L

FRONT R

HDM

I OU

DC5V

0.7A MAX

COM

PON

PB/C

ENT V

IDEO

OUT

EZW

-RT1

OUT

AUDIO IN

SAT/C

EZW

-RT

S-AIR

SPEA

KER

SURR

OUN

D SE

SURR

OUND

SURR

OUND

BACK

Wireless transceiver

Note

• When you insert the wireless transceiver, make sure that the AC power cord (mains lead) is not connected to a wall outlet (mains).

• Do not touch the terminals of the wireless transceiver.

• Insert the wireless transceiver so that the V marks are aligned.

• Do not insert anything other than the wireless transceiver into the EZW-RT10 slot.

Connecting the AC power cords (mains leads)

Before connecting the AC power cords (mains leads) of the unit and the surround amplifier to a wall outlet (mains), connect the front, center speakers and subwoofer to the unit and surround speakers to the surround amplifier.

Rear panel of the unit

EZW

-RT

S-AIR

PAIRING

SURR

OUN

D SE

SURR

OUND

SURR

OUND

BACK

SPEA

KER

Rear panel of the surround amplifier

Wall outlet (mains): The shape of the wall outlet (mains) differs depending on the area.

About the demonstration

After connecting the AC power cord (mains lead), the demonstration appears in the front panel display.

Setting the demonstration mode to on/off

Press [/1 on the unit.

The system turns on.

Press SYSTEM MENU.

Press

X/x repeatedly until “DEMO” appears in the front panel display, then press

Press

X/x to select a setting.

• “DEMO ON”: On.

• “DEMO OFF”: Off.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Tip

• When you purchase the system new, or if the system is at its factory default settings (ex., after performing “COLD

RESET” (page 102)), you can turn off the demonstration simply by pressing [/1 on the remote.

Step 3: Setting up the

Wireless System

To use the wireless system, you need to set up the surround amplifier. Before setting, make sure that the wireless transceivers are inserted into the unit and the surround amplifier correctly

(page 27).

This wireless system is called “S-AIR.” For

details of the S-AIR function, see “Using an

S-AIR Product” (page 84).

"/1

POWER / ON LINE

Indicator

POWER

POWER/ON LINE

PHONES

S-AIR ID switch

S-AIR ID

PAIRING

SPEAKER

SURROUND SELECTOR

SURROUND

BACK

PHONES jack

SURROUND

SELECTOR switch

The unit transmits sound to the surround amplifier that is connected to the surround speakers. To establish sound transmission, perform the following Steps.

Press "/1 on the unit.

The system turns on.

Set the SURROUND SELECTOR switch of the surround amplifier to

SURROUND.

Set the S-AIR ID switch of the surround amplifier to A.

Press POWER on the surround amplifier.

The POWER / ON LINE indicator turns green. If it doesn’t, check the transmission status as follows.

To check the transmission status

You can check the status of sound transmission between the unit and surround amplifier by observing the POWER / ON LINE indicator of the surround amplifier.

POWER / ON LINE indicator

Status

Turns green.

Sound transmission is established.

Flashes green.

Sound transmission is not established.

Turns red.

Turns off.

The surround amplifier does not output sound.

The surround amplifier turns off or its protection is active.

For details of the surround amplifier, see

“Surround amplifier operation” (page 114).

To enjoy sound by using headphones

You can enjoy the system’s sound by connecting the headphones to the PHONES jack on the surround amplifier.

Note

• The volume of the unit may become minimum if you turn off the surround amplifier while the headphones are connected to the surround amplifier, or radio reception is poor. In this case, “HP NO LINK” and

“VOLUME MIN” appear alternately in the front panel display. Check radio reception, and set the volume again.

When you use multiple S-AIR products

See “Establishing sound transmission between the unit and S-AIR sub unit (ID setting)”

(page 84).

To attach the cover to the surround amplifier

After connecting and setting, you can attach the cover to the surround amplifier for organizing and storing excess speaker cords.

Attach the speaker cord cover by sliding it down along the grooves at the edges of the surround amplifier.

Speaker cord cover

Surround amplifier

Grooves

Push the speaker cord cover down until you hear a click. Turn the surround amplifier upside down, then store the cords in the speaker cord cover.

Insert the tabs of the speaker cord holder in the slots of the speaker cord cover, and press it into place.

Speaker cord holder

Surround amplifier m

Step 4: Performing the

Quick Setup

Follow the Steps below to make the basic adjustments for using the system.

Displayed items vary depending on the area.

"/1

Press

X/x to select a language, then

press .

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

VIDEO SETUP

TV TYPE:

PROGRESSIVE

(COMPONENT OUT)

16:9

4:3 OUTPUT: 4:3 LETTER BOX

COLOR SYSTEM

(VIDEO CD)

PAUSE MODE: AUTO

C/X/x/c,

DISPLAY

Turn on the TV.

Press [/1 on the unit, and POWER on

the surround amplifier.

Note

• Make sure that the function is set to “DVD”

(page 35).

Switch the input selector on your TV so that the signal from the system appears on the TV screen.

[Press [

ENTER

] to run QUICK SETUP.] appears at the bottom of the TV screen. If this message does not appear, recall the

Quick Setup display (page 33).

Press without inserting a disc.

The Setup Display for selecting the language used in the on-screen display appears.

LANGUAGE SETUP

OSD:

MENU:

AUDIO:

SUBTITLE:

ENGLISH

FRENCH

SPANISH

PORTUGUESE

Press

X/x to select the setting that

matches your TV type, then press .

• [16:9]: For a wide-screen TV or a 4:3 standard TV with a wide-screen mode

(page 59)

• [4:3 LETTER BOX] or [4:3 PAN SCAN]:

For a 4:3 standard TV (page 59)

The Setup Display for the Control for

HDMI function appears.

HDMI SETUP

HDMI RESOLUTION:

CONTROL FOR HDMI:

VOLUME LIMIT:

/RGB(HDMI):

AUDIO(HDMI):

JPEG RESOLUTION:

AUTO

(1920x1080p)

OFF

Press

X/x to select the setting, then

press .

• [ON]: The Control for HDMI function

(page 68) is set to on.

• [OFF]: The Control for HDMI function is set to off.

The Setup Display for selecting the speaker formation appears.

SPEAKER FORMATION

STANDARD

Press

C/c to select the speaker

formation image as the speakers are actually positioned, then press .

For details, see “Getting Optimal Surround

Sound for a Room” (page 89).

Connect the calibration mic (supplied) to the A.CAL MIC jack on the front panel.

Set up the calibration mic at ear level using a tripod, etc. (not supplied).

The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic.

Calibration mic location, such as another room, proper measurement will not be obtained.

• The environment of the room in which the system is installed may affect measurements.

When the measurements differ considerably from the status of the speaker installation, perform the speaker settings manually by

following “Settings for the speakers” (page 63).

Unplug the calibration mic, press

C/c

to select [YES], then press .

Quick Setup is finished. All connections and setup operations are complete.

To quit the Quick Setup

Press DISPLAY in any Step.

To recall the Quick Setup display

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

9 4 ( 9 9 )

1 ( 1 )

T 0 : 0 1 : 0 8

DVD VIDEO

Press

C/c to select [YES], then press

[AUTO CALIBRATION] starts.

Be quiet during the measurement.

Note

• Loud test sounds are output when [AUTO

CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbors.

• Before [AUTO CALIBRATION], install the surround amplifier in the appropriate location. If you install the surround amplifier in an improper

CUSTOM

QUICK

Press

X/x to select [QUICK], then press

The Quick Setup display appears.

Setting the type of video output to match your TV

Depending on the connection of the TV

(page 21), select the type of video output of the

system.

To select the type of video signal output from the HDMI OUT jack

When you connect the unit and the TV with an

HDMI cable, select the type of video signals output from the HDMI OUT jack.

For details, refer also to the operating instructions supplied with the TV/projector, etc.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [HDMI SETUP], then

press .

The options for [HDMI SETUP] appear.

Press

X/x to select [HDMI

RESOLUTION], then press .

Press

X/x to select the desired setting,

then press .

• [AUTO (1920

1080p)]: The system outputs the optimal video signal for the connected TV.

• [1920

1080i]: The system outputs 1920

× 1080i* video signals.

• [1280

720p]: The system outputs 1280 ×

720p* video signals.

• [720

480p]**: The system outputs 720 ×

480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may appear.

Does your TV accept progressive signals?

Progressive is a method for displaying TV images which reduces flickering and sharpens the image. To use this method, you need to connect to a TV that accepts progressive signals.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [VIDEO SETUP],

then press .

The options for [VIDEO SETUP] appear.

Press

X/x to select [PROGRESSIVE

(COMPONENT OUT)], then press .

Press

X/x to select the desired setting,

then press .

[OFF]: The system does not output progressive signals. Select this setting when:

– your TV does not accept progressive signals, or,

– your TV is connected via jacks other than the COMPONENT VIDEO OUT jacks.

[ON]: The system outputs progressive signals. Select this setting when:

– your TV accepts progressive signals, and,

– the TV is connected via the

COMPONENT VIDEO OUT jacks.

When you select [ON], the confirmation display appears. Follow the Steps below.

Press

C/c to select [START], then

press .

The system outputs a progressive signal for

5 seconds. Check that the screen is displayed correctly.

Press

C/c to select [YES], then press

The system outputs a progressive signal.

When you select [NO], the system does not output a progressive signal.

Step 5: Selecting the

Source

You can select the playback source.

FUNCTION

Press FUNCTION repeatedly until the desired function appears in the front panel display.

Each time you press FUNCTION, the function changes as follows.

“DVD” t “TUNER FM” t “USB” t “TV” t “SAT/CABLE” t “DMPORT” t

“AUDIO” t …

Function

“DVD”

“TUNER FM”

“USB”

“TV”

“SAT/CABLE”

“DMPORT”

“AUDIO”

Source

Disc that is played by the system

FM radio (page 65)

USB device (page 71)

Component that is connected to the SAT/

CABLE jacks on the rear panel

DIGITAL MEDIA PORT

adapter (page 83)

Portable audio source that is connected to the AUDIO

IN jack on the front panel

Step 6: Enjoying Surround Sound

You can enjoy surround sound simply by selecting one of the system’s pre-programmed decoding modes. They bring the exciting and powerful sound of movie theaters into your home.

SYSTEM MENU

X/x/c,

Enjoying TV sound with the 5.1 channel surround sound effect

Press SYSTEM MENU.

Press

X/x repeatedly until “DEC. MODE” appears in the front panel display, then press

Press

X/x repeatedly until “PRO LOGIC” appears in the front panel display.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Note

• When TV program sound is monaural, sound is output only from the center speaker.

Selecting surround sound effects based on your listening preference

Press SYSTEM MENU.

Press

X/x repeatedly until “DEC. MODE” appears in the front panel display, then press

Press

X/x repeatedly until the surround sound effect you want appears in the front panel

display.

See the table below for surround sound effect descriptions.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

About speaker output

The table below describes the options when you connect all the speakers to the unit and you set

[SPEAKER FORMATION] to [STANDARD] (page 89).

For Australian models, the default setting is “A.F.D. STD.” For other models, the default setting is

“A.F.D. MULTI” (when connecting the headphones to the unit or surround amplifier, the default setting is “HP THEATER”).

Sound from Surround effect Effect

Depending on the source.

“A.F.D. STD”

(AUTO FORMAT

DIRECT STANDARD)

The system discriminates the sound format of the source and presents sound as it was recorded/encoded.

“A.F.D. MULTI”

(AUTO FORMAT

DIRECT MULTI)

• 2 channel source: The system outputs 2 channel sound from the front and surround speakers by assigning the 2 channel sound to the surround left and right channels.

• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.

“PRO LOGIC”

“PLII MOVIE”

“PLII MUSIC”

“2CH STEREO”

• 2 channel source: The system simulates surround sound from 2 channel sources and outputs sound from all the speakers.

– “PRO LOGIC” performs Dolby Pro Logic decoding.

– “PLII MOVIE” performs Dolby Pro Logic II movie mode decoding.

– “PLII MUSIC” performs Dolby Pro Logic II music mode decoding.

• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.

The system outputs the sound from the front speakers and subwoofer regardless of sound format or number of channels.

Multi-channel surround formats are downmixed to 2 channels.

“HP THEATER”*

(HEADPHONE

THEATER)

The system outputs the sound from the headphones by adding a surround effect regardless of sound format or number of channels.

Sound from Surround effect

“HP 2CH”

(HEADPHONE 2

CHANNEL STEREO)

Effect

The system outputs the sound from the headphones regardless of sound format or number of channels. Multichannel surround formats are downmixed to 2 channels.

* DCS technology (page 119) is used.

To turn the surround effect off

Select “A.F.D. STD,” “2CH STEREO,” or “HP 2CH” for “DEC. MODE.”

Note

• When you select “A.F.D. MULTI,” depending on the disc or source, the beginning of the sound may be cut off while the optimum mode is automatically selected. To avoid cutting the sound, select “A.F.D. STD.”

• When the bilingual broadcast sound is input, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are not effective.

• “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are canceled when you set the sound mode (page 97) to either

of the following settings.

– “SPORTS”

– “MOVIE-D.C.S.-”

• You cannot select the decoding mode while the system is loading a disc.

• You cannot select the decoding mode during karaoke mode.

• Depending on the input stream, the decoding mode may not be effective.

• When changing the decoding mode while using the S-AIR receiver, sound from the S-AIR receiver may skip.

Tip

• The system memorizes the last decoding mode selected for each function.

Whenever you select a function such as “DVD” or “TUNER FM,” the decoding mode that was last applied to the function is automatically applied again. For example, if you select “DVD” with “PRO LOGIC” as the decoding mode, then change to another function, and then return to “DVD,” “PRO LOGIC” will be applied again.

Disc

Playing a Disc

Depending on the DVD VIDEO or VIDEO CD, some operations may be different or restricted.

Refer to the operating instructions supplied with your disc.

"/1

Adjust the volume

FUNCTION

Disc tray

OPERATION DIAL

PHONES jack

"/1

FUNCTION

MUTING

STEP

/m/

VOLUME +/–

./>

H x

Turn on your TV.

Switch the input selector on the TV to this system.

Press "/1.

The system turns on.

Unless the system is set to “DVD,” press

FUNCTION to select “DVD.”

Press Z on the unit to open the disc

tray, and place a disc on the tray.

Place one disc on the tray, and then press Z.

With the label side up.

Note

• When you play an 8 cm disc, place it on the inner circle of the tray. Be careful that the disc is not skewed on the inner circle of the tray.

• Do not place more than one disc on the tray.

Press H.

The system starts playback (continuous play).

Adjust the volume by using VOLUME +/

– on the remote or the VOLUME control on the unit.

The volume level appears on the TV screen and in the front panel display.

Note

• When you set the Control for HDMI function to on, the TV that is connected to the system with an HDMI cable can be sync-operated with the system. For

details, see “Using the Control for HDMI Function for “BRAVIA” Sync” (page 68).

To turn the system off

Press "/1 while the system is on. The system enters standby mode.

To save power in standby mode

Press "/1 while the system is on.

To enter power saving mode, make sure that the system is in the following status.

– “DEMO” is set to “OFF” (page 29).

– [CONTROL FOR HDMI] is set to [OFF]

(page 68).

– “S-AIR STBY” is set to “STBY OFF”

(page 86).

To use the headphones

Connect the headphones to the PHONES jack on the unit. The sound of the system is muted.

You can also connect the headphones to the

PHONES jack on the surround amplifier. (The sound of the system is muted.)

See “To enjoy sound by using headphones”

(page 30).

Other operations

Stop

Press

Pause X

Resume play after pause X or H

Go to the next chapter, track, or scene

Go back to the preceding chapter, track, or scene

. twice in a second.

When you press . once, you can go to the beginning of the current chapter, track, or scene.

Find the desired chapter, track, or scene using

OPERATION DIAL on the unit

Turning OPERATION

DIAL clockwise is the same operation as pressing

Turning OPERATION

DIAL counterclockwise is the same operation as pressing ..

Turn off the sound temporarily

MUTING.

To cancel, press it again or press VOLUME + to adjust the sound volume.

Z on the unit.

Stop play and remove the disc

Locate a point quickly by playing a disc in fast forward or fast reverse

(Scan)

M/ or /m while playing a disc. Each time

/ you press M/ or m during scan, the playback speed changes.

To return to normal speed, press H. Actual speeds may differ with some discs.

Watch frame by frame

(Slow-motion Play)

Press

M/ or /m

3) while the system is in pause mode. Each time you press

M/ or /m

3) during Slow-motion Play, the playback speed changes. Two speeds are available. To return to normal playback speed, press H.

Play one frame at a time

(Freeze Frame)

2)4)5)

STEP to go to the next frame while the system is in pause mode. Press STEP

to go to the preceding frame while the system is in pause mode (DVD VIDEO/

DVD-R/DVD-RW only).

To return to normal playback, press H.

Replay the previous scene (10 seconds before)

(instant replay) during playback.

Briefly fast forward the current scene (30 seconds ahead)

(instant advance) during playback.

Except for JPEG image files.

DVD VIDEO/DVD-R/DVD-RW/VIDEO CD only.

Except for VIDEO CDs.

You cannot search for a still picture on a DVD-VR.

For a DATA CD/DATA DVD, this function works only for video files.

DVD VIDEO/DVD-RW/DVD-R only. The button can be used except for DivX/MPEG4 video files.

DVD VIDEO/DVD-RW/DVD-R/DVD+RW/

DVD+R only. The button can be used except for

DivX/MPEG4 video files.

Displaying multi-angles and subtitles

To change the angles

If various angles (multi-angles) for a scene are recorded on a DVD VIDEO, you can change the viewing angle.

Press ANGLE during playback to select the desired angle.

To display the subtitles

If subtitles are recorded on a disc, you can turn the subtitles on/off during playback. If multilingual subtitles are recorded on the disc, you can change the subtitle language during playback, or turn the subtitles on/off whenever you want.

Press SUBTITLE during playback to select the desired subtitle language.

Note

• You can select the subtitles if the DivX video file has an “.avi” or “.divx” extension and contains subtitle information within the same file.

Changing the sound

When the system is playing a DVD VIDEO or

DATA CD/DATA DVD (DivX video files) recorded in multiple audio formats (PCM,

Dolby Digital, MPEG audio, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language.

With a VIDEO CD, CD, DATA CD, or DATA

DVD, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers.

You cannot change the sound for a Super Audio

CD.

Press AUDIO repeatedly during playback to select the desired audio signal.

x DVD VIDEO

Depending on the DVD VIDEO, the choice of language varies.

When 4 digits are displayed, they indicate a

language code. See “Language Code List”

(page 123) to confirm which language the code

represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

x DVD-VR

The types of sound tracks recorded on a disc are displayed.

Example:

• [1: MAIN] (main sound)

• [1: SUB] (sub sound)

• [1: MAIN+SUB] (main and sub sound)

• [2: MAIN]

• [2: SUB]

• [2: MAIN+SUB] x VIDEO CD/CD/DATA CD (MP3 file)/DATA

DVD (MP3 file)

• [STEREO]: The standard stereo sound.

• [1/L]: The sound of the left channel

(monaural).

• [2/R]: The sound of the right channel

(monaural).

x DATA CD (DivX video file)/DATA DVD

(DivX video file)

The choice of DATA CD or DATA DVD audio signal formats differs, depending on the DivX video file contained on the disc. The format appears on the TV screen.

x Super VCD

• [1:STEREO]: The stereo sound of audio track

• [1:1/L]: The sound of the left channel of audio track 1 (monaural).

• [1:2/R]: The sound of the right channel of audio track 1 (monaural).

• [2:STEREO]: The stereo sound of audio track

• [2:1/L]: The sound of the left channel of audio track 2 (monaural).

• [2:2/R]: The sound of the right channel of audio track 2 (monaural).

Checking the audio signal format

If you press AUDIO repeatedly during playback, the format of the current audio signal

(PCM, Dolby Digital, DTS, etc.) appears as shown below.

x DVD

Example:

Dolby Digital 5.1 channel

Surround (L/R)

LFE (Low

Frequency Effect)

Front (L/R) +

Center

1: ENGLISH

DOLBY DIGITAL 3 / 2 .1

L C

LFE

Currently playing program format

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MULTI/

2CH], then press .

The options for [MULTI/2CH] appear.

Press

X/x to select the desired setting

and press .

• [MULTI]: You can play the multi-channel playback area.

• [2CH]: You can play the 2 channel playback area.

Note

• When the Super Audio CD does not have a multichannel playback area, you cannot select the playback area.

Example:

Dolby Digital 3 channel

Front (L/R)

Surround

(Monaural)

1:SPANISH

DOLBY DIGITAL 2 / 1

Currently playing program format x DATA CD (video file)/DATA DVD (video

file)

Example:

MP3 audio

1:MP3 128k

Bit rate

Selecting a playback area for a

Super Audio CD

Some Super Audio CDs consist of a 2 channel playback area and a multi-channel playback area. You can select the playback area you want to listen to.

Changing a playback layer for a hybrid Super Audio CD

Some Super Audio CDs consist of a Super

Audio CD layer and a CD layer. You can change the playback layer you want to listen to.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SUPER

AUDIO CD/CD LAYER], then press .

x When the current layer is the CD

layer

[SUPER AUDIO CD] appears.

x When the current layer is the Super

Audio CD layer

[CD] appears.

Press to change the layer.

• [SUPER AUDIO CD]: You can play the

Super Audio CD layer.

When the system is playing a Super Audio

CD layer, “SA-CD” lights up in the front panel display.

• [CD]: You can play the CD layer.

When the system is playing a CD layer,

“CD” lights up in the front panel display.

Note

• Each play mode function works only within the selected layer or playback area.

• When you select a CD layer, you cannot change playback areas.

• Super Audio CD audio signals are not output from the

HDMI OUT jack.

Tip

• To play without using the PBC function, press ./

> or the number buttons while the system is in stop mode to select a track, then press H or . The system starts playback. You cannot play still pictures such as a menu. To return to PBC playback, press x twice, then press H.

Playing a VIDEO CD with PBC functions (Ver. 2.0)

(PBC Playback)

Resuming playback from the point where you stopped the disc

(Resume Play)

With PBC (Playback Control) functions, you can enjoy simple interactive operations, search functions, and other such operations.

PBC playback allows you to play a VIDEO CD interactively by following the menu on the TV screen.

Start playing a VIDEO CD with PBC functions.

The menu for your selection appears.

Select the item number you want using the number buttons.

If you make a mistake, press CLEAR to cancel the number.

Press .

Follow the instructions in the menu for interactive operations.

Refer to the operating instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.

To go back to the menu

Press O RETURN.

Note

• Depending on the VIDEO CD, [Press ENTER] in

Step 3 may appear as [Press SELECT] in the operating instructions supplied with the disc. In this case, press H.

When you stop the disc, the system remembers the point where you pressed x and “RESUME” appears in the front panel display. As long as you do not remove the disc, Resume Play will work even if the system is set to standby mode by pressing "/1.

While playing a disc, press x to stop

playback.

“RESUME” appears in the front panel display.

Press H.

The system starts playback from the point where you stopped the disc in Step 1.

Note

• Depending on where you stop the disc, the system may not resume playback from exactly the same point.

• The point where you stopped playing may be cleared when:

– you eject the disc.

– the system enters standby mode (DATA CD/

DATA DVD only).

– you change or reset the settings on the Setup

Display.

– you change the parental control level.

– you change the function by pressing FUNCTION.

– you disconnect the AC power cord (mains lead).

• For a DVD-VR, VIDEO CD, Super Audio CD, CD,

DATA CD, or DATA DVD, the system remembers the resume playback point for the current disc.

• Resume Play does not work during Program Play and

Shuffle Play.

• This function may not work properly with some discs.

Tip

• To play from the beginning of the disc, press x twice, then press H.

To enjoy a disc that you played before with resume playback

(Multi-disc Resume)

This system recalls the point where you stopped the disc the last time it was played and resumes playback from that point the next time you insert the same disc. When the resume playback memory is full, the resume playback point for the earliest disc is deleted.

To activate this function, set [MULTI-DISC

RESUME] in [SYSTEM SETUP] to [ON]. For

details, see “[MULTI-DISC RESUME] (DVD

VIDEO/VIDEO CD only)” (page 62).

Note

• This system stores the resume points in memory for up to 10 discs.

Tip

• To play from the beginning of the disc, press x twice, then press H.

Using Play Mode

Creating your own program

(Program Play)

You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 99 tracks.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[PROGRAM], then press .

The options for [PROGRAM] appear.

Press

X/x to select [SET t

], then press .

Total time of the programmed tracks

PROGRAM

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– –

0: 00:00

– –

Tracks recorded on a disc

Press

The cursor moves to the track row [T] (in this case, [01]).

PROGRAM

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– –

0: 00:00

– –

Select the track you want to program.

For example, select track [02].

Press

X/x to select [02] under [T], then press .

Selected track

PROGRAM

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– –

0: 03:51

– –

Total time of the programmed tracks

To program other tracks, repeat Steps

4 to 5.

The programmed tracks are displayed in the selected order.

Press H to start Program Play.

Program Play starts.

When the program ends, you can restart the same program again by pressing H.

To return to normal play

Press CLEAR while the display for the program setting is not displayed on the TV screen, or select [OFF] in Step 3. To play the same program again, select [ON] in Step 3 and press

To turn off the Control Menu display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

To change or cancel a program

Follow Steps 1 to 3 of “Creating your own program.”

Press

X/x to select the program

number of the track you want to change or cancel.

If you want to delete the track from the program, press CLEAR.

Follow Step 5 for new programming.

To cancel a program, select [--] under [T], then press .

To cancel all of the tracks in the programmed order

Follow Steps 1 to 3 of “Creating your own program.”

Press

X and select [ALL CLEAR].

Press .

Note

• When you press CLEAR to return to normal play,

Shuffle Play and Repeat Play are also canceled.

Playing in random order

(Shuffle Play)

You can play the contents on a disc in random order. Subsequent Shuffle Play may produce a different playing order.

Note

• The same song may be played repeatedly when you are playing MP3 files.

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SHUFFLE], then press .

The options for [SHUFFLE] appear.

Press

X/x to select the item to be

shuffled.

x VIDEO CD/Super Audio CD/CD

• [OFF]: Off.

• [TRACK]: You can shuffle tracks on the disc.

x During Program Play

• [OFF]: Off.

• [ON]: You can shuffle tracks selected in

Program Play.

x DATA CD (except for video files)/

DATA DVD (except for video files)

• [OFF]: Off.

• [ON (MUSIC)]: You can shuffle MP3 files in the folder on the current disc.

When no folder is selected, the first folder will play in random order.

Press .

Shuffle Play starts.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

Note

• You cannot use Shuffle Play with a VIDEO CD or

Super VCD with PBC playback.

• When you press CLEAR to return to normal play,

Program Play and Repeat Play are also canceled.

Playing repeatedly

(Repeat Play)

You can play the contents on a disc repeatedly.

You can use a combination of Shuffle Play or

Program Play modes.

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[REPEAT], then press .

The options for [REPEAT] appear.

Press

X/x to select the item to be

repeated.

x DVD VIDEO/DVD-VR

• [OFF]: Off.

• [DISC]: You can repeat all of the titles on the disc.

• [TITLE]: You can repeat the current title on a disc.

• [CHAPTER]: You can repeat the current chapter on a disc.

x VIDEO CD/Super Audio CD/CD

• [OFF]: Off.

• [DISC]: You can repeat all of the tracks on the disc.

• [TRACK]: You can repeat the current track.

x DATA CD/DATA DVD

• [OFF]: Off.

• [DISC]: You can repeat all of the folders on the disc.

• [FOLDER]: You can repeat the current folder.

• [TRACK] (MP3 files only): You can repeat the current file.

• [FILE] (video files only): You can repeat the current file.

Press .

The item is selected.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

Note

• You cannot use Repeat Play with a VIDEO CD or

Super VCD with PBC playback.

• When the system is playing a DATA CD/DATA

DVD which contains MP3 files and JPEG image files, and their playing time is not the same, the audio sound will not match the image.

• When you press CLEAR to return to normal play,

Program Play and Shuffle Play are also canceled.

Searching/Selecting

Disc Contents

Using the DVD’s menu

Selecting an original title or edited title on a DVD-VR

A DVD is divided into many sections, which make up a picture or music feature. These sections are called “titles.” When you play a

DVD which contains several titles, you can select the title you want using DVD TOP

MENU.

When you play a DVD that allows you to select items such as the language for the subtitles and the language for the sound, select these items using DVD MENU.

Press DVD TOP MENU or DVD MENU.

The disc’s menu appears on the TV screen.

The contents of the menu vary depending on the disc.

Press

C/X/x/c or the number buttons to

select the item you want to play or change.

Press .

To display the DVD’s menu on the

Control Menu display

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[DISC

MENU], then press .

The options for [DISC MENU] appear.

Press

X/x to select [MENU] or [TOP

MENU].

Press .

To turn off the Control Menu display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

This function is only available for DVD-VRs with a playlist created.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[ORIGINAL/

PLAY LIST], then press .

The options for [ORIGINAL/PLAY LIST] appear.

Press

X/x to select a setting.

• [PLAY LIST]: You can play the titles in the order of the existing playlist.

• [ORIGINAL]: You can play the titles originally recorded.

Press .

Searching for a title/chapter/ track/scene, etc.

You can search a DVD VIDEO/DVD-VR by title or chapter, and you can search a VIDEO

CD/Super Audio CD/CD/DATA CD/DATA

DVD by track, index, or scene. For a DATA CD/

DATA DVD, you can search by folder or file.

As titles and tracks are assigned unique numbers on the disc, you can select the desired title or track by entering its number. Or, you can search for a scene using the time code.

Press DISPLAY. (If [MEDIA] is set to

[MUSIC/PHOTO], press DISPLAY twice.)

The Control Menu display appears on the

TV screen.

Press

X/x to select the search method.

[** (**)] is selected (** refers to a number).

The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, folders, or files.

9 8 ( 9 9 )

1 3 ( 9 9 )

T 0 : 0 3 : 1 7

DVD VIDEO

Press .

[T **:**:**] changes to [T --:--:--].

Input the time code using the number buttons.

For example, to find a scene at 2 hours, 10 minutes, and 20 seconds after the beginning: press 2, 1, 0, 2, 0 ([2:10:20]).

Press .

Note

• You cannot search for a scene on a DVD+RW using the time code.

Selected row

Press .

[** (**)] changes to [– – (**)].

9 8 ( 9 9 )

1 3 ( 9 9 )

T 0 : 0 3 : 1 7

DVD VIDEO

Press

X/x or the number buttons to

select the desired number of the title, chapter, track, index, scene, etc.

If you make a mistake, press CLEAR to cancel the number.

Press .

The system starts playback from the selected number.

Tip

• When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD-R/DVD-

RW), track (VIDEO CD/Super Audio CD/CD), or file (DATA CD/DATA DVD (video file)) by pressing the number buttons and .

To search for a scene using the time code

In Step 2, select [TIME].

[T **:**:**] (playing time of the current title) is selected.

Playing MP3 Files/JPEG

Image Files

You can play MP3 files or JPEG image files:

– which have the extension “.mp3” (MP3 file) or “.jpg”/“.jpeg” (JPEG image file).

– which conform to the DCF* image file format.

* “Design rule for Camera File system”: Image standards for digital cameras regulated by Japan

Electronics and Information Technology Industries

Association (JEITA).

Note

• The system will play any files with the extension

“.mp3,” “.jpg,” or “.jpeg” even if they are not in MP3 or JPEG format. Playing these files may generate a loud noise which could damage your speaker system.

• The system does not play back audio in MP3PRO format.

• The system can recognize up to 200 folders, and will not play any folders beyond the 200th. (Depending on the folder configuration, the number of folders that can be recognized by the system may decrease.)

• The system can recognize up to 150 MP3 files/JPEG image files in a folder.

• The system may take a longer time to play files when progressing to the following folder or jumping to other folders.

• The system may not play certain types of JPEG image files (ex. a JPEG image file that is less than 8 (width)

× 8 (height)).

Selecting an MP3 file or folder

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Load a DATA CD or DATA DVD.

After loading the disc, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [MUSIC] is selected, press DVD

MENU. When other than [MUSIC] is selected, press

X/x to select [MUSIC],

then press .

A list of folders that contain MP3 files appears.

The selected folder is highlighted in yellow.

FOLDER LIST

01 Let's Talk About Love (1985)

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

Press

X/x to select a folder. x To play MP3 files in a folder

Press H to start playing the selected folder.

x To select an MP3 file

Press .

The list of files contained in the folder appears.

TRACK LIST

03 In the Middle of Nowher...

01_Geronimo_s_Cadillac

02_Riding_On_A_White_Swan

03_Give_Me_Peace_On_Earth

04_Sweet_Little_Shella

05_Ten_Thousand_Lonely_Drums

06_Lonely_Tears_In_Chinatown

07_In_Shaire

Press

X/x to select a file and press

The system starts playing the selected file.

You can turn the file list off by pressing

DVD MENU. Pressing DVD MENU again will display the folder list.

To go to the next or previous page

Press / .

To stop playback

Press x.

To play the next or previous MP3 file

Press > to play the next MP3 file. Press . twice to play the previous MP3 file.

When you press . once, you can go to the beginning of the current MP3 file.

Note that you can select the next folder by continuing to press > after the last file on the current folder, but that you cannot return to the previous folder by pressing .. To return to the previous folder, select the folder from the folder list.

To return to the previous display

Press O RETURN.

To turn on/off the display

Press DVD MENU.

Other operations

See “Other operations” (page 40).

Selecting a JPEG image file or folder

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Load a DATA CD or DATA DVD.

After loading the disc, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [PHOTO] is selected, press DVD

MENU. When other than [PHOTO] is selected, press

X/x to select [PHOTO],

then press .

A list of folders that contain JPEG files appears.

The selected folder is highlighted in yellow.

FOLDER LIST

01 Happy birthday

02 Travelling 01

03 2003.08.20

04 Flowers

05 Travelling 02

06 Animals

07 2003.11.16

08 2003.12.03

Press

X/x to select a folder. x To go to the next or previous page

Press / .

x To play JPEG image files in a folder

Press H to start playing the selected folder.

The JPEG images are played as a slide show. You can change the interval of the

slide show (page 51), and add effects to the

slide show (page 52).

x To select a JPEG image file by

displaying the image browser

Press PICTURE NAVI.

Previews of JPEG image files in the folder appear in 16 subscreens.

1 2 3 4

13 14 15 16

Press C/X/x/c to select the JPEG image file you want to view, then press .

To return to the previous screen, press O

RETURN.

To play the next or previous JPEG image file

Press c/C when the Control Menu display is not displayed. Note that you can select the next folder by continuing to press c after the last image on the current folder, but that you cannot return to the previous folder by pressing

C. To return to the previous folder, select the folder from the folder list.

To rotate a JPEG image file

When a JPEG image file is displayed on the TV screen, you can rotate the JPEG image file in 90 degree increments.

Press X/x while viewing a JPEG image file.

Press CLEAR to return to normal view.

Note

• You cannot rotate the JPEG image file when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD

] or [(1920 × 1080i) HD] (page 61).

To stop playback

Press x.

To turn on/off the display

Press DVD MENU.

Other operations

See “Other operations” (page 40).

Playing a slide show with sound

You can play a slide show with sound by first placing both MP3 files and JPEG image files in the same folder on a DATA CD or DATA DVD.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Load a DATA CD or DATA DVD.

After loading the disc, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [MUSIC/PHOTO] is selected, press DVD MENU. When other than

[MUSIC/PHOTO] is selected, press

X/x

to select [MUSIC/PHOTO], then press

The list of folders appears.

Press

X/x to select the desired folder

and press H.

The system starts playing the selected folder.

You can turn the folder list on/off by pressing DVD MENU repeatedly.

Note

• If you play a large MP3 file and JPEG image file at the same time, the sound may skip. Sony recommends that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, reduce the size of the JPEG image file.

Selecting the slide show duration of JPEG image files

Press DISPLAY. (If [MEDIA] is set to

[MUSIC/PHOTO], press DISPLAY twice.)

The Control Menu display appears on the

TV screen.

Press

X/x to select

[INTERVAL], then press .

The options for [INTERVAL] appear.

Press

X/x to select a setting.

• [NORMAL]: You can set to the standard duration.

• [FAST]: You can set the duration shorter than [NORMAL].

• [SLOW 1]: You can set the duration longer than [NORMAL].

• [SLOW 2]: You can set the duration longer than [SLOW 1].

Press .

Note

• Some JPEG image files may take longer to display than the option you selected. Especially progressive

JPEG image files or JPEG image files of 3,000,000 pixels or more.

Selecting an effect for JPEG image files in the slide show

Press DISPLAY. (If [MEDIA] is set to

[MUSIC/PHOTO], press DISPLAY twice.)

The Control Menu display appears on the

TV screen.

Press

X/x to select

[EFFECT], then press .

The options for [EFFECT] appear.

Press

X/x to select a setting.

• [MODE 1]: The JPEG image file sweeps in from top to bottom.

• [MODE 2]: The JPEG image file stretches out from left to right of the TV screen.

• [MODE 3]: The JPEG image file stretches out from the center of the TV screen.

• [MODE 4]: The JPEG image files randomly cycle through the effects.

• [MODE 5]: The next JPEG image file slides over the previous image.

• [OFF]: Off.

Press .

Note

• The [EFFECT] setting is not effective when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD

] or [(1920 × 1080i) HD] (page 61).

Selecting playback priority of the file type

You can select playback priority when mixed media (MP3 files, JPEG image files, or video files) are in the disc.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Load a DATA CD or DATA DVD.

After loading the disc, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

Press

X/x to select a setting.

• [MUSIC/PHOTO]: You can play both

JPEG image files and MP3 files in the same folder as a slide show.

• [MUSIC]: MP3 file playback has priority.

• [VIDEO]: Video file playback has priority.

• [PHOTO]: JPEG image file playback has priority. You can play JPEG image files as a slide show.

Press .

For details of the playback priority of file types under the [MEDIA] setting, see

“Playback priority of file types” (page 122).

Displaying a list of MP3 files/

JPEG image files

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[BROWSING], then press .

The options for [BROWSING] appear.

Press

X/x to select the desired list,

then press .

• [FOLDER LIST]: The list of folders

appears. Follow Step 6 of “Selecting an

MP3 file or folder” (page 49) or

“Selecting a JPEG image file or folder”

(page 50).

• [PICTURE LIST] (JPEG image files only): Previews of JPEG image files in the folder appear in 16 subscreens. Follow

Step 6 of “Selecting a JPEG image file or folder” (page 50).

Enjoying Video Files

About video files

You can play DivX video files and MPEG4 video files.

DivX

is a video file compression technology, developed by DivX, Inc. This product is an official DivX

Certified product.

You can play a DATA CD or DATA DVD that contains DivX

video files.

A DATA CD or DATA DVD that the system can play

The system only plays a DATA CD of format

ISO 9660 Level 1/Level 2 or Joliet, and a DATA

DVD of Universal Disk Format (UDF).

Refer to the operating instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

About playback order of data on a

DATA CD or DATA DVD

Note that the playback order may not be applicable, depending on the software used for creating the video file, or if there are more than

200 folders and 150 video files in each folder.

Note

• The system may not be able to play some DATA

CDs/DATA DVDs created in the Packet Write format.

DivX video files that the system can play

The system can play data that is recorded in

DivX format, and which has the extension “.avi” or “.divx.” The system will not play files with the extension “.avi” or “.divx” if they do not contain a DivX video.

Note

• The system may not play a DivX video file when the file has been combined from two or more DivX video files.

• The system cannot play a DivX video file of size more than 720 (width) × 576 (height) or 2GB.

• Depending on the DivX video file, sound may skip or not match the pictures on the TV screen.

• The system cannot play some DivX video files that are longer than 3 hours.

• Depending on the DivX video file, the picture may pause or be unclear, in which case it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format.

Note, however, this system does not conform to

WMA (Windows Media Audio) format for playing

DivX files.

• Because of the compression technology used for

DivX video files, it may take some time after you press H for the picture to appear.

MPEG4 video files that the system can play

The system can play data that is recorded in

MP4 file format, and which has the extension

“.mp4” or “.m4v.” The system will not play files with the extension “.mp4” or “.m4v” if they do not contain a MPEG4 video.

Note

• Compatibility with all MPEG4 video encoding/ writing software, recording devices, and recording media cannot be guaranteed.

Selecting a folder

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Load a DATA CD or DATA DVD.

After loading the disc, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [VIDEO] is selected, press DVD

MENU. When other than [VIDEO] is selected, press

X/x to select [VIDEO],

then press .

A list of folders that contain video files appears.

The selected folder is highlighted in yellow.

FOLDER LIST

SUMMER 2003

NEW YEAR'S DAY

MY FAVOURITES

Press

X/x to select the folder you want

to play.

Press H.

The system starts playing the selected folder.

To select video files, see “Selecting a video file” (page 54).

To go to the next or previous page

Press / .

To stop playback

Press x.

To turn on/off the display

Press DVD MENU.

Other operations

See “Other operations” (page 40).

Selecting a video file

After Step 6 of “Selecting a folder,”

press .

The list of files in the folder appears.

FILE LIST

MY FAVOURITES

HAWAII 2004

VENUS

Press

X/x to select a file and press

The selected file starts playing.

To go to the next or previous page

Press / .

To return to the previous display

Press O RETURN.

To stop playback

Press x.

To play the next or previous video file without turning on the above file list

You can select the next or previous video file in the same folder by pressing >/..

You can also select the first file of the next folder by pressing > during playback of the last file of the current folder. Note that you cannot return to the previous folder by pressing

.. To return to the previous folder, select it from the folder list.

Tip

• If the number of viewing times is preset, you can play a DivX video file as many times as the preset number.

The following occurrences are counted:

– when the system is turned off.

– when another file is played.

– when the disc tray is opened.

Displaying a list of video files

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[BROWSING], then press .

The options for [BROWSING] appear.

Press

X/x to select [FOLDER LIST],

then press .

The list of folders appears. Follow Step 6 of

“Selecting a folder” (page 53).

Adjusting the Delay

Between the Picture and

Sound

[A/V SYNC]

When the sound does not match the pictures on the TV screen, you can adjust the delay between the picture and sound.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[A/V SYNC], then press .

The options for [A/V SYNC] appear.

Press

X/x to select a setting.

• [OFF]: Off.

• [ON]: You can adjust the delay between picture and sound.

Press .

Note

• Depending on the input stream, [A/V SYNC] may not be effective.

Restricting Playback of the Disc

[PARENTAL CONTROL]

The [PARENTAL CONTROL] function allows you to restrict playback of DVDs that have ratings. Scenes may be blocked or replaced with different scenes.

You can set the playback restriction by registering a password. When you set the

[PARENTAL CONTROL] function to on, you need to enter the password to play restricted discs.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [SYSTEM SETUP],

then press .

The options for [SYSTEM SETUP] appear.

Press

X/x to select [PARENTAL

CONTROL

t], then press

x If you have not entered a password

The display for registering a new password appears.

PARENTAL CONTROL

Enter a new 4-digit password, then press

Enter a 4-digit password using the number buttons, then press .

The display for confirming the password appears.

x When you have already registered a

password

The display for entering the password appears.

Enter or re-enter your 4-digit password using the number buttons, then press

The display for setting the playback limitation level appears.

PARENTAL CONTROL

LEVEL:

STANDARD:

CHANGE PASSWORD:

OFF

USA

To turn off the [PARENTAL

CONTROL] function

Set [LEVEL] to [OFF] in Step 11.

To play a disc for which

[PARENTAL CONTROL] is set

Load the disc and press H.

The display for entering your password appears.

Enter your 4-digit password using the number buttons, then press .

The system starts playback.

Tip

• If you forget your password, remove the disc and

repeat Steps 1 to 6 of “Restricting Playback of the

Disc” (page 55). When you are asked to enter your

password, enter “199703” using the number buttons, then press . The display will ask you to enter a new

4-digit password. After you enter a new 4-digit password, replace the disc in the unit and press H.

When the display for entering your password appears, enter your new password.

Press

X/x to select [STANDARD], then

press .

The selection items for [STANDARD] are displayed.

Press

X/x to select a geographic area

as the playback limitation level, then press .

The area is selected.

When you select [OTHERS

t], select and

enter a standard code from “Parental

Control Area Code List” (page 123) using

the number buttons.

Press

X/x to select [LEVEL], then press

The selection items for [LEVEL] are displayed.

Press

X/x to select the desired level,

then press .

[PARENTAL CONTROL] setting is complete.

The lower the value, the stricter the limitation.

Changing the password

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [SYSTEM SETUP],

then press .

The options for [SYSTEM SETUP] appear.

Press

X/x to select [PARENTAL

CONTROL

t], then press

The display for entering the password appears.

Enter your 4-digit password using the number buttons, then press .

Press

X/x to select [CHANGE

PASSWORD

t], then press

Enter a new 4-digit password using the number buttons, then press .

To confirm your password, re-enter it using the number buttons, then press

If you make a mistake entering your password

Press

C before you press

, then input the correct number.

Changing the System

Settings by Using the

Setup Display

You can make various adjustments to items such as picture and sound.

Displayed items vary depending on the area.

Note

• Playback settings stored in the disc take priority over the Setup Display settings and not all the functions described may work.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select the setup item, then

press .

• [LANGUAGE SETUP] (page 58)

• [VIDEO SETUP] (page 58)

• [HDMI SETUP] (page 60)

• [AUDIO SETUP] (page 61)

• [SYSTEM SETUP] (page 62)

• [SPEAKER SETUP] (page 63)

Example: [VIDEO SETUP]

Selected item

VIDEO SETUP

TV TYPE:

PROGRESSIVE

(COMPONENT OUT)

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

PAUSE MODE:

16:9

OFF

FULL

AUTO

Setup items

Press

X/x to select an item, then press

The options for the selected item appear.

Example: [TV TYPE]

VIDEO SETUP

TV TYPE:

PROGRESSIVE

(COMPONENT OUT)

16:9

4:3 OUTPUT:

COLOR SYSTEM

4:3 LETTER BOX

(VIDEO CD)

AUTO

PAUSE MODE: AUTO

Options

Press

X/x to select a setting, then

press .

The setting is selected and setup is complete.

Example: [4:3 LETTER BOX]

VIDEO SETUP

TV TYPE: 4:3 LETTER BOX

PROGRESSIVE

(COMPONENT OUT)

: OFF

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

PAUSE MODE:

FULL

AUTO

Selected setting x [OSD] (On-Screen Display)

You can switch the display language on the TV screen.

x [MENU] (DVD VIDEO only)

You can switch the language for the disc’s menu.

x [AUDIO] (DVD VIDEO only)

You can switch the language of the sound track.

When you select [ORIGINAL], the language given priority on the disc is selected.

x [SUBTITLE] (DVD VIDEO only)

You can switch the language of the subtitles recorded on the DVD VIDEO.

When you select [AUDIO FOLLOW], the language for the subtitles changes according to the language you selected for the sound track.

Note

• When you select a language in [MENU], [AUDIO], or [SUBTITLE] that is not recorded on the DVD

VIDEO, one of the recorded languages will be automatically selected (depending on the disc, the language may not be selected automatically).

Tip

• If you select [OTHERS t] in [MENU], [AUDIO], and [SUBTITLE], select and enter a language code

from “Language Code List” (page 123) using the

number buttons.

To reset all of the [SETUP] settings

To reset all of the [SETUP] settings, see

“Returning the [SETUP] settings to the default”

(page 102).

Setting the display or sound track language

[LANGUAGE SETUP]

Set various languages for the on-screen display or sound track.

LANGUAGE SETUP

OSD:

MENU:

AUDIO:

SUBTITLE:

ENGLISH

ORIGINAL

AUDIO FOLLOW

Settings for the display

[VIDEO SETUP]

Select settings according to the TV to be connected.

VIDEO SETUP

TV TYPE:

PROGRESSIVE

(COMPONENT OUT)

4:3 OUTPUT:

COLOR SYSTEM

(VIDEO CD)

PAUSE MODE:

16:9

OFF

FULL

AUTO

x [TV TYPE]

You can select the aspect ratio of the connected

TV.

[16:9]: Select this when you connect a widescreen TV or a TV with a wide mode function.

[4:3 LETTER BOX]: Select this when you connect a 4:3 standard TV. The system displays a wide picture with bands on the upper and lower portions of the TV screen.

[4:3 PAN SCAN]: Select this when you connect a 4:3 standard TV. The system automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.

The system outputs a progressive signal for

5 seconds. Check that the screen is displayed correctly.

Press

C/c to select [YES], then press

The system outputs a progressive signal. If you select [NO], the system will not output a progressive signal.

Note

• [PROGRESSIVE (COMPONENT OUT)] is effective only when you connect the unit and TV with

a component video cable (page 21).

x [4:3 OUTPUT]

When you use a 16:9 aspect ratio TV, you can adjust the aspect ratio to watch 4:3 aspect ratio signals. If you can change the aspect ratio on your TV, change the setting on your TV, not the system.

[FULL]: Select this when you can change the aspect ratio on your TV.

[NORMAL]: Select this when you cannot change the aspect ratio on your TV. A 16:9 aspect ratio signal with black bands on left and right sides of the image appears.

Note

• Depending on the DVD, [4:3 LETTER BOX] may be selected automatically instead of [4:3 PAN SCAN] or vice versa.

x [PROGRESSIVE (COMPONENT OUT)]

You can set the progressive signal that is output from the COMPONENT VIDEO OUT jacks to

on/off. For details, see “Does your TV accept progressive signals?” (page 34).

[OFF]: The system outputs interlace signals.

[ON]: The system outputs progressive signals.

When you select [ON], follow the Steps below.

Select [ON], then press .

The confirmation display appears.

Press

C/c to select [START], then

press .

16:9 aspect ratio TV

Note

• [4:3 OUTPUT] is effective only when you set [TV

TYPE] in [VIDEO SETUP] to [16:9].

x [COLOR SYSTEM (VIDEO CD)]

(Asian, Australian, and Middle Eastern models only)

You can select the color system when you play a

VIDEO CD.

[AUTO]: The system outputs the disc’s video signal, either PAL or NTSC. If your TV uses a

DUAL system, select [AUTO].

[PAL]: The system changes the video signal of an NTSC disc and outputs it in the PAL system.

[NTSC]: The system changes the video signal of a PAL disc and outputs it in the NTSC system.

Note

• You cannot change the color system of the disc itself.

• You can change the color system of this system

according to the connected TV (page 21).

x [BLACK LEVEL]

(North American, Mexican, and Latin

American models only)

You can select the black level (setup level) for the video signals output from the jacks other than COMPONENT VIDEO OUT/HDMI OUT.

[ON]: The standard level.

[OFF]: You can lower the standard black level.

Use this when the picture becomes too white.

x [BLACK LEVEL (COMPONENT OUT)]

(North American, Mexican, and Latin

American models only)

You can select the black level (setup level) for the video signals output from the

COMPONENT VIDEO OUT jacks.

You cannot select this and the setting is not effective when the system outputs a progressive signal.

[OFF]: You can set the black level of the output signal to the standard level.

[ON]: You can raise the standard black level.

Use this when the picture becomes too black.

x [PAUSE MODE] (DVD VIDEO/DVD-R/

DVD-RW only)

You can select the picture in pause mode.

[AUTO]: The picture, including subjects that move dynamically, is output with no jitter. This setting is for normal usage.

[FRAME]: The picture, including subjects that do not move dynamically, is output in high resolution.

Settings for HDMI

[HDMI SETUP]

HDMI SETUP

HDMI RESOLUTION:

CONTROL FOR HDMI:

VOLUME LIMIT:

/RGB(HDMI):

AUDIO(HDMI):

JPEG RESOLUTION:

AUTO

(1920x1080p)

LEVEL2

OFF

SD x [HDMI RESOLUTION]

You can select the type of video signal that is output from the HDMI OUT jack. For details,

see “To select the type of video signal output from the HDMI OUT jack” (page 34).

[AUTO (1920

1080p)]: The system outputs the optimal video signal for the connected TV.

[1920

1080i]: The system outputs 1920 ×

1080i* video signals.

[1280

720p]: The system outputs 1280 ×

720p* video signals.

[720

480p]**: The system outputs 720 ×

480p* video signals.

* i: interlace, p: progressive

** Depending on the area, [720 × 480/576p] may appear.

x [CONTROL FOR HDMI]

You can set the [CONTROL FOR HDMI] function to on/off. This function is available when you connect the system and TV with an

HDMI cable. For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 68).

[ON]: On. You can operate mutually between components that are connected with an HDMI cable.

[OFF]: Off.

x [VOLUME LIMIT]

If you change the output method of the TV to the system speakers via the TV menu (or by pressing THEATRE), the System Audio Control

(page 69) is activated and loud sound may be

output depending on the volume level of the system. You can prevent this by limiting the maximum level of the volume.

[LEVEL3]: Maximum volume level is set to 10.

[LEVEL2]: Maximum volume level is set to 15.

[LEVEL1]: Maximum volume level is set to 20.

[OFF]: Off.

Note

• This function is available only when [CONTROL

FOR HDMI] is set to [ON].

x [YC

/RGB (HDMI)]

You can select the type of HDMI signal output from the HDMI OUT jack.

[YC

]: The system outputs YC

signals.

[RGB]: The system outputs RGB signals.

Note

• If the playback picture becomes distorted, set

[YC

] to [RGB].

• If the HDMI OUT jack is connected to a component with a DVI jack, [RGB] signals will be automatically output even when you select [YC

x [AUDIO (HDMI)]

You can select the audio output status from the

HDMI OUT jack.

[OFF]: The system does not output sound from the HDMI OUT jack.

[ON]: The system outputs audio signals by converting Dolby Digital, DTS, or 96 kHz/24bit PCM signals to 48 kHz/16-bit PCM.

Note

• When you connect the unit and TV with an HDMI cable and [ON] is selected, [AUDIO DRC], [A/V

SYNC], DYNAMIC BASS, “DEC. MODE,” and sound mode are not applied to the sound that is output from the TV.

• When you set the function to other than “DVD” or

“USB,” the system does not output the sound from the HDMI OUT jack even if you set [AUDIO

(HDMI)] to [ON].

x [JPEG RESOLUTION]

You can select the resolution of JPEG image files output from the HDMI OUT jack.

[SD ]: The system outputs standard resolution with a black frame.

[HD ]: The system outputs HD resolution with a black frame.

[HD]: The system outputs the HD resolution without a black frame.

[(1920

1080i) HD ]: The system outputs full size HD resolution with a black frame.

[(1920

1080i) HD]: The system outputs full size HD resolution without a black frame.

Note

• [JPEG RESOLUTION] is effective only when you set [TV TYPE] in [VIDEO SETUP] to [16:9], and you set [HDMI RESOLUTION] in [HDMI SETUP] to other than [720 × 480p] or [720 × 480/576p].

• You can select [(1920 × 1080i) HD ] or [(1920 ×

1080i) HD] only when you set [HDMI

RESOLUTION] in [HDMI SETUP] to [1920 ×

1080i].

• The HDMI signal will stop momentarily when:

– the system is loading or unloading a DATA CD or

DATA DVD.

– you connect or remove a USB device.

Settings for the audio

[AUDIO SETUP]

AUDIO SETUP

SPEAKER FORMATION:

AUTO CALIBRATION:

AUDIO DRC:

TRACK SELECTION:

OFF

OFF x [SPEAKER FORMATION]

You can select the position of the speakers for

better surround sound. For details, see “Getting

Optimal Surround Sound for a Room”

(page 89).

x [AUTO CALIBRATION]

You can calibrate the appropriate settings

automatically. For details, see “Calibrating the

Appropriate Settings Automatically” (page 90).

x [AUDIO DRC] (DVD VIDEO only)

You can compress the dynamic range of the sound track. [AUDIO DRC] is useful for watching movies at low volume late at night.

[OFF]: No compression of dynamic range.

[STANDARD]: The system reproduces the sound track with the kind of dynamic range that the recording engineer intended.

[MAX]: The system compresses dynamic range fully.

Note

• [AUDIO DRC] works only for Dolby Digital.

x [TRACK SELECTION] (DVD VIDEO only)

You can give the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, DTS, Dolby Digital, or MPEG audio) are recorded.

[OFF]: Off.

[AUTO]: The system selects the sound track automatically according to the priority.

Note

• When you set the item to [AUTO], the language may change. The [TRACK SELECTION] setting has higher priority than the [AUDIO] settings in

[LANGUAGE SETUP] (page 58). (Depending on

the disc, this function may not work.)

• If PCM, DTS, Dolby Digital sound, and MPEG audio have the same number of channels, the system selects

PCM, DTS, Dolby Digital sound, and MPEG audio in this order.

Other Settings

[SYSTEM SETUP]

SYSTEM SETUP

SCREEN SAVER:

BACKGROUND:

MULTI-DISC RESUME:

RESET:

JACKET PICTURE

PARENTAL CONTROL:

DivX: Registration Code

ON x [SCREEN SAVER]

You can reduce the damage to the display device

(ghosting). Press any button (e.g., H) to cancel the screen saver.

[ON]: The screen saver image appears if you do not operate the system for about 15 minutes.

[OFF]: Off.

x [BACKGROUND]

You can select the background color or picture on the TV screen.

[JACKET PICTURE]: The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD-

EXTRA, etc.). If the disc does not contain a jacket picture, the [GRAPHICS] picture appears.

[GRAPHICS]: A preset picture stored in the system appears.

[BLUE]: The background is blue.

[BLACK]: The background is black.

x [PARENTAL CONTROL]

You can set the playback restrictions. For

details, see “Restricting Playback of the Disc”

(page 55).

x [DivX]

You can display the registration code for this system.

For more information, go to http://www.divx.com on the Internet.

x [MULTI-DISC RESUME] (DVD VIDEO/

VIDEO CD only)

You can set the [MULTI-DISC RESUME] function to on/off.

[ON]: The system stores the resume points in memory for up to 10 discs.

[OFF]: The system does not store the resume points in memory. Playback restarts at the resume point only for the current disc in the unit.

x [RESET]

You can return the [SET UP] settings other than

[PARENTAL CONTROL] to the default

settings. For details, see “Returning the

[SETUP] settings to the default” (page 102).

Settings for the speakers

[SPEAKER SETUP]

To obtain the best possible surround sound, set connection of the speakers and their distance from your listening position. Then use the test tone to adjust the level and the balance of the speakers to the same level.

SPEAKER SETUP

CONNECTION:

DISTANCE(FRONT):

DISTANCE(SURROUND):

LEVEL(FRONT):

LEVEL(SURROUND):

CENTER:

SURROUND:

SUBWOOFER:

YES

YES x [DISTANCE (FRONT)]

When you move the front speakers, center speaker, and subwoofer, be sure to set the parameters of the distance (A) from the listening position to the speakers.

You can set the parameters from 0.00 to 7.00 meters

(0 to 23 ft).

A x [CONNECTION]

If you do not connect center or surround speakers, set the parameters for [CENTER] and

[SURROUND]. Since the front speaker and subwoofer settings are fixed, you cannot change them.

[FRONT]

[YES]

[CENTER]

[YES]: Normally select this.

[NONE]: Select this if no center speaker is used.

[SURROUND]

[YES]: Normally select this.

[NONE]: Select this if no surround speakers are used.

[SUBWOOFER]

[YES]

Note

• When you change the [CONNECTION] setting, the

[STANDARD] of [SPEAKER FORMATION] setting remains the same, but the other settings of

[SPEAKER FORMATION] return to

[STANDARD].

[L/R] 3.00 m/10 ft

2)3)

: Set the front speaker distance.

[CENTER] 3.00 m/10 ft

2)3)4)

: Set the center speaker distance.

[SUBWOOFER] 3.00 m/10 ft

2)3)

: Set the subwoofer distance.

0.00 to 7.01 meters for North American models.

When you perform the Quick Setup (page 32), the

default settings are changed.

3.04 m/10 ft for North American models.

This item appears when you set [CENTER] to [YES] in the [CONNECTION] setting.

x [DISTANCE (SURROUND)]

When you move the surround speakers, be sure to set the parameters of the distance (B) from the listening position to the speakers.

You can set the parameters from 0.00 to 7.00 meters

(0 to 23 ft).

[L/R] 3.00 m/10 ft

2)3)4)

: Set the surround speaker distance.

0.00 to 7.01 meters for North American models.

When you perform the Quick Setup (page 32), the

default settings are changed.

3.04 m/10 ft for North American models.

This item appears when you set [SURROUND] to

[YES] in the [CONNECTION] setting.

Note

• Depending on the input stream, the [DISTANCE] setting may not be effective.

• When the speaker distance setting is not in the recommended range, /

** m is displayed (** being the number). indicates over the recommended distance. indicates below.

x [LEVEL (FRONT)]

You can adjust the sound level of the front speakers, center speaker, and subwoofer. You can set the parameters from –6.0 dB to +6.0 dB.

Be sure to set [TEST TONE] to [ON] for easy adjustment.

[L/R] 0.0 dB: Set the front speaker level.

[CENTER] 0.0 dB

: Set the center speaker level.

[SUBWOOFER] +2.0 dB: Set the subwoofer level.

* This item appears when you set [CENTER] to

[YES] in the [CONNECTION] setting.

x [LEVEL (SURROUND)]

You can adjust the sound level of the surround speakers. You can set the parameter from –6.0 dB to +6.0 dB. Be sure to set [TEST TONE] to

[ON] for easy adjustment.

[L/R] 0.0 dB

: Set the surround speaker level.

* This item appears when you set [SURROUND] to

[YES] in the [CONNECTION] setting.

x [TEST TONE]

The speakers will emit a test tone to adjust

[LEVEL (FRONT)] and [LEVEL

(SURROUND)].

[OFF]: The test tone is not emitted from the speakers.

[ON]: The test tone is emitted from each speaker in sequence while adjusting the level. When you select one of the [SPEAKER SETUP] items, the test tone is emitted from each speaker in sequence.

Adjust the sound level as follows.

Set the [TEST TONE] to [ON].

Press

C/X/x/c repeatedly to select the

desired speaker and the level.

Press .

Repeat Steps 1 to 3.

Press

C/X/x/c repeatedly to set [TEST

TONE] to [OFF] after adjusting the speaker level.

Note

• You cannot perform [TEST TONE] during karaoke mode.

Tip

• To adjust the volume of all the speakers at one time, turn the VOLUME control on the unit, or press

VOLUME +/– on the remote.

• To return to the default setting when changing a setting, select the item, then press CLEAR. Note that only the [CONNECTION] setting does not return to the default setting.

Tuner

Presetting Radio

Stations

You can preset 20 FM stations. Before tuning, make sure to turn down the volume to minimum.

Current station

Current band and preset number

FM 10 : 88.00 MHz

SONY RADIO

Station name

Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel display.

Press and hold TUNING +/– until the auto scanning starts.

Scanning stops when the system tunes in a station. “TUNED” and “ST” (stereo program) appear in the front panel display.

Press SYSTEM MENU.

Press

X/x repeatedly until “MEMORY”

appears in the front panel display.

Press

A preset number appears in the front panel display.

Press .

“COMPLETE” appears in the front panel display, and the station is stored.

Repeat Steps 2 to 7 to store other stations.

Press SYSTEM MENU.

The system menu turns off.

To change the preset number

Select the desired preset number by pressing

PRESET +/– (page 66), then perform the

procedure from Step 3.

Press

X/x to select the preset number

you want.

Tip

• You can select the preset number directly by pressing the number buttons.

Listening to the Radio

Preset radio stations in the system’s memory

first (see “Presetting Radio Stations” (page 65)).

Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel display.

The last received station is tuned in.

Press PRESET +/– repeatedly to select the preset station.

Each time you press the button, the system tunes in one preset station.

Tip

• You can select the preset station number directly by pressing the number buttons.

Adjust the volume by pressing

VOLUME +/–.

To turn off the radio

Press "/1.

To listen to non-preset radio stations

Use manual or automatic tuning in Step 2.

For manual tuning, press TUNING +/– repeatedly.

For automatic tuning, press and hold TUNING

+/–. The automatic tuning stops automatically when the system receives the radio station. To stop the automatic tuning manually, press

TUNING +/– or x.

To listen to radio stations when you know the frequencies

Press D.TUNING in Step 2, press the number buttons to select the frequencies, then press .

Tip

• To improve reception, reorient the connected antennas (aerials).

If an FM program is noisy

If an FM program is noisy, you can select monaural reception. There will be no stereo effect, but reception will improve.

Press SYSTEM MENU.

Press

X/x repeatedly until “FM MODE”

appears in the front panel display.

Press

X/x to select “MONO.”

• “STEREO”: Stereo reception.

• “MONO”: Monaural reception.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Naming preset stations

You can enter a name for preset stations. These names (for example, “ABC”) appear in the front panel display when a station is selected.

Only one name can be entered for each preset station.

Press FUNCTION repeatedly until

“TUNER FM” appears in the front panel display.

The last received station is tuned in.

Press PRESET +/– repeatedly to select the preset station you want to create an index name for.

Press SYSTEM MENU.

Press

X/x repeatedly until “NAME IN”

appears in the front panel display.

Press

Create a name by using

C/X/x/c.

Press X/x to select a character, then press c to move the cursor to the next position.

You can input letters, numbers, and other symbols for a radio station.

If you make a mistake

Press C/c repeatedly until the character to be changed flashes, then press X/x to select the desired character.

To erase the character, press C/c repeatedly until the character to be erased flashes, then press CLEAR.

Press .

“COMPLETE” appears in the front panel display, and the station name is stored.

Press SYSTEM MENU.

The system menu turns off.

Viewing the station name or frequency in the front panel display

When the system is set to “TUNER FM,” you can check the frequency using the front panel display.

Press DISPLAY.

Each time you press DISPLAY, the display changes:

1 t 2 t .... t 1 t ....

When the station name is set

Station name

Ex. “SONY RADIO”

Frequency

Ex. “FM1 87.50”

The “FM MODE” setting

Ex. “STEREO”

When the station name is not set

Frequency

Ex. “FM1 87.50”

The “FM MODE” setting

Ex. “STEREO”

Control for HDMI/External Audio

Device

Using the Control for

HDMI Function for

“BRAVIA” Sync

This function is available on TVs with the

“BRAVIA” Sync function only.

By connecting Sony components that are compatible with the Control for HDMI function with an HDMI cable, operation is simplified as below:

– Theatre Mode (page 69)

– One-Touch Play (page 69)

– System Power Off (page 69)

– System Audio Control (page 69)

– Volume Limit (page 70)

– Language Follow (page 70)

Control for HDMI is a mutual control function standard used by CEC (Consumer Electronics

Control) for HDMI (High-Definition

Multimedia Interface).

The Control for HDMI function will not work in the following cases:

– When you connect this system to a component which is not compatible with the

Control for HDMI function.

– A component does not have an HDMI jack.

There are convenient buttons on the system’s remote for operating the TV, such as

THEATRE, ONE-TOUCH PLAY, TV [/1. For

details, see “Controlling the TV with the

Supplied Remote” (page 91) and refer to the

operating instructions of the TV.

THEATRE

ONE-TOUCH

PLAY

BRAVIA Sync

Note

• Depending on the connected component, the Control for HDMI function may not work. Refer to the operating instructions supplied with the component.

• The Control for HDMI function may not work if you connect a component other than a Sony component, even if the component is compatible with the Control for HDMI function.

Preparing the Control for HDMI function

(Control for HDMI - Easy Setting)

The system is compatible with the Control for

HDMI - Easy Setting function. If the TV is compatible with the Control for HDMI - Easy

Setting function, you can set the system’s

[CONTROL FOR HDMI] function automatically by setting the TV. For details, refer to the operating instructions of the TV.

If the TV is not compatible with the Control for

HDMI - Easy Setting function, set the Control for HDMI function of the system and TV manually.

Make sure that the system and the TV are connected with an HDMI cable.

Turn on the TV and press [/1 to turn on

the system.

Switch the input selector on your TV so that the signal from the system through the HDMI input appears on the TV screen.

Set the Control for HDMI function of the system and TV.

For details of the system settings, see the following Steps. For details of the setting of the TV, refer to the operating instructions of the TV (depending on the TV, the default setting of the Control for HDMI function may be set to off).

To set the [CONTROL FOR HDMI] function to on/off

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [HDMI SETUP], then

press .

The options for [HDMI SETUP] appear.

Press

X/x to select [CONTROL FOR

HDMI], then press .

Press

X/x to select the setting, then

press .

• [ON]: On.

• [OFF]: Off.

This system TV

Turns on. (If not already turned on.) r

Switches to “DVD” function.

Starts playing the disc and outputs the sound.

Turns on. (If not already turned on.) r

Switches to HDMI input.

Minimizes sound level.

(System Audio Control)

Turning the system off in sync with the TV

(System Power Off)

When you turn the TV off by using the POWER button on the TV’s remote or TV [/1 on the system’s remote, the system turns off automatically.

Note

• Before using the System Power Off function, set the function for TV power. For details, refer to the operating instructions of the TV.

• Depending on the status of the system (ex. while using other than “DVD,” “TV,” or “USB” functions, or playing a CD), the system may not turn off automatically.

Using the Theatre Mode

(Theatre Mode)

If your TV is compatible with the Theatre Mode, you can enjoy optimal image and sound quality suited for movies, and sound is output from the system’s speakers automatically by pressing

THEATRE.

Watching a DVD by a single button press

(One-Touch Play)

By only pressing ONE-TOUCH PLAY, the TV turns on, the TV is set for DVD input mode, and the system starts playing a disc automatically.

Note

• One-Touch Play does not work when you press H.

The system and TV work as follows (e.g.):

Enjoying TV sound from the speakers by this system

(System Audio Control)

You can enjoy TV sound via this system easily.

To use this function, connect the system and the

TV with an audio cord and an HDMI cable

(pages 21, 23).

Depending on the TV, when you set the system to the “TV” function, the System Audio Control function is activated. TV sound is output from the system speakers, and the volume of the TV speakers is minimized automatically.

You can use the System Audio Control function as follows:

• While you are watching the TV and the function of the system is switched to “TV,” TV

sound is output from the system speakers automatically.

• While you are watching the TV and the function of the system is switched to “DVD” or “USB,” sound of the selected system function is output from the system speakers;

TV sound is not output via the TV speakers.

• You can control the system’s volume by the remote of the TV.

• If you turn the system off or set the function of the system to other than “TV,” “DVD,” or

“USB,” TV sound is output from the TV speakers.

You can also operate the System Audio Control function via the TV menu. For details, refer to the operating instructions of the TV.

Note

• While the TV is in PAP (picture and picture) mode, the System Audio Control function will not work.

When the TV exits PAP mode, the output method of the TV returns to the one before PAP mode.

• While transferring songs on an audio CD onto a USB device, the System Audio Control function will not work.

Tip

• You can connect the system and the TV audio

digitally. For details, see page 23.

Changing the language for the on-screen display of the TV

(Language Follow)

When you change the language for the on-screen display of the TV, the system’s on-screen display language is also changed. However, when the system’s on-screen display is displayed, this function does not work.

Setting the Maximum Volume

Level of the System

(Volume Limit)

If you change the output method of the TV to the system speakers via the TV menu (or by pressing THEATRE), loud sound may be output depending on the volume level of the system.

You can prevent this by limiting the maximum

level of the volume. For details, see “[VOLUME

LIMIT]” (page 60).

Playing Back Files of a

USB Device

You can play audio files (MP3/WMA/AAC files)/JPEG image files/video files (DivX/

MPEG4 video files) stored in a USB device such as the digital music player or USB storage media

(not supplied) by connecting the USB device to the unit.

For a list of USB devices that can be connected to the unit, see “Playable USB Devices”

(supplement).

The audio formats that can be played back by the system are MP3/WMA/AAC files* only.

* Files with copyright protection (Digital Rights

Management) cannot be played by the system.

Note

• The system cannot play WMA/AAC files on a DATA

CD/DATA DVD.

About playable USB devices

• Do not use USB devices other than these USB devices. Operation of models not listed here is not guaranteed.

• Operation may not always be ensured even when using these USB devices.

• Some of these USB devices may not be available for purchase in certain areas.

• During playback or transferring of files, there is a small possibility that these operations may be stopped due to excess static buildup in the system or the USB device. In this case, remove the USB device and reconnect it, then retry the operation from the beginning.

• When formatting a USB device, be sure to do so using the device itself, or dedicated formatting software for the device. Otherwise, you may be unable to properly transfer from the USB device to this system.

• Some files supported by the Walkman

are not supported by this system.

• When connecting a Walkman

to the system, be sure to connect after the display “Creating

Library” or “Creating Database” on the

Walkman

has disappeared.

• When transferring music to a Walkman

using

“Media Manager for WALKMAN,” be sure to transfer in MP3 format. For details, refer to the operating manual supplied with the

Walkman

Connecting the USB device

USB device

Press FUNCTION repeatedly until

“USB” appears in the front panel display.

Connect a USB device (digital music player or USB storage media) to the

(USB) port.

When you connect the USB device,

“READING” appears in the front panel display until the system reads all data of the

USB device.

Note

• Do not forcibly insert the USB device, as this may cause the device to be damaged.

• Do not connect any devices or objects other than a

USB device.

• It may take about 10 seconds before “READING” appears in the front panel display depending on the type of the USB device.

To remove the USB device

Press x to stop playback.

Press [/1 to turn off the system.

Remove the USB device.

Notes on the USB device

• The system can play back up to 200 folders, including albums (folders) that do not contain audio files and JPEG image files. When more than 200 folders are in the USB device, folders that are recognized by the system differ depending on the folder configuration.

• The system can play back the following files.

File

MP3 file

WMA file

AAC file

JPEG image file

DivX video file

MPEG4 video file

Extension of the file

“.mp3”

“.wma”

“.m4a”

“.jpg” or “.jpeg”

“.avi” or “.divx”

“.mp4” or “.m4v”

The system will play back any data with the extension above, even if it is not MP3/WMA/

AAC/JPEG/DivX/MPEG4 format. Playing this data may generate a loud noise which could damage your speaker system.

• The following USB devices/situations can increase the time it takes to start playback:

– a USB device recorded with a complicated tree structure.

– when the audio files, JPEG image files, or video files in another folder have just been played back.

• Some USB devices cannot be played back on the system depending on the file format.

• The system can play back to a depth of 8 folders only.

• The system may not be able to play an audio file, JPEG image file, or video file depending on the file type.

• When the USB device is inserted, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish reading the USB device.

• Do not connect the system and the USB device through a USB hub.

• With some connected USB devices, after an operation is performed, there may be a delay before it is performed by this system.

• This system does not necessarily support all the functions provided in a connected USB device.

• Files recorded by a device such as a computer may not be played back in the order in which they were recorded.

• The playback order for the system may differ from the playback order of the connected USB device.

• Always turn off the system before removing the USB device. Removing the USB device while the system is on may corrupt the data on the USB device.

• Do not save other types of files or unnecessary folders on a USB device that has audio files,

JPEG image files, or video files.

• Folders that have no audio files, JPEG image files, or video files are skipped.

• Compatibility with all MP3/WMA/AAC encoding/writing software, recording devices, and recording media cannot be guaranteed. An incompatible USB device may produce noise or interrupted audio or may not play at all.

• Compatibility with all MPEG4 video encoding/writing software, recording devices, and recording media cannot be guaranteed.

• Before using the USB device, make sure that no virus-ridden files are on the USB device.

Selecting an audio file or folder

Press FUNCTION repeatedly until

“USB” appears in the front panel display.

Connect a USB device to the (USB) port.

After reading all data of the USB device, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [MUSIC] is selected, press DVD

MENU. When other than [MUSIC] is selected, press

X/x to select [MUSIC],

then press .

A list of folders that contain audio files appears.

The selected folder is highlighted in yellow.

FOLDER LIST

01 Let's Talk About Love (1985)

02 1st Album (1986)

03 In the Middle of Nowhere (1986)

04 Ready for Romance (1986)

05 In the Garden of Venus (1987)

06 Romantic Warriors (1987)

07 Back for Good (1988)

08 Alone (1999)

Press

X/x to select a folder. x To play audio files in a folder

Press H to start playing the selected folder.

x To select an audio file

Press .

The list of files contained in the folder appears.

TRACK LIST

03 In the Middle of Nowher...

01_Geronimo_s_Cadillac

02_Riding_On_A_White_Swan

03_Give_Me_Peace_On_Earth

04_Sweet_Little_Shella

05_Ten_Thousand_Lonely_Drums

06_Lonely_Tears_In_Chinatown

07_In_Shaire

Press X/x to select a file and press .

The system starts playing the selected file.

You can turn the file list off by pressing

DVD MENU. Pressing DVD MENU again will display the folder list.

Tip

• The system can recognize up to 150 audio files in a single folder.

To go to the next or previous page

Press / .

To stop playback

Press x.

To play the next or previous audio file

Press > to play the next audio file. Press . twice to play the previous audio file.

When you press . once, you can go to the beginning of the current audio file.

To return to the previous display

Press O RETURN.

To turn on/off the display

Press DVD MENU.

Other operations

See “Other operations” (page 40).

Selecting a JPEG image file or folder

Press FUNCTION repeatedly until

“USB” appears in the front panel display.

Connect a USB device to the (USB) port.

After reading all data of the USB device, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [PHOTO] is selected, press DVD

MENU. When other than [PHOTO] is selected, press

X/x to select [PHOTO],

then press .

A list of folders that contain JPEG files appears.

The selected folder is highlighted in yellow.

FOLDER LIST

01 Happy birthday

02 Travelling 01

03 2003.08.20

04 Flowers

05 Travelling 02

06 Animals

07 2003.11.16

08 2003.12.03

Press

X/x to select a folder. x To go to the next or previous page

Press / .

x To play JPEG image files in a folder

as a slide show

Press H to start playing the selected folder.

The JPEG images are played as a slide show. You can change the interval of the

slide show (page 74), and add effects to the slide show (page 74).

x To select a JPEG image file by

displaying the image browser

Press PICTURE NAVI.

Previews of JPEG image files in the folder appear in 16 subscreens.

13 14 15 16

Press

C/X/x/c to select the JPEG image file you want to view, then press .

To return to previous screen, press O

RETURN.

Tip

• The system can recognize up to 150 JPEG image files in a single folder.

To play the next or previous JPEG image file

To rotate a JPEG image file

When a JPEG image file is displayed on the TV screen, you can rotate the JPEG image file in 90 degree increments.

Press

X/x while viewing a JPEG image file.

Press CLEAR to return to normal view.

Note

• You cannot rotate the JPEG image file when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD ] or [(1920 × 1080i) HD].

To stop playback

Press x.

To turn on/off the display

Press DVD MENU.

Other operations

See “Other operations” (page 40).

To select the slide show duration of JPEG image files

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[INTERVAL], then press .

The options for [INTERVAL] appear.

Press

X/x to select a setting.

• [NORMAL]: You can set to the standard duration.

• [FAST]: You can set the duration shorter than [NORMAL].

• [SLOW 1]: You can set the duration longer than [NORMAL].

• [SLOW 2]: You can set the duration longer than [SLOW 1].

Press .

Note

• Some JPEG image files may take longer to display than the option you selected. Especially progressive

JPEG image files or JPEG image files of 3,000,000 pixels or more.

To select an effect for JPEG image files in the slide show

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[EFFECT], then press .

The options for [EFFECT] appear.

Press

X/x to select a setting.

• [MODE 1]: The JPEG image file sweeps in from top to bottom.

• [MODE 2]: The JPEG image file stretches out from left to right of the TV screen.

• [MODE 3]: The JPEG image file stretches out from the center of the TV screen.

• [MODE 4]: The JPEG image files randomly cycle through the effects.

• [MODE 5]: The next JPEG image file slides over the previous image.

• [OFF]: Off.

Press .

Note

• The [EFFECT] setting is not effective when you set

[JPEG RESOLUTION] in [HDMI SETUP] to [(1920

× 1080i) HD

] or [(1920 × 1080i) HD] (page 61).

Selecting a video file or folder

Press FUNCTION repeatedly until

“USB” appears in the front panel display.

Connect a USB device to the (USB) port.

After reading all data of the USB device, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

When [VIDEO] is selected, press DVD

MENU. When other than [VIDEO] is selected, press

X/x to select [VIDEO],

then press .

A list of folders that contain video files appears.

The selected folder is highlighted in yellow.

FOLDER LIST

SUMMER 2003

NEW YEAR'S DAY

MY FAVOURITES

Press

X/x to select a folder. x To play video files in a folder

Press H to start playing the selected folder.

x To select a video file

Press .

The list of files contained in the folder appears.

FILE LIST

MY FAVOURITES

HAWAII 2004

VENUS

Press X/x to select a file and press .

The system starts playing the selected file.

You can turn the file list off by pressing

DVD MENU. Pressing DVD MENU again will display the folder list.

To go to the next or previous page

Press / .

To stop playback

Press x.

To play the next or previous video file

Press > to play the next video file. Press . twice to play the previous video file.

When you press . once, you can go to the beginning of the current video file.

Note that you can select the next folder by continuing to press > after the last file on the current folder, but that you cannot return to the previous folder by pressing .. To return to

the previous folder, select the folder from the folder list.

To return to the previous display

Press O RETURN.

To turn on/off the display

Press DVD MENU.

Other operations

See “Other operations” (page 40).

Note

• For details on video files, see “Enjoying Video Files”

(page 53).

Selecting playback priority of the file type

You can select playback priority when mixed media (audio files, JPEG image files, or video files) are in the USB device.

Press FUNCTION repeatedly until

“USB” appears in the front panel display.

Connect a USB device to the (USB) port.

After reading all data of the USB device, the list of folders appears on the TV screen.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select

[MEDIA], then press .

The options for [MEDIA] appear.

Press

X/x to select a setting.

• [MUSIC]: Audio file playback has priority.

• [VIDEO]: Video file playback has priority.

• [PHOTO]: JPEG image file playback has priority. You can play JPEG image files as a slide show.

Press .

For details of the playback priority of file types under the [MEDIA] setting, see

“Playback priority of file types” (page 122).

Displaying the list of audio files/JPEG image files/video files

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[BROWSING], then press .

The options for [BROWSING] appear.

Press

X/x to select the desired list,

then press .

• [FOLDER LIST]: The list of folders

appears. Follow Step 6 of “Selecting an

audio file or folder” (page 72), “Selecting a JPEG image file or folder” (page 73), or

“Selecting a video file or folder”

(page 75).

• [PICTURE LIST] (JPEG image files only): Previews of JPEG image files in the folder appear in 16 subscreens. Follow

Step 2 of “Selecting a JPEG image file or folder” (page 73).

Playing repeatedly

(Repeat Play)

You can play the audio files/JPEG image files/ video files on the USB device repeatedly.

Press DISPLAY during playback.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[REPEAT], then press .

The options for [REPEAT] appear.

Press

X/x to select the item to be

repeated.

• [OFF]: Off.

• [MEMORY]: You can repeat all of the folders on the USB device.

• [FOLDER]: You can repeat the current folder.

• [TRACK] (audio files only): You can repeat the current file.

• [FILE] (video files only): You can repeat the current file.

Press .

The item is selected.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu display

Press DISPLAY repeatedly until the Control

Menu display is turned off.

Press .

[** (**)] changes to [– – (**)].

1 ( 1 )

1 ( 1 4 4 )

T 1 : 3 1

USB

Press

X/x or the number buttons to

select the desired number.

If you make a mistake, press CLEAR to cancel the number.

Press .

The system starts playback from the selected number.

Searching for a file or folder

You can search a USB device by audio file,

JPEG image file, video file, or folder. As audio files, JPEG image files, and video files are assigned unique numbers on the USB device, you can select the desired audio file, JPEG image file, or video file by entering its number.

Press

The Control Menu display appears on the

TV screen.

Press

X/x to select the search method.

• [FOLDER]: Folders.

• [TRACK]: Audio files.

• [FILE]: JPEG image files/video files.

[** (**)] is selected (** refers to a number).

The number in parentheses indicates the total number of audio files, JPEG image files, video files, or folders.

1 ( 1 )

1 ( 1 4 4 )

T 0 : 2 3

USB

Viewing the information of an audio file in the front panel display

Press DISPLAY repeatedly.

Each time you press DISPLAY while playing the USB device, the display changes:

1 y 2

Playing time and current track number

2 Track (file) name*

* If an MP3 file has the ID3 tag, the system will display a folder name/track (file) name from the ID3 tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are used for a single MP3 file.

Note

• If a file name of the audio file cannot be displayed,

“*” will appear in the front panel display instead.

• The file name may not be displayed depending on the text.

• Playing time of audio files may not be displayed correctly.

Selected row

Viewing the information of an audio file/video file on the TV screen

You can display the information of an audio file/ video file such as time information, name of the folder/audio file/video file, and the audio bit rate

(the amount of data per second of the current audio) on the TV screen.

Press DISPLAY during playback.

The information of an audio file appears on the

TV screen.

Example for playback of an audio file

Bit rate*

T 0: 13 192k MP3

Checking the date information of a JPEG image file

You can check the date information during playback when the Exif* tag is recorded in the

JPEG image file.

Press DISPLAY during playback.

The Control Menu display appears on the TV screen.

2 ( 2 )

6 ( 3 0 )

2 0 0 2 / 9 / 1 6

USB

Date information

* “Exchangeable Image File Format” is a digital camera image format defined by the Japan

Electronics and Information Technology Industries

Association (JEITA).

2002_Remixes

Soul_Survivor_rap_version

Folder name** Audio file**/video file name

* Appears when playing an audio file.

** If an MP3 file has an ID3 tag, the system will display a folder name/track (file) name from the ID3 tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are used for a single MP3 file.

Note

• Characters/marks may not be displayed in some languages.

• Depending on the type of file being played, the system can only display a limited number of characters. Also, depending on the file, not all text characters will be displayed.

Transferring Songs onto a USB Device

You can transfer songs on an audio CD onto a

USB device by encoding to MP3 format. You can also transfer MP3 files on a DATA CD/

DATA DVD onto a USB device.

For connecting the USB device, see

“Connecting the USB device” (page 71).

The transferred music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders.

Notes on USB transferring

• Do not connect the unit and the USB device through a USB hub.

• Make sure there is enough space in the USB device for transferring.

• Do not remove the USB device during transferring.

• When you are transferring tracks from a CD, the tracks are recorded as 128 kbps MP3 files.

• When you are transferring MP3 files from a

DATA CD/DATA DVD, the MP3 files are transferred with the same bit rate as the original MP3 files.

• CD text information is not transferred in the created MP3 files.

• If you stop a transfer halfway, the MP3 file that was being created is deleted.

• Transferring stops automatically if:

– The USB device runs out of space during transfer.

– The number of MP3 files on the USB device reaches the limit for the number that the system can recognize.

• You can store up to 150 files in a folder.

• You can store up to 199 folders in a single

USB device.

• If a folder or file that you are trying to transfer already exists on the USB device with the same name, a sequential number is added after the name without overwriting the original folder or file.

Transferring tracks on an audio CD onto a USB device

Load an audio CD.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[USB

TRANSFER], then press .

Press .

“READING” appears in the front panel display until the tracks recorded on the audio CD appear on the TV screen.

Note

• It takes several minutes to display the tracks depending on the number of tracks.

Select a track that you want to transfer.

Remaining space of the USB device

USB TRANSFER

TRACK

START

ALL

Tracks to be transferred.

x To select the desired track

Press X/x to select the track, then press .

The tracks are marked in the order that you select. x To select all tracks on the audio CD

Press

C/X/x/c to select [x ALL], then press .

x To cancel the track

Press

X/x to select the track, then press

The mark on the track is removed.

x To cancel all the tracks

Press

C/X/x/c to select [s ALL], then press .

Press

C/X/x/c to select [START], then

press .

The system starts transferring and the status of transferring appears.

To cancel transferring, press x.

Transferring MP3 files on a

DATA CD/DATA DVD onto a USB device

Load a DATA CD/DATA DVD.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[USB

TRANSFER], then press .

Press

X/x to select [TRACK] or

[FOLDER], then press .

• [TRACK]: The tracks recorded on the

DATA CD/DATA DVD appear. You can transfer the desired MP3 files.

• [FOLDER]: The folders recorded on the

DATA CD/DATA DVD appear. You can transfer all MP3 files in the folder. Go to

Step 6.

“READING” appears in the front panel display until the tracks/folders appear on the TV screen.

Note

• It takes several minutes to display the tracks/ folders depending on the number of tracks/ folders.

Press

X/x to select the desired folder,

then press .

The MP3 files in the selected folder appear.

Select an MP3 file/folder that you want to transfer.

Remaining space of the USB device

USB TRANSFER

2002_Remixes

01_Back_Seat_O...

02_One_Nights_...

03_Are_You_Ma...

04_I_Can_Lose_...

05_Soul_Survivo...

06_Strangers_B...

07_Stay_maxi_ve...

START

ALL

MP3 files/folders to be transferred.

x To select the desired MP3 file/folder

Press X/x to select the MP3 file/folder, then press .

The MP3 files/folders are marked. x To select all MP3 files/folders

Press

C/X/x/c to select [

ALL], then press .

x To cancel the MP3 file/folder

Press

X/x to select the MP3 file/folder, then press . The mark on the MP3 file/folder is removed.

x To cancel all MP3 files/folders

Press

C/X/x/c to select [

ALL], then press .

Press

C/X/x/c to select [START], then

press .

The system starts transferring and the transferring status appears.

To cancel transferring, press x.

Transferring by single button press

You can transfer tracks/MP3 files simply onto a

USB device by using REC TO USB.

To transfer all tracks on an audio

CD or all MP3 files onto a USB device

Tracks on an audio CD are transferred onto a

USB device by encoding to MP3 format.

Load an audio CD/DATA CD/DATA

DVD.

Press x.

Press REC TO USB on the unit.

The REC TO USB indicator flashes. Then,

“PUSH PLAY” and the remaining space of the USB device appear alternately in the front panel display.

Press H.

Transferring starts and the REC TO USB indicator lights up.

When transferring is completed,

“COMPLETE” appears in the front panel display and the disc and the USB device stop automatically.

To cancel transferring, press x.

To transfer a single track on an audio CD or a single MP3 file onto a USB device

You can transfer the track/MP3 file that is currently playing back. A track on an audio CD is transferred onto a USB device by encoding to

MP3 format.

Load an audio CD/DATA CD/DATA

DVD.

Select the desired track/MP3 file, then

press H.

Playback of the selected track/MP3 file starts.

Press REC TO USB on the unit.

The REC TO USB indicator flashes. Then,

“PUSH PLAY” and the remaining space of the USB device appear alternately in the front panel display.

Press H.

Transferring of the selected track/MP3 file starts and the REC TO USB indicator lights up.

When transferring is completed,

“COMPLETE” appears in the front panel display and the disc and the USB device stop automatically.

To cancel transferring, press x.

Folder and file generation rules

When transferring onto a USB device, a

“MUSIC” folder is created directly below the

“ROOT”. Folders and files are generated within this “MUSIC” folder as follows according to the transferring method and source.

• When transferring all tracks on an audio CD or all MP3 files on a DATA CD/DATA DVD

Source

MP3

Audio CD

Folder name File name

Same as the transferring source

“FLDR001”

“TRACK001”

• When transferring a single track on an audio

CD or a single MP3 file on a DATA CD/

DATA DVD

Source

MP3

Audio CD

Folder name

“REC1-MP3”

“REC1-CD”

File name

Same as the transferring source

“TRACK001”

Up to 64 characters of the name are assigned

(including the extension).

Folders are assigned in numeric order thereafter.

Files are assigned in numeric order thereafter.

A new file is transferred in the “REC1-MP3” or

“REC1-CD” folder each time REC1 transferring is performed.

Erasing audio files on a USB device

You can erase audio files (“.mp3,” “.wma,” or

“.m4a”) on the USB device.

Press FUNCTION repeatedly until

“USB” appears in the front panel display.

Press

X/x to select a folder. x To erase all audio files in a folder

Press CLEAR.

x To erase an audio file

Press .

The list of files contained in the folder appears.

Press X/x to select the desired audio file, then press CLEAR.

Press

C/c to select [YES], then press

To cancel, select [NO], then press .

Note

• Do not remove the USB device while erasing.

• If the folder to be erased contains non-audio format files or sub folders, these are erased from the list on the TV screen, but are not erased from the USB device.

Using a Sony Ericsson

Mobile Phone

You can connect a Sony Ericsson mobile phone to the system and enjoy music from it via this system, or transfer music from this system to the mobile phone.

Connect the mobile phone to the

(USB) port.

Set the data transfer mode of your mobile phone to File Transfer (Mass

Storage).

For details, refer to the operating instructions supplied with the mobile phone.

Perform playback or transfer via the system.

• Playback: See “Playing Back Files of a

USB Device” (page 71).

• Transferring: See “Transferring Songs onto a USB Device” (page 79)

Note

• Connect to this system with the mobile phone turned on.

• Use the USB cable supplied with the mobile phone when connecting to the system.

• While the mobile phone is connected to this system, do not insert or detach the memory card.

• Some files supported by the mobile phone may not be supported by the system.

• When a song is registered in a music playlist on your mobile phone and you erase the song via this system, the playlist entry is not modified.

Using the DIGITAL MEDIA

PORT Adapter

The DIGITAL MEDIA PORT (DMPORT) adapter is for enjoying sound from a portable audio source or computer. By connecting a

DIGITAL MEDIA PORT adapter, you can enjoy sound from the connected component on the system.

Available DIGITAL MEDIA PORT adapters vary in each area.

For details on connecting the DIGITAL MEDIA

PORT adapter, see page 24.

Note

• Do not connect an adapter other than the DIGITAL

MEDIA PORT adapter.

• Do not connect or disconnect the DIGITAL MEDIA

PORT adapter to/from the unit while the system is turned on.

• When you use the system and the Bluetooth Wireless

Audio Adapter (such as TDM-BT1, not supplied) at the same time, transmission distance between the

Bluetooth transmitter and Bluetooth Wireless Audio

Adapter may be reduced. In this case, place the

Bluetooth transmitter as far as possible from the system, or move the Bluetooth Wireless Audio

Adapter closer to the Bluetooth transmitter.

• When you use the system and the Wireless Network

Audio Adapter (such as TDM-NC1, not supplied) at the same time, place the Wireless Network Audio

Adapter as far as possible from the system.

Note

• Depending on the type of DIGITAL MEDIA PORT adapter, images are also output. In this case, the system outputs the composite video signal only, regardless of the type of video signal.

Tip

• Depending on the type of DIGITAL MEDIA PORT adapter, you may be able to operate a connected component using either the buttons on the remote or the unit. The following illustration shows an example of buttons that can be used in this case.

./>

H x

Playing the connected component on the system

Press FUNCTION repeatedly until

“DMPORT” appears in the front panel display.

Start playback of the connected component.

The sound and images from the connected component are played on the system or connected TV.

For operation details, refer to the operating instructions of the DIGITAL MEDIA

PORT adapter.

Using an S-AIR Product

The unit is compatible with the S-AIR function

(page 120), which allows sound transmission

between S-AIR products.

About S-AIR products

There are two types of S-AIR products.

• S-AIR main unit (this unit): This is for transmitting sound. You can use up to three

S-AIR main units. (The number of usable

S-AIR main units depends on the use environment.)

• S-AIR sub unit: This is for receiving sound.

– Surround amplifier: You can enjoy surround speaker sound wirelessly.

– S-AIR receiver: You can enjoy system sound in another room.

Room A

S-AIR main unit

S-AIR sub unit

(surround amplifier)

Room B

S-AIR sub unit

(S-AIR receiver)

Establishing sound transmission between the unit and S-AIR sub unit

(ID setting)

For the surround amplifier

For the S-AIR receiver

Simply by matching the ID of the unit and the

S-AIR sub unit, you can establish sound transmission.

To set the ID of the unit

Press "/1 on the unit.

The system turns on.

Press SYSTEM MENU.

Press

X/x repeatedly until “S-AIR ID”

appears in the front panel display, then press

Press

X/x to select the desired ID.

You can select any ID (A, B, or C).

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Set the S-AIR sub unit to the same ID.

Sound transmission is established as follows (example):

S-AIR main unit

(This unit)

ID A

Note

• You cannot operate this function if you do not insert the wireless transceiver into the unit correctly

(page 27).

ID A

S-AIR sub unit

ID A

S-AIR sub unit

Tip

• To confirm the current ID, perform Steps 1 to 3 above. When you pair the unit with the S-AIR sub

unit (page 86), “(PAIRING)” appears beside ID in

the front panel display.

To set the ID of the surround amplifier

Make sure that the SURROUND

SELECTOR switch of the surround amplifier is set to SURROUND.

Set the S-AIR ID switch of the surround amplifier to match the ID (A, B, or C) of the unit.

Press POWER on the surround amplifier.

When sound transmission is established, the POWER / ON LINE indicator of the surround amplifier turns green.

For details of the POWER / ON LINE

indicator, see “To check the transmission status” (page 30).

To set the ID of the S-AIR receiver

Refer to the operating instructions of the S-AIR receiver.

To use multiple S-AIR main units

You can use multiple S-AIR main units by setting a different ID for each component.

S-AIR main unit

(This unit)

ID A

Other S-AIR main unit

ID B

ID A

S-AIR sub unit

ID A

S-AIR sub unit

ID B

S-AIR sub unit

Enjoying the system’s sound in another room

For the S-AIR receiver

You can enjoy the system’s sound by using the

S-AIR receiver. The S-AIR receiver can be placed in another room for enjoying the system’s sound there.

For details of the S-AIR receiver, refer to the operating instructions of the S-AIR receiver.

Press SYSTEM MENU.

Press

X/x repeatedly until “S-AIR

MODE” appears in the front panel display, then press or

Press

X/x to select the desired setting.

• “PARTY”: The S-AIR receiver outputs sound according to functions set on the unit.

• “SEPARATE”: You can set the desired function for the S-AIR receiver while unit functions do not change.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Select the desired function on the

S-AIR receiver.

x When “PARTY” is set

The S-AIR receiver’s function changes sequentially as you press FUNCTION of

the main unit (page 35) or S-AIR CH of the

S-AIR receiver.

x When “SEPARATE” is set

The S-AIR receiver’s function changes by pressing S-AIR CH of the S-AIR receiver as follows.

“MAIN UNIT” t “TUNER FM” t

“DMPORT” t …

To enjoy the same function as the unit, select “MAIN UNIT.”

Adjust the volume on the S-AIR receiver.

Note

• When the sound is other than 2 channel stereo, multichannel sound is downmixed to 2 channel.

To control the system from the

S-AIR receiver

You can control the system from the S-AIR receiver by using the following buttons.

Press

H, X, x,

./>

S-AIR CH

Operation

Share the same operations on the remote and unit.

Change the function of the system.

For details, refer to the operating instructions of the S-AIR receiver.

Enjoying the S-AIR receiver while the unit is in standby mode

For the S-AIR receiver

You can enjoy the S-AIR receiver while the unit is in standby mode by setting “S-AIR STBY” to

“STBY ON.”

Press SYSTEM MENU.

Press

X/x repeatedly until “S-AIR

STBY” appears in the front panel display, then press or

Press

X/x to select the desired setting.

• “STBY ON”: You can enjoy the S-AIR receiver while the unit is in standby mode or turned on. The power consumption during the standby mode increases.

• “STBY OFF”: You cannot enjoy the

S-AIR receiver while the unit is in standby mode.

The default setting differs depending on the area.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Note

• When you turn the system off while “S-AIR STBY” is set to “STBY ON,” “S-AIR” flashes (when sound transmission between the unit and S-AIR receiver is not established), or lights up (when sound transmission between the unit and S-AIR receiver is established) in the front panel display.

Identifying the unit with a specific S-AIR sub unit

(Pairing operation)

For the surround amplifier

For the S-AIR receiver

It is easy to set the same ID for the unit and an

S-AIR sub unit, such as a surround amplifier or

S-AIR receiver, to establish sound transmission.

However, neighbors may also receive your system’s sound if IDs are the same, or you may receive sound from neighbors. To prevent this, you can identify the unit with a specific S-AIR sub unit by performing the pairing operation.

x Before pairing

Sound transmission is established by ID

(example).

Neighbor Your room

This unit

ID A

S-AIR sub unit

ID A

S-AIR sub unit

x After pairing

Sound transmission is established between the paired unit and S-AIR sub unit(s) only.

Neighbor Your room

This unit

ID A

No transmission

ID A

S-AIR sub unit

Pairing

ID A

S-AIR sub unit

To perform pairing

Place the S-AIR sub unit that you want to pair near the unit.

Note

• Remove headphones from the surround amplifier (if connected).

Match the IDs of the unit and the S-AIR sub unit.

• To set the ID of the unit, see “To set the ID of the unit” (page 84).

• To set the ID of the surround amplifier,

see “To set the ID of the surround amplifier” (page 85).

• To set the ID of the S-AIR receiver, refer to the operating instructions of the S-AIR receiver.

Press SYSTEM MENU.

Press

X/x repeatedly until “PAIRING”

appears in the front panel display, then press

After “START” appears in the front panel display, press .

The unit starts pairing and “SEARCH” flashes in the front panel display.

To cancel pairing, press SYSTEM MENU.

Start pairing of the S-AIR sub unit.

x For the surround amplifier

Press POWER on the surround amplifier to turn on the surround amplifier and press

PAIRING on the rear panel of the surround amplifier.

The PAIRING indicator of the surround amplifier flashes red when pairing starts.

When sound transmission is established, the PAIRING indicator of the surround amplifier turns red and “PAIRING” and

“COMPLETE” appear alternately in the front panel display.

Tip

• To press PAIRING on the rear panel of the surround amplifier, a slim instrument, such as a paper clip, can be used.

x For the S-AIR receiver

Refer to the operating instructions of the

S-AIR receiver.

When sound transmission is established,

“PAIRING” and “COMPLETE” appear alternately in the front panel display.

Note

• Perform pairing within several minutes of Step

5. If you do not, “PAIRING” and

“INCOMPLETE” appear alternately in the front panel display. To continue pairing, press and start again from Step 5. To cancel pairing, press

SYSTEM MENU.

Press SYSTEM MENU.

The system menu turns off.

To cancel pairing

Perform the ID setting of the unit according to

the procedure of “To set the ID of the unit.” If

you select a new ID, pairing is canceled.

If sound transmission is unstable

For the surround amplifier

For the S-AIR receiver

If you use multiple wireless systems which share the 2.4 GHz band, such as wireless LAN or

Bluetooth, the transmission of S-AIR products or other wireless systems may be unstable. In this case, the transmission may be improved by changing the following “RF CHANGE” setting.

Press SYSTEM MENU.

Press

X/x repeatedly until “RF

CHANGE” appears in the front panel display, then press or

Press

X/x to select the desired setting.

• “AUTO”: Normally select this. The system changes “RF CHANGE” to “ON” or “OFF” automatically.

• “ON”: The system transmits sound by searching for the better channel for transmitting.

• “OFF”: The system transmits sound by fixing the channel for transmitting.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

When you set “RF CHANGE” to “OFF,” select the ID so that sound

transmission is most stable (page 84).

Note

• In most cases, you will not need to change this setting.

– If “RF CHANGE” is set to “OFF,” transmission between the unit and S-AIR sub unit can be performed using one of the following channels.

– S-AIR ID A: equivalent channel for IEEE

802.11b/g channel 1

– S-AIR ID B: equivalent channel for IEEE

802.11b/g channel 6

– S-AIR ID C: equivalent channel for IEEE

802.11b/g channel 11

• The transmission may be improved by changing the transmission channel (frequency) of the other wireless system(s). For details, refer to the operating instructions of the other wireless system(s).

Other Operations

Getting Optimal

Surround Sound for a

Room

[SPEAKER FORMATION]

Depending on the shape of the room, you cannot install some speakers. For better surround sound, Sony recommends that first you decide the position of the speakers.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [AUDIO SETUP],

then press .

The options for [AUDIO SETUP] appear.

Press

X/x to select [SPEAKER

FORMATION], then press .

The options for [SPEAKER

FORMATION] appear.

SPEAKER FORMATION

Press

C/c to select a setting.

• [STANDARD]: Select this when you install all the speakers normally.

• [NO CENTER]: Select this when you install the front and surround speakers only.

• [NO SURROUND]: Select this when you install the center and front speakers only.

• [FRONT ONLY]: Select this when you install the front speakers only.

• [ALL FRONT]: Select this when you install all the speakers in front of the listening position.

• [ALL FRONT - NO CENTER]: Select this when you install the front and surround speakers in front of the listening position.

Press .

The setting is made and the confirmation display appears.

Press

C/c to select [YES] or [NO], then

press .

• [YES]: Continue with [AUTO

CALIBRATION]. Follow the procedure

from Step 7 of “Calibrating the

Appropriate Settings Automatically”

(page 90).

• [NO]: Exit [SPEAKER FORMATION].

STANDARD

Calibrating the

Appropriate Settings

Automatically

[AUTO CALIBRATION]

D. C. A. C. (Digital Cinema Auto Calibration) can set the appropriate surround sound automatically.

Note

• The system outputs a loud test sound when [AUTO

CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbors.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Press

X/x to select [AUDIO SETUP],

then press .

The options for [AUDIO SETUP] appear.

Press

X/x to select [AUTO

CALIBRATION], then press .

The options for [AUTO CALIBRATION] appear.

Connect the calibration mic (supplied) to the A.CAL MIC jack on the front panel.

Set up the calibration mic at ear level using a tripod, etc. (not supplied).

The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic.

Calibration mic

Press

C/c to select [YES].

Press .

[AUTO CALIBRATION] starts.

Be quiet during the measurement.

Note

• Before [AUTO CALIBRATION], make sure that the surround amplifier turns on and you install the surround amplifier in the appropriate location. If you install the surround amplifier in an improper location, such as another room, proper measurement will not be obtained.

• The environment of the room in which the system is installed may affect measurements.

When the measurements differ considerably from the status of the speaker installation, perform the speaker settings manually by

following “Settings for the speakers” (page 63).

Press

C/c to select [YES] or [NO], then

press .

x The measurement is OK.

Disconnect the calibration mic, then select

[YES]. The result is implemented.

When you want to cancel the measurement and retry [AUTO CALIBRATION], select

[NO].

x The measurement is not OK.

Follow the message, then select [YES] to retry.

Note

• While the Auto Calibration function is working, do not operate the system.

Controlling the TV with the Supplied Remote

You can control the TV (Sony only) by using the following buttons. Use these buttons (other than

TV [/1 and THEATRE) while pressing the TV button.

Note

• Depending on the TV, you may not be able to control your TV or to use some of the buttons.

By pressing

TV [/1

THEATRE

INPUT*

You can

Turn the TV on/off.

Enjoy optimal image quality suited for movies.

Switch the TV’s input source between the TV and other input sources.

VOLUME +/–* Adjust the TV volume.

PROG +/–* Select the TV channel.

Select the TV channel.

Number buttons*,

ENTER*

TOOLS*

RETURN*

Displays the operation menu for the current display.

Return to the previous channel or layer on the menu of the TV.

Display the menu of the TV.

MENU*

MUTING* Turn off the TV sound temporarily.

C/X/x/c*, * Select the item on the menu.

* Use these buttons while pressing the TV button.

Enjoying Karaoke

You can enjoy karaoke (singing along with a disc) by setting the system to karaoke mode.

Note

• You cannot use the karaoke function with the S-AIR receiver. When using the karaoke function, turn the

S-AIR receiver off.

Tip

• You can also enjoy the karaoke function with an audio file in the USB device. In this case, some functions may not work.

Setting the system to karaoke mode

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Plug a microphone into the MIC jack.

.CAL MIC

AUDIO IN / MIC /A

PHO

NES

The system enters karaoke mode.

“ ” lights up in the front panel display.

Start music playback.

Sing along to the music.

The microphone sound is output from the system’s speakers.

To cancel karaoke mode

Disconnect the microphones.

To set the system to karaoke mode on the Control Menu display

Press

The Control Menu display appears.

Note

• The Control Menu display will not appear if no disc is in the unit.

Press

X/x repeatedly to select

[KARAOKE MODE], then press .

The options for [KARAOKE MODE] appear.

Press

X/x to select [ON], then press

The system enters karaoke mode.

To cancel karaoke mode, select [OFF].

Note

• Before connecting, press MIC VOL – to set the microphone volume to minimum.

• Karaoke mode cannot be set with headphones connected to the unit or surround amplifier.

• When headphones are connected to the unit or surround amplifier, karaoke mode is set to off automatically. Even if you remove the headphones, karaoke mode is not set to on automatically.

• If you play the Super Audio CD layer of a Super

Audio CD (page 42), karaoke mode will be set to off

automatically. In this case, the beginning of the sound may be cut off. To avoid the sound cutting, play the

Super Audio CD after you set [KARAOKE MODE] to [OFF].

• In karaoke mode, the overall volume may drop.

• Microphone sound is not output when:

– the microphone is not connected to the unit properly.

– the microphone volume is set to minimum.

– you use a microphone other than the monaural dynamic type.

Tip

• The karaoke play is performed with the audio channel

you selected using AUDIO (page 41).

Adjusting the microphone

You can adjust the microphone volume and level of the echo effect.

To adjust the microphone volume

Press MIC VOL +/– to adjust the microphone volume.

To add the echo effect

Press ECHO.

Each time you press ECHO, the echo level changes as follows:

“ECHO OFF” t “ECHO 1”

R r

“ECHO 3” T “ECHO 2”

To cancel the echo effect, select “ECHO OFF.”

Note

• If howling occurs:

– move the microphone away from the speakers.

– lower the microphone volume or echo level.

– lower the overall volume.

Speaker output in Dolby Digital

Karaoke format

Accompaniment

Front

(L)

Center

Accompaniment

Front

(R)

Guide melody

Surround

(L)

Guide vocal 1

Surround

(R)

Guide vocal 2

You can select any of these. These are output from the respective speakers.

You can check the audio information by

pressing AUDIO (page 41). When playing a

Dolby Digital Karaoke disc, “ ” appears as the current audio format.

Example:

Dolby Digital Karaoke format

Dolby Digital format, which reproduces surround sound using 5 channels, can also contain the “Dolby Digital Karaoke” format which is specialized for karaoke. In the Dolby

Digital Karaoke format discs, guide melody and guide vocal tracks are recorded in addition to the accompaniment. You can select them when the system is in karaoke mode.

Speaker output in normal Dolby

Digital format (5 channel surround)

Front left speaker (L)

Center speaker

Front right speaker (R)

Surround left speaker (L)

Surround right speaker (R)

1: ENGLISH

DOLBY DIGITAL 3 / 2

2/0: Recorded only with accompaniment.

3/0: Recorded with guide melody.

3/1: Recorded with guide melody and one guide vocal.

3/2: Recorded with guide melody and two guide vocals.

Changing the key of a song

(Key Control)

You can change the key to suit your vocal range, except when the system is in stop mode.

Press KEYCON #/2 to suit your vocal range

in karaoke mode.

You can adjust the key higher or lower in

13 steps (

6 –

6).

Note

• Depending on the disc, you may not be able to change the key.

• The key automatically returns to the original key when:

– you turn off the power.

– you change the function.

– the disc tray is opened.

– you stop playback.

– the title or track changes.

– you change the album.

– the play item is changed during PBC playback.

– you perform Scan Play.

– you cancel karaoke mode.

– the DVD layer is changed.

• This function does not affect TV sound if the system and TV are connected with the HDMI cable and system sound is output from the TV.

Playing karaoke with any stereo disc (Karaoke Pon)

You can enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals.

Press KARAOKE PON in karaoke mode.

To cancel Karaoke Pon mode

Press KARAOKE PON again.

Note

• This function may not work well in the following cases:

– Only a few instruments are playing

– A duet is playing

– The vocals on the disc deviate from the center

– Monaural-recorded discs (the accompaniment is also reduced)

– Multiplex

• During Karaoke Pon mode, the stereo effect is reduced.

• Karaoke Pon mode is automatically canceled when:

– you turn off the power.

– you change the function.

– the disc tray is opened.

– AUDIO stream is changed.

– you set [VOCAL SELECT] to other than [OFF].

– you cancel karaoke mode.

Selecting the vocals (Vocal

Select)

When playing a DVD with the Dolby Digital

Karaoke format in karaoke mode, you can turn on or off the guide vocal recorded in the karaoke track.

When playing a VIDEO CD/CD in karaoke mode, you can listen to the vocals.

You can also change the guide vocal channel.

You can select different kinds of vocals.

Press DISPLAY in karaoke mode.

The Control Menu display appears.

Press

X/x repeatedly to select

[VOCAL SELECT], then press .

The options for [VOCAL SELECT] appear.

Press

X/x repeatedly to select the

desired vocal channel.

The output channel changes as follows.

x DVD VIDEO

• [OFF]: The guide vocal is canceled.

• [1+2]: Guide vocal 1+2

• [1]: Guide vocal 1

• [2]: Guide vocal 2 x VIDEO CD/CD

• [OFF]: The guide vocal is canceled.

• [L+R]: Same sound is output from both speakers.

• [STEREO]: The standard stereo sound x Super VCD

• [OFF]: The guide vocal is canceled.

• [1:L+R]: Same sound of the audio track 1 is output from both speakers.

• [1:STEREO]: The stereo sound of the audio track 1

• [2:L+R]: Same sound of the audio track 2 is output from both speakers.

• [2:STEREO]: The stereo sound of the audio track 2

Press .

Note

• Depending on the discs, you may not be able to change the guide vocal channel.

• The channel returns to the default setting when:

– you turn off the power.

– you change the function.

– the disc tray is opened.

– AUDIO stream is changed.

– you cancel karaoke mode.

– you set Karaoke Pon mode to on.

Selecting the scoring mode

(Score Mode)

When karaoke mode is turned on, you can use the scoring mode.

Your score is calculated by comparing your voice with the music source.

Press

The Control Menu display appears.

Press

X/x repeatedly to select

[SCORE MODE], then press .

The options for [SCORE MODE] appear.

Press

X/x repeatedly to select a

setting.

• [BEGINNER 1]: Beginner level. The score is displayed while singing.

• [BEGINNER 2]: Beginner level.

• [EXPERT 1]: Advanced level. The score is displayed while singing.

• [EXPERT 2]: Advanced level.

• [DEMO]: Demonstration mode. The score is displayed regardless of singing.

Press .

Start playing the music.

Press SCORE before singing a song in karaoke mode.

The previous highest score appears on the

TV screen.

After singing for more than a minute, press SCORE again to view your score.

Your score is calculated on a scale of 0 to

99.

Your score is displayed for five seconds, during which time the system enters pause mode.

After your score, the ranking is displayed as follows.

• The ranking is displayed as a list with the top 3 scores.

• Your score and ranking for the last song flash.

• If you are in the top 10, your ranking is displayed. If not, [10+] is displayed.

• If your score is “0,” your score is not displayed in the ranking list.

• In a tie score, the most recent score becomes higher.

Note

• The highest score is reset when the system is turned off.

• The score mode function may be canceled when certain remote buttons are pressed.

• In some cases, you may not be able to use the scoring mode.

• The ranking list is cleared when the system is in standby mode.

Tip

• The [SCORE MODE] setting is automatically changed to [BEGINNER 1] when the system is turned off.

Using the Sound Effect

Reinforcing bass frequencies

You can reinforce bass frequencies.

Press DYNAMIC BASS.

“D. BASS ON” appears in the front panel display and bass frequencies are effectively reinforced.

To turn off the sound effect

Press DYNAMIC BASS again.

Enjoying the sound at low volume

You can enjoy sound effects or dialogue, as you would in a movie theater, even at low volume. It is useful for watching movies at night.

Press NIGHT.

“NIGHT ON” appears in the front panel display and the sound effect is activated.

Note

• This effect does not work for a Super Audio CD.

When you load a Super Audio CD during “NIGHT

ON,” the sound effect turns off automatically.

• When sound is output from the center speaker, this effect is more pronounced, as speech (movie dialog, etc.) is easy to hear. When sound is not output from the center speaker, or you are using the headphones, the system optimally adjusts the volume.

To turn off the sound effect

Press NIGHT again.

Enhancing compressed sound

You can enhance compressed sound such as an

MP3 audio file.

This effect is activated automatically when all the following conditions are satisfied:

– The function is set to “DMPORT,”

“AUDIO,” or “USB”.

– “DEC. MODE” is set to “A.F.D. STD” or

“A.F.D. MULTI.”

– The sound mode is set to “AUTO,”

“MOVIE,” “MUSIC,” or “NEWS”.

– Headphones are not connected.

– Karaoke mode is off.

To turn off the sound effect

Select other than “A.F.D. STD” or “A.F.D.

MULTI” for “DEC. MODE” (page 36).

Selecting the Effect to

Suit the Source

You can select a suitable sound mode for movies or music.

Press SOUND MODE repeatedly during playback until the desired mode appears in the front panel display.

• “AUTO”: The system automatically selects

“MOVIE” (the MOVIE indicator lights up) or

“MUSIC” (the MUSIC indicator lights up) to produce the sound effect depending on the disc or sound stream.

• “MOVIE”: The system provides the sound for movies. The MOVIE indicator lights up.

• “MOVIE-D.C.S.-”*: The system reproduces the sound characteristics of the Sony Pictures

Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching most any type of movie.

The MOVIE indicator lights up.

• “MUSIC”: The system provides the sound for music. The MUSIC indicator lights up.

• “SPORTS”: The system adds reverberation for sports program.

• “NEWS”: The system provides the sound for voice program, such as news.

* DCS technology is used (page 119).

Note

• When you connect headphones to the unit and surround amplifier, play a Super Audio CD, or the system is in karaoke mode, you can select “AUTO,”

“MOVIE,” or “MUSIC” only.

• Depending on the disc or source, when you select

“AUTO,” the beginning of the sound may be cut off as the system selects the optimum mode automatically. To avoid cutting the sound, select other than “AUTO.”

• Depending on the input stream, the sound mode may not be effective.

• You cannot operate these setup items when you connect headphones to the surround amplifier.

• When changing the sound mode while using the

S-AIR receiver, sound from the S-AIR receiver may skip.

Enjoying Multiplex

Broadcast Sound

(DUAL MONO)

You can enjoy multiplex broadcast sound when the system receives or plays a Dolby Digital multiplex broadcast signal.

Note

• To receive a Dolby Digital signal, you need to connect a TV or other component to the unit with an

optical or coaxial digital cord (page 23) and set the

digital output mode of the TV or other component to

Dolby Digital.

Press AUDIO repeatedly until the desired signal appears in the front panel display.

• “MAIN”: Sound of the main language will be output.

• “SUB”: Sound of the sub language will be output.

• “MAIN+SUB”: Mixed sound of both the main and sub languages will be output.

Changing the Input Level of the Sound from

Connected Components

Distortion may occur when you listen to a component connected to the TV or SAT/

CABLE jacks on the rear panel, or to the

AUDIO IN jack on the front panel. Distortion is not a malfunction and will depend on the component connected.

To prevent distortion, reduce the input level on the unit.

Press FUNCTION repeatedly until “TV,”

“SAT/CABLE,” or “AUDIO” appears in the front panel display.

Press SYSTEM MENU.

Press

X/x repeatedly until

“ATTENUATE” appears in the front panel display, then press or

Press

X/x to select a setting.

• “ATT ON”: You can attenuate the input level. The output level is changed.

• “ATT OFF”: Normal input level.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Using the Sleep Timer

You can set the system to turn off at a preset time, so you can fall asleep listening to music.

You can preset the time in 1 or 10-minute increments.

Press SYSTEM MENU.

Press

X/x repeatedly until “SLEEP”

appears in the front panel display, then press

Press

X/x to select a setting.

The minutes display (the remaining time) changes by 10 minutes.

Tip

• You can select the remaining time by pressing the number buttons. In this case, you can preset the time in 1-minute increments.

Press .

The setting is made and “SLEEP” flashes in the front panel display.

Press SYSTEM MENU.

The system menu turns off.

Changing the Brightness of the Front Panel

Display and

Illuminations

You can set the brightness of the front panel display to either of 2 levels, and the illuminations on the front panel of the unit

(POWER, OPERATION DIAL, REC TO USB) to on/off.

Press SYSTEM MENU.

Press

X/x repeatedly until “DIMMER”

appears in the front panel display, then press

Press

X/x to select the brightness of

the front panel display.

• “DIMMER OFF”: The front panel display is bright and the illuminations on the front panel display light up.

• “DIMMER ON”: The front panel display is dark and the illuminations on the front panel display go off.

Press .

The setting is made.

Press SYSTEM MENU.

The system menu turns off.

Viewing Information

About the Disc

Viewing the playing time and remaining time in the front panel display

Press DISPLAY repeatedly.

Each time you press DISPLAY while playing the disc, the display changes:

1 t 2 t ... t 1 t ...

Some displayed items may disappear after a few seconds.

x DVD VIDEO/DVD-VR

Playing time of the current title

Remaining time of the current title

Playing time of the current chapter

Remaining time of the current chapter

Disc name

Title and chapter x VIDEO CD (without PBC functions)/

Super Audio CD/CD

Playing time of the current track

Remaining time of the current track

Playing time of the disc

Remaining time of the disc

Track name

Track and index*

* VIDEO CD/Super Audio CD only.

x Super VCD

Playing time of the current track

Track text

Track and index number x DATA CD (MP3 file)/DATA DVD (MP3 file)

Playing time and current track number

Track (file) name*

* If an MP3 file has an ID3 tag, the system will display an album name or title name from the ID3 tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are used for a single MP3 file.

100

x DATA CD (video file)/DATA DVD (video

file)

Playing time of the current file

Current file name

Current album and file number

Note

• The system can only display the first level of the

DVD/CD text, such as the disc name or title.

• If a file name of the MP3 file cannot be displayed, “*” will appear in the front panel display instead.

• The disc name or track name may not be displayed depending on the text.

• Playing time of MP3 files and video files may not be displayed correctly.

Tip

• When the system is playing a VIDEO CD with PBC functions, the playing time is displayed.

x VIDEO CD (without PBC functions)/

Super Audio CD/CD

• T **:**

Playing time of the current track

• T-**:**

Remaining time of the current track

• D **:**

Playing time of the current disc

• D-**:**

Remaining time of the current disc x DATA CD (MP3 file)/DATA DVD (MP3

file)

• T **:**

Playing time of the current track x DATA CD (video file)/DATA DVD

(video file)

• **:**:**

Playing time of the current file

Note

• Characters/marks may not be displayed in some languages.

• Depending on the type of disc being played, the system can only display a limited number of characters. Also, depending on the disc, not all text characters will be displayed.

Viewing the playing time and remaining time on the TV screen

Press DISPLAY during playback.

The following display appears on the TV screen.

T 1: 01: 40

Time information

Press DISPLAY repeatedly to change the time information.

The display and the kinds of time that you can check depend on the disc you are playing.

x DVD VIDEO/DVD-VR

• T **:**:**

Playing time of the current title

• T-**:**:**

Remaining time of the current title

• C **:**:**

Playing time of the current chapter

• C-**:**:**

Remaining time of the current chapter x VIDEO CD (with PBC functions)

• **:**

Playing time of the current scene

Checking the play information of the disc

To check DVD/Super Audio CD/CD text

Press DISPLAY repeatedly during playback to display text recorded in the DVD/Super Audio

CD/CD.

The DVD/Super Audio CD/CD text appears only when text is recorded in the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears.

Dvorak/Tchaikovsky /NedPho/Kreizberg

Adagio - Allegro molto

To check DATA CD/DATA DVD

(MP3 file/video file) text

By pressing DISPLAY while playing MP3 files or video files on a DATA CD/DATA DVD, you can display the name of the folder/MP3 file/ video file, and the audio bit rate (the amount of data per second of the current audio) on the TV screen.

Example for playback of an audio file

Bit rate*

T 0: 13 192k MP3

* “Exchangeable Image File Format” is a digital camera image format defined by the Japan

Electronics and Information Technology Industries

Association (JEITA).

2002_Remixes

Soul_Survivor_rap_version

Folder name** MP3 file**/video file name

* Appears when playing an MP3 file on a DATA CD/

DATA DVD.

** If an MP3 file has the ID3 tag, the system will display an album name or title name from the ID3 tag information.

The system can support ID3 ver 1.0/1.1/2.2/2.3.

ID3 ver 2.2/2.3 tag information display has priority when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are used for a single MP3 file.

Checking the date information of a JPEG image file

You can check the date information during playback when the Exif* tag is recorded in the

JPEG image file.

Press DISPLAY during playback.

The Control Menu display appears on the TV screen.

5 ( 8 )

1 0 ( 1 5 )

2 0 0 2 / 9 / 1 8

DATA CD

Date information

101

102

Returning to the Default

Settings

Returning the system parameters, such as preset stations, to the default settings

N x

"/1

Press

X/x to select [SYSTEM SETUP],

then press .

The options for [SYSTEM SETUP] appear.

Press

X/x to select [RESET] and press c.

Press

C/c to select [YES].

You can also quit the process and return to the Control Menu display by selecting [NO] here.

Press .

Do not press [/1 while resetting the system as it takes a few seconds to complete.

Note

• The [MEDIA], [INTERVAL], [EFFECT], and

[MULTI/2CH] settings also return to the default settings.

Press "/1 to turn on the system.

Press x, N, and "/1 on the unit at the

same time.

“COLD RESET” appears in the front panel display and the system returns to default settings.

Returning the [SETUP] settings to the default

You can return the [SETUP] settings (page 57)

other than [PARENTAL CONTROL] to the default settings.

Press FUNCTION repeatedly until

“DVD” appears in the front panel display.

Press DISPLAY while the system is in stop mode.

The Control Menu display appears on the

TV screen.

Press

X/x to select

[SETUP], then press .

The options for [SETUP] appear.

Press

X/x to select [CUSTOM], then

press .

The Setup Display appears.

Additional Information

Precautions

On power sources

• Unplug the unit from the wall outlet (mains) if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.

On placement

• Place the system in a location with adequate ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet becomes hot to the touch. This is not a malfunction.

However, touching the cabinet should be avoided. Do not place the system in a confined space where ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything on the system. The system is equipped with a high power amplifier. If the ventilation slots are blocked, the system can overheat and malfunction.

• Do not place the system on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the system near heat sources such as radiators, or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

• Do not install the system in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the system and discs away from components with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place heavy objects on the system.

On operation

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the unit. Should this occur, the system may not operate properly. In this case, remove the disc and leave the system turned on for about half an hour until the moisture evaporates.

• When you move the system, take out any disc. If you don’t, the disc may be damaged.

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

On adjusting volume

• Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is suddenly played.

On cleaning

• Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens cleaners

• Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause the apparatus to malfunction.

On your TV’s color

• If the speakers should cause the TV screen to have color irregularity, turn off the TV then turn it on after

15 to 30 minutes. If color irregularity should persist, place the speakers further away from the TV set.

IMPORTANT NOTICE

Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen.

Projection televisions are especially susceptible to this.

On moving the system

Before moving the system, make sure that there is no disc inserted, and remove the AC power cord (mains lead) from the wall outlet (mains).

About S-AIR function

• As the S-AIR product(s) transmits sound by radio waves, sound may skip when radio waves are obstructed. This is a characteristic of radio waves and is not malfunction.

• As the S-AIR product(s) transmits sound by radio waves, equipment that generates electromagnetic energy, such as a microwave oven, may prevent sound transmission.

• As the S-AIR product(s) uses the radio waves that share the same frequency as other wireless systems, such as wireless LAN or Bluetooth devices it may occur interference or poor transmission as a result. In

103

104

this case, take the following steps to enhance the transmission of signals:

– Avoid placing the S-AIR product(s) near other wireless systems.

– Avoid using the S-AIR product(s) and the other wireless systems spontaneously.

– The transmission may be improved by changing the transmission channel (frequency) of the other wireless system(s). For details, refer to the operating instructions of the other wireless system(s).

• The transmission distance differs depending on the usage of environment. Find a location where transmission between the S-AIR main unit and sub unit is most effective, and install the S-AIR main unit and sub unit there.

• Place the S-AIR product(s) on the stable surface off the floor.

• Poor transmission may occur and the transmission distance may be too short if the following conditions exist:

– There is a wall/floor made of reinforced concrete or stone between the S-AIR product(s).

– There is an iron divider/door or furniture/electric product made of fireproof glass, metal, etc., between the S-AIR product(s).

Notes about the Discs

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.

This system can only play back a standard circular disc. Using neither standard nor circular discs (e.g., card, heart, or star shape) may cause a malfunction.

Do not use a disc that has a commercially available accessory attached, such as a label or ring.

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together

(main unit and S-AIR sub unit).

Power

Symptom

The power is not turned on.

If “PROTECTOR” and “PUSH

POWER” appear alternately in the front panel display.

Remedy

• Check that the AC power cord (mains lead) is connected securely.

• Press "/1 after “STANDBY” disappears from the front panel display.

Press "/1 to turn off the system, and check the following items after

“STANDBY” disappears.

• Are the + and – speaker cords short-circuited?

• Are you using only the specified speakers?

• Is anything blocking the ventilation holes of the system?

• After checking the above items and fixing any problems, turn on the system. If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.

105

106


Symptom

There is no picture.

Remedy

• The video connecting cords are not connected securely.

• The video connecting cords are damaged.

• The unit is not connected to the correct TV input jack (page 21).

• The video input on the TV is not set so that you can view pictures from the system.

• Check the output method on your system (page 21).

• You have set progressive format but your TV cannot accept the signal in progressive format. In this case, return the setting to interlace format (the

default setting) (page 34).

• Even if your TV is compatible with progressive format (525p/625p) signals, the image may be affected when you set progressive format. In this case, return the

setting to interlace format (the default setting) (page 34).

• Re-connect the connecting cord securely.

• The unit is connected to an input device that is not HDCP (High-bandwidth

Digital Content Protection) compliant (“HDMI” on the front panel does not

light up) (page 21).

• If the HDMI OUT jack is used for video output, change the type of video signal

output from the HDMI OUT jack. It may solve the problem (page 34).

Connect the TV and the unit using a video jack other than the HDMI OUT, and switch the TV’s input to the connected video input so that you can see the onscreen displays. Change the type of video signal output from the HDMI OUT jack, and switch the TV’s input back to HDMI. If the picture still does not appear, repeat the Steps and try other options.

• You have set [PROGRESSIVE (COMPONENT OUT)] in [VIDEO SETUP] to

[ON] (page 59) even though your TV cannot accept the progressive signal. In

this case, disconnect the HDMI cable from the unit and then set it to [OFF].

• If you are using the “DMPORT” function, the video signal is output from the

VIDEO OUT jack only.

Picture noise appears.

Even though you set the aspect ratio in [TV TYPE] of [VIDEO

SETUP], the picture does not fill the TV screen.

• The aspect ratio on the disc is fixed.

Color irregularity occurs on the

TV screen.

• The disc is dirty or flawed.

• If the picture output from your system goes through your VCR to get to your

TV, the copy-protection signal applied to some DVD programs could affect picture quality. If you experience problems when you connect your unit through

your VCR, try connecting your unit to your TV’s video input directly (page 21).

The system’s speakers contain magnet parts, so magnetic distortion may occur.

When color irregularity occurs on the TV screen, check the following items.

• If the speakers are used with a CRT-based TV or projector, install the speakers at least 0.3 meters (1.0 ft) from the TV set.

• If the color irregularity persists, turn off the TV set once, then turn it on after 15 to 30 minutes.

• If howling occurs, reposition the speakers farther away from the TV set.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care device, toy, etc.) is placed near the speakers.

Sound

Symptom

There is no sound.

Remedy

• The speaker cord is not connected securely.

• Press MUTING on the remote if “MUTING ON” is displayed in the front panel display.

• The system is in pause mode or in Slow-motion Play mode. Press H to return to normal play mode.

• Fast forward or fast reverse is being performed. Press H to return to normal play mode.

• Check the speaker settings (page 63).

• The component connected to the HDMI OUT jack does not conform to the audio signal format, in this case set [AUDIO (HDMI)] in [HDMI SETUP] to

[ON] (page 61).

No sound is output from the

HDMI OUT jack.

• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 61).

• The HDMI OUT jack is connected to a DVI (Digital Visual Interface) device

(DVI (Digital Visual Interface) jacks do not accept audio signals).

• The HDMI OUT jack does not output Super Audio CD sound.

• Try the following: 1 Turn the system off and on again. 2 Turn the connected component off and on again. 3 Disconnect and then connect the HDMI cable again.

• Check that the speakers and components are connected correctly and securely.

The left and right sounds are unbalanced or reversed.

There is no sound from the subwoofer.

Severe hum or noise is heard.

• Check the speaker connections and settings (pages 19, 63).

• Check that the speakers and components are connected securely.

• Check that the connecting cords are away from a transformer or motor, and at least 3 meters (10 ft) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

• Select stereo sound by pressing AUDIO (page 41).

• Make sure the unit is connected properly.

The sound loses stereo effect when you play a VIDEO CD, a

CD, or an MP3 file.

The surround effect is difficult to hear when you are playing a sound track of Dolby Digital,

DTS, or MPEG audio.

• Check the “ DEC. MODE ” setting

(page 36) .

• Check the speaker connections and settings (pages 19, 63).

• Depending on the DVD, the output signal may not be the entire 5.1 channel. It may be monaural or stereo even if the sound track is recorded in Dolby Digital or MPEG audio format.

The sound comes from the center speaker only.

• Depending on the disc, the sound may come from the center speaker only.

No sound is heard from the center speaker.

• Check the speaker connections and settings (pages 19, 63).

• Check the “ DEC. MODE ” setting

(page 36) .

• Depending on the source, the effect of the center speaker may be less noticeable.

• A 2 channel source is being played.

107

108

Symptom

No sound or only a very lowlevel sound is heard from the surround speakers.

Remedy

• Check the speaker connections and settings (pages 19, 63).

• Check the “ DEC. MODE ” setting

(page 36) .

• Depending on the source, the effect of the surround speakers may be less noticeable.

• Check the wireless setting (page 30).

• A 2 channel source is being played.

The beginning of the sound is cut off.

• Set the sound mode to “

MOVIE” or “MUSIC” (page 97).

• Select “

A.F.D. STD” for “DEC. MODE” (page 36).

• The sampling frequency of the input stream is more than 48 kHz.

There is no sound from the

DIGITAL IN COAXIAL/

OPTICAL jack.

Microphone sound is not output. • Set the karaoke mode to on (page 92).

• Connect the microphone to the unit properly.

• Connect a monaural dynamic microphone.

Operation

Symptom

Radio stations cannot be tuned in.

Remedy

• Check that the antenna (aerial) is connected securely. Adjust the antenna

(aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.

• No stations have been preset or the preset stations have been cleared (when

tuning by scanning preset stations). Preset the stations (page 65).

The remote does not function.

• There are obstacles between the remote and the unit.

• The distance between the remote and the unit is too far.

• The remote is not pointed at the remote sensor on the unit.

• The batteries in the remote are weak.

The disc does not play.

• There is no disc inserted.

• The disc is upside down.

Insert the disc with the playback side facing down.

• The disc is skewed on the disc tray.

• The system cannot play CD-ROMs, etc. (page 6).

• The region code on the DVD does not match the system.

• Moisture has condensed inside the unit and may cause damage to the lenses.

Remove the disc and leave the unit turned on for about half an hour.

The MP3 file cannot be played.

• The DATA CD is not recorded in ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in UDF (Universal Disk Format).

• The MP3 file does not have the extension “.mp3.”

• The data is not formatted in MP3 even though it has the extension “.mp3.”

• The data is not MPEG1 Audio Layer 3 data.

• The system cannot play audio tracks in MP3PRO format.

• Check the [MEDIA] setting (page 52).

Symptom

The JPEG image file cannot be played.

Remedy

• The DATA CD is not recorded in ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in UDF (Universal Disk Format).

• It has an extension other than “.jpeg” or “.jpg.”

• It is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than

2,000,000 pixels in progressive JPEG image file which is mainly used on

Internet Web sites.

• It does not fit the TV screen (those images are reduced).

• Check the [MEDIA] setting (page 52).

The video file cannot be played. • The file is not created in DivX format or MP4 file format.

• The file has an extension other than “.avi,” “.divx,” “.mp4,” or “.m4v.”

• The DATA CD is not recorded in ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in UDF (Universal Disk Format).

• The video file is larger than 720 (width) × 576 (height).

• Check the [MEDIA] setting (page 52).

The titles of folder/file/file name are not displayed correctly.

• The system can only display numbers and letters of the alphabet. Other characters are displayed as [*].

A disc does not start playing from the beginning.

• Program Play, Shuffle Play, or Repeat Play has been selected.

Press CLEAR to cancel these functions before playing a disc.

• Resume Play has been selected.

During stop, press x on the unit or the remote and then start playback

(page 43).

• The title, DVD or PBC menu automatically appears on the TV screen.

The system starts playing the disc automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some discs may contain an auto pause signal. While playing such a disc, the system stops playback at the auto pause signal.

• Depending on the disc, you may not be able to perform some of these operations. Refer to the operating instructions supplied with the disc.

You cannot perform some functions such as stop, search,

Slow-motion Play, or Repeat

Play.

Messages do not appear on the

TV screen in the language you want.

• In the Setup Display, select the desired language for the on-screen display in

[OSD] under [LANGUAGE SETUP] (page 58).

The language for the sound track cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.

• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be changed.

• Multilingual subtitles are not recorded on the DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off. • The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being played (page 40).

• The DVD prohibits changing the angles.

A disc cannot be ejected and

“LOCKED” appears in the front panel display.

• Contact your Sony dealer or local authorized Sony service facility.

109

110

Symptom

[Data error] appears on the TV screen when playing a DATA

CD or DATA DVD.

The system does not work normally.

The Control for HDMI function does not work.

No sound is output from the system and TV while using the

System Audio Control function.

Remedy

• The MP3 file/JPEG image file/video file you want to play is broken.

• The data is not MPEG1 Audio Layer 3 data.

• The JPEG image file format does not conform to DCF.

• The file has the extension “.jpg” or “.jpeg,” but is not in JPEG format.

• The file you want to play has the extension “.avi” or “.divx” but is not in DivX format, or is in DivX format but does not conform to DivX Certified profiles.

• The file you want to play has the extension “.mp4” or “.m4v” but is not in MP4 format, or is in MP4 format but does not conform to MPEG4 Simple Profiles.

• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then reconnect after several minutes.

• When “HDMI” does not light up in the front panel display, check the HDMI

connection (page 21).

• Set [CONTROL FOR HDMI] in [HDMI SETUP] to [ON] (page 60).

• Make sure that the connected component is compatible with the [CONTROL

FOR HDMI] function.

• Check that the AC power cord (mains lead) of the connected component is connected securely.

• Check the connected component’s setting for the Control for HDMI function.

Refer to the operating instructions supplied with the component.

• If you change the HDMI connection, connect and disconnect the AC power cord (mains lead), or have a power failure, set [CONTROL FOR HDMI] in

[HDMI SETUP] to [OFF], then set [CONTROL FOR HDMI] in [HDMI

SETUP] to [ON] (page 60).

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 68).

• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 61).

• Make sure that the connected TV is compatible with the System Audio Control function.

• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”

(page 68).

USB device

Symptom Remedy

“OVERLOAD,” “REMOVE

USB,” then “PUSH POWER” appear in the front panel display.

• A problem has been detected with the level of electrical current from the

(USB) port. Turn off the system and remove the USB device from the

(USB) port. Make sure there is no problem with the USB device. If this display pattern persists, contact your nearest Sony dealer.

Are you using a supported USB device?

There is no sound.

• If you connect an unsupported USB device, the following problems may occur.

See “Playable USB Devices” (supplement) for the supported device types.

– The USB device is not recognized.

– File or folder names are not displayed on this system.

– Playback is not possible.

– The sound skips.

– There is noise.

– A distorted sound is output.

– Transferring stops before it is finished.

• The USB device is not connected correctly. Turn off the system, then reconnect the USB device.

Symptom

The sound is distorted.

Remedy

• The bit rate used when encoding the audio files was low. Transfer audio files encoded with higher bit rates onto the USB device.

There is noise or the sound skips. • Turn off the system, then reconnect the USB device.

• Noise may have entered during the transferring process. Delete the file, and try transferring again.

• Copy the files to your computer, format the USB device in FAT12, FAT16, or

FAT32 format, and transfer the files to the USB device again.*

* This system supports FAT12, FAT16, and FAT32, but some USB devices may not support all of these. For details, refer to the operating instructions of each USB device or contact the manufacturer.

The USB device cannot be connected into the (USB) port.

• The USB device is being connected backwards. Connect the USB device in the correct orientation.

The USB device which has been used on another device does not work.

• It may be recorded in an unsupported format. If so, first take the precaution of backing up important files on the USB device by copying them to your computer hard disk. Next, format the USB device in FAT12, FAT16, or FAT32 format, and transfer the files to the USB device again.*

* This system supports FAT12, FAT16, and FAT32, but some USB devices may not support all of these. For details, refer to the operating instructions of each USB device or contact the manufacturer.

“READING” is displayed for a long time.

File names are not displayed properly.

• The reading process can take a long time in the following cases.

– There are many folders or files on the USB device.

– The file structure is extremely complex.

– The memory capacity is excessive.

– The internal memory is fragmented.

• Sony recommends following these guidelines.

– Total folders on the USB device: 200 or less

– Total files per folder: 150 or less

• Transfer the music data onto the USB device again, as the data stored in the

USB device may have been corrupted.

• The character codes that can be displayed by this system are numbers and letters of the alphabet only. Other characters are not displayed correctly.

“DATA ERROR” appears in the front panel display during playback of a USB device.

• The audio file/JPEG image file/video file you want to play is broken.

• The data is not MPEG1 Audio Layer 3 data.

• The JPEG image file format does not conform to DCF.

• The file has the extension “.jpg” or “.jpeg,” but is not in JPEG format.

• The file you want to play has the extension “.avi” or “.divx” but is not in DivX format, or is in DivX format but does not conform to DivX Certified profiles.

• The file you want to play has the extension “.mp4” or “.m4v” but is not in MP4 format, or is in MP4 format but does not conform to MPEG4 Simple Profiles.

Playback does not start.

• Turn off the system, then reconnect the USB device.

• Connect the USB device that this system can play. See “Playable USB Devices”

(supplement).

• Press H to start play.

Playback does not start from the first track.

• Program Play, Shuffle Play, or Repeat Play has been selected.

Press CLEAR to cancel these functions before playing a USB device.

• Resume Play has been selected.

During stop, press x on the unit or the remote and then start playback.

It takes time until playback starts.

• The system is playing an audio file in AAC format.

111

112

Symptom

The USB device (audio file/

JPEG image file/video file) cannot be played back.

Remedy

• USB devices formatted with file systems other than FAT12, FAT16, or FAT32 are unsupported.*

• Files that are encrypted or protected by passwords, etc. cannot be played back.

• The MP3 file does not have the extension “.mp3.”

• The WMA file does not have the extension “.wma.”

• The AAC file does not have the extension “.m4a.”

• The DivX video file does not have the extension “.avi” or “.divx.”

• The MPEG4 video file does not have the extension “.mp4” or “.m4v.”

• The data is not stored in the desired format.

• The MP3 files in formats other than MPEG 1 Audio Layer 3 cannot be played back.

• If you use a partitioned USB device, only audio files on the first partition can be played.

• The system can playback to a depth of 8 folders only.

• Check the [MEDIA] setting (page 76).

• The number of folders has exceeded 200.

• For audio files/JPEG image files, the folder contains more than 150 files.

• The JPEG image file does not have the extension “.jpg” or “.jpeg.”

• The JPEG image file is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than 2,000,000 pixels in progressive JPEG mode which is mainly used on Internet Web sites.

• JPEG image files with a high width to length ratio cannot be played back.

• The system cannot play audio tracks in MP3PRO format.

• A WMA file that is in WMA DRM, WMA Lossless, or WMA PRO format cannot be played back.

• An AAC file that is in AAC DRM or AAC Lossless format cannot be played back.

* This system supports FAT12, FAT16, and FAT32, but some USB devices may not support all of these. For details, refer to the operating instructions of each USB device or contact the manufacturer.

Audio files or JPEG image files take longer to play back than others.

You cannot start transferring onto a USB device.

• After the system reads all files on the USB device, playback may take more time than usual if:

– the number of folders or files is very large.

– the folder or file organization structure is very complex.

– the memory capacity is very large.

– the file size is extremely large.

– the physical structure within the memory is fragmented.

• Sony recommends following these guidelines.

– Total folders on the USB device: 200 or less

– Total files per folder: 150 or less

• The following problems may have occurred.

– The USB device is full.

– The number of audio files and folders on the USB device has reached the upper limit.

– The USB device is write-protected.

Symptom

Transferring stops before it is finished.

Transferring to a USB device results in an error.

Audio files or folders on the

USB device cannot be erased.

Remedy

• The communication speed of the USB device is extremely slow. Connect a

USB device that this system can play.

• If the transferring and erasing operations are repeated multiple times, the file structure within the USB device becomes complex. Follow the procedure in the operating instructions of the USB device to format the USB device. If the problem persists, contact your nearest Sony dealer.

• You are using an unsupported USB device. See “Playable USB Devices”

(supplement).

• The USB device was disconnected or the power was turned off during transferring. The USB device may be broken. Follow the procedure in the operating instructions of the USB device to format the USB device. If the problem persists, contact your nearest Sony dealer.

• Check if the USB device is write-protected.

• The USB device was disconnected or the power was turned off during erasing.

Delete the partially-erased file. If this does not fix the problem, the USB device may be broken. Follow the procedure in the operating instructions of the USB device to format the USB device. If the problem persists, contact your nearest

Sony dealer.

The S-AIR function

Symptom

S-AIR connection is not established (sound transmission is not established), e.g., the indicator of the S-AIR sub unit does the following:

• Turns off.

• Flashes.

• Turns red.

No sound is heard from the

S-AIR sub unit.

Remedy

• If you use another S-AIR main unit, place it more than 8 m (about 25 feet) away from the S-AIR main unit you are using.

• Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 84).

• Another S-AIR sub unit is paired to the S-AIR main unit. Pair the desired S-AIR

sub unit with the S-AIR main unit (page 86).

• Place so that the S-AIR main unit and S-AIR sub unit are separated from other wireless devices.

• Avoid using any other wireless devices.

• The S-AIR sub unit is turned off. Make sure the AC power cord (mains lead) is connected and turn on the S-AIR sub unit.

• If you use another S-AIR main unit, place it more than 8 m (about 25 feet) away from the S-AIR main unit you are using.

• Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 84).

• Confirm the pairing setting (page 86).

• Place so that the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a microwave oven.

• Place so that the S-AIR main unit and S-AIR sub unit are separated from other wireless devices.

• Avoid using any other wireless devices.

• Change the “RF CHANGE” setting (page 88).

• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.

• Turn off the system and S-AIR sub unit, then turn on them.

113

114

Symptom Remedy

There is noise or the sound skips. • If you use another S-AIR main unit, place it more than 8 m (about 25 feet) away from the S-AIR main unit you are using.

• Place so that the S-AIR main unit and S-AIR sub unit closer together.

• Avoid use of equipment that generates electromagnetic energy, such as a microwave oven.

• Place so that the S-AIR main unit and S-AIR sub unit are separated from other wireless devices.

• Avoid using any other wireless devices.

• Change the “RF CHANGE” setting (page 88).

• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.

Surround amplifier operation

If no sound is output from the surround speakers, check the status of the POWER / ON LINE indicator

on the surround amplifier. For details of the POWER / ON LINE indicator, see “Step 3: Setting up the

Wireless System” (page 30).

Symptom

The power is not turned on.

The POWER / ON LINE indicator does not turn on.

Remedy

• Check that the AC power cord (mains lead) is connected securely.

Turn off the surround amplifier and remove the AC power cord (mains lead) of the surround amplifier, then check the following items.

• Are the + and – speaker cords short-circuited?

• Is anything blocking the ventilation holes of the surround amplifier?

• After checking the above items and fixing any problems, connect the AC power cord (mains lead) of the surround amplifier and turn on the surround amplifier.

If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.

Symptom

There is no sound.

Remedy

Check the status of the POWER / ON LINE indicator on the surround amplifier.

• turns green

– The speaker cord is not connected securely.

– Check the speaker connections and settings.

– The volume of the S-AIR main unit is set to minimum.

– The S-AIR main unit is in mute status.

– Depending on the source or the settings of the S-AIR main unit, the effect of the speakers may be less noticeable.

– Headphones are connected.

• flashes green

– The S-AIR main unit is not turned on.

– Pair the S-AIR main unit with another S-AIR sub unit.

– The surround amplifier is paired to another S-AIR main unit.

– Confirm the S-AIR IDs of the S-AIR main unit and surround amplifier being

the same ID (page 84).

– Pairing operation is not completed.

– Sound transmission is poor.

Move the surround amplifier so that the POWER / ON LINE indicator turns green.

– Move the system away from another wireless devices.

– Avoid using any other wireless devices.

– The wireless transceiver(s) is/are not inserted correctly.

• turns red

– Set the SURROUND SELECTOR switch of the surround amplifier to

SURROUND.

“HP NO LINK” and “VOLUME

MIN” appear alternately in the front panel display, and the volume of the unit becomes minimum.

• Volume becomes minimum when you turn off the surround amplifier with headphones connected before you turn off the unit or if radio reception is poor.

In these cases, check radio reception, and set the volume again.

115

116

Self-diagnosis Function

(When letters/numbers appear in the display)

When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the TV screen or front panel display. In this case, check the following table.

C:13:50

When the version number appears on the TV screen

When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the TV screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible.

Turn off the system, and then turn on the system again to operate.

VER.X.XX

First 3 characters of the service number

C 13

Cause and/or corrective action

C 31

E XX

(XX is a number)

The disc is dirty.

,Clean the disc with a soft cloth

(page 104).

The disc is not inserted correctly.

,Restart the system, then re-insert the disc correctly.

To prevent a malfunction, the system has performed the selfdiagnosis function.

,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5character service number.

Example: E 61 10

Specifications

Amplifier Section

Chinese models:

Surround mode (reference) RMS output power

FL/FR/C*: 100 watts (per channel at 3 ohms, 1 kHz)

Subwoofer*: 100 watts (at

3 ohms, 80 Hz)

Latin American models:

Stereo mode (rated) 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

Surround mode (reference) RMS output power

FL/FR*: 144 watts (per channel at 3 ohms, 1 kHz,

10% THD)

C*: 142 watts (per channel at 3 ohms, 1 kHz, 10%

THD)

Subwoofer*: 280 watts (at

1.5 ohms, 80 Hz, 10%

THD)

Other models:

Stereo mode (rated) 108 W + 108 W (at 3 ohms,

1 kHz, 1% THD)

Surround mode (reference) RMS output power

FL/FR/C*: 144 watts (per channel at 3 ohms, 1 kHz,

10% THD)

Subwoofer*: 280 watts (at

1.5 ohms, 80 Hz, 10%

THD)

* Depending on the decoding mode settings and the source, there may be no sound output.

Inputs (Analog)

TV (AUDIO IN) Sensitivity: 450/250 mV

SAT/CABLE (AUDIO IN) Sensitivity: 450/250 mV

AUDIO IN/MIC Sensitivity: AUDIO IN

250/125 mV/MIC 1 mV

Inputs (Digital)

TV (COAXIAL IN/OPTICAL IN)

Impedance: 75 ohms/-

Input Stream: Dolby

Digital 5.1ch/DTS 5.1ch/

Linear PCM 2ch

(Sampling Frequency: less than 48 kHz)

Outputs (Analog)

Phones Accepts low- and highimpedance headphones.

Super Audio CD/DVD System

Laser Diode Properties Emission Duration:

Continuous

Laser Output: Less than

44.6

μW

* This output is the value measurement at a distance of 200mm from the objective lens surface on the

Optical Pick-up Block with 7mm aperture.

Signal format system

Mexican and Latin American models:

Australian models:

Other models:

NTSC

PAL/NTSC

NTSC/PAL

USB Section

(USB) port:

Maximum current: 500 mA

Tuner Section

System PLL quartz-locked digital synthesizer

FM Tuner section

Tuning range

North American models: 87.5 MHz - 108.0 MHz

Other models:

(100 kHz step)

87.5 MHz - 108.0 MHz (50

Antenna (aerial) kHz step)

FM wire antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHz

Video Section

Outputs VIDEO: 1 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

, P

: 0.7 Vp-p

75 ohms

HDMI OUT: Type A (19 pin)

Speakers

Front (SS-TS97)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

2-Way 2-Driver Bass reflex

Tweeter: 20 mm dome type

Woofer: 65 mm cone type

3 ohms

295 mm × 1,185 mm × 295 mm (113 mm × 640 mm ×

87 mm speaker only for reference) (w/h/d)

3.4 kg Mass (approx.)

Center (SS-CT92)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Full range Magnetically

Shielded

30 mm × 60 mm cone type

3 ohms

380 mm × 51 mm × 68 mm

(w/h/d)

117

118

Mass (approx.)

Surround (SS-TS98)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Mass (approx.)

0.4 kg

Full range Bass reflex

65 mm cone type

3 ohms

295 mm × 1,185 mm × 295 mm (113 mm × 640 mm ×

87 mm speaker only for reference) (w/h/d)

3.3 kg

Subwoofer (SS-WS94)

Speaker system

Speaker unit

Rated impedance

Dimensions (approx.)

Subwoofer Bass reflex

180 mm cone type

1.5 ohms

225 mm × 395 mm × 335

Mass (approx.) mm (w/h/d)

6.5 kg

General

Power requirements

North American and Mexican models:

Taiwan models:

Argentine models:

120 V AC, 60 Hz

120 V AC, 50/60 Hz

220 V - 240 V AC,

50/60 Hz

Latin American models: 110 V - 240 V AC,

50/60 Hz

Other models: 220 V - 240 V AC,

50/60 Hz

Power consumption On: 125 W

Standby: 0.3 W (at the

Power Saving mode)

Output voltage (DIGITAL MEDIA PORT)

DC 5 V

Output current (DIGITAL MEDIA PORT)

Dimensions (approx.)

700 mA

430 mm × 66 mm × 395

Mass (approx.) mm (w/h/d) incl. projecting parts

430 mm × 66 mm × 425 mm (w/h/d) (incl. Wireless transceiver)

4.3 kg

Surround amplifier (TA-SA100WR)

Amplifier Section

Latin American models:

Stereo mode (rated) 80 W + 80 W (at 3 ohms, 1 kHz, 1 % THD)

Surround mode (reference) RMS output power

120 W (per channel at 3 ohms, 1 kHz, 10 % THD)*

Other models:

Stereo mode (rated) 80 W + 80 W (at 3 ohms, 1 kHz, 1 % THD)

Surround mode (reference) RMS output power

144 W (per channel at 3 ohms, 1 kHz, 10 % THD)*

* Depending on the source, there may be no sound output.

Rated impedance:

General

3 - 16

Power requirements

North American and Mexican models:

Taiwan models:

120 V AC, 60 Hz

120 V AC, 50/60 Hz

Argentine models: 220 V - 240 V AC,

50/60 Hz

Latin American models: 110 V - 240 V AC,

50/60 Hz

Other models:

Power consumption

Dimensions (approx.)

220 V - 240 V AC,

50/60 Hz

On: 50 W

85 mm × 100 mm × 330

Mass (approx.) mm (w/h/d) (incl. Wireless transceiver)

85 mm × 100 mm × 345 mm (w/h/d) incl. speaker cord cover and speaker cord holder

1.7 kg incl. speaker cord cover and speaker cord holder

Wireless transceiver

Iran models (EZW-RT10/EZW-RT10A)

Communication system S-AIR Specification

Frequency band version 1.0

2.4000 GHz - 2.4835 GHz

Modulation method

Power requirements

Dimensions (approx.)

DSSS

DC 3.3 V, 350 mA

50 mm × 13 mm × 60 mm

(w/h/d)

Mass (approx.) 24 g

Except Iran models (EZW-RT10)

Communication system S-AIR Specification

Output version 1.0

12.0 mW

Frequency band

Modulation method

Power requirements

Dimensions (approx.)

2.4000 GHz - 2.4835 GHz

DSSS

DC 3.3 V, 350 mA

50 mm × 13 mm × 60 mm

Mass (approx.)

(w/h/d)

24 g

Supported file format

MP3 (MPEG 1 Audio Layer-3)

File Extension: mp3

Bitrate:

Sampling frequencies:

32 kbps - 320 kbps

32/44.1/48 kHz

WMA (USB device only)

File Extension: wma

Bitrate: 48 kbps - 192 kbps

Sampling frequencies: 44.1 kHz

AAC (USB device only)

File Extension: m4a

Bitrate:

Sampling frequencies:

48 kbps - 320 kbps

44.1 kHz

DivX

File Extension:

Video codec:

Bitrate:

Frame rate:

Resolution:

Audio codec:

MPEG4

File format:

File Extension:

Video codec: avi/divx

DivX video

8 Mbps (MAX)

30 fps

720 × 576

MP3

Bitrate:

Frame rate:

Resolution:

Audio codec:

DRM:

MP4 File Format mp4/m4v

MPEG4 Simple Profile

(AVC is not compatible.)

4 Mbps

30 fps

720 × 576

AAC-LC (HE-AAC is not compatible.)

Not compatible

Design and specifications are subject to change without notice.

Glossary

DCS (Digital Cinema Sound)

In collaboration with Sony Pictures

Entertainment, Sony measured the sound environment of their studios and integrated the data of the measurement with Sony DSP (Digital

Signal Processor) technology to develop

“Digital Cinema Sound.” “Digital Cinema

Sound” simulates in a home theater an ideal movie theater sound environment based on the preference of the movie director.

Digital Cinema Auto Calibration

Digital Cinema Auto Calibration was developed by Sony to automatically measure and adjust the speaker settings to your listening environment in a short period of time.

Digital Direct Twin Drive Subwoofer

Utilizing Sony proprietary S-master technology, the Digital Direct Twin Drive Subwoofer features two S-master Digital Amplifiers that provide dedicated power to a strategically located subwoofer for astounding sound performance. Easy to set up, Digital Direct Twin

Drive Subwoofer provides a stable sound field over a much larger listening area without having to adjust frequency levels.

Dolby Digital

This movie theater sound format is more advanced than Dolby Surround Pro Logic. In this format, the surround speakers output stereo sound with an expanded frequency range, and a subwoofer channel for deep bass is independently provided. This format is also called “5.1” with the subwoofer channel designed as the 0.1 channel (since it functions only when a deep bass effect is needed). All six channels in this format are recorded separately for superior channel separation. Furthermore, since all the signals are processed digitally, less signal degradation occurs.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth output channels from 2 channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial

119

120

properties of the original recording without adding any new sounds or tonal colorations.

x Movie mode

The Movie mode is for use with stereo television shows and all programs encoded in Dolby

Surround. The result is enhanced sound field directionality that approaches the quality of discrete 5.1-channel sound.

x Music mode

The Music mode is for use with any stereo music recordings, and provides a wide and deep sound space.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround,

Dolby Surround Pro Logic produces four channels from 2 channel sound. Compared with the former Dolby Surround system, Dolby

Surround Pro Logic reproduces left-to-right panning more naturally and localizes sounds more precisely. To take full advantage of Dolby

Surround Pro Logic, you should have one pair of surround speakers and a center speaker. The surround speakers output monaural sound.

DTS

Digital audio compression technology developed by DTS, Inc. This technology conforms to 5.1-channel surround. This format is comprised of a stereo rear channel and a discrete subwoofer channel. DTS provides the same 5.1 discrete channels of high quality digital audio. The good channel separation is realized due to the all channel data being recorded discretely and processed digitally.

HDMI (High-Definition Multimedia

Interface)

HDMI is an interface that supports both video and audio on a single digital connection, allowing you to enjoy high quality digital picture and sound. The HDMI specification supports HDCP (High-bandwidth Digital

Content Protection), a copy protection technology that incorporates coding technology for digital video signals.

Interlace format

(Interlaced scanning)

The interlace format is the NTSC standard method for displaying TV images at 30 frames per second. Each frame is scanned twice - alternately between the even numbered scanning lines and then odd numbered scanning lines, at

60 times per second.

Parental Control

A function of the DVD to limit playback of the disc by the age of users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes and so on.

Progressive format

(sequential scanning)

In contrast to the interlace format, the progressive format can reproduce 50 - 60 frames per second by reproducing all scanning lines

(525 lines for the NTSC system). The overall picture quality increases and still images, text and horizontal lines appear sharper. This format is compatible with the 525 or 625 progressive format.

S-AIR

(Sony Audio Interactive Radio frequency)

Recent times have seen the rapid spread of DVD media, Digital Broadcasting, and other highquality media.

To ensure that the subtle nuances of these highquality media are transmitted with no deterioration, Sony has developed a technology called “S-AIR” for the radio transmission of digital audio signals with no compression, and has incorporated this technology into the EZW-

RT10/EZW-RT10A/EZW-T100.

This technology transfers digital audio signals with no compression using the 2.4 GHz band range of ISM band (Industrial, Scientific, and

Medical band), also used by wireless LANs and

Bluetooth applications.

Super Audio CD

Super Audio CD is a new high-quality audio disc standard where music is recorded in the

DSD (Direct Stream Digital) format

(conventional CD is recorded in the PCM format). The DSD format, using a sampling frequency 64 times higher than that of a conventional CD, and with 1-bit quantization, achieves both a wide frequency range and a wide

dynamic range across the audible frequency range, and so provides music reproduction extremely faithful to the original sound.

x Super Audio CD types

There are two types of discs, depending on the

Super Audio CD layer and CD layer combination.

• Super Audio CD layer: A high-density signal layer for Super Audio CD

• CD layer

: A layer that is readable by a conventional CD player

Single layer disc

(a disc with a single Super Audio CD layer)

You can play the CD layer on a conventional CD player.

Since both layers are on one side, it is not necessary to turn the disc over.

To select a layer, see “Changing a playback layer for a hybrid Super Audio CD” (page 42).

To select an area, see “Selecting a playback area for a Super Audio CD” (page 42).

Super Audio CD layer

Hybrid disc

(a disc with a Super Audio CD layer and a CD layer)

CD layer

Super Audio CD layer

A Super Audio CD layer consists of the 2 channel area or the multi-channel area.

• 2 channel area: An area in which 2 channel stereo tracks are recorded

• Multi-channel area: An area in which multichannel (up to 5.1 channels) tracks are recorded

2 channel area

Multi-channel area

4) Super Audio CD layer

121

122

Playback priority of file types

The table below describes the playback priority of file types under the [MEDIA] setting.

File type on a disc or USB device

[VIDEO]

Disc

Video files only

JPEG image files only

Video files

JPEG image files

MP3 files Audio files only

Video files and JPEG image files

Video files

Video files and audio files Video files

Audio files and JPEG image files

MP3 files and

JPEG image files with slide show

Video files, audio files, and

JPEG image files

Video files

JPEG image files

Audio files

Video files

Audio files

Video files

USB device

[MEDIA] setting

[MUSIC/

PHOTO]

Disc

[PHOTO]

Video files

Disc/USB device

Video files

JPEG image files

MP3 files

JPEG image files

MP3 files

MP3 files and

JPEG image files with slide show

MP3 files and

JPEG image files with slide show

Audio files*

JPEG image files

Audio files*

JPEG image files

[MUSIC]

Disc/USB device

Video files

JPEG image files

Audio files*

Video files

Audio files*

* When using a disc, you can play MP3 files only.

Language Code List

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali;

Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

Code Language

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlingue

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian;

Lettish

1345 Malagasy

Code Language

1347 Maori

1349 Macedonian

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan)Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto;

Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-

Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-

Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian 1703 Not specified

Parental Control Area Code List

Code Area

2044 Argentina

2047 Australia

2046 Austria

2057 Belgium

2070 Brazil

2079 Canada

2090 Chile

2092 China

2115 Denmark

Code Area

2165 Finland

2174 France

2109 Germany

2248 India

2238 Indonesia

2254 Italy

2276 Japan

2304 Korea

2363 Malaysia

Code Area

2362 Mexico

2376 Netherlands

2390 New Zealand

2379 Norway

2427 Pakistan

2424 Philippines

2436 Portugal

2489 Russia

2501 Singapore

Code Area

2149 Spain

2499 Sweden

2086 Switzerland

2528 Thailand

2184 United

Kingdom

Code Language

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

123

124

Index to Parts and Control

For more information, refer to the pages indicated in parentheses.

Front panel

A "/1 (on/standby) (32, 102)

B Z (open/close) (39)

C Front panel display (126)

(remote sensor) (10)

E MOVIE/MUSIC indicator (97)

F VOLUME control (39)

G REC TO USB (80)

H REC TO USB indicator (80)

(USB) port (71)

J OPERATION DIAL (39)

K PHONES jack (39)

L FUNCTION (35)

M AUDIO IN/MIC/A.CAL MIC jack (24, 32,

90, 92)

N Play operation buttons (39)

O Disc tray (39)

Rear panel

SPEAKER

CENTER SUBWOOFER

DIGITAL IN

OPTICAL COAXIAL

SPEAKER

FRONT R FRONT L

HDMI OUT

DMPORT

DC5V

0.7A MAX

EZW-RT10

Y P B P R /C R

COMPONENT VIDEO OUT

VIDEO

OUT

R AUDIO IN

ANTENNA

COAXIAL 75

R AUDIO IN

SAT/CABLE

A SPEAKER jacks (19)

B EZW-RT10 slot (27)

C COAXIAL 75

Ω FM jack (26)

D SAT/CABLE (AUDIO IN R/L) jacks (24)

E TV (AUDIO IN R/L) jacks (23)

F VIDEO OUT jack (21)

G COMPONENT VIDEO OUT jacks (21)

H DMPORT (DIGITAL MEDIA PORT) jack

(24, 83)

I HDMI OUT jack (21)

J TV (DIGITAL IN COAXIAL/OPTICAL)

jacks (23)

125

126

Front panel display

About the indications in the front panel display

A Lights up when the karaoke mode is

on. (92)

B Flashes when the sleep timer is set.

(98)

C Displays the system’s status such as

chapter, title, or track number, time information, radio frequency, playing status, decoding mode, etc.

D Lights up when a station is received.

(Radio only) (65)

E Stereo/Monaural effect (Radio only)

(66)

F Lights up when the S-AIR transceiver is

inserted in the unit and the system

transmits the sound. (84)

G Lights up when the HDMI OUT jack is

correctly connected to HDCP (Highbandwidth Digital Content Protection) compliant device with HDMI or DVI

(Digital Visual Interface) input. (21)

H Current surround format (Except for

JPEG image file)

I Lights up when the color system is set

to NTSC. (Asian, Australian, and Middle

Eastern models only)

J Lights up when a Super Audio CD/CD

is loaded. (42)

K Playing status

Surround amplifier

Front panel

POWER

POWER/ON LINE

PHONES

Rear panel

EZW-RT

S-AIR ID

PAIRING

SURROUND SELECTOR

SURROUND

BACK

SPEAKER

A PHONES jack (30)

B POWER (ON/OFF) (30, 84)

C POWER / ON LINE indicator (30, 84)

D PAIRING indicator (86)

E PAIRING (86)

F Wireless transceiver (EZW-RT10) slot

(27)

G S-AIR ID switch (30, 84)

H SPEAKER L jack (19)

I SPEAKER R jack (19)

J SURROUND SELECTOR switch (30, 84)

127

128

Remote control

A – M

ALPHABETICAL ORDER

N – Z

DISPLAY 3 (67, 77, 99)

MEMORY SELECT

ONE-TOUCH PLAY eg (69)

PICTURE NAVI 6 (50, 73)

SYSTEM MENU wf (29, 36, 65,

BUTTON DESCRIPTIONS

Number buttons qf (43, 65, 91)

[/1 (on/standby) 1 (29, 32, 39)

TV [/1 (on/standby) ql (91)

C/X/x/c/

65, 89)

qs (29, 32, 42, 44,

REPLAY/ADVANCE

9 (39)

./> wj (39) m/M 0 (39)

STEP /

9 (39)

SLOW /

0 (39)

H (play) e; (39) x (stop) wk (39)

DISPLAY

RETURN

See the included supplement.

This button is available for the “DVD,” “USB,” or

“DMPORT” function.

Depending on the DIGITAL

MEDIA PORT adapter, this button may not work.

Guide to the Control Menu Display

You can use the Control Menu display to select a function and to view related information.

DISPLAY

Each time you press DISPLAY, the Control Menu display changes:

1 t 2 t ... t 1 t ...

Control Menu display 1

Control Menu display 2 (appears when available)

Control Menu display off

Note

• The Control Menu Display appears during the “DVD” or “USB” function.

Control Menu display

The Control Menu display 1 and 2 will show different items depending on the disc type. For details, see the pages in parentheses.

129

130

Example: Control Menu display 1 when playing a DVD VIDEO.

Control Menu items

Selected item

Currently playing title number

Currently playing chapter number

Total number of titles

Total number of chapters

Playback status

(N Playback,

X Pause, x Stop, etc.)

9 8 ( 9 9 )

1 3 ( 9 9 )

T 0 : 0 4 : 1 7

OFF

DISC

TITLE

CHAPTER

DVD VIDEO

Type of disc being played

Playing time

Current setting

Options

Function name of selected

Control Menu item

REPEAT

ENTER

Quit:

DISPLAY

Operation message

To turn off the display

List of Control Menu items

Item Item Name, Function, Relevant Disc Type

[TITLE] (page 47)/[SCENE] (page 47)/[TRACK] (page 47)

You can select the title, scene, or track to be played.

[CHAPTER] (page 47)/[INDEX] (page 47)

You can select the chapter or index to be played.

[INDEX] (page 47)

You can display the index and select the index to be played.

[TRACK] (page 47)

You can select the track to be played.

[ORIGINAL/PLAY LIST] (page 47)

You can select the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or an edited [PLAY LIST].

[TIME] (page 48)

You can check the elapsed time and the remaining playback time.

You can play from a desired point by inputting the time code (DVD VIDEO/DVD-VR only).

[MULTI/2CH] (page 42)

You can select the playback area on a Super Audio CD when available.

[SUPER AUDIO CD/CD LAYER] (page 42)

You can select the playback layer on a Super Audio CD when available.

[PROGRAM] (page 44)

You can select the track to play in the order you want.

[SHUFFLE] (page 45)

You can play the tracks/files in random order.

[REPEAT] (page 46)

You can play the entire disc (all titles/all tracks/all folders/all files) repeatedly or one title/ chapter/track/folder/file repeatedly.

[A/V SYNC] (page 55)

You can adjust the delay between the picture and sound.

[DISC MENU] (page 47)

You can display the DVD’s menu.

[BROWSING] (page 52)

You can display the list of folders/JPEG image files.

[SETUP] (page 57)

[CUSTOM]

In addition to the Quick Setup setting, you can adjust various other settings.

[QUICK] (page 32)

You can make the basic adjustments. Use Quick Setup to select the desired language of the on-screen display, the aspect ratio of the TV, and select yes or no to start the Auto Calibration.

[FOLDER] (page 47)

You can select the folder to be played.

[FILE] (page 47)

You can select the JPEG image file or video file to be played.

[DATE] (page 101)

You can display the date the picture was taken by a digital camera.

[INTERVAL] (page 51)

You can select the duration for which the slides are displayed on the TV screen.

[EFFECT] (page 52)

You can select the effects to be used for changing slides during a slide show.

[MEDIA] (page 52)

You can select the data type (MP3 file, JPEG image file, video file, or both MP3 file and JPEG image file) to be played on a DATA CD/DATA DVD.

* These items are not displayed when playing a DATA CD/DATA DVD with video files.

List of Control Menu Items for USB device

Item Item Name, Function, Relevant Disc Type

[REPEAT] (page 76)

You can play the entire USB device (all folders/all files) repeatedly or one folder/file repeatedly.

[BROWSING] (page 76)

You can display the list of folders/JPEG image files.

[DATE] (page 78)

You can display the date the picture was taken by a digital camera.

[INTERVAL] (page 74)

You can select the duration for which the slides are displayed on the TV screen.

131

132

[EFFECT] (page 74)

You can select the effects to be used for changing slides during a slide show.

[MEDIA] (page 76)

You can select the data type (MP3/AAC/WMA file, JPEG image file, or video file) on a USB device.

[USB TRANSFER] (page 79)

You can transfer tracks on an audio CD or MP3 files on a CD/DATA CD/DATA DVD onto a USB device.

[SHUFFLE]

You can play files in random order.

[TRACK]

You can select the track to be played.

[FOLDER]

You can select the folder to be played.

[FILE]

You can select the JPEG image file to be played.

[TIME]

You can check the elapsed time and the remaining playback time.

[A/V SYNC]

You can adjust the delay between the picture and sound.

List of Control Menu Items for karaoke

Item Item Name, Function, Relevant Disc Type

[KARAOKE MODE] (page 92)

Set karaoke mode to on and off.

[VOCAL SELECT] (page 94)

Selects different kind of vocals recorded in the disc.

[SCORE MODE] (page 95)

Calculates your vocal score by comparing your voice with the music source.

Tip

• The Control Menu icon indicator lights up in yellow t when you select any item except [OFF]

([PROGRAM], [SHUFFLE], [REPEAT], [A/V SYNC], [KARAOKE MODE], and [VOCAL SELECT] only). The

[ORIGINAL/PLAY LIST] indicator lights up in yellow when you select [PLAY LIST] (default setting). The

[MULTI/2CH] indicator lights up in yellow when you select the multi-channel playback area on a Super Audio CD.

Index

Numerics

4:3 OUTPUT 59

5.1 Channel Surround 41

AUTO CALIBRATION 61, 90,

Control Menu Display 129

CUSTOM 57, 102

D. C. A. C. (Digital Cinema

Auto Calibration) 90, 119

DATA CD 53

DATA DVD 53

DCS (Digital Cinema Sound)

119

DEMO 29

Digital Direct Twin Drive

Subwoofer 119

DIGITAL MEDIA PORT 83

Dolby Digital 41, 119

Dolby Pro Logic II 119

Dolby Surround Pro Logic 120

Front panel display 99, 126

HDMI

/RGB (HDMI) 61

HDMI (High-Definition

Multimedia Interface) 120

JPEG image file 49, 71

Language Code List 123

LANGUAGE SETUP 58

MEDIA 49, 50, 51, 52, 53, 72,

Multiplex broadcast sound 97

Naming preset stations 66

Progressive format 34, 120

SPEAKER FORMATION 61,

Super Audio CD 42, 120

133

134

Surround amplifier 84, 127

SYSTEM MENU 29, 36, 66,

84, 85, 86, 87, 88, 98, 99

Sony Corporation

Printed in China

(1)

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

Sony DAV-FZ900KW User manual

DVD Home Theatre

System

Operating Instructions

DAV-FZ900KW

WARNING

Caution – The use of optical instruments with this product will increase eye hazard.

Disposal of Old

Electrical & Electronic

Equipment (Applicable in the European Union and other European countries with separate collection systems)

About the surround amplifier
