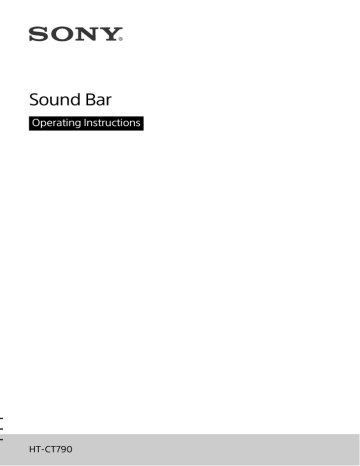

Sound Bar Operating Instructions HT-CT790

Sound Bar Operating Instructions HT-CT790

Sound Bar

Operating Instructions

HT-CT790

WARNING

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.

Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.

The unit is not disconnected from the mains as long as it is connected to the

AC outlet, even if the unit itself has been turned off.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet.

Should you notice an abnormality in the unit, disconnect the main plug from the

AC outlet immediately.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

Indoor use only.

Disposal of Old

Electrical &

Electronic

Equipment

(Applicable in the

European Union and other

European countries with separate collection systems)

It should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

Recommended cables

Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals.

For the Bar Speaker

The nameplate is located on the bottom of the Bar Speaker.

2

GB

Table of Contents

Supplied Accessories ..................... 5

Guide to Parts and Controls ..........6

About the Home Menu ................. 11

Connecting and Preparation

Basic connections and preparation

Startup Guide

(separate document)

Connection for Viewing Copyrightprotected 4K Content ............ 14

Mounting the Unit on a Wall ....... 16

Connecting to a Wired

Network ..................................17

Connecting to a Wireless

Network ................................. 19

Listening to the Sound

Listening to the TV .......................21

Listening to the Connected

Device .....................................21

Listening to Music on a USB

Device .................................... 22

Selecting the Sound Effect

Setting the Sound Effect that is

Tailored to Sound Sources

(SOUND FIELD) ....................... 24

Enjoying Clear Sound with Low

Volume at Midnight

(NIGHT) .................................. 25

Making Dialogues Clearer

(VOICE) ................................... 25

Adjusting the Volume of the

Subwoofer ............................. 26

Adjusting the Delay Between the

Picture and Sound ................. 26

Listening to Music/Sound with the BLUETOOTH Function

Listening to Music from a Mobile

Device ....................................28

Listening to Sound of the

Connected TV or Device from

Headphones or Speakers ...... 31

Enjoying with the Network

Function

Listening to Music on your PC via a

Home Network ...................... 33

Listening to Music on Music

Services ..................................34

Listening to Music on the Mobile

Device with SongPal ............. 35

Using Google Cast ....................... 36

Listening to Music by Connecting the SongPal Link-Compatible

Device ....................................36

Displaying the Screen of the Mobile

Device on a TV

(MIRRORING) .........................38

Using the Various Functions/

Settings

Performing the Wireless Connection of the Subwoofer (LINK) ........ 39

Playing Compressed Audio Files with Natural Sound

Quality ...................................40

Enjoying Multiplex Broadcast Sound

(AUDIO) ..................................40

Deactivating Buttons on the Unit .................................. 41

Changing the Brightness of the

Front Panel Display and

BLUETOOTH Indicator

(DIMMER) ............................... 41

Saving Power in Standby

Mode .....................................42

3

GB

Using the Control for HDMI

Function ................................ 43

Using the “BRAVIA” Sync

Function ................................ 45

Using the Setup Display ...............47

Options Menu List ....................... 55

Troubleshooting

Troubleshooting .......................... 56

Resetting the System .................. 63

Additional Information

Specifications .............................. 64

Playable Types of Files ................ 66

Supported Input Audio

Formats ..................................67

Supported Input Video

Formats ................................. 68

On BLUETOOTH

Communication .................... 69

END USER LICENSE

AGREEMENT .......................... 70

Precautions ..................................74

Index .............................................78

4

GB

Supplied Accessories

• Bar Speaker (1)

• HDMI cable (4K 60p 18Gbps compatible) (1)

• Wall mounting brackets (2), Screws (2)

• Startup Guide (1)

• Operating Instructions (1)

• Subwoofer (1)

• Remote control (1)

• R03 (size AAA) batteries (2)

5

GB

Guide to Parts and Controls

Details are omitted from the illustrations.

Unit (Bar Speaker)

Front

Remote control sensor

Front panel display

BLUETOOTH indicator (blue)

– Flashes quickly in blue: During pairing standby status

– Flashes in blue: BLUETOOTH connection is being attempted

– Lights in blue: BLUETOOTH connection has been established

  (power) button

Turns on the system or sets it to standby mode.

INPUT button (page 11, 21)

PAIRING button (page 28)

VOL +/– buttons

N-Mark (page 29)

When using the NFC function, touch your NFC-compatible device to the mark.

(USB) port

6

GB

Rear

LAN(100) port

TV IN (OPTICAL) jack

ANALOG IN jack

HDMI IN 3 jack

Compatible with HDCP 2.2.

HDMI IN 2 jack

Compatible with HDCP 2.2.

HDMI IN 1 jack

Compatible with HDCP 2.2.

HDMI OUT (TV (ARC)) jack

Compatible with HDCP 2.2.

7

GB

Subwoofer

Power indicator

– Lights in red: The subwoofer is in standby mode

– Flashes in green: While attempting link connection

– Lights in green: The subwoofer is connected to the system with the link function

  (power) button

Turns on the subwoofer or sets it to standby mode.

LINK button (page 39)

Ventilation holes

For safety, do not block the ventilation holes.

8

GB

Remote Control

INPUT +/– (page 11, 21)

(power)

Turns on the system or sets it to standby mode.

DISPLAY

Displays playback information on the TV screen.

CLEAR AUDIO+ (page 24)

SOUND FIELD (page 24)

VOICE (page 25)

NIGHT (page 25)

DIMMER (page 41)

Color buttons

Shortcut keys for selecting items on some menus.

MIRRORING (page 38)

PAIRING (page 28)

OPTIONS (page 26, 55)

BACK (page 11)

/// (page 11)

(enter) (page 11)

HOME (page 11)

  (muting)

Turns off the sound temporarily.

(volume) +/–

Adjusts the volume.

SW

(subwoofer volume) +/–

Adjusts the volume of the subwoofer.

9

GB

Playback operation buttons

/ (rewind/fast forward)

Searches backward or forward.

/ (previous/next)

Selects the previous/next chapter, track, or file.

(play)

Starts or re-starts playback

(resume play).

(pause)

Pauses or re-starts playback.

(stop)

Stops playback.

RX/TX (receiver/transmitter)

(page 32)

AUDIO (page 40)

10

GB

About the Home Menu

You can display the home menu on the TV screen by connecting the system and TV with the HDMI cable (supplied). From the home menu, you can set the various settings by selecting from the input list.

[Setup] or select the input or service that you want to watch

[Setup]

Input list

Using the Home Menu

HOME

BACK

1

Press HOME.

The home menu appears on the TV screen.

2

Press

/// to select

[Setup] or an item on the input list, then press

.

The selected input or setup display appears on the TV screen.

To return to the previous screen, press BACK.

11

GB

Input list

Input name

[TV]

[HDMI1]

[HDMI2]

[HDMI3]

[Bluetooth Audio]

[Analog]

[USB]

[Screen mirroring]

[Home Network]

[Music Services]

Explanation

Outputs the TV sound. (page 21)

Outputs the sound of device that is connected to the HDMI IN 1

jack. (page 21)

Outputs the sound of device that is connected to the HDMI IN 2

jack. (page 21)

Outputs the sound of device that is connected to the HDMI IN 3

jack. (page 21)

Outputs the sound of device that is connected with the

BLUETOOTH function. (page 28)

Outputs the sound of device that is connected to the ANALOG IN jack.

Outputs music or plays back photo files stored on a connected

USB device. (page 22)

Displays the screen of the mobile device on the TV screen.

(page 38)

Outputs music or plays back photo files on the device that is

connected via the network. (page 33)

Uses music services on the Internet. (page 34)

[Setup]

See “Using the Setup Display” (page 47).

Tip

You can also select the input by pressing INPUT +/– repeatedly.

12

GB

About the Steps Description

In these Operating Instructions, the operations are described as steps that are operated on the home menu displayed on the TV screen by using the remote control while the system and TV are connected with the HDMI cable (supplied).

The operating steps that select items on the TV screen by using

/// and are simplified in the following way.

Example: Select [Setup] from the home menu.

The operation that selects an item by pressing

/// and is expressed as

“select.”

Example: Select [Network Settings] - [Internet Settings] - [Wired Setup] on the home menu.

When repeating the operation that selects an item by pressing

/// and , the selected items are linked with “-.”

Tips

• You can use the buttons on the unit if they have the same or similar names as those on the remote control.

• Characters in brackets [ ] appear on the TV screen. Characters in quotes “ ” appear in the front panel display.

13

GB

Connecting and Preparation

Connection for Viewing

Copyright-protected 4K

Content

Connecting a 4K TV and 4K

Device

To view copyright-protected 4K content and listen to sound from the system, connect the TV and device to the system via an HDCP2.2-compatible HDMI jack.

You can only view copyright-protected

4K content through the HDCP2.2compatible HDMI jack connection.

HDCP2.2compatible

HDMI jack

HDCP2.2compatible

HDMI jack

TV

Blu-ray Disc™ player, cable box, or satellite box, etc.

HDMI cable (supplied)

HDMI cable (not supplied)

Premium High Speed HDMI cable with

Ethernet is recommended.

1

Check which HDMI input jack on your TV is compatible with

HDCP2.2.

Refer to the operating instructions of the TV.

2

Connect the HDCP2.2-compatible

HDMI input jack on the TV and

HDMI OUT jack on the unit with the HDMI cable (supplied).

TV connection is completed.

14

GB

3

Connect the HDCP2.2-compatible

HDMI output jack of the 4K device and HDMI IN jack of the unit with the HDMI cable (not supplied).

Refer to the operating instructions of the 4K device to check that the

HDMI OUT jack of the 4K device is compatible with HDCP2.2.

4K device connection is completed.

4

Play copyright-protected 4K content.

The image appears on the TV screen and the sound is output from the system.

Tip

You can connect the 4K device to any of

HDMI IN 1, HDMI IN 2, or HDMI IN 3 jack because all jacks are compatible with

HDCP2.2.

When the TV’s HDMI Jack is not Labeled with ARC

If your TV’s HDCP2.2-compatible HDMI

IN jack is not compatible with ARC, the

TV sound is not output from the system.

In this case, connect the optical output jack of the TV and the TV IN (OPTICAL) jack on the unit with the optical digital cable (not supplied).

HDCP2.2compatible

HDMI jack

TV

HDCP2.2compatible

HDMI jack

Blu-ray Disc player, cable box, or satellite box, etc.

HDMI cable (supplied)

HDMI cable (not supplied)

Premium High Speed HDMI cable with

Ethernet is recommended.

Optical digital cable (not supplied)

15

GB

Mounting the Unit on a

Wall

You can mount the unit on a wall.

1

Fix the wall mounting brackets

(supplied) to the bracket fixing holes on the bottom of the unit with the screws (supplied) so that the surface of each wall mounting bracket is as shown in the illustration.

Fix the two wall mounting brackets to the left and right fixing holes on the bottom of the unit.

Screw (supplied)

Notes

• Prepare screws (not supplied) that are suitable for the wall material and strength. As a plasterboard wall is especially fragile, attach the screws securely in the wall beam. Install the speakers horizontally, hung by screws in studs in a continuous flat section of the wall.

• Have the installation done by a Sony dealer or licensed contractor and pay special attention to safety during the installation.

• Sony shall not be held responsible for accidents or damage caused by improper installation, insufficient wall strength, improper screw installation or natural disaster, etc.

Wall mounting brackets (supplied)

2

Prepare screws (not supplied) that are suitable for the holes on the wall mounting bracket.

More than 30 mm

4.6 mm

4 mm

10 mm

Hole on the wall mounting bracket

16

GB

3

Fasten the screws in the wall.

The screw should protrude as illustration.

3.5 mm to

4.5 mm

730 mm

4

Hang the holes of the mounting bracket on the screws.

Align the holes at of the mounting bracket with the screws, then hang the unit on the two screws.

Connecting to a Wired

Network

Prepare the network by connecting the system and PC to your home network with a LAN cable.

Connecting to a PC or Router with a LAN Cable

The following illustration is the example for connection of the system and PC to your home network.

Internet

Modem

LAN cable

(not supplied)

Router

Server

Note

The server needs to be connected to the same network as that of the system.

Tip

We recommend that you use a shielded straight interface cable (not supplied).

17

GB

Connecting by Obtaining the Network Information

Automatically

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Network Settings] -

[Internet Settings] - [Wired Setup].

4

Select [Auto].

The system starts network settings and the network setting status appears.

Press

/ to browse information, and then press

.

5

Select [Save & Connect].

The system starts connecting to the network. For details, refer to the messages that appear on the TV screen.

5

Perform the setting by following the on-screen instructions.

The system starts network settings and the network setting status appears.

Press

/ to browse information, and then press

.

6

Select [Save & Connect].

The system starts connecting to the network. For details, refer to the messages that appear on the TV screen.

Connecting by Using a

Fixed IP Address

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Network Settings] -

[Internet Settings] - [Wired Setup].

4

Select [Manual].

18

GB

Connecting to a Wireless

Network

Prepare the network by connecting the system and PC to your wireless LAN router.

Note

The server needs to be connected to the same network as that of the system.

Connecting with the WPS

Button

When your wireless LAN router (access point) is Wi-Fi Protected Setup (WPS)compatible, you can easily set the network settings with the WPS button.

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Network Settings] -

[Internet Settings] - [Wireless

Setup] - [Wi-Fi Protected Setup™

(WPS)].

4

Select [Start].

5

Press the WPS button on the access point.

The system starts connecting to the network.

Connecting by Selecting the

Network Name (SSID)

If your wireless LAN router (access point) is not compatible with Wi-Fi Protected

Setup (WPS), check the following information in advance.

– The network name (SSID)*

_____________________________________

– The security key (password)**

_____________________________________

* SSID (Service Set Identifier) is a name that identifies a particular access point.

**This information should be available from a label on your wireless LAN router/ access point, from the operating instructions, from the person who set up your wireless network, or from the information provided by your Internet service provider.

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Network Settings] -

[Internet Settings] - [Wireless

Setup].

The list of the network name appears on the TV screen.

4

Select the desired network name

(SSID).

5

Enter the security key (or passphrase) using the software keyboard, and then select [Enter].

The system starts connecting to the network.

19

GB

Connecting by Using a Fixed

IP Address

Select [New connection registration] -

[Manual registration] in step 4 of

“Connecting by Selecting the Network

Name (SSID)”and follow the on-screen

instructions.

Connecting by Using a PIN

Code

Select [New connection registration] in

step 4 of “Connecting by Selecting the

Network Name (SSID)” and select [(WPS)

PIN Method].

Connecting by SongPal

SongPal app can connect the system to the same wireless network as that of the mobile device. For details, follow the instruction of the app or refer to the following URL.

http://info.songpal.sony.net/help/

20

GB

Listening to the Sound

Listening to the TV

1

Press HOME.

The home menu appears on the TV screen.

2

Select [TV] on the home menu.

3

Select the program using the TV’s remote control.

The selected TV program appears on the TV screen and the TV sound is output from the system.

4

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

Tip

You can select [TV] by pressing INPUT +/– on the remote control.

Listening to the

Connected Device

1

Press HOME.

The home menu appears on the TV screen.

2

Select the input that the desired device is connected on the home menu.

The image of the selected device appears on the TV screen and the sound is output from the system.

If you select [Analog], the home menu is displayed on the TV screen.

3

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

Tip

You can select the input by pressing INPUT

+/– on the remote control.

Changing the Input Name

Displayed on the Home

Menu

You can change the input name of

[HDMI1], [HDMI2], or [HDMI3] that is displayed on the home menu.

1

Press HOME.

The home menu appears on the TV screen.

2

Put the cursor on [HDMI1],

[HDMI2], or [HDMI3] on the home menu, then press OPTION.

The options menu appears on the

TV screen.

3

Select [Input Label].

21

GB

4

Select the input name.

You can select the input name from the following.

• [BD Player]

• [DVD Player]

• [Cable Box]

• [Satellite]

• [GAME]

• [PC]

5

Press

to complete.

Tip

When you change the input name, the displayed icon is also changed automatically.

Listening to Music on a

USB Device

You can play music/photo files stored on a connected USB device.

For playable types of files, see “Playable

Types of Files” (page 66).

1

Connect the USB device to the

(USB) port.

2

Press HOME.

The home menu appears on the TV screen.

3

Select [USB (Connected)] from the home menu.

4

Select [Music] - folder on which songs are stored - song.

The selected song is played and sound is output from the system.

5

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

Note

Do not remove the USB device during operation. To avoid data corruption or damage to the USB device, turn the system

22

GB

off before connecting or removing the USB device.

Tip

You can perform various operations from

the options menu (page 55).

Viewing Photos on a USB

Device

You can play photo files stored on a connected USB device.

For playable types of files, see “Playable

Types of Files” (page 66).

Select [

Photo] - folder on which photos are stored - photo in step 4.

The selected photo appears on the TV screen.

Tip

You can perform various operations from

the options menu (page 55).

23

GB

Selecting the Sound Effect

Setting the Sound Effect that is Tailored to Sound

Sources (SOUND FIELD)

You can easily enjoy pre-programmed sound effects that are tailored to different kinds of sound sources.

Sound field

[Sports]

[Game

Studio]

[Standard]

Explanation

Commentary is clear, cheers are heard as surround sound, and sounds are realistic.

Sound effects are optimized for game play.

Sound effects are optimized for the individual source.

Tips

• You can select [ClearAudio+] by pressing

CLEAR AUDIO+ on the remote control.

• You can select the sound field from the

options menu (page 55).

SOUND FIELD

CLEAR AUDIO+

1

Press SOUND FIELD.

The sound field menu appears on the TV screen.

2

Press the button repeatedly to select the desired sound field.

Sound field

[ClearAudio+]

[Movie]

[Music]

Explanation

The appropriate sound setting is automatically selected for the sound source.

Sound effects are optimized for movies. This mode replicates the density and rich expanse of sound.

Sound effects are optimized for music.

24

GB

Enjoying Clear Sound with Low Volume at

Midnight (NIGHT)

Sound is output at low volume with minimum loss of fidelity and clarity of dialogue.

Making Dialogues

Clearer (VOICE)

VOICE

NIGHT

1

Press NIGHT.

The night mode appears on the TV screen.

2

Press the button repeatedly to select the night mode.

Mode

[On]

[Off]

Explanation

Activates the night mode function.

Deactivates the night mode function.

Tip

You can select [Night] from the options

menu (page 55).

1

Press VOICE.

The voice mode appears on the TV screen.

2

Press the button repeatedly to select the voice mode.

Mode

[Up Off]

[Up 1]

[Up 2]

Explanation

Standard

Dialogue is easily heard by enhancing dialogue range.

Dialogue range is enhanced, and dialogue sound may be easy to hear for the elderly.

Tip

You can select [Voice] from the options

menu (page 55).

25

GB

Adjusting the Volume of the Subwoofer

The subwoofer is designed for playback of bass or low frequency sound.

Adjusting the Delay

Between the Picture and

Sound

When the sound does not match the pictures on the TV screen, you can adjust the delay between the picture and sound.

The setting method differs depending on the input.

SW

 +/–

///,

Press SW (subwoofer volume)

+/–

to adjust the volume of the subwoofer.

Note

When the input source does not contain much bass sound, such as in TV programs, the bass sound from the subwoofer may be difficult to hear.

OPTIONS

When Watching the TV

1

Press OPTIONS.

“SYNC” appears in the front panel display.

2

Press

or

The adjusting time appears in the front panel display.

3

Adjust the delay using

/, then

press .

You can adjust from 0 msec to

300 msec in 25 msec increments.

4

Press OPTIONS.

The options menu in the front panel display turns off.

26

GB

When Watching Another

Device

1

Press OPTIONS.

The options menu appears on the

TV screen.

2

Select [A/V SYNC].

3

Adjust the delay using

/, then

press .

You can adjust from 0 msec to

300 msec in 25 msec increments.

27

GB

Listening to Music/Sound with the

BLUETOOTH Function

Listening to Music from a Mobile Device

You can listen to music stored on a mobile device such as a smartphone or tablet via a wireless connection by connecting the system and the mobile device with the BLUETOOTH function.

When connecting to the mobile device with the BLUETOOTH function, you can operate by simply using the supplied remote control without turning the TV on.

Listening to Music by Pairing with a Mobile Device

1

Press PAIRING.

The system enters the pairing mode, “BT” appears in the front panel display, and the BLUETOOTH indicator flashes quickly.

INPUT +/–

PAIRING

SW

 +/–

HOME

 +/–

Playback operation buttons

RX/TX

2

Turn on the BLUETOOTH function, and then select “HT-CT790” after searching for it on the mobile device.

If a Passkey is requested, enter

“0000.”

3

Make sure that the BLUETOOTH indicator on the unit lights in blue.

A connection between the system and mobile device has been established.

4

Start audio playback with the music app on the connected mobile device.

Sound is output from the unit.

5

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

• You can play or pause the content by using the playback operation buttons on the remote control.

28

GB

To check the connection status of the BLUETOOTH function

Status

During pairing standby status

Connection is being attempted

Connection has been established

Not connected

BLUETOOTH indicator

Flashes quickly in blue

Flashes in blue

Lights in blue

Off

Tips

• Once the BLUETOOTH connection is established, an indication recommending which application to download will be displayed according to what device you have connected.

Following the instructions displayed, an application called SongPal, which will enable you to operate this system, can be downloaded.

Refer to “Listening to Music on the Mobile

Device with SongPal” (page 35) for details

on SongPal.

• Perform pairing for the second and subsequent mobile devices.

• To cancel pairing, press HOME.

Listening to Music from the

Paired Mobile Device

1

Turn the BLUETOOTH function of the mobile device to on.

2

Press INPUT +/– repeatedly to display “BT” in the front panel display.

The input changes to [Bluetooth

Audio] automatically, then the system automatically reconnects to the mobile device it was most recently connected to.

3

Make sure that the BLUETOOTH indicator lights in blue.

A connection between the system and mobile device has been established.

4

Start audio playback with the music app on the connected mobile device.

Sound is output from the unit.

5

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

• You can play or pause the content by using the playback operation buttons on the remote control.

To disconnect the mobile device

Perform any of the following items.

• Disable the BLUETOOTH function on the mobile device.

• Press PAIRING on the remote control.

• Turn off the system or mobile device.

Note

If “BT” does not appear in the front panel display by pressing INPUT +/– in step 2 of

“Listening to Music from the Paired Mobile

Device,” press RX/TX on the remote control

once.

Tip

When the connection is not established, select “HT-CT790” on the mobile device.

Connecting to a Mobile

Device by One-Touch

Function (NFC)

By holding an NFC-compatible mobile device such as a smartphone or tablet near the N mark on the unit, the system is turned on automatically, then pairing

29

GB

and BLUETOOTH connection are performed automatically.

Compatible devices

Smartphones, tablets, and music players with the NFC function built-in

(OS: Android™ 2.3.3 or later, excluding

Android 3.x)

1

Turn on the NFC function of the mobile device.

2

Touch the N mark on the unit with the mobile device.

Keep touching until the mobile device vibrates and message appears on the mobile device.

Follow the on-screen instructions to complete pairing of the unit and mobile device.

BLUETOOTH indicator

3

Make sure that the BLUETOOTH indicator lights in blue.

A connection between the system and mobile device has been established.

4

Start audio playback with the music app on the connected mobile device.

Sound is output from the system.

5

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

• You can play or pause the content by using the playback operation buttons on the remote control.

To stop playback by One-touch function

Touch the N mark on the unit with the mobile device again.

Notes

• Depending on your device, you may need to perform the following items on your mobile device in advance.

– Turn on the NFC function.

– Download the “NFC Easy Connect” application from Google Play™ and start the application. (The application may not be available in some countries/ regions.) For details, refer to the operating instructions of your device.

• This feature does not work with

BLUETOOTH-compatible headphones or speakers. To listen to sound using a

BLUETOOTH-compatible headphones or

speakers, see “Listening to Sound of the

Connected TV or Device from

Headphones or Speakers” (page 31).

• [Bluetooth Mode] is changed to [Receiver] automatically when making BLUETOOTH connection with the One-touch function.

Even if the One-touch function is canceled, the [Bluetooth Mode] setting remains as [Receiver]. For details about

[Bluetooth Mode], see [Bluetooth

Settings] (page 49).

30

GB

Listening to Sound of the

Connected TV or Device from Headphones or

Speakers

You can listen to sound of the connected TV or device from

BLUETOOTH-compatible headphones or speakers by connecting it with the

BLUETOOTH function.

Listening to Sound by

Pairing with Headphones or

Speakers

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Bluetooth Settings] -

[Bluetooth Mode] - [Transmitter].

The system enters BLUETOOTH transmission mode.

4

Set the BLUETOOTH-compatible headphones or speaker to the pairing mode.

Refer to the operating instructions of the headphones or speaker for pairing method.

5

Select the name of the headphones or speaker from the

[Device List] in [Bluetooth

Settings].

When the BLUETOOTH connection is established, [Bluetooth device is connected.] appears. (The connected device name also appears.)

If you cannot find name of your headphones or speaker in [Device

List], select [Scan].

6

Return to the home menu and select the desired input.

The image of the selected input appears on the TV screen, “BT TX” appears in the front panel display, then the sound is output from the headphones or speaker.

No sound is output from the system.

For selecting input, see “Using the

Home Menu” (page 11).

7

Adjust the volume.

Adjust the volume level of the headphones or speaker first. When connected with headphones or speakers, the volume level of the headphones or speaker can be controlled with VOL +/– on the unit and

 +/– on the remote control.

To cancel pairing

Cancel pairing of the headphones or speaker in step 4.

To remove a registered device from the device list

1

Follow steps 1 to 5 of “Listening to

Sound by Pairing with Headphones or

Speakers.”

2

Select the name of the headphones or speaker, and then press OPTIONS.

3

Select [Remove].

4

Follow the on-screen instructions to delete the desired headphones or speaker from the device list.

31

GB

Listening to Sound with

Paired Headphones or

Speakers

1

Press HOME.

The home menu appears on the TV screen.

2

Select the desired input.

For selecting input, see “Using the

Home Menu” (page 11).

3

Set the BLUETOOTH function of the headphones or speaker to on.

4

Press RX/TX on the remote control.

[Bluetooth Mode] is set to

[Transmitter] and “BT TX” appears in the front panel display.

The system automatically reconnects to the headphones or speaker it was most recently connected to, then the sound is output from the headphones or speaker.

No sound is output from the system.

5

Adjust the volume.

Adjust the volume level of the headphones or speaker. You can also adjust volume level of the headphones or speaker with

 +/– on the remote control.

To disconnect the headphones or speaker

Perform any of the following items.

– Disable the BLUETOOTH function on the headphones or speaker.

– Press RX/TX.

– Turn off the system, or the headphones or speaker.

– Select the device name of the connected headphones or speaker from [Setup] - [Bluetooth Settings] -

[Device List].

About the Connection of the

Headphones or Speaker

• You may not be able to adjust the volume level depending on the

BLUETOOTH-compatible headphones or speaker.

• [Screen mirroring], [Bluetooth Audio], and Home Theatre Control function are disabled when [Bluetooth Mode] is set to [Transmitter].

• When input of [Bluetooth Audio] or

[Screen mirroring] is selected, you cannot set [Bluetooth Mode] to

[Transmitter]. You cannot switch it with RX/TX on the remote control neither.

• You can register up to 9 BLUETOOTH devices. If a 10th BLUETOOTH device is registered, the least recently connected BLUETOOTH device will be replaced by the new one.

• The system can display up to 15 detected BLUETOOTH device in the

[Device List].

• You cannot change the sound effect or settings in the options menu while transmitting sound to the

BLUETOOTH-compatible headphones or speaker.

• Some content may not be output due to content protection.

• Playback of audio/music on the

BLUETOOTH device is delayed compared to that on the unit due to the characteristics of BLUETOOTH wireless technology.

• You can enable or disable the reception of AAC or LDAC audio from

the BLUETOOTH device (page 50).

32

GB

Enjoying with the Network

Function

Listening to Music on your PC via a Home

Network

You can play music files stored on your

PC via your home network.

Music files can be played by operating on the on-screen display (OSD) of the system or dedicated app SongPal on a mobile device such as a smartphone or tablet.

Preparing the Home

Network

1

Connect the system to a network.

See “Connecting to a Wired

Network” (page 17) and

“Connecting to a Wireless Network”

(page 19).

2

Connect the PC to a network.

For details, refer to the operating instructions of the PC.

3

Set the PC.

To use the PC on your home network, you need to set the PC as the server. For details, refer to the operating instructions of the PC.

Tip

See [Setup] - [Network Settings] -

[Network Connection Status] when checking the network connection status.

Listening to Music on a PC

PC

Wireless LAN router

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Home Network] from the home menu.

The device name on your home network appears on the TV screen.

3

Select the desired device -

[Music] - folder on which songs are stored - song.

The selected song is played and sound is output from the system.

4

Adjust the volume.

• Adjust the volume by pressing

+/– on the remote control.

• Adjust the subwoofer volume by pressing SW

 +/– on the remote

control (page 26).

Tips

You can view photos stored on the PC by selecting

[Photo] in step 3.

• You can perform various operations from

the options menu (page 55).

33

GB

Listening to Music on a PC by

Using SongPal

PC

Wireless LAN router

Smartphone or tablet

You can play music files stored on the

PC by operating the dedicated app

SongPal that is downloaded to a mobile device such as a smartphone or tablet.

For details of SongPal, see “What You can Do with SongPal” (page 35) or the

following URL.

http://info.songpal.sony.net/help/

Listening to Music on

Music Services

You can listen to music services offered on the Internet with this system. To use this function, the system must be connected to the Internet.

1

Press HOME.

The home menu appears on the TV screen.

2

Select [ Music Services] from the home menu.

The music services list appears on the TV screen.

3

Select the desired music service.

The guide for enjoying the music service appears on the TV screen.

Follow the guide to enjoy the music services.

Tip

You can update the service provider list by pressing OPTIONS and selecting [Update

Services] in step 2 .

34

GB

Listening to Music on the

Mobile Device with

SongPal

What You can Do with

SongPal

SongPal is an application for controlling compatible Sony audio devices using your smartphone/iPhone.

Search for SongPal at Google Play™ or the App Store and download it onto your smartphone/iPhone.

For details about SongPal, refer to the following URL.

http://info.songpal.sony.net/help/

Downloading SongPal on to your smartphone/iPhone provides the following.

Sound settings of the system

You can easily customize your sound, or use the [ClearAudio+] setting recommended by Sony.

Music service

You can configure the initial settings to use music services*.

* Depending on the country and region, music services and their period of availability may differ.

An update of the device may be required.

When using Google Cast™ on music

service, see “Using Google Cast”

(page 36).

Enjoying music on your home network

You can play music stored in your PC or home network server over your network.

Enjoying music on the USB device

You can play music on a device connected to the (USB) port on the unit.

Note

What you can control with SongPal varies depending on the connected device. The specification and design of the application may change without notice.

Using SongPal

1

Download the free SongPal app to the mobile device.

2

Connect the system and mobile device with the BLUETOOTH

function (page 28) or network

function (page 17).

3

Start SongPal.

4

Operate by following the SongPal screen.

Notes

• Before using SongPal, be sure to set the

[Bluetooth Mode] to [Receiver] (page 49).

• Use SongPal of the latest version.

Tips

• You can connect the system and mobile

device with the NFC function (page 29).

• When connecting with the network function, connect the mobile device to the same network as that of the system.

35

GB

Using Google Cast

Google Cast allows you to select music content from the Google Cast-enabled app and play back on the unit.

Google Cast requires the initial setup using SongPal.

1

Download the free SongPal app to the mobile device.

2

Connect the device by Wi-Fi to the same network as that of the

system (page 19).

3

Start SongPal, select the system, and tap [Settings] - [Google Cast] -

[Learn how to Cast].

4

Check the operation and Google

Cast-enabled apps, and download the app.

5

Start the Google Cast-enabled app, tap the cast button, and select the system.

Listening to Music by

Connecting the SongPal

Link-Compatible Device

You can enjoy music in any room or listen to music in surround sound by using the system with the SongPal Linkcompatible wireless speaker.

Listening to the Same Music in Different Rooms (Wireless

Multi Room)

You can listen to your music stored in your PCs or smartphones and furthermore, music from network services, in different rooms with ultimate sound quality.

You can operate with the SongPal app that is installed on a smartphone/ iPhone. To use multiple SongPalcompatible devices, connect them to the same wireless LAN.

To perform setting on SongPal

Perform the setting by following the help on SongPal.

Tip

For details about SongPal, see “What You can Do with SongPal” (page 35).

6

Select and play music on the

Google Cast-enabled app.

The music is played on the system.

Note

You cannot use Google Cast while “google cast updating” is shown on the front panel display of the unit. Wait until the update is complete, and then try again.

36

GB

Adding Rear Speakers

(Wireless Surround)

You can add wireless speakers manufactured by Sony (not supplied) as the surround speakers of the system.

For details about applicable speakers, refer to the following URL.

http://sony.net/nasite/

Note

The wireless surround function will be available with the system version

M34.R.2000 or later and the wireless speaker version 2.00 or later. If you cannot set the wireless surround function, version of the system or wireless speaker may not be the latest version. To check the system

version information, see [System

Information] (page 52). For details about

the updating method of the system, see

[Software Update] (page 48).

For details about the updating method of the wireless speaker, refer to the operating instructions of the wireless speaker.

To perform the setting on the system

1

Install the applicable speakers, and turn them on.

2

Press HOME.

The home menu appears on the TV screen.

3

Select [Setup] from the home menu.

The setup display appears on the TV screen.

4

Select [Wireless Surround

Settings].

5

Perform the setting by following the on-screen instructions.

To perform the setting on

SongPal

1

Install the applicable speakers, and turn them on.

2

Select the system on SongPal, then perform the setting by following the instructions on

SongPal.

Note

The SongPal settings are effective with the

SongPal version 4.0 or later. For details

about SongPal downloading, see “Using

SongPal” (page 35).

37

GB

Displaying the Screen of the Mobile Device on a TV

(MIRRORING)

[Screen mirroring] is a function to display the screen of a mobile device on the TV by Miracast technology.

The system can be connected directly with a Screen mirroring-compatible device (e.g. smartphone, tablet). You can enjoy using the display screen of the device on your large TV screen. No wireless router (or access point) is required to use this feature.

MIRRORING

Notes

• When using Screen mirroring, the quality of picture and sound may sometimes be deteriorated due to interference from other networks.

• Depending on the usage environment, the quality of the picture and sound may be deteriorated.

• Some network functions may not be available during Screen mirroring.

• Make sure that your device is compatible with Miracast. Connectivity with all

Miracast compatible devices is not guaranteed.

Canceling Screen Mirroring

Press HOME or BACK.

HOME

BACK

1

Press MIRRORING.

2

Follow the on-screen instructions on the TV screen.

Activate the Screen mirroring function from your mobile device.

The screen of the mobile device appears on the TV screen.

Tips

• You can select [Screen mirroring] from the home menu in step 1.

• You can improve the playback stability by

setting [Screen mirroring RF Setting]

(page 53).

38

GB

Using the Various Functions/

Settings

Performing the Wireless

Connection of the

Subwoofer (LINK)

Perform the wireless connection of the subwoofer again for a better connection.

Power indicator

LINK

3

Select [System Settings] -

[Wireless Subwoofer Connection]

- [Link].

The [Link] screen appears on the TV screen.

4

Press LINK on the rear of the subwoofer.

The power indicator of the subwoofer flashes in green.

Proceed to the next step within 1 minute.

5

Select [Start].

The link setting starts.

To return to the previous display, select [Cancel].

6

Complete the link setting by following the on-screen message.

The power indicator of the subwoofer lights in green.

Notes

• If the message [Cannot set Link.] appears, follow the on-screen instructions.

• When [Bluetooth Mode] is set to

[Transmitter] and the BLUETOOTH device is connected to the system, the wireless subwoofer connection cannot be established.

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

39

GB

Playing Compressed

Audio Files with Natural

Sound Quality

This function enhances the sound quality of compressed audio files by restoring high-range sound removed by the compression process. You can enjoy listening to sound close to its original, natural and spatial sound.

This function is only available when

[Music] is selected as the sound field

(page 24).

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Audio Settings] - [DSEE].

4

Select [On].

Notes

• This function is compatible with

2-channel digital input signals of 44.1 kHz or 48 kHz sampling frequency.

• The sampling frequency/bit depth after upscaling is up to 96 kHz/24 bit.

• This function is not compatible with DSD signals.

• This function does not work when

[Analog] is selected.

Enjoying Multiplex

Broadcast Sound (AUDIO)

You can enjoy multiplex broadcast sound when the system receives a

Dolby Digital multiplex broadcast signal.

AUDIO

1

Press AUDIO.

The audio signal appears in the front panel display.

2

Press the button repeatedly to select the desired audio signal.

Audio signal Explanation

“MAIN”

“SUB”

“MN/SB”

Sound of the main language will be output.

Sound of the sub language will be output.

Mixed sound of both the main and sub languages will be output.

Notes

• To receive a Dolby Digital signal, you need to connect a TV or other devices to the TV IN (OPTICAL) jack with the optical digital cable (not supplied).

• If your TV’s HDMI IN jack is compatible with the Audio Return Channel function

(page 44), you can receive a Dolby Digital

signal via HDMI cable.

40

GB

Deactivating Buttons on the Unit

You can deactivate buttons on the unit for preventing misoperation, such as child mischief (Child lock function).

Changing the Brightness of the Front Panel

Display and BLUETOOTH

Indicator (DIMMER)

You can change the brightness of the front panel display and BLUETOOTH indicator.

DIMMER

Press VOL –, VOL +, and VOL – in order while pressing and holding INPUT on the unit.

“LOCK” appears in the front panel display, and buttons on the unit do not work.

You can only operate the unit by using the remote control.

Canceling the Child Lock

Function

Press VOL –, VOL +, and VOL – in order while pressing and holding INPUT on the unit.

“UNLCK” appears in the front panel display, and the child lock function is canceled.

Note

 (power) is not locked with the child lock function.

1

Press DIMMER.

The display mode appears in the front panel display.

2

Press the button repeatedly to select the desired display mode.

Mode

“BRIGHT”

“DARK”

“OFF”

Explanation

The front panel display and BLUETOOTH indicator light brightly.

The front panel display and BLUETOOTH indicator light darkly.

The front panel display is turned off.

41

GB

Note

The front panel display is turned off when

“OFF” is selected. It turns on automatically when you press any button, then turns off again if you do not operate the system for about 10 seconds. However, in some cases, the front panel display may not turn off. In this case, the brightness of the front panel display is same as “DARK.”

Saving Power in Standby

Mode

Check that you have made the following settings:

– [Bluetooth Standby] is set to [Off]

(page 50).

– [Standby Through] is set to [Off]

(page 51).

– [Quick Start/Network Standby] is set

to [Off] (page 52).

– [Remote Start] is set to [Off] (page 53).

42

GB

Using the Control for

HDMI Function

Connecting a device such as a TV or Bluray Disc recorder compatible with the

Control for HDMI function* by HDMI cable enables you to easily operate the device by a TV remote control.

The following functions can be used with the Control for HDMI function.

• System Power Off function

• System Audio Control function

• Audio Return Channel

• One-Touch Play function

• Remote Easy Control

• HDMI Standby Through power saving setting

Note

These functions may work with devices other than those manufactured by Sony, but operation is not guaranteed.

* Control for HDMI is a standard used by

CEC (Consumer Electronics Control) for allowing HDMI (High-Definition

Multimedia Interface) devices to control each other.

Preparing to Use the Control for HDMI Function

Turn [System Settings] - [HDMI Settings]

- [Control for HDMI] on the system to

[On] (page 51). The default setting is

[On].

Enable the Control for HDMI function settings for the TV and other device connected to the system.

Tip

If you enable the Control for HDMI

("BRAVIA" sync) function when using a TV manufactured by Sony, the Control for

HDMI function of the system is also enabled automatically. When settings are completed, “DONE” appears in the front panel display.

System Power Off Function

When you turn off the TV, the system and the connected device will turn off automatically.

Set [System Settings] - [HDMI Settings] -

[Standby Linked to TV] on the system to

[On] or [Auto] (page 51). The default

setting is [Auto].

Note

The connected device may not turn off depending on the status of the device.

System Audio Control

Function

If you turn on the system while you are watching the TV, the TV sound will be output from the speakers of the system.

The volume of the system can be adjusted using the TV’s remote control.

If the TV sound was output from the speakers of the system the previous time you watched the TV, the system will be turned on automatically when you turn on the TV again.

Operations can also be made by the

TV’s menu. For details, refer to the operating instructions of your TV.

Notes

• Sound is only output from the TV if other than [TV], [HDMI1], [HDMI2] or [HDMI3] input is selected when using the Twin

Picture function on the TV. When you disable the Twin Picture function, the sound is output from the system.

• The number for the system’s volume level is displayed on the TV screen depending on the TV. The volume number displayed on the TV may differ from the number on the front panel display of the system.

43

GB

• Depending on the settings of the TV, the

System Audio Control function may not be available. For details, refer to the operating instructions of your TV.

Audio Return Channel

If the system is connected to a TV’s

HDMI IN jack compatible with Audio

Return Channel, you can listen to TV sound from the speakers of the system without connecting an optical digital cable.

On the system, turn [System Settings] -

[HDMI Settings] - [Audio Return

Channel] to [Auto] (page 51). The default

setting is [Auto].

Note

If the TV is not compatible with Audio

Return Channel, the optical digital cable

(not supplied) needs to be connected (refer to the supplied Startup Guide).

One-Touch Play Function

When you play content on a device (Bluray Disc recorder, “PlayStation

®

4,” etc.) connected to the system, the system and TV are turned on automatically, the input of the system is switched to the input for the device played, and sound is output from the speakers of the system.

Notes

• If [System Settings] - [HDMI Settings] -

[Standby Through] on the system is set to

[On] or [Auto] and the TV sound was output from the speakers of the TV the previous time you watched the TV, the system does not turn on and the sound and picture are output from the TV even if

device content is played (page 51).

• Depending on the TV, the beginning part of content being played may not play correctly.

Remote Easy Control

You can operate the system by selecting the system from the TV’s Sync Menu.

This function can be used if the TV supports the Sync Menu. For details, refer to the operating instructions of your TV.

Notes

• In the TV’s link menu, the system is recognized by the TV as “Player.”

• Some operations may not be available with some TVs.

HDMI Standby Through

Power Saving Setting

HDMI Standby Through power saving

setting (page 51) is a function that

allows you to enjoy the sound and picture of a connected device without turning on the system.

Set [System Settings] - [HDMI Settings] -

[Standby Through] to [Auto] (page 51).

The default setting is [Auto].

Note

If the picture of a device connected to the system is not displayed on the TV, set

[Standby Through] to [On]. If you connect a

TV other than those manufactured by

Sony, we recommend you to select this setting.

44

GB

Using the “BRAVIA” Sync

Function

In addition to the Control for HDMI function, you can also use the following functions on devices compatible with the “BRAVIA” sync function.

• Scene Select function

• Home Theatre Control

• Echo Canceling function

• Language Follow

Note

These functions are proprietary functions of Sony. This function cannot operate with products other than those manufactured by Sony.

Echo Canceling Function

Echo is reduced when you use Social

Viewing function such as Skype while watching TV programs. This function can be used if the TV supports Social

Viewing function. For details, refer to the operating instructions of your TV.

Notes

• If the input of the system is [HDMI1],

[HDMI2] or [HDMI3] when using the Social

Viewing function, the input is automatically changed to [TV]. Sound of the Social Viewing and TV program is output from the speakers of the system.

• Sound is only output from the speaker of the TV if the input of the system is other than [TV], [HDMI1], [HDMI2] or [HDMI3] when using the Social Viewing function.

• This function cannot be used when sound is output from the TV.

Scene Select Function

The sound field of the system is automatically switched according to the

TV’s Scene Select function settings. For details, refer to the operating instructions of your TV.

Set the sound field to [ClearAudio+]

(page 24).

Language Follow

When you change the language for the on-screen display of the TV, the system’s on-screen display language is also changed.

Home Theatre Control

Function

When using a TV compatible with the

Home Theatre Control function, setting the system, setting the sound field settings, input switching, etc. can be done without switching the TV input.

This function can be used when the TV is connected to the Internet. For details, refer to the operating instructions of your TV.

Notes on HDMI connections

• Use an HDMI cable (High Speed HDMI

Cable with Ethernet or Premium High

Speed HDMI Cable with Ethernet). If you use a standard HDMI cable, 1080p,

3D, and 4K content may not be displayed properly.

• Use an HDMI-authorized cable.

• Use a Sony High Speed HDMI Cable with Ethernet with the Type Logo.

• We do not recommend using an

HDMI-DVI conversion cable.

• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected device.

45

GB

• Sound may be interrupted when the sampling frequency or the number of channels of audio output signals from the playback device is switched.

• When [TV] input is selected, video signals via one of the HDMI IN 1/2/3 jacks selected last time are output from the HDMI OUT (ARC) jack.

• This system supports “TRILUMINOS,”

ITU-R BT.2020, HDR (High Dynamic

Range), 3D, and 4K transmission.

46

GB

Using the Setup Display

You can make various adjustments to items such as picture and sound.

The default settings are underlined.

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select the setting item.

Setting item Explanation

[Software Update] Updates the software of the system. (page 48)

[Screen Settings]

Makes the screen settings according to the type of TV. (page 48)

[Audio Settings]

Makes the audio settings according to the type of connection

jacks. (page 49)

[Bluetooth

Settings]

Makes detailed settings for the BLUETOOTH function. (page 49)

[Wireless Surround

Settings]

Makes setting for the wireless surround function. (page 50)

[System Settings]

Makes the system-related settings. (page 51)

[Network Settings] Makes detailed settings for the Internet and home network.

(page 53)

[Input Skip

Setting]

[Easy Setup]

Sets the input skip setting for each input. (page 53)

Re-runs the Easy Setup to make the basic settings. (page 54)

[Resetting]

Resets the system to the factory default settings. (page 54)

47

GB

[Software Update]

By updating your software to the latest version, you can take advantage of the newest functions.

For information about update functions, visit the following website: www.sony.eu/support

Notes

• An Internet environment is necessary to perform updates via Internet.

• During a software update, “UPDT” appears in the front panel display. After the update is complete, the system automatically reboots. While the updating operation is in progress, do not turn on or off the system or operate the system or TV. Wait for the software update to complete.

• Set [Auto Update] to [On] when you want to perform software updates

automatically (page 52). Software update

may be performed even if you select [Off] in [Auto Update] depending on the details of the updates.

[Update via Internet]

Updates the system’s software using the available network. Follow the instructions on the screen. Make sure network is connected to the Internet.

[Update via USB Memory]

Updates software using USB memory.

Make sure that the software update folder is correctly named “UPDATE.”

[Screen Settings]

[TV Type]

[16:9]: Select this when connecting to a wide-screen TV or a TV with a widemode function.

[4:3]: Select this when connecting to a

4:3 screen TV without a wide-mode function.

[Output Video Resolution]

[Auto]: Outputs video signal according to the resolution of the TV or connected device.

[480i/576i]*, [480p/576p]*, [720p],

[1080i], [1080p]: Outputs video signal according to the selected resolution setting.

* If the color system of the playback content is NTSC, the video signals resolution can be converted to [480i] and

[480p] only.

[24p Output]

[Network content 24p Output]

This function sets the signals output from the HDMI OUT (ARC) jack on the system when using the Screen mirroring function.

[Auto]: Outputs 24p video signals only when you connect a 1080/24pcompatible TV via an HDMI connection and the [Output Video Resolution] is set to [Auto] or [1080p].

[Off]: Select this when your TV is not compatible with 1080/24p video signals.

[4K Output]

[Auto1]: Outputs 2K video signals during

Screen mirroring and 4K video signals during photo playback when connected to a 4K-compatible device manufactured by Sony.

[Auto2]: Outputs 4K video signals during 24p content playback with

Screen mirroring or photo playback when you connect a 4K/24p-compatible device.

[Off]: Turns off the function.

Notes

• If your device manufactured by Sony is not detected when [Auto1] is selected, the setting will have the same effect as

[Auto2] setting.

• [Network content 24p Output] in [24p

Output] needs to be set appropriately for

[Auto2].

48

GB

[YCbCr/RGB (HDMI)]

[Auto]: Automatically detects the type of external device, and then switches to the matching color setting.

[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video signals.

[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video signals.

[RGB]: Select this when connecting to a device with an HDCP compliant DVI jack.

[Video Direct]

You can disable the On-Screen Display

(OSD) of the system when [HDMI1],

[HDMI2] or [HDMI3] input is selected.

This function is useful when playing a game, you can fully enjoy the game’s screen.

[On]: Disables the OSD. Information will not display on the TV screen and the

OPTIONS and DISPLAY buttons will not work.

[Off]: Displays information on the TV screen only when you change the settings, such as when selecting the sound field.

[SBM] (Super Bit Mapping)

[On]: Smooths the gradation of video signals output from the HDMI OUT (ARC) jack.

[Off]: Select this if video signals are distorted or color is unnatural.

[Auto]: Automatically compresses sound encoded in Dolby TrueHD.

[On]: The system reproduces the sound track with the kind of dynamic range that the recording engineer intended.

[Off]: No compression of dynamic range.

[Attenuation settings - Analog]

Distortion may occur when you listen to a device connected to the ANALOG IN jacks. You can prevent distortion by attenuating the input level on the system.

[On]: Attenuates the input level. The output level will decrease at this setting.

[Off]: Normal input level.

[Audio Output]

You can select the output method used for audio signal output.

[Speaker]: Outputs multi-channel sound from the system’s speakers only.

[Speaker + HDMI]: Outputs multichannel sound from the system’s speakers and 2-channel linear PCM signals from the HDMI OUT (ARC) jack.

[HDMI]: Outputs sound from the HDMI

OUT (ARC) jack only. Sound format depends on the connected device.

Note

When [Control for HDMI] is set to [On]

(page 51), [Audio Output] is set to

[Speaker + HDMI] automatically and this setting cannot be changed.

[Audio Settings]

[DSEE]

This function is only available when

[Music] is selected as the sound field.

[On]: Enhances sound quality by

restoring high-range sound (page 40).

[Off]: Off

[Audio DRC]

You can compress the dynamic range of the sound track.

[Bluetooth Settings]

[Bluetooth Mode]

You can enjoy content from a

BLUETOOTH device by using this system or listen to sound from this system by using BLUETOOTH-compatible headphones or speaker.

[Receiver]: This system is in receiver mode, which enables it to receive and

49

GB

output audio from the BLUETOOTH device.

[Transmitter]: This system is in transmitter mode, which enables it to send audio to the BLUETOOTHcompatible headphones or speaker. If you switch the input of the system, “BT

TX” appears on the front panel display.

[Off]: The BLUETOOTH function is turned off and you cannot select the [Bluetooth

Audio] input.

Note

You can connect to a

BLUETOOTH

device by using the One-touch function even if you have set [Bluetooth Mode] to [Off].

[Device List]

Displays a list of paired and detected

BLUETOOTH devices (SNK device) when

[Bluetooth Mode] is set to [Transmitter].

[Bluetooth Standby]

You can set the [Bluetooth Standby] so that the system can be turned on by a

BLUETOOTH device even when the system is in standby mode. This function is only available when you set

[Bluetooth Mode] to [Receiver] or

[Transmitter].

[On]: The system turns on automatically when you request a BLUETOOTH connection from a paired BLUETOOTH device.

[Off]: Off

[Bluetooth Codec - AAC]

This function is only available when you set [Bluetooth Mode] to [Receiver] or

[Transmitter].

[On]: Enable AAC codec.

[Off]: Disable AAC codec.

Notes

• You can enjoy high-quality sound if AAC is enabled and your device supports AAC.

• When connecting BLUETOOTHcompatible headphones or speakers, this setting cannot be changed.

[Bluetooth Codec - LDAC]

This function is only available when you set [Bluetooth Mode] to [Receiver] or

[Transmitter].

[On]: Enable LDAC codec.

[Off]: Disable LDAC codec.

Notes

• You can enjoy more high-quality sound if

LDAC is enabled and your device supports

LDAC.

• When connecting BLUETOOTHcompatible headphones or speakers, this setting cannot be changed.

[Wireless Playback Quality]

You can set the transmission data rate of LDAC playback. This function is only available when you set [Bluetooth

Mode] to [Transmitter] and [Bluetooth

Codec - LDAC] to [On].

[Auto]: The data transfer rate is automatically changed depending on the environment. If audio playback is unstable in this mode, use the other three modes.

[Sound Quality]: The highest bit rate is used. Sound is sent in a higher quality; however, audio playback sometimes may become unstable when the link quality is not good enough.

[Standard]: The middle bit rate is used. It balances both sound quality and playback stability.

[Connection]: Stability is prioritized.

Sound quality may be reasonable and connection status will most likely be stable. If the connection is unstable, this setting is recommended.

[Wireless Surround

Settings]

This setting is for using wireless speakers (not supplied) as the surround speakers of the system. For details, see

“Adding Rear Speakers (Wireless

Surround)” (page 37).

50

GB

[System Settings]

[OSD Language]

You can select the language you want for the system on-screen display.

[Wireless Subwoofer Connection]

You can perform wireless connection of the subwoofer again. For details, see

“Performing the Wireless Connection of the Subwoofer (LINK)” (page 39).

[HDMI Settings]

• [Control for HDMI] (page 43)

[On]: The Control for HDMI function is enabled. Devices connected with an

HDMI cable can control each other.

[Off]: Off

• [Standby Linked to TV] (page 43)

This function is available when you set

[Control for HDMI] to [On].

[Auto]: If the input of the system is

[TV], [HDMI1], [HDMI2], [HDMI3], or

[Screen mirroring], the system turns off automatically when you turn off the TV.

[On]: The system turns off automatically when you turn off the TV regardless of the input.

[Off]: The system does not turn off when you turn off the TV.

• [Audio Return Channel] (page 44)

Set this function when the system is connected to a TV’s HDMI IN jack that is compatible with Audio Return

Channel. The function is available when you set [Control for HDMI] to

[On].

[Auto]: You can listen to TV sound from the speakers of the system.

[Off]: Use this setting when an optical digital cable is connected.

• [Standby Through] (page 44)

This function is available when you set

[Control for HDMI] to [On].

[Auto]: Signals are output from the system’s

HDMI OUT (ARC) jack when the TV is turned on while the system is not turned on. The system standby power consumption can be reduced more than when set to [

On].

[ On]: Signals are always output from the system’s

HDMI OUT (ARC) jack when the system is not turned on. If you connect a TV other than those manufactured by Sony, we recommend that you select this setting.

[

Off]: Signals are not output from the system’s HDMI OUT (ARC) jack when the system is not turned on. Turn on the system to enjoy on the TV content of a device connected to the system.

The system standby power consumption can be reduced more than when set to [ On].

• [HDMI Signal Format]

When you display High-Quality 4K format* with the HDMI input, perform this setting.

[Standard format]: Standard format for normal use.

[Enhanced format]: High-Quality HDMI format. Set only when using capable devices.

Notes

• Select [Enhanced format] only when the connected device and TV support High-

Quality 4K* format.

• Depending on the TV, the TV setting may be required. Refer to the operating instructions of the TV.

• The picture may not be displayed properly if this setting is changed. In this case, change this setting to [Standard format].

• When watching 4K picture with High-

Quality*, use a Premium High Speed

HDMI cable that supports speeds of 4K

60p 18Gbps.

* 4K 60p 4:4:4, 4:2:2, 4K 60p 4:2:0 10

bit, etc. For details, see “Supported

Input Video Formats” (page 68).

51

GB

[Quick Start/Network Standby]

[On]: Shortens the startup time from standby mode. You can operate the system quickly after turning it on.

[Off]: Off

[Auto Standby]

[On]: Turns on the [Auto Standby] function. When you do not operate the system for about 20 minutes, the system enters standby mode automatically.

[Off]: Off

[Auto Display]

[On]: Automatically displays information on the TV screen when changing the audio signals, picture mode, etc.

[Off]: Displays information only when you press DISPLAY.

[Software Update Notification]

[On]: Sets the system to inform you of latest software version information

(page 48).

[Off]: Off

[Auto Update Settings]

[Auto Update]

[On]: Software update is automatically executed between 2 a.m. and 5 a.m. local time in the selected [Time Zone] while this system is not in use. If you select [Off] in [Quick Start/Network

Standby], software update is performed after you turn off the system.

[Off]: Off

[Time Zone]

Select your country/region.

Notes

• Software update may be performed even if you select [Off] in [Auto Update] depending on the details of the updates.

• Software update is performed automatically within 11 days of a new software release.

[Device Name]

You can change the name of this system according to your preference so that it is more recognizable when using the

[Bluetooth Audio] or [Screen mirroring] function. The name is also used with other networks, such as the home network. Follow on-screen instructions and use the software keyboard to enter the name.

[System Information]

You can display the system’s software version information and the MAC address.

[Software License Information]

You can display the Software License

Information.

52

GB

[Network Settings]

[Internet Settings]

Connect the system to the network beforehand.

[Wired Setup]: Select this when you connect to a broadband router using a

LAN cable.

[Wireless Setup]: Select this when you use the built-in Wi-Fi function of the system to connect to a wireless network.

Tip

For further details, visit the following website and check the FAQ: www.sony.eu/support

[Network Connection Status]

Displays the current network connection status.

[Network Connection Diagnostics]

You can run the network diagnostic to check if the network connection has been made properly.

[Screen mirroring RF Setting]

If you use multiple wireless systems, such as a wireless LAN, the wireless signals may be unstable. In this case, playback stability may be improved by setting the priority radio frequency channel for Screen mirroring.

[Auto]: Normally select this. The system automatically selects the best channel for Screen mirroring.

[CH 1]/[CH 6]/[CH 11]: The selected channel is prioritized for Screen mirroring connection.

[Connection Server Settings]

Sets whether or not to display the connected home network server.

[Auto Home Network Access

Permission]

[On]: Allows automatic access from a newly detected home network controller.

[Off]: Off

[Home Network Access Control]

Displays a list of home network controller-compatible products and sets whether or not to accept commands from the controllers in the list.

[External Control]

[On]: Allows the home automation controller to operate this system.

[Off]: Off

[Remote Start]

[On]: Allows you to turn on the system by a device linked via a network when the system is in standby mode.

[Off]: The system cannot be turned on by a device linked via a network.

[Input Skip Setting]

The skip setting is a convenient feature that allows you to skip unused inputs when selecting a function by pressing

INPUT +/–.

[Do not skip]: The system does not skip the selected input.

[Skip]: The system skips the selected input.

Note

When you press INPUT +/– during the home menu is displayed, input icon appears dimmed if it has been set to [Skip].

Tip

You can perform [Input Skip Setting] from

the options menu (page 55).

53

GB

[Easy Setup]

Run [Easy Setup] to make the basic initial settings and the basic network settings for the system. Follow the onscreen instructions.

[Resetting]

[Reset to Factory Default Settings]

You can reset the system settings to the factory default by selecting the group of settings. All the settings within the group will be reset.

[Initialize Personal Information]

You can erase your personal information stored on the system.

Note

If you dispose, transfer or resell this system, please delete all Personal

Information for security purposes. Please take appropriate measures such as logging out after using a network service.

54

GB

Options Menu List

Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.

Item

[A/V SYNC]

[Sound Field]

[Night]

[Voice]

[Input Skip Setting]

Explanation

Adjusts the time gap between picture and sound. Sound output can be

delayed (page 26).

Changes the sound field setting (page 24).

Selects the night mode (page 25).

Selects the voice mode (page 25).

[Input Label]

[Repeat Setting]

[Play/Stop]

Skips unused inputs when selecting a function by pressing INPUT +/–

(page 53).

Changes the input name of [HDMI1]. [HDMI2], or [HDMI3] that is

displayed on the home menu (page 21).

Sets repeat playback.

Starts or stops playback.

[Play from start]

[Shuffle Setting]

Plays the item from the beginning.

Sets shuffle playback.

[Add Slideshow BGM]

Registers music files on the USB memory as slideshow background music (BGM).

[Slideshow]

[Slideshow Speed]

[Slideshow Effect]

[Slideshow BGM]

[Change Display]

[Rotate Left]

[Rotate Right]

[View Image]

Starts a slideshow.

Changes the slideshow speed.

Sets the effect when playing a slideshow.

• [Off]: Turns off the function.

• [My Music from USB]: Sets the music files registered in [Add

Slideshow BGM].

Switches between [Grid View] and [List View].

Rotates the photo counterclockwise by 90 degrees.

Rotates the photo clockwise by 90 degrees.

Displays the selected picture.

55

GB

Troubleshooting

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Be sure to bring both your unit and subwoofer, even if it seems as though only one has a problem, when you request to repair.

Power

The system does not power up.

 Check that the AC power cord (mains lead) is connected securely.

 Disconnect the AC power cord (mains lead) from the wall outlet (mains), and then reconnect after several minutes.

The system does not turn on even when the TV is turned on.

 Set [System Settings] - [HDMI

Settings] - [Control for HDMI] to [On]

(page 51). The TV must support the

Control for HDMI function (page 43).

For details, refer to the operating instructions of your TV.

 Check the speaker settings of the TV.

The system power syncs with the speaker settings of the TV. For details, refer to the operating instructions of your TV.

 If the sound was output from the speakers of the TV the previous time, the system does not turn on even when the TV is turned on.

The system turns off when the TV is turned off.

 Check the setting of [System Settings]

- [HDMI Settings] - [Standby Linked to

TV] (page 51). When [Standby Linked

to TV] is set to [On], the system turns off automatically when you turn off the TV regardless of the input.

The system does not turn off even when the TV is turned off.

 Check the settnig of [System Settings]

- [HDMI Settings] - [Standby Linked to

TV] (page 51). To turn the system off

automatically regardless of the input when you turn off the TV, set

[Standby Linked to TV] to [On]. The TV must support the Control for HDMI

function (page 43). For details, refer

to the operating instructions of your

TV.


There is no picture or the picture is not output correctly.

 Select the appropriate input (page 11).

 While pressing and holding INPUT, press VOL +, VOL –, VOL + on the unit in order to set the video output resolution setting to the lowest level.

 When there is no picture from the connected device or the picture from the connected device is not output correctly, set [System Settings] -

[HDMI Settings] - [HDMI Signal

Format] to [Standard format]

(page 51).

There is no picture when you make an HDMI cable connection.

 If you connect a device supporting

HDCP 2.2 be sure to connect the device to the HDMI IN jack and the TV to the HDMI OUT jack of the system.

 The system is connected to an input device that is not HDCP (Highbandwidth Digital Content

56

GB

Protection) compliant. In this case, check the specifications of the connected device.

 Disconnect the HDMI cable, then connect it again. Make sure that the cable is firmly inserted.

3D content from the HDMI IN 1/2/3 jack do not appear on the TV screen.

 Depending on the TV or video device,

3D content may not appear. Check the supported HDMI video format

(page 68).

4K content from the HDMI IN 1/2/3 jack do not appear on the TV screen.

 Depending on the TV or the video device, 4K content may not appear.

Check the video capability and settings of your TV and video device.

 Use an HDMI cable (High Speed HDMI

Cable with Ethernet or Premium High

Speed HDMI Cable with Ethernet).

An image is not displayed on the entire TV screen.

 Check the setting of [TV Type] in

[Screen Settings] (page 48).

 The aspect ratio on the media is fixed.

Images from the HDMI jack is distorted.

 Video from the device connected to the HDMI jack may be distorted. If this

happens, set [Video Direct] to [On]

(page 49).

Picture and sound are not output from the TV when the system is not turned on.

 Set on the system [System Settings] -

[HDMI Settings] - [Control for HDMI] to [On], and then set [Standby

Through] to [Auto] or [On] (page 51).

 Turn on the system, and then switch the input to that for the device playing.

 If connected to devices other than those manufactured by Sony that support the Control for HDMI function, set [System Settings] -

[HDMI Settings] - [Standby Through]

to [On] (page 51).

Sound

No TV sound is output from the system.

 Check the type and connection of the

HDMI cable, optical digital cable, or analog audio cable that is connected to the system and the TV (refer to the supplied Startup Guide).

 When the system is connected with a

TV compatible with Audio Return

Channel, make sure the system is connected to an ARC-compatible

HDMI input terminal of the TV (refer to the supplied Startup Guide). If sound is still not output or if sound is interrupted, connect the optical digital cable (not supplied) and set on the system [System Settings] - [HDMI

Settings] - [Audio Return Channel] to

[Off] (page 51).

 If your TV is not compatible with

Audio Return Channel, connect the optical digital cable (not supplied)

(refer to the supplied Startup Guide).

If the TV is not compatible with Audio

Return Channel, TV sound will not be output from the system even if the system is connected to the TV’s HDMI

IN jack.

 If sound is not output from the system even if the system and TV are connected by optical digital cable or if the TV does not have an optical digital sound output jack, connect an analog audio cable (not supplied) and set on the system [System Settings] -

[HDMI Settings] - [Audio Return

Channel] to [Off] (page 51).

 Switch input of the system to [TV]

(page 11).

 Increase the volume on the system or cancel muting.

57

GB

 If sound of a cable TV (CATV) box/ satellite tuner connected to the TV is not output, connect the device to a

HDMI IN jack of the system and switch input of the system to the input for the connected device (HDMI IN 1/2/3)

(refer to the supplied Startup Guide).

 Depending on the order in which you connect the TV and the system, the system may be muted and “MUTING” is displayed on the front panel display of the system. If this happens, turn on the TV first, then the system.

 Set the speakers setting of the TV

(BRAVIA) to Audio System. Refer to the operating instructions of your TV regarding how to set the TV.

Picture and sound are not output from the TV when the system is not turned on.

 Set on the system [System Settings] -

[HDMI Settings] - [Control for HDMI] to [On], and then set [Standby

Through] to [Auto] or [On] (page 51).

 Turn on the system, and then switch the input to that for the device playing.

 If connected to devices other than those manufactured by Sony that support the Control for HDMI function, set [System Settings] -

[HDMI Settings] - [Standby Through]

to [On] (page 51).

The sound is output from both the system and the TV.

 Mute the sound of the system or the

TV.

The TV sound from this system lags behind the image.

 Set [A/V SYNC] to 0 msec if it is set to the range between 25 msec and 300

msec (page 26).

No sound or only very low-level sound of the device connected to the system is heard.

 Press  + on the remote control and

check the volume level (page 9).

 Press  or  + on the remote control to cancel the muting function

(page 9).

 Make sure the input source is selected correctly. You should try other input sources by pressing

INPUT +/– on the remote control

several times (page 11).

 Check that all the cables and cords of the system and the connected device are firmly inserted.

 When you play content compatible with copyright protection technology

(HDCP), it may not be output from the system.

 Set [System Settings] - [HDMI

Settings] - [HDMI Signal Format] to

[Standard format] (page 51).

No sound or only very low-level sound is heard from the subwoofer.

 Press SW  + on the remote control to increase the subwoofer volume

(page 26).

 Make sure that the power indicator on the subwoofer is lit in green. If not,

see “No sound is heard from the subwoofer.” (page 61).

 The subwoofer is for reproducing bass sound. In the case of input sources that contain very little bass sound components (i.e., a TV broadcast), the sound from the subwoofer may be difficult to hear.

The surround effect cannot be obtained.

 Depending on the input signal and the sound field setting, surround sound processing may not work effectively. The surround effect may be subtle, depending on the program or disc.

58

GB

 To play multi-channel audio, check the digital audio output setting on the device connected to the system.

For details, refer to the operating instructions supplied with the connected device.

USB Device Connection

The USB device is not recognized.

 Try the following:

 Turn the system off.

 Remove and reconnect the USB device.

 Turn the system on.

 Make sure that the USB device is securely connected to the (USB)

port (page 22).

 Check to see if the USB device or a cable is damaged.

 Make sure that the USB device is on.

 If the USB device is connected via a

USB hub, disconnect it and connect the USB device directly to the system.

Mobile Device Connection

BLUETOOTH connection cannot be completed.

 Make sure that the BLUETOOTH

indicator of the unit is lit (page 29).

 Make sure the BLUETOOTH device to be connected with is turned on and the BLUETOOTH function is enabled.

 Bring this system and the

BLUETOOTH device closer together.

 Pair this system and the BLUETOOTH device again. You may need to cancel the pairing with this system using your BLUETOOTH device first.

 Pairing information may be deleted.

Perform pairing operation again

(page 28).

Pairing cannot be achieved.

 Bring this system and the

BLUETOOTH device closer together.

 Make sure this system is not receiving interference from a wireless LAN device, other 2.4 GHz wireless devices, or a microwave oven. If a device that generates electromagnetic radiation is nearby, move the device away from this system.

You cannot use the NFC function.

 The NFC function does not work with

BLUETOOTH-compatible headphones or speaker. To listen to sound using a

BLUETOOTH-compatible headphones

or speaker, see “Listening to Sound of the Connected TV or Device from

Headphones or Speakers” (page 31).

No sound is output from the connected BLUETOOTH device.

 Make sure that the BLUETOOTH

indicator of the unit is lit (page 29).

 Bring this system and the

BLUETOOTH device closer together.

 If a device that generates electromagnetic radiation, such as a wireless LAN device, other

BLUETOOTH devices, or a microwave oven is nearby, move the device away from this system.

 Remove any obstacle between this system and the BLUETOOTH device or move this system away from the obstacle.

 Reposition the connected

BLUETOOTH device.

 Switch the wireless LAN frequency of any nearby Wi-Fi router or PC to

5 GHz range.

 Increase the volume on the connected BLUETOOTH device.

59

GB

Headphones or Speaker

Connection

BLUETOOTH connection cannot be completed.

 Make sure that the BLUETOOTH

indicator of the unit is lit (page 6).

 Make sure the BLUETOOTH device to be connected with is turned on and the BLUETOOTH function is enabled.

 Bring this system and the

BLUETOOTH device closer together.

 Pair this system and the BLUETOOTH device again. You may need to cancel the pairing with this system using your BLUETOOTH device first.

 Pairing information may be deleted.

Perform pairing operation again

(page 28).

Pairing cannot be achieved.

 Bring this system and the

BLUETOOTH device closer together.

 Make sure this system is not receiving interference from a wireless LAN device, other 2.4 GHz wireless devices, or a microwave oven. If a device that generates electromagnetic radiation is nearby, move the device away from this system.

You cannot use the NFC function.

 The NFC function does not work with

BLUETOOTH-compatible headphones or speaker. To listen to sound using a

BLUETOOTH-compatible headphones

or speaker, see “Listening to Sound of the Connected TV or Device from

Headphones or Speakers” (page 31).

No sound is output from the connected BLUETOOTH device.

 Make sure that the BLUETOOTH

indicator of the unit is lit (page 29).

 Bring this system and the

BLUETOOTH device closer together.

 If a device that generates electromagnetic radiation, such as a wireless LAN device, other

BLUETOOTH devices, or a microwave oven is nearby, move the device away from this system.

 Remove any obstacle between this system and the BLUETOOTH device or move this system away from the obstacle.

 Reposition the connected

BLUETOOTH device.

 Switch the wireless LAN frequency of any nearby Wi-Fi router or PC to

5 GHz range.

 Increase the volume on the connected BLUETOOTH device.

 Set [Wireless Playback Quality] to

[Connection] (page 50).

Wired LAN Connection

The system cannot connect to the network.

 Check the network connection

(page 17) and the network settings

(page 53).

Wireless LAN Connection

You cannot connect your PC to the

Internet after [Wi-Fi Protected

Setup™ (WPS)] is performed.

 The wireless settings of the router may change automatically if you use the Wi-Fi Protected Setup function before adjusting the settings of the router. In this case, change the wireless settings of your PC accordingly.

The system cannot connect to the network or the network connection is unstable.

 Make sure the wireless LAN router is on.

60

GB

 Check the network connection

(page 19) and the network settings

(page 53).

 Depending on the usage environment (including the wall material), radio wave reception conditions, or obstacles between the system and the wireless LAN router, the possible communication distance may be shortened. Move the system and the wireless LAN router closer to each other.

 Devices that use a 2.4 GHz frequency band, such as a microwave,

BLUETOOTH, or digital cordless device, may interrupt communication. Move the unit away from such devices, or turn off such devices.

 The wireless LAN connection may be unstable depending on the usage environment, especially while using the BLUETOOTH function of the system. In this case, adjust the usage environment.

The wireless router you want is not shown in the wireless network list.

 Press BACK to return to the previous screen, and try [Wireless Setup] again

(page 19). If the wireless router you

want is still not detected, select [New connection registration] from the network list, then select [Manual registration] to input a network name

(SSID) manually.

Subwoofer

No sound is heard from the subwoofer.

 If the power indicator on the subwoofer does not light, try the following.

– Make sure the AC power cord

(mains lead) of the subwoofer is connected properly.

– Press

 (power) of the subwoofer to turn on the power.

 If the power indicator on the subwoofer flashes slowly in green or lights in red, try the following.

– Move the subwoofer to a location near the unit so that the power indicator on the subwoofer lights in green.

– Follow the steps in “Performing the

Wireless Connection of the

Subwoofer (LINK)” (page 39).

 If the power indicator on the subwoofer flashes in red, press

(power) of the subwoofer to turn off the power and check whether the ventilation opening of the subwoofer is blocked or not.

 The subwoofer is designed for playback of bass sound. When the input source does not contain much bass sound, as is the case with most

TV programs, the bass sound may not be audible.

 Press SW  + on the remote control to increase the volume of the

subwoofer (page 26).

 Set the night mode to [Off]. For

details, see “Enjoying Clear Sound with Low Volume at Midnight

(NIGHT)” (page 25).

Sound skips or has noise.

 If there is a device nearby that generates electromagnetic waves, such as a wireless LAN or a microwave oven in use, locate the system apart from it.

61

GB

 If there is an obstacle between the unit and the subwoofer, move or remove it.

 Locate the unit and the subwoofer as close as possible.

 Switch the wireless LAN frequency of any nearby Wi-Fi router or PC to

5 GHz range.

 Switch the network connection of the

TV or Blu-ray Disc Player from wireless to wired.

Remote Control

The remote control of this system does not function.

 Point the remote control at the remote control sensor on the unit

(page 6).

 Remove any obstacles in the path between the remote control and the system.

 Replace both batteries in the remote control with new ones, if they are weak.

 Make sure you are pressing the correct button on the remote control.

Others

The Control for HDMI function does not work properly.

 Check the connection with the system (refer to the supplied Startup

Guide).

 Enable the Control for HDMI function on the TV. For details, refer to the operating instructions of your TV.

 Wait a while, and then try again. If you unplug the system, it will take a while before operations can be made.

Wait for 15 seconds or longer, and then try again.

 Make sure the devices connected to the system support the Control for

HDMI function.

 Enable the Control for HDMI function on the devices connected to the system. For details, refer to the operating instructions of your device.

 The type and number of devices that can be controlled by the Control for

HDMI function is restricted by the

HDMI CEC standard as follows:

– Recording devices (Blu-ray Disc recorder, DVD recorder, etc.): up to

3 devices

– Playback devices (Blu-ray Disc

Player, DVD player, etc.): up to 3 devices

– Tuner-related devices: up to 4 devices

– Audio system (receiver/ headphone): up to 1 device (used by this system)

“PRTCT,” “PUSH” and “POWER” flash alternately in the front panel display.

 Press  (power) to turn off the system. After the indicator disappears, disconnect the AC power cord (mains lead) and make sure nothing is obstructing the ventilation holes of the system.

“BT TX” appears in the front panel display.

 Press RX/TX on the remote control to switch [Bluetooth Mode] to

[Receiver]. “BT TX” appears if

[Bluetooth Mode] is set to

[Transmitter] (page 49). When you

press RX/TX on the remote control,

[Bluetooth Mode] is switched to

[Receiver] and the selected input appears in the front panel display.

Sensors of the TV do not work properly.

 The unit may block some sensors

(such as the brightness sensor), the remote control receiver of your TV or the emitter for 3D glasses (infrared transmission) of a 3D TV that supports

62

GB

the infrared 3D glass system, or wireless communication. Move the unit away from the TV within a range that allow those parts to operate properly. For the locations of the sensors and remote control receiver, refer to the operating instructions supplied with the TV.

Wireless functions (wireless LAN,

BLUETOOTH, or subwoofer) are unstable.

 Do not place metal objects other than a TV around the system.

Resetting the System

If the system still does not operate properly, reset the system as follows.

1

Press HOME.

The home menu appears on the TV screen.

2

Select [Setup] from the home menu.

The setup display appears on the TV screen.

3

Select [Resetting] - [Reset to

Factory Default Settings].

4

Select the menu item you want to reset.

5

Select [Start].

To cancel resetting

Select [Cancel] in step 5.

Note

By resetting, the link with the subwoofer may be lost. In this case, perform

“Performing the Wireless Connection of the Subwoofer (LINK)” (page 39).

63

GB

Additional Information

Specifications

Bar Speaker (SA-CT790)

Amplifier section

POWER OUTPUT (rated)

Front L + Front R:

50 W + 50 W (at 4 ohms, 1 kHz, 1%

THD)

POWER OUTPUT (reference)

Front L/Front R speaker blocks: 110 W

(per channel at 4 ohms, 1 kHz)

Inputs

HDMI IN 1/2/3*

ANALOG IN

TV IN (OPTICAL)

Outputs

HDMI OUT (TV (ARC))*

* HDMI IN 1/2/3 and HDMI OUT (TV (ARC)) jacks support HDCP 2.2 protocol. HDCP

2.2 is newly enhanced copyright protection technology that is used to protect content such as 4K movies.

HDMI Section

Connector

Type A (19pin)

USB section

(USB) port:

Type A (For connecting USB memory, memory card reader, digital still camera)

LAN section

LAN(100) terminal

100BASE-TX Terminal

Wireless LAN section

Communication system

IEEE 802.11 a/b/g/n

Frequency band

2.4 GHz, 5 GHz

BLUETOOTH section

Communication system

BLUETOOTH Specification version 4.1

Output

BLUETOOTH Specification Power

Class 1

Maximum communication range

Line of sight approx. 30 m

1)

Maximum number of devices to be registered

9 devices

Frequency band

2.4 GHz band (2.4 GHz - 2.4835 GHz)

Modulation method

FHSS (Freq Hopping Spread Spectrum)

Compatible BLUETOOTH profiles

2)

A2DP 1.2 (Advanced Audio Distribution

Profile)

AVRCP 1.5 (Audio Video Remote

Control Profile)

Supported Codecs

3)

SBC

4)

, AAC

5)

, LDAC

Transmission range (A2DP)

20 Hz - 40,000 Hz (LDAC sampling frequency 96 kHz with 990 kbps transmission)

1)

20 Hz - 20,000 Hz (Sampling frequency

44.1 kHz)

The actual range will vary depending on factors such as obstacles between

2)

3)

4)

5) devices, magnetic fields around a microwave oven, static electricity, cordless phone use, reception sensitivity, the operating system, software applications, etc.

BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Codec: Audio signal compression and conversion format

Abbreviation for Subband Codec

Abbreviation for Advanced Audio

Coding

Front L/Front R speaker block section

Speaker system

Full range speaker system, Acoustic suspension

Speaker

60 mm cone type

General

Power requirements

220 V - 240 V AC, 50 Hz/60 Hz

Power consumption

On: 42 W

Standby mode: 0.5 W or less (For

details on the setting, see page 42)

[Quick Start/Network Standby] is set to

64

GB

[Off] (default setting): 3 W

[Quick Start/Network Standby] is set to

[On] (all wired network ports connected, all wireless network ports activated): 7 W

Dimensions* (approx.) (w/h/d)

1,030 mm × 52 mm × 126 mm

(without wall mounting brackets)

1,030 mm × 120 mm × 68.5 mm

(with wall mounting brackets)

* Not including projection portion

Mass (approx.)

2.8 kg

Compatible iPod/iPhone models

The compatible iPod/iPhone models are as follows. Update your iPod/iPhone with the latest software before using with the system.

BLUETOOTH technology works with: iPhone 6s Plus/iPhone 6s/iPhone 6 Plus/ iPhone 6/iPhone 5s/iPhone 5c/iPhone 5/ iPhone 4s/iPhone 4 iPod touch (6th generation)/iPod touch

(5th generation)

Frequency band

2.4 GHz (2.4000 GHz - 2.4835 GHz)

Modulation method

Pi/4 DQPSK

Design and specifications are subject to change without notice.

Subwoofer (SA-WCT790)

POWER OUTPUT (reference)

110 W (at 4 ohms, 100 Hz)

Speaker system

Subwoofer speaker system, Bass reflex

16 cm cone type

Power requirements

220 V - 240 V AC, 50 Hz/60 Hz

Power consumption

On: 25 W

Standby mode: 0.5 W or less

Dimensions (approx.) (w/h/d)

190 mm × 382 mm × 386 mm (not including projection portion)

Mass (approx.)

7.8 kg

Wireless transmitter/ receiver section

Speaker system

Wireless Sound Specification version

2.0

65

GB

Playable Types of Files

Music

Codec

MP3 (MPEG-1 Audio

Layer III)

1)

AAC/HE-AAC

1),2)

Extension

.mp3

WMA9 Standard

2)

WMA10 Pro

7)

LPCM

1)

FLAC

2)

Dolby Digital

1),3)

DSF

2)

DSDIFF

2),4)

AIFF

2)

ALAC

2)

Vorbis

Monkey’s Audio

.m4a, .aac

3)

,

.mp4, .3gp

.wma

.wma

.wav

.flac, .fla

.ac3

.dsf

.dff

.aiff, .aif

.m4a

.ogg

.ape


Format

JPEG

PNG

5)

GIF

5)

BMP

3),6)

Extension

.jpeg, .jpg, .jpe

.png

.gif

.bmp

1)

2)

3)

4)

5)

6)

7)

The system can play “.mka” files. These files cannot be played on a home network server.

The system may not play this file format on a home network server.

The system does not play this file format on a home network server.

The system does not play DST encoded files.

The system does not play animated

PNG or animated GIF files.

The system does not play 16bit BMP files.

The system does not play Lossless coded files.

Notes

• Some files may not play depending on the file format, the file encoding, the recording condition, or the home network server condition.

• Some files edited on a PC may not play.

• Fast forward or fast reverse may not be available with some files.

• The system does not play coded files such as DRM.

• The system can recognize the following files or folders in USB devices:

– up to folders in the 9th layer (including the root folder)

– up to 500 files/folders in a single layer

• The system can recognize the following files or folders stored in the home network server:

– up to folders in the 19th layer

– up to 999 files/folders in a single layer

• Some USB devices may not work with this system.

• The system can recognize Mass Storage

Class (MSC) devices (such as flash memory or an HDD), Still Image Capture

Devices (SICDs), and 101-key keyboards.

66

GB

Supported Input Audio Formats

Audio formats supported by this system are as follows.

Format

LPCM 2ch

LPCM 5.1ch

LPCM 7.1ch

Dolby Digital

Dolby TrueHD, Dolby Digital Plus

DTS

DTS-ES Discrete 6.1, DTS-ES Matrix 6.1

DTS96/24

DTS-HD High Resolution Audio

DTS-HD Master Audio

DTS-HD LBR

DSD

: Supported format.

–: Unsupported format.

“HDMI1”

“HDMI2”

“HDMI3”

Function

“TV”

(DIGITAL IN)

Note

The HDMI IN 1/2/3 jacks do not support audio format that contains copy protections, such as Super Audio CD or DVD-Audio.

67

GB

Supported Input Video Formats

Video formats supported by this system are as follows.

Format

4096/3840 ×

2160p 4K

Frame Rate Color Space

HDMI cable

Premium

High Speed

HDMI Cable with Ethernet

High Speed

HDMI Cable with Ethernet

50/59.94/

60 Hz

RGB

YCbCr444/

422

YCbCr420

HDMI Signal Format

Enhanced Normal

23.98/24/25/

29.97/30 Hz

1920 × 1080p

1920 × 1080i

1280 × 720p

720 × 480p

720 × 576p

640 × 480p

23.98/24/25/

30/50/59.94/

60 Hz

50/59.94/

60 Hz

23.98/24/

29.97/30/50/

59.94/60 Hz

59.94/60 Hz

50 Hz

59.94/60 Hz

RGB

YCbCr444/

422

RGB

: Recommended/ : Supported/–: Unsupported

• All HDMI IN and HDMI OUT jacks support bandwidth up to 18Gbps, HDCP 2.2, ITU-R

BT.2020 wide color spaces, and HDR (High Dynamic Range) contents pass-through.

• HDCP 2.2 is newly enhanced copyright protection technology that is used to protect content such as 4K movies.

• ITU-R BT.2020 color space is new wider color standard that is defined for ultra-high definition television systems.

• HDR is an emerging video format that can display a wider range of brightness levels.

68

GB

On BLUETOOTH

Communication

• BLUETOOTH devices should be used within approximately 10 meters (33 feet)

(unobstructed distance) of each other.

The effective communication range may become shorter under the following conditions.

– When a person, metal object, wall or other obstruction is between the devices with a BLUETOOTH connection

– Locations where a wireless LAN is installed

– Around microwave ovens that are in use

– Locations where other electromagnetic waves occur

• BLUETOOTH devices and wireless LAN

(IEEE 802.11 b/g/n) use the same frequency band (2.4 GHz). When using your BLUETOOTH device near a device with wireless LAN capability, electromagnetic interference may occur.

This could result in lower data transfer rates, noise, or inability to connect. If this happens, try the following remedies:

– Use this system at least 10 meters

(33 feet) away from the wireless LAN device.

– Turn off the power to the wireless LAN device when using your BLUETOOTH device within 10 meters (33 feet).

– Install this system and BLUETOOTH device as closer to each other as possible.

• The radio waves broadcast by this system may interfere with the operation of some medical devices. Since this interference may result in malfunction, always turn off the power on this system and

BLUETOOTH device in the following locations:

– In hospitals, on trains, in airplanes, at gas stations, and any place where flammable gasses may be present

– Near automatic doors or fire alarms

• This system supports security functions that comply with the BLUETOOTH specification to ensure secure connection during communication using BLUETOOTH technology. However, this security may be insufficient depending on the setting content and other factors, so always be careful when performing communication using BLUETOOTH technology.

• Sony cannot be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.

• BLUETOOTH communication is not necessarily guaranteed with all

BLUETOOTH devices that have the same profile as this system.

• BLUETOOTH devices connected with this system must comply with the

BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and must be certified to comply. However, even when a device complies with the BLUETOOTH specification, there may be cases where the characteristics or specifications of the

BLUETOOTH device make it impossible to connect, or may result in different control methods, display or operation.

• Noise may occur or the audio may cut off depending on the BLUETOOTH device connected with this system, the communications environment, or surrounding conditions.

If you have any questions or problems concerning your system, please consult your nearest Sony dealer.

69

GB

END USER LICENSE

AGREEMENT

IMPORTANT:

BEFORE USING THE SOFTWARE, PLEASE

READ THIS END USER LICENSE

AGREEMENT (“EULA”) CAREFULLY. BY

USING THE SOFTWARE YOU ARE

ACCEPTING THE TERMS OF THIS EULA. IF

YOU DO NOT ACCEPT THE TERMS OF

THIS EULA, YOU MAY NOT USE THE

SOFTWARE.

This EULA is a legal agreement between you and Sony Corporation (“SONY”).

This EULA governs your rights and obligations regarding the SONY software of SONY and/or its third party licensors (including SONY’s affiliates) and their respective affiliates

(collectively, the “THIRD-PARTY

SUPPLIERS”), together with any updates/upgrades provided by SONY, any printed, on-line or other electronic documentation for such software, and any data files created by operation of such software (collectively, the

“SOFTWARE”).

Notwithstanding the foregoing, any software in the SOFTWARE having a separate end user license agreement

(including, but not limited to, GNU

General Public license and Lesser/

Library General Public License) shall be covered by such applicable separate end user license agreement in lieu of the terms of this EULA to the extent required by such separate end user license agreement (“EXCLUDED

SOFTWARE”).

SOFTWARE LICENSE

The SOFTWARE is licensed, not sold. The

SOFTWARE is protected by copyright and other intellectual property laws and international treaties.

COPYRIGHT

All right and title in and to the

SOFTWARE (including, but not limited to, any images, photographs, animation, video, audio, music, text and

“applets” incorporated into the

SOFTWARE) is owned by SONY or one or more of the THIRD-PARTY SUPPLIERS.

GRANT OF LICENSE

SONY grants you a limited license to use the SOFTWARE solely in connection with your compatible device (“DEVICE”) and only for your individual, noncommercial use. SONY and the THIRD-

PARTY SUPPLIERS expressly reserve all rights, title and interest (including, but not limited to, all intellectual property rights) in and to the SOFTWARE that this

EULA does not specifically grant to you.

REQUIREMENTS AND

LIMITATIONS

You may not copy, publish, adapt, redistribute, attempt to derive source code, modify, reverse engineer, decompile, or disassemble any of the

SOFTWARE, whether in whole or in part, or create any derivative works from or of the SOFTWARE unless such derivative works are intentionally facilitated by the

SOFTWARE. You may not modify or tamper with any digital rights management functionality of the

SOFTWARE. You may not bypass, modify, defeat or circumvent any of the functions or protections of the

SOFTWARE or any mechanisms operatively linked to the SOFTWARE.

You may not separate any individual component of the SOFTWARE for use on more than one DEVICE unless expressly authorized to do so by SONY. You may not remove, alter, cover or deface any trademarks or notices on the

SOFTWARE. You may not share, distribute, rent, lease, sublicense, assign, transfer or sell the SOFTWARE.

70

GB

The software, network services or other products other than SOFTWARE upon which the SOFTWARE’S performance depends might be interrupted or discontinued at the discretion of the suppliers (software suppliers, service suppliers, or SONY). SONY and such suppliers do not warrant that the

SOFTWARE, network services, contents or other products will continue to be available, or will operate without interruption or modification.

USE OF SOFTWARE WITH

COPYRIGHTED MATERIALS

The SOFTWARE may be capable of being used by you to view, store, process and/or use content created by you and/or third parties. Such content may be protected by copyright, other intellectual property laws, and/or agreements. You agree to use the

SOFTWARE only in compliance with all such laws and agreements that apply to such content. You acknowledge and agree that SONY may take appropriate measures to protect the copyright of content stored, processed or used by the SOFTWARE. Such measures include, but are not limited to, counting the frequency of your backup and restoration through certain SOFTWARE features, refusal to accept your request to enable restoration of data, and termination of this EULA in the event of your illegitimate use of the SOFTWARE.

CONTENT SERVICE

PLEASE ALSO NOTE THAT THE

SOFTWARE MAY BE DESIGNED TO BE

USED WITH CONTENT AVAILABLE

THROUGH ONE OR MORE CONTENT

SERVICES (“CONTENT SERVICE”). USE OF

THE SERVICE AND THAT CONTENT IS

SUBJECT TO THE TERMS OF SERVICE OF

THAT CONTENT SERVICE. IF YOU

DECLINE TO ACCEPT THOSE TERMS,

YOUR USE OF THE SOFTWARE WILL BE

LIMITED. You acknowledge and agree that certain content and services available through the SOFTWARE may be provided by third parties over which

SONY has no control. USE OF THE

CONTENT SERVICE REQUIRES AN

INTERNET CONNECTION. THE CONTENT

SERVICE MAY BE DISCONTINUED AT ANY

TIME.

INTERNET CONNECTIVITY AND

THIRD PARTY SERVICES

You acknowledge and agree that access to certain SOFTWARE features may require an Internet connection for which you are solely responsible. Further, you are solely responsible for payment of any third party fees associated with your

Internet connection, including but not limited to Internet service provider or airtime charges. Operation of the

SOFTWARE may be limited or restricted depending on the capabilities, bandwidth or technical limitations of your Internet connection and service.

The provision, quality and security of such Internet connectivity are the sole responsibility of the third party providing such service.

EXPORT AND OTHER

REGULATIONS

You agree to comply with all applicable export and re-export restrictions and regulations of the area or country in which you reside, and not to transfer, or authorize the transfer, of the SOFTWARE to a prohibited country or otherwise in violation of any such restrictions or regulations.

HIGH RISK ACTIVITIES

The SOFTWARE is not fault-tolerant and is not designed, manufactured or intended for use or resale as on-line control equipment in hazardous environments requiring fail-safe performance, such as in the operation

71

GB

of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of the SOFTWARE could lead to death, personal injury, or severe physical or environmental damage (“HIGH RISK

ACTIVITIES”). SONY, each of the THIRD-

PARTY SUPPLIERS, and each of their respective affiliates specifically disclaim any express or implied warranty, duty or condition of fitness for HIGH RISK

ACTIVITIES.

EXCLUSION OF WARRANTY ON

SOFTWARE

You acknowledge and agree that use of the SOFTWARE is at your sole risk and that you are responsible for use of the

SOFTWARE. The SOFTWARE is provided

“AS IS,” without warranty, duty or condition of any kind.

SONY AND EACH OF THE THIRD-PARTY

SUPPLIERS (for purposes of this Section,

SONY and each of the THIRD-PARTY

SUPPLIERS shall be collectively referred to as “SONY”) EXPRESSLY DISCLAIM ALL

WARRANTIES, DUTIES OR CONDITIONS,

EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY,

NONINFRINGEMENT AND FITNESS FOR A

PARTICULAR PURPOSE. SONY DOES NOT

WARRANT OR MAKE ANY CONDITIONS

OR REPRESENTATIONS (A) THAT THE

FUNCTIONS CONTAINED IN ANY OF THE

SOFTWARE WILL MEET YOUR

REQUIREMENTS OR THAT THEY WILL BE

UPDATED, (B) THAT THE OPERATION OF

ANY OF THE SOFTWARE WILL BE

CORRECT OR ERROR-FREE OR THAT ANY

DEFECTS WILL BE CORRECTED, (C) THAT

THE SOFTWARE WILL NOT DAMAGE ANY

OTHER SOFTWARE, HARDWARE OR

DATA, (D) THAT ANY SOFTWARE,

NETWORK SERVICES (INCLUDING THE

INTERNET) OR PRODUCTS (OTHER THAN

THE SOFTWARE) UPON WHICH THE

SOFTWARE’S PERFORMANCE DEPENDS

WILL CONTINUE TO BE AVAILABLE,

UNINTERRUPTED OR UNMODIFIED, AND

(E) REGARDING THE USE OR THE

RESULTS OF THE USE OF THE SOFTWARE

IN TERMS OF ITS CORRECTNESS,

ACCURACY, RELIABILITY, OR

OTHERWISE.

NO ORAL OR WRITTEN INFORMATION

OR ADVICE GIVEN BY SONY OR AN

AUTHORIZED REPRESENTATIVE OF

SONY SHALL CREATE A WARRANTY,

DUTY OR CONDITION OR IN ANY WAY

INCREASE THE SCOPE OF THIS

WARRANTY. SHOULD THE SOFTWARE

PROVE DEFECTIVE YOU ASSUME THE

ENTIRE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

SOME JURISDICTIONS DO NOT ALLOW

THE EXCLUSION OF IMPLIED

WARRANTIES, SO THESE EXCLUSIONS

MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY

SONY AND EACH OF THE THIRD-PARTY

SUPPLIERS (for purposes of this Section,

SONY and each of the THIRD-PARTY

SUPPLIERS shall be collectively referred to as “SONY”) SHALL NOT BE LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY

EXPRESS OR IMPLIED WARRANTY,

BREACH OF CONTRACT, NEGLIGENCE,

STRICT LIABILITY OR UNDER ANY OTHER

LEGAL THEORY RELATED TO THE

SOFTWARE, INCLUDING, BUT NOT

LIMITED TO, ANY DAMAGES ARISING

OUT OF LOSS OF PROFITS, LOSS OF

REVENUE, LOSS OF DATA, LOSS OF USE

OF THE SOFTWARE OR ANY ASSOCIATED

HARDWARE, DOWN TIME AND USER’S

TIME, EVEN IF ANY OF THEM HAVE BEEN

ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. IN ANY CASE, EACH AND ALL

OF THEIR AGGREGATE LIABILITY UNDER

ANY PROVISION OF THIS EULA SHALL BE

LIMITED TO THE AMOUNT ACTUALLY

PAID FOR THE PRODUCT. SOME

72

GB

JURISDICTIONS DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO THE ABOVE EXCLUSION

OR LIMITATION MAY NOT APPLY TO

YOU.

AUTOMATIC UPDATE FEATURE

From time to time, SONY or the THIRD-

PARTY SUPPLIERS may automatically update or otherwise modify the

SOFTWARE, including, but not limited to, for purposes of enhancement of security functions, error correction and improvement of functions, at such time as you interact with SONY’s or third parties’ servers, or otherwise. Such updates or modifications may delete or change the nature of features or other aspects of the SOFTWARE, including, but not limited to, functions you may rely upon. You acknowledge and agree that such activities may occur at SONY’s sole discretion and that SONY may condition continued use of the

SOFTWARE upon your complete installation or acceptance of such update or modifications. Any updates/ modifications shall be deemed to be, and shall constitute part of, the

SOFTWARE for purposes of this EULA. By acceptance of this EULA, you consent to such update/modification.

ENTIRE AGREEMENT, WAIVER,

SEVERABILITY

This EULA and SONY’s privacy policy, each as amended and modified from time to time, together constitute the entire agreement between you and

SONY with respect to the SOFTWARE.

The failure of SONY to exercise or enforce any right or provision of this

EULA shall not constitute a waiver of such right or provision. If any part of this

EULA is held invalid, illegal, or unenforceable, that provision shall be enforced to the maximum extent permissible so as to maintain the intent of this EULA, and the other parts will remain in full force and effect.

GOVERNING LAW AND

JURISDICTION

The United Nations Convention on

Contracts for the International Sale of

Goods shall not apply to this EULA. This

EULA shall be governed by the laws of

Japan, without regards to conflict of laws provisions. Any dispute arising out of this EULA shall be subject to the exclusive venue of the Tokyo District

Court in Japan, and the parties hereby consent to the venue and jurisdiction of such courts.

EQUITABLE REMEDIES

Notwithstanding anything contained in this EULA to the contrary, you acknowledge and agree that any violation of or non-compliance with this

EULA by you will cause irreparable harm to SONY, for which monetary damages would be inadequate, and you consent to SONY obtaining any injunctive or equitable relief that SONY deems necessary or appropriate in such circumstances. SONY may also take any legal and technical remedies to prevent violation of and/or to enforce this EULA, including, but not limited to, immediate termination of your use of the

SOFTWARE, if SONY believes in its sole discretion that you are violating or intend to violate this EULA. These remedies are in addition to any other remedies SONY may have at law, in equity or under contract.

TERMINATION

Without prejudice to any of its other rights, SONY may terminate this EULA if you fail to comply with any of its terms.

In case of such termination, you must cease all use, and destroy any copies, of the SOFTWARE.

73

GB

AMENDMENT

SONY RESERVES THE RIGHT TO AMEND

ANY OF THE TERMS OF THIS EULA AT ITS

SOLE DISCRETION BY POSTING NOTICE

ON A SONY DESIGNATED WEB SITE, BY

EMAIL NOTIFICATION TO AN EMAIL

ADDRESS PROVIDED BY YOU, BY

PROVIDING NOTICE AS PART OF THE

PROCESS IN WHICH YOU OBTAIN

UPGRADES/UPDATES OR BY ANY OTHER

LEGALLY RECOGNIZABLE FORM OF

NOTICE. If you do not agree to the amendment, you should promptly contact SONY for instructions. Your continued use of the SOFTWARE after the effective date of any such notice shall be deemed your agreement to be bound by such amendment.

THIRD-PARTY BENEFICIARIES

Each THIRD-PARTY SUPPLIER is an express intended third-party beneficiary of, and shall have the right to enforce, each provision of this EULA with respect to the SOFTWARE of such party.

Should you have any questions concerning this EULA, you may contact

SONY by writing to SONY at applicable contact address of each area or country.

Copyright © 2014 Sony Corporation.

Precautions

On safety

• Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.

• Do not climb on the unit and subwoofer, as you may fall down and injure yourself, or system damage may result.

On power sources

• Before operating the system, check that the operating voltage is identical to your local power supply. The operating voltage is indicated on the nameplate at the bottom of the unit.

• If you are not going to use the system for a long time, be sure to disconnect the system from the wall outlet (mains). To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.

• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet (mains) only one way.

If you are unable to insert the plug fully into the outlet, contact your dealer.

• AC power cord (mains lead) must be changed only at a qualified service shop.

On heat buildup

Although the system heats up during operation, this is not a malfunction. If you continuously use this system at high volume, the system temperature at the rear and bottom rises considerably. To avoid burning yourself, do not touch the system.

On placement

• Do not place the system near heat sources or in a place subject to direct sunlight, excessive dust, or mechanical shock.

• Do not place anything at the rear of the unit and subwoofer that might block the ventilation holes and cause malfunctions.

74

GB

• Do not place metal objects other than a

TV around the system. Wireless functions may be unstable.

• If the system is being used in combination with a TV, VCR, or tape deck, noise may result and picture quality may suffer. In such a case, place the system away from the TV, VCR, or tape deck.

• Use caution when placing the system on a surface that has been specially treated

(with wax, oil, polish, etc.), as staining or discoloration of the surface may result.

• Take care to avoid any possible injury from the corners of the unit and subwoofer.

• Keep 3 cm or more space under the unit when you hang it on a wall.

• The speakers of this system are not of magnetically shielded type. Do not place magnetic cards on the system or near it.

On handling the subwoofer

Do not place your hand into the slit of the subwoofer when lifting it. The speaker driver may be damaged. When lifting it, hold the bottom of the subwoofer.

On operation

Before connecting other devices, be sure to turn off and unplug the system.

If you encounter color irregularity on a nearby TV screen

Color irregularities may be observed on certain types of TV sets.

If color irregularity is observed...

Turn off the TV set, then turn it on again after 15 to 30 minutes.

If color irregularity is observed again...

Place the system further away from the TV set.

On cleaning

Clean the system with a soft, dry cloth. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

If you have any question or problem concerning your system, please consult your nearest Sony dealer.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Notes on updating

This system allows you to update the software automatically when connected to the Internet via a wired or wireless network.

You can add new features and use the system with more convenience and safety by updating the system.

If you do not want to update automatically, you can disable the function by using

SongPal installed on your smartphone or tablet. However, the system may update the software automatically for reasons such as safety, even if this function is disabled. You can also update the software using the settings menu when this function

is disabled. Refer to “Using the Setup

Display” (page 47) for details.

You may not use the system while the software is being updated.

75

GB

Copyrights and Trademarks

This system incorporates Dolby* Digital and the DTS** Digital Surround System.

* Manufactured under license from Dolby

Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

**For DTS patents, see http:// patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS,

DTS-HD, the Symbol, & DTS and the

Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All

Rights Reserved.

The BLUETOOTH

®

word mark and logos are registered trademarks owned by Bluetooth

SIG, Inc. and any use of such marks by Sony

Corporation is under license. Other trademarks and trade names are those of their respective owners.

This system incorporates High-Definition

Multimedia Interface (HDMI™) technology.

The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United

States and in other countries.

Android and Google Play are trademarks of

Google Inc.

Google Cast and the Google Cast badge are trademarks of Google Inc.

“Xperia” is a trademark of Sony Mobile

Communications AB.

Apple, the Apple logo, iPhone, iPod, iPod touch, and Retina are trademarks of Apple

Inc., registered in the U.S. and other countries. App Store is a service mark of

Apple Inc.

“Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

“BRAVIA” logo is a trademark of Sony

Corporation.

“ClearAudio+” is a trademark of Sony

Corporation.

“PlayStation

®

” is a registered trademark of

Sony Computer Entertainment Inc.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Windows Media is either a registered trademark or trademark of Microsoft

Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft

Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Opera® Devices SDK from Opera Software

ASA. Copyright 1995-2015 Opera Software

ASA. All rights reserved.

Wi-Fi®, Wi-Fi Protected Access®, Wi-Fi

Alliance® and Wi-Fi CERTIFIED Miracast® are registered trademarks of Wi-Fi Alliance.

Wi-Fi CERTIFIED™, WPA™, WPA2™, Wi-Fi

Protected Setup™ and Miracast™ are trademarks of Wi-Fi Alliance.

76

GB

LDAC™ and LDAC logo are trademarks of

Sony Corporation.

LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res)

Audio content, even over a Bluetooth connection. Unlike other Bluetooth compatible coding technologies such as

SBC, it operates without any downconversion of the Hi-Res Audio content*, and allows approximately three times more data** than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.

* excluding DSD format contents

**in comparison with SBC (Subband

Coding) when the bitrate of 990 kbps

(96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected

This product contains software that is subject to the GNU General Public License

(“GPL”) or GNU Lesser General Public

License (“LGPL”). These establish that customers have the right to acquire, modify, and redistribute the source code of said software in accordance with the terms of the GPL or the LGPL.

For details of the GPL, LGPL and other software licenses, please refer to [Software

License Information] in [System Settings] of the [Setup] menu on the product.

The source code for the software used in this product is subject to the GPL and LGPL, and is available on the Web. To download, please access the following:

URL: http://oss.sony.net/Products/Linux

Please note that Sony cannot answer or respond to any inquiries regarding the content of this source code.

“DSEE” is a trademark of Sony Corporation.

DLNA™, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living

Network Alliance.

“TRILUMINOS” and “TRILUMINOS” logo are a registered trademark of Sony

Corporation.

This product incorporates Spotify software which is subject to 3rd party licenses found here*: https://developer.spotify.com/esdkthird-party-licenses/

Spotify and Spotify logos are trademarks of the Spotify Group.*

* Depending on the country and region, this function may not be available.

All other trademarks are trademarks of their respective owners.

77

GB

Index

Numerics

24p Output

48

4K Output

48

A

Attenuation settings - Analog

49

Audio DRC

49

Audio Output

49

Audio Return Channel

51

Audio Settings

49

Auto Display

52

Auto Home Network Access

Permission

53

Auto Standby

52

Auto Update

52

Auto Update Settings

52

B

Bluetooth Codec - AAC

50

Bluetooth Codec - LDAC

50

Bluetooth Mode

49

Bluetooth Settings

49

Bluetooth Standby

50

C

Connection Server Settings

53

Control for HDMI

51

D

Device List

50

Device Name

52

DSEE

49

E

Easy Setup

54

External Control

53

G

Google Cast

36

H

HDMI

YCbCr/RGB (HDMI)

49

HDMI Settings

51

78

GB

HDMI Signal Format

51

Home Network Access Control

53

I

Initialize Personal Information

54

Input Skip Setting

53

Internet Settings

53

M

Multiplex broadcast sound

40

N

Network

17

,

38

Network Connection Diagnostics

53

Network Connection Status

53

Network content 24p Output

48

Network Settings

53

NFC

29

O

OSD Language

51

Output Video Resolution

48

P

PRTCT

62

Q

Quick Start/Network Standby

52

R

Remote control

9

Remote Start

53

Reset to Factory Default Settings

54

Resetting

54

S

SBM

49

Screen mirroring RF Setting

53

Screen Settings

48

Slideshow

55

Software License Information

52

Software Update

48

Software Update Notification

52

Sound field

55

Standby Through

51

System Information

52

System Settings

51

T

Time Zone

52

TV Type

48

U

Update

48

V

Video Direct

49

W

Wireless Playback Quality

50

Wireless Subwoofer Connection

51

79

GB

The software of this system may be updated in the future. To find out details on any available updates, please visit the following URL.

www.sony.eu/support

©2016 Sony Corporation Printed in Malaysia 4-586-049-31(1)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
