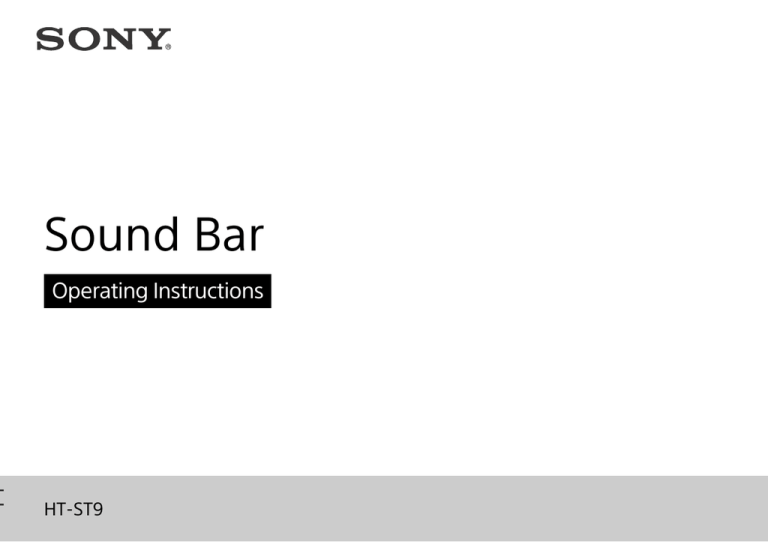

Sound Bar
Operating Instructions
HT-ST9
WARNING
Do not install the appliance in a confined space, such as a bookcase or
built-in cabinet.
To reduce the risk of fire, do not cover the ventilation opening of the
appliance with newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame sources (for example,
lighted candles).
To reduce the risk of fire or electric shock, do not expose this appliance
to dripping or splashing, and do not place objects filled with liquids, such
as vases, on the appliance.
For the customers in Europe
Notice for customers: the following information is
only applicable to equipment sold in countries
applying EU directives.
This product has been manufactured by or on behalf of Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to
product compliance based on European Union legislation shall be
addressed to the authorized representative, Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or
guarantee matters, please refer to the addresses provided in the
separate service or guarantee documents.
The unit is not disconnected from the mains as long as it is connected to
the AC outlet, even if the unit itself has been turned off.
As the main plug is used to disconnect the unit from the mains, connect
the unit to an easily accessible AC outlet. Should you notice an
abnormality in the unit, disconnect the main plug from the AC outlet
immediately.
Do not expose batteries or appliances with battery-installed to excessive
heat, such as sunshine and fire.
Indoor use only.
Recommended cables
Properly shielded and grounded cables and connectors must be used for
connection to host computers and/or peripherals.
Hereby, Sony Corp., declares that this equipment is in compliance with
the essential requirements and other relevant provisions of Directive
1999/5/EC.
For details, please access the following URL:
http://www.compliance.sony.de/
This product is intended to be used in the following countries.
AT, BE, BG, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LI, LT, LU,
MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, GB, AL, BA, MK, MD, RS, ME,
Kosovo
5150-5350 MHz band is restricted to indoor operations only.
This equipment has been tested and found to comply with the limits set
out in the EMC regulation using a connection cable shorter than 3 meters.
2GB
Disposal of Old Electrical & Electronic
Equipment (Applicable in the
European Union and other European
countries with separate collection
systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The recycling of materials
will help to conserve natural resources. For more detailed information
about recycling of this product, please contact your local Civic Office,
your household waste disposal service or the shop where you purchased
the product.
To ensure that the battery will be treated properly, hand over the product
at end-of-life to the applicable collection point for the recycling of
electrical and electronic equipment.
For all other batteries, please view the section on how to remove the
battery from the product safely. Hand the battery over to the applicable
collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery,
please contact your local Civic Office, your household waste disposal
service or the shop where you purchased the product.
Disposal of waste batteries (applicable in
the European Union and other European
countries with separate collection
systems)
This symbol on the battery or on the packaging indicates
that the battery provided with this product shall not be
treated as household waste.
On certain batteries this symbol might be used in combination with a
chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are
added if the battery contains more than 0.0005% mercury or 0.004%
lead.
By ensuring these batteries are disposed of correctly, you will help
prevent potentially negative consequences for the environment and
human health which could otherwise be caused by inappropriate waste
handling of the battery. The recycling of the materials will help to
conserve natural resources.
In case of products that for safety, performance or data integrity reasons
require a permanent connection with an incorporated battery, this
battery should be replaced by qualified service staff only.
3GB
About These Operating Instructions
 The instructions in these Operating Instructions describe the controls on
the remote control. You can also use the controls on the Bar Speaker if
they have the same or similar names as those on the remote control.
 Some illustrations are presented as conceptual drawings, and may be
different from the actual products.
 The items displayed on the TV screen may vary depending on the area.
 The default setting is underlined.
 The text enclosed in brackets ([--]) appears on the TV screen, and the
text enclosed in double quotation marks (“-”) appears on the front panel
display.
4GB
Table of contents
Connecting  Startup Guide (separate document)
About These Operating Instructions .................................... 4
Listening/Viewing
Listening to Sound from a TV, Blu-ray Disc™ Player,
Cable/Satellite Box, etc. ...................................................7
Playing Music/Photo from a USB Device .............................. 8
Listening to Music from a BLUETOOTH Device .................... 8
Playing Music/Photo from Other Devices via the Network
Function ........................................................................... 8
Sound Adjustment
Enjoying Sound Effects (Football mode, etc.) ...................... 9
Using the DSEE HX Function (Reproducing Audio Codec
Files with Natural Sound Quality) ...................................10
BLUETOOTH Functions
Listening to Music from a BLUETOOTH Device ....................11
Listening to Sound by Transmitting to a
BLUETOOTH-compatible Receiver ................................. 13
Network Functions
Connecting to a Wired Network ...........................................15
Connecting to a Wireless Network ......................................16
Playing Music/Photo Files on a Home Network ..................16
Displaying the Screen of the Mobile Device on a TV (Screen
mirroring) ........................................................................18
Enjoying Various Online Services (Music Services) ..............18
Viewing Copyright-protected 4K Content
Connecting a 4K TV ............................................................. 20
Connecting 4K Devices ......................................................... 21
Settings and Adjustments
Using the Setup Display ...................................................... 22
Using the Options Menu ..................................................... 28
Other Functions
Controlling the System Using a Smartphone or Tablet
(SongPal) ........................................................................ 30
Using the Control for HDMI Function for “BRAVIA” Sync .... 31
Enjoying multiplex broadcast sound (Dual Mono) ............. 33
Deactivating Buttons on the Bar Speaker (Child Lock) ....... 33
Changing the brightness ..................................................... 34
Saving Power in Standby Mode .......................................... 34
Enabling the IR Repeater Function (when you cannot
control the TV) ............................................................... 34
Further Setting for the Wireless System (Subwoofer) ........ 35
Modifying the Angle of the Bar Speaker .............................37
Mounting the Bar Speaker on a Wall ...................................37
Attaching the Grille Frame .................................................. 38
continued
5GB
Additional Information
Precautions ..........................................................................39
Troubleshooting ...................................................................42
Guide to Parts and Controls ................................................47
Playable Types of Files .........................................................50
Supported Audio Formats ................................................... 51
Specifications ....................................................................... 51
On BLUETOOTH Communication .........................................54
Index .....................................................................................55
END USER LICENSE AGREEMENT .......................................... 57
6GB
[Home Network]
“H.Net”
Content stored on a server
Listening/Viewing
[Music Services]
“M.Serv”
Content of music services offered on the Internet
1
2
Tip
You can also press PAIRING and MIRRORING on the remote control to
select [Bluetooth Audio] and [Screen mirroring] respectively.
Press HOME.
The home menu appears on the TV screen.
Press /// to select the desired input, and then press
You can also use INPUT on the remote control.
.
[TV]
“TV”
Device (TV, etc.) that is connected to the TV (DIGITAL IN (TV)) jack, or a TV that
is compatible with the Audio Return Channel function and connected to the
HDMI OUT (ARC) jack
[HDMI1]/[HDMI2]/[HDMI3]
“HDMI 1”/”HDMI 2”/”HDMI 3”
Device that is connected to HDMI IN 1, HDMI IN 2 or HDMI IN 3
[Bluetooth Audio]
“BT”
BLUETOOTH device that supports A2DP
[Analog]
“Analog”
Device that is connected to the ANALOG IN jacks
[USB]
“USB”
USB device that is connected to the
(USB) port
[Screen mirroring]
“SCR M”
Screen mirroring-compatible device
7GB
Listening/Viewing
Listening to Sound from a TV, Blu-ray Disc™
Player, Cable/Satellite Box, etc.
Playing Music/Photo from a USB Device
Listening to Music from a BLUETOOTH Device
You can play music/photo files stored on a connected USB device.
For playable types of files, see “Playable Types of Files” (page 50).
Refer to “BLUETOOTH Functions” (page 11).
1
Connect the USB device to the (USB) port.
Refer to the operating instructions of the USB device before
connecting.
Playing Music/Photo from Other Devices via
the Network Function
Refer to “Network Functions” (page 15).
2
3
4
5
Press HOME.
The home menu appears on the TV screen.
Press /// to select [USB], and then press
Press / to select
[Music] or
.
[Photo].
Select the desired content using /// and
.
Note
Do not remove the USB device during operation. To avoid data corruption
or damage to the USB device, turn the system off before connecting or
removing the USB device.
8GB
To select the sound field from the options menu
Sound Adjustment
1
2
Enjoying Sound Effects (Football mode, etc.)
Selecting the Sound Field
Press SOUND FIELD repeatedly during playback.
[ClearAudio+]
The appropriate sound setting is automatically selected for the sound source.
[Movie]
Sound effects are optimized for movies. This mode replicates the density and
rich expanse of sound.
[Movie 2]
Sound effects are optimized for movies. This mode replicates sound looping
around the listener to the rear.
[Music]
Sound effects are optimized for music.
[Game Studio]
Sound effects are optimized for game play.
[Music Arena]
Sound effects allow you to enjoy live music concerts filled with great
excitement created by Sony’s unique Audio DSP technology.
[Standard]
Sound effects are optimized for the individual source.
Tip
You can also press CLEARAUDIO+ to select [ClearAudio+].
Using the Football Mode Function
Sound effects are produced to give you a genuine in-stadium feeling
when watching live football broadcasts.
Press FOOTBALL repeatedly while watching a football match
broadcast.
 [Narration On]: Creates an immersive feeling of being in a football
stadium through enhanced stadium cheers.
 [Narration Off]: Creates a more immersive feeling of being in a
football stadium by minimizing the volume level of narration in
addition to enhancing cheers.
 [Off]: The football mode is turned off.
Notes
 We
recommend that you select the football mode when watching a
football match broadcast.
 If you hear unnatural sound in the content when [Narration Off] is
selected, you should use [Narration On].
 The football mode is automatically set to [Off] when you perform the
following.
– Turn off the system.
– Press any of the sound field buttons (page 49).
 This feature does not support monaural sound.
 If the stereo audio signal input is detected, Sony’s proprietary up-mixer
gets activated depending on the selected sound field.
Tips
 You
can also select [Football] from the options menu (page 28).
5.1 channel audio stream is available, we recommend that you select
it on your TV or cable/satellite box.
 If
continued
9GB
Sound Adjustment
You can easily enjoy pre-programmed sound effects that are
tailored to different kinds of sound sources.
Press OPTIONS and / to select [Sound Field], and then press
.
Press / to select the desired sound field, and then press .
Using the Night Mode Function
Sound is output at low volume with minimum loss of fidelity and
clarity of dialogue.
Press NIGHT repeatedly.
 [On]: Activates the night mode function.
 [Off]: Deactivates the night mode function.
Tip
You can also select [Night] from the options menu (page 28).
Using the Voice Function
This helps make dialogues clearer.
Press VOICE repeatedly.
 [Type 1]: Standard
 [Type 2]: Dialogue range is enhanced.
 [Type 3]: Dialogue range is enhanced, and the parts of range
difficult to be discerned by the elderly are boosted.
Tip
You can also select [Voice] from the options menu (page 28).
Using the DSEE HX Function (Reproducing
Audio Codec Files with Natural Sound
Quality)
DSEE HX upscales existing sound sources to near hi-resolution
sound quality, and it makes you feel as if you are really there at the
recording studio or concert.
This function is only available when [Music] is selected as the sound
field.
Notes
 Only
the fine sound restoration feature of the DSEE HX function will be
applied to PCM audio sources with lossless compression. The DSEE HX
function does not work for DSD (DSDIFF, DSF) format files. The file is
expanded to a maximum 96 kHz/24 bit equivalent.
 This function works with 2-channel digital input signals of 44.1 kHz or
48 kHz.
 This function does not work when [Analog] is selected.
 This function does not work when [Transmitter] in [Bluetooth Mode] is
selected. (page 24).
1
2
3
4
10GB
Press HOME.
The home menu appears on the TV screen.
Select
[Setup] -
Select [DSEE HX].
Select [On].
[Audio Settings] from the home menu.
Tip
BLUETOOTH Functions
Listening to Music from a BLUETOOTH Device
Pairing this System with a BLUETOOTH Device
Once the BLUETOOTH connection is established, an indication
recommending which application to download will be displayed
according to what device you have connected.
Following the instructions displayed, an application called SongPal,
which will enable you to operate this system, can be downloaded.
Refer to “Controlling the System Using a Smartphone or Tablet (SongPal)”
(page 30) for details on SongPal.
To listen to sound from the paired device
1
3
Indicator (blue)
To pair the system with the device
1
2
3
Press PAIRING.
The indicator (blue) of the Bar Speaker flashes quickly during
BLUETOOTH pairing.
Turn on the BLUETOOTH function, and then select “HT-ST9” after
searching for it on the BLUETOOTH device.
If a Passkey is requested, enter “0000.”
Make sure that the indicator (blue) of the Bar Speaker lights up.
(This indicates that a connection has been established.)
4
Note
Once the system and the BLUETOOTH device are connected, you can
control playback by pressing , , , / and /.
To cancel pairing operation
Press the HOME or INPUT.
continued
11GB
BLUETOOTH Functions
2
Press HOME.
The home menu appears on the TV screen.
Select [Bluetooth Audio].
This system automatically reconnects to the BLUETOOTH device it
was most recently connected to.
Make sure that the indicator (blue) of the Bar Speaker is lit. (This
indicates that a connection has been established.)
If a connection has not been established, select “HT-ST9” on the
BLUETOOTH device.
Start audio playback with the music app on the connected
BLUETOOTH device.
Connecting to a BLUETOOTH Device by One-touch
Function (NFC)
By holding an NFC-compatible BLUETOOTH device near to the
N mark on the Bar Speaker, the system and BLUETOOTH device will
pair and make a BLUETOOTH connection automatically.
Indicator (blue)
Compatible devices
Smartphones, tablets, and music players with the NFC function built-in
(OS: Android™ 2.3.3 or later, excluding Android 3.x)
Notes
 Depending
on your device, you may need to perform the following
items on your remote device in advance.
– Turn on the NFC function.
– Download the “NFC Easy Connect” application from Google Play™ and
start the application. (The application may not be available in some
countries/regions.) For details, refer to the operating instructions of
your device.
 This feature does not work with BLUETOOTH-compatible receivers (such
as headphones). To listen to sound using a BLUETOOTH-compatible
receiver, see “Listening to Sound by Transmitting to a
BLUETOOTH-compatible Receiver” (page 13).
12GB
1
2
3
Touch the N mark of the Bar Speaker with the BLUETOOTH
device.
Make sure that the indicator (blue) of the Bar Speaker lights
up. (This indicates that a connection has been established.)
Start playback of an audio source on the BLUETOOTH device.
8
Listening to Sound by Transmitting to a
BLUETOOTH-compatible Receiver
You can listen to sound of the source playing via this system by using
a BLUETOOTH-compatible receiver (such as headphones).
1
3
4
5
6
Press HOME.
The home menu appears on the TV screen.
Select
menu.
[Setup] -
[Bluetooth Settings] from the home
Select [Bluetooth Mode].
Select [Transmitter].
Turn on BLUETOOTH function on the BLUETOOTH receiver.
Select the BLUETOOTH receiver’s name from the [Device List]
in [Bluetooth Settings] (page 25).
When the BLUETOOTH connection is established, the indicator
(blue) lights up.
If you cannot find your BLUETOOTH receiver’s name in the list,
select [Scan].
Note
The [Device List] screen appears after a confirmation dialog when
you change [Bluetooth Mode] to [Transmitter] from other modes.
7
Notes
 You
Return to the home menu and select the desired input.
[BT TX] appears in the front panel display, and the sound is
output from the BLUETOOTH receiver.
No sound is output from speakers of the system.
may not be able to adjust the volume level depending on the
BLUETOOTH receiver.
 [Screen mirroring], [Bluetooth Audio] and Home Theatre Control
function are disabled when the system is in transmitter mode.
 When input of [Bluetooth Audio] or [Screen mirroring] is selected, you
cannot set [Bluetooth Mode] to [Transmitter]. You cannot switch it with
RX/TX on the remote control neither.
 You can register up to 9 BLUETOOTH receivers. If a 10th BLUETOOTH
receiver is registered, the least recently connected BLUETOOTH receiver
will be replaced by the new one.
 The system can display up to 15 detected BLUETOOTH receivers in the
[Device List].
 You cannot change the sound effect or settings in the options menu
while transmitting sound.
 Some content cannot be output due to content protection.
 Playback of audio/music on the BLUETOOTH receivers is delayed
compared to that on the system due to the characteristics of
BLUETOOTH wireless technology.
 No sound is output from speakers and HDMI OUT (ARC) jack when a
BLUETOOTH receiver is successfully connected to the system.
Tips
 You can enable or
disable the reception of AAC or LDAC audio from the
BLUETOOTH device (page 25).
 You can also switch the [Bluetooth Mode] using RX/TX on the remote
control.
When the BLUETOOTH device in step 5 has finished pairing and that is
the most recently connected device, you can connect it to the system
automatically by simply pressing RX/TX on the remote control. In this
case, you do not need to perform step 6.
continued
13GB
BLUETOOTH Functions
2
Adjust the volume.
Adjust the volume level of the BLUETOOTH receiver first. When
connected with a BLUETOOTH receiver, volume level of the
BLUETOOTH receiver can be controlled with VOLUME +/– on the
Bar Speaker and  +/– on the remote control.
To disconnect the BLUETOOTH receiver
Perform any of the following items.
– Disable the BLUETOOTH function on the BLUETOOTH receiver.
– Set [Bluetooth Mode] to [Receiver] or [Off] (page 24).
– Turn off the system or the BLUETOOTH receiver.
– Select the device name of the connected BLUETOOTH-compatible
receiver from [Device List] in [Bluetooth Settings].
To delete a registered BLUETOOTH receiver from the
device list
1
2
3
4
Follow steps 1 to 6 of “Listening to Sound by Transmitting to a
BLUETOOTH-compatible Receiver.”
Select the device, and then press OPTIONS.
Select [Remove], and then press .
Follow the on-screen instructions to delete the desired
BLUETOOTH device from the device list.
14GB
Tip
We recommend that you use a shielded straight interface cable (LAN
cable).
Network Functions
Setting up a Wired Network Connection
Connecting to a Wired Network
You can set up a wired network connection by the following
procedure.
Connecting the System to the Network Using a LAN
Cable


2
3
4
5
6
7



 Server
 LAN cable (not supplied)
 Router
 Modem
 Internet

Press HOME.
The home menu appears on the TV screen.
Select
menu.
[Setup] -
[Network Settings] from the home
Network Functions
The following illustration is an example configuration of the
network.
We recommend a wired connection for stable network functioning.
1
Select [Internet Settings].
Select [Wired Setup].
The screen for selecting the IP address acquisition method
appears on the TV screen.
Select [Auto].
The system starts connecting to the network.
The confirmation screen appears.
Press / to browse information, and then press .
Select [Save & Connect].
The system starts connecting to the network. For details, refer to
the messages that appear on the TV screen.
If using a fixed IP address
Select [Custom] in step 5 and follow the on-screen instructions.
Tip
See [Network Connection Status] when checking the network connection
status.
15GB
Connecting to a Wireless Network
Setting up a Wireless LAN Connection
Before performing network settings
When your wireless LAN router (access point) is Wi-Fi Protected
Setup (WPS)-compatible, you can easily set the network settings
with the WPS button.
If not, you will be required to select or enter the following
information. Check the following information in advance.
 The network name (SSID)* of the wireless LAN router/access point
 The security key (password)** for the network
* SSID (Service Set Identifier) is a name that identifies a particular access
point.
** This information should be available from a label on your wireless LAN
router/access point, from the operating instructions, from the person
who set up your wireless network, or from the information provided by
your Internet service provider.
1
2
3
4
5
6
7
Press HOME.
The home menu appears on the TV screen.
Select
menu.
[Setup] -
[Network Settings] from the home
Select [Internet Settings].
Select [Wireless Setup(built-in)].
Select [Wi-Fi Protected Setup (WPS)].
Select [Start].
Press the WPS button on the access point.
The system starts connecting to the network.
16GB
If selecting the network name (SSID) you want
Select the network name (SSID) you want in step 5, enter the security
key (or passphrase) using the software keyboard, and then select
[Enter] to confirm the security key. The system starts connecting to
the network. For details, refer to the messages that appear on the TV
screen.
If using a fixed IP address
Select [New connection registration] in step 5 and follow the onscreen instructions.
If using a (WPS) PIN code
Select [New connection registration] in step 5, and then select [(WPS)
PIN method].
Tip
See [Network Connection Status] when checking the network connection
status.
Playing Music/Photo Files on a Home
Network
You can play music/photo files on other home network-compatible
devices by connecting them to your home network.
This system can be used as a player and renderer.
 Server: Stores and shares digital media content
 Player: Finds and plays digital media content from the server
 Renderer: Receives and plays digital media content from the server
and can be operated by another device (controller)
 Controller: Operates the renderer device
Prepare to use the Home Network function.
Connect the system to a network.
 Prepare another home network-compatible device. For details,
refer to the operating instructions of the device.

Playing Files Stored on a Server via the System
(Player)
Playing Remote Files by Operating the System
(Renderer) via a Home Network Controller
You can operate the system with a home network controllercompatible device (a mobile phone app, etc), when playing files
stored on a server.
Server
Player
(This system)
1
5
Renderer
(This system)
Press HOME.
The home menu appears on the TV screen.
Select [Home Network].
Controller
Select the desired device.
Press / to select
.
[Music] or
[Photo] and then press
Select the desired content using /// and
.
For details on operation, refer to the operating instructions of the
home network controller-compatible device.
Note
Do not operate the system with the supplied remote control and a
controller at the same time.
Tip
The system is compatible with the “Play To” function of Windows Media®
Player 12, which comes standard with Windows 7.
17GB
Network Functions
2
3
4
Server
Displaying the Screen of the Mobile Device
on a TV (Screen mirroring)
Enjoying Various Online Services (Music
Services)
[Screen mirroring] is a function to display the screen of a mobile
device on the TV by Miracast technology.
The system can be connected directly with a Screen mirroringcompatible device (e.g. smartphone, tablet). You can enjoy using
the display screen of the device on your large TV screen. No wireless
router (or access point) is required to use this feature.
You can listen to music services offered on the Internet with this
system. To use this function, the system must be connected to the
Internet.
The operation below will display a guide to invite you to music
services. Follow the guide to enjoy the music services.
1
2
1
Press MIRRORING.
Follow the on-screen instructions.
Activate the Screen mirroring function from your mobile device.
For details on how to activate the function, refer to the operating
instructions supplied with your mobile device.
To connect to an Xperia smartphone using One-touch
mirroring function (NFC)
Press MIRRORING, then hold the Xperia smartphone near to the NMark on the Bar Speaker.
To exit mirroring
Press HOME or INPUT.
Notes
 When
using Screen mirroring, the quality of picture and sound may
sometimes be deteriorated due to interference from other networks.
 Depending on the usage environment, the quality of the picture and
sound may be deteriorated.
 Some network functions may not be available during Screen mirroring.
 Make sure that your device is compatible with Miracast. Connectivity
with all Miracast compatible devices is not guaranteed.
Tip
If you see that the quality of picture and sound is often deteriorated, try
setting the [Screen mirroring RF Setting] (page 27).
18GB
2
Press HOME.
The home menu appears on the TV screen.
Select [Music Services].
The music services list appears on the TV screen.
Tip
You can update the service provider list by pressing OPTIONS,
followed by select [Update List].
3
Select the desired music service.
Using Google Cast™
Google Cast allows you to select music content from the Google
Cast-enabled app and play back on the system.
Google Cast requires the initial setup using SongPal.
1
2
3
5
6
Connect the device by Wi-Fi to the same network as that of
the system (page 16).
Start SongPal, select [HT-ST9], and tap [Settings]-[Google
Cast]-[Learn how to Cast].
Check the operation and Google Cast-enabled apps, and
download the app.
Network Functions
4
Download free SongPal app to the mobile device such as
smartphone.
Start the Google Cast-enabled app, tap the cast button, and
select [HT-ST9].
Select and play music on the Google Cast-enabled app.
The music is played on the system.
Note
You cannot use Google Cast while “Google Cast Updating” is shown on
the front panel display of the Bar Speaker. Wait until the update is
complete, and then try again.
19GB
Viewing Copyright-protected 4K Content
When the TV’s HDMI jack is labeled with ARC* and
compatible with HDCP 2.2
Connecting a 4K TV
To view copyright-protected 4K content and listen to sound from the
Bar Speaker, connect the Bar Speaker and the TV via an HDCP 2.2compatible HDMI jack.
You can only view copyright-protected 4K content through the
HDCP 2.2-compatible HDMI jack connection. For details on whether
the TV is equipped with HDCP 2.2- compatible HDMI jack, refer to the
operating instructions supplied with the TV.
HDCP 2.2compatible
HDMI jack
HDMI cable
(High Speed HDMI Cable with Ethernet, not supplied)
* ARC (Audio Return Channel)
The ARC function sends digital sound from a TV to this system using
just an HDMI cable.
20GB
When the TV’s HDMI jack is labeled with ARC and
not compatible with HDCP 2.2
If your TV’s HDMI jack is labeled with ARC and not compatible with
HDCP 2.2, connect the system to your TV’s HDMI jack that is
compatible with HDCP 2.2 using an HDMI cable. Then, connect an
optical digital cable to the optical output jack of the TV to listen to
digital sound.
Connecting 4K Devices
Connect a 4K device to the HDMI IN 1 jack of the Bar Speaker.
For details on whether the device is HDCP 2.2-compatible, refer to
the operating instructions supplied with the device.
Blu-ray Disc Player, cable box or
satellite box, etc.
HDCP 2.2compatible
HDMI jack
HDCP 2.2compatible
HDMI jack
Viewing Copyright-protected 4K Content
HDMI cable
(High Speed HDMI Cable
with Ethernet, not supplied)
HDMI cable
(High Speed HDMI Cable with Ethernet, not supplied)
Optical digital cable
(supplied)
21GB
Icon
Explanation
[Input Skip Setting] (page 27)
Sets the input skip setting for each input.
Settings and Adjustments
[Easy Setup] (page 28)
Re-runs the Easy Setup to make the basic settings.
Using the Setup Display
[Easy Network Settings] (page 28)
Runs [Easy Network Settings] to make the basic network
settings.
You can make various adjustments to items such as picture and
sound.
The default settings are underlined.
1
2
3
[Resetting] (page 28)
Resets the system to the factory default settings.
Press HOME.
The home menu appears on the TV screen.
Press  to select
[Setup].
Press / to select the setup category icon, and then press
.
Icon
Explanation
[Software Update] (page 22)
Updates the software of the system.
[Software Update]
By updating your software to the latest version, you can take
advantage of the newest functions.
During a software update, “UPDT” appears in the front panel display.
After the update is complete, the system automatically reboots.
While the updating operation is in progress, do not turn on or off the
system or operate the system or TV. Wait for the software update to
complete.
Notes
[Screen Settings] (page 23)
Makes the screen settings according to the type of TV.
[Audio Settings] (page 24)
Makes the audio settings according to the type of connection
jacks.
[Bluetooth Settings] (page 24)
Makes detailed settings for the BLUETOOTH function.
[System Settings] (page 25)
Makes the system-related settings.
[Network Settings] (page 27)
Makes detailed settings for Internet and home network.
22GB
 For
information about update functions, visit the following website:
www.sony.eu/support
 Set [Auto Update] to [On] when you want to perform software updates
automatically (page 26). Software update may be performed even if you
select [Off] in [Auto Update] depending on the details of the updates.
 [Update via Internet]
Updates the system’s software using the available network. Make
sure network is connected to the Internet.
 [Update via USB Memory]
Updates software using USB memory. Make sure that the software
update folder is correctly named “UPDATE.”
[Screen Settings]
 [TV Type]
[16:9]: Select this when connecting to a wide-screen TV or a TV with
a wide-mode function.
[4:3]: Select this when connecting to a 4:3 screen TV without a widemode function.
 [Output Video Resolution]
[Auto]: Outputs video signal according to the resolution of the TV or
connected device.
[480i/576i]*, [480p/576p]*, [720p], [1080i], [1080p]: Outputs video
signal according to the selected resolution setting.
* If the color system of the playback content is NTSC, the video signals
resolution can be converted to [480i] and [480p] only.
Note
If your device manufactured by Sony is not detected when [Auto1] is
selected, the setting will have the same effect as [Auto2] setting.
 [YCbCr/RGB (HDMI)]
[Auto]: Automatically detects the type of external device, and then
switches to the matching color setting.
[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video signals.
[RGB]: Select this when connecting to a device with an HDCP
compliant DVI jack.
 [HDMI Deep Colour Output]
[Auto]: Normally select this.
[12bit], [10bit]: Outputs 12bit/10bit video signals when the connected
TV is compatible with Deep Colour.
[Off]: Select this when the picture is unstable or colors appear
unnatural.
continued
23GB
Settings and Adjustments
 [24p Output]
[Network content 24p Output]
This function sets the signals output from the HDMI OUT (ARC) jack
on the system when using the Screen mirroring function.
[Auto]: Outputs 24p video signals only when you connect a 1080/
24p-compatible TV via an HDMI connection and the [Output Video
Resolution] is set to [Auto] or [1080p].
[Off]: Select this when your TV is not compatible with 1080/24p
video signals.
 [4K Output]
[Auto1]: Outputs 2K (1920 × 1080) video signals during video
playback and 4K video signals during photo playback when
connected to a 4K-compatible device manufactured by Sony.
Outputs 4K video signals during playback of 24p video content or
playback of photos when connected to a device other than 4Kcompatible device manufactured by Sony.
This setting does not work for 3D video image playback.
[Auto2]: Automatically outputs 4K/24p video signals when you
connect a 4K/24p-compatible device and make the appropriate
settings for [Network content 24p Output] in [24p Output], and also
outputs 4K/24p photo images when you play 2D photo files.
[Off]: Turns off the function.
 [Video Direct]
You can disable the On-Screen Display (OSD) of the Bar Speaker
when [HDMI1], [HDMI2] or [HDMI3] input is selected.
This function is useful when playing a game, you can fully enjoy the
game’s screen.
[On]: Disables the OSD. Information will not display on the TV screen
and the OPTIONS and DISPLAY buttons will not work.
[Off]: Displays information on the TV screen only when you change
the settings, such as when selecting the sound field.
 [SBM] (Super Bit Mapping)
[On]: Smooths the gradation of video signals output from the HDMI
OUT (ARC) jack.
[Off]: Select this if video signals are distorted or color is unnatural.
[On]: Attenuates the input level. The output level will decrease at this
setting.
[Off]: Normal input level.
 [Audio Output]
You can select the output method used for audio signal output.
[Speaker]: Outputs multi-channel sound from the system’s speakers
only.
[Speaker + HDMI]: Outputs multi-channel sound from the system’s
speakers and 2-channel linear PCM signals from the HDMI OUT (ARC)
jack.
[HDMI]: Outputs sound from the HDMI OUT (ARC) jack only. Sound
format depends on the connected device.
Notes
 When [Control for HDMI] is set to [On] (page
[Audio Settings]
 [DSEE HX]
This function is only available when [Music] is selected as the sound
field.
[On]: Upscales the audio file to a High-Resolution Audio file and
reproduces the clear high-range sound which is often lost (page 10).
[Off]: Off
 [Audio DRC]
You can compress the dynamic range of the sound track.
[Auto]: Automatically compresses sound encoded in Dolby TrueHD.
[On]: The system reproduces the sound track with the kind of
dynamic range that the recording engineer intended.
[Off]: No compression of dynamic range.
 [Attenuation settings - Analog]
Distortion may occur when you listen to a device connected to the
ANALOG IN jacks. You can prevent distortion by attenuating the
input level on the system.
24GB
26), [Audio Output] is set to
[Speaker + HDMI] automatically and this setting cannot be changed.
 Audio signals are not output from the HDMI OUT (ARC) jack when [Audio
Output] is set to [Speaker + HDMI] and [HDMI1 Audio Input Mode]
(page 26) is set to [TV]. (Europe models only)
[Bluetooth Settings]
 [Bluetooth Mode]
You can enjoy content from a BLUETOOTH device by using this
system or listen to sound from this system by using BLUETOOTH
receiver such as headphones.
[Receiver]: This system is in receiver mode, which enables it to
receive and output audio from the BLUETOOTH device.
[Transmitter]: This system is in transmitter mode, which enables it to
send audio to the BLUETOOTH receiver. If you switch the input of the
system, [BT TX] appears on the front panel display.
[Off]: The BLUETOOTH function is turned off and you cannot select
the [Bluetooth Audio] input.
Note
You can connect to a BLUETOOTH device by using the One-touch
function even if you have set [Bluetooth Mode] to [Off].
 [Device List]
Displays a list of paired and detected BLUETOOTH devices (SNK
device) when [Bluetooth Mode] is set to [Transmitter].
 [Bluetooth Standby]
You can set the [Bluetooth Standby] so that the system can be
turned on by a BLUETOOTH device even when the system is in
standby mode. This function is only available when you set
[Bluetooth Mode] to [Receiver] or [Transmitter].
[On]: The system turns on automatically when you establish a
BLUETOOTH connection from a paired BLUETOOTH device.
[Off]: Off
 [Bluetooth Codec - AAC]
This function is only available when you set [Bluetooth Mode] to
[Receiver] or [Transmitter].
[On]: Enable AAC codec.
[Off]: Disable AAC codec.
Note
 [Bluetooth Codec - LDAC]
This function is only available when you set [Bluetooth Mode] to
[Receiver] or [Transmitter].
[On]: Enable LDAC codec.
[Off]: Disable LDAC codec.
Note
[System Settings]
 [OSD Language]
You can select the language you want for the system on-screen
display.
 [Wireless Sound Connection]
You can make further settings for the wireless system. For details,
see “Further Setting for the Wireless System (Subwoofer)” (page 35).
 [IR-Repeater]
[On]: Remote signals for the TV are sent from the rear of the Bar
Speaker (page 34).
[Off]: Turns off the function.
You can enjoy more high-quality sound if LDAC is enabled and your
device supports LDAC. If you cannot listen to LDAC sound with your
device, select [Off].
continued
25GB
Settings and Adjustments
You can enjoy high-quality sound if AAC is enabled and your device
supports AAC. If you cannot listen to AAC sound with your device, select
[Off].
 [Wireless Playback Quality]
You can set the transmission data rate of LDAC playback. This
function is only available when you set [Bluetooth Mode] to
[Transmitter] and [Bluetooth Codec - LDAC] to [On].
[Auto]: The data transfer rate is automatically changed depending
on the environment. If audio playback is unstable in this mode, use
the other three modes.
[Sound Quality]: The highest bit rate is used. Sound is sent in a
higher quality; however, audio playback sometimes may become
unstable when the link quality is not good enough.
[Standard]: The middle bit rate is used. It balances both sound
quality and playback stability.
[Connection]: Stability is prioritized. Sound quality may be
reasonable and connection status will most likely be stable. If the
connection is unstable, this setting is recommended.
 [HDMI Settings]
[Control for HDMI]
[On]: Turns on the [Control for HDMI] function. You can operate
mutually between device that are connected with an HDMI cable.
[Off]: Off
[Audio Return Channel]
This function is available when you connect the system to a TV’s
HDMI IN jack that is compatible with the Audio Return Channel
function and [Control for HDMI] is set to [On].
[Auto]: The system can receive the digital audio signal of the TV
automatically via an HDMI cable.
[Off]: Off
[Standby Through]
You can output HDMI signals to the TV even when the system is in
standby mode. This function is available when you set [Control for
HDMI] to [On].
[Auto]: Outputs signals from the HDMI OUT (ARC) jack when the TV
is turned on while the system is in the standby mode. This setting
saves power in the standby mode compared to the [On] setting.
[On]: Always output signals from the HDMI OUT (ARC) jack when the
system is in standby mode. If you connect a TV other than “BRAVIA,”
we recommend you to select this setting.
[Off]: No signals are output when system in standby mode. This
setting saves power in the standby mode compared to the [On]
setting.
[HDMI1 Audio Input Mode] (Europe models only)
You can select the audio input of the device that is connected to the
HDMI IN 1 jack.
[HDMI1]: The sound of the device that is connected to the HDMI IN 1
jack is input from the HDMI IN 1 jack.
[TV]: The sound of the device that is connected to the HDMI IN 1 jack
is input from the DIGITAL IN (TV) jack.
 [Quick Start/Network Standby]
[On]: Shortens the startup time from standby mode. You can operate
the system quickly after turning it on.
[Off]: Off
26GB
 [Auto Standby]
[On]: Turns on the [Auto Standby] function. When you do not
operate the system for about 20 minutes, the system enters standby
mode automatically.
[Off]: Off
 [Auto Display]
[On]: Automatically displays information on the TV screen when
changing the audio signals, picture mode, etc.
[Off]: Displays information only when you press DISPLAY.
 [Software Update Notification]
[On]: Sets the system to inform you of latest software version
information (page 22).
[Off]: Off
 [Auto Update Settings]
[Auto Update]
[On]: Software update is automatically executed between 2 a.m. and
5 a.m. local time in the selected [Time Zone] while this system is not
in use. If you select [Off] in [Quick Start/Network Standby], software
update is performed after you turn off the system.
[Off]: Off
[Time Zone]
Select your country/region.
Notes
 Software
update may be performed even if you select [Off] in [Auto
Update] depending on the details of the updates.
 Software update is performed automatically within 11 days of a new
software release.
 [Device Name]
You can change the name of this system according to your
preference so that it is more recognizable when using the [Bluetooth
Audio] or [Screen mirroring] function. The name is also used with
other networks, such as the home network. Follow on-screen
instructions and use the software keyboard to enter the name.
[CH 1]/[CH 6]/[CH 11]: The selected channel is prioritized for Screen
mirroring connection.
 [System Information]
You can display the system’s software version information and the
MAC address.
 [Connection Server Settings]
Sets whether or not to display the connected home network server.
 [Software License Information]
You can display the Software License Information.
[Network Settings]
 [Internet Settings]
Connect the system to the network beforehand.
[Wired Setup]: Select this when you connect to a broadband router
using a LAN cable.
[Wireless Setup(built-in)]: Select this when you use the built-in Wi-Fi
function of the system to connect to a wireless network.
Tip
 [Network Connection Status]
Displays the current network connection status.
 [Network Connection Diagnostics]
You can run the network diagnostic to check if the network
connection has been made properly.
 [Screen mirroring RF Setting]
If you use multiple wireless systems, such as a wireless LAN, the
wireless signals may be unstable. In this case, playback stability may
be improved by setting the priority radio frequency channel for
Screen mirroring.
[Auto]: Normally select this. The system automatically selects the
best channel for Screen mirroring.
 [Renderer Access Control]
Displays a list of home network controller-compatible products and
sets whether or not to accept commands from the controllers in the
list.
 [External Control]
[On]: Allows the home automation controller to operate this system.
[Off]: Off
 [Remote Start]
[On]: Allows you to turn on the system by a device linked via a
network when the system is in standby mode.
[Off]: The system cannot be turned on by a device linked via a
network.
Settings and Adjustments
For further details, visit the following website and check the FAQ:
www.sony.eu/support
 [Auto Renderer Access Permission]
[On]: Allows automatic access from a newly detected home network
controller.
[Off]: Off
[Input Skip Setting]
The skip setting is a convenient feature that allows you to skip
unused inputs when selecting a function by pressing INPUT.
[Do not skip]: The system does not skip the selected input.
[Skip]: The system skips the selected input.
Note
When you press INPUT during the home menu is displayed, input icon
appears dimmed if it has been set to [Skip].
continued
27GB
[Easy Setup]
Run [Easy Setup] to make the basic initial settings and the basic
network settings for the system. Follow the on-screen instructions.
[Easy Network Settings]
Runs [Easy Network Settings] to make the basic network settings.
Follow the on-screen instructions.
[Resetting]
Using the Options Menu
Various settings and playback operations are available by pressing
OPTIONS. The available items differ depending on the situation.
Common options
[A/V SYNC]
Adjusts the time gap between picture and sound (page 29).
[Sound Field]
Changes the sound field setting (page 9).
[Football]
Selects the football mode (page 9).
 [Reset to Factory Default Settings]
You can reset the system settings to the factory default by selecting
the group of settings. All the settings within the group will be reset.
[Night]
Selects the night mode (page 10).
 [Initialise Personal Information]
You can erase your personal information stored on the system.
[Repeat Setting]
Sets repeat playback.
Note
[Play/Stop]
Starts or stops playback.
If you dispose, transfer or resell this system, please delete all Personal
Information for security purposes. Please take appropriate measures
such as logging out after using a network service.
[Voice]
Selects the voice mode (page 10).
[Play from start]
Plays the item from the beginning.
[Change Category]
Switches between the
[Music] and
[Photo] category in [USB] or [Home
Network] input. This item is only available when the display list is available for
the category.
[Music] only
[Shuffle Setting]
Sets shuffle playback.
[Add Slideshow BGM]
Registers music files on the USB memory as slideshow background music
(BGM).
28GB
[Photo] only
[Slideshow]
Starts a slideshow.
[Slideshow Speed]
Changes the slideshow speed.
[Slideshow Effect]
Sets the effect when playing a slideshow.
[Slideshow BGM]
• [Off]: Turns off the function.
• [My Music from USB]: Sets the music files registered in [Add Slideshow
BGM].
[Change Display]
Switches between [Grid View] and [List View].
[Rotate Left]
Rotates the photo counterclockwise by 90 degrees.
Adjusting the Delay Between the Picture and
Sound (A/V SYNC)
When the sound does not match the pictures on the TV screen, you
can adjust the delay between the picture and sound for the
following inputs.
The setting method differs depending on the input.
When the [HDMI1], [HDMI2] or [HDMI3] input is selected
1
2
3
[Rotate Right]
Rotates the photo clockwise by 90 degrees.
[View Image]
Displays the selected picture.
Press OPTIONS.
The options menu appears on the TV screen.
Select [A/V SYNC].
Adjust the delay using / and .
You can adjust from 0 ms to 300 ms in 25 ms increments.
When the [TV] input is selected
1
4
Press
Settings and Adjustments
2
3
Press OPTIONS.
“SYNC” appears in the front panel display.
or .
Adjust the delay using /and .
You can adjust from 0 ms to 300 ms in 25 ms increments.
Press OPTIONS.
The options menu in the front panel display turns off.
29GB
When using an Android Device
Other Functions
Controlling the System Using a Smartphone
or Tablet (SongPal)
SongPal is a dedicated app for operating SongPal-compatible audio
devices manufactured by Sony using an smartphone or tablet.
Search for SongPal on Google Play or the App Store and download
using your smartphone or tablet.
SongPal allows you to...
– change commonly used settings, selecting the input of the system
and adjusting the volume.
– enjoy with the system music content stored on a home network
server or smartphone.
– enjoy music visually with your smartphone display.
– configure Wi-Fi connection settings easily using SongPal if your WiFi router does not have a WPS function.
– use the SongPal Link function (page 31).
1
2
3
4
you start to perform the operations below, be sure to set the
[Bluetooth Mode] to [Receiver] (page 24).
 This system is compatible with SongPal version 3.0 or later.
 SongPal uses the network function (page 15) and BLUETOOTH function
(page 11) of the system.
 Specifications and display design of SongPal change without notice.
30GB
Search for SongPal with the Android device and download
that application.
Launch SongPal.
Connect the system and the Android device by the
BLUETOOTH connection (page 11) or network connection
(page 15).
Tip
You can connect the Android device with the NFC function (page 12).
5
Follow the instructions on SongPal.
When using an iPhone/iPod touch
1
2
Notes
 Before
Press  (on/standby).
The display of the Bar Speaker lights.
3
4
5
Press  (on/standby).
The display of the Bar Speaker lights.
Search for SongPal with the iPhone/iPod touch and
download that application.
Launch SongPal.
Connect the system and an iPhone/iPod touch by
BLUETOOTH connection (page 11) or network connection
(page 15).
Follow the instructions on SongPal.
Listening to the Same Music on Multiple Devices/
Listening to Different Music in a Different Location
(SongPal Link)
You can enjoy music stored on your computer or smartphone or
from music services in multiple rooms at the same time.
Refer to the following for details of SongPal Link
http://www.sony.net/nasite
Using the Control for HDMI Function for
“BRAVIA” Sync
This function is available on TVs with the “BRAVIA” Sync function.
Operation is simplified with the features below by connecting via an
HDMI cable products manufactured by Sony that are compatible
with the Control for HDMI function.
You can enable the Control for HDMI function by setting [Control for
HDMI] to [On] (page 26).
Notes
 To use the “BRAVIA” Sync function, be sure to turn on the system and all
connected devices after making the HDMI connection.
on the settings of the connected device, the Control for
HDMI function may not work correctly. Refer to the operating
instructions of the device.
 Depending
System Power Off
When you turn off the TV, the system and the connected device will
turn off automatically.
Notes
system does not turn off automatically while playing music on this
system.
 The System Power Off function may work with devices other than those
manufactured by Sony, but operation is not guaranteed.
One-Touch Play
When you play content on a device (Blu-ray Disc Player,
“PlayStation®4,” etc.) connected to the system with an HDMI cable,
the system and TV are turned on automatically and the input of the
system is switched to the appropriate HDMI input.
Notes
 The
feature above may not operate with certain devices.
continued
31GB
Other Functions
 The
 If
you set [Standby Through] to [Auto] or [On] (page 26), and then play
back the content on a connected device when the system is in standby
mode, sound and image can only be output from the TV while the
system remains in standby mode.
 The One-Touch Play function may work with devices other than those
manufactured by Sony, but operation is not guaranteed.
Control for HDMI sync function
The system’s [Control for HDMI] function automatically becomes
active by activating the TV’s Control for HDMI (BRAVIA Sync)
function. “DONE” appears in the front panel display of the Bar
Speaker when this is done.
Notes
System Audio Control
If you turn on the system while you are watching the TV, the TV
sound will be output from the speakers of the system automatically.
The volume of the system will be adjusted when you adjust the
volume using the TV’s remote control.
If the TV sound was output from the speakers of the system the last
time you watched the TV, the system will be turned on automatically
when you turn on the TV again.
You can also enjoy this feature when using the Twin Picture function
(Picture and Picture (P&P)) on your TV.
 If the [TV], [HDMI1], [HDMI2] or [HDMI3] input is selected, the sound
can be output from the system.
 If other than [TV], [HDMI1], [HDMI2] or [HDMI3] input is selected, the
sound is only output from the TV when using the Twin Picture
function. When you turn off the Twin Picture function, the sound is
output from the system.
 You can set the [Control for HDMI] function manually if the above setting
is not working. For details, see “[HDMI Settings]” (page 26).
 The control for HDMI sync function is a proprietary function of Sony. This
function cannot operate with devices other than those manufactured by
Sony.
Echo Canceling Sync
You can reduce the echo when you use the Social Viewing function
while watching TV programs. Conversation becomes clearer.
 If the current selected input is [TV], [HDMI1], [HDMI2] or [HDMI3],
the input is automatically changed to [TV] input. Sound of the
Social Viewing and TV program is output from the system.
 If the current selected input is other than [TV], [HDMI1], [HDMI2] or
[HDMI3], the sound of the Social Viewing and the playback content
is output from TV.
Notes
Notes
 The number for the system's volume level is displayed on the TV screen
depending on the TV. The displayed volume number may differ from
the number on the front panel display of the Bar Speaker.
 The System Audio Control function may work with devices other than
those manufactured by Sony, but operation is not guaranteed.
Audio Return Channel
You can enjoy TV sound via the system by using just one HDMI cable.
For details of the setting, see “[Audio Return Channel]” (page 26)
Note
The Audio Return Channel function may work with devices other than
those manufactured by Sony, but operation is not guaranteed.
32GB
 This
feature only works for a TV that supports Social Viewing function.
For details, refer to the operating instructions of your TV.
 Be sure to set the audio output setting on your TV so that the sound can
be output through this system.
 The Echo Canceling Sync function is a proprietary function of Sony. This
function cannot operate with devices other than those manufactured by
Sony.
Home Theatre Control
The icon of the Home Theatre Control app appears on the TV screen.
You can change the settings of the system (such as change an input
or sound field) by using the remote control of your TV.
Notes
 Your TV must be connected to Internet to use the Home Theatre Control
function.
 The Home Theatre Control function is a proprietary function of Sony.
This function cannot operate with devices other than those
manufactured by Sony.
Language Follow
When you change the language for the on-screen display of the TV,
the system’s on-screen display language is also changed.
Notes on HDMI connections
You can enjoy multiplex broadcast sound when the system receives
a Dolby Digital multiplex broadcast signal.
Note
To receive a Dolby Digital signal, you need to connect a TV or other
devices to the DIGITAL IN (TV) jack with a optical digital cable.
If your TV’s HDMI IN jack is compatible with the Audio Return Channel
function (page 26), you can receive a Dolby Digital signal via an HDMI
cable.
Press AUDIO repeatedly until the signal you want appears in the
front panel display.
 “MAIN”: Sound of the main language will be output.
 “SUB”: Sound of the sub language will be output.
 “MN/SB”: Mixed sound of both the main and sub languages will be
output.
Deactivating Buttons on the Bar Speaker
(Child Lock)
You can deactivate buttons on the Bar Speaker (except for ) for
preventing misoperation, such as child mischief.
Be sure to use buttons on the Bar Speaker to perform this operation.
Press and hold INPUT followed by VOLUME –, VOLUME +,
VOLUME – on the Bar Speaker.
“LOCK” appears in the front panel display.
You can only operate the system by using the remote control.
To cancel, press and hold INPUT followed by VOLUME –, VOLUME +,
VOLUME – on the Bar Speaker.
“UNLCK” appears in the front panel display.
33GB
Other Functions
Use an HDMI cable (High Speed HDMI Cable with Ethernet). If you
use a standard HDMI cable, 1080p, Deep Colour, 3D, and 4K
content may not be displayed properly.
 Use an HDMI-authorized cable. Use an HDMI cable (High Speed
HDMI Cable with Ethernet) manufactured by Sony bearing the logo
indicating the cable type.
 We do not recommend using an HDMI-DVI conversion cable.
 Audio signals (sampling frequency, bit length, etc.) transmitted
from an HDMI jack may be suppressed by the connected device.
 Sound may be interrupted when the sampling frequency or the
number of channels of audio output signals from the playback
device is switched.
 When [TV] input is selected, video signals via one of the HDMI IN 1/
2/3 jacks selected last time are output from the HDMI OUT (ARC)
jack.
 This system supports Deep Colour, “x.v.Colour,” 3D, and 4K
transmission.
 To enjoy 3D content, connect a 3D-compatible TV and video device
(Blu-ray Disc Player, “PlayStation®4” etc.) to the system using HDMI
cables (High Speed HDMI Cable with Ethernet), put on 3D glasses,
and then play back a 3D-compatible Blu-ray Disc, etc.
 To enjoy 4K content, the TV and players that are connected to the
system must be compatible with 4K content.

Enjoying multiplex broadcast sound (Dual
Mono)
Changing the brightness
You can change the brightness of the front panel display and blue
LED indicator.
Press DIMMER repeatedly.
You can adjust the brightness in 3 levels.*
* The brightness for “DIM1” and “DIM2” settings are the same.
Enabling the IR Repeater Function (when
you cannot control the TV)
When the Bar Speaker obstructs the remote control sensor of the TV,
the TV remote control may not work. In that case, enable the IR
repeater function of the system.
You can control the TV with the remote control of the TV by sending
the remote signal from the rear of the Bar Speaker.
Note
The front panel display is turned off when “DIM2” is selected. It turns on
automatically when you press any buttons, then turns off again if you do
not operate the system for about 10 seconds. However, in some cases,
the front panel display may not turn off.
Saving Power in Standby Mode
Check that you have made the following settings:
– [Bluetooth Standby] is set to [Off] (page 25).
– [Standby Through] is set to [Off] (page 26).
– [Quick Start/Network Standby] is set to [Off] (page 26).
– [Remote Start] is set to [Off] (page 27).
Note
Be sure to check that the remote control of the TV cannot control the TV,
and then set [IR-Repeater] to [On] (page 25). If it is set to [On] when the
remote control can control the TV, appropriate operation may not be
obtained because of the interference between the direct command from
the remote control and the command via the system.
34GB
1
2
3
4
5
Press HOME.
The home menu appears on the TV screen.
Select
menu.
[Setup] -
[System Settings] from the home
Further Setting for the Wireless System
(Subwoofer)
Select [IR-Repeater].
On/standby indicator
Select [On].
Press HOME.
The menu goes off.
Note
On some TVs, this function may not work correctly. In this case, place the
Bar Speaker slightly further away from the TV.
SECURE LINK
1
2
Select
menu.
[Setup] -
[System Settings] from the home
Other Functions
3
Press HOME.
The home menu appears on the TV screen.
Select [Wireless Sound Connection].
The [Wireless Sound Connection] display appears.
• [Secure Link]
• [RF Band]
continued
35GB
Activating Wireless Transmission Between Specific
Devices
Selecting the Frequency Band
[RF Band]
[Secure Link]
You can select the frequency band.
You can specify the wireless connection to link the system to the
subwoofer using the Secure Link function.
This function can help prevent interference if you use multiple
wireless products or your neighbors use wireless products.
1
1
2
3
4
5
6
Select [Wireless Sound Connection] in [System Settings]
(page 35).
2
3
Select [Secure Link].
Select [On].
Press SECURE LINK on the rear of the subwoofer.
Proceed to the next step within a few minutes.
Select [Start].
To return to the previous display, select [Cancel].
After the message [Secure Link setting is complete.] appears,
press .
The on/standby indicator on the subwoofer lights in orange.
If the message [Cannot set Secure Link.] appears, follow the onscreen instructions.
To cancel the Secure Link function
For the Bar Speaker
Select [Off] on Step 3 above.
For the subwoofer
Press and hold the SECURE LINK on the rear of the subwoofer for
several seconds until the on/standby indicator on the subwoofer
turns green or flashes in green.
Be sure to press the SECURE LINK with the point of a pen, etc.
36GB
Select [Wireless Sound Connection] in [System Settings]
(page 35).
Select [RF Band].
Select the setting you want.
 [Auto]: Normally select this. The system automatically selects
the strongest frequency band for transmission.
 [5.2GHz], [5.8GHz]: The system transmits sound according to
the selected frequency band.
Tip
We recommend you to set [RF Band] to [Auto].
Modifying the Angle of the Bar Speaker
Mounting the Bar Speaker on a Wall
You can modify the angle of the Bar Speaker by attaching the stands
on the bottom of the Bar Speaker.
You can attach the stands on the bottom of the Bar Speaker as
shown below.
You can mount the Bar Speaker on a wall.
Notes
 We recommend that you use the system without attaching stands if you
will be listening to High-Resolution Audio.
you mount the Bar Speaker on the wall, detach the stands
beforehand.
 When
Attach the stands to both sides of the bottom of the Bar Speaker
using the supplied screws.
Screw
Notes
 When
you mount the Bar Speaker on the wall, detach the stands
beforehand (page 37).
 Prepare screws (not supplied) that are suitable for the wall material and
strength. As a plasterboard wall is especially fragile, attach the screws
securely to two studs in the wall beam. Install the Bar Speaker
horizontally, hung by screws in studs in a continuous flat section of the
wall.
 Have the installation done by a Sony dealer or licensed contractor and
pay special attention to safety during the installation.
 Sony shall not be held responsible for accidents or damage caused by
improper installation, insufficient wall strength, improper screw
installation or natural disaster, etc.
1
Prepare screws (not supplied) that are suitable for the holes
on the rear of the Bar Speaker.
4 mm
Other Functions
More than 30 mm
4.6 mm
Stand
10 mm
Tip
The stand shape differs for the right and left sides. Check the “R” or “L”
mark engraved on the stand before attaching it.
Hole on the rear of the Bar Speaker
continued
37GB
2
Fasten the screws to two studs in the wall.
The screws should protrude by 11 mm to 12 mm.
939 mm
Attaching the Grille Frame
Attach the grille frame in parallel with the front panel.
11 mm to
12 mm
Note
3
Hang the Bar Speaker on the screws.
Align the holes at the rear of the Bar Speaker with the screws,
and then hang the Bar Speaker on the two screws.
Note
When you use the HDMI IN 3 jack of the wall-mounted Bar Speaker,
connect a right-angled HDMI cable (High Speed HDMI Cable with
Ethernet).
38GB
We recommend that you use the system without attaching the grille
frame if you will be listening to High-Resolution Audio.
 Do not place anything at the rear of the Bar Speaker and subwoofer that
might block the ventilation holes and cause malfunctions.
Additional Information
Precautions
On safety
 Should any solid object or liquid fall into the system, unplug
the system
and have it checked by qualified personnel before operating it any
further.
 Do not climb on the Bar Speaker and subwoofer, as you may fall down
and injure yourself, or system damage may result.
On power sources
 Before
operating the system, check that the operating voltage is
identical to your local power supply. The operating voltage is indicated
on the nameplate at the rear of the Bar Speaker.
 If you are not going to use the system for a long time, be sure to
disconnect the system from the wall outlet (mains). To disconnect the
AC power cord (mains lead), grasp the plug itself; never pull the cord.
 One blade of the plug is wider than the other for the purpose of safety
and will fit into the wall outlet (mains) only one way. If you are unable to
insert the plug fully into the outlet, contact your dealer.
 AC power cord (mains lead) must be changed only at a qualified service
shop.
 If the system is being used in combination with a TV, VCR, or tape deck,
noise may result and picture quality may suffer. In such a case, place the
system away from the TV, VCR, or tape deck.
 Use caution when placing the system on a surface that has been
specially treated (with wax, oil, polish, etc.), as staining or discoloration
of the surface may result.
 Take care to avoid any possible injury from the corners of the Bar
Speaker and subwoofer.
 Keep 3 cm or more space under the Bar Speaker when you hang it on a
wall.
On handling the subwoofer
Do not place your hand into the slit of the subwoofer when lifting it. The
speaker driver may be damaged. When lifting it, hold the bottom of the
subwoofer.
On operation
Before connecting other devices, be sure to turn off and unplug the
system.
If you encounter color irregularity on a nearby TV screen
Color irregularities may be observed on certain types of TV sets.
If color irregularity is observed...
Turn off the TV set, then turn it on again after 15 to 30 minutes.
If color irregularity is observed again...
Although the system heats up during operation, this is not a malfunction.
If you continuously use this system at high volume, the system
temperature at the rear and bottom rises considerably. To avoid burning
yourself, do not touch the system.
On cleaning
On placement
 Place the system in a location with adequate ventilation to prevent heat
buildup and prolong the life of the system.
Place the system further away from the TV set.
Clean the system with a soft, dry cloth. Do not use any type of abrasive
pad, scouring powder, or solvent such as alcohol or benzine.
If you have any question or problem concerning your system, please
consult your nearest Sony dealer.
 Do not place the system near heat sources or in a place subject to direct
sunlight, excessive dust, or mechanical shock.
continued
39GB
Additional Information
On heat buildup
Disclaimer regarding services offered by third parties
Services offered by third parties may be changed, suspended, or
terminated without prior notice. Sony does not bear any responsibility in
these sorts of situations.
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
The N Mark is a trademark or registered trademark of NFC Forum, Inc. in
the United States and in other countries.
Notes on updating
This system allows you to update the software automatically when
connected to the Internet via a wired or wireless network.
You can add new features and use the system with more convenience
and safety by updating the system.
If you do not want to update automatically, you can disable the function
by using SongPal installed on your smartphone or tablet. However, the
system may update the software automatically for reasons such as
safety, even if this function is disabled. You can also update the software
using the settings menu when this function is disabled. Refer to “Using
the Setup Display” (page 22) for details.
You may not use the system while the software is being updated.
Copyrights
This system incorporates Dolby* Digital and the DTS** Digital Surround
System.
* Manufactured under license from Dolby Laboratories.
Dolby, and the double-D symbol are trademarks of Dolby
Laboratories.
** For DTS patents, see http://patents.dts.com. Manufactured under
license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS
and the Symbol together are registered trademarks, and DTS-HD
Master Audio is a trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
BLUETOOTH® word
mark and logos are registered trademarks owned
The
by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is
under license. Other trademarks and trade names are those of their
respective owners.
This system incorporates High-Definition Multimedia Interface (HDMI™)
technology.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
40GB
Android and Google Play are trademarks of Google Inc.
Google Cast is a trademark of Google Inc.
“Xperia” is a trademark of Sony Mobile Communications AB.
Apple, the Apple logo, iPhone, iPod, iPod touch, and Retina are
trademarks of Apple Inc., registered in the U.S. and other countries. App
Store is a service mark of Apple Inc.
“Made for iPod,” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod or iPhone,
respectively, and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this
device or its compliance with safety and regulatory standards. Please
note that the use of this accessory with iPod or iPhone may affect
wireless performance.
“BRAVIA” logo is a trademark of Sony Corporation.
“ClearAudio+” is a trademark of Sony Corporation.
“x.v.Colour” and “x.v.Colour” logo are trademarks of Sony Corporation.
“PlayStation®” is a registered trademark of Sony Computer Entertainment
Inc.
MPEG Layer-3 audio coding technology and patents licensed from
Fraunhofer IIS and Thomson.
Windows Media is either a registered trademark or trademark of
Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of
Microsoft Corporation. Use or distribution of such technology outside of
this product is prohibited without a license from Microsoft or an
authorized Microsoft subsidiary.
Opera® Devices SDK from Opera Software ASA. Copyright 1995-2013
Opera Software ASA. All rights reserved.
This product contains software that is subject to the GNU General Public
License (“GPL”) or GNU Lesser General Public License (“LGPL”). These
establish that customers have the right to acquire, modify, and
redistribute the source code of said software in accordance with the
terms of the GPL or the LGPL.
For details of the GPL, LGPL and other software licenses, please refer to
[Software License Information] in [System Settings] of the [Setup] menu
on the product.
The source code for the software used in this product is subject to the
GPL and LGPL, and is available on the Web. To download, please access
the following:
URL:
http://oss.sony.net/Products/Linux
Wi-Fi®, Wi-Fi Protected Access®, Wi-Fi Alliance® and Wi-Fi CERTIFIED
Miracast® are registered trademarks of Wi-Fi Alliance.
Wi-Fi CERTIFIED™, WPA™, WPA2™, Wi-Fi Protected Setup™ and
Miracast™ are trademarks of Wi-Fi Alliance.
LDAC™ and LDAC logo are trademarks of Sony Corporation.
Please note that Sony cannot answer or respond to any inquiries
regarding the content of this source code.
“DSEE HX” is a trademark of Sony Corporation.
All other trademarks are trademarks of their respective owners.
Additional Information
LDAC is an audio coding technology developed by Sony that enables the
transmission of High-Resolution (Hi-Res) Audio content, even over a
Bluetooth connection. Unlike other Bluetooth compatible coding
technologies such as SBC, it operates without any down-conversion of
the Hi-Res Audio content*, and allows approximately three times more
data** than those other technologies to be transmitted over a Bluetooth
wireless network with unprecedented sound quality, by means of
efficient coding and optimized packetization.
* excluding DSD format contents
** in comparison with SBC (Subband Coding) when the bitrate of
990 kbps (96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected
41GB
Troubleshooting
If you experience any of the following difficulties while using the system, use
this troubleshooting guide to help remedy the problem before requesting
repairs. Should any problem persist, consult your nearest Sony dealer.
Be sure to bring both your Bar Speaker and subwoofer, even if it
seems as though only one has a problem, when you request to repair.
Power
The system does not power up.
 Check that the AC power cord (mains lead) is connected securely.
 Disconnect the AC power cord (mains lead) from the wall outlet
(mains), and then reconnect after several minutes.
There is no picture or the picture is not output correctly.
 Select the appropriate input (page 7).
 While pressing and holding INPUT, press VOLUME +, VOLUME –,
VOLUME + on the Bar Speaker to set the video output resolution
setting to the lowest level.
There is no picture when you make an HDMI cable connection.
 If you connect a device supporting HDCP 2.2 be sure to connect
the device to the HDMI IN 1 jack and the TV to the HDMI OUT (ARC)
jack of the system.
 The system is connected to an input device that is not HDCP (Highbandwidth Digital Content Protection) compliant. In this case,
check the specifications of the connected device.
 Disconnect the HDMI cable, then connect it again. Make sure that
the cable is firmly inserted.
3D content from the HDMI IN 1/2/3 jack do not appear on the TV
screen.
 Depending on the TV or video device, 3D content may not appear.
Check the supported HDMI video format (page 53).
42GB
4K content from the HDMI IN 1/2/3 jack do not appear on the TV
screen.
 Depending on the TV or the video device, 4K content may not
appear. Check the video capability and settings of your TV and
video device.
 Use an HDMI cable (High Speed HDMI Cable with Ethernet).
No image is output from the TV when the system is in standby
mode.
 When the system enters standby mode, the image from the last
selected HDMI device before you turned off the system is
displayed. If you are enjoying content from another device, play
the content on the device and perform the One-Touch Play
operation, or turn on the system to select the HDMI device from
which you want to enjoy content.
 Set [Standby Through] to [On] in [HDMI Settings] (page 26).
An image is not displayed on the entire TV screen.
 Check the setting of [TV Type] in [Screen Settings] (page 23).
 The aspect ratio on the media is fixed.
Color irregularity occurs on the TV screen.
 If the color irregularity persists, turn off the TV set, and then turn it
on again after 15 to 30 minutes.
 Make sure that no magnetic object (magnetic latch on a TV stand,
health care device, toy, etc.) is placed near the system.
Images from the HDMI jack is distorted.
 Video from the device connected to the HDMI jack may be
distorted. If this happens, set [Video Direct] to [On] (page 24).
Sound
No TV sound is output from the system.
 Select [TV] on the home menu (page 7).
 Depending on the order of turning on the TV and the system, the
system may enter muting mode and “Muting” may appear in the
front panel display. In this case, turn on the TV first, then the
system.
 Set the speakers setting of the TV (BRAVIA) to Audio System. Refer
to the operating instructions of the TV for the TV setting.
 Check the connection of the HDMI cable, optical digital cable, or
audio cable that is connected to the system and the TV (refer to
the supplied Startup Guide).
 Increase the volume on the TV or cancel muting.
 When a TV compatible with Audio Return Channel (ARC)
technology is connected with an HDMI cable, make sure the cable
is connected to the HDMI input (ARC) terminal of the TV (refer to
the supplied Startup Guide).
 If the TV is not compatible with Audio Return Channel (ARC)
technology, connect the optical digital cable in addition to the
HDMI cable in order to output sound (refer to the supplied Startup
Guide).
 Set [Control for HDMI] to [On], and then set [Audio Return Channel]
to [Auto] (page 26).
The sound is output from both the system and the TV.
 Turn off the sound of the system or the TV.
The TV sound from this system lags behind the image.
 Set [A/V SYNC] to [0ms] if it is set to the range between [25ms] and
[300ms] (page 29).
No sound or only very low-level sound is heard from the
subwoofer.
 Press SW  + on the remote control to increase the subwoofer
volume (page 48).
 Make sure that the on/standby indicator on the subwoofer is lit in
green. If not, refer to “No sound is heard from the subwoofer.” in
“Wireless sound” (page 45).
The surround effect cannot be obtained.
 Depending on the input signal and the sound field setting,
surround sound processing may not work effectively. The
surround effect may be subtle, depending on the program or disc.
 To play multi-channel audio, check the digital audio output
setting on the device connected to the system. For details, refer to
the operating instructions supplied with the connected device.
USB device
The USB device is not recognized.
 Try the following:
 Turn the system off.
 Remove and reconnect the USB device.
 Turn the system on.
 Make sure that the USB device is securely connected to the
(USB) port (page 8).
 Check to see if the USB device or a cable is damaged.
 Make sure that the USB device is on.
 If the USB device is connected via a USB hub, disconnect it and
connect the USB device directly to the system.
BLUETOOTH
Additional Information
No sound or only very low-level sound of the device connected to
the system is heard.
 Press  + on the remote control and check the volume level
(page 48).
 Press  or  + on the remote control to cancel the muting
function (page 48).
 Make sure the input source is selected correctly. You should try
other input sources by pressing INPUT on the remote control
several times (page 7).
 Check that all the cables and cords of the system and the
connected device are firmly inserted.
 The subwoofer is for reproducing bass sound. In the case of input
sources that contain very little bass sound components (i.e., a TV
broadcast), the sound from the subwoofer may be difficult to
hear.
 When you play content compatible with copyright protection
technology (HDCP), it is not output from the subwoofer.
BLUETOOTH connection cannot be completed.
 Make sure that the indicator (blue) of the Bar Speaker is lit
(page 11).
System status
Indicator (blue) status
During BLUETOOTH pairing
Flashes quickly
The system is attempting to connect
with a BLUETOOTH device
Flashes
continued
43GB
System status
Indicator (blue) status
The system has established a
Lit
connection with a BLUETOOTH device
The system is in BLUETOOTH standby Unlit
mode (when the system is off)
 Make sure the BLUETOOTH device to be connected with is turned
on and the BLUETOOTH function is enabled.
 Bring this system and the BLUETOOTH device closer together.
 Pair this system and the BLUETOOTH device again. You may need to
cancel the pairing with this system using your BLUETOOTH device first.
Pairing cannot be achieved.
 Bring this system and the BLUETOOTH device closer together.
 Make sure this system is not receiving interference from a wireless
LAN device, other 2.4 GHz wireless devices, or a microwave oven.
If a device that generates electromagnetic radiation is nearby,
move the device away from this system.
Cannot connect.
 The pairing information has been erased. Perform the pairing
operation again (page 11).
You cannot use the NFC function.
 The NFC function does not work with BLUETOOTH-compatible
receivers (such as headphones). To listen to sound using a
BLUETOOTH-compatible receiver, see “Listening to Sound by
Transmitting to a BLUETOOTH-compatible Receiver” (page 13).
No sound is output from the connected BLUETOOTH device.
 Make sure that the indicator (blue) of the Bar Speaker is lit
(page 11).
 Bring this system and the BLUETOOTH device closer together.
 If a device that generates electromagnetic radiation, such as a
wireless LAN device, other BLUETOOTH devices, or a microwave
oven is nearby, move the device away from this system.
 Remove any obstacle between this system and the BLUETOOTH
device or move this system away from the obstacle.
 Reposition the connected BLUETOOTH device.
 Switch the wireless LAN frequency of any nearby Wi-Fi router or PC
to 5 GHz range.
 Increase the volume on the connected BLUETOOTH device.
44GB
Network connection
The system cannot connect to the network.
 Check the network connection (page 15) and the network settings
(page 27).
Wireless LAN connection
You cannot connect your PC to the Internet after [Wi-Fi Protected
Setup (WPS)] is performed.
 The wireless settings of the router may change automatically if
you use the Wi-Fi Protected Setup function before adjusting the
settings of the router. In this case, change the wireless settings of
your PC accordingly.
The system cannot connect to the network or the network
connection is unstable.
 Make sure the wireless LAN router is on.
 Check the network connection (page 15) and the network settings
(page 27).
 Depending on the usage environment (including the wall
material), radio wave reception conditions, or obstacles between
the system and the wireless LAN router, the possible
communication distance may be shortened. Move the system and
the wireless LAN router closer to each other.
 Devices that use a 2.4 GHz frequency band, such as a microwave,
BLUETOOTH, or digital cordless device, may interrupt
communication. Move the Bar Speaker away from such devices, or
turn off such devices.
 The wireless LAN connection may be unstable depending on the
usage environment, especially while using the BLUETOOTH
function of the system. In this case, adjust the usage environment.
The wireless router you want is not shown in the wireless network
list.
 Press BACK to return to the previous screen, and try [Wireless
Setup(built-in)] again (page 16). If the wireless router you want is
still not detected, select [New connection registration] from the
network list, then select [Manual registration] to input a network
name (SSID) manually.
Wireless sound (Subwoofer)
Sound skips or has noise.
 If there is a device nearby that generates electromagnetic waves,
such as a wireless LAN or a microwave oven in use, locate the
system apart from it.
 If there is an obstacle between the Bar Speaker and the
subwoofer, move or remove it.
 Locate the Bar Speaker and the subwoofer as close as possible.
 Switch the wireless LAN frequency of any nearby Wi-Fi router or PC
to 2.4 GHz range.
Remote control
The remote control of this system does not function.
 Point the remote control at the remote control sensor on the Bar
Speaker (page 47).
 Remove any obstacles in the path between the remote control
and the system.
 Replace both batteries in the remote control with new ones, if they
are weak.
 Make sure you are pressing the correct button on the remote control.
TV remote control does not work.
 This problem might be solved by enabling the IR repeater function
(page 34).
Others
The Control for HDMI function does not work properly.
 Check the HDMI connection (refer to the supplied Startup Guide).
 Set up the Control for HDMI function on the TV. Refer to the
operating instructions supplied with the TV regarding how to set
the TV.
 Make sure that any device connected is compatible with “BRAVIA”
Sync.
 Check the Control for HDMI settings on the connected device.
Refer to the operating instructions supplied with the connected
device.
 If you connect/disconnect the AC power cord (mains lead), wait
more than 15 seconds before operating the system.
 If you connect the audio output of video device with the system
using a cable other than an HDMI cable, no sound may be output
because of “BRAVIA” Sync. In such a case, set [Control for HDMI] to
[Off] or connect the cable from the audio output jack of the video
device directly to the TV (page 26).
continued
45GB
Additional Information
No sound is heard from the subwoofer.
 Make sure the AC power cord (mains lead) of the subwoofer is
connected properly (refer to the supplied Startup Guide).
 The on/standby indicator on the subwoofer does not light.
 Make sure the AC power cord (mains lead) of the subwoofer is
connected properly.
 Press  (on/standby) of the subwoofer to turn on the
power.
 The on/standby indicator on the subwoofer flashes slowly in
green or lights in red.
 Move the subwoofer to a location near the Bar Speaker so that
the on/standby indicator on the subwoofer lights in green.
 Follow the steps in “Further Setting for the Wireless System
(Subwoofer)” (page 35).
 Check the connection status of the wireless sound system
(page 35).
 The on/standby indicator on the subwoofer flashes quickly in
green.
 Consult your nearest Sony dealer.
 The on/standby indicator on the subwoofer flashes in red.
 Press  (on/standby) of the subwoofer to turn off the power
and check whether the ventilation opening of the subwoofer
is blocked or not.
 The subwoofer is designed for playback of bass sound. When the
input source does not contain much of bass sound, as is the case
with most TV programs, the bass sound may not be audible.
 Press SW  + on the remote control to increase the volume of the
subwoofer (page 48).
 Switch the network connection of the TV or Blu-ray Disc Player
from wireless to wired.
 The type and number of devices that can be controlled by the
“BRAVIA” Sync feature is restricted by HDMI CEC standard as
follows:
 Recording devices (Blu-ray Disc recorder, DVD recorder, etc.):
up to 3 devices
 Playback devices (Blu-ray Disc Player, DVD player, etc.): up to
3 devices (including this system)
 Tuner-related devices: up to 4 devices
 Audio system (receiver/headphone): up to 1 device (including
this system)
“PRTCT,” “PUSH” and “POWER” flash alternately in the front panel
display.
 Press  (on/standby) to turn off the system. After the indicator
disappears, disconnect the AC power cord (mains lead) and make
sure nothing is obstructing the ventilation holes of the system.
[BT TX] appears in the front panel display.
 Press RX/TX on the remote control to switch [Bluetooth Mode] to
[Receiver]. [BT TX] appears if [Bluetooth Mode] is set to
[Transmitter] (page 13). When you press RX/TX on the remote
control, [Bluetooth Mode] is switched to [Receiver] and the
selected input appears in the front panel display (page 24).
Sensors of the TV do not work properly.
 The Bar Speaker may block some sensors (such as the brightness
sensor), the remote control receiver of your TV or the emitter for
3D glasses (infrared transmission) of a 3D TV that supports the
infrared 3D glass system, or wireless communication. Move the
Bar Speaker away from the TV within a range that allow those
parts to operate properly. For the locations of the sensors and
remote control receiver, refer to the operating instructions
supplied with the TV.
46GB
Reset
If the system still does not operate properly, reset the system as
follows:
1
2
3
4
5
6
Press  (on/standby) to turn the system on.
Press HOME.
The home menu appears on the TV screen.
Select
[Setup] -
[Resetting] from the home menu.
Select [Reset to Factory Default Settings].
Select the menu item you want to reset.
Select [Start].
To cancel resetting
Select [Cancel] in step 6.
Front
Guide to Parts and Controls
Bar Speaker





 (on/standby) button
INPUT button
PAIRING button
VOLUME +/– buttons
Indicator
 Flashes quickly (blue): BLUETOOTH pairing in progress.
 Flashes (blue): Attempting to connect with a BLUETOOTH
device.
 Lit (blue): BLUETOOTH connection established.
 Display
 Remote control sensor
 N mark
When using the NFC function, touch your NFC device to the mark.
Rear
continued
47GB
Additional Information

(USB) port
 HDMI OUT (ARC) jack
This jack supports HDCP 2.2.
 HDMI IN 1/2 jacks
The HDMI IN 1 jack supports HDCP 2.2.
 HDMI IN 3 jack
When you use an HDMI IN 3 jack of the wall-mounted Bar
Speaker, connect the right-angled HDMI cable (High Speed HDMI
Cable with Ethernet).
 DIGITAL IN (TV) jack
 LAN(100) port
 ANALOG IN jack
 AC power cord (mains lead)
Subwoofer
 On/standby indicator
 Lit (red): Power is off.
 Lit (green): Power is on.
 Lit (orange): SECURE LINK connection is established.
  (on/standby) button
 SECURE LINK button
 AC power cord (mains lead)
48GB
Remote Control
AUDIO,  and  + buttons have a tactile dot. Use the tactile dot as
a reference when operating the remote control.
  (muting)
Turns off the sound temporarily.
 (volume) +/–
Adjusts the volume.
SW  (subwoofer volume) +/
Adjusts the volume of the bass sound.
 Playback operation buttons
See “Listening/Viewing” (page 7).
/ (rewind/fast forward)
Searches backward or forward.
/ (previous/next)
Selects the previous/next chapter, track, or file.
 (play)
Starts or re-starts playback (resume play).
 (pause)
Pauses or re-starts playback.
 (stop)
Stops playback.
AUDIO (page 33)
Selects the audio format.
RX/TX (receiver/transmitter)
Switches [Receiver] and [Transmitter] of [Bluetooth Mode]
(page 24).
Additional Information
 INPUT (page 7)
Selects the device you want to use.
DISPLAY
Displays playback and web browsing information on the TV
screen.
 (on/standby)
Turns on the system or sets it to standby mode.
 Sound field buttons (page 9)
ClearAudio+, Movie, Movie 2, Music, Game Studio, Music Arena,
Standard
CLEARAUDIO+, SOUND FIELD, FOOTBALL, VOICE, NIGHT
 DIMMER (page 34)
Adjusts the brightness of the front panel display and LED
indicator.
 Color buttons
Shortcut keys for selecting items on some menus.
 MIRRORING (page 18)
Selects [Screen mirroring].
PAIRING (page 11)
Attempt BLUETOOTH pairing.
 OPTIONS (page 28)
Displays the options menu on the TV screen or in the front panel
display. (The location differs depending on the selected
function.)
BACK
Returns to the previous display.
///
Moves the highlight to a displayed item.
(enter)
Enters the selected item.
HOME (page 22)
Enters or exits the home menu.
49GB
Notes
Playable Types of Files
 Some files may not play depending on the file format, the file encoding,
Music
 Some
Codec
Extension
MP3 (MPEG-1 Audio Layer III)1)
.mp3
AAC/HE-AAC1),2)
.m4a, .aac3)
WMA9
Standard2)
.wma
WMA10 Pro3)
.wma
LPCM1)
.wav
FLAC2)
.flac, .fla
Dolby Digital1),3)
.ac3
DSF2)
.dsf
DSDIFF2),4)
.dff
AIFF2)
.aiff, .aif
ALAC2)
.m4a
Vorbis3)
.ogg
Monkey’s Audio3)
.ape
Format
Extension
JPEG
.jpeg, .jpg, .jpe
PNG
.png5)
GIF
.gif5)
1)
2)
3)
4)
5)
The system can play “.mka” files. These files cannot be played on a
home network server.
The system may not play this file format on a home network server.
The system does not play this file format on a home network server.
The system does not play DST encoded files.
The system does not play animated PNG or animated GIF files.
50GB
the recording condition, or the home network server condition.
files edited on a PC may not play.
 Fast forward or fast reverse may not be available with some files.
 The system does not play coded files such as DRM and Lossless.
 The system can recognize the following files or folders in USB devices:
– up to folders in the 9th layer (including the root folder)
– up to 500 files/folders in a single layer
 The system can recognize the following files or folders stored in the
home network server:
– up to folders in the 19th layer
– up to 999 files/folders in a single layer
 Some USB devices may not work with this system.
 The system can recognize Mass Storage Class (MSC) devices (such as
flash memory or an HDD), Still Image Capture Devices (SICDs), and 101key keyboards.
Supported Audio Formats
Specifications
Audio formats supported by this system are as follows.
Format
Bar Speaker (SA-ST9)
Function
“HDMI1”
“HDMI2”
“HDMI3”
“TV”
(DIGITAL IN)
LPCM 2ch


LPCM 5.1ch

–
LPCM 7.1ch

–
Dolby Digital


Dolby TrueHD, Dolby Digital Plus

–
DTS


DTS-ES Discrete 6.1, DTS-ES Matrix 6.1


DTS96/24


DTS-HD High Resolution Audio

–
DTS-HD Master Audio

–
DTS-HD LBR

–
DSD

–
MPEG-2 AAC


Note
The HDMI IN 1/2/3 jacks do not input sound in the case of an audio format
that contains copy protections, such as Super Audio CD or DVD-Audio.
POWER OUTPUT (rated)
Front L + Front R: 50 W + 50 W
(at 6 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R speaker blocks: 75 Watts (per channel at 6 ohms, 1 kHz)
Center speaker block: 75 Watts (per channel at 6 ohms, 1 kHz)
Center tweeter block: 75 Watts (per channel at 6 ohms, 10 kHz)
Inputs
HDMI IN 1*/2/3
DIGITAL IN (TV)
ANALOG IN
Output
HDMI OUT* (ARC)
* HDMI IN 1 and HDMI OUT (ARC) jacks support HDCP 2.2 protocol.
HDCP 2.2 is newly enhanced copyright protection technology that is
used to protect content such as 4K movies.
HDMI section
Connector
Type A (19pin)
USB section
(USB) port:
Type A (For connecting USB memory, memory card reader, digital still
camera)
LAN section
LAN (100) terminal
100BASE-TX Terminal
continued
51GB
Additional Information
: Supported format.
–: Unsupported format.
Amplifier section
Wireless LAN section
Front L/Front R speaker blocks
Standards Compliance
IEEE 802.11 a/b/g/n
Frequency band
2.4 GHz, 5 GHz
Speaker system
2-way coaxial speaker system, Acoustic suspension
Speaker
Woofer: 65 mm cone type, Magnetic fluid speaker
Tweeter: 18 mm soft dome type
BLUETOOTH section
Communication system
BLUETOOTH Specification version 3.0
Output
BLUETOOTH Specification Power Class 1
Maximum communication range
Line of sight approx. 30 m1)
Maximum number of devices to be registered
9 devices
Frequency band
2.4 GHz band (2.4 GHz - 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles2)
A2DP 1.2 (Advanced Audio Distribution Profile)
AVRCP 1.5 (Audio Video Remote Control Profile)
Supported Codecs3)
SBC4), AAC5), LDAC
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
1) The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven, static
electricity, cordless phone use, reception sensitivity, the operating
system, software applications, etc.
2) BLUETOOTH standard profiles indicate the purpose of BLUETOOTH
communication between devices.
3) Codec: Audio signal compression and conversion format
4) Subband Codec
5) Advanced Audio Coding
52GB
Center speaker block
Speaker system
Center
2-way coaxial speaker system, Acoustic suspension
Satellite
Full range speaker system, Acoustic suspension
Speaker (5 speakers)
Center
Woofer: 65 mm cone type, Magnetic fluid speaker
Tweeter: 18 mm soft dome type
Satellite
65 mm cone type, Magnetic fluid speaker
General
Power requirements
220 V - 240 V AC, 50 Hz/60 Hz
Power consumption
On: 60 W
Standby mode: 0.5 W or less (For details on the setting, see page 34.)
Networked Standby (all wired network ports connected, all wireless
network ports activated): 7.3 W
Dimensions (approx.) (w/h/d)
1,130 mm × 88 mm × 128 mm
(without grille frame, without stands, including projection portion)
1,130 mm × 88 mm × 133 mm
(with grille frame, without stands)
1,130 mm × 100 mm × 129 mm
(without grille frame, with stands, including projection portion)
1,130 mm × 101 mm × 136 mm
(with grille frame, with stands)
Mass (approx.)
6.8 kg (without grille frame, without stands)
Compatible iPod/iPhone models
Video formats supported by the system
The compatible iPod/iPhone models are as follows. Update your iPod/
iPhone with the latest software before using with the system.
Input/Output (HDMI Repeater block)
3D
BLUETOOTH technology works with:
iPhone 6 Plus/iPhone 6/iPhone 5s/iPhone 5c/iPhone 5/iPhone 4s/
iPhone 4/iPhone 3GS
iPod touch (5th generation)/iPod touch (4th generation)
Side-bySide (Half)
Over-Under
(Top-andBottom)
4096 × 2160p @ 59.94/60 Hz1) 







4096 × 2160p @ 23.98/24 Hz2) 



3840 × 2160p @ 59.94/60 Hz1) 







3840 × 2160p @ 29.97/30 Hz2) 







3840 × 2160p @ 23.98/24 Hz2) 



1920 × 1080p @ 59.94/60 Hz




1920 × 1080p @ 50 Hz




1920 × 1080p @ 29.97/30 Hz




1920 × 1080p @ 25 Hz




1920 × 1080p @ 23.98/24 Hz




1920 × 1080i @ 59.94/60 Hz




1920 × 1080i @ 50 Hz




1280 × 720p @ 59.94/60 Hz




1280 × 720p @ 50 Hz




1280 × 720p @ 29.97/30 Hz




1280 × 720p @ 23.98/24 Hz




720 × 480p @ 59.94/60 Hz




720 × 576p @ 50 Hz




640 × 480p @ 59.94/60 Hz




4096 × 2160p @ 50 Hz1)
Subwoofer (SA-WST9)
POWER OUTPUT (reference)
200 W (at 2 ohms, 100 Hz)
Speaker system
Subwoofer, Passive radiator type
Speaker
180 mm cone type
200 mm × 300 mm cone type, Passive radiator
Power requirements
220 V - 240 V AC, 50 Hz/60 Hz
Power consumption
On: 30 W
Standby mode: 0.5 W or less
Dimensions (approx.) (w/h/d)
248 mm × 403 mm × 426 mm
Mass (approx.)
16 kg
Wireless transmitter/receiver section
Communication system
Wireless Sound Specification version 3.0
Frequency band
5.2 GHz (5.180 GHz - 5.240 GHz)
5.8 GHz (5.736 GHz - 5.814 GHz)
Modulation method
DSSS
3840 × 2160p @ 50 Hz1)
3840 × 2160p @ 25 Hz2)
1)
2)
2D
Additional Information
Frame
packing
Format
YCbCr 4:2:0/Supports 8-bit only
Supports 8-bit only
Design and specifications are subject to change without notice.
53GB
 BLUETOOTH
On BLUETOOTH Communication
 BLUETOOTH
devices should be used within approximately 10 meters
(unobstructed distance) of each other. The effective communication
range may become shorter under the following conditions.
– When a person, metal object, wall or other obstruction is between the
devices with a BLUETOOTH connection
– Locations where a wireless LAN is installed
– Around microwave ovens that are in use
– Locations where other electromagnetic waves occur
 BLUETOOTH devices and wireless LAN (IEEE 802.11b/g) use the same
frequency band (2.4 GHz). When using your BLUETOOTH device near a
device with wireless LAN capability, electromagnetic interference may
occur. This could result in lower data transfer rates, noise, or inability to
connect. If this happens, try the following remedies:
– Use this system at least 30 meters away from the wireless LAN device.
– Turn off the power to the wireless LAN device when using your
BLUETOOTH device within 10 meters.
– Install this system and BLUETOOTH device as closer to each other as
possible.
 The radio waves broadcast by this system may interfere with the
operation of some medical devices. Since this interference may result in
malfunction, always turn off the power on this system and BLUETOOTH
device in the following locations:
– In hospitals, on trains, in airplanes, at gas stations, and any place
where flammable gasses may be present
– Near automatic doors or fire alarms
 This system supports security functions that comply with the
BLUETOOTH specification to ensure secure connection during
communication using BLUETOOTH technology. However, this security
may be insufficient depending on the setting content and other factors,
so always be careful when performing communication using
BLUETOOTH technology.
 Sony cannot be held liable in any way for damages or other loss
resulting from information leaks during communication using
BLUETOOTH technology.
54GB
communication is not necessarily guaranteed with all
BLUETOOTH devices that have the same profile as this system.
 BLUETOOTH devices connected with this system must comply with the
BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and
must be certified to comply. However, even when a device complies
with the BLUETOOTH specification, there may be cases where the
characteristics or specifications of the BLUETOOTH device make it
impossible to connect, or may result in different control methods,
display or operation.
 Noise may occur or the audio may cut off depending on the BLUETOOTH
device connected with this system, the communications environment,
or surrounding conditions.
If you have any questions or problems concerning your system,
please consult your nearest Sony dealer.
Index
Numerics
D
N
24p Output 23
4K Output 23
Device List 25
Device Name 26
Dimmer 34
DSEE HX 10, 24
Network 15
Network Connection Diagnostics 27
Network Connection Status 27
Network content 24p Output 23
Network Settings 27
NFC 12
Night mode 10
A
A/V SYNC 29
Attenuation settings - Analog 24
Audio DRC 24
Audio Output 24
Audio Return Channel 26
Audio Settings 24
Auto Display 26
Auto Renderer Access Permission 27
Auto Standby 26
Auto Update 26
Auto Update Settings 26
B
C
Child Lock 33
Connection Server Settings 27
Control for HDMI 26, 31
Easy Network Settings 28
Easy Setup 28
External Control 27
F
Football mode 9
Front panel 47
G
Google Cast 19
H
HDMI
YCbCr/RGB (HDMI) 23
HDMI Deep Colour Output 23
HDMI Settings 26
HDMI1 Audio Input Mode 26
Home Network 16
I
Initialise Personal Information 28
Input Skip Setting 27
Internet Settings 27
IR-Repeater 25, 34
O
Options menu 28
OSD Language 25
Output Video Resolution 23
P
PRTCT 46
Q
Quick Start/Network Standby 26
R
Rear panel 47
Remote Control 48
Remote Start 27
Renderer Access Control 27
Reset 46
Reset to Factory Default Settings 28
Resetting 28
RF Band 36
Additional Information
BLUETOOTH 11
Bluetooth Codec - AAC 25
Bluetooth Codec - LDAC 25
Bluetooth Mode 24
Bluetooth Settings 24
Bluetooth Standby 25
“BRAVIA” Sync 31
E
M
Multiplex broadcast sound 33
Music Services 18
continued
55GB
S
SBM 24
Screen mirroring 18
Screen mirroring RF Setting 27
Screen Settings 23
Secure Link 36
Slideshow 29
Software License Information 27
Software Update 22
Software Update Notification 26
SongPal 30
Sound field 9, 28
Standby Through 26
Subwoofer 35, 45
System Information 27
System Settings 25
T
Time Zone 26
TV Type 23
U
Update 22
USB 8
V
Video Direct 24
Voice mode 10
W
Wireless Playback Quality 25
Wireless Sound Connection 25
56GB
GRANT OF LICENSE
END USER LICENSE AGREEMENT
IMPORTANT:
BEFORE USING THE SOFTWARE, PLEASE READ THIS END USER
LICENSE AGREEMENT (“EULA”) CAREFULLY. BY USING THE SOFTWARE
YOU ARE ACCEPTING THE TERMS OF THIS EULA. IF YOU DO NOT
ACCEPT THE TERMS OF THIS EULA, YOU MAY NOT USE THE
SOFTWARE.
SONY grants you a limited license to use the SOFTWARE solely in
connection with your compatible device (“DEVICE”) and only for your
individual, non-commercial use. SONY and the THIRD-PARTY
SUPPLIERS expressly reserve all rights, title and interest (including,
but not limited to, all intellectual property rights) in and to the
SOFTWARE that this EULA does not specifically grant to you.
REQUIREMENTS AND LIMITATIONS
COPYRIGHT
USE OF SOFTWARE WITH COPYRIGHTED MATERIALS
All right and title in and to the SOFTWARE (including, but not limited
to, any images, photographs, animation, video, audio, music, text
and “applets” incorporated into the SOFTWARE) is owned by SONY
or one or more of the THIRD-PARTY SUPPLIERS.
The SOFTWARE may be capable of being used by you to view, store,
process and/or use content created by you and/or third parties.
Such content may be protected by copyright, other intellectual
property laws, and/or agreements. You agree to use the SOFTWARE
only in compliance with all such laws and agreements that apply to
such content. You acknowledge and agree that SONY may take
appropriate measures to protect the copyright of content stored,
SOFTWARE LICENSE
continued
57GB
Additional Information
The SOFTWARE is licensed, not sold. The SOFTWARE is protected by
copyright and other intellectual property laws and international
treaties.
You may not copy, publish, adapt, redistribute, attempt to derive
source code, modify, reverse engineer, decompile, or disassemble
any of the SOFTWARE, whether in whole or in part, or create any
derivative works from or of the SOFTWARE unless such derivative
works are intentionally facilitated by the SOFTWARE. You may not
modify or tamper with any digital rights management functionality
of the SOFTWARE. You may not bypass, modify, defeat or
circumvent any of the functions or protections of the SOFTWARE or
any mechanisms operatively linked to the SOFTWARE. You may not
separate any individual component of the SOFTWARE for use on
more than one DEVICE unless expressly authorized to do so by
SONY. You may not remove, alter, cover or deface any trademarks or
notices on the SOFTWARE. You may not share, distribute, rent, lease,
sublicense, assign, transfer or sell the SOFTWARE. The software,
network services or other products other than SOFTWARE upon
which the SOFTWARE’S performance depends might be interrupted
or discontinued at the discretion of the suppliers (software suppliers,
service suppliers, or SONY). SONY and such suppliers do not warrant
that the SOFTWARE, network services, contents or other products
will continue to be available, or will operate without interruption or
modification.
This EULA is a legal agreement between you and Sony Corporation
(“SONY”). This EULA governs your rights and obligations regarding
the SONY software of SONY and/or its third party licensors (including
SONY’s affiliates) and their respective affiliates (collectively, the
“THIRD-PARTY SUPPLIERS”), together with any updates/upgrades
provided by SONY, any printed, on-line or other electronic
documentation for such software, and any data files created by
operation of such software (collectively, the “SOFTWARE”).
Notwithstanding the foregoing, any software in the SOFTWARE
having a separate end user license agreement (including, but not
limited to, GNU General Public license and Lesser/Library General
Public License) shall be covered by such applicable separate end
user license agreement in lieu of the terms of this EULA to the extent
required by such separate end user license agreement (“EXCLUDED
SOFTWARE”).
processed or used by the SOFTWARE. Such measures include, but
are not limited to, counting the frequency of your backup and
restoration through certain SOFTWARE features, refusal to accept
your request to enable restoration of data, and termination of this
EULA in the event of your illegitimate use of the SOFTWARE.
CONTENT SERVICE
PLEASE ALSO NOTE THAT THE SOFTWARE MAY BE DESIGNED TO BE
USED WITH CONTENT AVAILABLE THROUGH ONE OR MORE CONTENT
SERVICES (“CONTENT SERVICE”). USE OF THE SERVICE AND THAT
CONTENT IS SUBJECT TO THE TERMS OF SERVICE OF THAT CONTENT
SERVICE. IF YOU DECLINE TO ACCEPT THOSE TERMS, YOUR USE OF
THE SOFTWARE WILL BE LIMITED. You acknowledge and agree that
certain content and services available through the SOFTWARE may
be provided by third parties over which SONY has no control. USE OF
THE CONTENT SERVICE REQUIRES AN INTERNET CONNECTION. THE
CONTENT SERVICE MAY BE DISCONTINUED AT ANY TIME.
INTERNET CONNECTIVITY AND THIRD PARTY SERVICES
You acknowledge and agree that access to certain SOFTWARE
features may require an Internet connection for which you are solely
responsible. Further, you are solely responsible for payment of any
third party fees associated with your Internet connection, including
but not limited to Internet service provider or airtime charges.
Operation of the SOFTWARE may be limited or restricted depending
on the capabilities, bandwidth or technical limitations of your
Internet connection and service. The provision, quality and security
of such Internet connectivity are the sole responsibility of the third
party providing such service.
EXPORT AND OTHER REGULATIONS
You agree to comply with all applicable export and re-export
restrictions and regulations of the area or country in which you
reside, and not to transfer, or authorize the transfer, of the
SOFTWARE to a prohibited country or otherwise in violation of any
such restrictions or regulations.
58GB
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and is not designed,
manufactured or intended for use or resale as on-line control
equipment in hazardous environments requiring fail-safe
performance, such as in the operation of nuclear facilities, aircraft
navigation or communication systems, air traffic control, direct life
support machines, or weapons systems, in which the failure of the
SOFTWARE could lead to death, personal injury, or severe physical or
environmental damage (“HIGH RISK ACTIVITIES”). SONY, each of the
THIRD-PARTY SUPPLIERS, and each of their respective affiliates
specifically disclaim any express or implied warranty, duty or
condition of fitness for HIGH RISK ACTIVITIES.
EXCLUSION OF WARRANTY ON SOFTWARE
You acknowledge and agree that use of the SOFTWARE is at your
sole risk and that you are responsible for use of the SOFTWARE. The
SOFTWARE is provided “AS IS,” without warranty, duty or condition
of any kind.
SONY AND EACH OF THE THIRD-PARTY SUPPLIERS (for purposes of
this Section, SONY and each of the THIRD-PARTY SUPPLIERS shall be
collectively referred to as “SONY”) EXPRESSLY DISCLAIM ALL
WARRANTIES, DUTIES OR CONDITIONS, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, NONINFRINGEMENT AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT WARRANT OR MAKE ANY
CONDITIONS OR REPRESENTATIONS (A) THAT THE FUNCTIONS
CONTAINED IN ANY OF THE SOFTWARE WILL MEET YOUR
REQUIREMENTS OR THAT THEY WILL BE UPDATED, (B) THAT THE
OPERATION OF ANY OF THE SOFTWARE WILL BE CORRECT OR
ERROR-FREE OR THAT ANY DEFECTS WILL BE CORRECTED, (C) THAT
THE SOFTWARE WILL NOT DAMAGE ANY OTHER SOFTWARE,
HARDWARE OR DATA, (D) THAT ANY SOFTWARE, NETWORK
SERVICES (INCLUDING THE INTERNET) OR PRODUCTS (OTHER THAN
THE SOFTWARE) UPON WHICH THE SOFTWARE’S PERFORMANCE
DEPENDS WILL CONTINUE TO BE AVAILABLE, UNINTERRUPTED OR
UNMODIFIED, AND (E) REGARDING THE USE OR THE RESULTS OF THE
USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY,
RELIABILITY, OR OTHERWISE.
NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY SONY OR
AN AUTHORIZED REPRESENTATIVE OF SONY SHALL CREATE A
WARRANTY, DUTY OR CONDITION OR IN ANY WAY INCREASE THE
SCOPE OF THIS WARRANTY. SHOULD THE SOFTWARE PROVE
DEFECTIVE YOU ASSUME THE ENTIRE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION. SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OF IMPLIED WARRANTIES, SO THESE
EXCLUSIONS MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY
SONY AND EACH OF THE THIRD-PARTY SUPPLIERS (for purposes of
this Section, SONY and each of the THIRD-PARTY SUPPLIERS shall be
collectively referred to as “SONY”) SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT,
NEGLIGENCE, STRICT LIABILITY OR UNDER ANY OTHER LEGAL
THEORY RELATED TO THE SOFTWARE, INCLUDING, BUT NOT LIMITED
TO, ANY DAMAGES ARISING OUT OF LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE OF THE SOFTWARE OR ANY
ASSOCIATED HARDWARE, DOWN TIME AND USER’S TIME, EVEN IF
ANY OF THEM HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN ANY CASE, EACH AND ALL OF THEIR AGGREGATE
LIABILITY UNDER ANY PROVISION OF THIS EULA SHALL BE LIMITED
TO THE AMOUNT ACTUALLY PAID FOR THE PRODUCT. SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
From time to time, SONY or the THIRD-PARTY SUPPLIERS may
automatically update or otherwise modify the SOFTWARE, including,
but not limited to, for purposes of enhancement of security
functions, error correction and improvement of functions, at such
time as you interact with SONY’s or third parties’ servers, or
otherwise. Such updates or modifications may delete or change the
nature of features or other aspects of the SOFTWARE, including, but
not limited to, functions you may rely upon. You acknowledge and
agree that such activities may occur at SONY’s sole discretion and
that SONY may condition continued use of the SOFTWARE upon your
ENTIRE AGREEMENT, WAIVER, SEVERABILITY
This EULA and SONY’s privacy policy, each as amended and modified
from time to time, together constitute the entire agreement
between you and SONY with respect to the SOFTWARE. The failure
of SONY to exercise or enforce any right or provision of this EULA
shall not constitute a waiver of such right or provision. If any part of
this EULA is held invalid, illegal, or unenforceable, that provision
shall be enforced to the maximum extent permissible so as to
maintain the intent of this EULA, and the other parts will remain in
full force and effect.
GOVERNING LAW AND JURISDICTION
The United Nations Convention on Contracts for the International
Sale of Goods shall not apply to this EULA. This EULA shall be
governed by the laws of Japan, without regards to conflict of laws
provisions. Any dispute arising out of this EULA shall be subject to
the exclusive venue of the Tokyo District Court in Japan, and the
parties hereby consent to the venue and jurisdiction of such courts.
EQUITABLE REMEDIES
Notwithstanding anything contained in this EULA to the contrary,
you acknowledge and agree that any violation of or non-compliance
with this EULA by you will cause irreparable harm to SONY, for which
monetary damages would be inadequate, and you consent to SONY
obtaining any injunctive or equitable relief that SONY deems
necessary or appropriate in such circumstances. SONY may also take
any legal and technical remedies to prevent violation of and/or to
enforce this EULA, including, but not limited to, immediate
termination of your use of the SOFTWARE, if SONY believes in its sole
discretion that you are violating or intend to violate this EULA. These
remedies are in addition to any other remedies SONY may have at
law, in equity or under contract.
continued
59GB
Additional Information
AUTOMATIC UPDATE FEATURE
complete installation or acceptance of such update or modifications.
Any updates/modifications shall be deemed to be, and shall
constitute part of, the SOFTWARE for purposes of this EULA. By
acceptance of this EULA, you consent to such update/modification.
TERMINATION
Without prejudice to any of its other rights, SONY may terminate this
EULA if you fail to comply with any of its terms. In case of such
termination, you must cease all use, and destroy any copies, of the
SOFTWARE.
AMENDMENT
SONY RESERVES THE RIGHT TO AMEND ANY OF THE TERMS OF THIS
EULA AT ITS SOLE DISCRETION BY POSTING NOTICE ON A SONY
DESIGNATED WEB SITE, BY EMAIL NOTIFICATION TO AN EMAIL
ADDRESS PROVIDED BY YOU, BY PROVIDING NOTICE AS PART OF THE
PROCESS IN WHICH YOU OBTAIN UPGRADES/UPDATES OR BY ANY
OTHER LEGALLY RECOGNIZABLE FORM OF NOTICE. If you do not
agree to the amendment, you should promptly contact SONY for
instructions. Your continued use of the SOFTWARE after the effective
date of any such notice shall be deemed your agreement to be
bound by such amendment.
THIRD-PARTY BENEFICIARIES
Each THIRD-PARTY SUPPLIER is an express intended third-party
beneficiary of, and shall have the right to enforce, each provision of
this EULA with respect to the SOFTWARE of such party.
Should you have any questions concerning this EULA, you may
contact SONY by writing to SONY at applicable contact address of
each area or country.
Copyright © 2014 Sony Corporation.
60GB
Additional Information
61GB
62GB
Additional Information
63GB
The software of this system may be updated in the future. To find out details on any available updates, please visit the following URL.
www.sony.eu/support
©2015 Sony Corporation
Printed in Malaysia
4-558-497-26(1)
