Pomona

Pomona
®
Pomona
Plug Body Brass per QQ-B-626, Alloy 360,
½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2,
Te
st
Pa
th
FEATURES:
Converts Bantam (Miniature Phone Plug)
Female to Triple Banana Plug Output
Banana Plug provided for shielding or
grounding.
Lengths other than those specified are
available upon request.
.c
om

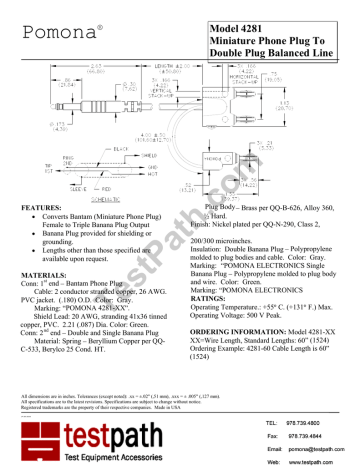

Model 4281
Miniature Phone Plug To
Double Plug Balanced Line
MATERIALS:
Conn: 1st end Bantam Phone Plug
Cable: 2 conductor stranded copper, 26 AWG.
PVC jacket. (.180) O.D. Color: Gray.
Marking: POMONA 4281-XX .
Shield Lead: 20 AWG, stranding 41x36 tinned
copper, PVC. 2.21 (.087) Dia. Color: Green.
Conn: 2 nd end Double and Single Banana Plug
Material: Spring Beryllium Copper per QQC-533, Berylco 25 Cond. HT.
200/300 microinches.
Insulation: Double Banana Plug Polypropylene
molded to plug bodies and cable. Color: Gray.
Marking: POMONA ELECTRONICS Single
Banana Plug Polypropylene molded to plug body
and wire. Color: Green.
Marking: POMONA ELECTRONICS
RATINGS:
Operating Temperature.: +55 C. (+131 F.) Max.
Operating Voltage: 500 V Peak.
ORDERING INFORMATION: Model 4281-XX
XX=Wire Length, Standard Lengths: 60 (1524)
Ordering Example: 4281-60 Cable Length is 60
(1524)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02 (,51 mm), .xxx = ± .005 (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
W:\pomona\grponly\Datasheet Updates\Updates 2005\d4281_1_02.doc
More drawings available at www.pomonaelectronics.com
Page 1 of 1
