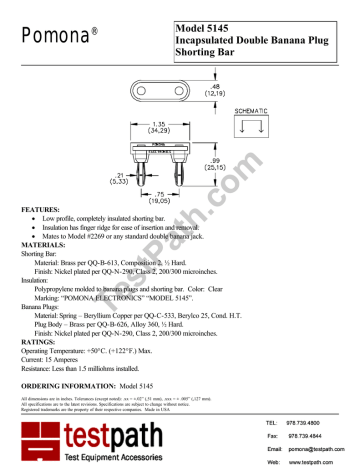

Pomona ® Model 5145 Incapsulated Double Banana Plug

Pomona ® Model 5145 Incapsulated Double Banana Plug
Model 5145
Incapsulated Double Banana Plug
Shorting Bar
co
m
Pomona
®
Te
st
Pa
t
h.
FEATURES:
• Low profile, completely insulated shorting bar.
• Insulation has finger ridge for ease of insertion and removal.
• Mates to Model #2269 or any standard double banana jack.
MATERIALS:
Shorting Bar:
Material: Brass per QQ-B-613, Composition 2, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation:
Polypropylene molded to banana plugs and shorting bar. Color: Clear
Marking: “POMONA ELECTRONICS” “MODEL 5145”.
Banana Plugs:
Material: Spring – Beryllium Copper per QQ-C-533, Berylco 25, Cond. H.T.
Plug Body – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
RATINGS:
Operating Temperature: +50°C. (+122°F.) Max.
Current: 15 Amperes
Resistance: Less than 1.5 milliohms installed.
ORDERING INFORMATION: Model 5145
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
C:\Laura Goldberg\FlukeDataSheet\d5145_1_01.doc
PomonaACCESS 90622 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
