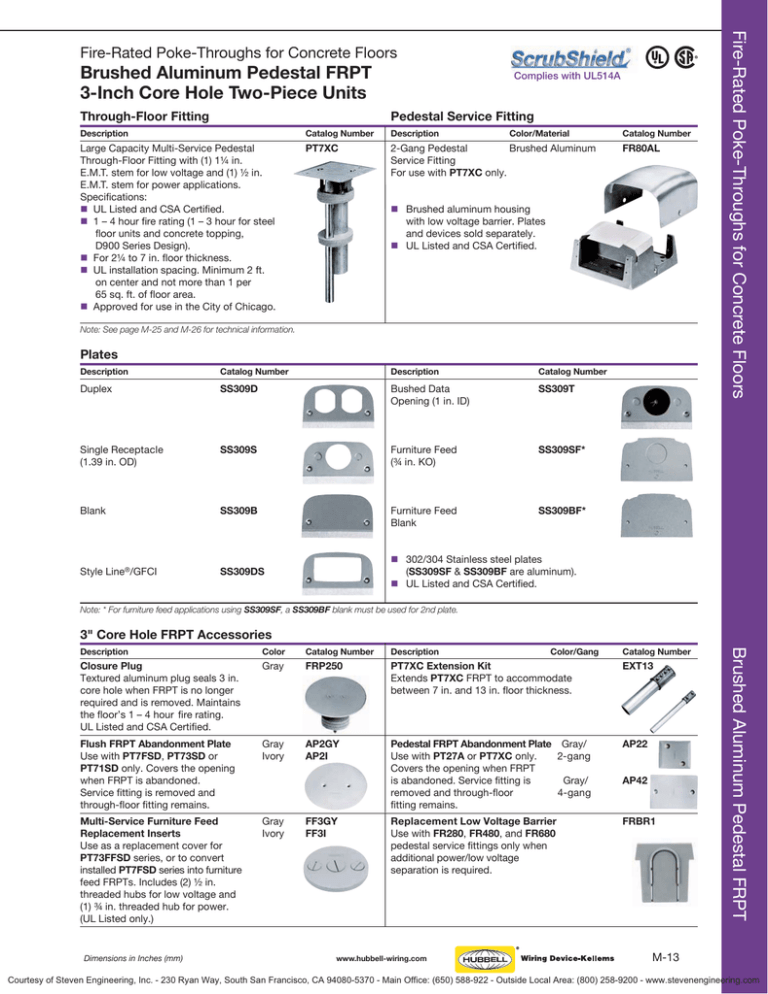

Through-Floor Fitting Pedestal Service Fitting

Through-Floor Fitting  Pedestal Service Fitting
Brushed Aluminum Pedestal FRPT
3-Inch Core Hole Two-Piece Units
Through-Floor Fitting
Complies with UL514A
Pedestal Service Fitting
Description
Catalog Number
Description
Large Capacity Multi-Service Pedestal
Through-Floor Fitting with (1) 1¼ in.
E.M.T. stem for low voltage and (1) ½ in.
E.M.T. stem for power applications.
Specifications:
„ UL Listed and CSA Certified.
„ 1 – 4 hour fire rating (1 – 3 hour for steel
floor units and concrete topping,
D900 Series Design).
„ For 2¼ to 7 in. floor thickness.
„ UL installation spacing. Minimum 2 ft.
on center and not more than 1 per
65 sq. ft. of floor area.
„ Approved for use in the City of Chicago.
PT7XC
2-Gang Pedestal
Brushed Aluminum
Service Fitting
For use with PT7XC only.
Color/Material
Catalog Number
FR80AL
„ Brushed aluminum housing
with low voltage barrier. Plates
and devices sold separately.
„UL Listed and CSA Certified.
Note: See page M-25 and M-26 for technical information.
Plates
Description
Catalog Number
Description
Catalog Number
Duplex
SS309D
Bushed Data
Opening (1 in. ID)
SS309T
Single Receptacle
(1.39 in. OD)
SS309S
Furniture Feed
(¾ in. KO)
SS309SF*
Blank
SS309B
Furniture Feed
Blank
SS309BF*
Style Line®/GFCI
SS309DS
Fire-Rated Poke-Throughs for Concrete Floors
Fire-Rated Poke-Throughs for Concrete Floors
„ 302/304 Stainless steel plates
(SS309SF & SS309BF are aluminum).
„UL Listed and CSA Certified.
Note: * For furniture feed applications using SS309SF, a SS309BF blank must be used for 2nd plate.
3" Core Hole FRPT Accessories
Color
Catalog Number
Description
Closure Plug
Textured aluminum plug seals 3 in.
core hole when FRPT is no longer
required and is removed. Maintains
the floor’s 1 – 4 hour fire rating.
UL Listed and CSA Certified.
Gray
FRP250
PT7XC Extension Kit
Extends PT7XC FRPT to accommodate
between 7 in. and 13 in. floor thickness.
EXT13
Flush FRPT Abandonment Plate
Use with PT7FSD, PT73SD or
PT71SD only. Covers the opening
when FRPT is abandoned.
Service fitting is removed and
through-floor fitting remains.
Gray
Ivory
AP2GY
AP2I
Pedestal FRPT Abandonment Plate Gray/
Use with PT27A or PT7XC only.
2-gang
Covers the opening when FRPT
is abandoned. Service fitting is
Gray/
removed and through-floor
4-gang
fitting remains.
AP22
Multi-Service Furniture Feed
Replacement Inserts
Use as a replacement cover for
PT73FFSD series, or to convert
installed PT7FSD series into furniture
feed FRPTs. Includes (2) ½ in.
threaded hubs for low voltage and
(1) ¾ in. threaded hub for power.
(UL Listed only.)
Gray
Ivory
Replacement Low Voltage Barrier
Use with FR280, FR480, and FR680
pedestal service fittings only when
additional power/low voltage
separation is required.
FRBR1
Dimensions in Inches (mm)
FF3GY
FF3I
www.hubbell-wiring.com
Color/Gang
Catalog Number
AP42
Brushed Aluminum Pedestal FRPT
Description
M-13
&RXUWHV\RI6WHYHQ(QJLQHHULQJ,QF5\DQ:D\6RXWK6DQ)UDQFLVFR&$0DLQ2IILFH2XWVLGH/RFDO$UHDZZZVWHYHQHQJLQHHULQJFRP
Fire-Rated Poke-Throughs for Concrete Floors
Fire-Rated Poke-Throughs for Concrete Floors
Pedestal FRPT
Complies with UL514A
Technical Information
Painted and Brushed Aluminum Series
Dimensions
2-Gang – FR280 series
2.7"
(68.5)
5.4"
(138.0)
Voice/Data
4.6"
(117.0)
Total Cubic Inch Capacity (Single-Service)
Cubic Inch Capacity
(when divided for multi-service)
Service Pedestal Construction
Pedestal Finish
Power
Top inside view
of pedestal base
39.00 in. (638.8cm3).
Power
19.5 in. (319.4cm3).
Voice/Data
19.5 in. (319.4cm3).
Heavy gauge galvanized steel frame with aluminum housing and face plates.
Textured black or gray epoxy paint.
4-Gang – FR480
2.7"
(68.5)
Voice/Data
5.4"
(138.0)
9.0"
(228.0)
Total Cubic Inch Capacity (Single-Service)
Cubic Inch Capacity
(when divided for multi-service)
Service Pedestal Construction
Pedestal Finish
Power
Top inside view
of pedestal base
78.00 in. (1277.6cm3).
Power
39.00 in. (638.8cm3).
Voice/Data
39.00 in. (638.8cm3).
Heavy gauge galvanized steel frame with aluminum housing and face plates.
Textured black or gray epoxy paint.
6-Gang – FR680
2.7"
(68.5)
Voice/Data
Top inside view
of pedestal base
13.6"
(340.0)
5.4"
(138.0)
Total Cubic Inch Capacity (Single-Service)
Cubic Inch Capacity
(when divided for multi-service)
Service Pedestal Construction
Pedestal Finish
Power
117.00 in. (1916.4cm3).
Power
58.5 in. (958.2cm3).
Voice/Data
58.5 in. (958.2cm3).
Heavy gauge galvanized steel frame with aluminum housing and face plates.
Textured black or gray epoxy paint.
2-Gang – FR80AL
Power
Voice/Data
4.50"
(114.3)
4.38"
(111.3)
Integral
Low-Voltage
Divider
Fiber Barrier
Top inside view
of pedestal base
Total Cubic Inch Capacity (single service) 33.00 in. (540.9 cu cm3).
Cubic Inch Capacity
Power
8.80 in. (144.2cm3).
(when divided for multi-service)
Voice/Data
26.70 in. (437.6cm3).
Service Pedestal Construction
Heavy gauge aluminum frame with satin anodized aluminum housing with 302/304
stainless steel face plates.
Pedestal Finish
Brushed.
Dimensions in Inches (mm)
www.hubbell-wiring.com
Technical Information
2.50"
(63.5)
M-25
&RXUWHV\RI6WHYHQ(QJLQHHULQJ,QF5\DQ:D\6RXWK6DQ)UDQFLVFR&$0DLQ2IILFH2XWVLGH/RFDO$UHDZZZVWHYHQHQJLQHHULQJFRP
Fire-Rated Poke-Throughs for Concrete Floors
Fire-Rated Poke-Throughs for Concrete Floors
Pedestal FRPT
Complies with UL514A
Technical Information
Pedestal Fitting Series
7.25"
(184.2)
¾" E.M.T.
Voice/Data
Tube
9.25"
(235.0)
8.25"
(209.6)
10.25"
(260.4)
1¼" E.M.T.
Voice/Data
Tube
½" E.M.T.
Power Tube
½" E.M.T.
Power Tube
Applications
PT27A
PT7XC
Mounting
Floor Thickness Range
Fire Rating
2 in. (50.8) diameter hole.
2¼ in. to 7 in. (57.2 to 177.8)
For use in 1, 1½, 2, 3 or 4 hour
rated unprotected reinforced concrete
floors or in 1, 2 or 3 hour rated
employing steel floor units and
concrete topping (D900 series design).
FR280, FR480, FR680 Series.
3 in. (76.2) diameter hole.
2¼ in. to 7 in. (57.2 to 177.8)
For use in 1, 1½, 2, 3 or 4 hour
rated unprotected reinforced concrete
floors or in 1, 2 or 3 hour rated floors
employing steel floor units and
concrete topping (D900 series design).
FR480 and FR680 Series.
½ in. inch EMT power tube
Handles:
Up to ten #12 AWG type THHN wires, or
Up to six #12 AWG and
two #10 AWG type THHN wires.
¾ in. inch EMT low-voltage tube
Handles:
Up to two 25 pair tel./data cables
(100 #22 AWG tel./data conductors), or
Up to two IBM Type 2 data cables.
½ in. inch EMT power tube
Handles:
Up to ten #12 AWG type THHN wires, or
Up to six #12 AWG and two
#10 AWG type THHN wires.
1¼ in. inch EMT low-voltage tube
Handles:
Up to four 25 pair tel./data cables
(200 #22 AWG tel./data conductors), or
Up to five IBM Type 2 data cables and
four 8-conductor tel./data cables.
Service Pedestal Options
UL Listed Wiring Capacity
Power Wiring Capacity
Voice/Data Wiring Capacity
½" Power E.M.T ¾" Low Voltage E.M.T.
½" Power E.M.T.
1½" Low Voltage E.M.T
Total Allowable
Copper Cross-Sectional Area
.0461 sq. in.
.0500 sq. in.
.0461 sq. in.
.1000 sq. in.
When conductors larger than 22 AWG are used, the total cross-sectional area of the copper conductors shall not exceed the total
cross-sectional area of the 22 AWG conductors permitted in the low voltage compartment.
Note: When connecting conduit sweeps to through-floor fittings, ensure compliance with NEC fill tables.
Technical Information
UL Characteristics
Listing
UL File Number
UL File Number
Outlet Box
E31999
E31999
Fire Resistance
R8429
R8429
For use in 1, 1½, 2, 3, or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units
and concrete topping (D900 Series designs).
UL Spacing Restrictions - Minimum of 2 ft. O.C. and not more than one unit per each 65 sq. ft. of floor area in each span.
Chicago Approved
Catalog Number
City of Chicago File Number
PT27A, PT7XC
5587E
These through-floor fittings are approved for the City of Chicago. Installation requires a plenum-rated 1900 series box or a handy box
with gasketed cover. These boxes are to be affixed with compression gland-type connectors.
M-26
www.hubbell-wiring.com
Dimensions in Inches (mm)
&RXUWHV\RI6WHYHQ(QJLQHHULQJ,QF5\DQ:D\6RXWK6DQ)UDQFLVFR&$0DLQ2IILFH2XWVLGH/RFDO$UHDZZZVWHYHQHQJLQHHULQJFRP
