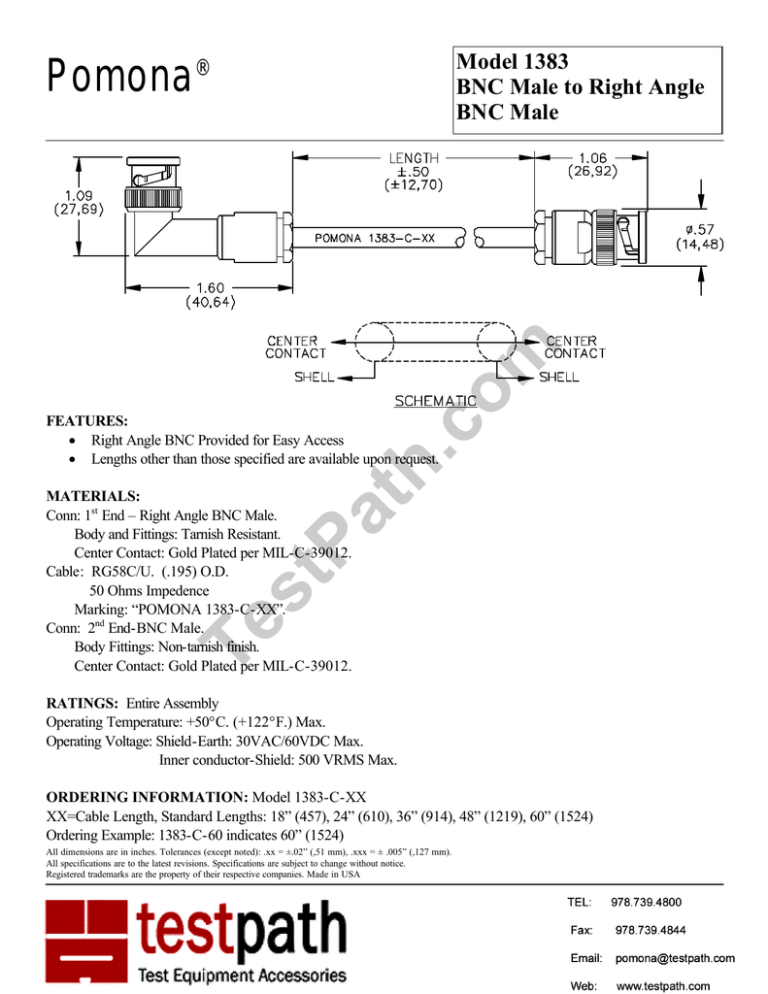

Pomona ® Model 1383 BNC Male to Right Angle

Pomona ® Model 1383 BNC Male to Right Angle
Model 1383
BNC Male to Right Angle
BNC Male
co
m
Pomona
®
h.
FEATURES:
• Right Angle BNC Provided for Easy Access
• Lengths other than those specified are available upon request.
Te
st
Pa
t
MATERIALS:
Conn: 1st End – Right Angle BNC Male.
Body and Fittings: Tarnish Resistant.
Center Contact: Gold Plated per MIL-C-39012.
Cable: RG58C/U. (.195) O.D.
50 Ohms Impedence
Marking: “POMONA 1383-C-XX”.
Conn: 2nd End-BNC Male.
Body Fittings: Non-tarnish finish.
Center Contact: Gold Plated per MIL-C-39012.
RATINGS: Entire Assembly
Operating Temperature: +50°C. (+122°F.) Max.
Operating Voltage: Shield-Earth: 30VAC/60VDC Max.
Inner conductor-Shield: 500 VRMS Max.
ORDERING INFORMATION: Model 1383-C-XX
XX=Cable Length, Standard Lengths: 18” (457), 24” (610), 36” (914), 48” (1219), 60” (1524)
Ordering Example: 1383-C-60 indicates 60” (1524)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d1383_1_01.doc
PomonaACCESS 90541 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
