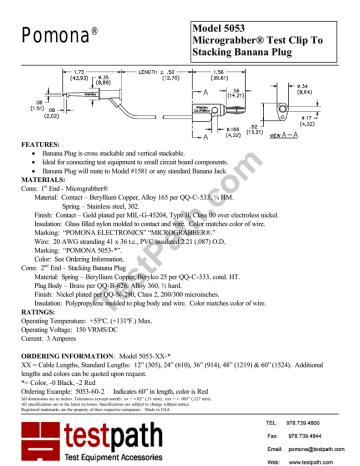

Pomona
®
Model 5053
Micrograbber® Test Clip To
Stacking Banana Plug
Te
st
Pa
t
h.
co
m
FEATURES:
• Banana Plug is cross stackable and vertical stackable.
• Ideal for connecting test equipment to small circuit board components.
• Banana Plug will mate to Model #1581 or any standard Banana Jack.
MATERIALS:
Conn: 1st End - Micrograbber®
Material: Contact – Beryllium Copper, Alloy 165 per QQ-C-533, ¼ HM.
Spring – Stainless steel, 302.
Finish: Contact – Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel.
Insulation: Glass filled nylon molded to contact and wire. Color matches color of wire.
Marking: “POMONA ELECTRONICS” “MICROGRABBER®.”
Wire: 20 AWG stranding 41 x 36 t.c., PVC insulated 2.21 (.087) O.D.
Marking: “POMONA 5053-*”.
Color: See Ordering Information.
Conn: 2nd End – Stacking Banana Plug
Material: Spring – Beryllium Copper, Berylco 25 per QQ-C-533, cond. HT.
Plug Body – Brass per QQ-B-626, Alloy 360, ½ hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation: Polypropylene molded to plug body and wire. Color matches color of wire.
RATINGS:
Operating Temperature: +55ºC. (+131ºF.) Max.
Operating Voltage: 150 VRMS/DC
Current: 3 Amperes
ORDERING INFORMATION: Model 5053-XX-*
XX = Cable Lengths, Standard Lengths: 12” (305), 24” (610), 36” (914), 48” (1219) & 60” (1524). Additional
lengths and colors can be quoted upon request.
*= Color, -0 Black, -2 Red
Ordering Example: 5053-60-2 Indicates 60” in length, color is Red
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
C:\Laura Goldberg\FlukeDataSheet\d5053_1_01.doc
PomonaACCESS 90614 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
