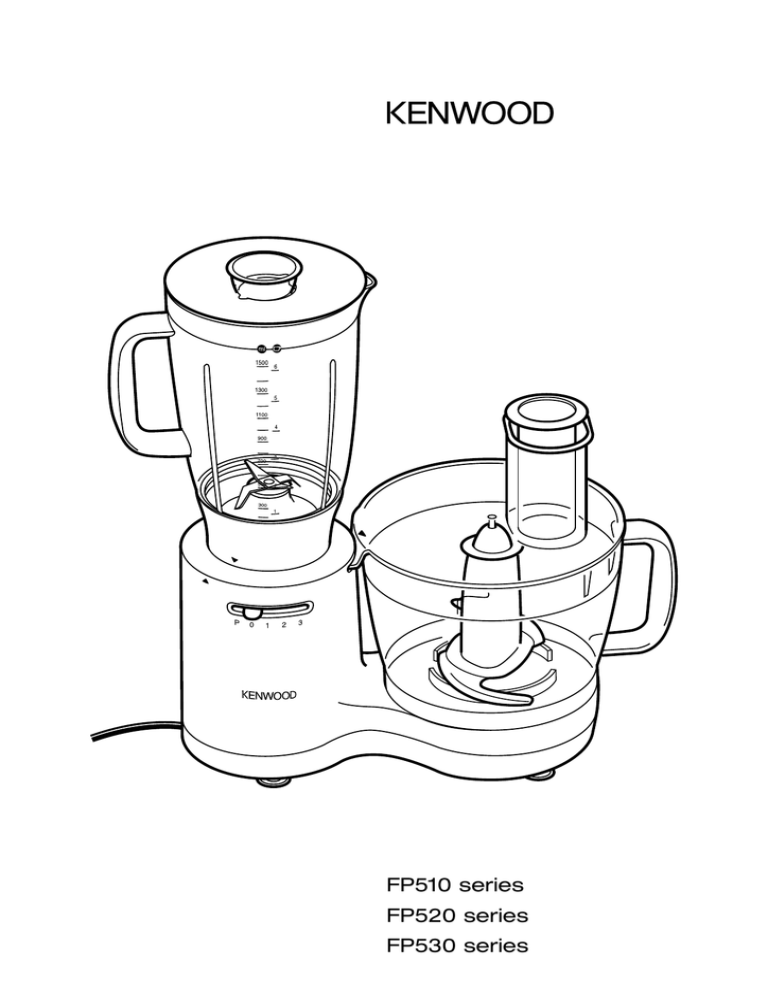

FP510 series
FP520 series
FP530 series
The blades and discs are very sharp, handle with care.
Always hold the knife blade by the finger grip
a at the top, away from the cutting edge, both
when handling and cleaning.
Always remove the knife blade before pouring contents from the bowl.
Keep hands and utensils out of the processor bowl and liquidiser jug whilst
connected to the power supply.
Switch off and unplug:
● before fitting or removing parts
● after use
● before cleaning
Never use your fingers to push food down the feed tube. Always use the
pusher/s supplied.
Before removing the lid from the bowl or liquidiser/mill from the power unit:● switch off;
● wait until the attachment/blades have completely stopped;
● Be careful not to unscrew the liquidiser jug or mill from the blade unit.
Allow hot liquids to cool before blending in the liquidiser - if you haven’t fitted
the lid securely and it comes off, you could get splashed.
This machine will be damaged and may cause injury if the
interlock mechanism is subjected to excessive force.
Do not use the lid to operate the processor, always use the on/off speed
This machine is not intended for use by young children or infirm persons without
Never use an unauthorised attachment.
Don’t let children play with this machine.
Never leave the machine on unattended.
Never use a damaged machine. Get it checked or repaired: see ‘service’.
Never let the power unit, cord or plug get wet.
Don’t let excess cord hang over the edge of a table or worktop or touch hot
Never misuse your food processor and only use it for its intended domestic use.
before plugging in
Make sure your electricity supply is the same as the one shown on the
underside of your machine.
additional attachments
Not all of these attachments listed below will be included with your food
processor. Please refer to your content list supplied. To buy an attachment not
included in your pack, contact the dealer from whom you purchased your
knife blade
dough tool (FP530 only)
twin beater geared whisk
maxi-blend canopy
thick slicing/coarse shredding disc
thin slicing/fine shredding disc (FP520/FP530)
fine (Julienne style) chipper disc (FP530 only)
rasping disc (UK pack - not supplied)
geared citrus press (FP520/FP530)
mill (if supplied)
KENSTORE™ attachments carousel
recipe book (if supplied)
to use your food processor
important- UK only
The wires in the cord are coloured as follows:
Blue = Neutral
Brown = Live
This appliance complies with European Economic Community Directive
before using for the first time
1 Remove all packaging including the plastic blade covers from the knife blade.
Take care the blades are very sharp. These covers should be discarded
as they are to protect the blade during manufacture and transit only.
2 Wash the parts see ‘cleaning’
blade unit
sealing ring
filler cap
When using the food processor bowl, the liquidiser outlet cover
must be fitted and locked in position or the processor will not
work. Ensure the ▼ on the outlet cover lines up with the ▲ on the
power unit.
Fit the bowl. Place the handle towards the back, lower and turn clockwise until
it locks .
Then fit the detachable shaft over the power unit fixed shaft.
Fit an attachment over the drive shaft.
Always fit the bowl and attachment onto the machine before adding ingredients.
Fit the lid onto the bowl - turn clockwise until the arrow on the lid aligns with
the line on the outlet cover.
Switch on and select a speed.
The processor won’t work if the lid or outlet cover are fitted
Use the pulse (P) for short bursts. The pulse will operate for as long as the
lever is held in position.
Reverse the above procedure to remove the lid, attachments and bowl.
Always switch off before removing the lid.
Your processor is not suitable for crushing or grinding coffee beans, or
converting granulated sugar to caster sugar.
When adding almond essence or flavouring to mixtures avoid contact with the
plastic as this may result in permanent marking.
to use your liquidiser
feed tube
detachable drive shaft
safety interlock
cord storage (at back)
power unit
speed/pulse control
liquidiser outlet/interlock
liquidiser outlet cover/safety interlock
1 Fit the sealing ring into the blade unit - ensuring the seal is located correctly.
Leaking will occur if the seal is damaged or not fitted correctly.
2 Screw the jug onto the blade unit.
3 Put your ingredients into the jug.
4 Put the filler cap in the lid, then turn.
5 Turn the lid in a clockwise direction to lock onto the jug.
6 Remove the liquidiser outlet cover by turning in an anti-clockwise direction.
7 Place the liquidiser onto the liquidiser outlet and turn to lock .
The liquidiser attachment will work only with the processor bowl
and lid in position.
● When using the liquidiser outlet we recommend that there are no
tools in the bowl.
8 Select a speed or use the pulse control.
Use the dough tool for yeasted mixes.
When making mayonnaise, put all the ingredients, except the oil into the liquidiser.
Then with the machine running, pour the oil into the filler cap and let it run through.
Thick mixtures, eg pates and dips, may need scraping down. If it’s difficult to
process, add more liquid.
When crushing ice, add 15mls (1tbsp) water to 6 ice cubes. Use the pulse control.
Allow hot liquids to cool before blending in the liquidiser – if you haven’t fitted
the lid securely and it comes off, you could get splashed.
To ensure the long life of your liquidiser, never run it for longer than 60 seconds.
Switch off as soon as you’ve got the right consistency.
Don’t process spices - they may damage the plastic.
The machine won’t work if the liquidiser is fitted incorrectly.
Don’t put dry ingredients into the liquidiser before switching on. If necessary, cut
them into pieces; remove the filler cap; then with the machine running, drop
them through one by one.
Don’t use the liquidiser as a storage container. Keep it empty before and after
Never blend more than 11⁄2 litres (2pts 12floz) - less for frothy liquids like
twin beater geared whisk
Use for light mixtures only eg egg whites, cream,
evaporated milk and for whisking eggs and sugar for
fatless sponges. Heavier mixtures such as fat and flour
will damage it.
knife blade
knife blade with
maxi-blend canopy
dough tool
discs - slicing/
rasping disc
citrus press
Cake making
Rubbing fat into flour
Adding water to combine
pastry ingredients
egg whites
egg & sugar for fatless sponges
yeasted mixes
Firm food items such as carrots,
hard cheeses
Softer items such as cucumbers,
Parmesan cheese, Potato for German
potato dumplings
Citrus fruits
All processing
All processing
maximum capacities
Shortcrust pastry Flour wt
Yeast dough Flour wt
One Stage Cake Total wt
Chopping meat Total wt
Liquid with canopy
Twin geared whisk
Best results are obtained when the eggs are at room temperature.
Ensure the bowl and whisks are clean and free from grease before whisking.
When blending liquids, use the maxi-blend canopy with
the knife blade. It allows you to increase the liquid
processing capacity from 1 litre to 1.5 litres, prevents
leaking and improves the chopping performance of the
Fit the drive shaft and bowl onto the power unit.
Fit the knife blade.
Add ingredients to be processed.
Fit the canopy over the top of the blade ensuring it sits
c . Do not push down
on the ledge inside the bowl on the canopy, hold by the centre grip.
5 Fit the lid and switch on.
slicing/shredding discs
reversible slicing/shredding discs - thick ,
thin Use the shredding side for cheese, carrots, potatoes
and foods of a similar texture.
Use the slicing side for cheese, carrots, potatoes,
cabbage, cucumber, courgette, beetroot and onions.
see chart above for speed of each attachment.
knife blade/ dough tool
The knife blade is the most versatile of all the
attachments. The length of the processing time will
determine the texture achieved. For coarser textures use
the pulse control.
Use the knife blade for cake and pastry making,
chopping raw and cooked meat, vegetables, nuts, pate,
dips, pureeing soups and to also make crumbs from
biscuits and bread. It can also be used for yeasted
dough mixes if the dough tool is not supplied.
The whisk is not suitable for making one-stage cakes or creaming
fat and sugar as these mixes will damage it. Always use the knife
blade for cake making.
20 maxi-blend canopy
500g/1lb 2oz
1.5Kg/3lb 5oz
600g/1lb 6oz
1.5litres/2pts 12fl.oz
6 egg whites
using the attachments
1 Fit the drive shaft and bowl onto the power unit.
2 Push each beater securely into the drive head .
3 Fit the whisk by carefully turning until it drops over the
drive shaft.
4 Add the ingredients.
5 Fit the lid - ensuring the end of the shaft locates into the centre of the lid.
6 Switch on.
using the whisk
choosing a speed for all functions
knife blade
Cut food such as meat, bread, vegetables into cubes approximately 2cm/3/4in
before processing.
Biscuits should be broken into pieces and added down the feed tube whilst the
machine is running.
When making pastry use fat straight from the fridge cut into 2cm/3/4in.cubes.
Take care not to over-process.
dough tool
Place the dry ingredients in the bowl and add the liquid down the feed tube
whilst the machine is running. Process until a smooth elastic ball of dough is
formed this will take 60 - 90 secs.
Re-knead by hand only. Re-kneading in the bowl is not recommended as it may
cause the processor to become unstable.
fine (Julienne style) chipper disc Use to cut: potatoes for Julienne style French fries; firm
ingredients for salads, garnishes, casseroles and stir
fries (eg carrot, swede, courgette, cucumber).
rasping disc Grates Parmesan cheese and potatoes for German
potato dumplings.
26 mill
Never remove the lid until the cutting disc has completely
Handle the cutting discs with care - they are extremely sharp
Use the mill for milling herbs, nuts and coffee beans.
to use the cutting discs
1 Fit the drive shaft and bowl onto the power unit.
2 Holding by the centre grip d , place the disc onto the
drive shaft with the appropriate side uppermost e.
3 Fit the lid.
4 Choose which size feed tube you want to use. The
pusher contains a smaller feed tube for processing
individual items or thin ingredients.
To use the small feed tube - first put the large pusher
inside the feed tube.
To use the large feed tube - use both pushers
5 Put the food in the feed tube.
6 Switch on and push down evenly with the pusher never put your fingers in the feed tube.
Use fresh ingredients
Don’t cut food too small. Fill the width of the large feed tube fairly full. This
prevents the food from slipping sideways during processing. Alternatively use
the small feed tube.
When using the chipper disc, place ingredients horizontally.
When slicing or shredding: food placed upright f comes out shorter than food
placed horizontally There will always be a small amount of waste on the plate or in the bowl after
blade unit
sealing ring
sprinkler lid
Never fit the blade unit to your machine without the jar fitted.
Never unscrew the jar while the multi-mill is fitted to your
Don’t touch the sharp blades. Keep the blade unit away
from children.
Never remove the multi-mill until the blades have completely
To ensure long life of your mill, never run for longer than 30
seconds. Switch off as soon as you’ve got the right consistency.
Don’t process spices - they may damage the plastic.
The machine won’t work if the mill is fitted incorrectly.
Use for dry ingredients only.
to use your mill
1 Put your ingredients into the jar. Fill it no more than half full.
2 Fit the sealing ring into the blade unit.
3 Turn the blade unit upside down. Lower it into the
jar, blades down.
4 Screw the blade unit onto the jar until it is finger
5 Remove the liquidiser outlet cover by turning in an
anti clockwise direction.
6 Place the mill on the liquidiser outlet and turn to lock
in a clockwise direction .
7 Switch on to maximum speed or use the pulse
8 After milling, you can replace the blade unit with the
sprinkler lid and shake out your food.
● The sprinkler lid is not airtight.
Herbs are best milled when clean and dry.
27 KENSTORE™ attachments carousel
Your food processor is supplied with an attachment storage carousel that fits
inside the bowl.
to use the storage carousel
25 citrus press
Use the citrus press to squeeze the juice
from citrus fruits (eg oranges, lemons, limes
and grapefruits).
to use the citrus press
1 Fit the drive shaft and bowl onto the power
2 Add the sieve and turn clockwise until the
interlock fin on the sieve aligns with the line
on the outlet cover h.
3 Place the cone over the drive shaft turning
until it drops all the way down 4 Cut the fruit in half. Then switch on and
press the fruit onto the cone.
● The citrus press will not operate if
the sieve is not locked correctly.
1 Fit the knife blade to the bowl.
2 Then fit the whisk, discs and canopy into the carousel .
3 Fit the carousel over the knife blade and place the processor lid on top l
care & cleaning
service & customer care
Always switch off and unplug before cleaning.
Handle the blades and cutting discs with care - they are extremely sharp.
Some foods may discolour the plastic. This is perfectly normal and won’t harm
the plastic or affect the flavour of your food. Rub with a cloth dipped in
vegetable oil to remove the discolouration.
If the cord is damaged it must, for safety reasons, be replaced by Kenwood or
an authorised Kenwood repairer.
If you experience any problems with the operation of the
processor, before calling for assistance refer to the
troubleshooting guide.
power unit
Wipe with a damp cloth, then dry. Ensure that the interlock area is clear of food
Wrap excess cord around the bracket at the back of the appliance.
If you need help with:
● Using your machine
● Servicing or repairs (in or out of guarantee)
call Kenwood customer care on 023 92392333. Have your model
number ready - it’s on the underside of the processor.
Empty the jug/jar before unscrewing it from the blade unit.
Wash the jug/jar by hand.
Remove and wash the sealing ring.
Don’t touch the sharp blades - brush them clean using hot soapy water, then
rinse thoroughly under the tap. Don’t immerse the blade unit in water.
5 Leave to dry upside down.
spares and attachments
call 0870 2413653
other countries
Contact the shop where you brought the food processor.
twin beater geared whisk
Detach the beaters from the drive head by gently pulling them free. Wash in
warm soapy water.
Wipe the drive head with a damp cloth, then dry. Do not immerse the
drive head in water.
all other parts
Wash by hand, then dry.
Alternatively they can be washed on the top rack of your dishwasher. A short
low temperature programme is recommended.
guarantee UK only
If your food processor goes wrong within one year from the date you bought it,
we will repair it (or replace it if necessary) free of charge provided:
you have not misused, neglected, or damaged it;
it has not been modified (unless by Kenwood);
it is not second hand;
it has not been used commercially;
you have not fitted a plug incorrectly; and
you supply your receipt to show when you bought it.
This guarantee does not affect your statutory rights.
troubleshooting guide
The processor will not operate.
Lid unlocked but speed control light is still on
Liquidiser leaking from blade assembly base.
Poor performance of tools/attachments
No Power.
Check processor is plugged in.
Liquidiser outlet cover not locked on.
When using the processor bowl the outlet cover must
be fitted and locked on or the processor will not operate.
Bowl lid not locked on correctly.
The processor and liquidiser will not operate if the bowl
lid is not fitted correctly.
Liquidiser not locked on correctly.
The liquidiser will not operate if fitted incorrectly.
If none of the above check the fuse/circuit breaker in your
Always turn the speed control to “0” before removing the lid.
If the lid is unlocked whilst a speed is selected
the processor will stop but the speed control
will remain lit. This is to remind you that the unit
will start up as soon as you re-lock the lid.
Seal missing
Check seal is fitted correctly and not damaged.
Seal incorrectly fitted
Contact Customer Care for a replacement seal.
Seal damaged.
Refer to hints in relevant “Using the attachment” section. Check attachments are assembled correctly.
victoria sandwich
For the speeds of the attachments see page 3
150g (6oz) soft margarine
150g (6oz) caster sugar
150g (6oz) self raising flour
5mls (1tsp) baking powder
3 eggs
15mls (1tbsp) warm water
filling & decoration
3tbsp strawberry jam
150mls (1⁄4pt) double cream whipped (optional)
1tbsp icing sugar or caster sugar
shortcrust pastry
300g (12oz) plain flour
150g (6oz) mixture of lard and margarine cut into small pieces
2.5 mls (1⁄2 tsp) salt
45mls (3tbsp) cold water
1 Fit the knife blade and add the flour, salt and fat. Process for approximately 10
seconds or until the mixture looks like coarse breadcrumbs.
2 Then add the water down the feed tube on low speed until the mixture looks
like it is about to stick together.
3 Turn out the mixture onto a worksurface and shape by hand. Use as required.
● For best results allow the pastry to rest before use. Place in a plastic bag or
wrap in clingfilm and chill in the fridge for 20 minutes.
1 Pre-heat the oven to 180°C/350°F/Gas mark 4 and grease two 18cm(7”)
shallow cake tins.
2 Fit the knife blade. Place all the ingredients for the sponge in the bowl and
process for 5 seconds. Using a spatula, scrape the mixture into the centre of
the bowl and process for a further 5 seconds.
3 Pour the mixture into the prepared tins and bake for 20-25minutes or until firm
to a light touch and coming away from the edges slightly. If you are unsure
whether the cake is cooked insert a thin skewer in the centre and it should
come out clean. Turn out onto a wire cooling rack.
4 When cool spread the jam and cream over one of the cakes, top with the other
cake and sprinkle with the sugar.
4 egg whites
200g (8oz) caster sugar
Whisk the egg whites at high speed until stiff.
Add half the sugar and continue to whisk until the mixture is glossy.
Remove the whisk and carefully fold in the remaining sugar with a metal spoon.
Pipe the mixture onto trays lined with non-stick baking paper.
Bake in a pre-heated oven at 110°C/225°F/Gas mark 1⁄4 for about 4 - 5hours
until firm and crisp. If they start to brown, leave the door slightly ajar.
fruit cake
125g (5oz) block margarine (cut into cubes)
125g (5oz) caster sugar
2 eggs
80 - 100mls (5-6tbsp) milk
275g (11oz) mixed fruit
200g (8oz) self raising flour
5mls (1tsp) mixed spice
winter warmer soup
carrots, potatoes, onions: twenty 2cm (3⁄4”) cubes of each.
bacon stock
150g (6oz) red lentils, washed.
375mls (3⁄4pint) vegetable stock
one and a half 400g (14oz) tins chopped tomatoes.
salt and pepper
300g (12oz) cooked bacon joint cut into 1cm (1⁄2”)cubes.
Put the carrots, potatoes and onions into the blender in that order.
Add bacon stock up to 11⁄2 litre mark.
Blend for no more than 5 secs.
Pour into a saucepan. Then add the lentils, tomatoes, vegetables, stock and
5 Bring to the boil, stirring constantly. Then simmer for about 1 hour, stirring
regularly, until the ingredients are cooked.
6 Add the bacon cubes and heat through for 5- 10minutes. Serve immediately.
Fit the knife blade and place the cubed margarine and sugar in the bowl.
Mix until smooth, light and fluffy, scraping down as necessary.
Add the eggs one at a time.
Add the flour, spices and milk. Pulse until ingredients combined.
Add the fruit using the pulse.
Pour the mixture into a greased and lined 7”/18cm round cake tin. Bake in a
preheated oven 150°C/300°F/Gas Mark 2 for approximately 2 hours or until
cooked. Turn out of the tin when cool.
whisked sponge
3 eggs
75g/3oz caster sugar
75g/3oz plain flour (sieved twice)
Fit the twin beater geared whisk and add the sugar and eggs into the bowl.
Whisk until the mixture is thick and leaves a trail.
Fold the flour in carefully by hand using a metal spoon.
Pour the mixture into a deep lined and greased 7”/18cm cake tin. Bake in a
preheated oven at 190°C/375°F/Gas Mark 5 for approximately 25minutes or
until the cake springs back when touched.
5 Remove from the tin and cool on a wire rack.
300g (12oz) braising steak, cubed.
400g can of tomatoes
30mls (2tbsp) tomato puree
1 onion
5mls (1tsp) basil
100g (4oz) lasagne
200g (8oz) mozzarella cheese
15mls (1tbsp) oil
salt and pepper
1 Grate the cheese using the shredding disc.
2 Then separately chop the meat and onions with the knife blade.
3 Pre-heat the oil and fry the onions until softened, add the meat and fry until
4 Then add the tomatoes, tomato puree and seasonings.
5 Stir well, cover and simmer gently for about 40minutes.
6 Cook the lasagne in plenty of salted boiling water until tender. Then drain well.
7 Place layers of meat, lasagne and cheese in a 1litre/2pint oven proof dish. Finish
with a layer of cheese.
8 Bake at 190°C/375°F/Gas Mark 5 for 30minutes or until golden and bubbling.
white bread
500g(1lb 2oz) strong white bread flour
5mls (1tsp) salt
15g(1⁄2oz) lard
15g (1⁄2oz) fresh yeast or 10mls(2tsp) dried yeast + 5mls (1tsp) caster sugar.
300mls (11fl oz) warm water, 100mls (31⁄2 fl oz) boiling water to 200mls (71⁄2 fl oz)
cold water
1 Dried yeast (the type that needs reconstituting): Add the yeast and
sugar to the warm water. Leave to stand for 5 - 10 minutes until frothy.
Fresh yeast: crumble into the flour
Other types of yeast: follow the manufacturer’s instructions.
2 Fit the dough tool or knife blade and add the flour (with fresh yeast if used), salt
and lard. Process for a few seconds to evenly distribute the ingredients.
3 Then with the motor running quickly pour the liquid in a steady stream down
the feed tube until the mixture forms an elastic soft dough. This will take about
45 - 60 seconds.
4 Remove the dough, place in a bowl, cover with an oiled piece of clingfilm or a
plastic bag, and leave in a warm place for 45 - 60 minutes or until doubled in
5 Re-knead by hand for 2-3 minutes. Re-kneading in the bowl is not
recommended as it may cause the processor to become unstable. Shape into
a loaf or 15 rolls and place on greased baking trays and leave until double in
6 Then bake in a pre-heated oven at 230°C/450°F/Gas mark 8 for 20 - 25
minutes for the loaf or 10 - 15 minutes for bread rolls. When ready they should
sound hollow when tapped on the base.
Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
