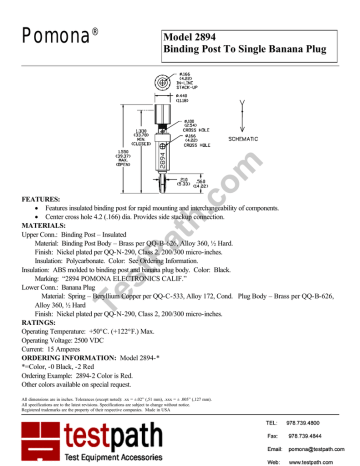

Pomona ® Model 2894 Binding Post To Single Banana Plug

Pomona ® Model 2894 Binding Post To Single Banana Plug
Pomona®
co
m
Model 2894
Binding Post To Single Banana Plug
Te
st
Pa
t
h.
FEATURES:
• Features insulated binding post for rapid mounting and interchangeability of components.
• Center cross hole 4.2 (.166) dia. Provides side stackup connection.
MATERIALS:
Upper Conn.: Binding Post – Insulated
Material: Binding Post Body – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 micro-inches.
Insulation: Polycarbonate. Color: See Ordering Information.
Insulation: ABS molded to binding post and banana plug body. Color: Black.
Marking: “2894 POMONA ELECTRONICS CALIF.”
Lower Conn.: Banana Plug
Material: Spring – Beryllium Copper per QQ-C-533, Alloy 172, Cond. Plug Body – Brass per QQ-B-626,
Alloy 360, ½ Hard
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 micro-inches.
RATINGS:
Operating Temperature: +50°C. (+122°F.) Max.
Operating Voltage: 2500 VDC
Current: 15 Amperes
ORDERING INFORMATION: Model 2894-*
*=Color, -0 Black, -2 Red
Ordering Example: 2894-2 Color is Red.
Other colors available on special request.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
S:\Engineering \Release\DataSheets\FlukeDataSheet\d2894_1_01.doc
PomonaACCESS 90560 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 1
