Kenwood FP480 Food Processor User Manual

Kenwood FP480 Food Processor User Manual
P
0
1
2

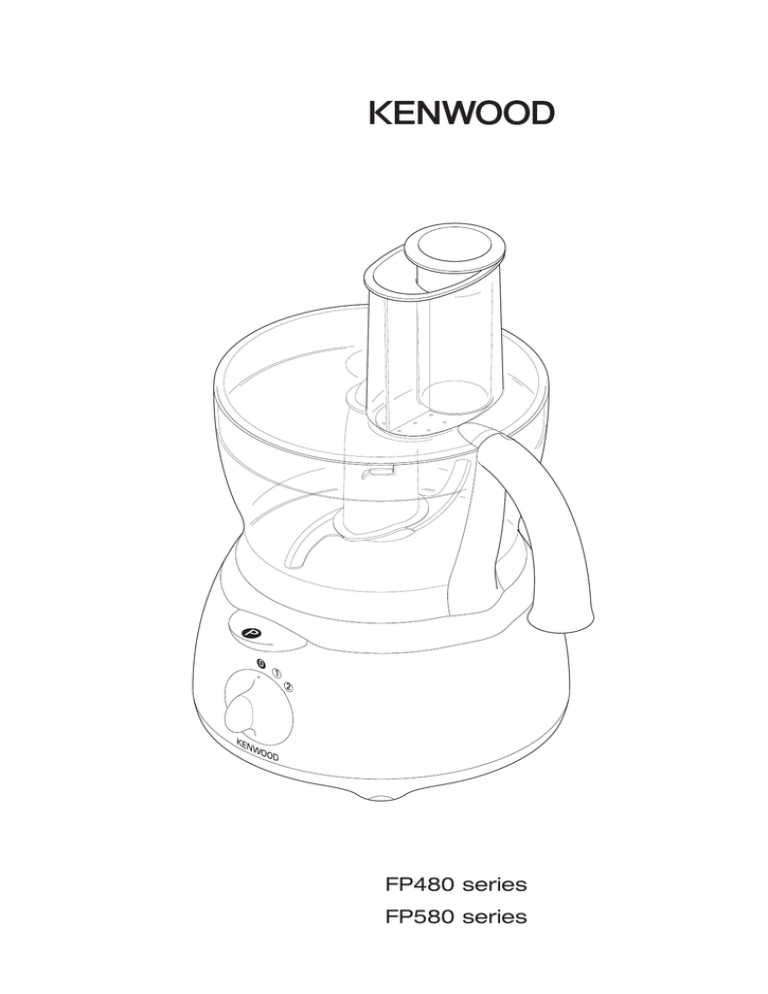

FP480 series
FP580 series
P
0
1
2
P
P
0
1
0
2
1
2
●
●
key
before using your Kenwood appliance
Read these instructions carefully and retain for future reference.
Remove all packaging and any labels.
processor
safety
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
a
The blades and discs are very sharp, handle with care.
Always hold the knife blade by the finger grip
a at the top, away from the cutting edge, both
when handling and cleaning.
Always remove the knife blade before pouring contents from the bowl.
Keep hands and utensils out of the processor bowl and liquidiser jug whilst
connected to the power supply.
Switch off and unplug:
● before fitting or removing parts
● after use
● before cleaning
Never use your fingers to push food down the feed tube. Always use the
pusher/s supplied.
Before removing the lid from the bowl or liquidiser/mill from the power unit:● switch off;
● wait until the attachment/blades have completely stopped;
● Be careful not to unscrew the liquidiser jug or mill from the blade unit.
Liquids should be allowed to cool to room temperature before blending.
Do not use the lid to operate the processor, always use the on/off speed control.
This machine will be damaged and may cause injury if the
interlock mechanism is subjected to excessive force.
Never use an unauthorised attachment.
Never leave the machine on unattended.
Never use a damaged machine. Get it checked or repaired: see ‘service’.
Never let the power unit, cord or plug get wet.
Don’t let excess cord hang over the edge of a table or worktop or touch hot
surfaces.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Only use the appliance for its intended domestic use. Kenwood will not accept
any liability if the appliance is subject to improper use, or failure to comply with
these instructions.
●
Misuse of your processor/liquidiser can result in injury.
●
before plugging in
Make sure your electricity supply is the same as the one shown on the
underside of your machine.
●
●
●
●
●
power unit
detachable drive shaft
bowl
lid
feed tube
pushers
safety interlock
cord storage
pulse control
speed control
liquidiser
filler cap
lid
jug
sealing ring
blade unit
additional attachments
Not all of these attachments listed below will be included with your food
processor. Please refer to your content list supplied. To buy an attachment not
included in your pack, contact the dealer from whom you purchased your
appliance.
21
22
23
24
25
knife blade
dough tool
twin beater geared whisk
maxi-blend canopy
thick slicing/coarse shredding disc
thin slicing/fine shredding disc
fine (Julienne style) chipper disc
rasping disc (if supplied)
geared citrus press (if supplied)
mill (if supplied)
to use your food processor
1 Fit the detachable shaft onto the power unit .
2 Then fit the bowl. Place the handle towards the back and turn clockwise until it
locks .
3 Fit an attachment over the drive shaft.
● Always fit the bowl and attachment onto the machine before adding ingredients.
4 Fit the lid - ensuring the top of the drive shaft locates into the centre of the lid.
● Do not use the lid to operate the processor, always use the on/off
speed control.
5 Switch on and select a speed.
● The processor won’t work if the bowl and lid are fitted
incorrectly.
● Use the pulse control for short bursts. The pulse will operate for as long as the
lever is held down.
6 Reverse the above procedure to remove the lid, attachments and bowl.
● Always switch off before removing the lid.
Important – UK only
The wires in the cord are coloured as follows:
Blue = Neutral, Brown = Live.
The appliance must be protected by a 3A approved (BS1362) fuse.
Note:
For non-rewireable plugs the fuse cover MUST be refitted when replacing the
fuse. If the fuse cover is lost then the plug must not be used until a replacement
can be obtained. The correct fuse cover is identified by colour and a
replacement may be obtained from your Kenwood Authorised Repairer (see
Service).
If a non-rewireable plug is cut off it must be DESTROYED IMMEDIATELY. An
electric shock hazard may arise if an unwanted non-rewireable plug is
inadvertently inserted into a 13A socket outlet.
This appliance conforms to EC directive 2004/108/EC on Electromagnetic
Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials
intended for contact with food.
●
●
before using for the first time
1 Remove all packaging including the plastic blade covers from the knife blade.
Take care the blades are very sharp. These covers should be discarded
as they are to protect the blade during manufacture and transit only.
2 Wash the parts see ‘cleaning’
3 Push excess cord into the back of the machine.
2
important
Your processor is not suitable for crushing or grinding coffee beans, or
converting granulated sugar to caster sugar.
When adding almond essence or flavouring to mixtures avoid contact with the
plastic as this may result in permanent marking.
to use your liquidiser
using the attachments
Fit the sealing ring into the blade unit .
Screw the jug onto the blade unit.
Put your ingredients into the jug.
Put the filler cap in the lid, then turn.
Lock the lid onto the jug so that the thumb tab is over the handle (To unlock the
lid, push the thumb tab .)
6 Place the liquidiser onto the power unit and turn to lock .
7 Select a speed or use the pulse control.
see chart above for speed of each attachment.
1
2
3
4
5
●
●
●
●
●
●
●
●
●
●
knife blade/ dough tool
The knife blade is the most versatile of all the attachments. The length of the
processing time will determine the texture achieved. For coarser textures use
the pulse control.
Use the knife blade for cake and pastry making, chopping raw and cooked
meat, vegetables, nuts, pate, dips, pureeing soups and to also make crumbs
from biscuits and bread. It can also be used for yeasted dough mixes if the
dough tool is not supplied.
hints
When making mayonnaise, put all the ingredients, except the oil into the liquidiser.
Then with the machine running, pour the oil into the filler cap and let it run through.
Thick mixtures, eg pates and dips, may need scraping down. If it’s difficult to
process, add more liquid.
When crushing ice, add 15mls (1tbsp) water to 6 ice cubes. Use the pulse control.
important
Liquids should be allowed to cool to room temperature before blending.
To ensure the long life of your liquidiser, never run it for longer than 60 seconds.
Switch off as soon as you’ve got the right consistency.
Don’t process spices - they may damage the plastic.
The machine won’t work if the liquidiser is fitted incorrectly.
Don’t put dry ingredients into the liquidiser before switching on. If necessary, cut
them into pieces; remove the filler cap; then with the machine running, drop
them through one by one.
Don’t use the liquidiser as a storage container. Keep it empty before and after
use.
Never blend more than 11⁄2 litres (2pts 12floz) - less for frothy liquids like
milkshakes.
Use the dough tool for yeasted mixes.
●
●
●
●
●
●
choosing a speed for all functions
tool/attachment
function
speed
knife blade
Cake making
Rubbing fat into flour
Adding water to combine
pastry ingredients
Chopping/pureeing/pates
egg whites
egg & sugar for fatless sponges
cream
yeasted mixes
Firm food items such as carrots,
hard cheeses
Softer items such as cucumbers,
tomatoes
Citrus fruits
Lighter blending eg. batters, milkshakes
Soups, sauces, pate and mayonnaise
All processing
2
1–2
whisk
dough tool
discs - slicing/
shredding/
chipping
citrus press
liquidiser
mill
●
●
●
●
●
●
maximum capacities
Shortcrust pastry Flour wt
Yeast dough Flour wt
One Stage Cake Total wt
Chopping meat Total wt
liquid with canopy
Twin geared whisk
hints
knife blade
Cut food such as meat, bread, vegetables into cubes
approximately 2cm/3/4in before processing.
Biscuits should be broken into pieces and added down
the feed tube whilst the machine is running.
When making pastry use fat straight from the fridge cut
into 2cm/3/4in.cubes.
Take care not to over-process.
dough tool
Place the dry ingredients in the bowl and add the liquid
down the feed tube whilst the machine is running.
Process until a smooth elastic ball of dough is formed
this will take 60 - 90 secs.
Re-knead by hand only. Re-kneading in the bowl is not
recommended as it may cause the processor to become
unstable.
twin beater geared whisk
Use for light mixtures only eg egg whites, cream,
evaporated milk and for whisking eggs and sugar for
fatless sponges. Heavier mixtures such as fat and flour
will damage it.
1–2
2
2
2
1–2
1–2
b
using the whisk
1 Fit the drive shaft and bowl onto the power unit.
2 Push each beater securely into the drive head b.
3 Fit the whisk by carefully turning until it drops over the
drive shaft.
4 Add the ingredients.
5 Fit the lid - ensuring the end of the shaft locates into the
centre of the lid.
6 Switch on.
1–2
1
1
1
2
2
●
●
hints
Best results are obtained when the eggs are at room temperature.
Ensure the bowl and whisks are clean and free from grease before whisking.
maxi-blend canopy
340g
500g
1.5Kg
600g
1.5litres
6 egg whites
When blending liquids, use the maxi-blend canopy with
the knife blade. It allows you to increase the liquid
processing capacity from 800mls to 1 litre, prevents
leaking and improves the chopping performance of the
blade.
1
2
3
4
Fit the drive shaft and bowl onto the power unit.
c
Fit the knife blade.
Add ingredients to be processed.
Fit the canopy over the top of the blade ensuring it sits
c . Do not push down on
on the ledge inside the bowl the canopy, hold by the centre grip.
5 Fit the lid and switch on.
3
P
0
1
2
24 citrus press (if supplied)
slicing/shredding discs
reversible slicing/shredding discs - thick ,
thin 21
Use the shredding side for cheese, carrots, potatoes
and foods of a similar texture.
Use the slicing side for cheese, carrots, potatoes,
cabbage, cucumber, courgette, beetroot and onions.
Use the citrus press to squeeze the juice
from citrus fruits (eg oranges, lemons,
limes and grapefruits).
20
22
fine (Julienne style) chipper disc Use to cut: potatoes for Julienne style French fries; firm
ingredients for salads, garnishes, casseroles and stir
fries (eg carrot, swede, courgette, cucumber).
●
1 Fit the drive shaft and bowl onto the power
unit.
2 Fit the sieve into the bowl - ensuring the
sieve handle is locked into position directly
h.
over the bowl handle 3 Place the cone over the drive shaft turning
i .
until it drops all the way down 4 Cut the fruit in half. Then switch on and
press the fruit onto the cone.
● The citrus press will not operate if
the sieve is not locked correctly.
22
safety
23
Never remove the lid until the cutting disc has
completely stopped.
Handle the cutting discs with care - they are
extremely sharp
●
0
●
1
2
●
●
●
●
hints
Use fresh ingredients
Don’t cut food too small. Fill the width of the large feed tube fairly full. This
prevents the food from slipping sideways during processing. Alternatively use
the small feed tube.
When using the chipper disc, place ingredients horizontally.
When slicing or shredding: food placed upright f comes out shorter than food
g.
placed horizontally There will always be a small amount of waste on the plate or in the bowl after
processing.
f
P
●
●
●
●
1
2
3
4
5
6
7
g
0
1
1
2
1
2
blade unit
sealing ring
jar
sprinkler lid
Never fit the blade unit to your machine without the jar fitted.
Never unscrew the jar while the multi-mill is fitted to your
machine.
Don’t touch the sharp blades. Keep the blade unit away
from children.
Never remove the multi-mill until the blades have completely
stopped.
important
To ensure long life of your mill, never run for longer than 30
seconds. Switch off as soon as you’ve got the right consistency.
Don’t process spices - they may damage the plastic.
The machine won’t work if the mill is fitted incorrectly.
Use for dry ingredients only.
to use your mill
P
0
0
safety
P
●
P
Use the mill for milling herbs, nuts and coffee beans.
d
1 Fit the drive shaft and bowl onto the power unit.
e
d , place the disc onto the
2 Holding by the centre grip drive shaft with the appropriate side uppermost e.
3 Fit the lid.
4 Choose which size feed tube you want to use. The
pusher contains a smaller feed tube for processing
individual items or thin ingredients.
To use the small feed tube - first put the large pusher
inside the feed tube.
To use the large feed tube - use both pushers
together.
5 Put the food in the feed tube.
6 Switch on and push down evenly with the pusher - never put your fingers
in the feed tube.
●
h
25 mill
to use the cutting discs
●
to use the citrus press
21
23
rasping disc Grates Parmesan cheese and potatoes for German
potato dumplings.
●
cone
sieve
i
2
4
●
Put your ingredients into the jar. Fill it no more than half full.
Fit the sealing ring into the blade unit.
Turn the blade unit upside down. Lower it into the jar, blades down.
Screw the blade unit onto the jar until it is finger tight.
Place the mill onto the power unit and turn to lock (see “to use your liquidiser”).
Switch on to maximum speed or use the pulse control.
After milling, you can replace the blade unit with the sprinkler lid and shake out
your food.
The sprinkler lid is not airtight.
●
hints
Herbs are best milled when clean and dry.
care & cleaning
●
●
●
●
●
Always switch off and unplug before cleaning.
Handle the blades and cutting discs with care - they are extremely sharp.
Some foods may discolour the plastic. This is perfectly normal and won’t harm
the plastic or affect the flavour of your food. Rub with a cloth dipped in
vegetable oil to remove the discolouration.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection centre or to
a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate disposal
and enables the constituent materials to be recovered to obtain significant savings
in energy and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out wheeled dustbin.
power unit
Wipe with a damp cloth, then dry. Ensure that the interlock area is clear of food
debris.
Store excess cord in the storage area at the back of the machine.
liquidiser/mill
Empty the jug/jar before unscrewing it from the blade unit.
Wash the jug/jar by hand.
Remove and wash the sealing ring.
Don’t touch the sharp blades - brush them clean using hot soapy water, then
rinse thoroughly under the tap. Don’t immerse the blade unit in water.
5 Leave to dry upside down.
1
2
3
4
●
●
●
●
twin beater geared whisk
Detach the beaters from the drive head by gently pulling them free. Wash in
warm soapy water.
Wipe the drive head with a damp cloth, then dry. Do not immerse the
drive head in water.
●
●
●
●
●
●
all other parts
Wash by hand, then dry.
Alternatively they can be washed on the top rack of your dishwasher.
service & customer care
●
If the cord is damaged it must, for safety reasons, be replaced by Kenwood or
an authorised Kenwood repairer.
UK
If you need help with:
● Using your machine
● Servicing or repairs (in or out of guarantee)
call Kenwood customer care on 023 92392333. Have your model
number ready - it’s on the underside of the processor.
spares and attachments
call 0844 557 3653
other countries
Contact the shop where you brought the food processor.
●
●
Designed and engineered by Kenwood in the UK.
Made in China.
5
guarantee UK only
If your food processor goes wrong within one year from the date you bought it,
we will repair it (or replace it if necessary) free of charge provided:
you have not misused, neglected, or damaged it;
it has not been modified (unless by Kenwood);
it is not second hand;
it has not been used commercially;
you have not fitted a plug incorrectly; and
you supply your receipt to show when you bought it.
This guarantee does not affect your statutory rights.
recipes
victoria sandwich
For the speeds of the attachments see page 3
150g 6oz) Soft margarine
150g (6oz) caster sugar
150g (6oz) self raising flour
5mls (1tsp) baking powder
3 eggs
15mls (1tbsp) warm water
filling & decoration
3tbsp strawberry jam
150mls (1⁄4pt) double cream whipped (optional)
1tbsp icing sugar or caster sugar
shortcrust pastry
300g (12oz) plain flour
150g (6oz) mixture of lard and margarine cut into small pieces
2.5 mls (1⁄2 tsp) salt
45mls (3tbsp) cold water
1 Fit the knife blade and add the flour, salt and fat. Process for approximately 10
seconds or until the mixture looks like coarse breadcrumbs.
2 Then add the water down the feed tube on low speed until the mixture looks
like it is about to stick together.
3 Turn out the mixture onto a worksurface and shape by hand. Use as required.
● For best results allow the pastry to rest before use. Place in a plastic bag or
wrap in clingfilm and chill in the fridge for 20 minutes.
1 Pre-heat the oven to 180°C/350°F/Gas mark 4 and grease two 18cm(7”)
shallow cake tins.
2 Fit the knife blade. Place all the ingredients for the sponge in the bowl and
process for 5 seconds. Using a spatula, scrape the mixture into the centre of
the bowl and process for a further 5 seconds.
3 Pour the mixture into the prepared tins and bake for 20-25 minutes or until firm
to a light touch and coming away from the edges slightly. If you are unsure
whether the cake is cooked insert a thin skewer in the centre and it should
come out clean. Turn out onto a wire cooling rack.
4 When cool spread the jam and cream over one of the cakes, top with the
other cake and sprinkle with the sugar.
meringues
4 egg whites
200g (8oz) caster sugar
1
2
3
4
5
Whisk the egg whites at high speed until stiff.
Add half the sugar and continue to whisk until the mixture is glossy.
Remove the whisk and carefully fold in the remaining sugar with a metal spoon.
Pipe the mixture onto trays lined with non-stick baking paper.
Bake in a pre-heated oven at 110°C/225°F/Gas mark 1⁄4 for about 4 - 5hours
until firm and crisp. If they start to brown, leave the door slightly ajar.
fruit cake
125g (5oz) block margarine (cut into cubes)
125g (5oz) caster sugar
2 eggs
80 - 100mls (5-6tbsp) milk
275g (11oz) mixed fruit
200g (8oz) self raising flour
5mls (1tsp) mixed spice
winter warmer soup
carrots, potatoes, onions: thirty 2cm (3⁄4”) cubes of each.
bacon stock
150g (6oz) red lentils, washed.
375mls (3⁄4pint) vegetable stock
one and a half 400g (14oz) tins chopped tomatoes.
salt and pepper
300g (12oz) cooked bacon joint cut into 1cm (1⁄2”)cubes.
1
2
3
4
5
6
1
2
3
4
Put the carrots, potatoes and onions into the blender in that order.
Add bacon stock up to 11⁄2 litre mark.
Blend for no more than 5 secs.
Pour into a saucepan. Then add the lentils, tomatoes, vegetables, stock and
seasoning.
5 Bring to the boil, stirring constantly. Then simmer for about 1 hour, stirring
regularly, until the ingredients are cooked.
6 Add the bacon cubes and heat through for 5- 10minutes. Serve immediately.
Fit the knife blade and place the cubed margarine and sugar in the bowl.
Mix until smooth, light and fluffy, scraping down as necessary.
Add the eggs one at a time.
Add the flour, spices and milk. Pulse until ingredients combined.
Add the fruit using the pulse.
Pour the mixture into a greased and lined 7”/18cm round cake tin. Bake in a
preheated oven 150°C/300°F/Gas Mark 2 for approximately 2 hours or until
cooked. Turn out of the tin when cool.
whisked sponge
3 eggs
75g/3oz caster sugar
75g/3oz plain flour (sieved twice)
lasagne
1
2
3
4
Fit the twin beater geared whisk and add the sugar and eggs into the bowl.
Whisk until the mixture is thick and leaves a trail.
Fold the flour in carefully by hand using a metal spoon.
Pour the mixture into a deep lined and greased 7”/18cm cake tin. Bake in a
preheated oven at 190°C/375°F/Gas Mark 5 for approximately 25minutes or
until the cake springs back when touched.
5 Remove from the tin and cool on a wire rack.
300g (12oz) braising steak, cubed.
400g can of tomatoes
30mls (2tbsp) tomato puree
1 onion
5mls (1tsp) basil
100g (4oz) lasagne
200g (8oz) mozzarella cheese
15mls (1tbsp) oil
salt and pepper
1 Grate the cheese using the shredding disc.
2 Then separately chop the meat and onions with the knife blade.
3 Pre-heat the oil and fry the onions until softened, add the meat and fry until
brown.
4 Then add the tomatoes, tomato puree and seasonings.
5 Stir well, cover and simmer gently for about 40minutes.
6 Cook the lasagne in plenty of salted boiling water until tender. Then drain well.
7 Place layers of meat, lasagne and cheese in a 1litre/2pint oven proof dish.
Finish with a layer of cheese.
8 Bake at 190°C/375°F/Gas Mark 5 for 30minutes or until golden and bubbling.
6
white bread
500g(1lb 2oz) strong white bread flour
5mls (1tsp) salt
15g(1⁄2oz) lard
15g (1⁄2oz) fresh yeast or 10mls(2tsp) dried yeast + 5mls (1tsp) caster sugar.
300mls (11fl oz) warm water, 100mls (31⁄2 fl oz) boiling water to 200mls (71⁄2 fl oz)
cold water
1 Dried yeast (the type that needs reconstituting): Add the yeast and
sugar to the warm water. Leave to stand for 5 - 10 minutes until frothy.
Fresh yeast: crumble into the flour
Other types of yeast: follow the manufacturer’s instructions.
2 Fit the dough tool or knife blade and add the flour (with fresh yeast if used), salt
and lard. Process for a few seconds to evenly distribute the ingredients.
3 Then with the motor running quickly pour the liquid in a steady stream down
the feed tube until the mixture forms an elastic soft dough. This will take about
45 - 60 seconds.
4 Remove the dough, place in a bowl, cover with an oiled piece of clingfilm or a
plastic bag, and leave in a warm place for 45 - 60 minutes or until doubled in
size.
5 Re-knead by hand for 2 - 3 minute. Re-kneading in the bowl is not
recommended as it may cause the processor to become
unstable. Shape into a loaf or 15 rolls and place on greased baking trays and
leave until double in size.
6 Then bake in a pre-heated oven at 230°C/450°F/Gas mark 8 for 20 - 25
minutes for the loaf or 10 - 15 minutes for bread rolls. When ready they should
sound hollow when tapped on the base.
7
Head Office Address:
Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK
www.kenwoodworld.com
Designed and engineered by Kenwood in the UK
Made in China
2405/8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
