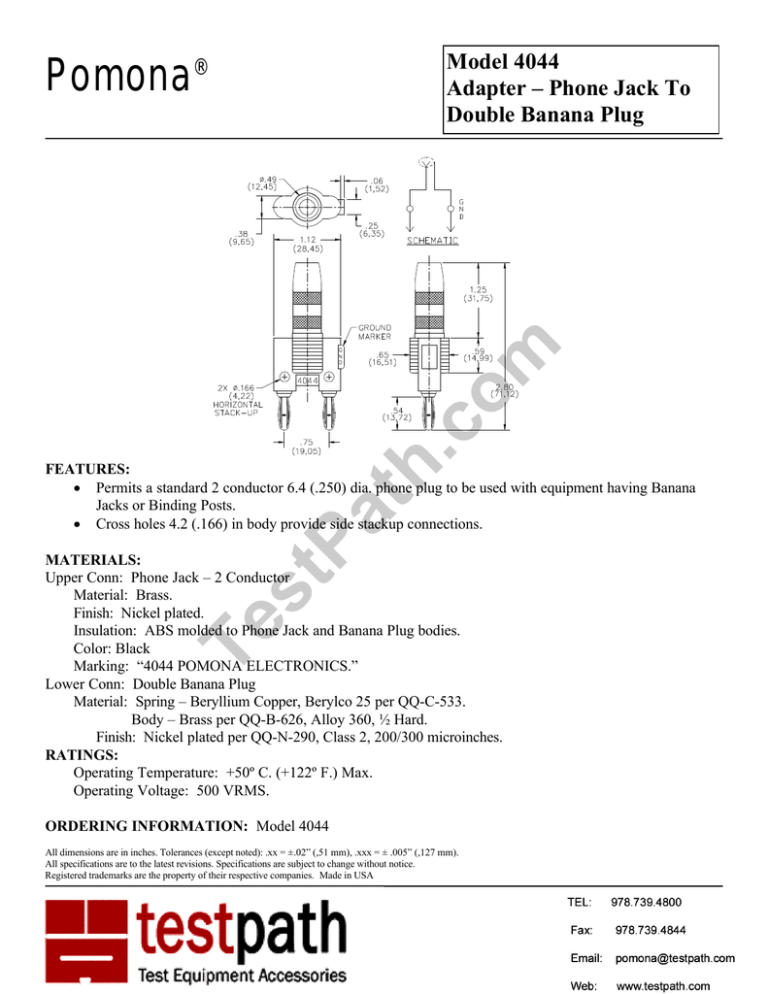

Pomona ® Model 4044 Adapter – Phone Jack To

Pomona ® Model 4044 Adapter – Phone Jack To
Pomona
®
h.
co
m
Model 4044
Adapter – Phone Jack To
Double Banana Plug
Pa
t
FEATURES:
• Permits a standard 2 conductor 6.4 (.250) dia. phone plug to be used with equipment having Banana
Jacks or Binding Posts.
• Cross holes 4.2 (.166) in body provide side stackup connections.
Te
st
MATERIALS:
Upper Conn: Phone Jack – 2 Conductor
Material: Brass.
Finish: Nickel plated.
Insulation: ABS molded to Phone Jack and Banana Plug bodies.
Color: Black
Marking: “4044 POMONA ELECTRONICS.”
Lower Conn: Double Banana Plug
Material: Spring – Beryllium Copper, Berylco 25 per QQ-C-533.
Body – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
RATINGS:
Operating Temperature: +50º C. (+122º F.) Max.
Operating Voltage: 500 VRMS.
ORDERING INFORMATION: Model 4044
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
R:\Release\DataSheet\2_Market_00\D4044_1_01.doc
PomonaACCESS 90590 (800) 444-6785 or (949) 253-3858
More drawings available at www.pomonaelectronics.com
Page 1 of 1
