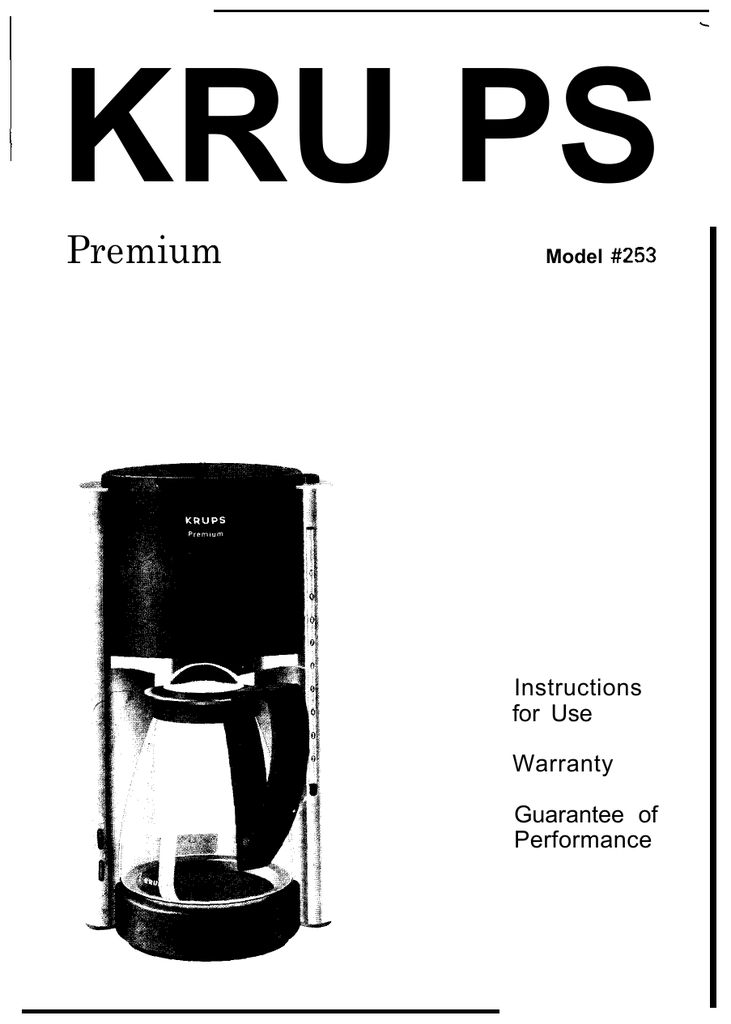

Model #253
for Use
Guarantee of
Table of Contents
Important Safeguards
Page 3
Page 6
Page 8
Before you start
Page 8
Using the KRUPS “Premium”
Filling the water chamber
Putting in the ground coffee
Page 8
Helpful Hints
Page 10
Cleaning and Decalcifying
Page 10
Page 11
Guarantee of Performance
Page 12
When using electrical appliances, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock, and/or injury to persons,
including the following:
0 Read &l instructions and information in this
instruction book and any other literature included
in this carton referring to this product before
operating or using this appliance.
0 Do not touch hot surfaces. Use handles or knobs.
0 To protect against electric shock, do not immerse
cord, plugs, or appliance in water or other liquid.
Close supervision is necessary when any appliance
is used by or near children.
0 Unplug from outlet when not in use and before
cleaning. Allow to cool before putting on or taking
off parts, and before cleaning the appliance.
0 Do not operate any appliance with a damaged cord
or plug or after the appliance malfunctions, or has
been damaged in any manner. Return appliance to
an authorized service facility for examination,
repair or adjustment.
0 Check that your appliances’ voltage matches your
electrical supply.
0 Always lift the glass carafe by the handle only,
never by the anti-drip ring.
0 The glass carafe is not suitable for use in
microwave ovens, above open fire or gas flame, or
on electric burners.
0 Do not refill the appliance while it is still hot; allow
appliance to cool down for at least ten minutes
between uses.
0 Do not pour hot water or other liquids into the
water reservoir.
0 Do not allow the cord to touch any hot part of the
The use of an accessory not evaluated for use with
this appliance may cause injuries.
0 Do not use outdoors.
0 Do not let cord hang over edge of table or counter,
or touch hot surfaces.
0 Do not place on or near a hot gas or electric burner,
or in a heated oven.
To disconnect, turn switch to “OFF”, then remove
plug from wall outlet.
0 Do not use appliance for other than intended use.
0 Snap lid securely onto glass carafe before serving
Appliance with glass carafe:
A. The carafe is designed for use with these
appliances. It must never be used on a range
B. Do not set a hot carafe on a wet or cold
C. Do not use a cracked carafe or a carafe having
a loose or weakened handle.
D. Do not clean carafe with cleansers, steel wool
pads, or other abrasive material.
This appliance is for household use only. Any servicing
other than cleaning and user maintenance should be
performed by the nearest authorized KRUPS Service
Center (see Guarantee of Performance).
Do not immerse base in water.
To reduce the risk of fire or electric shock, do not remove
the base. No user servicable parts inside. Repair should
be done by an authorized KRUPS Service Center only.
Regarding your cord set:
A. A short power-supply cord is provided to reduce
risks resulting from becoming entangled in or
tripping over a longer cord.
B. Longer extension cords are available and may be
used if care is exercised in their use.
C. If a long extension cord is used, (1) the marked
electrical rating of the extension cord should be at
least as great as the electrical rating of the appliance,
(2) if the appliance is of the grounded type, the
extension cord should be arranged so that it will not
drape over the counter top or table top where it can
be pulled on by children or tripped over.
D. This appliance has a polarized plug (one blade is
wider than the other). As a safety feature, this plug
will fit in a polarized outlet only one way. If the plug
does not fully fit in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Do not attempt to defeat this safety feature.
Krups Premium
Hinged water chamber lid
Release button
Swing away filter holder and insert
Water level indicator
Water chamber
f: Glass carafe and lid
g: Flavor selector button
h: Illuminated ON/OFF switch
i: Warming plate
j: Hidden cord storage
k: Goldtone filter
Using the KRUPS
“Premium” coffeemaker
Your new KRUPS “Premium”
coffeemaker has the following features:
Filling the water chamber
W dpen the hinged lid (figure 1).
Unique hermetically designed carafe
and lid keep coffee hotter up to 20%
longer than conventional carafes,
while preserving coffee flavor and
Electronically-controlled flavor
selector button adjusts the brewing
cycle for l-3 cups or 4-10 cups, for
the fullest coffee flavor.
Swing away two-part filter holder
with release button is convenient to
use and easy to clean.
Auto shut-off feature keeps coffee
hot for 2 hours after brewing, then
turns appliance off.
W “Stop’n Serve” feature lets you pour
a cup or two while brewing. The
automatic filter seal will allow you to
remove the carafe for 20 seconds
without dripping coffee onto the
warming plate.
W Stainless steel anti-drip spout
prevents coffee spillage when
pouring from any angle.
W Water level indicator is easy to read.
W Hinged water chamber lid protects
water from dust and dirt.
W Hidden cord storage allows you to
set the cord length you need.
Goidtone filter eliminates coffee
sediment for best coffee results.
Before you start
Before making your first pot of
delicious coffee, we recommend
operating the coffeemaker once or
twice with water only, without ground
coffee or a filter, to remove any
possible dust.
Using the glass carafe, pour in the
desired quantity of water (figure 2).
The markings on the glass carafe
and water level indicator show how
much water you are filling into the
chamber (figure 3).
The amount of freshly brewed coffee
delivered after the brewing process will
always be slightly less than the amount
of water put into the water chamber.
This is due to the minimum absorption
of the water by the ground coffee.
Therefore, it is recommended that you
add a little extra water at the
beginning, so that you will have the
number of cups you desire.
Note: Excess water in the water tank
cannot be poured out of the appliance.
To eliminate any excess water, allow
the coffee maker to operate without
coffee grounds.
W Close the hinged lid.
Putting in the ground coffee
W Press the release button and swing
out the 2-part filter holder (figure 4).
Insert the KRUPS goldtone filter into
the filter insert (figure 5).
If you desire, you can use paper filters
instead of the goldtone filter. We
recommend using KRUPS size 4 filters.
Add the ground coffee (figure 6).
We suggest using one level KRUPS
measuring scoop of ground coffee for
each cup of robust coffee. After using
your KRUPS coffeemaker several
times, you can adjust the measure to
suit your own taste.
Close the filter holder and make sure
that it is completely closed (figure 7).
Set the carafe lid on the carafe, and
replace the carafe on the warming
n Press the ON/OFF switch (figure 8).
A red indicator light will illuminate and
brewing will commence.
CAUTION: Never open the filter holder
during the brewing process.
This model features a full flavor
selector button. If you want to make
l-3 cups of coffee, press the flavor
selector button (figure 9).
A yellow indicator light will illuminate.
This will extend the brewing cycle so
that the water will seep into the ground
coffee slowly enough to yield brewed
coffee that is rich, aromatic and truly
The flavor selector button is
automatically switched off when the
appliance shuts off.
Remove the glass carafe when the
brewing process is completed and
Replace the carafe on the warming
plate to keep it hot (figure 10).
The “Stop’n Serve” feature is KRUPS
answer to the impatient coffee
drinker’s clamor for “a quick cup of
coffee!“ This device automatically
stops the flow of brewed coffee
through the filter cone if the glass
carafe is removed from the warming
plate during the brewing cycle. You
have about 20 seconds between the
removal of the carafe and its being
reinserted to allow the service of one
or two cups of coffee. The “Stop’n
Serve” device closes off the filter cone
so effectively that there is virtually no
coffee-drip onto the warming plate
(one drop, at most). Once the carafe is
replaced, the brewing cycle and the
flow of coffee into the carafe are
If coffee does drip onto the warming
plate after removal of the carafe, it is
usually an indication that too much
ground coffee has been placed into the
paper filter. This causes the water that
jets into the filter cone to overflow
between the paper filter and the sides
of the filter cone. The overflow carries
coffee grounds that interfere with the
snap-shut action of the filter holder,
thus allowing brewed coffee to
continue to drip through.
If this blockage and subsequent
dripping do occur, replace the glass
carafe immediately and allow the full
brewing cycle to run its course. Do not
remove the filter until the brewing
cycle is completed.
The KRUPS “Premium” is equipped
with an automatic shut-off feature, that
will turn off the machine 2 hours after
the brewing process has begun (the
red indicator light will turn off).
The appliance can be switched off
manually at any time, however, by
using the ON/OFF switch.
W The power cord can be tailored to
the length required by utilising the
hidden cord storage located behind
the coffeemaker (figure 11).
Helpful Hints
water. It will also depend upon how
often you use your coffeemaker.
Always use fresh, cold water (warm
water might be stale and have
mineral deposits which would impair
the flavor of the coffee).
Indications that decalcifying is
necessary are:
We recommend that you grind your
own beans. Freshly ground beans
deliver more aroma and flavor.
Use one KRUPS measuring scoop of
beans per cup.
Serve coffee immediately after
n Never reheat coffee.
Cleaning and Decalcifying
Always unplug the coffeemaker and
remove the goldtone filter before
cleaning (figure 12).
The glass carafe, hinged lid, filter insert
and goldtone filter can be washed in a
solution of hot water and mild liquid
soap. These parts can also be placed in
the upper rack of your dishwasher for
safe effective cleaning.
Never use scouring agents.
Never immerse the appliance itself in
water or any other liquid.
To clean, simply wipe off with a soft,
damp cloth.
Never use a cloth to clean the inside of
the water chamber, as this might leave
fuzzy deposits in the chamber. Just
rinse with cold water periodically.
Although your KRUPS coffeemaker has
the most advanced water heating and
pumping system, itwill periodically
need cleaning with a decalcifying
agent. This is due to the calcium
(limestone) found in drinking water.
In some areas where the water is hard,
you will need to decalcify more
frequently than in areas with soft
- increased noise during the brewing
- a lengthening of the coffee
preparation time
To decalcify, dissolve 1 packet of
KRUPS decalcifying agent in 2 cups of
cold water. Pour the solution into the
water container, then put the empty
carafe in place and brew for one full
cycle (do not use coffee during this
process). Repeat. Allow the solution to
cool down for about ten minutes
between: each cycle, turning appliance
off during this time. Flush system by
cycling clean water through machine
2 or 3 times.
.Limited One Year Warranty
Your KRUPS #253 is covered by the
following warranty:
If from date of purchase within one year
this KRUPS product fails to function
because of defects in materials or
workmanship, KRUPS North America
will, at its option, repair or replace the
unit without charge, provided the
owner has a proof of date of purchase.
This warranty will be void if
malfunction was caused by damage to
the product by accident, misuse, use
on frequency or voltage other than
marked on the product and/or
described in the instructions, abuse
including tampering, damage in transit,
or use for commercial purposes. This
warranty gives you specific legal rights,
and you may also have other rights
which may vary from state to state.
This fine KRUPS product is manufactured according to a rigid code of
quality standards, and, with minimum care, should give years of
satisfying service.
However, should the need arise for repairs or for replacement parts
within or after the warrantv period, please call our CONSUMER
(800) 526-5377
24-hours a day, 7 days a week
You will be provided with specific instruction on how to get your
product repaired, as well as the name and address of your nearest
authorized KRUPS Service Center. The department will also be able
to answer any general product questions you may have.
Before calling the Consumer Service Department, please have the
type number of your KRUPS appliance available.
You must have this information before calling our Consumer Service
Department so that we may better answer your questions. The type
number can be located by looking at the bottom of your appliance.
This product is Type #253
Any general correspondance can be addressed to:
KRUPS North America, Inc.
P.O. Box 3900
Peoria, IL 61612
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
