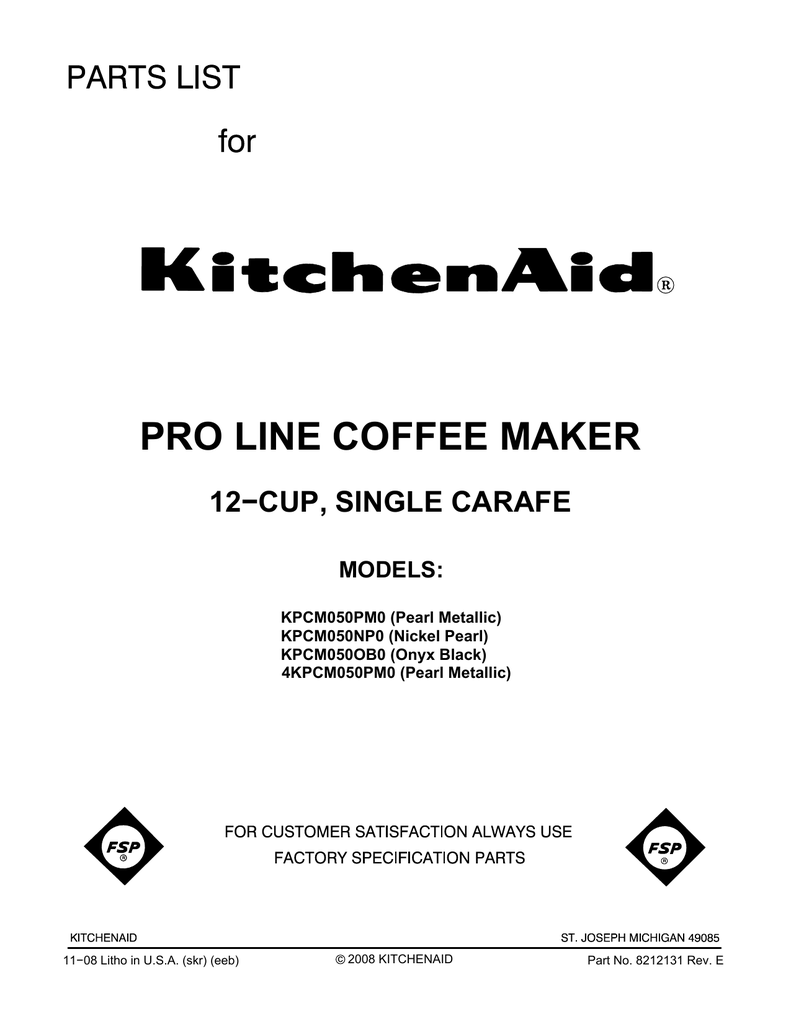

KitchenAid 4KPCM050PM0 Coffeemaker User Manual

PRO LINE COFFEE MAKER
12−CUP, SINGLE CARAFE
MODELS:
KPCM050PM0 (Pearl Metallic)
KPCM050NP0 (Nickel Pearl)
KPCM050OB0 (Onyx Black)
4KPCM050PM0 (Pearl Metallic)
11−08 Litho in U.S.A. (skr) (eeb)
c 2008 KITCHENAID
Part No. 8212131 Rev. E
BASE AND HOUSING PARTS
For Models: KPCM050_ _0, 4KPCM050_ _0
8212131
2
BASE AND HOUSING PARTS
For Models: KPCM050_ _0, 4KPCM050_ _0
Illus.
No.
Part
No.
1
2
3
4
8204573
8211624
8212131
8211572
8211573
8211525
8212157
W10191122
5
8211521
6
8211515
7
8211516
8
8211744
8212158
W10191124
9
8211582
10
8211583
11
8211522
12
8211518
13
8211745
14
8211622
15
8211523
16
8211700
17
18
8211519
19
8212391
20
8211623
21
8211544
DESCRIPTION
Literature Parts
Use And Care Guide
U.S.
Canada
Repair Parts List
O−Ring, Top
O−Ring, Bottom
Housing
Pearl Metallic
Nickel Pearl
Onyx Black
Pump Assembly
Base−Cover
Foot
Base
Pearl Metallic
Nickel Pearl
Onyx Black
Seal, Ring A
Seal Ring B
Mount, Hot Plate
Hot Plate, Main
PTC Mount
Hot Plate, Extra
Ring, Hot Plate
Nut, Float Switch
Not Serviced
Cover, Base
Control, Main PCB
Cover, PCB
Cord, Power
These parts are not available.
3
8212131
WATER RESERVOIR PARTS
For Models: KPCM050__0, 4KPCM050__0
8212131
4
WATER RESERVOIR PARTS
For Models: KPCM050_ _0, 4KPCM050_ _0
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Part
No.
DESCRIPTION
8211527 Filter Housing &
Ring Assembly
Cover, Filter
8211528 Pearl Metallic
8212154 Nickel Pearl
W10191127 Onyx Black
8211520 Guide, Water
8211530 Cover, Water Guide
Cover, Top
8211529 Pearl Metallic
8212155 Nickel Pearl
W10191126 Onyx Black
8211746 Seal, Water
Reservoir
8211531 Cover, Water
Reservoir
8211533 Water Reservoir
Holder, Water
Reservoir
8211534 Pearl Metallic
8212156 Nickel Pearl
W10191123 Onyx Black
8211538 Glide, Brew Basket
(Right)
8211569 Mount, Glide
8211539 Glide, Brew Basket
(Left)
Screw, Glide
8211747 Front
8211748 Rear
8211570 Locking Block
(Left)
8211571 Locking Block
(Right)
8211560 Knob, Water Guide
Cover
8211682 Screw, Water Guide
Cover
8211683 Screw, Water Guide
8211749 Washer, Glide
8211532 Ring, Seal
8212416 Cover, Water
Reservoir Holder
5
8212131
UPPER AND LOWER CONTROL PARTS
For Models: KPCM050_ _0, 4KPCM050_ _0
Illus.
No.
1
2
3
4
5
6
7
8
Part
No.
DESCRIPTION
8211535 Rear Cover,
Control Panel
8211574 Rotary Switch, PCB
8211575 Control, PCB
8211576 LCD Cover
8211750 Shield
8211577 Basket, Control
Panel
8211578 Mount, Control
Knob
8211536 Control Panel
Illus.
No.
Part
No.
9
10
11
12
8211579
8211580
8211581
8211754
13
8211753
14
15
16
17
8211621
8211684
8211751
DESCRIPTION
Knob, Control
Pushbutton
Lens Cover
Seal, Control
Panel B
Seal, Control
Panel A
Not Serviced
LED Cover
Screw, Rear Cover
Screw, Basket
Illus.
No.
18
19
20
21
22
23
Part
No.
DESCRIPTION
8211752 Screw, Knob
8211756 Lead Wire, PCB
Control
8211517 Basket, Rotary
Switch
8211625 Thermostat,
Adjustable
8211626 Knob, Hot Plate
8212367 Mount, Rotary
Switch
These parts are not available.
8212131
6
CARAFE PARTS
For Models: KPCM050_ _0, 4KPCM050_ _0
Illus.
No.
1
2
3
4
5
6
7
8
7
Part
No.
DESCRIPTION
8211540 Carafe Assembly
8211541 Insert, Brew
Basket
8211542 Basket, Brew
8211705 Screw
8211706 Spacer
8211543 Handle, Brew
Basket
8211546 Scoop, Coffee
Lid, Carafe
Assembly
8212196 Black
8212197 Orange
8212131
