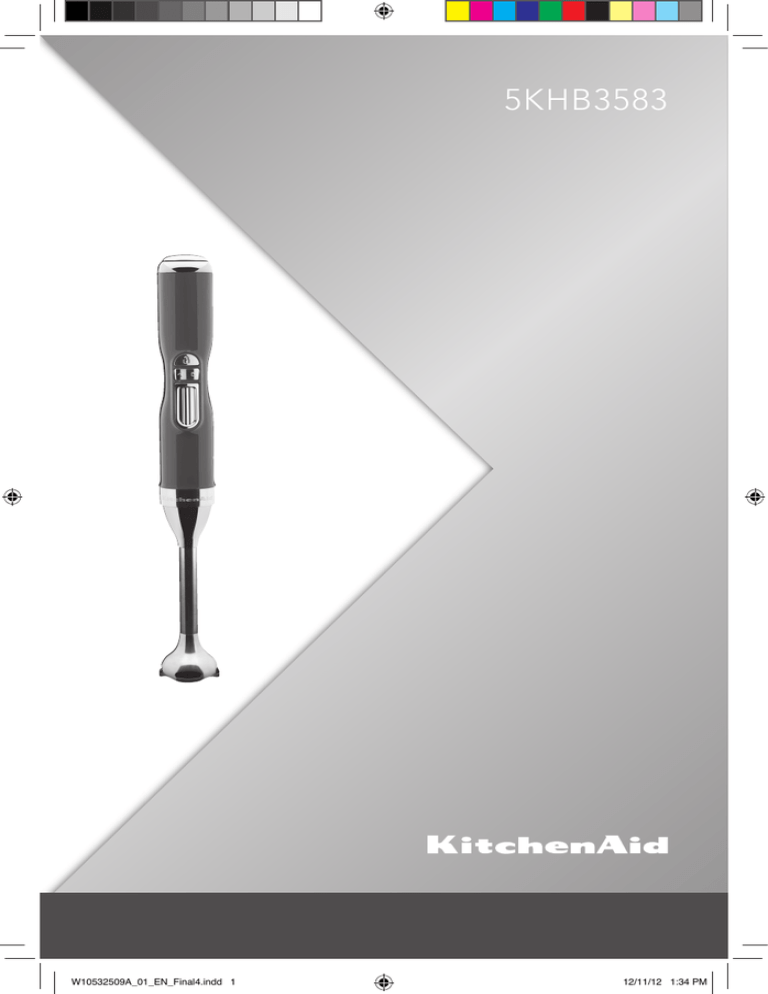

Whirlpool 5KHB3583 User manual

5KHB3583
W10532509A_01_EN_Final4.indd 1
12/11/12 1:34 PM
Cordless Hand Blender INSTRUCTIONS
Hand blender SAFETY
Important safeguards........................................................................................... 6
Electrical requirements ...................................................................................... 7
Electrical equipment waste disposal.................................................................... 7
Disposing of KitchenAid Lithium-Ion (Li-Ion) battery.......................................... 7
English
Table of Contents
PARTS AND FEATURES
Parts and features................................................................................................ 8
operating the hand blender
Before first use: charging the battery.................................................................. 9
Assembling the Hand Blender........................................................................... 10
Using the LED display panel.............................................................................. 11
Using the blending arm...................................................................................... 12
Tips for great results
Techniques for better blending and crushing..................................................... 13
Operating tips.................................................................................................... 13
CARE AND CLEANING
Cleaning the Hand Blender............................................................................... 14
service and WARRANTY
KitchenAid Hand Blender warranty.................................................................. 15
Customer service.............................................................................................. 15
5
W10532509A_01_EN_Final4.indd 5
12/11/12 1:34 PM
Hand BLender Safety
H
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put motor body of Hand Blender,
battery, charger, charger’s cord or plug in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Avoid contact with moving parts.
6. Do not operate any appliance or charger with a damaged cord, or plug, or after the
appliance or charger malfunctions, or is dropped, or damaged in any manner. Return
appliance or charger to the nearest Authorized Service Facility for examination, repair,
or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by KitchenAid may cause fire,
electric shock, or injury.
8. Do not let power cord on charger hang over edge of table or counter. Excess cord
may be wrapped on the underside of the charger.
9. Do not let power cord on charger contact hot surfaces, including the stove.
10. When mixing liquids, especially hot liquids, use a tall container, or make small quantities
at a time to reduce spillage.
11. Keep hands and utensils out of the container while blending to prevent the possiblity
of severe injury to persons, or damage to the unit. A scraper may be used, but must
be used only when the unit is not running.
12. Blades are sharp. Handle carefully.
13. Always remove the battery from the Hand Blender if it is left unattended and before
assembling, disassembling or cleaning.
14. This product is designed for household use only.
6
SAVE THESE INSTRUCTIONS
W10532509A_01_EN_Final4.indd 6
12/11/12 1:34 PM
Hand Blender Safety
Electrical requirements
English
Battery Voltage: 12 V Lithium-Ion (Li-ion) / 1.5 Ah / 16 Wh
Battery Model No.: 5KCL12IBOB
Charger
Input : 18 V / 660 mA
Output : 12 V / 550 mA
Charger Model No.: 5KCL12CSOB
Charger Adapter
Input : 220-240 V / 50/60 Hz / 18 W
Output : 18 V / 660 mA
Charger Adapter Model No.: W10533411
Electrical equipment waste disposal
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed
of correctly, you will help avoid potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
The symbol on the product, or on the
documents acompanying the product,
indicates that this appliance may not be
treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance
with local environmental regulations
for waste disposal.
For more detailed information about
treatment, recovery, and recycling of this
product, please contact your local city office,
your household waste disposal service, or
the shop where you purchased the product.
Disposing of KitchenAid Lithium-Ion (Li-Ion) battery
Always dispose of your battery according to
local regulations. Contact a recycling agency
in your area for recycling locations.
Even discharged batteries contain some
energy. Before disposing, use electrical tape
to cover the terminals to prevent the battery
from shorting, which could cause a fire or
explosion.
7
W10532509B_01_EN_Final4.indd 7
1/10/13 1:18 PM
Parts and Features
Ope
Parts and features
Battery location
Pan guard
Front of
motor body
Bell guard
Back of motor body
Battery release
lever /
Hanging loop
Unlock button
Speed control
buttons
LED display
speed selection
indicator
Pulse button
Grip
LED display
battery life
indicator
Battery
20 cm (8") Stainless
steel blending arm
with S-blade
LED charge
indicator/ Lid
release
Charger base
8
W10532509A_01_EN_Final4.indd 8
12/11/12 1:34 PM
Operating the hand blender
English
Before first use: charging the battery
1
Plug in the charger.
2
Push the lid release button to open
the lid.
3
Slide the battery into the charger,
aligning the flat side of the battery to the
flat side of the port, and push down to
click into place.
4
The LED indicator will begin to flash
slowly and continuously as it charges.
When the battery is fully charged, the
LED will display a continuous light.
NOTE: If the charger quickly flashes three
times after inserting the battery, there is a
battery error. Check that the battery is placed
properly in the charger. If the light continues
to flash rapidly, the battery may be extremely
cold, hot, wet or damaged. Allow the battery
to cool down, warm up or dry out, then
reinsert. If the problem persists, see the
“Service and Warranty” section.
5
Charge the battery after each use, when
the battery indicator lights show less
than 25% battery life remaining (only
one light displays on the LED battery
life indicator), or when the battery is
completely drained.
NOTE: Batteries do not develop a “memory”
when charged after only a partial discharge. It
is not necessary to run down the battery
before placing it on the charger.
9
W10532509A_01_EN_Final4.indd 9
12/11/12 1:34 PM
operating the hand blender
Ope
Assembling the Hand Blender
Before First Use
Before using the Hand Blender for the
first time, wipe the motor body, the
blending arm with blade and the guards
with a clean, damp cloth to remove any
dirt or dust. Mild dish soap may be used.
Do not use abrasive cleansers. Dry
thoroughly with a soft cloth. See “Care
and Cleaning” section for more information.
1
Insert blending arm into motor body
and twist until it clicks to lock in place.
2
Remove the bell guard from the blade.
4
Snap pan guard into place with an even,
downward motion.
5
Slide the charged battery into the top
of the Hand Blender motor body. Make
sure it latches securely.
Port
Mounting
grips
3
If using a pan guard, place it on a flat
surface and position with mounting clips
between the ports of the blade.
NOTE: Use the bell
guard to avoid damage to
blade when Hand Blender
is not in use.
Bell guard
Use the pan guard to
avoid damage to cookware
while using Hand Blender.
Pan guard
10
W10532509A_01_EN_Final4.indd 10
12/11/12 1:34 PM
Operating the hand blender
Using the LED display panel
English
IMportant: The unlock button must be pressed before the Hand Blender will operate.
Battery life
indicator
LED display
1
When operating the controls on the
Hand Blender, always make sure the
LED display is facing toward you. Grip
the handle with your thumb on the
back of the unit, and your fingers on the
controls in front, as shown.
Unlock
button
2
The bottom bar on the LED display
panel is the battery life indicator. Hold
the Hand Blender so that you can see
the LED display light up when you
press the UNLOCK button with your
index finger.
Pulse button
Speed control
buttons
Speed selection
indicator
3
The top bar on the LED display panel is
the speed selection indicator. To adjust
speeds, operate the arrow buttons
with your index finger, while viewing
the speed indicator on the LED display.
When the LED faces you, the right
button will increase the speed and the
left button will decrease the speed.
4
After selecting desired speed, press
the PULSE button to begin blending.
See “Using the blending arm” section
for more information.
NOTE: The Hand Blender will automatically power down after 60 seconds of not operating
or being manually unlocked.
11
W10532509A_01_EN_Final4.indd 11
12/11/12 1:34 PM
operating the hand blender
T
Using the blending arm
NOTE: Your Hand Blender is ideal to use for blending, crushing, or puréeing. It is best used for
soups, cooked vegetables, sauces, baby food, smoothies, milk shakes, frosting, or crushed ice.
Unlock
button
Speed control
buttons
LED display
1
Speed selection
indicator
Press the UNLOCK button. LED display
will light up when unit is ready.
Pulse button
2
Use the arrow buttons to adjust the
speed, using the LED display as a guide.
Seam
3
Insert Hand Blender into mixture. Then
press the PULSE button to activate.
NOTE: Do not immerse hand blender
4
After blending is complete, release the
pulse button; then remove Hand Blender
from mixture.
5
TIP: To avoid splashing, insert the Hand
Blender into the mixture before pressing
the pulse button, and release the pulse
button before pulling the Hand Blender
out of the mixture.
in liquids deeper than the seam of the
attachment. Do not immerse motor body
into liquids or other mixtures.
Remove the battery by placing your
finger on the battery release lever and
pulling the lever away from the motor
body. The battery will release from
the top of the unit.
IMPORTANT: Always wait to insert
battery into Hand Blender until accessories
are attached. After using, always remove
battery before disassembling Hand Blender.
12
W10532509A_01_EN_Final4.indd 12
12/11/12 1:34 PM
Tips for great results
Techniques for better blending and crushing
Wrist
movement
English
Drawing up
For better blending: Rest the Hand Blender on the bottom of the container momentarily, then
hold at an angle and using a light circular motion, slowly draw it upwards against the side of the
container. Allow your wrist motion and the weight of the Hand Blender to do the work. As you
draw up the Hand Blender, you will notice the ingredients from the bottom of the container rising
up. When the ingredients are no longer rising from the bottom, return the Hand Blender to the
bottom of the container and repeat until mixture is at the desired consistency.
TIP: To prevent overflow, allow room
in the container for the mixture to rise
when blending.
For better crushing: Insert Hand Blender
with blending arm attached into the
container. For hard, frozen fruits or ice,
add a small amount of liquid until the
S-blade is submerged. Remember to stop
the Hand Blender before removing it from
the container to avoid splashing.
Operating tips
• Do not let the Hand Blender sit in a hot
pan on the cooktop when not in use.
• The Hand Blender is equipped with
thermal protection from high operating
temperatures. Should the Hand Blender
suddenly stop during use, press the
UNLOCK button once, then press
the PULSE button. If the unit does not
operate, but shows information on the
battery indicator bar, allow 10 minutes
to automatically reset. If the unit does
not display information on the battery
indicator bar, charge the battery. If the
battery is already fully charged, and the
unit fails to operate, see the “Service
and Warranty” section.
• When blending in a saucepan on
a cooktop, remove the pan from
the heating element to protect the
Hand Blender from overheating.
• Cut solid foods into small pieces
for easier blending.
• Do not use Hand Blender to process
coffee beans or hard spices such as
nutmeg. Processing these foods may
damage the blades.
13
W10532509A_01_EN_Final4.indd 13
12/11/12 1:34 PM
care and cleaning
S
Cleaning the Hand Blender
1
Remove blending arm (see “Operating
the Hand Blender” section).
2
Wash blending arm and guards in the
top rack of the dishwasher or by hand in
hot, soapy water. Dry with a soft cloth.
NOTE: Always remove the battery from
the Hand Blender if it is left unattended
and before assembling, disassembling
or cleaning.
Do not immerse motor body in water.
3
Wipe the motor body with a damp
cloth. Use mild dish soap. Do not use
abrasive cleansers.
14
W10532509A_01_EN_Final4.indd 14
12/11/12 1:34 PM
SErVice and warranty
Length of
Warranty:
KitchenAid Will Pay For:
KitchenAid Will Not
Pay For:
Europe, Middle
East and Africa:
The replacement parts
and repair labor costs to
correct defects in materials
or workmanship. Service
must be provided by an
Authorized KitchenAid
Service Center.
A.Repairs when Hand Blender
is used for operations other
than normal household
food preparation.
B.Damage resulting from
accident, alterations,
misuse, abuse, or
installation/operation
not in accordance with
local electrical codes.
For Model
5KHB3583:
Three years Full
Warranty from
date of purchase.
English
KitchenAid Hand Blender warranty
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT DAMAGES.
Customer service
In U.K. and Ireland:
For any questions, or to find the nearest KitchenAid Authorized Service Center, please find
our contact details below.
NOTE: All service should be handled locally by an Authorized KitchenAid Service Center.
Contact number for U.K. and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard
network rate)
Contact number for Ireland:
Tollfree number +44 (0) 20 8616 5148
E-mail contact for U.K. and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom of the page.
Address for U.K. and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorized KitchenAid Service/Customer Center.
www.KitchenAid.eu
© 2012. All rights reserved.
Specifications subject to change without notice.
15
W10532509A_01_EN_Final4.indd 15
12/11/12 1:34 PM
© 2013. All rights reserved.
Specifications subject to change without notice.
W10532509B
W10532509B_18_BackCover.indd 212
01/13
1/10/13 10:56 AM

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
