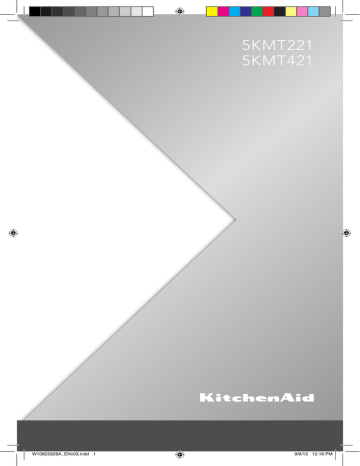

KitchenAid 5KMT221 Toaster User Manual

5KMT221
5KMT421
W10625929A_ENv03.indd 1
9/9/13 12:16 PM
W10625929A_ENv03.indd 2
9/9/13 12:16 PM
English................................................................................. 3
Deutsch............................................................................. 00
Français............................................................................. 00
Italiano............................................................................... 00
Nederlands....................................................................... 00
Español.............................................................................. 00
Português.......................................................................... 00
Ελληνικά............................................................................ 00
Svenska............................................................................. 00
Norsk................................................................................. 00
Suomi................................................................................. 00
Dansk................................................................................. 00
Íslenska.............................................................................. 00
Русский............................................................................. 00
Polski.................................................................................. 00
Český................................................................................. 00
................................................................................ 00
W10625929A_ENv03.indd 3
9/9/13 12:16 PM
T
4
W10625929A_ENv03.indd 4
9/9/13 12:16 PM
Toaster INSTRUCTIONS
Toaster SAFETY
Important safeguards..........................................................................................6
Electrical requirements......................................................................................7
Electrical equipment waste disposal...................................................................8
English
Table of Contents
PARTS AND FEATURES
Toaster parts.......................................................................................................8
Control panel features........................................................................................9
Toaster features................................................................................................10
operating THE Toaster
Before first use.................................................................................................10
Using the Toaster..............................................................................................10
Using the special toasting functions..................................................................12
CARE AND CLEANING.......................................................................................15
Troubleshooting.........................................................................................16
WARRANTY and service
KitchenAid Toaster warranty............................................................................17
Customer service.............................................................................................17
5
W10625929A_ENv03.indd 5
9/9/13 12:16 PM
Toaster Safety
T
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including the following:
1.Read all instructions.
2.Do not touch hot surfaces. Use handles or knobs.
3.To protect against electrical shock, do not immerse cord,
plugs, or toaster in water or other liquid.
4.This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
5.Unplug toaster from outlet when not in use and before
cleaning. Allow to cool before putting on or taking off parts.
6.Do not operate any appliance with a damaged cord or plug
or after the appliance malfunctions or has been damaged
in any manner. Return appliance to the nearest Authorized
Service Facility for examination, repair or adjustment.
7.The use of accessory attachments not recommended
by the appliance manufacturer may cause injuries.
6
W10625929A_ENv03.indd 6
9/9/13 12:16 PM
8.Do not use outdoors.
9.Do not let cord hang over edge of table or counter,
or touch hot surfaces.
10.Do not place on or near a hot gas or electric burner,
or in a heated oven.
11.To disconnect, turn any control to “OFF,” then remove
plug from outlet.
12.Do not use appliance for other than intended use.
13.Oversize foods, metal foil packages, or utensils must
not be inserted in toaster as they may involve a risk
of fire or electric shock.
14.A fire may occur if toaster is covered with or touching
flammable material, including curtains, draperies, walls
and the like, when in operation.
15.Do not attempt to dislodge food when toaster is plugged in.
16.Appliance is not intended to be operated by means of an
external timer or remote-control system.
17.This product is designed for household use only.
English
Toaster Safety
SAVE THESE INSTRUCTIONS
Electrical requirements
Voltage: 220-240 Volts
Frequency: 50/60 Hertz
Wattage:1100 Watts for the
2-slice model 5KMT221
1800 Watts for the
4-slice model 5KMT421
NOTE: If the power cord is damaged, it
must be replaced by the manufacturer or
its service agent in order to avoid a hazard.
Do not use an extension cord. If the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet
near the appliance.
7
W10625929A_ENv03.indd 7
9/9/13 12:16 PM
Toaster Safety
P
Electrical equipment waste disposal
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol
.
The various parts of the packing must
therefore be disposed of responsibly
and in full compliance with local authority
regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance
with European Directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
- The symbol
on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection centre for the recycling of
electrical and electronic equipment.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city office,
your household waste disposal service or the
shop where you purchased the product.
PARTS AND FEATURES
Toaster parts
2-slice model
Extra-wide slots with automatic
self-centering racks
Special toasting
functions
3 4
5
1
2
6
7
Shade
control dial
(7 settings)
Removable
crumb tray
(not shown)
Under base
cord wrap
(not shown)
Toast/cancel
button
8
W10625929A_ENv03.indd 8
9/9/13 12:16 PM
PARTS AND FEATURES
Toaster parts
English
4-slice model
3 4
5
1
2
3 4
5
6
7
1
6
2
7
Same great parts and features as 2-slice model, with two independent control panels
that allow you to select different settings for each pair of slots.
Optional accessories
A Bun Warmer (model 5KTBW21) and a Sandwich Rack (model 5KTSR1) can be purchased
as optional accessories to be used with the 2-slice and 4-slice toasters.
Control panel features
3
4
5
6
7
1
2
Shade control dial
Features a rotating knob for precision
control (7 settings). Turn knob to the right
for darker or to the left for lighter toasting.
Keep warm function ( )
Select to keep warm slices that have
just been toasted (up to 3 minutes). The
End-of-Cycle signal will beep and the
toaster will shut off and raise the slices.
Bagel function ( )
Designed to toast bagels, crumpets, muffins,
buns or any other round breads that you
wish to cut in half and toast only on one
side. The heating elements will adjust to
nicely toast the inside of a cut bagel (or
other round bread) while gently warming
the outer surface.
Frozen function ( )
Defrosts and toasts frozen bread.
Reheat function ( )
Quickly reheats slices in less than a minute.
Toast/Cancel button ( )
Lowers the slices and starts the toasting
cycle / cancels the cycle and lifts the slices.
A ring of light around the button illuminates
when the heaters are actively toasting.
9
W10625929A_ENv03.indd 9
9/9/13 12:16 PM
PARTS AND FEATURES
o
Toaster features
Extra-wide slots
Handles thick bread slices, buns or bagels
easily.
Self-centering bread racks
Centers thick or thin breads perfectly for
even toasting.
Removable crumb tray(s)
Durable steel tray (two side-by side trays on
4-slot model) can be washed in the top rack
of a dishwasher.
Under base cord wrap
Keeps extra cord out of sight and out
of the way.
Stylish exterior
Stainless steel and painted steel surfaces are
constructed for durability and style.
Steel interior
Durable and deep toasting cavity helps to
ensure even browning.
operating the Toaster
Before first use
Before using your Toaster, check the
Extra-Wide Slots and remove any packing
or printed material that might have fallen
inside during shipping or handling. Do not
probe inside the Toaster with a metal object.
You may see light smoke the first time you
use the Toaster. This is normal. The smoke
is harmless and will soon disappear.
Shorten cord, if necessary, by wrapping cord
under the base. The Toaster’s feet are tall
enough to allow the cord to exit from under
any side of the Toaster.
Using the Toaster
1
Plug the Toaster cord into
a grounded outlet.
10
W10625929A_ENv03.indd 10
9/9/13 12:16 PM
operating the Toaster
NOTE: For even toasting on 2-slice models,
toast only one bread type and thickness
at a time. For 4-slice models, with Dual
Independent Controls, if toasting of two
different breads is desired, be sure to toast
only one bread type in each pair of slots.
3 4
5
1
2
English
Using the Toaster
6
7
2
Insert bread or other food to be toasted
in slot.
3 4
2
5
3 4
5
1
1
2
6
6
7
7
3
urn the Shade Control dial to select
T
the degree of darkness you want. Turn it
to the right for darker toasting or to the
left for lighter.
4
(Optional)
Press desired special
toasting function button. See the
“Using the special toasting functions”
section for more information.
NOTE: Different types of bread and their moisture levels may require different shade
settings. For example, dry bread will brown more rapidly than moist bread and will require
a lighter setting.
2
5
5
6
6
7
7
5
3 4
1
3 4
1
2
ress the TOAST/CANCEL (
P
)
button to begin toasting. The centering
racks will adjust automatically to hold
food upright. When toasting is complete,
the End-of-Cycle signal will beep, the
Toaster will shut off and raise the toast.
6
cancel toasting at any time, press
To
TOAST/CANCEL (
) button again.
The Toaster will shut off and raise the
toast.
11
W10625929A_ENv03.indd 11
9/9/13 12:16 PM
operating
cmd + shift
the
click
Toaster
to change copy
o
Using the special toasting functions
Either before, or just after pressing TOAST/CANCEL button to begin toasting, you can
select the special toasting functions by pressing the appropriate button. After a toasting
cycle is complete, all functions will be cleared.
Keep Warm function (
)
3 4
5
1
2
6
7
3 4
5
1
2
6
7
1
Make sure the just toasted food is still in
the slot, or place it back in the Toaster.
2
Press the Keep Warm (
) button.
NOTE: No Shade adjustment is necessary – the Keep Warm function overrides whatever
Shade level you have set.
3 4
2
3 4
5
1
5
1
2
6
6
7
7
3
Press the TOAST/CANCEL (
)
button to begin the warming cycle.
Bagel function (
4
cancel warming at any time, press
To
TOAST/CANCEL (
) button again.
The Toaster will shut off after 3 minutes
and raise the toast.
)
3 4
5
1
2
6
7
3 4
5
1
2
6
7
1
Insert the halves of bagel (or of other
round breads) with the flat side facing
in, as shown.
2
S et the Shade Control to the desired
level.
12
W10625929A_ENv03.indd 12
9/9/13 12:16 PM
operating the Toaster
3 4
2
3 4
5
1
5
1
2
6
6
7
7
Press the Bagel (
3
3 4
) button.
4
ress the TOAST/CANCEL (
P
button to begin toasting.
)
5
1
2
English
Using the special toasting functions
6
7
5
To cancel toasting at any time, press the
TOAST/CANCEL (
) button again.
The Toaster will shut off and raise
the bagel.
Frozen function (
)
3 4
5
1
2
6
7
3 4
5
1
2
6
7
1
Insert the frozen item into bread slot.
Use the Frozen function for frozen
foods only.
2
Set the Shade Control to the desired
level.
13
W10625929A_ENv03.indd 13
9/9/13 12:16 PM
operating the Toaster
o
Using the special toasting functions
2
5
3 4
5
1
3 4
1
2
6
6
7
7
Press the Frozen (
3
3 4
4
ress the TOAST/CANCEL (
P
button to begin toasting.
)
5
1
2
) button.
6
7
C
5
To cancel toasting at any time,
press the TOAST/CANCEL (
)
button again. The Toaster will shut off
and raise the toasted item.
Reheat function (
)
3 4
5
1
2
6
7
3 4
5
1
2
6
7
1
Insert the food into Toaster slot. Do
not place food with butter or any other
topping in the Toaster. Use the Reheat
function for dry foods only.
2
Press the Reheat button (
).
14
W10625929A_ENv03.indd 14
9/9/13 12:16 PM
operating the Toaster
Using the special toasting functions
NOTE: No Shade adjustment is necessary – the Reheat function overrides whatever Shade
3 4
5
1
2
English
level you have set.
6
7
3 4
5
1
2
6
7
3
ress the TOAST/CANCEL (
P
button to begin reheating.
)
4
To cancel reheating at any time, press
the TOAST/CANCEL (
) button
again. The Toaster will shut off and raise
the toast.
2
ress and release the center of the
P
crumb tray then slide it out. Shake
the crumbs into a waste container. It
is recommended that the crumb tray
be emptied after each use. The crumb
tray can be washed in the top rack
of a dishwasher.
CARE AND CLEANING
1
Unplug the Toaster and let it cool
before cleaning.
IMPORTANT: The tray will be hot immediately following a toasting cycle.
15
W10625929A_ENv03.indd 15
9/9/13 12:16 PM
W
care and cleaning
3 4
5
1
2
6
7
3
Wipe Toaster with a soft, damp cotton
cloth. Do not use paper towels,
abrasive cleansers or liquid cleaning
products. Do not immerse Toaster
in water.
4
eturn crumb tray to Toaster. Press it
R
in firmly until it clicks into position. Do
not use the Toaster without the crumb
tray in proper position.
NOTE: If grease or oil splatters on the Toaster, wipe splatters away immediately using a
clean, damp cotton cloth.
NOTE: KitchenAid does not recommend the use of a toaster cover.
Troubleshooting
• If your Toaster should fail to operate,
check the following:
1. C
heck that the Toaster is plugged
into a proper electrical outlet. If it is,
unplug the Toaster.
2. P
lug in Toaster.
3. If the Toaster still does not work, check
the household fuse or circuit breaker.
• If the problem cannot be corrected:
See the “Warranty and service” sections.
16
W10625929A_ENv03.indd 16
9/9/13 12:16 PM
WARRANTY AND SERVICE
Length of
Warranty:
KitchenAid Will Pay KitchenAid Will Not
For:
Pay For:
Europe, Middle East
and Africa:
Two years full warranty from
date of purchase.
The replacement
parts and repair labor
costs to correct
defects in materials
or workmanship.
Service must
be provided by
an Authorized
KitchenAid Service
Center.
A.Repairs when Toaster
is used for operations other
than normal household
food preparation.
B.Damage resulting from
accident, alterations,
misuse, abuse, or installation/
operation
not in accordance with
local electrical codes.
English
KitchenAid Toaster warranty
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT
DAMAGES.
Customer service
In U.K. and Ireland:
For any questions, or to find the nearest KitchenAid Authorized Service Center, please find
our contact details below.
NOTE: All service should be handled locally by an Authorized KitchenAid Service Center.
Contact number for U.K. and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard network
rate)
Contact number for Ireland:
Tollfree number +44 (0) 20 8616 5148
E-mail contact for U.K. and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom
of the page.
Address for U.K. and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorized KitchenAid Service/Customer Center.
www.KitchenAid.eu
© 2013. All rights reserved.
Specifications subject to change without notice.
17
W10625929A_ENv03.indd 17
9/9/13 12:16 PM
W10625929A_ENv03.indd 18
9/9/13 12:16 PM
© 2013. All rights reserved.
Specifications subject to change without notice.
W10625929A
W10625929A_ENv03.indd 19
09/13
9/9/13 12:16 PM

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
