KitchenAid KSSP48QTS02 Refrigerator User Manual

CABINET PARTS
For Model: KSSP48QTS02
(Stainless Steel)
3−08 Litho In U.S.A. (mat)
1
48" BUILT IN
REFRIGERATOR
Part No. W10178077 Rev. A

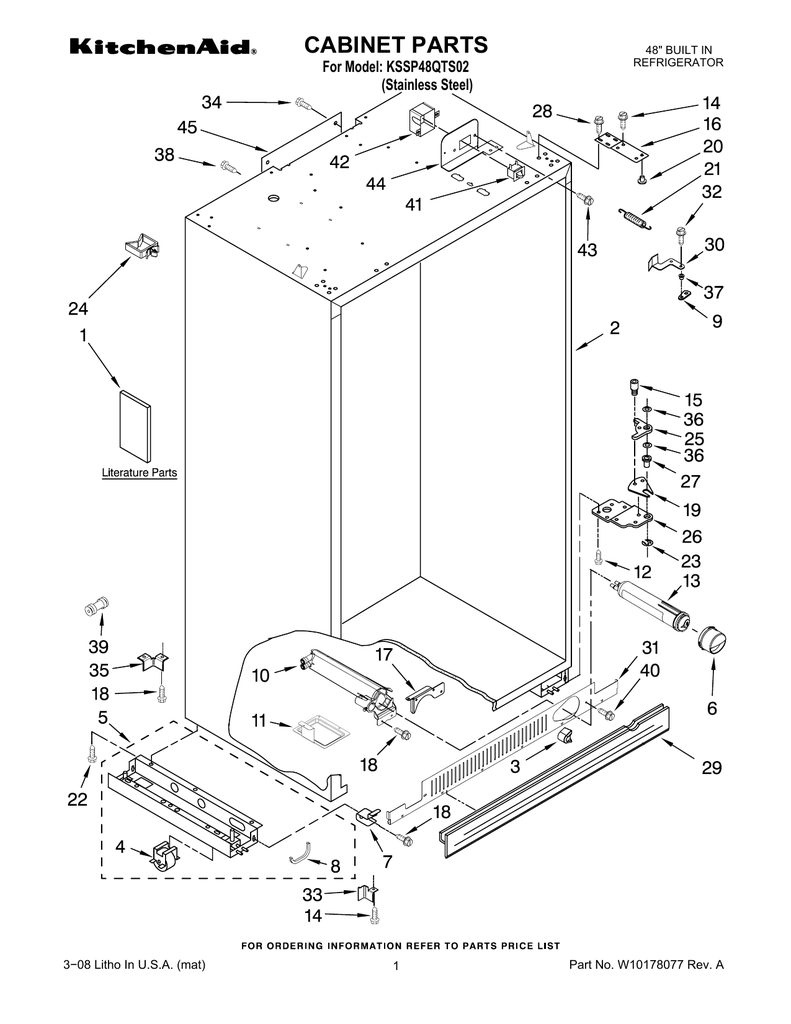

CABINET PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
1
Part
No.
Literature Parts
W10161714 Use & Care Guide
W10164073 Energy Guide
W10159832 Service & Wiring
Sheet
2306424 Icemaker and
Ingredient Care
Center Service
Sheet
2318069 Main Control
Service Sheet
2316565 Installation
Instructions
2
3
4
DESCRIPTION
2260503B
1112023
5
2318194
2318193
6
7
2260518B
2307640
8
2307584
9
10
2005783
2260526
Cabinet (Not A
Serviceable Part)
Button, Filter
Roller, Front &
Rear (4)
Support, Leveler
Assembly
Refrigerator Side
Freezer Side
Cap, Water Filter
Black
Mounting Stud,
Grille
Grommet, Crossover
Tube
Cam, Door Closer
Housing, Water
Filter
Illus.
No.
Part
No.
11
12
13
14
15
16
17
2318189
3400525
4396841
489399
3400230
2257644
2318190
18
19
489464
2004994
20
21
2300082
22
23
2221242
2004517
486194
2005008
24 W10129069
25
2006342
26
27
28
29
2006780
2006779
2302876
8533913
2209026B
30
2266882
2266881
DESCRIPTION
Tray, Drip Filter
Screw
Filter, Water
Screw
Screw, Door Stop
Hinge (Top)
Bracket, Mtg
(Water Filter)
Screw
Lock, Adjustable
Bushing
Bushing
Spring, Door
Closure
Right Side
Left Side
Screw
Retaining Ring,
Adjustable Bushing
Wire Clip (5)
Gap, Cover
Assembly (Bottom)
Hinge (Bottom)
Freezer Side
Refrigerator Side
Bushing,
Adjustable
Screw 1/4−20 x 5/8
Skirt−Grille,
Bottom
Black
Extension Arm,
Door Closer
Right
Left
2
Illus.
No.
Part
No.
31
32
33
2325186B
2005921
34
35
2006616
2006556
1157158
2006617
36
37
2006346
2266880
38
39
1163283
40
41
2209709
2300868
8281163
1118894
42
43
44
45
1115373
2215938
487415
2221097
2221096
2215612
DESCRIPTION
Grille Bottom,
Front
Black
Screw
Bracket, Support
Base (Front)
Left
Right
Screw
Bracket, Support
Base (Rear) (2)
Washer
Bushing,
Extension Arm
Screw
Connector, Water
Tube
5/16−1/4"
1/4"
Screw
Switch, Rocker Arm
Refrigerator Door
Side
Freezer Door Side
Cover, Switch (2)
Screw (2)
Bracket, Switch
Right
Left
Cover, Rear
W10178077
CABINET TRIM PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
1
2313911S
2
3
1163283
2316688
4
5
6
486194
2314018
2313912S
7 W10121451
8
2005925
9
489464
W10178077
3
DESCRIPTION
Cabinet, Trim
(Right Side)
Stainless Steel
Screw
Stainless Steel
Cabinet, Trim
(Bottom)
Screw
Cabinet, Trim Top
Cabinet Trim
(Left Side)
Nutsert (4)
Seal−Trim, Side
Screw
FREEZER SHELF PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
1
2
3
4
5
2302869
2302884
2259083
2256271
6
DESCRIPTION
Wire, Shelf (4)
Shelf, Fixed (2)
Basket
Front, Basket
Slide, Basket
2259317 Right Side
2259318 Left Side
8533928 Screw
4
W10178077
REFRIGERATOR LINER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
5
REFRIGERATOR LINER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
1
2
3
4
5
2306010
2208970
2259077
520965
6
7
8
9
2006475
487539
2302937
2302986
10 W10169528
11
12
13
14
15
2171846
2310205
488357
486194
2221296
16
17
18
19
20
21
2327509
488280
2309222
2317105
2188820
2302992
22
23
2309087
2259412
24
2259398
25
2003577
DESCRIPTION
Liner (Not A
Serviceable Part)
Thermistor
Air Duct
Ladder, Shelf (2)
Screw Support,
Ladder (8)
Screw
Screw
Thermistor
Lid, Meat Pan
Baffle
Baffle Control
Assembly
Release Valve
Jumper, Air Baffle
Screw
Screw
Air Baffle
Assembly
Reservoir
Screw
Diffuser Assembly
Cover, Thermistor
Thermistor
Spacer, Air−
Baffle
Cover, Diffuser
Seal, Air Duct
(Round Hole)
Seal, Air Duct
(Square Hole)
Guard, Return Air
6
W10178077
CONTROL PANEL PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
Illus.
No.
Part
No.
1
2
3
4
2316546
2317000
2310390
2324973
5
2307596
6
7
487539
2306086
8
9
10
2223857
2326255
8281185
DESCRIPTION
Control Box
Clip, Box
Wire, Jumper
Bracket,
Control Box
Shield,
Control Box
Screw (2)
Display,
Ingredient Care
Center
Socket, Light
Light Bulb (2)
Screw
7
TOP GRILLE AND UNIT COVER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
1
2317024S
2 W10161693
3
486194
4
2256466
5 W10121229
6
487415
7
2310194
8
9
10
11
12
2317923S
489348
1161548
2003347
2004333
DESCRIPTION
Panel, Decorative
Assembly
Stainless Steel
Cover, Unit
Screw
Back Panel
Cover, Unit Front
Screw
Wire Assembly
RC/FC Light Switch
Badge, Kitchen Aid
Clamp
Nut (4)
Tee Bolt (4)
Nut (2)
8
W10178077
REFRIGERATOR SHELF PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
9
REFRIGERATOR SHELF PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
Part
No.
DESCRIPTION
2222593 Shelf Assy (4)
2179404 Rack, Wine
2302843 Assembly, Meat Pan
Cover
2302836 Assembly, Crisper
Cover
2257583 Trim, Glass Rear
2252413 Crisper Pan (2)
Slide, Meat Pan
2302954 Left Side
2302955 Right Side
2256255 Trim, Glass Rear
2256249 Front, Crisper
Pan
2252255 Trim, Glass Side
Crisper Pan
2256250 Trim, Glass Side
Meat Pan
Spacer, Crisper
2256222 Right Side (2)
2256223 Left Side (2)
Slide, Crisper
2302956 Right Side
2302957 Left Side
Spacer, Meat Pan
2256243 Left Side
2256244 Right Side
Screw
8533929 Right Side−
(8−18 x 1.375)
8533928 Left Side−
(8−18 x .750)
2256370 Pan Assembly
Meat
2256367 Front, Meat Pan
10
W10178077
FREEZER LINER AND AIR FLOW PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
11
FREEZER LINER AND AIR FLOW PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
1
2
3
4
2259385
2198665
2169142
2223733
5
6
7
8
9
10
11
12
13
14
15
17
18
19
2302817
2223986
486194
2259464
488500
2223857
488937
2326255
489214
2182120
2259465
2307775
2198643
2209482
2209066
DESCRIPTION
Fan Motor
Tube, P.C. Board
Fan Blade
Retainer,
Fan Motor
Gasket, Cover
Grommet
Screw
Wedge, Air Duct
Screw, Ground
Socket, Light (2)
Clamp, Nylon
Light Bulb
Screw
Scroll, Fan
Wedge, Air Duct
Air Duct
Lens
Block, Fan Scroll
Right
Left
Illus.
No.
20
21
23
24
25
26
27
28
29
30
31
32
33
Part
No.
DESCRIPTION
2215650 Cover, Emitter
Liner (Not A
Serviceable Part)
2259025 Cover, Air Outlet
2307751 Light Shield
W10158005 Cover, Evaporator
2302851 Support, Air Duct
487539 Screw
2198635 Spring
2309284 Deflector, Air
Duct
1112260 Support,
Evaporator
2196483 Shelf, Stud (20)
8281158 Screw
Evaporator,
Cover Rail
2221107 Left Side
2259355 Right Side
12
Illus.
No.
34
35
36
38
39
40
41
42
43
44
45
46
47
48
49
Part
No.
DESCRIPTION
2220904 Gasket (2)
Evaporator Cover
2259493 Cover, Receiver
W10139189 Harness, Evap Fan
(Includes Item 48)
2306010 Thermistor
2317105 Cover, Thermistor
2006475 Screw
2259032 Ladder, Shelf
2259445 Support, Screw
2198634 Pin
2220398 P.C. Board
Emitter
2198633 Flipper
2255563 Slide, Icemaker
Shut Off
2255114 P.C. Board,
Receiver
W10160570 Defrost, Bi−Metal
8281185 Screw
W10178077
MOTOR AND ICE CONTAINER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
13
MOTOR AND ICE CONTAINER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
DESCRIPTION
1
2222970 Ice Bin
2 W10134777 Crusher Bin
3 W10140642 Auger
4
2258220 Washer, Auger
5
1119007 Spacer, Flat (6)
6
2317248 Cover, Crusher
7
2257024 Blade, Rotary
8
1119005 Spacer, Step (2)
9
2257020 Blade, Fixed
10
2257023 Blade, Rotary
11
2317239 Block, Blade
12
489229 Roll Pin
13
2257022 Blade, Rotary
14
489235 Washer, Plain
15
2198661 Washer, Coupling
16
2188918 Coupling, Top
17
8281164 Screw
18
3400065 Screw
19
2252265 Button, Bin
20 W10134785 Latch, Bin
21
2198608 Spring, Latch
22
2198671 Screw (2)
23
8281163 Screw
24
2188919 Holder
25
2198628 Seal
26
2318030 Drive Shaft
27
2318011 Enclosure, Motor
28
2315546 Dispenser, Motor
29
2318028 Cover
30
2315559 Sleeve. Coupling
31
2317250 Chamber, Divider
32
2317243 Wiper
14
W10178077
REFRIGERATOR DOOR PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
15
REFRIGERATOR DOOR PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Part
No.
DESCRIPTION
2252331 Refrigerator
(Includes #8)
2266854 Hinge Assembly,
Top
2316804 Spacer−Door,
Top & Bottom
489282 Screw
2302878 Hinge Assembly,
Bottom
2222797 Rail, Lid
2222983 Gasket, Utility
Bin
2222812 Door Gasket,
Magnetic
Panel, Decorative
Insert
2209351 Stainless Steel
Handle, Door
2316842S Stainless Steel
2001230 Washer
Screw, 8−15 x .500
8281250 Stainless Steel
2005018 Trim−Door, Top
2005969 Trim−Door, Side
(Hinge Side)
2215995S Trim−Door, Btm
End Cap
2222919 Right Side
2222920 Left Side
2222923 Bin, Utility
Center
2257617 Door, Utility Bin
2222774 Bin, Door (3)
2222771 Bin, Door
16
W10178077
FREEZER DOOR PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
17
FREEZER DOOR PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
DESCRIPTION
1 W10157905 Freezer Door
Panel (Includes
Item #14)
3
2302879 Hinge, Bottom
4
489282 Screw
5
2266854 Hinge, Top
6
2316804 Spacer−Door,
Top & Bottom
7
2222810 Door Gasket,
Magnetic
8
Handle, Door
2316844S Stainless Steel
9
2317991 Panel, Decorative
10
Screw
8281250 Stainless Steel
11
2005027 Trim−Door, Top
12 2215986S Trim−Door, Btm
13
2005964 Trim−Door, Side
14
2001230 Washer
15
2222777 Bin, Door (3)
18
W10178077
DISPENSER FRONT PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
19
DISPENSER FRONT PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
1
2
486194
3 W10132946
4
2305242
5
6
7
8
9
10
11
2318021
2180353
2318020
4449745
2305235
2318017
12 2307675US
13 2305307GN
14 2305306GN
15
2305219
16
2321746
17 W10151236
18 2318062US
19
2305342
20 2307320US
21
488568
DESCRIPTION
Housing, Dispenser
(Not Serviced)
Screw (3)
Bracket, Motor
Connector,
Door Bracket
Motor, Ice Door
Door, Ice
Support, Ice Door
Screw (2)
Spigot
Separator Assembly
Housing, Middle
(Not Available
Order Item 12)
Housing Assembly
Water, Paddle Asy
Ice, Paddle Asy
Cover, Control
Electronic Control
(Includes #15)
User Interface,
Complete
Tray, Housing
LED Assembly
Front Cover
Screw
20
W10178077
UPPER UNIT PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
21
UPPER UNIT PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
DESCRIPTION
1 W10133449 Inverter Box
2
489373 Screw, Compressor
Mounting (4)
3
2223393 Compressor
(Includes Items
6 & 9)(Also Order
876765 Tube Kit)
4
2318087 Housing, Control
Board
5
2318054 Control Board
6
1100826 Grommet, Mounting
7
2309002 Support, Condenser
8
2307694 Tube, Tranisiton
(Cond/Ht Loop)
(Right)
9
2215676 Terminal Cover
10
2309001 Support, Condenser
(Left)
11 W10121049 Control Board
12
2203075 Spacer (5)
13
2256328 Bracket, Inverter
Box
15
1157158 Screw
16
2307998 Condenser
17
2309431 Grommet (2)
18
2310207 Wire, Jumper
19
489399 Screw
Illus.
No.
Part
No.
DESCRIPTION
20
2155774 Wire Tie
21
2317982 Drier
22 W10136614 Bracket, Fan Motor
(Condenser Fan)
23
2188875 Motor, Fan
24 W10139483 Blade, Fan
25
2003169 Orifice, Fan
27
8533993 Screw
28
2317031 Bracket, Vibration
(Condenser)
29
2317030 Arm, Vibration
(Condenser)
30
2307566 Tube, Transition
(Condenser/Drier)
31
2194319 Tube, Process
32
486194 Screw
33
2309000 Cover, Condenser
34
2310251 Service Cord
35
2307684 Bracket, Mounting
(Power Switch)
36
549193 Clamp, Cord
37
2266802 Switch, Power
Disconnect
38
487294 Screw, Ground
39 W10129829 Wiring Harness,
Unit Compartment
40
2309432 Gasket, Condenser
41
2259350 Power Supply,
Ingredient Care
Center
22
Illus.
No.
Part
No.
DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
7.75 oz.
(R−134A)
W10178077
LOWER UNIT AND TUBE PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
23
LOWER UNIT AND TUBE PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
Part
No.
DESCRIPTION
1 W10160981 Bracket Assembly,
Air Return
2
486194 Screw
3 W10157752 Bracket,
Heater Mounting
4
2309076 Suction Tube
5
2309070 Tube, Connect
(Drier/Restrictor)
6
2320615 Drain Pan Assy.
7 W10151288 Cover, Wiring
8 W10153595 Cover, Box
9
2307690 Tube, Discharge
10
2188820 Thermistor
11
2306094 Evaporator
12 W10140162 Heater, Defrost
13
1113048 Clamp, Heater (2)
14 W10139908 Cover Seal,
Evaporator Tubes
15
2220832 Gasket, Evaporator
16
2155774 Wire Tie
17
2215691 Clip, Heat
Exchanger
18
2320554 Support, Drain Pan
19
9791833 Clip
24
W10178077
ICEMAKER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
W10178077
25
ICEMAKER PARTS
For Model: KSSP48QTS02
(Stainless Steel)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Part
No.
DESCRIPTION
2320601 Shield, Valve
2310191 Wire Assembly,
Icemaker
628379 Clip, Fuse
2325170 Tube, Filter Inlet
2320658 Water Tube
2302758 Seal Gasket
2317912 Tube, Filter
Outlet
W10159842 Valve, Solenoid
2221070 Clamp, Tube
2320559 Support, Valve
2198641 Bracket, Icemaker
Cover
2305274 Clamp, Nylon
Valve
2302756 Tube, Water Inlet
2257538 Cover
488500 Screw
W10122527 Mold & Heater
(Also Order
542638 Silicone
Grease)
Illus.
No.
Part
No.
17
18
19
20
21
22
628356
627843
2198598
2194712
2315522
23
628397
24
8533917
25 W10139199
26
489276
27
2317041
28
626680
DESCRIPTION
Motor, (Not
Serviceable Order
Item 28)
Cup−Water Fill
Ejector
Ice Striper
Support
Retainer
Thermostat (2)
Thermostat
(Also Order
542639 Cement
Alumilastic)
Screw
Wire Assembly
Screw
Cover, Icemaker
Module Assembly
(Includes Items
17 & 29)
26
Illus.
No.
Part
No.
29
30
31
32
489136
489464
486194
2252228
100
DESCRIPTION
Screw (2)
Screw
Screw
Bracket, Icemaker
Mounting
2320636 Complete Icemaker
Assembly
Following Parts Not Illustrated
(Optional Parts Only)
8537055 Cleaner,
Stainless Steel
W10134770 Ice Container
Assembly
W10129081 Handle Kit for
Previous
Architect Series
(Stainless)
W10178077

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
