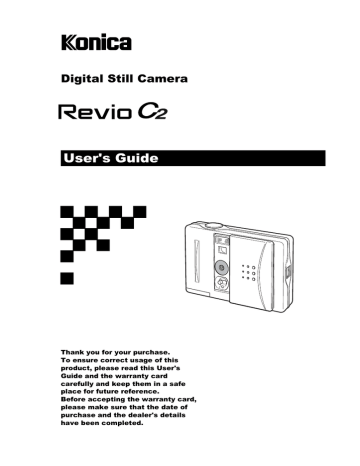

KONICA Revio C2 User's Guide

KONICA Revio C2 User's Guide
Digital Still Camera
User's Guide
Thank you for your purchase.
To ensure correct usage of this
product, please read this User's
Guide and the warranty card
carefully and keep them in a safe
place for future reference.
Before accepting the warranty card,
please make sure that the date of
purchase and the dealer's details
have been completed.
Contents
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Checking Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Names of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching the Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turning the Power ON and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Display Language, Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
6
8
9
9
9
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How to Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording Close-up Subjects (Macro Recording) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the REC Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording Still Pictures (STILL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Self-timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording Moving Pictures (MOVIE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Flash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Picture Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording Magnified Images (DIGITAL ZOOM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Brightness of Images (EXPOSURE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Recorded Image (QUICK VIEW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Sharpness of the Image (SHARPNESS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the USB Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Date and Time (DATE SET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Brightness of the LCD Monitor (MONITOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Muting the Alarm Sounds, etc. (BEEP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Display Language (LANGUAGE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
11
11
12
12
13
13
14
14
15
15
16
16
16
17
17
18
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
How to Perform Play back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the PLAY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing 9 Frames of Images Simultaneously (INDEX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing a Slideshow of Images (SLIDE SHOW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing a Magnified Image (DIGITAL ZOOM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting Images to Print (DPOF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
19
20
21
22
22
23
Transferring Images to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operating Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the USB Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the USB Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transferring Recorded Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transferring the Through-Image Live to Your PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
24
25
26
27
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Main Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warranty and After-sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2
On trademarks
Q Windows 98, Windows 98SE, Windows 2000 Professional, Windows Me and Windows XP are trademarks or
registered trademarks of Microsoft Corporation in the U.S. and other countries.
Q Apple, Macintosh, Mac OS, and Power PC are trademarks or registered trademarks of Apple Computer in the
U.S. and other countries.
Q Other company names and product names are trademarks or registered trademarks of their respective owners.
On voluntary control concerning radio wave interference
This equipment is a class B information technology device based on the standards of VCCI (Voluntary Control
Council for Interference by Information Technology Equipment). This equipment is designed to be used in domestic environments. However, use of this device near radios and television tuners may cause reception interference.
Please use this product correctly in accordance with the contents of this User's Guide.
3
Important Safety Precautions
* Be sure to adhere to these precautions
This product has been designed with full consideration to safety; however, please read the following explanations of the used symbols, warnings and cautions to ensure correct usage.
The aim of the following warning and caution symbols is to prevent failures, property damage and/or injury to the user and other persons.
Warning This symbol indicates that improper use may result in serious injury
and even death.
•
•
•
•
•
•
•
•
Do not dismantle, modify or repair the product yourself.
Do not dismantle, short-circuit, or apply heat to the battery, or throw it into a fire.
Do not let water splash on the camera or let it become wet.
Do not drop or insert metal objects or combustible items inside the camera.
Do not use the camera while driving.
Do not use the camera in unstable conditions.
Do not look directly at the sun through the viewfinder.
Do not touch the metal parts on the camera during thunder and lighting.
Caution
This symbol indicates that improper use may result in bodily injury or
damage to property.
• Do not leave the camera where:
It is exposed to direct sunlight or the temperature may become extremely high, such as inside
a car.
It is within the reach of infants.
There is high humidity, dust or vibration.
• Ensure that the +/- poles are positioned correctly when inserting batteries.
• Only used specified batteries.
• Do not pinch your fingers in the battery cover.
• Remove the batteries when the camera is not going to be used for an extended period.
• Do not point the lens directly at the sun or other strong light sources.
• For use inside aircraft, follow the instructions of the airline that you are traveling with.
• Do not fire the flash near eyes.
Battery fluid leakage
• Should battery fluid ever come into contact with hands or clothing, immediately wash with water.
• Should battery fluid enter the eye, immediately flush the eye with water and seek medical attention.
LCD monitor
• The LCD monitor has been developed using high-precision technology and features superior
sharpness and picture quality. Due to the characteristics of liquid crystals, however, there may be unlit
or constantly lit pixels on the monitor. This is not a malfunction.
• If the LCD monitor becomes damaged for some reason, take care to prevent personal injury from
broken glass, etc. Furthermore, take care that liquid crystals do not touch the skin or enter the eyes or
mouth.
4
Internal memory
This product features an internal memory with a capacity of approximately 14 MB. Please note the following points regarding the internal memory.
• This product cannot be used with external memory.
• Further recording is not possible when the internal memory is full. Format the memory (delete all) after
downloading the images to your PC or make space by deleting unwanted images.
• Back up important data.
• Do not use a PC to change the property (read-only) of the files (image data) stored in the internal
memory. This may cause improper operation when deletion or other operations are executed on the
camera.
• Do not use a PC to change the file name of image data or directory names stored in the internal
memory, and do not write files other than the image data produced by the camera to the internal
memory. Not only will the camera not be able to play back modified or new images written to the
memory, but it may also cause camera malfunctions. Altered data may also be deleted by the camera.
• The memory must be formatted by the camera. Formatting on a PC may make normal use impossible.
• Incorrect operations or malfunctions may result in the loss of recorded contents. Konica accepts no
liabilities for lost data.
Before use
• Always perform some test shots before taking important pictures such as at weddings, etc. to make
sure that the camera is working properly.
• Konica accepts no liabilities for the loss of contents if the ability to perform recording fails due to
problems with the camera.
• Images that you record are for personal enjoyment only. Copyright laws prohibit the use of copyrighted
pictures without the permission of the rightful owner. Furthermore, there may be places where
recording is restricted even for the purpose of personal enjoyment.
5
Preparations
Checking Package Contents
Camera (1)
Strap (1)
Quick Guide (1)
Warranty Card (1)
USB cable (1)
AAA alkaline
battery (2)
CD-ROM (1)
Names of Parts
Flash
Viewfinder window
Lens
Macro switch
Lens cover
USB port
Self-timer LED
DISPLAY button
PLAY/REC button
Shutter button
Viewfinder eyepiece
Viewfinder LED
LCD monitor
MENU button
/
6
buttons
Strap holder
SET button
Battery cover
Indicators on the LCD monitor
Recording mode screen
1 2
34
5
6
7
0009
8
10
9
1
Recording mode icon
Appears when the lens cover is opened.
P.10
2
Flash mode icon
Indicates the flash mode.
P.13
3
Digital zoom icon
Appears when zoom is set to “ON.”
4
Macro icon
Appears when the Macro switch is set to
5
Picture quality icon
Indicates the picture quality set for the image to be
recorded.
P.14
6
Battery level icon
Indicates the remaining battery level.
P.8
7
Remaining number of
frames
Indicates the remaining number of frames that can be
recorded.
—
8
Self-timer icon
Appears when “SELF TIMER” is selected as the
recording mode.
P.12
9
Exposure compensation
icon and compensation
value
Indicates the set exposure compensation.
P.15
Playback mode screen
1
2
P.11
3
026/026
7
P.14
.
4
5
6
03.02.16 10:50
1
Playback mode icon
Appears when the playback mode is selected.
P.19
2
Digital zoom icon
Appears when the playback zoom is set to "x2."
P.22
3
Picture quality icon
Indicates the picture quality of the recorded image.
—
4
Battery level icon
Indicates the remaining battery level.
P.8
5
Current frame number
Indicates the frame number of the image being played
back.
—
6
Total number of frames
Indicates the total number of frames in the internal
memory.
—
7
Date and time
Indicates the date and time of the recording.
—
7
Installing the Batteries
Power supply
1. Batteries
AAA alkaline batteries (supplied)
Rechargeable AAA nickel-hydrogen batteries (sold separately)
Inserting the AAA batteries
Close the lens cover.
1
Open the battery cover by sliding it in the direction of
the
arrow.
2
Insert the 2 AAA batteries with the poles aligned with
the indications (+/-) inside the battery compartment.
Caution
Inserting batteries with the poles oriented incorrectly can cause battery
fluid leakage and generation of heat that can result in personal injury as
well as soiling, and/or damage to the camera.
3
1
2
After checking that the batteries have been installed
correctly, close the battery cover. Check to make
sure that the cover is completely closed.
Battery life (reference)
Recording
(LCD monitor on)
Recording
(LCD monitor off)
Continuous
playback
AAA alkaline batteries
120
150
40
AAA nickel-hydrogen batteries
250
300
90
* Under Konica test conditions (room temperature, normal humidity; picture quality: Super Fine mode;
flash: one full flash in two image recordings; recording operation: continuous recording at 20 sec.
intervals; zoom operation: none)
Note:
• Data may be corrupted if the battery cover is opened during operation without the lens cover being closed.
• Remaining battery level is indicated in two steps by
and
. It is time to replace the
batteries when the
indicator appears. When replacing the AAA batteries, replace both at the
same time.
• Remaining battery level may not always be indicated correctly when using AAA nickel-hydrogen
batteries. Sometimes it is possible to continue recording even when the
indicator is shown.
• Do not mix old and new batteries.
• Battery life varies according to the brand and grade.
• Do not mix batteries of different capacities, types, or brands.
• The values mentioned in “Battery life (reference)” are reference values and are not guaranteed. Especially
for alkaline batteries, depending on the brand, or even for batteries of the same brand, the service life may
become extremely short as you approach the “use before date”, and the environment of use may cause
differences in inner electrical resistance and capacity that will also shorten service life. Operation at low
temperatures should be avoided as much as possible, and the use of fresh batteries is recommended.
• Battery life may decrease due to bad contact if the +/- poles of the batteries are contaminated by oil
or grease from fingerprints. Always wipe batteries with a soft, dry cloth before use.
8
• Do not touch contacts with fingers since the battery life may decrease due to bad contact if oil or
grease is deposited on the battery cover or metal parts within the battery compartment. If a contact is
accidentally touched or battery life decreases, wipe with a soft, dry cloth before use.
• When using rechargeable batteries, read the instructions provided with and on the batteries and use
in accordance with the instructions.
• Do not use rechargeable batteries with substantially different charge status.
• Remove the batteries when the camera is not going to be used for an extended period.
Warning
When you continue using the camera for a long time, the batteries become hot. Contact with the batteries
can lead to burns.
Attaching the Strap
1
Pass the thin loop of the strap through the strap
holder on the left side of the camera.
2
Pass the other strap end through the thin loop and
pull.
Warning
When using the camera with the strap attached, take care so that the
strap does not wrap around the neck. On no account hang the camera
on the neck of small children or infants. Strangulation may result if the
strap is wrapped around the neck.
1
2
Turning the Power ON and OFF
Turning the power ON
Open the lens cover.
The power turns ON, the LCD monitor lights up, and the through-image
(the image as seen through the lens) is displayed.
Turning the power OFF
Close the lens cover.
The power turns OFF, and the LCD monitor turns off.
Setting the Display Language, Date and Time
When using the camera for the first time following purchase, set the display language, data and time as
described in the following.
For how to make the setting, see "Setting the Display Language, Date and Time" in the Quick Guide or
[Adjusting the Date and Time] (p.16) or [Changing the Display Language] (P.18) in this manual.
9
Recording
How to Record
Holding the camera
• Hold the camera securely in both hands with your elbows pressed against the body for stable
positioning.
• Be careful not to obstruct the flash or lens with fingers or strap.
How to Record
Normal recording is performed with the subject at a distance of over 60 cm from the lens. For distances
between 30 cm and 60 cm from the subject, see “Recording Close-up Subjects (Macro Recording)”.
• To record still pictures, the REC MODE item in the REC menu must be set to “STILL” (default setting).
If the item has been set to “MOVIE” or “SELF TIMER”, return it to “STILL” (page 12).
1
Open the lens cover.
The LCD monitor turns on and the through-image (the image seen
through the lens) is displayed.
1
0009
For a description of the recording mode screen, see page 7.
Pressing the DISPLAY button switches the screen displayed on the
LCD monitor in the following sequence: “through-image + recording information”, “through-image
only” and “LCD monitor off”.
2
Determine the image composition while viewing the LCD monitor.
3
Press the shutter button.
Recording is completed when a buzzer sound is heard.
The recorded image is then saved in the internal memory. While this is taking place, the LCD monitor remains off (the viewfinder LED is on) and recording is not possible.
4
The next recording can be performed when the LCD monitor comes on (the
viewfinder LED goes out) and the through-image appears.
Recording using the viewfinder
Recording can be made using only the viewfinder (without the LCD monitor).
In step 3, you look through the viewfinder while you determine the image composition and press the shutter button. Recording is completed when a buzzer sound is heard. The viewfinder LED comes on, and
the recorded image is saved in the internal memory. The next recording can be performed when the
viewfinder LED goes out.
Note:
• A beep sound is heard and the viewfinder LED blinks as a warning when the internal memory becomes
full. Delete unnecessary images (page 20).
10
Recording Close-up Subjects (Macro Recording)
Macro recording is used when the subject is within a distance range of between 30 cm and 60 cm from
the lens. Use the LCD monitor for macro recording as the recording range and the field of view in the
viewfinder do not match.
1
Open the lens cover.
The LCD monitor turns on and the through-image (the image seen through the lens) is displayed.
2
Set the Macro switch under the lens to
3
Perform recording while referring to Step 2 to 4 in “How to Record”.
(Macro).
•
and a blue frame appear on the LCD monitor during recording in the macro mode.
• In the macro recording mode, the flash will always be off and recording with flash is not possible.
Using the REC Menu
You can use the REC menu to record with desired settings.
1
Open the lens cover.
The LCD monitor turns on and the through-image (the image seen through the lens) is displayed.
2
Press the MENU button.
The REC menu appears.
2
3
Use the
4
4
Press the SET button.
The contents of the settings of the menu appears.
/
button to select the desired menu.
REC . . . . . . . . . . . . .
REC MODE
REC . . . . . . . . . . . . .
REC MODE
STILL
5
Use the
6
Press the SET button.
The set values are saved, and the through-image is displayed as in
Step 1.
7
/
button to select the desired settings.
5
REC . . . . . . . . . . . . .
REC MODE
SELF TIMER
Perform the recording.
• If the MENU button is pressed, the previous screen returns without the settings being changed.
The REC menu is composed of the following items.
REC menu
REC MODE
STILL (Still picture)/MOVIE/SELF TIMER
FLASH
QUALITY
FINE/S-FINE/ECONOMY
DIGITAL ZOOM
EXPOSURE
SETUP
QUICK VIEW/SHARPNESS/USB/DATE SET/
MONITOR/BEEP/LANGUAGE
11
Recording Still Pictures (STILL)
For normal recording and macro recording, the REC MODE item in the REC menu should be set to
“STILL”.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The REC MODE screen appears.
4
Use the
5
Press the SET button
A through-image is displayed on the LCD monitor.
6
Perform the recording.
/
/
button to select
.
button to select “STILL”.
Using the Self-timer
The shutter is automatically released on the camera after a delay so that the person making the recording can be included in the image.
The shutter is released 10 seconds after the shutter button is pressed.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The REC MODE screen appears.
4
Use the
5
Press the SET button.
The self-timer mode is engaged and
6
Press the shutter button.
The self-timer LED blinks for about 10 seconds before the shutter is released.
/
/
button to select
.
button to select “SELF TIMER”.
indicator appears on the LCD monitor.
• To cancel the self-timer while it is operating, close the lens cover.
• The self-timer mode is cancelled when the self-timer recording is completed. Repeat the procedure
described above to continue recording in the self-timer mode.
12
Recording Moving Pictures (MOVIE)
You can record a ten-second movie.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The REC MODE screen appears.
4
Use the
5
Press the SET button
The mode becomes the MOVIE recording mode and
6
Press the shutter button.
Moving pictures are recorded for 10 seconds.
/
/
button to select
.
button to select “MOVIE”.
appears on the LCD monitor.
• MOVIE recording is cancelled when the lens cover is closed.
• MOVIE recording is not possible when the LCD monitor is turned off. Press the DISPLAY button to
turn on the LCD monitor, and then set the mode to MOVIE mode on the menu again to enable the
recording.
• The digital zoom function cannot be used for MOVIE recording.
Using the Flash
Your camera will automatically fire the flash when required under low-light conditions. However, the flash
can be prevented from firing. Use this function when recording in places where flash photography is prohibited.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The FLASH screen appears.
4
Use the / button to select “AUTO” or “OFF”.
When “AUTO” is selected, the flash will fire automatically in accordance with the recording conditions.
When “OFF” is selected, the flash will not fire.
5
Press the SET button.
The
indicator appears on the LCD monitor when “OFF” is selected.
/
button to select
.
• In the macro recording mode, the flash will always be off regardless of the setting made here.
• FLASH recording should be performed with the subject at a distance of 80 cm or more from the lens.
13
Setting the Picture Quality
You can select the picture quality of the image data to be recorded.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The QUALITY screen appears.
4
Use the / button to select the desired setting.
The selected quality is indicated on the LCD monitor.
5
Press the SET button.
/
button to select
.
On Picture Quality
SUPER FINE
1280x960 pixel
Use this mode when you want high quality prints or
for editing images on a PC.
FINE
1280x960 pixel
Use this mode when you want to print out images or
view the images on a PC.
ECONOMY
640x480 pixel
Use this mode when you want to send images as
attachments to e-mails or to enable recording of a
large number of images.
Recording Magnified Images (DIGITAL ZOOM)
You can record images that are magnified up to two times.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The DIGITAL ZOOM screen appears.
4
Use the
5
Press the SET button.
The DIGITAL ZOOM recording mode is engaged, and
6
Use the
7
Perform the recording.
/
/
/
button to select
.
button to select “ON”.
appears on the LCD monitor.
button to select the desired magnification ratio.
• When using digital zoom, the picture quality will decrease compared to images recorded under normal
conditions.
• Digital zoom cannot be used when the LCD monitor is turned off. Press the DISPLAY button to turn
on the LCD monitor for recording with digital zoom.
• Saving of the recorded image will take longer than normal when recording with digital zoom.
14
Changing the Brightness of Images (EXPOSURE)
The exposure can be compensated to intentionally brighten or darken the overall recorded image. The
camera exposure can be adjusted up to ±1.5 at 0.5 intervals.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The EXPOSURE screen appears.
4
Use the /
Pressing the
5
Press the SET button.
The set values are saved and the through-image is displayed.
/
button to select
(EXPOSURE).
button to adjust to the desired brightness.
button darkens the image, and pressing the
button brightens the image.
Checking the Recorded Image (QUICK VIEW)
The recorded image can be checked immediately after it is recorded so that you can decide whether or
not you want to save it.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The SETUP screen appears.
4
Use the
5
Press the SET button.
The QUICK VIEW screen appears.
6
Use the
7
Press the SET button.
The through-image is displayed.
8
Perform the recording.
The recorded image is displayed and the screen for deciding whether or not the image should be
saved appears.
9
Use the
10
Press the SET button.
When “YES” is selected, the LCD monitor turns off and the image is saved.
When “NO” is selected, the image is not saved and a new image can be recorded.
/
/
/
/
button to select
button to select
(SETUP).
(QUICK VIEW).
button to select “ON”.
button to select “YES” or “NO”.
• If the SET button is not pressed within about 3 seconds in Step 10, the image is saved automatically.
15
Setting the Sharpness of the Image (SHARPNESS)
The contours of images can be sharpened or softened.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The SETUP screen appears.
4
Use the
5
Press the SET button.
The SHARPNESS screen appears.
6
Use the / button to select the desired sharpness.
Selecting “HARD” will sharpen contours and make the image sharper.
Selecting “SOFT” will soften contours and make the image softer.
“NORMAL” is the normal setting.
7
Press the SET button.
The set values are saved, and the through-image is displayed.
/
/
button to select
button to select
(SETUP).
(SHARPNESS).
Setting the USB Mode
See page 24 for the USB modes.
Adjusting the Date and Time (DATE SET)
The date and time can be set and modified.
Note:
The backup condenser retains the set date and time. The set contents are therefore retained even when
you replace the AAA batteries that power the camera. Backup duration during battery replacement is
about 15 minutes.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The SETUP screen appears.
4
Use the
5
Press the SET button.
The DATE SET screen appears.
6
Use the / button to adjust the “Year”, and then press the SET button.
The “Month” is selected.
16
/
/
button to select
button to select
(SETUP).
(DATE SET).
7
Adjust the “Month”, “Day”, “Hour”, and “Minute” in the same way as the “Year”.
Pressing the MENU button returns you to the previous screen.
8
When the “Minute” has been set, press the SET button.
The confirmation screen appears.
9
Press the / button to select “YES”, and then press the SET button.
The set values are saved and the through-image is displayed.
Changing the Brightness of the LCD Monitor (MONITOR)
The display of the LCD monitor can be adjusted to make it brighter or darker. Brightness can be adjusted
up to ±3 in 1-step intervals.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The SETUP screen appears.
4
Use the
5
Press the SET button.
The MONITOR screen appears.
6
Use the /
Pressing the
7
Press the SET button.
The set values are saved and the through-image is displayed.
/
/
button to select
button to select
(SETUP).
(MONITOR).
button to select the desired brightness.
button darkens the monitor, and pressing the
button brightens the monitor.
Muting the Alarm Sounds, etc. (BEEP)
The beep sound (sound indicating warnings or completion of recording) can be muted when the camera
is used in quiet surroundings.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The SETUP screen appears.
4
Use the
5
Press the SET button.
The BEEP screen appears.
6
Use the
7
Press the SET button.
The set values are saved and the through-image is displayed.
/
/
/
button to select
button to select
(SETUP).
(BEEP).
button to select “OFF”.
17
Changing the Display Language (LANGUAGE)
You can select the language to be used for the menus and guidance from Japanese, English, French or
German.
1
Display the REC menu.
2
Use the
3
Press the SET button.
The SETUP screen appears.
4
Use the
5
Press the SET button.
The LANGUAGE selection screen appears.
6
Use the
7
Press the SET button.
The menus and guidance will now be shown in the language that you have selected.
18
/
/
/
button to select
button to select
(SETUP).
(LANGUAGE).
button to select the desired language.
Playback
How to Perform Play back
Recorded image can be displayed on LCD monitor.
Playing Back Still Pictures
1
Open the lens cover.
The LCD monitor turns on and the through-image appears.
2
Press the PLAY/REC button.
The last recorded image is displayed.
2
026/026
For a description of the playback mode screen, see page 7.
When the DISPLAY button is pressed, the icons displayed on the
screen disappear and the playback image only is shown.
3
03.02.16 10:50
Pressing the
button displays the image recorded previous to the one currently on the monitor.
Pressing the
button displays the image recorded after the one currently on
the monitor.
Playing Back Movies
1
Select the desired movie.
Movies are indicated by
on the LCD monitor.
2
Press the SET button.
Playback of the movie starts.
1
03.02.16 11:50
• Pressing the PLAY/REC button while movies are being played back
switches the mode to the recording mode and the through-image is displayed.
• Pressing the shutter button while movies are being played back switches the mode to the recording
mode and the through-image is displayed. Recording can be started immediately by pressing the
shutter button.
• Playback of movies cannot be cancelled part way through.
Using the PLAY Menu
The PLAY menu can be used to select various playback modes and to delete unnecessary images, etc.
1
Play back an image.
2
Press the MENU button.
The PLAY menu appears.
2
Use the
4
3
/
button to select the desired menu.
PLAY . . . . . . . . . . . .
PLAY MODE
PLAY . . . . . . . . . . . .
PLAY MODE
4
Press the SET button.
Menu items are displayed.
STANDARD
19
5
Use the
/
button to select the desired item.
5
PLAY . . . . . . . . . . . .
PLAY MODE
SLIDE SHOW
6
Press the SET button.
The selected item is executed.
• Pressing the MENU button returns you to the previous screen.
• There are items that cannot be selected if there are no images saved in the internal memory.
The PLAY menu has the following structure.
PLAY menu
DELETE
THIS/ALL
PLAY MODE
NORMAL/INDEX/SLIDE SHOW
ZOOM
DPOF
• Pressing the MENU button returns you to the previous screen with no changes made to the settings.
Deleting Images
Displayed images can be deleted one image at a time or all recorded images can be deleted at one time
(FORMAT).
Deleting a Single Frame
1
Display the image you want to delete.
2
Use the MENU button.
The PLAY menu appears.
3
Use the
4
Press the SET button.
The DELETE screen appears.
5
Use the
6
Press the SET button.
The screen for confirming the deletion appears.
7
Use the
8
Press the SET button.
The displayed image is deleted, and the next image appears.
/
/
/
button to select
.
button to select “THIS”.
button to select “YES”.
• The display returns to the image shown in Step 1 if you select “NO” in Step 7 and press the SET button.
• When an image is deleted, the current frame number and the total number of frames will be resequenced.
20
Deleting All Frames
1
Display the PLAY menu.
2
Use the
3
Press the SET button.
The DELETE screen appears.
4
Use the
5
Press the SET button.
The screen for confirming the deletion appears.
6
Use the
7
Press the SET button.
All the images are deleted, and “NO DISPLAY DATA” is displayed.
/
/
/
button to select
.
button to select “ALL”.
button to select “YES”.
• The display returns to the image shown in Step 1 if you select “NO” in Step 6 and press the SET button.
Note:
Selecting “All” deletes all data including images in the internal memory.
Viewing 9 Frames of Images Simultaneously (INDEX)
9 frames of images can be displayed simultaneously on the LCD monitor. This function is useful for
quickly accessing the image you want to view.
1
Display the PLAY menu.
2
Use the
3
Press the SET button.
The PLAY MODE screen appears.
4
Use the
5
Press the SET button.
9 images are displayed simultaneously.
/
/
button to select
.
button to select “INDEX”.
5
1
2
3
4
5
6
7
8
9
6
Use the / button to move the superimposed frame and select the image that
you want to view.
7
Press the SET button.
The selected image will be displayed in the normal display mode.
21
Viewing a Slideshow of Images (SLIDE SHOW)
You can check recorded images by playing them back at 3-second intervals.
1
Display the PLAY menu.
2
Use the
3
Press the SET button.
The PLAY MODE screen appears.
4
Use the
5
Press the SET button.
Images are shown in consecutive order at an interval of 3 seconds starting with the first frame.
When playback is finished, the display will stop at the final frame.
/
/
button to select
.
button to select “SLIDE SHOW”.
• If the SET button is pressed during the slideshow, the slideshow is stopped and the image shown at
the time the button is pressed is displayed in the normal playback mode.
• In the case of movies, only the first frame is shown and movie playback is not performed.
Viewing a Magnified Image (DIGITAL ZOOM)
Recorded images can be played back at a magnification of 2X.
1
Display the image you want to view.
2
Press the MENU button.
The PLAY menu appears.
3
Use the
4
Press the SET button.
The DIGITAL ZOOM screen appears.
5
Use the
6
Press the SET button.
The image is displayed at a magnification of 2X.
The magnified section can be moved by pressing the
/
/
button to select
.
button to select “x2”.
/
button.
• The normal display returns when the SET button is pressed again.
22
Selecting Images to Print (DPOF)
Only still image can be printed.
Selecting a single frame
1
Display the image you want to print.
2
Press the MENU button.
The PLAY menu appears.
3
Use the
4
Press the SET button.
The DPOF screen appears.
5
Use the
6
Press the SET button.
The image displayed in Step 1 is registered for printing.
/
/
button to select
.
button to select “THIS ON”.
Deleting one registered frame
In Step 1 of the procedure described above, display the image whose registration should be cancelled.
In Step 6, select “THIS OFF”.
Selecting all the frames
1
Display the PLAY menu.
2
Use the
3
Press the SET button.
The DPOF screen appears.
4
Use the
5
Press the SET button.
All the image data saved in the internal memory are registered to be printed.
/
/
button to select
.
button to select “ALL ON”.
Deleting all the registered frames
Select “ALL OFF” in Step 4 of the procedure described above.
23
Transferring Images to a PC
After connecting the camera to your PC with the supplied USB cable, images recorded with the camera
and the through-image displayed on the LCD monitor can be transferred to your PC.
• Back up important data.
Operating Environments
1. Windows
Microsoft Windows 98, Windows 98SE, Windows 2000 Professional,
Windows Me, and Windows XP
OS
Memory
16 MB or more of available RAM (32 MB or more recommended)
Display
32,000 colors or more, resolution of 640 x 480 pixels or higher
Others
CD-ROM drive, USB port (standard equipped)
2. Macintosh
OS
Mac OS 9.0/9.1/9.2/X
CPU
PowerPC
Memory
16 MB or more of available RAM (32 MB or more recommended)
Display
32,000 colors or more, resolution of 640 x 480 pixels or higher
Others
CD-ROM drive, USB port (standard equipped)
Setting the USB Mode
If the USB mode is set to “MSDC”, the images recorded with the camera can be transferred to your PC.
If the USB mode is set to “PC CAMERA”, the previously installed the application for the WEB Camera
(Amcap) can be used to transfer the through-image displayed on the camera’s LCD monitor live to your
PC.
1
Open the lens cover on the camera.
The LCD monitor on the camera turns on and the through-image is displayed.
2
Press the MENU button.
The REC menu appears.
3
Use the
4
Press the SET button.
The SETUP screen appears.
5
Press the
6
Use the SET button.
The USB mode screen appears.
7
Use the
8
Press the SET button.
The through-image is displayed as in Step 1.
24
/
button to select
/
/
button to select
(SETUP).
(USB).
button to select “MSDC” or “PC CAMERA”.
Installing the USB Driver
* The installation of the USB driver is not required for the Macintosh.
* Installation of the USB driver is required when the USB mode is set to “MSDC” or “PC Camera.”
1
2
3
Turn on your PC and start Windows.
Connect the camera and your PC using the USB cable supplied.
Open the lens cover on the camera.
The “Add New Hardware Wizard” screen appears.
4
Insert the supplied CD-ROM into the CD-ROM drive.
5
Click “Search for the best driver for your device. (Recommended)", and then click [Next].
6
Click “Specify a location:” and then enter “D:\”.
Note:
• The CD-ROM drive is assumed to be drive “D”. Open “My Computer”
to confirm the drive letter of the CD-ROM drive on your PC.
• The INF files necessary for the installation in “MSDC” and “PC
Camera” modes are located in “D:\DRIVER\MSDC” and
“D:\DRIVER\PCCAMERA” respectively. Depending on the settings of
your PC, the Windows CD-ROM may be required during the
installation of the driver.
• When specifying a different search location, click [Browse].
7
8
Click [NEXT].
Click [NEXT].
9
Click [FINISH].
This completes installation of the USB driver.
25
Transferring Recorded Images
• To transfer recorded images to your PC, the USB mode should be set to “MSDC” in the REC menu.
• Do not disconnect the USB cable or open the battery cover while the camera is connected to the PC.
• Before you connect or disconnect the USB cable, close the lens cover and make sure that the power
is OFF.
• There is a risk that data may be corrupted if the power is turned off while the camera is communicating
with the PC. Check that the remaining battery level is sufficient before starting.
Using Windows
1
Turn on your PC.
2
Connect the camera and your PC using the supplied USB cable.
3
Open the lens cover on the camera.
4
Double-click “My Computer”.
5
Double-click “Removable Disk (E)”.
The removable disk is assumed to be drive “E”. The drive letter may differ depending on your PC.
Confirm the drive letter on your PC.
6
Double-click the “DCIM” folder.
7
Double-click “100konic”.
The icon of the image file appears.
8
Double-click the file to display the image.
• To save the image on your PC, copy (drag and drop) the file to the desired location on your PC.
Using Macintosh
1
Turn on your PC.
2
Connect the camera and your PC using the supplied USB cable.
3
Open the lens cover on the camera.
4
Double-click the “Untitled” icon.
5
Double-click the “DCIM” folder.
6
Double-click “100konic”.
The icon of the image file appears.
7
Double-click the file to display the image.
• To save the image on your PC, copy (drag and drop) the file to the desired location on your PC.
Note:
The camera’s LCD monitor will not turn on while the camera and your PC are connected with the supplied USB cable.
26
Transferring the Through-Image Live to Your PC
• To transfer the through-image displayed on the camera’s LCD monitor live to your PC, the USB mode
should be set to “PC CAMERA” in the REC menu.
Note:
Windows only
1
Turn on your PC.
2
Connect the camera and your PC using the supplied USB cable.
3
Open the lens cover on the camera.
4
Activate the application for the WEB Camera (Amcap) installed on your PC.
The through-image displayed on the LCD monitor is shown live on your PC’s display.
27
Appendix
Cleaning the Camera
When cleaning the camera, do not use solvents such as benzene or paint thinner.
After Use
Remove the batteries when the camera is not going to be used for an extended period.
Troubleshooting
If inspection and remedial action in accordance with the following table does not solve the problem,
please contact the dealer from whom you purchased the camera or a Konica Service Station.
Symptom
Check
Page
Power
Recording
Playback
Others
28
The power does not turn
on
• Batteries are exhausted.
• Batteries are inserted with poles facing incorrectly.
• Battery poles or metal contacts on the camera are
dirty.
8
8
8
The power turns off
immediately after it is
turned on
• Batteries are exhausted.
• Battery poles or metal contacts on the camera are
dirty.
• The camera is being used at low temperature.
• A new uncharged nickel-hydrogen battery is being
used.
8
8
8
8
Images cannot be
recorded even when the
shutter button is pressed
• Maximum number of images has already been
recorded. → Delete images that are no longer
required.
• The camera is set to self-timer recording.
20
The flash does not work
• The FLASH mode is set to “OFF”.
13
Batteries are exhausted
after very little recording
• AAA alkaline batteries are being used.
• The batteries are not new (remaining battery level is
low).
• Battery poles or metal contacts on the camera are
dirty.
8
8
Playback not possible
• Mode is set to REC mode.
• All the recorded images have been deleted.
19
21
• The batteries are not new (remaining battery level is
low).
• AAA alkaline batteries are being used.
• Battery poles or metal contacts on the camera are
dirty.
8
Batteries are exhausted
after very little playback
Correct date is not
displayed when the
power is turned on
• The backup time during battery replacement is
about 15 minutes. The date must be set again if
this limit is exceeded.
16
Transfer of images to the
PC is not possible
• The camera is not connected correctly to the PC.
26
26
• The lens cover is closed.
12
8
8
8
Main Specifications
Type
Digital still camera with LCD monitor and integrated recording and playback
functions
Active pixels
1.22 megapixels
Recording medium
Approximately 14 MB internal memory
Number of
Recordable Images
Super fine 1280 x 960 pixels
Fine 1280 × 960 pixels
Economy 640 × 480 pixels
Recording method
Still picture: JPEG standard, Movie: Motion JPEG
Image format
Design rule for Camera File System standard (DCF) compatible
Imaging elements
1/3.4 inch CMOS sensor
Lens
f=4.5 mm (Equivalent to f=37 mm when converted to 35 mm camera), F2.8
Focus adjustment
Manual/Fixed
Recording range
Normal mode: 0.6 m - ∞
Macro mode: 0.3 m - 0.6 m
White balance
Auto
Shutter speed
Electronic shutter 1/15 - 1/6600 sec.
Viewfinder
Optical viewfinder
Flash
Auto flash AUTO/ OFF
Recording modes
Single shooting/Macro/Self-timer/Movie/Digital zoom (-2.0 times)
LCD monitor
1.6-inch transmission type D-TFD color LCD monitor
Playback
Single frame, slideshow, index playback
Deletion
Single frame/all frames (formatting)
Buzzer
Various warnings during recording
PC interface
USB
USB mode
MSDC/PC CAMERA
Power supply
AAA alkaline batteries (2 pieces/supplied), AAA nickel-hydrogen batteries (2
pieces/sold separately)
Appearance
Aluminum
Size (W × H × D)
85.8 x 55.8 x 13.5 mm
Weight
70 g (excl. batteries)
Supplied accessories
Strap, USB cable, AAA alkaline batteries (2 pieces), CD-ROM, Quick Guide,
Warranty
29
Warranty and After-sales Service
For repair, handling and care, first consult the dealer from whom you
purchased the camera.
Warranty (separately attached)
Before accepting the warranty card, please make sure that the date of purchase and dealer
of purchase and the dealer’s details have been completed. After reading the warranty, keep
it in a safe place.
Warranty period (main unit): one year from the date of purchase
When requesting service
If symptoms persist after having checked the table on pages 28, Troubleshooting, disconnect
the power supply and contact the dealer from whom you purchased the camera.
Note: Transportation cost for taking/bringing back the product to/from
repair, shipping costs or carrying charges are at the customer’s
expense. When shipping the product, pack the unit appropriately
and use a shipping method such as registered mail or express mail
to prevent loss of the product.
During the warranty period
Repairs will be made by the dealer from whom you purchased the camera according to the
contents of the warranty. For repair, take the product and the warranty to the dealer from
whom you purchased the camera.
Outside the warranty period
Repairable products can be repaired for a charge upon request. However, the minimum holding period of performance parts for repairing digital still cameras is 8 years after termination
of production.
Note: Performance parts for repair are parts necessary to maintain the
functions of the product.
30
FCC Compliance Statement:
Declaration of Conformity
Responsible party: KONICA PHOTO IMAGING
Address: 725 Darlington Avenue Mahwah, NJ 07430, U.S.A.
Telephone number: (201) 574-4000
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Shielded cables must be used for this equipment to comply with the
relevant FCC regulation.
• The user is cautioned that changes and modifications made to the
equipment without approval of the manufacturer could void the user’s
authority to operate this equipment.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
• However, note that operation of this unit near a radio or television
receiver could possibly cause radio disturbance.
31
CANADA ONLY
Industry Canada’s Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
32
33
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
