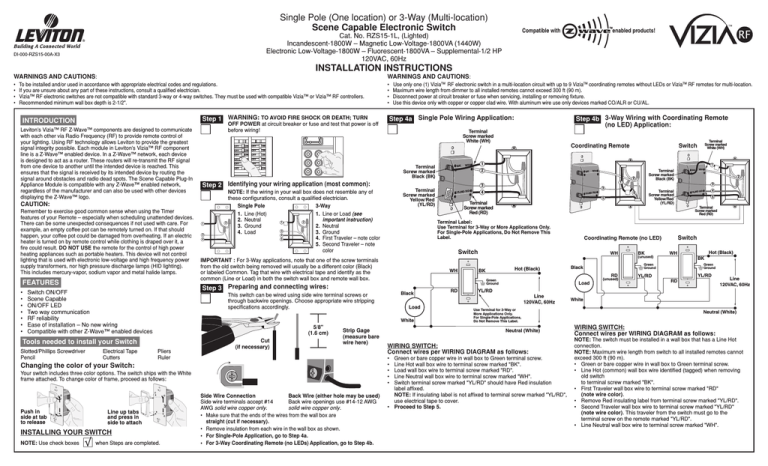

Single Pole (One location) or 3-Way (Multi-location)
Scene Capable Electronic Switch
DI-000-RZS15-00A-X3
TM
Compatible with
Cat. No. RZS15-1L, (Lighted)
Incandescent-1800W – Magnetic Low-Voltage-1800VA (1440W)
Electronic Low-Voltage-1800W – Fluorescent-1800VA – Supplemental-1/2 HP
120VAC, 60Hz
enabled products!
Installation Instructions
WARNINGS AND CAUTIONS:
WARNINGS AND CAUTIONS:
•
•
•
•
• Use only one (1) ViziaTM RF electronic switch in a multi-location circuit with up to 9 ViziaTM coordinating remotes without LEDs or ViziaTM RF remotes for multi-location.
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, consult a qualified electrician.
Vizia™ RF electronic switches are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia™ or Vizia™ RF controllers.
Recommended minimum wall box depth is 2-1/2".
Step 1 WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
INTRODUCTION
Leviton’s Vizia™ RF Z-Wave™ components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control of
your lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton’s Vizia™ RF component
line is a Z-Wave™ enabled device. In a Z-Wave™ network, each device
is designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing the
signal around obstacles and radio dead spots. The Scene Capable Plug-In
Appliance Module is compatible with any Z-Wave™ enabled network,
regardless of the manufacturer and can also be used with other devices
displaying the Z-Wave™ logo.
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
FEATURES
•
•
•
•
•
•
•
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
Terminal
Screw marked
Black (BK)
1
3
4
Pliers
Ruler
Cut
(if necessary)
Strip Gage
(measure bare
wire here)
Line up tabs
and press in
side to attach
INSTALLING YOUR SWITCH
NOTE: Use check boxes when Steps are completed.
Side Wire Connection
Back Wire (either hole may be used)
Side wire terminals accept #14
Back wire openings use #14-12 AWG
solid wire copper only.
AWG solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
BK
1
Black
Load
2
Terminal
Screw marked
Yellow/Red
(Yl/RD)
4
Yl/RD RD
5
Terminal
Screw marked
Red (RD)
RD
WH
2
4
Yl/RD RD
5
Terminal
Screw marked
Red (RD)
Hot (Black)
Load
Line
120VAC, 60Hz
Use Terminal for 3-Way or
More Applications Only.
For Single-Pole Applications,
Do Not Remove This Label.
Neutral (White)
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
Green or bare copper wire in wall box to Green terminal screw.
Line Hot wall box wire to terminal screw marked "BK".
Load wall box wire to terminal screw marked "RD".
Line Neutral wall box wire to terminal screw marked "WH".
Switch terminal screw marked "YL/RD" should have Red insulation
label affixed.
NOTE: If insulating label is not affixed to terminal screw marked "YL/RD",
use electrical tape to cover.
• Proceed to Step 5.
BK
(unused)
WH
(unused)
YL/RD
Hot (Black)
BK
Green
Ground
Green
Ground
Black
RD
YL/RD
Switch
Coordinating Remote (no LED)
WH
BK
BK
3
3
4
Yl/RD RD
Terminal
Screw marked
Black (BK)
WH
3
Green
Ground
•
•
•
•
•
Your switch includes three color options. The switch ships with the White
frame attached. To change color of frame, proceed as follows:
1
2
WH
Terminal
Screw marked
White (WH)
Switch
1
WH
Switch
White
5/8"
(1.6 cm)
BK
Coordinating Remote
Terminal label:
Use Terminal for 3-Way or More Applications Only.
For Single-Pole Applications, Do Not Remove This
label.
IMPORTANT : For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the switch wall box and remote wall box.
Changing the color of your Switch:
Push in
side at tab
to release
Terminal
Screw marked
Yellow/Red
(Yl/RD)
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
Single Pole
3-Way
1. Line (Hot)
1. Line or Load (see
2. Neutral
important instruction)
2
1
2
3. Ground
2. Neutral
3
4. Load
3. Ground
4
4. First Traveler – note color
5
5. Second Traveler – note
color
This switch can be wired using side wire terminal screws or
through backwire openings. Choose appropriate wire stripping
specifications accordingly.
Tools needed to install your Switch
Electrical Tape
Cutters
/&&
/.
Step 3 Preparing and connecting wires:
Switch ON/OFF
Scene Capable
ON/OFF LED
Two way communication
RF reliability
Ease of installation – No new wiring
Compatible with other Z-Wave™ enabled devices
Slotted/Phillips Screwdriver
Pencil
/.
/&&
Step 4b 3-Way Wiring with Coordinating Remote
(no LED) Application:
Terminal
Screw marked
White (WH)
Step 2 Identifying your wiring application (most common):
CAUTION:
Remember to exercise good common sense when using the Timer
features of your Remote – especially when scheduling unattended devices.
There can be some unexpected consequences if not used with care. For
example, an empty coffee pot can be remotely turned on. If that should
happen, your coffee pot could be damaged from overheating. If an electric
heater is turned on by remote control while clothing is draped over it, a
fire could result. DO NOT USE the remote for the control of high power
heating appliances such as portable heaters. This device will not control
lighting that is used with electronic low-voltage and high frequency power
supply transformers, nor high pressure discharge lamps (HID lighting).
This includes mercury-vapor, sodium vapor and metal halide lamps.
/&&
Step 4a Single Pole Wiring Application:
RD
YL/RD
Line
120VAC, 60Hz
White
Neutral (White)
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
NOTE: The switch must be installed in a wall box that has a Line Hot
connection.
NOTE: Maximum wire length from switch to all installed remotes cannot
exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch
to terminal screw marked "BK".
• First Traveler wall box wire to terminal screw marked "RD"
(note wire color).
• Remove Red insulating label from terminal screw marked "YL/RD".
• Second Traveler wall box wire to terminal screw marked "YL/RD" (note wire color). This traveler from the switch must go to the
terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to terminal screw marked "WH".
WIRING coordinating remote:
Connect wires per WIRING DIAGRAM as follows:
NOTE: "BK" and "RD" terminals on coordinating remote are unused.
Tighten both screws.
NOTE: Maximum wire length from switch to last remote is
300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to
First Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal
screw marked "YL/RD". This traveler from the remote must go to the
terminal screw on the switch marked "YL/RD".
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
Step 5 Testing your Switch prior to mounting in wall
box:
•
•
•
Position all wires to provide room in outlet wall box for device.
Ensure that the word “TOP” is facing up on device strap.
Partially screw in mounting screws in wall box mounting holes.
NOTE: Dress wires with a bend as shown in diagram in order to
relieve stress when mounting device.
• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights should turn ON.
If lights do not turn ON, refer to the TROUBLESHOOTING section.
TM
Step 6 Including Switch into Z-Wave Network:
NOTES:
• If using a non-Leviton Programmer/Controller, refer to the Programmer/
Controller instruction sheet for Including a device.
A) If using a Leviton Z-WaveTM Programmer/Controller, Cat. No. RZCPG,
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Press the center button to
select Network.
B) While standing close to the
Programmer/Controller
switch (approximately 2-5
Cat. No. RZCPG
ft.), press the center button
to <Include> device in the
network.
NOTE: Only one device may
be included at a time. DO
NOT put multiple devices into
the Inclusion mode at any
time.
Menu Button
C) While the Programmer/
Controller is in the Inclusion
mode and the Locator LED
1
Center Button
is ON on the switch, press
2
the push pad to turn on the
switch. The Programmer/
3
Controller will verify inclusion
4
and the Locator LED will turn
OFF.
If the switch is flashing Amber
while in the Inclusion mode,
the Programmer/Controller is still trying to communicate with the switch.
Wait until the device stops flashing, then press the push pad.
NOTE: If the Locator LED on the switch turns solid Red while including,
there has been a communication error. Refer to Troubleshooting
section.
D) The Primary Programmer/Controller will assign a node ID number
(Name) for this device.
NOTE: This ID number (Name) will be stored in the controller to be
used for future reference.
NOTE: You may name or edit the node of this device at this time.
E) The switch is now installed in the network.
Note: If the switch has been successfully Included in the network and the
user tries to Include it again without first excluding it from the network, the
switch will retain the first node ID it had received and ignore the second.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
TM
Step 7 Excluding Switch from Z-Wave Network:
NOTE: It is very important to accurately Exclude devices from the network
when moving or removing a device from a Z-WaveTM network. This ensures
that all information has been removed from your Primary Programmer/
Controller's information table and is not counted on to be part of the mesh
network.
A) If using a Leviton Z-WaveTM Programmer/Controller, Cat. No. RZCPG,
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Press the center button to
select Network.
B) While standing close to the switch (approximately 2-5 ft.), press the
center button to <Exclude> device from the network.
C) While the Programmer/Controller is in the Exclusion mode and the
locator LED is ON on the Dimmer, press the push pad to turn on the
switch. The Programmer/Controller will verify Exclusion and the locator
LED will turn OFF.
If the switch is flashing Amber while in the Exclusion mode, the
Programmer/Controller is still trying to communicate with the switch. Wait
until the device stops flashing, then press the push pad.
Factory Default:
If your switch is not responding, or you are unable to control it after you
have tried to Include/Exclude it multiple times, it may be necessary to reset
the switch to its original factory settings. To
accomplish this, proceed as follows:
• On the switch, engage the air-gap switch
by gently pulling the bottom of the push pad
until it lifts completely out of the frame and
a click is heard. (refer to figure). Wait 5
seconds and then press the push pad back
into the frame and hold push pad until the
locator LED flashes Amber and turns solid
Red. The switch is now reset. Once the
switch is reset, it will be necessary to ReInclude it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A
FACTORY DEFAULT DOES NOT EXCLUDE
Gently lift bottom of
THAT DEVICE FROM A NETWORK. THE
push pad out
EXCLUSION PROCEDURE MUST STILL BE
FOLLOWED TO REMOVE THE DEVICE FROM
THE PRIMARY CONTROLLER’S INFORMATION TABLE. FAILURE TO DO
SO MAY RESULT IN SYSTEM THAT IS SLOW TO RESPOND, OR MAY
FAIL TO RESPOND TO SOME DEVICES.
Step 8 Switch Mounting:
Programmer/Controller
Cat. No. RZCPG
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
Installation may now be
completed by tightening
mounting screws into wall
box. Attach wallplate.
NOTE: Programmer/Controller must
be in close proximity to switch when
including in the network.
Step 9 Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
OPERATION
NOTE: The locator light will illuminate when
the load is in the OFF position to facilitate
access in the dark.
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON.
Turn OFF from ON position:
Tap – Lights turn OFF.
If there is a power outage, when the power
is restored, the lights will return to the last
setting before the power interruption.
Cleaning: Clean with a damp cloth. DO
NOT use chemical cleaners.
TROUBLESHOOTING
Push
Pad
Locator
Light
•Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly under terminal screws of switch
and/or remote.
•Light does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Lamp Neutral connection is not wired.
• Remote does not operate lights
- Ensure that total wire length does not exceed 300 ft (90 m).
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.ViziaRF.com
U.S. & Foreign Patents Pending
Copyright© 2006 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
DI-000-RZS15-00A-X3
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability
for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or
implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
