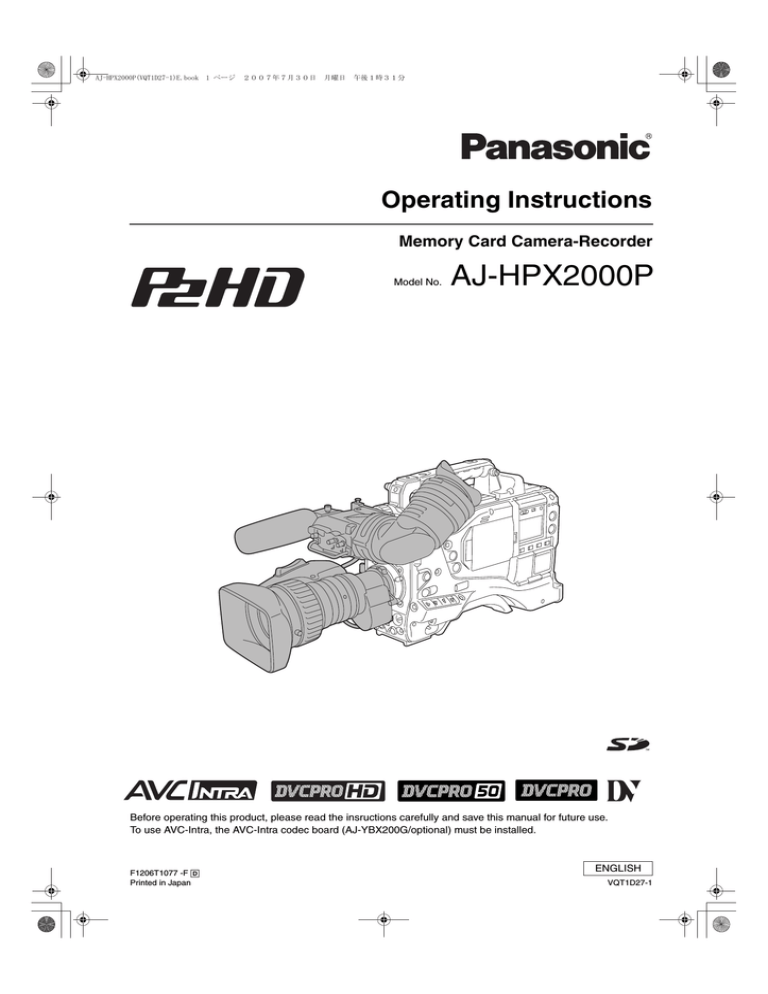

Operating Instructions
Memory Card Camera-Recorder
Model No.
AJ-HPX2000P
Before operating this product, please read the insructions carefully and save this manual for future use.
To use AVC-Intra, the AVC-Intra codec board (AJ-YBX200G/optional) must be installed.
F1206T1077 -F @
Printed in Japan
ENGLISH
VQT1D27-1
AJ-HPX2000P(VQT1D27-1)E.book 2 ページ
２００７年７月３０日　月曜日　午後１時３１分
Read this first!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (service) instructions in the
literature accompanying the appliance.
WARNING:
z TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
EQUIPMENT TO RAIN OR MOISTURE.
z TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, KEEP THIS EQUIPMENT AWAY
FROM ALL LIQUIDS. USE AND STORE ONLY
IN LOCATIONS WHICH ARE NOT EXPOSED
TO THE RISK OF DRIPPING OR SPLASHING
LIQUIDS, AND DO NOT PLACE ANY LIQUID
CONTAINERS ON TOP OF THE EQUIPMENT.
CAUTIONS:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES
ONLY.
CAUTION:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for
help.
The user may find the booklet “Something About Interference”
available from FCC local regional offices helpful.
FCC Warning: To assure continued FCC emission limit
compliance, the user must use only shielded interface cables
when connecting to host computer or peripheral devices. Also,
any unauthorized changes or modifications to this equipment
could void the user’s authority to operate this device.
Declaration of Conformity
Model Number:
AJ-HPX2000P/AJ-HPX2100E
Trade Name:
PANASONIC
Responsible Party: Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Support contact: Panasonic Broadcast & Television Systems
Company 1-800-524-1448
This device complies with Part 15 of FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
To assure continued compliance, follow the attached
installation instructions and do not make any unauthorized
modifications.
CAUTIONS:
In order to maintain adequate ventilation, do not
install or place this unit in a bookcase, built-in
cabinet or any other confined space. To prevent risk
of electric shock or fire hazard due to overheating,
ensure that curtains and any other materials do not
obstruct the ventilation.
CAUTIONS:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, REFER MOUNTING OF OPTIONAL
INTERFACE BOARDS TO QUALIFIED SERVICE
PERSONNEL.
indicates safety information.
A rechargeable battery that is recyclable powers the product you have purchased.
<For USA-California Only>
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material — special handling may apply.
See www.dtsc.ca/gov/hazardouswaste.perchlorate.
Caution regarding laser beams
The CCD may be damaged if it is subjected to light from a laser beam.
When using the camera-recorder in locations where laser irradiation equipment is used, be careful not to allow
the laser beam to shine directly on the lens.
2
AJ-HPX2000P(VQT1D27-1)E.book 3 ページ
２００７年７月３０日　月曜日　午後１時３１分
Attention/Attentie
ENGLISH
z Batteries are used for the main power source and memory back-up in the product.
At the end of their useful life, you should not throw them away.
Instead, hand them in as small chemical waste.
NERDERLAND
z Voor de primaire voeding en het reservegeheugen van het apparaat wordt gebruikgemaakt van
een batterij.
Wanneer de batterij is uitgeput, mag u deze niet gewoon weggooien, maar dient u deze als
klein chemisch afval weg te doen.
TO REMOVE THE BATTERY
Main Power Battery (Ni-Cd / Ni-MH / Li-ion Battery)
z To detach the battery, please proceed in the reverse order of the installation method described in this manual.
z If a battery made by any other manufacturer is to be used, check the Operating Instructions accompanying the battery.
Back-up Battery (Lithium Battery)
z For the removal of the battery for disposal at the end of its service life, please consult your dealer.
PLEASE NOTE:
z When preparing to record important images, always shoot some advance test footage, to verify that both pictures and
sound are being recorded normally.
z Should video or audio recording fail due to a malfunction of this camera-recorder or the P2 cards used, we will not assume
liability for such failure.
z If the unit is operated continuously with the fan stopped due to a failure, camera images may not be output, recorded, or
played back properly.
What to remember when throwing memory cards away or transferring them to others
Formatting memory cards or deleting data using the functions of the unit or a computer will merely change the file
management information: it will not completely erase the data on the cards. When throwing these cards away or transferring
them to others, either physically destroy them or use a data deletion program for computers (commercially available) to
completely erase the data. Users are responsible for managing the data on their memory cards.
3
AJ-HPX2000P(VQT1D27-1)E.book
4 ページ ２００７年７月３０日　月曜日　午後１時３１分
AJ-HPX2000P(English)TOC.fm
master: left
Contents
Read this first! ..................................................................................2
General
Features of Camera unit ....................................................................8
Features of Recorder/player unit .......................................................9
Features of the Input/Output unit .....................................................11
Other features .................................................................................11
Dimensions drawing ........................................................................12
System Configuration ......................................................................13
Parts and their Functions
Power Supply and Accessory Mounting Section............................14
Audio (input) Function Section .......................................................15
Audio (output) Function Section .....................................................16
Shooting and Recording/Playback Functions Section ...................17
Menu Operation Section ................................................................22
Time Code Section.........................................................................23
Warning and Status Display Functions ..........................................24
Display Window Functions .............................................................25
LCD Monitor ...................................................................................26
Viewfinder ......................................................................................27
Recording and Playback
P2 Cards .........................................................................................29
How to handle data recorded on P2 cards .......................................31
Basic Procedures ............................................................................32
Normal Recording ...........................................................................34
PRE-RECORDING function ............................................................35
Loop Recording...............................................................................36
Interval Recording ...........................................................................36
Recording Review Function.............................................................39
Normal and Variable Speed Playback .............................................40
Text Memo Function .......................................................................40
Shot Mark Function .........................................................................41
Recording Setting and Operation Mode ...........................................41
Adjustments and Settings for
Recording
Multi Format ....................................................................................42
Adjusting the White balance and Black Balance ..............................45
Setting the Electronic Shutter ..........................................................49
Assigning Functions to USER MAIN, USER1 and USER2 Buttons ..51
Selecting Audio Input Signals and Adjusting Recording Levels ........53
4
AJ-HPX2000P(VQT1D27-1)E.book
5 ページ ２００７年７月３０日　月曜日　午後１時３１分
AJ-HPX2000P(English)TOC.fm
master: right
Setting Time Data ...........................................................................55
Viewfinder Screen Status Displays ..................................................69
Adjusting and setting the LCD monitor ............................................80
Selection of video output signals .....................................................81
Handling data ..................................................................................83
Preparation
Power Supply ..................................................................................97
Mounting the lens and Performing the Flange Back and
White Shading Adjustments ..........................................................101
Preparing for Audio Input ..............................................................104
Mounting the Camera on a Tripod .................................................105
Attaching the Shoulder Strap .........................................................106
Attaching the Rain Cover ..............................................................106
Connection of the remote control unit(AJ-RC10G) .........................107
Attaching the Front Audio Level Control Knob ...............................107
Connection of the external switch ..................................................108
Manipulating Clips with
Thumbnails
Thumbnail Manipulations Overview .............................................109
Thumbnail Screen ........................................................................110
Selecting Thumbnails...................................................................112
Playing back Clips........................................................................112
Switching the Thumbnail Display .................................................113
Shot Mark.....................................................................................115
Text Memo ...................................................................................115
Deleting Clips ...............................................................................117
Restoring Clips.............................................................................117
Reconnection of Incomplete Clips................................................118
Copying Clips ...............................................................................118
Setting of Clip Meta Data .............................................................119
Setting of Proxy (optional) ............................................................122
Formatting a P2 Card ...................................................................122
Formatting SD memory cards ......................................................123
Setting the Thumbnail Display Mode ...........................................124
Properties.....................................................................................125
Connection with external
device
Connection through the DVCPRO/DV connector.........................129
Connection with external devices using the USB 2.0 port ...........131
Connection using the SDI IN connector
(when AJ-YA350AG attached) .....................................................137
5
AJ-HPX2000P(VQT1D27-1)E.book
6 ページ ２００７年７月３０日　月曜日　午後１時３１分
AJ-HPX2000P(English)TOC.fm
Maintenance and
Inspections
master: left
Inspections Before Shooting ........................................................138
Maintenance.................................................................................140
Warning System...........................................................................145
Menu
Menu Configuration......................................................................151
Menu Description Tables .............................................................155
Updating the firmware incorporated into the camera-recorder.................................... 189
Specifications .............................................................................................................. 190
6
AJ-HPX2000P(VQT1D27-1)E.book 7 ページ
２００７年７月３０日　月曜日　午後１時３１分
General
Attention
z Adjust the black-balance setting when using the unit for the first time. (Refer to page 48)
z Set VF TYPE on the <SYSTEM MODE> screen on the SYSTEM SETTING page depending on your viewfinder. The
factory setting is set to the HD viewfinder.
z Consult the dealer for installation of the AVC-Intra codec board (AJ-YBX200G).
_ Supports the new AVC-Intra codec (optional)
Installation of the AVC-Intra codec board (AJ-YBX200G)
provides support for the new AVC-Intra codec. By
employing the Intra-Frame compression method based
on H.264 standards, the latest motion picture
compression technology, a high compression rate, high
image quality, and high editing accuracy have been
achieved.
The AVC-Intra codec supports the following two
methods.
z High image quality supporting full sample HD:
AVC-Intra100
z Capable of operation at low rates and low cost:
AVC-Intra50
General
AJ-HPX2000 integrates a camera unit equipped with three CCDs, incorporating a 2/3-inch on-chip lens featuring
progressive drive technology (All-pixel reading), and a video recorder/player (VTR) that supports DVCPRO HD,
DVCPRO50, DVCPRO and DV formats.
AJ-HPX2000 offers choices of 1080i/720P mode for HD and NTSC/PAL mode for SD. It also provides features such as
storage-type gain enhancement for news reports and film-like gammas for production purposes, providing many
applications ranging from news reports to production.
Utilising P2 cards, which require no mechanism, as media, your unit offers greater responsibility, operability, and
portability. It is highly resistant to shock and vibration during recording, and therefore ensures stable operation for
capturing quality video images under the most adverse conditions.
_ 24P, 30P, 25P Recording and Native Recording
The unit is capable of recording at frame rates of 24P
(23.98P)/30P (29.97P) at 59.94 Hz and 25P at 50 Hz
using the progressive drive of the CCD.
There are two methods: one method (Native
recording)*2 records images at the unchanged frame
rate of the camera, and the other method*3 pulls the rate
down to 59.94 or 50 frames.
*2 For the AVC-Intra100/50 at 1080i, AVC-Intra100/50
at 720P, and the DVCPRO HD formats, the rate is
pulled down to 59.94 or 50 frames during playback.
*3 For the (HD) DVCPRO HD, (SD) DVCPRO50,
DVCPRO, and DV formats
_ Supports the HD/SD multi format
z System frequency
59.94 Hz/50 Hz switchable
z HD
DVCPRO HD/AVC-Intra100/AVC-Intra50
switchable *1
z SD
DVCPRO50/DVCPRO/DV switchable
In the HD (1080i and 720P) mode, the new AVC-Intra
codec (optional) can be selected as the recording format
in addition to the ordinary DVCPRO HD.
In SD mode, you can select a recording format
appropriate for your purpose. For example, choose
DVCPRO50 to give higher priority to image quality or
DVCPRO if cost efficiency is a high priority.
*1 When the AVC-Intra codec board (AJ-YBX200G) is
installed
General：
7
AJ-HPX2000P(VQT1D27-1)E.book 8 ページ
２００７年７月３０日　月曜日　午後１時３１分
_ Multi-format
Mode
SYSTEM MODE
Recording method
AVC-Intra100*1
AVC-Intra50*1
1080-59.94i
DVCPRO HD
AVC-Intra100*1
AVC-Intra50*1
720-59.94P
DVCPRO HD
HD
AVC-Intra100*1
1080-50i
AVC-Intra50*1
DVCPRO HD
AVC-Intra100*1
AVC-Intra50*1
720-50P
DVCPRO HD
480-59.94i
DVCPRO50
DVCPRO
DV
SD
576-50i
DVCPRO50
DVCPRO
DV
59.94i
29.97P (Native)
23.98P (Native)
59.94i
29.97P Over 59.94i
23.98P Over 59.94i (2-3 Pull-down)
23.98P Over 59.94i (2-3-3-2 Pull-down)
59.94P
29.97P (Native)
23.98P (Native)
59.94P
29.97P (Native)
29.97P Over 59.94P
23.98P (Native)
23.98P Over 59.94P (2-3 Pull-down)
50i
25P (Native)
50i
25P over 50i
50P
25P (Native)
50P
25P (Native)
25P Over 50P
59.94i
29.97P Over 59.94i
23.98P Over 59.94i (2-3 Pull-down)
23.98P Over 59.94i (2-3-3-2 Pull-down)
50i
25P Over 50i
*1 When the AVC-Intra codec board (AJ-YBX200G) is installed
Features of Camera unit
_ 14-bit A/D conversion digital signal processing
Analog video signals are processed into digital data by a
14-bit A/D converter with sampling frequencies of 74
MHz. It is possible to reproduce images that are more
finely detailed.
_ Storage type high-sensitivity function (DS. GAIN)
The unit uses the storage type gain increase function by
driving the CCD progressively. With this function, it is
possible to obtain brighter pictures without increasing
noise under low light conditions.
This is a function that makes it possible to achieve
higher sensitivity of up to 20 dB above the regular gain
increase. Furthermore, this function can also be used as
picture effects.
_ Digital Zoom
The camera unit features progressive digital zoom. This
is particularly effective when you want to zoom-in closer
on the subject.
_ Auto White Balance with Automatic Tracking
capability
The white balance is automatically adjusted in real time,
according to the subject. This is effective for urgent
recording, where you can’t spare the time to make an
adjustment through the auto white balance feature.
8
General：Features of Camera unit
_ DRS (Dynamic Range Stretcher) function
The dynamic range can be streched by compressing the
video signal level of a part with high brightness where
white-color-skipping phenomena occur during ordinary
shooting. (Refer to page 51)
_ Film-like Gamma function
The unit employs three types of film-like gamma to
easily obtain film tones accumulated through Varicam
(AJ-HDC27 series), so that a wide range of image
impressions can be reproduced for production. (Refer to
page 167)
_ Lens file function
The unit has 8 lens files.
By using an SD memory card, 64 lens files can be
stored. (Refer to page 92)
_ Focus assist function
The unit will display a marker to help with focusing when
shooting videos. This function provides a visual cue for
focusing. (Refer to page 51)
AJ-HPX2000P(VQT1D27-1)E.book 9 ページ
２００７年７月３０日　月曜日　午後１時３１分
_ Data management function
Within the unit, one user data file and four sets of scene
file data can be saved.
By using an SD memory card as the setup card, up to eight
sets of setup data can be stored. (Refer to page 83)
_ Color bar
The unit employs the SMPTE color bar, ARIB color bar,
Split color bar for SNG (Satellite News Gathering) as
well as the conventional color bar, which is useful for
adjusting the color monitor. (Refer to page 175)
Features of Recorder/player unit
_ Multiple Slots
_ 4-channel Digital Audio Recording (all formats)
In HD (1080i or 720P) mode, 4-channel digital audio
recording is used.
All formats in SD mode, DVCPRO, DV, and DVCPRO50,
also support 4-channel digital audio recording with highquality sound (48 kHz/16 bits).
General
AJ-HPX2000 is equipped with five slots for P2 cards. Up
to five cards may be inserted in these slots for
continuous recording. They also provide new recording
capabilities specific to memory cards.
z Hot-Swap recording
The Hot-Swap capability allows cards not in use to
be replaced without interrupting recording. This
facilitates continuous recording.
z Loop recording
AJ-HPX2000 can retain a certain amount of
previously recorded material by continuously looprecording data into a specified recording area.
z INTERVAL REC/ONE SHOT REC
The AJ-HPX2000 features interval recording at
minimum one-frame intervals. This function is
particularly suited to shooting science and nature
programs. Frame-by-frame shooting is simple with the
one-shot recording function.
z PRE-RECORDING function
In standby status, AJ-HPX2000 always stores video
and sound input to the camera for up to 8 seconds
(For 1080i/720P (HD)). This means that the PRERECORDING function, when turned on, records the
video and sound for a preceding duration preset by
the user. This feature recovers critical moments
that you might have missed. For DVCPRO and DV,
video and sound can be recorded for up to 15
seconds.
z Proxy recording (when AJ-YAX800G attached)
By installing the optional video encoder card (AJYAX800G), MPEG4 format video and real-time
metadata such as time code data can be recorded
simultaneously on the P2 card and the SD memory
card, together with the video and sound recorded by
the camera. This function is useful for confirmation
of editing of clips. For more information about the
approximate duration for proxy recording, see
[Approximate Proxy Recording Time (optional) on
SD memory cards (Except for 24P native mode)]
(page 10). Please also see <Cautions in using SD
memory cards>. (page 21)
z Data protection
Data on P2 cards will not be lost due to overwriting
unless the files are deleted or the cards are
initialised. Recordings are written only to free space.
_ Clip Thumbnailing
z Automatic generation of thumbnails
AJ-HPX2000 automatically generates a thumbnail for
each recording cut (clip). It is possible to make use of
this on the camera-recorder as well as for non-linear
editing purposes, and after uploading to a server.
z Thumbnail display on the LCD monitor
The 3.5-inch color LCD side of the your video
camera　recorder can provide a multi-screen view
of 12 clip thumbnails. You can choose a desired clip
to playback instantly.
z Seamless playback of selected clips
You can select more than one clip from the
thumbnail view for continuous playback and output
of seamless video.
‹Note
During continuous playback of clips in different
recording formats, seamless playback is not available.
z Display of clip information
By selecting clips, information added to clips, such
as the recording time, Text Memo, Shot Marks and
metadata can be checked.
_ Text Memos & Shot Marks
Each clip can incorporate comments, in the form of text
memo added to the thumbnail associated with the time
code, together with shot marks which, for example, can
help you distinguish OK cuts from reject cuts.
Both text memos and shot marks can be added to
selected clips during and after a recording. This is
helpful for editing recorded video.
In addition, you can use the copy function for each text
memo block to take only the necessary portions out of a clip.
_ Front-mounted Sound Level Control Mechanism
AJ-HPX2000 features a front-mounted control for fine
adjustment of the sound recording level. This control is
particularly effective for adjusting the sound level when
you are shooting without a sound recordist. The control
can be disabled.
_ Support for Built-in Unislot Wireless Receive
AJ-HPX2000 is designed to support an optional slot-in
wireless receiver.
_ Recording Review Capability
This capability automatically plays back the last 2 to 10
seconds of recorded video, allowing you to quickly
check the recorded contents.
_ Built-in Time Code Generator/reader
A special-purpose Subcode track can be used to record
and reproduce time code information.
General：Features of Recorder/player unit
9
AJ-HPX2000P(VQT1D27-1)E.book 10 ページ
２００７年７月３０日　月曜日　午後１時３１分
_ Support for Metadata
AJ-HPX2000 is capable of recording positional
information (latitudes, longitudes and altitudes), as
UMID information (metadata), from the GPS unit AJGPS910G (optional accessory). Names/titles can also
be recorded, e.g. the camera person, the reporter, or the
program which was registered on the SD memory card
in advance. This information is also useful in managing
information on clips. Regarding SD memory cards,
please also see <Cautions in using SD memory cards>
(page 21).
_ Recording Time
Operation of the following P2 cards with AJ-HPX2000
has been verified:
z AJ-P2C004HG (4 GB)
z AJ-P2C008HG (8 GB)
z AJ-P2C016RG (16 GB)
(The model numbers and capacities are accurate as of
August 2007 but may change to expand capacity.)
The AJ-P2C002SG (2 GB) is disabled.
Recording Time on P2 Cards: When one 16 GB card is used;
HD Mode
Recording method and Recording time
Image system
1080-59.94i/
Approx.
16 minutes
Approx.
32 minutes
1080-30PN/
25PN (Native)
-
Approx.
16 minutes
Approx.
32 minutes
1080-24PN
(Native)
-
Approx.
20 minutes
Approx.
40 minutes
50P*2
Approx.
16 minutes
Approx.
16 minutes
Approx.
32 minutes
720-30PN/25PN
(Native)
Approx.
32 minutes
Approx.
32 minutes
Approx.
64 minutes
720-24PN
(Native)
Approx.
40 minutes
Approx.
40 minutes
Approx.
80 minutes
720-59.94P/
*1 When the AVC-Intra codec board (AJ-YBX200G) is
installed
*2 Including 30P, 24P, and 25P pull down of the DVCPRO
HD
SD Mode
Image system
480-59.94i/576-50i*4
*3
*4
Recording method and Recording
time
DVCPRO 50
DVCPRO*3
DV*3
Approx.
32 minutes
Approx.
64 minutes
Approx.
64 minutes
For 2ch audio recording
Including 30P, 24P, and 25P pull down
‹Notes
z The values for 8 GB P2 cards are 1/2 and the values
for 4 GB P2 cards are 1/4 those of 16 GB P2 cards
shown above.
10
Recording method (except
for native)
DVCPRO HD
General：Features of Recorder/player unit
Continuous
recording time
Approx.
5 minutes
AVC-Intra100*1
AVC-Intra50*1
Approx.
10 minutes
DVCPRO50
DVCPRO
Approx.
20 minutes
DV
*1 When the AVC-Intra codec board (AJ-YBX200G) is installed
Approximate Proxy Recording Time (optional) on SD
memory cards (Except for 24P native mode)
Card No.
(Card Capacity)
MPEG4 recording rate
192 kbps
768 kbps
1500 kbps
RP-SDH256
(256 MB)
Approx.
2 hour
17 minutes
Approx. 35
minutes
Approx. 19
minutes
RP-SDH512
RP-SDK512
(512 MB)
Approx.
4 hour
27 minutes
Approx. 69
minutes
Approx. 38
minutes
RP-SDQ01G
RP-SDK01G
(1 GB)
Approx.
8 hour
56 minutes
Approx.
2 hour
19 minutes
Approx. 77
minutes
RP-SDQ02G
RP-SDK02G
(2 GB)
Approx.
18 hour
11 minutes
Approx.
4 hour
44 minutes
Approx.
2 hour
37 minutes
RP-SDV024G
(SDHC 4 GB)
Approx.
35 hour
42 minutes
Approx.
9 hour
18 minutes
Approx.
5 hour
12 minutes
DVCPRO HD AVC-Intra100*1 AVC-Intra50*1
Approx.
16 minutes
50i*2
z If the one-time continuous recording exceeds the
duration which is given in the table below when a P2
card with a memory capacity of 8GB or more is used
in AJ-HPX2000, the recording is automatically
continued on a separate clip. When performing
thumbnail operations (such as display, delete, repair
or copy) for these kinds of clips using a P2 device, it
is possible to perform the operations for the entire
recording as a single clip. However, with nonlinear
editing software or a personal computer, the
recording may be displayed as separate clips.
(Reference values when cards are used for continuous
recording with our products. Actual recording time depends
on the kind of scenes and the number of clips. For SD or
SDHC memory cards with Class indications, the
recording time may be reduced significantly compared
with the actual capacity when images of short recording
time are recorded repeatedly.)
The driver installed on the unit must be updated when
using SD memory cards other than as listed above. To
update the driver, refer to [Updating the firmware incorporated into the camera-recorder] (Page 189)
For the latest information on P2 cards and SD memory
cards not available in the operating Instructions, visit the
P2 Support Desk at the following Web sites.
https://eww.pavc.panasonic.co.jp/pro-av/
AJ-HPX2000P(VQT1D27-1)E.book 11 ページ
２００７年７月３０日　月曜日　午後１時３１分
Features of the Input/Output unit
_ Features USB2.0 port (HOST/DEVICE)
_ DVCPRO (IEEE1394) output and DV output
provided as a standard configuration
Data can be input/output to an external device through
the IEEE1394 digital interface. Use a 6-pin type
connector. The unit does not support the bus power.
While operating AVC-Intra, it is impossible to input/
output data with IEEE 1394.
_ HD/SD SDI output featured as standard
Video can be output as HD SDI signals, down-converted
SD SDI signals, or analog composite signals. SDI output
includes embedded audio etc.. (Refer to page 43) Note
that the SD mode does not output HD SDI signals.
_ Down converter output provided as a standard
configuration
In HD mode, the MON OUT output connector and the
VIDEO OUT connector (in setting VBS mode) output
down converter (analog composite) signals.
It is optimum for confirming shot images on the SD
monitor. (Refer to page 43)
The camera-recorder with the AJ-YA350AG extension
board attached can record SDI signals input through the
SDI input connector only if the signals are in the same
format as the camera-recorder.
General
By connecting with a PC via USB2.0, a P2 card inserted
in AJ-HPX2000 can be used as a bulk storage device.
It is also possible to store data on a P2 card onto a USB
2.0-connected external hard disk equipped with USB
host capability as well as view clips stored on hard disks
and write them to P2 cards.
_ HD/SD SDI input function (when the AJYA350AG is attached)
_ Remote control connector
By connecting the remote control unit (AJ-RC10G),
which is available as an optional accessory, the unit can
be controlled remotely. (Refer to page 107)
_ Confirmation of return video signals
It is possible to confirm the return video signals (analog
HD-Y signals in the HD mode/VBS or Y signals in the
SD mode) supplied to the GENLOCK IN connector of
AJ-HPX2000 in the viewfinder to confirm programs.
(Only video signals from the same record format can be
confirmed.) (Refer to page 175)
_ DC OUT connector
The DC OUT connector of the unit produces 1.5 A of
electrical current.
By connecting an external switch to this connector, it is
possible to control REC start/stop.
Since a tally lamp can be used by connecting the LED
to this connector, it is useful for shooting video when
fixing the camera on a crane. (Refer to page 108)
Other features
_ Viewfinder connection
From the viewfinder connector of the unit, 1080-59.94i,
1080-50i, 480-59.94i or 576-50i signals are output.
Furthermore, signals are output for switching the
frequencies of the connected viewfinder.
Confirm images in multi formats by connecting the
viewfinder (AJ-HVF21G), which is available as an
optional accessory. (Refer to page 27)
While the AJ-VF20WBP (59.94 Hz)/E (50 Hz) can also
be connected, you cannot view video in formats with
different frequencies.
_ User button
On the side panel of the unit, three user buttons (USER
MAIN/USER1/USER2) are available.
Each button can be assigned the on/off function for any
frequently used feature selected from among the many
features of the unit, such as digital zooming and super
gain (Refer to page 51).
General：Features of the Input/Output unit
11
AJ-HPX2000P(VQT1D27-1)E.book 12 ページ
２００７年７月３０日　月曜日　午後１時３１分
Dimensions drawing
Unit: mm (inch)
137 (5- 3 / 8 )
102 (4- 1 /16 )
12
General：Dimensions drawing
270.5 (10- 5 / 8)
209 (8- 1 / 4 )
318 (12- 1 / 2)
AJ-HPX2000P(VQT1D27-1)E.book 13 ページ
２００７年７月３０日　月曜日　午後１時３１分
System Configuration
Unislot wireless
microphone receiver:
Sennheiser EK3041
◆Note
Video encoder card:
AJ-YAX800G
Remote control cable:
AJ-C10050G
Microphone holder:
AJ-MH800G
Viewfinder:
AJ-VF15B
AJ-VF20WB
GPS unit:
AJ-GPS910G
Remote control unit:
AJ-RC10G
DIONIC90/160
HYTRON50/100/140
PROPAC14, TRIMPAC14
2-type HD Viewfinder:
AJ-HVF21G
Lens:
(Bayonet type)
Fujinon, Canon
General
Stereo microphone:
AJ-MC900G
All of the devices and accessories other than the unit,
which are shown in this system configuration, are optionally available. To use these devices and accessories, refer
to the respective operation manuals.
Memory Card
Camera-Recorder
AJ-HPX2000P
V mount type
Battery plate
ENDURA7/10
BP-GL65/95
NP-1 type
Battery case
NP-L7
External DC
power supply
AVC-Intra codec board:
AJ-YBX200G
Tripod adapter:
SHAN-TM700
HD/SD SDI input board:
AJ-YA350AG
Rain cover:
SHAN-RC700
Soft carrying case:
AJ-SC900
Hard carrying case:
AJ-HT901G
*
SD Memory cards*
P2 Cards*:
AJ-P2C004HG
AJ-P2C008HG
AJ-P2C016RG
For the latest information on P2 cards and SD memory cards not available in the operating Instructions, visit the P2
Support Desk at the following Web sites.
https://eww.pavc.panasonic.co.jp/pro-av/
General：System Configuration
13
AJ-HPX2000P(VQT1D27-1)E.book 14 ページ
２００７年７月３０日　月曜日　午後１時３１分
Parts and their Functions
Power Supply and Accessory Mounting Section
5
11
7
6
6
2
9
8
10
1
4
3
15
1. POWER switch
Used to turn on/off the power.
2. Battery mount
A battery pack from Anton/Bauer is mounted here.
14
12 13
10. Lens mount cap
To remove the cap, raise the 9. lens lever.
When the lens is not mounted, replace the cap.
11. Light cable clamp
Secures the light cable.
3. DC IN (external power input) socket (XLR, 4P)
camera-recorder is connected to an external DC
power supply.
4. BREAKER switch
When an excessive amount of current is fed through
the camera-recorder, due to any abnormal event, the
breaker automatically turns off the power in order to
protect the device.
After the interior of the camera-recorder has been
checked and/or repaired, this button must be
depressed. If there is no unusual reaction, the unit can
be powered-up.
5. GPS connector
This connects the optional GPS unit AJ-GPS910G.
6. Shoulder strap fittings
The shoulder strap is attached here.
7. Light shoe
12. Lens cable/microphone cable clamp
This clamp secures the lens and microphone cables.
13. Tripod mount
When you want to mount camera-recorder on a tripod,
the optional tripod adapter (SHAN-TM700) is attached
here.
14. LENS jack (12-pin)
The lens connection cord is connected here. For a
detailed description of your lens, see the relevant
manufacturer’s instruction manual.
15. DC OUT (DC power supply) output socket
This output socket is designed for 12-VDC. It provides
a maximum current of 1.5 A.
Connect an external switch to this socket to control
REC starts and stops or an LED for use as a tally
lamp. For more information, see [Connection of the
external switch] (page 108).
A video light or similar accessory can be attached
here.
8. Lens mount (bayonet 2/3-type)
The lens is attached here.
9. Lens lever
Lower this lever to lock the lens to the lens mount.
14
Parts and their Functions：Power Supply and Accessory Mounting Section
AJ-HPX2000P(VQT1D27-1)E.book 15 ページ
２００７年７月３０日　月曜日　午後１時３１分
Audio (input) Function Section
12
13
11
14
10
3
7
Parts and their Functions
2
6
1
1. MIC IN (microphone input) jack (XLR, 5-pin)
A microphone (optional accessory) is connected here.
Power for the microphone comes from this jack.
A remote microphone may be connected. When a
microphone is used, set the power to ON through the
menu option FRONT MIC POWER.
These options are found in the <MIC/AUDIO2> screen
on the MAIN OPERATION page.
2. AUDIO LEVEL CH1/CH2 (audio channel 1 & 2
recording level adjustment) controls
With the 3. AUDIO SELECT CH1/CH2 switch
positioned to [MAN], these controls can be used to
adjust the recording levels for Audio Channels 1/2.
Note that the controls are designed to be locked. For
adjustment, each control must be depressed while
turning.
3. AUDIO SELECT CH1/CH2 (audio channel 1 &
2 automatic/manual level adjustment
selector) switch
Use this switch to select recording level control mode
for Audio Channels 1 and 2.
AUTO: Recording level automatically controlled.
MAN: Recording level manually controlled.
4. AUDIO IN (audio input selector) switch
Use this switch to select the signals recorded through
Audio Channels 1 - 4.
FRONT: Signal from the microphone connected to the
1. MIC IN jack is recorded.
W.L. (WIRELESS) :
Signal from the slot-in wireless receiver is
recorded.
REAR: Signal from the audio device connected to
the 5. AUDIO IN CH1/CH2 connector is
recorded.
8
15
4
5 9
‹Note
When you use stereo microphone (AJ-MC900G
optional), set both CH1 and CH2 to [FRONT]. The
signal from L CH is recorded to CH1 and that from R
CH to CH2.
5. AUDIO IN CH1/CH2 (audio input channel 1 &
2) connectors (XLR, 3-pin)
Audio devices or a microphone may be connected
here.
6. LINE/MIC/+48V (line input/mic input/mic input +
48V) selector switch
Used to select the audio signal input from the 5.
AUDIO IN CH1/CH2 connectors.
LINE: Audio signal line-input from the audio device is
input.
MIC: Audio signal from a self-powered (active)
microphone is input. (The main unit does not
supply power to the remote microphone).
+ 48V: Audio signal from a passive microphone is
input. (The unit supplies power to the remote
microphone).
7. Wireless slot
A Unislot wireless receiver (optional accessory) may
be attached here.
8. FRONT AUDIO LEVEL (audio recording level
adjustment) control
This control adjusts the recording levels for Audio
Channels 1 and 2.
However, when the 3. AUDIO SELECT CH1/CH2
switch is set to “AUTO”, the level will adjust
automatically and the 2. AUDIO LEVEL CH1/CH2
knob and this knob will not be active.
The control can be enabled or disabled through the
menu options FRONT VR CH1 or FRONT VR CH2.
These options can be found in the <MIC/AUDIO1>
screen on the MAIN OPERATION page.
Parts and their Functions：Audio (input) Function Section
15
AJ-HPX2000P(VQT1D27-1)E.book 16 ページ
２００７年７月３０日　月曜日　午後１時３１分
Audio (output) Function Section
9. AUDIO OUT connector (XLR, 5-pin)
This connector outputs audio signals recorded on
Channels 1/2 or 3/4.
Output signals are selected with the MONITOR
SELECT CH1/2 / CH3/4 selector switch.
10. MONITOR SELECT (audio channel) CH1/2 /
CH3/4 selector switch
Use this switch to select the audio channel whose
signals are output to the speakers, earphones or
AUDIO OUT connector.
CH1/2: Signals on Audio Channels 1 and 2 are output.
CH3/4: Signals on Audio Channels 3 and 4 are output.
The channel indications on the display window and on
the audio level meter in the viewfinder are
synchronised with this selector switch.
11. MONITOR SELECT (audio selection) CH1/3 /
ST / CH2/4 selector switch
The MONITOR SELECT switch is synchronised with
the audio signal output to the speakers and
earphones, and from the AUDIO OUT connector.
CH1/3:
ST:
CH2/4:
Monitor
switch
CH1/3
Signal on Audio Channel 1 or 3 is output.
Stereo audio signals on Audio Channels 1
and 2 or Audio Channels 3 or 4 are output.
The stereo signals can be changed to mixed
signals using a menu option.
Signal on Audio Channel 2 or 4 is output.
MONITOR SELECT switch
CH1/2
CH3/4
Audio Channel 1
Audio Channel 3
Stereo signals from
Stereo signals from
Audio Channels 1 and 2* Audio Channels 3 and 4*
ST
CH2/4
Audio Channel 2
Audio Channel 4
* You can select between stereo and mixed signal types
using the menu option MONITOR SELECT. This menu
option can be found in the <MIC/AUDIO2> screen on the
MAIN OPERATION page.
12. MONITOR (volume) control
Used to control the volume of sound output from the
monitor speakers and earphones.
13. ALARM (warning alarm volume adjustment)
Used to control the volume of the warning sound
emitted from 14. speakers or earphones connected to
the 15. PHONES jack.
If the control is minimised, no alarm is audible.
16
Parts and their Functions：Audio (output) Function Section
14. Speakers
The speakers output EE sound during recording, and
reproduced sound during playback.
The speakers emit an alarm sound when the warning
lamp blinks and/or the indicator activates.
When the 15. PHONES jack is connected with
earphones, sound from the speaker is automatically
muted.
15. PHONES (earphones) jack (mini jack)
This connector is designed for audio monitoring
(stereo) earphones. When earphones are connected,
sound from the speakers is automatically muted.
Both the front and rear connectors output the same
sound.
AJ-HPX2000P(VQT1D27-1)E.book 17 ページ
２００７年７月３０日　月曜日　午後１時３１分
Shooting and Recording/Playback Functions Section
10 9 8
34
24
25
20 21 22 23
36
35
15
27
2
28
29
3
11
17
33
4
6
14
12
5
13
16
19
Used to select a filter appropriate for illumination and
color temperature of the subject.
When the menu option DISP MODE is set to “3”,
switching this control displays the selected filter
number in the viewfinder.
Examples of filter selection according to shooting conditions
Description of
filter
1
3200K
2
5600K + 1/8
3
5600K
4
5600K + 1/64
32
18 31 30
7
1. CC/ND FILTER (filter selector) control
Setting of the
CC/ND FILTER
control
Parts and their Functions
1
26
Shooting
conditions
Sunrise, sunset
Studio
Clear outdoor
environments
Cloudy/rainy outdoor
environments
Clear, bright scenes
such as snowscape,
high mountains,
beaches, etc.
2. USER MAIN, USER 1 and USER 2 buttons
These buttons can be assigned user-selected
functions, using a menu option. Each button, when
pressed, performs the assigned function.
For more information, see [Assigning Functions to
USER MAIN, USER1 and USER2 Buttons] (page 51).
3. SHUTTER switch
Used to enable or disable the electronic shutter.
OFF:
ON:
SEL:
Electronic shutter disabled.
Electronic shutter enabled.
Used to change the speed of the electronic
shutter.
This dial switch returns to its original position. Each
turn of the switch alters the shutter speed.
For more information, see [Setting the Electronic
Shutter] (page 49).
4. AUTO W/B (white/black) BAL switch
AWB: White balance is automatically adjusted.
When the WHITE BAL switch on the side is
positioned at [A] or [B], the adjusted value is
stored in the memory.
Note that when the switch is positioned at
PRST this function does not work.
ABB: Back balance is automatically adjusted.
‹Note
To stop automatic adjustment of the white or black
balance in progress, set the switch to either ([AWB] or
[ABB]).
If automatic adjustment is cancelled, the value in effect
before automatic adjustment will be used.
Parts and their Functions：Shooting and Recording/Playback Functions Section
17
AJ-HPX2000P(VQT1D27-1)E.book 18 ページ
２００７年７月３０日　月曜日　午後１時３１分
5. Gain selector switch
Use this switch to select video amplifier gain,
according to lighting conditions under which you are
shooting.
The values for L, M, and H can be preset using menu
options.
These are factory-set to 0 dB for L, 6 dB for M, and 12
dB for H.
6. OUTPUT/AUTO KNEE selector switch
Used to select the video signals sent from the camera
unit to the memory, viewfinder and video monitor.
CAM. AUTO KNEE ON:
Video being recorded through the camera is sent
with the auto knee circuit activated.
It is also possible to assign the DRS (Dynamic Range
Stretcher) function instead of the AUTO KNEE
function.
CAM. AUTO KNEE OFF:
Video being recorded through the camera is sent in
manual knee mode.
BARS:
Color bar signal is output. The auto knee circuit does
not work.
You can select between four types of color bar signal.
For more information, see [SW MODE] (page 175).
Auto Knee function
Usually, when you adjust levels to shoot people or scenery
against a strongly lit background, the background will be totally
whited-out, with buildings and other objects blurred. In this case,
the auto knee function reproduces the background clearly. This
function is effective when:
•The subject is a person positioned in the shade under a clear
sky.
•The subject is a person inside a car or building, and you also
want to capture the background visible through a window.
•The subject is a high-contrast scene.
7. WHITE BAL (white balance memory selector)
switch
Used to select the white balance adjustment method.
PRST:
Use this when you have no time to adjust the
white balance.
The value for the white balance is factory-set
to 3200 K.
It can be changed to any color temperature
using a menu option. For more information,
see [Setting Color Temperature Manually]
(page 47).
A or B: Pressing the 4. AUTO W/B BAL Switch
toward [AWB] automatically adjusts the white
balance, saving the adjusted value in
Memory A or B. For more information, see
[Adjusting the White Balance] (page 45).
8. MODE CHECK button
Each press of this button changes the screen type in
the viewfinder in the following order: STATUS, !LED,
FUNCTION, AUDIO.
This does not affect the signal output from the camera.
9. MARKER SELECT button
This button selects the marker information indicated
on the viewfinder screen. It switches between two
marker information indications, which can be selected
using a menu option. Pressing this button once
switches the indicated marker information from A
(Marker A) to B (Marker B), and pressing again
switches B to OFF (no marker). When the power is
turned on, the last selected indication before powerdown appears.
For more information, see [Marker Check Screen
Displays (MARKER SELECT button function)] (page
79).
10. SYNCHRO SCAN ADJUSTMENT buttons
These buttons are enabled when the 3. shutter switch
is positioned at [ON] and synchro scan is selected.
They are used to adjust the speed of the synchro
scan.
The – button decreases shutter speed; the + button
increases shutter speed.
If you shoot a PC monitor, for example, you should
adjust shutter speed so that the horizontal bars in the
viewfinder will produce less noise.
11. REC START/STOP button
Pressing this button starts recording, pressing again
stops recording.
This button has the same function as the 24. REC
button on the handle and the VTR button at the lens.
12. SHOT MARK/Menu cancel button
Pressing this button while recording adds a shot mark
to the thumbnail of that clip. This button also adds a
shot mark to any thumbnail selected on the LCD
monitor.
For more information on shot marks, see [Shot Mark
Function] (page 41).
This button cancels the revised set value when the
menu is displayed.
13. Text memo button
Records a text memo if pressed during recording or
playback or when playback is paused.
Through a menu option, the auto-tracking white
balance (ATW) can be assigned to B.
For more information, see [Adjusting the White
Balance] (page 45).
18
Parts and their Functions：Shooting and Recording/Playback Functions Section
AJ-HPX2000P(VQT1D27-1)E.book 19 ページ
２００７年７月３０日　月曜日　午後１時３１分
10 9 8
34
24
25
20 21 22 23
36
35
1
26
15
27
2
Parts and their Functions
28
29
3
11
17
33
4
6
14
12
5
13
16
19
32
18 31 30
7
14. SAVE ON/OFF switch
18. MON OUT (monitor output) connector
Used to select the power supply method for each
output section.
ON: The output selected through the menu option
SAVE SW is power-saved. This option can be
found on the OPTION MODE screen on the
SYSTEM SETTING page.
OFF: Power saving is canceled.
Used to output down-converted (analog composite)
signals for the monitor. The video signals linked to the
setting of the OUTPUT SEL switch are output from
here. Through an internal menu option, the characters
can be superimposed independently of the VIDEO
OUT connector. For more information, see [Settings of
signals output from MON OUT connector] (page 82).
19. OUTPUT SEL (output signal selection) switch
‹Note
The ON/OFF switch does not function during recording. The ON/OFF status changes after recording is
completed.
15. VIDEO OUT (output signal selector) switch
Changes the mode of the signals output through the
VIDEO OUT connector.
HD SDI : HD SDI signals are output. When the
camera-recorder is in SD mode, SD SDI
signals are output.
SD SDI : SD SDI signals are output. (Signals are
down-converted in HD mode.)
VBS： Composite video signals are output. (Signals
are down-converted in HD mode.)
16. VIDEO OUT CHARACTER switch
This switch controls the superimposition of characters
onto the video output from the VIDEO OUT connector.
ON: Characters are superimposed.
OFF: Characters are not superimposed.
For types of characters, see [Settings of signals output
from VIDEO OUT connector] (page 81).
17. VIDEO OUT (video signal output) connector
Used to switch the signals output from the VIDEO
OUT and MON OUT connectors.
MEM: Video from the camera is output during
recording or when recording is paused or
playback signals are output from the P2 card
during playback.
CAM: Video from the camera is output constantly.
OFF: Video is not output, and the camera-recorder
operates in power-saving mode.
Note that the audio output is synchronised with the
video.
For types of video outputs, see [Settings of signals
output from VIDEO OUT connector] (page 81) or
[Settings of signals output from MON OUT connector]
(page 82).
‹Notes
z During recording, this switch does not switch output
signals before stopping the recording operation.
z When CAM is not selected through the REC
SIGNAL menu option, the output signals are the
same as for MEM even if the switch is set to CAM.
The menu option REC SIGNAL is found in the
SYSTEM MODE screen on the SYSTEM SETTING
page.
This connector outputs video signals. The video
signals linked to the settings of 15. VIDEO OUT
switch, 16. VIDEO OUT CHARACTOR switch and
19.OUTPUT SEL switch are output from here.
Parts and their Functions：Shooting and Recording/Playback Functions Section
19
AJ-HPX2000P(VQT1D27-1)E.book 20 ページ
２００７年７月３０日　月曜日　午後１時３１分
20. REW (rewind) button and lamp
During pause, this button performs a fast-reverse
playback with the lamp blinking.
During playback, it performs an approximately 4a fastreverse playback with the PLAY and REW lamps
blinking.
If this button is pressed when playback is paused, the
start of the clip being played back is located in pause
mode.
21. STOP button
This button stops playback.
22. FF (fast forward) button and lamp
During pause, this button is used to perform fast
playback with the lamp blinking.
During playback, it performs an approximately 4a fast
playback with the PLAY and FF lamps blinking.
If this button is pressed when playback is paused, the
start of the next clip is located in pause mode.
23. PLAY/PAUSE button
This button is used to view playback using the
viewfinder screen or a color video monitor. The lamp
comes on when playback starts.
In playback mode, this button pauses (PLAY/PAUSE)
playback with the lamp blinking.
30. GENLOCK IN connector
Used to input an HD Y signal when GENLOCKing the
camera or externally locking the time code.
Alternatively, a composite signal can be input as the
reference signal. Note that the subcarriers for the
down-converter (composite signal) output from the
camera-recorder cannot be externally locked.
‹Notes
z When HD Y signal is input and RET is selected, you
can check return video on the viewfinder screen.
The menu option RET SW can be found in the SW
MODE screen on the CAM OPERATION page.
z When the mode is set to SD, you can record original
signals by specifying VIDEO for the menu option
REC SIGNAL.
31. HD/SD SDI IN input connector
If installed, the optionally available HD/SD SDI input
board (AJ-YA350AG) acts as an input connector for
HD/SD SDI signals. You can record signals from this
input connector by specifying SDI for the menu option
REC SIGNAL. For details, refer to [Connection using
the SDI IN connector (when AJ-YA350AG attached)]
(page 137).
24. REC button
Pressing this button starts recording, and pressing
again stops recording.
This button has the same function as 11. the REC
START/STOP button and the VTR button at the lens.
It may be disabled with 25. the recording protection
button.
25. REC protection button
This button disables 24. the REC button on the handle.
ON: The REC button is enabled.
OFF: The REC button is disabled.
26. P2 CARD ACCESS LED
This LED indicates the recording and playback status
of each card.
27. Slide lock button
Used to open the slide-out door for inserting P2 cards.
While depressing this button, slide the door to the left.
28. USB 2.0 connector (DEVICE)
29. USB 2.0 connector (HOST)
A USB 2.0 cable is connected here.
When the menu option PC MODE is set to “ON”, data
can be transferred via USB 2.0. During such data
transfer, recording, playback or operations of clips is
permitted.
The menu option PC MODE is found in the SYSTEM
MODE screen on the SYSTEM SETTING page. For
more information, see [Connection with external
devices using the USB 2.0 port] (page 131).
20
Parts and their Functions：Shooting and Recording/Playback Functions Section
AJ-HPX2000P(VQT1D27-1)E.book 21 ページ
２００７年７月３０日　月曜日　午後１時３１分
32. DVCPRO/DV connector
35. SD memory card insertion slot
This is an in/output connector for video, voice, and
data that comply with the IEEE1394 standard.
‹Notes
33. REMOTE (remote control) connector
The remote control unit AJ-RC10G
accessory) is connected here.
(optional
34. OPTION SLOT
Attach the video encoder card (AJ-YAX800G,
optional). For information about the installation and
proxy recording, see the AJ-YAX800G instruction
manual.
<Cautions in using SD memory cards>
Use the unit by inserting an SD memory card that is
compliant with the SD standard or the SDHC standard.
MultiMediaCards cannot be used. (Bear in mind that
taking pictures may no longer be possible if you do use
them.)
If you intend to use miniSD cards in camera-recorder,
always install the adapter specially designed for
miniSD cards. (The unit will not work properly if only
the miniSD card adapter is installed. Make sure that
the card has been installed in the adapter before using
it.)
Use of Panasonic’s SD memory cards and miniSD
cards is recommended. Be sure to format cards using
camera-recorder.
To format SD memory cards using a personal
computer, download the dedicated software from the
support site.
Any SD memory card with the following capacities (8
MB to 2 GB) and any 4 GB SDHC memory card can
be used with the unit.
8 MB
128 MB
2 GB
16 MB
32 MB
256 MB
512 MB
4 GB (SDHC)
Parts and their Functions
z Power is not supplied from the unit.
z Be absolutely sure to bear the following points in
mind when connecting the IEEE1394 cable (DV
cable).
ŠEnsure that the connections with other devices are
made on a 1:1 basis.
ŠWhen a DV cable has been connected to the DV
connector, do not apply any strong external force
as this may damage the connector.
ŠWhen error code 1394 E-92 (1394 INITIAL
ERROR) appears, disconnect the connecting
cables and re-connect them or turn off the
camera-recorder’s power and turn it back on.
ŠEnsure that the unit and all of the connected
devices are each grounded (or connected to a
common ground) before use.
If it is not possible to ground the unit and devices,
turn off the power of the unit and of all the
connected devices before connecting or
disconnecting the IEEE1394 cable.
ŠWhen the unit is to be connected to a device
equipped with a 4-pin type of connector, connect
the unit’s connector (6-pin type) first.
ŠWhen connecting the unit
with a PC equipped with
a 6-pin type ofconnector,
connect the 1394 cable
as dictated by the shapes 6-pin type
of the 1394 connectors.
4-pin type
Bear
in
mind
that
inserting a plug the wrong way round may damage
the unit.
Š When the unit is used in AVC-Intra format, image/
voice signals cannot be output/input through the
DVCPRO/DV connector.
An SD memory card (optional accessory) is inserted
here. SD memory cards are used for recording and
accessing the menu settings of cameras and the lens
files, uploading metadata, and proxy recording
(optional).
64 MB
1 GB
To record proxy (optional), use an SD memory card with
a capacity of 256 MB, 512 MB, 1 GB, or 2 GB labeled
“High Speed” or use a 4 GB SDHC memory card.
For the latest information not available in the operating
Instructions, visit the P2 Support Desk at the following
Web sites.
https://eww.pavc.panasonic.co.jp/pro-av/
z The SDHC card conforms to a new standard for memory
cards with a large capacity of more than 2 GB which was
established by the SD Association in 2006.
z The SD card logo is a registered trademark.
z MMC (MultiMediaCard) is a registered trademark of Infineon
Technologies AG.
36. BUSY (operation mode display) lamp
This lamp indicates the active status of the SD
memory card.
It stays illuminated when the card is active.
‹Note
While the lamp is on, do not insert or remove the card.
Parts and their Functions：Shooting and Recording/Playback Functions Section
21
AJ-HPX2000P(VQT1D27-1)E.book 22 ページ
２００７年７月３０日　月曜日　午後１時３１分
Menu Operation Section
1. MENU button
Used to turn on/off the menu.
2. JOG dial button
4
3
With the menu open, this button is used to navigate
through menu pages, select options and specify
values.
For directions on manipulating the menu, see [Menu
Configuration] (page 151).
3. SD memory card insertion slot
5
2
An SD memory card (optional accessory) is inserted
here. It is used when writing or saving menu data or
lens files on an SD memory card.
4. BUSY (operation mode display) lamp
1
This lamp indicates the active status of the SD
memory card.
It stays illuminated when the card is active.
‹Note
While the lamp is on, do not insert or remove the card.
5. Shot Mark/Cancel Menu button
Undoes any changes to the menu option settings if
pressed during the changes
22
Parts and their Functions：Menu Operation Section
AJ-HPX2000P(VQT1D27-1)E.book 23 ページ
２００７年７月３０日　月曜日　午後１時３１分
Time Code Section
4
5
6
Parts and their Functions
7
1
3
2
1. GENLOCK IN connector (BNC)
This connector is used to input a reference signal
before the camera unit is gen-locked, or before the
time code is externally locked.
2. TC IN connector (BNC)
This connector is used to input a reference time code
when you externally lock the time code.
3. TC OUT connector (BNC)
When you inter-lock the time code of camera-recorder
with that of an external device this must be connected
with the time code input (TC IN) connector of the
external device.
‹Note
The time code must be input in the same format as the
system mode of the camera-recorder.
4. HOLD button
Pressing this button freezes the time data indication
on the counter. Note that time code generation
continues. Pressing the button again reactivates the
counter.
This function is used to ascertain the time code or CTL
count of a particular recorded scene.
5. RESET button
This button resets the time data (CTL) on the counter
to “00:00:00:00”.
If this button is pressed when with the 7.TCG switch
positioned at [SET], time code and user bits data are
reset to 0, and real-time data is reset to the initial
value.
8
6. DISPLAY (counter display selector) switch
Indications of the time code, CTL and user bits on the
counter of the display window depend on the positions
of this switch and the 7.TCG switch.
Pressing the 4.HOLD button also displays Date/Time/
Time Zone.
UB:
TC:
CTL:
User bits, TIME, DATE or Time zone indicated.
Time code indicated.
CTL indicated.
7. TCG (time code selector) switch
This switch is used to specify the stepping mode for
the built-in time code generator.
F-RUN: Select this position to continuously advance
the time code independently of the P2 card
recording status.
Use this mode to synchronise the time code
with the time of day, or to externally lock the
time code.
SET:
Select this position to set the time code and/
or user bits.
R-RUN: Select this position to advance the time code
only during recording.
For spliced scenes recorded on P2 cards,
the sequence of time codes is unbroken.
8. CURSOR and SET buttons
Use these buttons to set the time code and user bits.
The four triangular buttons are the CURSOR buttons,
and the center rectangular one is the SET button.
For guidance in setting the time code and user bits,
see [Setting Time Data] (page 55).
Parts and their Functions：Time Code Section
23
AJ-HPX2000P(VQT1D27-1)E.book 24 ページ
２００７年７月３０日　月曜日　午後１時３１分
Warning and Status Display Functions
7. Display window
1
2
6
7
3
4
5
This window displays warnings, battery-remaining
level, sound volume, time data, and other information.
‹Note
When the battery is installed, the camera-recorder
indicates the data even if the power is turned off. To
turn off the data indications to keep the battery from
being discharged, specify OFF for the menu option P.
OFF LCD DISPLAY found in the TC/UB screen on the
MAIN OPERATION page.
8. Rear tally lamp
When the 2.BACK TALLY switch is set on [ON], the
rear tally lamp behaves in the same way as the back
tally lamp.
8
1. Back tally lamp
When the 2.BACK TALLY switch is set to [ON], the
lamp behaves in the same way as the front tally lamp
at the viewfinder.
2. BACK TALLY switch
This switch controls the action of the 1.back and 8.rear
tally lamps.
ON: Back and rear tally lamps enabled.
OFF: Back and rear tally lamps disabled.
3. WARNING lamp
This lamp starts blinking or lights up if something
unusual occurs in the memory.
4. USB lamp
Stays on when the camera-recorder is in USB mode.
5. Access lamp
Blinks when the camera-recorder is in recording or
playback mode or when a P2 card is being accessed,
or stays on when a recordable P2 card is inserted.
6. LIGHT button
Use this button to control illumination of the display
window.
Alternately pressing this button toggles illumination of
the 7.display window on or off.
24
Parts and their Functions：Warning and Status Display Functions
AJ-HPX2000P(VQT1D27-1)E.book 25 ページ
２００７年７月３０日　月曜日　午後１時３１分
Display Window Functions
P2 card/battery-remaining level indications
NDF SLAVE HOLD W HDV GPS
CTL VTCG TIME DATE P-iREC
OVER
OVER
0
10
h Y
minM
s D
18
frm
MEDIA E
BATT E
NDF SLAVE HOLD W HDV GPS
CTL VTCG TIME DATE P-iREC
F
30
F
40
OO
LOOP
OP-SLOT
13
-dB
Memory action status indication
Error Code Indication (for more information, see
[Warning System] (page 145))
OVER
OVER
0
10
MEDIA E
BATT E
minM
s D
18
frm
F
30
F
40
OO
LOOP
OP-SLOT
13
-dB
OVER
0
10
Audio channel level meter
When the MONITOR SELECT CH1/2 / CH3/4 switch is set to
[CH1/2], the meter indicates 1 and 2 as the audio channel
numbers, together with their audio levels. When the switch is
set to [CH3/4], the meter indicates 3 and 4 as the audio
channel numbers, together with their audio levels.
NDF SLAVE HOLD W HDV GPS
CTL VTCG TIME DATE P-iREC
OVER
24
Battery-remaining level indication bar
For a battery with a digital indicator (percentage indication), if the
remaining level of the battery is higher than 70%, all seven
segments up to the “F” position are lit.
When the remaining level falls below 70%, the segments go out
one-by-one for each drop of 10%. All seven segments can be set
to light up when the battery-remaining balance is 100%. To do so
select “100%” for the menu option BATT REMAIN FULL in the
<BATTERY/P2CARD> screen of the MAIN OPERATION page.
h Y
Parts and their Functions
Media-remaining space indication bar
The bar indicates the remaining free space on each P2 card,
using a seven-segment display.
Each segment can represent either three or five minutes of
remaining free space, depending on the value set through the
menu option CARD REMAIN/„. According to the set value, the
segments disappear one-by-one. The menu option CARD
REMAIN /„ can be found in the <BATTERY/P2CARD> screen
on the MAIN OPERATION page.
Mode indication
W:
Stays illuminated when the camera-recorder operates
in SD mode (480-59.94i, 576-50i) and is set to 16:9
mode.
HD:
Stays illuminated when the camera-recorder is in HD
mode (1080i, 720P).
DV:
Stays illuminated when the recording/playback format
is DV.
GPS: Stays illuminated when radio waves are not received
during GPS operation.
GPS : Stays illuminated when radio waves are received
during GPS operation.
P-REC: Stays illuminated when the PRE REC MODE is set to
ON, and blinks when recording is continued after the
recording tally lamp has gone out.
iREC: Remains illuminated during INTERVAL REC mode
recording, and blinks during a pause.
i:
Blinks when INTERVAL REC mode is selected.
24
Information indication
Stays illuminated in LOOP REC mode. For information
LOOP:
about the LOOP REC mode, see [Loop Recording]
(page 36).
OP-SLOT: Remains illuminated when a video encoder card is
operated in the optional slot.
h Y
MEDIA E
BATT E
minM
s D
18
frm
F
30
F
40
OO
LOOP
OP-SLOT
13
-dB
24
Time code indication
NDF: Stays illuminated when the time code is in non-drop
frame mode.
DF:
Stays illuminated when the time code is in drop frame
mode.
SLAVE: Stays illuminated when the time code is externally
locked.
HOLD: Stays illuminated when the time code generator/reader
value is frozen.
CTL: Stays illuminated when the DISPLAY switch is
positioned at [CTL] to display the CTL count.
TCG: Stays illuminated when the DISPLAY switch is
positioned at [TC] (or [UB]) to display the TC (or UB)
generator value.
Stays illuminated when the DISPLAY switch is positioned at
TC:
[TC] (or [UB]) to display the TC (or UB) reader value.
VTCG: Stays illuminated when the DISPLAY switch is
positioned at [UB] to display the VIUB generator value.
VTC: Stays illuminated when the DISPLAY switch is
positioned at [UB] to display the VIUB reader value.
TIME: Stays illuminated when the DISPLAY switch is positioned at
[UB] to display the real-time hour, minute and second.
DATE: Stays illuminated when the DISPLAY switch is
positioned at [UB] to display the real-time date.
No Indication:
The CTL, VTCG, TIME, and DATE stay off when the DISPLAY
switch is positioned at [UB] to display real time, time zone,
hour and minute.
Time count indication:
The time code, CTL, user bits and real time are shown.
‹Note
When the DISPLAY switch is positioned at UB, each press of the
HOLD button changes the indication through VTCG (VTC) > DATE
> TIME > No Indication (Time Zone) > TCG (TC), in that order.
Parts and their Functions：Display Window Functions
25
AJ-HPX2000P(VQT1D27-1)E.book 26 ページ
２００７年７月３０日　月曜日　午後１時３１分
Positions of time code-related switches and
information provided
Position of
DISPLAY switch
Position of TCG
switch
Information Item
SET
Time code
F-RUN or R-RUN
CTL
CTL
TC
Time code
F-RUN/SET/
R-RUN
UB
User bits or realtime, time zone
LCD Monitor
5. CURSOR and SET buttons
The four triangular buttons are the CURSOR buttons,
and the center rectangular one is the SET button.
They are used to select a thumbnail and manipulate
the thumbnail menu. For more information, see
[Manipulating Clips with Thumbnails] (page 109).
1
6. EXIT button
Used to return the display to the previous state when
the thumbnail menu or the property screen is displayed.
2
3
6
5
4
1. LCD monitor
The LCD monitor displays the video in the viewfinder.
Alternatively, it can show clips on the P2 card in a
thumbnail format.
In thumbnail display mode, clips can be edited or
deleted, or P2 cards can be formatted using the
4.THUMBNAIL MENU button and 5.CURSOR and
SET buttons.
2. OPEN button
Used to open the LCD monitor.
3. THUMBNAIL button
This button switches the content on the 1.LCD monitor
from the video in the viewfinder to clip thumbnails.
Another press switches them back to the video from
the viewfinder.
Note that this switchover is not performed during a
recording or playback.
4. THUMBNAIL MENU button
In thumbnail display mode, this button allows you to
manipulate the thumbnail menu (e.g., to delete clips).
26
Parts and their Functions：LCD Monitor
AJ-HPX2000P(VQT1D27-1)E.book 27 ページ
２００７年７月３０日　月曜日　午後１時３１分
Viewfinder
You can use any of the following viewfinders (extra-cost options) on AJ-HPX2000:
HD Viewfinders: AJ-HVF21G (selectable between 59.94 and 50 Hz)
SD Viewfinders: AJ-VF20WBP (59.94 Hz), AJ-VF15BP (59.94 Hz), AJ-VF20WBE (50 Hz), and AJ-VF15BE (50 Hz)
Mode
HD
SD
Video seen through
viewfinder
HD viewfinder
SD viewfinder
Video from camera
±
±* 1
Playback
±
±*1*2
Return video (HD-Y)
±
z
1394/HD-SDI input (HD)
±
±* 1
Video from camera
±
±
Playback
z
±
Return video (VBS)
z
±
1394/HD-SDI input (SD)
z
±
Parts and their Functions
Use the VF TYPE menu options on the SYSTEM MODE screen on the SYSTEM SETTING page to adjust the appropriate
settings for the viewfinder that will be used. We recommend using a HD viewfinder when the camera-recorder is used in
HD mode or an SD viewfinder when it is used in SD mode. Depending on the mode, some types of video are unavailable
as shown below (z: the finder shows nothing on a black screen).
Each viewfinder shows return signals and 1394 and SDI input signals in the recording formats assigned to the camerarecorder.
*1： Down-converted signals
*2： When the OUTPUT SEL (output signal selection) switch (page 19) of the camera-recorder is set to CAM, a black screen is displayed.
Parts and their Functions：Viewfinder
27
AJ-HPX2000P(VQT1D27-1)E.book 28 ページ
13
２００７年７月３０日　月曜日　午後１時３１分
14 11 7
9
9. Eyepiece
10
‹Note
12
Do not leave the eyepiece aimed at the sun. Doing so
may damage the internal components.
1
10. Diopter adjustment ring
8
4 5 2
3
6
1. Viewfinder (optional accessory)
During recording or playback, the viewfinder displays
the video image in monochrome. It also displays
warnings, messages, zebra patterns, markers (safety
zone and center markers), etc.
2. ZEBRA (zebra pattern) switch
This switch is used to display the zebra pattern in the
viewfinder.
ON: Zebra pattern displayed.
OFF: No zebra pattern displayed.
Use this to make adjustments in line with your diopter,
in order to obtain optimum clarity in the viewfinder
image.
The adjustable range of the viewfinder view angle is
shown in the following table.
Product Number
AJ-HVF21G
AJ-VF20WBP
AJ-VF20WBE
AJ-VF15BP
AJ-VF15BE
Adjustable range
–0.9 D to –4.4 D
+1.1 D to –3.4 D
For an eyepiece for presbyopia, consult the dealer.
11. Connecting plug
12. Locking ring
3. TALLY switch
Used to control the 7.front tally lamp.
13. Microphone holder
HIGH: Front tally lamp brightly illuminated.
OFF: Front tally lamp stays off.
LOW: Front tally lamp dimly illuminated.
14. Viewfinder stopper
4. PEAKING control
Used to attach or remove the viewfinder.
16
Used to adjust the outlines of the video image in the
viewfinder for easier focusing. This does not affect the
signal output from the camera.
15
5. CONTRAST control
Used to adjust the contrast of the video image in the
viewfinder. This does not affect the signal output from
the camera.
6. BRIGHT control
Used to adjust the brightness of the video image in the
viewfinder. This does not affect the signal output from
the camera.
7. Front tally lamp
This lamp is activated when the 3.TALLY switch is
positioned at [HIGH] or [LOW], and stays on during
recording. It also blinks in synchronisation with the
REC lamp in the viewfinder, and provides alerts.
Use the TALLY switch to change the intensity of the
lamp to ([HIGH] or [LOW]).
8. Back tally lamp
This lamp stays illuminated during shooting. It also
blinks in synchronisation with the REC lamp in the
viewfinder, and provides alerts.
When the lever is positioned at [OFF], the back tally
lamp is hidden.
28
Parts and their Functions：Viewfinder
15. Viewfinder left-right position anchoring ring
Used to adjust the side-to-side position of the
viewfinder.
16. Viewfinder front-back position anchoring
lever
Used to adjust the fore-and-aft position of the
viewfinder.
‹Note
For more information, see the instruction manual for
the viewfinder.
AJ-HPX2000P(VQT1D27-1)E.book 29 ページ
２００７年７月３０日　月曜日　午後１時３１分
Recording and Playback
P2 Cards
3
Inserting P2 Cards
Insert a P2 card into the P2 card slot until the EJECT
button pops up.
‹Note
1
Recording and Playback
When using the camera-recorder for the first time, be sure
to set the time data beforehand. On how the time data is
set, see [Setting Time Data] (page 55).
EJECT button
Turn on the POWER switch.
The card must be
inserted with the
logo right way
up.
4
Tilt up the popped-up EJECT button, to lock-in the P2
card.
POWER: ON
2
P2 CARD
ACCESS
LED
While pressing down the slide lock button, slide the
slide-out door to the left.
The door opens.
Slide lock
button
5
Slide-out door
6
Insert a P2 card into camera-recorder. The P2 CARD
ACCESS LED for the appropriate slot indicates the
status of the P2 card.
For how the P2 card status is indicated, see [P2
CARD ACCESS LED and status of P2 cards] (page
30).
Close the slide-out door.
‹Note
Do not leave the slide-out door open when moving
camera-recorder.
Recording and Playback：P2 Cards
29
AJ-HPX2000P(VQT1D27-1)E.book 30 ページ
２００７年７月３０日　月曜日　午後１時３１分
Removing P2 Cards
1
2
3
While pressing down the slide lock button, move the
slide-out door to the left.
The door opens.
Tilt down the EJECT button.
Then, depress the EJECT button to release the P2
card so that you can remove it.
<For Your Information>
The P2 CARD ACCESS LEDs may be set to stay off using
the menu option ACCESS LED. This option can be found
on the <OPTION MODE> screen, which is accessible from
the SYSTEM SETTING page.
To Prevent Accidental Erasure of P2 Card Content
To prevent the content of a P2 card being accidentally
erased, position the write-protect switch on the P2 card at
[Protect].
‹Note
Write-protect switchover can be performed while the card
is being accessed (during recording or playback), but does
not take effect until access to the card ceases.
Tilt down the EJECT
button.
Depress the tilted-down
EJECT button to release
the P2 card.
Protect
‹Notes
z After insertion, do not remove the P2 card while it is
being accessed or recognized (the P2 card access LED
flashes orange), or the P2 card may fail. If your unit is not
set to turn on the P2 CARD ACCESS LED, before
removing the card ensure that pre-recording and/or
voice memo recording have finished (the P-REC
indication has stopped blinking and the V mark or VOICE
REC indication on the viewfinder screen has turned off)
after stopping recording or playback.
z If a P2 card being accessed is removed, the viewfinder
displays “TURN POWER OFF” and camera-recorder
gives a warning using an alarm and the WARNING LED.
In addition, all P2 CARD ACCESS LEDs blink rapidly in
green. If this is the case, turn the power off. For more
information on warning indications, see [Warning
System] (page 145).
z If a P2 card is removed while being accessed, clips on it
may become irregular. Check the clips and restore them
if required. For more information about how to restore
clips, see [Restoring Clips] (page 117).
z If a P2 card being formatted is removed, it may be not be
formatted properly. In this case, the viewfinder displays
“TURN POWER OFF”. If this message appears, turn off the
power, then restart camera-recorder to reformat the card.
z If a P2 card is inserted while another P2 card is being
played back, the inserted P2 card is not recognised and
the P2 CARD ACCESS LED for that card does not come
on. Card recognition starts when the playback ends.
z Even if a P2 card is inserted in a vacant slot while
recording, the media may not be recognized during the
following times:
Š Immediately after pre-recording
Š Immediately before or after switching from the first
P2 card for recording to the second one, when data
are recorded on multiple cards spanning from one to
the other (hot-swap recording)
30
Recording and Playback：P2 Cards
Write-protect switch
P2 CARD ACCESS LED and status of P2 cards
P2 CARD
ACCESS LED
MODE CHECK
indication*
Stays on in
green
Stays on in
orange
ACTIVE
Blinks in orange
ACCESSING
Blinks rapidly in
orange
Blinks slowly in
green
INFO READING
Stays off
ACTIVE
Status of P2 Card
Writing and reading
enabled
Writing and reading
enabled. The card is
recordable (loop recording
also enabled).
Writing or reading being
performed.
Recognaising the P2 card.
FULL
The P2 card has no free
space. Only reading is
enabled.
PROTECTED
The write-protect switch on
the P2 card is positioned at
[PROTECT]. Only reading
is enabled.
NOT
The card is not supported
SUPPORTED
by your unit. Replace the
card.
FORMAT ERROR The P2 card is not properly
formatted. Reformat the
card.
NO CARD
No P2 card is inserted.
* The mode check indication is shown in the viewfinder. For more
information, see [Viewfinder Status Indication Layout] (page 70).
The access LED located on the display window blinks
when reading or writing data from or to any of the P2 cards
inserted in Slots 1 - 5 or stays illuminated when any of the
cards are recordable. It stays off when none of the P2
cards are recordable.
AJ-HPX2000P(VQT1D27-1)E.book 31 ページ
２００７年７月３０日　月曜日　午後１時３１分
How to handle data recorded on P2 cards
The P2 card is a semiconductor memory card that is used as the recording medium in the professional video production
and broadcasting devices that make up the DVCPRO P2 Series.
z Since data recorded in the DVCPRO P2 format or AVCIntra (option) are in a file format, they have excellent
compatibility with PCs. The file structure is a unique
format, which in addition to video and audio data in MXF
files contains various other important information items.
The folder structure links the data as shown on the right.
LASTCLIP.TXT*
All these folders are required.
* This is the file in which the
information on the final clip
that was recorded with the P2
device is written.
Recording and Playback
Changing or deleting just one information component
could make it impossible to recognize the data as P2
data or use the card in a P2 device
Device:\
CONTENTS
AUDIO
CLIP
ICON
PROXY
VIDEO
VOICE
z When transferring data from a P2 card to a PC, or when rewriting data saved on a PC to a P2 card, to prevent data loss
be sure to use the special P2 Viewer software. Download it from the following website.
(Compatible with the Windows Vista, Windows XP and Windows 2000 operating systems.)
https://eww.pavc.panasonic.co.jp/pro-av/
z When using regular IT tools such as Microsoft Windows Explorer or Apple Finder to transfer data to a PC, follow the
instructions below. However, be sure to use the P2 Viewer when returning data to a P2 card.
Š Transfer the corresponding CONTENTS folder and LASTCLIP.TXT file together as a set.
Do not transfer individual files from the CONTENTS folder.
When copying, copy the LASTCLIP.TXT file at the same time as the CONTENTS folder.
Š When transferring multiple P2 cards to a PC, create a folder for each P2 card to prevent clips with the same name from
being overwritten.
Š Do not delete data from the P2 card.
Š Before using a P2 card, be sure to format it with a P2 device.
z Microsoft and Windows are registered trademarks of the Microsoft Corporation in the USA and other countries.
z Apple and Macintosh are registered trademarks of Apple, Inc., in the USA and other countries.
Recording and Playback：How to handle data recorded on P2 cards
31
AJ-HPX2000P(VQT1D27-1)E.book 32 ページ
２００７年７月３０日　月曜日　午後１時３１分
Basic Procedures
This section describes the basic procedure for shooting
and recording. Before you embark on a shoot, pre-inspect
your system to ensure that it works properly.
Note that the recording order is retained even if the power
is turned off. When the power is next turned on, the last
card written before powering-down will be the target card.
* For directions on inspecting your memory card camera-recorder, see
[Inspections Before Shooting] (page 138).
‹Note
When “SLOT1” is selected for the menu option P.ON REC
SLOT SEL, recording starts from the P2 card inserted in
the smallest slot number, after the power is turned on.
This option is found in the REC FUNCTION screen on the
SYSTEM SETTING page.
Battery Set-up to P2 card Insertion
1
2
3
Insert a charged battery pack.
Turn on the POWER switch and ensure that more
than four segments of the battery-remaining amount
indication bar are illuminated.
z If the number of illuminated segments is fewer than
five, first check the battery placement. If placement
is not the problem, replace the battery with a fully
charged one.
Insert a P2 card and ensure that the P2 CARD
ACCESS LED stays on in orange or green. Then,
close the slide-out door.
When more than one P2 card slot contains a P2 card,
the card in the slot with the lowest number is used
first. However, regardless of slot number, a P2 card
inserted later will not be accessed until the other
cards have been used.
Example:
If all five slots contain P2 cards, the cards are used in
order of slot numbers 1>2>3>4>5. However, if
the P2 card in Slot 1 is removed and then re-inserted,
the cards will be used in the following order:
2>3>4>5>1.
Switch Setting
When a battery and P2 cards are installed, set the
switches as detailed below, before starting to use your unit.
Setting the switches before shooting and recording
USER MAIN:
AUDIO SELECT
This switch is factory-set to
CH 1/CH 2:
perform slot selection.
AUTO
TCG:
F-RUN or
R-RUN
OUTPUT:
CAM/AUTO KNEE ON
Iris: Auto
GAIN:
Normally, this should be set to 0 dB.
If conditions are too dark, an
appropriate gain level should be set.
‹Notes
2
2
1
3
5 4 3 2 1
32
Recording and Playback：Basic Procedures
z The USER MAIN button is factory-set to perform the slot
selection function, which selects the target card from
among several P2 cards.
When a new target P2 card is selected, the appropriate
slot number appears on the P2 card remaining amount
indicator in the viewfinder.
For more information about the indications in the
viewfinder, see [Viewfinder Status Indication Layout]
(page 70).
z SLOT SEL function is enabled during recording. Until the
P2 card on which images are recorded has been switched
completely, [SLOT SEL] blinks on the viewfinder. If the
[SLOT SEL] operation cannot be executed for any reason,
for instance immediately after starting recording or
switching the P2 card on which images are recorded,
[SLOT SEL INVALID] is displayed.
AJ-HPX2000P(VQT1D27-1)E.book 33 ページ
２００７年７月３０日　月曜日　午後１時３１分
Shooting
White/Black balance adjustment to recording completion
White/Black Balance Adjustment to Recording Completion
For shooting, follow the steps below.
1 Select a filter according to light conditions.
2A When the white balance is saved:
Position the WHITE BAL switch to [A] or [B].
you have no time to adjust the white balance:
Position the WHITE BAL switch to [PRST].
This adjusts the white balance against the filter
according to the position of the FILTER control.
3
1
4 5, 6 2C
Recording and Playback
2B When the white or black balance is not saved and
2A, B, C
2C If the white balance is adjusted on the spot:
Position the WHITE BAL switch to [A] or [B] and shoot
a white test subject so that it appears at the center of
the screen. Then, follow the steps below to adjust the
white balance.
1. Press the AUTO W/B BAL switch toward [AWB] to
adjust the white balance.
2. Press the AUTO W/B BAL switch toward [ABB] to
adjust the black balance.
3. Press the AUTO W/B BAL switch toward [AWB] to
adjust the white balance again.
For directions on making adjustments, see [Adjusting
the White Balance] (page 45) and [Adjusting the Black
Balance] (page 48).
3
4
5
6
Point the camera at your subject to adjust the focus,
and zoom.
To use the electronic shutter, set the shutter speed
and operation mode.
For more information, see [Setting the Electronic
Shutter] (page 49).
Press either the REC START/STOP button, REC
button on the handle or VTR button at the lens to start
recording.
During recording, the REC lamp in the viewfinder
stays illuminated.
To stop recording, press either the REC START/STOP
button, REC button on the handle or VTR button at
the lens.
The REC lamp in the viewfinder goes out.
Operation Buttons
During recording, all operation buttons (REW, FF, PLAY/
PAUSE, STOP) are disabled.
Recording and Playback：Basic Procedures
33
AJ-HPX2000P(VQT1D27-1)E.book 34 ページ
２００７年７月３０日　月曜日　午後１時３１分
Normal Recording
REC START/STOP button, REC button on the handle or VTR button at the lens starts recording of video and sound on the
P2 card. A cluster of data that consists of video and sound generated through a shooting action, together with such added
information as meta data, is called a “clip”.
Normal Recording and Native Recording
In the unit, the camera’s recording method is selectable
between the Native recording method with the frame rate
unchanged and the normal recording method pulling the
frame rate down to 59.94 or 50 frames.
Normal recording (Pull-down recording)
Images at 24P (23.98P: referred to as 24P) are pulled down
in 2:3 mode. Images at 30P (29.97P: referred to as 30P) are
pulled down in 2:2 mode and recorded as 59.94i or 59.94P
(referred to as 60i and 60P). Images at 25P are recorded as
50i or 50P with 2:2 pulled down. 1080i and 480i support
24PA (2:3:3:2 Advanced Pull down) as well.
AVC-Intra (optional) does not support pull-down recording.
This recording method extracts and records effective frames
at the frame rates of the AVC-Intra recording (optional) in
1080i, and DVCPRO HD and AVC-Intra recording (optional)
in 720P.
For 720P, it is possible to record images where the length is
2 to 2.5 times longer than the pull-down recording.
Even in Native recording, the rate for outputting camera
images and playback images is 59.54 or 50 frames that are
pulled down.
Example of 1080-24PN (Native)
Camera
recording
Example of 24P Over 60i
Camera
recording
Native recoding
A
B
C
D
2:3 pull down Ao Ae Bo Be Bo Ce Co De Do De
A
B
C
D
Recording
A
C
B
D
2:3 pull down
Ao Ae Bo Be Bo Ce Co De Do De
= recording
Example of 720-24PN (Native)
Example of 720P 24P Over 60P
Camera
recording
2:3 pull down
= recording
A
A
B
B
Camera
recording
C
B
C
Effective frames
34
Recording and Playback：Normal Recording
2:3 pull down
D
D
A
D
Effective frame
Recording
B
A
A
B
B
C
B
D
C
C
D
D
D
AJ-HPX2000P(VQT1D27-1)E.book 35 ページ
２００７年７月３０日　月曜日　午後１時３１分
‹Notes
REC START/STOP button
Mode check button
Recording and Playback
z The recording will start from the top frame of a five-frame
cycle for 24P/24PA recording, a four-frame cycle for 24P
native recording or a two-frame cycle for 30P and 25P of
720P, respectively. Therefore, the time code may be
discontinued when recording clips continuously in
different modes during the recording cycle.
z Even if a P2 card has just been inserted, or the power
has been just turned on, you can start recording using
the internal memory of camera-recorder. In this case,
recording cannot be stopped until the P2 card is
recognised. If the inserted card is not recognized as a
recordable P2 card, the record in internal memory is
instantly discarded, and the message “CANNOT REC”
message is displayed on the viewfinder. Press the
MODE CHECK button to check P2 card status
(displayed in viewfinder).
PRE-RECORDING function
The internal memory of your unit is capable of storing
several seconds of video and sound data coming from the
camera. This capability can be used to record video and
sound several seconds before either the REC START/
STOP button, REC button on the handle or VTR button at
the lens is pressed to start recording. To use this function,
the menu option PRE REC MODE must be set to “ON”.
The storage duration of the internal memory can be set
from the menu option PRE REC TIME. PRE REC MODE
and PRE REC TIME menu options can be found in the
REC FUNCTION screen on the SYSTEM SETTING page.
The function of the menu option PRE REC MODE may be
assigned to a desired user button by using any one of the
menu options USER MAIN SW, USER1 SW, or USER2 SW.
These options can be found in the USER SW screen,
which is accessible from the CAM OPERATION page.
These are the options for PRE REC TIME.
1-15 SEC (for DVCPRO 25M or DV)
1-8 SEC (for DVCPRO HD or 50M):
Specify the duration for which data may be recorded
before either the REC START/STOP button, REC button
on the handle or VTR button at the lens is pressed.
REC/PAUSE
REC start
(Recording starts) (Recording pauses)
Real-time video
Real-time sound
A
B
C
Specified PREREC duration
Content on P2 card Previous clip
A
B
‹Notes
z “P-REC” indication when the “PRE REC MODE”
menu option is set to OFF
After recording is stopped, the “P-REC” indication
remains displayed until all video and sound are recorded
on the P2 card, even if the PRE REC MODE menu
option is set to OFF. For details of the [P-REC] display,
refer to [30.INTERVAL REC/PRE RECORDING
indication/ SD memory card remaining free space (page
75)] in [Viewfinder Status Indication Layout].
z Immediately after the power is turned on, the menu
option PRE REC TIME is selected and/or the storage
duration is changed, the content in internal memory will
be undefined. In these situations, the video or sound will
not be recorded for the duration specified, even if either
the REC START/STOP button, REC button on the
handle or VTR button at the lens is pressed to start
recording.
z A P2 card that has been just inserted takes some time to
recognise. In this situation, video or sound may not be
recorded for the duration specified, even if either the
REC START/STOP button, REC button on the handle, or
VTR button at the lens is pressed to start a recording.
z The internal memory does not store video or sound
when a playback or recording review is being performed.
For this reason, no video or sound can be recorded
during such operation.
z When recording starts, the time code indication (TCG)
may be shown as “HOLD” until the P2 card has been
recognised.
z During recording of IEEE1394 input or INTERVAL REC
operation, PRE RECORDING is not available.
New clip
Recording and Playback：PRE-RECORDING function
35
AJ-HPX2000P(VQT1D27-1)E.book 36 ページ
２００７年７月３０日　月曜日　午後１時３１分
Loop Recording
When two or more P2 card slots contain cards, this
function allows the target P2 card to be switched in order.
Even when the free space of a P2 card is used up, this
function continues recording while erasing existing data.
To use this function, the menu option LOOP REC MODE
must be set to “ON” The option LOOP REC MODE can be
found in the <REC FUNCTION> screen on the SYSTEM
SETTING page.
Card1
Before loop
recording starts
No content
Card2
Card3
Content
recorded
Recording starts
Recording
Cycle 1
Recording
Cycle 2
A
D
B
C
B
C
Data are recorded by connecting the unrecorded sections on
the P2 card (in the sequence of A to B to C). When the
remaining recording capacity is less than 30 seconds, A is
deleted, and data are record on C up to FULL (remaining
memory capacity is 0), and then new data are recorded (D).
‹Notes
z When the loop recording capability is used, each P2
card must have at least one minute of free space.
z During loop recording, the P2 CARD ACCESS LEDs for
all target P2 cards illuminate in orange. Note that if any
of the target P2 card is removed, loop recording stops.
z When the menu option LOOP REC MODE is set to ON,
the viewfinder and display window both show “LOOP”.
However, when only one card is inserted, or when each
card has less than one minute of free space, the loop
recording capability does not work, even if the option
LOOP REC MODE is set to ON. If this is the case, the
indication “LOOP” flashes in the viewfinder and on the
display window.
z When the menu option LOOP REC MODE is set to ON,
the P2 card remaining free space indicates the minimum
guaranteed recording time. The minimum guaranteed
recording time means the guaranteed time or length of
recorded data when LOOP REC stops immediately after
deleting old data.
z During recording of IEEE1394 input or INTERVAL REC
operation, LOOP REC is not available.
Terminating the Loop Recording Mode
You can terminate the loop recording mode by either:
z Turning off the POWER switch of camera-recorder; or
z Setting the menu option LOOP REC MODE to “OFF”.
Interval Recording
It is possible to record in intervals of one frame as the
shortest length by using the internal memory of the unit.
To use this option, open the REC FUNCTION screen from
the SYSTEM SETTING page, and set the interval recording
mode, REC TIME, PAUSE TIME and TAKE TOTAL TIME for
the menu option INTERVAL REC MODE. When the settings
are finalized, TOTAL REC TIME needed on the P2 card is
automatically calculated and displayed.
The following are the options for INTERVAL REC MODE:
OFF:
No interval recording performed.
ON:
Interval recording performed.
ONE SHOT:
Performs “one-shot” recording for the duration
specified under the REC TIME option by pressing
either the REC START/STOP button, REC button on
the handle, or VTR button at the lens.
‹Notes
z When executing interval recording, data cannot be output
with IEEE1394. When the 1394 CONTROL is set to
[BOTH], it is also impossible to control external devices.
z The shortest recording time, stand-by time, and the set
value of the cut-off unit frame number*1 may vary with
the recording method as follows.
Recording method
60i, 50i
30P, 25P (Pull down)
30PN, 25PN (Native)
24P, 24PA (Pull down)
24PN (Native)
60P, 50P
720P
30P, 25P (Pull down)
30PN, 25PN (Native)
24P (Pull down)
24PN (Native)
SD MODE 60i, 50i
30P, 25P (Pull down)
24P, 24PA (Pull down)
Unit frame
number
1080i
1 frame
5 frames
4 frames
1 frame
2 frames
5 frames
4 frames
1 frame
5 frames
*1 For instance, interval recording is at every 24 frames
since frames are cut off every two frames even if the
REC TIME is set to 1 second (= 25 frames) in the 25PN
mode of 720P.
36
Recording and Playback：Loop Recording
AJ-HPX2000P(VQT1D27-1)E.book 37 ページ
1
2
3
２００７年７月３０日　月曜日　午後１時３１分
Shooting procedures when INTERVAL REC is ON
Shooting procedures for the ONE SHOT mode of
INTERVAL REC
Following basic operations of shooting and recording
according to “Basic Procedures”, lock the camera
securely.
After setting the INTERVAL REC mode, follow these steps:
Check that “i” is blinking in the display, and that the
interval recording mode is selected.
Time Axis
iREC start
Real-time video
Sound
t1
t1
t1
t1
t1
1
2
3
N-1
N
t2
t2
t2
REC TIME
(Recording
time=t1)
PAUSE TIME
(Recording
time=t2)
TAKE TOTAL TIME
(Time necessary for shooting)
Content on P2 card
1
2
3
N-1 N
2
3
4
Following basic operations of shooting and recording
according to “Basic Procedures”, lock the camera
securely.
Press either the REC START/STOP button, REC
button on the handle, or VTR button at the lens.
The AJ-HPX2000 automatically goes into ONE SHOT
pause mode after the specified REC TIME.
Recording and Playback
Press either REC START/STOP button, REC button on
the handle, or VTR button at the lens.
Interval recording starts. Recording automatically stops
after the specified TAKE TOTAL TIME, and the entire
recording is generated as one clip.
“i” starts blinking in the display when the internal
recording mode is selected. “iREC” illuminates after
recording starts. “iREC” blinks during a pause.
The display in the viewfinder is the same as that in the
display window.
The tally lamp illuminates during recording. If PAUSE
TIME is set at 2 minutes or longer, the tally lamp
illuminates at 5-second intervals to indicate that it is
paused. The tally lamp also blinks 3 seconds before
recording starts.
1
Performs recording for the duration specified under
the REC TIME option by pressing either the REC
START/STOP button, REC button on the handle, or
VTR button at the lens, and returns to ONE SHOT
pause mode.
Press the STOP button.
The video and sound stored in memory are generated
as one clip.
iREC
start
Real-time video
Sound
Time
Axis
iREC
start
A
B
t
t
Content on P2 card Previous clip A B
STOP
button
REC TIME
(Recording
time=t)
One clip
One clip
TOTAL REC TIME
(Recording time on P2 card)
For continuous recording
Press either the REC START/STOP button, REC button on
the handle, or VTR button at the lens, again. Interval
recording resumes.
To stop recording
Press the STOP button. Recording stops. Then, the camera
accesses the P2 card to record the video stored in memory
before recording stops. The record from the beginning of the
interval recording to the moment of pressing the STOP
button is generated as one clip.
To check the previous recording during a pause
Press the RET button at the lens to put the AJ-HPX2000 into
REC REVIEW mode. ONE SHOT operation continues after
the REC REVIEW.
To divide clips or to change the P2 card used for
recording
Even during ONE SHOT mode, clips will not be generated
on the P2 card until the STOP button is pressed. Press the
STOP button, and stop ONE SHOT mode operation.
To stop the ONE SHOT mode of INTERVAL REC
z Set the menu option INTERVAL REC MODE to “OFF”.
To stop the Interval recording mode
z Setting the menu option INTERVAL REC MODE to “OFF”.
When INTERVAL REC HOLD is set to [OFF], the mode
returns to ordinary recording mode if the POWER switch of
the unit is turned OFF.
If INTERVAL REC HOLD is set to [ON], the interval recording mode will not change even if the POWER switch is
turned OFF.
When INTERVAL REC HOLD is set to [OFF], the mode
returns to ordinary recording mode if the POWER switch of
the unit is turned OFF.
If INTERVAL REC HOLD is set to [ON], the interval recording mode will not change even if the POWER switch is
turned OFF.
Recording and Playback：Interval Recording
37
AJ-HPX2000P(VQT1D27-1)E.book 38 ページ
２００７年７月３０日　月曜日　午後１時３１分
During INTERVAL REC mode general notes
z Sound
By selecting ON/OFF for the menu option AUDIO REC in
the REC FUNCTION screen, it is possible to specify
whether or not sound will be recorded during interval
recording.
z Record/Playback Buttons
During interval recording, all operation buttons other than
STOP (REW, FF, PLAY/PAUSE) are disabled. However,
during a pause in ONE SHOT mode, REC REVIEW can
be executed with the RET button on the lens.
z If the power is turned off during recording
If the AJ-HPX2000 is turned off during interval recording,
the video stored in memory is recorded onto the P2 card,
and then the camera automatically turns off.
z To start emergency recording during a pause
By setting the REC button to USER MAIN or USER1/
USER2, emergency recording can be performed during
a pause by pressing the button. Pause time
measurement continues after such emergency
recording.
◆ Note
However, this function does not work when the recording
signals are in 24P, 24PA or 24PN (Native) mode.
z Time code indication
When recording starts, the time code (TCG) display may
not update until the unit recognizes the P2 card.
z Removing cards
During INTERVAL REC mode operation, the P2 card
access LED for the inserted P2 card blinks in orange. Do
not remove the P2 card during this status. If you should
remove the card accidentally, restore clips. However, even
if the clips are restored, the last 3 to 4 seconds up to a
maximum of about 10 seconds of the recording may be
lost if the P2 card is removed while recording onto multiple
P2 cards. For more information on how to fix clips, see
[Restoring Clips] (page 117).
z Operation mode
INTERVAL REC does not work when “1394” is selected for
the menu option REC SIGNAL. The menu option REC
SIGNAL is found in the SYSTEM MODE screen on the
SYSTEM SETTING page. For more information, see
[Recording Setting and Operation Mode] (page 41).
38
Recording and Playback：Interval Recording
z Thumbnail operation and menu operation
Thumbnail operation does not work during the
INTERVAL REC mode operation. Press the STOP
button before operating thumbnails.
When standby time is set to 1 minute or more or when in
ONE SHOT mode, the following restrictions apply even
though the menu can be operated during stand-by
mode.
Š The respective settings or SYSTEM MODE, REC
SIGNAL, CAMERA MODE, REC MODE, 25M REC
CH SEL, and PC MODE cannot be changed.
Š The respective settings for SD CARD READ/WRITE,
LENS FILE CARD R/W, READ USER DATA, and
READ FACTORY DATA cannot be executed.
AJ-HPX2000P(VQT1D27-1)E.book 39 ページ
２００７年７月３０日　月曜日　午後１時３１分
Recording Review Function
Recording starts
Recording and Playback
When recording is paused, pressing the RET button
automatically locates the last two seconds of video just
recorded, and the viewfinder provides video playback.
After playback, the camera-recorder is again ready to start
recording.
The picture location/playback duration can be increased to
up to 10 seconds by continuously pressing the RET button.
For short clips, however, when the start of a clip is located,
continuously pressing the RET button does not play back
any clips before that clip.
The function of the RET button may be assigned to a
desired user button by using one of the menu options
USER MAIN SW, USER1 SW or USER2 SW. These
options can be found in the <USER SW> screen on the
CAM OPERATION page.
When recording is paused, pressing the PLAY/PAUSE
button plays back the last recorded clip, from the
beginning. After completion of playback, the camerarecorder enters the stopped state.
Recording pauses
2-10 Seconds
Recorded clip
The PLAY button plays back
the clip from the beginning.
The RET button
puts the camerarecorder into REC
REVIEW mode.
‹Notes
z Set the menu option RET SW (found on the SW MODE
page for CAM OPERATION) to R. REVIEW.
z When the OUTPUT SEL switch on the side panel is
positioned at [MEM], the video for REC REVIEW is
output from the video output connectors (VIDEO OUT
and MON OUT connectors), and also to the viewfinder.
Note that when a backup device is connected to back up
the video the pictures for REC REVIEW are backed up.
Recording and Playback：Recording Review Function
39
AJ-HPX2000P(VQT1D27-1)E.book 40 ページ
２００７年７月３０日　月曜日　午後１時３１分
Normal and Variable Speed Playback
The PLAY/PAUSE button provides monochrome playback
through the viewfinder and color playback on the LCD
monitor. A color video monitor connected to the VIDEO
OUT or MON OUT connector of camera-recorder also
provides color playback.
The VIDEO OUT connector outputs an SDI playback (to
view the playback, the OUTPUT SEL switch on the side
panel must be positioned to [MEM]).
Variable speed playback
The FF and REW buttons provide 32a and 4a fast
playbacks and fast reverse playbacks.
When playback is paused, the FF button locates the
beginning of the next clip while maintaining the pause
mode.
When playback is paused, the REW button locates the
beginning of the current clip while maintaining the pause
mode.
‹Notes
z The camera-recorder cannot play back clips where the
system mode differs. If this is the case, set the system
mode of camera-recorder to the format of the desired
clip before playing it back.
z When a P2 card has been just removed or inserted, or
when the power has been just turned on for playback, it
may take some time for camera-recorder to read clip
information. If this is the case, the viewfinder displays
“UPDATING”. If data is played back when the P2 card is
being recognized, the message “CANNOT PLAY” will be
displayed.
z If a P2 card is inserted while another P2 card is being
played back, the clips on the inserted P2 card will not be
played back. A P2 card inserted during playback will be
recognised after playback ends.
z If you perform variable speed playback on a clip split
across more than one P2 card, sound may disappear for
a moment. This is not a fault.
Text Memo Function
Text memos are time-coded thumbnails added to any
video point when a clip is being recorded or played back.
The Text Memo button adds text memo information at the
appropriate point. You can edit added text memos using
the P2 viewer.
Through a thumbnail display, you can choose and play
back the text memo point or copy any portion. For more
information, see [Text Memo] (page 115).
‹Notes
z One clip can have up to 100 text memos.
z Text memos can also be recorded when the LCD monitor
is in thumbnail mode. In this case, the text memo is added
to the position on the clip where the cursor is set (normally
at the beginning) only.
z Text memos cannot be recorded when the color bar is
output or the unit is in LOOP REC mode and INTERVAL
REC mode.
z For a clip with voice memos added through the AJSPX800 or any other camera-recorder, you can record
up to 100 text and voice memos in combination. For
information about voice memos, see the instruction
manual for the AJ-SPX800.
Text MEMO button
40
Recording and Playback：Normal and Variable Speed Playback
AJ-HPX2000P(VQT1D27-1)E.book 41 ページ
２００７年７月３０日　月曜日　午後１時３１分
Shot Mark Function
A shot mark is added to the thumbnail of a clip to
distinguish that clip from others. With the LCD monitor,
only clips that have shot marks can be viewed and/or
played back.
Adding Shot Marks
‹Notes
z When the color bar is output or the unit is in LOOP REC
mode and INTERVAL REC mode, it is impossible to add/
delete shot marks.
z It is impossible to add shot marks to incomplete clips
(refer page 111).
z For clips recorded on plural P2 cards or clips split on a
P2 card (refer to Notes on page 10), a shot mark is added
to the top clip only.
Recording and Playback
To add a shot mark during recording, press the SHOT
MARK button. The viewfinder displays “MARK ON” and
adds a shot mark to the thumbnail of the appropriate clip.
Another press of the button erases the shot mark.
Shot marks may also be added or erased using clip
thumbnails. For more information, see [Shot Mark] (page
115).
SHOT MARK
button
Recording Setting and Operation Mode
AJ-HPX2000 recording mode works according to the priorities outlined in the following table, relative to the setting of the
menus and switches.
Menu switches related to system/recording
Functional
operation mode
PC MODE
REC
SIGNAL
INTERVAL
REC MODE
LOOP REC
MODE
Buttons
PRE REC
MODE
Recording a
Text Memo
Shot Mark
Proxy
recording
(optional)
USB device
USB
DEVICE
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
USB host
USB HOST
Disabled
Disabled
Disabled
Disabled
Enabled
Enabled
Disabled
1394
Disabled
Disabled
Disabled
Enabled
Enabled
Disabled
ON or
ONE SHOT
Disabled
Disabled
Disabled
Disabled
Disabled
ON
Enabled
1s - 8s/15s
Disabled
Disabled
Disabled
OFF
Enabled
1s - 8s/15s
Enabled*
Enabled*
Enabled
1394 Input record
INTERVAL REC
LOOP REC
OFF
Normal Recording
*
CAMERA
VIDEO
SDI (optional) OFF
Disabled for color bars
Recording and Playback：Shot Mark Function
41
AJ-HPX2000P(VQT1D27-1)E.book 42 ページ
２００７年７月３０日　月曜日　午後１時３１分
Adjustments and Settings for Recording
Multi Format
Video system and Recording format
The unit employs a progressive scan (full pixel reading) CCD system.
With combinations of the SYSTEM MODE and CAMERA MODE menu options on the SYSTEM MODE screen on the
SYSTEM SETTING menu, you can select an image system from among 23 types*1 including HD (1080i, 720P) and SD
formats.
In any image system, the CCD operates in progressive (non-interlace) scan mode. In addition, through the REC SIGNAL
menu option, you can record external input signals such as 1394 and SDI (optional).
*1 When the AVC-Intra codec board (AJ-YBX200G, optional) is installed
Selecting a recording signal and method
SYSTEM MODE menu option
Allows you to select a combination of system
frequency (59.94 Hz or 50 Hz) and signaling system
(1080i, 720P, 480i, or 576i). When a change has been
made to the SYSTEM MODE option, the viewfinder
indicates “TURN POWER OFF.” Then, turn the
POWER switch of the camera-recorder off and wait
five seconds or longer before turning the camerarecorder on again.
REC SIGNAL menu option
CAM
Signals from the camera are recorded. The
CAMERA MODE option allows you to select
a camera operation mode (frame mode).
1394
Signals from the DVCPRO/DV connector are
recorded. For information about the 1394
connection, see [Connection through the
DVCPRO/DV connector] (page 129).
VIDEO Signals from the GENLOCK IN connector
are recorded when the camera-recorder is in
SD mode (480-59.94i or 576-50i).
SDI
Signals from the SDI IN connector are
recorded (when the AJ-YA350AG, an SDI IN
option, is installed).
‹Notes
z When VIDEO is selected, video may produce noise
if the signals from GENLOCK IN are non-standard
signals.
z When SDI is selected, the time code or UMID
superimposed on SDI input signals are not
recorded.
CAMERA MODE menu option
Used to select a camera operation mode when the
option REC SIGNAL is set to CAM. For information
about the behavior for each setting, see [Recording
formats and output connector signal formats] (page 43).
‹Note
When the camera has been switched from 60i, 60P, or
30P to 24P or 24PA, video may produce noise for a
moment because the pull-down five-frame cycle is
adjusted. This is not an abnormal condition.
42
Adjustments and Settings for Recording : Multi Format
REC MODE menu option
Used to select the recording mode
For HD mode (1080i, 720P)
DVCPRO HD
The DVCPRO HD format is used to record
video. The pull-down recording is for the 30P,
24P, 24PA and 25P modes.
DVC HD (N)
The native mode used to record video in
DVCPRO HD format. (Only for 720P)
AVC-I 50（when the AVC-Intra codec board is
installed）
The AVC-Intra50 format is used to record
video. The native recording is applied to the
30P, 24P and 25P modes.
AVC-I 100（when AVC-Intra codec board is installed)）
The AVC-Intra100 format is used to record
video. The native recording format applies to
the 30P, 24P and 25P modes.
‹Note
When AVC-Intra 50 or AVC-Intra 100 is selected, the
24PA mode cannot be selected.
For SD mode (480i, 576i)
DVCPRO50
The DVCPRO50 format (50 Mbps) is used to
record video.
DVCPRO
The DVCPRO format (25 Mbps) is used to
record video.
DV
The DV format is used to record video.
ASPECT menu option
Used to select the aspect ratio for the SD mode (480i
or 576i)
The 16:9 aspect ratio is used to record video.
16：9
The 4:3 aspect ratio is used to record video.
4：3
AJ-HPX2000P(VQT1D27-1)E.book 43 ページ
２００７年７月３０日　月曜日　午後１時３１分
Recording formats and output connector signal formats
The table below shows the formats used to record signals from the CCD and externally input signals along with the
formats for signals output from the output connectors.
For 59.94 Hz
Menu setting
Recording
Output
VIDEO OUT
SYSTEM
MODE
item
REC
MODE
item
REC
SIGNAL
item
P2 card
CAMERA Recording
Output
1
recording*
MODE frame
frame
item
mode
mode
Video Sound
DVCPROHD
108059.94i
AVC-I 100
AVC-I 50
(optional)
72059.94P
30P
30P Over 60i
30P Over 60i
24P
24PA
24P Over 60i
24PA Over 60i
24P Over 60i
24PA Over 60i
SDI
(optional)
j
60i
30PN（Native）
24P
24PN（Native）
j
30P Over 60P
24P
24P Over 60P
24P Over 60P
j
60P
60P
60P
60P
60P
30P
30PN（Native） 720P
24PN（Native）
VIDEO
SDI
(optional)
*4
*5
4ch
30P Over 60P
60P
60P
60P
60P
30P
30PN（Native）
30P Over 60P
24P
24PN（Native）
24P Over 60P
60P
60P
60i
60i
60i
30P
30P Over 60i
30P Over 60i
24P
24PA
24P Over 60i
24PA Over 60i
j
60i
525i
720P 4ch
525i
4ch
525i
1080i
525i
24P Over 60P
60P
1394
1080i
60P
60P
j
525i
60i
60P
CAM
*1
*2
*3
1080i
30P Over 60P
SDI
(optional)
4ch
24P Over 60i
60P
j
525i
30P Over 60i
1080P
30P
24P
4ch
60i
j
CAM
1080i
60i
1394
DVC HD (N)
DVCPRO50
DVCPRO
DV
60i
Video
60i
4ch
60P
SDI
(optional)
48059.94i
1080i
60i
30P
When VF
connector
is set to
SD VF
60i
SDI
(optional)
CAM
AVC-I 100
AVC-I 50
(optional)
60i
60i
SDI
(optional)
CAM
DVCPROHD
60i
j
CAM
Video Sound Video Sound
60i
1394
When VF
connector
is set to
(HD SDI)*2 (SD SDI)*3 REMOTE
HD VF
connectors
Adjustments and Settings for Recording
CAM
VIDEO (VBS),
VIDEO
OUT
OUT
MON OUT,
connector connector and
480i
4ch or
2ch*5
24P Over 60i
24PA Over 60i
j
*4
60i
j
*4*5
525i
4ch or
525i
2ch*5
1080i
(Playback
not
output)
525i
(Playback
not
output)
The time code, user bits, and UMID are recorded.
The time code, user bits, and UMID (selectable between ON and OFF) are output.
The EDH (selectable between ON and OFF) and UMID (selectable between ON and OFF) are output. The time code
or user bits are not output.
The SD SDI output is maintained.
4ch for DVCPRO50, 4ch/2ch selectable for DVCPRO and DV
‹Note
z UMID is not output for recording or playing back in DV format or for playing back DVCPRO HD Native recording clips.
z During playback, the formats for clips in the same system mode are switched automatically and played back.
Adjustments and Settings for Recording : Multi Format
43
AJ-HPX2000P(VQT1D27-1)E.book 44 ページ
２００７年７月３０日　月曜日　午後１時３１分
For 50 Hz
Menu setting
Recording
Output
VIDEO OUT
SYSTEM
MODE
item
REC
MODE
item
REC
SIGNAL
item
P2 card
CAMERA Recording
Output
recording*1 frame
MODE frame
item
mode
mode
Video Sound
CAM
DVCPROHD
1080-50i
AVC-I 100
AVC-I 50
(optional)
720-50P
AVC-I 100
AVC-I 50
(optional)
25P Over 50i
50i
50i
SDI
(optional)
j
50i
576-50i
*4
*5
4ch
50i
50i
50i
25P
25PN（Native） 1080P
25P Over 50i
50i
50i
j
1080i
50i
50P
25P
25P Over 50P
25P Over 50P
j
50P
50P
SDI
(optional)
j
50P
50P
50P
25P
SDI
(optional)
CAM
j
50P
25PN（Native） 720P
50P
50P
50P
25P Over 50P
50P
50P
50i
50i
50i
25P
25P Over 50i
4ch
625i
4ch
625i
1080i
625i
720P 4ch
625i
4ch
625i
1080i
625i
25P Over 50i
576i
j
1080i
50P
25PN（Native）
1394
VIDEO
25P Over 50P
25P
j
Video
50P
4ch
50P
SDI
(optional)
When VF
connector
is set to
SD VF
50P
1394
SDI
(optional)
*1
*2
*3
1080i
50i
SDI
(optional)
CAM
DVCPRO50
DVCPRO
DV
Video Sound Video Sound
25P Over 50i
CAM
25P
When VF
connector
is set to
(HD SDI)*2 (SD SDI)*3 REMOTE
connectors HD VF
50i
j
CAM
DVC HD (N)
50i
1394
CAM
DVCPROHD
50i
VIDEO (VBS),
VIDEO
OUT
OUT
MON OUT,
connector connector and
j
4ch or
2ch*5
50i
*4
50i
j
*4*5
625i
4ch or
625i
2ch*5
1080i
(Playback
not
output)
625i
(Playback
not
output)
The time code, user bits, and UMID are recorded.
The time code, user bits, and UMID (selectable between ON and OFF) are output.
The EDH (selectable between ON and OFF) and UMID (selectable between ON and OFF) are output. The time code
or user bits are not output.
The SD SDI output is maintained.
4ch for DVCPRO50, 4ch/2ch selectable for DVCPRO and DV
‹Note
z UMID is not output for recording or playing back in DV format or for playing back DVCPRO HD Native recording clips.
z During playback, the formats for clips in the same system mode are switched automatically and played back.
44
Adjustments and Settings for Recording : Multi Format
AJ-HPX2000P(VQT1D27-1)E.book 45 ページ
２００７年７月３０日　月曜日　午後１時３１分
Adjusting the White balance and Black Balance
To record high-quality video with the unit, the black and white balances must be adjusted according to conditions.
For higher quality, it is recommended that the adjustments should be made in this order AWB (white balance adjustment)
> ABB (black balance adjustment) > AWB (white balance adjustment).
Adjusting the White Balance
Whenever light conditions change, the white balance must
be re-adjusted.
To adjust the white balance, follow the steps below.
Set the switches as illustrated below.
CC/ND FILTER control
Adjust the lens iris.
Flip up the AUTO W/B BAL switch so that it is
positioned at [AWB], then release it.
The switch returns to the central position with the
white balance automatically adjusted.
Adjustments and Settings for Recording
1
4
5
‹Note
To cancel automatic white balance adjustment in
process (the viewfinder displays “AWB ACTIVE”), reposition the AUTO W/B BAL switch at [AWB].
If automatic adjustment is cancelled, the value in
effect before automatic adjustment will be used.
6
During an adjustment, the viewfinder displays the
following message:
AWB ACTIVE
WHITE BAL: A or B
AUTO W/B BAL switch:
Used to perform
AWB.
2
OUTPUT: CAM
GAIN:Under normal conditions, set to 0 dB
If it is too dark, an appropriate gain
should be set.
Adjust the CC/ND FILTER control according to the
light conditions.
‹Note
For examples of CC/ND FILTER adjustments, see
[Shooting and Recording/Playback Functions Section]
(page 17).
3
7
Place a white pattern at a point where the light
conditions match those for the light source of the
subject. Then zoom-in on the white pattern so that
white color appears in the screen. A white object
(cloth or wall) may be used instead of a white pattern.
The illustration below shows the required size for the
white space.
The adjustment will take effect in a few seconds, and
the following message will appear:
The adjusted value is automatically stored in the
memory specified in Step 1 ([A] or [B]).
AWB A OK 3.2K
8
For the 3200K CC/ND filter, if the subject’s color
temperature is lower than 2300K or higher than
9900K the following message appears:
If the arrow points down (;) the actual color
temperature is lower than the temperature indicated.
If the arrow points up (:) the actual temperature is
higher than the temperature indicated.
AWB A OK 2.3K ;
‹Notes
z Do not include a high-intensity spot in the screen.
z The white object must appear at the center of the
screen.
1/4 or more of the screen in width
1/4 or more of the
screen in height
Adjustments and Settings for Recording : Adjusting the White balance and Black Balance
45
AJ-HPX2000P(VQT1D27-1)E.book 46 ページ
２００７年７月３０日　月曜日　午後１時３１分
Detection area for the white balance
Retaining white balances
The detection area for the white balance is selectable
between 90%, 50% and 25%, using the menu option AWB
AREA.
This option can be found in the <WHITE BALANCE
MODE> screen, which is accessible from the CAM
OPERATION page.
The detection area is factory-set to 25%.
90%
50%
25%
When you have no time to adjust the white
balance
Position the WHITE BAL switch at [PRST].
This adjusts the white balance for the filter according to the
position of the CC/ND FILTER control.
When the white balance has not been
automatically adjusted
When the white balance has not been successfully
adjusted, the viewfinder displays an error message.
If one of the error messages listed below appears, take the
appropriate steps, then adjust the white balance again.
If the error message appears after repeated
readjustments, the interior of the unit must be inspected.
For more information, contact your distributor.
Error message
Description
Remedies
COLOR TEMP.
HIGH
The color
temperature is too
high.
Select an appropriate
filter.
COLOR TEMP.
LOW
The color
temperature is too
low.
Select an appropriate
filter.
LOW LIGHT
There is insufficient Increase the light level
light.
or gain.
LEVEL OVER
There is too much
light.
CHECK FILTER
The FILTER control Check the FILTER
is displaced.
control.
TIME OVER
AWB was not
completed within
the time allowed.
Each value in memory is retained even if the camerarecorder is turned off; it will not be lost until the white
balance is re-adjusted. White balances are stored in either
of two systems: A or B.
When the menu option FILTER INH is set to “ON” (default),
each system stores only one value. If this is the case, the
values are not synchronised with the filters.
This option can be found in the <WHITE BALANCE
MODE> screen, which is accessible from the CAM
OPERATION page.
When the menu option FILTER INH is set to “OFF”, the
adjusted value for each filter can be automatically stored in
the memory that corresponds to the position of the WHITE
BAL switch (A or B). Your unit has four built-in filters; it
stores eight (4 a 2) adjusted values.
When the S. GAIN (super gain) function is activated, the
AWB switch does not function and the value set for PRST
is used.
Setting the auto-tracking white balance (ATW)
The unit has an auto-tracking white balance (ATW) feature
that automatically tracks the white balance for pictures
according to lighting conditions.
The ATW feature can be assigned to Position [B] of the
WHITE BAL switch. To do so, the menu option AWB B
must be set to “ATW”. This option can be found in the
<WHITE BALANCE MODE> screen, which is accessible
from the CAM OPERATION page.
The ATW feature may be assigned to the USER MAIN,
USER1, or USER2 button. For more information, see
[Assigning Functions to USER MAIN, USER1 and USER2
Buttons] (page 51).
To cancel the auto-tracking white balance
Press the user button that has the ATW feature assigned,
or change the position of the WHITE BAL switch. Note
that, when the ATW feature is assigned to [B] of the
WHITE BAL switch, the auto-tracking white balance
cannot be cancelled with a user button.
# < WHITE BALANCE MODE >
FILTER INH
SHOCKLESS AWB
AWB AREA
AWB B
ATW SPEED
COLOR TEMP PRE
AWB A TEMP　AWB B TEMP
Decrease the light level
or gain.
Shooting conditions may
be unstable. If flicker
occurs, press the
shutter and readjust the
AWB under stable
conditions.
:ON
:NORMAL
:25%
:MEM
:NORMAL
:3200K
:3200K
:3200K
‹Note
This function does not guarantee 100% accuracy of the
white balance.
When using the unit, remember that there will be some
allowance in the trackability of changes in lighting
conditions and pull-in accuracy of white balances.
46
Adjustments and Settings for Recording : Adjusting the White balance and Black Balance
AJ-HPX2000P(VQT1D27-1)E.book 47 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting Color Temperature Manually
The white balance can be manually adjusted by setting the
color temperature. Manual color temperature settings can
be performed for each of the WHITE BAL switch positions:
PRST, A and B.
The color temperature is set using the menu options
COLOR TEMP PRE, COLOR TEMP A, and COLOR
TEMP B.
These options can be found in the <WHITE BALANCE
MODE> screen, which is accessible from the CAM
OPERATION page.
Adjustments and Settings for Recording
‹Note
Even if the color temperature has been manually set,
automatic adjustment of the white balance (AWB) records
the color temperature at the time of AWB at the position
where the WHITE BAL switch was located. When the CC
filter position is switched, the value for the color
temperature changes.
# < WHITE BALANCE MODE >
FILTER INH
SHOCKLESS AWB
AWB AREA
AWB B
ATW SPEED
COLOR TEMP PRE
AWB A TEMP
AWB B TEMP
:ON
:NORMAL
:25%
:MEM
:NORMAL
:3200K
:3200K
:3200K
Viewfinder displays related to white balance
See [Viewfinder Screen Status Displays] (page 69).
Adjustments and Settings for Recording : Adjusting the White balance and Black Balance
47
AJ-HPX2000P(VQT1D27-1)E.book 48 ページ
２００７年７月３０日　月曜日　午後１時３１分
Adjusting the Black Balance
The black balance must be adjusted when:
z You use your unit the first time;
z Your unit has not been used for some time;
z The ambient temperature has changed substantially;
z The gain switchover value has been changed; or
z S.GAIN (super gain) has been set with the USER MAIN/
USER1/USER2 button.
1
Set the switches as illustrated below.
AUTO W/B BAL switch:
Used to perform ABB.
2
3
OUTPUT: CAM
Tilt the AUTO W/B BAL switch so that it is positioned
at [ABB], then release it.
The switch returns to the central position with the
black balance automatically adjusted.
During adjustment, the viewfinder displays the
following message:
ABB ACTIVE
‹Note
During adjustment, the lens iris automatically
becomes CLOSE.
4
‹Notes
z Ensure that the lens connector is connected and
the lens iris is CLOSE.
z During a black balance adjustment, light is
automatically cut off.
z During a black balance adjustment, the gain
switchover circuit is automatically switched.
The viewfinder screen may flicker and/or display
noise; this is not a failure.
z If you find the black shading annoying after
performing an auto black balance adjustment,
adjust the black shading. To do so, go to the menu
option DETECTION (DIG), move the cursor (>),
then press the JOG dial button. The menu option
DETECTION (DIG) can be found in the <BLACK
SHADING> screen, which is accessible from the
MAINTENANCE page.
Note that pressing the ABB switch for longer than five
seconds automatically performs an auto black
balance adjustment, followed by an automatic black
shading adjustment. (For more information, see the
menu option SHD. ABB SW CTL in [SW MODE]
(page 175).)
However, when the remote control unit (AJ-RC10G:
optional accessory) is connected, automatic black
shading cannot be executed even if the ABB switch is
held down.
z To cancel the automatic black balance adjustment
in process (the viewfinder displays “ABB ACTIVE”),
flip the AUTO W/B BAL switch down to [ABB] again.
If automatic adjustment is cancelled, the value in
effect before automatic adjustment will be used.
Retaining black balances
Each value in memory is retained even if the camerarecorder is turned off.
The adjustment will take effect in a few seconds and
the following message will appear:
ABB OK
The adjusted value is automatically stored in the
memory.
48
Adjustments and Settings for Recording : Adjusting the White balance and Black Balance
AJ-HPX2000P(VQT1D27-1)E.book 49 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting the Electronic Shutter
This section provides a description of the electronic shutter, together with setting and handling directions.
Shutter Modes
The table below lists the shutter modes in which the unit’s electronic shutter can be used as well as the shutter speeds
which can be selected.
To use the fixed shutter speed
To use the half shutter speed (HALF)
z For shooting images when adding effects as if taken with
film
To use the shutter speed of SYNCHRO SCAN
z For shooting monitor screens in a way that minimizes the
pattern of horizontal lines
z For shooting images when adding effects to the subjects’
movement
Video system
CAMERA
MODE
‹Notes
z No matter in which mode the electronic shutter is used,
the higher the shutter speed, the lower the camera’s
sensitivity.
z When the aperture is in the automatic mode, it will
increasingly open and the depth of focus will become
shallower as the shutter speed is increased.
Shutter speed
Half shutter speed
Variable range for
SYNCHRO SCAN
1080-59.94i
60i
1/120
1/60.3 - 1/249.8
1080-29.97P
30P
1/60
1/30.2 - 1/249.8
1080-23.98P
24P
1/48
1/24.1 - 1/249.8
1080-23.98PA
24PA
1/48
1/24.1 - 1/249.8
720-59.94P
60P
1/120
1/60.3 - 1/249.8
720-29.97P
30P
1/60
1/30.2 - 1/249.8
720-23.98P
24P
480-59.94i
60i
1/100, 1/120,
1/250, 1/500,
1/1000, 1/2000,
HALF
1/48
1/24.1 - 1/249.8
1/120
1/60.3 - 1/249.8
480-29.97P
30P
1/60
1/30.2 - 1/249.8
480-23.98P
24P
1/48
1/24.1 - 1/249.8
480-23.98PA
24PA
1/48
1/24.1 - 1/249.8
1080-50i
50i
1/100
1/50.2 - 1/209.5
1080-25P
25P
1/50
1/25.2 - 1/209.5
720-50P
50P
1/100
1/50.2 - 1/209.5
720-25P
25P
576-50i
50i
576-25P
25P
1/60, 1/120,
1/250, 1/500,
1/1000, 1/2000,
HALF
Adjustments and Settings for Recording
z For eliminating flicker due to lighting
z For shooting fast moving subjects clearly
1/50
1/25.2 - 1/209.5
1/100
1/50.2 - 1/209.5
1/50
1/25.2 - 1/209.5
Adjustments and Settings for Recording : Setting the Electronic Shutter
49
AJ-HPX2000P(VQT1D27-1)E.book 50 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting the Shutter Mode and Speed
The shutter speed in any shutter mode is set using the
SHUTTER switch.
In SYNCHRO SCAN mode, shutter speed can be switched
easily, using the synchro-scan adjustment switches (+/–)
on the side panel.
Note that the range of selectable shutter speeds may be
pre-defined; whether or not to use the SYNCHRO SCAN
mode may be determined through the <SHUTTER
SPEED> and <SHUTTER SELECT> screens. These
screens are accessible through the menu on the CAM
OPERATION page.
The selected shutter speed is retained even if the unit is
turned off.
1
Press the SHUTTER switch, positioned at [ON],
towards [SEL].
# < SHUTTER SPEED >
SYNCHRO SCAN
POSITION1
POSITION2
POSITION3
POSITION4
POSITION5
POSITION6
:ON
:ON
:ON
:ON
:ON
:ON
:ON
SHUTTER switch
2
Once more, press the SHUTTER switch towards
[SEL]. Repeat this switchover until the desired mode
or speed appears in the viewfinder screen.
If all modes and speeds are available, the display
changes in the following order:
NORMAL mode
# < SHUTTER SELECT >
POSITION1
POSITION2
POSITION3
POSITION4
POSITION5
POSITION6
SEL
SEL
SEL
SEL
SEL
SEL
:1/100
:1/120
:1/250
:1/500
:1/1000
:1/2000
POSITION1
POSITION2
POSITION3
POSITION4
POSITION5
POSITION6
SYNCHRO
SCAN mode
Viewfinder displays relating to the shutter
See [Viewfinder Screen Status Displays] (page 69).
Placing the Camera-recorder in SYNCHRO SCAN Mode
To place the camera-recorder in SYNCHRO SCAN mode,
follow the steps below.
1
2
SYNCHRO SCAN ADJUSTMENT buttons (+/–)
Press the SHUTTER switch positioned at [ON]
towards [SEL], to place the camera-recorder in
SYNCHRO SCAN mode.
In the SYNCHRO SCAN mode, it is possible to
change the shutter speed continuously by operating
the SYNCHRO SCAN (+ and –) buttons.
SHUTTER switch
50
Adjustments and Settings for Recording : Setting the Electronic Shutter
AJ-HPX2000P(VQT1D27-1)E.book 51 ページ
２００７年７月３０日　月曜日　午後１時３１分
Assigning Functions to USER MAIN, USER1
and USER2 Buttons
The USER MAIN, USER1, and USER2 buttons can be
assigned user-selected functions.
To select desired functions, use the menu options USER
MAIN SW, USER1 SW and USER2 SW. These options
can be found in the <USER SW> screen, which is
accessible from the CAM OPERATION page.
< USER SW >
USER MAIN SW
USER1 SW
USER2 SW
ATW:
Y GET:
:SLOT SEL
:S.GAIN
:DS.GAIN
DRS:
When the digital zoom function is active the
view angle expands by double, triple or 4
times horizontally and vertically. When the
digital zoom function is turned on, the DTL
function is disabled.
Auto-tracking
white
balance
function
assigned.
Function of indicating the brightness level of
the center marker assigned.
The function of the dynamic range stretcher
is allocated.
The function is allocated to compress the
video level with high brightness and
stretched the dynamic range.
Adjustments and Settings for Recording
#
D.ZOOM:
‹Notes
Selectable Functions
INH:
No function assigned.
S.GAIN:
S.GAIN function assigned.
DS.GAIN:
DS.GAIN function assigned.
LINE MIX GAIN:
LINE MIX GAIN function (+6 dB) assigned.
S.IRIS:
Super Iris function assigned.
This is useful for backlight compensation.
I.OVR:
Iris Override function assigned.
The target (reference) value in Auto Iris
mode must be changed.
To change the target value, put the unit into
this mode and press the JOG dial button.
Turn the JOG dial button clockwise or anticlockwise to change the value. The iris
indication section of the viewfinder screen
displays “+”, “+ +”, “–”, or “– –”.
When the desired value is displayed, stop
turning the JOG dial button. Then, press the
dial button to accept that value.
Note that once the mode is cancelled or the
power is turned off the original reference
value will be used again.
+:
Iris opens up by 0.5.
+ +:
Iris opens up by 1.
–:
Iris closes down by 0.5.
– –:
Iris closes down by 1.
No indication: The reference value is used.
S.BLK:
Super Black function assigned.
This function lowers the black level to the
pedestal level or below.
B.GAMMA: The BLACK gamma function is allocated.
This function highlights the black gradations.
Regardless of the value set in the BLACK
GAMMA item on the menu (<LOW
SETTING> screen, <MID SETTING> screen
and <HIGH SETTING> screen on the PAINT
page), the BLACK GAMMA is set to “+3”.
ASSIST：
z Since the DRS function compresses the
video levels of sections with high
brightness, there are slight differences in
color development when the DRS function
is turned on/off.
z When the DRS function is turned on, the
Knee function and the BLACK GAMMA
function are not available.
z The DRS function may be degraded when
the LINE MIX gain and D. ZOOM functions
are enabled at the same time.
The function to turn on or off the assigned
focus assist indication.
‹Note
C. TEMP：
When the ASSIST button is turned on, a
graph is displayed on the viewfinder and the
bottom right of the LCD monitor. Adjust the
focus ring on the lens so that the graph
comes further right.
The function to switch to the mode that
allows the JOG dial button to change the
assigned color temperature. It is useful for
intentionally changing the color temperature
after adjusting the white balance. To change
the color temperature, press the user button
with this assigned function, and then press
the JOG dial button. The color temperature
indicated on the viewfinder display is
highlighted and starts blinking, indicating
that the color temperature can be changed.
While the indication is blinking, the JOG dial
button can be turned to change the color
temperature. At this time, the value set for
the position (PRST, A, or B) to which the
WHITE BAL switch is set is also changed.
Adjustments and Settings for Recording : Assigning Functions to USER MAIN, USER1 and USER2 Buttons
51
AJ-HPX2000P(VQT1D27-1)E.book 52 ページ
２００７年７月３０日　月曜日　午後１時３１分
AUDIO CH1: Function of switching the input signal source
for Audio Channel 1 assigned.
Pressing the button switches the input signal
in the following order: FRONT > W.L. >
REAR. Note that the AUDIO IN switch can
also be used to change the input signal: later
specification takes precedence.
AUDIO CH2: Function of switching the input signal source
for Audio Channel 2 assigned.
Pressing the button switches the input signal
in the following order: FRONT > W.L. >
REAR. Note that the AUDIO IN switch can
also be used to change the input signal: later
specification takes precedence.
REC SW:
Function of the REC START/STOP button
assigned.
Function of the RET button at the lens assigned.
RET SW:
PRE REC:
PRE RECORDING switch ON/switch OFF
function assigned.
SLOT SEL: Function of switching the target P2 card
among multiple cards assigned.
PC MODE: The function to turn on or off the assigned
USB device or USB host mode. Switching
between the USB device and USB host
modes is set by selecting the PC MODE
SELECT menu option in the SYSTEM
MODE screen on the SYSTEM SETTING
page.
‹Note
When the remote controller, AJ-RC10G
(option), is connected and I.OVR or C.TEMP
is assigned to the USER button on the side
of the AJ-RC10G, operation of the jog dial
button on the main unit is disabled.
Setting the Switchover of USER SW GAIN
AJ-HPX2000 allows three other modes to be used in
addition to the L/M/H standard gain settings: the analog
gain-up S.GAIN (super gain) mode to achieve a gain of 30
dB or more, the cumulative gain-up DS.GAIN (digital super
gain) mode which uses progressive drive, and the LINE
MIX GAIN mode where the gain of two lines is mixed.
To select these functions, perform menu operations to
open the <USER SW GAIN> screen from the CAM
OPERATION page, select the S.GAIN item and DS.GAIN
item, and preset the gain to be used for each item.
Furthermore, select the LINE MIX function on the <USER
SW> screen.
For instance, if the S.GAIN, DS.GAIN and LINE MIX GAIN
functions have been allocated to the USER MAIN button,
USER1 button or USER2 button, the gain can be
increased by using these buttons in combination with the
USER buttons.
# < USER SW GAIN >
S.GAIN
¢30dB
¢36dB
¢42dB
¢48dB
DS.GAIN
¢ 6dB:
¢10dB:
¢12dB:
¢15dB:
¢20dB:
Settings Options and Usage
S.GAIN:
DS.GAIN:
An analog gain increase with an asterisk is
one that is valid. One without an asterisk is
invalid.
A cumulative gain increase with an asterisk is
one that is valid. One without an asterisk is
invalid.
1) To increase the gain without increasing noise:
The DS.GAIN function and the LINE MIX GAIN
function are used.
2) To increase the normal analog gain:
(noise is increased)
Use the S.GAIN feature alone.
‹Note
Note that the accuracy of AUTO IRIS, White Balance,
and Black Balance may be influenced by an increase
in noise.
3) To achieve ultra-high sensitivity:
Use the S.GAIN function and DS.GAIN or LINE MIX
GAIN function in combination. However, exercise care
during operation since image lag will become more
conspicuous with moving subjects the more the gain is
increased by using the DS.GAIN function.
When shooting moving subjects, keep the gain
increase with the LINE MIX GAIN function or DS.GAIN
function to under +12 dB.
52
Adjustments and Settings for Recording : Assigning Functions to USER MAIN, USER1 and USER2 Buttons
AJ-HPX2000P(VQT1D27-1)E.book 53 ページ
２００７年７月３０日　月曜日　午後１時３１分
Selecting Audio Input Signals and Adjusting
Recording Levels
AJ-HPX2000 supports independent 4-channel sound recording in any recording format in HD (1080i or 720P) and SD
(DVCPRO50, DVCPRO, or DV with 480i or 576i) modes.
When the AUDIO SELECT CH1/CH2 switch is positioned at [AUTO], the recording levels for Audio Channels 1 and 2 are
automatically adjusted. To manually adjust the recording levels, position the switch at [MAN]. Note that the recording levels
for Audio Channels 3 and 4 are selected through a menu option.
‹Notes
Adjustments and Settings for Recording
z Even in HD mode (1080i or 720P), 4-channel sound is recoded on P2 cards.
z When SDI input signals or signals input through the DVCPRO/DV connector are recorded, the settings above are
overridden; audio signals from the SDI IN or DVCPRO/DV connector are always recorded.
Selecting Audio Input Signals
The input signals to be recorded on Audio Channels 1, 2,
3, and 4 are selected with the AUDIO IN switch. For more
information, see [Audio (input) Function Section] (page
15).
AUDIO SELECT
CH1/CH2 switch
Specific audio settings are performed through the <MIC/
AUDIO1> and <MIC/AUDIO2> screens, which are
accessible from the MAIN OPERATION page.
For more information, see [MAIN OPERATION] (page
178).
# < MIC/AUDIO1 >
FRONT VR CH1
FRONT VR CH2
MIC LOWCUT CH1
MIC LOWCUT CH2
MIC LOWCUT CH3
MIC LOWCUT CH4
LIMITER CH1
LIMITER CH2
AUTO LEVEL CH3
AUTO LEVEL CH4
25M REC CH SEL
TEST TONE
Display window
MONITOR CH1/3
/ ST / CH2/4
selector switch
:OFF
:OFF
:OFF
:OFF
:OFF
:OFF
:OFF
:OFF
:ON
:ON
:2CH
:NORMAL
# < MIC/AUDIO2 >
MONITOR SELECT
CH1/2 / CH3/4
selector switch
AUDIO IN CH1/CH2/
CH3/CH4 buttons
AUDIO
LEVEL CH1/
CH2 controls
FRONT MIC POWER
REAR MIC POWER
MONITOR SELECT
FRONT MIC LEVEL
REAR MIC CH1 LEVEL
REAR MIC CH2 LEVEL
REAR LINE IN LVL
AUDIO OUT LVL
HEADROOM
WIRELESS WARN
:ON
:ON
:STEREO
:-40dB
:-60dB
:-60dB
:+4dB
:+4dB
:20dB
:OFF
In SD mode (DVCPRO50, DVCPRO, or DV with 480i or
576i), your unit is factory-set to perform no recording on
Audio Channels 3 and 4 in the DVCPRO and DV formats.
To enable four-channel recording, the menu option 25M
REC CH SEL must be set to “4CH”.
‹Notes
z Audio Channels 1 and 2 always receive the signals
selected with the AUDIO IN CH1 and CH2 switches.
z Four-channel-recorded audio signals are SDI-output as
they are.
Adjustments and Settings for Recording : Selecting Audio Input Signals and Adjusting Recording Levels
53
AJ-HPX2000P(VQT1D27-1)E.book 54 ページ
２００７年７月３０日　月曜日　午後１時３１分
Adjusting Recording Levels
To adjust the recording levels for Audio Channels 1 and 2,
follow the steps below.
1
Position the MONITOR SELECT CH1/2 / CH3/4selector switch at CH1/2 so that the audio level meter
on the display window will provide CH1 and CH2
indications. Ensure that the channel indications
displayed in the window are 1 and 2.
Whether to enable or disable the FRONT AUDIO
LEVEL control must be preset through menu options
FRONT VR CH1 and FRONT VR CH2. Note that this
control is factory-disabled.
The menu options are found in the MIC/AUDIO1
screen, which is accessible from the MAIN
OPERATION page.
2
Position the AUDIO SELECT CH1/CH2 switch at
[MAN].
3
While checking the audio channel level meter in the
display window or the audio level meter in the
viewfinder, adjust the AUDIO LEVEL CH1/CH2
control.
Note that if the level exceeds the top bar (0 dB), the
word OVER illuminates to show that the input level is
excessive. The adjustment made in such a way that
the maximum level will not reach the 0 dB bar.
Audio level meter on the display window
NDF SLAVE HOLD W HDV GPS
CTL VTCG TIME DATE P-iREC
10
h Y
MEDIA
BATT
minM
s D
18
frm
E
F
E
F
30
OP-SLOT 1
LOOP
When operating the unit without a sound recordist, it is
recommended that the FRONT AUDIO LEVEL control
should be used to adjust the audio level.
In advance, check the level meter in the viewfinder screen
and use the AUDIO LEVEL control to adjust the
appropriate audio channel so that no excessive audio
signals will be admitted.
# < MIC/AUDIO1 >
FRONT VR CH1
FRONT VR CH2
MIC LOWCUT CH1
MIC LOWCUT CH2
MIC LOWCUT CH3
MIC LOWCUT CH4
LIMITER CH1
LIMITER CH2
AUTO LEVEL CH3
AUTO LEVEL CH4
25M REC CH SEL
TEST TONE
:OFF
:OFF
:OFF
:OFF
:OFF
:OFF
:OFF
:OFF
:ON
:ON
:2CH
:NORMAL
54
Input level
MIC
ON
AGC ON
AGC ON
OFF
AGC/LIMITER OFF
LIMITER ON
2
F:1---- ∫
R:2---- ∫ ---+
The following table shows the effects on the recording level
for Audio Channels 3 and 4 that depend on the settings
and input levels specified through the menu options AUTO
LEVEL CH3 and AUTO LEVEL CH4. Note that the
recording level cannot be adjusted manually.
These options are found in the <MIC/AUDIO1> screen,
which is accessible from the MAIN OPERATION page.
LINE
-dB
Audio level meter in the viewfinder
CH3 and CH4 Recording Levels
AUTO LEVEL
CH3/CH4
40
OO
Selecting Function for the FRONT AUDIO LEVEL Control
This function enables the recording level to be adjusted
using the F.AUDIO LEVEL control.
To select this function, perform menu operations to open
the <MIC/AUDIO> screen from the MAIN OPERATION
page, and set whether to enable or disable the F.AUDIO
LEVEL controls for the system selected as the input
signals using the FRONT VR CH1 and FRONT VR CH2
items.
OVER
0
Adjustments and Settings for Recording : Selecting Audio Input Signals and Adjusting Recording Levels
AJ-HPX2000P(VQT1D27-1)E.book 55 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting Time Data
AJ-HPX2000 supports time codes, user bits, date, and time (real time) data, which are recorded as data for the sub-code
area, VIDEO AUX area, and clip metadata files. It also includes a CTL counter and camera ID.
Description of time data
Time code
User bits
The CTL counter will measure total recording time after
resetting in the recording operation. On the other hand,
this value is the count time and sets the start point of a clip
that can be played back. This can be used to find the
current playback position.
Adjustments and Settings for Recording
The TCG switch can be used to switch between Rec run
and free run.
Free run: The time code always advances even when
the power is turned off. It can be handled as
time. It can be slaved to the time code input
through the TC IN or DVCPRO/DV connector.
Rec run:
The time code is recorded as sequential
values regenerated as the time code for a clip
recorded on a P2 card.
CTL counter
Camera ID
The camera ID can be set with 10 characters a3 lines,
which can be superimposed on the color bar video. It can
be also superimposed along with date and time data.
The camera-recorder separately includes two types of user
bits: one (UB) is recorded in the sub-code area and the
other (VITC UB) in the VIDEO AUX area. Each user bits
can be recorded as any of the following: a user defined
value, time, date, same value as the time code, frame rate
information for camera shooting, externally input value
(through the TC IN or DVCPRO/DV connector), and value
regenerated as the user bits recorded in a clip on a P2
card.
The camera-recorder includes only one user defined
value. If user defined values are selected for both the UB
and VITC UB, then the same value is used.
Types of UB can be selected in UB MODE and types of
VITCUB can be selected in VITC UB, respectively.
However, in the following cases, these are fixed to the
frame rate information of the editing machines (editing
software for PCs).
z In 720P mode, both the UB and VITC UB are always
frame rate information.
z For recoding 24P/24PA in 1080i or 480i mode, VITC UB
is fixed to frame rate information.
z In Native mode, VITC UB is fixed to frame rate
information.
Date and time (real time)
The built-in clock maintains the date and time. When the
GPS unit AJ-GPS910G is installed, the built-in clock is
corrected with accurate date and time information from the
GPS. This clock is used to store the date and time while
the power is turned off and as the time for the user bits and
date data, as well as the reference for file generation times
during clip recording, which determine the sorting order of
thumbnails and the order of playback. It is also used to
generate clip metadata and UMIDs (Unique Material
Identifiers) in the VIDEO AUX area.
Adjustments and Settings for Recording : Setting Time Data
55
AJ-HPX2000P(VQT1D27-1)E.book 56 ページ
２００７年７月３０日　月曜日　午後１時３１分
Recording time code and user bits
The number of frames for TC varies with the settings for the input signal, system mode, and camera mode as follows.
REC
SIGNAL
SYSTEM
MODE
1080-59.94i
Recording
frame
MODE*10
TC in subcode area
TC in VIDEO
AUX area
(VITC)
60i,
30P (Over 60i)
As per the TC
MODE*4
As per the TC
MODE*4
24P (Over 60i)
24PA (Over 60i)
Always nondrop frame*5
Always nondrop frame*5
30PN (Native)
As per the TC
MODE*4
As per the TC
MODE*4
24PN (Native)
Always nondrop frame*5
Always nondrop frame*5
No. of
frames of
TC during
recording
and
presetting
No. of
No. of frames
frames of
of the
the output
displayed TC
TC
As per the UB
6
30/24 switch- MODE*
able
30
j* 4
j* 4
CAM
720-59.94P
As per the TC
MODE*4
As per the TC
MODE*4
24P (Over 60P)
Always nondrop frame*5
Always nondrop frame*5
30PN (Native)
As per the TC
MODE*4
As per the TC
MODE*4
24PN (Native)
Always nondrop frame*5
Always nondrop frame*5
j* 4
j* 4
24
As per the UB
MODE*6
As per the VITC
UB MODE
25
25
As per the UB
MODE*6*9
Always frame
rate
information*8
Always frame
rate
30/24 switch- information*3
able
Always frame
rate
information*3
25
30
30
Recording:
24 fixed
Playback:
30/24
switchable
24
25
480-59.94i
576-50i
As per the TC
MODE*4
As per the TC
MODE*4
24P (Over 60i)
24PA (Over 60i)
Always nondrop frame*5
Always nondrop frame*5
50i,
50P (Over 50i)
1080-59.94i
480-59.94i
As per the TC
MODE*4
720-59.94P
SDI*1 or
VIDEO
1080-50i
576-50i
j* 4
j* 4
As per the TC
MODE*4
j* 4
1394
56
1080-50i
720-50P
576-50i
j
As per the TC
(Natives of
MODE*4
AVC-Intra and
DVCPRO HD
j* 2
are not
selectable.)
Regardless of the
setting, TC in the
VIDEO AUX area
input through the
DVCPRO/DV
connector is
recorded.
Adjustments and Settings for Recording : Setting Time Data
Always frame
rate
information*3
Always frame
rate
information*3
Always frame
rate
information*3 *9
Always frame
rate
information*8
30
30
30/24 switch- As per the UB
able
MODE*6
25
25
25
As per the UB
MODE*6
As per the VITC
UB MODE
As per the VITC
UB MODE
30
As per the UB
MODE*6
30/24 switchAlways frame
able
rate
information*3
As per the UB
MODE*6
As per the VITC
UB MODE
Always frame
rate
information*3
Always frame
rate
information*3
As per the UB
MODE*7
Regardless of the
setting, TC in the
UB area input
through the
DVCPRO/DV
connector is
recorded.
30
25
25
25
30
30
30/24 switchable
720-50P
1080-59.94i
720-59.94P
480-59.94i
Always frame
rate
information*8
25
j
j* 4
Always frame
rate
information*3 *9
25
25PN (Native)
60i
30P (Over 60i)
Always frame
rate
information*3
Always frame
rate
information*8
50P,
25P (Over 50P)
720-50P
As per the VITC
UB MODE
As per the UB
MODE*6*9
Recording:
24 fixed
Playback:
30/24
switchable
25PN (Native)
60P,
30P (Over 60P)
UB in VIDEO
AUX area
(VITC UB)
30
50i,
25P (Over 50i)
1080-50i
UB in subcode area
25
25
25
As per the VITC
UB MODE
Always frame
rate
information*3
Always frame
rate
information*3
AJ-HPX2000P(VQT1D27-1)E.book 57 ページ
２００７年７月３０日　月曜日　午後１時３１分
*1
*2
*3
Adjustments and Settings for Recording
It will not be slaved to a TC or UB value that is input in the SDI IN connector.
Can be slaved to values input through the DVCPRO/DV connector but not to the TC for TC IN connector.
If the option menu FRAME RATE UB is set to MENU, then recording is performed as per the UB or VITC UB mode. If
this is the case, however, edit tools (e.g. PC edit software) cannot record the required information.
*4 For free run, the time code is slaved to the time code input through the TC IN connector.
*5 For free run, the time code is slaved to the time code input through the TC IN connector if it is a non-drop frame.
*6 When the option UB MODE is set to EXT, then the bits are slaved to the user bits input through the TC IN connector.
*7 If the option UB MODE is set to EXT, then the bits are slaved to the user bits input through the DVCPRO/DV
connector.
*8 Regardless of the menu settings, frame rate information is always recorded. During playback, the information is output
after being converted into pull-down frame rate information.
*9 When the UB MODE is set to [FRM.RATE], the pull-down frame rate information read out from the UB in the VAUX area
is output during playback.
*10 For details on this item, refer to [Recording formats and output connector signal formats] (page 43)
Setting of the user bits
The user bits (UB) to be recorded in the sub-code area are
selected through the menu option UB MODE. The user
bits (VITC UB) to be recorded in the VIDEO AUX area are
selected through the menu option VITC UB MODE.
USER (UB MODE only)
The included user value is recorded. A user value is
input through the display window. For more information
about how to input a user value, see[Inputting a user
value] (page 57). The recorded user value is retained
even if the power is turned off.
TIME
The time kept by the built-in clock is recorded.
DATE
The hour digits for date and time kept by the built-in
clock are recorded.
EXT (UB MODE only)
The user bits value input through the TC IN connector
is recorded. When the menu option REC SIGNAL is
set to 1394, then the value is slaved to the user bits
value from the DVCPRO/DV connector. The included
user’s value will also be this input value.
TCG
The time code value is recorded.
FRM.RATE
The frame rate information for camera shooting is
recorded. For more information, see [Frame rate information recorded in user bits] (page 58).
REGEN
The user bits last recorded on the current target P2
card is read and recorded as is.
USER/EXT（VITC UB MODE only）
The included user’s value is recorded as the user bits
for the VIDEO AUX area. It is the same value as the
user bits indicated when the option UB MODE is set to
“USER” or “EXT”.
Inputting a user value
HOLD switch
DISPLAY switch
Display
window
TCG switch
CURSOR and SET buttons
1
2
3
Position the DISPLAY switch at [UB].
Position the TCG switch at [SET].
When the left digit starts blinking you can change the
value.
Use CURSOR buttons to set the user bits.
! button: Shifts the target (blinking) digit to the right.
" button: Shifts the target (blinking) digit to the left.
# button: Advances the blinking number by one digit.
$ button:Winds back the blinking number by one digit.
4
5
Position the TCG at [F-RUN] or [R-RUN].
Go to the <TC/UB> screen from the MAIN
OPERATION page, and set the menu option UB
MODE to “USER”.
‹Notes
z When the TCG switch is positioned at [SET],
thumbnails cannot be manipulated.
z To confirm VICT UB, press the HOLD switch to
display VTCG on the display window.
Adjustments and Settings for Recording : Setting Time Data
57
AJ-HPX2000P(VQT1D27-1)E.book 58 ページ
２００７年７月３０日　月曜日　午後１時３１分
For 1080i or 480i/576i
Retaining the user bits
The data set for the user bits are automatically saved and
retained even if the camera-recorder is turned off.
Frame rate information recorded in user bits
Frame rate: 24P Over 60i (2:3)
Time code frame digit
00
If video information to be recorded based on the frame rate
set through the menu option CAMERA MODE is recorded
in the user bits, it can be edited with editing tools (e.g. PC
editing software). In 1080i and SD mode, the frame rate
information for the user bits recorded in the VIDEO AUX
area are used. In 720P mode, the video information is also
recorded in the sub-code area because the frame rate
information for the user bits recorded in the sub-code area
is also used.
Starting field for the
updated frame
01
02
03
04
05
06
23
•••
24
25
26
27
28
29
Ao Ae Bo Be Bo Ce Co De Do De Ao Ae Bo Be
•••
Co De Do De Ao Ae Bo Be Bo Ce Co De Do De
Sequence No.
0
1
2
3
4
0
1
•••
3
4
0
1
2
3
4
10
•••
01
00
10
10
01
01
00
25
26
27
28
29
Updated frame information
10
10
01
01
00
10
Frame rate: 24PA Over 60i (2:3:3:2)
Time code frame digit
Frame rate information
00
The frame rate and video pull-down menu are linked to the
time code and user bits as follows:
___
Fixed value
Checking
information for the 6
digits at right.
Sequence No.
24P, 24PA: 0 to 4
In all other modes: Fixed at F
02
03
04
05
06
23
•••
24
Ao Ae Bo Be Bo Ce Co Ce Do De Ao Ae Bo Be
•••
Co Ce Do De Ao Ae Bo Be Bo Ce Co Ce Do De
Sequence No.
0
Media management information
z Updated frame information/
Effective frame
z REC START/STOP mark
Camera shooting mode
60i:
600
60P:
608
30P:
308
24P:
248
24PA: 24C
50i:
502
50P:
50A
25P:
25A
Adjustments and Settings for Recording : Setting Time Data
1
2
3
4
0
1
•••
3
4
0
1
2
3
4
10
•••
00
10
10
10
01
00
10
Updated frame information
10
10
01
00
10
10
Frame rate: 30P Over 60i (2:2)
25P Over 50i (2:2)
Time code frame digit
00
01
02
•••
Ao Ae Bo Be Co Ce
•••
Updated frame information
10
58
01
10
10
•••
AJ-HPX2000P(VQT1D27-1)E.book 59 ページ
２００７年７月３０日　月曜日　午後１時３１分
For 720P
Frame rate: 24P Over 60P (2:3)
Effective frame
Time code frame digit
00
01
02
03
04
05
06
23
•••
24
25
26
27
28
29
A A B B B C C D D D A A B B
•••
C D D D A A B B B C C D D D
Effective frame information
10
10
01
01
00
10
10
•••
01
00
10
10
01
01
00
Frame rate: 30P Over 60P (2:2)
25P Over 50P (2:2)
Adjustments and Settings for Recording
Time code frame digit
00
01
02
•••
A A B B C C
•••
Effective frame information
10
10
10
•••
The frame rate information of user bits in Native recording is
as follows.
__)&_
Fixed value
Verification
information for the
6 digits to the right
Media management
information
REC START/STOP mark
Camera recording mode
24PN: 24C
30PN: 308
25PN: 25A
‹Note
During playback of clips recorded in Native recording frame
rate information of user bits is converted according to the
image pull down and then output.
Example: Recording
__)&_
Playback
___
# indicates sequence Nos. 0 to 4.
Adjustments and Settings for Recording : Setting Time Data
59
AJ-HPX2000P(VQT1D27-1)E.book 60 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting the Internal Clock’s Date and Time
1
2
3
4
Position the DISPLAY switch at [UB].
Press the HOLD button to display a date in the display
window.
Position the TCG switch at [SET].
Use the CURSOR and SET buttons to set the year,
month and day (Y/M/D).
Note that any later than 2030 cannot be set.
! button:
" button:
# button:
$ button:
5
6
7
8
Shifts the target (blinking) digit to the
right.
Shifts the target (blinking) digit to the left.
Advances the blinking number by one
digit.
Winds back the blinking number by one
digit.
Press the HOLD button to display a time in the display
window.
Use the CURSOR buttons to set the hour, minute and
second (h/min/s).
Position the TCG switch at [F-RUN] or [R-RUN]. The
internal clock starts at the moment the switch position
is changed.
Press the HOLD button to display a time zone (time
difference between local time and Greenwich Mean
Time) in the display window.
9 Position the TCG switch at [SET].
10 Use the # and $ buttons to set the desired hours
and minutes ahead of (no sign) or behind (– sign) the
Greenwich Mean Time).
Example: If the local time is five hours behind
Greenwich Mean Time,
set the time zone to “5:00 –”.
The time zone is always recorded, together with the
date and time, as metadata.
See the table at right to set the time zone according to
your local time.
11 Position the TCG switch at [F-RUN] or [R-RUN] to
accept the time zone.
‹Notes
z When using the camera-recorder for the first time,
be sure to perform this setting beforehand. Do not
change the setting during use of the camerarecorder.
z When the TCG switch is positioned at [SET],
thumbnails cannot be manipulated.
60
Adjustments and Settings for Recording : Setting Time Data
Time
difference
Area
00:00 Greenwich
Time
difference
Area
–12:00 Kwajalein
+ 00:30
–11:30
+ 01:00 Central Europe
–11:00 Midway Island
+ 01:30
–10:30
+ 02:00 Eastern Europe
–10:00 Hawaii
+ 02:30
–09:30 Marquesas Islands
+ 03:00 Moscow
–09:00 Alaska
+ 03:30 Tehran
–08:30
+ 04:00 Abu Dhabi
–08:00 Los Angeles
+ 04:30 Kabul
–07:30
+ 05:00 Islamabad
–07:00 Denver
+ 05:30 Bombay
–06:30
+ 06:00 Dacca
–06:00 Chicago
+ 06:30 Rangoon
–05:30
+ 07:00 Bangkok
–05:00 New York
+ 07:30
–04:30
+ 08:00 Beijing
–04:00 Halifax
+ 08:30
–03:30 Newfoundland Island
+ 09:00 Tokyo
–03:00 Buenos Aires
+ 09:30 Darwin
–02:30
+ 10:00 Guam
–02:00 Mid-Atlantic
+ 10:30 Lord Howe Island
–01:30
+ 11:00 Solomon Islands
–01:00 Azores Islands
+ 11:30 Norfolk Island
–00:30
+ 12:00 New Zealand
+ 12:45 Chatham Islands
+ 13:00
‹Notes
z In Step 4, if the TCG switch is positioned at [F-RUN] or
[R-RUN], this also activate the internal clock.
To cancel date, time and time zone settings in process,
hold down the SET button and position the TCG switch
at [F-RUN] or [R-RUN].
z Clock accuracy fluctuates between about ± 30 seconds per
month when the power is turned off. If more accurate
timekeeping is required, check the time when the power is
turned on and, if necessary, reset the clock.
When the GPS unit AJ-GPS910G is installed, and if it
successfully receives time information, the internal clock
keeps accurate (local) time based on the received time
(Greenwich Mean Time) and the time zone. If the date and
time differ from the actual local time, the time zone may not
be set correctly. Check again, to see if the time zone is set
correctly. (The date and time need not be set again.)
z The built-in clock operates for several years on a lithium
battery built into the camera-recorder. When the lithium
battery is exhausted, the viewfinder indicates the message
“BACKUP BATT EMPTY” when the power is turned on. For
more information, see [Maintenance] (page 140).
AJ-HPX2000P(VQT1D27-1)E.book 61 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting the Time Code
1
2
3
Position the DISPLAY switch at [TC].
Position the TCG switch at [SET].
‹Note
If the menu option FIRST REC TC is set to PRESET, if the
time code has been set or reset, or if the time code has
been switched from free run to Rec run, it is possible to
regenerate the time code as the last time code of a clip
recorded on the P2 card.
This action requires you to preset the RET SW menu
option on the SW MODE screen to R. REVIEW and the
REC REVIEW REGEN menu option on the TC/UB screen
to ON.
1
Switching between DF and NDF is operative only
when the system frequency of the camera-recorder is
set to 59.94 Hz.
4
Use the CURSOR buttons to set the time code.
The time code setting range extends from
00:00:00:00 to 23:59:59:29 (59.94 Hz), 23:59:59:23
(24PN) or to 23:59:59:24 (50 Hz).
! button: Shifts the target (blinking) digit to the right.
" button: Shifts the target (blinking) digit to the left.
# button: Advances the blinking number by one digit.
$ button: Winds back the blinking number by one digit.
5
Change the position of the TCG switch.
[F-RUN] steps the time code in free run mode, and [RRUN] set it in recording run mode.
‹Notes
z When the unit is in the 24P or 24PA mode, time
code settings are adjusted to the five-frame unit.
For 24PN (Native) mode, it is adjusted for counting
by the four-frame unit. For 30PN UN (Native) of
720P, it is adjusted to even numbers. In the 25PN
(Native) mode of 720P, [Sec + Frame] is adjusted to
even numbers. The time code cannot be set when
recording in the 24P, 24PA, and 24PN (Native)
formats.
z When the TCG switch is positioned at [SET],
thumbnails cannot be manipulated.
Regeneration of Time Code
When the TGC switch is positioned to R-RUN, the time
code recorded on the last frame of the last recorded clip
(with the latest recording date) on the P2 card is read, and
this time code can be used again.
When the menu option FIRST REC TC is set to REGEN
and a P2 card is removed or inserted or the target
recording card is changed with the USER button for the
SLOT SEL function, the same time code is added to the
last recorded clip on the target P2 card. When there is no
recorded clip, the time code is recorded on the new
recording target P2 card, from the value generated by the
TC generator built into the camera-recorder.
The menu option FIRST TC REC can be found in the <TC/
UB> screen, which is accessible from the MAIN
OPERATION page.
2
3
Adjustments and Settings for Recording
Set the menu option TC MODE to “DF” or “NDF”. “DF”
steps the time code in drop frame mode, and “NDF”
steps it in non-drop frame mode. However, the
camera always operates in “NDF” for 24P, 24PA and
24PN (Native) modes.
The menu option TC MODE can be found in the <TC/
UB> screen, which is accessible from the MAIN
OPERATION page.
Regeneration function using REC REVIEW
Make sure the P2 card to record the data. To
regenerate the time code of the last recorded clip
when more than one P2 card is inserted, press the
Thumbnail button to open the thumbnail screen.
Be sure a P2 card is inserted for recording the clip
displayed at the end of the screen, and then switch
the slot with the USER button assigned the SLOT
SEL function so that data will be recorded on the P2
card.
Press the RET button on the lens. The message “TC
REGEN” is displayed in the viewfinder. During the
next recording, the time code of the last recorded clip
on the card will be regenerated.
‹Notes
z When a card with recorded data is changed, the
time code of the last recorded clip on the changed
P2 card will be regenerated.
z This function is disabled during recording or freerun.
Time code function during battery replacement
Even during battery replacement, the backup mechanism
functions, allowing the camera-recorder to operate
continuously.
If SYSTEM MODE is changed, a free-run time code may
shift. After turning on the power again, confirm the time
code and reset if necessary.
‹Note
When the POWER switch has been switched ON # OFF
# ON, the backup accuracy of the time code in free run
mode is about ±2 frames.
Adjustments and Settings for Recording : Setting Time Data
61
AJ-HPX2000P(VQT1D27-1)E.book 62 ページ
２００７年７月３０日　月曜日　午後１時３１分
Externally Locking the Time Code
The unit’s internal time code generator can be locked to an
external generator. In addition, the external time code
generator can be locked to the unit’s internal generator.
Example 2: When connecting a multiple number of units
and using one of them as the reference unit
Example of connections for external locking
As the figure shows, connect both the reference video
signal and reference time code.
Example 1: When locking onto an external signal
TC OUT
MON OUT or
VIDEO OUT
(VBS)
Reference unit
TC IN
GENLOCK IN
Reference time
code
TC OUT
TC IN
MON OUT or
VIDEO OUT
(VBS)
TC IN
GENLOCK IN
MON OUT or
VIDEO OUT
(VBS)
TC OUT
GENLOCK IN
To the next camera
Reference video
signal
‹Note
In place of the HD Y reference signal, composite video
signals can be input as the reference video signal.
‹Note
The system can be configured with multiple units by
opening the <GENLOCK> screen from the SYSTEM
SETTING page and setting the GL PHASE item to the
connector using menu operations.
The phase of the time code can correspond to either the
HDY output signals of the MON OUT connector or VBS
output signals of the VIDEO OUT and MON OUT
connector.
However, the same value should commonly be set to the
GL PHASE for all cameras. If different values coexist in the
system, the shooting timing may not correspond to each
other.
Reference video signal
MON OUT (VBS) or
VIDEO OUT (VBS)
Setting of GL PHASE
COMPOSIT
Setting of GL PHASE
Item
GL PHASE
62
Adjustments and Settings for Recording : Setting Time Data
Variable
range
Remarks
For selecting the output signals that
HD SDI
COMPOSIT lock phases to the signals that are
input in the GENLOCK IN connector.
HD SDI:
For locking the HD SDI signals to
the GENLOCK input.
For the down converter output
signals, the start position of the
video delays by about 90 lines.
COMPOSIT:
For locking the down converter
output signals to the GENLOCK
input.
For the HD SDI output signals, the
start position of the video gains by
about 90 lines.
AJ-HPX2000P(VQT1D27-1)E.book 63 ページ
２００７年７月３０日　月曜日　午後１時３１分
In the unit, there is a video signal delay in the camera,
which is required or the process of converting video
images taken with the image-shooting element from the
progressive signals to the interlace signals. Since time is
required for making the 2:3 pull-down from the 24P frame,
there is a video signal delay in the camera. When
recording from a device that can record images without a
delay and the unit is connected in parallel, it is necessary
to synchronize the time code. To set this timing, open the
<TC UB> screen from the VTR MENU page and set it in
the TC VIDEO SYNCRO item.
Set by referring to the connection example.
Example 4:
When the unit and an external device are locked to the
external time code generator and when several units
of the camera are connected in a cascade
configuration.
Reference video signal
External time code generator
TCG
TC OUT
Device that records images without a delay
TC IN
Variable
range
Item
TC VIDEO
SYNCRO
Remarks
For setting to correct the time code
according to the delay of video
signals.
0: Do not correct.
1: To delay the time code to be input
according to the timing of the
video images.
2: To forward the time code to be
output according to the timing of
the video images.
3: To delay the time code to be input
and forward the time code to be
output, respectively, according to
the timing of the video images.
0
1
2
3
DAT
Adjustments and Settings for Recording
Setting of the TC VIDEO SYNCRO item
Example 3:
When the unit and an external device are locked to the
external time code generator, which is connected
externally, and when simultaneous recording is made
by using the TC OUT output signals.
AJ-HPX2000 1st unit
Settings of the TC
VIDEO SYNCRO
item: 1
TC IN
GENLOCK IN
TC OUT
TC IN
AJ-HPX2000 2nd unit and later
Settings of the TC
VIDEO SYNCRO
item: 0
GENLOCK IN
TC OUT
AJ-HPX2000
TC IN
Reference video signal
Settings of the TC
VIDEO SYNCRO
item: 0
GENLOCK IN
External time code generator
TC OUT
TCG
TC OUT
Device that records images without a
delay
TC IN
DAT
AJ-HPX2000
Settings of the TC
VIDEO SYNCRO
item: 1
TC IN
GENLOCK IN
TC OUT
MON OUT
or
VIDEO OUT
TC IN
VTR etc.
VIDEO IN
SDI IN
HD SDI IN
REF IN
Adjustments and Settings for Recording : Setting Time Data
63
AJ-HPX2000P(VQT1D27-1)E.book 64 ページ
２００７年７月３０日　月曜日　午後１時３１分
Example 5:
When an external device is locked to the time code
generator of the unit.
Example 6:
When an external device is locked to the time code
generator of camera-recorder, which is connected in a
cascade configuration.
Reference video signal
Reference video signal
To be connected if necessary
To be connected if necessary
TCG
TC OUT
TCG
TC OUT
AJ-HPX2000
TC IN
Settings of the TC
VIDEO SYNCRO
item: 3
AJ-HPX2000 1st unit
Settings of the TC
VIDEO SYNCRO
item: 1
TC IN
GENLOCK IN
GENLOCK IN
TC OUT
A device that synchronizes with the TC
IN input and capable to record without
delay (DAT etc.)
TC IN
DAT
TC OUT
AJ-HPX2000 From the 2nd unit to the (n-1)-th unit
Settings of the TC
VIDEO SYNCRO
item: 0
TC IN
GENLOCK IN
TC OUT
AJ-HPX2000 n-th unit
Settings of the TC
VIDEO SYNCRO
item: 2
TC IN
GENLOCK IN
TC OUT
A device that synchronizes with the TC IN
input and capable to record without delay
(such as DAT or a camera recorder)
TC IN
64
Adjustments and Settings for Recording : Setting Time Data
DAT
AJ-HPX2000P(VQT1D27-1)E.book 65 ページ
２００７年７月３０日　月曜日　午後１時３１分
To externally lock the time code
Follow the steps below.
1
2
3
4
Position the TCG switch at [F-RUN].
Position the DISPLAY switch at [TC].
Set the menu option GENLOCK to “EXT”.
This option can be found in the <GENLOCK> screen,
which is accessible from the SYSTEM SETTING
page.
Supply a phase-relationship reference time code (that
conforms to the time code requirements) and
reference video signals to the TC IN and GENLOCK
IN connectors, respectively.
Now the built-in time code generator is locked with the
reference time code.
From about 10 seconds after locking the time code
generator stays locked even if the supply of external
reference time code is discontinued.
When the TCG switch is positioned to F-RUN, only the
time code is locked to an external time code. To lock the
user bits to an externally input value, the UB MODE and
VITC UB MODE menu options must be set to EXT and
USER/EXIT, respectively.
The menu option UB MODE and VITC UB MODE can be
found in the <TC/UB> screen, which is accessible from the
MAIN OPERATION page.
To unlock the externally locked time code
Adjustments and Settings for Recording
5
Turn on the POWER switch.
Setting the user bits when the time code is
externally locked
Discontinue external time code supply, then position the
TCG switch at [R-RUN].
Cautions in switching the power source from
battery to external power supply
Connect the DC IN socket with the external power supply
before removing the battery pack, in order to keep the time
code generator energised. If the battery pack is removed
first, there is no guarantee that the time code will stay
externally locked.
‹Notes
z When the time code generator is externally locked, the
time code instantly becomes locked with the external
time code, and the counter displays the external time
code value. Do not put the unit in recording mode before
the sync generator stabilises.
z Be sure to enter the non-drop-frame time code to
externally lock the time code in the 24P, 24PA or 24PN
(Native) mode. Externally locking the drop-frame time
code is not permitted.
Video quality may be degraded momentarily while
externally locking to adjust the 5-frame cycle. This is not
abnormal.
z While recording data in the 24P, 24PA, or Native modes,
it is impossible to lock the time code externally. Lock it
before recording.
When the unit PRE REC MODE is set to [ON] in these
modes, corrupt images or stopped time codes may be
recorded if the time code is switched from REC RUN to
FREE RUN immediately before recording or when using
slave lock.
z When “1394” is selected for the menu option REC
SIGNAL, it is not possible to synchronize with the time
code entered via TC IN connector.
The menu option REC SIGNAL is found in the SYSTEM
MODE screen on the SYSTEM SETTING page.
External synchronisation of the camera when the
time code is externally locked
When the time code is externally locked, the reference
video signals input through the GENLOCK IN connector
gen-lock the camera.
‹Notes
z To externally lock the unit, as the master device, with
more than one unit, the mode must be the same as that
of the camera. Note that in a system using both
interlaced and progressive scanning, there may be
breaks in the video and time code.
z When using the MON OUT or VIDEO OUT connector to
output reference signals, position the OUTPUT SEL
switch on the side panel at [CAM].
Superimpose of time codes
To display the time code in the viewfinder or the LCD monitor
when recording or during playback, set TC in <VF
INDICATOR2> to [TCG], [TCR], or [TCG/TCR].
To display the time code indication on the MONITOR OUT or
VIDEO OUT outputs, set MONI OUT CHARA in <OUTPUT
SEL> to [ON] and the VIDEO OUT CHARACTER switch to
[ON].
To display the time code while the color bar is displayed, set
TC ON COLOR BAR in <VF INDICATOR2> to [ON].
Adjustments and Settings for Recording : Setting Time Data
65
AJ-HPX2000P(VQT1D27-1)E.book 66 ページ
２００７年７月３０日　月曜日　午後１時３１分
Providing an ID to the Camera
The camera ID is specified through the <CAMERA ID>
screen.
The ID can include up to 10 alphanumeric characters,
symbols, and/or spaces.
‹Note
When the settings menu is displayed, outputting color bar
signals does not indicate the camera ID.
1
Go to the <CAMERA ID> screen from the CAM
OPERATION page.
# < CAMERA ID >
ID1 : ABCDEFGHIJ
ID2 : ABCDEFGHIJ
ID3 : ABCDEFGHIJ
2
3
4
Turn the JOG dial button to move the cursor to options
[ID1:] - [ID3:].
Press the JOG dial button. The cursor moves to the
ID entry area, allowing you to enter an ID.
Turn the JOG dial button until a desired character
appears. The characters that appear are switched in
the following order:
Space:
Ð
Alphabetical characters:
Ð
Numerals:
Ð
Symbols:
5
6
7
8
66
†
A to Z
0 to 9
', >, <, /, -
Press the JOG dial button to accept a desired
character.
Turn the JOG dial button to move cursor to the next
digit (clockwise), and repeat Steps 4 - 5 to set
characters.
To change an input character, turn the JOG dial
button to move the arrow (cursor) to the appropriate
character and carry out steps 4 and 5.
When all the characters are set, turn the JOG dial
button to move the cursor to [:].
Pressing the JOG dial button brings the cursor back
to the options [ID1:] - [ID3:].
Adjustments and Settings for Recording : Setting Time Data
9
To exit the menu, press the MENU button.
‹Notes
z When the menu option CAMERA ID is set to “BAR”,
the camera ID is recorded together with color bar
signals.
This menu option is accessible from the <VF
INDICATOR1> screen, which is accessible from the
VF page.
z The ID POSITION menu option can be used to
select a position where the camera ID is
superimposed on the color bar. The ID POSITION
option can be accessed through the VF
INDICATOR 1 screen on the VF page.
z When the TIME/DATE menu option is set to ON, the
camera ID along with the data and time information
are superimposed on the color bar. The TIME/DATE
option can be accessed through the VF
INDICATOR 1 screen on the VF page.
AJ-HPX2000P(VQT1D27-1)E.book 67 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting UMID Information
The unit supports UMID metadata. You need to specify as
UMID information the country where you live (using up to
three characters), organisation or company (up to four
characters) and user name (up to four characters). For the
country name, you must use abbreviations prescribed in
8
To exit the menu, press the MENU button.
the ISO3166 Country Code*1.
Here are some examples of the correct method for
specifying a user name:
CHN
USA
CAN
JPN
Adjustments and Settings for Recording
*1 Examples: China
U.S.A.
Canada
Japan
< UMID SET/INFO >
--OWNER-COUNTRY
:***
ORGANIZATION :****
# USER
:****
**DEVICE NODE**
1
2
3
4
Go to the <UMID SET/ INFO> screen from the MAIN
OPERATION page.
Turn the JOG dial button to move the cursor to the
option [USER].
Press the JOG dial button. The cursor moves to the
user entry area, allowing you to enter a user name.
Turn the JOG dial button until a desired character
appears. The characters appear in the following
order:
Space:
Ð
Alphabetical characters:
Ð
Numerals:
Ð
Symbols:
†
A to Z
0 to 9
', >, <, /, -
‹ Note
The COUNTRY entry can only include alphabetical
characters and spaces.
5
6
7
Press the JOG dial button to accept a desired
character.
Turn the JOG dial button to move the cursor to the
next digit (clockwise), and repeat Steps 4 to 5 to set
characters.
To change an input character, go back to step 3.
When the last character is set, press the JOG dial
button to bring the cursor back to the option [USER].
Adjustments and Settings for Recording : Setting Time Data
67
AJ-HPX2000P(VQT1D27-1)E.book 68 ページ
２００７年７月３０日　月曜日　午後１時３１分
CTL Count Setting and Display
By setting the DISPLAY switch to “CTL”, CTL count is
displayed on the time count indication of the LCD display
window.
The CTL count is displayed in ±12 hours with non-dropframe.
The playback order of clips recorded on a P2 card is not
linear as for VTRs. It is organized according to thumbnail
operations or exchanging P2 cards, and the priority of
recorded clips will be altered. Therefore, different CTL
counts are displayed for recording mode and playback
mode, respectively.
CTL count for recording mode (recording CTL)
Recording CTL count is displayed during recording mode
(REC, REC/PAUSE, STOP and REC REVIEW), and the
count continues from the end point of the previous
recording. Recording CTL count is retained even if the
power is turned off. When the power is next turned on, the
count continues from the previous value.
z If the RESET button is pressed while the recording CTL
count is being displayed, only the recording CTL count is
reset. Note that reset is disabled during the REC
REVIEW operation.
z 24 frames are counted in the 24PN (Native) mode.
CTL count for the playback mode
(playback CTL)
During playback mode (PLAY, FF, REW, PLAY/PAUSE),
playback CTL count is displayed.
Whenever the playback order of clips is altered (clips are
sorted by shooting dates), previous playback CTL count is
disabled. The first frame of the first clip is used as a
reference value for recalculation, and the new playback
CTL count is displayed.
Example:
Current value
First frame
Clip 2
Clip 1
00:01:00:00
Clip 3
00:02:00:00
00:03:00:00
Delete Clip 2.
Current value
Clip 1
00:00:00:00
68
The reference value (value of the first frame of the first clip)
is changed when either of the following occurs:
z The power is turned on, the first frame becomes 0.
z When the playback CTL count is reset, the current
playback position is set as 0, and the previous reference
value becomes a negative value.
Example:
Current value
First frame
Clip 2
Clip 1
00:00:00:00
00:01:00:00
00:02:00:00
Clip 3
00:03:00:00
Reset
First frame
‹ Notes
00:00:00:00
The playback order of clips is altered when either of the
following occurs:
z Clips are deleted, copied or restored, or the P2 card is
formatted.
z The thumbnail display is switched (for more information,
see [Switching the Thumbnail Display] (page 113)).
z A P2 card is inserted or removed.
00:01:00:00
Clip 3
00:02:00:00
Adjustments and Settings for Recording : Setting Time Data
Clip 1
–00:03:00:00
–00:02:00:00
Clip 2
–00:01:00:00
Clip 3
00:00:00:00
‹ Notes
z If the RESET button is pressed while the playback CTL
count is being displayed, only the playback CTL count is
reset.
z For playback in 24PN (Native) mode, 30 frames are
counted in accordance with the pull-down images.
AJ-HPX2000P(VQT1D27-1)E.book 69 ページ
２００７年７月３０日　月曜日　午後１時３１分
Viewfinder Screen Status Displays
In addition to video images, the viewfinder displays lamps and text that indicate the settings and operating status of the
unit, together with messages, a center marker, a safety zone marker and the camera ID.
Lamps in the Viewfinder Screen
3. BATT (battery) Lamp
5
1
Adjustments and Settings for Recording
This lamp starts blinking a few minutes before the
battery charge starts to run out, and stays illuminated
after the battery is completely flat. The battery should
be replaced before it is nearly flat, so that operation
will not be interrupted.
For more information, see [Warning System] (page
145).
4. SAVE Lamp
2
3
In the normal setting:
The lamp stays on when the SAVE switch is positioned
at [ON] and the output of video and audio is powersaved.
4
The above viewfinder is the AJ-VF20WBP (for further
information on your optional viewfinder model, see the
relevant instruction manual).
1. TALLY/REC (recording) Lamp
This lamp stays illuminated during recording, and
starts blinking if any abnormal action occurs.
For more information, see [Warning System] (page
145).
2. Abnormal Operating Status Warning Lamp
This lamp comes on when the unit is in any of the
abnormal operating statuses specified through the
menu sub-option !LED.
For statuses that activate the lamp, see the options in
the <!LED> screen in [!LED] (page 172).
When the menu option SAVE LED is set to “P2
CARD”:
The lamp starts blinking when the P2 card remaining
free space is getting low.
The menu option SAVE LED can be found in the <VF
INDICATOR2>, which is accessible from the VF page.
5. 50 (50-Mbps recording/playback) Lamp
(In using the SD viewfinder)
This lamp stays illuminated when the unit is set to the
DVCPRO50 (50 Mbps) format, and when playback is
being performed in the DVCPRO50 format.
Note that the lamp is factory-disabled. For more
information, see the relevant section of the menu
option 50M INDICATOR in [VF DISPLAY] (page 169).
Mode Check Screen Displays (MODE CHECK button function)
The viewfinder can display a screen that allows you to
check the settings and status of the unit.
Each press of the MODE CHECK button switches the
screen as follows:
STATUS screen > !LED screen > FUNCTION screen >
AUDIO screen > No indication
# < MODE CHECK IND >
STATUS
! LED
FUNCTION
AUDIO
P.ON IND
:ON
:ON
:ON
:ON
:ON
Each screen is displayed for about three seconds. A press
of the MODE CHECK button switches the current screen.
Whether or not to display each screen is specified through
the <MODE CHECK IND> screen, which is accessible
from the VF page.
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
69
AJ-HPX2000P(VQT1D27-1)E.book 70 ページ
２００７年７月３０日　月曜日　午後１時３１分
Selecting Viewfinder Display Information
To select the information items you want to have displayed
in the viewfinder screen, go to the <VF INDICATOR1> and
<VF INDICATOR2> screens from the VF page, and turn on
or off the appropriate options, or specify desired values.
For directions on setting the options, see [Setting Menu
Options] (page 153).
# < VF INDICATOR1 >
EXTENDER
SHUTTER
FILTER
WHITE
GAIN
IRIS
CAMERA ID
ID POSITION
DATE/TIME
ZOOM LVL
COLOR TEMP
CAMERA MODE
:ON
:ON
:ON
:ON
:ON
:S+IRIS
:BAR
:UPPER L
:OFF
:ON
:ON
:ON
# < VF INDICATOR2 >
P2CARD REMAIN
BATTERY
AUDIO LVL
TC ON COLOR BAR
TC
SYSTEM INFO
COMPRESSION
SAVE LED
REC STATUS
PROXY REC
Viewfinder Status Indication Layout
The indications are arranged as illustrated below.
4
2
1
10
6
3
7
5
3$'9&352NJO5(&
9
+'
NJO',21,&
*$,186(56:*$,1
/2:6*$,1
0,'
+ , * + ' 6 * $ , 1 11
12
15
16
17
18
9
8
13
806*$,1E%
8$8',2&+8'6*$,1 C5(&:$51,1*&203
'=
(; ' 5 6 7 & * 6 '
N
. 0)
I w %6
$ $ E%
)
=
w ) 21 22 23
19
20
24
25
14
31
30
29
26 28
27
For more information, see the following pages:
70
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
:TOTAL
:ON
:ON
:OFF
:OFF
:NORMAL
:ON
:SAVE
:OFF
:OFF
AJ-HPX2000P(VQT1D27-1)E.book 71 ページ
２００７年７月３０日　月曜日　午後１時３１分
Information Item
Indication
1080
720
480
576
2. Camera mode
60i
30P
24P
24PA
50i
25P
60P
50P
3. REC mode
DVCPRO HD
AVC-I 100 (optional)
AVC-I 50 (optional)
DVCPRO50
DVCPRO
DV
11/¢¢.¢
1/60 (1/100) - 1/2000, HALF
5. P2 card remaining
free space
¢¢¢min
END
WP
LOOP
INFO P2
¢ /¢
6. P2 card remaining
[1] ¢¢¢min
free space
(when MODE CHECK
is being performed)
7. Camera-recorder
REC indication
REC
PRO14 - AC ADPT
8. Battery type
(when MODE CHECK
is being performed)
¢¢.¢V
9. Battery remaining
¢¢¢%
level/voltage
EMP
MAX
Adjustments and Settings for Recording
This indicates the mode that the unit operates in.
1080 interlace mode
720 progressive mode
480 interlace mode
576 interlace mode
This indicates the video system when signals output from CCD are
recorded on a P2 card or output as video signals.
1080-59.94i or 480-59.94i
1080-29.97P, 720-29.97P or 480-29.97P (2-2 Pull-down)
1080-23.98P, 720-23.98P or 480-23.98P (2-3 Pull-down)
1080-23.98P or 480-23.98P (2-3-3-2 Pull-down)
1080-50i or 576-50i
1080-25P, 720-25P or 576-25P (2-2 Pull-down)
720-59.94P
720-50P
This indicates the recording mode.
‹Note
DVCPRO HD is displayed in the Native recording.
1. System mode
4. Shutter speed/mode
Status
This indicates that the shutter speed is set to SYNCHRO SCAN.
This indicates that a fixed shutter speed has been set.
The indication “¢¢¢min” stays illuminated under normal conditions or
blinks when the remaining level is near zero.
When the card space is used up, “END” blinks.
The P2 card is write-protected.
The camera-recorder is in LOOP REC mode. When loop recording cannot
be performed, for example because the P2 card has no free space, the
indication blinks.
P2 card being recognised.
Total free space/capacities of the P2 cards (when MODE CHECK is being
performed).
‹Note
When the menu option P2 CARD REMAIN is set to “ONE CARD”, the
number of the P2 card slot that contains the target card is indicated,
together with the remaining space.
For more information, see [P2 Card Remaining Free Space/capacity
Indication] (page 76).
The number of the P2 card slot that contains the target card and the
remaining free space (when MODE CHECK is being performed) are
indicated. In LOOP REC mode, the minimum guaranteed recording time
(Refer to [Loop Recording] (page 36)) is indicated. This indication also
appears when the target P2 card has been switched with a user button.
When an external device is controlled through the 1394 connection (when
the 1394 option is set to BOTH),the recording status of the camera-recorder
is displayed using characters. The indication stays illuminated during
recording. This is displayed when the menu option REC TALLY of the
OPTION MODE is set to “CHAR”.
This can also be displayed during the recording using the unit alone.
This is displayed when the menu option REC STATUS of the VF
INDICATOR2 is set to “ON”.
Battery type, selected through a menu option. “AC ADPT” indicates when
an external DC power supply has been input.
Battery remaining level in tenths of a volt
The remaining battery level is indicated in percentage.
This indicates that the battery level is empty.
This indicates the battery is fully charged.
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
71
AJ-HPX2000P(VQT1D27-1)E.book 72 ページ
２００７年７月３０日　月曜日　午後１時３１分
Information Item
10. MODE CHECK
Indication Area
(STATUS:
Master gain,
USER SW GAIN)
(Cause of !LED
illumination: displayed
full-screen)
z Indications selected
through the menu option
!LED are marked with
[ ! ].
z Indications which may
activate the !LED are
marked with [ ].
(FUNCTION:
VIDEO OUT)
(FUNCTION:
MON OUT)
(FUNCTION:
P2CARD STATUS)
Indication
LOW/MID/HIGH
–3 to 30
S.GAIN
30/36/42/48
DS.GAIN
6:/10:/12:/
15:/20:
Value set for the master gain
Example: LOW: 0
Gain value to which S.GAIN and DS.GAIN are assigned
GAIN (0 dB)
GAIN (–3 dB)
DS.GAIN
LINE MIX
SHUTTER
WHITE PRE.
EXTENDER
B.GAMMA
MATRIX
COLOR COR.
FILTER
ATW
OUTPUT: MEM/CAM/OFF
TYPE: HD-SDI/SD-SDI/VBS
CHAR: ON/OFF
OUTPUT: MEM/CAM/OFF
SELECT: VBS/VF/Y
CHAR: ON/OFF
Gain status
Gain status
DS. GAIN value
LINE MIX status (ON or OFF)
Shutter status
White balance status
Extender status (EX2 or OFF)
BLACK GAMMA status (ON or OFF)
MATRIX status (A, B, or OFF)
Color correction status (ON or OFF)
Filter status
ATW status (ON or OFF)
Position of OUTPUT SEL switch.
Setting for menu option VIDEO OUT switch.
Position of VIDEO OUT CHARACTER switch.
Position of OUTPUT SEL switch.
Signal mode set through the MONITOR OUT menu option.
The setting for menu option MONITOR OUT CHAR.
The options MONITOR OUT and MONITOR OUT CHAR can be found in
the OUTPUT SEL screen, which is accessible from the SYSTEM SETTING
page.
Total remaining free space/capacities of the P2 cards loaded in P2 Card
Slots 1 - 5.
Remaining free space/capacity of each card. The numbers denote the P2
card slot numbers.
The card status is indicated as:
ACTIVE/ACCESSING/INFO READING/FULL/PROTECTED/
NOT SUPPORTED/FORMAT ERROR/NO CARD/PROXY
For details of statuses, see [P2 CARD ACCESS LED and status of P2
cards] (page 30).
Indicates optional slot status.
The card status is indicated as:
PROXY/NO CARD/NOT SUPPORTED
If the FRONT AUDIO LEVEL control is in effect for Channel 1, then ON is
indicated. If not, OFF is indicated.
If the FRONT AUDIO LEVEL control is in effect for Channel 2, then ON is
indicated. If not, OFF is indicated.
TOTAL
SLOT1/SLOT2/SLOT3/
SLOT4/SLOT5
OP-SLOT
(AUDIO: Enabling or
disabling the FRONT
AUDIO LEVEL
control)
(AUDIO: Phantom
power status for the
microphone)
(AUDIO: Input signal
and level for each
channel)
72
Status
CH1: ON/OFF
CH2: ON/OFF
FRONT: ON/OFF
REAR: ON/OFF
Phantom power status of the front microphone
Phantom power status of the rear microphone
For more information, see [MIC/AUDIO2] (page 182).
FRONT/W.L./REAR
CH1/2/3/4
Input signal and level for each channel
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
AJ-HPX2000P(VQT1D27-1)E.book 73 ページ
Information Item
11. Camera Warning and
Report Area
(related to AWB, ABB
and switch settings)
２００７年７月３０日　月曜日　午後１時３１分
Indication
AWB A ACTIVE
AWB B ACTIVE
AWB A OK ¢.¢K
AWB B OK ¢.¢K
AWB BREAK ¢.¢K
AWB NG
COLOR TEMP LOW
COLOR TEMP HIGH
LEVEL OVER
LOW LIGHT
TIME OVER
ATW MODE
AWB PRESET ¢.¢K
(Switch changeover
indication)
(Low light warning)
(Y GET value)
B-SHD ACTIVE
B-SHD OK
B-SHD BREAK
B-SHD NG
WHITE: # ¢.¢K
AUTO KNEE: ON/OFF
GAIN:¢¢dB
SS: 1/¢¢¢¢
SS: 1 1/¢¢¢¢
FILTER: ¢ ¢.¢K
EXTENDER: ON/OFF
IRIS: ¢¢ F ¢.¢
LOW LIGHT
¢¢¢.¢%
(MARKER indication) MKR: A/B/OFF
INH
S.GAIN ¢¢dB/OFF
DS.GAIN ¢¢:/OFF
LINE MIX ON/OFF
S.IRIS ON/OFF
I.OVR ON/OFF
S.BLK –¢¢/OFF
12. User button
functions
UM: USER MAIN
button
U1: USER1 button
U2: USER2 button
B.GAMMA ON/OFF
AUDIO CH1
AUDIO CH2
REC SW
Y GET ON
RET SW
ATW ON/OFF
D.ZOOM a2/a3/a4/OFF
SLOT SEL
PRE REC
USB HOST/DEVICE/OFF
DRS ON/OFF
ASSIST ON/OFF
C.TEMP
AWB being performed on Ch A.
AWB being performed on Ch B.
AWB successful on Ch A.
AWB successful on Ch B.
AWB action aborted by user.
AWB action failed. The second line indicates the status.
Color temperature too low.
Color temperature too high.
Brightness too high.
Brightness too low.
Action timed-out.
This is indicated when AWB cannot be executed since ATW is being
operated.
AWB cannot be performed because the AWB switch is position at PRE or
the super gain is enabled.
Make sure the FILTER control is positioned correctly.
ABB being performed.
ABB action successful.
ABB action aborted by user.
ABB action failed.
Black shading accepted (by holding down the ABB switch during ABB
adjustment).
Black shading being adjusted.
Black shading adjustment successful.
Black shading adjustment aborted by user.
Black shading adjustment failed.
The WHITE BAL switch has been switched. # is replaced with A, B or PRST.
When [A] and [B] are set to “VAR”, then it is indicated as VAR ¢.¢ K. When
[B] is assigned ATW, then it is indicated as ATW MODE.
AUTO KNEE switch has been switched to ON or OFF.
Gain has been switched with the GAIN selector switch or a user button.
When the shutter speed has been switched, the shutter speed is indicated.
Shutter speed is in SYNCRO SCAN mode.
Filter position and detail have been switched.
Lens extender has been turned on or off.
Indicated when the iris override correction value is to be changed.
Brightness too low.
With the Y GET ON setting, the output brightness level near the center
marker is displayed as “%.”
Current marker type
User buttons disabled.
Selected S.GAIN
Selected DS.GAIN
Whether LINE MIX GAIN is ON or OFF.
Whether S.IRIS is ON or OFF.
Iris override can be set (the IRIS OVERRIDE setting is ON).
Status of SUPER BLACK (ON or OFF). When it is ON, the set value is also
indicated.
Status of BLACK GAMMA (shade correction for the black level): ON or OFF
Input signal to be recorded on Audio Channel 1 has been switched.
Input signal to be recorded on Audio Channel 2 has been switched.
USER button acts as REC switch.
Y GET function ON.
USER button acts as RET switch.
ATW being performed.
Magnification of digital zoom
Switch that changes the target card is set.
Indicates that PRE RECORDING mode has been switched ON or OFF.
USB action status has been switched.
Indicates whether the dynamic range stretcher function is ON or OFF.
Indicates whether the focus assist function is ON or OFF.
Indicates the mode for changing the color temperature with the JOG dial
button is ON or OFF.
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
Adjustments and Settings for Recording
CHECK FILTER
ABB ACTIVE
ABB OK
ABB BREAK
ABB NG
B-SHD READY
Status
73
AJ-HPX2000P(VQT1D27-1)E.book 74 ページ
２００７年７月３０日　月曜日　午後１時３１分
Information Item
13. System information
and warnings
Indication
SYSTEM ERROR-¢¢
TURN POWER OFF
CARD ERR ¢
REC WARNING
BACKUP BATT EMPTY
FAN STOP
WIRELESS-RF
EOM
BOS
EOS
CANNOT REC
CANNOT PLAY
COMM ERROR
TEXT MEMO
TEXT MEMO INVALID
MARK ON/OFF
SHOT MARK INVALID
UPDATING
USB DEVICE
USB HOST
THUMBNAIL OPEN
1394 INITIAL ERROR
PROXY REC P2&SD
PROXY REC P2
NEAR END (SD)
EOM (SD)
PROXY CARD ERROR
SD CARD WRITE ERR
CANNOT DISP IN VF
TC REGEN
SLOT SEL
SLOT SEL INVALID
DIR NG CARD
SLOT1/2/3/4/5
RUN DOWN CARD
SLOT1/2/3/4/5
14. Time code indication TCG
TCR
(V)UBG
(V)UBR
CTL
74
12:59:59:20
12:59:59:20
AB CD EF 00
12 34 56 78
–1:59:59:20
Status
Something abnormal is happening to the internal computer communications
or reference signal. No further recording or playback can be performed. ¢¢
is replaced with an error code.For more information, see [Error Codes]
(page 148).
P2 card has been removed while being accessed (recorded, played back, or
formatted), and subsequent operation is disabled.
An error has occurred while recording data to or playing data from a P2
card. In the actual indication the ¢ is replaced by the slot number of the P2
card that triggered the error.
Something abnormal is happening to video and/or audio being recorded.
Backup battery needs replacing.
The fan is locked and halted.
RF signal from the wireless receiver is degraded.
P2 card has no free space.
Playback position is at the start of all the clips.
Playback position is at the end of all the clips.
The P2 card is not recordable. Detailed information is provided on the
FUNCTION screen of MODE CHECK. See the relevant section of the
MODE CHECK indication area.
Clip cannot be played back perhaps because no P2 card is loaded, or the
P2 card contains no clips.
Displayed when disconnection between microcomputers continues for a
specified period or longer.
Text memo has been added.
Text memo has not been successfully added.
Shot mark been added or deleted. For information on shot marks, see [Shot
Mark Function] (page 41).
This is displayed when shot marks cannot be added.
Clip information is being updated. Playback operation disabled.
AJ-HPX2000 is in USB DEVICE mode. When communication is disabled,
the indication blinks.
Indicates that the camera-recorder is set to the USB HOST mode. When the
external hard disk is not successfully recognized, then the indication blinks.
Thumbnail is being manipulated.
Displayed when the connection of the DVCPRO/DV connector is abnormal
(when AJ-YAD800G is attached).
Displayed when proxy recording on either the P2 card or the SD memory
card starts (when AJ-YAX800G is attached, the PROXY REC item on the
VF INDICATOR2 screen is turned on).
Displayed when proxy recording on the P2 card starts (when AJ-YAX800G is
attached, the PROXY REC item on the VF INDICATOR2 screen is turned on).
When the remaining free space on the SD Memory card drops below one
minute during proxy recording, the message is displayed (when AJYAX800G is attached).
Displayed when full capacity is reached during proxy recording on the SD
memory card (when AJ-YAX800G is attached).
Displayed when proxy recording stops because of failure on either the video
encoder card or the stream.(when AJ-YAX800G is attached).
Displayed when a failure occurs on the SD memory card during proxy
recording, and only recording on the SD memory card stops.(when AJYAX800G is attached).
No return video, playback, or externally input video can be output to the
viewfinder.
The RET button was pressed to regenerate the time code as the time code
for the last clip recorded on a P2 card.
This blinks while the recording slots of P2 cards are switched after pressing
the USER switch where the SLOT SEL function is assigned.
This is displayed if the recording slots of P2 cards cannot be switched when
the USER switch where the SLOT SEL function is assigned is pressed.
This is displayed when the recording starts or completes while a P2 card with
an irregular directory arrangement is inserted or data are recorded after
inserting an irregular P2 card.
This is displayed when the recording starts or completes with an expired P2
card or when data are recorded after inserting an expired P2 card.
TCG (time code generator value)
TCR (time code reader value)
UBG VUBG (User bits generator value)
UBR VUBR (User bits reader value)
Displays CTL count.
15. D.ZOOM
DZa2/a3/a4
Magnification of the digital zoom when the unit is in digital zoom mode.
16. Extender
EX
Lens extender used.
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
AJ-HPX2000P(VQT1D27-1)E.book 75 ページ
２００７年７月３０日　月曜日　午後１時３１分
Information Item
Indication
Status
¢ . ¢K
Color temperature assigned to A, B, and PRST of the WHITE BAL switch
(this is a value stored at AWB performance or a value set through the menu
option). The indication is not provided in ATW mode.
18. Filter position
1-4
–
Position of the CC/ND filter.
This indicates that the filter has not been set to a proper position.
19. Dynamic range
stretcher mode
DRS
This appears when the video level of a part with high brightness is
compressed, and the function stretching the dynamic range is selected.
20. WHITE BAL switch
position
A
B
P
T
WHITE BAL switch positioned at [A].
WHITE BAL switch positioned at [B].
WHITE BAL switch positioned at [PRST].
ATW mode active. When brightness and color are outside operating limits,
the indication blinks.
21. Stored gain
indication
6:/10:/12:/15:/20:
Storage gain (DS.GAIN) value (when active)
22. Gain value
¢¢dB
Current gain value.
23. LINE MIX GAIN
display
M
This appears when LINE MIX GAIN (+6 dB) is active
24. Audio input channel
and level meter
- - - - „- - - - +
F
W
R
Selected channel together with its audio level.
AUDIO IN switch is positioned at FRONT.
AUDIO IN switch is positioned at W.L.(WIRELESS)
AUDIO IN switch is positioned at REAR.
25. Super black ON
B
Super black ON.
26. Super iris ON
S
Super iris ON.
27. Iris override
indication
++
+
(No indication)
–
––
Correction phase of the iris override (when active)
+ + : On the open side by 1
+: On the open side by 0.5
– – : On the closed side by 1
–: On the closed side by 0.5
No indication : Standard status
28. Iris, F value
NC
OPEN
F1.7 - F16
CLOSE
Lens cable is not connected.
Lens iris is at maximum.
Lens iris value
Lens iris closed.
‹Note
These indications are provided when the lens is capable of indicating the iris
value. When the iris is being overridden, they blink.
29. Zoom indication
Z00 - Z99
Zoom degree is indicated. This indication is not provided for a lens that does
not return the zoom position, even if the indication is set to ON.
30. INTERVAL REC/PRE [i]
(blink)
RECORDING
(blink) ¢¢h¢¢m/¢¢s
indication/
P-REC (blink)
SD memory card
remaining free space
[SD]
¢¢h ¢¢m
END
31. Compression mode
COMP
Adjustments and Settings for Recording
17. Color temperature
Displayed before and after operation during INTERVAL REC mode.
Displayed during INTERVAL REC operation.
Displays the pause time before the next recording during INTERVAL REC.
Indicated while pre-recorded video and audio are being recorded on the P2
card. If the USER switch is set to perform the PRE RECORDING function,
either “P-REC OFF” or the specified duration “1s - 8/15s” is displayed when
the PRE RECORDING mode is switched by pressing the USER switch.
If a video encoder card (AJ-YAX800G, optional accessory) is attached, the
remaining free space on the SD Memory card will be displayed when the
MODE CHECK button is pressed during proxy recording.
[END] is displayed when there is no remaining free space.
This appears when setting the mode for suppressing distortion of
compressed video images that may occur when dark parts are shot. (Only
for the DVCPRO HD at 720P)
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
75
AJ-HPX2000P(VQT1D27-1)E.book 76 ページ
２００７年７月３０日　月曜日　午後１時３１分
P2 Card Remaining Free Space/capacity Indication
Status of
unit
Under normal
conditions
Recording
status
Menu option
5.P2 card remaining free space
6.P2 card remaining free space
P2 CARD REMAIN*1
indication*2
indication (during MODE CHECK)*2
Other than LOOP TOTAL
REC mode
ONE CARD
During MODE
CHECK
OFF
LOOP REC mode TOTAL/ONE CARD
OFF
Other than LOOP TOTAL/ONE CARD/
REC mode
OFF
LOOP REC mode
The total remaining free space of all
P2 cards loaded in the P2 card slots
is indicated in minutes.
Example: 30min
The number of the P2 card slot
holding the target P2 card, together
with that card’s remaining free space
indicated in minutes.
Example: [1] 8min
Not provided
Indicated as [LOOP]
Not provided
The total remaining free space and
capacities of all P2 cards loaded in
the P2 card slots are indicated in
minutes.
Example: 20/40
Indicated as [LOOP]
Not provided
Not provided
Not provided
Not provided
Not provided
The number of the P2 card slot
holding the target P2 card, together
with that card’s remaining free
space, indicated in minutes.
Example: [1] 8min
The minimum guaranteed recording
time is indicated in minutes.
Example: 7min
*1 The menu option P2CARD REMAIN can be found in the <VF INDICATOR2> screen, which is accessible from the VF
page.
*2 If the remaining free space or memory capacity is 999 min or more, [999min] is displayed.
76
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
AJ-HPX2000P(VQT1D27-1)E.book 77 ページ
２００７年７月３０日　月曜日　午後１時３１分
Indications Available in the Viewfinder Screen
Selectable
between on and
off through menu
options
Provided when
the appropriate Provided during
status is
MODE CHECK*1
encountered.
Selectable
Provided during
playback
⃝
–
●
⃝
–
2. Camera mode
⃝
–
●
⃝
–
3. REC mode
⃝
–
●
⃝
–
4. Shutter speed/mode
⃝
⃝
●
⃝
–
5. P2 card remaining free space
⃝
–
●
⃝
–
6. P2 card remaining free space
(MODE CHECK)
–
–
●
⃝
–
7. Camera-recorder REC indication
⃝
⃝
–
⃝
–
8. Battery type
–
–
●
⃝
–
9. Battery remaining level/voltage
⃝
–
●
⃝
–
10. MODE CHECK indication area
–
–
⃝
⃝
–
11. Camera warning and report area
–
⃝
⃝
⃝
–
12. User button functions
–
⃝
⃝
⃝
–
13. System information and warnings
⃝
⃝
●
⃝
⃝
14. Time code indication
⃝
–
●
⃝
⃝
15. D.ZOOM
–
⃝
●
⃝
–
16. Extender
⃝
⃝
●
⃝
–
17. Color temperature
⃝
⃝
●
⃝
–
18. Filter position
⃝
–
●
⃝
–
19. Dynamic range stretcher mode
⃝
–
●
⃝
–
20. WHITE BAL switch position
⃝
–
●
⃝
–
21. Stored gain indication
⃝
–
●
⃝
–
22. Gain value
⃝
–
●
⃝
–
23. LINE MIX GAIN display
⃝
–
⃝
–
24. Audio input channel and level meter
⃝
–
●
All 4ch input
information
⃝
–
25. Super black ON
⃝
⃝
●
⃝
–
26. Super iris ON
⃝
⃝
●
⃝
–
27. Iris override indication
⃝
⃝
●
⃝
–
28. Iris, F value
⃝
–
●
⃝
–
29. Zoom indication
⃝
–
●
⃝
–
30. INTERVAL REC/
PRE RECORDING indication/
SD memory card remaining free
space
–
⃝
●
–
–
31. Compression mode
⃝
⃝
⃝
⃝
–
Adjustments and Settings for Recording
1. System mode
*1 ±: Not provided when the menu option STATUS is set to OFF, which can be found in the <MODE CHK IND> screen, accessible from
the VF page.
z: Provided regardless of the menu option setting.
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
77
AJ-HPX2000P(VQT1D27-1)E.book 78 ページ
２００７年７月３０日　月曜日　午後１時３１分
Display Modes and Setting Changes/adjustment Result Messages
The messages that appear on the viewfinder screen to
indicate changes to settings and adjustment results may
be limited, or set not to appear, through the menu option
DISP MODE. This menu option can be found in the <VF
DISPLAY> screen, which is accessible from the VF page.
For directions on navigating the menu, see [Setting Menu
Options] (page 153).
Message appears when:
# < VF DISPLAY >
DISP CONDITION
DISP MODE
VF OUT
VF DTL
ZEBRA1 DETECT
ZEBRA2 DETECT
ZEBRA2
LOW LIGHT LVL
ECU MENU DISP.
50M INDICATOR
MARKER/CHAR LVL
:NORMAL
:3
:Y
:3
:070%
:085%
:SPOT
:35%
:OFF
:OFF
:50%
DISP MODE
settings
Message
1
2
3
CC/ND filter changed.
FILTER: n (n=1, 2, 3, 4)
±
±
z
Gain changed.
GAIN: n dB
(n=–3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30)
±
±
z
WHITE BAL switch re-positioned.
WHITE: n (n=A, B, PRE)
±
±
z
OUTPUT/AUTO KNEE switch positioned at
[AUTO KNEE] or [OFF].
AUTO KNEE: ON (or OFF)
±
z
z
±
z
z
Shutter speed/mode changed.
SS:
1/100 (or 1/120, 1/250, 1/500, 1/1000, 1/2000,
11/¢¢.¢)
White balance adjusted (AWB performed).
Example: AWB A OK 3.2 K
±
z
z
Black balance adjusted (ABB performed).
Example: ABB OK
±
z
z
Extender selected.
Example: EXTENDER ON
±
±
z
USER button selected.
Example: UM: S.GAIN 30 dB
±
z
z
MARKER SELECT button selected.
Example: MKR: A
±
±
z
Iris being overridden.
Example: ++ F 5.6
±
z
z
z: Message appears.
±: Message does not appear.
78
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
AJ-HPX2000P(VQT1D27-1)E.book 79 ページ
２００７年７月３０日　月曜日　午後１時３１分
Setting the Marker Displays
The center, safety zone, safety zone area and frame
markers may be set to ON or OFF, along with
specifications of the marker types. To set and select
markers, go to the VF MARKER screen from the VF page
and select the appropriate options.
For directions on navigating the menu, see [Setting Menu
Options] (page 153).
‹Note
The indication MKR:A at the upper right of the screen
shows the current indication status. To view TABLE B,
press the MARKER SELECT button. This changes the
indication to MKR:B, allowing you to view the settings.
Adjustments and Settings for Recording
# < VF MARKER >
MKR:A
TABLE
:A
CENTER MARK
:1
SAFETY MARK
:2
SAFETY AREA
:90%
FRAME SIG
:4:3
FRAME MARK
:OFF
FLAME LVL
:15
Marker Check Screen Displays (MARKER SELECT button function)
The viewfinder can display a screen that allows you to view
the marker settings of the unit.
Pressing the MARKER SELECT button on the camerarecorder switches the marker indication as follows.
Markers
Center
Safety zone
Marker A > Marker B > No marker
If the menu option FRAME SIG is set to 16:9 as the
information of Marker A and 4:3 as the information of
Marker B, then the 16:9 and 4:3 view angles can easily be
checked with the button, as required.
The view angle specified through the menu
option FRAME SIG is displayed.
MARKER SELECT button
Checking Return Video Signal in the Viewfinder
The viewfinder displays the return video signal input to the
GENLOCK IN connector while the RET button at the lens
is held down.
To enable this capability, select CAM RET for the menu
option RET SW. This option can be found in the <SW
MODE> screen, which is accessible from the CAM
OPERATION page.
< SW MODE >
#
RET SW
S.BLK LVL
AUTO KNEE SW
SHD.ABB SW CTL
COLOR BARS
S.GAIN OFF
DS.GAIN OFF
D.ZOOMX2
D.ZOOMX3
D.ZOOMX4
RC CHECK SW
:R.REVIEW
:-10
:ON
:ON
:SMPTE
:L/M/H
:DS.GAIN
:ON
:ON
:ON
:R.REVIEW
Adjustments and Settings for Recording : Viewfinder Screen Status Displays
79
AJ-HPX2000P(VQT1D27-1)E.book 80 ページ
２００７年７月３０日　月曜日　午後１時３１分
Adjusting and setting the LCD monitor
5
Using the LCD Monitor
1
2
Turn on the POWER switch of the unit.
Slide the OPEN button in the arrow 1 direction to
open the LCD monitor in the arrow 2 direction.
Through the menu option LCD MON CHAR, specify
whether or not the LCD should display the same
characters as the viewfinder.
This menu option can be found in the <OUTPUT
SEL> screen, which is accessible from the SYSTEM
SETTING page.
<OUTPUT SEL>
#
OUTPUT ITEM
:MENU ONLY
MONITOR OUT
:VBS
MONITOR OUT CHAR:OFF
LCD MON CHAR
:ON
VF MODE
:MEM
THUMBNAIL OUT
:OFF
‹Notes
3
Adjust the angle of the LCD monitor for most
convenient viewing.
The monitor can turn up to 180 degrees towards the
lens and up to 90 degrees towards you.
‹Note
To prevent camera-recorder failure, do not allow
undue force to be applied to the monitor (when it is
open).
4
The options BRIGHTNESS, COLOR LEVEL, and
CONTRAST show respectively the brightness, color
level and contrast of the screen. These options can be
found in the <LCD MONITOR> screen, which is
accessible from the SYSTEM SETTING page.
# <LCD MONITOR>
BRIGHTNESS
COLOR LEVEL
CONTRAST
BACKLIGHT
SELF SHOOT
80
:+0
:+0
:+0
:NORMAL
:MIRROR
z When closing the LCD monitor make sure that it is
shut tight.
z In an environment with sudden temperature
changes, condensation may form on the liquid
crystal surface of the monitor. If this happens, wipe
off the moisture with a soft, dry cloth.
z When the camera-recorder is very cold, the video
image in the LCD monitor will appear slightly darker
immediately after the power is turned on. Once the
interior of the camera-recorder warms up, the LCD
monitor delivers normal brightness.
Self-portrait Shooting
When shooting with the LCD display angled 180 degrees
towards the lens, you can set the menu option SELF
SHOOT to “MIRROR”, to horizontally flip the video image
on the LCD display, and allow you to view a mirror image
while shooting.
Note that only the video image on the LCD monitor is
horizontally flipped, not the actual video being recorded.
The menu option SELF SHOOT can be found in the <LCD
MONITOR> screen, which is accessible from the SYSTEM
SETTING page.
‹Notes
z When the LCD monitor is angled 180 degrees towards
you with the menu option SELF SHOOT to “MIRROR”,
the LCD monitor does not provide the same status
indication as the viewfinder, regardless of the setting for
the menu option LCD MON CHAR.
z Return signals from the GENLOCK IN connector cannot
be output to the LCD monitor.
z When the OUTPUT SEL switch is positioned to CAM in
the HD mode (1080i, 720P), playback cannot be output
to the LCD monitor. The HD viewfinder must be used to
view playback.
Adjustments and Settings for Recording : Adjusting and setting the LCD monitor
AJ-HPX2000P(VQT1D27-1)E.book 81 ページ
２００７年７月３０日　月曜日　午後１時３１分
Selection of video output signals
The unit employs the VIDEO OUT connector and the MON OUT connector as connectors for outputting video signals.
Settings of signals output from VIDEO OUT connector
The signal modes for outputting signals from the VIDEO
OUT connector are switched with the VIDEO OUT switch.
VIDEO OUT switch
OUTPUT ITEM
Variable
range
MENU
ONLY
TC
STATUS
Remarks
Set the characters to be
superimposed on the output signals
from the VIDEO OUT connector.
MENU ONLY:
The menu screen is superimposed
only when the menu is accessed.
This normally displays nothing.
TC:
Time codes are superimposed
(when the menu is accessed, the
menu screen is superimposed.)
STATUS:
The characters that are the same
as the characters superimposed in
the viewfinder screen are
superimposed.
(When the menu is accessed, the
menu screen is superimposed.)
Adjustments and Settings for Recording
HD SDI:
To output the HD SDI signals. When the camerarecorder is set to the SD mode, SD-SDI signals are
output.
SD SDI:
To output the SD SDI signals. (Signals are downconverted in HD mode.)
VBS:
To output the composite video signals. (Signals are
down-converted in HD mode.)
Item
The signals output from the MON OUT connector or
VIDEO OUT connector are switched with the OUTPUT
SEL switch.
However, the switching operation is not acknowledged
during the recording operation.
MEM：
During EE, such as recording, video images taken
by the camera are output. Meanwhile, signals on
the P2 card are output during playback.
CAM：
The camera images are output at all times.
OFF：
No signal is output from the VIDEO OUT or MON
OUT connector.
OUTPUT SEL switch
Set the characters to be superimposed on the signals
output from the VIDEO OUT connector by using the
VIDEO OUT CHARACTER switch and the OUTPUT ITEM
item on the menu (<OUTPUT SEL> screen on the
SYSTEM SETTING page).
VIDEO OUT CHARACTER
switch
Adjustments and Settings for Recording : Selection of video output signals
81
AJ-HPX2000P(VQT1D27-1)E.book 82 ページ
２００７年７月３０日　月曜日　午後１時３１分
Settings of signals output from MON OUT connector
The MON OUT connector outputs down-converted analog
signals.
Set the video signals output from the MON OUT connector
by using the MONITOR OUT item on the menu (<OUTPUT
SEL> screen on the SYSTEM SETTING page).
Item
MONITOR OUT
Variable
range
VBS
VF
Y
Remarks
Set video signals output from the
MON OUT connector.
VBS: Analog composite signals are
output.
VF: Y signals to be output to the
viewfinder is output. The
status
screen
is
also
superimposed.
Y:
Analog HD-Y signals are
output.
Set to superimpose characters to the VBS signals output
from the MON OUT connector in the MONITOR OUT
CHARA item of the menu (<OUTPUT SEL> screen on the
SYSTEM SETTING page).
Item
MONITOR OUT
CHARA
82
Variable
range
ON
OFF
Remarks
Superimpose characters on the VBS
output signals from the MON OUT
connector.
ON: To superimpose
OFF:Not to superimpose
‹Note
This does not link with the VIDEO
OUT CHARACTER switch.
Adjustments and Settings for Recording : Selection of video output signals
AJ-HPX2000P(VQT1D27-1)E.book 83 ページ
２００７年７月３０日　月曜日　午後１時３１分
Handling data
Set data file configuration
The unit employs 5 sets for the file data area.
For menu items that can be read from or stored in the
respective areas, refer to [Menu] (page 151)
‹Notes
z For information about how to navigate through the menu
for this section, see [Setting Menu Options] (page 153).
z Access the respective data settings files after switching
the PC MODE to “OFF”. If the respective data settings
files are accessed when the unit is in USB DEVICE
mode, an error may occur. The PC MODE can be
operated from the <SYSTEM MODE> screen on the
SYSTEM SETTING page.
Adjustments and Settings for Recording
FACTORY data:
The area for storing factory settings
Data cannot be revised with menu operations.
USER data:
The area for storing the data set by menu operations
The FACTORY data is stored as the factory setting.
CURRENT data:
The area for storing the operating status of the unit
The set value in this area is revised by menu
operations.
SCENE file:
Four sets of scene files are provided.
LENS file:
Eight sets of lens files are provided.
It is possible to write eight
setup files on the SD
memory card.
SD memory card
SET UP data
No. of files: 8
Menu operations
To revise the set
value
SD CARD READ/WRITE
READ
SD CARD READ/WRITE
WRITE
SCENE
WRITE
SCENE file
No. of files: 4
SCENE
READ
WRITE USER
DATA
READ USER
DATA
CURRENT data
(Operating status of the unit)
No. of files: 1
LENS FILE
READ
USER data
No. of files: 1
READ FACTORY
DATA
FACTORY data
(Revision disable)
No. of files: 1
: Files built in the unit
LENS file
LENS FILE
WRITE
No. of files: 8
LENS FILE CARD R/W
READ
LENS FILE CARD R/W
WRITE
SD memory card
Lens file
No. of files: 8a8
: Menu operations
It is possible to write eight
titles for eight lens files on
the SD memory card.
Setting Data Using an SD memory card
An SD memory card (optional accessory) can be used as a setup card that stores up to eight files of settings menu
specifications.
This data allows you to quickly reproduce an optimum state.
Regarding SD memory cards, please see <Cautions in using SD memory cards> (page 21).
Adjustments and Settings for Recording : Handling data
83
AJ-HPX2000P(VQT1D27-1)E.book 84 ページ
２００７年７月３０日　月曜日　午後１時３１分
Handling SD memory cards
An SD memory card may be inserted or removed, either before or after the power is turned on.
To insert an SD memory card
Open the lid of the switch cover, and insert an SD memory
card (optional accessory) into the SD memory card slot
with the notch upward. Close the lid.
To remove the SD memory card
Open the lid of the switch cover, and ensure that the BUSY
lamp is not illuminated. Then, further depress the SD
memory card towards the main unit. This releases the SD
memory card from the insertion slot. Take hold of the SD
memory card and remove it. Close the lid.
SD memory cards must not be used or stored in an
environment where they may be
z Exposed to high temperatures/humidities;
z Exposed to water droplets; or
z Electrically charged.
For storage, the SD memory card must be kept inserted
into the unit with the lid closed.
‹Note
An SD memory card must be inserted with the right side
facing the slot. If the card is hard to insert, it may be
reversed or upside down. Do not force it into the slot.
Check the card before re-inserting it.
Formatting, Writing and Reading an SD memory card
To format an SD memory card, write settings data or read
data on an SD memory card, navigate the menu to the
<SD CARD READ/ WRITE> screen from the FILE page.
# < SD CARD READ/WRITE >
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
TITLE:
1: ********
2: ********
3: ********
4: ********
:1
:1
To format an SD memory card
‹Note
SD memory cards may be formatted via the thumbnail
screen. For more information, see [Formatting SD memory
cards] (page 123).
1
5:
6:
7:
8:
********
********
********
********
If an SD memory card that is formatted in a standard other
than the SD standards and SDHC standards, [FORMAT
ERROR] is displayed in the top right section of the window.
In this case, reformat the card as follows. Note that the
indication “FORMAT ERROR” does not disappear if the SD
memory card is replaced with this menu page open. When
the SD memory card is replaced, perform TITLE READ.
2
3
Navigate the menu to the <SD CARD READ/WRITE>
screen.
Turn the JOG dial button to move the cursor to the
menu option CARD CONFIG.
Press the JOG dial button to display the following
message:
#
84
Adjustments and Settings for Recording : Handling data
CONFIG?
YES
NO
AJ-HPX2000P(VQT1D27-1)E.book 85 ページ
4
２００７年７月３０日　月曜日　午後１時３１分
To format the SD memory card, turn the JOG dial
button to move the cursor to YES. Then, press the dial
button.
When the SD memory card has been formatted, the
following message appears:
To write set data on an SD memory card
1
Navigate the menu to the <SD CARD READ/WRITE>
screen.
To select a file number
2
Turn the JOG dial button to move the cursor to the
option [W. SELECT]. Then, press the dial button.
< SD CARD READ/WRITE >
CONFIG OK
The card will not be formatted if the following message
appears when the JOG dial button is pressed:
Error message
Remedy
CONFIG NG
Insert an SD memory card.
NO CARD
(No SD memory card inserted.)
CONFIG NG
ERROR
(SD memory card cannot be
formatted.)
The card may be defective.
Replace the card.
CONFIG NG
WRITE PROTECT
(SD memory card is writeprotected.)
Remove the card and cancel
the protect.
CONFIG NG
CANNOT ACCCESS
(SD memory card not
accessible).
Example: The SD memory card
is not accessible because it is
being played back.
After the operation in process,
format the card.
5
TITLE:
1: ********
2: ********
3: ********
4: ********
3
:1
:1
5:
6:
7:
8:
Adjustments and Settings for Recording
#
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
********
********
********
********
Turn the JOG dial button to select a desired number
(1 - 8). Then, press the dial button.
To give the selected file a title
4
Turn the JOG dial button to move the cursor to the
option [TITLE:].
< SD CARD READ/WRITE >
To exit the menu, press the MENU button.
The settings menu disappears and the status of the
unit is indicated at the top and bottom of the
viewfinder screen.
‹Note
If an SD memory card is inserted or removed with the
<SD CARD READ/WRITE> screen open, the data
title cannot be edited.
Move the cursor to the option TITLE READ and press
the JOG dial button.
Edit the data title.
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
#
5
TITLE:
1: ********
2: ********
3: ********
4: ********
:1
:1
5:
6:
7:
8:
********
********
********
********
Press the JOG dial button. This moves the cursor to
the entry area, putting the unit in entry mode.
< SD CARD READ/WRITE >
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
;
TITLE:
1: ********
2: ********
3: ********
4: ********
:1
:1
5:
6:
7:
8:
********
********
********
********
Adjustments and Settings for Recording : Handling data
85
AJ-HPX2000P(VQT1D27-1)E.book 86 ページ
6
２００７年７月３０日　月曜日　午後１時３１分
Turn the JOG dial button until a desired character
appears.
The characters that appear are switched in the
following order:
Space:
Ð
Alphabetical characters:
Ð
Numerals:
Ð
Symbols:
7
8
†
A to Z
0 to 9
', >, <, /, -
Error message
Remedy
WRITE NG
Insert an SD memory card.
NO CARD
(No SD memory card inserted.)
WRITE NG
FORMAT ERROR
(SD memory card not properly
formatted.)
The card has not been
formatted using the unit.
Replace the card.
WRITE NG
The card may be defective.
ERROR
Replace the card.
(SD memory card not writable.)
Press the JOG dial button to accept a desired
character.
WRITE NG
WRITE PROTECT
(SD memory card writeprotected.)
Remove the card and disable
the protect.
Turn the JOG dial button to move the cursor to the
next digit (clockwise), and repeat Steps 6 - 7 to set
characters (up to eight characters).
WRITE NG
CANNOT ACCCESS
(SD memory card not
accessible.)
Example: The SD memory card
is not accessible because it is
being played back.
After the operation in process,
format the card.
WRITENG
CARD FULL
(SD memory card has no free
space.)
The card is not writable
because it has no free space.
Delete unwanted files or
replace the card with a new
one.
To write data on a selected file
9
The data will not be written if any of the following
messages appears when the JOG dial button is pressed:
When the title is set, turn the JOG dial button to move
the cursor to [:].
< SD CARD READ/WRITE >
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
;
TITLE:
1: ********
2: ********
3: ********
4: ********
:1
:1
5:
6:
7:
8:
13 Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
When the data has been written, the following
message appears:
********
********
********
********
10 Press the JOG dial button to return the cursor to the
WRITE OK
option [TITLE:].
11 Turn the JOG dial button to move the cursor to the
option [WRITE].
12 Press the JOG dial button to display the following
message:
14 To exit the menu, press the MENU button.
The settings menu disappears and the status of the
unit is indicated at the top and bottom of the
viewfinder screen.
‹Notes
#
WRITE?
YES
NO
TITLE:
86
Adjustments and Settings for Recording : Handling data
z The SD CARD R/W SELECT screen can be used to
select the type of the menu to be written on the SD
memory card.
z It is possible to overwrite the setup file on the unit with a
setup file from another device. Note that if the file is
overwritten, the original setup file from the other device
will be lost.
z We recommend managing the respective SD memory
cards on the respective devices independently.
AJ-HPX2000P(VQT1D27-1)E.book 87 ページ
２００７年７月３０日　月曜日　午後１時３１分
To read data on an SD memory card
1
6
Navigate the menu to the <SD CARD READ/WRITE>
screen.
Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
When the data has been read, the following message
appears:
To select a file number
2
Turn the JOG dial button to move the cursor to the
menu option [R. SELECT]. Then, press the dial
button.
READ OK
< SD CARD READ/WRITE >
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
TITLE:
1: ********
2: ********
3: ********
4: ********
3
1
1
The data will not be read if any of the following messages
appears when the JOG dial button is pressed:
5:
6:
7:
8:
********
********
********
********
Turn the JOG dial button to select a desired number
(1 - 8). Then, press the dial button.
To read data on a selected file
4
Turn the JOG dial button to move the cursor to the
option [READ].
< SD CARD READ/WRITE >
#
R.SELECT
READ
W.SELECT
WRITE
CARD CONFIG
TITLE READ
TITLE:
1: ********
2: ********
3: ********
4: ********
5
Adjustments and Settings for Recording
#
:1
:1
5:
6:
7:
8:
********
********
********
********
Error message
Remedy
READ NG
Insert an SD memory card.
NO CARD
(No SD memory card inserted.)
READ NG
FORMAT ERROR
(SD memory card not properly
formatted.)
The card has not been
formatted using the unit.
Replace the card.
READ NG
NO FILE
(No file found.)
Write file data.
READ NG
ERROR
(SD memory card not
readable.)
Only data written with the unit
is readable.
READ NG
CANNOT ACCCESS
(SD memory card not
accessible.)
Example: The SD memory card
is not accessible because it is
being played back.
After the operation in process,
read data.
7
To exit the menu, press the MENU button.
The settings menu will be replaced by status
indications for the unit.
Press the JOG dial button to display the following
message:
#
READ?
YES
NO
Adjustments and Settings for Recording : Handling data
87
AJ-HPX2000P(VQT1D27-1)E.book 88 ページ
２００７年７月３０日　月曜日　午後１時３１分
How to Use the User Data
It is possible to transfer settings and other data to the user
area of the internal memory of the unit.
This data allows you to quickly reproduce an optimum
setup state.
2
Turn the JOG dial button to move the cursor to the
option READ USER DATA.
< SCENE >
#
To write data, go to the <INITIALIZE> screen from the FILE
page. To read the written user data, go to the <SCENE>
screen from the FILE page.
READ USER DATA
SCENE SEL
READ
WRITE
RESET
:1
TITLE1 : ********
To write settings data in the user area
TITLE2 : ********
TITLE3 : ********
1
2
TITLE4 : ********
Navigate the menu to the <INITIALIZE> screen.
Turn the JOG dial button to move the cursor to the
option WRITE USER DATA.
3
Press the JOG dial button to display the following
message:
< INITIALIZE >
#
READ FACTORY DATA
WRITE USER DATA
#
3
Press the JOG dial button to display the following
message:
4
5
READ?
YES
NO
Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
The data written in the user area of the internal
memory of the unit is read to complete the setting.
To exit the menu, press the MENU button.
The set user data may be also read without navigating the
menu.
#
4
5
WRITE?
YES
NO
1
2
Turn off the POWER switch.
Position the WHITE BAL switch at [PRST].
Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
This writes the settings data into the user area of the
internal memory of the unit.
To exit the menu, press the MENU button.
To read written user data
1
Navigate the menu to the <SCENE> screen.
WHITE BAL
Switch
3
88
Adjustments and Settings for Recording : Handling data
With the AUTO W/B BAL switch flipped up, turn on the
POWER switch.
This resets all settings for USER menu options to
their defaults.
AJ-HPX2000P(VQT1D27-1)E.book 89 ページ
２００７年７月３０日　月曜日　午後１時３１分
How to Use Scene File Data
It is possible to write the settings data into the scene file
area of the internal memory of the unit, or to read data
written in this area. Four types of scene files are available.
This data allows you to quickly reproduce an optimum
setup state.
To change the settings, go to the <SCENE> screen from
the FILE page.
7
8
Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
This writes the setting data into the scene file area of
the unit internal memory.
To exit the menu, press the MENU button.
To write settings data for scene files
3
Adjustments and Settings for Recording
1
2
Navigate the menu to the SCENE screen.
Turn the JOG dial button to move the cursor to the
SCENE SEL option.
Press the JOG dial button to blink scene file numbers.
Then, turn the dial button to select a desired scene
file number.
< SCENE >
#
READ USER DATA
SCENE SEL
READ
WRITE
RESET
:1
TITLE1 : ********
TITLE2 : ********
TITLE3 : ********
TITLE4 : ********
4
5
Press the JOG dial button to accept the scene file.
Turn the JOG dial button to return the cursor to the
option WRITE.
< SCENE >
#
READ USER DATA
SCENE SEL
READ
WRITE
RESET
:1
TITLE1 : ********
TITLE2 : ********
TITLE3 : ********
TITLE4 : ********
6
Press the JOG dial button to display the following
message:
#
WRITE?
YES
NO
TITLE:
Adjustments and Settings for Recording : Handling data
89
AJ-HPX2000P(VQT1D27-1)E.book 90 ページ
２００７年７月３０日　月曜日　午後１時３１分
To read settings data for scene files
1
2
3
Navigate the menu to the <SCENE> screen.
Turn the JOG dial button to move the cursor to the
option SCENE SEL.
Press the JOG dial button to blink scene file numbers.
Then, turn the dial button to select a desired scene
file number.
To return data for scene files to their defaults
1
2
3
Navigate the menu to the <SCENE> screen.
Turn the JOG dial button to move the cursor to the
option SCENE SEL.
Press the JOG dial button to blink scene file numbers.
Then, turn the dial button to select the scene file that
you want to reset.
< SCENE >
#
4
5
READ USER DATA
SCENE SEL
READ
WRITE
RESET
< SCENE >
#
:1
TITLE1 : ********
TITLE1 : ********
TITLE2 : ********
TITLE2 : ********
TITLE3 : ********
TITLE3 : ********
TITLE4 : ********
TITLE4 : ********
Press the JOG dial button to accept the scene file.
Turn the JOG dial button to move the cursor to the
READ option.
4
5
6
Turn the JOG dial button to move the cursor to the
option [RESET].
8
90
< SCENE >
:1
#
READ USER DATA
SCENE SEL
READ
WRITE
RESET
TITLE1 : ********
TITLE1 : ********
TITLE2 : ********
TITLE2 : ********
TITLE3 : ********
TITLE3 : ********
TITLE4 : ********
TITLE4 : ********
Press the JOG dial button to display the following
message:
#
7
READ USER DATA
SCENE SEL
READ
WRITE
RESET
:1
Press the JOG dial button to accept the scene file.
< SCENE >
#
READ USER DATA
SCENE SEL
READ
WRITE
RESET
6
READ?
YES
NO
Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
The data stored in the scene file area of the internal
memory of the unit is read to complete the setting.
To exit the menu, press the MENU button.
Adjustments and Settings for Recording : Handling data
Press the JOG dial button to display the following
message:
#
7
8
:1
RESET?
YES
NO
Turn the JOG dial button to move the cursor to YES.
Then, press the dial button.
The data stored in the scene file area of the internal
memory of the unit is reset to the defaults.
To exit the menu, press the MENU button.
AJ-HPX2000P(VQT1D27-1)E.book 91 ページ
２００７年７月３０日　月曜日　午後１時３１分
To title settings data for scene files
1
2
10 Press the JOG dial button to display the following
message:
Navigate the menu to the <SCENE> screen.
Turn the JOG dial button to move the cursor to the
option [TITLE 1 - 4] for the appropriate scene file.
< SCENE >
READ USER DATA
SCENE SEL
READ
WRITE
RESET
#
:1
#
TITLE:
TITLE1 : ********
TITLE3 : ********
Adjustments and Settings for Recording
11 Turn the JOG dial button to move the cursor to YES.
TITLE2 : ********
Then, press the dial button.
This writes the title into the scene file area of the unit
internal memory.
TITLE4 : ********
3
WRITE?
YES
NO
Press the JOG dial button to move the cursor to the
title entry area, putting the unit in entry mode.
12 To exit the menu, press the MENU button.
< SCENE >
READ USER DATA
SCENE SEL
:1
READ
WRITE
RESET
;
TITLE1 : ********
TITLE2 : ********
TITLE3 : ********
TITLE4 : ********
4
Turn the JOG dial button until a desired character
appears.
The characters that appear are switched in the
following order:
Space:
Ð
Alphabetical characters:
Ð
Numerals:
Ð
Symbols:
5
6
7
8
9
†
A to Z
0 to 9
', >, <, /, -
Press the JOG dial button to accept a desired
character.
Turn the JOG dial button to move the cursor to the
next digit (clockwise), and repeat Steps 4 - 5 to set
characters (up to eight characters).
When the title is set, turn the JOG dial button to move
the cursor to [:].
Press the JOG dial button to return the cursor to the
options TITLE 1 - 4.
Turn the JOG dial button to return the cursor to the
option WRITE.
Adjustments and Settings for Recording : Handling data
91
AJ-HPX2000P(VQT1D27-1)E.book 92 ページ
２００７年７月３０日　月曜日　午後１時３１分
Resetting Menu Option Settings to Defaults
The menu settings can be reset to their defaults.
To reset the settings to their defaults, select the menu
option READ FACTORY DATA in the <INITIALIZE> screen,
which is accessible from the FILE page.
All settings will be reset to their defaults.
< INITIALIZE >
#
READ FACTORY DATA
WRITE USER DATA
‹Note
This operation does not delete the scene file, lens file, and
the information stored as the user data.
Lens file
The built-in memory of the unit stores eight sets of lens
files.
On the SD memory card, eight titles for eight sets of lens
files in a table (total 64 sets) can be written.
The following data are recorded on the lens file.
z Title name
z White shading correction value
z Flare compensation value
z RB gain offset correction value
How to provide lens files
Adjustment of white shading
For the white shading adjustment, refer to [Adjusting the
Lens White Shading] (page 102)
Adjustment of the flare
Using the menu operations, open the <LENS FILE ADJ>
screen from the MAINTENANCE page and adjust the flare
in the LENS R FLARE item, the LENS G FLARE item and
the LENS B FLARE item.
# < LENS FILE ADJ >
RB GAIN CTRL RESET:ON
LENS R GAIN OFFSET:+000
LENS B GAIN OFFSET:+000
LENS R FLARE
LENS G FLARE
LENS B FLARE
:000
:000
:000
Adjustment of gain offset
For correcting changes in white balance that may occur
when replacing the lens.
1
2
3
4
5
6
Example of the chart for flare adjustment
7
8
9
0.1H
0.1L
Mount the lens as standard on the unit.
Shoot the grayscale chart with appropriate lighting
(2000 lx, 3200 K are preferable).
Set the WHITE BAL switch to the “A” position.
Adjust the lens aperture so that the white window at
the center of the grayscale chart is about 80%.
Push the AUTO W/B BAL switch to “AWB”to adjust
the white balance automatically.
Measure the signal level of RGB by using the
waveform monitor (WFM).
Replace the lens to one where a lens file is provided.
Adjust the lens aperture so that the signal level of Gch
isthe same signal level as the one obtained in 6
above.
Using the menu operations, open the <LENS FILE
ADJ> screen from the MAINTENANCE page and set
the RB GAIN CTRL RESET to ON.
10 Adjust the signal level of Rch to be the same as Gch
in the LENS R OFFSET item.
11 In the same way, adjust the signal level of Bch to be
the same as Gch in the LENS B OFFSET item.
92
Adjustments and Settings for Recording : Handling data
AJ-HPX2000P(VQT1D27-1)E.book 93 ページ
２００７年７月３０日　月曜日　午後１時３１分
To save the lens file into the built-in memory
7
Select the file No.
1
2
3
Using the menu operations, open the <LENS FILE>
screen from the FILE page.
Turn the JOG dial button to move the arrow (cursor) to
the FILE SELECT item.
Adjustments and Settings for Recording
Press the JOG dial button and the file number will
flash. Turn the JOG dial button to select the file (1 to
8) to be recorded.
Press the JOG dial button again and turn it until the
character to be set is displayed.
When the button is turned, the character displayed is
switched in the following sequence:
†
Space:
Ð
Alphabetical characters: A to Z
Ð
Numerals:
0 to 9
Ð
Symbols:
', >, <, /, -, . , x
< LENS FILE >
#
FILE NO.
READ
WRITE
RESET ALL
:1
TITLE:
1:
2:
3:
4:
5:
6:
7:
8:
8
9
Press the JOG dial button to enter the character.
Turn the JOG dial button to move the arrow (cursor) to
the next position (right), and repeat steps 7 and 8 to
set the characters (maximum of 12).
10 When the title has been input, turn the JOG dial
button to move the arrow (cursor) to the “:” position.
4
< LENS FILE >
Press the JOG dial button to enter the file number.
FILE NO.
:1
READ
WRITE
RESET ALL
;
TITLE:¢¢¢¢¢¢¢¢¢¢¢¢
Give a title to the selected file.
5
Turn the JOG dial button to move the arrow (cursor) to
the “TITLE : ” item.
1:
2:
3:
4:
< LENS FILE >
FILE NO.
READ
WRITE
RESET ALL
#
6
:1
11 When the JOG dial button is pressed, the arrow
(cursor) returns to the “TITLE : ” item.
TITLE:
1:
2:
3:
4:
5:
6:
7:
8:
5:
6:
7:
8:
< LENS FILE >
FILE NO.
READ
WRITE
RESET ALL
#
When the JOG dial button is pressed, the arrow
(cursor) moves to the title input area, and the input
mode is established.
:1
TITLE:¢¢¢¢¢¢¢¢¢¢¢¢
1:
2:
3:
4:
5:
6:
7:
8:
< LENS FILE >
FILE NO.
READ
WRITE
RESET ALL
;
TITLE:
1:
2:
3:
4:
:1
12 Turn the JOG dial button to move the arrow (cursor) to
the WRITE position.
< LENS FILE >
5:
6:
7:
8:
#
FILE NO.
READ
WRITE
RESET ALL
:1
TITLE:¢¢¢¢¢¢¢¢¢¢¢¢
1:
2:
3:
4:
5:
6:
7:
8:
Adjustments and Settings for Recording : Handling data
93
AJ-HPX2000P(VQT1D27-1)E.book 94 ページ
２００７年７月３０日　月曜日　午後１時３１分
13 When the JOG dial button is pressed, the following
14 Turn the JOG dial button to move the arrow (cursor) to
message appears.
YES, and press the JOG dial button.
The current white shading correction value, the flare
compensation value, and the RB gain offset
correction value are stored in the built-in memory of
the unit.
‹Note
#
The values will not be stored in the unit’s internal
memory if another menu screen is selected without
executing WRITE or if the menu is exited.
WRITE?
YES
NO
15 Press the MENU button.
The setting menu is cleared, and the displays
showing the unit’s current statuses appear at the top
and bottom of the viewfinder screen.
To read the lens file from the builtin memory
1
2
3
Using menu operations, open the <LENS FILE>
screen from the FILE page.
6
Turn the JOG dial button to move the arrow (cursor) to
the FILE SELECT item.
Press the JOG dial button and the file number will
flash. Turn the JOG dial button to select the file (1 to
8) to be read.
< LENS FILE >
#
FILE NO.
READ
WRITE
RESET ALL
#
1:
2:
3:
4:
7
5:
6:
7:
8:
8
Press the JOG dial button to enter the file number.
Turn the JOG dial button to move the arrow (cursor) to
the READ item.
< LENS FILE >
#
FILE NO.
READ
WRITE
RESET ALL
:1
TITLE:
1:
2:
3:
4:
94
READ?
YES
NO
:1
TITLE:
4
5
When the JOG dial button is pressed, the following
message appears.
5:
6:
7:
8:
Adjustments and Settings for Recording : Handling data
Turn the JOG dial button to move the arrow (cursor) to
YES, and press the JOG dial button.
The recorded correction values for the white shading,
flare, and RB gain offset are read.
Press the MENU button.
The setting menu is cleared, and the displays
showing the unit’s current statuses appear at the top
and bottom of the viewfinder screen.
AJ-HPX2000P(VQT1D27-1)E.book 95 ページ
２００７年７月３０日　月曜日　午後１時３１分
To write in and read out the lens file to/from the SD memory card
The contents of the eight lens files stored in the unit’s
internal memory can be saved onto an SD memory card
as card files under a single title. A total of eight titles can
be saved on an SD memory card.
Furthermore, the eight lens files saved under one title on
an SD memory card can be loaded into the unit’s internal
memory.
Saving lens files on the SD memory card
Select the card file No.
1
The correlation between the lens files stored in the internal
memory and lens files saved on an SD memory card is
shown below.
3
Internal memory
Up to 8 sets of the lens file
can be stored in the built-in
memory.
8 lens files
Adjustments and Settings for Recording
2
Using menu operations, open the <LENS FILE CARD
R/W> screen from the FILE page.
When the message “FORMAT ERROR” appears in
the upper right corner, format the SD memory card
with the camera-recorder. SD cards can be formatted
through the CARD CONFIG menu option on the
READ/WRITE screen. For more information, see,
[Handling SD memory cards] (page 84).
Turn the JOG dial button to move the arrow (cursor) to
the CARD FILE SELECT item.
Press the JOG dial button and the card file number
will flash. Turn the JOG dial button to select the file (1
to 8) to be recorded.
< LENS FILE CARD R/W >
#
The contents of 8 lens files
can be saved onto an SD
memory card as card files
under one title or they can
be loaded from the SD
memory card.
Card files
Title 1
Title 2
Title 3
Title 4
CARD FILE SELECT :1
READ
WRITE
TITLE READ
TITLE:
1:
2:
3:
4:
4
5:
6:
7:
8:
Press the JOG dial button to enter the file number.
Give a title to the selected card file.
5
Title 5
Title 6
Title 7
Turn the JOG dial button to move the arrow (cursor) to
the “TITLE :” item.
Title 8
< LENS FILE CARD R/W >
CARD FILE SELECT :1
READ
WRITE
TITLE READ
#
TITLE:
1:
2:
3:
4:
6
A total of 64 lens files (8 lens files k 8 titles) can be saved
on an SD memory card.
5:
6:
7:
8:
When the JOG dial button is pressed, the arrow
(cursor) moves to the title input area, and the input
mode is established.
Now perform step 7 on page 93 through step 15 on
page 94.
Adjustments and Settings for Recording : Handling data
95
AJ-HPX2000P(VQT1D27-1)E.book 96 ページ
２００７年７月３０日　月曜日　午後１時３１分
Loading lens files from the SD memory card
1
2
3
Using menu operations, open the <LENS FILE CARD
R/W> screen from the FILE page.
Turn the JOG dial button to move the arrow (cursor) to
the CARD FILE SELECT item.
Press the JOG dial button and the card file number
will flash. Turn the JOG dial button to select the file (1
to 8) to be read.
< LENS FILE CARD R/W >
#
CARD FILE SELECT :1
READ
WRITE
TITLE READ
TITLE:
1:
2:
3:
4:
4
5:
6:
7:
8:
Press the JOG dial button to enter the file number.
Now perform steps 5 through 8 on page 94.
‹Note
The card file titles on the SD memory card are displayed
on the <LENS FILE CARD R/W> screen, but the titles of
the lens files contained in the card files are not shown on
this screen.
To display these titles, load the files, and check the titles on
the <LENS FILE> screen.
The lens files in the unit’s internal memory will be rewritten
as the loaded lens files at this time. For this reason, save
the lens files in the internal memory onto the SD memory
card first to back them up before loading them on the SD
memory card.
96
Adjustments and Settings for Recording : Handling data
AJ-HPX2000P(VQT1D27-1)E.book 97 ページ
２００７年７月３０日　月曜日　午後１時３１分
Preparation
Power Supply
A battery pack or an external DC power supply can be used as AJ-HPX2000’s power supply.
Using a Battery Pack
Preparation
Battery packs from the following manufacturers can be
used:
• Anton/Bauer
• IDX
• PACO
• Sony
The type of the battery can be checked or changed
through the viewfinder or menu screen on the monitor.
z Pressing the MODE CHECK button on the side of the
camera-recorder displays the current type of the battery
in the upper right corner of the viewfinder display.
z Navigate the menu to open the BATTERY/P2CARD
screen from the MAIN OPERATION page. Then, through
the BATTERY SELECT menu option, you can check and
change the battery type.
# < BATTERY/P2CARD >
BATTERY SELECT
:DIONIC90
EXT DC IN SELECT
:AC-ADPT
BATT NEAR END ALARM :OFF
BATT NEAR END CANCEL:ON
BATT END ALARM
:ON
BATT REMAIN FULL
:70%
CARD
CARD
CARD
CARD
NEAR END ALARM
NEAR END TIME
END ALARM
REMAIN/„
:ON
:2min
:ON
:3min/„
‹Notes
z Other batteries may be used by changing the menu
setting, but system compatibility is not guaranteed.
z Charge the battery pack with the battery charger before
using it. (Please refer to the battery charger’s instruction
manual for information about charging.)
Preparation：Power Supply
97
AJ-HPX2000P(VQT1D27-1)E.book 98 ページ
２００７年７月３０日　月曜日　午後１時３１分
Mounting the Battery and Setting the Battery Type
Using an Anton/Bauer Battery Pack
1
Mount the Anton/Bauer battery pack.
Power supply output
connector for lighting
3
Setting the battery type.
Select the battery type listed under BATTERY
SELECT. Select BATTERY SELECT from the
<BATTERY/P2CARD> screen in the MAIN
OPERATION page.
Please refer to [BATTERY SETTING1] (page 179) for
more information.
The following Anton/Bauer batteries can be used:
Anton/Bauer
Battery Pack
Lighting
control switch
<For your information>
The Anton/Bauer battery holder includes both a power
supply output connector for lighting and a lighting control
switch, which are convenient when attaching a light.
Please contact Anton/Bauer for information about the
lighting system.
2
Insert the battery and slide it in the direction of the
arrow.
Release lever
<For your information>
Removing the battery pack
Completely push down and hold the release lever on
the battery holder. Then, slide the battery pack in the
opposite direction to the arrow while holding the lever
down.
98
Preparation：Power Supply
• PROPAC14
• TRIMPAC14
• HYTRON50
• HYTRON100
• HYTRON140
• DIONIC90
• DIONIC160
AJ-HPX2000P(VQT1D27-1)E.book 99 ページ
２００７年７月３０日　月曜日　午後１時３１分
When using a V-mount type battery pack
Using an NP-1 type battery pack
Mount the V-mount adapter plate.
Insert the plate and slide it in the direction of the
arrow.
CAUTION:
These servicing instructions are for use by qualified
service personnel only. To reduce the risk of fire or
electric shock do not perform any servicing other than
that contained in the operating instructions unless you
are qualified to do so.
1
2
Remove the battery holder.
Mount the NP-1 type battery case on the camerarecorder.
Preparation
1 Tighten the mounting screws.
2 Tighten the power contact screws.
3 Insert the upper part of the removed cover in the
direction of the arrow.
4 Align the holes in the bottom part (metal part) of
the cover with the holes in the case, and secure the
cover with the screw.
‹Note
When mounting the battery holder, take care not to
pinch the connection cord.
Battery Case (for NP-1 type)
3
Setting the battery type.
Select the battery type listed under BATTERY
SELECT. Select BATTERY SELECT from the
<BATTERY/P2CARD> screen on the MAIN
OPERATION page.
When using another battery which cannot be selected
using the BATTERY SELECT item setting, select
TYPE A or TYPE B, and set the items that correspond
to the characteristics of the battery.
Please refer to [BATTERY SETTING2] (page 180) for
more information.
‹Note
For information about the V-mount adapter plate,
please contact the store where you purchased the
camera-recorder.
Preparation：Power Supply
99
AJ-HPX2000P(VQT1D27-1)E.book 100 ページ ２００７年７月３０日　月曜日　午後１時３１分
Use of the external DC power supply
1
Connect the external DC power supply to the DC IN
socket on the unit.
DC IN Socket
External DC
power supply
2
3
Turn “ON” the power switch of the external DC power
supply. (If the power switch is available on the external
DC power supply)
Turn ON the POWER switch on the unit.
Inrush current is generated when the power of the unit
is turned on. Insufficient power supply when turning
on the power may cause a malfunction. We recommend using an external DC power supply with double
the capacity of the total power consumption of the unit
and any other connected device that is turned by interlocking with the power on of the unit (the viewfinder).
Select the DC cord that is recommended for the external DC power supply.
Confirm the pin arrangements of the DC output
connector of the external DC power supply and the
DC IN socket on the unit, and connect the proper
polarities to each other.
If the +12 V power supply is connected to the GND
connector in error, it may cause a fire or failure of
the unit.
Pin No.
Signal
1
GND
4
1
2
3
DC IN Socket
100
Preparation：Power Supply
2, 3
—
4
+12V
‹Notes
z If both the battery pack and the external DC power
supply are connected, the electric power is supplied
from the external DC power supply. While the
external DC power supply is used, the battery can
be mounted and removed on/from the unit.
z When the external DC power supply is used, ensure
that the power switch of the external DC power supply
is turned on first and then the POWER switch on the
unit is turned on. In the case of the reverse operation,
a malfunction may occur on the unit since the output
voltage of the external DC power supply is raised
slowly.
AJ-HPX2000P(VQT1D27-1)E.book 101 ページ ２００７年７月３０日　月曜日　午後１時３１分
Mounting the lens and Performing the Flange Back
and White Shading Adjustments
Mounting the Lens
1
Adjusting the Lens Flange Back
Raise the lens clamping lever and remove the mount
cap.
Lens Clamping
Lever
‹Note
Please also refer to the lens instruction manual for
directions on adjustment and locations of individual lens
parts.
Mount Cap
2
To mount the lens, align the indentation at the top
center of the lens mount with the center mark of the
lens.
1
2
Mount the lens on the camera.
Make sure you connect the lens cable.
Set the lens iris to manual, and fully open the iris.
Mark
Approximately 3m
3
Lower the lens clamping lever to clamp the lens.
3
4
Secure the cable through the cable clamp, and plug it
into the LENS connector.
4
Place the flange back adjustment chart about 3 m
from the lens and adjust the lighting on the chart to
obtain an appropriate video output level.
If the video level is too high, use the filters or the
shutter.
Loosen the F.f (Flange focus) ring clamping screw.
‹Note
F.b (Flange back) may be indicated on some lenses.
5
6
LENS Connector
5
Adjust the lens flange back.
‹Notes
z Please refer to the lens instruction manual for
guidance on lens handling.
z When the lens is removed, install the mount cap to
protect the device.
7
Set the zoom ring to the telephoto position, either
manually or by electric drive.
Aim the lens at the flange back adjustment chart and
turn the distance ring to bring the chart into focus.
Set the zoom ring to the wide-angle position and turn
the F.f ring to bring the chart into focus.
While focusing, take care not to move the distance
ring.
Preparation：Mounting the lens and Performing the Flange Back and White Shading Adjustments
101
Preparation
If images are not clearly focused at both telephoto and
wide-angle positions during zoom operations, adjust the
flange back (distance from the lens mounting surface to
the image formation surface).
Once adjusted, the flange back does not need to be readjusted as long as the same lens is mounted on the
camera.
AJ-HPX2000P(VQT1D27-1)E.book 102 ページ ２００７年７月３０日　月曜日　午後１時３１分
8
9
Repeat Steps 5 to 7 until the lens is in focus at both
the telephoto and wide-angle positions.
7
Firmly tighten the F.f ring clamping screw.
‹Notes
z The zebra pattern will not cover the whole screen if
there is any unevenness in the lighting. In this case,
make adjustments to the position of the lighting, etc.
z Make adjustments to the position of the lighting, etc.
also when the lens aperture is not between F4 and
F10.
z Be absolutely sure to leave the electronic shutter at
OFF.
Adjusting the Lens White Shading
Method to correct the waveform to be more flat by
combining the sawtooth-shaped waveform and the
parabola waveform when watching the respective
waveforms of R, G and B of the video signals.
White shading adjustment is disabled when the DS. GAIN
is turned ON or the LINE MIX GAIN function operates.
Adjust the white shading in the following manner after
turning OFF the DS. GAIN and releasing the LINE MIX
GAIN function.
‹Note
Coloring may occur in the vertical direction near where the
lens aperture is open even when the white shading has
been adjusted. This is something that is inherent to lenses
and optical systems and is therefore not indicative of a
failure or malfunctioning.
1
2
Attach the lens to the camera.
At this stage, do not forget to connect the lens cable.
Set the electronic shutter to OFF and the gain to “L (0
dB).”
Set the lens aperture control to manual, and adjust it
so that the zebra pattern covers the whole screen.
Check that the lens aperture is between F4 and F10.
8
1 Set the WHITE BAL selector switch to “A” or “B,”
and use the AUTO W/B BAL switch to adjust the
white balance automatically (AWB).
2 Use the AUTO W/B BAL switch to adjust the black
balance automatically (ABB).
3 Again, use the AUTO W/B BAL switch to adjust the
white balance automatically (AWB).
9 Repeat step 7.
10 Using the menu operation, open the <WHITE
SHADING> screen from the MAINTENANCE page
and a range of items from R H SAW item to B V PARA
item, so that the waveform is more flat.
< WHITE SHADING >
3
4
If the extender is attached to the lens, release the
extender function.
Perform a menu operation to open the VF DISPLAY
screen from the VF page, check that the settings
selected for the ZEBRA1 DETECT item, ZEBRA2
DETECT item and ZEBRA2 item match the settings
shown in the figure below. If they differ, make the
appropriate changes, and then close the menu
screen.
#
CORRECT
R H SAW
R H PARA
R V SAW
R V PARA
G H SAW
G H PARA
G V SAW
G V PARA
B H SAW
B H PARA
B V SAW
B V PARA
:ON
:+000
:+000
:+000
:+000
:+000
:+000
:+000
:+000
:+000
:+000
:+000
:+000
H SAW
# < VF DISPLAY >
DISP CONDITION
DISP MODE
VF OUT
VF DTL
ZEBRA1 DETECT
ZEBRA2 DETECT
ZEBRA2
LOW LIGHT LVL
RC MENU DISP.
50M INDICATOR.
MARKER/CHAR LVL
:NORMAL
:3
:Y
:3
:070%
:085%
:SPOT
:35%
:OFF
:OFF
:50%
Before
correction
After
correction
H PARA
11 When the lens has an extender or ratio converter,
5
6
Set the ZEBRA switch on the viewfinder to ON.
Shoot a white sheet of paper with no unevenness of
color.
‹Note
repeat steps 7 - 9 to enable the extender or ratio
converter function. The camera-recorder stores, as
one lens file data item, three different correction
values for the following: a lens with an extender, a
lens with a ratio converter, and a lens with neither of
them.
Since fluorescent lights, mercury lamps and other
such kinds of lighting tend to flicker, use a light source
which is free from flicker such as sunlight or a halogen
lamp.
102
Preparation：Mounting the lens and Performing the Flange Back and White Shading Adjustments
AJ-HPX2000P(VQT1D27-1)E.book 103 ページ ２００７年７月３０日　月曜日　午後１時３１分
When making the white shading correction, make the
adjustment while observing the R, G, and B waveforms in
the horizontal and vertical directions with the waveform
monitor.
This now completes the white shading adjustments.
The adjustment values are now stored in the non-volatile
memory so that even when the unit’s power is turned off,
there will be no further need to perform the white shading
adjustment.
Preparation
Preparation：Mounting the lens and Performing the Flange Back and White Shading Adjustments
103
AJ-HPX2000P(VQT1D27-1)E.book 104 ページ ２００７年７月３０日　月曜日　午後１時３１分
Preparing for Audio Input
Take the following steps to prepare the camera for connecting audio input devices.
When Using the Front Microphone
AJ-HPX2000 can be equipped with the AJ-MC900G stereo
microphone kit (an extra-cost option).
1
3
Connect the microphone cable to the MIC IN jack on
the camera.
Open the microphone holder.
MIC IN Jack
4
2
Mount the microphone and tighten the clamping
screw. The microphone must be attached with the UP
mark on the microphone facing up.
Clamping Screw
When Using a Wireless Receiver
When Using the Unislot Wireless Receiver
1
2
104
Remove the cover to insert the wireless receiver and
secure it with the screws.
Set the AUDIO IN switch to [W.L.] depending on the
audio channel to be recorded.
Preparation：Preparing for Audio Input
Set the AUDIO IN switch to [FRONT] depending on
the audio channel to be recorded.
AUDIO IN
Switch
AJ-HPX2000P(VQT1D27-1)E.book 105 ページ ２００７年７月３０日　月曜日　午後１時３１分
When Using Audio Devices
1
2
3
Connect the audio device to the AUDIO IN jack with
the XLR cable.
Set the AUDIO IN switch to [REAR] for the channel to
which the XLR cable is connected.
Set the LINE/MIC/+48V selector switch on the rear
panel to [LINE].
LINE/MIC/+48V
Selector Switch
Preparation
AUDIO IN Jack
AUDIO IN
Switch
Mounting the Camera on a Tripod
When mounting the camera on a tripod, use the tripod adapter supplied with the camera.
1
Mount the tripod adapter on the tripod.
Removing the Camera from the Tripod Adapter
Tripod Adapter
Tripod Adapter
Pan head
Red Lever
Black Lever
While holding the red lever down, move the black lever in
the direction of the arrow, and slide the camera backward
to remove it.
2
‹Note
‹Note
Select an appropriate hole in the adapter, taking into
account the center of gravity of the camera and tripod
adapter combined.
Also, make sure that the diameter of the selected hole
matches the diameter of the pan head screw.
If the tripod adapter pin does not return to its original
position after the camera has been removed, hold the red
lever down and move the black lever in the direction of the
arrow again, in order to return the pin to its original
position.
Please note that the camera cannot be mounted if the pin
remains in the center.
Mount the camera on the tripod adapter.
Slide the camera forward along the grooves until you
hear a “click”.
Preparation：Mounting the Camera on a Tripod
105
AJ-HPX2000P(VQT1D27-1)E.book 106 ページ ２００７年７月３０日　月曜日　午後１時３１分
Attaching the Shoulder Strap
To detach the shoulder strap, first open the hooks, then
detach the strap.
Shoulder Strap
‹Note
Make sure that the shoulder strap is securely attached.
Press to
open the
Attaching the Rain Cover
When using the SHAN-RC700 Rain Cover
Tighten the cord
Secure with the
surface fastener
Secure with the surface fastener
106
Preparation：Attaching the Shoulder Strap
AJ-HPX2000P(VQT1D27-1)E.book 107 ページ ２００７年７月３０日　月曜日　午後１時３１分
Connection of the remote control unit
(AJ-RC10G)
Switch functions in the remote control mode
In the remote control mode, the following switches and
buttons on the unit are disabled.
z SHUTTER switch
z MENU button
z JOG dial button
z GAIN switch
z OUTPUT/AUTO KNEE switch
z WHITE BAL switch
z USER MAIN button
z USER 1 button
z USER 2 button
Recording and playback Operations in the remote
control mode
When the remote control is connected, recording and
playback can be controlled through both the camerarecorder and the AJ-RC10G.
‹Notes
z The state that was adjusted by connecting AJ-RC10G is
stored in the unit. Not to store the adjusted state in the
unit, open the FUNCTION MENU of AJ-RC10G to set
the RC DATA SAVE item to “OFF”.
z When the dedicated cable is connected or removed,
ensure that the POWER switches on both the main unit
and AJ-RC10G are turned “OFF”.
Dedicated cable
AJ-RC10G
REMOTE connector
Attaching the Front Audio Level Control Knob
If you use the Front Audio Level control frequently, attach
the accessory knob so that it can be easily operated.
Knob
(Accessory)
Front Audio
Level Control
Screw
Î
Marks
Screw
(Accessory)
Remove the screw in the center of the Front Audio Level
control, and attach the accessory knob using the screw
(included). When attaching the knob, be sure to align the
marks on the control with the marks on the knob.
Preparation：Connection of the remote control unit (AJ-RC10G)
107
Preparation
It is possible to control some of the functions remotely by
connecting the remote control unit AJ-RC10G (optional
accessory).
When AJ-RC10G is connected to the REMOTE connector
on the unit and the power switches of both of the unit and
AJ-RC10G are turned on, the unit automatically enters the
remote control mode.
The remote control mode is released when AJ-RC10G is
removed or the power for the AJ-RC10G is turned OFF.
AJ-HPX2000P(VQT1D27-1)E.book 108 ページ ２００７年７月３０日　月曜日　午後１時３１分
Connection of the external switch
It is possible to draw 1.5 A current from the DC OUT
connector of the unit.
REC start/stop can be controlled by connecting an external
switch to this connector.
Since a tally lamp can be used by connecting an LED to
this connector, it is useful for shooting video when fixing
the camera on a crane.
DC OUT connector
4
1
3
2
Connector at the cable side
HR10A-7R-4P(73)
(Hirose Denki)
LED
Resistance
Max. 50 mA
REC start/stop
1: GND
2: TALLY OUT
Open collector output on the unit side
TALLY ON：
Low impedance
TALLY OFF： High impedance
3: REC start/stop switch
This is connected in parallel to the REC START button on the
unit or the VTR button on the lens
4: +12 V
108
Preparation：Connection of the external switch
AJ-HPX2000P(VQT1D27-1)E.book 109 ページ ２００７年７月３０日　月曜日　午後１時３１分
Manipulating Clips with Thumbnails
A clip is a data group that includes the images and voices
created from one shooting session, together with
additional information such as text memos and meta data.
The following manipulations can be performed using the
cursor and SET buttons, while checking the images
displayed on the LCD monitor:
z Playback, delete, copy or restore the clip.
z Add or delete a shot mark and a text memo on the clip
thumbnail.
z Copy part of a clip by using the test memo.
z Change the thumbnail image.
z Format P2 cards and SD memory cards.
z Uploading and editing clip metadata from the SD
memory card
Thumbnail Manipulations Overview
Thumbnail screens are configured as follows:
OPERATION
DELETE
FORMAT
REPAIR CLIP
RE-CONNECTION
COPY
EXCH. THUMBNAIL
DEVICE SETUP
EXIT
ALL CLIP
SAME FORMAT CLIPS
SELECTED CLIPS
MARKED CLIPS
TEXT MEMO CLIPS
Manipulating Clips with Thumbnails
THUMBNAIL
PROPERTY
CLIP PROPERTY
CARD STATUS
SLOT CLIPS
SETUP
EXIT
ALL HIDE
MARKER IND.
TEXT MEMO IND.
WIDE IND.
PROXY IND.
DATA DISPLAY
DATE FORMAT
THUMBNAIL SIZE
THUMBNAIL INIT
EXIT
META DATA
LOAD
RECORD
USER CLIP NAME
INITIALIZE
PROPERTY
EXIT
DEVICES
PROPERTY SETUP
EXIT
HDD
EXPORT
EXPLORE
FORMAT
SETUP
EXIT
Manipulating Clips with Thumbnails : Thumbnail Manipulations Overview
109
AJ-HPX2000P(VQT1D27-1)E.book 110 ページ ２００７年７月３０日　月曜日　午後１時３１分
Thumbnail Screen
Press the THUMBNAIL button to display the thumbnail
screen on the LCD monitor. Pressing the THUMBNAIL
button again returns the display to the regular display.
When switching is done from the regular screen display to
the thumbnail screen display, all the clips will be displayed
on the thumbnail screen.
Pressing the MENU button allows you to navigate the
thumbnail menu.
‹Note
With the TCG switch positioned at [SET], when the time
code or user bits are set or when camera menus are being
manipulated, thumbnails cannot be manipulated.
2
1
3
1. Display Mode
The type of the thumbnail indicated on the display and
the types of the other information screens are
indicated.
ALL:
Display all clips.
SAME FORMAT:
The clips in the same format as the system
format are shown.
SELECT:The clips selected with the SET button are
shown.
MARKER: Display clips with shot marks.
TEXT MEMO:
Display clips with text memo data.
SLOT n: Display clips in the specified P2 card.
(n: 1 to 5, which indicates Slots 1-5.)
UPDATING..:
Indicated when the camera-recorder is
updating the screen or reading data. When
the screen is being updated, the rotating
icon
is indicated.
Please refer to [Switching the Thumbnail Display]
(page 113) for more information.
2. Slot numbers and HDD status
4
5
6
7
Thumbnail screen
9 10
8
11 12 13 14 15
This section indicates on which P2 card the pointed
clip is recorded. The number of the slot that contains
the appropriate P2 card is indicated in yellow. If the
clip is recorded on more than one P2 card, then the
numbers of all slots that contain the appropriate cards
are indicated. The numbers of the other slots are
shown in white if they contain P2 cards.
When the following P2 card is inserted, the slot number is displayed with a pink frame.
z RUN DOWN CARD
(A P2 card on which the number of rewrites exceeds
the limit defined in the standards.)
z DIR ENTRY NG CARD
(A P2 card on which the directory structure does not
comply with the standards.)
The USB HDD section is indicated as follows:
z Other than the USB HOST mode: gray
z Not connected in USB HOST mode: gray
z HDD recognized and usable in USB HOST mode:
white
z HDD recognized and thumbnails shown in USB
HOST mode: yellow
z HDD recognized and data unable to be copied in
USB HOST: red
3. Time Display
You can set this to display the time code at the start of
clip recording, the user bits at the start of clip
recording, the shooting time, the shooting date, the
shooting and date or USER CLIP NAME.
110
Manipulating Clips with Thumbnails : Thumbnail Screen
AJ-HPX2000P(VQT1D27-1)E.book 111 ページ ２００７年７月３０日　月曜日　午後１時３１分
4. Recording mode
14.
The recording mode for the clip on which the pointer is
located is indicated.
5. System format
The format for the clip on which the pointer is located
is indicated.
6. Duration
The duration of the clip on which the pointer is located
is indicated.
Edit Copied Clip Indicator
This marker is displayed on a clip when the model
supports edit copy, such as the AJ-HPM100. For more
information about edit copying, see the instruction
manual for a mode that supports edit copying.
15.
Wide Clip Indicator
This marker is displayed for clips recorded with the
16:9 aspect ratio. However, it does not accompany
clips in HD format.
7. USB HOST mode indicator
Indicated when the mode has been switched to USB
HOST.
Manipulating Clips with Thumbnails
8. Clip Number
The numbers set by the camera for all the clips
recognised correctly by the P2 card. These numbers
are allocated in chronological order, by shooting dates
and times.
If clips cannot be played because of different recording
formats, they are displayed in red.
9.
Defective Clip Indicator and
Unknown Clip indicator
This marker is displayed for defective clips, which may
result from a variety of causes, e.g., powering-down
during recording.
Clip with yellow defective clip indicators can be
restored in some cases. Please refer to [Restoring
Clips] (page 117) for more information.
A clip displayed with a red corrupt marker cannot be
restored and must be deleted. If the clip cannot be
deleted, format the P2 card.
When clips have different formats,
is displayed
instead of
.
10.
Incomplete Clip Indicator
Indicates that although a clip is recorded across
multiple P2 cards, one of these cards is not inserted
into a P2 card slot.
11.
Shot Mark Indicator
This marker is displayed for a clip with a shot mark
attached. Please refer to [Shot Mark] (page 115) for
more information about shot marks.
12.
Indicator for clips with proxy
This marker is displayed for clips with proxy attached.
13.
Text Memo Indicator
This marker is displayed for a clip with a text memo
attached.
Manipulating Clips with Thumbnails : Thumbnail Screen
111
AJ-HPX2000P(VQT1D27-1)E.book 112 ページ ２００７年７月３０日　月曜日　午後１時３１分
Selecting Thumbnails
Multiple thumbnails can be randomly selected in the
thumbnail screen.
1
2
Use the cursor buttons to move the pointer (yellow
frame) to the desired clip and press the SET button.
The frame around the selected thumbnail changes to
a blue frame. Press the SET button again to deselect
the clip.
MENU
Button
LCD Monitor
Additional clips can be selected by repeating Step 1.
THUMBNAIL
Button
EXIT Button
It is possible to display only the selected thumbnails in the
thumbnail screen for playback. Please refer to [Switching
the Thumbnail Display] (page 113) for more information.
CURSOR Buttons
SET Button
Playing back Clips
1
2
3
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
‹Note
Press the PLAY/PAUSE button, and the clip under the
pointer will be played back on the LCD monitor.
After playback of the clip under the pointer,
subsequent clips are played back in order, according
to when they were shot. The thumbnail screen returns
after the last clip has been played back.
When playback is stopped, the position of the pointer
remains on the clip that was being played back,
regardless of where the playback started. However,
when the THUMBNAIL button is pressed to close the
thumbnail screen, the pointer will move to the starting
clip (i.e., the clip with the earliest recording date and
time), not the clip on which the pointer was last
positioned.
z When playing back clips, it is not necessary to
“select” the clips (blue frames around the
thumbnails).
z Clips with clip numbers displayed in red cannot be
played.
5
112
Pressing the STOP button during clip playback stops
the playback and returns the display to the thumbnail
screen.
Use the cursor buttons to move the pointer over the
desired clip.
‹Notes
4
6
During playback, pressing the REW button starts 4a
speed reverse playback, and the FF button starts 4a
speed fast playback. Press the PLAY/PAUSE button
to return to normal playback.
During clip playback, pressing the PLAY/PAUSE
button will temporarily stop (pause) the process.
During a pause, pressing the REW button moves the
pause position to the beginning of the clip. Pressing
the REW button again moves the pause position to
the beginning of the previous clip.
During a pause, pressing the FF button moves the
pause position to the beginning of the next clip.
Manipulating Clips with Thumbnails : Selecting Thumbnails
AJ-HPX2000P(VQT1D27-1)E.book 113 ページ ２００７年７月３０日　月曜日　午後１時３１分
Switching the Thumbnail Display
The display can be switched so that only those clips matching the specified conditions are displayed in the thumbnail
screen.
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
3
Select THUMBNAIL from the thumbnail menu. Switch
the thumbnail display by selecting one of the following
items:
Press the THUMBNAIL MENU button. The thumbnail
menu appears.
ALL CLIP:
Display all clips.
SAME FORMAT CLIPS:
Displays clips in the same format as the system
format. System format means the image system set in
SYSTEM MODE and REC MODE. Press the MODE
CHECK button to display the viewfinder. Refer to
[1.System mode] (71 page) and [3.REC mode] (71
page) of [Viewfinder Status Indication Layout].
SELECTED CLIPS:
Display randomly selected clips.
MARKED CLIPS:
Display clips with shot marks attached.
TEXT MEMO CLIPS:
Display clips with text memo data attached.
SLOT CLIPS:
Display clips recorded in the P2 card inserted in the
specified slot.
When this item is selected, SLOT1 to SLOT5 are
displayed as a sub-menu. Select the desired slot to
display the clips.
SETUP:
Please refer to [Setting the Thumbnail Display Mode]
(page 124) for information about this item.
EXIT:
Close the sub-menu.
Manipulating Clips with Thumbnails : Switching the Thumbnail Display
113
Manipulating Clips with Thumbnails
THUMBNAIL
MENU button
AJ-HPX2000P(VQT1D27-1)E.book 114 ページ ２００７年７月３０日　月曜日　午後１時３１分
Changing thumbnails
It is possible to replace thumbnails with images that include
previously attached text memos while images are recorded
or played back.
1
2
3
4
5
Add text memos to images that you intend to change.
Refer to [Text Memo Function] (page 40) for the
method to add text memos.
Select THUMBNAIL > TEXT MEMO CLIPS to display
thumbnails of the clips with text memos.
Place the pointer on the clip of the thumbnail that you
intend to change, and then press SET. Move the pointer
to the text memo display on the lower row.
Select the thumbnail that you intend to replace, place
the pointer on it, and then select OPERATION >
EXCH. THUMBNAIL on the thumbnail menu.
Press SET. When the YES/NO confirmation window is
displayed, select YES by using the cursor button and
the SET button. The menu closes and the thumbnail for
the clip is replaced.
‹Note
Display clip properties by selecting PROPERTY > CLIP
PROPERTY on the thumbnail menu to confirm the position
of the thumbnail (the number of frames from the top of the
clip). Since thumbnails come generally from the top of the
clip, [0] is displayed.
114
Manipulating Clips with Thumbnails : Switching the Thumbnail Display
AJ-HPX2000P(VQT1D27-1)E.book 115 ページ ２００７年７月３０日　月曜日　午後１時３１分
Shot Mark
A shot mark can be added to a clip thumbnail to distinguish this clip from the others.
1
2
3
4
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Use the cursor buttons to move the pointer over the
clip to which you want to attach a shot mark.
Press the Shot Mark button.
Manipulating Clips with Thumbnails
A shot mark will be attached to the clip thumbnail
under the pointer.
To delete a shot mark, reposition the pointer over the
clip and press the Shot Mark button.
Shot Mark Button
‹Notes
z A shot mark can be attached during recording. Please
refer to [Shot Mark Function] (page 41) for more
information.
z When adding a shot mark to (or deleting the shot mark
from) a clip recorded across multiple P2 cards, do this
with all these P2 cards inserted into P2 card slots.
Text Memo
During recording or playback, you can add text memos to clips. Text memos can be used to play back clips at some point
or break clips into chunks and copy the necessary portions.
Adding a text memo
Text memos can be added in one of the following ways.
z Press the TEXT MEMO button during recording or
playback of a clip. A text memo is added to the position
where the button is pressed.
z Press the TEXT MEMO button when the thumbnail
screen is displayed. A text memo is added to the
beginning of the clip.
‹Note
One clip can have up to 100 text and voice memos in
combination. Note that camera-recorder is not capable of
adding or showing voice memos.
Text Memo Button
Manipulating Clips with Thumbnails : Shot Mark
115
AJ-HPX2000P(VQT1D27-1)E.book 116 ページ ２００７年７月３０日　月曜日　午後１時３１分
Playing back a clip at the position where a text memo is recorded
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
3
Press the THUMBNAIL MENU button and select
THUMBNAIL > TEXT MEMO CLIPS from the
thumbnail menu.
The clip thumbnails with text memos attached are
displayed in the upper section of the LCD monitor.
The lower section of the LCD monitor shows
information about the text memo on the clip selected
by the pointer.
Move the pointer over the clip that contains the
desired text memo to playback and press the SET
button.
The pointer moves to the lower part of the LCD
monitor.
The pointer moves down.
4
Thumbnail
Display
Shows the still image that the
text memo is related to.
Shows the total number of text
memos attached to the clip.
5
6
With the pointer located in the lower part, move the
pointer to the desired text memo number using the
cursor right and left buttons ("!). Then, press the
PLAY button.
Playback will start from the time code position of the
text memo where the pointer is located. If the STOP
button is pressed during playback or the playback has
finished at the end of the clip, then the thumbnail
screen appears again with the pointer replaced with
the text memo where the playback started.
Press the THUMBNAIL MENU button to select EXIT
or press the EXIT button to return the pointer to the
upper part of the thumbnail screen.
‹Note
If the AVC-Intra codec board (AJ-YBX200G, optional) is
not installed, the test memo thumbnails of the clips
recorded in AVC-I 100 or AVC-I 50 may not display; the
section is indicated in gray.
Deleting a text memo
1
2
3
116
Select the desired text memo by carrying out steps 13 for [Playing back a clip at the position where a text
memo is recorded] (page 116).
Move the pointer to the desired text memo, and then
press the SET button.
Press the THUMBNAIL MENU button to select
OPERATION > DELETE from the thumbnail menu.
YES and NO appear to confirm deletion. Use the
cursor buttons and the SET button to select YES.
The text memo is deleted.
Manipulating Clips with Thumbnails : Text Memo
AJ-HPX2000P(VQT1D27-1)E.book 117 ページ ２００７年７月３０日　月曜日　午後１時３１分
Using a text memo to break a clip and copy the necessary portion
1
2
3
Select a desired text memo in a clip by carrying out
steps 1-3 for [Playing back a clip at the position where
a text memo is recorded] (page 116).
4
Move the pointer to the desired text memo, and then
press the SET button. You can select more than one
text memo.
Press the THUMBNAIL MENU button to select
OPERATION > COPY.
5
User the cursor buttons and SET buttons to select the
destination slot. Then, select YES to start copying the
clip. The portion between the selected text memo and
the next one is copied. If no text memo is found after
the selected one, then all part after the selected text
memo is copied. If multiple text memos are selected,
the selected sections are copied.
Deleting Clips
1
2
3
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
4
The following screen appears. Use the cursor buttons
and the SET button to select YES.
Use the cursor buttons to move the pointer over the
clip you want to delete.
Press the SET button to select the clip.
Press the THUMBNAIL MENU button and select
OPERATION > DELETE from the thumbnail menu.
5
The clip is deleted. All selected clips (in blue-green
frames) are deleted by this operation.
‹Note
Pressing the SET button stops the deletion operation in the
middle.
Restoring Clips
Restores clips that are defective as a result of sudden
powering-down during recording, or removal of the P2 card
being accessed.
1
‹Note
2
Only those clips with yellow corrupt clip markers can be
restored. Delete the clips with red corrupt clip markers. If
the clip cannot be deleted, format the P2 card.
During restoration of the clips, however, the defective-clip
indicator may change from yellow to red, resulting in
inability to restore the clips.
3
4
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Use the cursor buttons to move the pointer over the
clip you want to restore (defective clips are indicated
by corrupt clip marks).
Press the SET button to select the clip.
Press the THUMBNAIL MENU button, and select
OPERATION > REPAIR CLIP from the thumbnail menu.
The confirmation window appears. Use the cursor
buttons and the SET button to select YES.
Manipulating Clips with Thumbnails : Deleting Clips
117
Manipulating Clips with Thumbnails
When the clip is being copied, the camera-recorder
indicates the progress of the copy process and
cancellation status. To discontinue the copy process,
press the SET button. Then, a YES/NO confirmation
screen is displayed. Use the cursor buttons and SET
button to select YES.
AJ-HPX2000P(VQT1D27-1)E.book 118 ページ ２００７年７月３０日　月曜日　午後１時３１分
Reconnection of Incomplete Clips
Incomplete clips may be generated when clips recorded on
multiple P2 cards (connected clips) are separately copied
to different cards. Reconnection function generates one
clip (the original, connected clip) from incomplete clips.
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Use the cursor and SET button to select incomplete
clips to reconnect.
Usually, thumbnails of incomplete clips (clips with
marker) are displayed in line.
3
4
Press the THUMBNAIL MENU button and select
OPERATION > RE-CONNECTION from the
thumbnail menu.
The confirmation window appears. Use the cursor
buttons and SET button to select YES.
‹Note
indication stays illuminated until all the incomplete clips
that comprise the original clip are reconnected.
Copying Clips
Selected clips can be copied to the P2 card or SD memory
card in the desired slot.
1
2
3
4
118
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Use the cursor buttons to move the pointer to the
desired clip and press the SET button.
Press the THUMBNAIL MENU button and select
OPERATION > COPY from the thumbnail menu.
Select Slot 1-5 or SD memory card as the destination.
The confirmation window appears. Use the cursor
buttons and SET button to select YES.
‹Notes
z Do not turn off the power or remove a P2 card while data
is being copied. Doing so may cause the P2 card to fail.
If you should accidentally perform one of the above
operations, defective clips will be generated. Delete
them, and then copy them again.
z When clips are copied to P2 cards, all the information on
the clips is copied. However, when they are copied to the
SD memory card *1, video and sound information is not
copied, only thumbnails, clip metadata, icons, Voice
Memo, proxy, and real-time metadata.
z When there is insufficient recording capacity on the
destination, the message “LACK OF REC CAPACITY” is
displayed, and copying will not proceed. When clips to
be copied include some with defects, the message
“CANNOT ACCESS” is displayed, and copying will not
proceed. If selected clips include any that are already
recorded on the destination P2 card, copying will not
proceed.
z To stop copying, press the SET button. Clips currently
being copied to the destination will be deleted.
z When identical clips exist on the destination card, the
“OVERWRITE?” is displayed. Select “YES” or “NO”.
*1 Regarding SD memory cards to be used, see <Cautions
in using SD memory cards> (page 21).
Manipulating Clips with Thumbnails : Reconnection of Incomplete Clips
AJ-HPX2000P(VQT1D27-1)E.book 119 ページ ２００７年７月３０日　月曜日　午後１時３１分
Setting of Clip Meta Data
Information such as the name of person who shot the video, the name of the reporter, the shooting location, or a text
memo can be read from the SD memory card, and can be recorded as Clip Meta Data.
1
2
Reading Clip Meta Data (metadata upload)
Regarding SD memory cards to be used, see <Cautions
in using SD memory cards> (page 21).
Insert the SD memory card that contains the Clip
Meta Data (metadata upload file).
‹Note
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
‹Note
3
4
Press the THUMBNAIL MENU button and Select
META DATA > LOAD from the thumbnail menu, and
press the SET button.
Names of metadata upload files stored on the SD
memory card are displayed*. Select the desired files
using the cursor buttons, and choose YES. Upload
starts.
Uploaded metadata is retained even if the power is
turned off. For [more information on] confirmation of
uploaded data, see [Checking and modifying read
metadata] (page 120).
* Press the cursor button (!) to display the full name of
the file, up to 100 characters, at the cursor position.
Press the cursor button (") to return to the original
state.
Clip Meta Data items
Clip Meta Data includes the following items: Underlined
items can be set by reading the metadata upload file on
the SD memory card. Other items are set automatically
during shooting. Using the latest update version of P2
viewer, metadata upload files can be written to SD memory
cards using a PC. Download the latest update version of
P2 viewer from the following URL and install it to your PC:
https://eww.pavc.panasonic.co.jp/pro-av/
Manipulating Clips with Thumbnails : Setting of Clip Meta Data
119
Manipulating Clips with Thumbnails
Press the thumbnail button while pressing MODE
CHECK button when a thumbnail is displayed to move
to Step 4.
The file which was edited by except P2 viewer is displayed
as “UNKNOWN DATA”, and may not be read.
GLOBAL CLIP ID:
Displays the global clip ID, which indicates the
shooting status of the clip.
USER CLIP NAME:
Displays the clip name specified by the user.*1
VIDEO: Displays [FRAME RATE] (frame rate of the clip),
[PULL DOWN], and [ASPECT RATIO].
AUDIO: [SAMPLING RATE] (sampling frequency of
recorded sound) and [BITS PER SAMPLE]
(digitized bit[s] of recorded sound).
ACCESS: Displays [CREATOR] (person who recorded the
clip), [CREATION DATE] (date when the clip
was recorded), [LAST UPDATE DATE] (date of
the latest update of the clip), and [LAST
UPDATE PERSON] (person who made the
latest update of the clip).
DEVICE: Displays [MANUFACTURER] (name of the
device manufacturer), [SERIAL NO.] (serial
number of the device) and [MODEL NAME]
(model name of the device).
SHOOT: Displays [SHOOTER] (name of the person who
shot the video), [START DATE] (start date of
shooting), [END DATE] (end date of shooting),
and [LOCATION] ALTITUDE/LONGITUDE/
LATITUDE/SOURCE/PLACE NAME (altitude,
longitude, latitude, and source of the information
and name of the location).
SCENARIO:
Displays [PROGRAM NAME], [SCENE NO.],
and [TAKE NO.].
NEWS: Displays [REPORTER] (name of the reporter),
[PURPOSE] (purpose of shooting), and
[OBJECT] (object of shooting).
MEMO*2: Displays [NO.] (the number of the text memo),
[OFFSET] (location of the frame where the text
memo is added), [PERSON] (person who
recorded the text memo added to the clip), and
[TEXT] (contents of the text memo).
THUMBNAIL:
Displays the location of the frame (frame offset)
and the size (height and width) of the image
selected as the thumbnail image.
AJ-HPX2000P(VQT1D27-1)E.book 120 ページ ２００７年７月３０日　月曜日　午後１時３１分
*1 The USER CLIP NAME recording method is
selectable. For details, refer to [Selecting the USER
CLIP NAME recording method] (page 121).
*2 Be sure to enter TEXT when entering MEMO. It is
not possible to record only PERSON or OFFSET.
4
While viewing the settings for the metadata, use the
cursor buttons to move the pointer to the desired
option. Then, press the SET button. A software
keyboard screen is displayed, allowing you to modify
the setting.
‹Note
AJ-HPX2000 only displays printable ASCII
characters.
Checking and modifying read metadata
The camera-recorder allows you to check the details of
read metadata.
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Press the THUMBNAIL MENU button to select
METADATA > PROPERTY from the thumbnail menu.
Then, the screen like this is displayed:
To set whether or not the uploaded metadata is
recorded
Set ON/OFF in META DATA > RECORD from the
thumbnail menu. The factory setting is OFF.
3
120
Use the cursor buttons to move the pointer. Then,
press the SET button. This allows you to view the
settings of the read metadata.
Manipulating Clips with Thumbnails : Setting of Clip Meta Data
AJ-HPX2000P(VQT1D27-1)E.book 121 ページ ２００７年７月３０日　月曜日　午後１時３１分
‹Note
Selecting the USER CLIP NAME recording
method
Select META DATA > USER CLIP NAME from the
thumbnail menu to select the recording method. Two
options are available: TYPE1 and TYPE2.
z TYPE1 (Factory setting）
USER CLIP NAME to be
recorded
If clip metadata has been read in Uploaded data
If no clip metadata has been read
Same as GLOBAL CLIP ID
in or if the setting for recording
(UMID data)
clip metadata has been turned off
When a P2 card with a memory capacity of 8 GB or more
is used in camera-recorder and a one-time continuous
recording exceeds the prescribed duration (DVCPRO HD
and the AVC-Intra 100 (optional): about 5 minutes;
DVCPRO50 and the AVC-Intra 50 (optional): about 10
minutes; DVCPRO or for DV: about 20 minutes) or when a
one-time recording extends over more than one P2 card,
the recording concerned will automatically be undertaken
as a separate clip. At this time, each clip will be provided
with its own COUNT value.
Example of recording (DVCPRO HD) a clip on one P2 card:
REC start (recording start)
REC/PAUSE (recording pause)
Recording duration = Approx. 7 min.
z TYPE2
If clip metadata has been read in
Clip 1
COUNT value
= 0001
Uploaded data + COUNT
value*
5 min.
If no clip metadata has been read
in or if the setting for recording Same as CLIP NAME
clip metadata has been turned off
Manipulating Clips with Thumbnails
USER CLIP NAME to be
recorded
Clip 2
COUNT value
= 0002
2 min.
Example of recording a clip on two P2 cards:
REC start (recording start)
* The COUNT value is indicated as a four-digit number.
The COUNT value is incremented each time a new clip
is captured if clip metadata has been read in and TYPE2
has been selected as the recording method.
The COUNT value can be reset using the following
procedure.
Select PROPERTY > DEVICE > META DATA from the
thumbnail menu, then select USER CLIP NAME to
display the menu shown below. Select “COUNT RESET”
with the cursor and press the SET button to reset the
COUNT value to 1.
Clip 1
COUNT value
= 0003
REC/PAUSE (recording pause)
Clip 2
COUNT value
= 0004
1st card
2nd card
If the clip thumbnails are displayed as shown in the
example above or their properties are indicated using a P2
device, the thumbnail and COUNT value of clip 1 will be
displayed.
Clear the uploaded metadata
Select META DATA > INITIALIZE from the thumbnail
menu, and press the SET button. Select “YES” when the
confirmation screen is displayed.
‹Notes
z Japanese or Chinese characters indicated in English or
other characters that cannot be indicated in English will
not display properly; they will be indicated as ¢.
z The letters which can be input with AJ-HPX2000 are
only the alphanumeric. AJ-HPX2000 cannot input
Japanese and Chinese.
Manipulating Clips with Thumbnails : Setting of Clip Meta Data
121
AJ-HPX2000P(VQT1D27-1)E.book 122 ページ ２００７年７月３０日　月曜日　午後１時３１分
Setting of Proxy (optional)
By attaching the video encoder card (AJ-YAX800G,
optional) either to the optional slot or Slot 5, it is possible to
specify the proxy recording setting.
The video encoder card is not recognized when inserted if
the power for the unit is turned ON. Insert the video encoder
card after turning off the power for the unit.
Select OPERATION > DEVICE SETUP > PROXY from
the thumbnail menu to specify the setting.
For the method of installation and the settings of the video
encoder card, refer to the operation manual of the video
encoder card.
‹Note
To use the proxy function in 24PN (Native) mode, the FPGA
version of the video encoder card firmware must be updated
to [B102] or higher. For the method to confirm the FPGA version of the video encoder card firmware, refer to [Video
Encoder Card Status Display (optional)] (page 128). For
instructions on updating, refer to the P2 support page on the
following website.
https://eww.pavc.panasonic.co.jp/pro-av/
Formatting a P2 Card
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
3
Press the THUMBNAIL MENU button and select
OPERATION > FORMAT from thethumbnail menu.
The following screen appears. Select the slot number
for the P2 card you want to format.
Select EXIT if formatting is not required.
4
122
The following screen appears. Use the cursor buttons
and the SET button to select YES.
Manipulating Clips with Thumbnails : Setting of Proxy (optional)
The selected P2 card is formatted.
AJ-HPX2000P(VQT1D27-1)E.book 123 ページ ２００７年７月３０日　月曜日　午後１時３１分
Formatting SD memory cards
SD memory cards can also be formatted from the
thumbnail screen. With an SD memory card inserted into
the camera-recorder, perform the following operation:
1
2
4
Press the THUMBNAIL MENU button and select
OPERATION > FORMAT from the thumbnail menu.
The following screen appears. Select “SD CARD”.
Select “EXIT” if formatting is not required.
Manipulating Clips with Thumbnails
3
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
The following screen appears. Use the cursor buttons
and the SET button to select YES.
The SD memory card is formatted.
‹Note
SD memory cards can also be formatted from the menu
screen. For more information, see [Handling SD memory
cards] (page 84).
Manipulating Clips with Thumbnails : Formatting SD memory cards
123
AJ-HPX2000P(VQT1D27-1)E.book 124 ページ ２００７年７月３０日　月曜日　午後１時３１分
Setting the Thumbnail Display Mode
The thumbnail display mode can be customised to suit
your preferences.
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Press the THUMBNAIL MENU button and select
THUMBNAIL → SETUP from thethumbnail menu.
The following screen appears.
THUMBNAIL SIZE:
For the size of thumbnails displayed on one screen,
either LARGE (3 a 2 thumbnails displayed) or
NORMAL (4 a 3 thumbnails displayed) can be
selected. The factory default value is NORMAL.
THUMBNAIL INIT:
Return the above thumbnail display settings to
default. Move the cursor to this option, and press the
SET button. Select “YES” when the confirmation
screen is displayed.
EXIT:
Returns to the previous menu.
ALL HIDE :
ON： All indicators are not displayed.
OFF： Indication/No indication will be set
depending on the following menu. The
factory settings are as follows.
MARKER IND. :
Switches the shot mark marker between indication
and no indication (ON/OFF). The factory setting is
ON (indication).
TEXT MEMO IND. :
Switches the text memo marker between indication
and no indication (ON/OFF). The factory setting is
ON (indication).
WIDE IND. :
Switches the wide marker between indication and no
indication (ON/OFF). The factory setting is ON
(indication).
PROXY IND. :
Switches the proxy marker between indication and
no indication (ON/OFF). The factory setting is ON
(indication).
DATA DISPLAY:
The time display field of the clip offers a choice of
Time Code (TC), User Bits (UB), Shooting Time
(TIME), Shooting Date (DATE), Shooting Time and
Date (Time DATE) or USER CLIP NAME. The factory
setting is Time Code.
DATE FORMAT:
You can specify the display order for the shooting
date as either Year/Month/Day (YMD), Month/Day/
Year (MDY) or Day/Month/Year (DMY). The factory
setting is Month/Day/Year. This setting is reflected in
the recording date shown in the clip property and the
shooting date shown when DATE is selected under
the item DATA DISPLAY.
124
Manipulating Clips with Thumbnails : Setting the Thumbnail Display Mode
AJ-HPX2000P(VQT1D27-1)E.book 125 ページ ２００７年７月３０日　月曜日　午後１時３１分
Properties
The clip’s properties and the P2 card’s status are displayed.
It is possible to edit and rewrite recorded clip metadata while clip properties are displayed.
Clip Property
From the thumbnail menu, select PROPERTY > CLIP
PROPERTY. The following screen appears.
4. Clip Information
Displays detailed information about the clip.
1
2
5
4
1. Clip Number
2. Thumbnail
3. Clip Information
Indicates the indicators added to the clip and the
number of text and voice memos added to the clip.
The
mark appears if the clip is recorded on a writeprotected P2 card.
5. Clip Meta Data
Displays more detailed data about the clip. Use the
cursor buttons to move the pointer, and press the SET
button to check the detailed content. The underlined
items are automatically set during shooting. For more
information on displayed metadata, see [Setting of Clip
Meta Data] (page 119).
‹Note
AJ-HPX2000 is not capable of recording or playing
back voice memos.
Modification of recorded clip metadata
1
Display the window for detailed clip metadata that you
intend to modify in the clip properties window.
2
Place the cursor on the item to be modified using the
cursor button. The metadata that can be modified are
shown like [CREATOR] in the following figure.
Manipulating Clips with Thumbnails : Properties
125
Manipulating Clips with Thumbnails
CLIP NAME:
Display clip names.
START TC:
The time code value at the start of the
recording.
START UB:
The user bit value at the start of the
recording.
DATE: The date of the recording.
TIME: The time at the start of the recording.
DURATION:
The time length of the clip.
V-FORMAT:
The recording format for the clip.
FRAME RATE:
The frame rate for the playback.
REC RATE:
The recording frame rate is displayed. (This
is indicated on the clip that data is recorded
in a special way using the camera recorder.)
3
AJ-HPX2000P(VQT1D27-1)E.book 126 ページ ２００７年７月３０日　月曜日　午後１時３１分
3
Press the SET button.
The input window (soft keyboard) for modifying metadata is displayed. Use the keyboard to modify the metadata.
4
Press OK on the keyboard to write the modified metadata on the clip and return to the metadata window.
The input window (soft keyboard) for modifying metadata is displayed. Use the keyboard to modify the metadata.
‹Note
z Deleting only the respective items of LOCATION (recording location data) in SHOOT is not possible. By setting
ALTITUDE to empty, other LONGITUDE/LATITUDE items
are collectively deleted.
z The metadata for a clip with the
incomplete clip indicator cannot be modified. For the clips recorded on multiple
P2 cards, modify the metadata while all P2 cards are
inserted.
z Any MEMO with 100 characters or more cannot be modified.
The keyboard operation is the same as [Checking and
modifying read metadata] (page 120).
P2 Card Status Display
P2 Card Status Display Settings
Select PROPERTY > CARD STATUS from the thumbnail
menu to set the desired indication mode (remaining free
space or used memory capacity) for the P2 card status
display.
1
2
Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
Press the MENU button and select PROPERTY →
PROPERTY SETUP → P2 CARD CAP from the
thumbnail menu.
The following screen appears. Select the P2 card
status display settings from the P2 CARD CAP menu
option.
REMAIN:
Show remaining free space on the P2 card as the P2
card status display. (Factory setting)
USED:
Show used memory capacity on the P2 card as the
P2 card status display.
126
Manipulating Clips with Thumbnails : Properties
AJ-HPX2000P(VQT1D27-1)E.book 127 ページ ２００７年７月３０日　月曜日　午後１時３１分
Contents of P2 Card Status Display Settings
From the thumbnail menu, select PROPERTY > CARD STATUS. The following screen appears.
When “REMAIN” is selected:
1
When “USED” is selected:
2
1
2
3
3
5
5
4
4
The
1. Write-protect Mark
mark appears if the P2 card is write-protected.
2. P2 Card Status (remaining free space)
The remaining memory capacity of the P2 card is
indicated by a bar graph and percentage. The bar
graph indicator moves to the left as the remaining free
space decreases.
The following indications may appear, depending on
the card status:
The
2. P2 Card Status (used memory capacity)
The used memory capacity of the P2 card is indicated
by a bar graph and a percentage figure. The bar graph
indicator moves to the right as the used memory
capacity increases.
The following indications may appear, depending on
the card status:
FORMAT ERROR:
An unformatted P2 card is inserted.
NOT SUPPORTED:
An unsupported card is inserted in the camera.
NO CARD:
P2 cards are not inserted.
FORMAT ERROR:
An unformatted P2 card is inserted.
NOT SUPPORTED:
An unsupported card is inserted in the camera.
NO CARD:
P2 cards are not inserted.
Use the cursor button to place the cursor on the P2
card for data you want to access and press the SET
button to display detailed information about the P2
card to check individual information such as the serial
number and the user ID.
3. P2 Card Remaining Capacity/Total Capacity
Displays the P2 card remaining capacity and total
capacity in minutes. The total of the remaining
memory capacity for each P2 card that is displayed
may not match the actual total remaining memory
capacity for the P2 cards because only the figure in
minute is displayed.
Use the cursor button to place the cursor on the P2
card for data you want to access and press the SET
button to display detailed information about the P2
card to check individual information such as the serial
number and the user ID.
3. P2 Card memory capacity/Total Capacity
Displays the used memory capacity on a P2 card and
the total capacity, in minutes. Because fractions are
truncated, the figure shown for used memory capacity
on a P2 card may differ from the figure for total
capacity.
The used memory capacity of a write-protected P2
card is displayed as 100%.
4. Total remaining free space for the slot
Displays the total remaining free space for all 5 slots.
Please note that the remaining capacity of a writeprotected P2 card is not included in the total remaining
capacity.
5.
Warning symbol
When the following P2 card is detected, the symbol is
displayed.
RUN DOWN CARD:
The number of rewrites of the card exceeds the limit
defined in the standards.
DIR ENTRY NG CARD:
The directory structure on the P2 card does not comply with the standards.
The warning can be confirmed on the P2 card detailed
information indication in [2.P2 Card Status (remaining
free space)].
mark appears if the P2 card is write-protected.
4. Total used memory capacity for all slots
Displays the total used memory capacity for all 5 slots.
5.
Warning symbol
When the following P2 card is detected, the symbol is
displayed.
RUN DOWN CARD:
The number of rewrites on the card exceeds the limit
defined in the standards.
DIR ENTRY NG CARD:
The directory structure of the P2 card does not comply
with the standards.
The warning can be confirmed on the P2 card detailed
information indication in [2.P2 Card Status (remaining
free space)].
Manipulating Clips with Thumbnails : Properties
127
Manipulating Clips with Thumbnails
1. Write-protect Mark
AJ-HPX2000P(VQT1D27-1)E.book 128 ページ ２００７年７月３０日　月曜日　午後１時３１分
SD memory card Status Display
The status display enables a confirmation of the SD
memory card formatted condition, available memory
capacity etc.
From the thumbnail menu, select PROPERTY >
DEVICES > SD CARD.
If the format is compatible with SD standards, the message
“SD STANDARD: SUPPORTED” is displayed.
If the format is not compatible with SD standards, the
message “SD STANDARD: NOT SUPPORTED” is
displayed. If this is the case, writing or reading will not be
successful. Format the card with the AJ-HPX2000. For
more on formatting SD memory cards, see [Formatting SD
memory cards] (page 123).
‹Note
The indicated remaining memory capacity on the SD
memory card (PROXY REM) can be an index of remaining
memory capacity for the Proxy but may differ from the
actual remaining capacity. For SD or SDHC cards with
Class indications, the recording time may be reduced
significantly compared with the actual capacity when
images of short recording time are recorded repeatedly. If
the remaining memory capacity exceeds 999 min, “999
min” is displayed.
The remaining capacity is displayed only when set to
record the Proxy record on the SD memory card. For the
setting method, refer to the operation manual of the video
encoder card (the optional AJ-YAX800G).
Video Encoder Card Status Display (optional)
Attaching the video encoder card (AJ-YAX800G, optional),
select PROPERTY > DEVICES > PROXY from the
thumbnail menu.
The slot in which the video encoder card is inserted, and
version information is displayed.
128
Manipulating Clips with Thumbnails : Properties
AJ-HPX2000P(VQT1D27-1)E.book 129 ページ ２００７年７月３０日　月曜日　午後１時３１分
Connection with external device
Connection through the DVCPRO/DV connector
Records of signals input to the DVCPRO/DV connector
1
2
Open the <1394 SETTING> on the SYSTEM
SETTING page and confirm that the settings in the
1394 IN CH item and the 1394 OUT CH item are set
to “AUTO”.
In case of input from the IEEE1394 interface, set REC
SIGNAL to “1394”.
The REC SIGNAL option must be selected from the
<SYSTEM MODE> menu on the SYSTEM SETTING
page.
‹Notes
z When the AVC-Intra (optional) format is selected and
data are recorded in DVCPRO HD Native mode, it is
impossible to input/output data from the DVCPRO/DV
connector.
z When INTERVAL REC is operated, it is impossible to
input/output data from the DVCPRO/DV connector.
z When no device is connected to the DVCPRO/DV
connector or no signal is being input to the connector,
the display window indicates “1394E-90” in the counter
section. Input the same signals to the IEEE1394
interface as the format set in SYSTEM MODE and REC
MODE in the setting menu. If a different format is used,
signals are not properly recorded on P2 cards. When
playback signals other than regulara1 (normal speed)
playback signals have been input, no guarantees are
made for the video and sound recorded or for the video
and sound of the EE system. For information about the
error codes, see [1394 Error Codes] (page 148).
z The audio signal input will consist of an input signal from
the IEEE1394 interface.
z When the audio signal input from the IEEE1394 interface
is 32 kHz/4CH (12 bits), it is recorded as 48 kHz/4CH
(16 bits) on the P2 card.
z It is not possible to use the GENLOCK IN connector to
achieve synchronization with the external reference
signal.
z In SD mode, the thumbnail button is prerssed, thumbnail
screen are output to the viewfinder and the MON OUT
and VIDEO OUT connectors.
z The signals which are output from the VIDEO OUT
connector, MON OUT connector or AUDIO OUT
connector differ from the actual input signals. Use them
for monitoring purposes.
z The condition indicator character is not shown in the
viewfinder screen and the output images.
z The following functions are not available.
PRE-RECORDING function
Loop recording function
Interval recording function
Proxy recording function
Time code and user bits
z When input from the IEEE1394 interface is being
received, the time code and/or the user bits input from
the TC IN connector cannot be recorded on the P2 card.
z When input from the IEEE1394 interface is being
received, the time code output from TC OUT will not be
synchronized with the images output from the MON OUT
connector.
Timecode and user bits in the subcode (SBC)
area
z When input from the IEEE1394 interface is being
received, the timecode in the SBC area, which is input
from the DVCPRO/DV connector, is recorded on the P2
card by turning the TCG switch to the “F-RUN” position
and it will also be output from the TC OUT connector of
camera-recorder.
z By turning the TCG switch into the “R-RUN” position, the
timecode in the SBC area will be recorded on the P2
card in accordance with the timecode of the clip
recorded on the P2 card.
z When recording the user bits input from the DVCPRO/
DV connector on the P2 card, open the <TC/UB> screen
on the MAIN OPEATION page from the menu and select
the “EXT” at UB MODE.
Timecode and user bits in the VAUX area
z When the input from the IEEE1394 interface is being
received, regardless of the menu setting and/or the
switch position on camera-recorder, the timecode and
the user bits in the VAUX area input from the DVCPRO/
DV connector are always recorded on the P2 card.
Recording of UMID (Unique Material Identifier)
information
z When the input from the IEEE1394 interface is being
received, the UMID information input from the DVCPRO/
DV connector will be recorded on the P2 card. If there is
no UMID information, it will be generated in the unit and
recorded.
UMID information is not added when the unit is operated
in DV mode or when playing back DVCPRO HD clips
recorded in Native mode.
Connection with external device : Connection through the DVCPRO/DV connector
129
Connection with external device
3
Refer to [32.DVCPRO/DV connector] (page 21) to
connect the 1394 cable (DV cable).
Ensure that the signal format of the target device
agrees with that of the camera-recorder.
AJ-HPX2000P(VQT1D27-1)E.book 130 ページ ２００７年７月３０日　月曜日　午後１時３１分
External device control through DVCPRO/DV connection
The DVCPRPO/DV connector can be connected with an
external device for recording backup copies to control the
start and stop of recording.
1
2
3
When connecting the 1394 (DV) cable, see
[32.DVCPRO/DV connector] (page 21).
Set the 1394 CONTROL menu option on the 1394
SETTING screen on the SYSTEM SETTING page to
BOTH.
Through the 1394 CMD SEL menu option, select the
type of stop recording command to be received by the
external device.
Through the REC TALLY menu option on the OPTION
MODE screen, select how the recording status of the
camera-recorder should be indicated. Note that the
recording status of the external device is indicated
with a red tally LED.
‹Notes
z When the Fire Store FS-100 is used as external storage,
the VITC UB MODE menu option on the TC/UB screen
on the MAIN OPERATION page can be set to FRM.
RATE to allow the FS-100 to indicate the shooting frame
rate of the camera-recorder on its display. It is also
possible to add the same USER CLIP NAME of the unit to
the record clip of the FS-100.
z Note that when recording a backup with an external
device connected to the camera-recorder during REC
RUN mode and there is insufficient storage space on the
P2 card inserted into the camera-recorder, the time code
output from the DVCPRO/DV connector will not advance
from that point.
z When the AVC-Intra (optional) format, DVCPRO HD
Native mode or INTERVAL REC mode is selected, it is
impossible to control any external devices through the
1394 connection.
Directions for using the DVCPRO/DV connection
z When connecting the 1394 (DV) cable, see
[32.DVCPRO/DV connector] (page 21).
z The AV signals may be disrupted by turning the power of
the connected devices ON and OFF or by disconnecting
and re-connecting the I/F cables.
z It may take several seconds for the system to operate
stably when the input signals are switched or operation
is transferred from one mode to another.
Perform recording operation after the system operation
has stabilized.
z For recording data using the IEEE1394 interface input
selection, or for signals output from the IEEE1394
interface, the AUDIO Volume on the side panel is
disabled.
z When camera-recorder is controlled through PC
application software, etc., take note of the following.
Š The scene-to-scene continuity recording from an
arbitrary position on the clip is not possible.
Recording will always continue immediately after the
latest clip.
Š Software must be used under the condition where
the camera-recorder thumbnail screen is closed.
The application software may not be able to apply
control when the thumbnail screen is open.
z During special playback, video and audio signals which
have not been processed as the output signals of the
IEEE1394 interface will be output. When these video
and audio signals are monitored on another device, they
may be at variance from the video and audio signals
which are played back by camera-recorder.
z In the case when the output format is either DV or
DVCPRO (25M), the audio channel signal selected from
the 1394 AUDIO OUT option of the setup menu will be
output from the IEEE1394 interface.
130
Connection with external device : Connection through the DVCPRO/DV connector
AJ-HPX2000P(VQT1D27-1)E.book 131 ページ ２００７年７月３０日　月曜日　午後１時３１分
Connection with external devices using the USB 2.0 port
Connection with a PC in the USB DEVICE mode
By connecting AJ-HPX2000 with an external PC using USB 2.0, the P2 card connected to AJ-HPX2000 can be used as a
mass storage device.
‹Notes
Procedures for establishing a connection with a
PC
1
Connect the USB cable to the USB 2.0 port.
‹Notes
z The USB 2.0 cable is not included with the camerarecorder. Please use a commercially available USB
2.0 cable (shield with a ferrite core).
z Although the unit supports USB cables up to 5
meters long, cables up to 3-meters long are
recommended.
Connection with external device
z A USB driver must be installed on the PC.
z AJ-HPX2000 is only applicable to USB 2.0. Use a
personal computer that supports USB 2.0.
z Only one unit at a time must be connected to the
PC via USB.
z The P2 card must not be removed when it is
connected via USB.
z While a USB connection is established, the P2
card’s access LED should not be lit except when
access is being carried out.
z When a USB device is active, recording, playback,
or navigation through clip thumbnails is disabled.
During a USB connection, the USB LED on the side
panel stays illuminated.　Also, “USB DEVICE” is
displayed in the system information/warning area in
the viewfinder.
When the connection is not correctly established,
both of these indications blink.
USB 2.0 port
(DEVICE)
2
Navigate the menu to open the SYSTEM MODE
screen on the SYSTEM SETTING page. Then, set the
PC MODE SELECT menu option to USB DEVICE
and the PC MODE option to ON.
USB LED
# < SYSTEM MODE >
#
SYSTEM MODE
REC SIGNAL
CAMERA MODE
VF TYPE
PC MODE SELECT
PC MODE
:1080i-59.94i
:CAM
:60i
:HD
:DEVICE
:ON
86%'(9,&(
) w $ E%
)
=
w ) ‹Note
The function of the menu option USB may be
assigned to a desired user button by using any one of
the menu options USER MAIN SW, USER1 SW or
USER2 SW.
These options can be found in the USER SW screen,
which is accessible from the CAM OPERATION page.
3
There are two ways to terminate the USB mode, as
follows:
z Turn the POWER switch of AJ-HPX2000 OFF.
z Set the PC MODE item to “OFF” from the menu
operations.
When you establish the USB connection for the first time,
install the accessory P2 software for AJ-HPX2000 on the
PC. Refer to the Installation Manual for the details.
Connection with external device : Connection with external devices using the USB 2.0 port
131
AJ-HPX2000P(VQT1D27-1)E.book 132 ページ ２００７年７月３０日　月曜日　午後１時３１分
USB HOST mode
AJ-HPX2000 can be connected to a hard disc drive that
supports USB 2.0 to store data from cards on it, view
thumbnails for stored clips, and write data back to P2
cards.
Switching to the USB HOST mode
1
2
By navigating the menu, set the PC MODE SELECT
menu option on the SYSTEM MODE screen to USB
HOST, then the PC MODE option to ON. This will
place the camera-recorder in USB HOST mode.
z When the camera-recorder is in USB HOST mode,
the viewfinder indicates “USB HOST” and the USB
LED on the side panel stays illuminated. If the hard
disc drive is not properly connected, then the LED
blinks.
z When a user button is assigned the PC MODE on/
off switching capability, you can press that user
button to switch between the normal and USB
HOST modes. For information about how to assign
functions to the user buttons, see [Assigning
Functions to USER MAIN, USER1 and USER2
Buttons] (page 51).
For information about the HDD indication, see
[Thumbnail Screen] (page 110).
USB HOST display
‹Note
Press the THUMBNAIL button to go to the thumbnail
screen. Check to see that the screen indicates “USB
HOST” in the lower right corner. When a hard disc
drive is connected, the HDD indication in the upper
right corner stays illuminated. However, if this indicator
illuminates red, it means that the hard disk drive cannot
be copied. Confirm the hard disk drive type.
In USB HOST mode, clips on P2 cards can be displayed
but video from the camera or an external device cannot be
recorded. Clips written to a hard disc must be written back
to a P2 card before it can be played back. For information
about how to write clips back to P2 cards, see [Writing data
back to P2 cards] (page 135).
Using the USB host mode
Usable hard disc drives
z Hard disc drives connectable via USB 2.0
z P2 STORE (AJ-PCS060G)
‹Notes
z While the USB HOST mode supports USB bus power
(5V, 0.5A), some hard disc drives may not activate. If this
is the case, power must be supplied in a different way.
z Do not connect multiple units through a hub, even for a
hard disk drive where the power is turned off.
Even with devices other than a hard disk drive, do not
connect to the drive together with the hard disk drive
through a hub.
z The unit does not support a hard disk drive of 2 TB or
more.
132
Connection with external device : Connection with external devices using the USB 2.0 port
AJ-HPX2000P(VQT1D27-1)E.book 133 ページ ２００７年７月３０日　月曜日　午後１時３１分
Viewing hard disc drive information
1.
You can view the information on the hard disc drive
connected via USB 2.0 with the following steps.
1
Switch the mode to USB HOST. For more information,
see [Switching to the USB HOST mode] (page 132).
2
PARTITION
This section indicates the type of the hard disc drive.
The available functions depend on the type of hard
disc drive.
HDD type
TYPE S
Connect the hard disc drive to the camera-recorder
via USB 2.0.
3
4
Press the thumbnail button to display the thumbnail
screen.
P2 STORE
Press the MENU button and select HDD >
EXPLORE from the thumbnail menu. The screen
provides the information about the hard disc drive.
FAT
OTHER
1
2
3
4
Available functions
Thumbnail viewing,
writing and writing back
on a card basis, writing
back on a clip basis, and
formatting
Thumbnail viewing,
writing back on a card
basis, and writing back
on a clip basis
For a hard disc drive
Thumbnail viewing,
with the first primary
reading on a clip basis,
partition formatted in
and formatting
FAT 16 or 32, as seen
*Once formatted, the
on personal computers, hard disc drive can be
etc., which requires a
treated as a TYPE-S
CONTENTS directory at HDD.
its root.
Hard disc drives not
Formatting
described above.
* Once formatted, they
* They are hard disc
can be treated as a
drives that have no
TYPE-S HDD.
CONTENTS directory or
use the NTFS and any
other file system instead
of FAT 16 or 32.
Connection with external device
For Type S or P2 STORE
7
8
9
Feature
A special format that
allows high-speed writing and writing back on
a card-by-card basis. A
drive formatted with the
camera-recorder uses
this format.
P2 STORE (AJPCS060G). No writing
can be performed.
5
2. VENDOR
6
This section indicates the vendor for the hard disc
drive.
EXIT button:
;Press the set button.
3. MODEL
This section indicates the model of the hard disc drive.
4. SIZE
This section indicates the total storage on the hard
disc drive.
5. USED
10
This section indicates the used space on the hard disc
drive (in GB) and the number of P2 cards in use.
11
12
6. REMAIN
For the FAT
1
2
3
4
This section indicates the remaining free space on the
hard disc drive in GB.
7. PARTITION #
This section indicates the partition number (one P2
card is used as a unit) on the hard disc drive.
‹Note
The screen indicates up to 10 partitions. When the
number of partitions exceeds 10, scroll down the indication with the cursor button ($) to view the hidden
partitions.
Connection with external device : Connection with external devices using the USB 2.0 port
133
AJ-HPX2000P(VQT1D27-1)E.book 134 ページ ２００７年７月３０日　月曜日　午後１時３１分
8. MODEL
11. VERIFY
This section indicates the model of the P2 card that
originally contained data on the partition.
This section indicates the verification setting and
results at the time the data on the partition was
recorded.
‹Note
ON:FINISHED :
Verification was performed and the results agreed.
ON:FAILED :
Verification was performed and the results did not
agree.
OFF :
No verification was performed.
---:
No verification information is available.
Press the cursor button (!) to switch to the PARTITION
NAME. Press the ["] button to return to the original
model name display.
‹Notes
z Even for a FAT-type hard disc drive, the 1001st or
later clips are not shown.
z For a FAT-formatted hard disc drive, the information
about only the first partition is shown.
z For a P2 STORE (AJ-PCS060G) that has an invalid
partition, that partition information is shown in gray.
Enter the PARTITION NAME from the software
keyboard by selecting [CHANGE PARTITION NAME]
in the OPERATION MENU while the thumbnail of the
hard disk drive is displayed. (Max. 20 characters)
12. NAME
This section indicates the PARTITION NAME.
Formatting a hard disc drive
1
2
3
Switch the mode to USB HOST.
For more information, see [Switching to the USB
HOST mode] (page 132).
Connect the hard disc drive via USB.
Press the thumbnail button to display the thumbnail
screen.
4
Press the MENU button and select HDD >
EXPLORE from the thumbnail menu. The display
provides a screen that shows the information about
the hard disc drive.
5
From the menu, select OPERATION > FORMAT
(HDD) and select YES using the cursor buttons and
SET button. Then, the confirmation message is
displayed again. Select YES.
6
The camera-recorder starts formatting the hard disc
drive. Once formatted, the hard disc drive can be
treated as a TYPE-S HDD.
‹Note
9. DATE/TIME
This section indicates the date and time the data on
the partition was recorded.
Formatting a hard disc drive erases all contents of it.
Note that you cannot erase the contents of certain
partitions by specifying them.
10. SERIAL
This section indicates the serial number of the P2 card
that originally contained the data on the partition.
134
Connection with external device : Connection with external devices using the USB 2.0 port
AJ-HPX2000P(VQT1D27-1)E.book 135 ページ ２００７年７月３０日　月曜日　午後１時３１分
Writing data on a hard disc drive
1
2
3
4
5
Connect a hard disc drive via USB.
A hard disc drive that has not been formatted with the
camera-recorder must be formatted as directed in
[Formatting a hard disc drive] (page 134).
Insert a P2 card.
1
2
3
4
Press the thumbnail button to display the thumbnail
screen.
Press the MENU button and select HDD >
EXPLORE from the thumbnail menu. Then, specify
the slot that contains the P2 card bearing the data to
be written to the hard disc drive.
Select YES to start writing.
When the data is being written, a progress bar is
displayed. To discontinue writing, press the SET
button and select YES instead of cancellation
confirmation.
‹Notes
z To disable verification at the time of writing, select
HDD > SETUP from the thumbnail menu and set
the option VERIFY to OFF. This speeds up writing
without verifying data writing.
z Select [ALL SLOT] to write data collectively onto all
P2 cards currently inserted in the unit to the hard
disk drive.
7
You can select clips on the hard disc drive to be written
back to P2 cards.
When the writing is completed, the message “COPY
COMPLETED!” is displayed.
‹Notes
z For a Type-S hard disc drive, data can be written on a
card basis. The data on up to 23 P2 cards can be stored
on the hard disc drive. The data set on each P2 card is
recognized as a separate drive by the PC.
z If data on a P2 card that contains a defective clip must
be written to a hard disc drive, then we recommend
fixing that clip before copying the data.
z When the process is discontinued during verification, the
data on the P2 card has been written to the hard disc
drive.
5
6
7
8
Switch the mode to USB HOST. For more information,
see [Switching to the USB HOST mode] (page 132).
Connect a hard disc drive via USB.
Insert the target P2 card in a slot.
Press the MENU button and select HDD >
EXPLORE from the thumbnail menu. Move to the
appropriate partition and select it with the SET button.
From among the thumbnails, select the clips to be
written to the P2 card.
Connection with external device
6
Switch the mode to USB HOST. For more information,
see [Switching to the USB HOST mode] (page 132).
Writing data back to P2 cards
Press the MENU button and select OPERATION >
IMPORT > SELECTED CLIPS. Then, specify the
slot that contains the target P2 card.
Select YES to start writing data back to the P2 card.
When the writing is completed, the message “COPY
COMPLETED!” is displayed.
‹Note
When only selected files are written, no verification is performed.
For a Type-S or P2 STORE hard disc drive, you have the
choice of writing data on a card basis. The target P2 cards
must be preformatted.
1
2
3
4
5
Switch the mode to USB HOST. For more information,
see [Switching to the USB HOST mode] (page 132).
Connect a hard disc drive via USB.
Insert the target P2 cards in slots.
Press the MENU button and select HDD >
EXPLORE. Then, move to the appropriate partition
and select it with the SET button.
From the thumbnail menu, select OPERATION >
IMPORT > ALL. Then, specify the slots that contain
the empty target P2 cards.
Connection with external device : Connection with external devices using the USB 2.0 port
135
AJ-HPX2000P(VQT1D27-1)E.book 136 ページ ２００７年７月３０日　月曜日　午後１時３１分
6
Select YES to start writing data to the cards.
<For your information>
To disable verification during writing, select HDD >
SETUP from the thumbnail menu and set the option
VERIFY to OFF. This speeds up writing without
verifying data writing.
7
When the writing is completed, the message “COPY
COMPLETED!” is displayed.
‹Note
If a clip is written back to a P2 card different from the
original card that contained that clip, then the clip may be
incomplete. If this is the case, reconnect the clip. For more
information, see [Reconnection of Incomplete Clips] (page
118).
Direction for using a hard disc drive
z A hard disc drive must be used under the following
conditions:
Š It must meet the operating requirements (e.g.
temperature).
Š It must not be placed in an instable place or a place
exposed to vibrations.
z Some hard disc drives do not operate properly.
z Some hard disk drives with the SATA (Serial ATA)
interface or the PATA (Parallel ATA) interface connected
by a USB conversion cable may not be recognized.
z When copying data, a hard disc drive must have
sufficient free space.
z Do not remove the cable or the target P2 card or turn off
the camera-recorder or hard disc drive during formatting
or copying. Doing so requires the camera-recorder and
the hard disc drive to be reactivated.
z Since hard disc drives are high precision devices, there
is a high possibility that they may become incapable of
writing data depending on the conditions of use.
z Take note that we will not be liable for loss of data
caused by failed hard disc drives or any other
problem as well as direct or indirect damages
resulting from the loss of data.
z We do not guarantee that hard disc drives will operate
properly with the camera-recorder or that the data on
them will be properly retained if data copied to them from
the camera-recorder has been replaced with other data
using a PC.
z By using the drive mount converter distributed on the
following URL, the hard disk drive can be mounted in the
designated folder when connected.
https://eww.pavc.panasonic.co.jp/pro-av/
136
Connection with external device : Connection with external devices using the USB 2.0 port
AJ-HPX2000P(VQT1D27-1)E.book 137 ページ ２００７年７月３０日　月曜日　午後１時３１分
Connection using the SDI IN connector
(when AJ-YA350AG attached)
1
2
3
Confirm that the HD/SD-SDI input board (AJYA350AG: optional accessory) is attached to the unit
and that the wires are connected properly. For details,
refer to the installation manual for the AJ-YA350AG.
Confirm that the connected device has the same
signal format as camera-recorder.
Connection with external device
When signals are input from the SDI IN connector, set
the REC SIGNAL in the setting menu to “SDI”. The
REC SIGNAL item will be selected from <SYSTEM
MODE> on the SYSTEM SETTING page.
‹Notes
z If the HD/SD-SDI input board is not attached, REC
SIGNAL cannot be set to "SDI".
z When nothing is connected to the SDI IN connector or
there is no input signal, images to be recorded will be
black and no sound will be recorded. Input the same
signals as the format set in the SYSTEM MODE item in
the setting menu through the SDI IN connector. If the
formats are different, data will not be properly recorded
on the P2 card.
z Note the following points when the REC SIGNAL of the
setting menu is set to “SDI”.
Š Audio signals are input from the SDI IN connector.
Š Audio signals must be input synchronized with
video images. Data will be recorded as 48 kHz/4CH
(16 bit) on a P2 card.
Š When the REC SIGNAL item is set to “SDI”, signals
input from the GENLOCK IN connector are disabled
even if nothing is connected to the SDI IN connector.
Please note that there is a delay between video
images and voice signals when the unit is used on a
system synchronized with the reference.
z UMID information, time code and user bits cannot be
recorded on a P2 card using the SDI IN connector.
Connection with external device : Connection using the SDI IN connector (when AJ-YA350AG attached)
137
AJ-HPX2000P(VQT1D27-1)E.book 138 ページ ２００７年７月３０日　月曜日　午後１時３１分
Maintenance and Inspections
Inspections Before Shooting
Make sure you check that the system is operating normally before embarking on a shoot. We recommend using a color
video monitor to check the image.
Preparing for Inspections
1
2
3
Mount a charged battery pack.
Turn the power switch ON and check that 5 or more
BATT indication marks appear.
z If fewer than 5 BATT indication marks appear,
replace the battery with a fully-charged battery.
1
Insert a P2 card into the card slot and close the slide
cover.
Confirm that the P2 card access LED for the inserted
card slot lights up in orange. If P2 cards are inserted
into multiple card slots, only the P2 card access LED
for the first-inserted P2 card lights up in orange. Then,
the other P2 card access LEDs light up in green when
P2 cards are inserted.
If the access LED for the P2 card slot in which a P2
card is inserted keeps blinking in green, or if there is
no display, recording is not possible on that particular
P2 card.
3
2
Inspecting the Camera Unit
1
2
3
4
138
Set the zoom to electric zoom mode and check the
zoom operation.
Check that the image changes to telephoto and wide
angle.
Set the zoom to manual zoom mode and check the
zoom operation.
Turn the manual zoom lever to check that the image
changes to telephoto and wide angle.
Set the iris to automatic adjustment mode and aim the
lens at objects with different degrees of brightness, to
check that the automatic iris adjustment operates
normally.
Set the iris to manual adjustment mode and turn the
iris ring, to check the manual iris adjustment.
Maintenance and Inspections : Inspections Before Shooting
5
6
While holding down the instant iris automatic
adjustment button, aim the lens at objects with
different degrees of brightness, to check that the
instant iris automatic adjustment operates properly.
Return the iris to automatic adjustment mode and
change the GAIN switch setting to L, M, and H, to
check the following items:
z The iris is adjusted for objects with the same
brightness according to the switch setting.
z The gain value displayed on the viewfinder screen
changes according to the switch setting.
7
When a lens with an extender is mounted, set the
extender to the operating position to check that the
extender operates properly.
AJ-HPX2000P(VQT1D27-1)E.book 139 ページ ２００７年７月３０日　月曜日　午後１時３１分
Inspecting the Memory Recording Functions
Make sure you successively carry out the inspections from
[1. Inspecting the P2 Card Recording] to [4. Inspecting the
Earphone and Speaker].
1. Inspecting the P2 Card Recording
1
6
7
8
9
2
Check on the display inside the viewfinder that the
remaining P2 card recording capacity is sufficient.
Please refer to [P2 Card Remaining Free Space/
capacity Indication] (page 76) for information about
P2 card remaining recording capacity.
3
Set the AUDIO SELECT CH1 and CH2 switches to
[AUTO].
Set the AUDIO IN CH1 and CH2 switches to
[FRONT].
Aim the microphone connected to the MIC IN jack at
an appropriate sound source. Then, check that the
level displays for both CH1 and CH2 change
according to the sound level.
Set the TCG switch to [R-RUN].
3. Inspecting the Audio Level Manual Adjustment
Set the DISPLAY switch to [TC].
1
Press the camera’s REC START/STOP button to
check the following items:
z The P2 access LED blinks in orange.
z The REC lamp inside the viewfinder lights up.
z System warnings do not appear inside
viewfinder.
5
1
2
the
Press the camera’s REC START/STOP button again.
This step confirms that the P2 access LED is on and
showing orange, and the REC lamp in the viewfinder
is turned off.
Using the REC button on the handle, repeat Steps 4
to 5 to check the same operation. Check the VTR
button on the lens in the same way.
Press the LIGHT button to check that the screen
brightness in the display window increases.
Press the PLAY button to check that the clip that has
just been shot is played back from the beginning.
Check that recording and playback operate properly.
When multiple P2 cards are inserted into the P2 card
slots, press the USER MAIN button to select the P2
card used for recording.
Repeat the operations in Steps 4 to 5 and 8 to check
that recording and playback operate properly.
3
Maintenance and Inspections
2
3
4
2. Inspecting the Audio Level Automatic Adjustment
Set the AUDIO IN CH1 and CH2 switches to
[FRONT].
Set the AUDIO SELECT CH1 and CH2 switches to
[MAN].
Turn the AUDIO LEVEL CH1 and CH2 controls.
Check that the level display increases when the
controls are turned to the right.
4. Inspecting the Earphone and Speaker
1
2
3
Turn the MONITOR control to check that the speaker
volume changes.
Connect an earphone to the PHONES jack.
Check that the speaker is turned off and the
microphone sound can be heard from the earphone.
Turn the MONITOR control to check that the
earphone volume changes.
5. Inspection for Using an External Microphone
1
2
3
Connect an external microphone to the AUDIO IN
CH1 and CH2 connectors.
Set the AUDIO IN CH1 and CH2 switches to [REAR].
Set the LINE/MIC/+48V selector switches on the rear
panel to [MIC] or [+48V], depending on the power
supply type of the external microphone.
MIC: For a microphone with internal power supply.
+48V: For a microphone with external power supply.
4
Aim the microphone at a sound source. Then check
that the audio level meter in the display window and
the audio level display inside the viewfinder change
according to the sound level.
The channels can also be checked separately by
connecting a single microphone to each channel.
Maintenance and Inspections : Inspections Before Shooting
139
AJ-HPX2000P(VQT1D27-1)E.book 140 ページ ２００７年７月３０日　月曜日　午後１時３１分
6. Inspection of the clock, time code, and user bits
1
2
3
4
5
Set the user’s bit as required.
Please refer to [Setting of the user bits] (page 57) for
the setting procedures.
6
7
Set the time code.
Please refer to [Setting the Time Code] (page 61) for
the setting procedures.
Set the TCG switch to [R-RUN].
Press the REC START/STOP button.
Check that the counter display number changes as
recording progresses.
Set the TCG switch to [F-RUN].
Check that the counter display number changes
regardless of recording status.
Set the DISPLAY switch to [UB].
Each time the HOLD button is pressed, make sure
that the displayed value changes in the following
sequence: VTCG > DATE > TIME > No display
(time zone) > TCG; and also verify that the displayed
value is correct.
If DATE, TIME, or time zone is not correct, refer to
[Setting the Internal Clock’s Date and Time] (page 60)
for guidance on setting the correct values.
‹Note
Press the REC START/STOP button again.
Check that recording stops and the counter display
number stops changing.
Note that date and time data set for DATE, TIME, and
time zone is recorded in clips, and affects the
playback sequence, etc. at the time of thumbnail
manipulations.
Maintenance
Cleaning Inside the Viewfinder
z Do not use thinner or other solvents to remove dirt.
z Wipe the lens with a commercially available lens cleaner.
z Do not wipe the mirror. If dirt or rubbish is sticking on the mirror, remove it with a commercially available air blower.
Phenomenon Inherent to CCD Cameras
Smears
Smears may appear when shooting an object with very
high brightness.
This phenomenon becomes more obvious as the
electronic shutter speed becomes faster.
Replacing the Backup Battery
The camera is shipped from the factory with a backup
battery already mounted.
When the battery runs out, the [BACK UP BATT EMPTY]
display appears on the viewfinder screen for 5 seconds
after the power switch is turned ON.
The internal clock stops operating when the battery runs
out. Also, the TCG time code value returns to
[00:00:00:00], and the time code backup is disabled. The
battery must be replaced.
Please consult your distributor for replacement with a new
battery (CR2032).
The backup battery is visible when the panel on the LCD
monitor side is removed (right side when viewed from the
front).
‹Note
Please contact the store where you purchased the
camera when replacing the battery.
140
Maintenance and Inspections : Maintenance
AJ-HPX2000P(VQT1D27-1)E.book 141 ページ ２００７年７月３０日　月曜日　午後１時３１分
Connector Signals
DC IN
1
GND
2
NC
3
NC
4
+12V
Matsushita part number K1AA104H0038
Maker part number
HA16RX-4P（SW1）
(Hirose Denki)
4
1
2
3
‹Note
Matsushita part number K1AY104J0001
Maker part number
HR10A-7R-4SC(73)
(Hirose Denki)
DC OUT
1
GND
2
R TALLY
(Open collector)
3
REC START SW
4
+12V OUT
(Max. 1.5 A)
Connector at the cable side
Maker part number
HR10A-7R-4P(73)
(Hirose Denki)
4
1
3
2
Ensure that the polarities are used correctly for a power
supply from an external source.
1
GND
2
L CH IN (H)
3
L CH IN (C)
4
R CH IN (H)
5
R CH IN (C)
Matsushita part number K1AB105B0002
Maker part number
NC5FBH
(NEUTRIK)
PUSH
5
1
4
AUDIO IN
1
GND
2
AUDIO IN(H)
3
AUDIO IN(C)
Maintenance and Inspections
FRONT MIC IN
3
2
Matsushita part number K1AB103A0011
Maker part number
HA16PRM-3SG
(Hirose Denki)
PUSH
2
1
3
AUDIO OUT
1
GND
2
L CH OUT (H)
3
L CH OUT (C)
4
R CH OUT (H)
5
R CH OUT (C)
Matsushita part number K1AA105H0016
Maker part number
HA16RD-5P(76)
(Hirose Denki)
1
5
2
4
3
Maintenance and Inspections : Maintenance
141
AJ-HPX2000P(VQT1D27-1)E.book 142 ページ ２００７年７月３０日　月曜日　午後１時３１分
REMOTE
1
CAM DATA (H)
Data from the camera to the remote control (H)
2
CAM DATA (C)
Data from the camera to the remote control (C)
3
CAM CONT (H)
Control signals from the remote control to the camera (H)
4
CAM CONT (C)
Control signals from the remote control to the camera (C)
5
RC-ON
Identification signals of the remote control
Low: ON
6
RC VIDEO OUT
Video signals output to the remote control
7
RC VIDEO GND
GND of the video signals to the remote control
8
NC
Not used
9
UNREG 12V
DC +12 V power supply (AJ-RC10G: Max. 0.75 A)
10 GND
Connector at the cable side
Maker part number
HR10A-10P-10P(73)
(Hirose Denki)
8
7
1
10
2
9
3
6
4
5
GND
VF
Matsushita part number K1AB120H0001
Maker part number
HR12-14RA-20SC
(Hirose Denki)
1
UNREG-12V
DC +12 V power supply (AJ-HVF21G: About 0.35 A)
2
UNREG-12V
DC +12 V power supply
3
A9.0V
DC +9 V power supply (not used)
4
VF-PB-GND
GND for the viewfinder PB signals
1
2
5
VF-PR-GND
GND for the viewfinder PR signals
6
7
8
9 10
6
VF-Y
Viewfinder Y signals output
11 12
13
14
15
7
VF-Y-GND
GND for the viewfinder Y signals
16 17
18
19
20
8
VF-CLK
Serial data clock pulse signals
9
VF-WR
Pulse signals for reading serial-parallel conversion data
10 VF-DATA
Serial data signals for serial-parallel conversion
11 UNREG-GND
GND
12 ZEBRA-SW
ON/OFF of the zebra signals
13 PEAKING
Control of the peaking (not used)
14 SPARE
Standby (not used)
15 VF-PR
Viewfinder PR signal output
16 VF-PB
Viewfinder PB signal output
17 MARKER-SW
ON/OFF of the marker (not used)
18 FRONT-VR
FRONT AUDIO LEVEL adjustment (not used)
19 VR-GND
GND for the FRONT AUDIO LEVEL (not used)
20 UNREG-GND
GND
‹Caution
Total amount of current from the respective connectors for DC OUT, REMOTE,
VF, and LENS should not exceed 2.5 A.
142
Matsushita part number K1AY110JA001
Maker part number
HR10A-10R-10SC(71)
(Hirose Denki)
Maintenance and Inspections : Maintenance
3 4
5
AJ-HPX2000P(VQT1D27-1)E.book 143 ページ ２００７年７月３０日　月曜日　午後１時３１分
LENS
1
RET-SW
ON/OFF of the return video
RETURN ON: GND
RETURN OFF: OPEN
2
REC-START/STOP
Control for recording start/stop
+5 V
0V
Matsushita part number K1AY112JA001
Maker part number
HR10A-10R-12SC(71)
(Hirose Denki)
9
1
10
8
2
11
12
7
6
3
4
5
START STOP START
GND
GND
4
IRIS-AUTO
ON/OFF of the forced iris servo
SERVO ON: +5V±0.5V
SERVO OFF: OPEN
5
IRIS-CONT
Control output for the lens iris
F2.8: –6.2 V, F16: +3.4 V, CLOSE: +2.5 V
6
UNREG-12V
+12V power supply for the lens (Max. 1.5 A)
7
IRIS-POSI
Iris position signals
3.4 V (F16) to +6.2 V (F2.8)
8
IRIS-G-MAX
IRIS REMOTE/LOCAL (AUTO) signals
REMOTE:
+5V±0.5V
LOCAL (AUTO):GND
9
EXT-POSI
ON/OFF of the built-in extender
EXTENDER ON: GND
EXTENDER OFF: OPEN
10 ZOOM-POSI
Zoom position signals
11 FOCUS-POSI
Focus position signal
12 SPARE
Standby (not used)
GPS
1
GPS TXA
Transmission data from the GPS unit to the camera
2
GPS RXA
Transmission data from the camera to the GPS unit
3
GPS VBAT
Backup power supply connector for the GPS unit
(DC+3.3 V)
4
REC START SW
Control signals of REC start/stop
5
GPS VCC
Power supply connector for the GPS unit (DC+3.3 V)
6
GPS GND
GND
Maintenance and Inspections
3
Matsushita part number K1AY106J0001
Maker part number
HR10A-7R-6SC(73)
(Hirose Denki)
6
1
5
2
4
3
Maintenance and Inspections : Maintenance
143
AJ-HPX2000P(VQT1D27-1)E.book 144 ページ ２００７年７月３０日　月曜日　午後１時３１分
Unislot Interface
144
1
CH-1 SHIELD
GND
2
CH-1 HOT
Audio input from the wireless receiver: HOT
3
CH-1 COLD
Audio input from the wireless receiver: COLD
4
GND
GND
5
+12V UNREG
Power supply to the wireless receiver
6
RX ON
Power supply remote output to the wireless receiver
7
RF WARN
RF warning input from the wireless receiver
8
RM5
Not used
9
RM4
Not used
10 SPARE 1
Not used
11 SPARE 2
Not used
12 EXT CLK
Not used
13 CLK SHIELD
Not used
14 CH-2 SHIELD
Not used
15 CH-2 HOT
Not used
16 CH-2 COLD
Not used
17 +5.6V
Power supply to the wireless receiver
18 VIDEO OUT
Not used
19 VIDEO RET
Not used
20 VIDEO EN
Not used
21 RM 1 (RM CLK)
Not used
22 RM 2 (RM DATA)
Not used
23 RM 3 (RM WR)
Not used
24 RM +5V
Not used
25 RM GND
Not used
Maintenance and Inspections : Maintenance
Matsushita part number K1GB25A00010
Maker part number
HDBB-25S(05)
(Hirose Denki)
13
25
1
14
AJ-HPX2000P(VQT1D27-1)E.book 145 ページ ２００７年７月３０日　月曜日　午後１時３１分
Warning System
Warning Description Tables
If a problem is detected immediately after the power is turned on, or during operation, this will be indicated by the
WARNING lamp, lamps inside the viewfinder and a warning tone.
‹Note
The WARNING lamp has the highest priority, followed by the tally lamp, and then the warning tone. When multiple errors
occur simultaneously a higher priority indication will be triggered. The [WIRELESS RF], however, may not be indicated,
depending on the menu setting.
1. System Errors
3. Battery Empty
The error code lights up.
Display window
indication
All 7 bar indicators for battery remaining
capacity start blinking.
WARNING lamp
Blinks 4 times per second.
WARNING lamp
Lights up.
Tally lamp
Blinks 4 times per second.
Tally lamp
Blinks once per second.
Viewfinder
The SYSTEM ERROR indication and the
error code light up.
Viewfinder
The BATT LED lights up.
Warning tone
Beeps continuously.
Warning tone
Beeps continuously.
Warning
description
An error in the reference signal or the
communication.
Warning
description
The battery has run out.
Recording/
playback
operation
The operation stops.
Recording/
playback
operation
The operation stops.
Countermeasures
Please confirm [Error Codes] (page 148)
and consult your distributor.
Countermeasures Replace the battery.
2. Card removal error
4. Write-protect
Display window
indication
Error code E-30 blinks.
Display window
indication
WARNING lamp
Blinks 4 times per second.
WARNING lamp
Tally lamp
Blinks 4 times per second.
Viewfinder
The “TURN POWER OFF” indicator lights
up.
Warning tone
Continues to beep.
Warning
description
The P2 card being accessed has been
removed, resulting in an error in the internal
memory of the camera-recorder.
Recording/
playback
operation
Cannot be performed.
Turn off the power to the camera-recorder. If
Countermeasures there is an error in a clip on the removed P2
card, repair the clip.
Maintenance and Inspections
Display window
indication
Tally lamp
All 7 bar indicators for remaining MEDIA
capacity start blinking.
This lamp will illuminate continuously until an
operation is made after recording.
This lamp will flash 4 times every second
until an operation is made after recording.
Viewfinder
The WP indicator lights up.
Warning tone
This tone will sound continuously until an
operation is made after recording.
Warning
description
The inserted P2 cards are write-protected.
Recording/
playback
operation
Recording is disabled.
Countermeasures
Disable the write-protect or replace the P2
card.
Maintenance and Inspections : Warning System
145
AJ-HPX2000P(VQT1D27-1)E.book 146 ページ ２００７年７月３０日　月曜日　午後１時３１分
5. P2 Card Fully Recorded
Display window
indication
WARNING lamp
Tally lamp
All 7 bar indicators for remaining MEDIA
capacity start blinking.
This lamp will illuminate continuously until an
operation is made after recording.
This lamp will flash 4 times every second
until an operation is made after recording.
7. Recording Error
Display window
indication
WARNING lamp
Viewfinder
The END indicator blinks.
Tally lamp
Warning tone
This tone will sound continuously until an
operation is made after recording.
Viewfinder
Warning
description
The P2 cards are recorded to maximum
capacity.
Warning tone
Recording/
playback
operation
The recording stops.
Countermeasures
Delete the clips in the P2 card or insert a
new P2 card.
Warning
description
Recording/
playback
operation
“00:00:00:11” appears in the time code
display field. Even after recording is stopped,
this display continues to blink until the next
operation is performed.
Blinks 4 times per second while recording
continues.
Blinks 4 times per second while recording
continues.
The REC WARNING indicator lights up.
Beeps 4 times per second while recording
continues.
This indicates a failure either in the P2 card
recording or the recording circuit. This is
displayed when attempting to record clips
where the total quantity exceeds the upper
limit (1000 pieces) for a single P2 card.
The recording may stop or continue.
Restart recording. Or, turn the power OFF
Countermeasures and turn it ON again, before starting
recording.
6. Image Sequence Error (24P, 30P, 25P)
Display window
indication
“E-40” appears in the time code display field.
WARNING lamp
Blinks 4 times per second.
Tally lamp
Viewfinder
Blinks 4 times per second while recording
continues.
The REC WARNING indicator lights up.
Warning
description
Beeps 4 times per second while recording
continues.
There are abnormal conditions in the image
sequence of the 24P, 30P, or 25P mode.
Recording/
playback
operation
Images can be recorded and played back,
but some frames may be dropped or the
sequences of TC and UB may shift.
Warning tone
Confirm the recording/playback operation after
turning OFF the power supply once and then
Countermeasures turning it on again. If the error is not corrected
after executing this procedure, contact the
dealer.
146
Maintenance and Inspections : Warning System
8. Low Wireless Signal Reception
Display window
indication
WARNING lamp
Tally lamp
Viewfinder
Warning tone
No display.
Blinks 4 times per second. (During pause
and recording)
Blinks 4 times per second while recording
continues.
The WIRELESS RF indicator lights up while
recording continues.
Beeps 4 times per second while recording
continues.
Warning
description
This error indicates poor wireless audio
reception conditions.
Recording/
playback
operation
Continues to operate without receiving the
wireless microphone signal.
Countermeasures
Check the microphone power supply and the
reception status of the wireless receiver.
AJ-HPX2000P(VQT1D27-1)E.book 147 ページ ２００７年７月３０日　月曜日　午後１時３１分
9. 1394 Error
Display window
indication
WARNING lamp
Tally lamp
Viewfinder
Warning tone
Warning
description
12. P2 Card Error
The 1394 E-¢¢ indicator in the display
window blinks. For more information, see
[1394 Error Codes] (page 148).
Blinks 4 times per second while the
WARNING lamp recording is continuing.
Blinks 4 times per second while the TALLY
LAMP recording is continuing.
In the case of Error Code 92, “1394 INITIAL
ERROR” indicator lights up (during pause
and recording)
For Error Codes other than Error Code 92, or
if REC SIGNAL is set to “1394”, no error is
displayed in the viewfinder.
Beeps 4 times per second while ALARM
recording is continuing.
This indicates a failure of the DVCPRO/DV
connector.
WARNING lamp
Tally lamp
Viewfinder
Warning tone
Warning
description
An error has occurred while recording data
to or playing data from a P2 card.
Recording/
playback
operation
Stop recording or playback.
Countermeasures Replace the affected P2 card.
10. Battery Nearly Empty
13. FAN STOP
Display window
indication
One of the bars in the battery remaining
indicator starts blinking.
Display window
indication
No display.
WARNING lamp
Blinks once per second.
WARNING lamp
Blinks 4 times per second.
Tally lamp
Blinks once per second.
Tally lamp
No display.
Viewfinder
The BATT LED blinks.
Viewfinder
Warning tone
Beeps 4 times per second.
Warning
description
Recording/
playback
operation
Warning tone
The FAN STOP indicator blinks while
recording continues.
It does not sound.
The battery is about to run out.
Warning
description
The fan is at rest because something is
wrong with it.
Continues to operate.
Recording/
playback
operation
Countermeasures Replace the battery as required.
If the camera-recorder operates with the fan
stopped, then the temperature inside rises.
While the camera-recorder continues to
operate, clips may not be recorded or played
back properly.
Immediately stop using the camera-recorder
Countermeasures
and consult your distributor.
11. P2 Card Nearly Full
Display window
indication
WARNING lamp
Tally lamp
One of the bars for remaining MEDIA
capacity starts blinking.
Blinks once per second while recording
continues.
Blinks once per second while recording
continues.
Viewfinder
The P2 card remaining capacity indicator blinks.
Warning tone
Beeps once per second while recording
continues.
Warning
description
The total remaining capacity of all the P2
cards is two minutes or less.
Recording/
playback
operation
Continues to operate.
Countermeasures
Replace the cards. If there is an empty card
slot, insert a new card.
Maintenance and Inspections : Warning System
147
Maintenance and Inspections
The operation continues, but input signals to
the DVCPRO/DV connector are abnormal.
For more information, see [1394 Error
Codes] (page 148).
Check the connection between the
IEEE1394 cable and the DVCPRO/DV
connector, settings of any external device
Countermeasures and menus, and the turn on the power again.
If the warning indication is still illuminated,
confirm the “1394 Error Codes” (page 148),
and consult your distributor.
Recording/
playback
operation
Display window
indication
If the error occurs during recording,
“00:0000:11” appears as the time code
indication. The indication continues to flash
after recording is stopped and until the next
operation is performed. There is no
indication if the error occurs during playback.
If the error occurs during recording, the lamp
flashes four times per second for a period of
about three seconds. The lamp does not
light if the error occurs during playback.
If the error occurs during recording, the lamp
flashes four times per second for a period of
about three seconds. The lamp does not
light if the error occurs during playback.
A flashing “CARD ERR ¢” appears. In the
actual indication the ¢ is replaced by the slot
number of the P2 card that triggered the error.
If the error occurs during recording, the tone
sounds four times per second for a period of
about three seconds. The tone does not
sound if the error occurs during playback.
AJ-HPX2000P(VQT1D27-1)E.book 148 ページ ２００７年７月３０日　月曜日　午後１時３１分
Error Codes
The following error codes are displayed in the display window if an error occurs in the camera:
Confirm the type of warning and refer to the details in the [Warning Description Tables] (page 145) for countermeasures.
Code No.
Description
Type of warnings
E-11
Video initialisation error
E-27
Recording control error
1. System Errors
1. System Errors
E-30
P2 card removal error
2. Card removal error
E-34
LCD microcontroller error
1. System Errors
E-38
P2 streaming microcontroller error
1. System Errors
E-39
Abnormal initialization of the AVC-Intra codec board (optional AJ-YBX200G) 1. System Errors
E-3F
Microprocessor error in the camera control circuit.
1. System Errors
6. Image Sequence Error (24P, 30P, 25P)
E-40
Image sequence error (in case of 24P, 30P and 25P)
E-63
Something is wrong with the system control microprocessor.
1. System Errors
E-6F
Reference signal error.
1. System Errors
Recording error on a P2 card
7. Recording Error
00:00:00:11
1394 Error Codes
Code No.
Description
Signals being input to the DVCPRO/DV
connector are not 1a speed transfer
signals in DV format.
Stops
1394 E-80
Signals being input to the DVCPRO/DV
connector are not 1a speed transfer
signals in DVCPRO (25 Mbps) format.
Stops
1394 E-81
Signals being input to the DVCPRO/DV
connector are not 1a speed transfer
signals in DVCPRO50 (50 Mbps) format.
Stops
1394 E-82
1394 E-83
Incorrect signals are being input to the
DVCPRO/DV connector.
Stops
Signals being input to the DVCPRO/DV
connector are not in DVCPRO or DV
format.
Stops
1394 E-84
1394 E-85
Signals being input to the DVCPRO/DV
Stops
connector are not 1x speed transfer signals
in DVCPRO HD format.
1394 E-87
Incorrect audio signals are being input to
the DVCPRO/DV connector.
Continues with no sound.
No signal is supplied to the DVCPRO/DV
connector.
While the recording mode continues, no
data is recorded on cards unless the
abnormal condition is corrected. If an
error has occurred before recording, then,
recording does not start.
1394 E-90
148
Recording
1394 E-91
With the menu option REC MODE set to
Stops
DV, copy guard information signals for
recording prohibited data are being input to
the DVCPRO/DV connector.
1394 E-92
The DVCPRO/DV connector is not properly No recording in 1394 input mode can be
connected. The viewfinder indicates the
performed.
message "1394 INITIAL ERROR."
Maintenance and Inspections : Warning System
Indication in display
window
The time code section of the
display window indicates the
appropriate error code that
blinks every two seconds.
AJ-HPX2000P(VQT1D27-1)E.book 149 ページ ２００７年７月３０日　月曜日　午後１時３１分
Card Warning Code
Code No.
Description
E-70
The directory organization on the inserted P2
card does not comply with the standards. ([DIR
NG CARD (Slot No.)] is indicated on the
viewfinder.)
Although different kinds of recording
operations will function, data may not be
recorded properly. Use the unit to format the
card immediately.
E-71
A P2 card was inserted where the number of
rewrites exceeds the limit of the standards.
([RUN DOWN CARD (Slot No.)] is indicated on
the viewfinder.)
Although different kinds of recording
operations will function, data may not be
recorded properly. It is recommended to
replace it.
Indication in display
window
Recording
A warning code blinks once
every 2 seconds on the time
code display section of the
display window.
Warning and Error Display for Thumbnail Operation and USB HOST MODE
Item
Message
Description
Measure
Data cannot be accessed because it is
corrupted or for other reasons.
Restore media and clips to normal state before
access.
WRITE
PROTECTED!
The P2 or SD card is write protected.
Insert write-enabled media.
CARD FULL!
The P2 or SD card is full.
Insert media with sufficient capacity.
NO CARD!
No P2 or SD card is inserted.
Insert compatible media.
NO FILE!
The designated file is not found.
Check the file.
CANNOT COPY!
Images cannot be copied.
Check the conditions for copying.
CANNOT DELETE !
Contents version mismatch prevents
deletion.
Match devices and contents version.
UNKNOWN
CONTENTS
FORMAT!
Warning displayed to indicate contents
version mismatch.
Match devices and contents version.
CANNOT FORMAT!
P2 card problem prevents formatting.
Check P2 card.
CANNOT REPAIR!
Data cannot be repaired since content that
cannot be repaired is selected.
Check selected content.
CANNOT RECONNECT!
A clip that does not span multiple P2 cards
cannot be reconnected.
Check selected content.
INVALID VALUE!
Entered data was invalid.
Enter data in a valid range.
UNKNOWN DATA!
The metadata character code is invalid.
Use UTF-8 for the metadata character code. Use
the viewer to enter correct characters.
Thumbnails
Maintenance and Inspections
CANNOT ACCESS!
CANNOT REPAIR IN Some of the selected clip could not be
SELECTION!
repaired.
NO SD CARD!
No SD card is inserted.
Insert an SD card.
NO COPY TO SAME A clip cannot be copied to the card storing
CARD!
the original clip.
Copy the selected clip to a card that does not
contain the original clip.
SAME CLIP IS
SELECTED!
The clip cannot be copied because a clip that Confirm the selected clip and release either the
has already been copied and the original clip source clip or the destination clip and then execute
the copy operation.
have been selected.
USER CLIP NAME
MODIFIED!
Characters in the clip name had to be
deleted in adding the counter value.
The user clip name plus the counter value can only
contain up to 100 bytes. Characters in the clip
name are automatically deleted when the total
exceeds 100 bytes.
TOO MANY CLIPS!
Too many clips are selected.
Reduce the number of selected clips.
LACK OF REC
CAPACITY!
There is not enough recording capacity left
on the card.
Insert a card with sufficient recording capacity.
CANNOT CHANGE!
Any thumbnails that cannot be produced on
the AVC-Intra 100 or AVC-Intra 50 and
displayed in gray cannot be changed at the
text memo position.
Install the AVC-Intra codec board (AJ-YBX200G,
optional) and set SYSTEM MODE according to the
clips.
MISSING CLIP!
A shot mark will be added to the clips recorded Insert all P2 cards with recorded clips, and confirm
on multiple P2 cards when all P2 cards are not that the
incomplete clip indicators disappear, and
inserted yet.
then add shot marks.
Maintenance and Inspections : Warning System
149
AJ-HPX2000P(VQT1D27-1)E.book 150 ページ ２００７年７月３０日　月曜日　午後１時３１分
Item
Soft
keyboard
Message
Measure
CANNOT CHANGE!
[PERSON] will be entered while the text
memo is not available.
Enter [TEXT] before entering [PERSON].
CANNOT SET!
INVALID VALUE!
The entered value is incorrect.
Change the value.
HDD CAPACITY
FULL!
Not enough space left on the hard disk.
There is not enough space on the connected hard
disk. Use a new hard disk or formatted hard disk.
TOO MANY
PARTITIONS!
There are too many partitions.
Hard disks can handle up to 23 partitions. Use a
new hard disk or formatted hard disk.
HDD
DISCONNECTED!
The unit is not connected to a hard disk.
Reconnect the USB cable. If the hard disk does
not operate normally, turn it off and turn it back on
again.
CANNOT FORMAT!
The hard disk cannot be initialized.
Connect another hard disk drive.
TOO MANY
TARGETS!
Multiple devices are connected.
Disconnect devices, turn off the unit and turn it
back on again.
UNKNOWN DEVICE The connected DVD drive is not compatible.
CONNECTED!
Disconnect devices, turn off the unit and turn it
back on again.
CANNOT ACCESS
TARGET!
An error occurred during hard disk access.
Check hard disk status and connection.
The destination target cannot be properly
recognized.
Reboot the hard disk or connect a different hard
disk.
CANNOT ACCESS
CARD!
An error occurred during P2 card access.
Check P2 card.
MISMATCH
COMPONENT!
Copying cannot be made because the
destination card is in the wrong format.
Use a P2 card with appropriate capacity.
P2 CARD IS
UNFORMATTED!
The P2 card is not formatted.
Use a formatted P2 card.
CARD IS EMPTY!
CANNOT COPY!
The P2 selected for copying is empty.
Copying is not performed since the card is empty.
VERIFICATION
FAILED!
The compare check after copying failed.
Copy the data again.
PLEASE FORMAT
P2 CARD!
This warning indicates that data could not be You cannot copy to a P2 card that contains data.
imported from a hard disk to a P2 card
Format the card on a P2 device and copy again.
because the P2 card contained recorded
data.
HDD
CANNOT
（USB HOST RECOGNIZE
MODE）
HDD!
150
Description
Maintenance and Inspections : Warning System
AJ-HPX2000P(VQT1D27-1)E.book 151 ページ ２００７年７月３０日　月曜日　午後１時３１分
Menu
Menu Configuration
MENU
USER MENU
SYSTEM SETTING
MAIN MENU
OPTION
VF
CAMERA ID
SHUTTER SPEED
SHUTTER SELECT
USER SW
SW MODE
WHITE BALANCE MODE
USER SW GAIN
LENS/IRIS
CAM OPERATION
Opening the Menus
USER MENU:
Displayed when
button is pressed.
the
MENU
MAIN MENU:
Displayed when the MENU
button is pressed for at least 3
seconds.
OPTION MENU:
Displayed when the MENU
button is pressed while pressing
the LIGHT button.
MAIN OPERATION
FILE
SD CARD READ/WRITE
SD CARD R/W SELECT
LENS FILE
LENS FILE CARD R/W
SCENE
INITIALIZE
MAINTENANCE
USER MENU SELECT
SYSTEM SETTING(USER)
PAINT(USER)
VF(USER)
CAM OPE(USER)
MAIN OPE(USER)
FILE(USER)
MAINTENANCE(USER)
Menu
RB GAIN CONTROL
RGB BLACK CONTROL
MATRIX
COLOR CORRECTION
LOW SETTING
MID SETTING
HIGH SETTING
ADDITIONAL DTL
SKIN TONE DTL
KNEE/LEVEL
GAMMA
CAMERA SETTING
PAINT
OPTION MENU
SYSTEM MODE
OPTION MODE
REC FUNCTION
OUTPUT SEL
DOWNCON SETTING
LCD MONITOR
GENLOCK
1394 SETTING
VF DISPLAY
VF MARKER
VF USER BOX
VF INDICATOR1
VF INDICATOR2
MODE CHECK IND
! LED
BATTERY/P2CARD
BATTERY SETTING1
BATTERY SETTING2
MIC/AUDIO 1
MIC/AUDIO 2
TC/UB
UMID SET/INFO
SYSTEM CHECK
LENS ADJ
BLACK SHADING
WHITE SHADING
LENS FILE ADJ
DIAGNOSTIC1
DIAGNOSTIC2
HOURS METER
‹Notes
z The items highlighted in grey cannot be selected by <USER MENU SELECT>.
z The underlined items can only be selected as one whole page (with all sub-items). Individual sub-items cannot be
selected separately.
About Menu Description Tables
The following letters indicate whether the modified menu
data is saved to or read out from the memory.
The – indicates that the data cannot be saved or read.
S = Can be saved and read as scene data file.
C = Can be saved or read using CARD READ/WRITED.
U = Can be saved and read as user data.
Please refer to [SCENE] (page 185) and [INITIALIZE]
(page 185).
F = Can be read using READ FACTORY DATA.
Please refer to [INITIALIZE] (page 185).
R = Can be saved using RC DATA SAVE.
Please refer to [Connection of the remote control unit
(AJ-RC10G)] (page 107).
Items/
Adjustable
Remarks
Data Saved
Range
Select video input signals.
REC SIGNAL CAM
CAM: Record the signal from the
VIDEO
camera
1394
VIDEO:Record the signal from the
SDI
GENLOCK IN connector (In SD
mode only）
1394: Record the signal from the 1394
input connector
SDI: Records input to the SD IN
connector (optional).
– C U F R
This section shows the
adjustable range of the
set value, and available
options for this item.
About the settings available for
this item.
Menu : Menu Configuration
151
AJ-HPX2000P(VQT1D27-1)E.book 152 ページ ２００７年７月３０日　月曜日　午後１時３１分
USER MENU: USER MENU is factory-set. The menu can
LIGHT button
be configured to suit your preferences by
specifying each option according to your
purposes and frequency of use, through the
<USER MENU SELECT> screen, which is
accessible from the MAIN MENU page.
For more information, see [Selecting Options
for USER MENU] (page 154).
To display USER MENU, press the MENU
button.
MAIN MENU: Allows you to set all options on the settings
menu.
This menu has a category-by-category
structure, layered according to purposes and
frequency of use.
To display MAIN MENU, press the MENU
button for three seconds or longer.
SYSTEM SETTING:
PAINT:
VF:
This option is used to specify recording
signal, recording system, etc.
This option is used to fine-adjust images
while monitoring the output waveform of the
camera, using the waveform monitor.
Normally,
this
adjustment
requires
assistance from a video engineer.
This menu option may be set with an
external remote controller, and is useful
when using the unit without a sound
recordist.
Used to select the information items to be
displayed in the viewfinder screen.
CAM OPERATION:
Used to change settings according to the
conditions for the subject.
MAIN OPERATION:
FILE:
Used to specify recording-related items,
such as audio settings, time code, battery
and P2 card remaining amounts.
Used to specify file-related items such as SD
memory card reading/writing and lens file
settings.
MAINTENANCE:
Used to specify maintenance-related items.
USER MENU SELECT:
Used to edit USER MENU.
OPTION MENU: Provides options which may be needed if
functions are added in the future.
To display OPTION MENU, hold down the
LIGHT button and press the MENU button.
For more information, contact your
distributor.
152
Menu : Menu Configuration
Shot Mark/Cancel Menu button
MENU button
JOG dial button
AJ-HPX2000P(VQT1D27-1)E.book 153 ページ ２００７年７月３０日　月曜日　午後１時３１分
Setting Menu Options
The menu options are set with the MENU and JOG dial
buttons.
The menu comprises main menu, sub-menus and options
menus.
The data specified through menu options are written and
saved in the internal memory of the unit.
This section describes how to set options in MAIN MENU.
The other menus can be configured in the same manner
(the method of displaying the menu screen depends on the
particular menu).
4
Turn the JOG dial button to move the mark (>) to a
desired option. Then, press the JOG dial button. The
value starts blinking.
< USER SW >
#
USER MAIN SW
USER1 SW
USER2 SW
:S.GAIN
:D.ZOOM
:DS.GAIN
‹ Note
When the unit is in thumbnail mode, the viewfinder
displays “THUMBNAIL OPEN”, disabling navigation
through the menu.
Press the MENU button for three seconds or longer.
The MAIN MENU screen appears, together with its
options.
Turn the JOG dial button to change the value.
To increase the value:
Turn the JOG dial button clockwise, as seen from the
front of the camera.
# **** MAIN MENU ****
To decrease the value:
Turn the JOG dial button anti-clockwise, as seen from
the front of the camera.
Each turn of the dial switches the value by one step. A
quick turn changes the value rapidly; a slow turn
makes a fine adjustment.
SYSTEM SETTING
PAINT
VF
CAM OPERATION
MAIN OPERATION
FILE
MAINTENANCE
USER MENU SELECT
2
To turn an option on or off:
To select ON, turn the JOG dial button clockwise, as
seen from the front of the camera.
To select OFF, turn the JOG dial button anticlockwise, as seen from the front of the camera.
Turn the JOG dial button to move the mark (>) to a
desired menu option. Then, press the JOG dial button
to display the sub-menu screen.
To return the changed set value to the previous
one:
Press the shot mark/menu cancel button to display
the message “PUSH CANCEL BACK TO PREV”.
Press the shot mark/menu cancel button again to
return the set value to the value before the change.
**** MAIN MENU ****
#
SYSTEM SETTING
PAINT
VF
CAM OPERATION
MAIN OPERATION
FILE
MAINTENANCE
‹Note
USER MENU SELECT
3
The following menu items cannot be cancelled using
the shot mark/menu cancel button.
z Pages on the USER MENU SELECT screen
z Pages on the FILE screen
z CAMERA ID
z USER SW GAIN
z Part of the WHITE BALANCE MODE pages
z BATTERY SETTING1, 2
z UMID SET/INFO
Turn the JOG dial button to move the mark (>) to a
desired menu option. Then, press the JOG dial button
to display the options screen.
< CAM OPERATION >
#
CAMERA ID
SHUTTER SPEED
SHUTTER SELECT
USER SW
SW MODE
WHITE BALANCE MODE
USER SW GAIN
IRIS
6
7
8
Press the JOG dial button.
The value stops blinking and is accepted.
To change the settings for other options on the same
page, repeat Steps 4 - 6.
When the settings are finalised, press the MENU
button.
This terminates the menu option setting mode and
returns the unit to normal operation mode.
Menu : Menu Configuration
153
Menu
1
5
AJ-HPX2000P(VQT1D27-1)E.book 154 ページ ２００７年７月３０日　月曜日　午後１時３１分
Selecting Options for USER MENU
Go to the USER MENU SELECT page from MAIN MENU.
Then, open relevant options menu screens to select
options to add to USER MENU.
Only the selected options are displayed as options in
USER MENU.
For information about how to navigate this menu, see
[Setting Menu Options] (page 153).
< USER MENU SELECT >
(SELECT MODE)
# SYSTEM SETTING
PAINT
VF
CAM OPERATION
MAIN OPERATION
FILE
MAINTENANCE
‹ Note
Options with [¢] are effective. The number of options that
can be added to USER MENU is 14 a 3 = 42 (three pages
of options) for camera-related options, and 14 (one page of
options) for memory-related options.
154
Menu : Menu Configuration
AJ-HPX2000P(VQT1D27-1)E.book 155 ページ ２００７年７月３０日　月曜日　午後１時３１分
Menu Description Tables
SYSTEM SETTING
SYSTEM MODE
CAMERA
MODE
(1080-59.94i
/480-59.94i)
60i
30P
24P
24PA
(1080-50i
/576-50i)
50i
25P
(720-59.94P)
60P
30P
24P
(720-50P)
50P
– C U F R 25P
Items/
Adjustable
Remarks
Data Saved Range
Select the aspect ratio for recording. (In
16:9
ASPECT
4:3
SD mode only）
16:9: Record in <16:9> aspect ratio.
4:3: Record in <4:3> aspect ratio.
– C U F R
VF TYPE
HD
SD
Specify the type of viewfinder to be
attached to the camera-recorder.
HD MODE
(1080i):
DVCPRO HD
AVC-I 100
AVC-I 50
HD MODE
(720P):
DVCPRO HD
DVC HD (N)
AVC-I 100
AVC-I 50
SD MODE:
DVCPRO50
DVCPRO
DV
Select the recording mode.
DVCPRO HD:
Record in DVCPRO HD format
DVC HD (N):
Record in Native mode for DVCPRO
HD
AVC-I 100:
Record in AVC-I 100 format
AVC-I 50:
Record in AVC-I 50 format
DVCPRO50:
Record in DVCPRO50 format.
DVCPRO:
Record in DVCPRO format.
DV: Record in DV format.
‹Notes
z AVC-I 100 and AVC-I 50 cannot be
selected when the AJ-YBX200G
(optional) is not installed.
z If [1394] is selected in REC SIGNAL,
AVC-I 100, AVC-I 50 and DVC HD (N)
cannot be selected.
0%
7.5%A
Switch the setup. (For 480-59.94i only）
0%: Setup is switched to 0% for both
the camera output and the
recording.
7.5%A: Setup is switched to 7.5% for the
camera output and 0% for the
recording.
– C U F R
REC MODE
– C U F R
SETUP
– C U F R
USB HOST
PC MODE
USB DEV.
SELECT
For setting the video system for
shooting.
‹Note
In AVC-Intra mode (optional), 24PA
cannot be selected.
– – – F –
Specify the operation mode of the
camera-recorder when an external
device is connected via USB.
USB HOST:
Sets the camera-recorder to the mode
that allows an external hard disk drive
to be connected.
USB DEV.:
Sets the camera-recorder to the USB
device mode, which allows a PC to be
connected via USB 2.0 for use with
P2 cards as mass storage.
‹Note
When the PC MODE menu option is set
to ON, no change can be made to this
option.
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
155
Menu
Items/
Adjustable
Remarks
Data Saved
Range
SYSTEM
1080-59.94i For setting the system frequency and the
recording format of the unit.
MODE
1080-50i
720-59.94P When this item is switched, turn “OFF”
the POWER switch on the unit and then
720-50P
480-59.94i turn it “ON” again.
‹Notes
576-50i
z When the remote control unit (AJRC10G) is connected, this item is not
displayed.
To switch this item, operate the main
unit independently.
z When the time code is in free run
mode and a change is made to the
SYSTEM MODE menu option, the
time may not be correctly recorded.
After turning on the camera-recorder,
check the time code and make a
change to the setting if required.
z When USB DEVICE mode is selected,
no change can be made to this option.
– C U F –
Select video input signals.
REC SIGNAL CAM
CAM: Record the signal from the
VIDEO
camera
1394
VIDEO:Record the signal from the
SDI
GENLOCK IN connector (In SD
mode only）
1394: Record the signal from the 1394
input connector
SDI: Records input to the SDI IN
connector (optional).
‹Notes
z In Native mode for the AVC-Intra
(optional) and DVCPRO HD, 1394
cannot be selected.
z After the power has been turned OFF,
this setting defaults to CAM when the
power is turned ON again.
z In order to select VIDEO and
synchronize video signals input to the
GENLOCK IN connector (VBS) with
the unit, set the GENLOCK item of
[GENLOCK] (page 159) to "EXT".
– C U F R
AJ-HPX2000P(VQT1D27-1)E.book 156 ページ ２００７年７月３０日　月曜日　午後１時３１分
SYSTEM MODE
Items/
Adjustable
Remarks
Data Saved
Range
Used to enable or disable the mode that
PC MODE
ON
allows the camera-recorder to be
OFF
connected to a PC or an external hard
disk drive via USB 2.0.
ON: Sets the camera-recorder to the
mode selected through the PC
MODE SELECT menu option.
OFF: Disables the PC MODE for normal
operation.
‹Note
Once the power is turned off, the option
is always set to OFF when the power is
turned on next time.
– – – F –
Items/
Adjustable
Remarks
Data Saved Range
Select whether or not to forcibly disable
SAVE SW
ON
the audio output when the SAVE ON/
OFF
(AUD OUT)
OFF switch is set to [ON].
ON: Disable audio output.
OFF: Enable audio output.
– C U F –
SAVE SW
(LCD)
ON
OFF
– C U F –
COMPRESSION NORMAL
DARK
MODE
OPTION MODE
Items/
Adjustable
Remarks
Data Saved Range
REC TALLY
RED
Select the method for displaying the
recording status of camera-recorder
GREEN
when controlling an external VTR by
CHAR
setting 1394 CONTROL items to BOTH.
Select the 1394 CONTROL item on the
<1394 SETTING> screen in the SYSTEM
SETTING page.
RED: The red tally lamp lights up.
GREEN:The green tally lamp lights up.
CHAR: The VF displays [REC] in
characters.
– C U F –
Specify whether or not to enable the P2
ACCESS LED OFF
SLOT SIDE card access LEDs.
Disables both LEDs above the
LCD SIDE OFF:
slots and on the side panel.
BOTH
SLOT SIDE:
Enables the LED above the slots
and disables the LED on the side
panel.
LCD SIDE:
Enables the LED on the side panel
and disables the LED above the
slots.
BOTH: Enables both LEDs above the
– C U F –
slots and on the side panel.
Select whether or not to hold the UMID
P.OFF GPS
HOLD
GPS position information while the
CLEAR
DATA
power is turned off, thereby keeping this
information as status data holding the
previous value until the power is turned
on again, which enables a new
measurement to start.
HOLD: Hold and save the data.
CLEAR: Clear the data when the power
is turned off, and save zero (NoInfo) from the next power-on
until a new measurement is
completed.
– C U F –
SDI
METADATA
ON
OFF
– C U F –
ON
SDI EDH
OFF
Used to specify whether or not to output
metadata (UMID) to SDI when the
VIDEO OUT menu option is set to HD
SDI or SD HDI.
Select whether or not to add an error
detection flag to the SD SDI output.
– C U F –
156
Menu : Menu Description Tables
– C U F –
AUTO REC
– C U F –
OFF
TYPE1
TYPE2
Select whether or not to automatically
turn off the LCD monitor when the SAVE
ON/OFF switch is set to [ON].
ON: Turn off LCD monitor.
OFF: Do not turn off LCD monitor.
Select a compression mode for the
720P mode (Only for recording DVCPRO
HD for 720-59.94P and 720-50P).
NORMAL:
The normal shooting mode is
selected.
DARK:
Compressed video distortion that
occurs in dark areas is lowered, which
may increase distortion in other
areas.
Select the method for detecting REC
START/STOP marks from the frame rate
information in the user bits added
through HD SD IN in HD mode in order
to automatically start or stop recording
(for the AJ-YA350AG, an SDI-IN option).
OFF:
No automatic recording is
performed.
TYPE1: REC START/STOP marks are
detected from LTC input
through HD SDI for automatic
recording.
TYPE2: REC START/STOP marks are
detected from VITC input
through HD SDI for automatic
recording.
‹Note
Set the menu option REC SIGNAL to
SDI to input HD SDI signals to the SDI
IN connector. For information about user
bits frame rate information, see [Setting
of the user bits] (page 57).
The AUTO REC function does not
operate in INTERVAL REC and LOOP
REC modes.
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 157 ページ ２００７年７月３０日　月曜日　午後１時３１分
REC FUNCTION
Items/
Adjustable
Remarks
Data Saved
Range
INTERVAL
ON
Sets INTERVAL REC function.
REC MODE
ONE SHOT ON: Uses internal memory to perform
interval recording.
OFF
ONE SHOT:
Performs “one-shot” recording for the
duration specified under REC TIME,
and then stops.
OFF: INTERVAL REC is not performed.
‹Note
This item cannot be changed when [ON]
– C U F –
is selected in LOOP REC MODE.
Selects whether INTERVAL REC MODE
INTERVAL
ON
settings are retained or not when the
REC HOLD
OFF
power is turned off once.
ON: Retain
OFF: Do not retain. The INTERVAL
REC MODE is OFF whenever the
power is turned on again.
– C U F –
00s01f
:
59s29f
– C U F –
PAUSE TIME*1 00h00m00s01f
:
00h04m59s29f
:
23h59m59s29f
– C U F –
NONE
:
– C U F – 5day
TOTAL REC
00m00s01f
:
TIME*1
99m59s29f
OVER100min
NONE
TAKE TOTAL
TIME
– – – – –
AUDIO REC
ON
OFF
Set REC TIME (1 cut).
‹Note
However, the settings can be made frame
by frame, and the numbers of the cut-off
unit frames for the shortest time period
and the set time on the actual operation
may vary with the recording method. For
details, refer to [Interval Recording] (page
36).
Specify PAUSE time for recording.
‹Note
However the settings can be made frame
by frame, and the numbers of the cut-off
unit frames for the shortest time period
and the set time on the actual operation
may vary with the recording method. For
details, refer to [Interval Recording] (page
36).
Specify the time needed for shooting.
Select from NONE (continue until
operation is manually stopped) to 5 days.
Display total recorded time. The setting
cannot be changed using this option.
Displays the recording time (recording
time needed for the P2 card) calculated
using REC TIME, PAUSE TIME, and
TAKE TOTAL TIME.
‹Note
A value based on actual processing is
displayed.
Select whether or not sound will be
recorded.
– C U F –
START DELAY 0SEC
:
– C U F – 10SEC
Set the delay after pressing REC START
to start recording in INTERVAL REC.
PRE REC
MODE
Select whether or not to enable PRE
RECORDING.
ON: PRE RECORDING enabled.
OFF: PRE RECORDING disabled.
‹Note
Specify the PRE RECORDING time by
using the menu option PRE REC TIME.
– C U F –
*1
ON
OFF
◆ Note
This variable range is the numerical values for 59.94 Hz.
For 50 Hz, the frame rate is up to 24f. The frame rate is
up to 23f in 24PN (Native) mode.
The ____ in the Adjustable Range column indicates the
preset mode.
Displayed REC TIME, PAUSE TIME and TOTAL REC TIME
are translated into either drop-frame or non-drop-frame
according to the mode of operation.
TAKE TOTAL TIME is actual time. Therefore, TOTAL REC
TIME may incorporate fractions, depending on the settings.
Example of drop-frame
REC TIME
02s00f
PAUSE TIME
02s00f
TAKE TOTAL TIME
40min
TOTAL REC TIME
19m59s06f
Menu : Menu Description Tables
157
Menu
REC TIME*1
Items/
Adjustable
Remarks
Data Saved Range
Set PRE RECORDING.
PRE REC
1SEC
1-15SEC:
TIME
:
Set the length of time that can be
8SEC
retrospectively recorded before the
:
15SEC
REC START button is pressed.
‹Note
When the SYSTEM MODE menu option
on the SYSTEM MODE screen is set to
1080-59.94i, 1080-50i, 720-59.94P, or
720-50P, or when it is set to 480-59.94i
or 576-50P and the REC MODE menu
option is set to DVCPRO50, the upper
limit of the above recording time is 8
seconds.
– C U F –
Select whether or not to enable LOOP
LOOP REC
ON
REC.
OFF
MODE
This setting can be used with PRE
RECORDING features.
ON: Enable LOOP REC.
OFF: Disable LOOP REC.
‹Notes
z After the power is turned off, this item
will default to OFF the next time the
power is turned on.
z This item cannot be changed when
[ON] or [ONE SHOT] is selected in
INTERVAL REC MODE.
– – – F –
Select operating modes that allow
REC START ALL
recording to start.
NORMAL
ALL: Allow recording to start during
stop, recording pause, and
playback.
NORMAL:
Allow recording to start during stop
and recording pause.
‹Note
Even if this is set to [ALL], the operation is
[NORMAL], when [ON] or [ONE SHOT] is
selected in INTERVAL REC MODE.
– C U F –
Select the recording order of the slot
HOLD
P.ON REC
when the power is turned on.
SLOT1
SLOT SEL
HOLD:
The recording order starts with the
card previously selected when the
power was turned off.
SLOT1:
The recording order starts with the
card that is inserted in Slot 1 when the
– C U F –
power is turned on.
AJ-HPX2000P(VQT1D27-1)E.book 158 ページ ２００７年７月３０日　月曜日　午後１時３１分
OUTPUT SEL
DOWNCON SETTING
Items/
Adjustable
Remarks
Data Saved Range
OUTPUT ITEM MENU ONLY Set the character contents
superimposed onto the output signals
TC
for the VIDEO OUT connector (Analog
STATUS
or SDI) and MON OUT connector.
MENU ONLY:
Displays only when the menu
characters are superimposed. No
display appears when other characters
are superimposed.
TC:Display the time code. (Displays the
menu when menu characters are
superimposed.)
‹Note
The TC display position moves up
and down depending on the camera
ID position.
STATUS:
Display the same characters
superimposed on the VF signal.
(Displays the menu when menu
characters are superimposed.)
– C U F –
MONITOR
VBS
Select the output signal on the MON OUT
connector.
OUT
VF
VBS: Output a regular composite signal.
Y
VF: Output a VF Y signal. The status
display is also superimposed.
Y:
Output a component Y signal.
‹Note
The VBS signal is output in playback
– C U F –
mode.
Select whether or not to superimpose
MONITOR
ON
characters on the MON OUT connector
OUT CHAR OFF
signal independently of the camera’s
VIDEO OUT CHARACTER switch. (The
character content is the same as the
video output signal.)
ON: Enable superimpose.
OFF: Disable superimpose.
– C U F –
Select whether or not to superimpose
ON
LCD MON
characters on the LCD monitor. (The
OFF
CHAR
character content is the same as the
video output signal.)
ON: Enable superimpose.
(Not interlocked with the VIDEO
OUT CHARACTER switch.)
OFF: Disable superimpose.
(Not interlocked with the VIDEO
OUT CHARACTER switch.)
– C U F –
When the REC SIGNAL menu option on
MEM
VF MODE
the SYSTEM MODE screen is set to
CAM
CAM, select the image to display in the
viewfinder.
MEM:Display the playback image in the
playback mode.
CAM: Always display the camera image.
– C U F –
THUMBNAIL
OUT
– C U F –
158
ON
OFF
Select whether or not to output clip
thumbnails displayed on the LCD
monitor to the video output and monitor
output signals.
ON: Enable output.
OFF: Disable output.
‹Note
HD SDI signals are being output from
the VIDEO OUT connector, thumbnails
are not output.
Menu : Menu Description Tables
Items/
Adjustable
Remarks
Data Saved
Range
For setting the mode of the down
DOWNCON SQUEEZ
converter output signals.
LT-BOX
MODE
S-CROP
– C U F R
For setting the detail function for the
ON
DETAIL
down converter output signals ON/OFF.
OFF
The down converter output signals
contain detailed components that are
set during HD signal processing. In this
setting, these signals overlap the
detailed components dedicated to the
down converter outputs.
Even if this setting is turned off, it is
impossible to turn off the detailed
components set during HD signal
processing.
– C U F R
For setting the horizontal detail
H.DTL LEVEL 00
:
correction level for the down converter
08
output signals.
:
31
– C U F R
V.DTL LEVEL 00
:
04
:
– C U F R 31
DTL CORING 00
01
:
– C U F R 15
H.DTL FREQ. 1
:
3
:
5
– C U F R
2D LPF
ON
OFF
– C U F R
SETUP
0%
7.5%
– C U F R
For setting the vertical detail correction
level for the down converter output
signals.
For setting the noise elimination level of
the details.
For selecting the horizontal detail
frequencies.
1: 2.5 MHz 4: 4 MHz
2: 3 MHz 5: 4.5 MHz
3: 3.5 MHZ
For setting the 2-D low path filter
reducing cross colors.
ON: Cross colors are reduced.
OFF: Cross colors are not reduced.
For setting the setup level for the down
converter output signals.
（Only for 1080-59.94i or 720-59.94P）
‹Note
When the system frequency is set to 50
Hz, the setup level will be 0%.
◆ Note
The <DOWNCON SETTING> screen is displayed when
SYSTEM MODE is set to 1080-59.94i, 1080-50i, 72059.94P and 720-60P (HD mode).
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 159 ページ ２００７年７月３０日　月曜日　午後１時３１分
LCD MONITOR
GENLOCK
Items/
Adjustable
Remarks
Data Saved
Range
Adjust the LCD monitor brightness.
BRIGHTNESS –7
:
+0
:
– C U F – +7
COLOR
–7
:
LEVEL
+0
Adjust the LCD monitor chroma level.
:
– C U F – +7
CONTRAST –7
Adjust the LCD monitor contrast.
:
+0
:
– C U F – +7
BACKLIGHT NORMAL
HIGH
– C U F –
– C U F –
ASPECT
CONV.
– C U F –
SQUEEZE
LT.BOX
Select whether or not to change the
LCD monitor to mirror image.
NORMAL: Do not change to mirror
image.
MIRROR: Change to mirror image.
Select a screen ratio for images
displayed on the LCD monitor (In SD
mode only).
SQUEEZE: Display images in the
squeeze size.
LT.BOX:
Display images in the letter
box size.
‹Note
This item is enabled only when ASPECT
described in SYSTEM MODE is set to
“16:9”.
The ____ in the Adjustable Range column indicates the
preset mode.
:
– – – – – +100
H PHASE
–100
:
FINE
+000
:
Perform fine phase adjustment for
horizontal hold when configuring a
system.
+100
– – – – –
Menu : Menu Description Tables
159
Menu
SELF SHOOT NORMAL
MIRROR
Adjust the backlight
NORMAL: Mode normally used
HIGH:
This is brighter than NORMAL
Items/
Adjustable
Remarks
Data Saved Range
Switch the camera synchronising signal.
INT
GENLOCK
INT: Synchronise with the internal
EXT
reference signal regardless of the
reference signal input to the
GENLOCK IN connector.
EXT: Synchronise with the reference
signal input to the GENLOCK IN
– C U F R
connector.
For selecting the output signals that lock
HD SDI
GL PHASE
COMPOSIT phases to the signals that are input in
the GENLOCK IN connector. (Only for
1080-59.94i, 1080-50i, 720-59.94P, or
720-50P）
HD SDI:
For locking the HD SDI signals to the
GENLOCK input.
For the down converter output
signals, the start position of the video
delays by about 90 lines.
COMPOSIT:
For locking the down converter output
signals to the GENLOCK input.
For the HD SDI output signals, the
start position of the video gains by
about 90 lines.
– C U F R
Perform coarse phase adjustment for
H PHASE
–100
:
horizontal hold when configuring a
COARSE
+000
system.
AJ-HPX2000P(VQT1D27-1)E.book 160 ページ ２００７年７月３０日　月曜日　午後１時３１分
1394 SETTING
Items/
Adjustable
Remarks
Data Saved
Range
For selecting the channels for audio
1394 AUDIO CH1/CH2
signals output from the DVCPRO/DV
OUT
CH3/CH4
connector when the camera-recorder is
operating in DVCPRO or DV mode (for
480-59.94i or 576-50i only)
‹Note
When CH3/CH4 is selected, no sound is
heard in the following outputs:
z EE output if the 25M REC CH SEL
menu option on the MIC AUDIO
screen on the MAIN OPERATION
page is set to 2CH.
z Output of playback data recorded as
2-channel audio signals.
– C U F –
1394 SPEED
S100
S200
S400
For setting the transfer rate of signals
output from the DVCPRO/DV connector.
S100:100Mbps
S200:200Mbps
S400:400Mbps
0
:
63
AUTO
For setting the input channel of signals
input to the DVCPRO/DV connector.
0 - 63: To fix to the designated value
AUTO: To follow the settings of the
externally connected devices
– C U F –
1394 IN CH
– C U F –
1394 OUT CH 0
:
63
AUTO
– C U F –
OFF
1394
BOTH
CONTROL
– C U F –
1394 CMD SEL REC_P
STOP
– C U F –
For setting the input channel of signals
output from the DVCPRO/DV connector.
0 - 63: To fix to the designated value
AUTO: To follow the settings of the
externally connected devices
For setting the control for recording
start/stop operations of external devices
that are connected to the DVCPRO/DV
connector.
OFF: Do not control the externally
connected devices.
BOTH:To control both the unit and the
externally connected devices
For setting the control of recording stop
operations of the external devices that
are connected to the DVCPRO/DV
connector.
REC_P: Operation to pause recording
STOP: Stopping operation
The ____ in the Adjustable Range column indicates the
preset mode.
160
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 161 ページ ２００７年７月３０日　月曜日　午後１時３１分
PAINT
RB GAIN CONTROL
Items/
Adjustable
Remarks
Data Saved
Range
For setting the Rch gain when the
R GAIN AWB –200
:
WHITE BAL switch is in the PRST
PRE
+000
position.
:
z If the remote control unit is
+200
connected, settings made from the
menu are disabled. (The set value is
displayed.)
S C U F R
B GAIN AWB
PRE
–200
:
+000
:
+200
:
+000
:
+200
S C U F R
B GAIN AWB A –200
:
+000
:
+200
S C U F R
R GAIN AWB B –200
:
+000
:
+200
S C U F R
B GAIN AWB B –200
:
+000
:
+200
S C U F R
AWB A GAIN ON
OFF
OFFSET
S C U F R
AWB B GAIN ON
OFF
OFFSET
S C U F R
For setting the Rch gain when the
WHITE BAL switch is in the A position.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For setting the Bch gain when the
WHITE BAL switch is in the A position.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For setting the Rch gain when the
WHITE BAL switch is in the B position.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
Items/
Adjustable
Remarks
Data Saved
Range
For setting the level of the master
MASTER PED –200
:
pedestal.
+015
z If the remote control unit is
:
connected, settings made from the
+200
menu are disabled. (The set value is
displayed.)
S C U F R
R PEDESTAL
:
+000
:
+100
S C U F R
G PEDESTAL –100
:
+000
:
+100
S C U F R
B PEDESTAL
For setting the values of the Rch gain
and the Bch gain when the auto white
balance is executed as the WHITE BAL
switch is in the B position.
ON: To retain the values set in the
items of R GAIN AWB B and B
GAIN AWB B
OFF: The values of the Rch gain and
the Bch gain is set to “0”.
–100
:
+000
:
+100
S C U F R
PEDESTAL
OFFSET
ON
OFF
S C U F –
R FLARE
–100
For setting the Bch gain when the
WHITE BAL switch is in the B position.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For setting the values of the Rch gain
and the Bch gain when the auto white
balance is executed as the WHITE BAL
switch is in the A position.
ON: To retain the values set in the
items of R GAIN AWB A and B
GAIN AWB A
OFF: The values of the Rch gain and
the Bch gain is set to “0”.
–100
:
+000
:
+100
S C U F R
G FLARE
–100
:
+000
:
+100
S C U F R
B FLARE
–100
:
+000
:
+100
S C U F R
For setting the pedestal level of the Rch.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For setting the pedestal level of the
Gch.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For setting the pedestal level of the Bch.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For setting the pedestal levels of the
Rch, the Gch and the Bch when the
auto black balance is adjusted.
ON: To retain the values set in the
respective items of R PEDESTAL,
G PEDESTAL, and B PEDESTAL
OFF: The pedestal levels of the Rch,
the Gch and the Bch are set to
”0”.
For adjusting the flare level of the Rch.
Adjustment values in this item are
added to the flare adjustment value that
is adjusted on <LENS FILE ADJ>
screen.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For adjusting the flare level of the Gch.
Adjustment values in this item are
added to the flare adjustment value that
is adjusted on <LENS FILE ADJ>
screen.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
For adjusting the flare level of the Bch.
Adjustment values in this item are
added to the flare adjustment value that
is adjusted on <LENS FILE ADJ>
screen.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
161
Menu
S C U F R
R GAIN AWB A –200
For setting the Bch gain when the
WHITE BAL switch is in the PRST
position.
z If the remote control unit is
connected, settings made from the
menu are disabled. (The set value is
displayed.)
RGB BLACK CONTROL
AJ-HPX2000P(VQT1D27-1)E.book 162 ページ ２００７年７月３０日　月曜日　午後１時３１分
MATRIX
COLOR CORRECTION
Items/
Adjustable
Remarks
Data Saved
Range
For selecting the color correction table
„MATRIX
A
for the linear matrix.
TABLE
B
S C U F R
For performing the linear matrix
MATRIX R-G –63
:
adjustment. (red/green)
+00
:
S C U F R +63
MATRIX R-B –63
:
+00
:
+00
:
S C U F R +63
Mg
–63
:
(SAT)
+00
For performing the linear matrix
adjustment. (green/red)
S C U F R +63
:
+00
:
+00
:
+00
„M MATRIX
TABLE
OFF
A
S C U F – B
OFF
„H MATRIX
A
TABLE
S C U F – B
For performing the color
saturationcorrection of magenta.
:
+00
For performing the color saturation
correction between magenta and blue.
:
For performing the linear matrix
adjustment. (blue/red)
S C U F R +63
B-Cy
–63
:
(SAT)
+00
For performing the linear matrix
adjustment. (blue/green)
S C U F R +63
Cy
–63
:
(SAT)
+00
For selecting the color correction table
when the GAIN switch is in the L
position.
S C U F R +63
Cy-G
–63
:
(SAT)
+00
For performing the color saturation
correction of blue.
:
For performing the color saturation
correction between blue and cyan.
:
:
S C U F R +63
OFF
„L MATRIX
A
TABLE
S C U F RB
–63
S C U F R +63
B
–63
:
(SAT)
+00
:
S C U F R +63
MATRIX B-G –63
Mg-B
(SAT)
For performing the linear matrix
adjustment. (green/blue)
:
S C U F R +63
MATRIX B-R –63
For performing the color
saturationcorrection between red and
magenta.
:
:
S C U F R +63
MATRIX G-B –63
:
S C U F R +63
R-Mg
–63
:
(SAT)
+00
For performing the linear matrix
adjustment. (red/blue)
:
S C U F R +63
MATRIX G-R –63
Items/
Adjustable
Remarks
Data Saved Range
For performing the color saturation
R
–63
:
correction of red.
(SAT)
+00
For performing the color saturation
correction of cyan.
:
For selecting the color correction table
when the GAIN switch is in the M
position.
For selecting the color correction table
when the GAIN switch is in the H
position.
‹Note
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for
PAINT MENU LEVEL R/W.
Please refer to [SD CARD R/W SELECT] (page 184) for
more information.
For performing the color saturation
correction between cyan and green.
:
S C U F R +63
G
–63
:
(SAT)
+00
For performing the color saturation
correction of green.
:
S C U F R +63
G-Yl
–63
:
(SAT)
+00
For performing the color saturation
correction between green and yellow.
:
S C U F R +63
Yl
–63
:
(SAT)
+00
For performing the color saturation
correction of yellow.
:
S C U F R +63
Yl-R
–63
:
(SAT)
+00
For performing the color saturation
correction between yellow and red.
:
S C U F R +63
The ____ in the Adjustable Range column indicates the
preset mode.
162
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 163 ページ ２００７年７月３０日　月曜日　午後１時３１分
LOW SETTING
Items/
Adjustable
Remarks
Data Saved
Range
For performing the hue correction for
R(PHASE)
–63
:
red.
+00
:
:
S C U F R +63
R-Mg(PHASE) –63
:
+00
For performing the hue correction
between red and magenta.
:
+00
For performing the hue correction for
magenta.
+00
For performing the hue correction
between magenta and blue.
+00
For performing the hue correction for
blue.
:
+00
20
DTL CORING 00
:
01
S C U F R 15
H.DTL FREQ. 00
:
18
For performing the hue correction
between blue and cyan.
S C U F R 31
LEVEL
0
1
DEPEND.
:
5
:
S C U F R +63
Cy(PHASE)
–63
:
+00
For performing the hue correction for
cyan.
:
S C U F R +63
Cy-G(PHASE) –63
:
+00
:
–63
:
+00
S C U F R
MASTER
GAMMA
0.30
:
0.45
S C U F R 0.75
BLACK
–3
:
GAMMA
OFF
:
+00
:
+00
For setting the LEVEL DEPEND.
When the Y-detail is emphasized, details
of dark sections are compressed.
If the numerical value is larger, details of
bright sections are also compressed.
For setting the master gamma. (0.01
step)
S C U F R
„MATRIX
TABLE
OFF
A
S C U F RB
For selecting the color correction table
for the linear matrix.
„COLOR
CORRECT
For switching ON/OFF of the 12-axis
independent color correction.
:
+3
For performing the hue correction for
green.
For performing the hue correction
between green and yellow.
:
S C U F R +63
Yl(PHASE)
–63
For performing the horizontal detail
frequency selection.
For setting the gamma curve for the dark
portion.
–3 to –1:
The dark portion is compressed.
OFF:
Standard state
+1 to +3:
The dark portion is extended.
:
S C U F R +63
G-Yl(PHASE) –63
For performing the noise elimination
level setting for detail.
:
For performing the hue correction
between cyan and green.
S C U F R +63
G(PHASE)
For performing the vertical detail
correction level setting.
:
:
S C U F R +63
B-Cy(PHASE) –63
:
Menu
:
S C U F R 63
V.DTL LEVEL 00
:
:
S C U F R +63
B(PHASE)
–63
10
For performing the horizontal detail
correction level setting.
S C U F R 31
S C U F R +63
:
:
:
:
Mg-B(PHASE) –63
S C U F R 30dB
H.DTL LEVEL 00
:
:
S C U F R +63
Mg(PHASE)
–63
Items/
Adjustable
Remarks
Data Saved Range
Select the master gain from –3, 0, 3, 6,
„MASTER
–3dB
:
9, 12, 15, 18, 21, 24, 27, or 30dB.
GAIN
0dB
For performing the hue correction for
yellow.
ON
OFF
S C U F R
:
S C U F R +63
Yl-R(PHASE) –63
:
+00
For performing the hue correction
between yellow and red.
:
S C U F R +63
ON
OFF
„COLOR
CORRECT
S C U F R
For switching ON/OFF of the 12-axis
independent color correction of the
position selected with the GAIN switch
(L, M, H).
The ____ in the Adjustable Range column indicates the
preset mode.
‹Notes
z The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for
PAINT MENU LEVEL R/W.
Please refer to [SD CARD R/W SELECT] (page 184) for
more information.
z If images are shot when the master gain is set to –3dB,
some coloring phenomena may occur on images in very
bright sections. In order to suppress the coloring
phenomena, switch the OUTPUT AUTO KNEE switch to
“CAM AUTO KNEE OFF”, set the MANUAL item on the
KNEE/LEVEL screen to “ON”, and then set a smaller
value for the KNEE SLOPE item on the KNEE/LEVEL
screen. After executing these settings, confirm that there
are no coloring phenomena and then start shooting.
Menu : Menu Description Tables
163
AJ-HPX2000P(VQT1D27-1)E.book 164 ページ ２００７年７月３０日　月曜日　午後１時３１分
MID SETTING
HIGH SETTING
Items/
Adjustable
Remarks
Data Saved
Range
Select the master gain from –3, 0, 3, 6,
„MASTER
–3dB
:
9, 12, 15, 18, 21, 24, 27, or 30dB.
GAIN
6dB
:
S C U F – 30dB
H.DTL LEVEL 00
:
08
:
For performing the horizontal detail
correction level setting.
:
S C U F – 63
V.DTL LEVEL 00
:
18
For performing the vertical detail
correction level setting.
:
02
:
18
For performing the noise elimination
level setting for detail.
:
5
S C U F –
MASTER
GAMMA
0.30
:
0.45
For performing the horizontal detail
frequency selection.
:
+3
S C U F –
„MATRIX
TABLE
:
16
For performing the vertical detail
correction level setting.
DTL CORING
00
:
03
For performing the noise elimination
level setting for detail.
S C U F – 15
H.DTL FREQ. 00
:
18
For performing the horizontal detail
frequency selection.
:
For setting the LEVEL DEPEND.
When the Y-detail is emphasized,
details of dark sections are
compressed.
If the numerical value is larger, details of
bright sections are also compressed.
For setting the master gamma. (0.01
step)
:
S C U F – 0.75
BLACK
–3
:
GAMMA
OFF
S C U F – 63
V.DTL LEVEL 00
:
:
S C U F – 31
LEVEL
0
DEPEND.
1
06
For performing the horizontal detail
correction level setting.
S C U F – 31
:
S C U F – 15
H.DTL FREQ. 00
:
:
S C U F – 31
00
S C U F – 30dB
H.DTL LEVEL 00
:
:
DTL CORING
Items/
Adjustable
Remarks
Data Saved
Range
Select the master gain from –3, 0, 3, 6,
„MASTER
–3dB
:
9, 12, 15, 18, 21, 24, 27, or 30dB.
GAIN
12dB
S C U F – 31
LEVEL
0
:
DEPEND.
3
:
5
S C U F –
MASTER
GAMMA
0.30
:
0.55
For setting the LEVEL DEPEND.
When the Y-detail is emphasized,
details of dark sections are
compressed.
If the numerical value is larger, details of
bright sections are also compressed.
For setting the master gamma. (0.01
step)
:
For setting the gamma curve for the
dark portion.
–3 to –1:
The dark portion is compressed.
OFF:
Standard state
+1 to +3:
The dark portion is extended.
S C U F – 0.75
BLACK
–3
:
GAMMA
OFF
:
+3
S C U F –
For setting the gamma curve for the
dark portion.
–3 to –1:
The dark portion is compressed.
OFF:
Standard state
+1 to +3:
The dark portion is extended.
OFF
A
S C U F – B
For selecting the color correction table
for the linear matrix.
„MATRIX
TABLE
OFF
A
S C U F – B
For selecting the color correction table
for the linear matrix.
„COLOR
CORRECT
For switching ON/OFF of the 12-axis
independent color correction.
„COLOR
CORRECT
For switching ON/OFF of the 12-axis
independent color correction.
ON
OFF
S C U F –
ON
OFF
S C U F –
‹Note
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for
PAINT MENU LEVEL R/W.
Please refer to [SD CARD R/W SELECT] (page 184) for
more information.
The ____ in the Adjustable Range column indicates the
preset mode.
164
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 165 ページ ２００７年７月３０日　月曜日　午後１時３１分
ADDITIONAL DTL
Items/
Adjustable
Remarks
Data Saved
Range
For changing the detail level of the high
KNEE APE
OFF
brightness portion.
LVL
1
2
:
S C U F R
5
DTL GAIN(+) –31
:
+00
Adjust the detail level toward +
(upwards).
:
S C U F R +31
DTL GAIN(–) –31
:
+00
Adjust the detail level toward the –
(downwards).
:
S C U F R +31
00
DTL CLIP
:
S C U F R
63
H.DTL LINE
MIX
0H
1H
2H
S C U F R
MASTER DTL –31
For setting the proportion of the RGB
signal components that provide the
detail.
Menu
DTL SOURCE (R+G)/2
(G+B)/2
2G+R+B /4
(3G+R)/4
R
S C U F RG
V DTL FREQ 360TV
450TV
540TV
630TV
S C U F R 720TV
For setting the level for clipping the
detail signals.
For selecting the vertical detail
frequency. (In HD mode only）
z It is enabled when the recording
format is set to 720P.
For setting the number of scanning lines
to be added to the video signals in order
to generate the horizontal detail signals.
(In HD mode only）
For revising the master detail level.
:
+00
:
S C U F R +31
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
165
AJ-HPX2000P(VQT1D27-1)E.book 166 ページ ２００７年７月３０日　月曜日　午後１時３１分
SKIN TONE DTL
Items/
Adjustable
Remarks
Data Saved Range
For selecting the skin color table for
„SKIN TONE OFF
enabling the skin tone detail.
A
DTL
The skin color table is provided in the
B
SKIN TONE TABLE item.
AB
By enabling the skin tone detail, it is
possible to shoot human skin more
accurately.
S C U F R
„SKIN TONE ON
OFF
ZEBRA VF
S C U F R
SKIN TONE A
TABLE
B
S C U F R
SKIN TONE
GET
– – – – –
SKIN DTL
0
:
CORING
5
For the setting to display the zebra
pattern in the skin tone area displayed in
the viewfinder screen.
The zebra pattern is displayed when this
item is turned “ON” and the <SKIN
TONE DTL> screen is opened.
The zebra pattern is displayed on area A
or B, which is selected in the SKIN
TONE TABLE item.
It is impossible to display both area A
and B at the same time.
For selecting the skin color table for
subjects to which the skin tone table
applies.
For fetching the color information of A or
B, which is selected in the SKIN TONE
TABLE item, near the center marker.
When this function is executed, data
from I CENTER to Q PHASE are fetched
automatically.
The fetched data will be the table data of
A or B, which is selected in the SKIN
TONE TABLE item.
It is impossible to obtain color
information of both A and B at the same
time.
For setting the effect level of the skin
tone detail.
:
S C U F R7
Y MAX
000
:
190
For setting the maximum value of
brightness for enabling the skin tone.
:
S C U F R 255
Y MIN
000
:
010
For setting the minimum value of
brightness for enabling the skin tone.
:
S C U F R 255
I CENTER
000
:
035
:
S C U F R 255
I WIDTH
000
:
055
:
S C U F R 255
Q WIDTH
00
:
10
:
S C U F R 90
Q PHASE
–180
:
+000
:
For setting the center position on the I
axis (for setting an area that enables
skin tone.)
For setting the area width for enabling
the skin tone on the I-axis of which the
center is the I CENTER.
For setting the area width for enabling
the skin tone on the Q-axis of which the
center is the I CENTER.
For setting phases of the area for
enabling skin tone as setting the
standard to the Q-axis.
S C U F R +179
166
Menu : Menu Description Tables
Y
R-Y
Q-WIDTH
I-WIDTH
Y-MAX
+ direction
I-CENTER
– direction
Q-PHASE
B-Y
= SKIN TONE AREA
Y-MIN
0
‹Note
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for
PAINT MENU LEVEL R/W.
Please refer to [SD CARD R/W SELECT] (page 184) for
more information.
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 167 ページ ２００７年７月３０日　月曜日　午後１時３１分
KNEE/LEVEL
GAMMA
Items/
Adjustable
Remarks
Data Saved
Range
Set the master pedestal.
MASTER PED –200
:
+015
Items/
Adjustable
Remarks
Data Saved Range
Set the master gamma in 0.01% steps.
MASTER
0.30
:
GAMMA
0.45
:
S C U F R +200
ON
„MANUAL
OFF
KNEE
S C U F R
KNEE POINT 70.0%
:
93.0%
:
Set the mode when the AUTO KNEE
switch is OFF. The KNEE POINT/
SLOPE set value is enabled when this
setting is ON.
For setting the knee point position in
increments of 1% steps.
S C U F R 0.75
R GAMMA
–15
+00
:
S C U F R +15
B GAMMA
–15
+00
:
S C U F R 107.0%
S C U F R +15
For setting the inclination of the knee.
:
85
GAMMA
MODE SEL
:
S C U F R
WHITE CLIP 90%
:
LVL
109%
S C U F R
A.KNEE
80%
:
POINT
93%
:
107%
S C U F R
A.KNEE LVL 100
Set the WHITE CLIP feature to ON or
OFF. The WHITE CLIP LVL set value is
enabled when this setting is ON.
DFLT
HD
SD
FILMLIKE1
FILMLIKE2
FILMLIKE3
Set WHITE CLIP LEVEL.
Set the AUTO KNEE POINT position in
1% steps. This setting is enabled when
the OUTPUT/AUTO KNEE selector
switch is set to CAM.AUTO KNEE ON.
Set the AUTO KNEE LEVEL.
:
107
:
S C U F R 109
1
:
4
:
S C U F R8
CHROMA
OFF
LEVEL
–99%
:
+00%
:
S C U F R +40%
DRS EFFECT 1
DEPTH
2
3
S C U F R
Set the AUTO KNEE response speed.
The smaller the setting value, the faster
the response speed.
S C U F R
FILM LIKE1
For setting the chroma level of the PR
signals and the PB signals.
If this is set to OFF, the color elements of
video signals are eliminated.
Set the compression level of the highbrightness component of DRS. If the
numerical value is larger, the
compression level of the high-brightness
component increases.
FILM LIKE3
SD
Video level
A.KNEE
RESPONSE
For selecting the gamma mode.
DFLT: This will operate as SD gamma in
SD mode, or HD gamma in HD
mode.
HD:
Video gamma characteristics for HD
(High Definition)
SD:
The gain in the dark section is higher
than the HD gamma.
FILMLIKE1:
The cinema gamma characteristics
for video applications are selected.
FILMLIKE2:
The cinema gamma characteristics
for video applications are selected.
In this setting gradations in highlit
areas can be expressed better than
when FILM LIKE1 is selected.
FILMLIKE3:
The cinema gamma characteristics
for video applications are selected.
In this setting gradations in highlit
areas can be expressed better than
when FILM LIKE2 is selected.
FILM LIKE2
HD
‹Note
The items indicated by „ are the setting items for PAINT
MENU SW(„) R/W in the <SD CARD R/W SELECT>
screen. The items without „ are the setting items for
PAINT MENU LEVEL R/W.
Please refer to [SD CARD R/W SELECT] (page 184) for
more information.
Luminance
z When the GAMMA MODE SEL item is used for FILM
LIKE3, the following settings are recommended.
MANUAL KNEE ： ON
： 85.0%
KNEE POINT
： 50
KNEE SLOPE
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
167
Menu
S C U F R 99
„WHITE CLIP ON
OFF
Set the Bch gamma.
:
:
KNEE SLOPE 00
Set the Rch gamma.
:
AJ-HPX2000P(VQT1D27-1)E.book 168 ページ ２００７年７月３０日　月曜日　午後１時３１分
„CAMERA SETTING
Items/
Adjustable
Remarks
Data Saved Range
For switching ON/OFF of the detail
ON
DETAIL
signals.
OFF
S C U F R
For specifying whether or not to enable
2D LPF
ON
or disable the 2-dimension LPF, which
OFF
reduce the cross color (for the SD mode
only).
‹Note
In PAL mode, the 2-dimension LPF is
disable.
S C U F R
HIGH COLOR ON
OFF
S C U F R
ON
GAMMA
OFF
S C U F R
TEST SAW
ON
OFF
S C U F R
ON
FLARE
OFF
S C U F R
H-F COMPE. ON
OFF
S C U F R
ON/OFF switching for the HIGH COLOR
mode, which enhances the color
dynamic range.
For switching ON/OFF of the gamma
correction.
Switch the test signal ON or OFF.
Set the flare correction to ON or OFF.
For switching ON/OFF of the aperture
correction.
‹Note
All items in CAMERA SETTING are setting targets of the
item PAINT MENU SW(„) R/W in the <SD CARD R/W
SELECT> screen.
The ____ in the Adjustable Range column indicates the
preset mode.
168
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 169 ページ ２００７年７月３０日　月曜日　午後１時３１分
VF
VF DISPLAY
ZEBRA Pattern Display
Items/
Adjustable
Remarks
Data Saved
Range
NORMAL: Display status constantly.
NORMAL
DISP
HOLD: Display status only when the
CONDITION HOLD
MODE CHECK switch is
pressed.
– C U F R
DISP MODE
1
2
3
– C U F R
0
VF DTL
:
5
– C U F R
ZEBRA1
0%
:
DETECT
70%
For selecting the video signals to display
in the viewfinder screen.
Y:
Brightness signal
NAM: Output signal with the highest
level among R, G, and B signals.
R:
Rch signal
G:
Gch signal
B:
Bch signal
For setting the detail level of the
viewfinder screen.
The details of the signals for the
viewfinder are further enhanced. If 0 is
selected, then the detail is the same as
that for the main line.
109%
ON
ZEBRA 2
OFF
SPOT
ZEBRA 2
DETECT
ZEBRA 1
DETECT
Menu
– C U F R
Y
VF OUT
NAM
R
G
B
Set the DISP MODE.
Switch the camera’s Warning/Message
indication. Please refer to [Display
Modes and Setting Changes/adjustment
Result Messages] (page 78) for more
information.
Video Level
0%
The ____ in the Adjustable Range column indicates the
preset mode.
Set the ZEBRA1 detection level (IRE
value).
:
– C U F R 109%
ZEBRA2
0%
:
DETECT
85%
Set the ZEBRA2 detection level (IRE
value).
:
– C U F R 109%
ZEBRA2
ON
SPOT
– C U F R OFF
Set the ZEBRA2 to ON, OFF, or SPOT.
LOW LIGHT
LVL
Set the camera incoming light volume at
which to display LOW LIGHT.
– C U F R
For the setting to display the menu in the
viewfinder screen when the remote
control unit is connected to the unit.
OFF
10%
15%
20%
25%
30%
– C U F R 35%
ON
RC MENU
OFF
DISP.
50M
INDICATOR
ON
OFF
– C U F R
50%
MARKER/
60%
CHAR LVL
70%
80%
90%
– C U F R 100%
For specifying whether to enable or
disable the 50M LED inside the SD
viewfinder when the REC MODE menu
option is set to DVCPRO50. (In SD
mode only）
Adjust the brightness of markers and
characters displayed on the VF.
Menu : Menu Description Tables
169
AJ-HPX2000P(VQT1D27-1)E.book 170 ページ ２００７年７月３０日　月曜日　午後１時３１分
VF MARKER
VF USER BOX
Items/
Adjustable
Remarks
Data Saved Range
Select the VF MARKER setting table.
A
TABLE
First, select table A or B, then set the
B
items below for each table.
– C U F R
Switch the center mark.
CENTER
OFF
OFF: Do not display center mark.
1
MARK
1:
+ (large)
2
2:
Hollow (large)
3
3:
+ (small)
4
4:
Hollow (small)
– C U F R
Select the frame type for the safety
SAFETY
OFF
zone.
MARK
1
OFF: Do not display frame.
2
1:
Box
Items/
Adjustable
Remarks
Data Saved Range
For setting whether the user box is
USER BOX
ON
displayed in the viewfinder or not.
OFF
– C U F R
1
For setting the horizontal width of the
USER BOX
:
user box.
WIDTH
13
:
– C U F R 100
USER BOX
1
:
HEIGHT
13
For setting the horizontal position of the
user box center.
:
– C U F R 100
USER BOX H –50
:
POS
+00
For setting the horizontal position of the
user box center.
:
2:
– C U F R
SAFETY
80%
:
AREA
90%
:
– C U F R 100%
FRAME MARK ON
OFF
– C U F R
FRAME SIG 4:3
13:9
14:9
– C U F R VISTA
FRAME LVL
0
:
15
– C U F R
Corner frame
For setting the vertical position of the
user box center.
:
For setting the size of the safety marker.
It is possible to set the size by units of
1% with a fixed ratio between of width
and height.
– C U F R +50
z The user box can be displayed in any position as a
boxtype cursor.
Set the frame marker to ON or OFF.
‹Note
Set the frame marker.
Only enabled when REC MODE is set to
16:9.
The VISTA ratio is 16:8.65.
Set the level outside the frame marker.
0: Equivalent to signal OFF. （Blanking
status）
15: Same brightness as center area. This
setting, however, is disabled if the
FRAME SIG is set to VISTA.
‹Note
When SYSTEM MODE is set to either “1080-59.94i”,
“1080-50i”, “720-59.94P”, or “720-50P” (in HD mode), the
safety zone marker, the safety zone area, and the frame
marker are displayed on the LCD monitor or the SD
viewfinder if “LT-BOX” or “S-CROP” is selected in
DOWNCON MODE.
170
– C U F R +50
USER BOX V –50
:
POS
+00
Menu : Menu Description Tables
When SYSTEM MODE item is set to either “1080-59.94i”,
“1080-50i”, “720-59.94P”, or “720-50P” (in HD mode), the
user box is not displayed on the LCD monitor or the SD
viewfinder if “LT-BOX” or “S-CROP” is selected in
DOWNCON MODE.
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 171 ページ ２００７年７月３０日　月曜日　午後１時３１分
VF INDICATOR1
Items/
Adjustable
Remarks
Data Saved
Range
For selecting ON or OFF for the
EXTENDER ON
extender display.
OFF
– C U F R
Set the shutter speed indication to ON
ON
SHUTTER
or OFF.
OFF
– C U F R
ON
FILTER
OFF
– C U F R
ON
WHITE
OFF
– C U F R
ON
GAIN
OFF
– C U F R
IRIS
– C U F R
CAMERA ID BAR
OFF
– C U F R
ID POSITION UPPER R
UPPER L
LOWER R
LOWER L
– C U F R
DATE/TIME
ON
OFF
– C U F R
ON
ZOOM LVL
OFF
– C U F R
COLOR TEMP ON
OFF
– C U F R
SYSTEM
ON
OFF
MODE
– C U F R
ON
CAMERA
OFF
MODE
– C U F R
Set the AWB PRE/A/B indication to ON
or OFF.
For selecting ON/OFF of the gain
currently selected, S.GAIN, DS. GAIN
and LINE MIX GAIN displays.
OFF:
Disable indications of both the
super iris ON status and the iris
value.
IRIS: Enable only the iris value
indication.
S+IRIS: Enables indications of the super
iris ON status and the iris value.
S:
Enable indication of the super
iris ON status.
z The display of the aperture value and
the display of the iris override are
interlinked. When the iris override is
changed, it is forcibly displayed for 3
seconds.
For setting to record the camera ID.
BAR:The camera ID is recorded when
the color bar signals are recorded.
OFF: Disable ID mix.
For setting the position to display the
camera ID.
UPPER R: Upper right.
UPPER L: Upper left.
LOWER R: Lower right.
LOWER L: Lower left.
Items/
Adjustable
Remarks
Data Saved Range
Select the indication mode for the P2
P2CARD
OFF
REMAIN
ONE-CARD card’s remaining capacity.
OFF: Disable the remaining capacity
TOTAL
indication.
ONE-CARD:
Display the remaining capacity of the
P2 card currently used for recording.
TOTAL:Display the total remaining
capacity of all P2 cards in slots.
– C U F R
Set the battery voltage indication to ON
ON
BATTERY
or OFF.
OFF
– C U F R
ON
AUDIO LVL
OFF
Set the audio lever meter indication to
ON or OFF.
– C U F R
TC ON
ON
COLOR BAR OFF
Select whether the time code is to be displayed or not on the color bar.
Menu
OFF
IRIS
S+IRIS
S
Set the filter No. indication to ON or
OFF.
VF INDICATOR2
– C U F R
TC
OFF
TCG
TCR
TCG/TCR
– C U F R
SYSTEM INFO OFF
ALWAYS
NORMAL
– C U F R
COMPRESSION ON
OFF
For selecting an option to display year/
month/day and hour/minute/second
simultaneously when the camera ID is
displayed.
Set the zoom position indication to ON
or OFF.
– C U F R
Set the color temperature indication to
ON or OFF.
SAVE LED
For selecting ON or OFF for the camera
mode and REC mode display.
For selecting ON/OFF of the dynamic
range stretcher mode display.
– C U F R
SAVE
P2CARD
Select the time code to display.
OFF: Disable the time code display.
TCG: Display the time code generator
value in recording mode.
TCR: Display the time code reader
value in playback mode.
TCG/TCR:
Display the time code generator value
in recording mode, and the time code
reader value in playback mode.
Select the method of displaying system
information and warnings.
OFF: Display no warnings other than
“TURN POWER OFF” and
“SYSTEM ERROR”.
ALWAYS:
Always display warnings.
NORMAL:
Display warnings for 3 seconds only
when problems occur.
Specify whether to enable or disable the
compression indication when the
camera-recorder is in compression
mode. (Only for DVCPRO HD in 720P）
ON: When the COMPRESSION
MODE menu option on the
OPTION MODE screen is set to
DARK, COMP is indicated.
OFF: No indication is given.
Set the SAVE lamp function.
SAVE:
The lamp lights up when the SAVE
ON/OFF switch is set to ON and the
output system assigned in [OPTION
MODE] (page 156) is in the save
mode.
P2CARD:
The lamp blinks in synch with the
warning message when the P2 card’s
remaining recording capacity is
getting low.
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
171
AJ-HPX2000P(VQT1D27-1)E.book 172 ページ ２００７年７月３０日　月曜日　午後１時３１分
!LED
Items/
Adjustable
Remarks
Data Saved Range
Select whether or not to enable “REC”
REC STATUS ON
indication in the viewfinder and on the
OFF
LCD monitor during recording.
ON: REC indication enabled.
OFF: REC indication not enabled.
‹Note
This option is useful when camerarecorder is used independently. When
the 1394 CONTROL menu option on the
1394 SETTING screen is set to BOTH,
then the setting of the REC TALLY menu
option for SYSTEM MODE is used.
– C U F R
When a video encoder card (AJPROXY REC ON
YAX800G, optional) is attached, proxy
OFF
recording information is displayed when
recording starts.
ON: Display indicating whether proxy
recording is to be performed on the
P2 card only, or on both the P2 card
and the SD memory card.
OFF: Proxy recording information is not
displayed.
– C U F R
MODE CHECK IND
Items/
Adjustable
Remarks
Data Saved Range
For the setting to turn the lamp on the
ON
GAIN(0dB)
viewfinder on when the GAIN is set to a
OFF
value other than 0 dB.
– C U F R
For the setting to turn the lamp on the
GAIN (–3dB) ON
viewfinder on when the GAIN is set to a
OFF
value other than –3dB.
– C U F R
DS.GAIN
– C U F R
LINE MIX
ON
OFF
– C U F R
ON
SHUTTER
OFF
– C U F R
Adjustable
Range
ON
OFF
– CU F R
ON
!LED
OFF
– CU F R
FUNCTION ON
OFF
– CU F R
AUDIO
ON
OFF
– CU F R
ON
P.ON IND
OFF
– CU F R
172
For the setting to display the status
screen when the MODE CHECK button
is pressed.
For the setting to indicate causes for
turning on the
lamp on the viewfinder
is displayed when the MODE CHECK
button is pressed.
The causes for turning on the
lamp
are displayed with ! .
For the setting to display the FUNCTION
screen when the MODE CHECK button
is pressed.
For the setting to display the AUDIO
screen when the MODE CHECK button
is pressed.
For the setting to display the status
screen immediately after turning on the
power of the unit.
‹Note
Even if it is set to “ON” in this item, the
status screen is not displayed
immediately after turning on the power of
the unit when the STATUS item is set to
OFF.
Menu : Menu Description Tables
For the setting to turn the lamp on the
viewfinder on when the LINE MIX GAIN
is activated.
For the setting to turn the lamp on the
viewfinder on when the electronic
shutter is activated.
For the setting to turn the lamp on the
viewfinder on when the WHITE BAL
switch is set to the PRST position.
B.GAMMA
ON
OFF
For the setting to turn the lamp on the
viewfinder on when the BLACK GAMMA
is activated.
ON
OFF
For the setting to turn the lamp on the
viewfinder on when the color correction
table for the linear matrix is selected.
– C U F R
Remarks
For the setting to turn the lamp on the
viewfinder on when the DS. GAIN
(cumulative gain) is activated.
WHITE
ON
OFF
PRESET
– C U F R
EXTENDER ON
OFF
– C U F R
MATRIX
Items/
Data
Saved
STATUS
ON
OFF
– C U F R
COLOR
ON
CORRECTION OFF
– C U F R
FILTER
ON
OFF
– C U F R
ATW
ON
OFF
– C U F R
For the setting to turn the lamp on the
viewfinder on when the lens extender is
activated.
For the setting to turn the lamp on the
viewfinder on when the 12-axis
independent color correction is selected.
For the setting to turn the lamp on the
viewfinder on when the filter
combination is anyone other than 3200K
and CLEAR.
For specifying whether or not to
illuminate the indication when autotracking white balance is activated.
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 173 ページ ２００７年７月３０日　月曜日　午後１時３１分
CAM OPERATION
CAMERA ID
Items/
Adjustable
Remarks
Data Saved
Range
¢¢¢¢¢¢¢ Setting 1 for the CAMERA ID recorded
ID1
on color bars. Up to 10 characters are
¢¢¢
allowed for this setting.
– C U F –
¢¢¢¢¢¢¢ Setting 2 for the CAMERA ID recorded
¢¢¢
on color bars. Up to 10 characters are
allowed for this setting.
– C U F –
ID2
¢¢¢¢¢¢¢ Setting 3 for the CAMERA ID recorded
on color bars. Up to 10 characters are
¢¢¢
allowed for this setting.
– C U F –
ID3
‹Note
Items/
Adjustable
Remarks
Data Saved Range
Allocate SYNCHRO SCAN as a shutter
ON
SYNCHRO
speed selectable by the shutter switch.
OFF
SCAN
– C U F –
Allocate the shutter speed set by
POSITION1 ON
POSITION1 SELECT in the <SHUTTER
OFF
SELECT> screen as the shutter speed
selectable by the shutter switch.
– C U F –
POSITION2
ON
OFF
Allocate the shutter speed set by
POSITION2 SELECT in the <SHUTTER
SELECT> screen as the shutter speed
selectable by the shutter switch.
ON
OFF
Allocate the shutter speed set by
POSITION3 SELECT in the <SHUTTER
SELECT> screen as the shutter speed
selectable by the shutter switch.
– C U F –
POSITION3
– C U F –
POSITION4 ON
OFF
– C U F –
POSITION5
ON
OFF
– C U F –
POSITION6 ON
OFF
– C U F –
Allocate the shutter speed set by
POSITION4 SELECT in the <SHUTTER
SELECT> screen as the shutter speed
selectable by the shutter switch.
Allocate the shutter speed set by
POSITION5 SELECT in the <SHUTTER
SELECT> screen as the shutter speed
selectable by the shutter switch.
Allocate the shutter speed set by
POSITION6 SELECT in the <SHUTTER
SELECT> screen as the shutter speed
selectable by the shutter switch.
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
173
Menu
This setting is canceled when READ FACTORY DATA is
selected.
SHUTTER SPEED
AJ-HPX2000P(VQT1D27-1)E.book 174 ページ ２００７年７月３０日　月曜日　午後１時３１分
SHUTTER SELECT
Items/
Adjustable
Remarks
Data Saved Range
For setting the shutter speed for
POSITION1
POSITION 1.
SEL
For 59.94 Hz 1/100
1/120
1/250
1/500
1/1000
1/2000
HALF
For 50 Hz
For 50 Hz
1/60
1/120
1/250
1/500
1/1000
1/2000
– C U F – HALF
POSITION2
SEL
For 59.94 Hz 1/100
1/120
1/250
1/500
1/1000
1/2000
HALF
1/60
1/120
1/250
1/500
1/1000
1/2000
– C U F – HALF
For setting the shutter speed for
POSITION 2.
For 50 Hz
For setting the shutter speed for
POSITION 3.
1/60
1/120
1/250
1/500
1/1000
1/2000
– C U F – HALF
For setting the shutter speed for
POSITION 4.
For 50 Hz
1/60
1/120
1/250
1/500
1/1000
1/2000
– C U F – HALF
174
For setting the shutter speed for
POSITION 6.
1/60
1/120
1/250
1/500
1/1000
1/2000
– C U F – HALF
For 50 Hz
POSITION4
SEL
For 59.94 Hz 1/100
1/120
1/250
1/500
1/1000
1/2000
HALF
POSITION6
SEL
For 59.94 Hz 1/100
1/120
1/250
1/500
1/1000
1/2000
HALF
For 50 Hz
1/60
1/120
1/250
1/500
1/1000
1/2000
– C U F – HALF
POSITION3
SEL
For 59.94 Hz 1/100
1/120
1/250
1/500
1/1000
1/2000
HALF
Items/
Adjustable
Remarks
Data Saved Range
For setting the shutter speed for
POSITION5
POSITION 5.
SEL
For 59.94 Hz 1/100
1/120
1/250
1/500
1/1000
1/2000
HALF
Menu : Menu Description Tables
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 175 ページ ２００７年７月３０日　月曜日　午後１時３１分
USER SW
SW MODE
USER2 SW
INH
S.GAIN
DS.GAIN
LINE MIX
S.IRIS
I.OVR
S.BLK
B.GAMMA
D.ZOOM
ATW
Y GET
DRS
ASSIST
C.TEMP
AUDIO CH1
AUDIO CH2
REC SW
RET SW
PRE REC
SLOT SEL
– C U F R PC MODE
Allocate the USER2 button. For
descriptions of the functions, see
[Assigning Functions to USER MAIN,
USER1 and USER2 Buttons] (page 51).
Items/
Adjustable
Remarks
Data Saved Range
RET SW
R.REVIEW For setting the function when the USER
button on the unit, to which the RET
CAM RET
button of the lens or the RET SW
D.ZOOM
function is allocated, is pressed.
R.REVIEW:
REC view function
It is possible to check a last few
seconds of the records taken.
CAM RET:
Return video function
It is possible to confirm the return
video signals (HD: analog HD-Y
signals, SD: VBS signals) supplied to
the GENKLOCK IN connector on the
unit by using the viewfinder.
D.ZOOM:
Digital zoom function
It is possible to enable or disable the
digital zoom function.
‹Notes
z When video signals in a format
different from that for the video mode
of the camera-recorder, return video
is not properly displayed.
z When the GENLOCK item (the
GENLOCK screen on the SYSTEM
SETTING page) is set to INT, the
return video image may be displayed
– C U F R
as slightly shaking horizontally.
For setting the super black level.
S.BLK LVL
OFF
–10
–20
– C U F R –30
AUTO KNEE
SW
ON
OFF
DRS
S C U F R
SHD.ABB SW ON
OFF
CTL
For selecting ON/OFF of the AUTO
KNEE function and DRS function.
When it is set to OFF, the AUTO KNEE
may not function even if the AUTO
KNEE switch is turned ON.
When the DRS function is enabled and
the AUTO KNEE switch is positioned to
ON, the DRS function turns on.
For the setting to adjust the black
shading automatically when the AUTO
W/B BAL switch is held to the ABB side
for 8 seconds or more.
– C U F R
For selecting the color bar to be used.
COLOR BARS SMPTE
FULL BARS SMPTE: Color bar complied with the
SMPTE standards
SPLIT
FULL BARS: Full color bar
ARIB
SPLIT:
SPLIT color bar for SNG
(Satellite News Gathering)
ARIB:
Color bar complied with the
ARIB standards
– C U F R
S.GAIN OFF
– C U F –
L/M/H
S.GAIN
For selecting the method used to
release the super gain mode.
L/M/H:
Disabled when the gain
selector switch is operated.
S.GAIN:
Disabled only with the
S.GAIN switch (USER
button).
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
175
Menu
Items/
Adjustable
Remarks
Data Saved
Range
Allocate the USER MAIN button. For
USER MAIN INH
descriptions of the functions, see
SW
S.GAIN
[Assigning Functions to USER MAIN,
DS.GAIN
USER1 and USER2 Buttons] (page 51).
LINE MIX
S.IRIS
I.OVR
S.BLK
B.GAMMA
D.ZOOM
ATW
Y GET
DRS
ASSIST
C.TEMP
AUDIO CH1
AUDIO CH2
REC SW
RET SW
PRE REC
SLOT SEL
– C U F R PC MODE
Allocate the USER1 button. For
USER1 SW INH
descriptions of the functions, see
S.GAIN
[Assigning Functions to USER MAIN,
DS.GAIN
USER1 and USER2 Buttons] (page 51).
LINE MIX
S.IRIS
I.OVR
S.BLK
B.GAMMA
D.ZOOM
ATW
Y GET
DRS
ASSIST
C.TEMP
AUDIO CH1
AUDIO CH2
REC SW
RET SW
PRE REC
SLOT SEL
– C U F R PC MODE
AJ-HPX2000P(VQT1D27-1)E.book 176 ページ ２００７年７月３０日　月曜日　午後１時３１分
Items/
Adjustable
Remarks
Data Saved Range
For selecting the method used to
DS.GAIN OFF L/M/H
release the digital super gain mode
DS.GAIN
(cumulative gain).
L/M/H:
The mode is released by
making a change in the L/M/H
switch position and the
DS.GAIN switch (USER
switch).
DS.GAIN: The mode is released using
only the DS.GAIN switch
(USER switch).
– C U F –
D.ZOOM x2
ON
OFF
For specifying whether to enable or
disable 2a when a user button on the
camera-recorder is assigned the digital
zoom function.
ON
OFF
For specifying whether to enable or
disable 3a when a user button on the
camera-recorder is assigned the digital
zoom function.
ON
OFF
For specifying whether to enable or
disable 4a when a user button on the
camera-recorder is assigned the digital
zoom function.
– C U F R
D.ZOOM x3
– C U F R
D.ZOOM x4
– C U F R
RC CHECK R.REVIEW
SW
PLAY
– C U F R
For specifying what the camera-recorder
does when the REC check button on the
remote control unit is pressed.
R.REVIEW: The camera-recorder
performs rec review.
PLAY:
The camera-recorder
performs playback.
Items/
Adjustable
Remarks
Data Saved Range
For switching the detection area for
AWB AREA 25%
executing the automatic adjustment of
50%
white balance.
90%
25%: An area near the screen center
equivalent to 25% of the screen is
detected.
50%: An area near the screen center
equivalent to 50% of the screen is
detected.
90%: An area equivalent to 90% of the
screen is detected.
– C U F R
For selecting the function to be assigned
AWB B
MEM
to the B position of the WHITE BAL
ATW
switch.
MEM:The value set when the white
balance is automatically adjusted
is saved, which is used each time
the WHITE BAL switch is set to B.
ATW: The auto-tracking white balance
function is assigned.
– C U F R
NORMAL
SLOW
– C U F R FAST
COLOR TEMP 2300K;
:
PRE
3200K
ATW SPEED
:
8000K
– – – F –
AWB A TEMP 2300K;
:
3200K
WHITE BALANCE MODE
:
8000K
Items/
Adjustable
Remarks
Data Saved Range
For selecting independently whether
FILTER INH ON
memory data for white balance (Ach,
OFF
Bch) is retained or not for the respective
CC filters.
ON: Regardless of the CC filter, data for
the memories (2 memories) for Ach
and Bch is retained.
OFF: The memory data (8 memories) for
Ach and Bch is retained for the
– C U F R
respective CC filters.
For setting the length of time for
SHOCKLESS OFF
transiting to the switched position of
AWB
FAST
white balance, when the position of the
NORMAL
WHITE BAL switch is changed.
SLOW1
OFF:
To transit instantly
SLOW2
FAST:
About 1 second
SLOW3
NORMAL: About 2 seconds
SLOW1: About 3 seconds
SLOW2: About 10 seconds
SLOW3: About 20 seconds
– C U F R
176
Menu : Menu Description Tables
– – – F –
AWB B TEMP 2300K;
:
3200K
:
8000K
– – – F –
Select the control speed for the autotracking white balance.
For setting the color temperature when
the WHITE BAL switch is set to the
PRST position.
z Since the range of color temperatures
that can be set will vary with the CC
filter position, a numerical value
cannot be changed even if the color
temperature is changed when a high
color temperature is set.
For setting the color temperature when
the WHITE BAL switch is set to the A
position.
If the automatic adjustment of white
balance is executed in the A position,
the color temperature at that time is
memorized in the position of the WHITE
BAL switch A. If the white balance has
been automatically adjusted or the CC
filter has been switched, then up to
9000K may be indicated.
For setting the color temperature when
the WHITE BAL switch is set to the B
position.
If the automatic adjustment of white
balance is executed in the B position,
the color temperature at that time is
memorized in the position of the WHITE
BAL switch B. If the white balance has
been automatically adjusted or the CC
filter has been switched, then up to
9000K may be indicated.
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 177 ページ ２００７年７月３０日　月曜日　午後１時３１分
USER SW GAIN
Items/
Adjustable
Remarks
Data Saved
Range
¢
Select whether or not to enable 30dB for
S.GAIN
SUPER GAIN.
•
30 dB
¢: Enable.
• : Disable.
– C U F R
36 dB
¢
•
– C U F R
42 dB
¢
•
– C U F R
48 dB
¢
•
– C U F R
10 dB:
¢
•
– C U F R
¢
12 dB:
•
– C U F R
¢
15 dB:
•
– C U F R
¢
20 dB:
•
– C U F R
Select whether or not to enable 42dB for
SUPER GAIN.
¢: Enable.
• : Disable.
Select whether or not to enable 48dB for
SUPER GAIN.
¢: Enable.
• : Disable.
Select whether or not to enable 6 dB: for
DS.GAIN.
¢: Enable.
• : Disable.
Select whether or not to enable 10 dB:
for DS.GAIN.
¢: Enable.
• : Disable.
Items/
Adjustable
Remarks
Data Saved Range
Set the target value for auto iris.
A.IRIS LEVEL 000
:
045
:
– C U F R 100
A.IRIS PEAK/ 000
:
AVE
030
:
100
– C U F R
NORM1
A.IRIS
NORM2
WINDOW
CENTR
– C U F R
S.IRIS LEVEL 000
:
080
Select whether or not to enable 20 dB:
for DS.GAIN.
¢: Enable.
• : Disable.
Select the auto iris detection window.
NORM1: The window closer to the center
of the screen.
NORM2: The window closer to bottom of
the screen.
CENTR: The spot window in the center of
the screen.
Set the target value for the super iris
(Backlight correction function).
:
– C U F R 100
IRIS GAIN
CAM
LENS
Select whether or not to enable 12 dB:
for DS.GAIN.
¢: Enable.
• : Disable.
Select whether or not to enable 15 dB:
for DS.GAIN.
¢: Enable.
• : Disable.
Determine the peak-to-standard ratio for
the auto iris.
A larger value sets the auto iris to
respond to the peak in the IRIS
detection window, while a smaller value
sets it to respond to the average value in
the window.
– C U F R
IRIS GAIN
01
:
VALUE
10
:
Select which unit controls IRIS GAIN.
‹Note
Lenses with an extender, such as a2,
a0.8 sold before FUJINON DIGI
POWER, perform IRIS compensation
while enabling the extender. Therefore, if
this setting is switched to CAM, the
camera’s iris control will not operate
properly.
Set the adjustable value for IRIS GAIN.
This setting is effective when CAM is
selected for IRIS GAIN.
– C U F R 20
The ____ in the Adjustable Range column indicates the
preset mode.
‹Note
When the DS.GAIN function is active, the shutter mode is
set to OFF.
Menu : Menu Description Tables
177
Menu
– C U F R
¢
DS.GAIN
•
6 dB:
Select whether or not to enable 36dB for
SUPER GAIN.
¢: Enable.
• : Disable.
LENS/IRIS
AJ-HPX2000P(VQT1D27-1)E.book 178 ページ ２００７年７月３０日　月曜日　午後１時３１分
MAIN OPERATION
BATTERY/P2CARD
Items/
Adjustable
Remarks
Data Saved Range
BATTERY
PROPAC14 Select the battery to use. Remaining
SELECT
TRIMPAC14 capacity detection is also performed
HYTRON50 according to the selected battery.
HYTRON140 The variable range is changed by the
DIONIC90 item settings selected on the [BATTERY
DIONIC160 SETTING1] (page 179) and [BATTERY
SETTING2] (page 180) menus.
NP-L7
ENDURA7 The initial value for TYPE A is set to
ENDURA10 DIONIC90 while the same for TYPE B is
ENDURA-D set to HYTRON140.
When BP-GL65 or BP-GL95, a battery
PAG L95
made of Sony, is used, set this to "BPBP-L65/95
L65/95".
NICD14
TYPE A
– C U F – TYPE B
EXT DC IN
AC_ADPT
SELECT
PROPAC14
TRIMPAC14
HYTRON50
HYTRON140
DIONIC90
DIONIC160
NP-L7
ENDURA7
ENDURA10
ENDURA-D
PAG L95
BP-L65/95
NICD14
TYPE A
– C U F – TYPE B
BATT NEAR ON
END ALARM OFF
– C U F –
BATT NEAR ON
END CANCEL OFF
– C U F –
ON
BATT END
OFF
ALARM
– C U F –
BATT REMAIN 70%
100%
FULL
– C U F –
178
Set the remaining capacity detection
type when a battery is connected to the
DC IN connector. Remaining capacity
detection is also performed according to
the selected battery type.
The variable range is changed by the
item settings selected on the [BATTERY
SETTING1] (page 179) and [BATTERY
SETTING2] (page 180) menus.
Analog voltage is displayed on the
viewfinder screen.
When BP-GL65 or BP-GL95, a battery
made of Sony, is used, set this to "BPL65/95".
Select whether or not to set the alarm to
beep for BATT NEAR END ALARM.
If set to ON, the warning tone and
indication can be canceled by pressing
the MODE CHECK button when BATT
NEAR END ALARM is triggered.
Select whether or not to set the alarm to
beep for BATT END ALARM.
Set the display of the remaining battery
level indicator bar in the display window
when a battery with this function is used.
70%: Indicate FULL at 70% capacity.
100%: Indicate FULL at 100% capacity.
Menu : Menu Description Tables
Items/
Adjustable
Remarks
Data Saved Range
Select whether or not to set the alarm to
CARD NEAR ON
beep for P2 CARD NEAR END ALARM.
END ALARM OFF
– C U F –
Set the remaining time to indicate the P2
CARD NEAR 2min
CARD NEAR END TIME alarm.
3min
END TIME
– C U F –
CARD END ON
OFF
ALARM
– C U F –
3min/„
CARD
5min/„
REMAIN/„
– C U F –
Select whether or not to set the alarm to
beep for P2 CARD END ALARM.
Set the length of time for one segment
(„) of the P2 card’s remaining capacity
indicator bars.
3min/„: One segment represents 3
minutes.
5min/„: One segment represents 5
minutes.
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 179 ページ ２００７年７月３０日　月曜日　午後１時３１分
BATTERY SETTING1
Items/
Adjustable
Remarks
Data Saved
Range
¢
Enable selection under BATTERY
PROPAC14
SELECT.
•
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
AUTO
END voltage.
MANUAL
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the above
11.0
:
menu, set the NEAR END voltage in 0.1
13.8
V steps.
Items/
Adjustable
Remarks
Data Saved Range
¢
Enable selection under BATTERY
DIONIC160
SELECT.
•
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
AUTO
END voltage.
MANUAL
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
11.0
:
above, set the NEAR END voltage in 0.1
13.2
V steps.
– C U F – 15.0
TRIMPAC14 ¢
•
– C U F – 15.0
¢
NP-L7
•
:
11.0
:
13.6
:
– C U F – 15.0
HYTRON50 ¢
•
AUTO
MANUAL
11.0
:
13.5
:
– C U F – 15.0
HYTRON140 ¢
•
AUTO
MANUAL
11.0
:
13.5
:
– C U F – 15.0
¢
DIONIC90
•
AUTO
MANUAL
11.0
:
13.6
:
– C U F – 15.0
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
AUTO
MANUAL
11.0
:
13.2
:
– C U F – 15.0
¢
ENDURA7
•
AUTO
MANUAL
11.0
:
13.2
:
– C U F – 15.0
ENDURA10 ¢
•
AUTO
MANUAL
11.0
:
13.2
:
– C U F – 15.0
ENDURA-D ¢
•
AUTO
MANUAL
11.0
:
13.2
:
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
– C U F – 15.0
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
179
Menu
AUTO
MANUAL
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
:
AJ-HPX2000P(VQT1D27-1)E.book 180 ページ ２００７年７月３０日　月曜日　午後１時３１分
BATTERY SETTING2
Items/
Adjustable
Remarks
Data Saved Range
¢
Enable selection under BATTERY
PAG L95
SELECT.
•
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
AUTO
END voltage.
MANUAL
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
11.0
:
above, set the NEAR END voltage in 0.1
13.5
V steps.
Items/
Adjustable
Remarks
Data Saved Range
¢
Enable selection under BATTERY
NiCd14
SELECT.
•
¢:Enable selection.
•: Disable selection.
Set the NEAR END voltage in 0.1 V
NEAR END 11.0
:
steps.
13.8
– C U F – 15.0
BP-GL65/95 ¢
•
– C U F – 15.0
¢
TYPE A
•
:
END
11.0
:
13.5
:
Set the END voltage in 0.1 V steps.
:
13.4
:
AUTO
MANUAL
15.0
11.0
:
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Select auto or manual to set the NEAR
END voltage.
AUTO: Set voltage automatically.
MANUAL:Set voltage manually.
When MANUAL is selected in the menu
above, set the NEAR END voltage in 0.1
V steps.
– C U F – 15.0
FULL
12.0
:
15.1
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Set the voltage to display the FULL
indication in 0.1 V steps.
:
17.0
NEAR END 11.0
:
13.6
Set the NEAR END voltage in 0.1 V
steps.
:
END
15.0
11.0
Set the END voltage in 0.1 V steps.
:
12.9
:
– C U F – 15.0
¢
TYPE B
•
FULL
12.0
:
15.5
Enable selection under BATTERY
SELECT.
¢:Enable selection.
•: Disable selection.
Set the voltage to display the FULL
indication in 0.1 V steps.
:
17.0
NEAR END 11.0
:
13.5
Set the NEAR END voltage in 0.1 V
steps.
:
END
15.0
11.0
Set the END voltage in 0.1 V steps.
:
13.1
:
– C U F – 15.0
z The remaining battery level is indicated in percentage
when a battery with this function is installed on the unit.
The ____ in the Adjustable Range column indicates the
preset mode.
180
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 181 ページ ２００７年７月３０日　月曜日　午後１時３１分
MIC/AUDIO1
MIC LOWCUT OFF
FRONT
CH2
W.L.
REAR
– C U F –
MIC LOWCUT OFF
FRONT
CH3
W.L.
REAR
– C U F –
Items/
Adjustable
Remarks
Data Saved Range
Select the microphone low cut filter for
MIC LOWCUT OFF
Input Channel 4.
FRONT
CH4
OFF: The microphone low cut filter is
W.L.
disabled for any input.
REAR
FRONT: The microphone low cut filter is
enabled
when
the
front
microphone is selected.
W.L.: The microphone low cut filter is
enabled only when the wireless
microphone is selected.
REAR: The microphone low cut filter is
enabled only when the rear
microphone is selected.
– C U F –
LIMITER CH1 ON
OFF
– C U F –
Select the limiter.
The limiter is enabled when AUDIO
SELECT CH1 switch is set to MAN.
LIMITER CH2 ON
OFF
Select the limiter.
The limiter is enabled when AUDIO
SELECT CH2 switch is set to MAN.
– C U F –
AUTO LEVEL ON
OFF
CH3
– C U F –
AUTO LEVEL ON
OFF
CH4
– C U F –
25M REC CH 2CH
4CH
SEL
– C U F –
TEST TONE OFF
NORMAL
ALWAYS
CHSEL
Select the microphone low cut filter for
Input Channel 2.
OFF: The microphone low cut filter is
disabled for any input.
FRONT: The microphone low cut filter is
enabled
when
the
front
microphone is selected.
W.L.: The microphone low cut filter is
enabled only when the wireless
microphone is selected.
REAR: The microphone low cut filter is
enabled only when the rear
microphone is selected.
Select the microphone low cut filter for
Input Channel 3.
OFF: The microphone low cut filter is
disabled for any input.
FRONT: The microphone low cut filter is
enabled
when
the
front
microphone is selected.
W.L.: The microphone low cut filter is
enabled only when the wireless
microphone is selected.
REAR: The microphone low cut filter is
enabled only when the rear
microphone is selected.
Menu
Items/
Adjustable
Remarks
Data Saved
Range
Select whether or not to enable the
OFF
FRONT VR
FRONT AUDIO LEVEL control for the
FRONT
CH1
signal selected as the input signal to
W.L.
AUDIO CH1.
REAR
OFF: Disabled for any input selected.
ALL
Recording level does not change
by turning the volume control.
FRONT: Only enabled when FRONT is
selected.
W.L.: Only enabled when WIRELESS
is selected.
REAR: Only enabled when REAR is
selected.
ALL: Enabled for any input selected.
– C U F –
Select whether or not to enable the
OFF
FRONT VR
FRONT AUDIO LEVEL control for the
FRONT
CH2
signal selected as an input signal to
W.L.
AUDIO CH2.
REAR
OFF: Disabled for any input selected.
ALL
Recording level does not change
by turning the volume control.
FRONT: Only enabled when FRONT is
selected.
W.L.: Only enabled when WIRELESS
is selected.
REAR: Only enabled when REAR is
selected.
ALL: Enabled for any input selected.
– C U F –
Select the microphone low cut filter for
MIC LOWCUT OFF
Input Channel 1.
FRONT
CH1
OFF: The microphone low cut filter is
W.L.
disabled for any input.
REAR
FRONT: The microphone low cut filter is
enabled
when
the
front
microphone is selected.
W.L.: The microphone low cut filter is
enabled only when the wireless
microphone is selected.
REAR: The microphone low cut filter is
enabled only when the rear
microphone is selected.
– C U F –
– C U F –
Select the level setting method.
For more information, see [CH3 and
CH4 Recording Levels] (page 54)
Select the level setting method.
For more information, see [CH3 and
CH4 Recording Levels] (page 54)
Select the audio channels to be
recorded in the DVCPRO and DV
formats.
2CH: Only recorded in CH1 and CH2.
4CH: Recorded in all channels from CH1
to CH4.
Select the test signal.
OFF:
Disable test tone output.
NORMAL: Test tone signals are output to
all of Channels 1 - 4 when the
OUTPUT/AUTO
KNEE
selector switch has been
switched to BARS and CH1 of
the AUDIO IN switch has been
switched to FRONT.
ALWAYS: Test tone signals are always
output to all of Channels 1 - 4
when the OUTPUT/AUTO
KNEE selector switch has
been switched to BARS.
CHSEL: Output test tone to the
channels where the AUDIO IN
switch CH1 or CH2 is set to
FRONT when OUTPUT/AUTO
KNEE selector switch is set to
BARS. The test tone is not
output to CH3 and CH4.
‹Note
The frequency characteristics when the micro cut filter is applied are
200 Hz to 10 kHz.
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
181
AJ-HPX2000P(VQT1D27-1)E.book 182 ページ ２００７年７月３０日　月曜日　午後１時３１分
MIC/AUDIO2
TC/UB
Items/
Adjustable
Remarks
Data Saved Range
Select the phantom power supply for the
FRONT MIC ON
front microphone.
OFF
POWER
– C U F –
ON
Select the phantom power supply for the
REAR MIC
rear microphone.
OFF
POWER
When OFF is selected, no phantom
power is supplied even if the REAR
AUDIO CH1 or CH2 switch is set to +48.
– C U F –
STEREO
MONITOR
MIX
SELECT
– C U F –
FRONT MIC –40dB
–50dB
LEVEL
When the MONITOR switch is set to ST
(stereo), select the signal format for the
monitor output.
Select the front microphone input level.
– C U F –
REAR MIC
–50dB
–60dB
CH1 LVL
– C U F –
Select the rear microphone input level.
REAR MIC
–50dB
–60dB
CH2 LVL
– C U F –
Select the rear microphone input level.
REAR LINE IN 0dB
+4dB
LVL
– C U F – –3dB
Select the rear line input level.
AUDIO OUT
LVL
Select the audio output level.
0dB
+4dB
–3dB
– C U F –
HEADROOM 18dB
– C U F – 20dB
Set the headroom (standard level).
WIRELESS
ON
OFF
WARN
– C U F –
Select whether or not to enable the
alarm to trigger for poor wireless
receiver reception.
The ____ in the Adjustable Range column indicates the
preset mode.
182
Menu : Menu Description Tables
Items/
Adjustable
Remarks
Data Saved Range
Set the time code mode.
DF
TC MODE
DF: Drop frame.
NDF
NDF: Non drop frame.
‹Note
When the camera-recorder operates at
50 Hz or in 24P or 24PA mode, the nondrop frame is always used.
– C U F –
Select the user bits mode.
USER
UB MODE
USER: Select UB value set in the LCD
TIME
section.
DATE
TIME: Select
local
time
(hours,
EXT
minutes, seconds).
TCG
FRM RATE DATE: Select local date and time (2 last
digits of year, month, date, time).
REGEN
EXT: When "CAM" , "VIDEO", or
"SDI" is selected in REC
SIGNAL on the SYSTEM MODE
screen, the user bits input to the
TC IN connector are recorded.
When "1394" is selected, the
user bits of signals input to the
DVCPRO/DV connector are
recorded.
If reading fails, USER value is
retained.
TCG: TCG value enters UB.
FRM RATE:
Select the shooting information (e.g.
frame rate) for the camera. For more
information, see [Frame rate
information recorded in user bits]
(page 58).
When clips recorded in Native mode
are played back, the frame rate
information recorded in users bits in
the VAUX range is output.
REGEN: Read out value stored in the
card
and
record
value
continuously.
‹Note
When the camera-recorder is in 720P
mode, FRM RATE is always selected.
– C U F –
AJ-HPX2000P(VQT1D27-1)E.book 183 ページ ２００７年７月３０日　月曜日　午後１時３１分
TCG SET
HOLD
ON
OFF
ON/OFF switching for the feature that
always starts recording (when the power
is turned ON again) the TCG value that
was set before the power is turned OFF.
PRESET
REGEN
For the first recording after the power is
turned on, a P2 card is inserted and
then switching from this P2 card to
another recording-target P2 card is
performed, select whether or not to
regenerate the time code as the value
on the new P2 card.
PRESET:
Use the camera-recorder’s internal
time code.
REGEN:
For clips recorded on the recordingtarget P2 card, regenerate the time
code as the time code of the clip that
has the most recent date and time.
‹Notes
z Set the date and time accurately. For
guidance on setting, see [Setting the
Internal Clock’s Date and Time] (page
60).
z During operation in either 24P or
24PA mode, regeneration of the value
of the card recorded in drop-frame is
not permitted.
– C U F –
FIRST REC
TC
– C U F –
ON
P.OFF LCD
OFF
DISPLAY
– C U F –
TC OUT
– C U F –
TCG
TCG/TCR
Select whether or not to display the time
code setting and counter indication on
the LCD monitor when the power is
turned OFF.
ON: Display setting and indication while
the power is turned OFF.
OFF: Power-down LCD monitor while
camera power is turned OFF.
Setting and indication disabled.
Select the time code to be output to the
time code output connector.
TCG:Always output time code generator
value.
TCG/TCR:
Display time code generator value
in recording mode, and time code
reader value in playback mode.
Items/
Adjustable
Remarks
Data Saved Range
Select the display format for the time
TC DISP SEL 30F
code frame digits. (For 1080-59.94i,
24F
720-59.94P or 480-59.94i only）
For details, refer to [Recording time code
and user bits] (page 56).
30F: Display time code frame digits in 30
frames.
24F: Convert time code frame digits into
24 frames for display.
– C U F –
For setting to correct the time code
TC VIDEO
0
according to the delay of video signals.
SYNCRO
1
0: Do not correct.
2
1: To delay the time code to be input
3
according to the timing of the video
images.
2: To forward the time code to be output
according to the timing of the video
images.
3: To delay the time code to be input and
forward the time code to be output,
respectively, according to the timing of
the video images.
For details, refer to [Externally Locking
the Time Code] (page 62).
– C U F –
For selecting whether the time code is
REC REVIEW ON
regenerated to the value on the P2 card
REGEN
OFF
or not, when subsequent recording
starts after setting the RET SW item on
the SW MODE screen to R.REVIEW
and pressing the RET button on the lens
or the USER button on the unit on which
the RET SW function is assigned.
ON: The time code is regenerated to
the value on the tape.
OFF:
The
time code is not regenerated.
– C U F –
UMID SET/INFO
Items/
Adjustable
Remarks
Data Saved Range
Input the user’s country. NO-INFO is
NO-INFO
COUNTRY
displayed until the input completes.
– C U F –
ORGANIZATION NO-INFO
– C U F –
NO-INFO
USER
– C U F –
DEVICE
NODE
Input the user’s organisation or
company name. NO-INFO is displayed
until the input completes.
Input the user name. NO-INFO is
displayed until the input completes.
Indicate the product ID number.
– – – – –
‹Note
Please refer to [Setting UMID Information] (page 67) for the
UMID information setting.
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
183
Menu
Items/
Adjustable
Remarks
Data Saved
Range
VITC UB
USER/EXT Select the user bits mode for VAUX TC
(VITC).
MODE
TIME
USER/EXT:
DATE
If UB MODE is set to EXT, the EXT
TCG
value is recorded. If not, USER value
FRM RATE
set by UB is recorded.
REGEN
TIME: Select
local
time
(hours,
minutes, seconds).
DATE: Select local date and time (2 last
digits of year, month, date, time).
TCG: TCG value enters UB.
FRM RATE:
Select camera shoting information
(frame rate, etc.). For more
information, see [Frame rate
information recorded in user bits]
(page 58).
REGEN: Read out value stored in card
and record value continuously.
‹Note
When the unit operates in 24P, 24PA,
720P, and Native mode, the FRM RATE is
fixed.
– C U F –
AJ-HPX2000P(VQT1D27-1)E.book 184 ページ ２００７年７月３０日　月曜日　午後１時３１分
FILE
SD CARD READ/WRITE
Items/
Adjustable
Remarks
Data Saved Range
Select the file number to read out.
1
R.SELECT
:
– – – F – 8
Read out the data from the SD memory
READ
card.
– – – – –
1
W.SELECT
:
– – – F – 8
WRITE
– – – – –
CARD
CONFIG
Select the file number to write in.
Write the camera-recorder’s menu data
to the SD memory card.
Format the SD memory card.
SD CARD R/W SELECT
Items/
Adjustable
Remarks
Data Saved Range
Specify whether or not to use the
SYSTEM
ON
settings for the options on the SYSTEM
MODE R/W OFF
MODE screen when data is read or
written from or to SD memory cards.
– – – F –
ID READ/
ON
OFF
WRITE
– – – F –
USER MENU ON
SELECT R/W OFF
– – – F –
SYSTEM
MENU R/W
ON
OFF
– – – – –
TITLE READ
– – – – –
¢¢¢¢
TITLE1 - 8
¢¢¢¢
Read out the title of the data recorded
on the SD memory card.
Up to 8 letters can be set for the title
name.
– – – – –
‹Note
For a USB DEVICE mode, errors occur even if the
respective items for SD CARD READ/WRITE are
executed, since it does not access an SD memory card.
Set PC MODE to “OFF” and then execute the operation
again.
– – – F –
PAINT MENU ON
LEVEL R/W OFF
– – – F –
PAINT MENU ON
SW(„) R/W OFF
– – – F –
ON
VF MENU
OFF
R/W
– – – F –
ON
CAM OPE
OFF
MENU R/W
– – – F –
ON
MAIN OPE
OFF
MENU R/W
– – – F –
ON
MAINTE
OFF
MENU R/W
– – – F –
Select whether or not to include the
CAMERA ID when reading out or writing
to the SD memory card.
Select whether or not to include the
FILE MENU SELECT settings when
reading out or writing to the SD memory
card.
Specify whether or not to use the
settings on all screens except the
SYSTEM MODE screen on the
SYSTEM SETTING page and the
settings on the OPTION MENU page
when data is read or written from or to
SD memory cards.
Select whether or not to include the
adjusted values on the PAINT page
when reading out or writing to the SD
memory card.
Select whether or not to include the set
values on the PAINT MENU page when
reading out or writing to the SD memory
card.
Select whether or not to include the set
values on the VF page when reading out
or writing to the SD memory card.
Select whether or not to include the set
values on the CAM OPERATION page
when reading out or writing to the SD
memory card.
Select whether or not to include the set
values on the MAIN OPERATION page
when reading out or writing to the SD
memory card.
Select whether or not to include the set
values on the MAINTENANCE page
when reading out or writing to the SD
memory card.
The ____ in the Adjustable Range column indicates the
preset mode.
184
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 185 ページ ２００７年７月３０日　月曜日　午後１時３１分
LENS FILE
SCENE
Items/
Adjustable
Remarks
Data Saved
Range
Select the lens file number.
1
FILE NO.
:
– – – F – 8
Read the lens file data.
READ
– – – – –
Write the lens file data.
WRITE
– – – – –
READ
– – – – –
WRITE
RESET
– – – – –
TITLE READ
Menu
CARD FILE
1
:
SELECT
– – – F – 8
Create the scene file title.
– – – – –
LENS FILE CARD R/W
Items/
Adjustable
Data Saved
Range
Reset the scene file values to the initial
values.
– – – – –
TITLE 1-4
– – – – –
WRITE
Write the scene file.
– – – – –
¢¢¢¢¢¢¢ Up to 12 letters can be set for the title
¢¢¢¢¢
name.
– – – – –
READ
Read the scene file.
– – – – –
For resetting the all data of the lens file.
RESET ALL
TITLE1 - 8
Items/
Adjustable
Remarks
Data Saved Range
Read out the data from the user area in
READ USER
the memory.
DATA
– – – – –
Select the scene file.
SCENE SEL 1
:
– – – F – 4
Remarks
For selecting the number of the lens file
in the SD memory card.
For reading the lens file data from the
SD memory card.
For writing the lens file data into the SD
memory card.
For reading the title of the lens file in the
SD memory card.
– – – – –
¢¢¢¢¢¢¢ For setting a title consisting of not more
TITLE1 - 8
than 12 characters.
¢¢¢¢¢
– – – – –
‹Note
For a USB DEVICE mode, errors occur even if the
respective items of LENS FILE CARD R/W are executed,
since it does not access an SD memory card. Set PC
MODE to “OFF” and then execute the operation again.
‹Note
For a USB DEVICE mode, errors occur even if the READ
USER DATA item is executed, since it does not access an
SD memory card. Set PC MODE to “OFF” and then
execute the operation again.
INITIALIZE
Items/
Adjustable
Remarks
Data Saved Range
The menu (MAIN MENU, OPTION
READ
MENU) values are all reset to factory
FACTORY
settings.
DATA
‹Note
The settings for the following are not
reset to the factory-set values.
z Scene file
z User data
z Lens file
z Black shading data
– – – – –
WRITE USER
DATA
– – – – –
Save the user preference menu data in
the camera’s internal memory.
‹Note
For a USB DEVICE mode, errors occur even if the READ
FACTORY DATA item is executed, since it does not access
an SD memory card. Set PC MODE to “OFF” and then
execute the operation again.
The ____ in the Adjustable Range column indicates the
preset mode.
Menu : Menu Description Tables
185
AJ-HPX2000P(VQT1D27-1)E.book 186 ページ ２００７年７月３０日　月曜日　午後１時３１分
MAINTENANCE
SYSTEM CHECK
LENS FILE ADJ
Items/
Adjustable
Remarks
Data Saved Range
ON/OFF switching for checking proper
COLOR
ON
operation of the camera-recorder.
OFF
CHECK
The RGB level in the area around the
center of the screen is indicated in the
viewfinder to show whether each signal
is successfully communicated from the
optical channel to the digital channel
and processed.
– – – – –
LENS ADJ
Items/
Adjustable
Data Saved Range
F2.8 ADJ
ON
OFF
– – – – –
F16 ADJ
ON
OFF
– – – – –
Remarks
The iris is only set to F2.8 when this item
set to ON. (Adjustment to F2.8 will be
executed on the lens)
The iris is only set to F16 when this item
set to ON. (Adjustment to F16 will be
executed on the lens）
BLACK SHADING
Items/
Adjustable
Remarks
Data Saved Range
ON/OFF switching for digital black
ON
CORRECT
shading compensation.
OFF
– C U F R
DETECTION –
(DIG)
– – – – –
Execute digital black shading
compensation.
Items/
Adjustable
Remarks
Data Saved Range
ON/OFF switching for white shading
ON
CORRECT
compensation.
OFF
For executing the white shading
compensation manually.
The sawteeth-shaped waveform and the
parabola waveform of the respective
RGB channels are adjusted in the
horizontal direction and the vertical
direction.
– – – F –
186
LENS R GAIN –200
:
OFFSET
+000
For compensating Rch sensitivity of the
lens used.
:
– – – F – +200
LENS B GAIN –200
:
OFFSET
+000
For compensating Bch sensitivity of the
lens used.
:
– – – F – +200
LENS R
000
:
FLARE
100
– – – F –
LENS G
000
:
FLARE
100
– – – F –
LENS B
000
:
FLARE
100
– – – F –
For adjusting the flare level of Rch.
For adjusting the flare level of Gch.
For adjusting the flare level of Bch.
z Data adjusted on the LENS FILE ADJ screen can be
stored on an SD memory card as a lens file.
WHITE SHADING
– C U F R
R H SAW
–255
:
R H PARA
+000
R V SAW
:
R V PARA
+255
G H SAW
G H PARA
G V SAW
G V PARA
B H SAW
B H PARA
B V SAW
B V PARA
Items/
Adjustable
Remarks
Data Saved Range
ON: The gains of Rch and Bch
RB GAIN
ON
adjusted in <RB GAIN
CTRL RESET OFF
CONTROL> screen are reset.
Furthermore, the flare levels of
Rch, Gch and Bch that are
adjusted on <RGB BLACK
CONTROL> screen are reset.
OFF: The gains of Rch and Bch
adjusted in <RB GAIN
CONTROL> screen areenabled.
Furthermore, the flare levels of
Rch, Gch and Bch that are
adjusted on <RGB BLACK
CONTROL> screen are enabled.
– – – F –
Menu : Menu Description Tables
The ____ in the Adjustable Range column indicates the
preset mode.
AJ-HPX2000P(VQT1D27-1)E.book 187 ページ ２００７年７月３０日　月曜日　午後１時３１分
DIAGNOSTIC1
DIAGNOSTIC2
Items/
Adjustable
Remarks
Data Saved
Range
Displays the version of the main
CAMSOFT
software for the camera microprocessor.
MAIN
– – – – –
Display the table version.
CAM TABLE
– – – – –
PULSE FPGA
Items/
Adjustable
Remarks
Data Saved Range
Display the software version for the
SYSCON
system control microprocessor.
SOFT
– – – – –
LCD SOFT
Displays the version of the program for
driving the CCD.
– – – – –
P2CS OS
Displays the version of the program for
the microprocessor interface FPGA.
– – – – –
P2CS AP
Displays the version of the program for
the frame memory control FPGA.
– – – – –
SH4CTRL
FPGA
– – – – –
– – – – –
UCIF FPGA
– – – – –
FM FPGA
– – – – –
CHAR FPGA
Displays the version of the program for
the SD signal I/O control FPGA.
Display the OS version for the streaming
controller.
Display the application version for the
streaming controller.
Display the program version for the
streaming control FPGA.
PRCCTRL
FPGA
– – – – –
Displays the version of the program for
the prerecording control FPGA.
SYSIF FPGA
Display the program version for the
serial interface FPGA.
– – – – –
– – – – –
SDI IN FPGA
Menu
– – – – –
DC FPGA
Displays the version of the program for
the HD signal I/O control FPGA.
Display the software version for the LCD
microprocessor.
Displays the version of the program for
the SDI board FPGA (optional).
– – – – –
AVC-I SOFT
– – – – –
AVC-I FPGA
Display the control software version of the
AVC-I board (optional).
Display the FPGA program version of the
AVC-I board (optional).
– – – – –
HOURS METER
Items/
Adjustable
Remarks
Data Saved Range
Display total hours the camera power
OPERATION
has been turned ON.
– – – – –
P.ON TIMES
Display total number of times the power
switch has been turned ON.
– – – – –
Menu : Menu Description Tables
187
AJ-HPX2000P(VQT1D27-1)E.book 188 ページ ２００７年７月３０日　月曜日　午後１時３１分
OPTION MENU
OPTION
Items/
Adjustable
Remarks
Data Saved Range
Select whether or not to prohibit opening
ENG
ON
the menu screen.
OFF
SECURITY
ON: Menu screen cannot be opened.
Please consult your distributor to
release the setting.
OFF: Menu screen can be opened.
– – – – –
FRAME RATE FRM RATE For setting the user bits to record when
the video system is set to 24P or 24PA,
MENU
UB
or when the recording format is set to
720P. For details, refer to [Recording
time code and user bits] (page 56).
FRM RATE:
For recording the shooting information
(frame rate etc.) of the camera.
MENU: This follows the settings in the
UB MODE item and the VITC
UB MODE item of <TC/UB>
screen. However, the camera
recording information is always
recorded when recording in
Native mode.
– C – – –
1394 CONFIG DFLT(000) This is the menu for expanding the
DVCPRO/DV connector.
001
:
Use with DFLT in normal operation.
255
– C – – –
For setting the interval between packets.
1394 GAP
0
:
COUNT
40
:
– C – – – 63
AUDIO OUT DELAYED
THROUGH
DELAY
– C – – –
FAN MODE OFF
AUTO
– – – – –
Select whether or not to delay audio,
headphone and speaker outputs.
DELAYED:
Delay audio output in synchronisation
with video output.
THROUGH:
Output audio input without delay. This
setting prevents echo effect between
the sound source and audio output
when the sound source is near the
camera-recorder.
For setting the operation mode of the fan
OFF: The fan always stops.
AUTO:The fan will run automatically
when the temperature in the unit
increases.
‹Note
Once the power is turned off, this will
always be set to "AUTO" whenever the
power is turned on. If the unit is
operated as the fan stops, the
temperature in the unit will increase, and
data may not record or play back
properly. Use the unit after setting this
item to "AUTO" for normal operation.
The ____ in the Adjustable Range column indicates the
preset mode.
188
Menu : Menu Description Tables
AJ-HPX2000P(VQT1D27-1)E.book 189 ページ ２００７年７月３０日　月曜日　午後１時３１分
Updating the firmware incorporated
into the camera-recorder
For the most up-to-date information on firmware, see the support page for P2 at the following Web site:
https://eww.pavc.panasonic.co.jp/pro-av/
To update the firmware, confirm the version on AJ-HPX2000 by selecting MAINTENANCE > DIAGNOSTIC 1 and
DIAGNOSTIC 2 screens from the menu, and then access the above Web site to download the firmware if necessary.
Then, load the downloaded file on AJ-HPX2000 through an SD memory card to complete the update. For more
information on how to update the firmware, see the above site.
‹Note
SD cards used on AJ-HPX2000 must be compliant with the SD standards. In addition, they must be formatted with the
camera-recorder. If they must be formatted with a PC, then download special software from the above Web site and use it
to format the SD cards.
An SDHC memory card cannot be used for updating.
Updating the firmware incorporated into the camera-recorder
Updating the firmware incorporated into the camera-recorder
189
AJ-HPX2000P(VQT1D27-1)E.book 190 ページ ２００７年７月３０日　月曜日　午後１時３１分
Specifications
General
Operating humidity:
Power supply:
DC 12 V (11.0 V - 17.0 V)
Power consumption:
36 W (Main unit only, with LCD monitor OFF)
43 W (With the SDI-IN and AVC-Intra option installed,
LCD monitor ON)
indicates safety information.
Operating temperature:
0 °C to +40 °C (32 °F to +104 °F)
Storage temperature:
–20 °C to +60 °C (–4 °F to +140 °F)
10% to maximum 85% (relative
humidity)
Maximum continuous operation:
Approximately 120 minutes (using an
Anton/Bauer DIONIC90 battery)
Dimensions (W a H a D):
137 mm a 209 mm a 318 mm
(5-3/16 inches a 8-1/2 inches a 12-1/2
inches)
(excluding handle and wireless option
cover)
Weight:
Approx. 4.5 kg (9.9 lb)
(main unit only, excluding VF mount)
Camera Unit
Pickup devices:
2/3-inch CCD a 3
Image pickup scheme:
RGB 3CCD
Total pixels:
1370 (H) a 744 (V)
Valid pixels:
1280 (H) a 720 (V)
Filter:
1: 3200K
2: 5600K + 1/8ND
3: 5600K
4: 5600K + 1/64ND
Quantizing:
14-bit
Horizontal drive frequency:
74.1758 MHz (59.94 Hz)
74.25 MHz (50 Hz)
Sampling frequencies:
74.1758 MHz (59.94 Hz)
74.25 MHz (50 Hz)
Digital signal processing:
74.1758 MHz (59.94 Hz)
74.25 MHz (50 Hz)
Programmable gain:
–3 dB, 0 dB, +3 dB, +6 dB, +9, dB
+12 dB, +15 dB, +18 dB, +21 dB,
+24 dB, +27 dB or +30 dB
Digital Super Gain (DS.GAIN):
Selectable from +6 dB, +10 dB, +12 dB,
+15 dB or +20 dB
LINE MIX GAIN:
+6 dB (selectable between on and off)
Super Gain (S.GAIN):
Selectable from 30 dB, 36 dB, 42 dB or
48 dB
190
Specifications
Shutter speeds:
1/60 (50 Hz), 1/100 (59.94 Hz), 1/120,
1/250, 1/500, 1/1000, 1/2000, HALF
Synchro-scan shutter:
1/60.3 to 1/249.8
(1080-59.94i/720-59.94P/480-59.94i)
1/30.2 to 1/249.8
(1080-29.97P/720-29.97P/480-29.97P)
1/24.1 to 1/249.8
(1080-23.98P(A)/720-23.98P/48023.98P(A))
1/50.2 to 1/209.5
(1080-50i/720-50P/576-50i)
1/25.2 to 1/209.5
(1080-25P/720-25P/576-25P)
Lens mount:
2/3-inch bayonet type
Color separation optical system:
Optical prism (F1.4)
Sensitivity:
F10 (2000 lx, 89.9% reflection)
Minimum object illuminance:
0.007 lx
(For F1.4, +48 dB (S. GAIN), +20 dB
(DS. GAIN), +6 dB (LINE MIX GAIN))
Video S/N:
54 dB (standard)
Registration error: 0.03% or less (all areas, excluding lens
distortion)
AJ-HPX2000P(VQT1D27-1)E.book 191 ページ ２００７年７月３０日　月曜日　午後１時３１分
Memory Card Unit
Record media:
P2 card
Video recording formats:
Selectable from DVCPRO HD,
DVCPRO50, DVCPRO and DV
Audio recording formats:
48 kHz 16-bit 4ch (DVCPRO HD/
DVCPRO50)
48 kHz 16-bit 2ch/4ch selectable
(DVCPRO/DV)
Recording/playback time:
Approximately 8 minutes:
For recording in DVCPRO HD (1080/60i)
mode using one AJ-P2C008HG
Approximately 32 minutes:
For recording in DVCPRO (480/60i)
mode using one AJ-P2C008HG
‹Note
This recording time represents one shot continuously
recorded on a P2 card. The recording time may be shorter,
depending on the number of shots recorded.
https://eww.pavc.panasonic.co.jp/pro-av/
Frequency range:
Y:
74.1758 MHz (59.94 Hz)
74.25 MHz (50 Hz)
(DVCPRO HD)
PB/PR: 37.0879 MHz (59.94 Hz)
37.125 MHz (50 Hz)
(DVCPRO HD)
Y:
13.5 MHz (DVCPRO50)
PB/PR: 6.75 MHz (DVCPRO50)
Quantization:
8 bits
Video compression ratio:
DVCPRO HD: 1/6.7
(not in 1080-50i/25P mode)
1/6.3
(in 1080-50i/25P mode)
DVCPRO50: 1/3.3
DVCPRO/DV: 1/5
Video recording bit rate:
DVCPRO HD: 100 Mbps
DVCPRO50: 50 Mbps
DVCPRO/DV: 25 Mbps
Specifications
For the latest information on P2 cards not available
in the operating Instructions, visit the P2 Support
Desk at the following Web sites.
Digital Video System
Digital Audio System
Sampling frequency:
48 kHz (synchronised with video)
Quantizing:
16 bits
Frequency response:
20 Hz - 20 kHz ± 1.0 dB
(at standard level)
Dynamic range:
Minimum 85 dB (1 kHz, AWTD)
Distortion factor:
0.1% or less (1 kHz, standard level)
Headroom:
20 dB
Specifications
191
AJ-HPX2000P(VQT1D27-1)E.book 192 ページ ２００７年７月３０日　月曜日　午後１時３１分
Input/output Unit
GEN LOCK IN:
MON OUT:
VIDEO OUT :
TC IN:
TC OUT:
DVCPRO/DV :
SDI-IN :
BNCa1, 1.0 VP-P, 75 h
(This is available as VIDEO IN or the
return video input connector, which can
be switched in the menu.)
BNCa1, 1.0 VP-P, 75 h
BNCa1, 1.0 VP-P, 75 h
(It can be switched among HD-SDI/SDSDI/Composite.)
HD-SDI:
0.8 VP-P, 75 h
(Compliant with the
SMPTE292M/296M/299M
standards)
SD-SDI:
0.8 VP-P, 75 h
(Compliant with the
SMPTE259M-C/272M-A/
ITU-R. BT656-4 standards)
Composite: 1.0 VP-P, 75 h
BNCa1, 0.5 VP-P to 8 VP-P, 10 kh
BNCa1, low impedance, 2.0 ± 0.5 VP-P
6 pins (I/O)
Transmission rate:
400, 200, or 100 Mbps (selectable)
Transmission data:
compliant with IEEE1394 - 1995/
1394a - 2000, IEC 61883-1 and 2,
and SMPTE 396M
Control commands:
compliant with the AV/C Command
Set standards.
BNCa1, 0.8 VP-P, 75 h
(HD/SD-SDI input board AJ-YA350AG is
attached.)
HD: Compliant with the SMPTE292M/
296M/299M standards
Accessories
Shoulder Strap
Front Audio Level control knob
Control knob mounting screwa1
CD-ROM
Operating Instructions
Weight and dimentions when shown are approximately.
Specifications are subject to change without notice.
192
Specifications
SD: Compliant with the SMPTE259MC/272M-A/ITU-R.BT656-4
standards
AUDIO IN CH1/CH2:
XLR a 2, 3 pins
LINE, MIC, and +48 V switch-selectable
LINE:
+4 dBu
(–3 dBu/0 dBu/+4 dBu
selectable with menu)
–60 dBu (–60 dBu/–50 dBu
MIC:
selectable with menu)
MIC + 48V: Compatible with +48V
phantom power supply
–60 dBu (–60 dBu/–50 dBu
selectable with menu)
MIC IN:
XLR a 1, 5 pins
+48 V phantom: ON/OFF selectable
with menu
–40 dBu
(–50 dBu/–40 dBu selectable with menu)
WIRELESS IN:
25 pin D-SUB, –40 dBu
AUDIO OUT CH1/CH2:
XLR a 1, 5 pins, +4 dBu
(–3 dBu/0 dBu/+4 dBu selectable with menu)
Balanced low-impedance output
Headphones :
Stereo mini jack a 2
DC IN:
XLR a 1, 4 pins, DC 12 V (DC 11 V - 17 V)
DC OUT:
4 pins, DC 12 V (DC 11 V - 17 V)
Maximum rated current: 1.5 A
LENS:
12 pins
EVF:
20 pins
REMOTE:
10 pins (connector for AJ-RC10G)
GPS:
6 pins (connector for AJ-GPS910G)
USB version 2.0 : HOST: 4-pin, Type-A connector
DEVICE: 4-pin, Type-B connector
AJ-HPX2000P(VQT1D27-1)E.book 193 ページ ２００７年７月３０日　月曜日　午後１時３１分
Software information for this product
1.Customer advisory: This product includes software licensed under the GNU General Public License (GPL) and GNU
Lesser General Public License (LGPL); customers have the right to download, modify, and redistribute source code for
this software.
Descriptions of the GPL and LGPL are stored on the installation CD included with this camera-recorder. See the folder
named \LDOC. (The description is the original (written in English)). To download the relevant source code, visit
https://eww.pavc.panasonic.co.jp/pro-av/.
Please note that we cannot answer any questions you may have about the content, etc. of any source code you may
obtain from the above Web site.
2.This product includes software licensed under the MIT License. A description of the MIT is stored on the installation CD
included with this camera-recorder. See the folder named \LDOC. (The description is the original (written in English)).
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i)
encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a
consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide
AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG
LA, LLC.
See http://www.mpegla.com.
z Unislot is a trademark of Ikegami Tsushinki Co., Ltd.
z Other names of companies and products are trademarks or registered trademarks of the respective companies.
193
AJ-HPX2000P(VQT1D27-1)E.book 194 ページ ２００７年７月３０日　月曜日　午後１時３１分
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products should
not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points, where they will
be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your
local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on
human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority
for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Panasonic Broadcast & Television Systems Company
Unit Company of Panasonic Corporation of North America
Executive Office:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000
EASTERN ZONE:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7196
Southeast Region: (201) 348-7162
WESTERN ZONE:
3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Government Marketing Department:
One Panasonic Way 2E-10, Secaucus, NJ 07094 (201) 348-7587
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. – 5:00 p.m. (EST) (800) 334-4881/24 Hr. Fax (800) 334-4880
Emergency after hour parts orders (800) 334-4881
TECHNICAL SUPPORT:
Emergency 24 Hour Service (800) 222-0741
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic de Mexico S.A. de C.V.
Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico, D.F. (52) 1 951 2127
Panasonic Puerto Rico Inc.
San Gabriel Industrial Park, 65th Infantry Ave., Km. 9.5, Carolina, Puerto Rico 00630 (787) 750-4300
Professional & Broadcast IT Systems Business Unit Europe
Panasonic AVC Systems Europe a Division of Panasonic Marketing Europe GmbH
Hagenauer Str. 43, 65203 Wiesbaden-Biebrich Deutschland Tel: 49-611-235-481
© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
