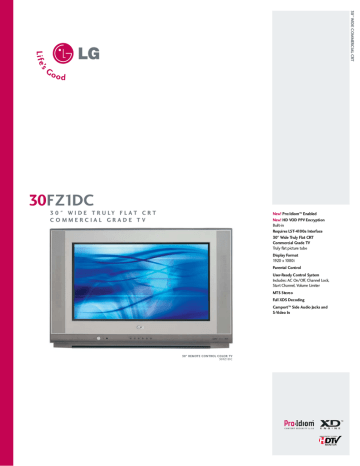

30" WIDE COMMERCIAL CRT
30FZ1DC
3 0 " W I D E T R U LY F L A T C R T
COMMERCIAL GRADE TV
New! Pro:Idiom™ Enabled
New! HD VOD PPV Encryption
Built-in
Requires LST-4100a Interface
30" Wide Truly Flat CRT
Commercial Grade TV
Truly flat picture tube
Display Format
1920 x 1080i
Parental Control
User-Ready Control System
Includes: AC On/Off, Channel Lock,
Start Channel, Volume Limiter
MTS Stereo
Full XDS Decoding
Camport™ Side Audio Jacks and
S-Video In
30" REMOTE CONTROL COLOR TV
30FZ1DC
30FZ1DC 30" Wide Truly Flat CRT Commercial Grade TV
DIMENSIONS
Side View
Front View
SCREEN SIZE
30"
REAR JACKS
Dimensions (H x W x D)
Weight
23.64" x 35.87" x 21.68"
127.9 Lbs.
A/V In
S-Video In
HDMI
RS-232C
Component & R/L Audio In
SPDIF In/Out
RF In
VIDEO ENHANCEMENTS
CRT
Display Format
Horizontal/Vertical Scan Rate
Integrated ATSC/NTSC
Open QAM Tuner
Dynamic Focus
Comb Filter
Scan Velocity Modulation
Color Temperature
Auto Flesh Tone
DLTI/DCTI
Black/Blue Stretcher
White Level Compression
Advanced Ghost Canceler
Improved Weak Signal Performance
3:2 Cinema Correction
Aspect Ratio Correction
Manual Degaussing
Tilt Correction Control
Picture User Control
EZ Video
LST-4100a Required
30" Wide Flat
1920 x 1080i
15.75 kHz/60 Hertz
Yes
Yes
Yes (MTS/SAP)
3D EchoSound System
2
2 x 7.5W
Yes
Yes (On/Off)
Custom, Normal,
Stadium, News, Music,
Theater
A/V In
S-Video In
Yes
Yes
TRANSMITTER
QuickSet Clone Programmer
Compatible
Finish
Remote
Yes
Molded Diamond Mist
Yes
CABINET/CHASSIS DESCRIPTION
Mounting Holes for LSP Boxes
Spill-Proof Cabinet Back
Control Panel
Control Panel (# of Buttons)
Invisible Bracket Compatibility
Power-On Indicator
Local Key Type
Local Key (#)
Remote
Yes
Yes
Direct Type (Front) or
Door Type (Front)
6
Yes
With Stand-by Indicator
Tact
Power, Menu, TV/Video,
Vol. (+/–), Ch. (+/–)
Yes
SPECIAL COMMERCIAL FEATURES
HD VOD PPV Encryption
Discrete IR
Auto/Manual Clock
On/Off Timer
Sleep Timer
Auto/Manual Programming
Decryption
Auto Demo
Top View
MENU SYSTEM
Yes
Yes
1
1 (Include IR-Out)
2 (480i/p, 720p, 1080i)
–/1 Output (Optic)
1 (ATSC+NTSC)
FRONT JACKS
Yes
4H Comb Filter
Yes (Off/Low/High)
Yes (Cool/Mid/Warm)
Yes
Yes
Yes
Yes
Yes
Yes (PVSB)
Yes
Normal, Wide, Horizon,
Zoom1, Zoom2,
Cinema Zoom
Yes
Yes (Manual)
Contrast/Brightness/
Tint/Color/Sharpness
Custom, Normal, Movie,
Sports, Video Game,
Weak Signal, Day Light
Yes (Sold Separately)
AUDIO ENHANCEMENTS
Dolby Digital Decoder
Mono/Stereo/SAP
Surround System
Number of Speakers
Total Audio Watts (RMS)
Bass/Treble/Balance
EZ Soundrite (AVL)
EZ Sound
Bottom View
Yes (Built-In)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
www.LGcommercial.com
LG Electronics U.S.A., Inc. 2000 Millbrook Drive, Lincolnshire, IL 60069 Customer Service: 1-888-865-3026
Dimensions and weights are approximate. Design and specifications subject to change without notice. The “LG Life’s Good”
is a registered trademark of LG Electronics U.S.A., Inc. ©2005 LG Electronics U.S.A., Inc. Printed in the USA. LG30FZ1DC1005
Menu Type
Trilingual Menus
Scrolling Menus
OSD
English/French/Spanish
Channel Banks, Closed
Captions
MENU SCREENS
Commercial Installation Menu
Set-Up, Video, Audio, Source
Parental Control (V-Chip)
Yes
Yes
V-Chip Defeatable &
Clonable
Ghost Channels Labels (Defeatable) Yes
Channel/Time Display – OSD
Configurable Colors,
Defeatable & Clonable
Channel Labels
Programmable
(20 minimum), Canned,
Clonable and Defeatable
Favorite Channel Selection
Yes
Sleep Timer, Wake-Up Timer
Yes
XDS Decoding
Yes
Flashback (Quick View), Captions
Yes
Closed Caption
Analog/Digital
Mute
Yes
Function Menu
Yes
AC/DC
AC Only
APPROVALS
UL / C-UL / NOM / FCC Class B
ISTA/UPS Ship Test
Yes
Yes
SERVICE/LIMITED WARRANTY
Replacement Parts/CRT/Labor
Service Support Level
1 Year/2 Year/1 Year
Module Level
