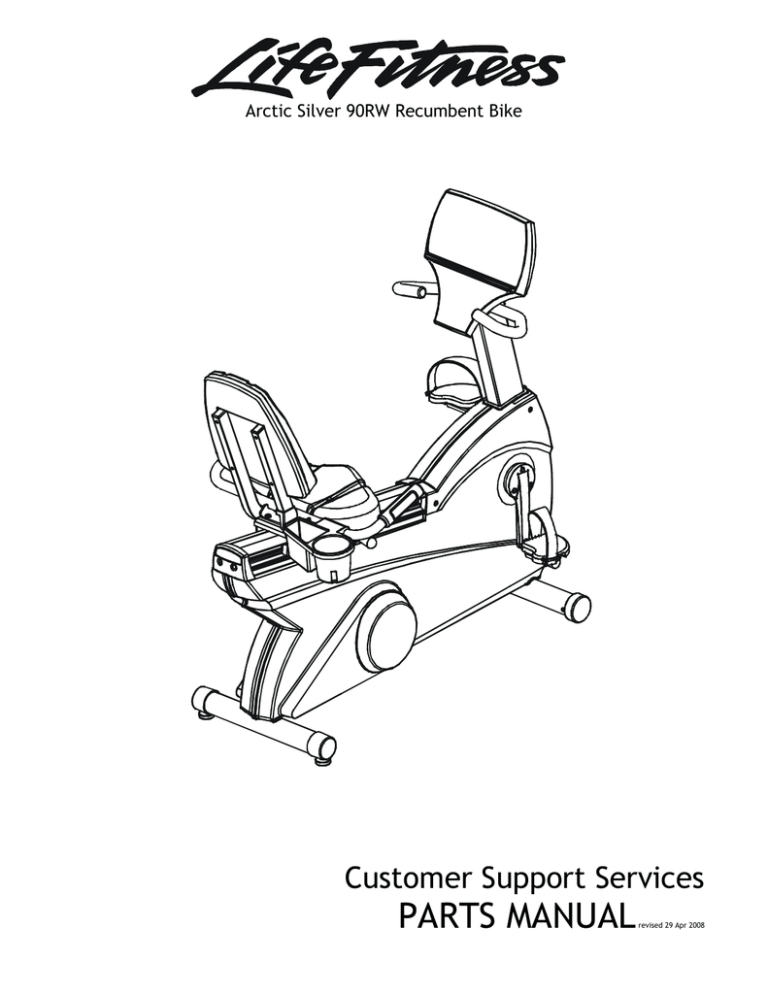

Arctic Silver 90RW Recumbent Bike
Customer Support Services
PARTS MANUAL
revised 29 Apr 2008
ARCTIC SILVER 90RW
90RW-0XXX-02
REFERENCES
S/N CCK100000 and UP
OPERATION MANUAL
M051-00K39-A020
ACCESSORY TRAY KIT
AK39-00052-0004
HARDWARE BAG
GK39-00002-0008
POLAR UPGRADE KIT
GK39-00002-0001
TOUCH UP PAINT:
SPRAY CAN
.5 OZ BOTTLE W/APPLICATOR
.33 OZ PEN
0017-00008-0204
0017-00008-0205
0017-00008-0206
COAX CABLE
AK32-00020-0001
CONNECTION BRACKET ASSEMBLY
ASSEMBLY CONSISTS OF:
1) POWER CABLE
2) F TYPE CONNECTOR
AK39-00093-0000
SERVICE MANUAL
M051-00K39-A012
AK32-00078-0001
0017-00021-2846
NOTE: ADDING THE BOLT ON LCD SCREEN TO THE
90RW-OXXX-02 MAKES THE UNIT 90RER-0XXX-02.
2
ARCTIC SILVER 90RW
90RW-0XXX-02
CONTENTS
S/N CCK100000 and UP
Page
CONSOLE COMPONENTS .............................................................................................4
CONSOLE SUPPORT ASSEMBLY..................................................................................5
SHROUDS, END CAP, CRANKARMS AND PEDALS .....................................................6
BELTS...............................................................................................................................7
RESISTOR ASSEMBLY ...................................................................................................8
POWER CONTROL BOARD ............................................................................................9
ALTERNATOR W/PULLEY ..............................................................................................10
CRANKSHAFT AND BEARING ASSEMBLY...................................................................11
INTERMEDIATE SHAFT AND BEARING ASSEMBLY....................................................12
IDLER BRACKET ASSEMBLY.........................................................................................13
SEAT ASSEMBLY…………….………………………………………………………………….14
SEAT BOTTOM ASSEMBLY..………………………………………………………………..…15
SEAT FRAME ASSEMBLY….………………………………………………………………….16
SEAT PADS AND ACCESSORY TRAY.………………………………………………………17
EXTRUSION ASSEMBLY..………………………………………………………………………18
SEAT LOCKING ASSEMBLY…………………………………………………………………...19
WHEEL AND LEVELER…………………………………………………………………………..20
CABLES…………………………………………………………………………………………….21
3
ARCTIC SILVER 90RW
90RW-0XXX-02
Console Components
S/N CCK100000 and UP
Console Board
A084-92220-A006
Upper Overlay
Console Decal
0K63-01277-0000
Lower Overlay
Console Case Assembly
AK63-00121-0001
Phillips Pan Screws(13)
0017-00101-1650
Battery Door
0K63-01029-0001
Console Assembly
AK39-00072-0001 Eng Met
AK39-00072-0003 Ger Met
AK39-00072-0004 Spn Met
AK39-00072-0006 Jap Met
AK39-00072-0007 Frn Met
AK39-00072-0008 Itl Met
AK39-00072-0009 Dut Met
AK39-00072-0010 Por Met
Overlay/Bezel/Switch Assy.
AK63-00167-0001 Eng Met
AK63-00167-0003 Ger Met
AK63-00167-0004 Spn Met
AK63-00167-0006 Jap Met
AK63-00167-0007 Frn Met
AK63-00167-0008 Itl Met
AK63-00167-0009 Dut Met
AK63-00167-0010 Por Met
4
ARCTIC SILVER 90RW
90RW-0XXX-02
Console Support Assembly
S/N CCK100000 and UP
4-Pin
Heart Rate Cable
10-Pin Connector
Main Wiring Cable
Grip(2)
0K39-01005-0001
Console Support
AK39-00003-0002
Console Mounting
Screw(4)
0017-00101-1744
Frame Post Bolt(4)
0017-00101-1756
Frame Post
5
ARCTIC SILVER 90RW
90RW-0XXX-02
Shrouds, End cap and Pedals
Shroud Screws(7)
0017-00101-1741
Crank Arm, RT
0K39-01042-0007
Screws(3)
0017-00101-1855
S/N CCK100000 and UP
Right Shroud
AK39-00033-0007
Decal
0K39-01070-0000
End Cap Screws(2)
0017-00101-1614
End Cap
AK39-00050-0005
Decal
0K51-01085-0001
Shroud Screws(4)
0017-00101-1741
Right Pedal
AK63-00123-0003
Pedal Strap (not shown)
0K63-01237-0003
Left Shroud
AK39-00033-0008
Decal
0K39-01070-0000
6
Left Pedal
AK63-00123-0004
Pedal Strap
(not shown)
0K63-01237-0004
Crank Arm, LT
0K39-01042-0008
Screws(3)
0017-00101-1855
ARCTIC SILVER 90RW
90RW-0XXX-02
Belts
S/N CCK100000 and UP
Intermediate
Pulley Belt
0K63-01066-0001
Screw
0017-00101-1193
Alternator Belt
0017-00009-0735
7
ARCTIC SILVER 90RW
90RW-0XXX-02
Resistor Assembly
S/N CCK100000 and UP
Washer(2)
0017-00104-0309
Resistor
100E-00002-0084
Resistor Retainer
0K39-01043-0000
Pan Screw(2)
0017-00101-1057
Hex Nut(3)
0017-00103-0081
Mounting Rod
0K63-01166-0000
Mounting Bracket
0K39-01036-0000
8
ARCTIC SILVER 90RW
90RW-0XXX-02
Power Control Board
S/N CCK100000 and UP
Assembly Number - AK39-00022-0002
Plastic Grommet(4)
0017-00042-0821
Bracket
0K39-01027-0000
Philip Screw(4)
0017-00101-0823
Power Control
Board
B084-92064-A000
9
ARCTIC SILVER 90RW
90RW-0XXX-02
Alternator w/Pulley Assembly
S/N CCK100000 and UP
Assembly Number – AK63-00093-0000
Alternator
0017-00009-0841
Alternator Pulley
0K61-02500-0001
Locking Nut
0017-00103-0117
Bolt
0017-00101-0956
Washer
0017-00104-0044
10
ARCTIC SILVER 90RW
90RW-0XXX-02
Crank Shaft and Bearing Assembly
Crank Arm Hub
0K63-01095-0001
S/N CCK100000 and UP
Pulley Assembly
AK63-00051-0000
Pulley
0K63-01018-0000
Washers (3)
0017-00104-0458
Flywheel Screws (3)
0017-00101-1715
*Crankshaft & Bearing Kit
GK63-00002-0077
*Crankshaft
0K63-01012-0001
*Small Thrust Washer (2)
0K63-01129-0000
*Large Thrust Washer (2)
0K63-01129-0001
*Bowed Retainer Ring (2)
0017-00100-0243
Washer (2)
0017-00104-0409
*Needle Bearing (2)
0K63-01344-0000
*Small Snap Ring (2)
0017-00100-0241
Crank Arm Hub (2)
0K63-01095-0001
11
Bolt (2)
0017-00101-1705
ARCTIC SILVER 90RW
90RW-0XXX-02
Intermediate Shaft and Bearing Assembly
Clutch Assembly
AK63-00026-0000
(not included in kit)
Delrin Washers (2)
0017-00104-0455
Retaining Ring
0017-00100-0242
S/N CCK100000 and UP
Magnet
118E-00001-0124
(not included in kit)
Spacer (not Intermediate
Bearings (2,
available
separately) not available
separately)
Intermediate Pulley
(not available separately)
Intermediate Shaft and
Bearing Assembly Kit
GK63-00002-0007
12
ARCTIC SILVER 90RW
90RW-0XXX-02
Idler Bracket Assembly
S/N CCK100000 and UP
Idler Bracket Assembly – AK63-00021-0000
Idler Bracket
0K63-01050-0000
Lock Nut
0017-00103-0218
Idler Bearing
AK63-00008-0000
13
ARCTIC SILVER 90RW
90RW-0XXX-02
Seat Assembly
S/N CCK100000 and UP
End Cap
0K19-01208-0001
Foam Grip
0K14-01926-0005
Seat Assembly
AK51-00034-0003
14
ARCTIC SILVER 90RW
90RW-0XXX-02
Seat Assembly - Bottom
S/N CCK100000 and UP
Roller Shield(4)
0K51-01059-0001
Washer
0017-00104-0461
Spacer(4)
0K51-01044-0000
Locking Nut(4)
0017-00103-0326
Washer(4)
0017-00104-0462
Washer(4)
0017-00104-0463
Screw(2)
0017-00101-1748
Bolt(4)
0017-00101-1743
Lock Assembly
Roller Assembly
AK51-00056-0001
Locking Nut(8)
0017-00103-0325
Roller (2), LT
0K51-01034-0002
Roller (2), RT
0K51-01034-0001
15
ARCTIC SILVER 90RW
90RW-0XXX-02
Seat Frame Assembly
S/N CCK100000 and UP
Complete Seat Assembly
AK51-00027-0003
Screw(4)
0017-00101-1746
Washer(4)
0017-00104-0462
Front Stop Bracket
0K51-01062-0000
Plastic Shield
0K19-01185-0001
16
ARCTIC SILVER 90RW
90RW-0XXX-02
Seat Pads and Accessory Tray
S/N CCK100000 and UP
Seat Back
0K51-01056-0001
Seat Bottom
0k51-01054-0001
Washer(4)
0017-00104-0462
Mounting Screw(4)
0017-00101-1743
17
ARCTIC SILVER 90RW
90RW-0XXX-02
Extrusion Assembly – AK39-00027-0006
S/N CCK100000 and UP
Stop Bracket
Screws
0K51-01061-0001
0017-00101-1751
Locking Rack
0K51-01013-0002
Decal
0K51-01039-0001
Bumper
0017-00041-0654
Screw
0017-00101-1750
Plastic Grommet
0017-00042-1055
Bolts
0017-00101-1183
Extrusion Seat Assy
AK39-00027-0006
18
ARCTIC SILVER 90RW
90RW-0XXX-02
Locking Assembly – AK51-00053-0001
Knob
AK51-00029-0001
S/N CCK100000 and UP
TORX Screw
0017-00101-1742
Anti-Rattle Washer
0K51-01060-0001
Retainer Bearing
0K51-01011-0000
Handle Shaft
0K51-01007-0000
Groove Pin
0017-00007-0245
E-Ring
0017-00100-0018
Compression Spring
0K51-01012-0000
Washer
0017-00104-0421
Housing-Insert Assembly
AK51-00030-0001
Locking-Block Assembly
AK19-00147-0000
19
ARCTIC SILVER 90RW
90RW-0XXX-02
Wheel and Leveler
S/N CCK100000 and UP
Rear Stabilizer
GK39-00002-0012
End Cap
0K63-01219-0001
Leveler
0017-00009-0795
Lock Nut
0017-00103-0273
Leveler Assembly
AK61-00035-0000
Flat Washer
0K63-01041-0000
Wheel Insert
0K63-01039-0000
Pan Screw(2)
0017-00101-1747
Wheel Assembly
AK63-00016-0001
Wheel Screw
0017-00101-1747
Complete Wheel Assembly
AK63-00017-0001
20
ARCTIC SILVER 90RW
90RW-0XXX-02
Cables
S/N CCK100000 and UP
Cable (Alternator to control)
AK39-00009-0000
Cable Main
AK39-00008-0000
21
