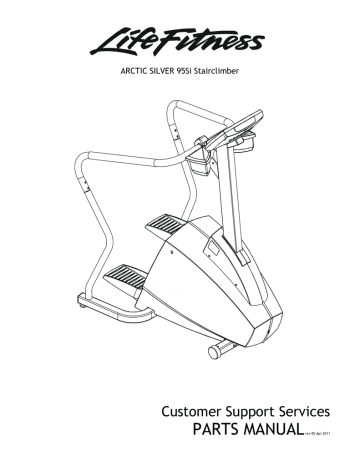

ARCTIC SILVER 95Si Stairclimber
Customer Support Services
PARTS MANUAL
rev 05 Apr 2011
ARCTIC SILVER 95Si
CONTENTS
95S-0XXX-02
S/N ACF100000 and up
Page
Console Components..............................................................................................4
Frame Components ...............................................................................................5
Shrouds and Pedal Tube..........................................................................................6
Pedal Assembly ....................................................................................................7
Clutch/Shaft/Pulley Assembly ..................................................................................8
Left Clutch Assembly .............................................................................................9
Crossover Pulley Assembly ..................................................................................... 10
Alternator Assembly ............................................................................................ 11
Guide Rollers..................................................................................................... 12
Power Control Board and Resistors........................................................................... 13
Polar Receiver Assembly ....................................................................................... 14
Cables ............................................................................................................. 15
2
ARCTIC SILVER 95Si
Miscellaneous
95S-0XXX-02
S/N ACF100000 and up
Description
Part No.
Operation Manual
M051-00K47-A025
Hardware Bag
AK47-00106-0000
Touch-up Paint:
Spray Can
0.5 oz. Bottle w/Applicator
0.33 oz. pen
0017-00008-0204
0017-00008-0205
0017-00008-0206
Service Manual
M051-00K47-A013
3
ARCTIC SILVER 95Si
Console Components
95S-0XXX-02
S/N ACF100000 and up
Upper Console
PC Board
A084-92219-A005
Lower Console
PC Board
B084-92222-B000
Lower Console
Board Cable
AK63-00038-0000
Console Case
Assembly
AK63-00121-0001
Phillips Screws(17)
0017-00101-1650
Language
Eng Met
Ger Met
Spn Met
Jap Met
Frn Met
Itl Met
Dut Met
Por Met
Battery Door
0K63-01029-0001
Part No.
Overlay/Bezel/Switch
Console Assembly
Assembly
AK47-00094-0001
AK47-00098-0001
AK47-00094-0003
AK47-00098-0003
AK47-00094-0004
AK47-00098-0004
AK47-00094-0006
AK47-00098-0006
AK47-00094-0007
AK47-00098-0007
AK47-00094-0008
AK47-00098-0008
AK47-00094-0009
AK47-00098-0009
AK47-00094-0010
AK47-00098-0010
4
ARCTIC SILVER 95Si
Frame Components
Console Mounting Screws
0017-00101-1744
95S-0XXX-02
S/N ACF100000 and up
Bull Horn w/HR - RT
AK47-00110-0001
Accessory Tray
0K63-01030-0001
Mounting Screws
0017-00101-1744
Bull Horn w/HR - LT
AK47-00110-0002
Handlebar
AK47-00057-0002
Mono-Column
AK47-00068-0003
TORX Cap Screw (4)
0017-00101-1760
Vertical Handrail
0K47-01030-0002
End Cap
0K47-01156-0001
Handlebar
Hex Screws(2)
0017-00101-0933
Wheel w/Bearings
AK63-00016-0001
Wheel Insert Mounting Screw (2)
0017-00101-1621
Wheel Insert
0K47-01085-0000
Wheel Mounting Screw
0017-00101-1614
Washer
0K63-01041-0000
5
Leg Levelers
AK61-00035-0000
Jam Nut
0017-00103-0273
ARCTIC SILVER 95Si
Shrouds and Pedal Tube
95S-0XXX-02
S/N ACF100000 and up
Mono-Column Shroud
AK47-00082-0001
Phillips Pan Screw(2)
0017-00101-1769
Grommets
0017-00042-0754
Phillips Pan Screws(2)
0017-00101-1764
Center Shroud
0K47-01165-0000
Left Shroud w/Cable
AK47-00111-0002
Right Shroud
AK47-00111-0001
Track Cover Bracket
0K47-01146-0001
Bracket Screw
0017-00101-1763
Track Cover
0K47-01164-0000
Decal; ISO Track
0K47-01181-0000
Phillips Pan Screw(9)
0017-00101-1769
Cover Screw(2)
0017-00101-1763
6
Pedal Tube Track
0K47-01132-0001
Pedal Tube
Mounting Bolts
0017-00101-1719
ARCTIC SILVER 95Si
Pedal Assembly
95S-0XXX-02
S/N ACF100000 and up
Thrust Washer
0K47-01144-0000
Mono Roller w/Bearings
AK47-00076-0000
Washer
0K47-01151-0000
Washer
0K47-01151-0000
Shaft
0K47-01134-0000
Side Track Roller
0K47-01084-0000
Thrust Washer
0K47-01144-0000
Roller Sleeve(2)
0K47-01138-0000
Side Track Roller
0K47-01084-0000
Mono Roller & Shaft Assembly
AK47-00071-0000
Side Roller Hex Bolt(4)
0017-00101-1609
Roller Sleeve (2)
0K47-01136-0000
Track Roller(4)
w/Busshing Assy
AK47-00087-0000
Retainer, Bottom
0K35-01144-0001
Retainer, Top
0K35-01144-0003
Allen Screw
0017-00101-1348
Nut - 0017-00103-0052
Mono-roller Hex Bolt(2)
0017-00101-1730
Thin Lock Nut(2)
0017-00103-0324
Spacer Plate
0K47-01148-0000
Belt Terminator
0K35-01105-0000
Low Head
Terminator Screw(2)
0K47-01153-0000
Center Hex Bolt
0017-00101-1729
Mono-roller Hex Bolt(2)
0017-00101-1730
Belt Bracket
0K35-01142-0000
Pedal Bracket Assembly
w/o Rollers
AK47-00086-0002
Pedal Assembly LT
w/Rollers
AK47-00072-0002
Pedal Assembly RT
w/Rollers
AK47-00073-0002
Pedal Only: RH or LT
0K47-1046-0001
Lock Nut(11)
0017-00103-0282
Washer(2)
0017-00104-0159
Belt/Spring Assembly
GK47-00002-0033 (Left)
GK47-00002-0034 (Right)
7
ARCTIC SILVER 95Si
Clutch/Shaft/Pulley Assembly
95S-0XXX-02
S/N ACF100000 and up
Clutch/Shaft/Pulley Assy.
AK47-00006-0000
E-ring
0017-00100-0107
Special Thrust
Washers
Special Thrust
Washer(3)
0K47-01104-0000
Hardened Thrust Washers
0K47-01105-0000
Right Drive
Clutch Assembly
AK47-00043-0001
Main Drive Belt
0K47-01054-0000
8
ARCTIC SILVER 95Si
Left Clutch Assembly
95S-0XXX-02
S/N ACF100000 and up
Special Thrust
E-Ring Washer
Left Clutch/Sprocket Assy.
AK47-00043-0002
E-Rings(2)
0017-00100-0107
Hardened Thrust
Washers(3)
0K47-01105-0000
Special
Thrust
Washer
9
Hardened Thrust
Washer
ARCTIC SILVER 95Si
Crossover Pulley Assembly
95S-0XXX-02
S/N ACF100000 and up
Crossover Pulley Assy
AK47-00007-0000
Frame
Lock Nut
0017-00103-0025
Nut
0017-00103-0026
Washer
0017-00104-0043
Magnet
118E-00001-0124
Bolt
0017-00101-1717
Screw
0017-00101-1148
Backing Plate
0K47-01056-0000
Tensioning Bolt
0017-00101-0928
Intermediate Pulley
Bracket
0K47-01052-0000
Reed Switch
and Cable Assy.
AK63-00050-0000
10
Bolts(2)
0017-00101-1048
ARCTIC SILVER 95Si
Alternator Assembly
95S-0XXX-02
S/N ACF100000 and up
Alternator w/Flywheel
AK47-00038-0000
Alternator Flywheel
0K47-01069-0000
Locking Nut
0017-00103-0117
Alternator Pivot Bolt
0017-00101-0962
Washer
0017-00104-0043
Alternator Strap
0K47-01053-0000
Tensioning Bracket Bolt
0017-00101-0986
Alternator Belt
0K47-01106-0000
11
ARCTIC SILVER 95Si
Guide Rollers
95S-0XXX-02
S/N ACF100000 and up
Return Spring Pulley(2)
0K47-01066-0000
Snap Ring(6)
0017-00100-0050
Pulley Spring Shaft
0K47-01154-0000
Bolt
0017-00101-1048
Nut
0017-00103-0025
Belt Idler Pulley(2)
0017-00009-1147
Bolt(2)
0017-00101-1098
Idler w/Bearing(2)
AK63-00008-0000
Bolt - 0017-00101-1722
Nut - 0017-00103-0025
12
ARCTIC SILVER 95Si
Power Control Board and Resistor
95S-0XXX-02
S/N ACF100000 and up
Resistor Assembly
AK47-00037-0000
Plastic Grommet(4)
0017-00042-0821
Power Control Board
B084-92239-0000
PCB Bracket
0K47-01087-0000
Phillips Screw(4)
0017-00101-0823
13
ARCTIC SILVER 95Si
Polar Receiver Assembly
95S-0XXX-02
S/N ACF100000 and up
Cap
0K63-01114-0001
Electrode, Top
AK69-00139-0001
Electrode, Bottom
AK69-00140-0001
Screws (2)
0017-00101-1277
Polar Cap
0K47-01075-0002
Isolator
0K36-01059-0002
Polar Receiver
SK40-00045-0001
Screw
0017-00101-1844
Screw
0017-00101-1761
14
ARCTIC SILVER 95Si
Cables
95S-0XXX-02
S/N ACF100000 and up
Description
Part No.
Domestic 120/60 Battery Charge w/Cord
Universal Battery Charger w/o Line Cord
Line Cord 220V/60Hz
Line Cord 100V/50Hz
Line Cord 240+
Line Cord 220V/50Hz
Line Cord 200V/50Hz
Line Cord 230V/50Hz
118E-00001-0165
118E-00001-0166
15
0017-00003-0704
0017-00003-0918
0017-00003-0691
